Wonder Woman: Batman V Superman

Discussion in 'DC Costumes and Props' started by LaraCupcake, Mar 19, 2015.

  1. LaraCupcake

    LaraCupcake New Member

    Trophy Points:
    4
    I finished this costume a couple months ago but decided to post progress pictures from the build. It was my first big armor project and first time working with Wonderflex.
    As I'm sure a lot of people know, there's only one reference photo for the Gal Gadot Wonder Woman from the new Batman V Superman movie, so I had to wing the back. Also the reference picture at the time was not colored, it was that awful sepia filtered photo. So that was fun trying to figure out paint. These were the pictures I broke down to work with.
    I used all Wonderflex for the armor and the fabric is two different suedes.
    gal-gadot-s-wonder-woman-costume-breakdown-cc9dec44-6fc0-4836-8037-4fa7b4bd5dca.jpeg it-s-time-to-get-over-gal-gadot-s-wonder-woman-casting-already-8f9180d3-b159-4ff3-8853-12a744aa.jpeg tumblr_n9soolu3cX1qcw9rdo1_500.jpg wonder_woman_weapons.jpg

    I will be remaking the sword very soon and will post pictures of that as well :)

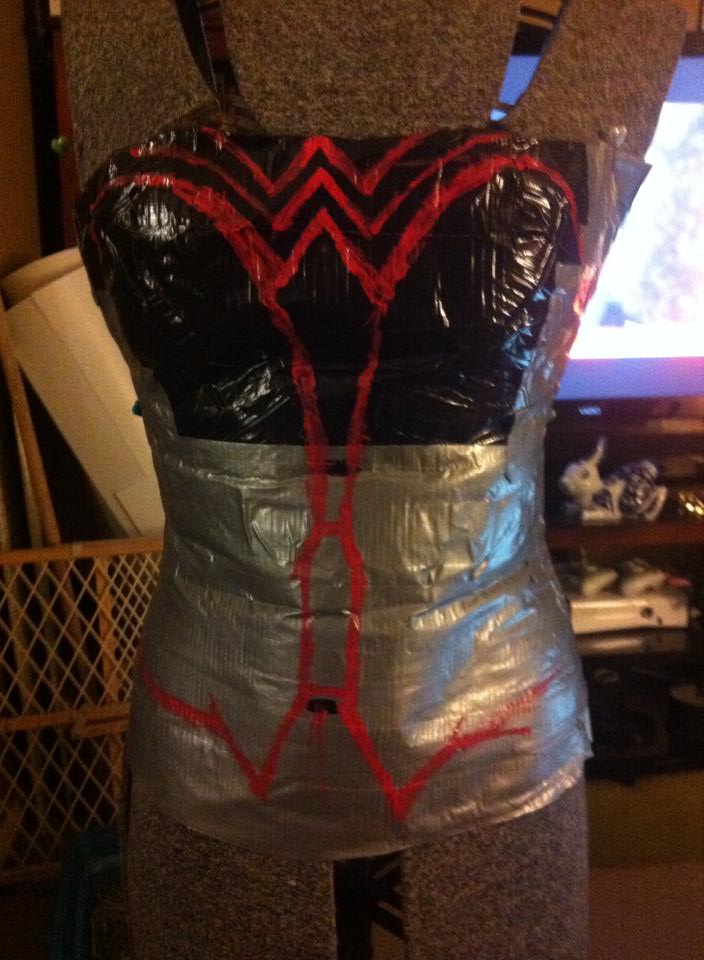

    I did a duct tape torso pattern first with plastic wrap and duct over. Drew my basic pattern on it and then cut that off. I used those pieces for my basic pattern but did alter a lot of the pieces.

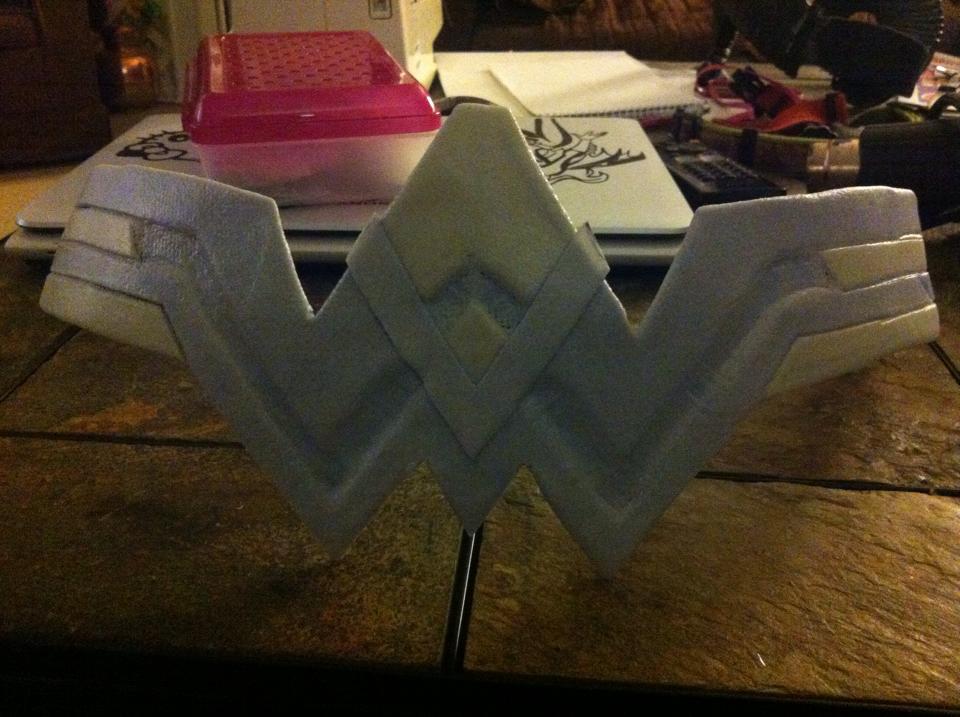

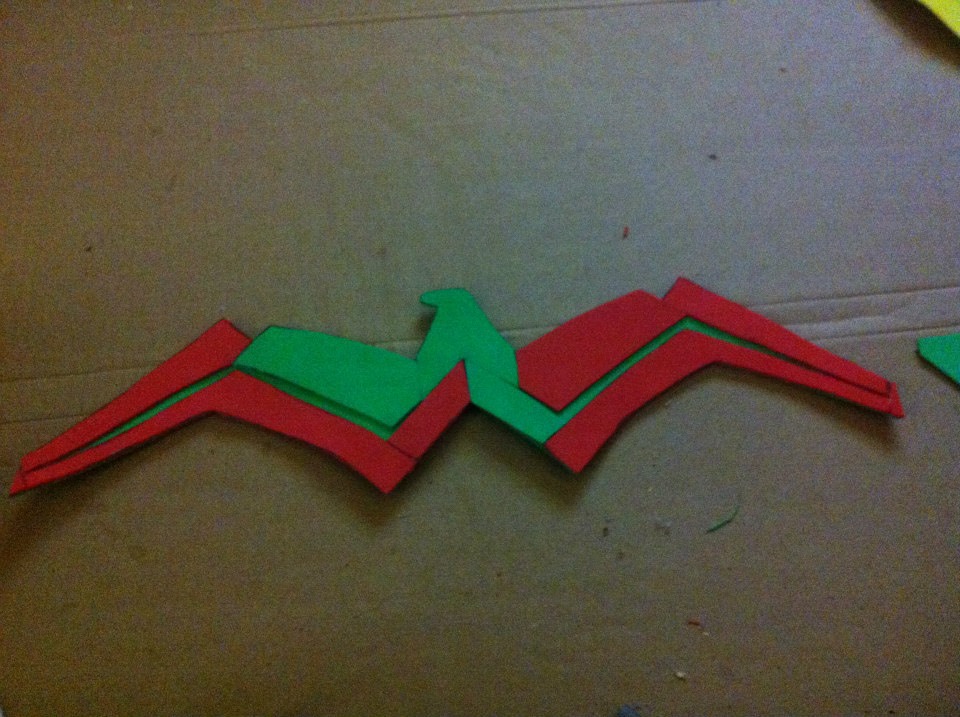

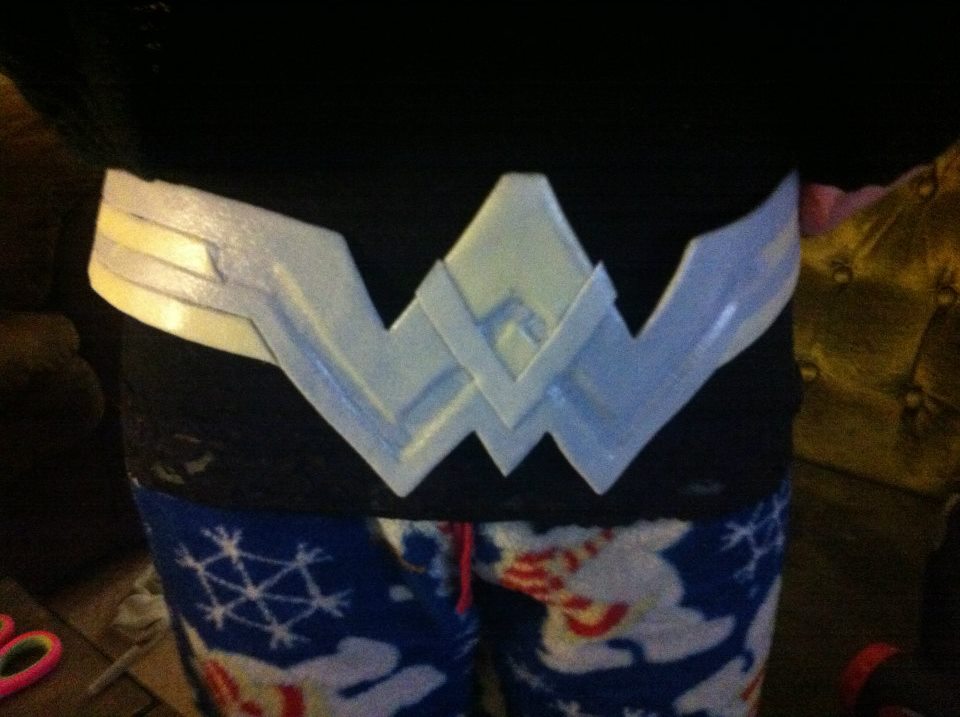

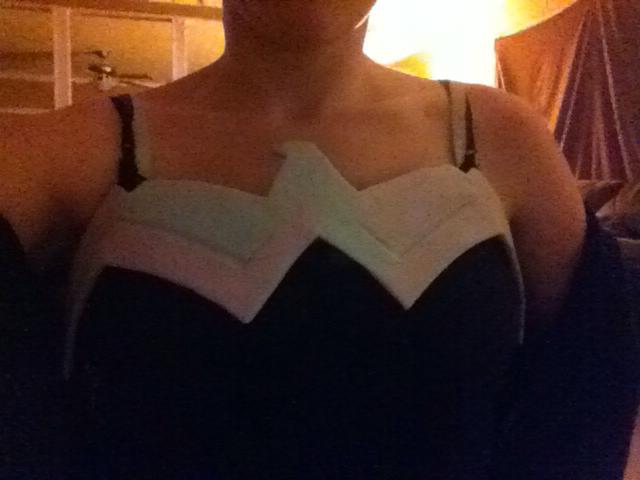

    Belt and chest piece

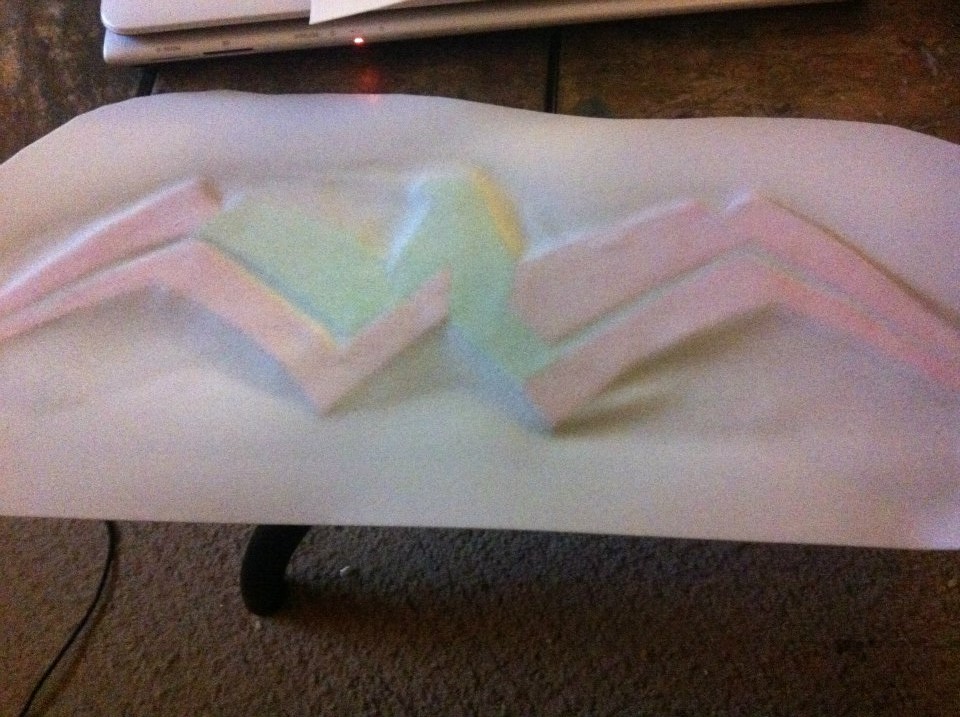

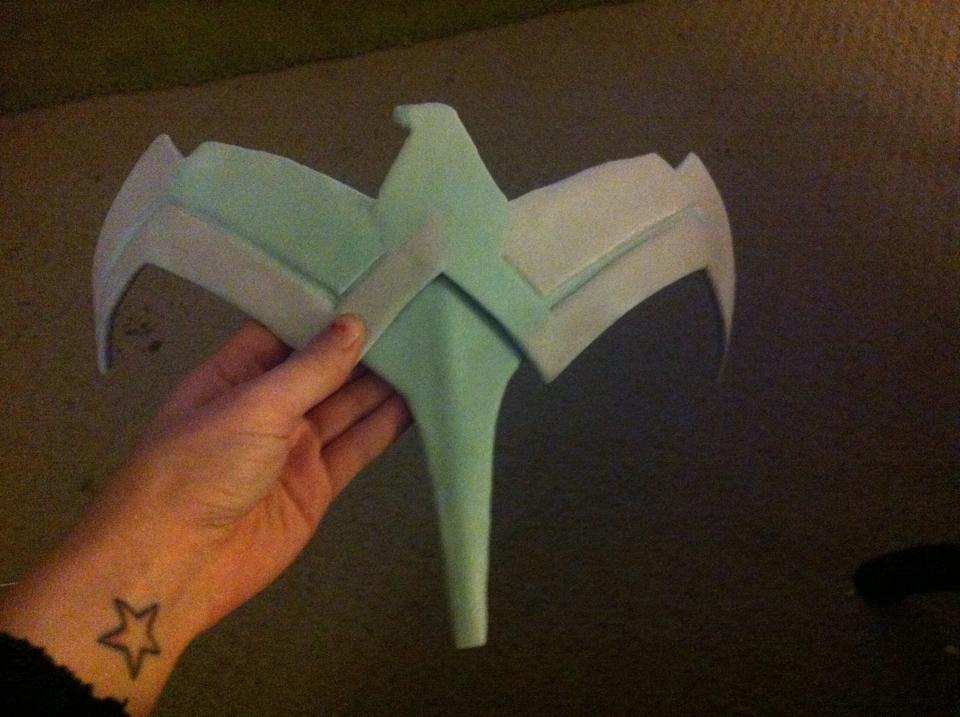

    I use craft foam for the shape and base to go under all the Wonderflex.
    10733532_10152774836170396_1675032337_n.jpg 535891_1568149313405923_3184250572662894969_n.jpg 16159_1568149316739256_636774335624622186_n.jpg 1904084_1568149336739254_6742794661782356669_n.jpg 10735846_10152777288115396_1706034415_n.jpg 10635718_1568149383405916_7723407870096546860_n.jpg 10743439_10152777288070396_1933433566_n.jpg 10743277_10152777288105396_1280354059_n.jpg



    Bracers

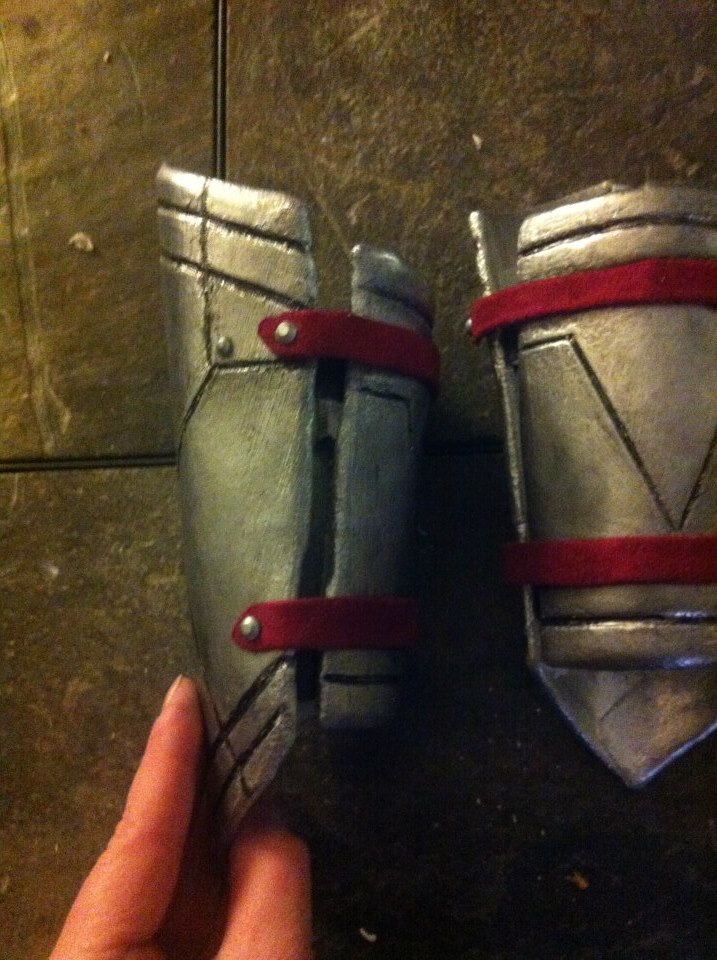

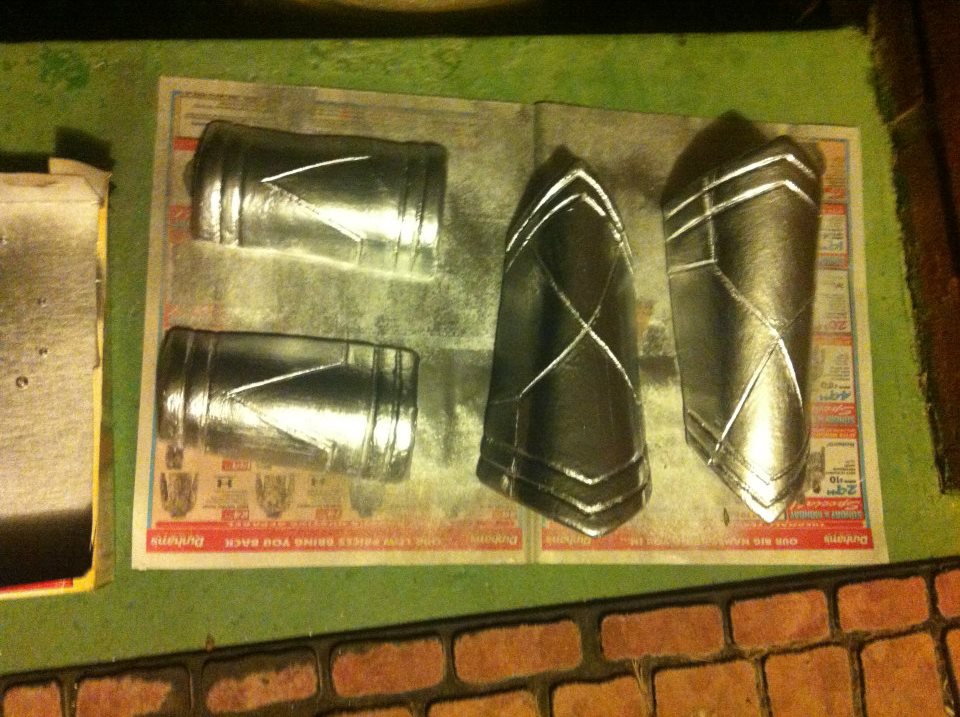

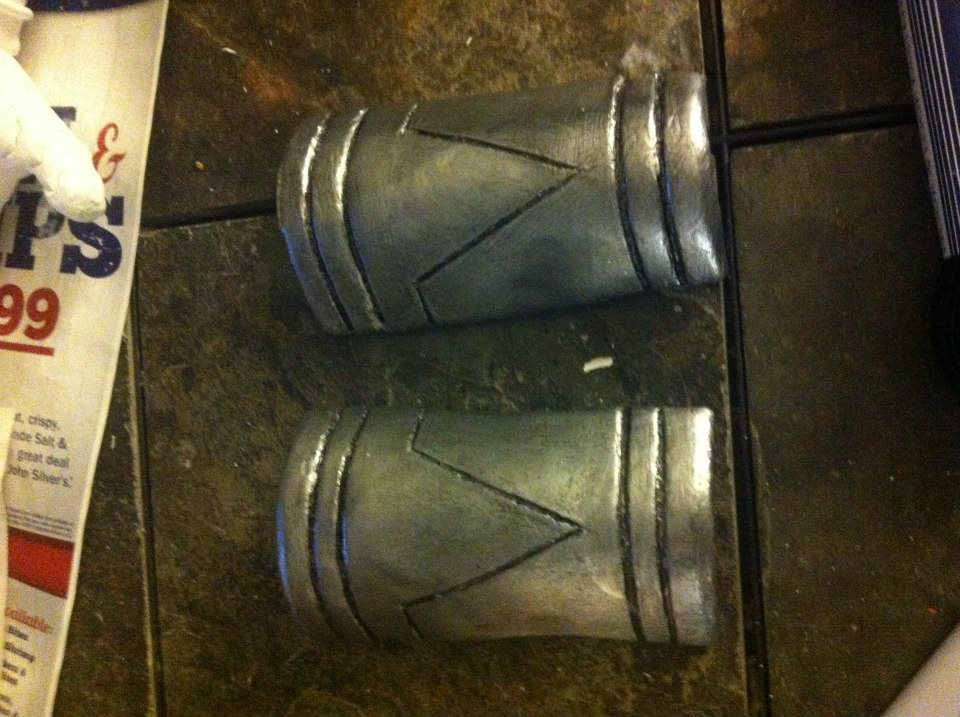

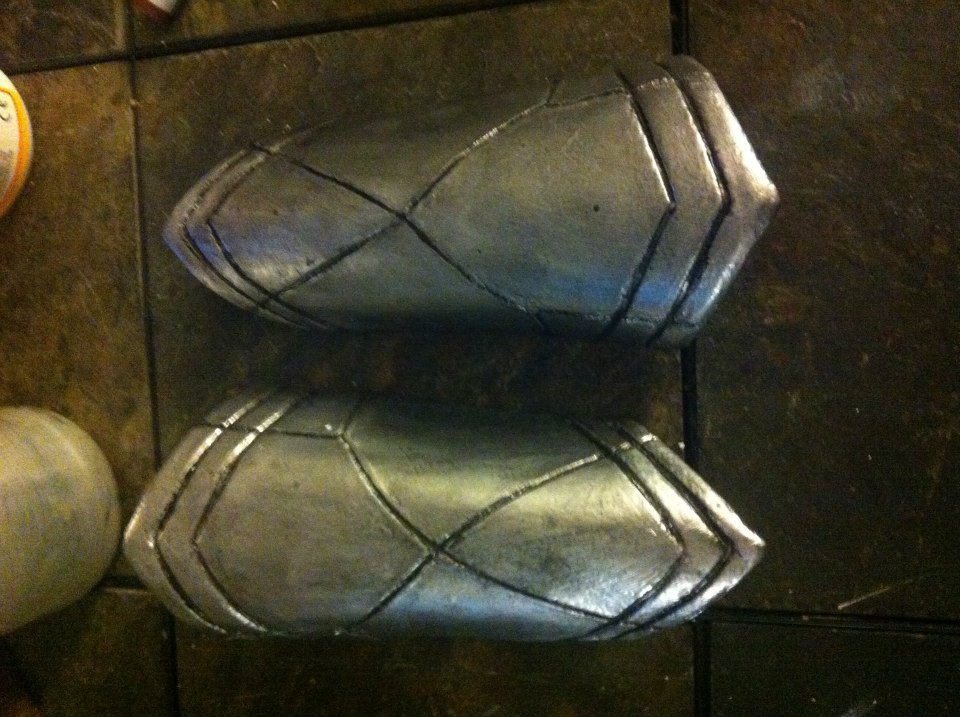

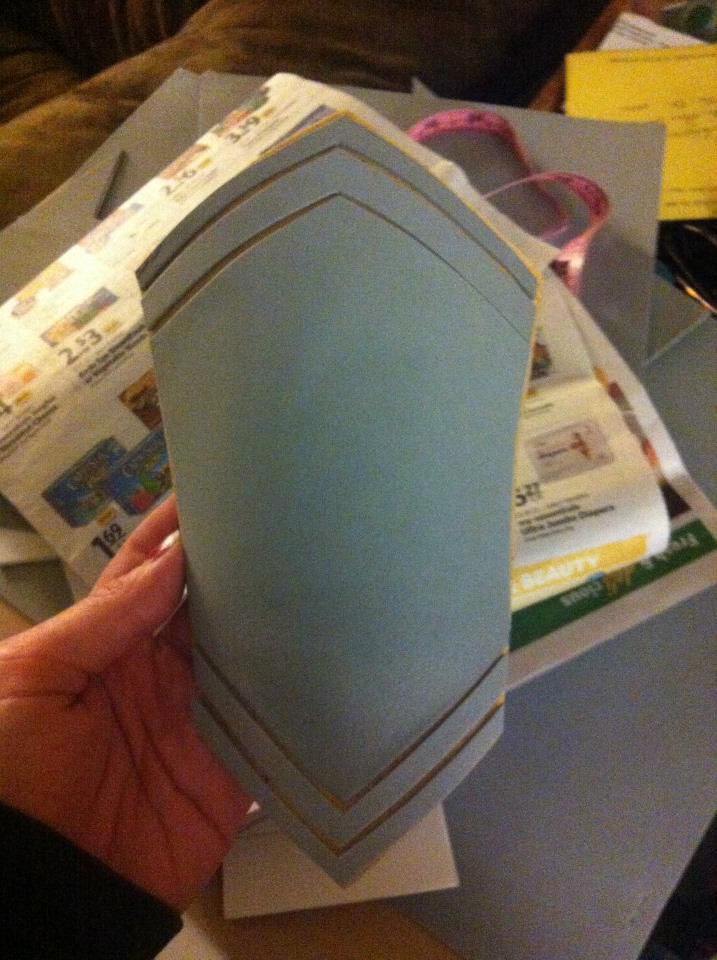

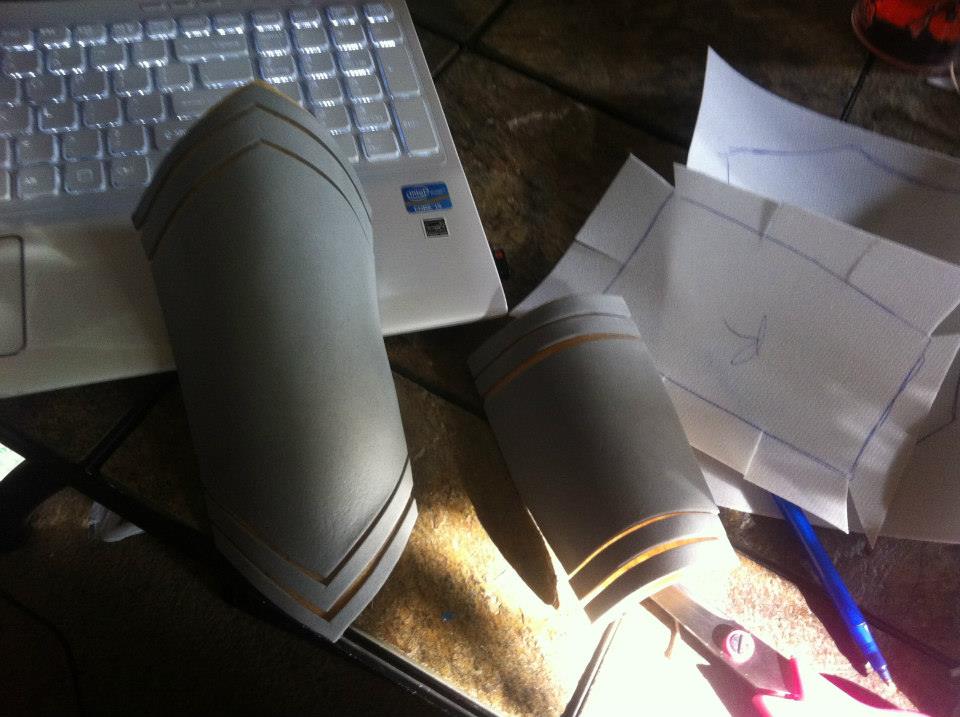

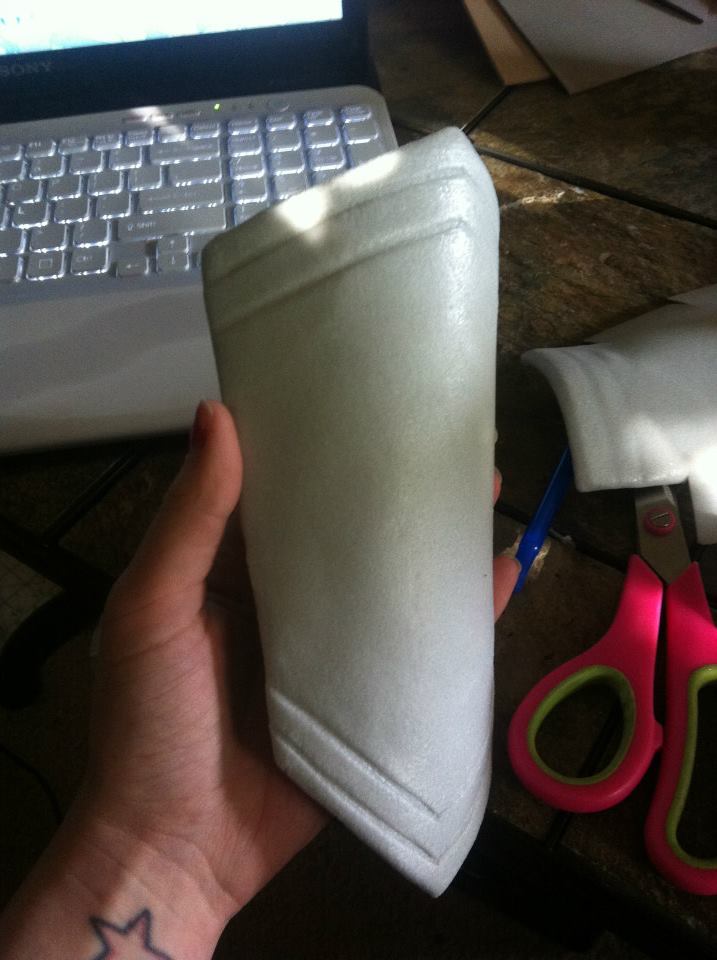

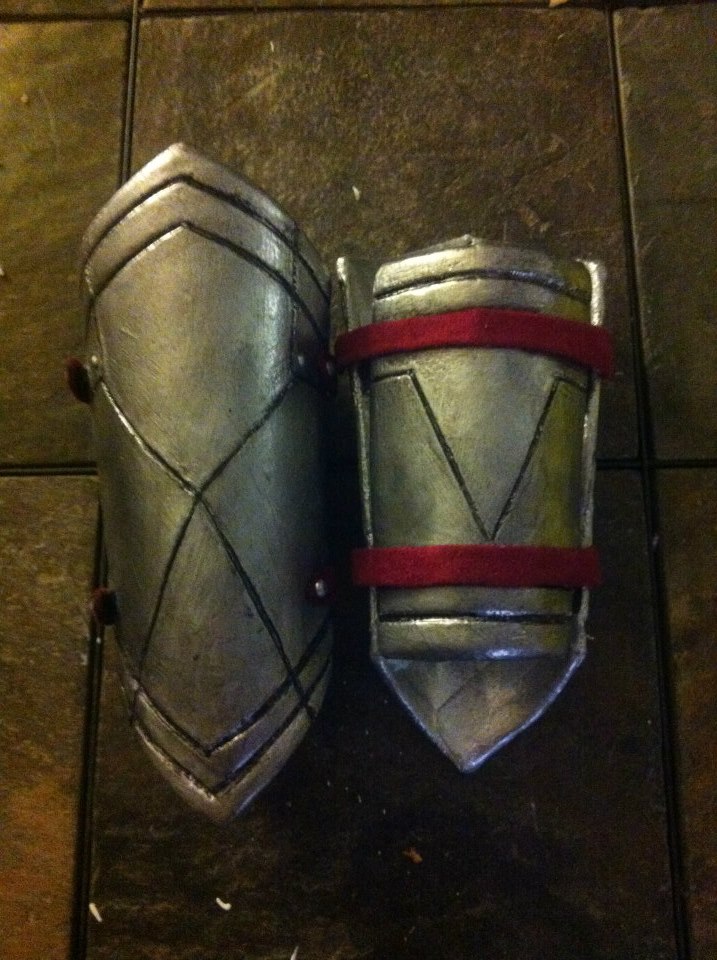

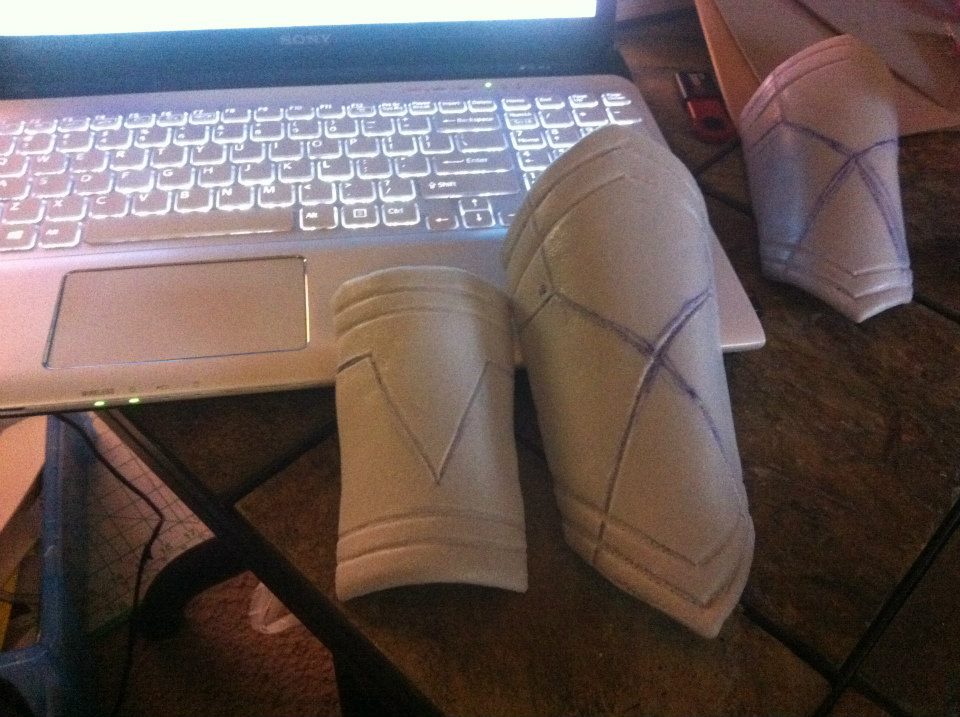

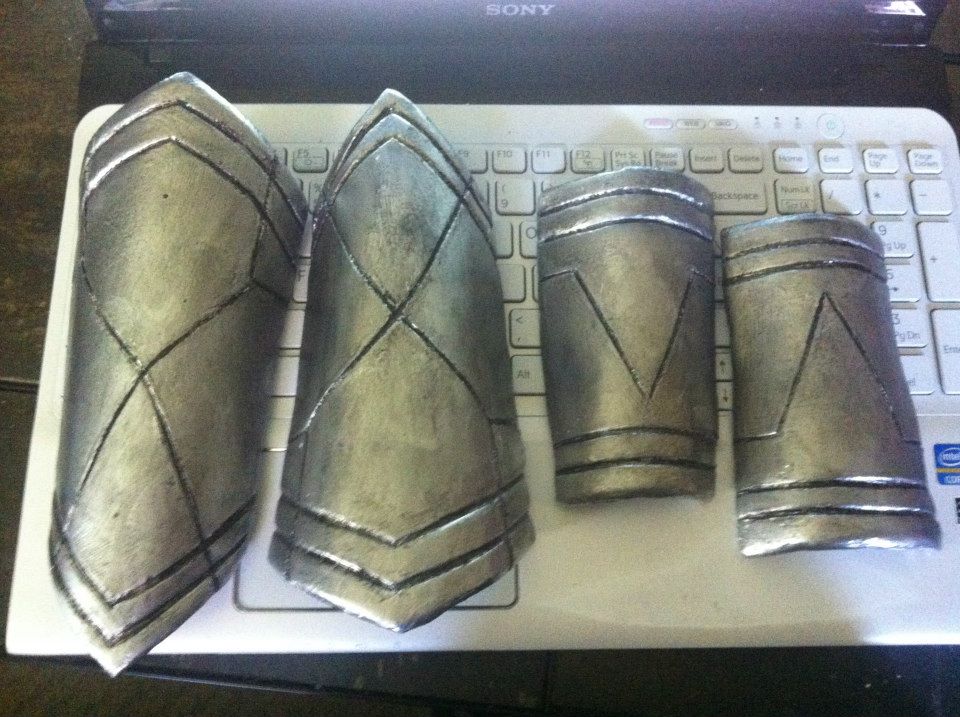

    I cut a piece of worbla the shape i need for the front and back piece, the craft foam to go over, heated and molded to it. then wonderflex over it all. I pressed the design in with a sculpting tool. I sealed them with a couple coats of gesso, sanded, primed, then painted with metallic spray paint. I aged them with black acrylic paint and rubbed it in with a paper towel. The straps are suede, the "rivets" are gems I found at hobby lobby with i spray painted silver and attached with super glue. The bracers have 4 pieces of elastic on the inside so I can just slide them on and off. The suede straps have a small piece of velcro on them.


    1620536_1568149023405952_2458428740466483147_n.jpg 1947443_1568148963405958_7214265774493143398_n.jpg 10382625_1568149026739285_2117499468109850070_n.jpg 10371958_1568149043405950_3994985236414289688_n.jpg 10154059_1568149610072560_4276972400699603730_n.jpg 10606622_1568149923405862_1306651657879619603_n.jpg 10389539_1568149843405870_4301041057336695239_n.jpg 10393661_1568149820072539_772476216873471637_n.jpg 10356313_1568150300072491_4439465607914780279_n.jpg 10411779_1568150273405827_4155370966762605523_n.jpg

    Next post!! Breast plate!!!

    My finished costume is on my facebook page, facebook.com/LaraCupcakeCosplay

    Last edited: Mar 19, 2015
    mvanwalks421 likes this.
  2. LaraCupcake

    LaraCupcake New Member

    Trophy Points:
    4

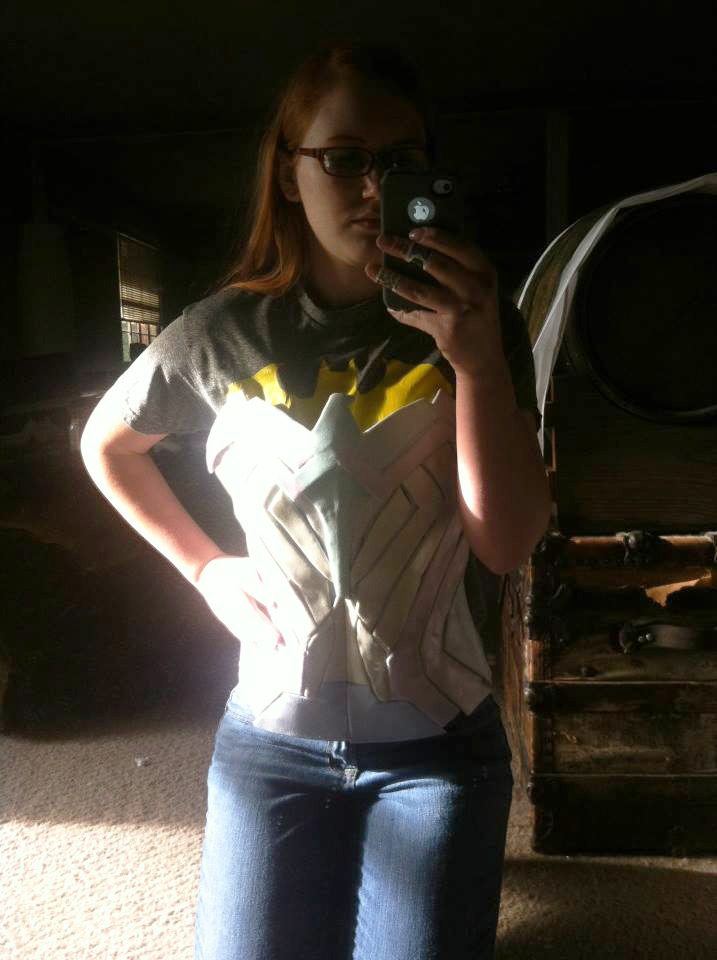

    Breast plate time

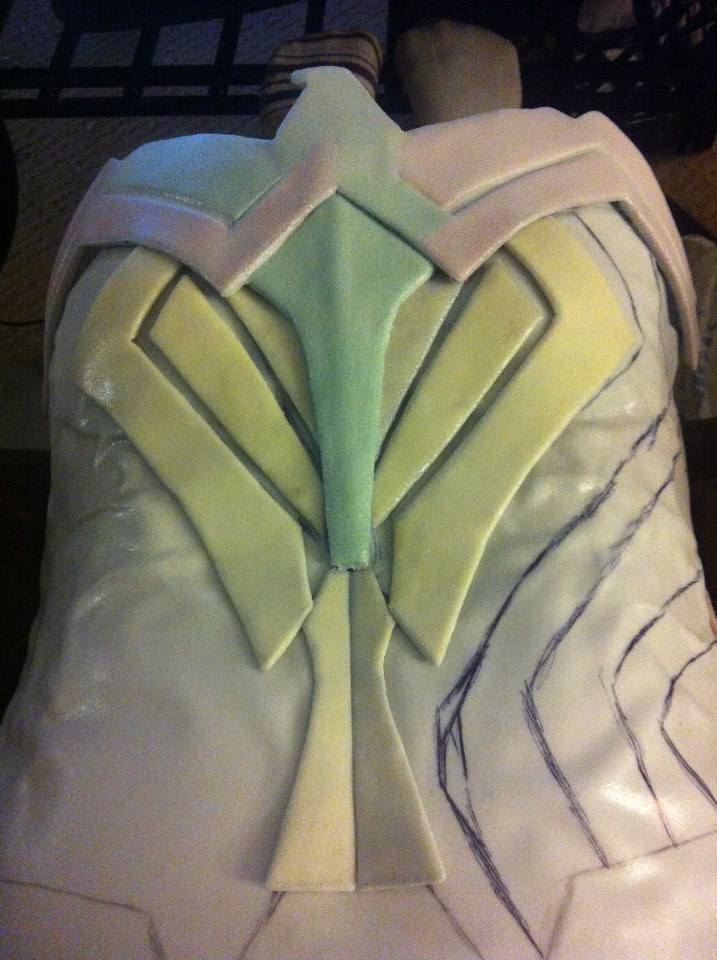

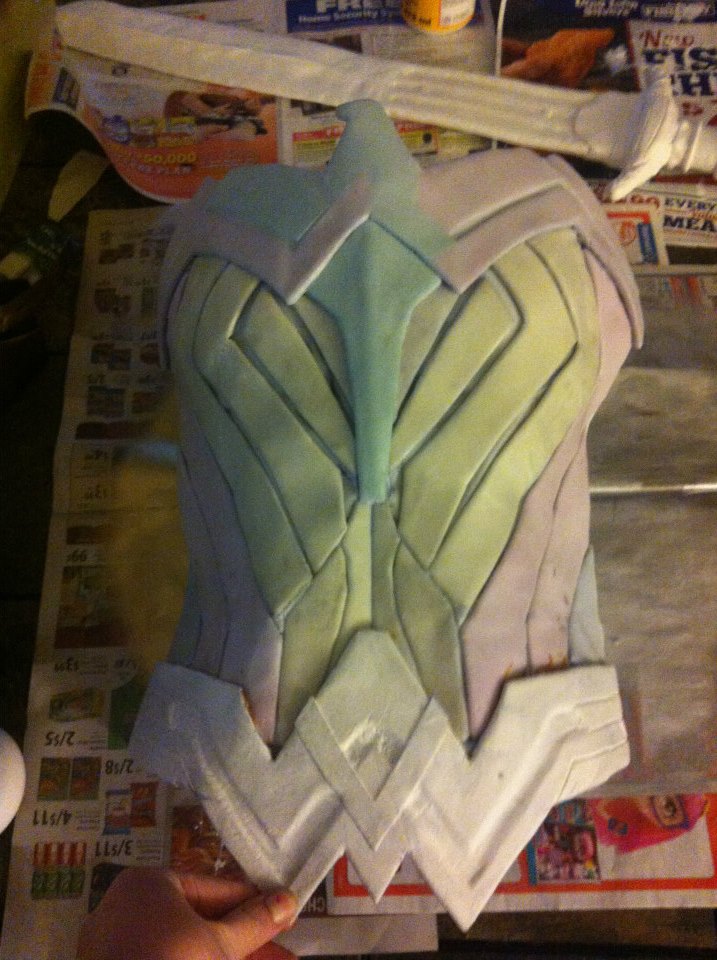

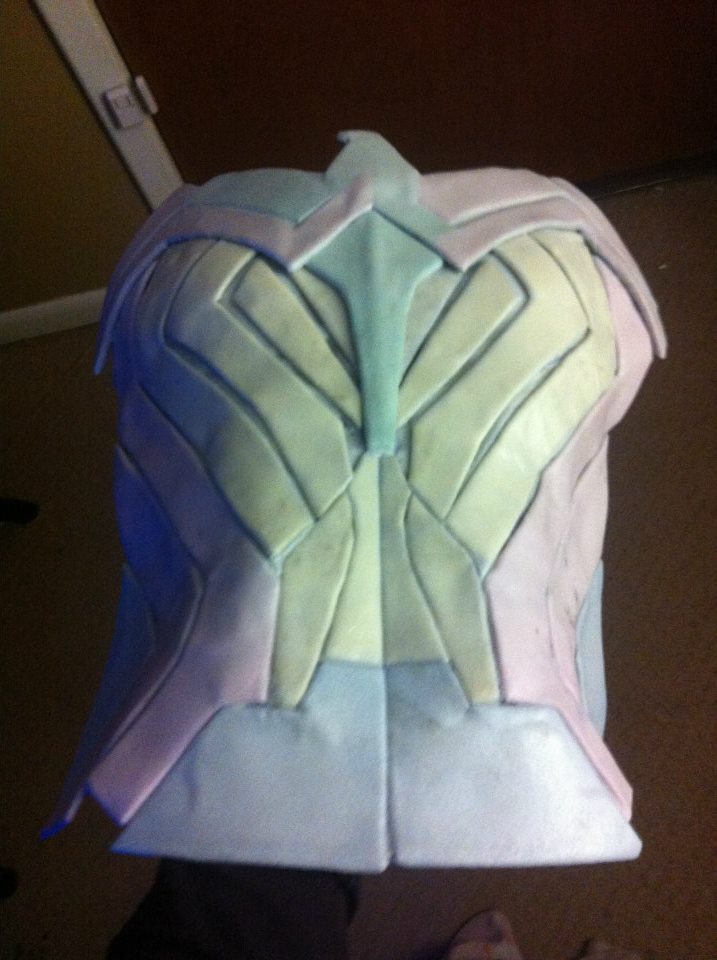

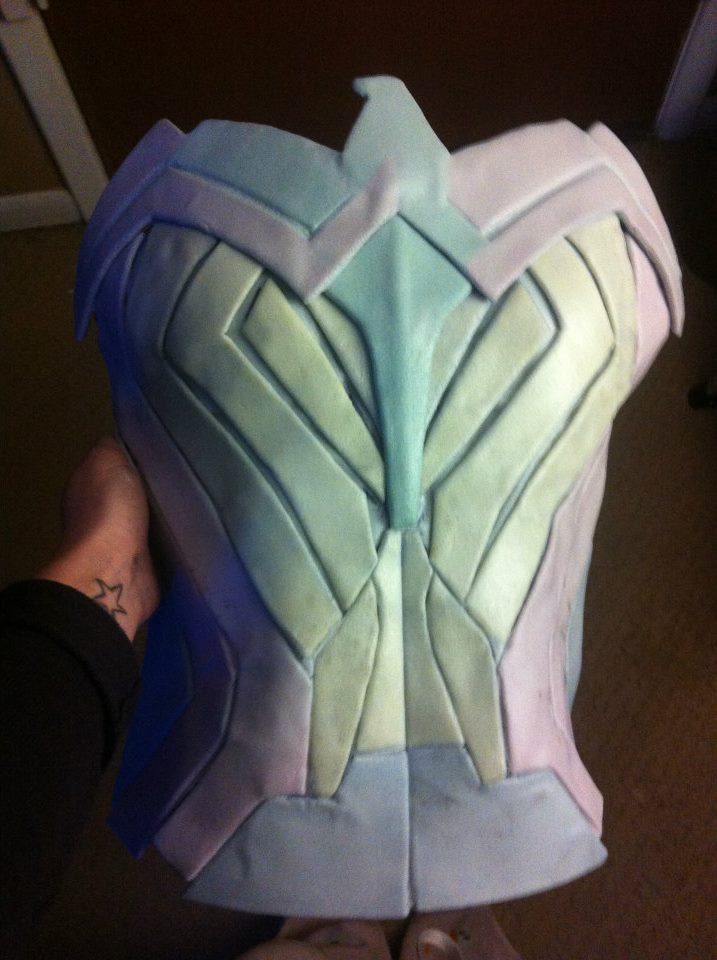

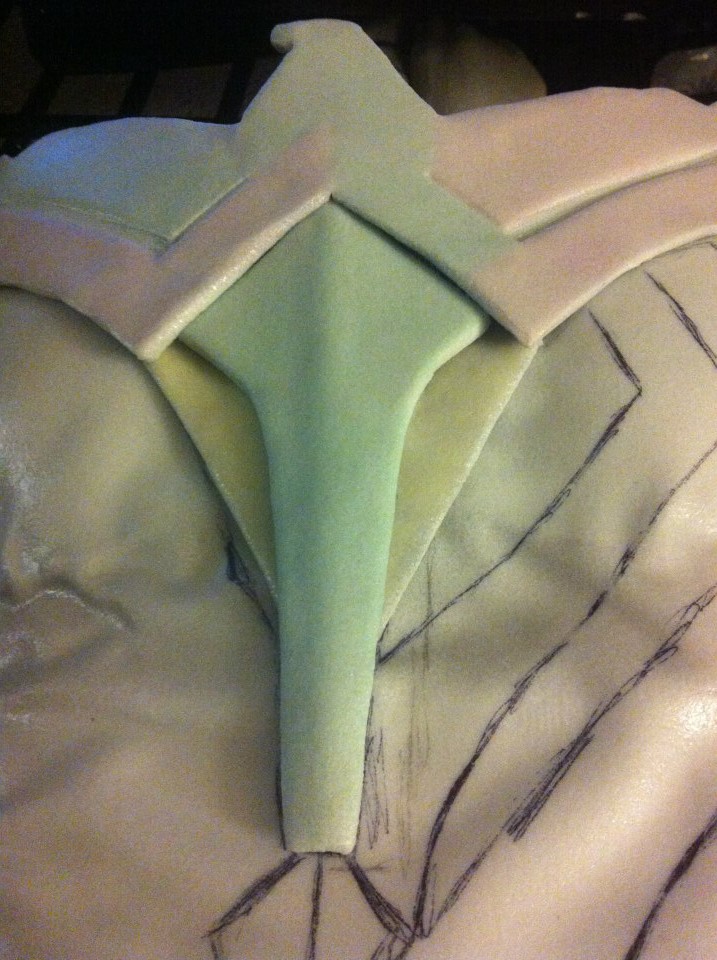

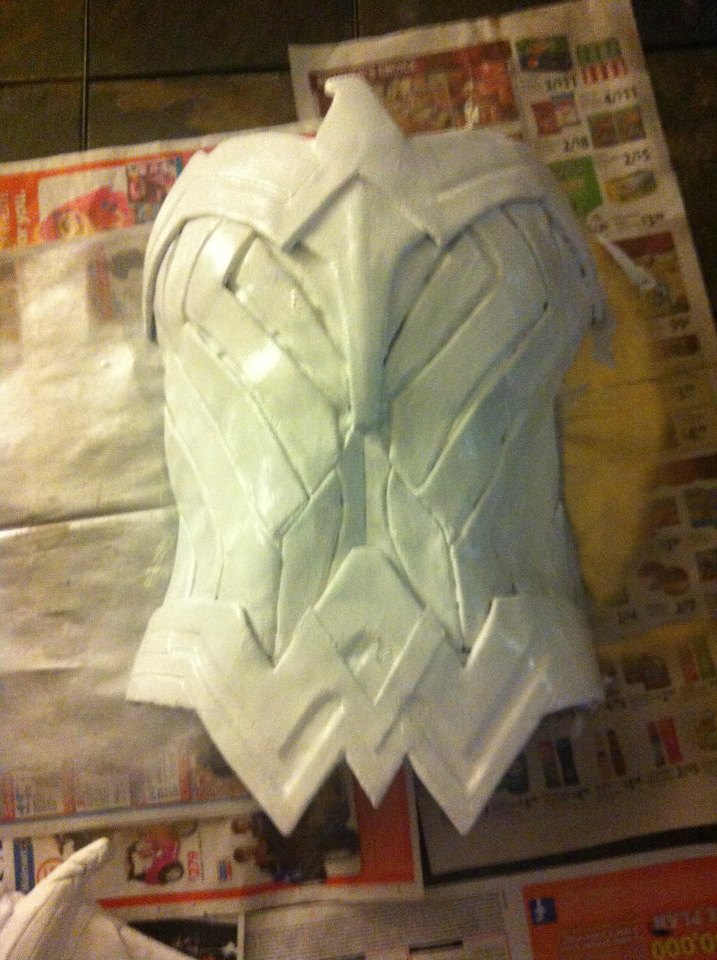

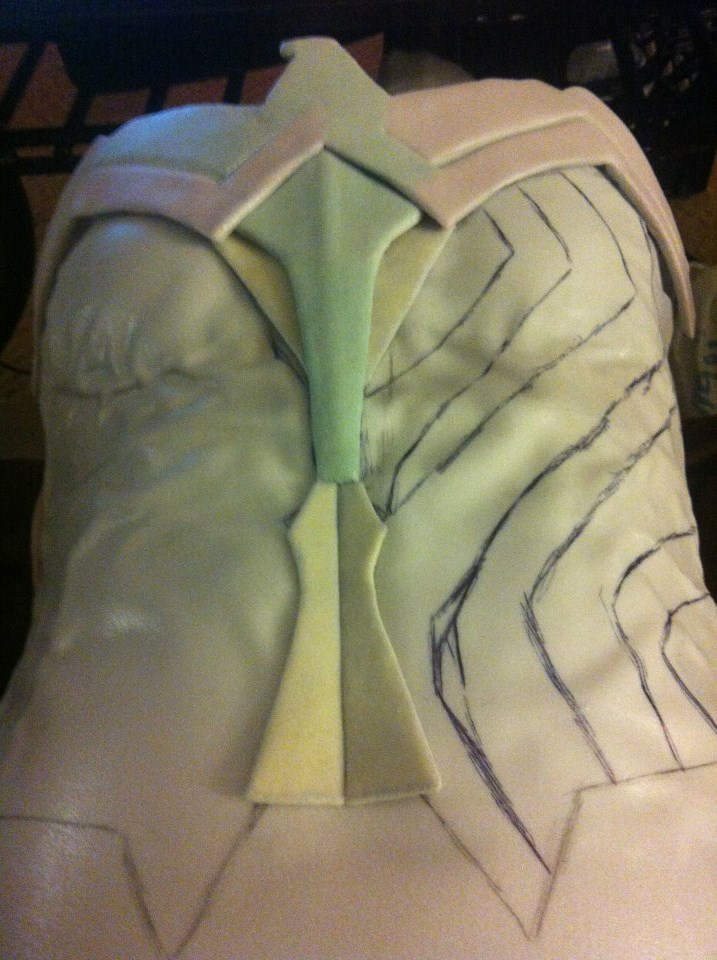

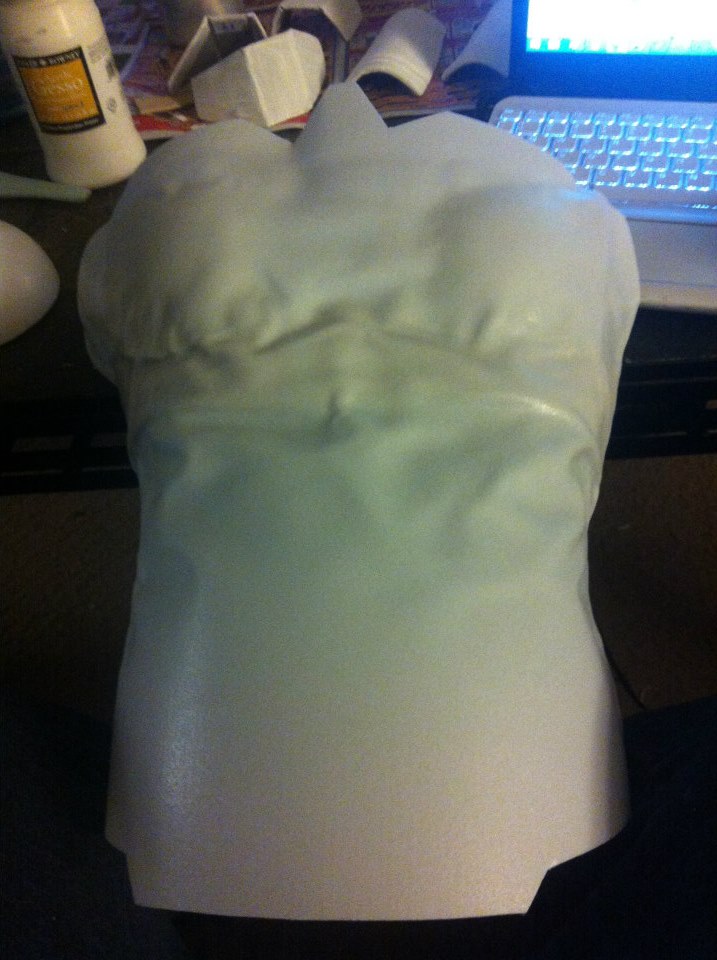

    I used to foam balls to form the cup shape. I will say this about wonderflex, it does not mold more than one direction very well. Getting all the wrinkles out of the base was nearly impossible. Luckily it was all covered. The strips are craft foam and have wonderflex over them and then heated and just pressed onto the base.

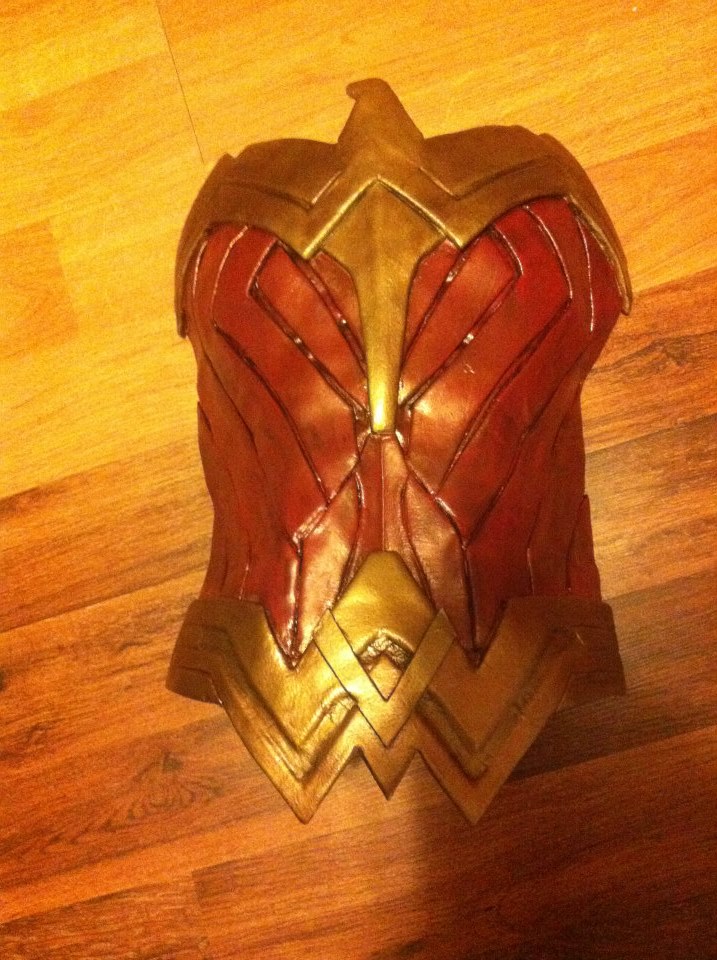

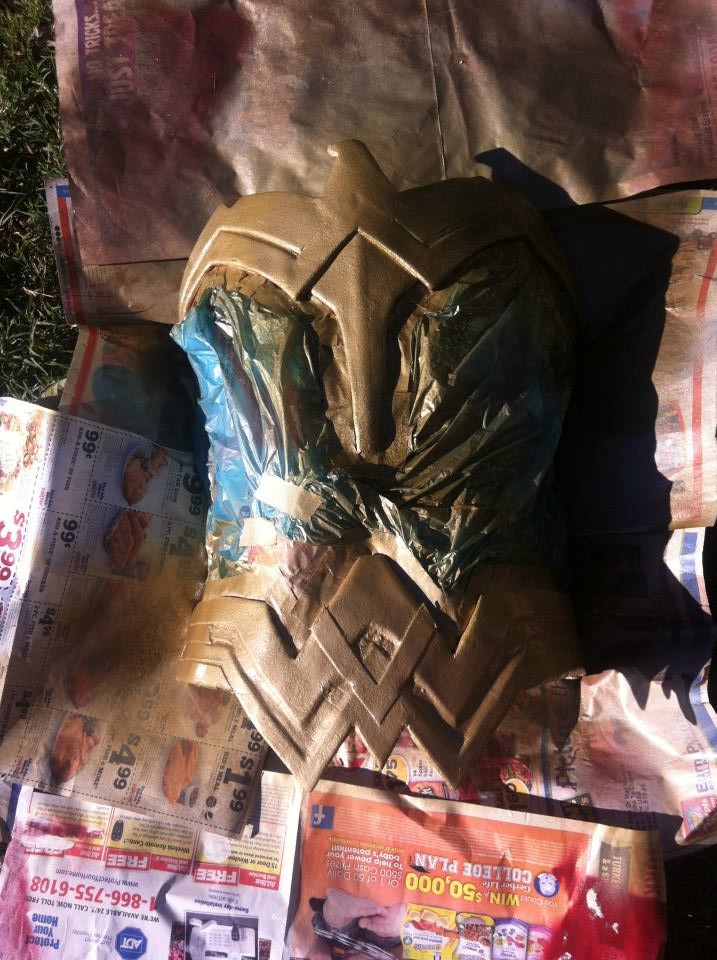

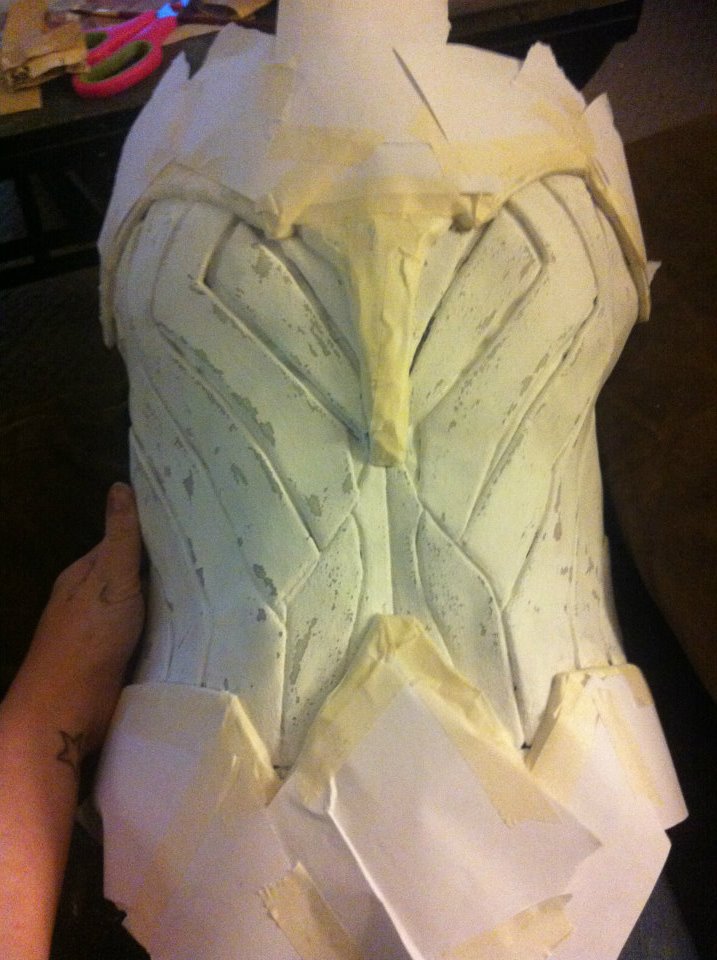

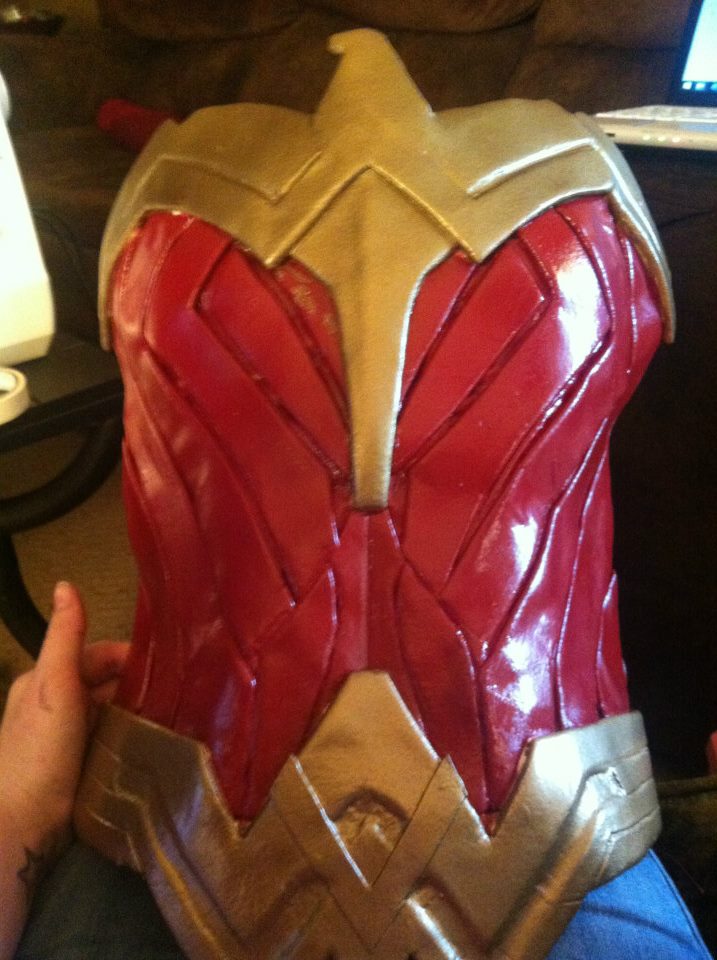

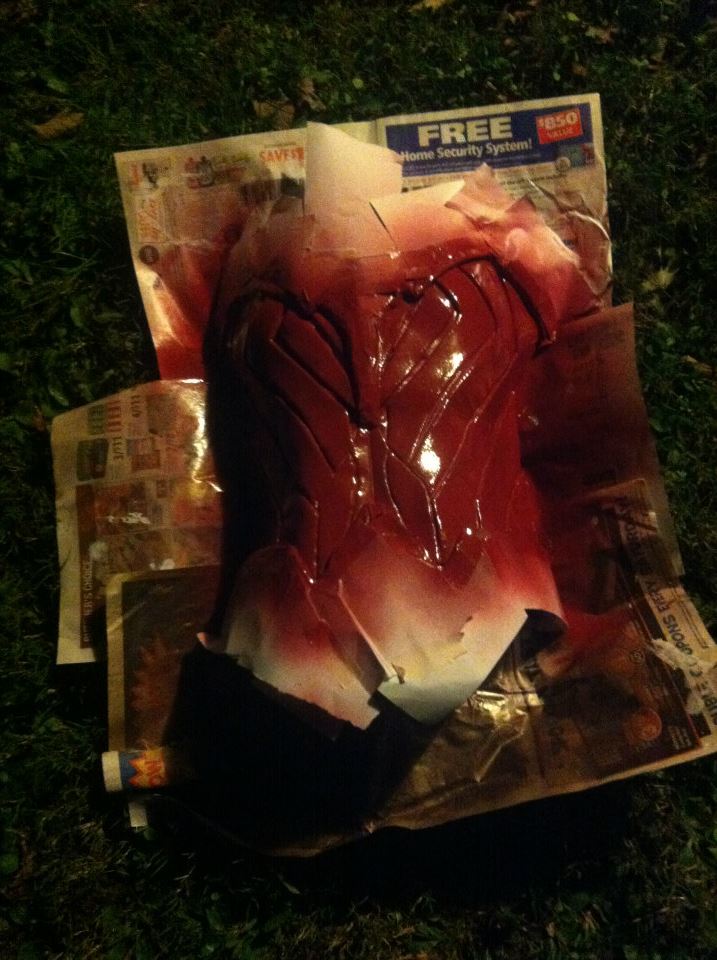

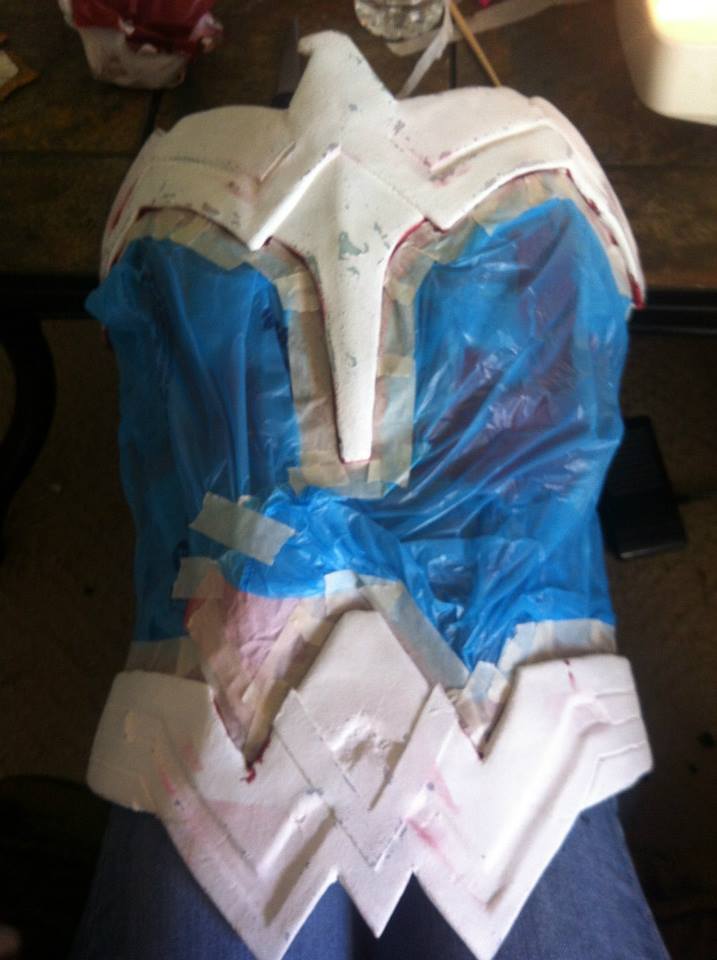

    Then sealed with gesso, sanded, primed, and painted. You can see where everything was tape for the painting. And the paints I used. The hammered effect was amazing over the metallic paint for the belt and bird piece. I used D rings and straps to wear the plate.

    10659200_1568149503405904_85387337840188991_n.jpg 10689778_1568149683405886_1628131947866592361_n.jpg 10646997_1568149686739219_3637782775397361923_n.jpg 10393915_1568149700072551_1595820273822843820_n.jpg 1016594_1568149883405866_170032245405593150_n.jpg 10616357_1568149890072532_3845092899581695516_n.jpg 10271604_1568150073405847_2857574451144059008_n.jpg 10710784_1568150103405844_7421165714446153202_n.jpg 1530543_1568150216739166_5664104607301264610_n.jpg 10394468_1568150006739187_1241131719272068616_n.jpg 10402482_1568150243405830_2805423417984581624_n.jpg 10404371_1568150366739151_2229918084515479645_n.jpg 10408884_1568150466739141_228886308671150044_n.jpg 10382846_1568150503405804_2394282934034078226_n.jpg 10647230_1568150516739136_6963445017951325839_n.jpg

    Last edited: Mar 20, 2015
    mvanwalks421 likes this.
  3. Rickhemingway

    Rickhemingway Well-Known Member

    Trophy Points:
    866
    Looks like a great start so far! Very nice details, and I'm looking forward to seeing the finished product! Good luck!

    LaraCupcake likes this.
  4. LaraCupcake

    LaraCupcake New Member

    Trophy Points:
    4

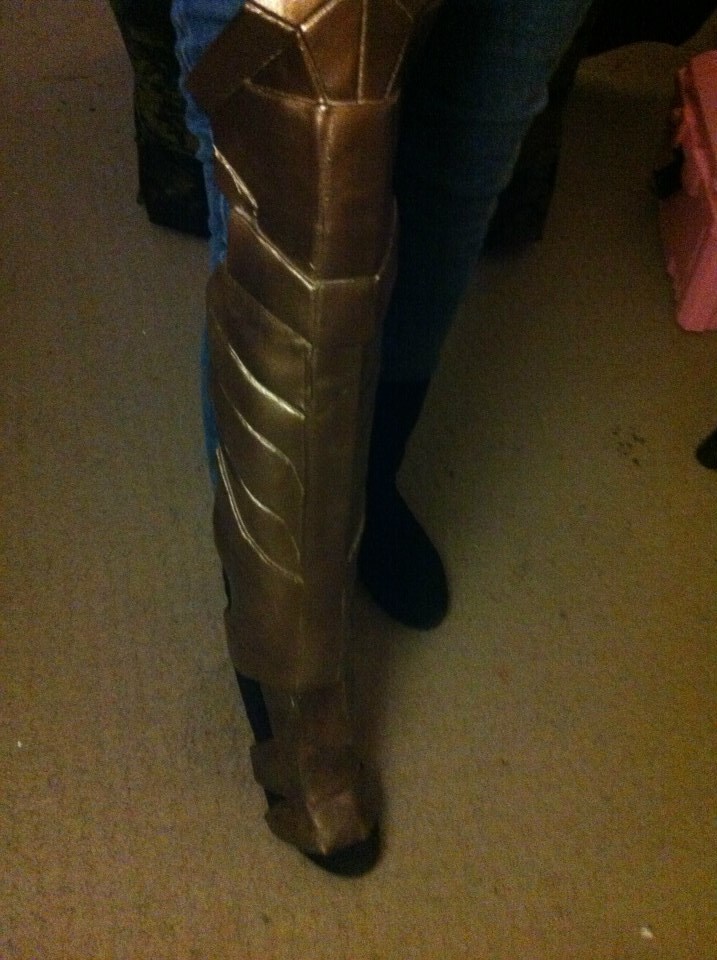

    Legs and boots

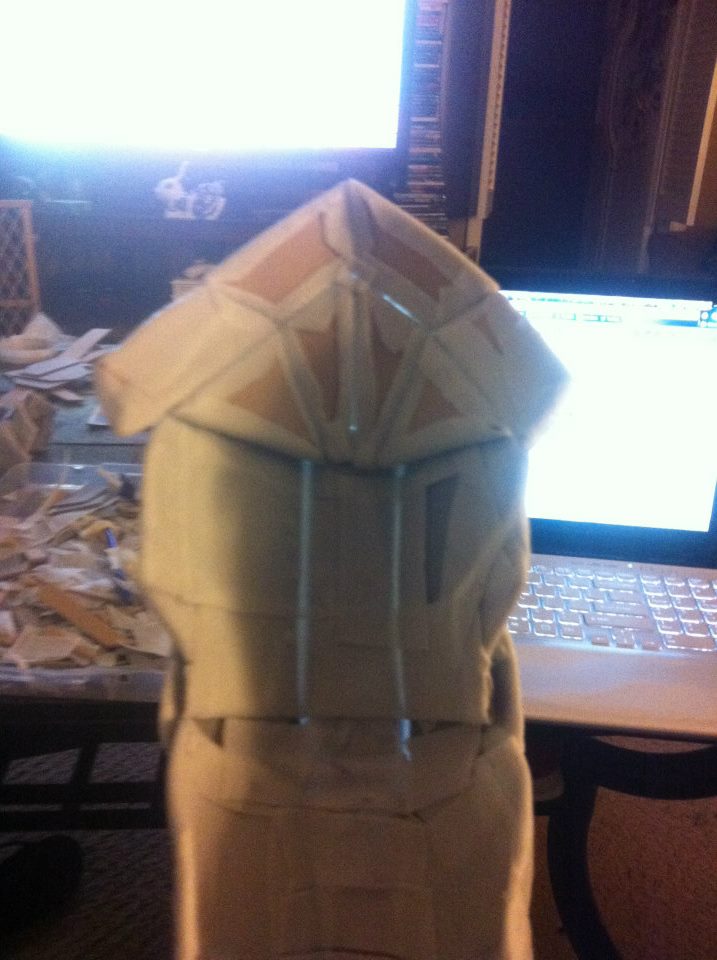

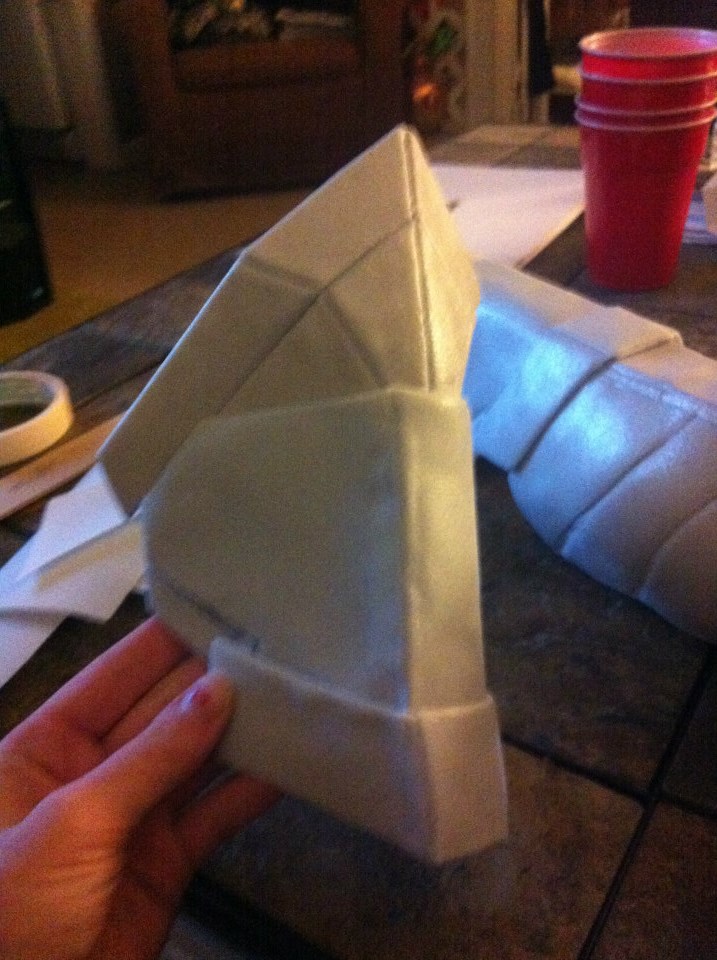

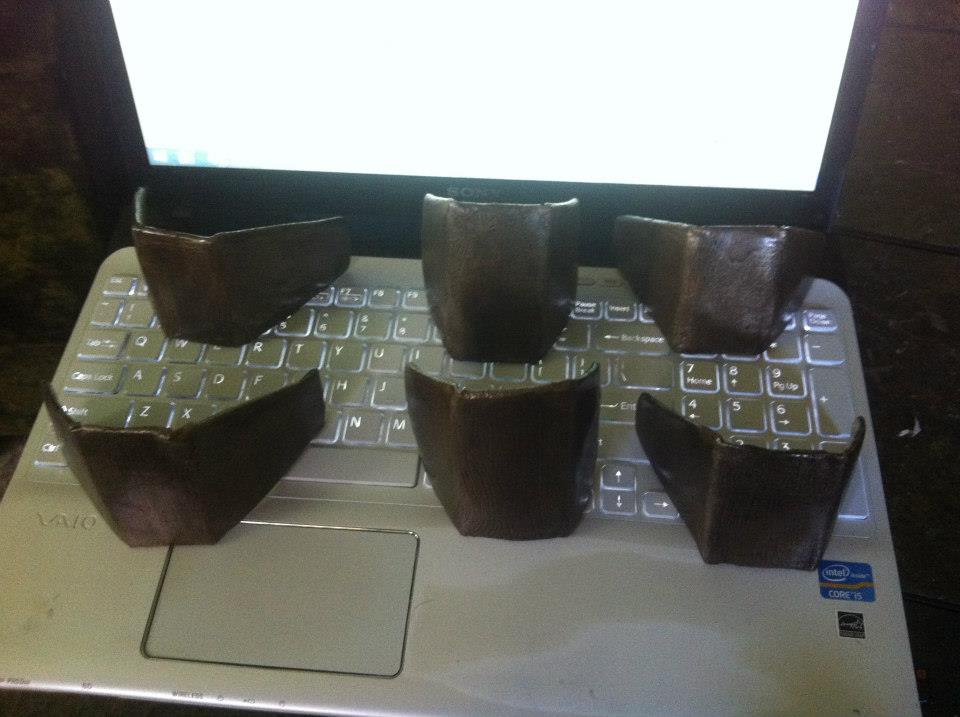

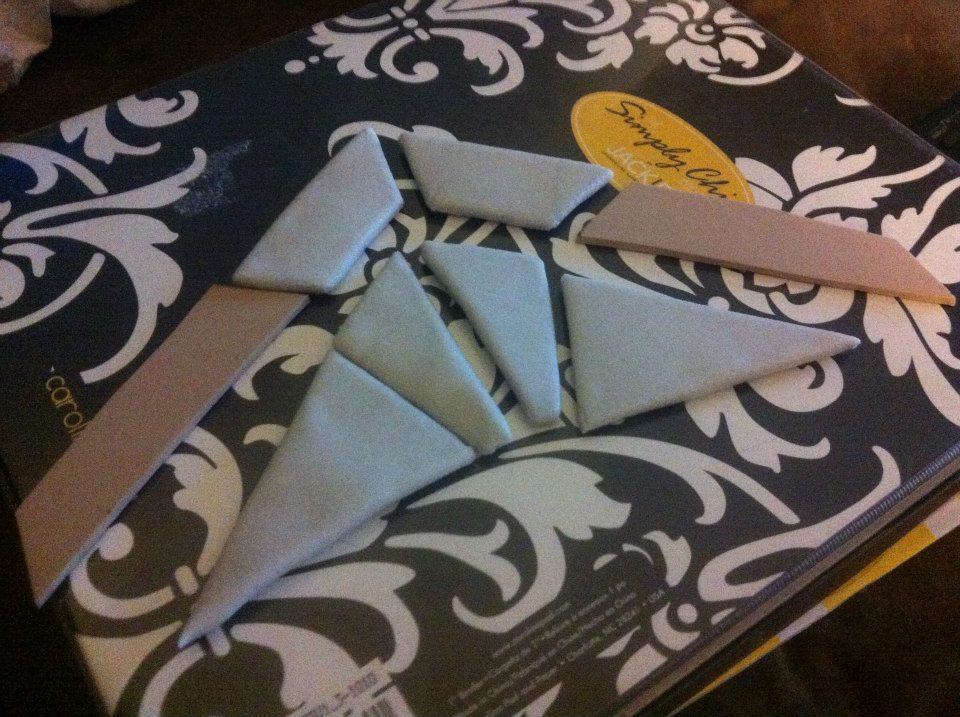

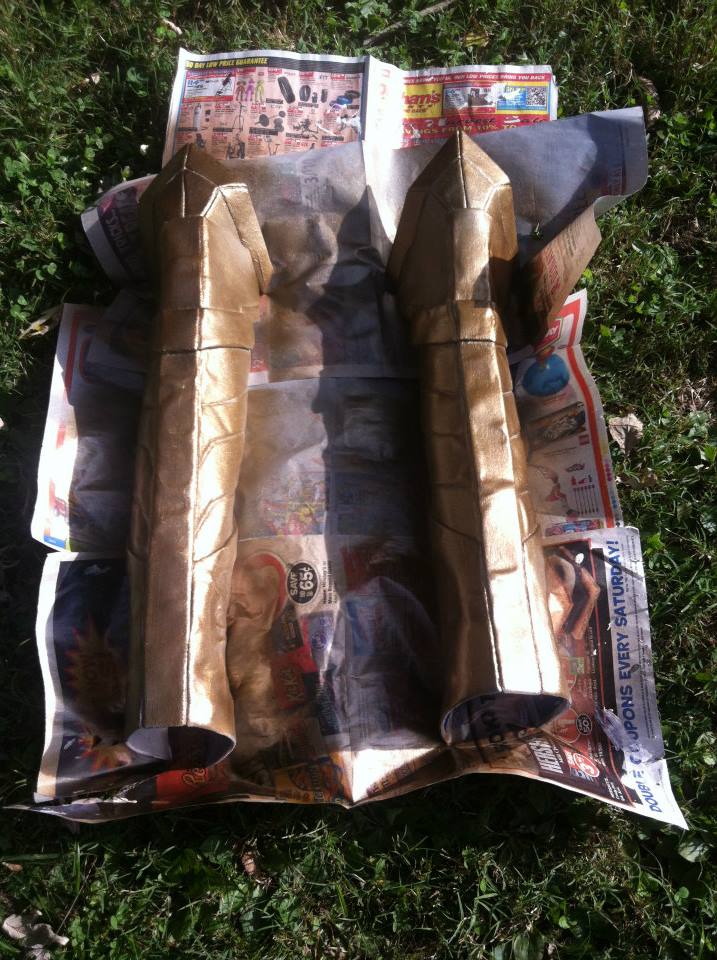

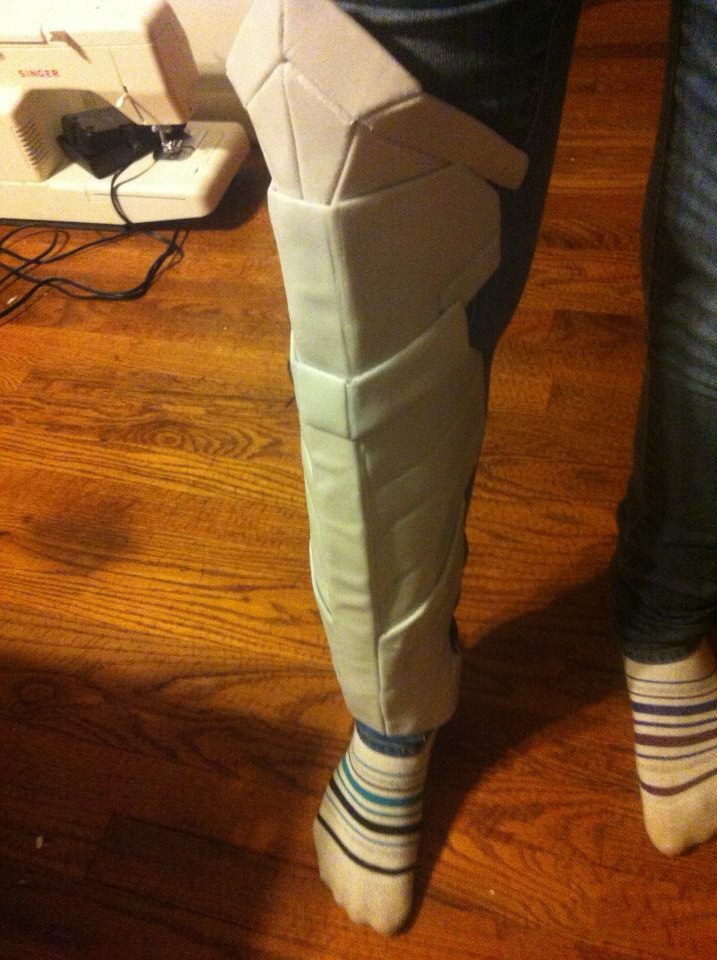

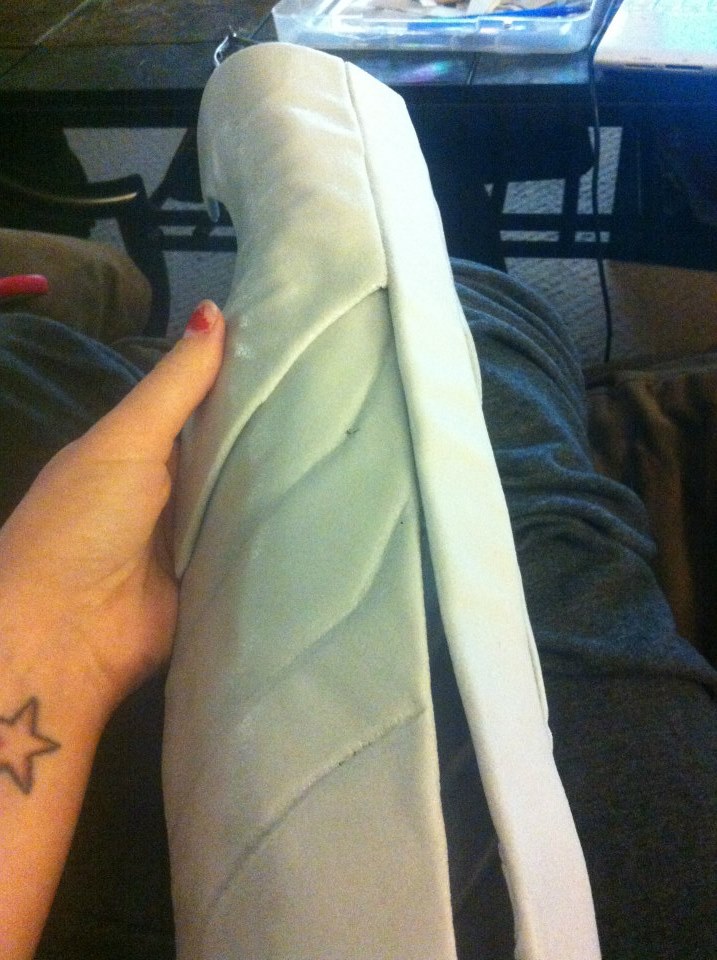

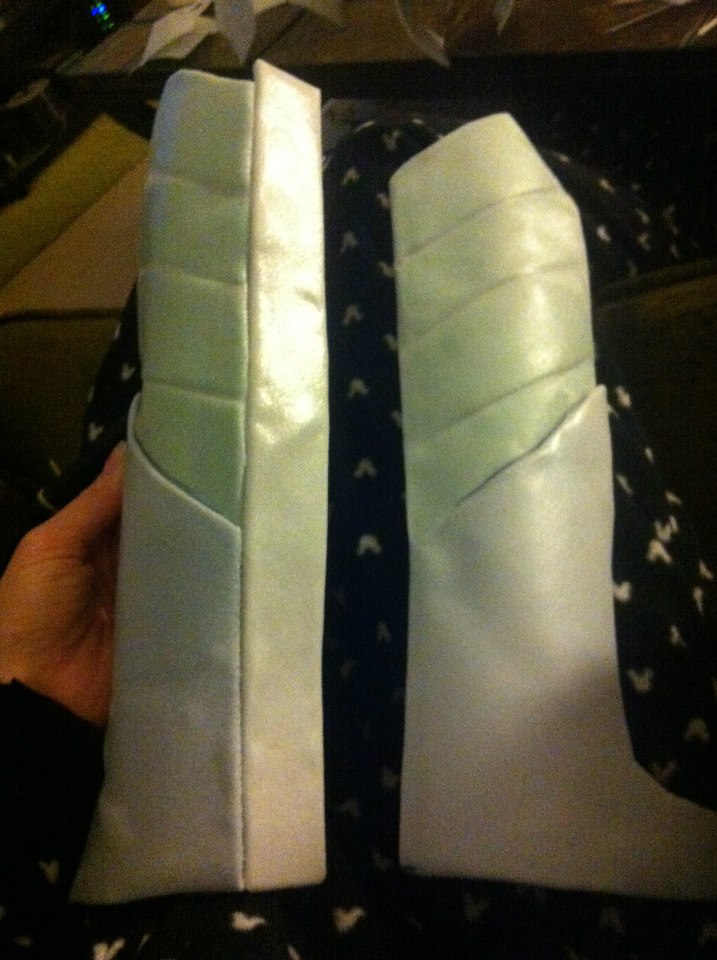

    Wonderflex sections done the same way, craft foam pieces and wonderflex over and heated up with the heat gun and lightly pressed together and formed.
    I used wonderflex scrap pieces on the inside to reinforce stress points.

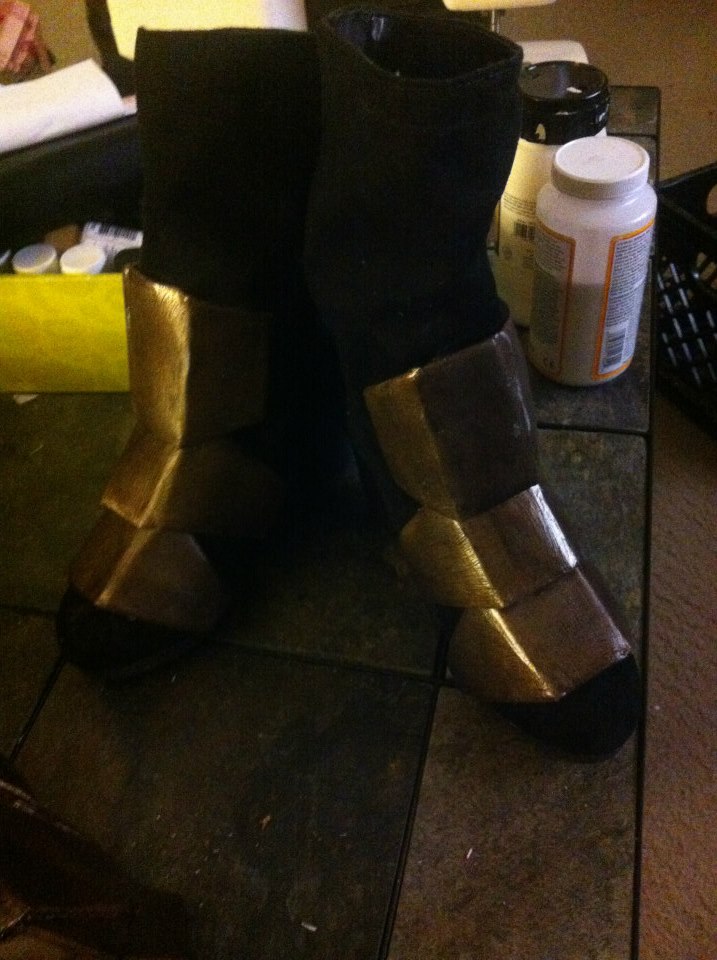

    The boots I found at Goodwill for $4! I attached the armor pieces with E6000 glue.
    The leg armor attaches to my legs with two pieces of stretch velcro and D rings.

    10733966_1568149110072610_3311880518726198943_n.jpg 1509922_1568149213405933_6099766893164623997_n.jpg 1016865_1568149180072603_8377664442810264190_n.jpg 522039_1568149096739278_7265159255936683392_n.jpg 10348434_1568149273405927_1925754402611450283_n.jpg 1619329_1568149513405903_7333165720574890530_n.jpg 10710896_1568149196739268_2612516938608139887_n.jpg 1908432_1568150020072519_4832975614737463321_n.jpg 1891012_1568149940072527_8923560864197818753_n.jpg 1656094_1568150256739162_7462345753349740545_n.jpg 10710843_1568150196739168_2038515289196577362_n.jpg

    Last edited: Mar 22, 2015
  5. luciendal

    luciendal New Member

    Trophy Points:
    3
    Very awesome work, im impressed looking forward to see it complete!

    LaraCupcake likes this.
  6. mvanwalks421

    mvanwalks421 Active Member

    Trophy Points:
    487
    I'm glad someone's finally building it. Can't wait to see it finished

    LaraCupcake likes this.
  7. stigmorgan

    stigmorgan Sr Member

    Trophy Points:
    1,256
    looking really good,

    LaraCupcake likes this.
  8. LaraCupcake

    LaraCupcake New Member

    Trophy Points:
    4
    Time for final touches :)

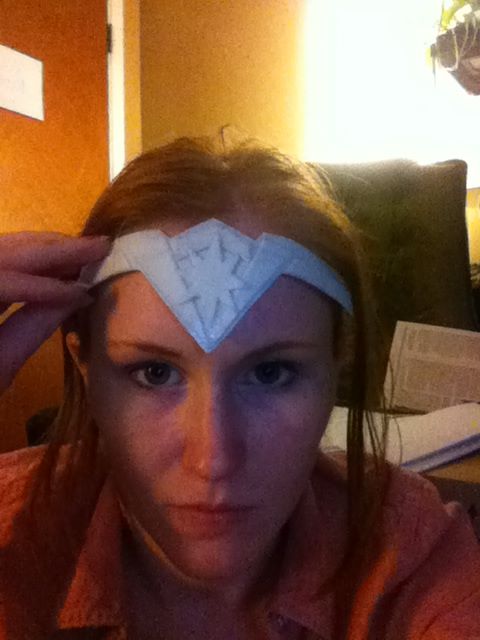

    Tiara, arm band, and skirt. :)

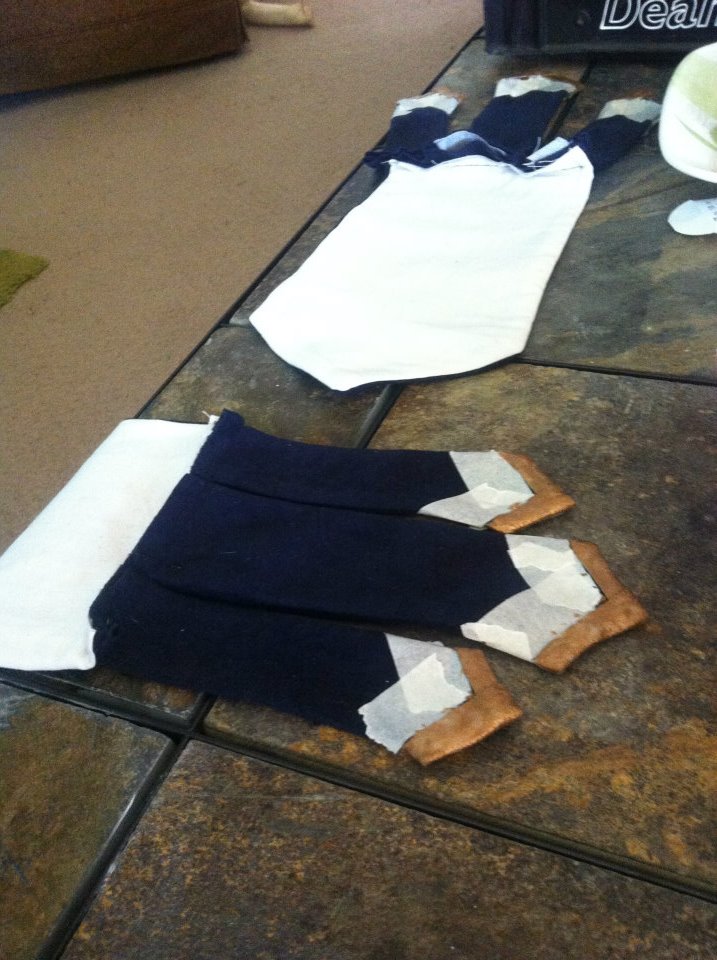

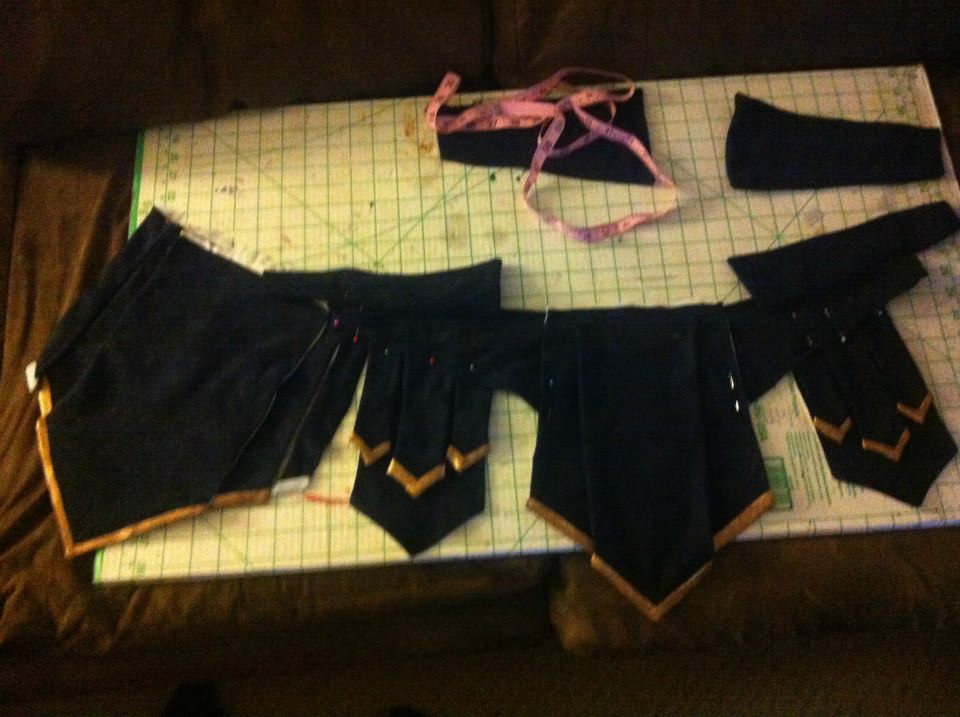

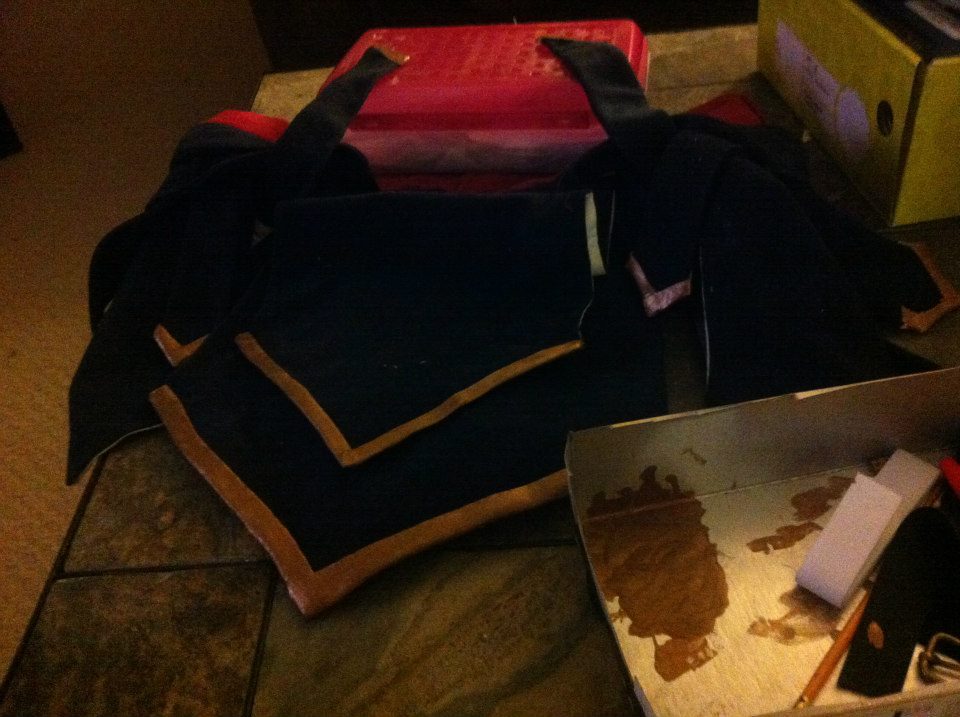

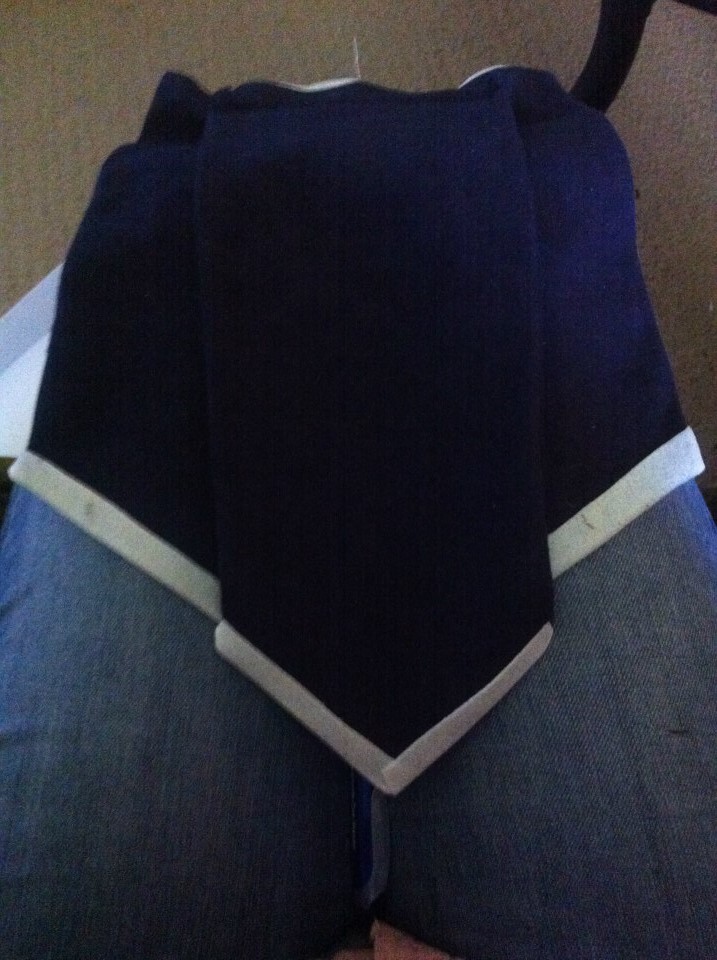

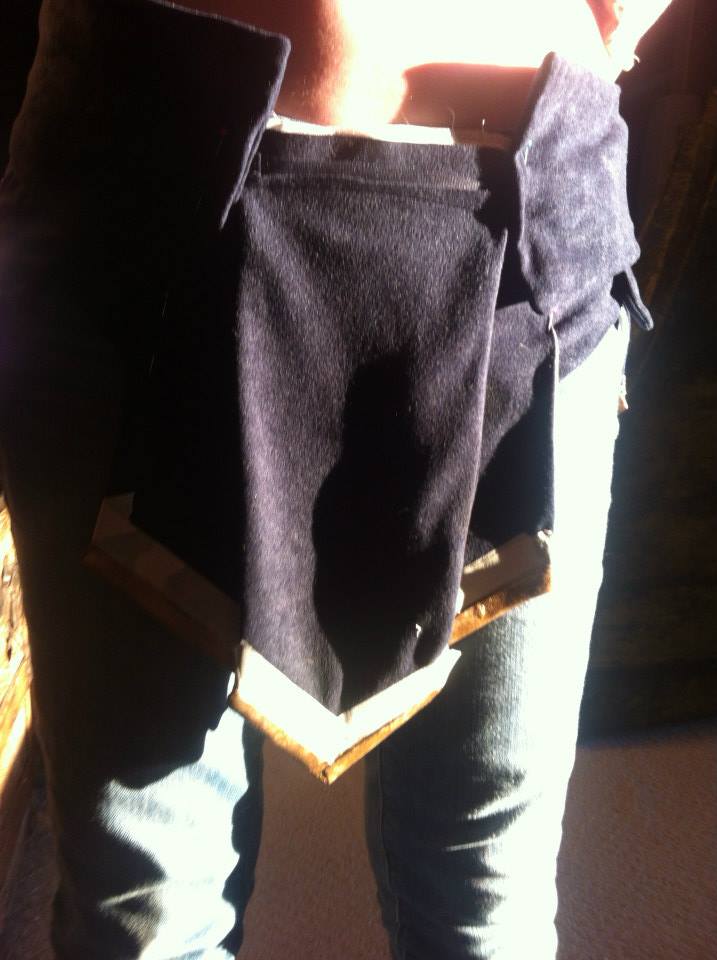

    The skirt is suede and lined it with cotton, I use wonderflex for the armored edges and then painted them with acrylic, which worked out nicely because it added a good weight to the panels and kept them from flopping about. :p The wonderflex stuck right to the suede when I heated with the heat gun.

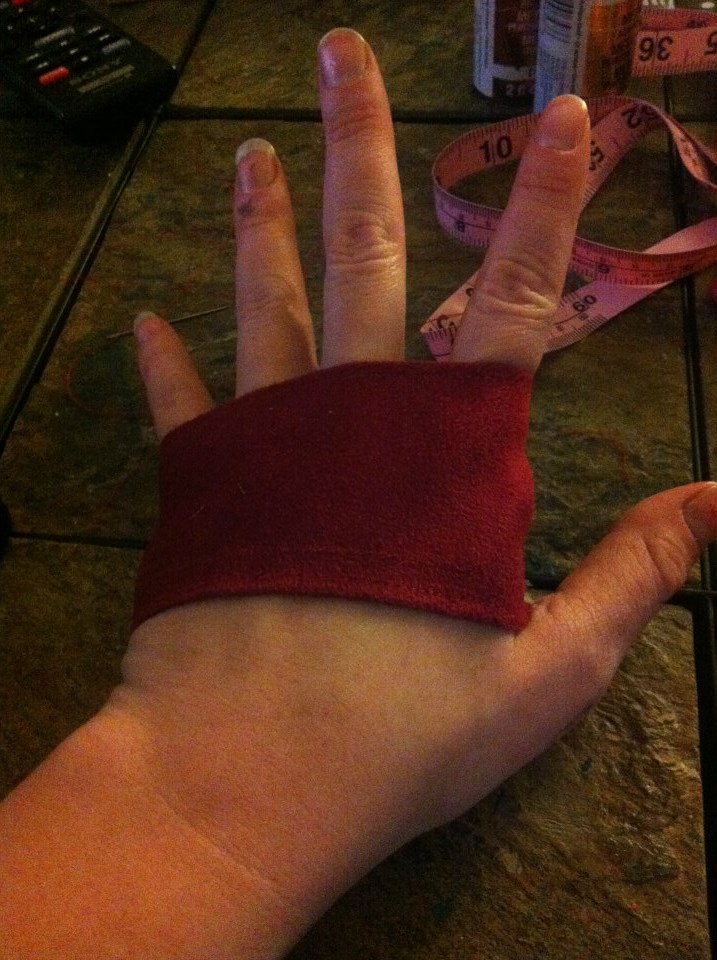

    The red pieces are odd little hand wraps she has, those are also suede.

    10418904_1568150346739153_8440646002077583643_n.jpg 10382773_1568150353405819_3856080788623726646_n.jpg 10403561_1568150520072469_912781723928098708_n.jpg 1901522_1568150433405811_1001593045763361265_n.jpg 532908_1568150483405806_5015578953852764777_n.jpg 10600493_1568150580072463_3897311801513227335_n.jpg 10407545_1568150570072464_4143404164755380278_n.jpg

    The arm band was a real pain... because I know she HAS one.. but there is no picture. So I picked the armband for the New 52 Wonder Woman and went with it.


    10685390_1568148916739296_6352115940754503412_n.jpg 10721221_10152734144865396_282524482_n.jpg


    Last post will be my sword :)

    - - - Updated - - -

    Exactly why I did it :) I was super excited when I saw the first image I just couldn't resist.

  9. LaraCupcake

    LaraCupcake New Member

    Trophy Points:
    4

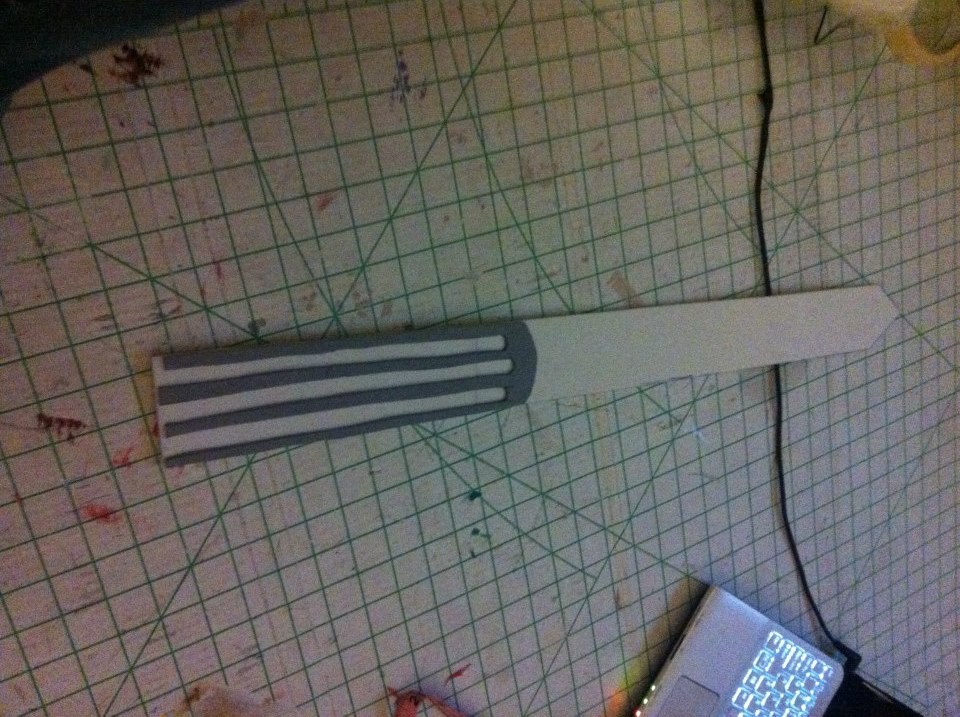

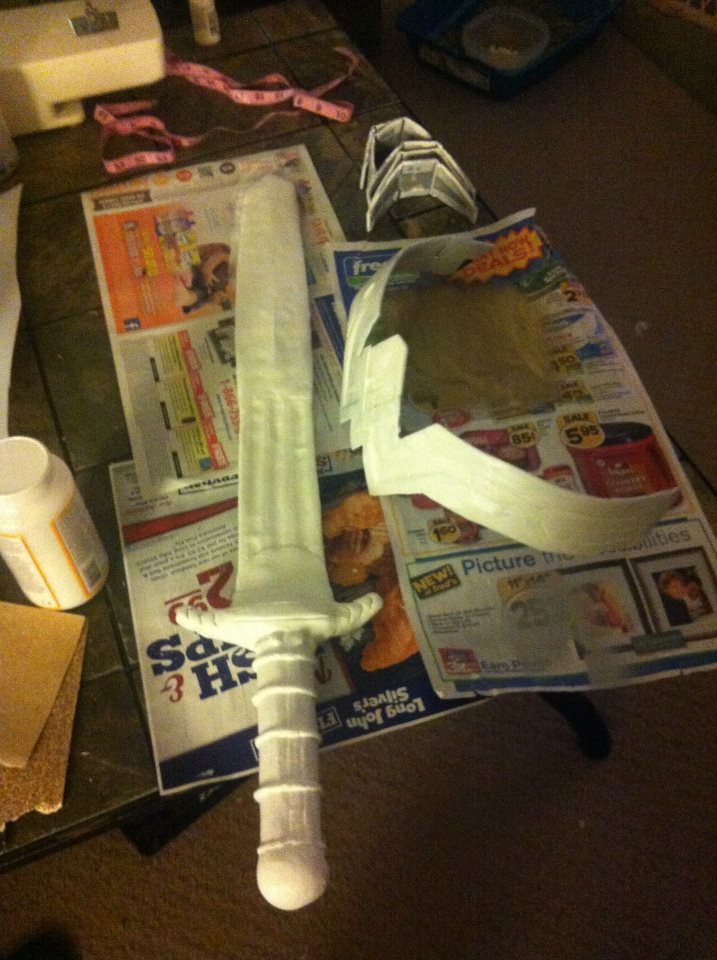

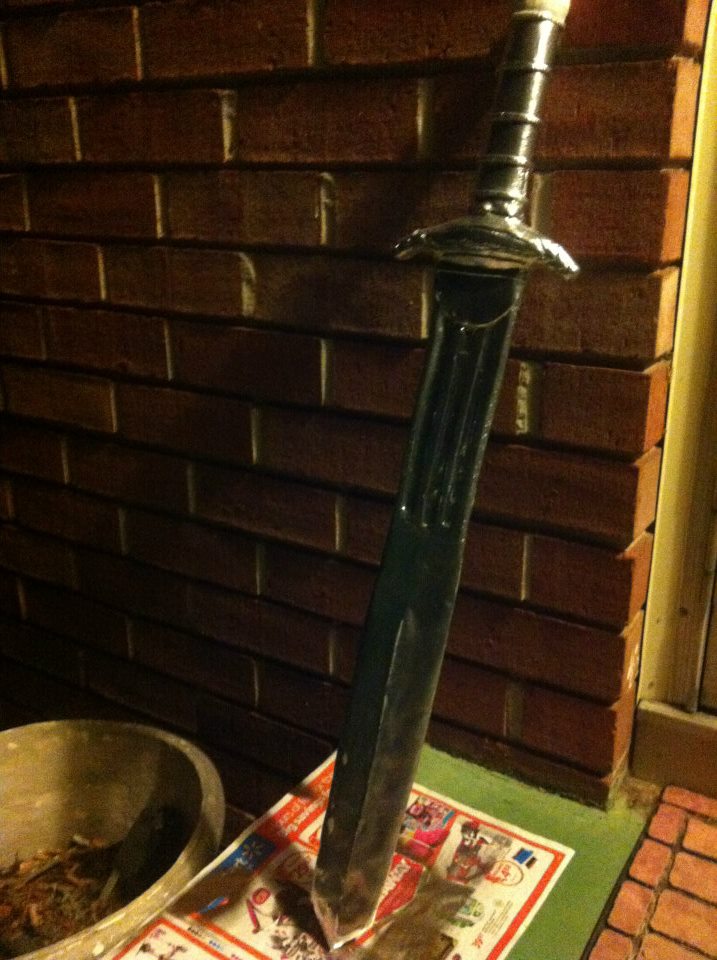

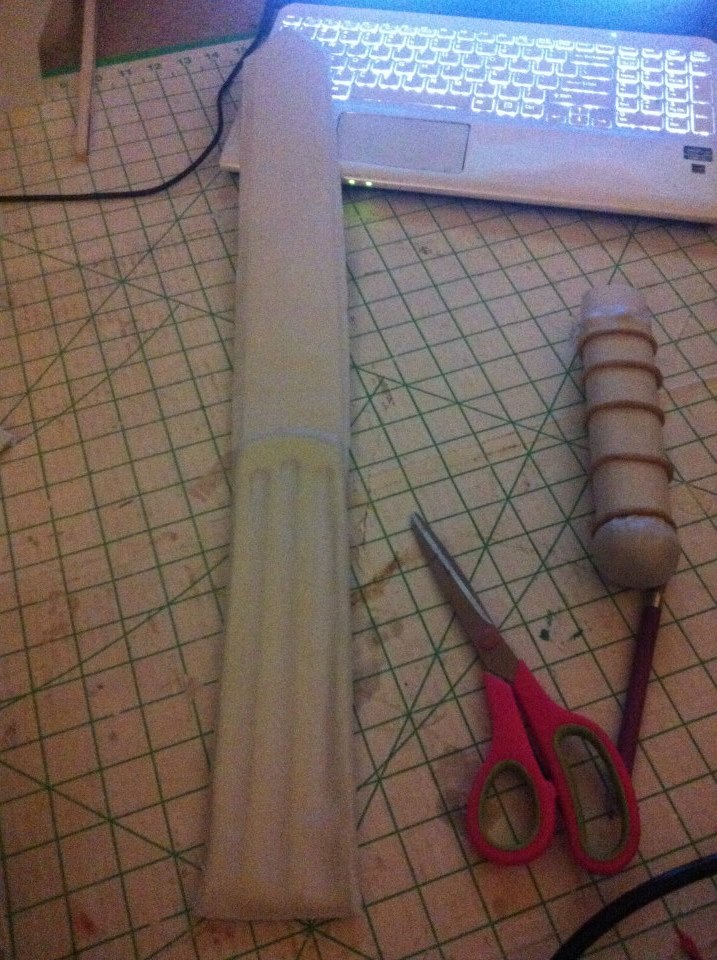

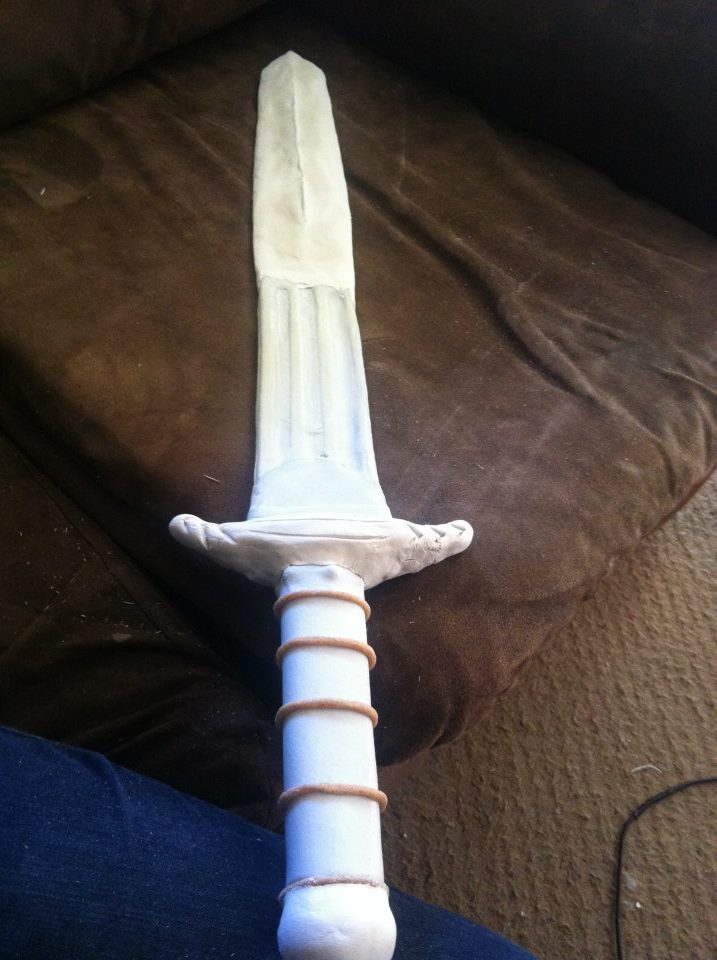

    My sword! :D My terrible first attempt at a sword. I used foam for the base, I should have used the pink insulation board and resin but I didn't know. So! The new sword will be made from insulation foam board and I'll post pictures of that when I build it!

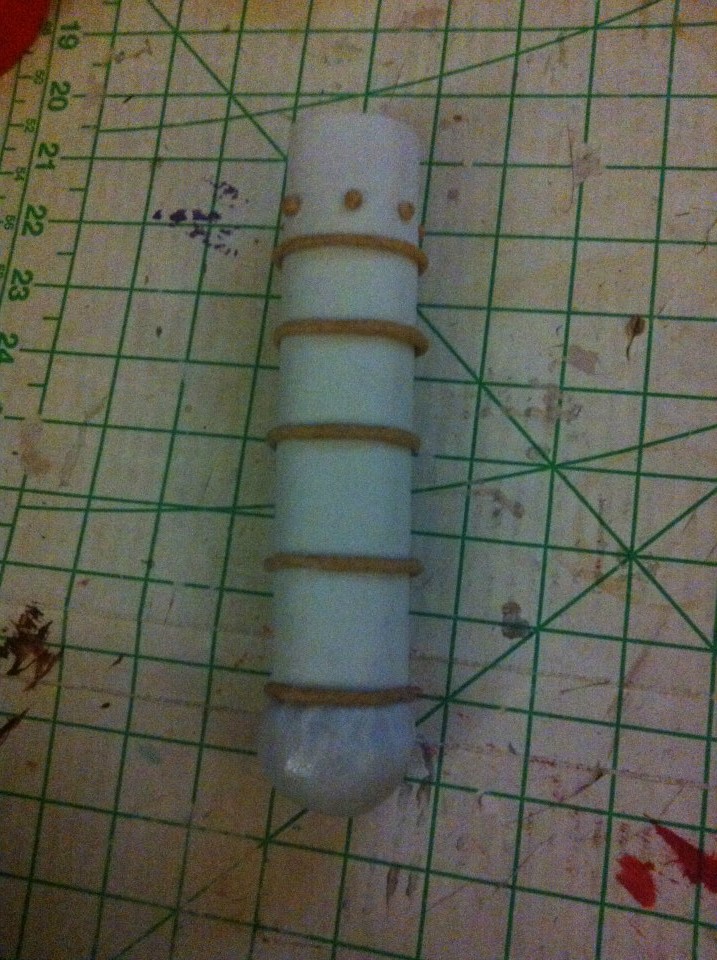

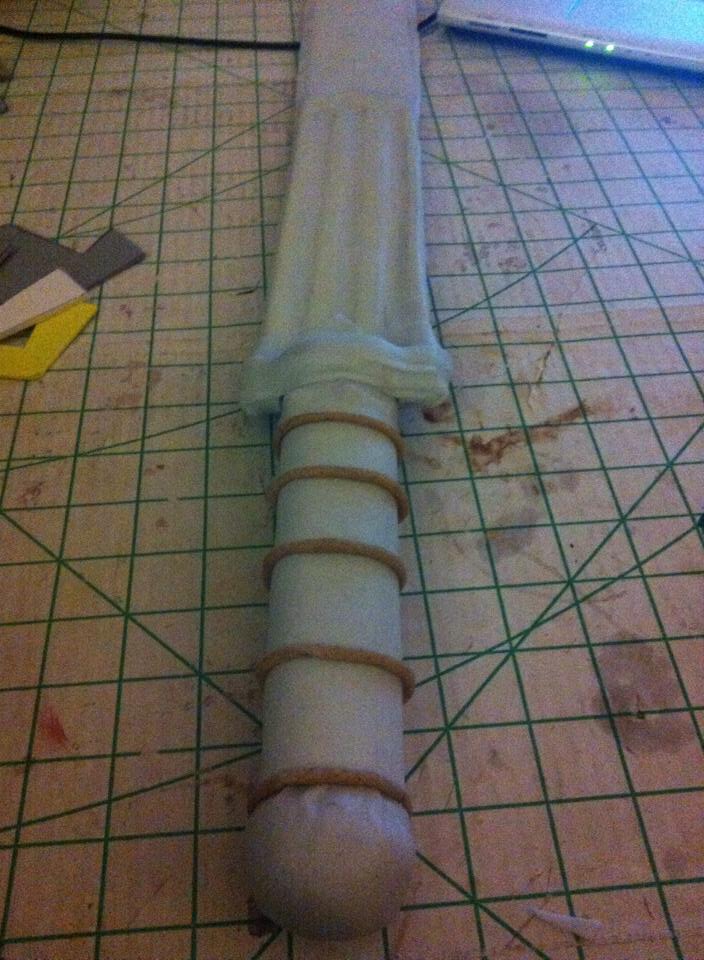

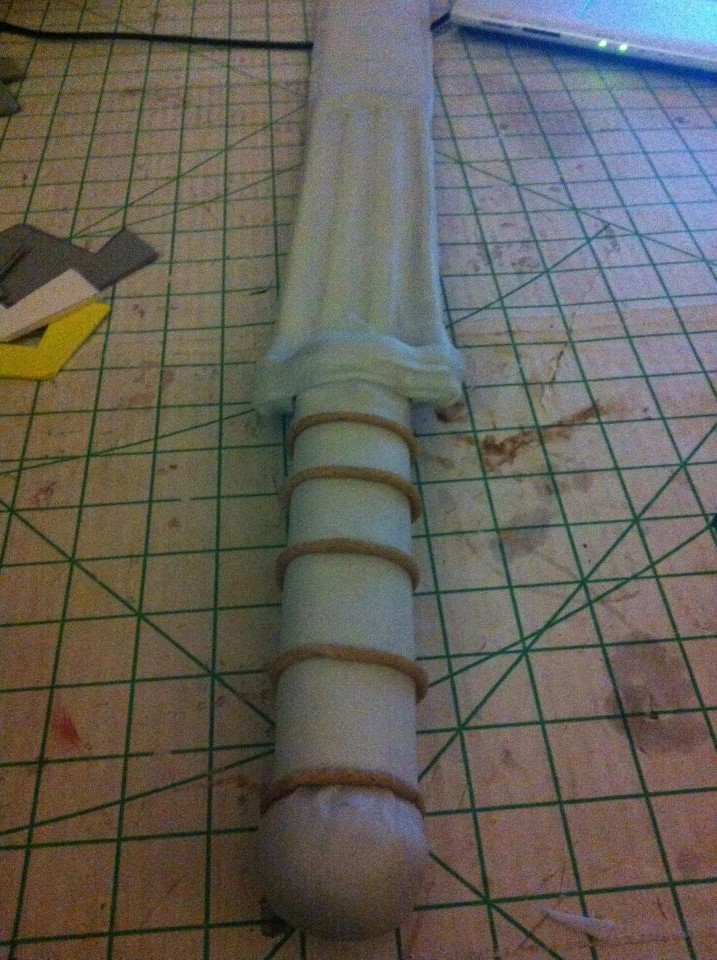

    But this one is foam base, wonder flex. The hilt is EVA foam, wonderflex, worbla, and paperclay. Gesso, primered, and metallic spray painted. Aged with black acrylic paint, dry brushed.

    63719_1568148840072637_5547677066173534590_n.jpg 10301516_1568148880072633_1547792276483101167_n.jpg 10590543_1568148843405970_7004466313063218702_n.jpg 10721221_10152734144620396_1391120102_n.jpg 11008_1568149556739232_4292943009690919775_n.jpg 10645312_1568149576739230_5611553674625245755_n.jpg 10710941_1568150230072498_7663467646309210488_n.jpg


    Attached Files:

  10. LaraCupcake

    LaraCupcake New Member

    Trophy Points:
    4
    So that is the end of my first armor build :) My Wonder Woman armor completed. Hopefully I'll have a real shot soon to post, right now I just have convention photos but ya know, you work with ya got :p Fun fact... shortest Wonder Woman ever. I'm 4'11" LOL



    10799612_10202988065918363_1872259279_n.jpg ww1.jpg ww2.jpg ww3.jpg 10688401_721066434639593_5708179464328278956_o.jpg

  11. hmoney143

    hmoney143 Active Member

    Trophy Points:
    460
    looks amazing! very good craftsmanship.

    LaraCupcake likes this.
  12. Belleb08

    Belleb08 Active Member

    Trophy Points:
    412
    wow that is really good. I am looking at doing this version of wonder woman completely out of leather, but I love how your wonderflex version came out :)

    LaraCupcake likes this.
  13. LaraCupcake

    LaraCupcake New Member

    Trophy Points:
    4
    that's awesome! i would love to see it when you're done, hope you post pictures :) and thank you

    - - - Updated - - -

    thanks so much! :D
