WIP Punisher Skull Flak-Jacket (from Daredevil Season 2) + sewing patterns

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Br00mstigg

New Member
I just finished my second viewing of the second season of Daredevil and holy crap i love the Punisher :)

Still all hyped up from the finale I thought hey, I've got a few days left before my courses begin again, how about a quick side project.

First I tried to find a few pictures for reference. Google was pretty much useless and i could only find one usable picture, so I went on Netflix, took a few screenshots and got to work.

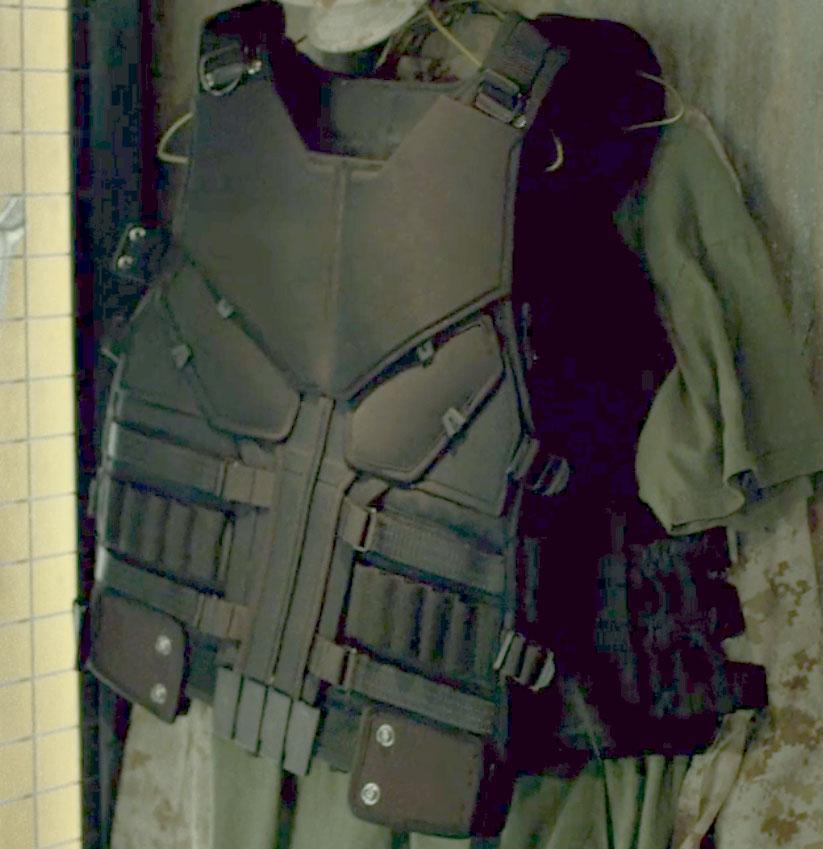

First here's the jacket with and without the skull logo from the series:

skull.jpg Clipboarder.2016.03.22.png

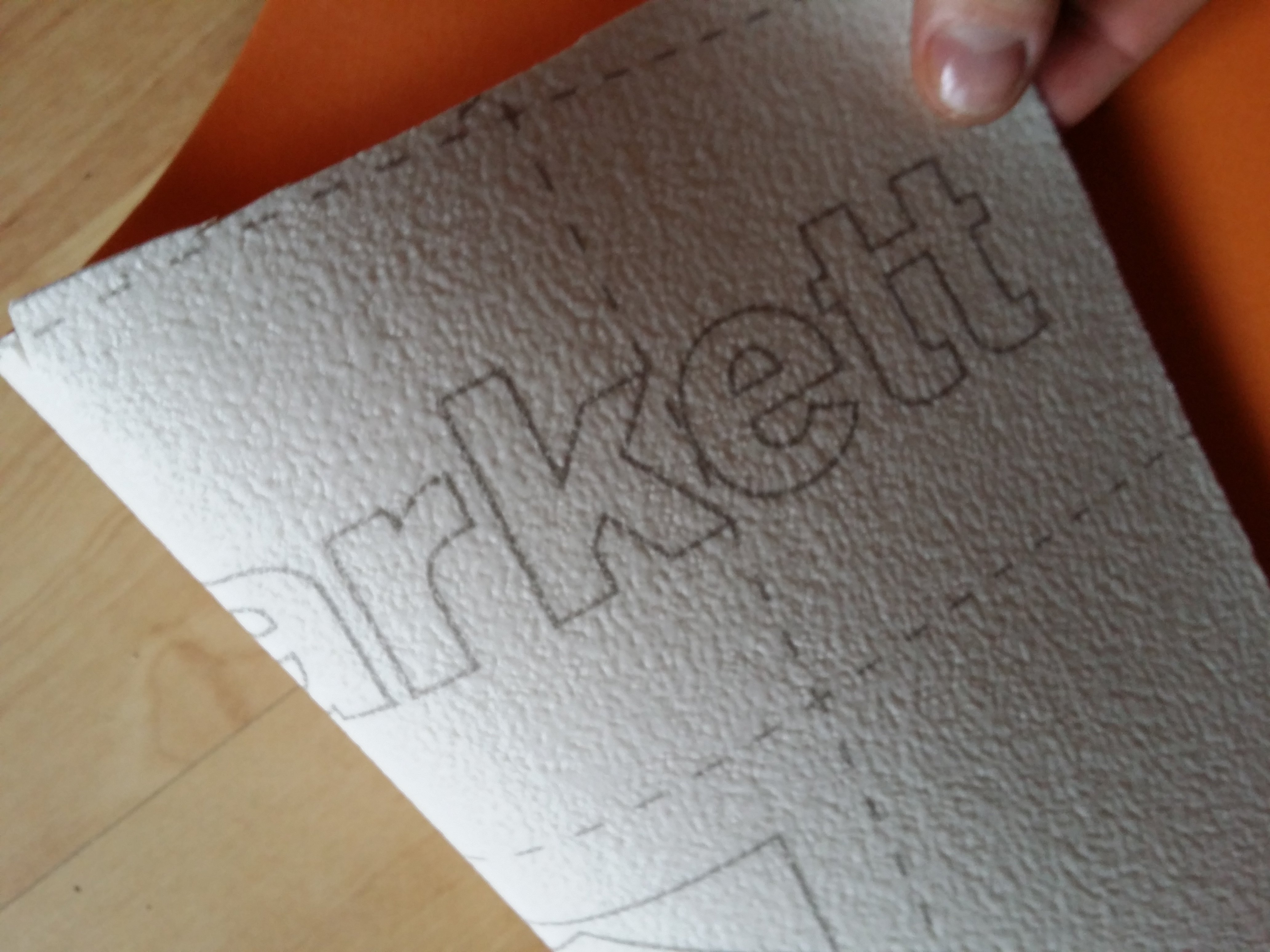

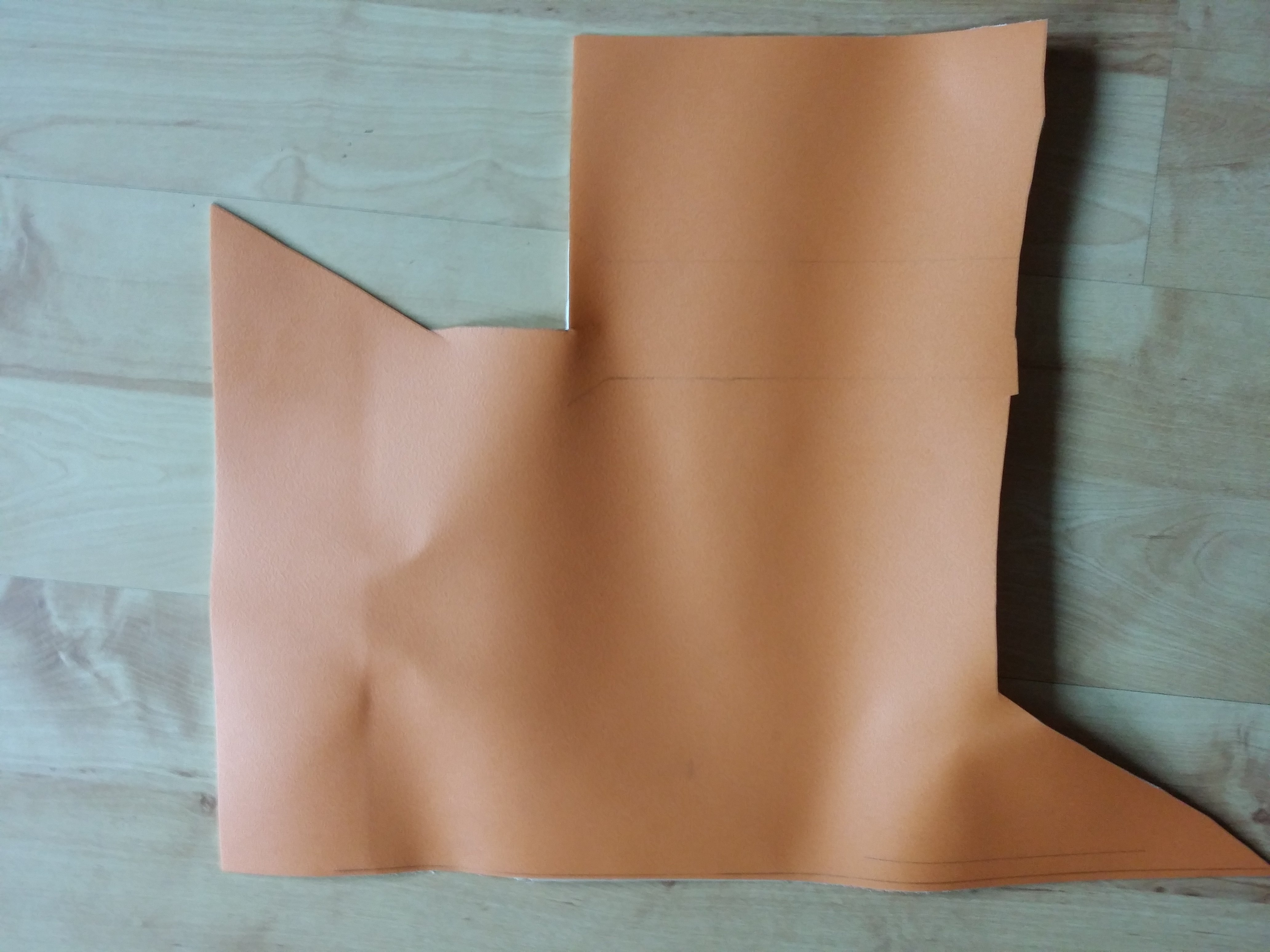

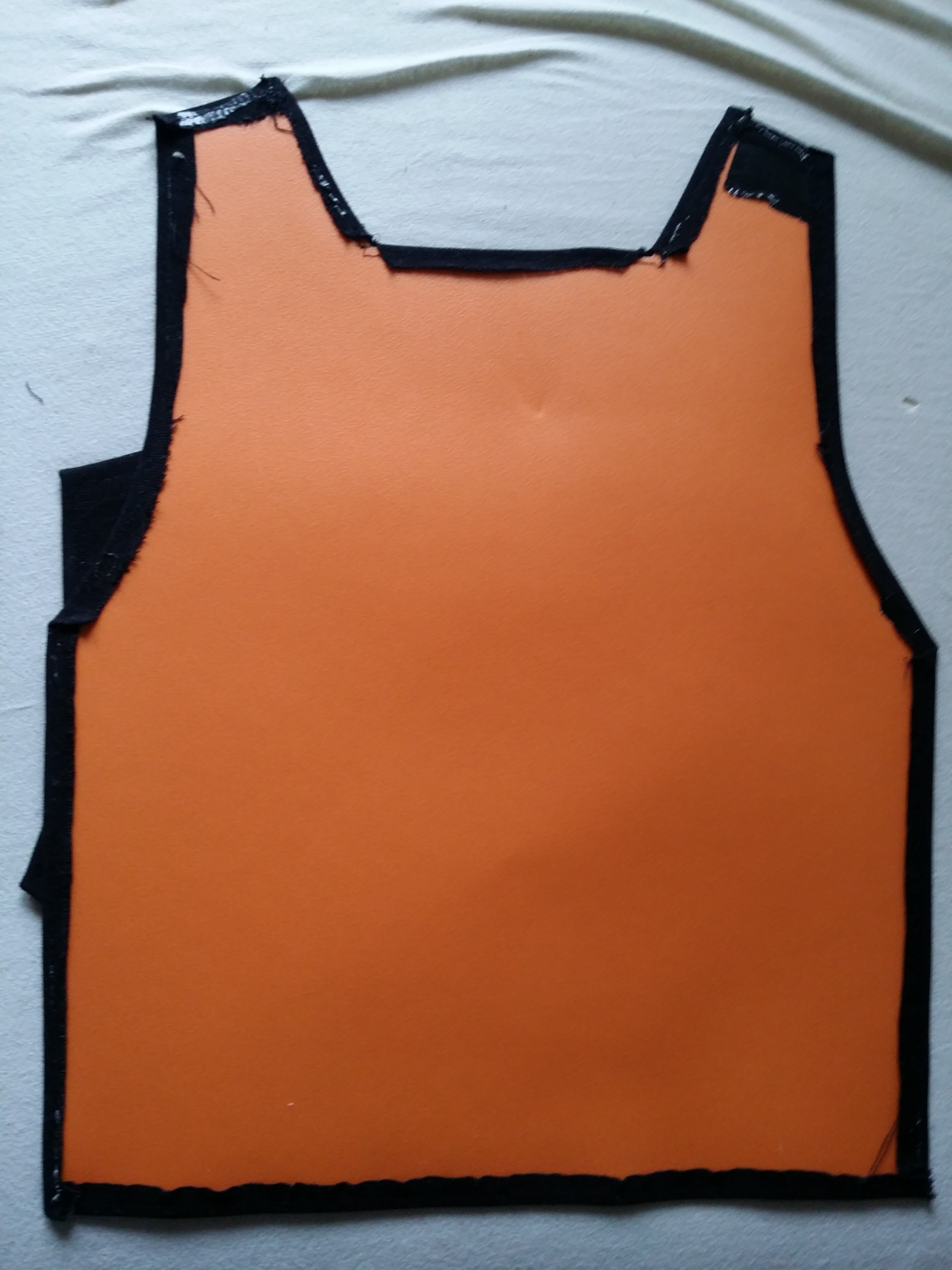

I took a basic vest from my closet an traced the shape to a piece of PVC floor-covering i had left from an earlier project, which was perfect for the Kevlar-fiber parts.

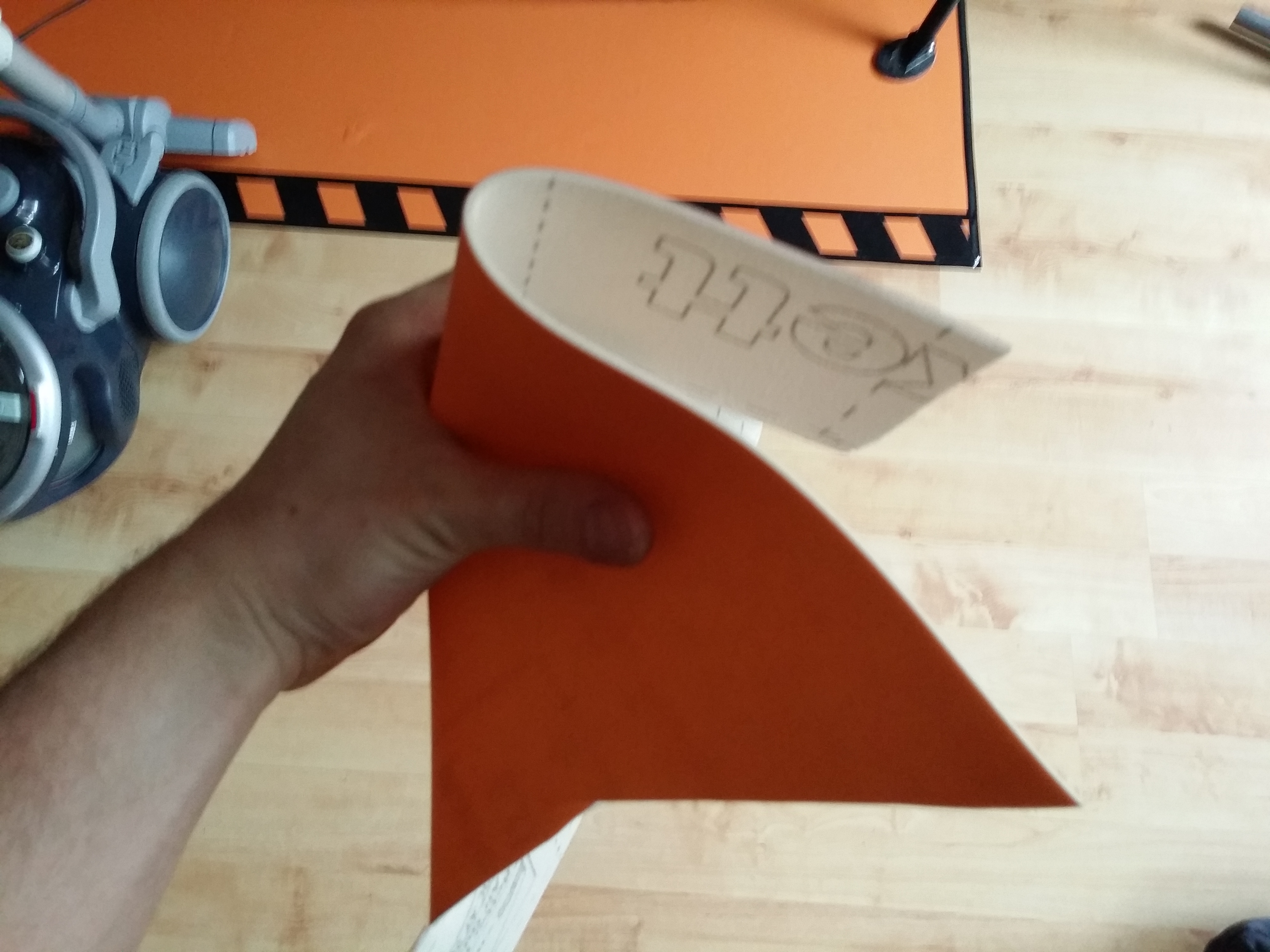

The sheets i used are about 5mm thick, waterproof and bendy so I can still move while wearing the jacket.

IMG_20160322_172758.jpg IMG_20160322_172747.jpg IMG_20160322_172732.jpg

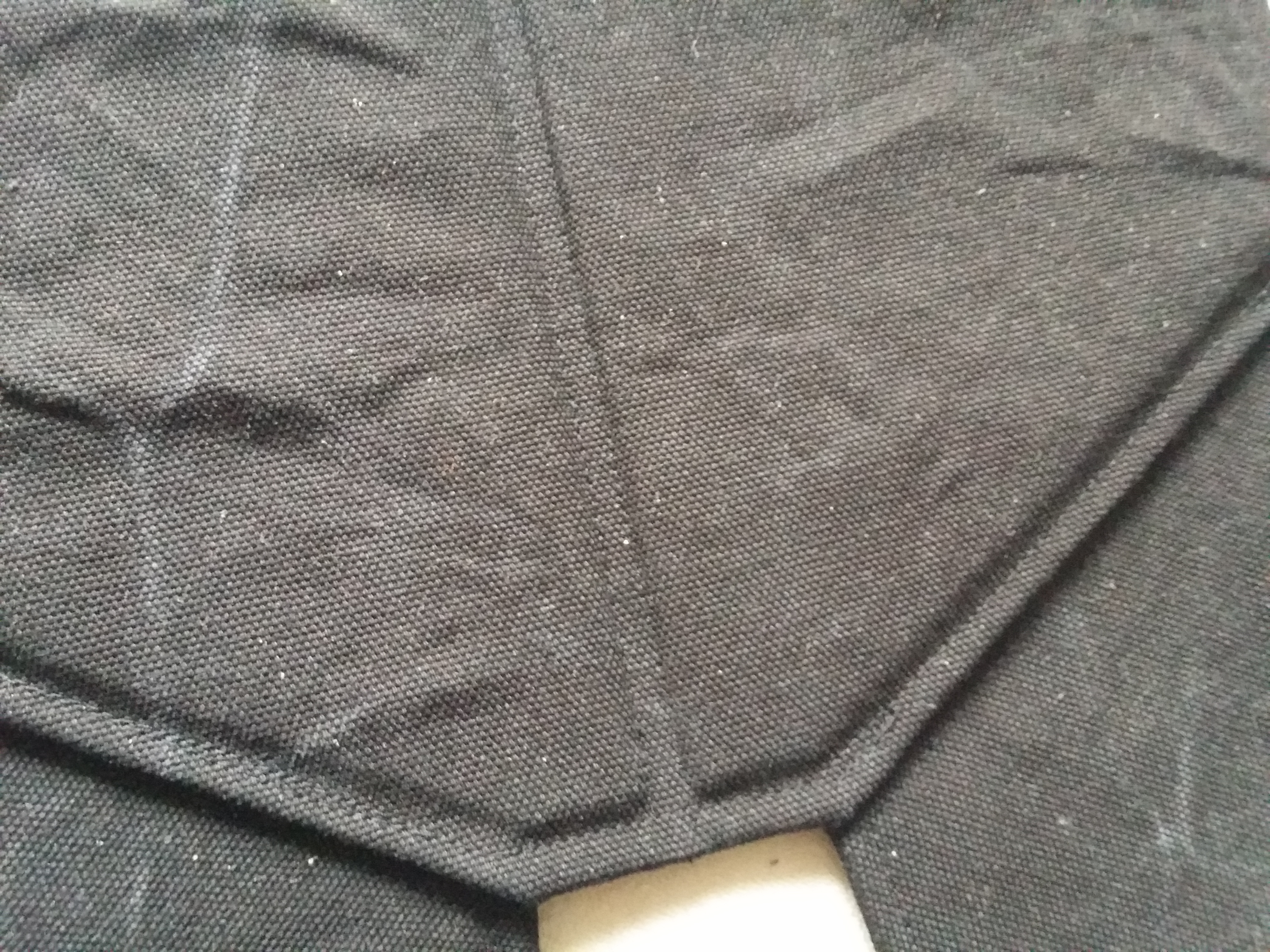

sorry for the poor close-up shots, my camera sucks sometimes :D

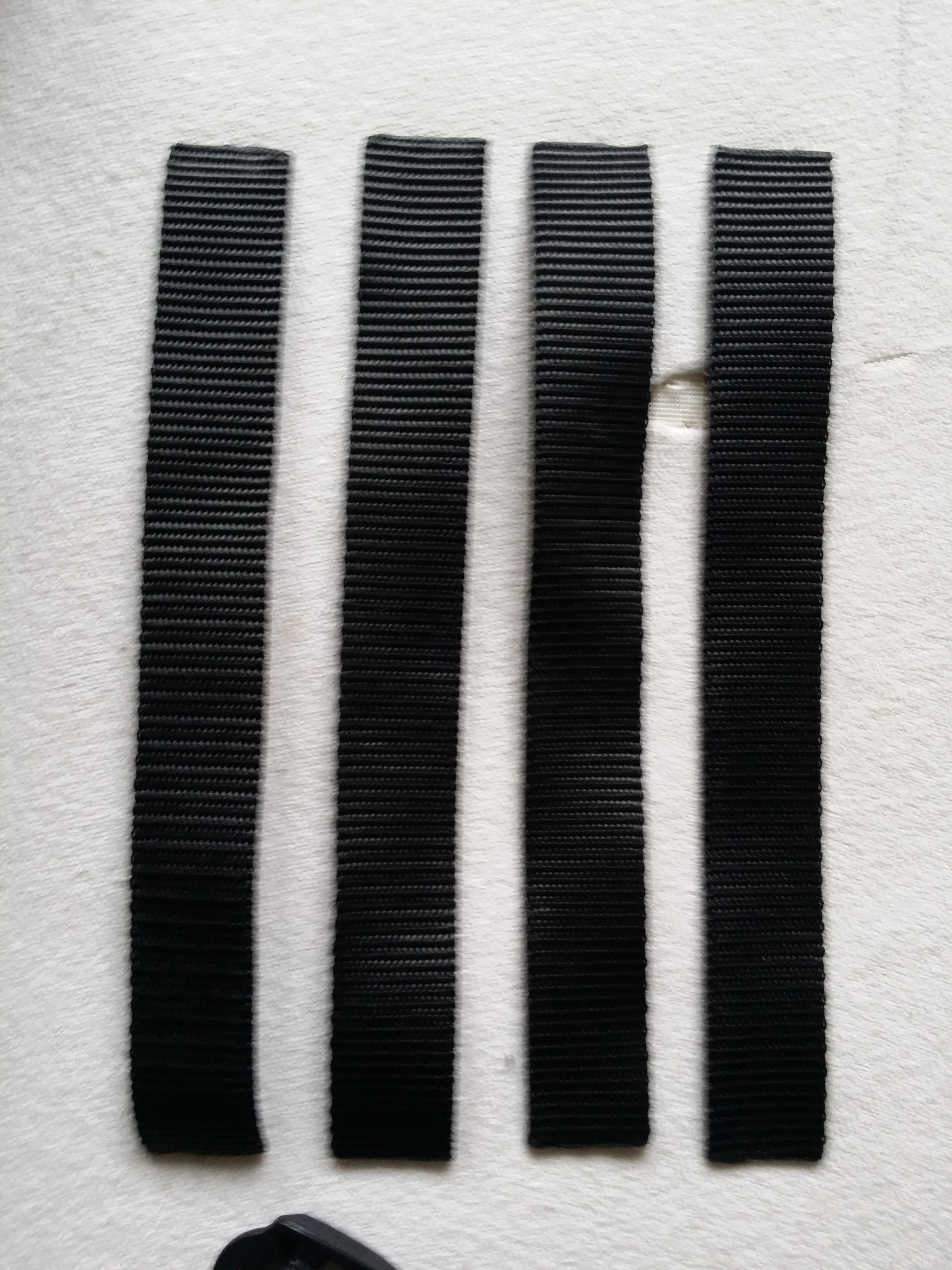

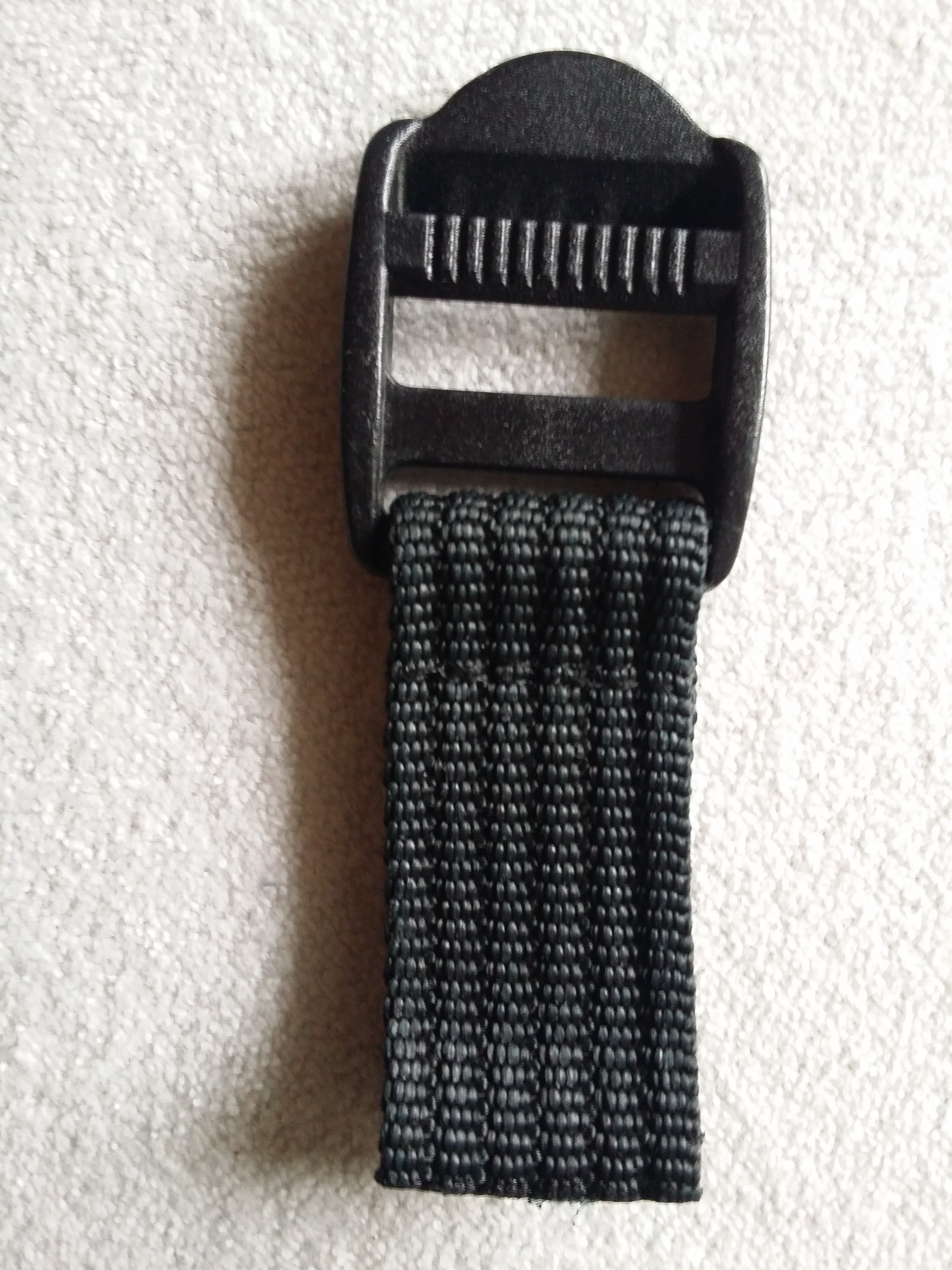

For the fabric parts i used some rough black cotton.
IMG_20160322_165158.jpg IMG_20160322_165140.jpg

I constructed all the necessary parts by calculating the rough sizes from the size in the picture and the size of my real life vest.
I cut them out and traced them onto the fabric, added about 2 cm of outline and duct-taped the fabric to the PVC parts.

I forgot to take any more pictures while doing that :)

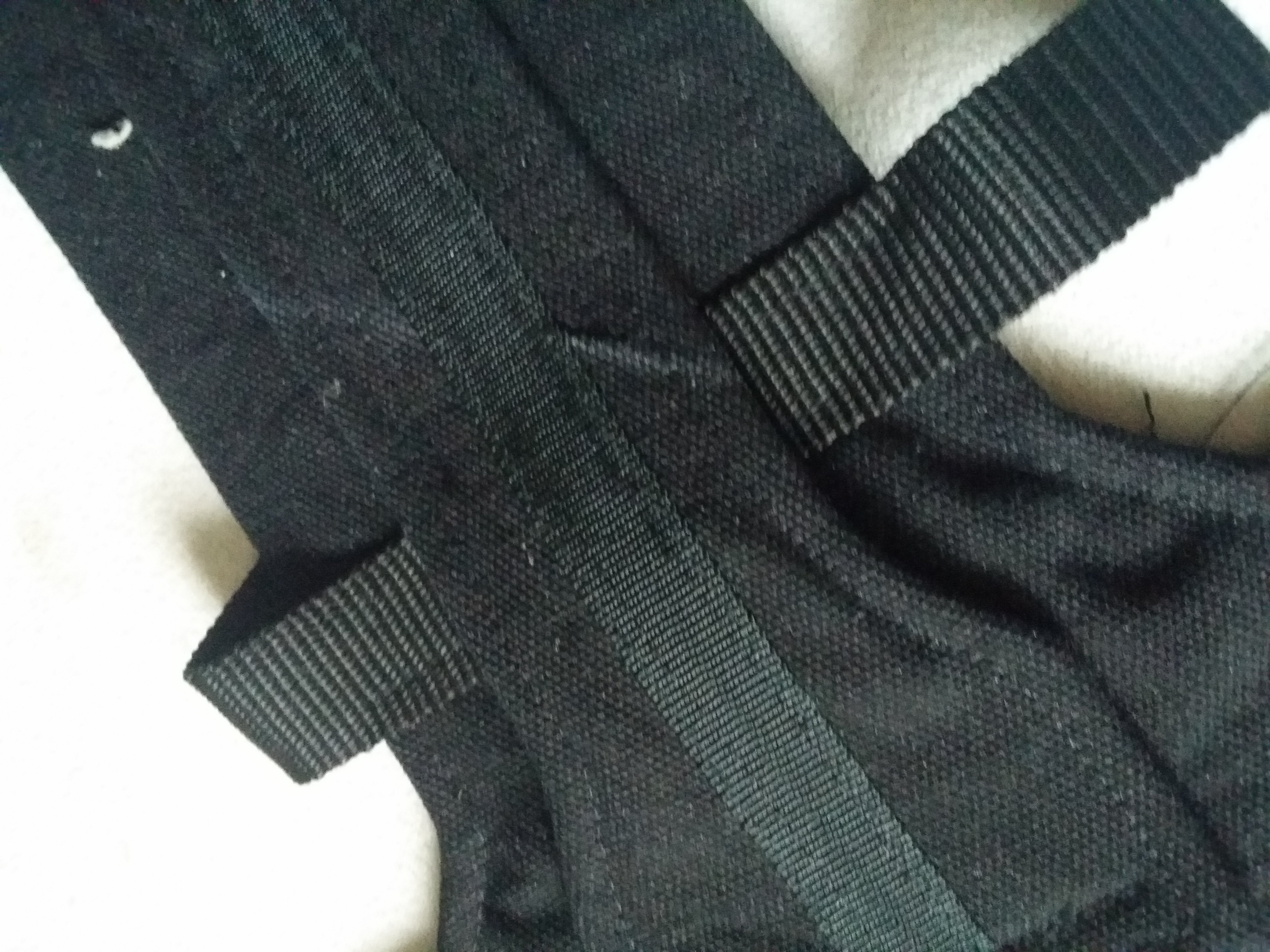

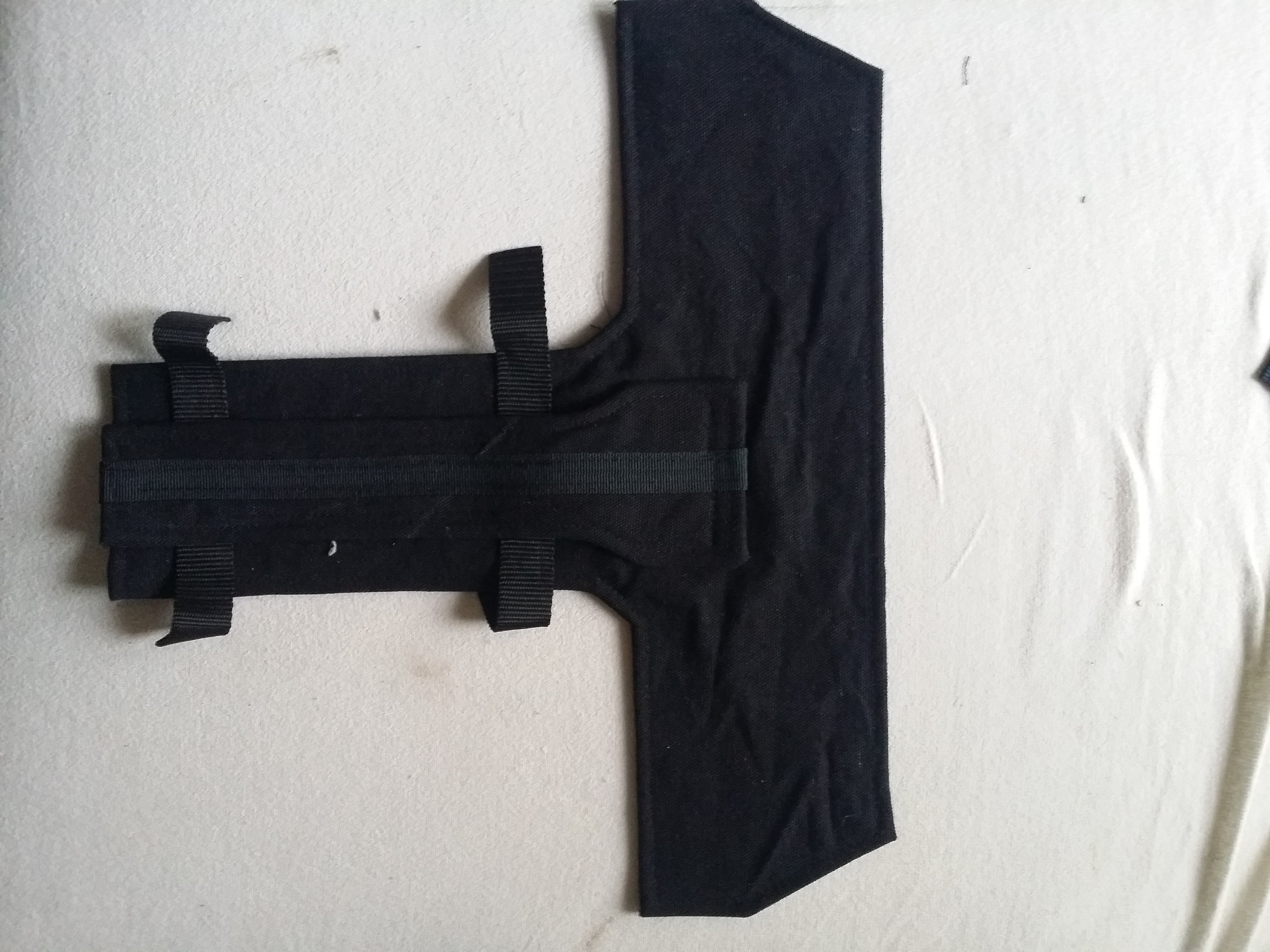

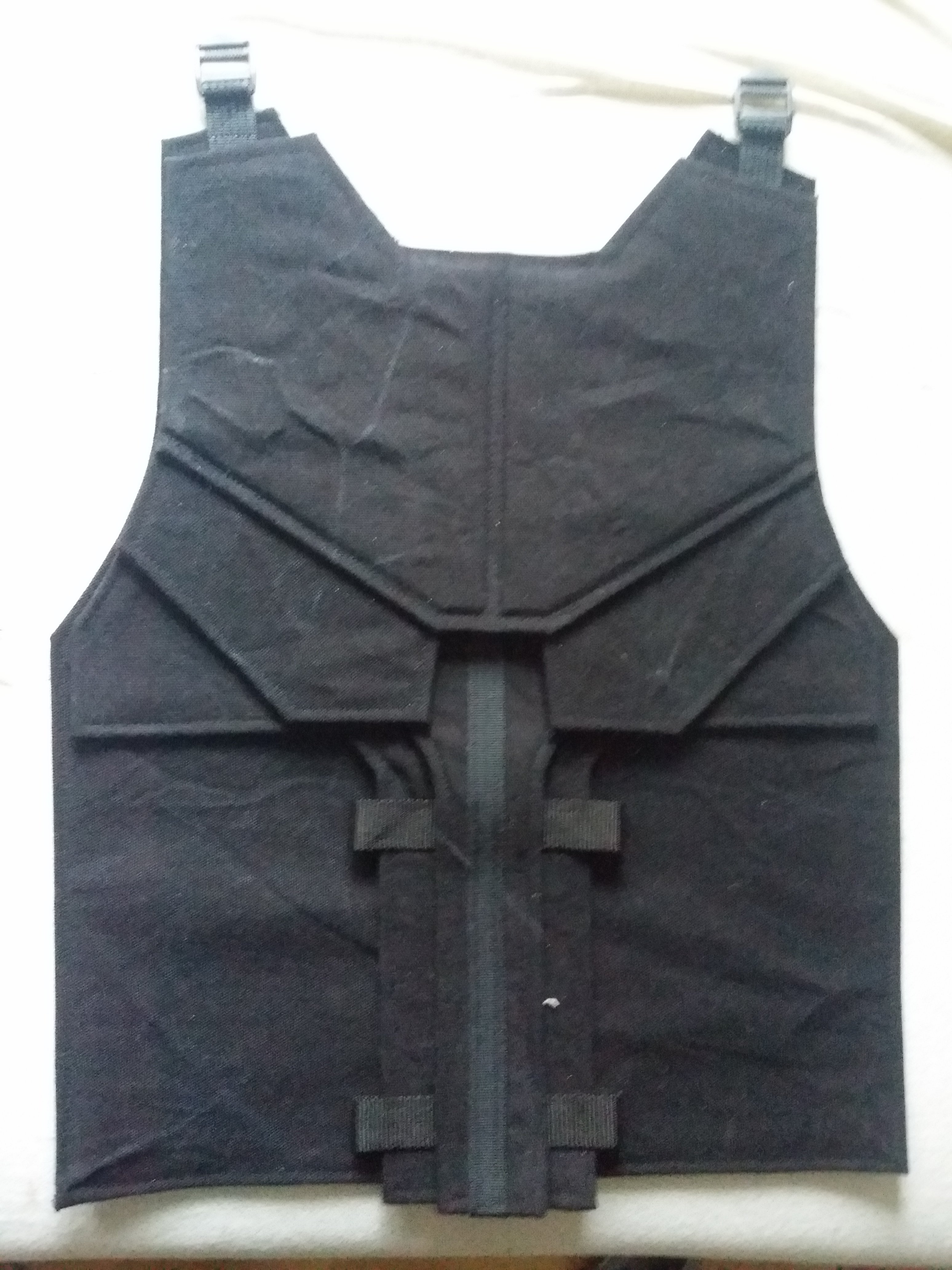

I sewed them together and an removed the duct-tape.

IMG_20160322_174624.jpg IMG_20160322_174619.jpg IMG_20160322_174538.jpg

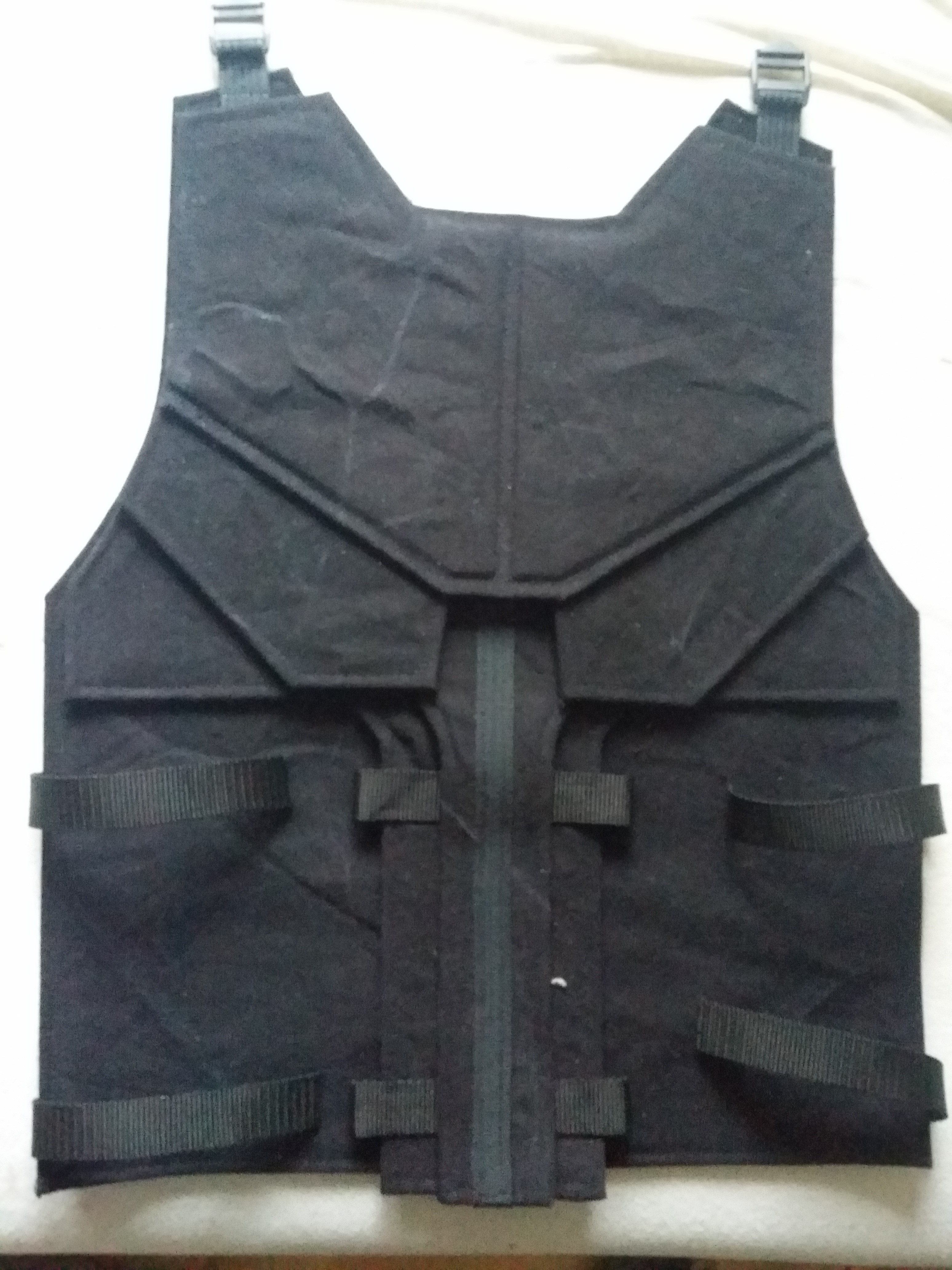

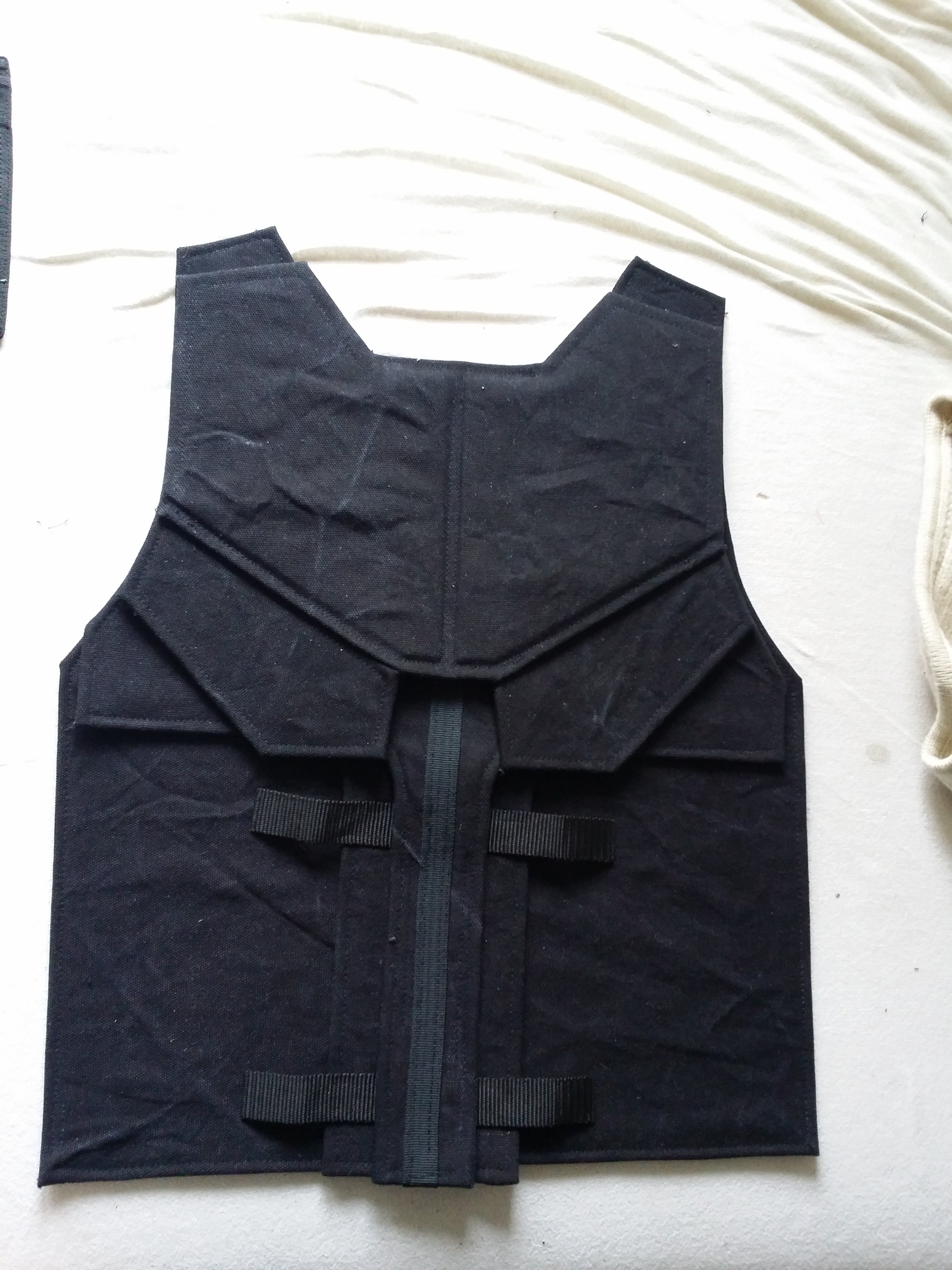

This is the current state hopefully I'll be done i a few days.

I hope you like my work, I'll keep the updates coming :)


Attachments

  • Clipboarder.2016.03.22.png
    2.7 MB · Views: 251
  • IMG_20160322_165111.jpg
    1.4 MB · Views: 217
Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Br00mstigg

New Member
Re: Punisher Flak-Jacket (from Daredevil Season 2)

If anybody is interested in also building one, i'll upload the measurements later tonight.
I'm also working on a printable sewing pattern, which should be finished in a few days.


Br00mstigg

New Member
Re: Punisher Flak-Jacket (from Daredevil Season 2)

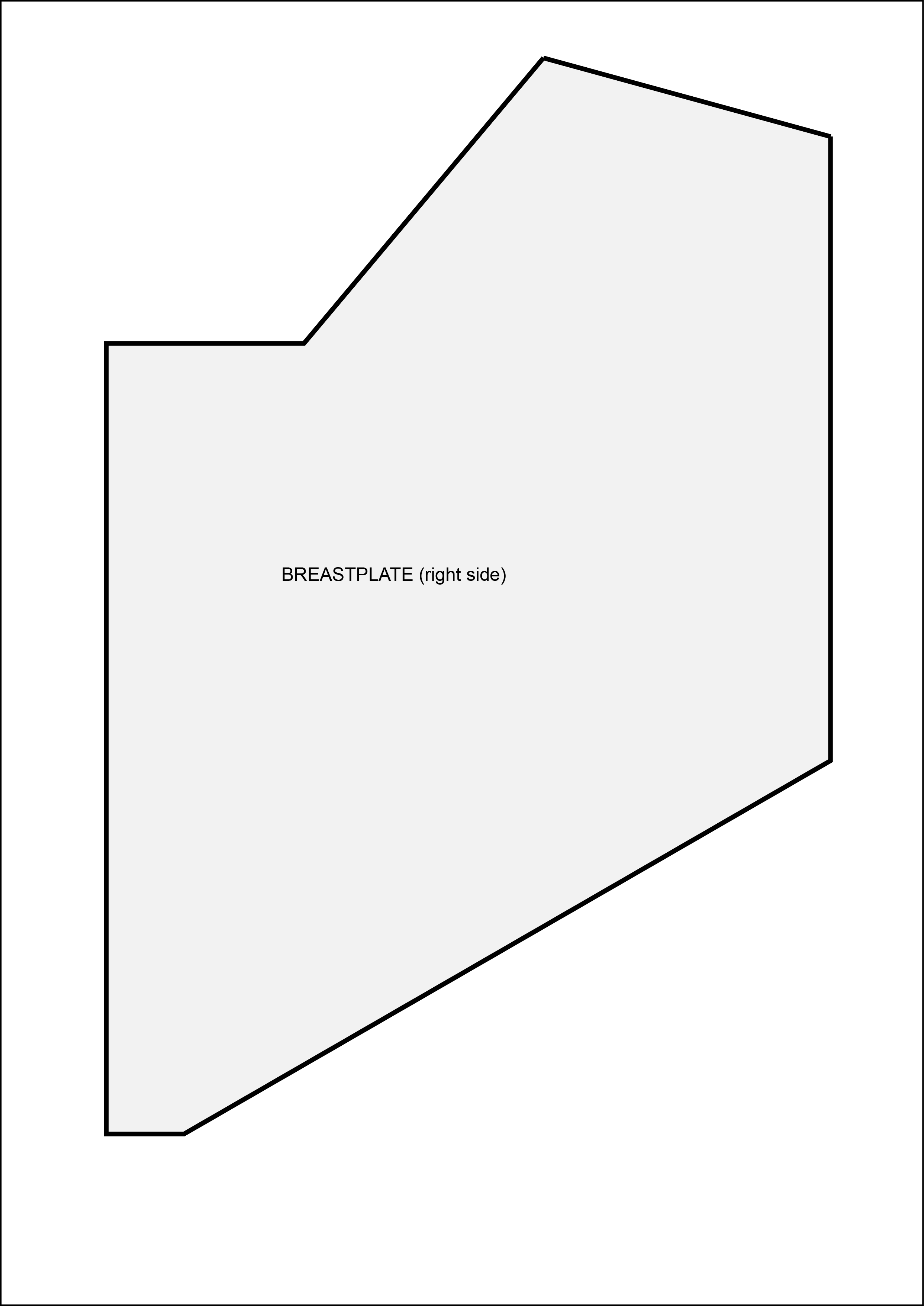

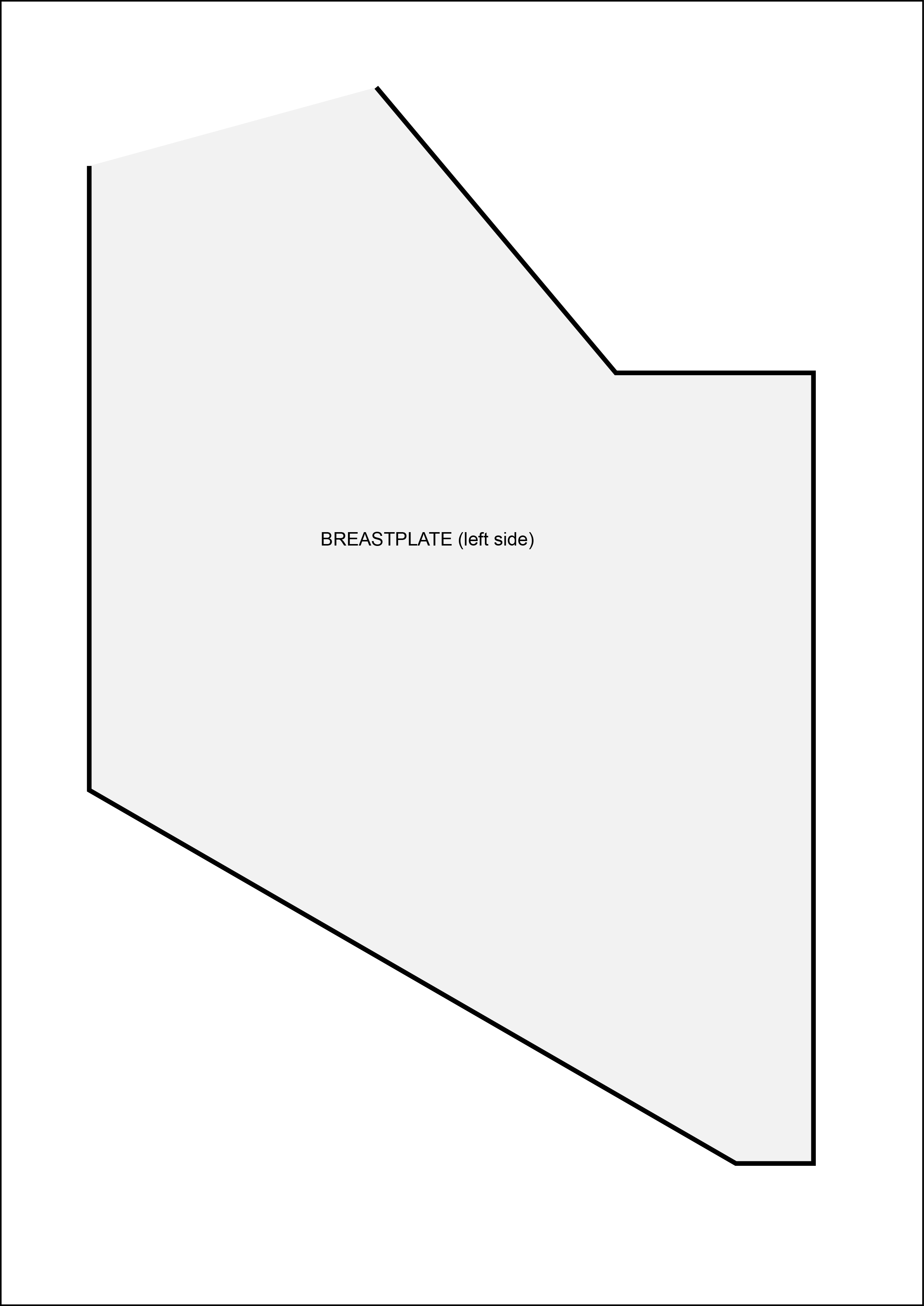

Here's the first batch of patterns :)

I made minor adjustments to the midsection and the breast plates since fitting them together without leaving any holes was a little tricky at first.
The inner breast-plate and the main body are still in work.

I'll upload a PDF soon, so you can print the whole thing at once :)

page_0.png page_1.png
page_2.png page_3.png
page_4.png page_5.png


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Br00mstigg

New Member
Thanks! I downloaded this one and the skull shape you did in another post as soon as i saw them, wasn' t sure if it's ok to repost them here, so thank you for sharing them here :)

I decided to use clamp buckles on the shoulders because i dont like the look of the ones used in the picture.

Does anyone know what those little things on the "eyes" of the jacket are? I was gonna leave them off, but im open to encluding them after all, since they add a nice bit of detail on the upper body.

I'm torn on the shell holders aka "teeth" and the leather(?) patches on the corners because they may obstruct movement to much. I'll probably just make them separatly for now and decide when the Jacket is ready to be worn.


Br00mstigg

New Member
I've just entered the final stages, hopefully the jacket will be done within one or two days, depending on how long the paint-job will take me :)

Here's a few pictures of my progress so far:
IMG_20160324_103537.jpg IMG_20160324_102219.jpg IMG_20160324_102156.jpg

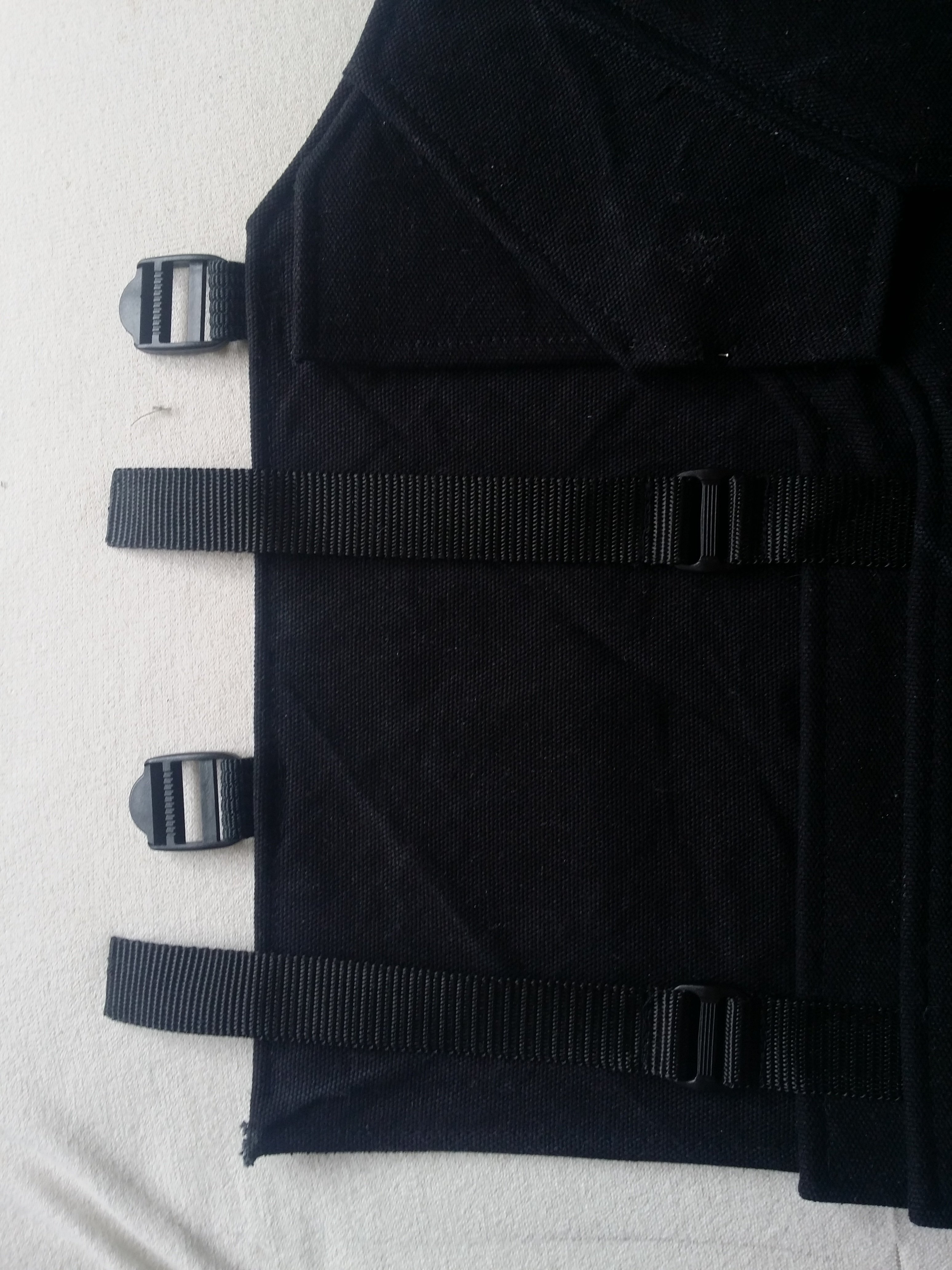

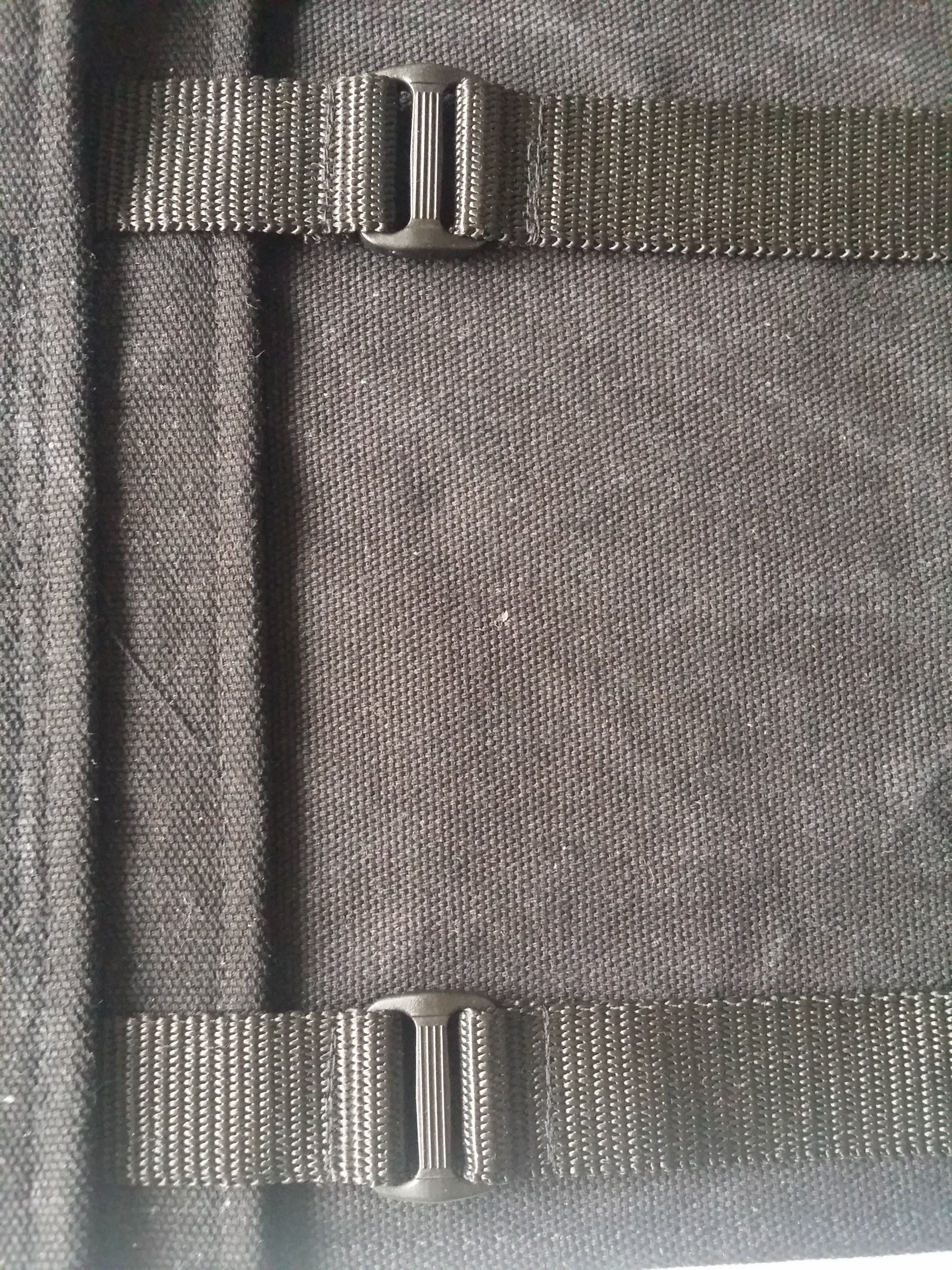

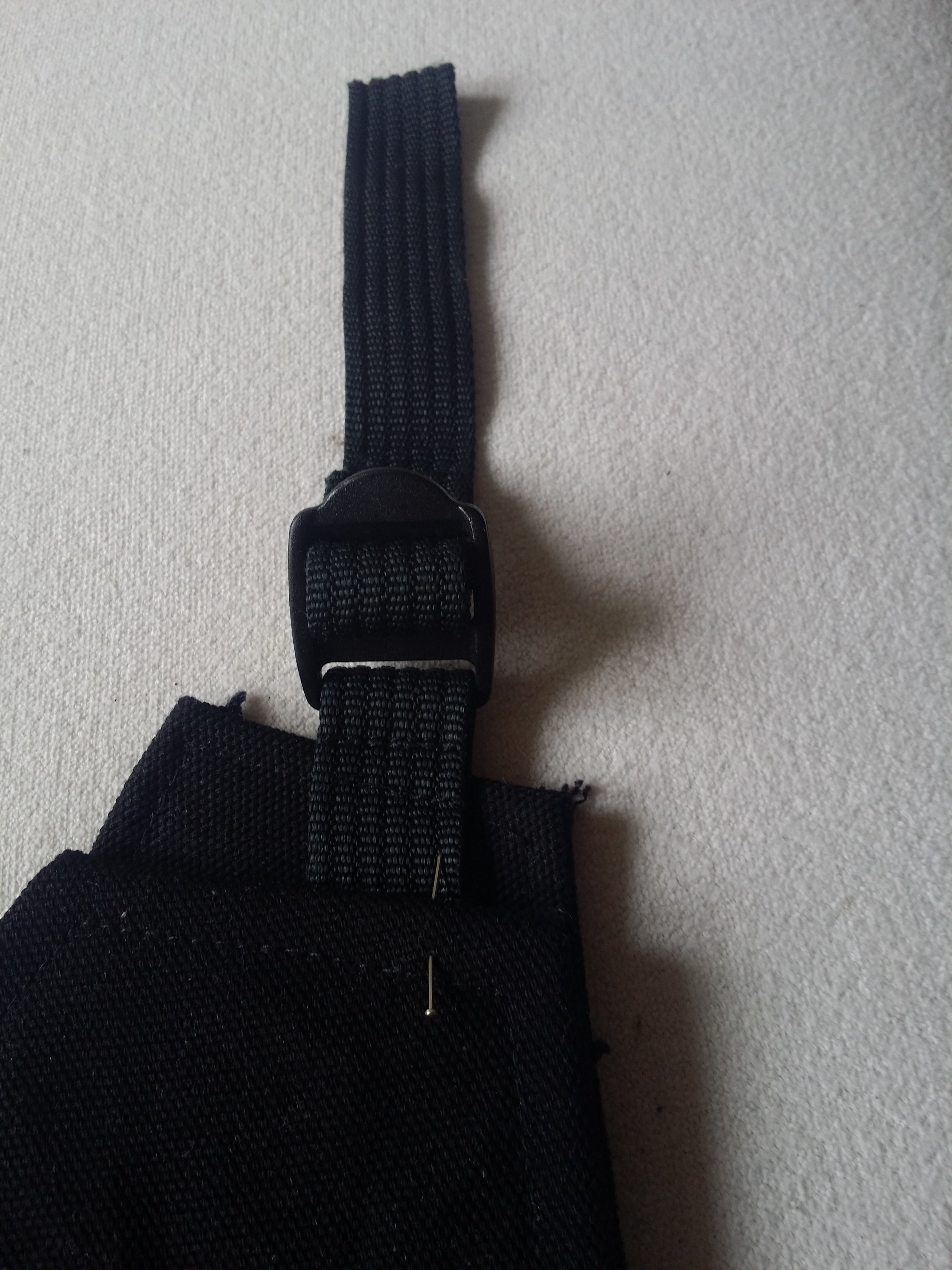

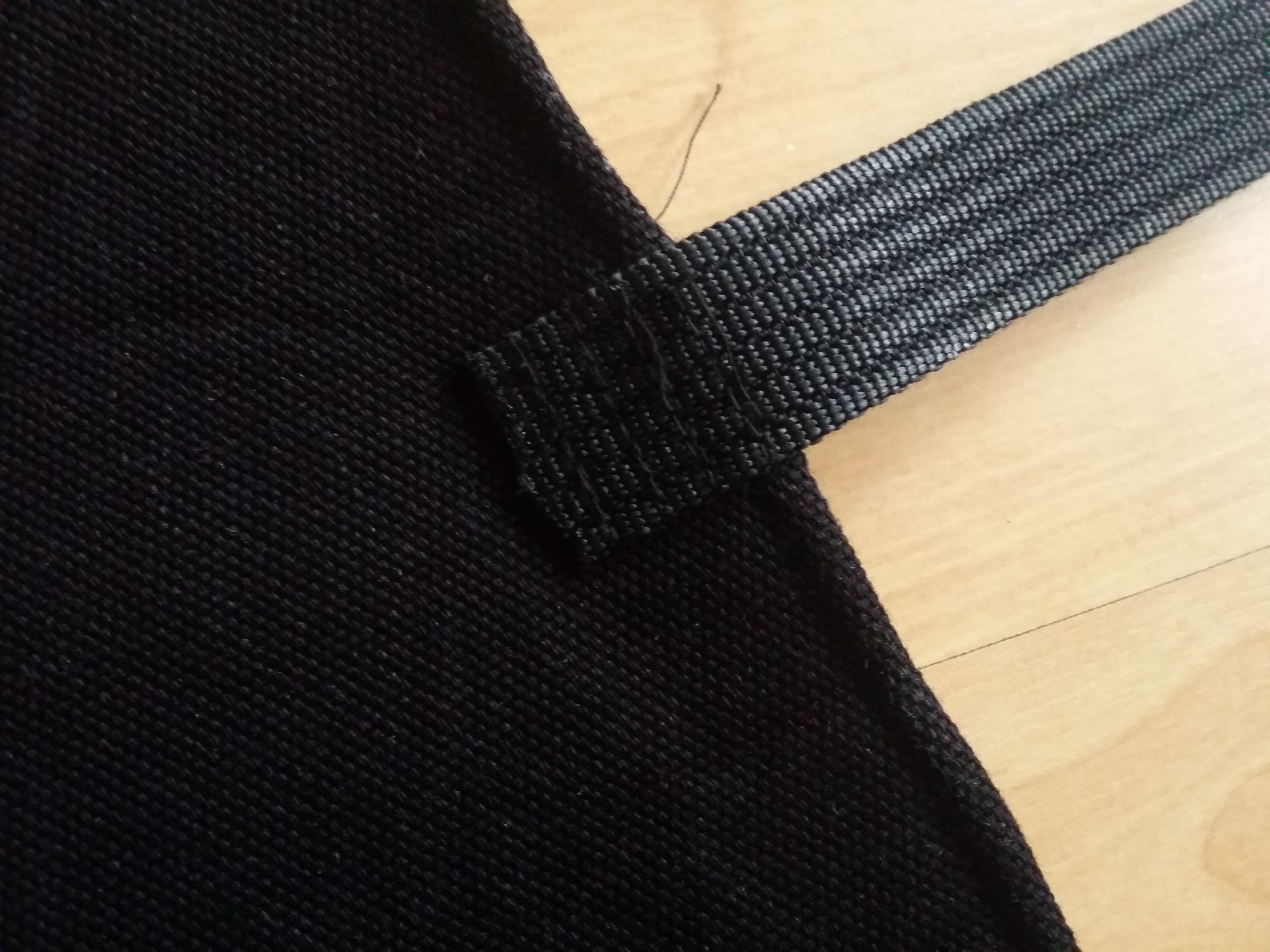

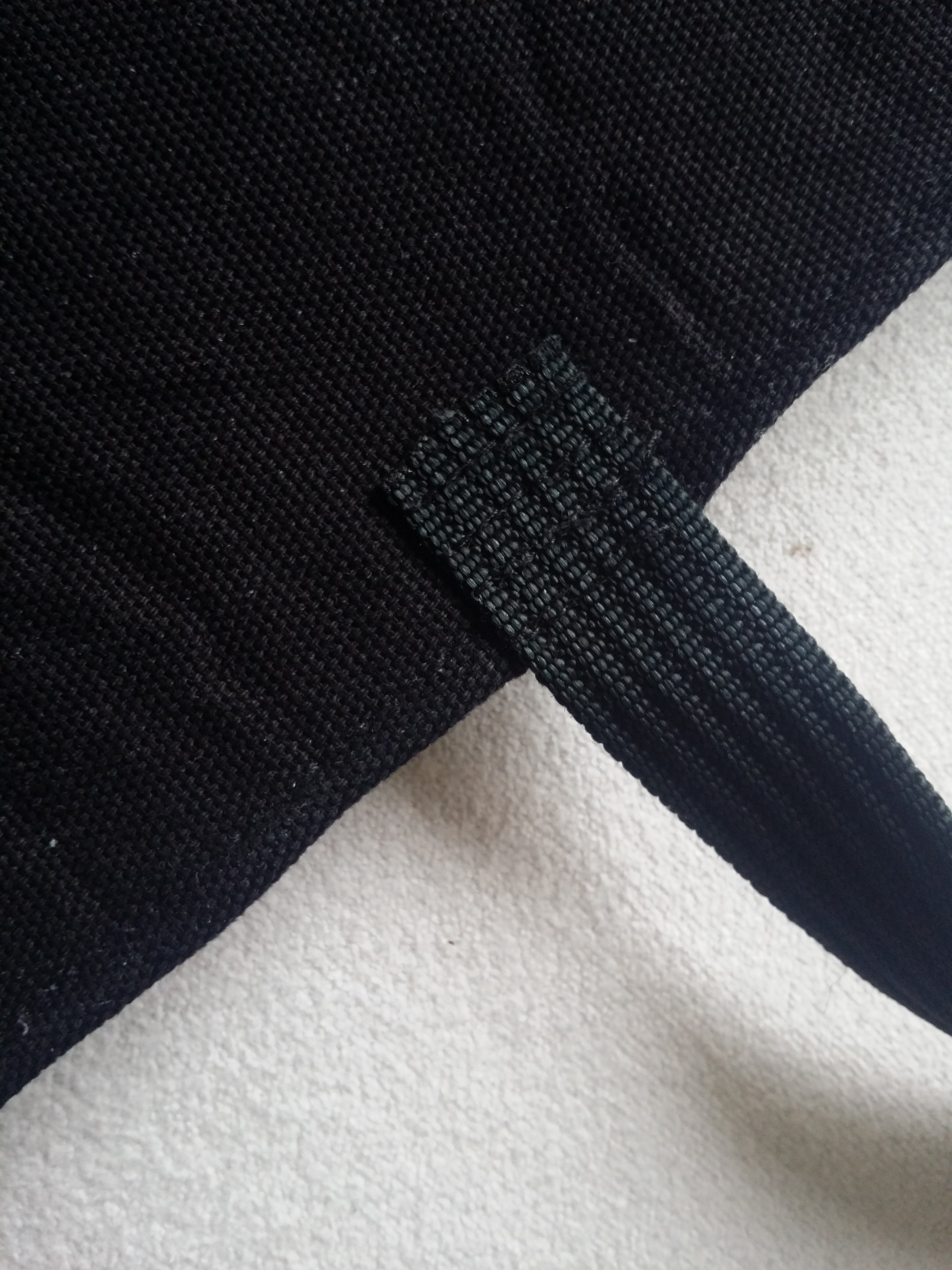

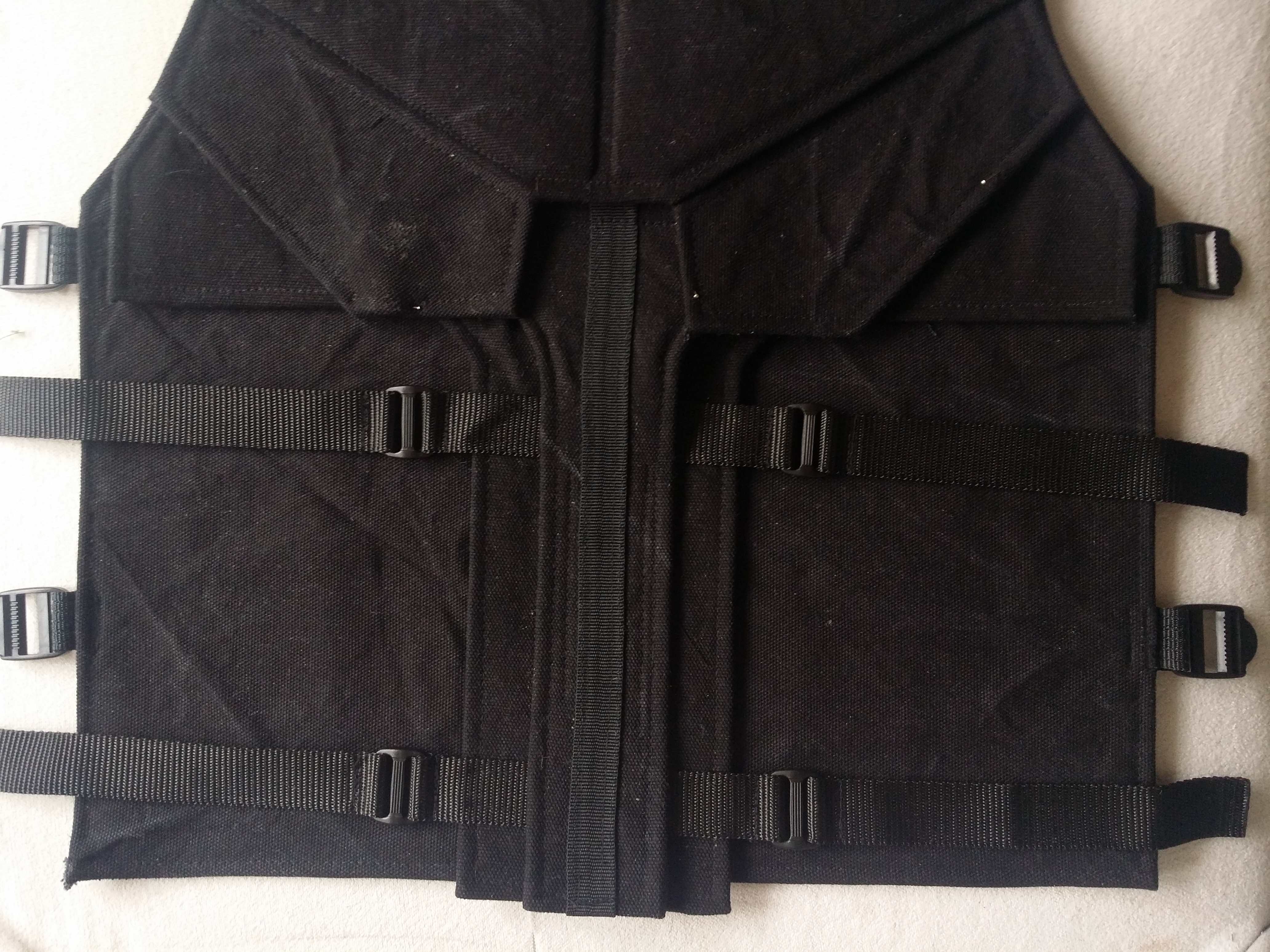

I mostly worked on the straps and buckles

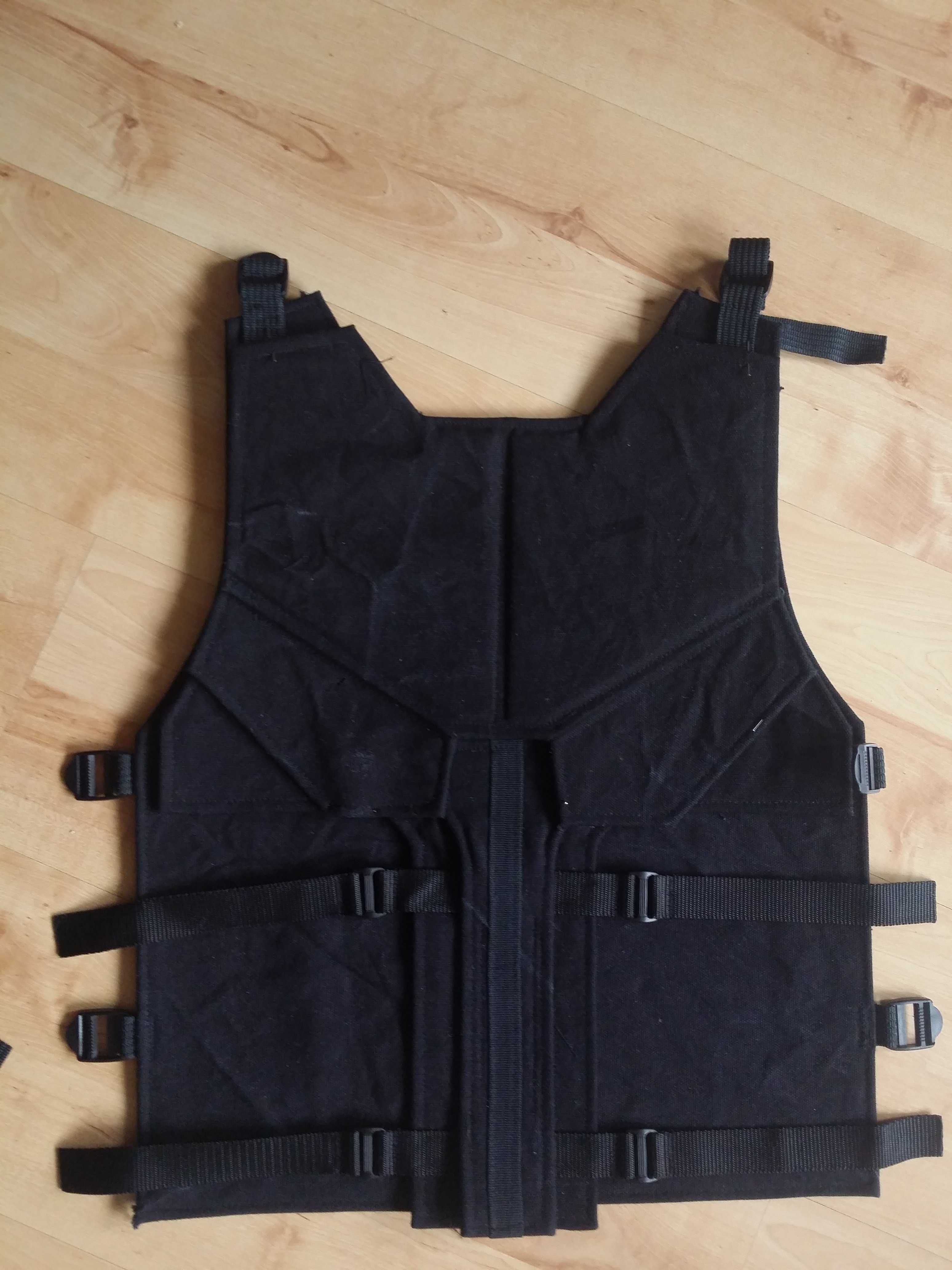

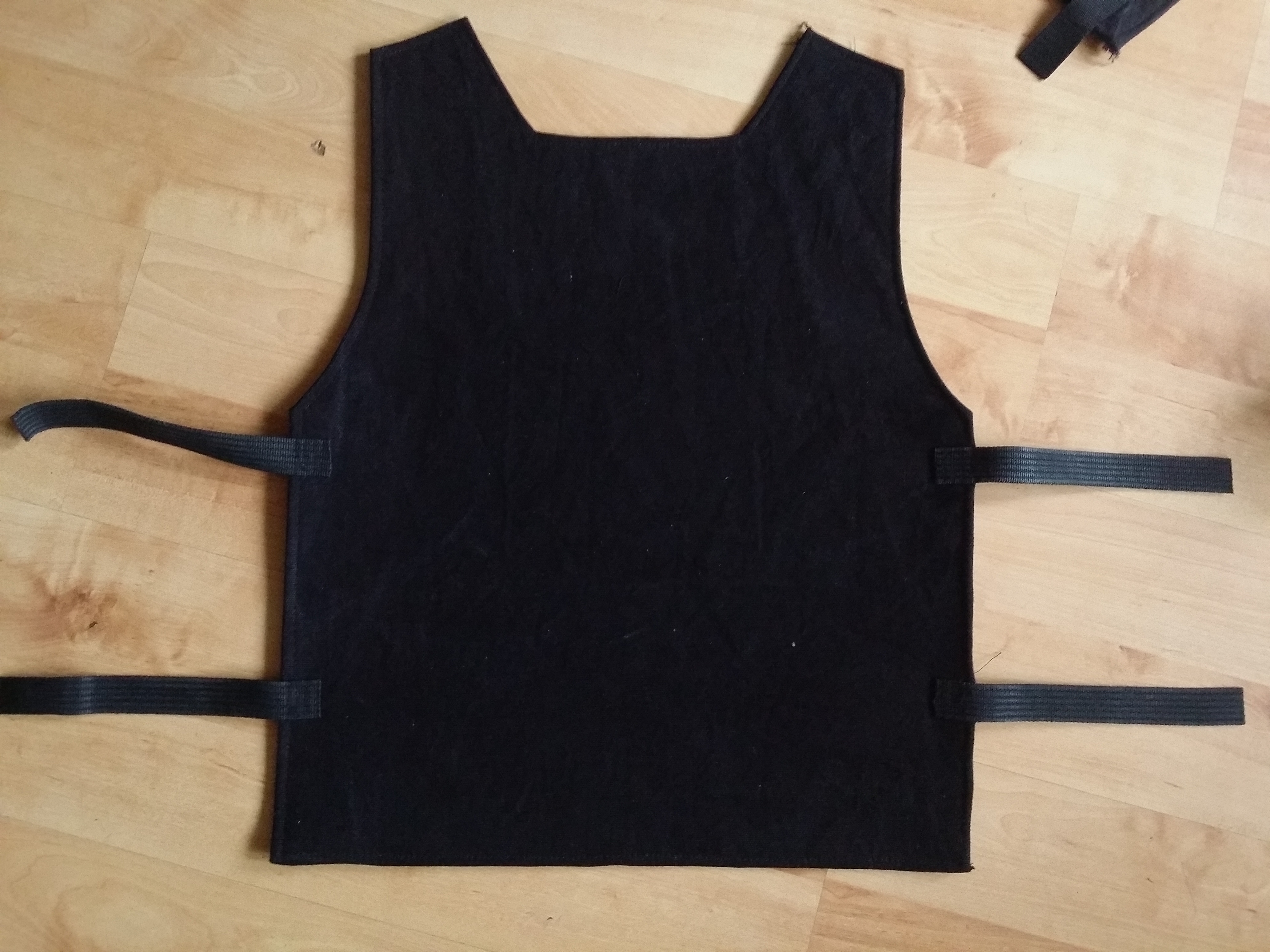

the backside so far

IMG_20160324_102138.jpg IMG_20160324_102310.jpg


Attachments

  • IMG_20160324_102232.jpg
    1.4 MB · Views: 135
  • IMG_20160324_102310.jpg
    1.3 MB · Views: 196
  • IMG_20160324_102148.jpg
    1.5 MB · Views: 147

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Grub

New Member
I've just entered the final stages, hopefully the jacket will be done within one or two days, depending on how long the paint-job will take me :)

How did you get on in the end? I'm gonna start a build soon - I've never worked with fabric or eva foam before, but I've done some homework. Did you have to use a sewing machine?
