Warhammer 40K Inquisitorial Rosette

Fawbish

Sr Member
Just started messing around with 123d Design, and have thrown this together. The skull part is a section of a skull that has been designed previously. The colours are just to make it look a little nicer before putting it here.

I should be printing this quite soon so I'll see how clear the text and aquila come out.

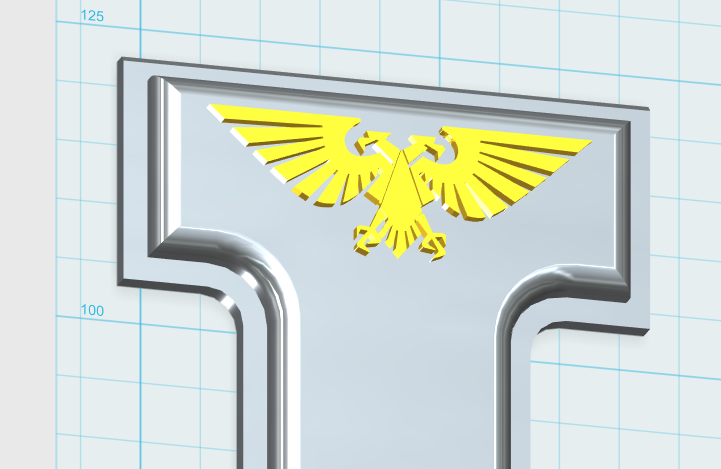

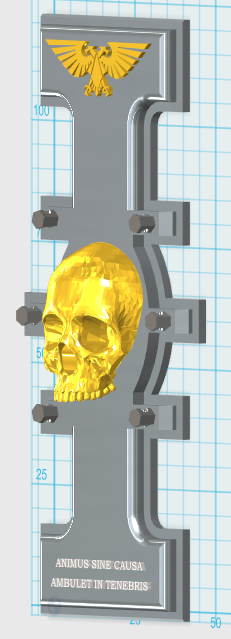

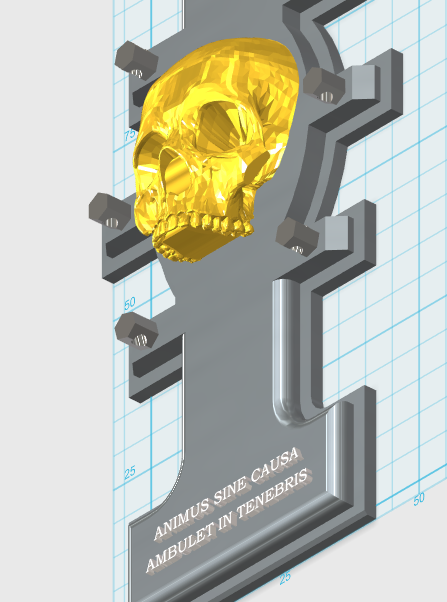

SideProfile.PNG Top.PNG Under.PNG


Fawbish

Sr Member

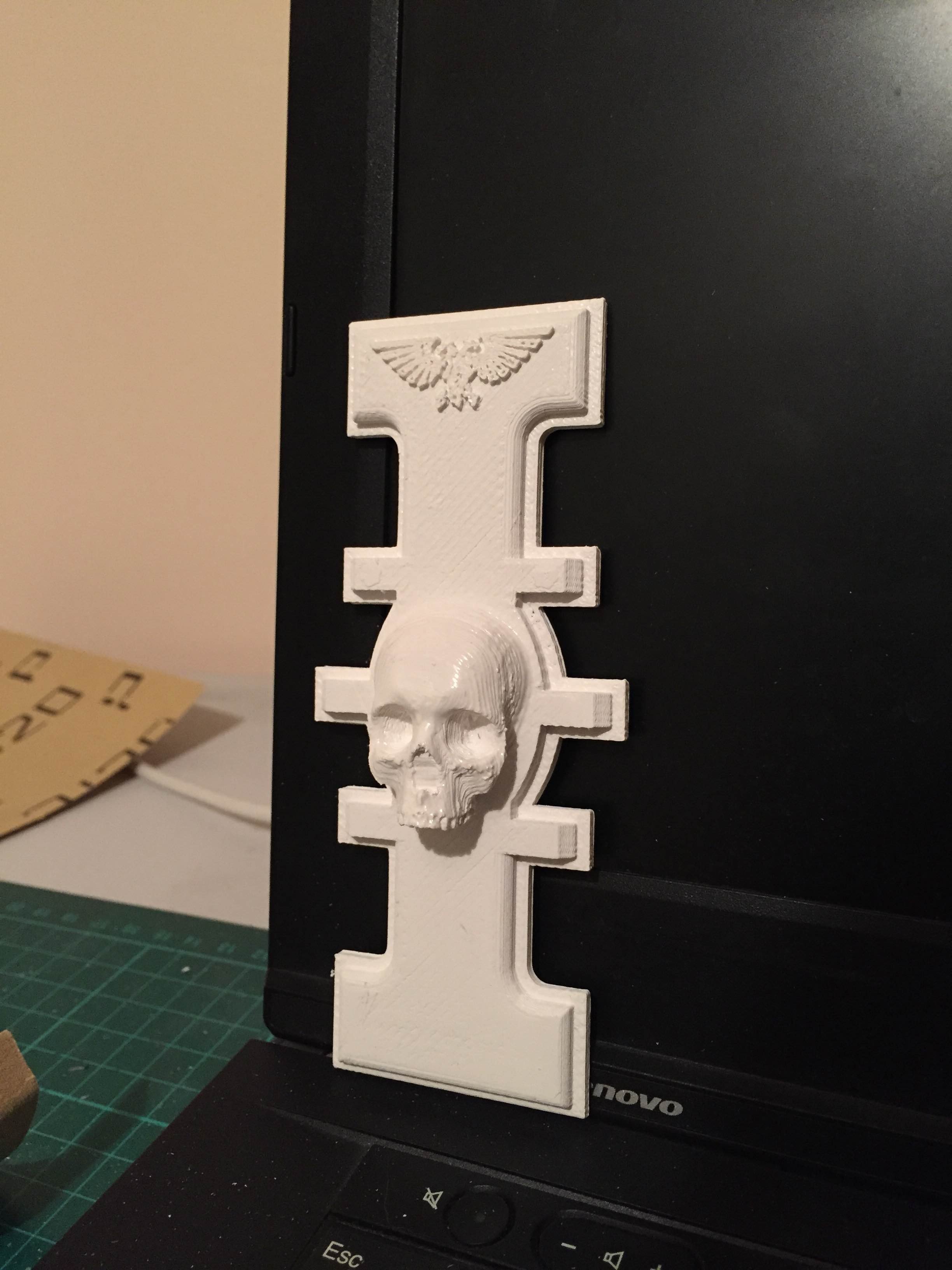

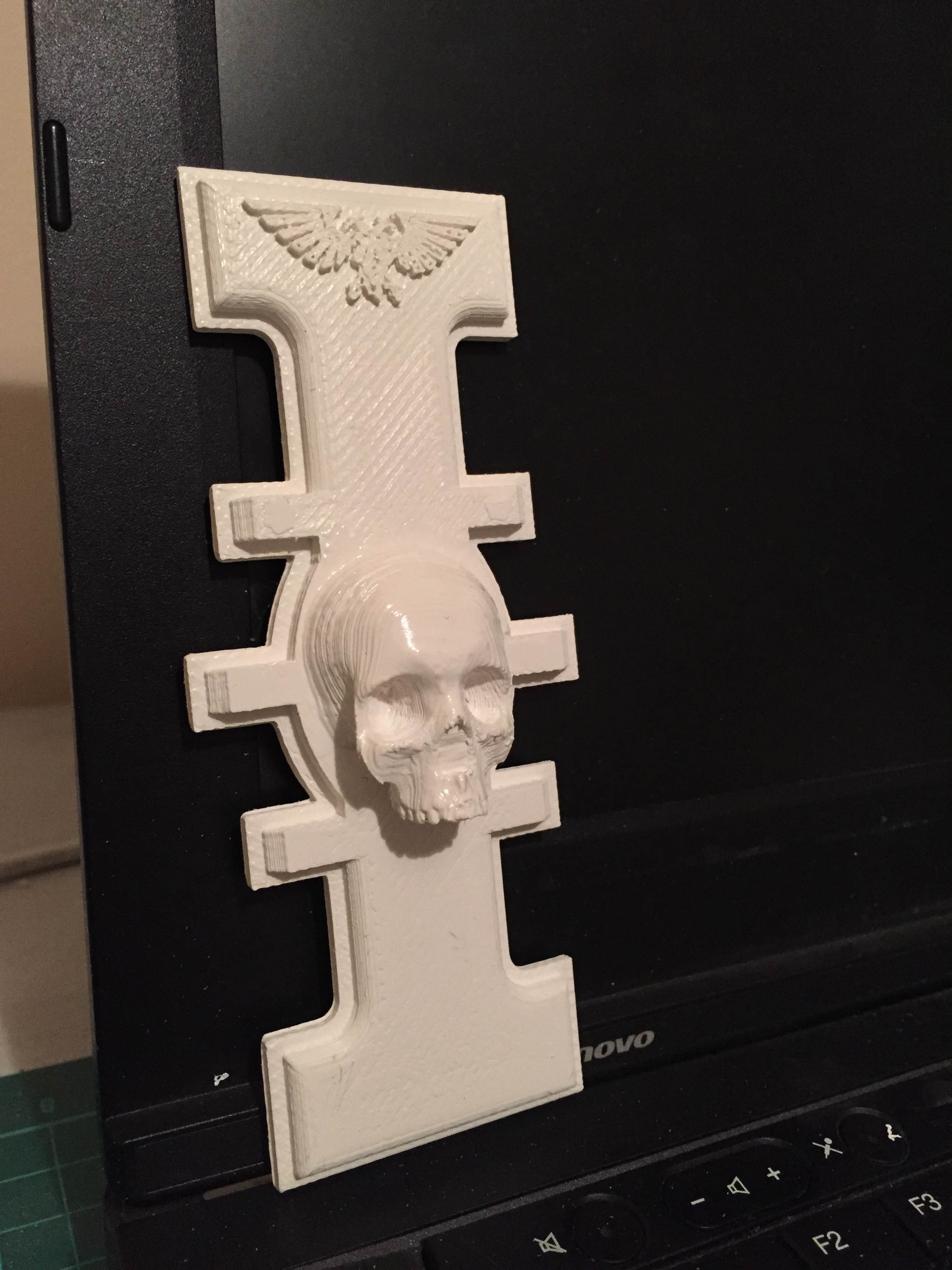

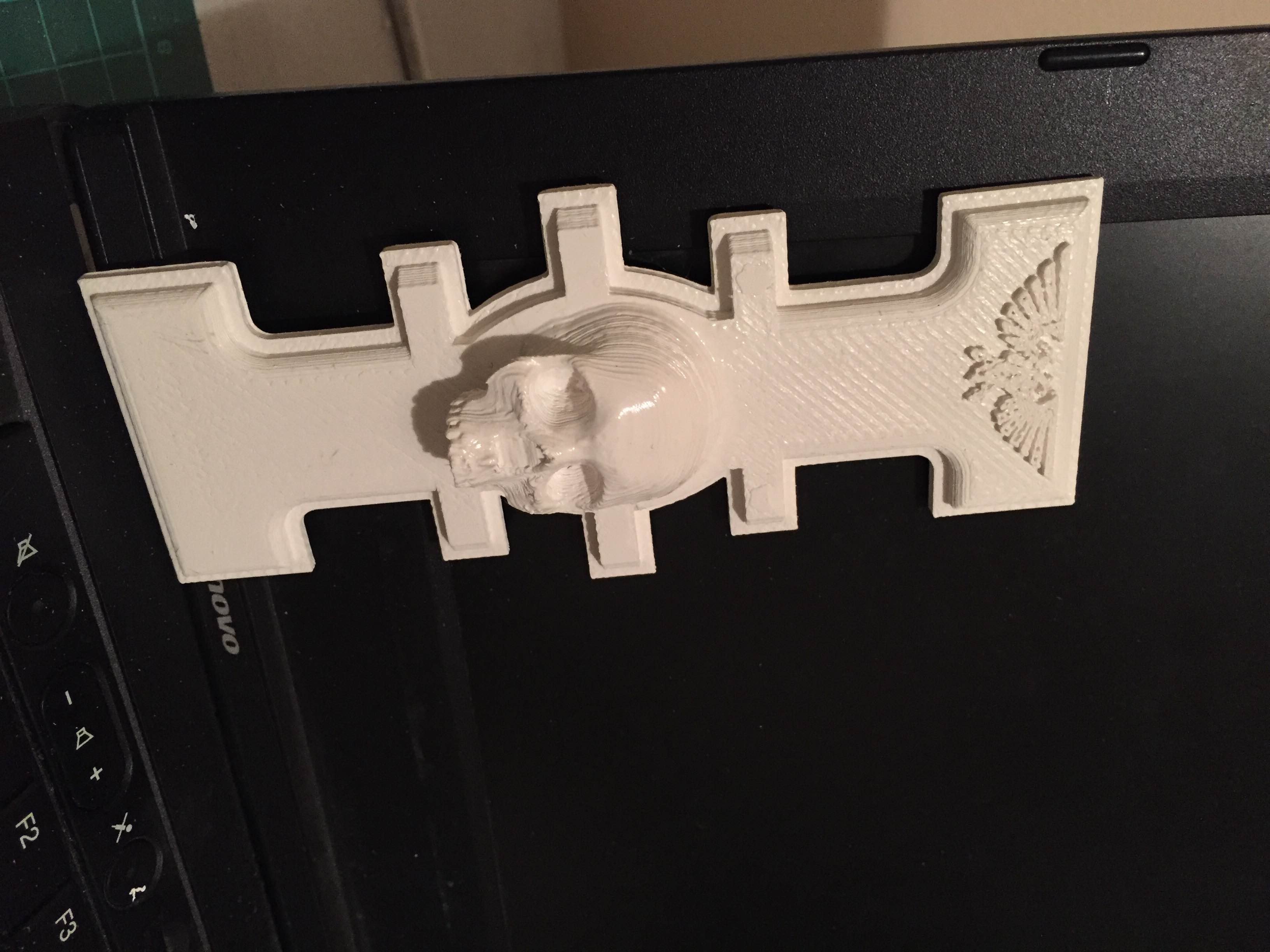

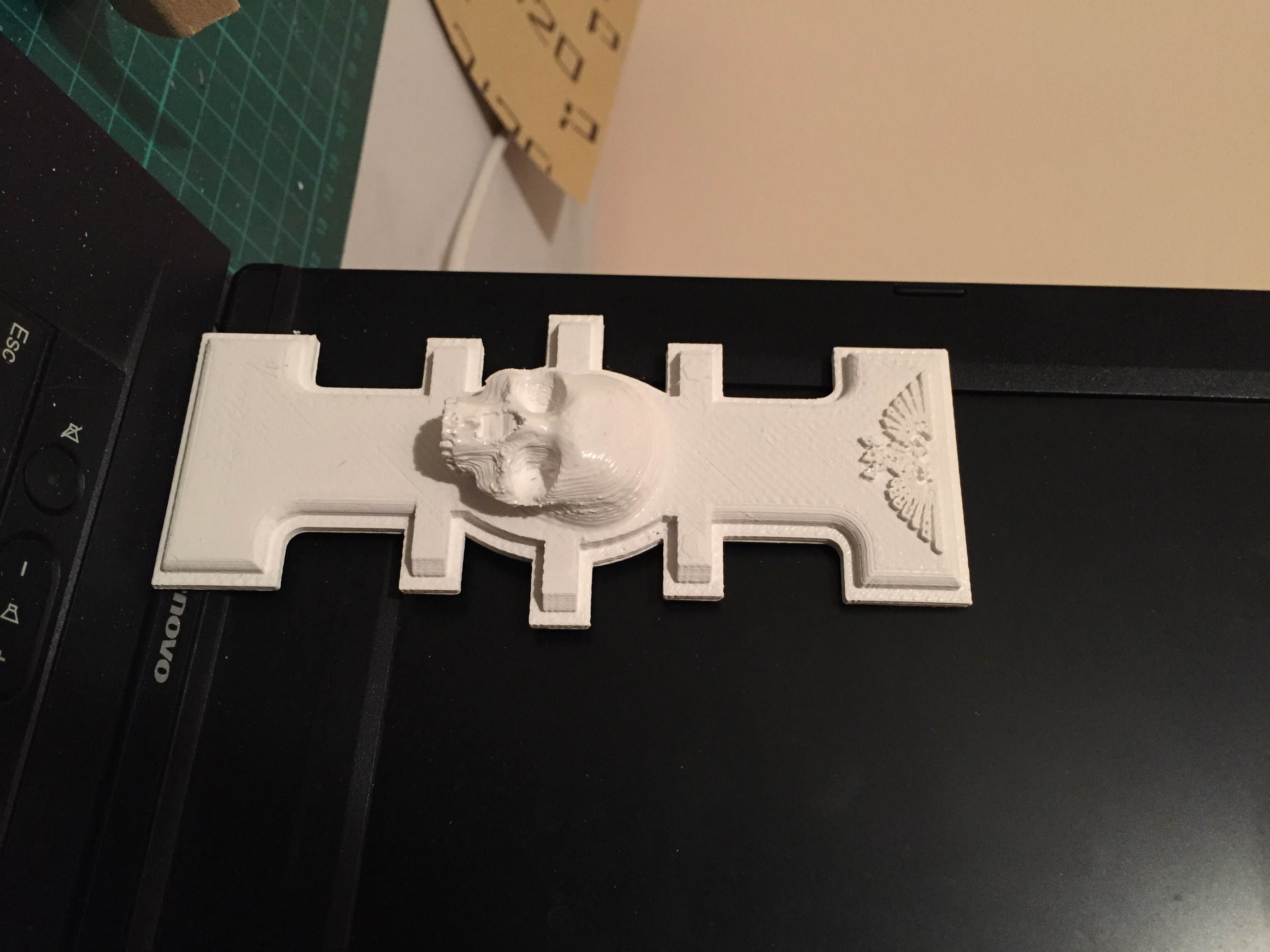

I vaguely predicted the small polygons wouldnt print very well, and the lettering would be a gamble. I lost the gamble and was right about the polygons. The rest came out OK however, the through the toughness of ABS, I simply sanded back the lettering and the polygons. So this is now ready to re-print detail pieces if needed and chemical weld more detail with acetone, however I might be at the limits of the detail on my particular printer.

I printed the skull section seperately after I modelled in my own support underneath the teeth etc. Then I acetone welded the skull to the main body.

IMG_0156.JPG IMG_0155.JPG IMG_0154.JPG


Attachments

  • IMG_0154.JPG
    555.1 KB · Views: 89
  • IMG_0155.JPG
    456 KB · Views: 110
  • IMG_0156.JPG
    559.4 KB · Views: 443

Fawbish

Sr Member
Not particularly expensive for my stuff no. I bought a cheap initial printer (£500) which is the Da Vinci 1.0. However the cartridge filament is more expensive than normal filament (£30 per 600g roll)

However I do not print out every day so I dont use lots of plastic. Just as a hobby.
