renaissance_man

Sr Member
RPF PREMIUM MEMBER



Attachments

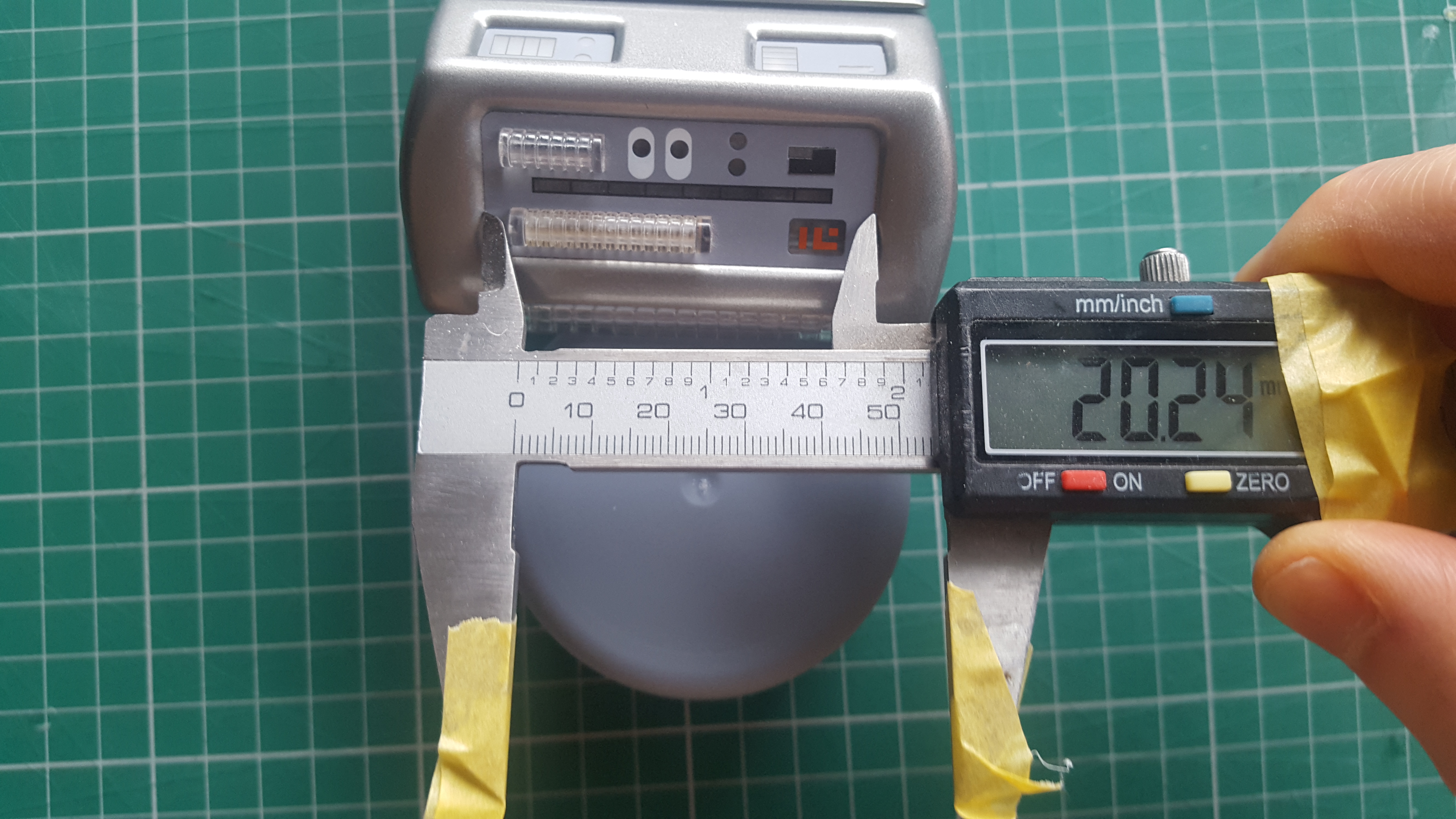

  • 20211120_125140.jpg
    3.9 MB · Views: 49
Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Arky

New Member

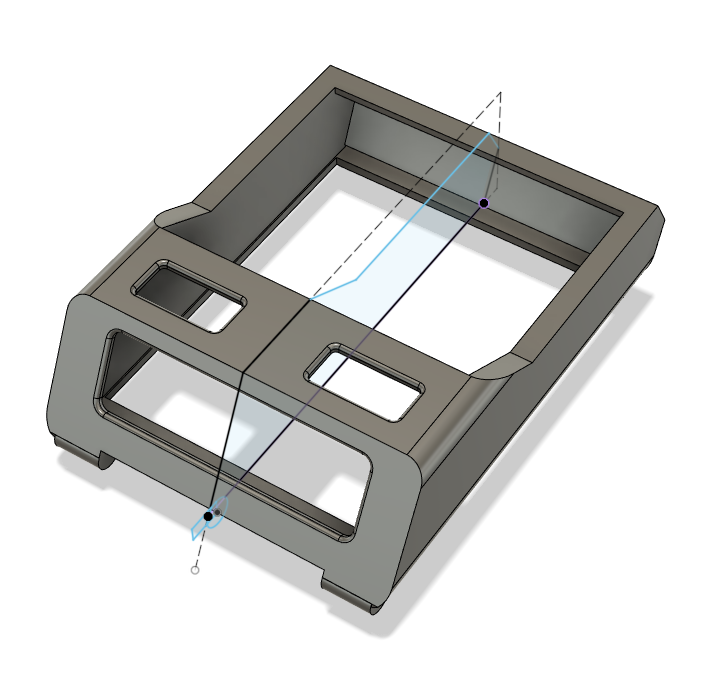

Here's what I've got so far. I don't think it's going to be totally accurate, but I like where it's going.



I was originally just going to make a solid static prop, but I think I'm going to go all out and put electronics in it as well


renaissance_man

Sr Member
RPF PREMIUM MEMBER
Pretty good for a first attempt.

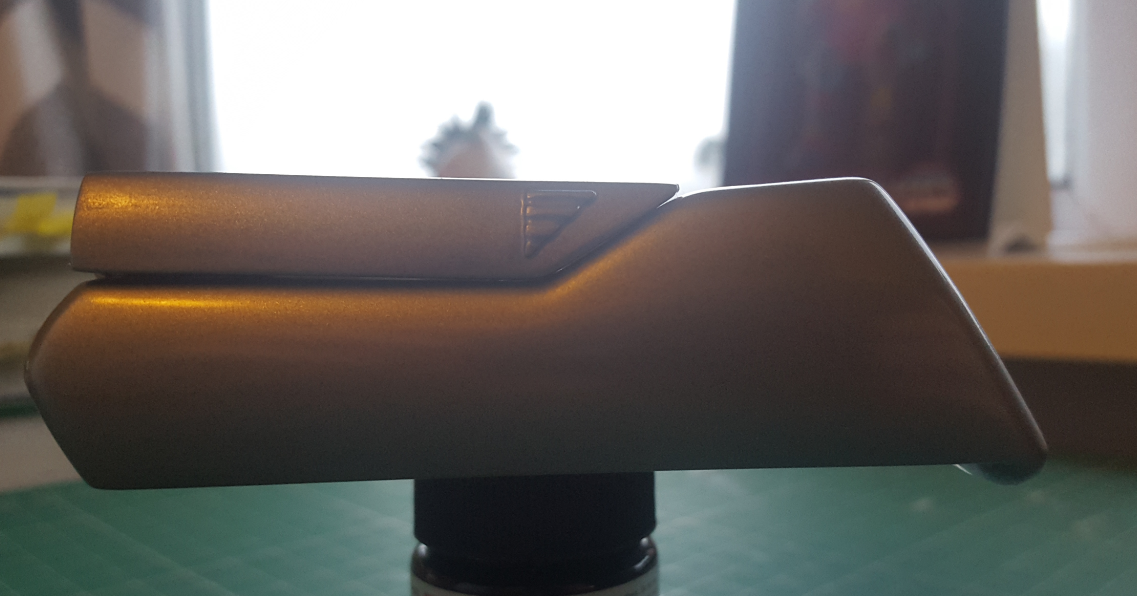

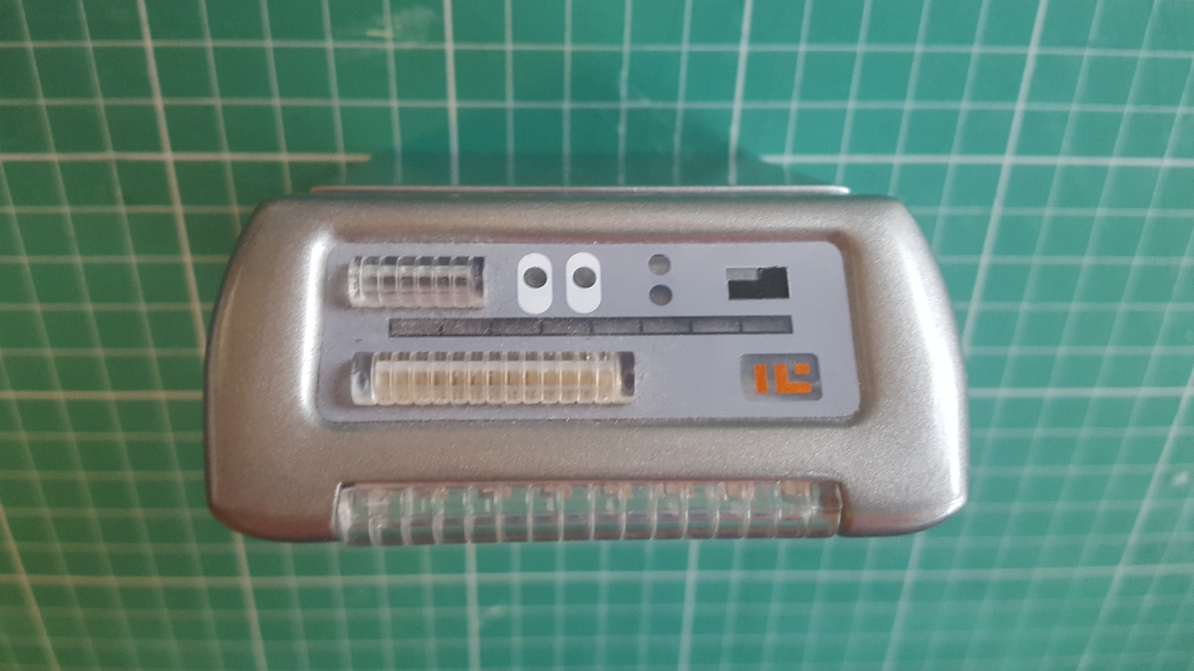

I would say to really nail this, start a new model on the front plane, draw out the front face of the Tricorder (the one with all the LED "sensors") then simply extrude it back to the desired length.



Then on the side plane, trim away the area the easier segments.

It will give you the most accurate model.
It's quicker than trying to make a box and then cut away the curved sides or use fillets to get the shape.
Good luck.


renaissance_man

Sr Member
RPF PREMIUM MEMBER
I just went back and double checked as something looked off.
Not sure why but 1 measurement was wrong, calipers must have slipped or had a blip.

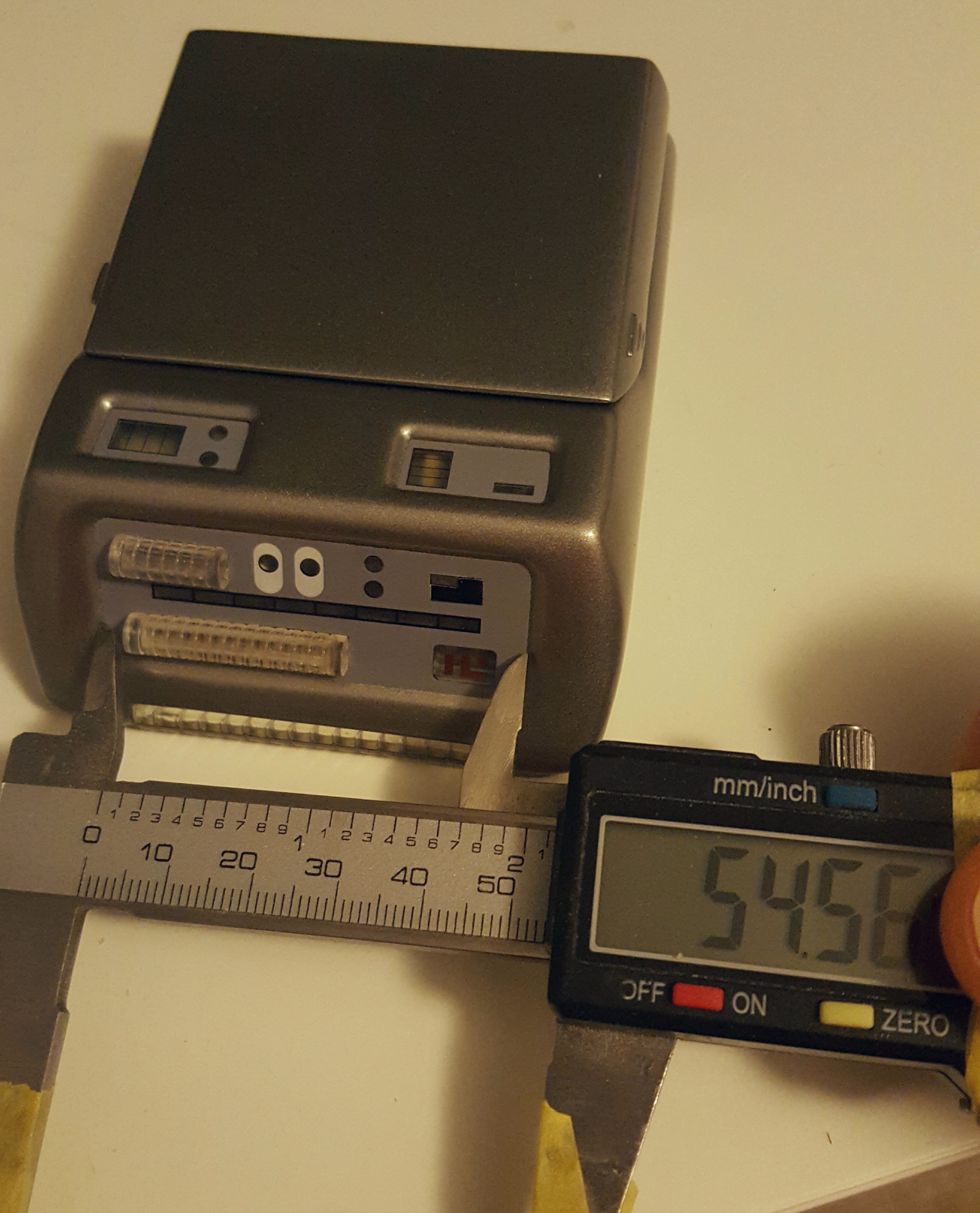

Here is the correct dimension.


Attachments

  • 20211123_070751.jpg
    4.7 MB · Views: 11
