Vision - Avengers: AoU

Discussion in 'Sculpture and Makeup Effects' started by imnotahero, Aug 21, 2015.

Tags:
  1. imnotahero

    imnotahero Active Member

    Trophy Points:
    412

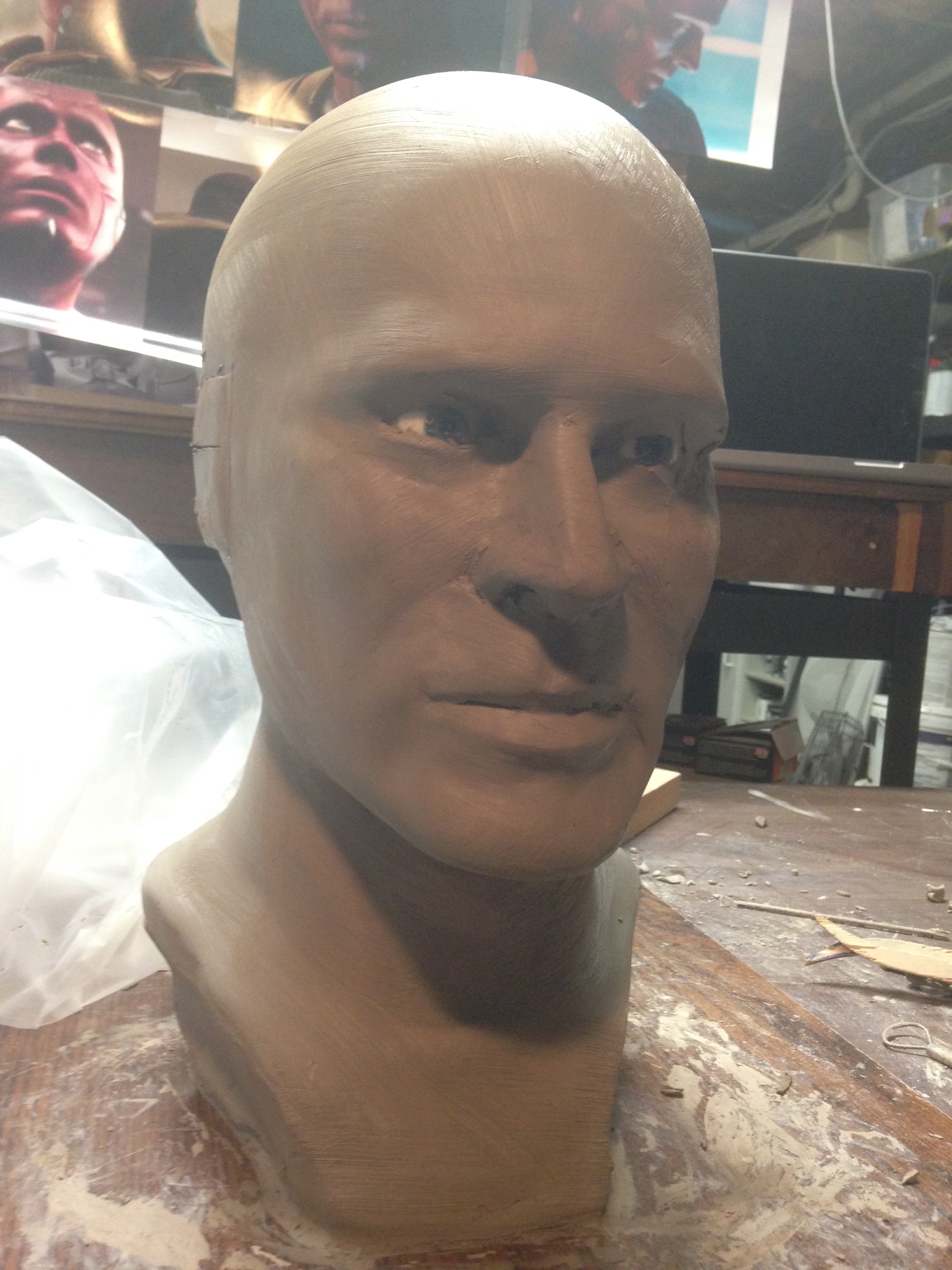

    I'm sculpting Paul Bettany as 'Vision from Avengers: Age of Ultron.
    The plan was to sculpt as much of the sharp details as I could, make a casting and then sand and engrave them to a more polished finish.
    But the more I sculpted the more I realized it would be easier to just sculpt a likeness and then build up the details using hobby store styrene strips.
    This likeness was a challenge to work out because the CG effects work they did on Vision actually shrank the sides of his head in. It also means the shape of his head changes slightly from shot to shot.

    George and Bogleo like this.
  2. imnotahero

    imnotahero Active Member

    Trophy Points:
    412

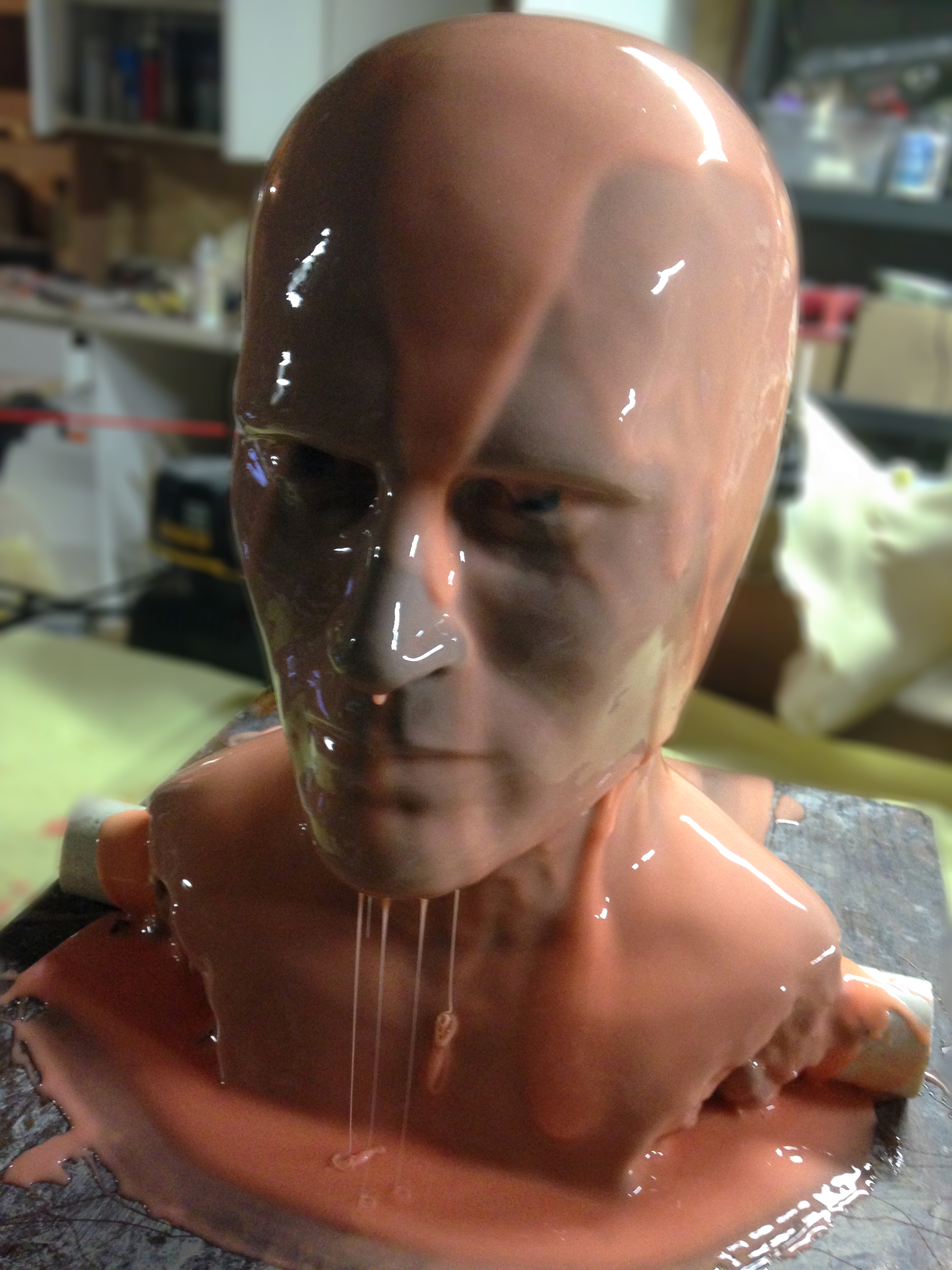

    Made a mold of the WED clay sculpture with Rebound 25.
    IMG_5577 copy.jpg

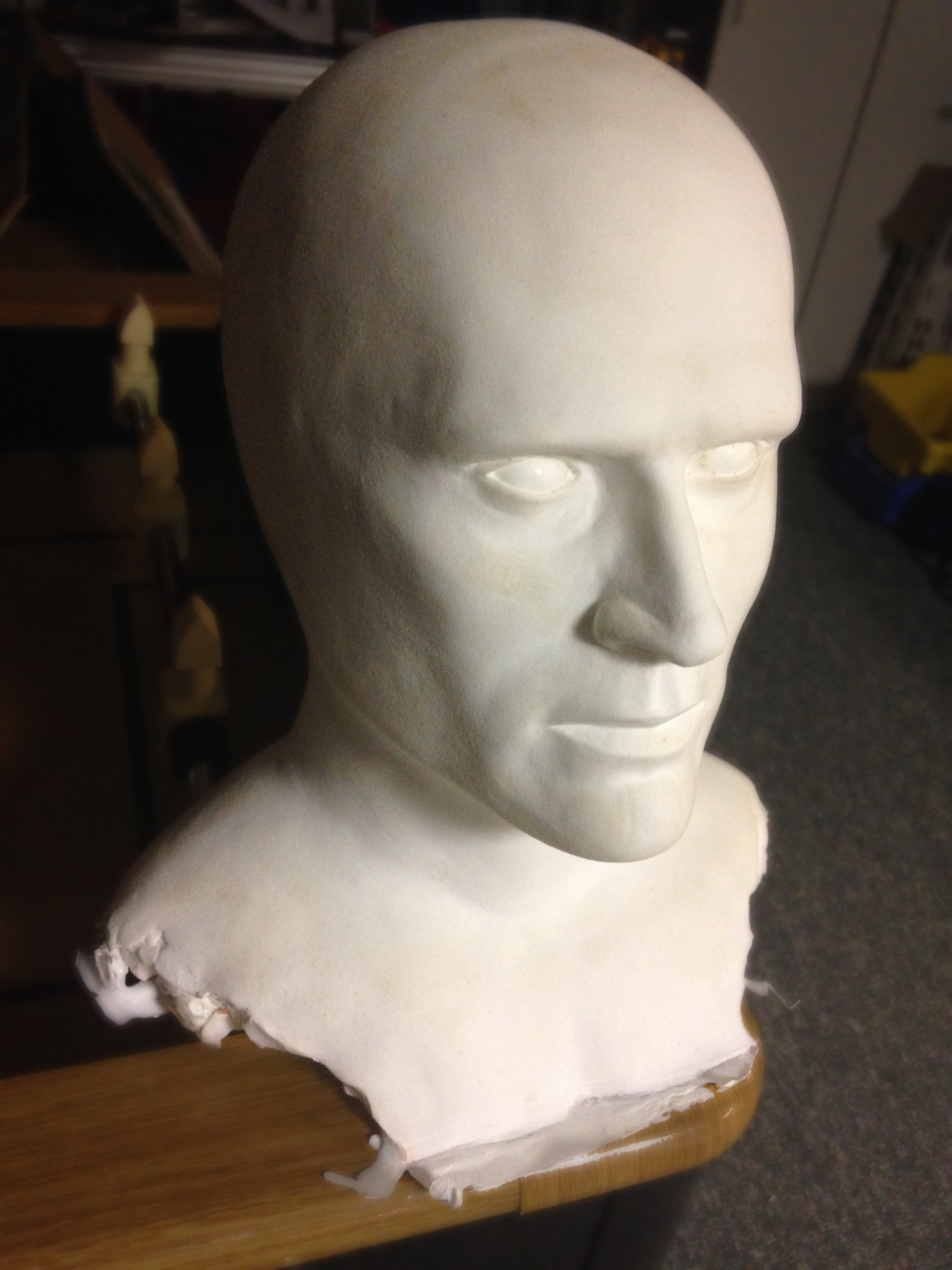

    Slush cast with Smooth-cast 320.
    IMG_5605 copy.jpg

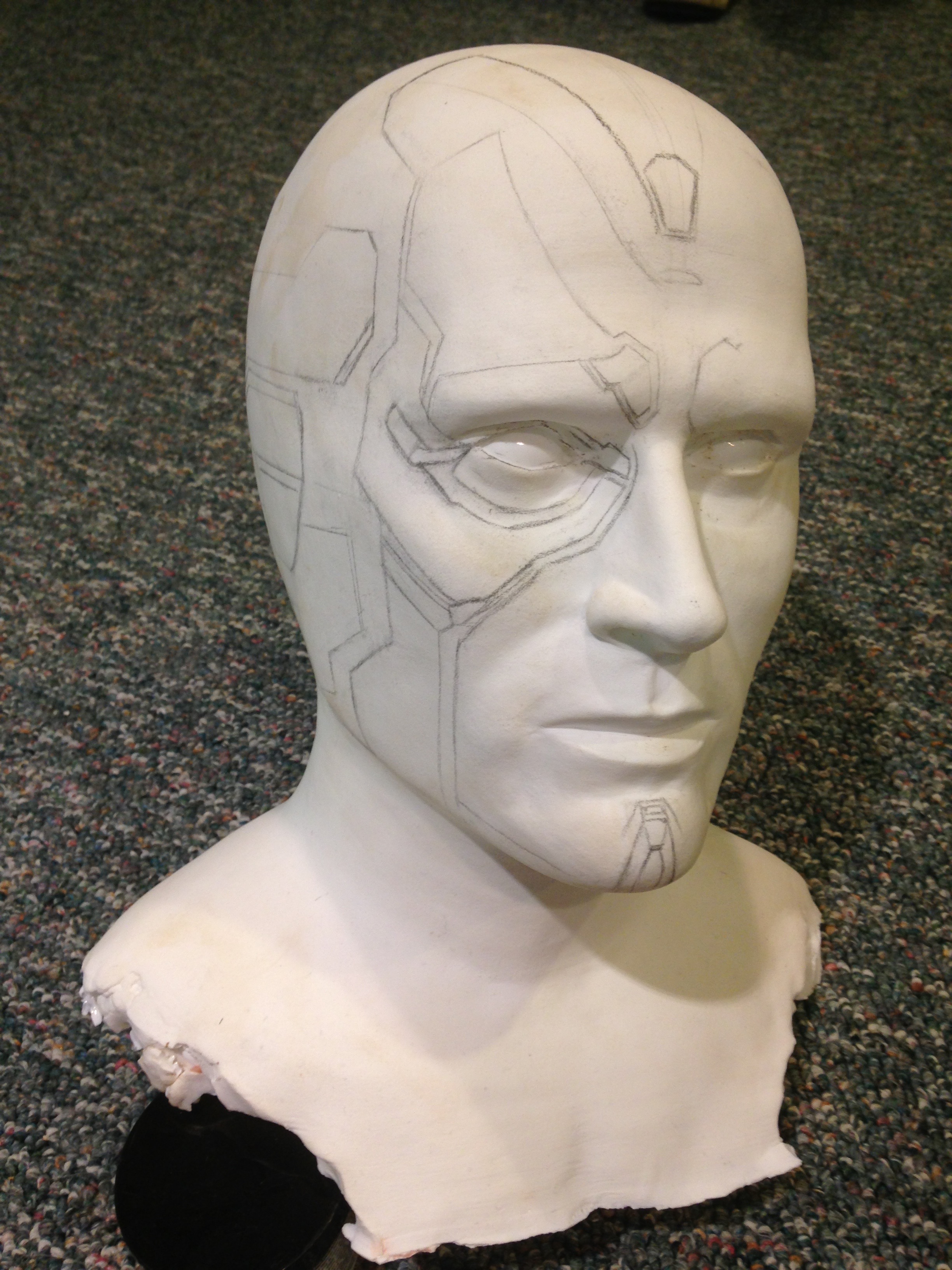

    Began to draw the different sections and panels on the face.

    JPH, Nexus6, George and 3 others like this.
  3. Mr Mold Maker

    Mr Mold Maker Sr Member

    Trophy Points:
    1,990
    Very nice work so far. I like your approach of doing the base first and doing the rest of the work with hard edge modeling.

    The last shop I worked at was hired to do a vision makeup, and this is giving me horrible flash backs of carefully preserving each and every razor sharp edge of clay in the molding process. :lol

  4. imnotahero

    imnotahero Active Member

    Trophy Points:
    412

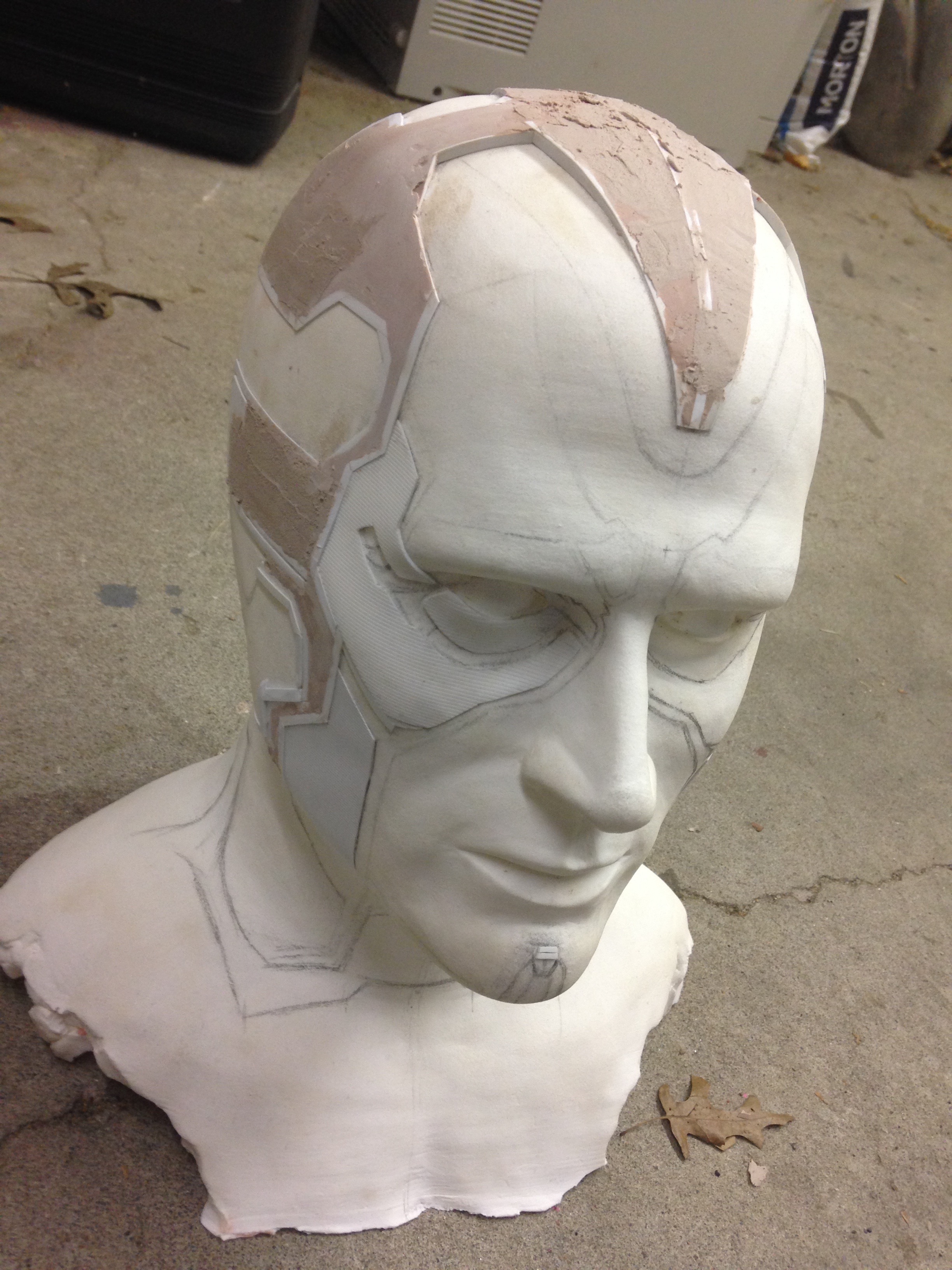

    Some progress I made. Lots of time devoted to drawing and making things straight. I've started gluing on styrene strips to mark the edges of "panels" and then I'm filling the empty spaces with bondo.

    E60flip345 and 13doctorwho like this.
  5. NBergmann

    NBergmann New Member

    Trophy Points:
    17
    This is looking amazing! I'm really excited to see more progress!

  6. SupersonicGabi

    SupersonicGabi Member

    Trophy Points:
    162
    I just recently cosplayed Vision and this looks so great. It would have been cool to have something like this to spin and reference while I was planning and building the prosthetics.

  7. imnotahero

    imnotahero Active Member

    Trophy Points:
    412

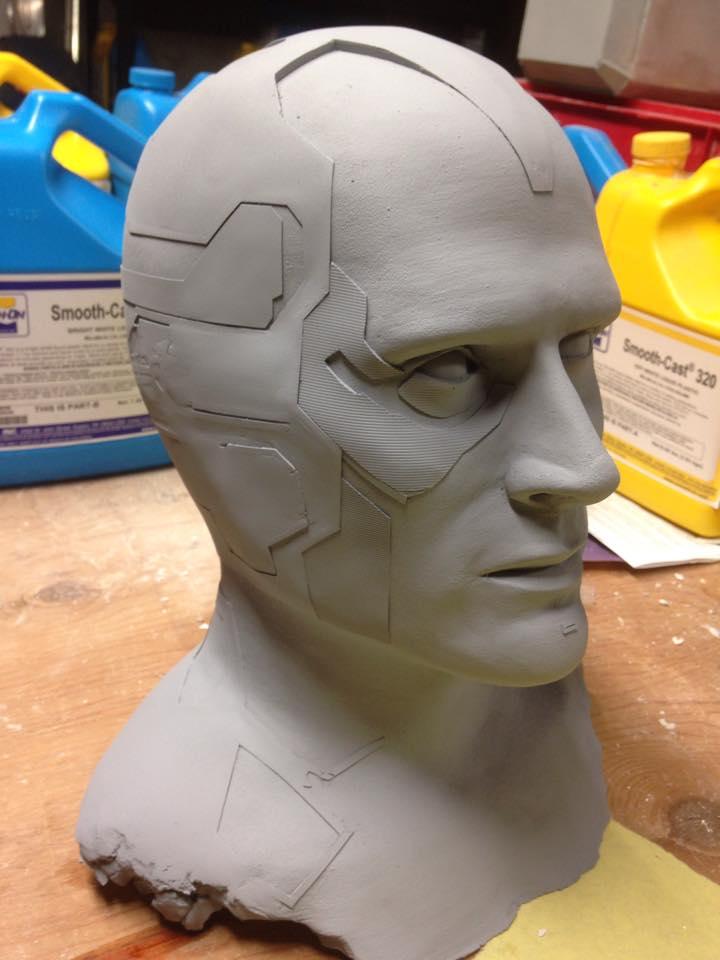

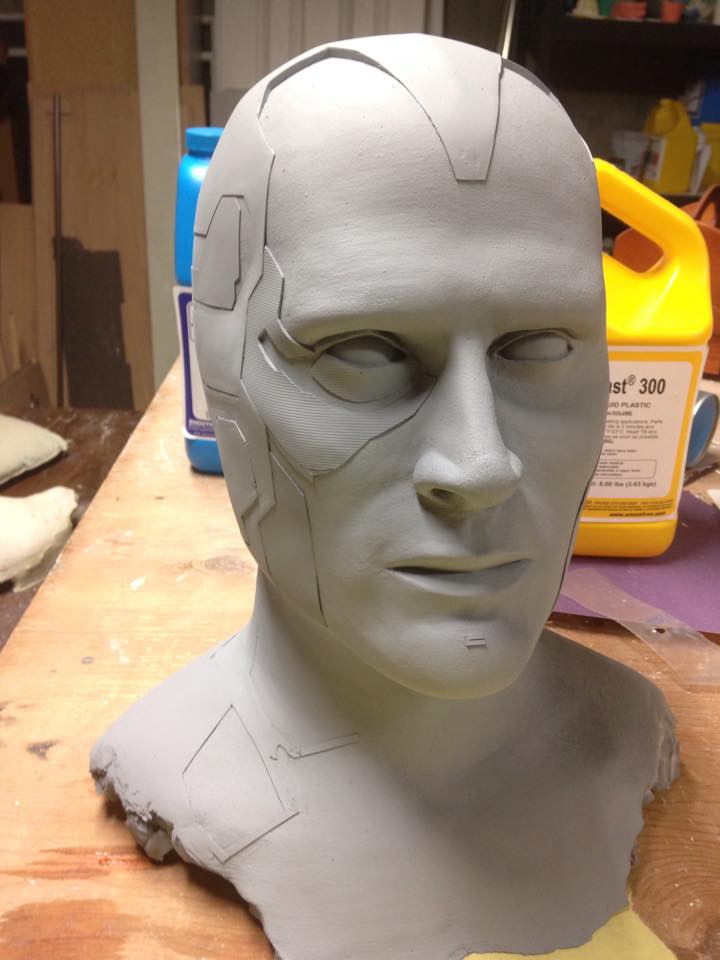

    Small progress, but everything looks cooler with a coat of primer:
    12180118_10206984742993683_1830516495_n.jpg 12177884_10206984743033684_1871195807_n.jpg

    Nexus6 and ataru72ita like this.
  8. pitchforknumb

    pitchforknumb Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    This is looking spot on man. What did you use to get that texture on the cheek panels?

  9. imnotahero

    imnotahero Active Member

    Trophy Points:
    412

    I found a flat piece of styrene with those grooves at a hobby shop. I tried using a heat gun to make it soft so I could press it on the bust, but I had trouble warming the plastic uniformly and keeping it from warping.

    So I took a quick silicone mold off of the grooved styrene and then I cast a very thin layer of Smoothcast resin from that mold. I peeled the resin off the mold after it had turned white but before it became rigid. Then I pressed the sheet of resin onto the bust in place. Then trimmed it to the correct shape.

  10. SupersonicGabi

    SupersonicGabi Member

    Trophy Points:
    162
    any further progress?
