This project took a long time to complete –not because it was difficult or time-consuming, but because I paused many times for long periods since I decided to give this old toy a bit of an upgrade a couple of years ago. It had been sitting around in an old dresser drawer at my parents' house for years and years until my return to modelling in 2015 inspired me to give this a shot, using some new techniques I've learned.

birthday pic.jpg
I think the toy itself dates back to 1978 or so, but I definitely got it for my eighth birthday in 1979. It's possible this was a gift from my friend from across the street (seen here holding the gun, fresh out of the package), but I honestly can't remember who it was from. It could have been my two other neighbourhood friends on the left or my cousin (third boy from left, and that's my sister behind me). I apologize if the gift-giver is reading this, but I just cannot remember.

Original Kenner Package.jpg
It's curious the packaging has a photo of Han Solo holding his gun at an angle that doesn't give you an idea of how accurate (or inaccurate) this toy is compared to the filming prop (and, for a toy, it's actually fairly accurate). Also, the "DL-44" make designation came much later as Star Wars lore beyond the films began to grow (that's why the post title and cover graphic have different wording: I wanted to cover all the bases as far as the description of this thing goes).

Rust 03.jpg
The toy definitely got a lot of playtime when I was a kid, but it was stuffed in a drawer (the same one I recently rescued it from) for years during my adolescence...until I needed a futuristic gun for a little play I adapted and directed (based on the Philip K. Dick short story "Impostor") in the late spring of 1990 for my Drama independent study in my last year of high school.

The story and my four-character adaptation were set in a vague near future, and I thought my toy blaster would work as a prop for my Major (on the right, played by Jen, wearing her riding boots and looking perfectly no-budget future military). This is one of only four pictures from the performance taken by my drama teacher (and I thank her since the only other record of this whole project is the poster and program I designed).

ANYWAY...

This was the "baseline" condition of my toy at the start of the project:

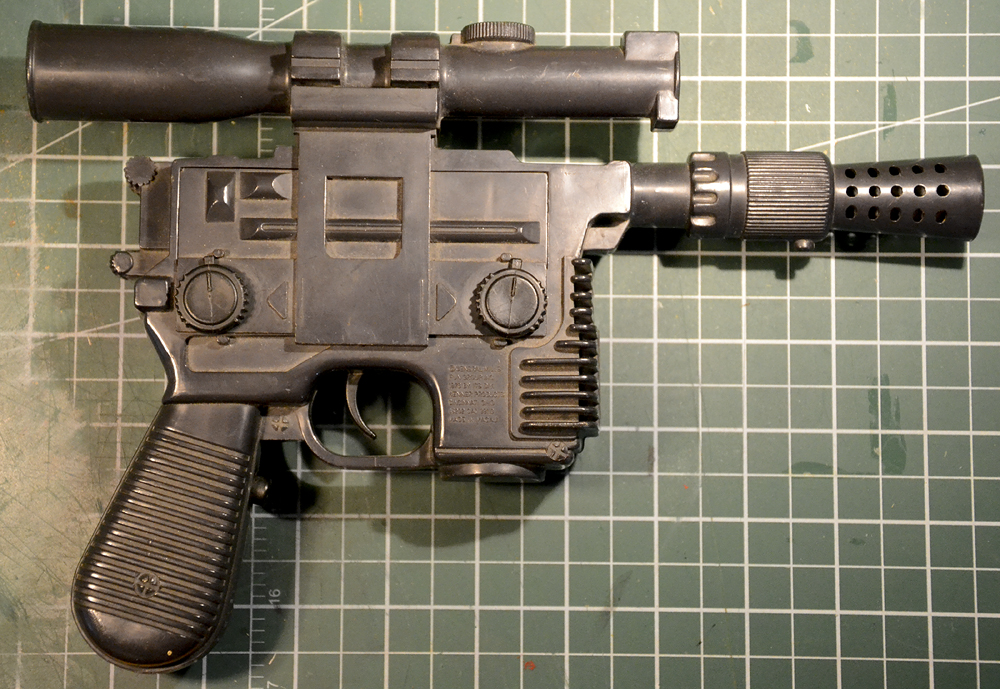

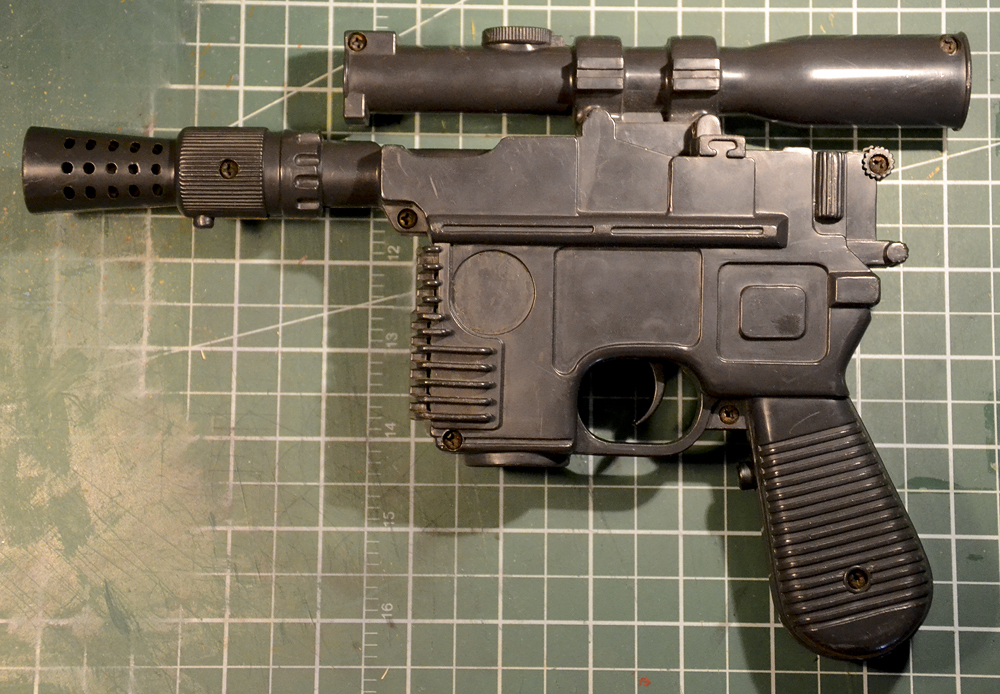

01 Baseline Right.jpg 02 Baseline Left.jpg
For those unfamiliar with the toy, those two knobs on the front each turned slightly so that you could remove the battery cover (see further below for a better shot of the cover)...and the batteries were for the "2-speed 'laser' sounds" mentioned on the front of the package.

The "secret button" can be seen on the front of the handle, just beneath the trigger guard; if you held it down with your middle finger while pulling the trigger a mildly annoying whirring/grinding/drilling sound came out (certainly not the cool blaster sound effect provided by Ben Burtt for the movie). I doubt I replaced the batteries more than once.

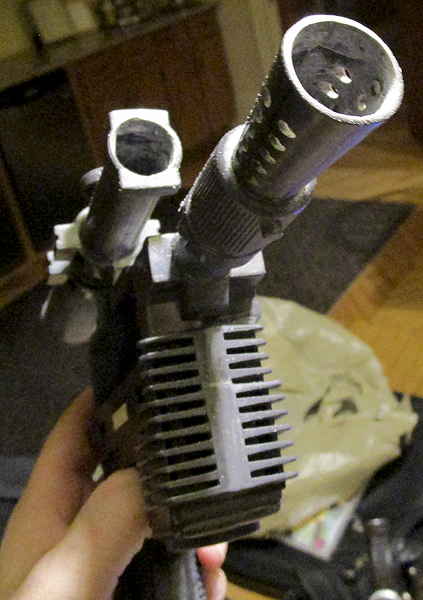

03 Drilling Out Flash Hider.jpg

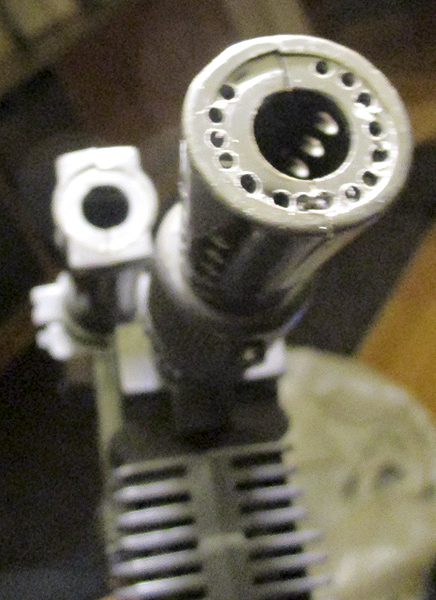

Most of my upgrading involved removing elements that made it obvious this was a toy: raised copyright text, terribly misaligned seam lines, that "secret button," and the narrow openings of the flash hider and scope. I used a pin vise to drill all those holes and then just ground out the excess with files until it looked more accurate.

04 Drilled Out Flash Hider.jpg
Those grills should be rounded rather than squared-off like that, but I didn't want to change too much of the toy's original structure (besides, I'd have to remove the whole thing and make or acquire a more suitable part (same goes for the "wooden" handle: I just left it flat).

05 Battery Cover Arrows Removed.jpg

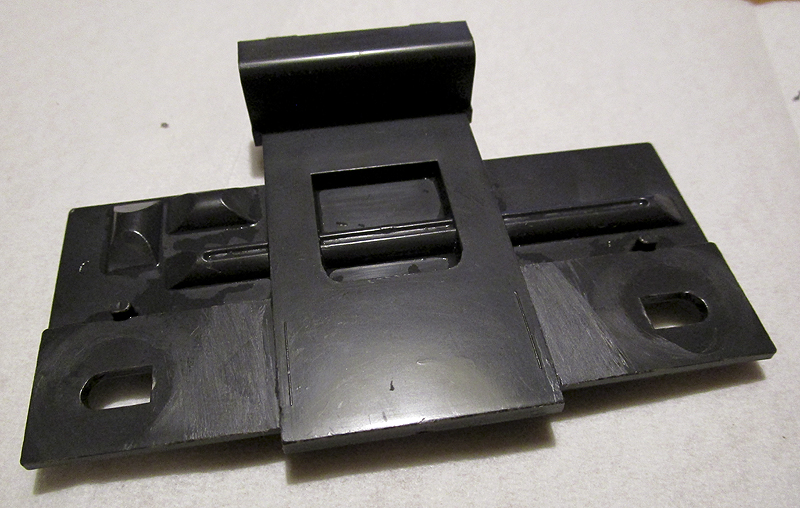

The obviously sanded areas used to be two raised arrows (clearly visible in the first baseline shot, above) that had to go. The holes next to those were where the knobs hooked into the cover and kept it shut when you turned them into the positions seen in that shot (or they could be turned down, since there were two little bits on the gun itself that matched the two little bits on the cover (I removed those after taking the above shot) that indicated the cover was "locked."

I chose not to open up any part of the cover for accuracy; this was close enough and I wanted to do as little structural work as possible, keeping about 98% of the original design of the toy.

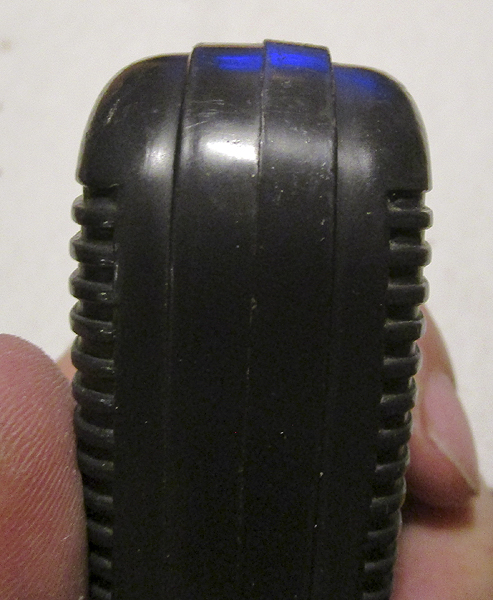

06 Uneven Seams to Fix.jpg
That's a helluva misalignment, but I managed to file that down –and remove the "secret button" while I was at it.

07 Primer.jpg

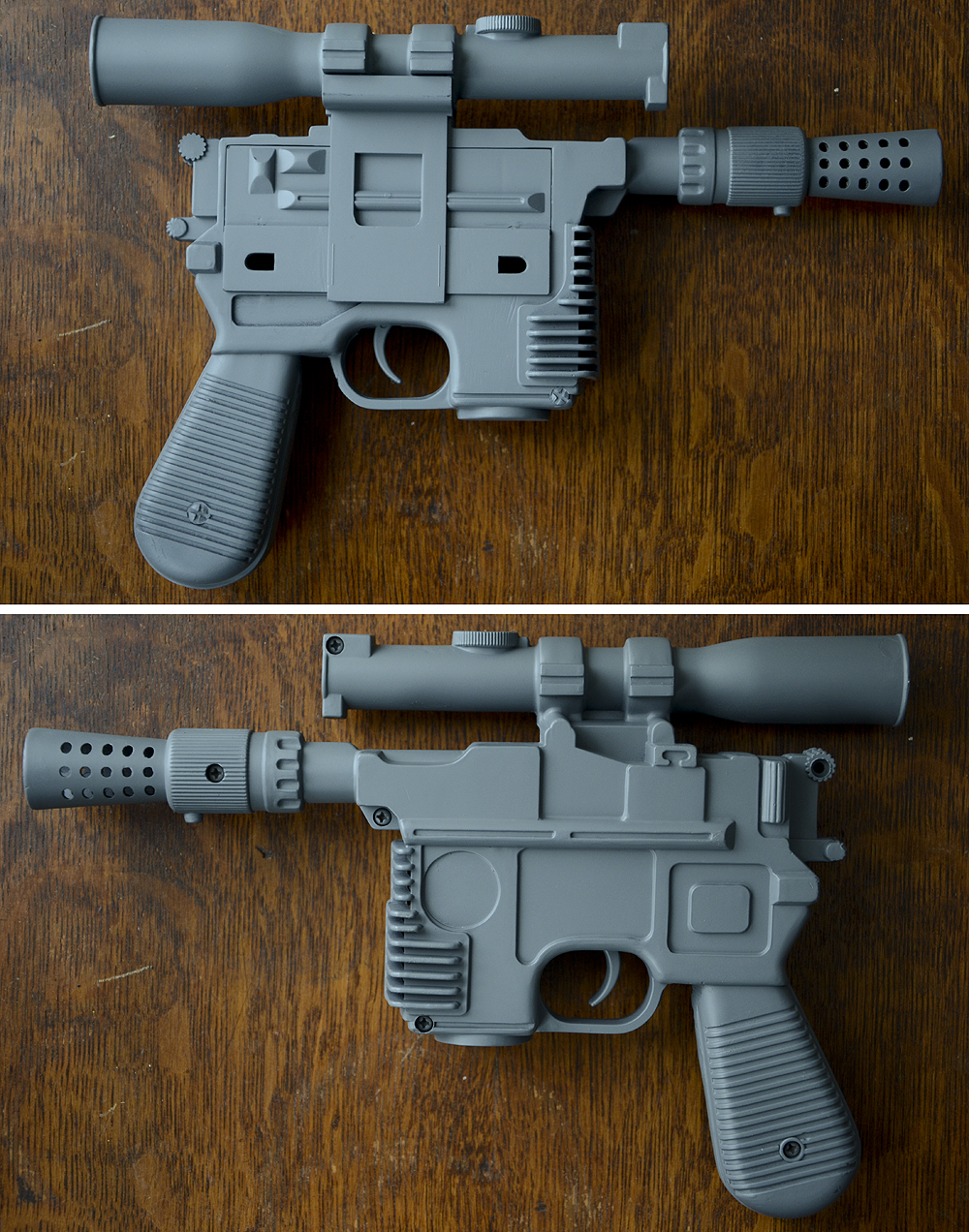

Once I was satisfied with my structural alterations/improvements* I applied some nice grey primer to prep it for paint, but also to see if anything else needed work. The gun was put away in a box and stayed in this primered state for a very long time before I resumed work on the upgrade.

*by "improvements" I mean getting this closer to the look of the film prop in the first Star Wars movie.

08 Knobs.jpg

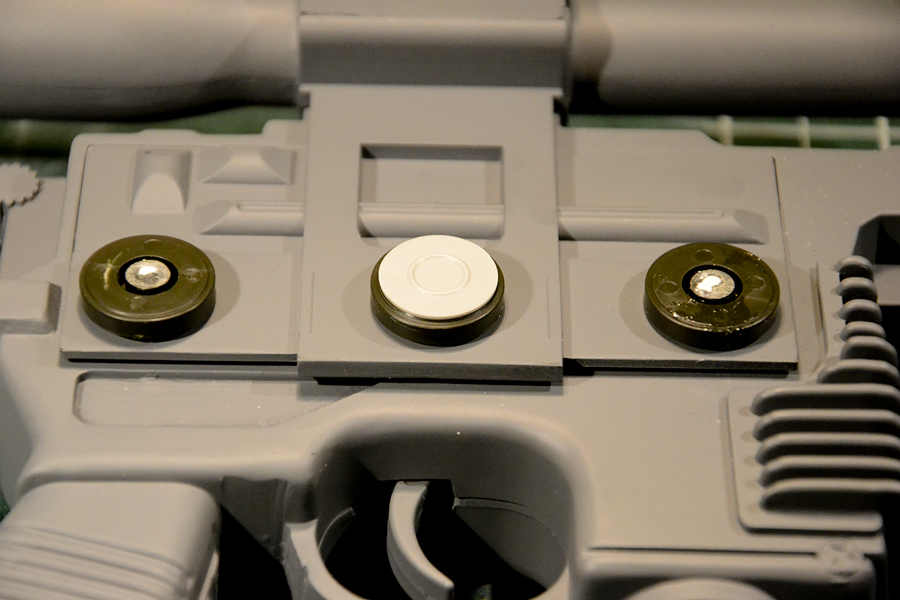

I removed and repaired a few surface details, but the only parts I actually completely replaced were the two knobs that kept the battery cover closed. The movie prop looked like it just had a few washers glued to the surface so the original toy knobs would have to go. For the new knobs I used tank wheels from a donor kit (with some extra bits for slightly more screen accuracy).

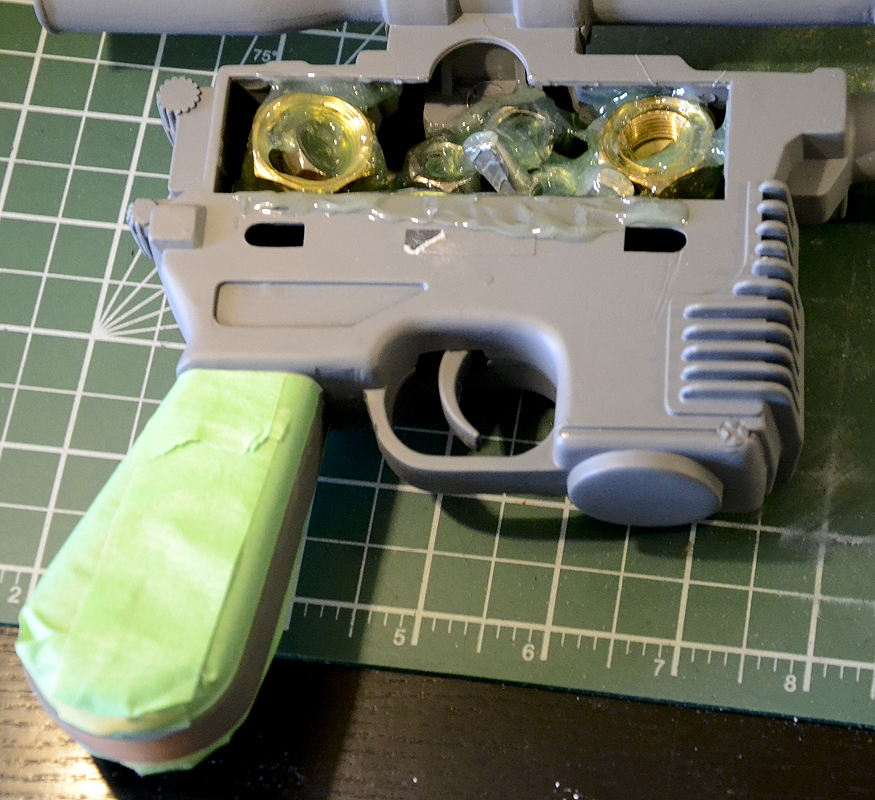

09 Masked and Stuffed.jpg
Being plastic, the gun is fairly light and would only be weighed down slight by the two C batteries. Rather than leaving two batteries in the gun, I got a bunch of heavy metal bits and used epoxy to fix them into place, then sealed the battery cover permanently. The gun has a nice "realistic" heft to it now.

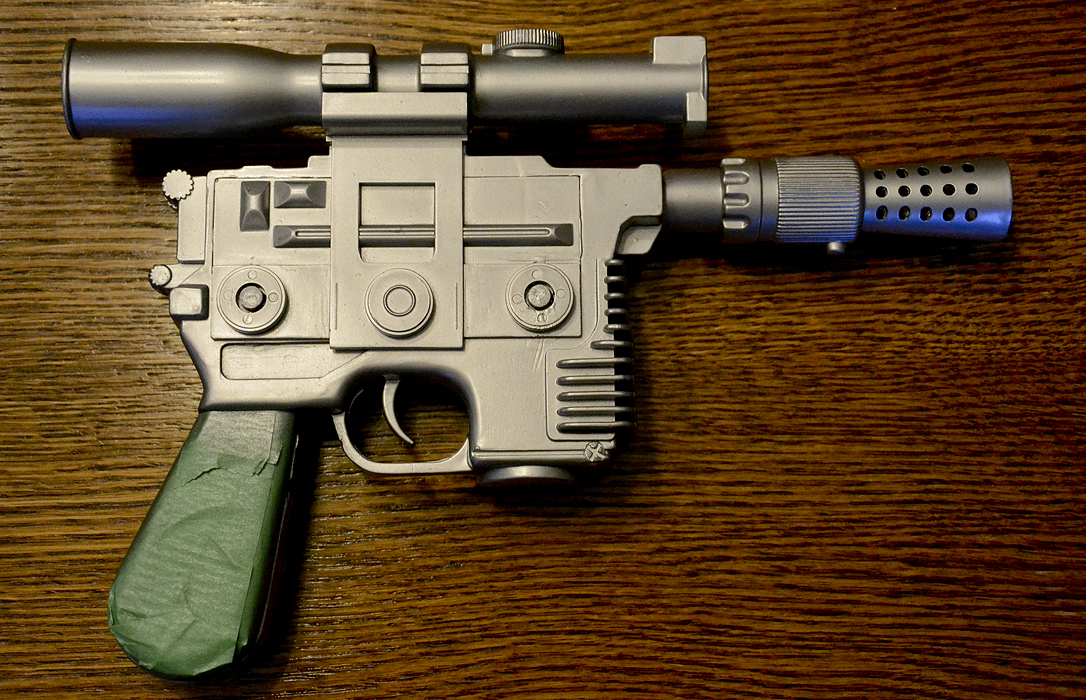

10 Gloss Aluminum.jpg
Solo's gun in Star Wars is mostly black with a only few scratches. The gun(s) he uses in Empire and Jedi have a silver flash hider and the surface details are different (for example, only the gun he uses in Star Wars has the front grille and the three knobs). That said, I wanted to weather this gun a bit and, after spraying the gun with Tamiya rattle can gloss aluminum, I gave it a shot of hairspray to prepare it for some nice chipping. The handle is masked off to keep it in its grey primer state until I was ready to do a wood effect.

11 Painted Black.jpg

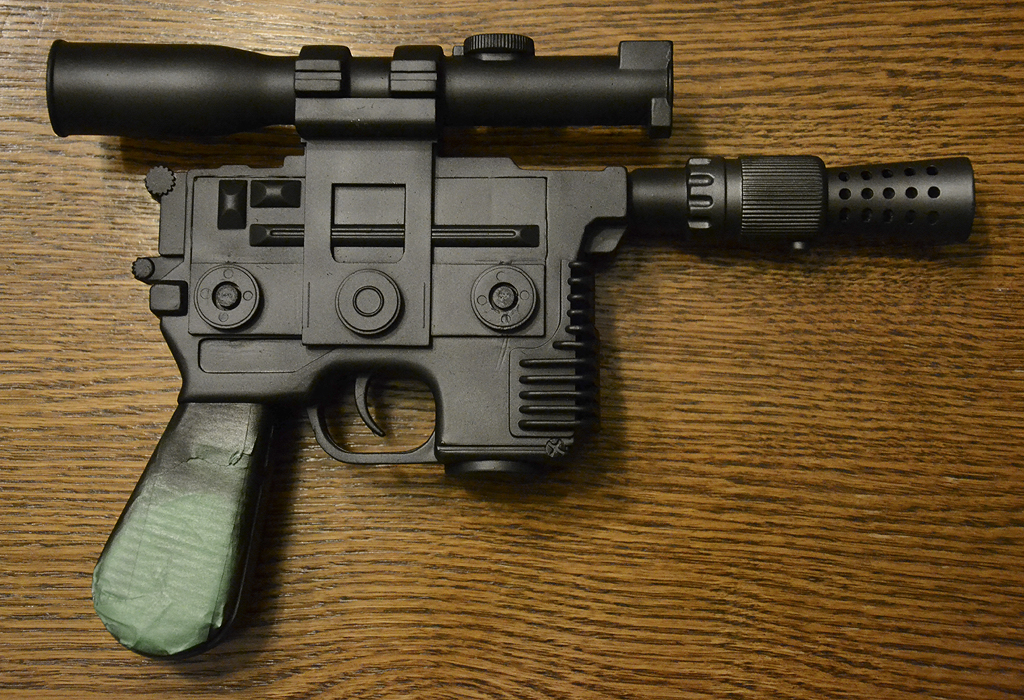

I airbrushed acrylic black over the whole gun and used a bit of gunmetal on the flash hider for a slightly more metallic look (and gave the rest of the gun a slight dusting of gunmetal for added interest).

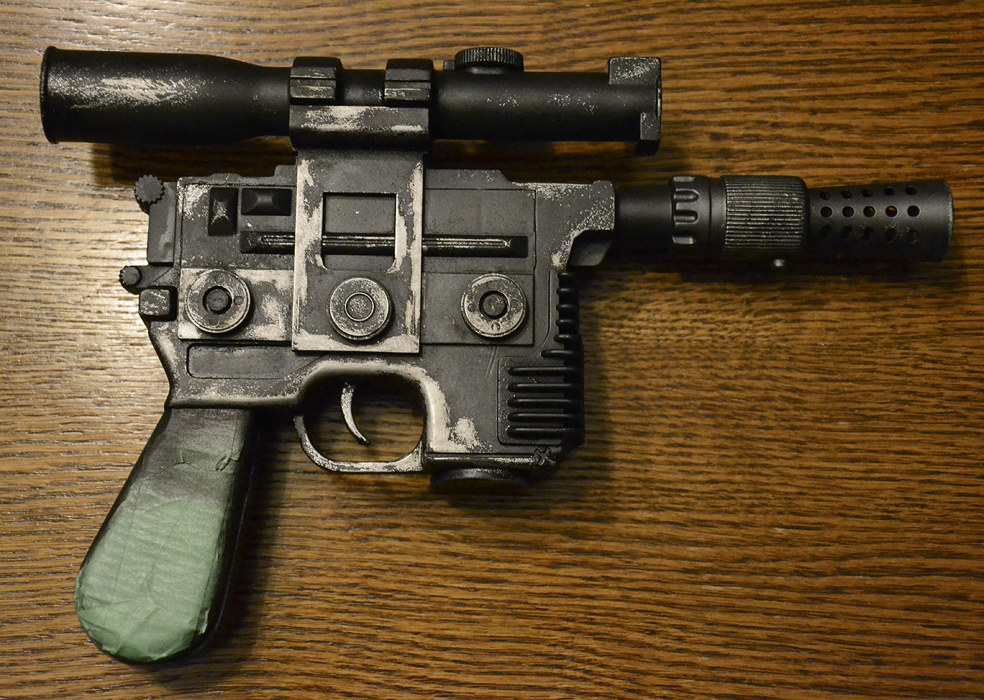

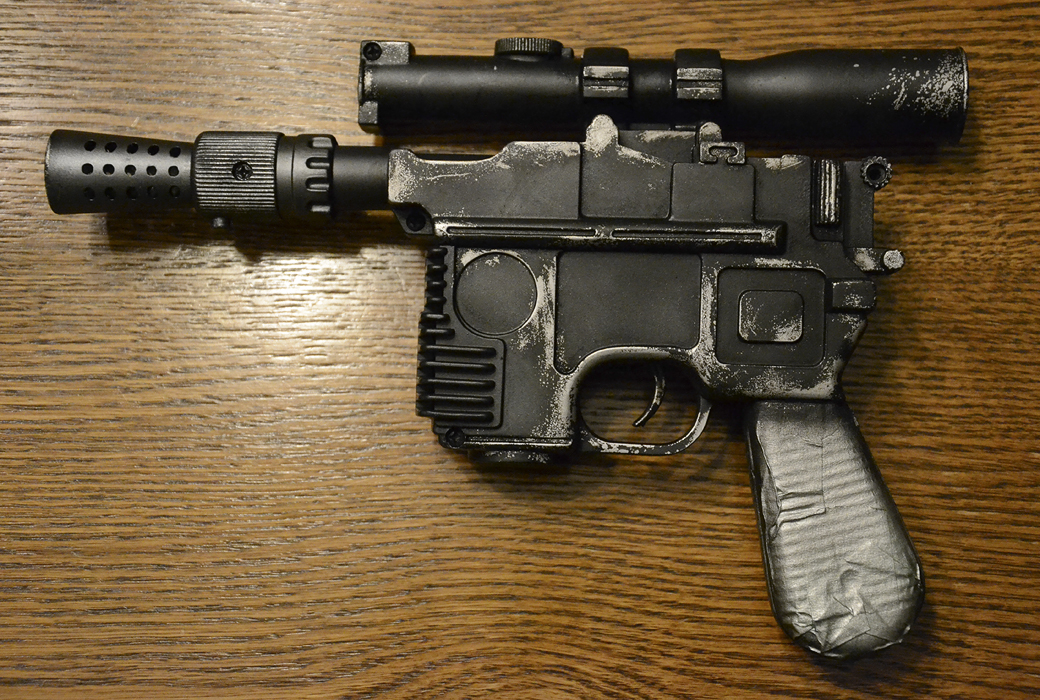

12 Chipped Front.jpg 13 Chipped Back.jpg
I used online reference for the areas to be chipped, but I didn't want to overdo it; I wanted a nice balance between screen accurate to the first movie and reasonable (and appealing) wear and tear.

Once chipped, I gave the gun a gloss coat to seal the work and to prepare it for further weathering (I'd planned on washes and gunk, but decided it didn't need anything else). That circular area next to the grille appears to be a silver washer on the prop, but I didn't want to add anything else, so I just hand painted that with some acrylic aluminum.

After removing the masking tape on the handle, I airbrushed various shades of brown and orange to get a dark wooden look consistent with he prop. For added texture I used a bit of brown oil paint to complete the wood look, then used some silver paint on the "screws" on either side of the handle.

14 Case Mod Foam.jpg
I thought about getting or making a clear plastic display case and prop the gun up vertically, so it can be seen from all sides...but as I was searching for display cases, an interesting variety of other styles turned up and I fell in love with a case designed for storing eyewear. It had the perfect measurements for this gun and the dividers for six pairs of glasses were removable (it was really just one unit that easily slid out).

Having found the perfect case for an elegant look, I needed to get some red velvet (what else?) and some foam. I bought half a metre of velvet from a fabric store (saving the extra bits for my next fancy display case –I'm doing a similar "upgrade" with my 1990s-era toy lightsaber to make it closer to the one that Luke had in Return of the Jedi) and I got some off-cuts that were the ideal size from a friend who uses foam in his upholstery business.

15 Case Mod Test-fit.jpg

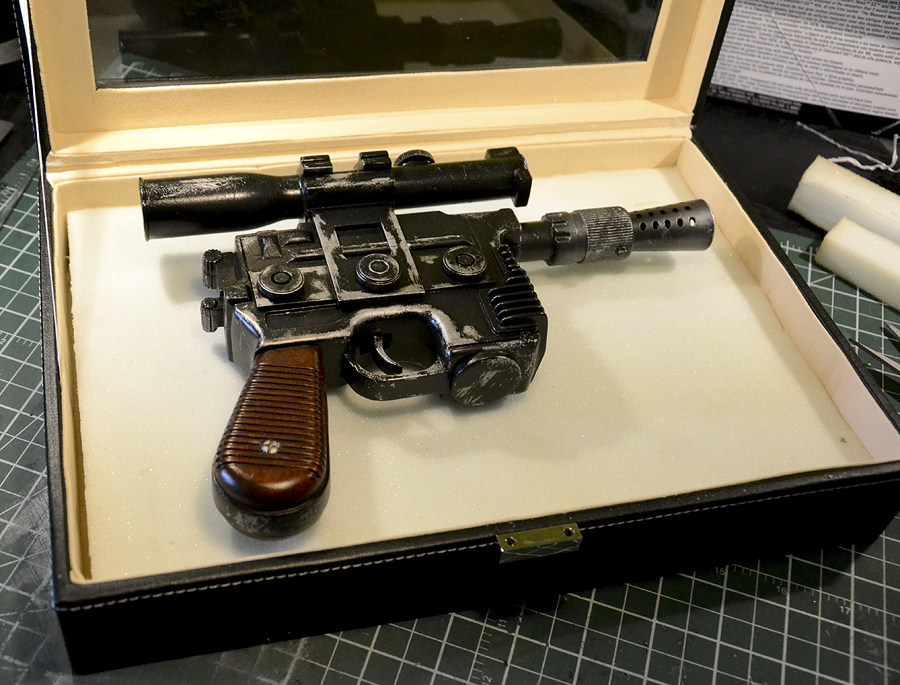

The foam edges didn't have to be perfect since they'd be covered up by the velvet, but getting it to fit snugly inside the box was important. Here, the gun sits high, but when the foam is cut to its shape, it'll be a perfect fit.

16 Case Mod Tracing.jpg
I lightly dragged a thin Sharpie along the perimeter of the blaster and got a good tracing, then made sure my knife (seen in the "trimming" pic above) had a fresh blade so it would cut the foam cleanly without tearing it.

17 Case Mod Bracing.jpg
I cut a little too much out around the front of the gun's handle and I didn't want the thing jostling around in the case so I cut a bit of foam and glued it in place. Once the velvet was installed, the fit would be nice and snug.

18 Case Mod Velvet Molding.jpg
I cut some Bristol board to the size of the inside of the box and glued it to the bottom of the the foam. Then I put some glue (I had carpenter's glue on hand, my Weldbond being pretty much used up) on the paper in the cut-out shape of the gun and pressed the velvet into the void and shaping it along the walls where I also applied glue.

The glue seemed like it would never dry but about 12-or-so hours later, it was good and cured and it was ready for wrapping the rest of the velvet around the back. There's some discolouration of the velvet where the glue seeped through which I considered fixing by airbrushing some red paint onto it, but decided against that.

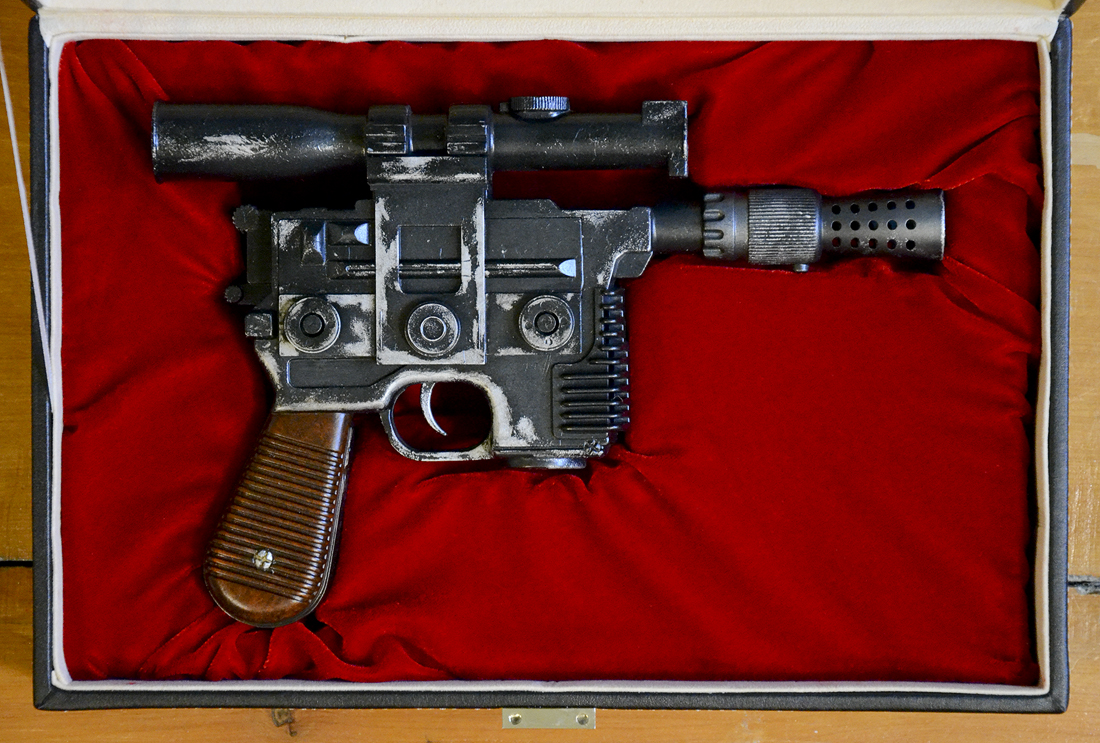

19 Case Mod Velvet Complete.jpg
I wrapped the extra velvet around the back of the foam and, after trimming some excess, glued it to the paper backing. The now-velvet-lined insert fit snugly into the box and the blaster looks great inside. This turned out exactly as I imagined it when I first saw that eyewear case online and realized the size was perfect.

I love it when a plan comes together.

20 Case Open.jpg
This customized display case was an unexpected but very worthwhile additional project for my Kenner toy upgrade, and it's a far more elegant and "warmer" solution than simply using a clear plastic box. My satisfaction with this whole project went from 10/10 to 11/10.

Thanks for looking!

Cheers,
Milé
