Done / Completed V3 Emitter Limited Run Thread for V2/V3 Builder’s Kit

jorged123

Active Member
RPF PREMIUM MEMBER
V3 Emitter Limited Run Thread for V2/V3 Builder’s Kit
This is my first attempt at a run for a compatible product. I’ve been working with other distinguished members, Halliwax and recently Anakin Starkiller, on getting this model on par with what we perceive as the V3 emitter with a wider top plate/cylinder than the supplied V2 emitter. Anakin Starkiller submitted the new model based off of measurements taken from Vadermania's personal ANH stunt cast. This upgrade is meant to achieve a finish more closely resembling an idealized V3. I am working on quotes in 6061 aluminum. There is enough interest to make a limited run of these parts. I plan on ordering few more than spoken for in order to satisfy a few late comers that have yet to notice this run. This emitter will thread into the 2018 V2/V3 builder’s kit. It can be made to spin with minor alterations after shipping. It will fit 7/8” blades and the blade cavity is slightly deeper than the supplied emitter.

The 5mm drill and tap grub screw hole will need to be made by the end-user/installer for blade retention and photo accuracy. You probably want to clock the hole as shown in the V2/V3 builder's kit tutorial as Halliwax showed in his instructions. I'll update this info once we have the emitters.

If you're ready to commit and are truly serious about purchasing, then please reply below as follows:
*For example, * “Put me down for X (number willing to purchase)”.
Please only reply below for serious buyer commitment only.

I will update this post with pricing once the quote(s) are made and will have shipping as a separate cost for the domestic US, 48 states. I’m hoping to keep shipping down to the $5-$10 range. International, Hawaii, and Alaska shipping will obviously be higher. I can combine shipping costs for multiple orders. The weight will be more, but the overall cost will be less.

*begin edit* The order is made so the price is fixed. We are looking at a new price at $25 per emitter since more people signed up. There are a few spots left for those that are still interested.

A huge help by Anakin Starkiller for finding a much more affordable USA sourced machine shop. *end edit

I'll have to update model pictures and link to Halliwax's upcoming model review video as soon as they become available.

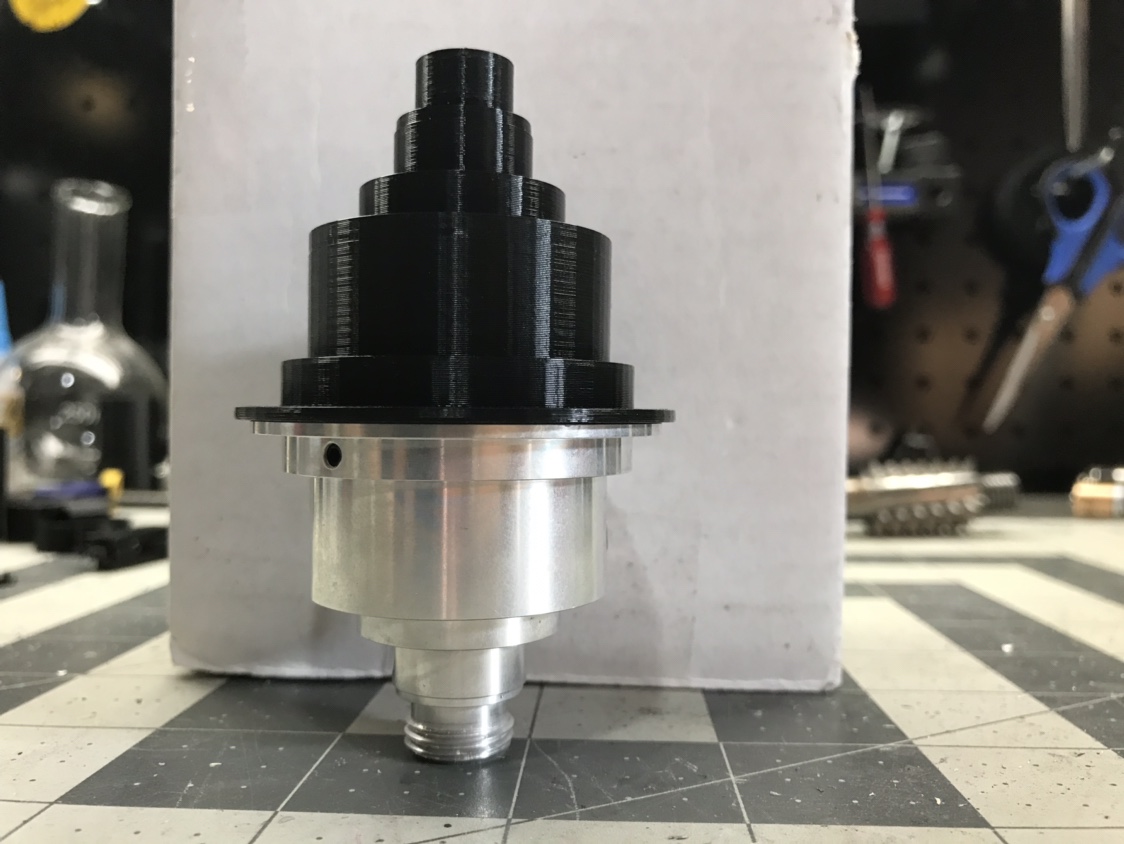

Below is a 3d print of an early model on top of the supplied emitter:
HW_GMD model emitter.jpg

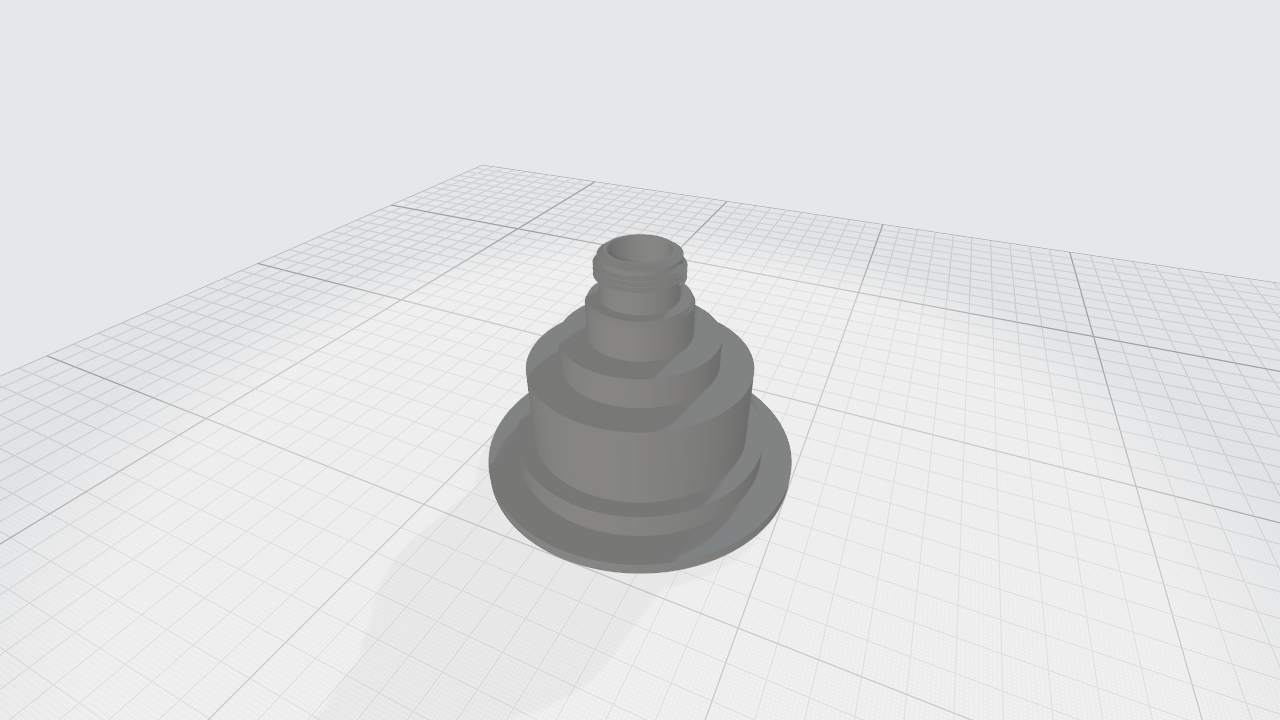

This is a newer render I made from the supplied dimensions. This .stl can be 3d printed. I haven't verified the threading on this file yet.
Toms ANH Measurments-bored and grouped.png


Halliwax's Prototype Review Video

Interest Participants:
JPL427 x 1 (pending final pricing)


Run Participants: Status: (Info Requested, Info Submitted, Invoice Sent, Invoice Paid, Shipped)
Emitter Total: 21
jorged123 x 3
Halliwax x 4 Shipped, Tracking info added
mindaramblin x 1 Shipped, Tracking info added
Alley x 1 Shipped, Tracking info added
Swc20956 x 1 Shipped, Tracking info added
awhite89 x1 Shipped, Tracking info added
CrankyScorpion x 1 Shipped, Tracking info added
derekwest1989 x 1(via PM) Shipped, Tracking info added
ms80444 x 1 Shipped, Tracking info added
dse2187 x 1 Shipped, Tracking info added
pnag x1 Shipped, Tracking info added
Aison x 1 Shipped, Tracking info added
Maxhebus x 1(via PM) Shipped, Tracking info added
Mech10 x 1 Shipped, Tracking info added
Roobyoo x 1(via PM) Shipped, Tracking info added
acyang x 1 (via PM) Shipped, Tracking info added

This list will be updated as more run participants sign up!
