EDChainsaws

New Member

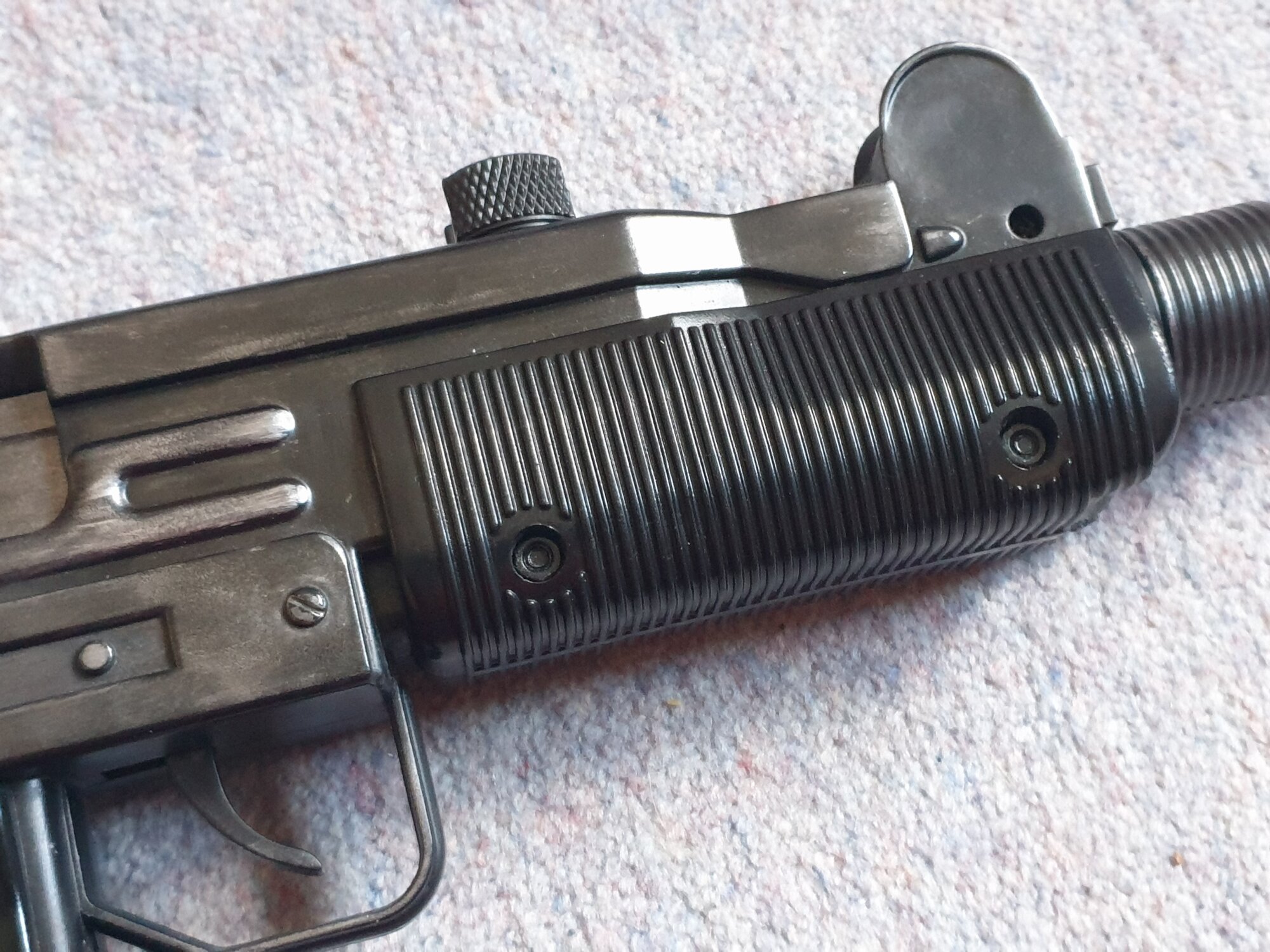

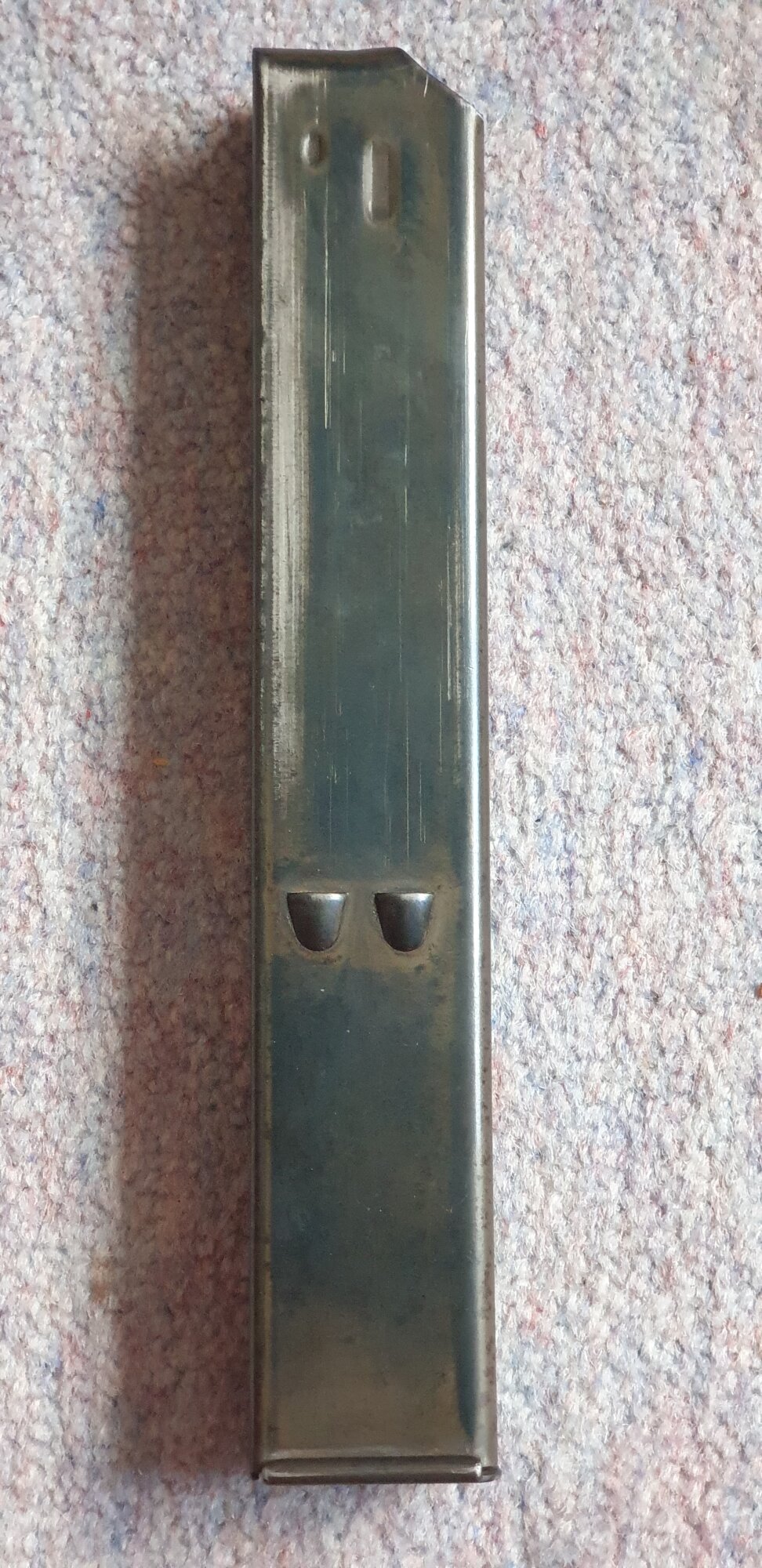

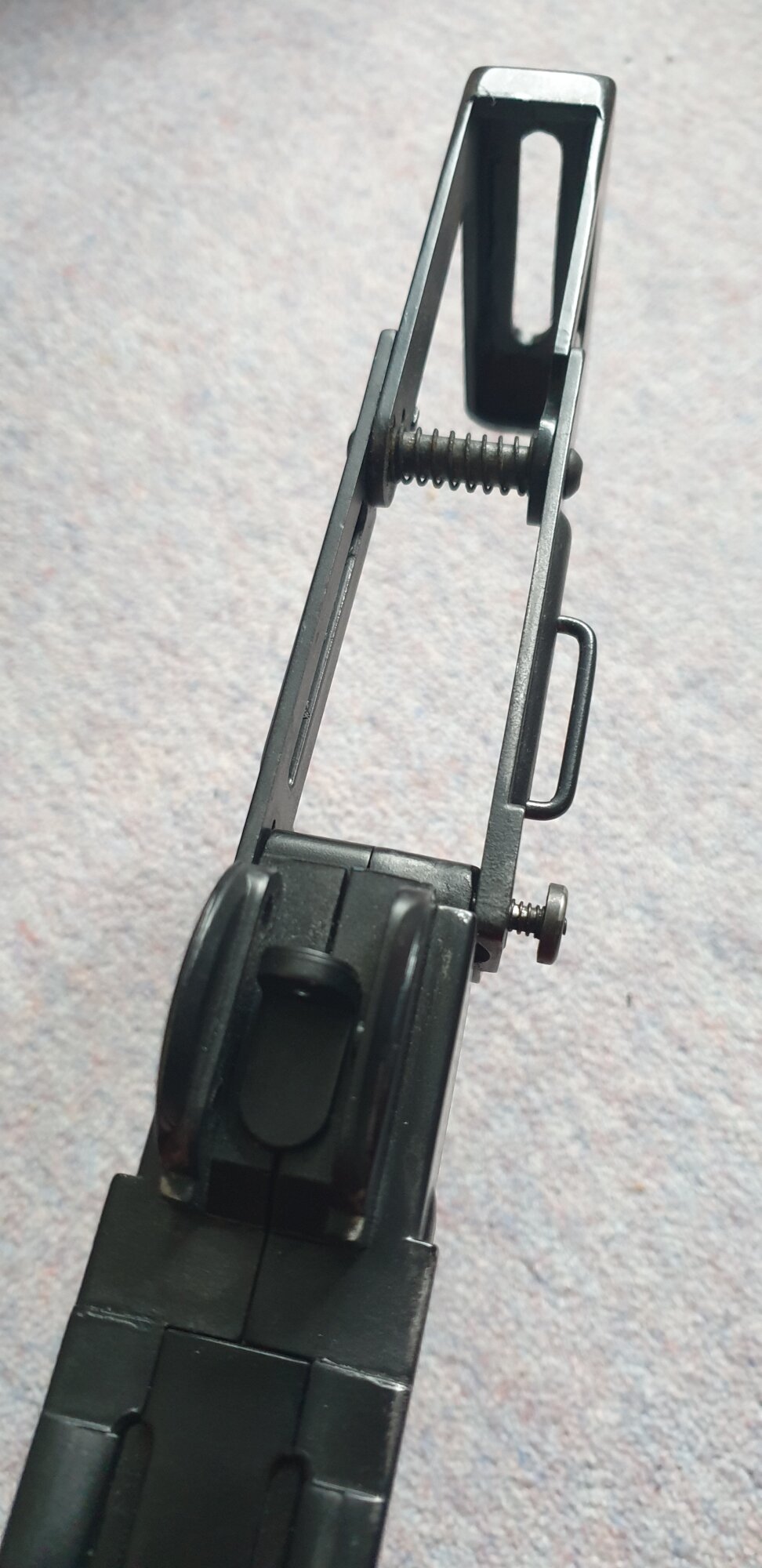

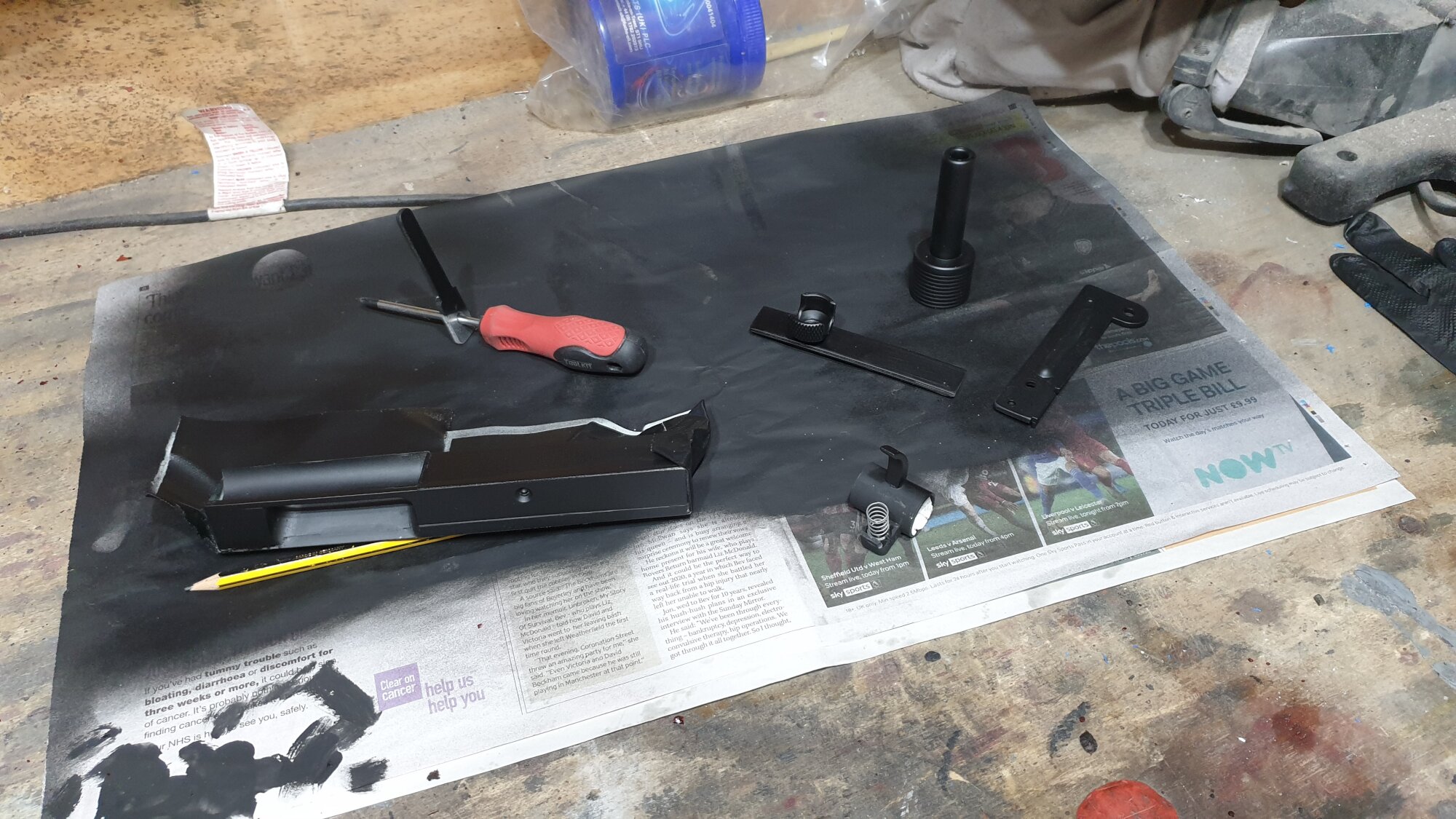

For a good while, I've been wanting to make/own an Uzi 9mm, the same gun featured in Bad Taste, ironically that gun was made by Peter Jacksone himself from scratch. I bought a Well D91 UZI electric airsoft replica last year before Christmas to use as a base. It was £35. The dimensions were pretty spot on, but the main body was just a two piece moulding missing some of the details of the real thing. I also bought a real Uzi magazine and inert 9mm bullets for £30, as I can't make anything better than real and they were cheap enough. I gutted it leaving a shell, then added various bits to replicate the original. You can see some progress and final pics attached.

I'm pretty pleased with the final result. The paint effects make it look real enough.


Attachments

  • 20210109_163731.jpg
    520.1 KB · Views: 22
  • 20210109_163950.jpg
    382.9 KB · Views: 19
  • 20210109_164001.jpg
    561.4 KB · Views: 19
  • 20210109_164013.jpg
    302.7 KB · Views: 16
  • 20210109_164105.jpg
    410.8 KB · Views: 18
  • 20210109_164134.jpg
    384.4 KB · Views: 18
  • 20210109_164159.jpg
    480.5 KB · Views: 15
  • 20210109_164207.jpg
    436 KB · Views: 15
  • 20210109_164330.jpg
    385.2 KB · Views: 16
  • 20210109_164410.jpg
    424.8 KB · Views: 18
  • 20210109_164517.jpg
    394.4 KB · Views: 17
  • 20210109_165014.jpg
    581.5 KB · Views: 19
  • 20210110_100725.jpg
    758.6 KB · Views: 20
  • 20210110_100752.jpg
    462.2 KB · Views: 17
  • 20210110_100800.jpg
    431 KB · Views: 17
  • 20210110_100807.jpg
    587.4 KB · Views: 19
  • 20210110_100823.jpg
    657.7 KB · Views: 18
  • 20210110_100853.jpg
    465.1 KB · Views: 24
  • 20210110_100916.jpg
    366.1 KB · Views: 19
  • 20210110_101052.jpg
    483.7 KB · Views: 19
  • 20210110_101126.jpg
    439.1 KB · Views: 21
  • 20210111_165826.jpg
    475.2 KB · Views: 22
  • 20210111_165830.jpg
    426.6 KB · Views: 21
  • 20210111_165835.jpg
    228.6 KB · Views: 20
  • 20210123_141944.jpg
    561.2 KB · Views: 23
  • 20210123_141953.jpg
    560.1 KB · Views: 24
  • 20210123_142002.jpg
    442.4 KB · Views: 22
  • 20210123_142009.jpg
    443.8 KB · Views: 20
  • 20210123_142013.jpg
    436.5 KB · Views: 20
  • 20210123_142023.jpg
    389.9 KB · Views: 19
  • 20210123_142027.jpg
    416.7 KB · Views: 24
  • 20210123_142031.jpg
    496.5 KB · Views: 20
  • 20210123_142041.jpg
    472.2 KB · Views: 20
  • 20210123_142106.jpg
    323.1 KB · Views: 18
  • 20210123_142117.jpg
    304 KB · Views: 24
  • 20210123_142137.jpg
    511.2 KB · Views: 30
  • 20210123_142147.jpg
    494.5 KB · Views: 29
  • 20210123_142202.jpg
    407.7 KB · Views: 24
  • 20210123_142229.jpg
    154.6 KB · Views: 21
  • 20210123_142233.jpg
    134.9 KB · Views: 19
  • 20210123_142250.jpg
    364.1 KB · Views: 19
  • 20210123_142318.jpg
    214.4 KB · Views: 18
  • 20210123_142323.jpg
    249.6 KB · Views: 17
  • 20210123_142334.jpg
    353.5 KB · Views: 15
  • 20210123_142343.jpg
    444.9 KB · Views: 17
  • 20210123_142402.jpg
    651.8 KB · Views: 15
  • 20210123_142450.jpg
    265.6 KB · Views: 19
  • 20210123_142525.jpg
    225.4 KB · Views: 23

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

terryhimself

Well-Known Member
RPF PREMIUM MEMBER
That is a great job of rebuilding. I always liked the Uzi 9mm. This has turned
a toy into a fantastic reproduction of the real thing. Good work.


EDChainsaws

New Member
Great work on the paint job. What technique did you go with? Black paint + graphite powder?

No, I sprayed it with Hycote Bodyshop Satin Black Spraypaint, then used Liberon Iron Paste (Iron Paste: Our Products Metal Treatments | Liberon wood cares) to give it a flat metal look (warm it a little with a blowtorch or heatgun, then drybrush it on, and buff it with a duster to a shine), then used Pewter Rub 'n Buff (Rub 'n Buff Pewter) to pick out the worn highlights.

I tried Graphite powder a while back, and found you have to give it a clearcoat over the top otherwise it wears off really easily, and that dulls the effect quite a bit. The Iron Paste gives a very similar finish, but is more hard-wearing. This is a slightly different process I've used in the past too - Metallic Effect Painting Process - TheKnightsOfSumeria.com, which I used to paint this prop; EvilDeadChainsaws.com 2020 AOD Mechanical Hand - TheKnightsOfSumeria.com
