Update: Klingon Cruiser from Star Trek: The Motion Picture

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


star-art

Sr Member
You guys know how it goes with these kinds of projects. Recreating an original filming miniature in "studio-scale" often takes years. In this case, I started working on this project back in 2005. And now, at *long* last, I've finished making patterns for it. Of course, I still have to actually build the model. I hope that doesn't take another 10 years! LOL

I still have a few parts to make "solid" so they can output properly. But, all the fine-tuning and tweaks needed to get the best possible likeness, along with the sculpting of finishing details, is finally done. Whew!

I have an album of pics posted on Facebook. (With all the hacking going on, I don't even bother updating my Website any more. It's easier to just post on social media these days.) Please note that the link below is viewable by all -- you don't need to actually be a member of Facebook to see the images:

https://www.facebook.com/media/set/...073741841.100000088429799&type=1&l=ef0136358c

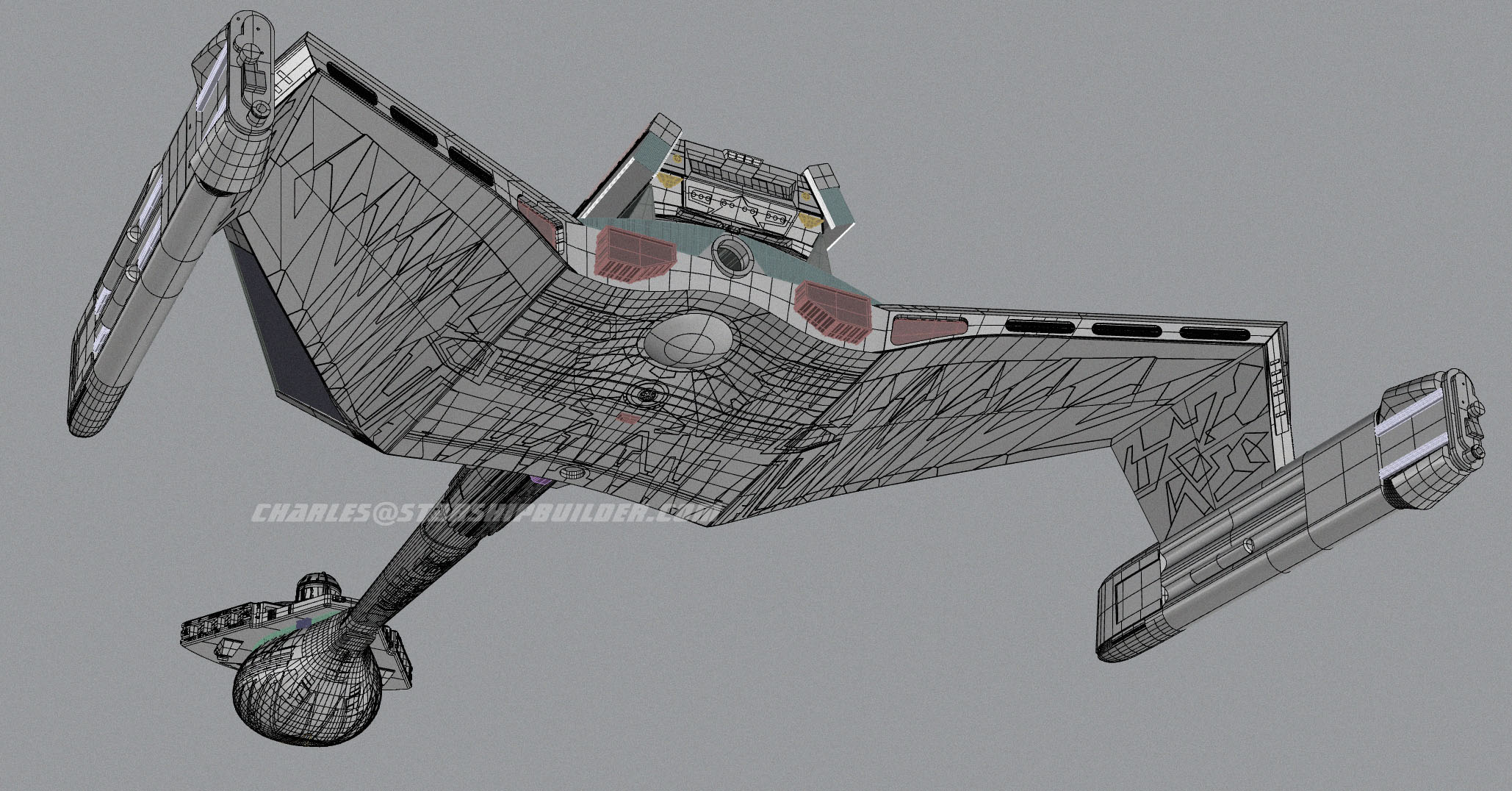

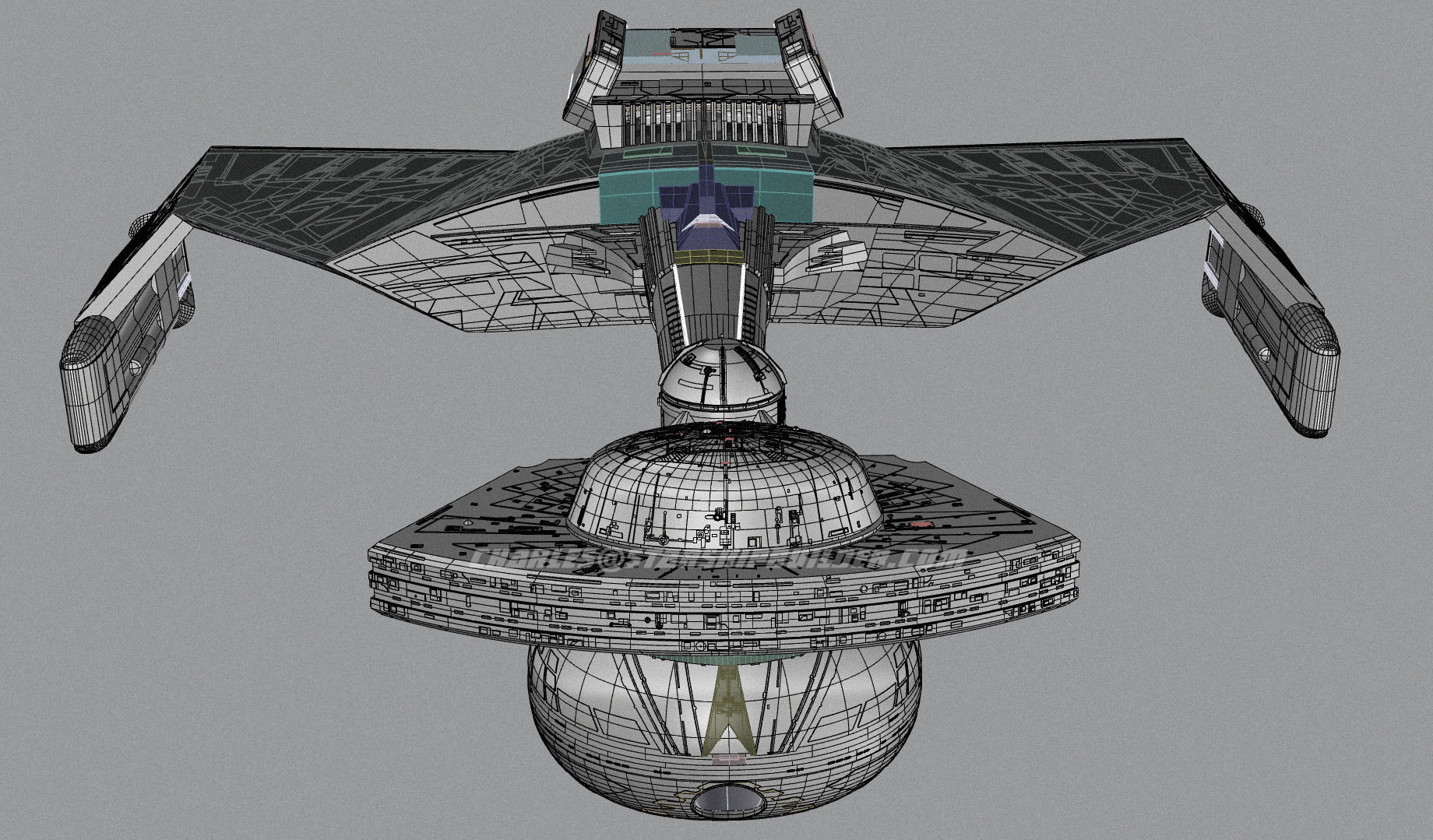

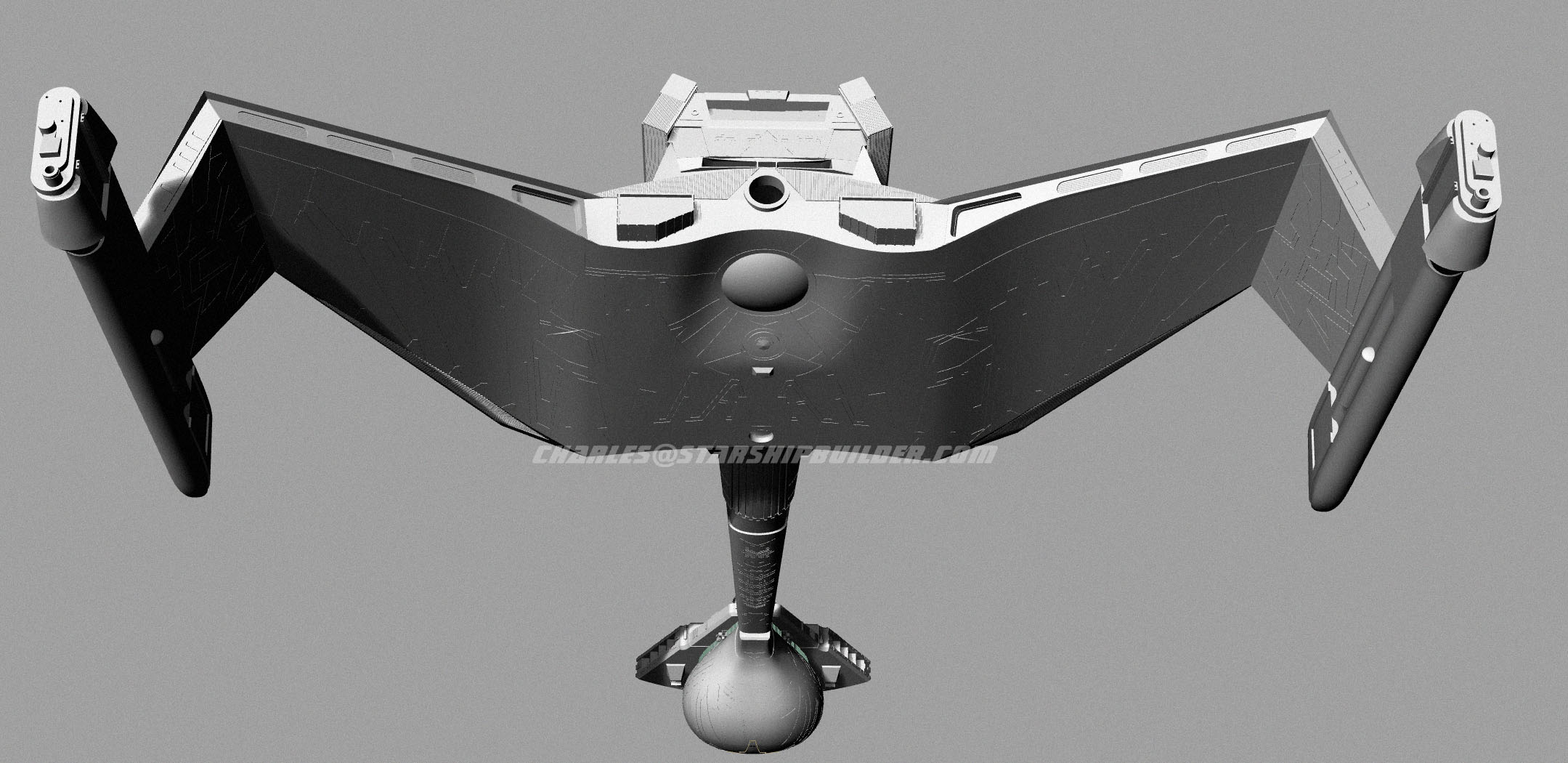

PS These patterns were created in Rhinoceros 3D. This model was made for real-world output, not for rendering or animation, so the renders shown here are rather crude. There are lots of sharp edges that aren't good for rendering anyway. They are, however, perfect for 3D printing. BTW, this is all geometry -- no "tricks" like texture or bump maps.


Attachments

  • Complete05.jpg
    305.8 KB · Views: 270
  • Complete04.jpg
    457.6 KB · Views: 294
  • Complete03.jpg
    420.8 KB · Views: 347
  • Complete02.jpg
    368 KB · Views: 289
  • Complete01.jpg
    403 KB · Views: 259
Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

dcarty

Sr Member
RPF PREMIUM MEMBER
Awesome!!! At the risk of raising another 10-year question have you made patterns for the photo etch greeblies?


TazMan2000

Master Member
Nice work. Do you have a 3D printer currently or are you planning on purchasing one? In my opinion, the detail would be more suited to an SLA style printer.

TazMan2000


star-art

Sr Member
Thanks! This is the Star Trek: The Motion Picture version. As it no longer exists, I want to be as true and faithful as I can in recreating this original version. I'm not a fan of the "makeover" that was done for Star Trek VI: The Undiscovered Country, although I do understand why they did it. For one thing, the model was in a rather bad state of repair and needed a lot of work. But, no, I have not made patterns for any of the gaudy add-ons they applied to the miniature in 1991.

TazMan2000, I do have a really good FDM printer that will create most of the structure. You're right, though, SLA is needed for a lot of the finer details. I hope to get a resin printer later this year. They are, however, very expensive, so, if that doesn't work out, I'm lucky that I do have access to one.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

DonS

Well-Known Member
I think that's the one Jason Eaton has. I'd love to see some large prints done at the maximum resolution they advertise, 12.5 microns XY and 10 microns Z. If that machine can print a large part (like a hull) with the assorted greeblies as part of the hull model and do the entire print that resolution, you may not need pieces done in SLA. The drawback is something like that would likely that a very long time to print.


star-art

Sr Member

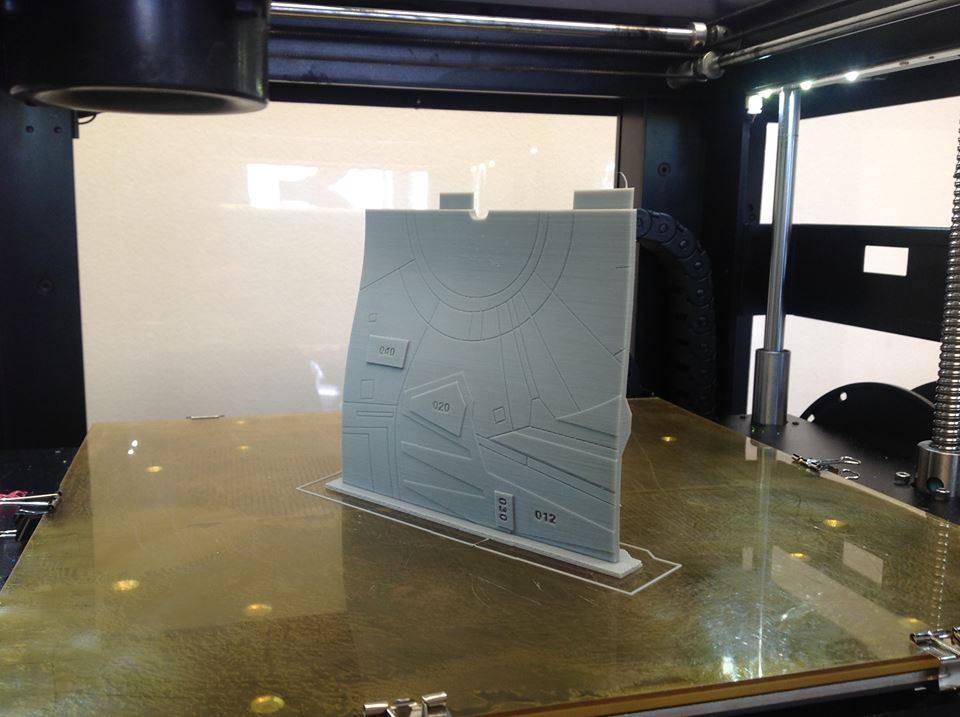

Yes, that's the same printer Jason has. I had some test parts made which is why I chose this printer. It's more than capable of printing the bottom hull with all it's various curves. I tried including scribed lines as well as raised plates and it came out great.
