    When I first got into 3D modelling and printing again, I had a few projects that I really wanted to see come to life, so far the Opening Golden Snitch was a success, so here was the next project.

    THE UNLOCKING JEDI HOLOCRON
    from Star Wars: The Clone Wars (Animated)

    The intention was to make the prop be able to be in this orientation:


    Then by removing the corners, it would look like this:


    Finally, you could reattach the corners to be in the "unlocked" configuration like this:




    After a few trys to model the holocron in different ways (interlocking pieces, groups, etc.) it boiled down to 4 unique pieces:


    - 1 Core
    - 8 Corners
    - 6 Side pieces
    - 8 Corner Side pieces

    I decided to have the core printed via shapeways to make sure I got nice clean edges and got the corners and side pieces printed locally on a home printer.

    Here's how the core came out:


    The corners and sides came out good, needed some cleanup but good.

    The next step was to figure out how to make the corners be able to change from locked to unlocked while remaining hidden...ish. My friend Hydin suggested to me to use magnets and I ran with it and discovered the overlap pattern between the two positions.

    I ordered magnets:
    Grade N52, 1/16"dia x 1/32" thick Rare Earth Neodymium Disc Magnets

    And I got myself a hand drill since I only needed the hole to be about 1mm deep.

    Here's before I started up:

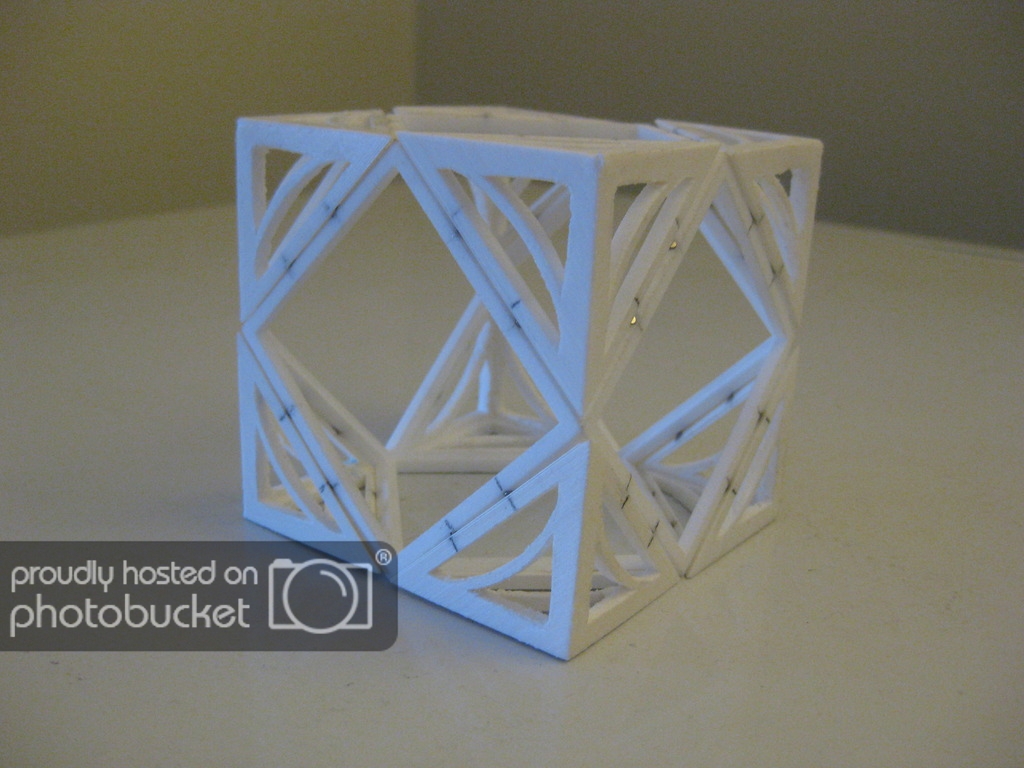

    I worked on the magnets for a LONG time and finally finished them, and it looked like this:

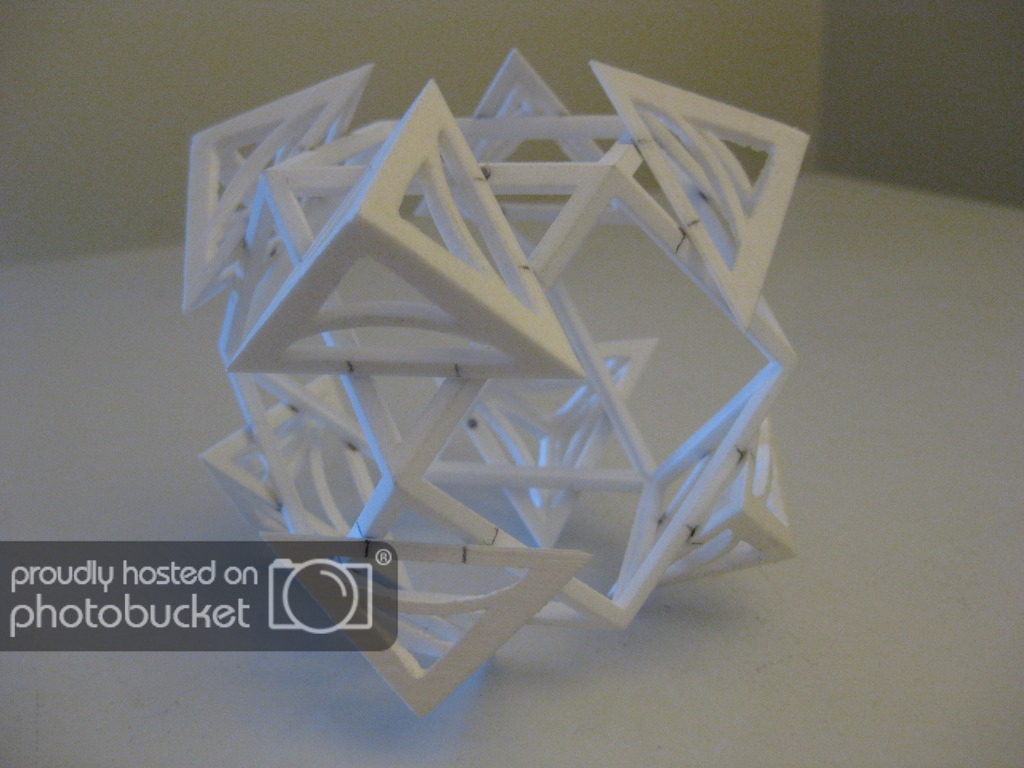

    And the Unlocking worked:

    Next step was paint, I painted everything black, then used rub 'n buff gold leaf:

    The next part was very annoying and was so much cutting plexiglass, sanded one side, painted it with Tamiya tranparent blue paint, and glued the panels on the inside of the core and corners.

    When all but one corner was glued on the core, it looked like this:

    I had to figure out something to install the last panel to be inside the pull it up against the inside of the core.

    Here's what I did:

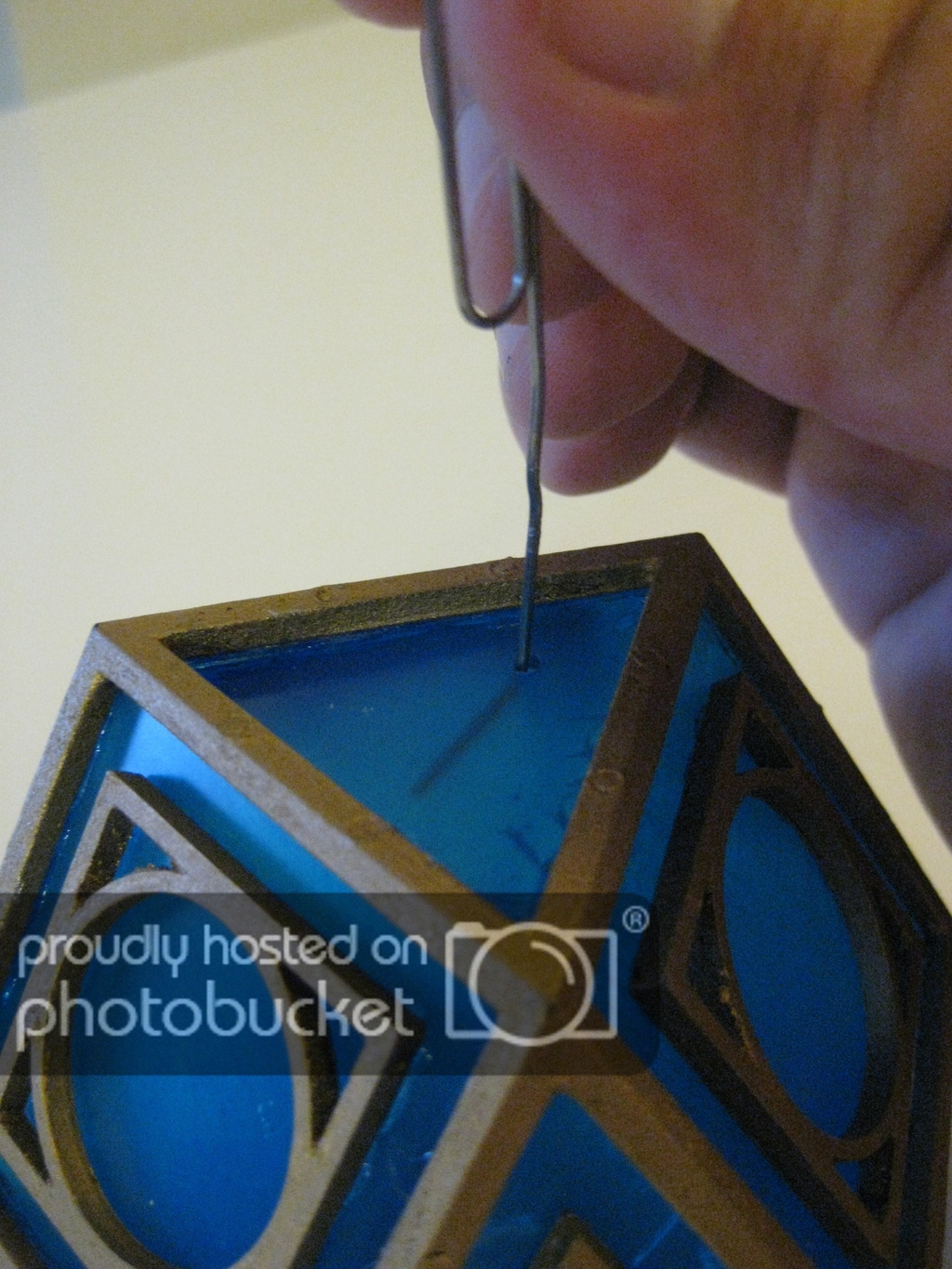

    I drilled a hole with my hand drill in a position that would be covered by the corner side piece and used an unbent paperclip to position and pull the piece into place.

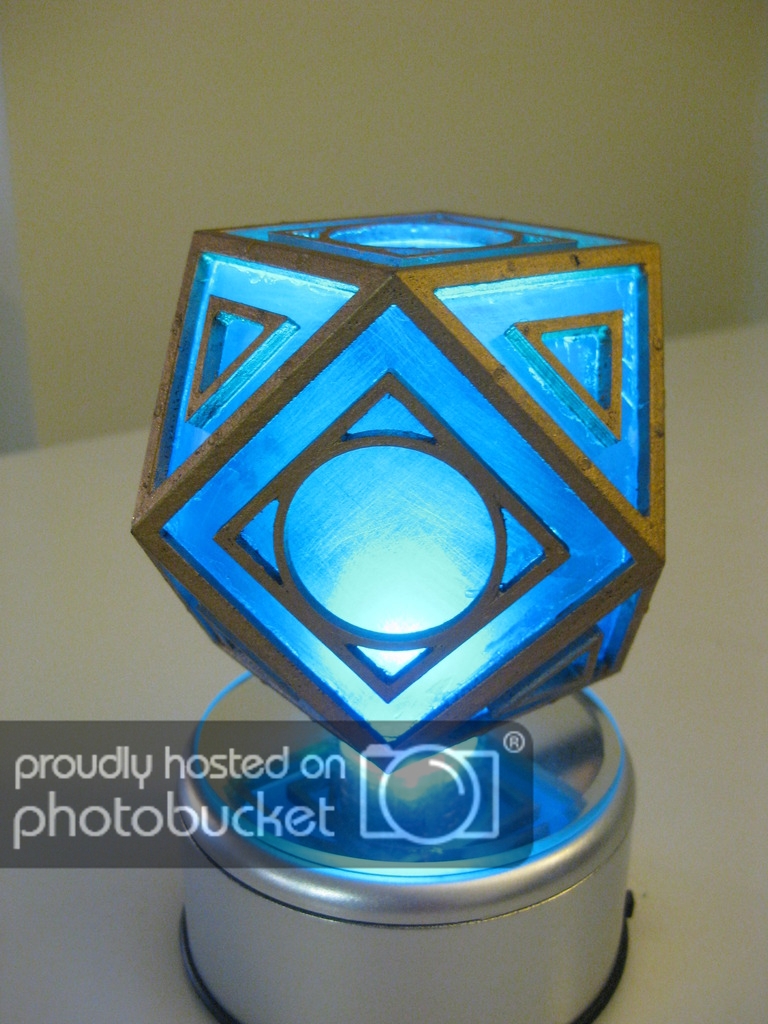

    Well, that's about it, now for the final piece in it's 3 modes:

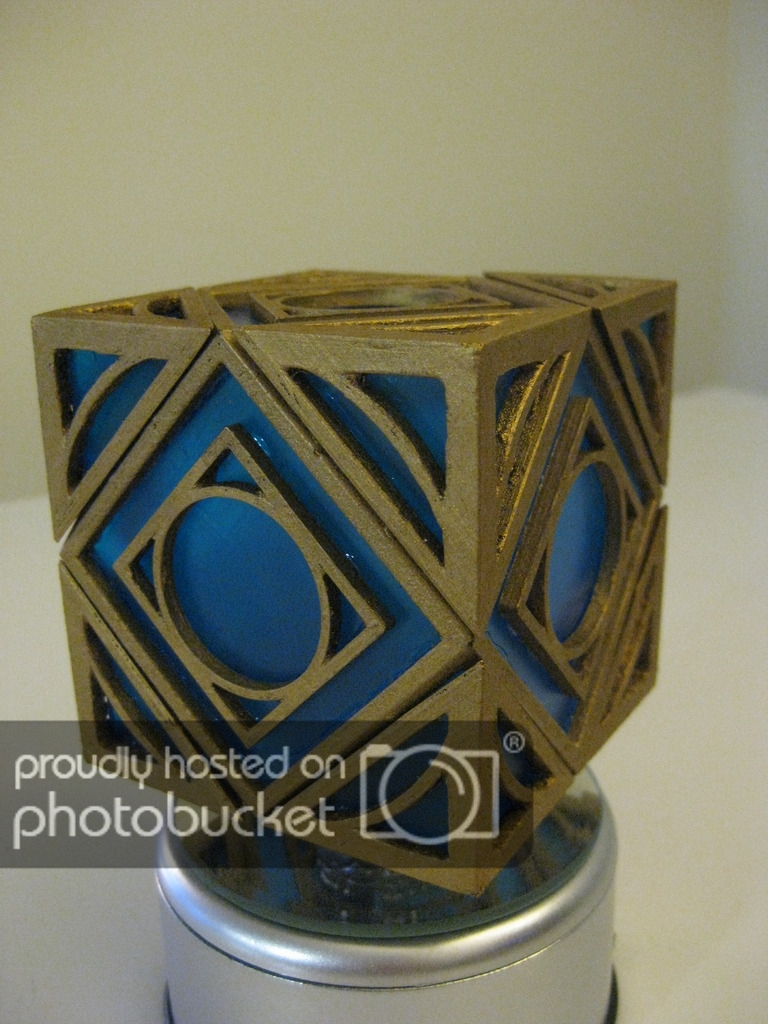

    Locked:

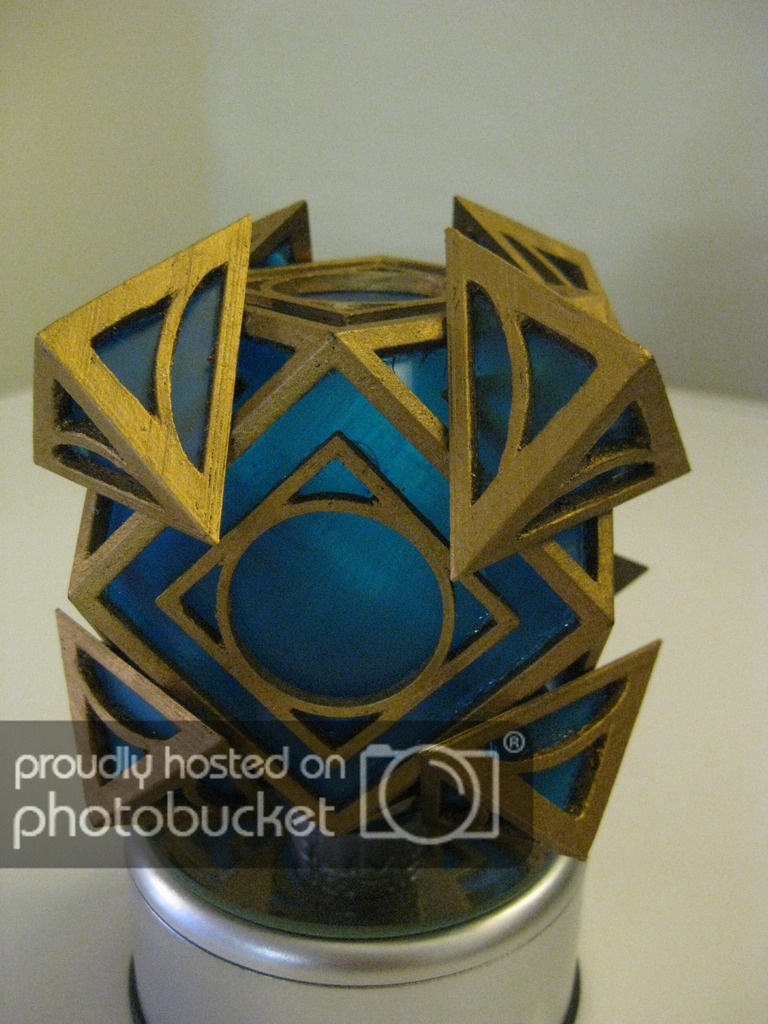

    Unlocking:

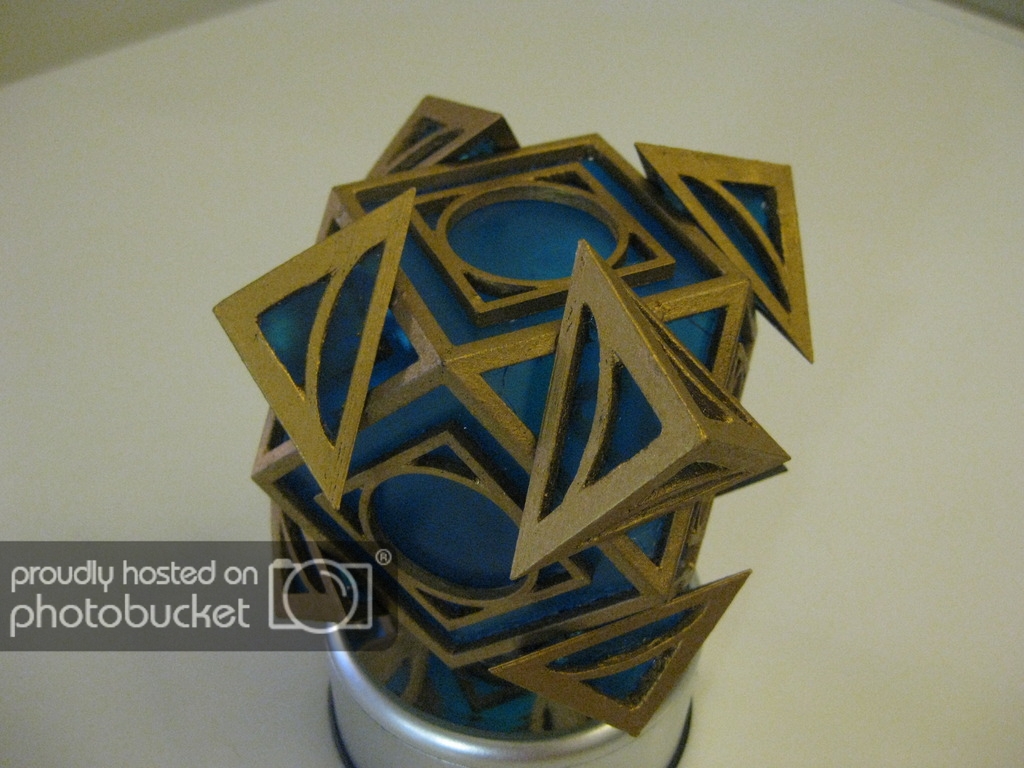

    Unlocked:


    A few of the plexiglass pieces cracked a bit, and my gluing skills arn't the best but I'm very happy with the way it turned out, check out my short videos of the modes:

    Locked:
    [video]https://youtu.be/gJc23P2uyCk[/video]

    Unlocking:
    [video]https://youtu.be/wPWYwIuto6E[/video]

    Unlocked:
    [video]https://youtu.be/YCitWhXHN2w[/video]


    Here are the STL files I made for anyone who would like to try and make their own, please post if you do.
    View attachment Unlocking Holocron STL files by Dan B.zip
























    Last edited by a moderator: Nov 9, 2018
  2. Sean

    Sean Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,286
    I think that looks absolutely fantastic. great work! neat project.:thumbsup

  3. OBI WAN KEN0B1

    OBI WAN KEN0B1 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,036
    Awesomesauce this looks fantastic

  4. Halliwax

    Halliwax Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,210
    wonderful job!

  5. Iggy

    Iggy Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,035
    Wow! Great job on installing all of those magnets!
    The final holocron looks awesome!

  6. Don93

    Don93 Well-Known Member

    Trophy Points:
    521
    Very cool project, Thanks for sharing :thumbsup

  7. Mara Jade's Father

    Mara Jade's Father Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,376
    Best Holocron I've ever seen.

  8. Monkey540

    Monkey540 Sr Member

    Trophy Points:
    1,086
    Thank you very much

    Thank you very much

    Thank you very much

    It definitely was difficult, to drill the pocket, drop superglue in there, then make sure the magnets were in the right direction, and place them in there the right side up. I had to dig out magnets repeatedly to get the correct polarity facing up.

    Thank you very much

    Thank you again, that's very nice to say. :)

  9. JaxAndTheMoon

    JaxAndTheMoon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,341
    That thing is smooth! Awesome job with the paint, love the stand as the light source!

  10. Monkey540

    Monkey540 Sr Member

    Trophy Points:
    1,086
    Thank you very much, it simplified things to have a light-up stand rather than work lights into the centre for my first try.

  11. kamakazykid

    kamakazykid Member

    Trophy Points:
    191
    where did you get the magnets from?

  12. bwize

    bwize Well-Known Member

    Trophy Points:
    815
    WOW! What a cool project. That holocron looks fantastic!

  13. Gibbtall

    Gibbtall Well-Known Member

    Trophy Points:
    586
    Beautiful! Love anything with magnets, especially if it's Star Wars.

  14. Monkey540

    Monkey540 Sr Member

    Trophy Points:
    1,086
