Twister Dorothy Sensor Ball (Scratch Built)

[zenx13]

Cow, Another Cow...

I went to see the new Twisters film and quite enjoyed it. It did have me reminiscing about the original from about 30 years ago so I came home and watched it again (seen it quite a few times tbh) and really enjoyed it all over again.

And, I got to thinking - why don't I make a Dorothy Sensor Ball prop??

Step 1

Reference materials were located / printed and I had a "dig out" to see what found objects I had that could be used.



[zenx13]

Step 2

A visit to a local electronics shop (Solarbotics) and Home Depot to locate some more required items and greeblies!



[zenx13]

Step 3

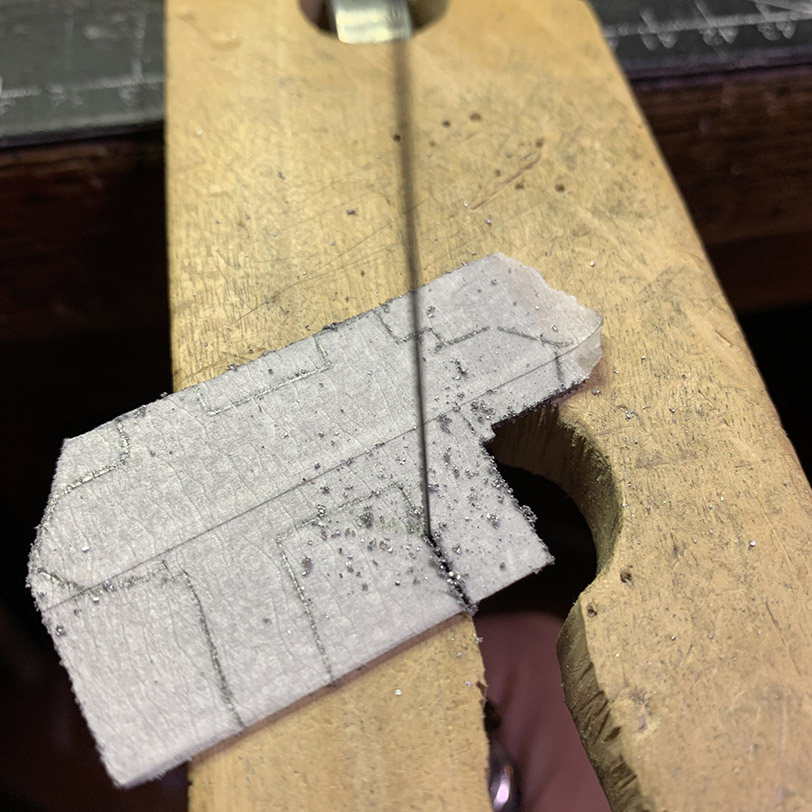

Creating the inside base plate by tracing and cutting a piece of thin Plexiglas with a coping saw.



[zenx13]

Step 4

Drilling centre holes in top hemisphere and base plate for top bolt.



[zenx13]

Step 5

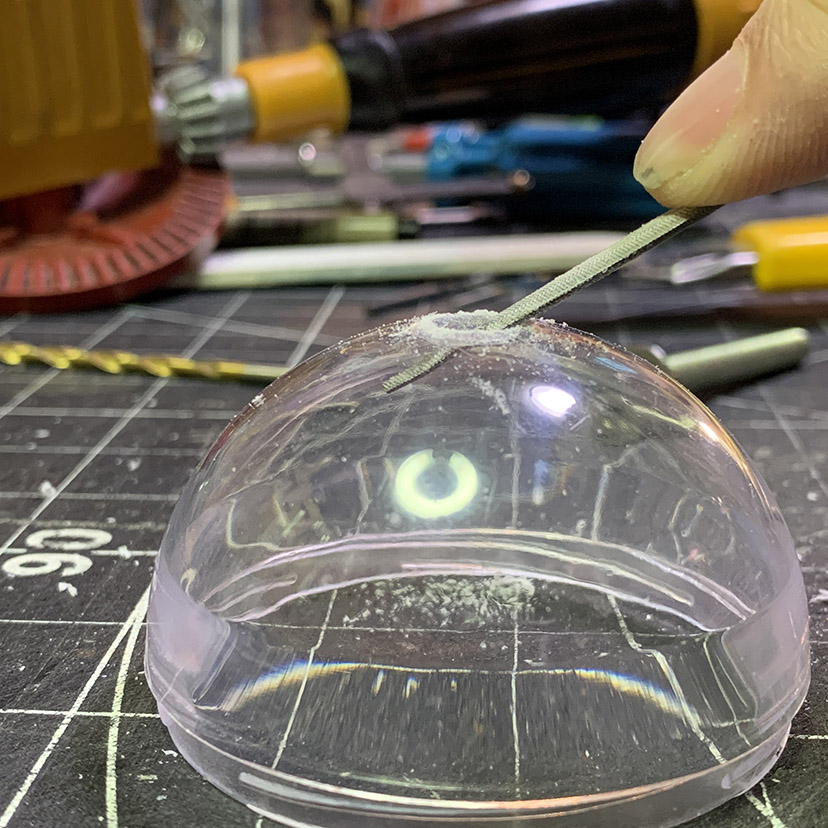

Drilling / reaming the toggle switch square opening and the hole for the black wire "propeller".



[zenx13]

Step 6

Status so far: assembled ball and dry-fit a couple of other items. I am happy with the progress - more to come!



[Astyanax]

Loving this build, so clever!
You going to do the aluminum can "wings"?



[zenx13]

Loving this build, so clever!
You going to do the aluminum can "wings"?

So kind of you to say!! And, yes - I kinda think I have to, it needs to fly!



[Astyanax]

By the way, I think the black wire is supposed to represent an antenna.



[zenx13]

By the way, I think the black wire is supposed to represent an antenna.

Interesting - I heard once it was supposed to be a propeller but an antenna makes way more sense!



[zenx13]

Step 7

The battery I bought was a little too large and I also didn't really need a functional battery that will not be used. For these reasons I decided to make a smaller one.

I started with a wooden dowel cut down to size:

---

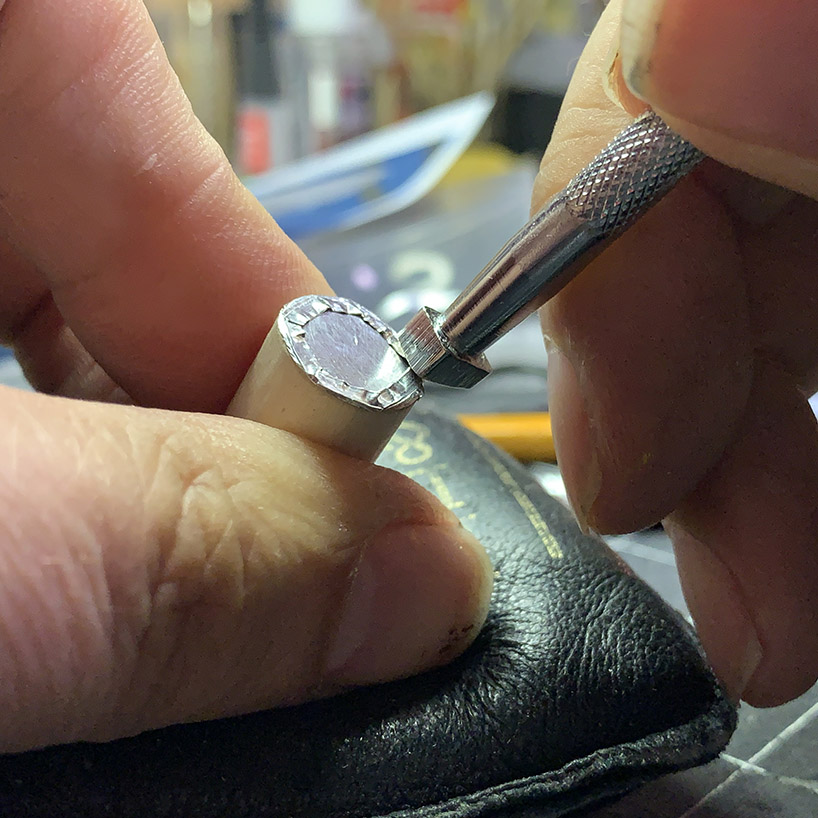

The ends of the wood were clad in Aluminum Foil Tape as well as a thin strip added to the top edges then pressed down with a leather working tool called a Beveler Stamp:

---

Next was to paint the edging - this yellow is a bit bright and will be toned down before completion of the prop:

---

Centre hole drilled and a small metal bolt was added as the positive pole:

---

Wrapped the faux battery in electrical tape and now done - this will work much better in the small space:



[zenx13]

Step 8

Setting the nut in the centre of the baseplate. The original prop looks like an adhesive similar to JB Weld was used. I chose to drill some small holes to hold silver hot glue - pretty happy with the results.



[zenx13]

Step 9

The goal of this step is to create a mounting bracket for the toggle switch as well as setting up a metal sub-plate for upcoming solder work.

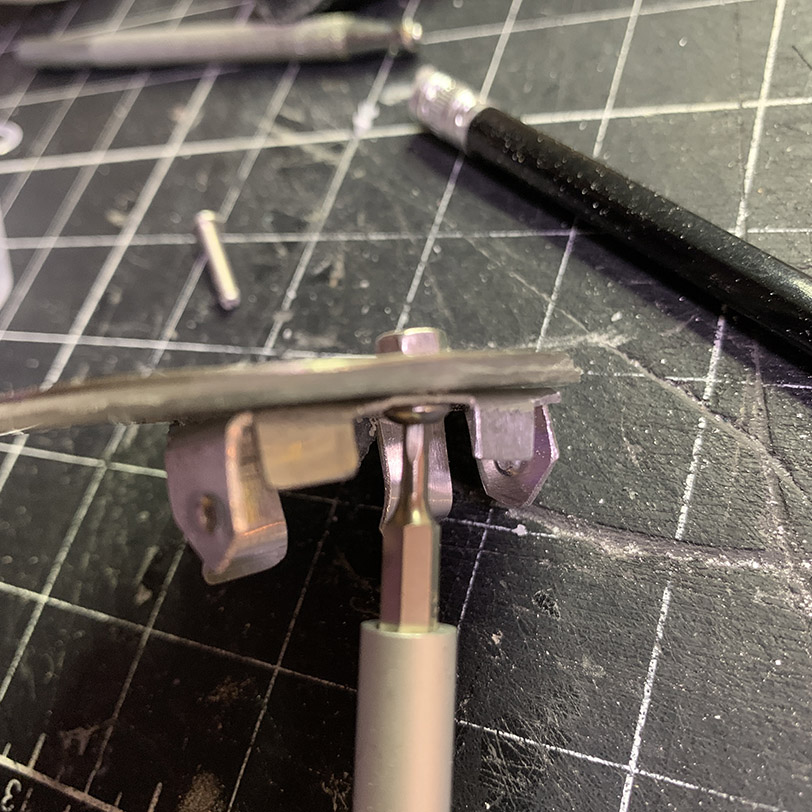

First - I cut a slit out of the plastic baseplate, marked the required flange on the metal plate, cut / bent it into place:

---

Next was to make a hole to receive the threaded section and to attach the switch to test for placement / layout:

---

Here is where I am at - really happy with the progress! Getting the toggle switch locked in place is a big hurdle to be over.



[zenx13]

Step 10

Making the battery holder - I started by sketching the shape on paper, cutting it out and test fitting:

---

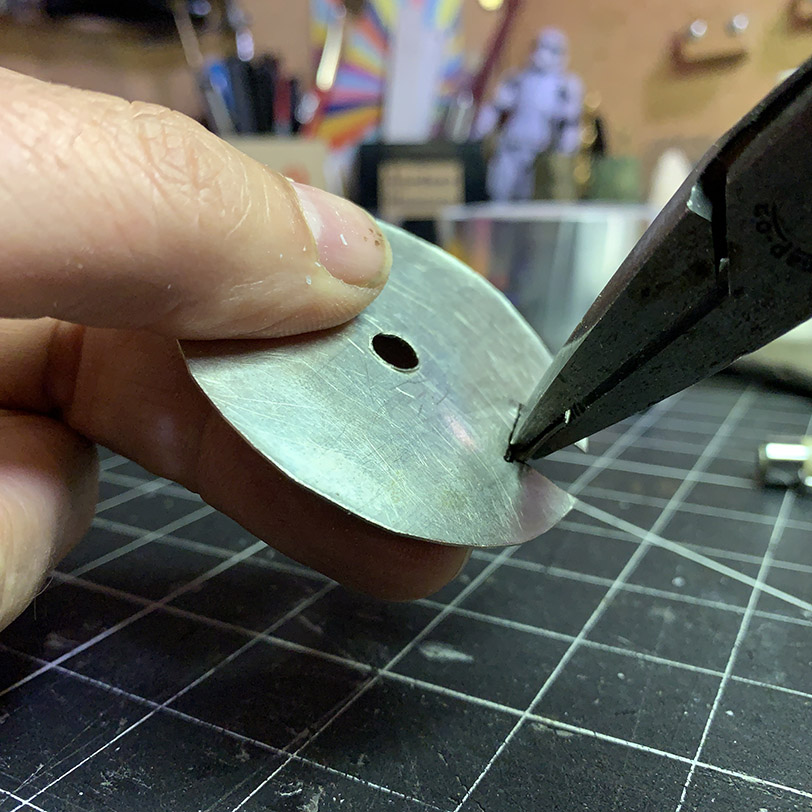

Next was to transfer the shape to a thin sheet of aluminum, cut it out and file the edges:

---

Punch in some raised areas where it touches the battery, fold it into shape and attach it to the baseplate with a small nut and bolt:

---

Here is where I am at now:
