As some may have seen, I have made a SS Death Star Turbolaser, still working on a 1/9 scale Phalanx CIWS.
I bought the Takom AK-130 and the Kashtan.


I have a problem starting stuff and not finishing it. Probably ADHD.

So I have started designing a 3D printable DS turret base, so I can use some of the spare parts accumulated over the years. I will probably have to design some 3D parts that I have no kits for. Most of the greeblies are simple enough...but there are a lot. Some of the kits are still available at a fair price.



TazMan2000


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

TazMan2000

Master Member

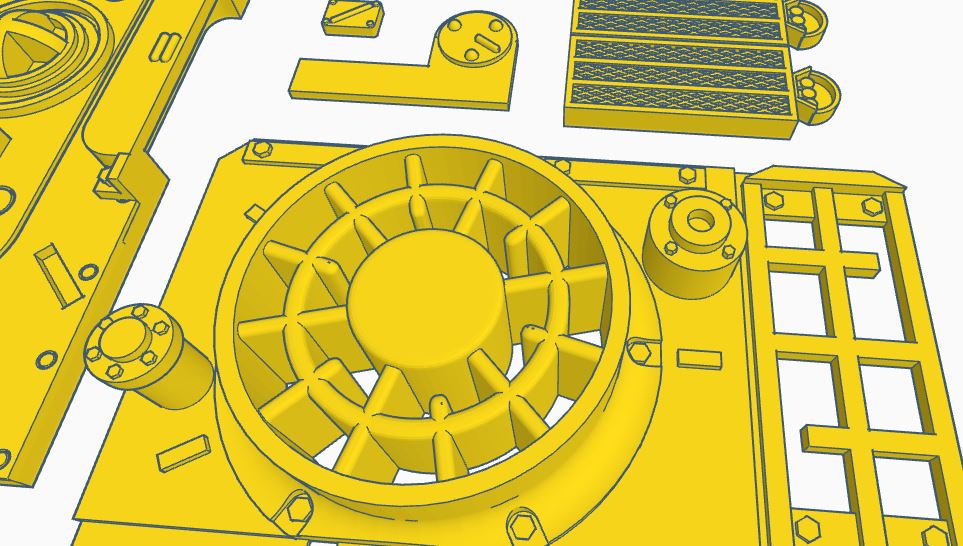

Working on the turret greeblies. I downloaded the nurnies from the Dave Goldberg TESTED model, but it didn't find them the correct size and either there were some import problems, or the parts did not covert correctly, but they just didn't work or weren't high definition. (Were they scanned?) So I just designed my own...but even these aren't perfect even though I worked from a micrometer.

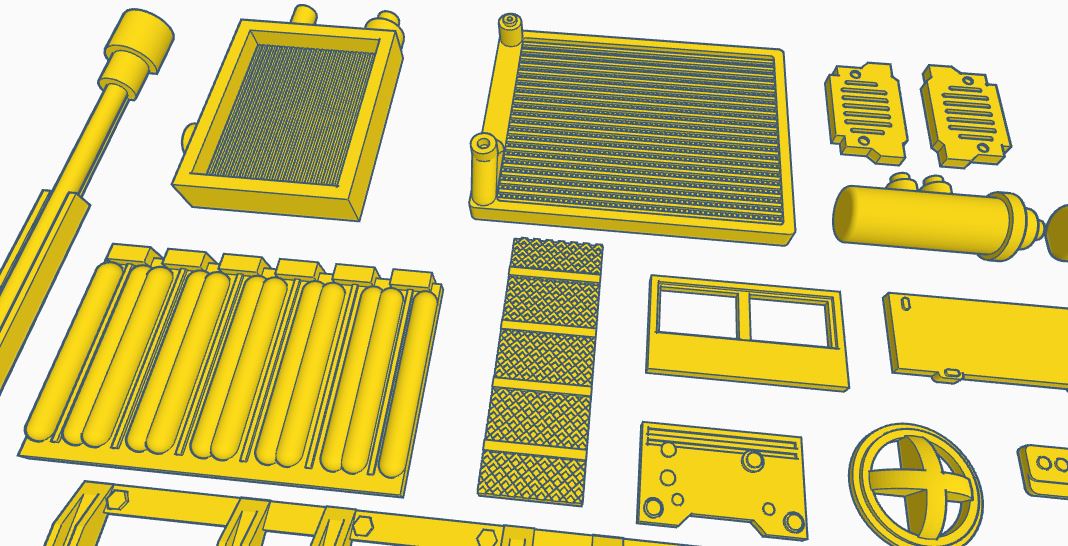

Turret Greeblies1.JPG

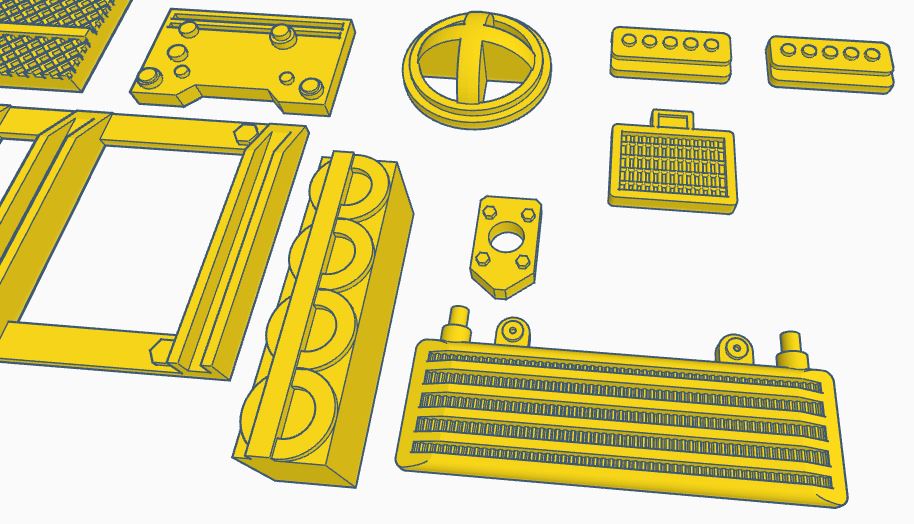

Turret Greeblies2.JPG
Turret Greeblies3.JPG
Turret Greeblies4.JPG
Turret Greeblies5.JPG
Turret Greeblies6.JPG



This is one of the Goldberg greeblies imported into TinkerCad. Did this work for anybody else? Maybe just a TinkerCad import issue. Generally useless for me as my resin printer will recreate the bad artifacts.

Goldberg Greeblie.JPG



TazMan2000


TazMan2000

Master Member

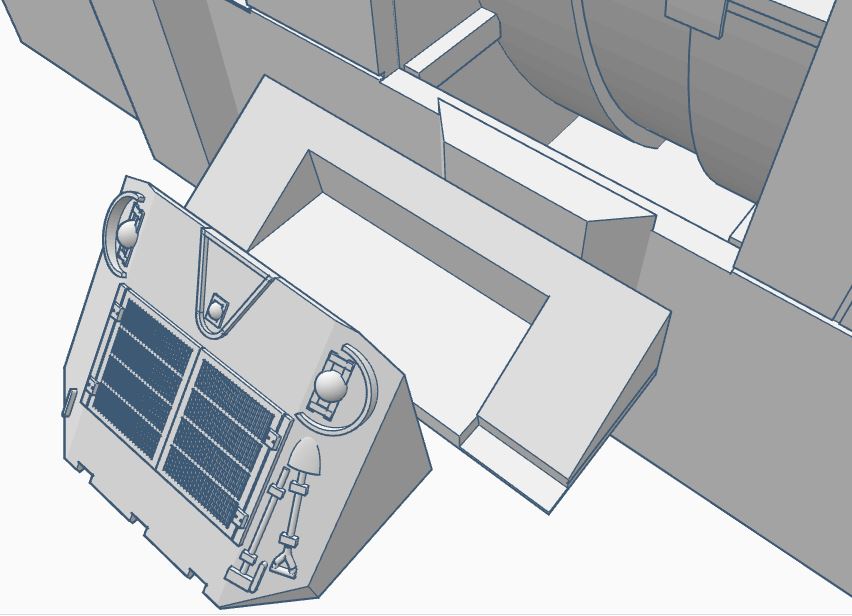

I little improvement on the printability of some of the pieces. Currently working on the top greeblies. The guns and their details are going to be a lot of work. I'll probably segment the guns, so that it could be printed easily on a resin printer without or minimal supports.

As you see, I'm making this 3D model with shields so you can't see anything inside, which I think would take away from the "displayability" of the model if you can see the insides.

I had to take a few liberties with the accuracy of the greeblies and their placement to aid in "buildability". I corrected the gun rotational axis based on the original. It is offset by about an inch or above the center axis. This should be a lot closer to the filming model.

When I originally build my kit from Wasilli, I didn't do my research and incorrectly mounted the guns.





TazMan2000

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

TazMan2000

Master Member
I'm working on the guns now. The piping details may look a bit dirty, but the tiny errors will not be visible after being printed on a resin printer. I'm thinking they may even look better than the original Mig-21 Engines since these ones will not have sinkholes.

The print sections are segmented for ease and quickness of print when printed vertically. They will slide over a 8mm brass rod. I still have about a 1/3 of the gun to go. I will elect not to model the details on the very lowest section of the gun, since it will never be visible anyway.

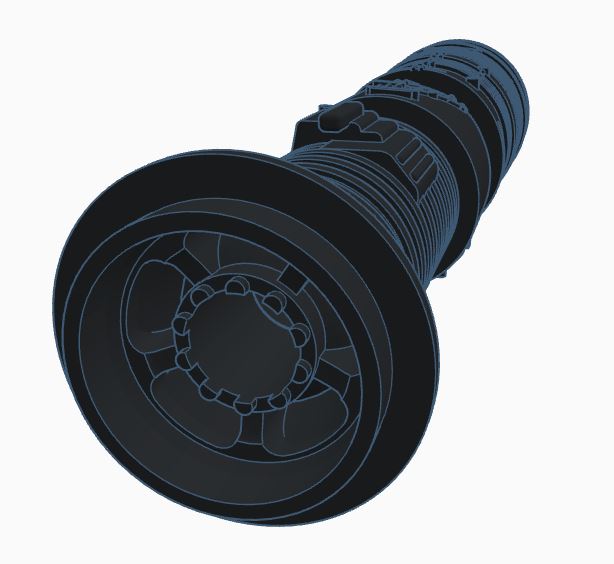

Turret Barrel 1.JPG
Turret Barrel 2.JPG
Turret Barrel 3.JPG


TazMan2000


TazMan2000

Master Member
Thanks Analyzer and joberg . This was a hell of a lot more work than I thought. There are a LOT of greeblies and I'm not the best 3d designer. When I build my physical kit, I didn't receive a full set of greeblies, so I have been trying to research the missing parts. Unfortunately a lot of the picture links are gone in the old threads. Even external information has become sparse. So its not going to be 100% accurate, that's for sure. But with my mods of the gun elevation shield, the accuracy ship has already sailed. Still, I hope to make it a pretty good representation.
