Hi guys!

I wanted to share how I made the classic holsters from Tomb Raider (for the Paris Games Week World Record attempt for most people dressed as Lara Croft in one place) as I know quite a few people struggle with this.

I used this picture as a reference for sizing as I intended to wear my actual Sola wet suit for the attempt.
Picture credit: http://tombraider.wikia.com/wiki/File:Lara_Croft_Wetsuit.jpg

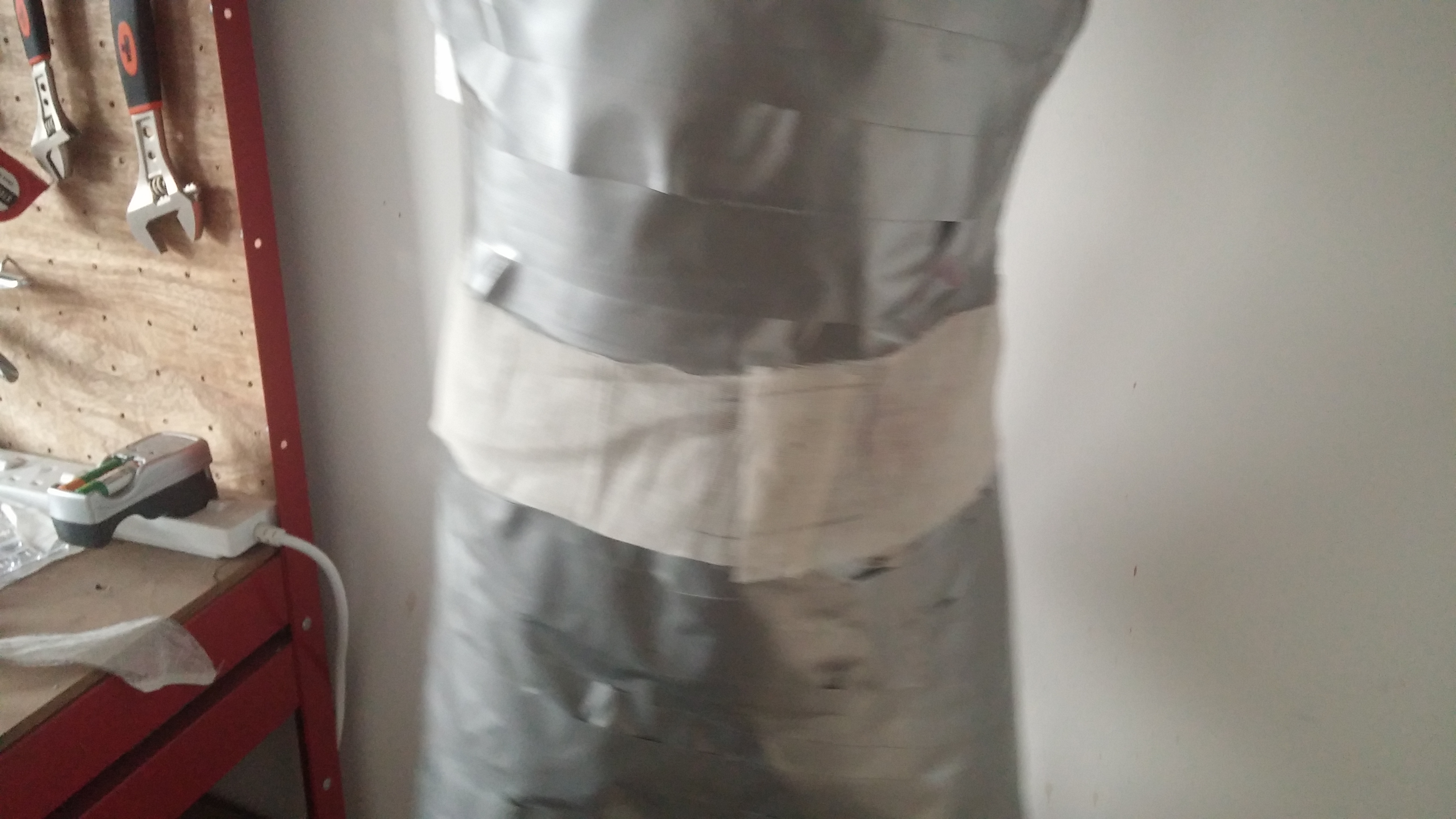

I started by using a piece of scrap muslin to work out the length and thickness of the main belt on a dummy of my body.

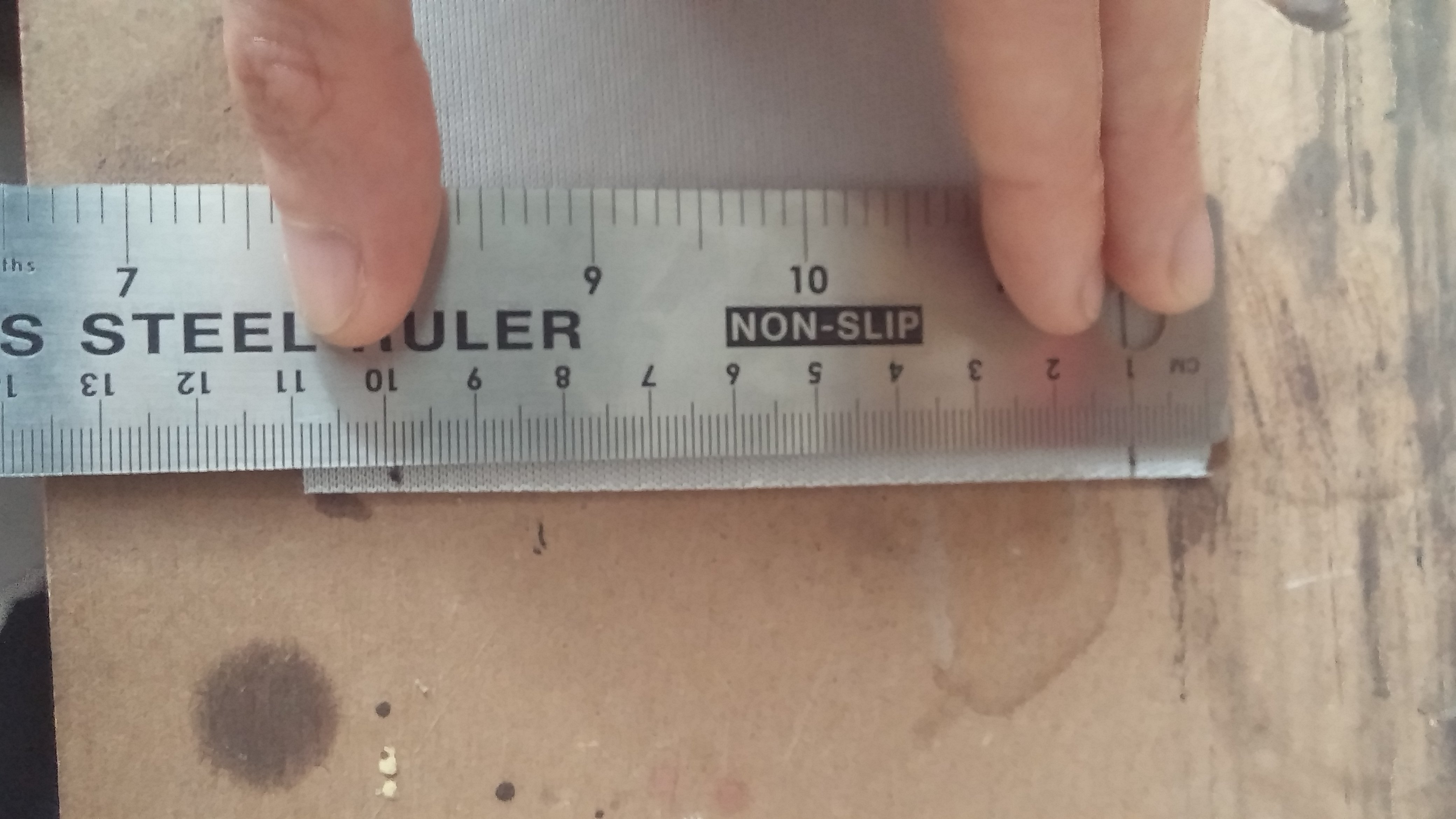

I then measured out onto a piece of black pleather the length and width I needed, and cut it out.

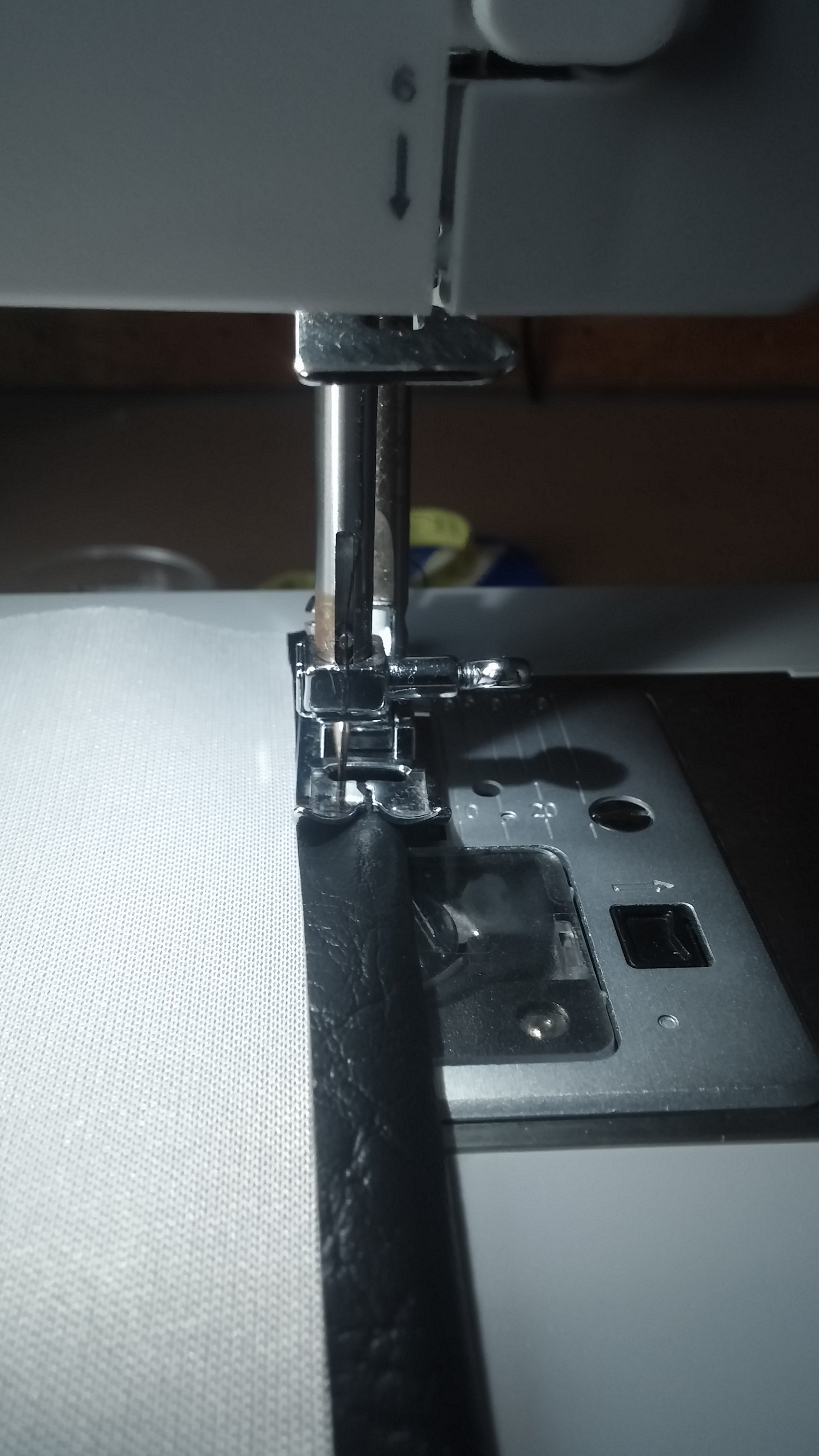

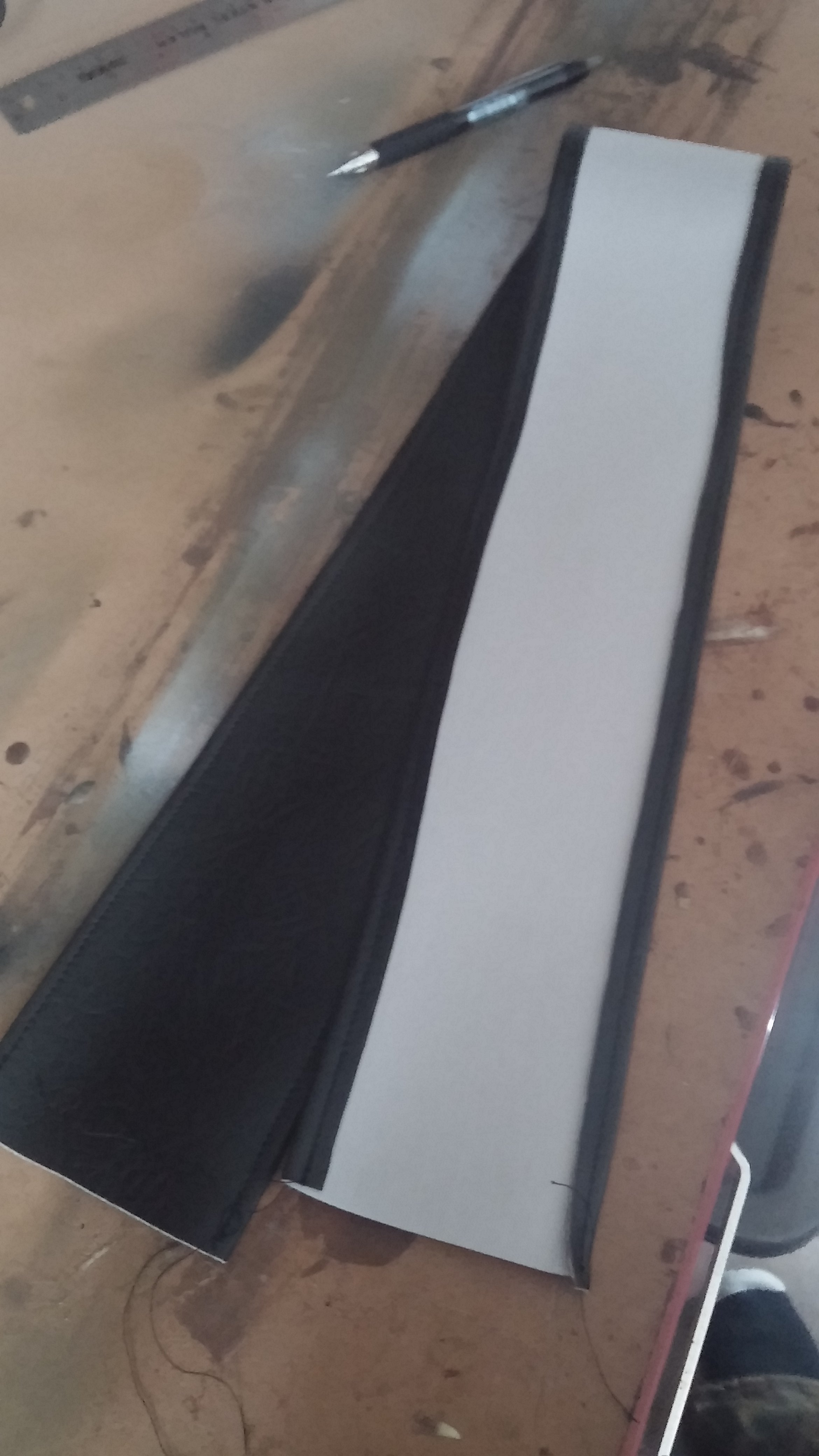

I measured a margin of 1cm length ways on both sides and machine sewed along them to create a nice seam on the edges.

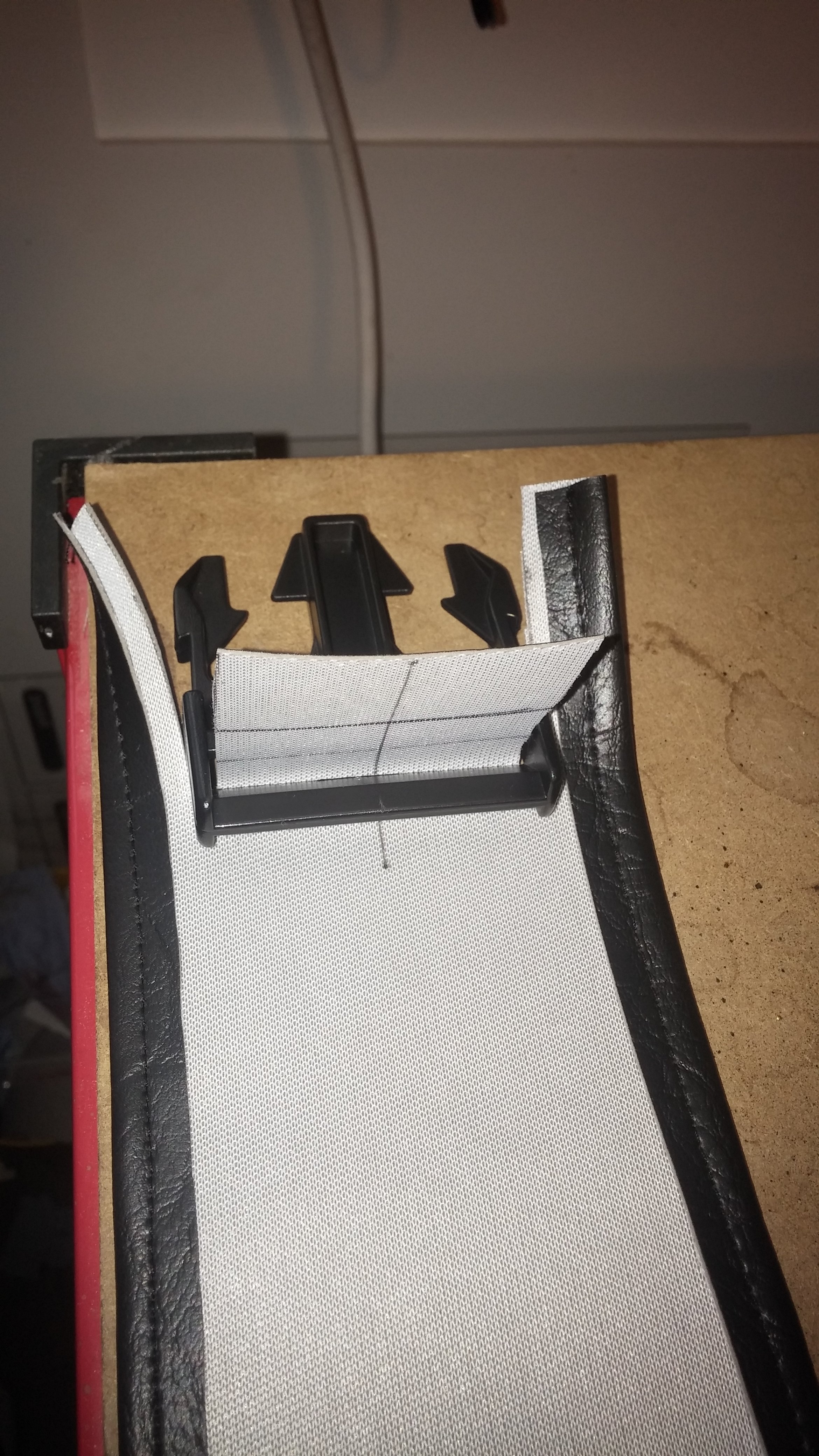

Using the largest side release buckle I had, I marked the center point on the belt and drew around the buckle giving myself plenty of space to fold over the pleather ready for stitching.
20161012_172107.jpg20161012_172220.jpg 20161012_172437.jpg20161012_172556.jpg

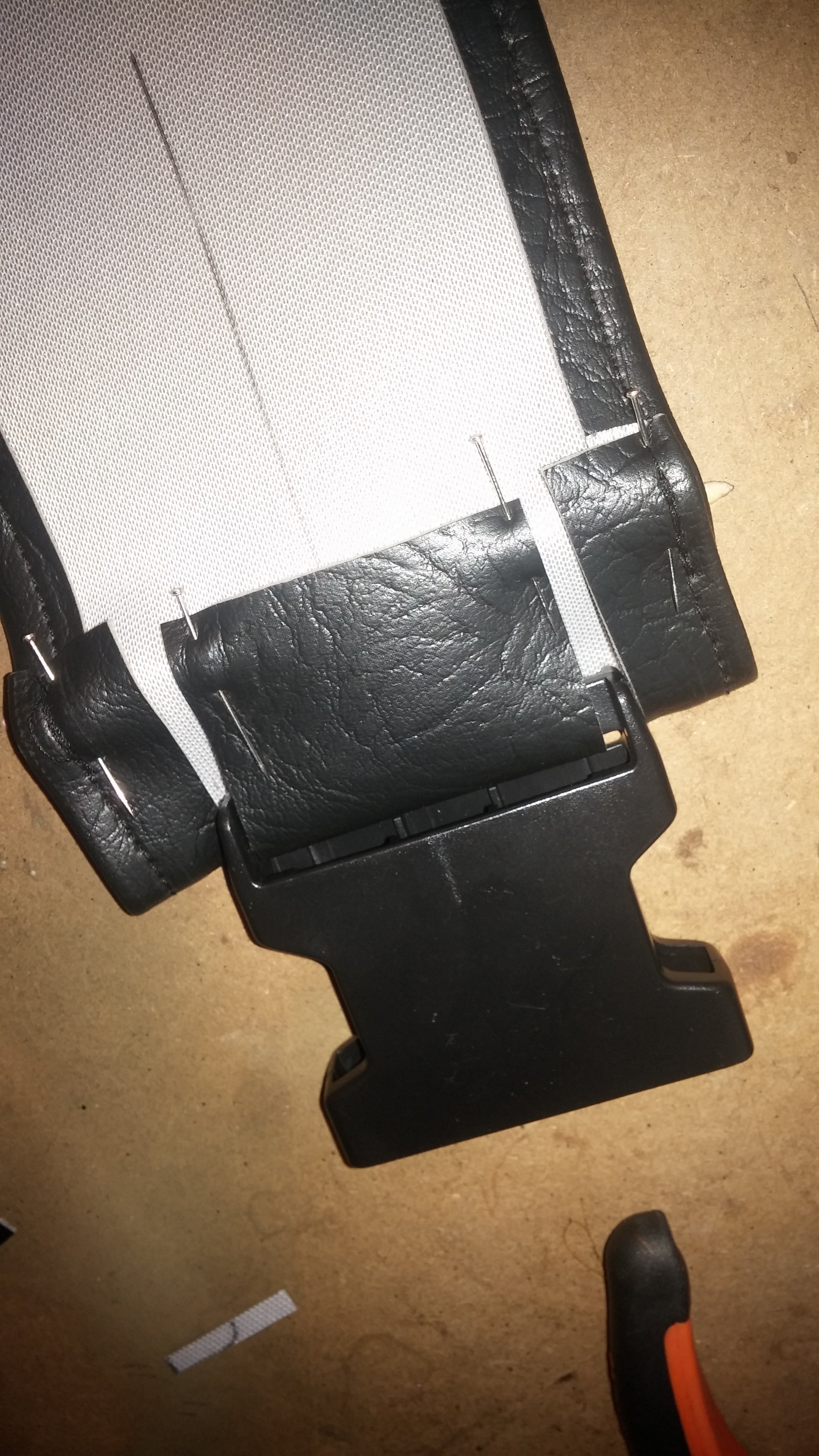

I cut slits to accommodate the buckle, then pinned and machined it into place.
Wrapping the belt around myself I marked where the opposite end of the buckle needed to go and repeated the process to finish the main belt.

Last edited:

XenoMorpheus

New Member

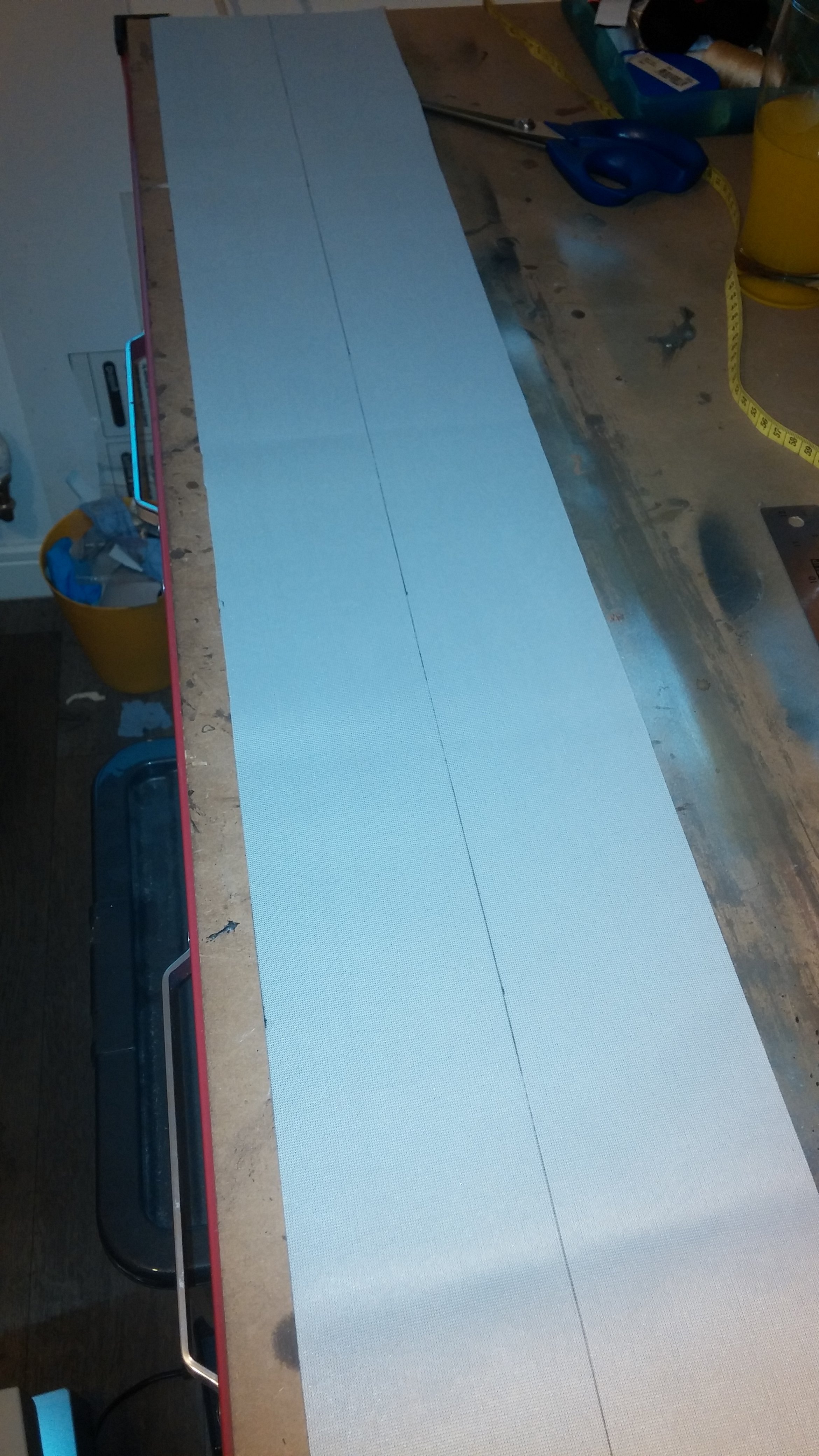

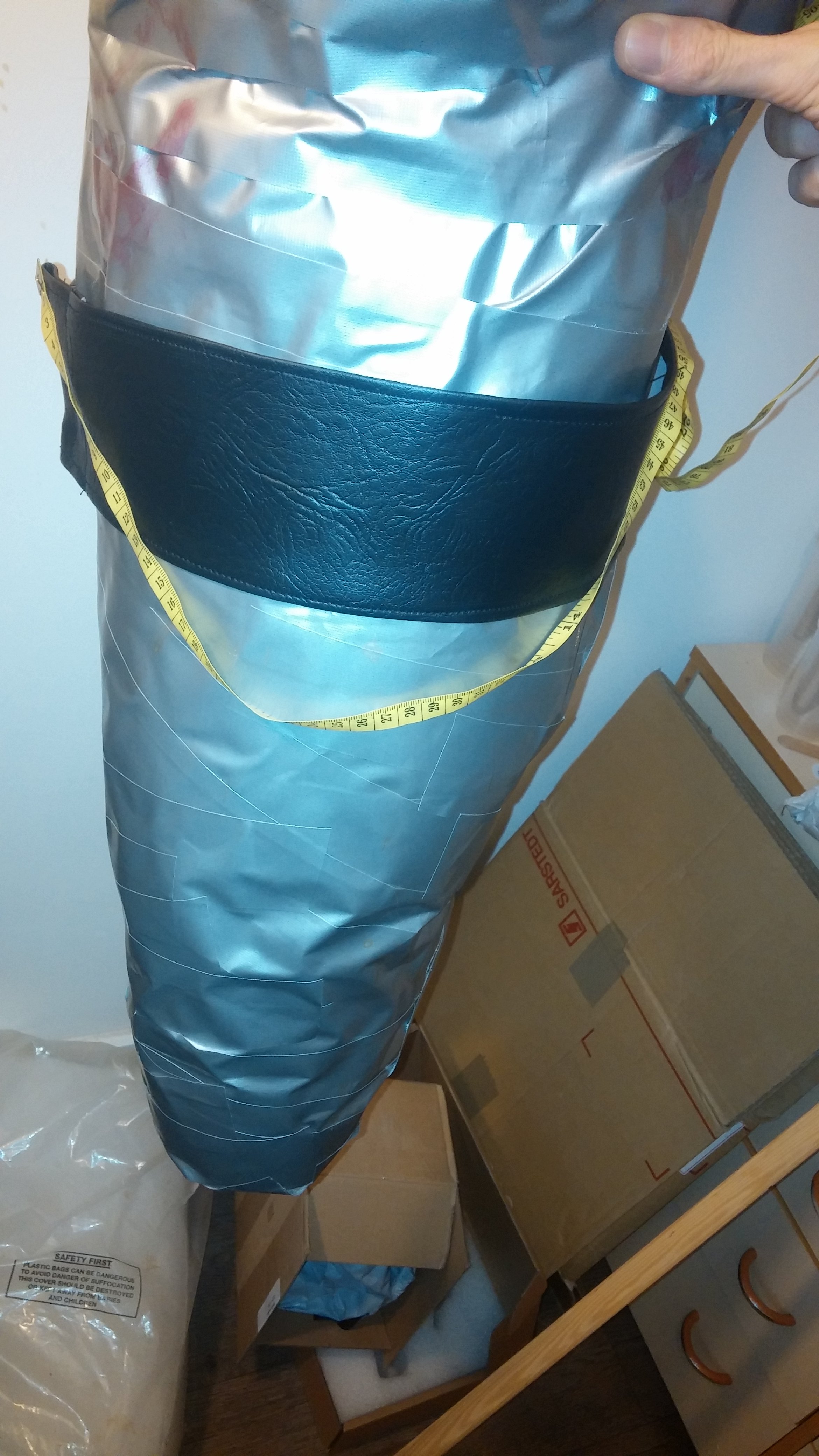

I wanted the side loops to be one continuous piece of pleather, so using a tape measure I worked out the length I would need. After measuring and cutting out a double width piece of pleather I folded it in half and machine sewed the seams length ways. This was so both sides of the belt would look like leather if anyone should look.
20161012_183600.jpg20161012_183639.jpg20161012_183708.jpg20161016_164117.jpg20161016_164124.jpg

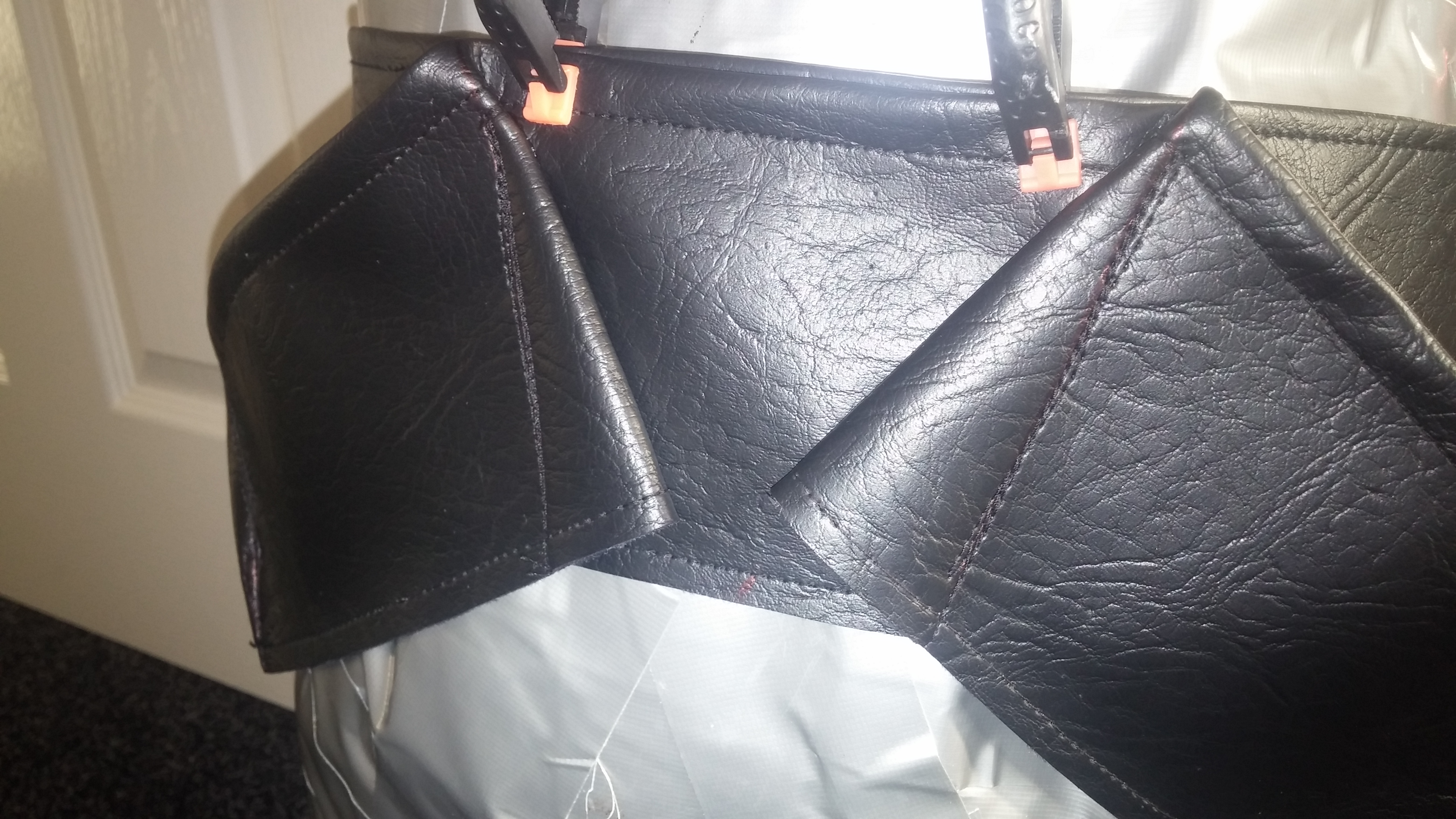

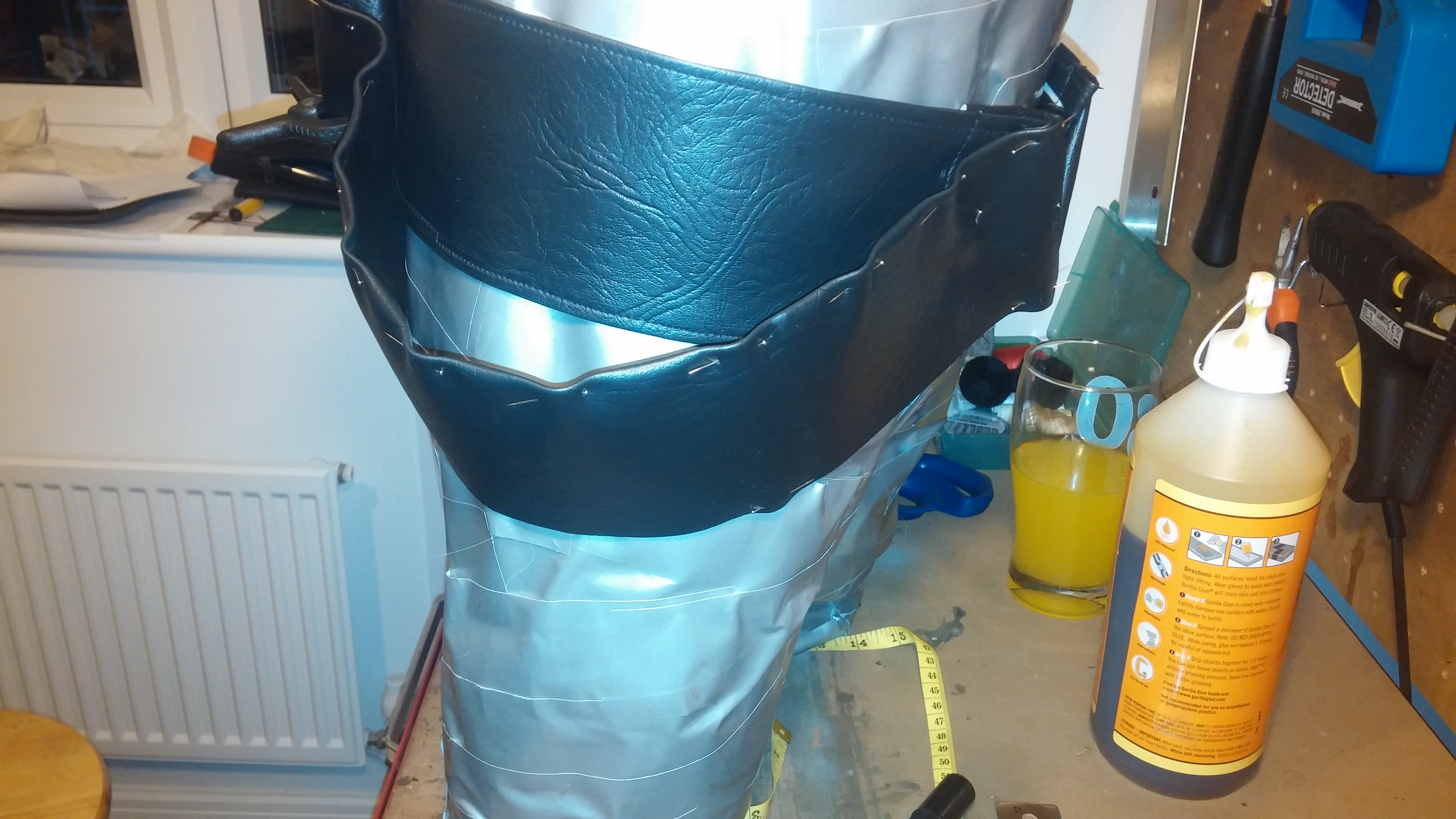

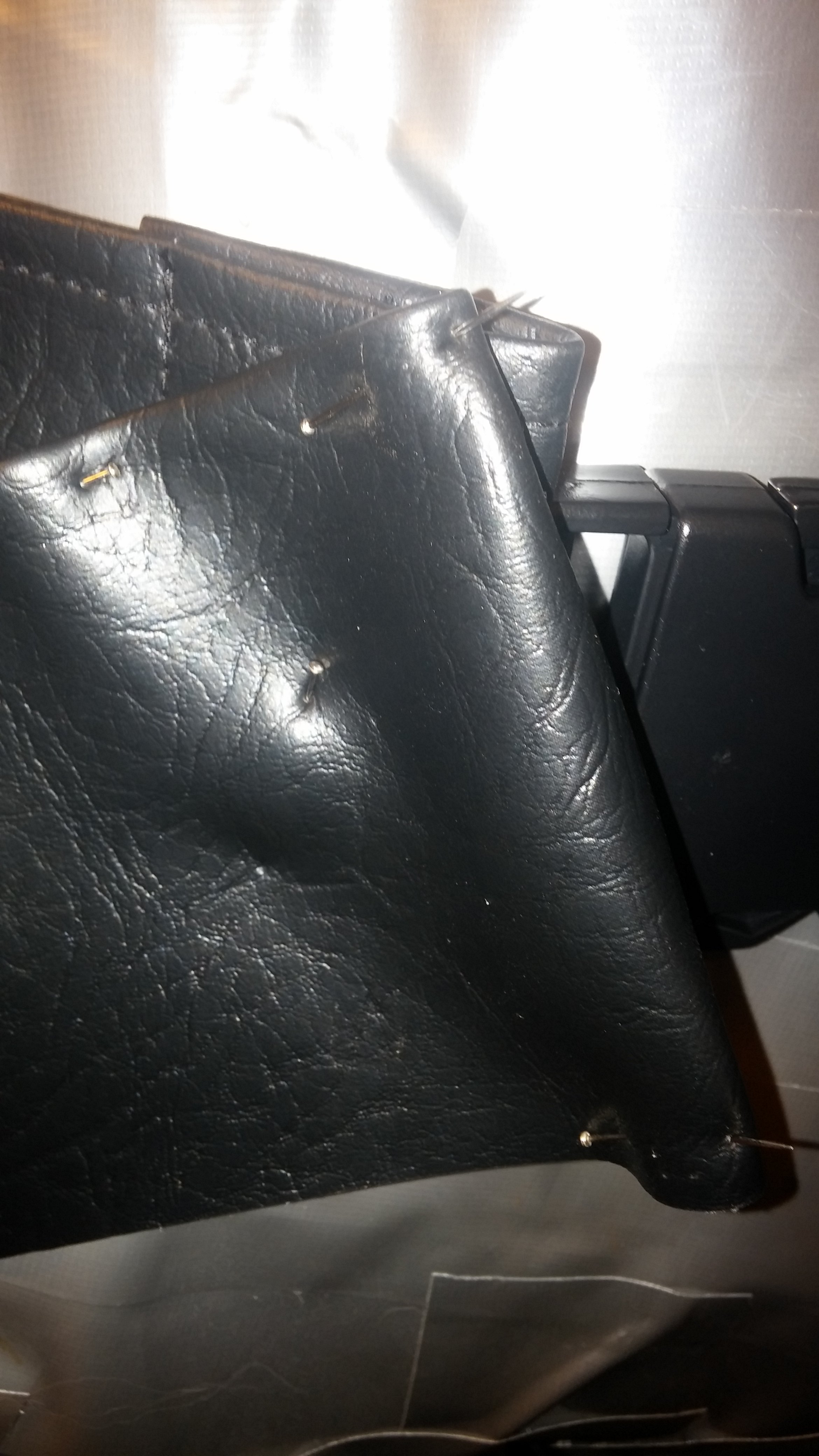

I pinned into place at the front and back to check the hang of it. As it hung quite far out at the top I pinned in some darts until I was happy with it, the machine sewed in the darts and along the seams.

I machine sewed the side belt on at the back first, then I folded the ends diagonally so the edges would sit straight along the edge of the main belt where the buckle was. to prevent the corners from curling out I inserted a thin piece of wire along this seam before machine sewing both ends on (I forgot to photograph this stage, sorry!)

20161023_133956.jpg20161023_135828.jpg20161023_150717.jpg20161023_150707.jpg20161023_151405.jpg20161023_153539.jpg

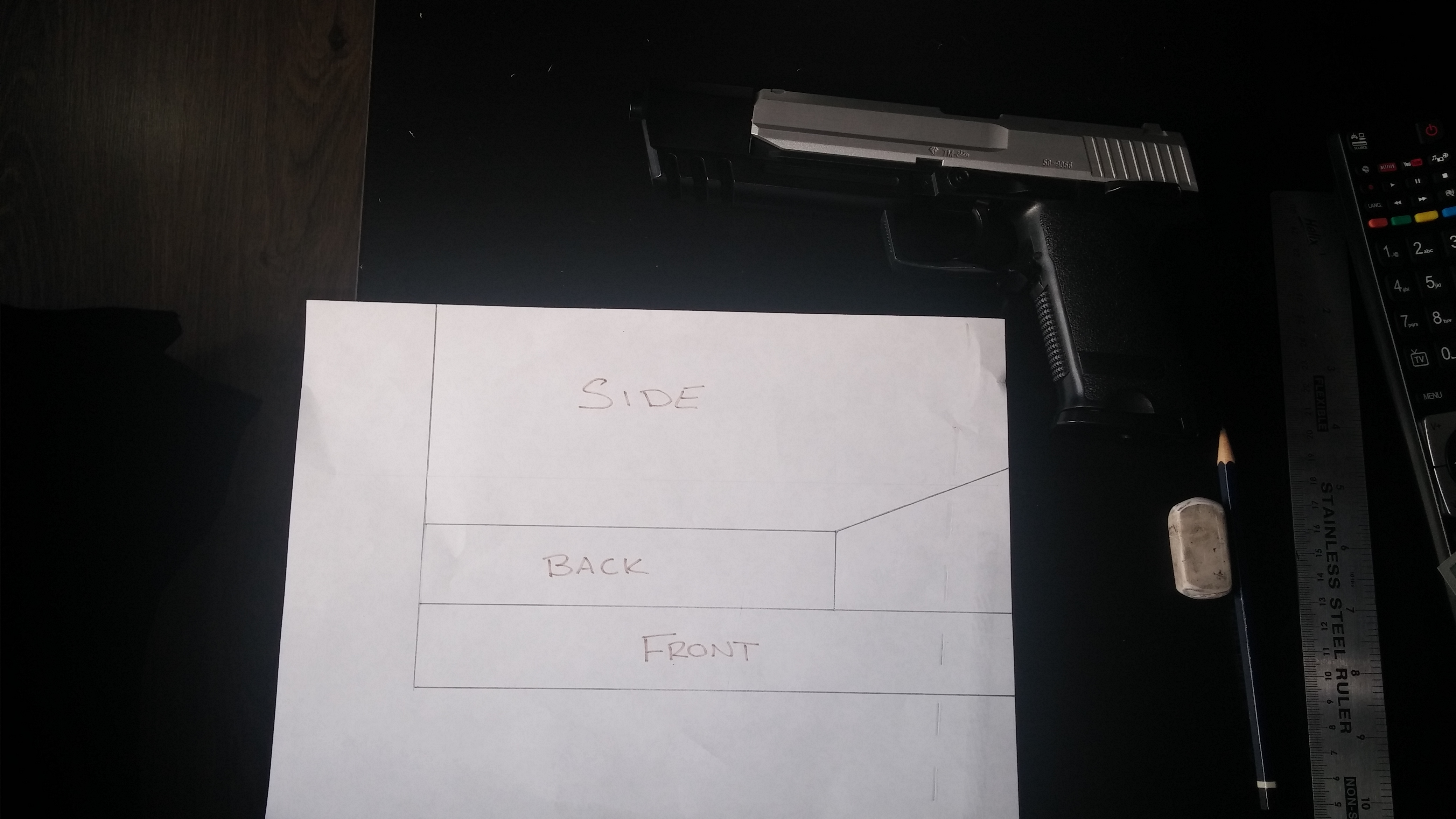

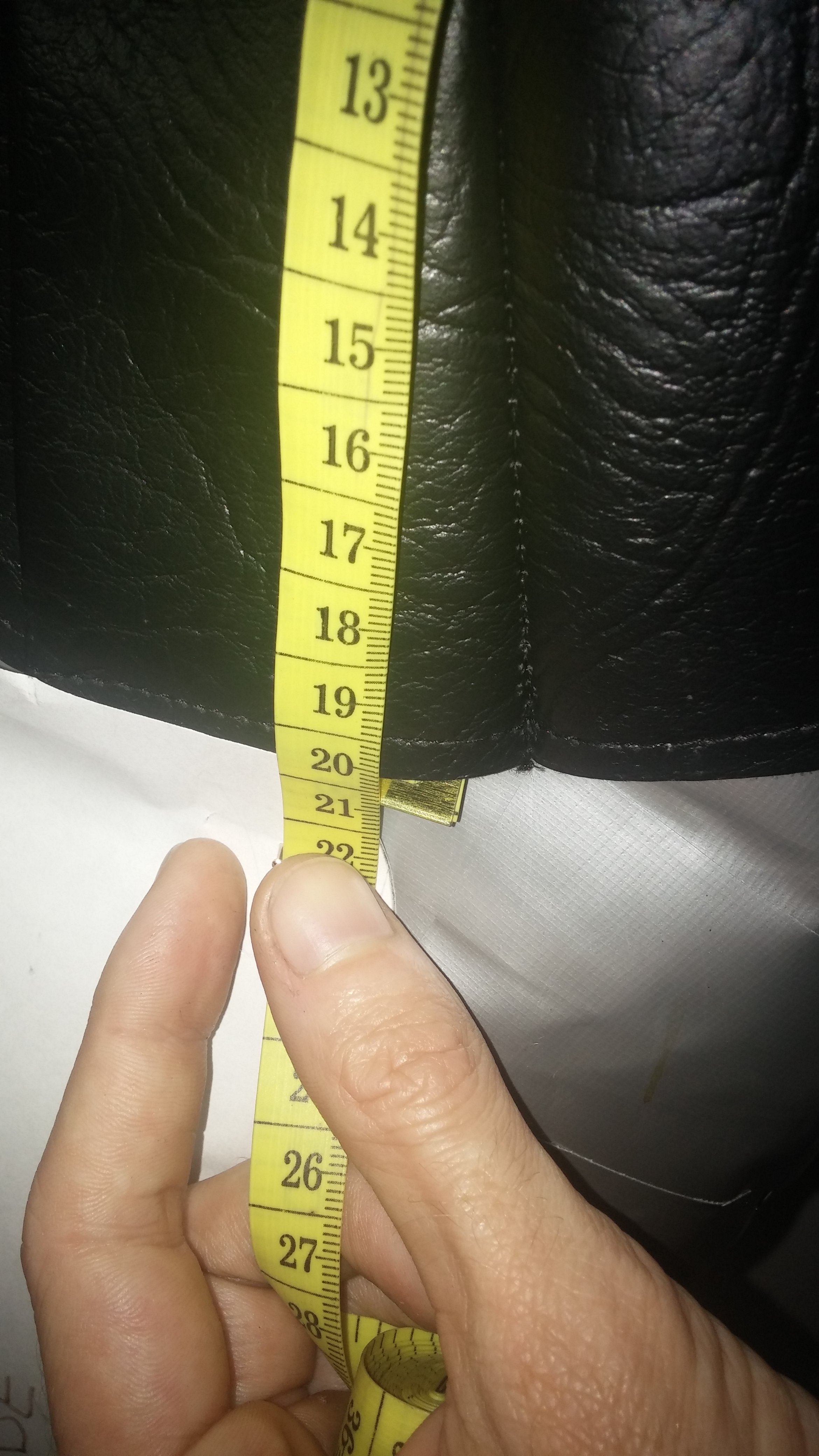

To make the box holsters I began by drawing around the toy gun I wanted to use, the worked out all of the the different pieces I'd need to create a template. I pinned the large side piece to the side belt to check sizing, and using a tape measure worked out how much I needed to extend it by in order to be able to loop it over the side belt and create a way of attaching them together. Then using the template I cut all the pieces I''d need out of pleather.

Last edited:

XenoMorpheus

New Member
View attachment 728670View attachment 728671View attachment 728674View attachment 728672View attachment 728675View attachment 728676View attachment 728677
I hemmed the largest piece then looped it around the side piece and marked where the two pieces met. then I stitched on some velcro so I'd be able to attach the holster while still being able to easily remove it.
View attachment 728678View attachment 728679View attachment 728680View attachment 728681View attachment 728682
Next I hemmed the top of the other side piece and attached the two thin front and back pieces and finished by hemming all along the bottom. this left me with a nice template as shown in the last picture.
