Tie Fighter with Coolshade

Discussion in 'Studio Scale Models' started by 3phase, Jul 13, 2017.

  1. 3phase

    3phase Well-Known Member

    Trophy Points:
    935
    OK yes another one with coolshade.

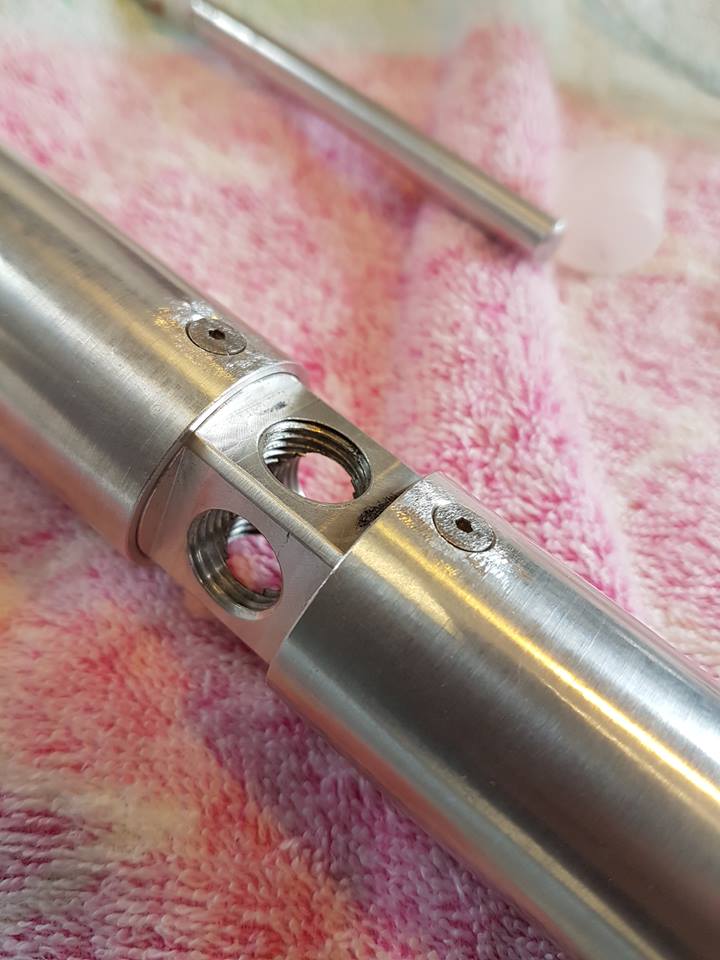

    Got this a few months ago and 100% its a nice-n but not sure what version. Im not an expert but a few things im not sure about is the size of the armature. This one is 28.5mm but I also had a armature that I was told is for the nice-n new kits but it is 31.8mm and would never fit this kit.

    The lengths are the same and that also has me worried as they seem to be a bit short but more on that later as I have not received the plastruct yet to build the wings and will probably be using Jason's Moffeaton guide as that is a real help.

    Some pics below of the armatures.


    [​IMG]


    [​IMG]

    Last edited: Nov 4, 2018
  2. 3phase

    3phase Well-Known Member

    Trophy Points:
    935
    Re: Tie Fighter

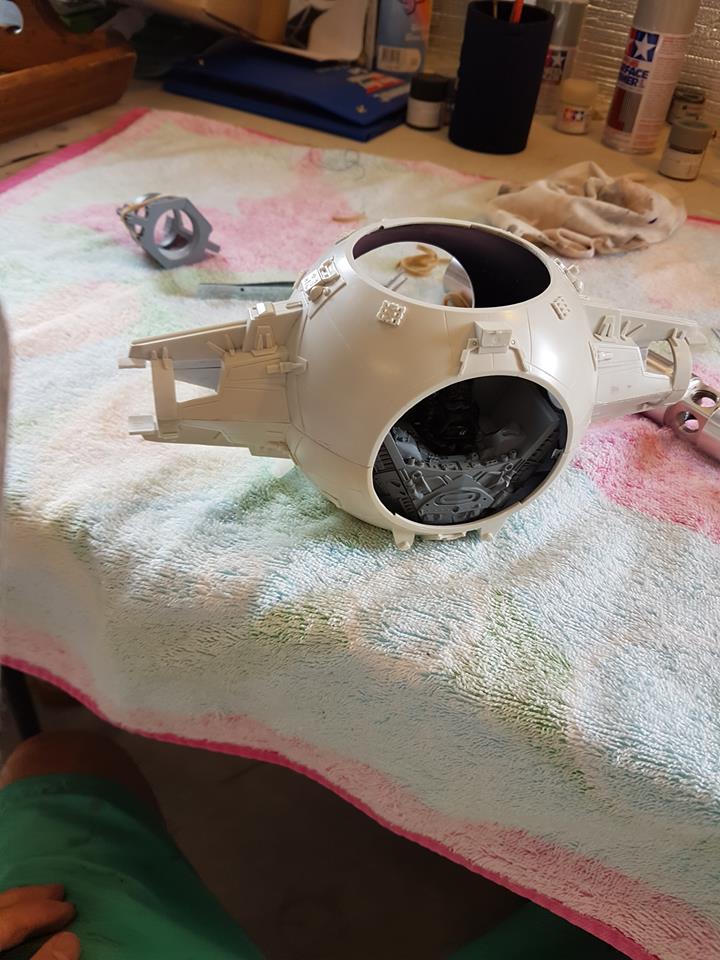

    Getting parts cleaned up etc

    [​IMG]

  3. 3phase

    3phase Well-Known Member

    Trophy Points:
    935
    Re: Tie Fighter

    Here is a pick of the kit part against the EFX tie. As you can see maybe the EFX is not so screen accurate but it is very clean and symmetrical and just on another level as in how thin parts can be compared to garage kits.

    But no real coolshade and that's what I want. Well I did before I started haha

    [​IMG]

    Fett_Ish and maxhebus like this.
  4. Fett_Ish

    Fett_Ish Well-Known Member

    Trophy Points:
    635
    Re: Tie Fighter

    its been a long time since I built this kit, but I am now in the process of building hero stars I got from Steve about 4 years ago now. I have the resin armature, but if I remember correctly even the machined armatures required "shimming". I am sure there is at least one thread discussing it. Good luck with the build, its a great kit and Eatons build of the hero stars had been a great help. I,m hoping to cut some koolshade this weekend:cool , but I'll probably chicken out.....

  5. 3phase

    3phase Well-Known Member

    Trophy Points:
    935
    Re: Tie Fighter

    Not sure where you mean it needed shimming. The tie ball etc fits perfect to the armature but as shown below I only have about 17mm for the wings to bolt on and that's not much. Not sure how everyone else has bolted there's on or maybe glued on ?

    [​IMG]

    [​IMG]

    [​IMG]

    Fett_Ish likes this.
  6. Fett_Ish

    Fett_Ish Well-Known Member

    Trophy Points:
    635
    Re: Tie Fighter

    Sorry, there were these TWO problems as I recall. Some folks did have to shim to get the fuselage to sit right in the mount. From the looks of it, you are going to have very little, still too much, after you finish your wingstars. I would finish the Stars and then see if the "cover" could be hogged out to fit what is sticking out, if you don't feel confident just cutting it down. My Hero wingstars are nearly perfect on my resin mount but were just a tad too short for my resin ones.

    Looking at another post of a TIE build, it appears the builder moved the wingstar mounts out closer to the end of the armature, not accurate but it worked.



  7. 3phase

    3phase Well-Known Member

    Trophy Points:
    935
    Re: Tie Fighter

    OK not far to go now.





  8. 3phase

    3phase Well-Known Member

    Trophy Points:
    935
    Re: Tie Fighter

    I thought it would be easier to work on this without the armature so i made it removable for now so i could work on the seems and parts etc with out the armature. Had to counter sink the screws tho on the armature.





    - - - Updated - - -

    Haze grey is on the body. I thought this paint was **** out of the can so shot it on with my airbrush and still **** but not thick and blotchy.




    jkno, Treadwell and Hammer3246 like this.
  9. 3phase

    3phase Well-Known Member

    Trophy Points:
    935
    Re: Tie Fighter

    Need help

    OK I have not glued this just had it clamped together.

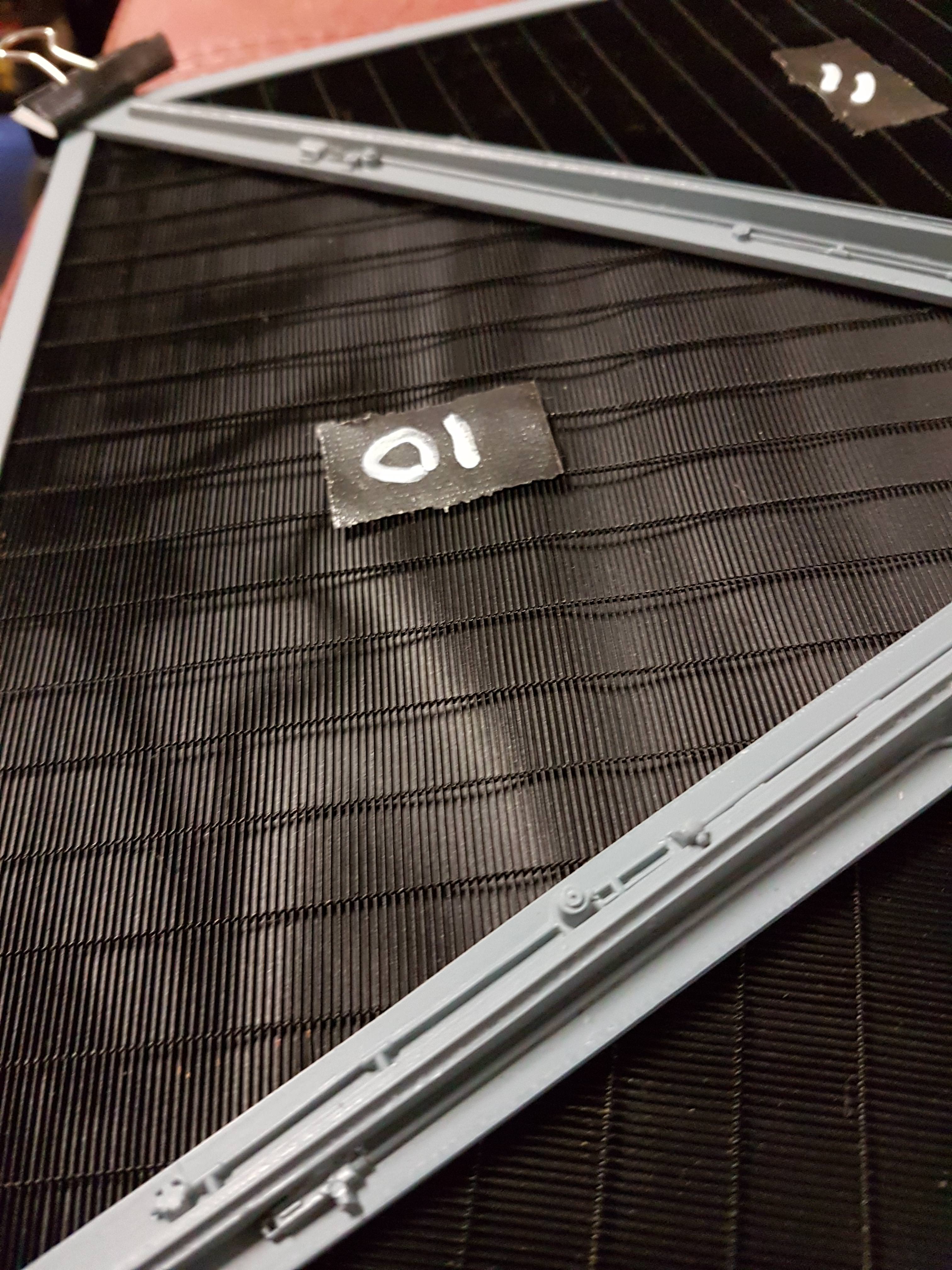

    As shown I had thin paper in between my coolshade and we had some rain and the moisture has creased the paper.

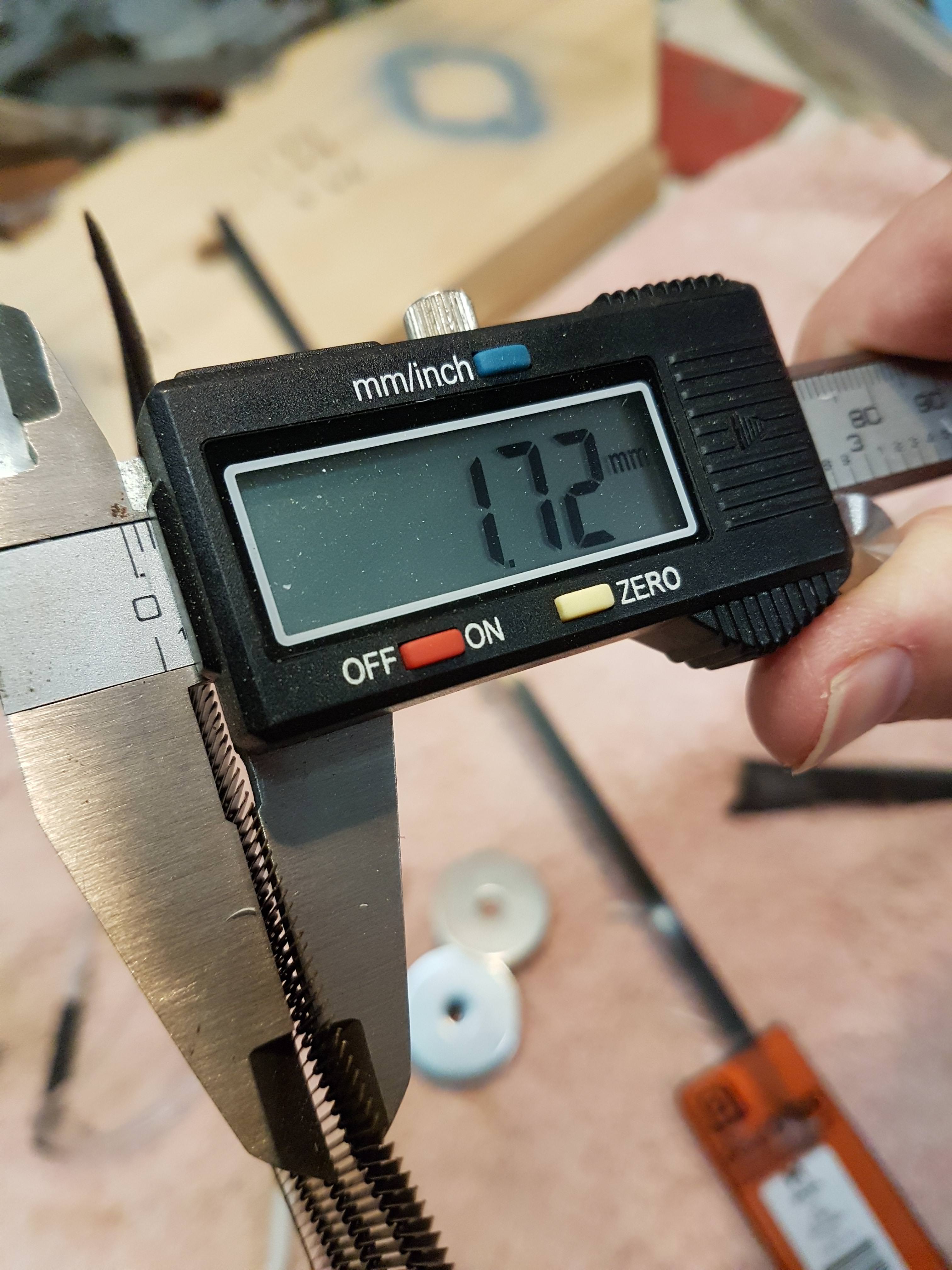

    Now I know people have mentioned using like a 1mm card in between the coolshade but there is no room for any thickness what so ever as you will see I have shown the coolshade to be 1.72mm. this will give approx 3.44mm so was very difficult to fit into the H beam that has a gap of 3.35mm.

    This is why I used thin paper so it would fit. How has everyone else fit the coolshade into the H beam using a thicker card in-between the coolshade.




    Last edited: Oct 14, 2018
    yaris likes this.
  10. 3phase

    3phase Well-Known Member

    Trophy Points:
    935
    Re: Tie Fighter

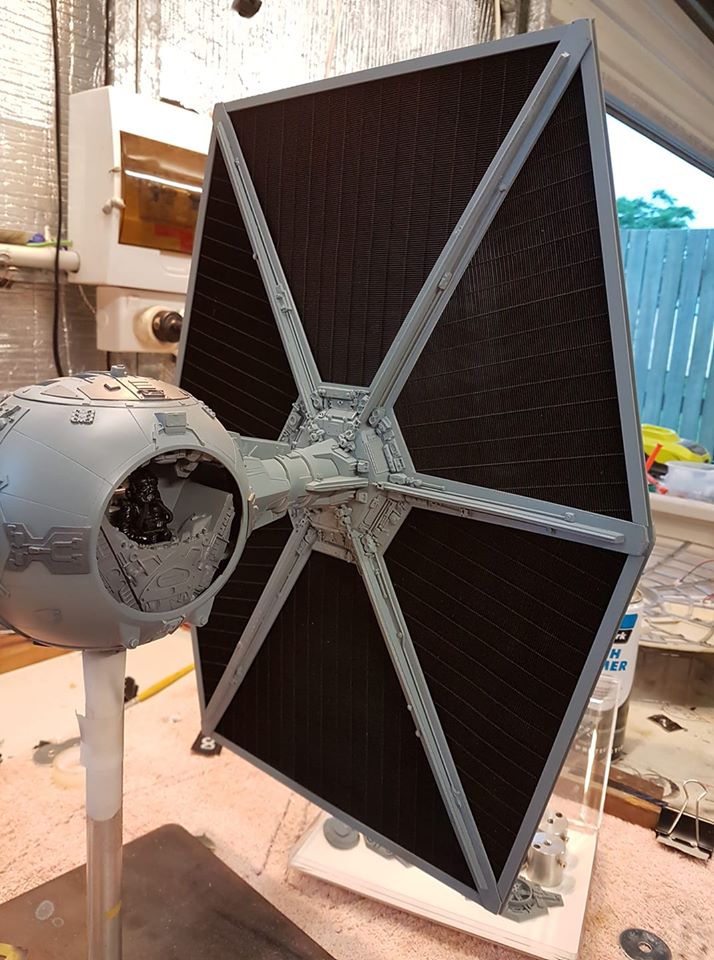

    I have not heard from anyone that has built one of these wings so I Decided to move forward and get this done. One finished. Is it wonky yes. Is that accurate maybe


    44921202_981323675386511_3184808792189566976_n.jpg?_nc_cat=111&_nc_ht=scontent.fbne5-1.jpg

    43587008_981323868719825_7246962463877365760_n.jpg?_nc_cat=107&_nc_ht=scontent.fbne5-1.jpg

    45074586_981323975386481_3365258196703772672_n.jpg?_nc_cat=102&_nc_ht=scontent.fbne5-1.jpg

  11. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    I'm about to get the latest Nice-N TIE started with Koolshade wings. Thanks for blazing the trail, and FWIW I'll keep you posted on how the wings turn out.

  12. 3phase

    3phase Well-Known Member

    Trophy Points:
    935

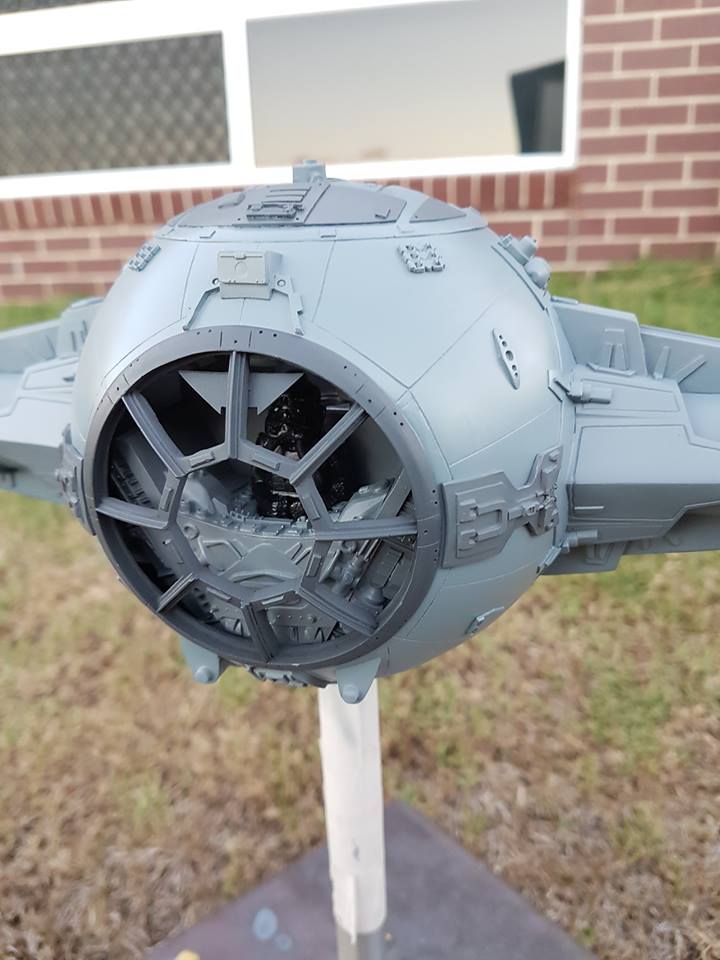

    Forgot to show this finished. Well except for the decals and gun lights

    47250073_1002121453306733_8078017122162180096_n.jpg?_nc_cat=102&_nc_ht=scontent.fbne3-1.jpg

    robn1, stonky, dirtydave and 2 others like this.
  13. 3phase

    3phase Well-Known Member

    Trophy Points:
    935





    robn1 likes this.
  14. 3phase

    3phase Well-Known Member

    Trophy Points:
    935
  15. Laspector

    Laspector Sr Member

    Trophy Points:
    2,415
    That is wicked awesome!!

    3phase likes this.
  16. Duncanator

    Duncanator Well-Known Member

    Trophy Points:
    935
    That's how a TIE fighter should be done!

    3phase likes this.
  17. clancampbell

    clancampbell Sr Member

    Trophy Points:
    2,160
    Utterly sublime!

    Rich

    3phase likes this.
  18. 3phase

    3phase Well-Known Member

    Trophy Points:
    935
    Thanks guys

  19. Ollois

    Ollois Active Member

    Trophy Points:
    361
    Lovely work

    3phase likes this.
  20. moffeaton

    moffeaton Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,860
    Very nice! Very clean!!

    3phase likes this.
