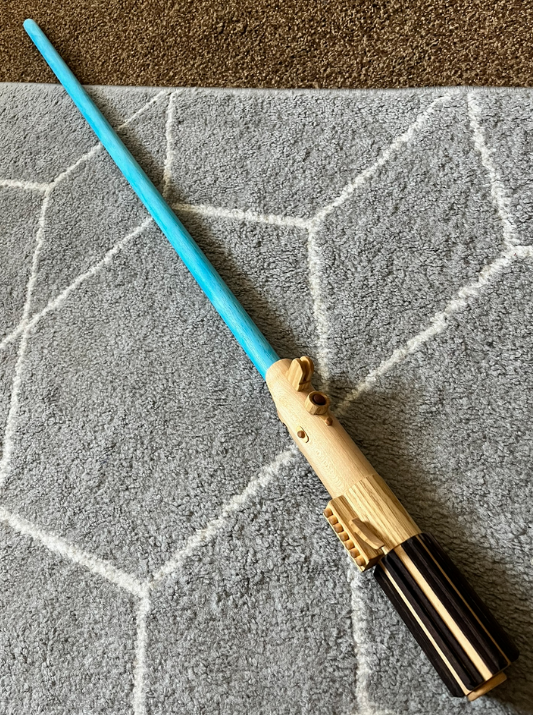

After completing another custom guitar build last week, I have some free time in the shop (between making end-grain cutting boards and upgrading my shop space). I decided (after watching a YouTube video) that since I made my ANH Graflex with Goth3D guts last year, I'd make a fun, stand-alone wooden Graflex prop from scrap I have in the pile.

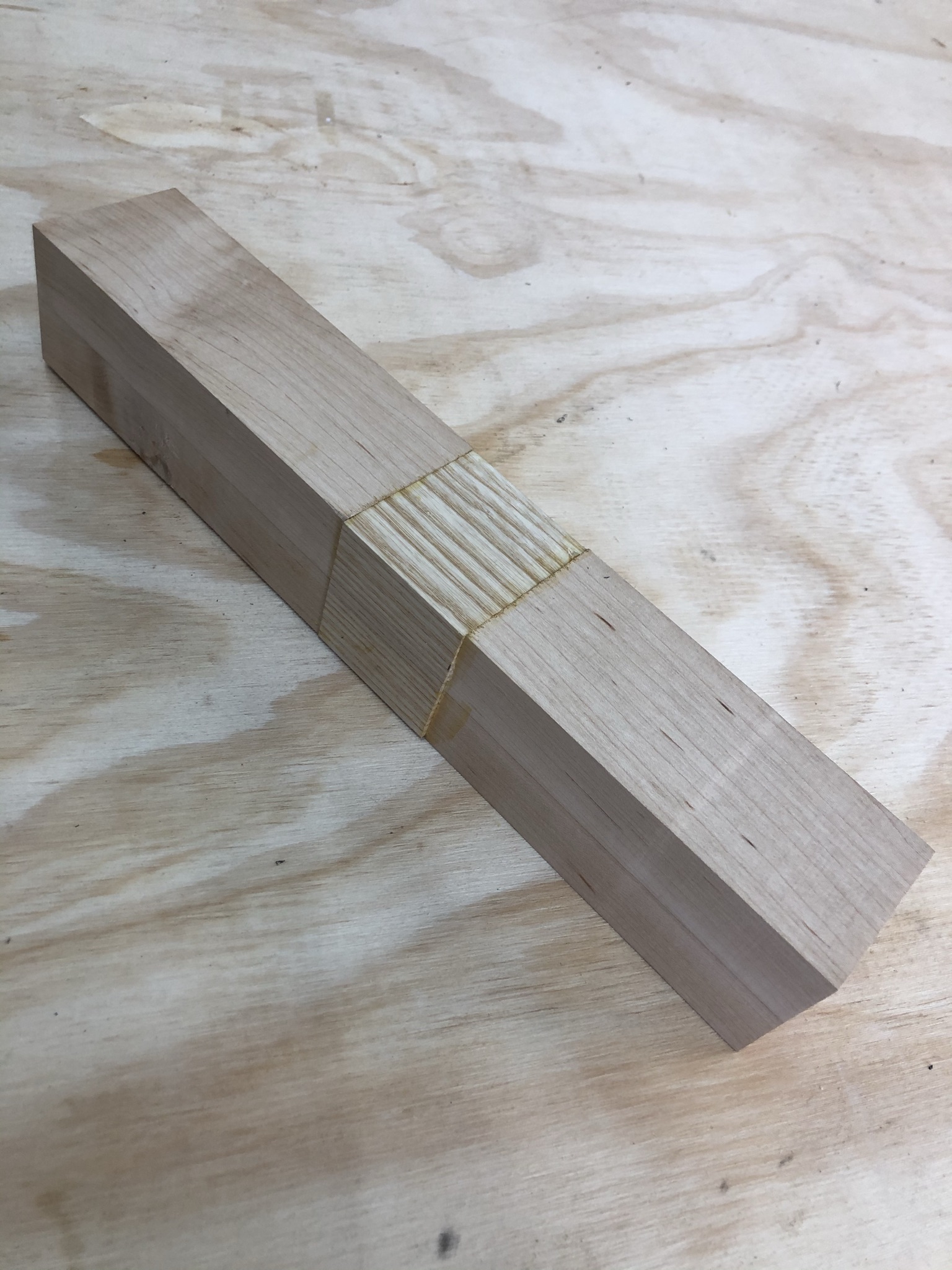

I started off gluing some maple and oak I had lying around. Dimensionally, I'm going for as accurate as I can make it, but I'm sure I'll have to fudge it here and there.

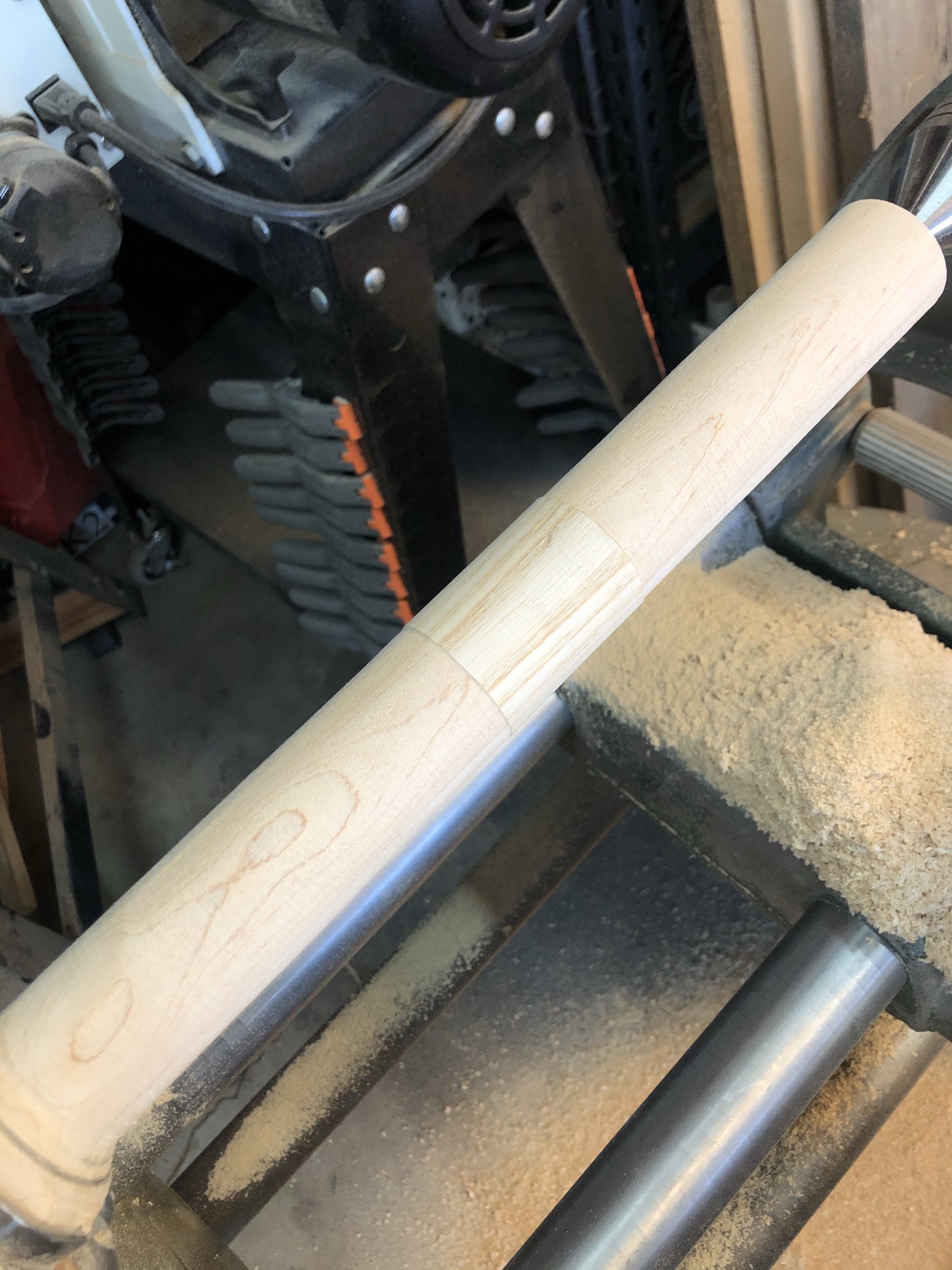

Strangely enough, for all of my years of woodworking, I've never wood-turned on my Shopsmith before. Seemed like a pretty low-risk project to learn on, and it went pretty well. Got it within a few hundredths of an inch of my Graflex measurements.

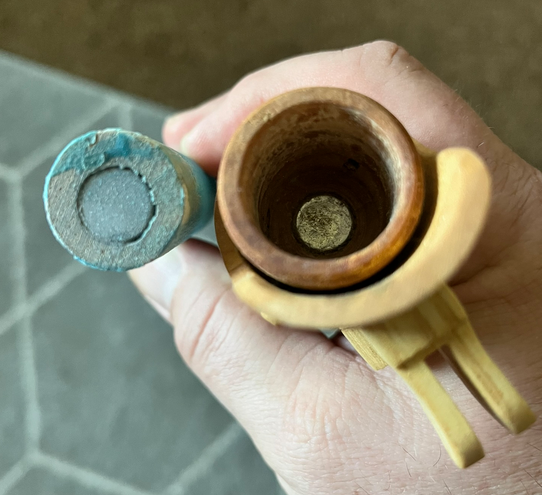

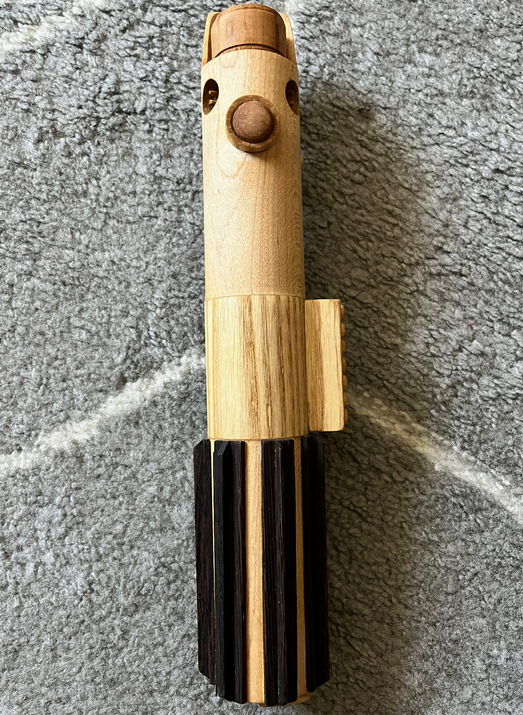

I drilled a hole into the emitter end of my fancy new dowel with a forstner bit, and made a template guide from my Graflx to get a reasonably accurate shape to cut out. Then cut, sanded and lined up my Graflex for comparison so far.






So far, so good! I'll post more pics as I make progress. Next up will be the clamp box...

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

thd9791

Master Member
RPF PREMIUM MEMBER
holy crow this is cool!

what does the tool look like that lets you drill such a big hole through the end, is it a bit stuck to one end of the lathe?

I did the same thing on the "pipe" stunt, carving that weird Graflex emitter, almost made the same cuts you did, nice work smoothing out the curves. I'm so excited to see how this progresses


uglyguitarguy

New Member
holy crow this is cool!

what does the tool look like that lets you drill such a big hole through the end, is it a bit stuck to one end of the lathe?

I did the same thing on the "pipe" stunt, carving that weird Graflex emitter, almost made the same cuts you did, nice work smoothing out the curves. I'm so excited to see how this progresses
Thanks!

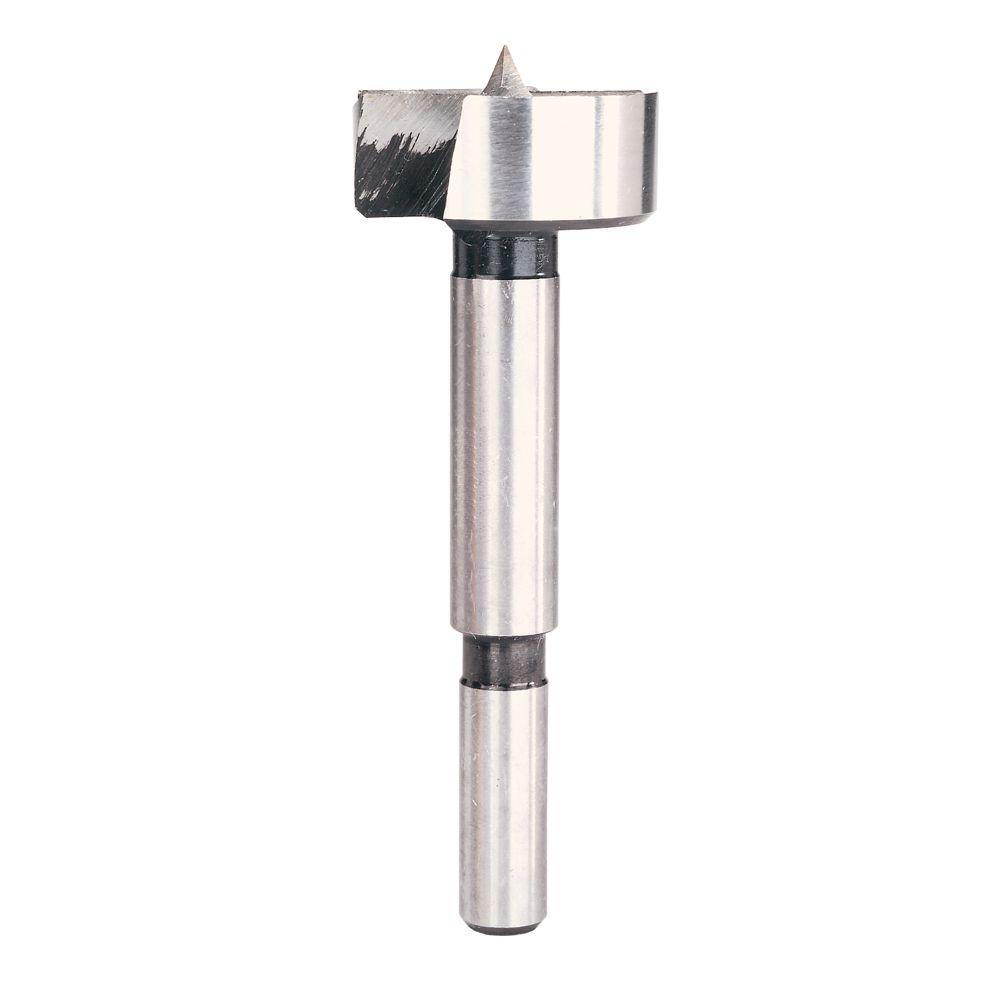

It's just a 1.25" forstner bit, drilled straight down into the center of the turned rod on my drill press, leaving it with about an 1/8" ring all the way around to cut down to shape.

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

uglyguitarguy

New Member

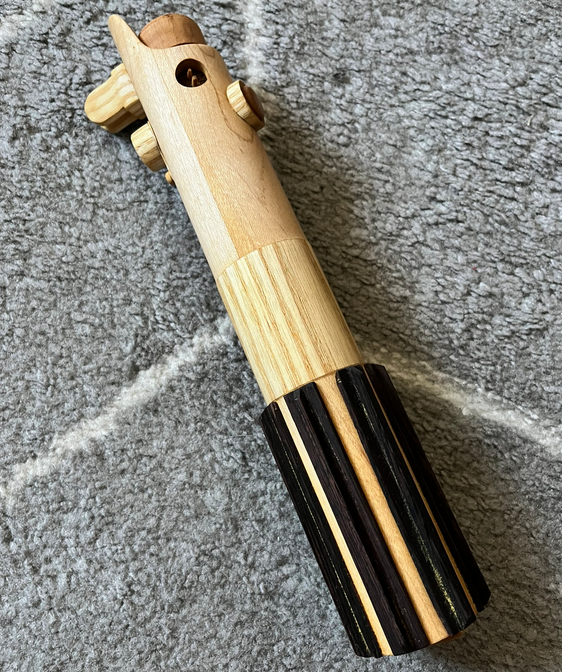

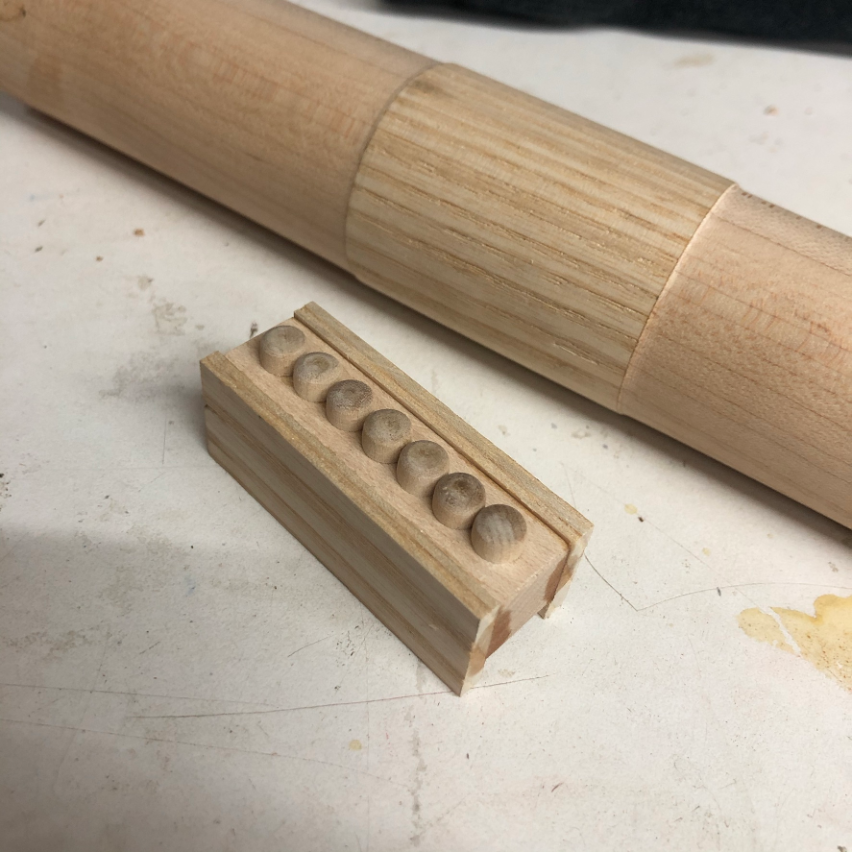

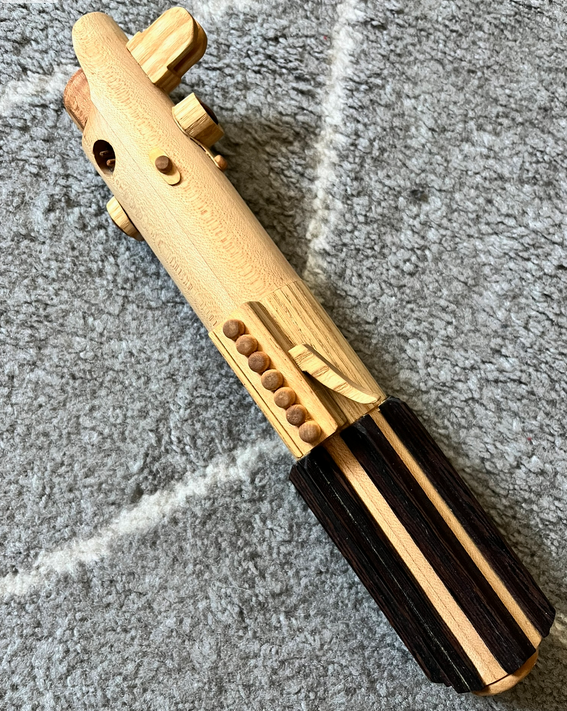

I was originally going to have the bubble strip simply be some really cool quilted (bubbly) maple scrap that I have, but once I looked around my scrap I decided to go for a "real" bubble strip. Took a couple attempts but I finally decided to go with birch "bubbles" (from some hole plugs that I had in the shop). Getting tiny 5/16" domes evenly down to 1/4" was not the most fun I've had in my life, but worked out well, so I glued them into a maple block. White Oak wings to match the rest of the clamp, and we just need some clean-up sanding before getting this attached to the body.




Pretty busy schedule this week, so I'll get back to it again at the weekend!
