The Rocketeer - My First Real Build (COMPLETED)

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


ThatGuyKnownAsT

New Member
Hey all. Kind of nervous, but here's my first topic. Long time lurker, and the amount of craftsmanship I see here is always inspiring. For the longest time I've wanted a Rocketeer costume. Well, this year, I finally decided to do one. The original plan was the have it done for Halloween, but at this point, I'll probably end up with a half-finished one for Halloween (which is no sweat off my back, only going to some house parties) and then refine it during the winter months before taking it to PAX South/East/Prime next year.

So, going to include sources for things bought and things referenced because I feel that should be a thing.


First in the jacket:


Purchased with custom sizings from South Beach Leather. Pretty good fit and look to it. The sleeves are a LITTLE too short, but I can work with it. Also, the buttons are off and I plan to replace them later.

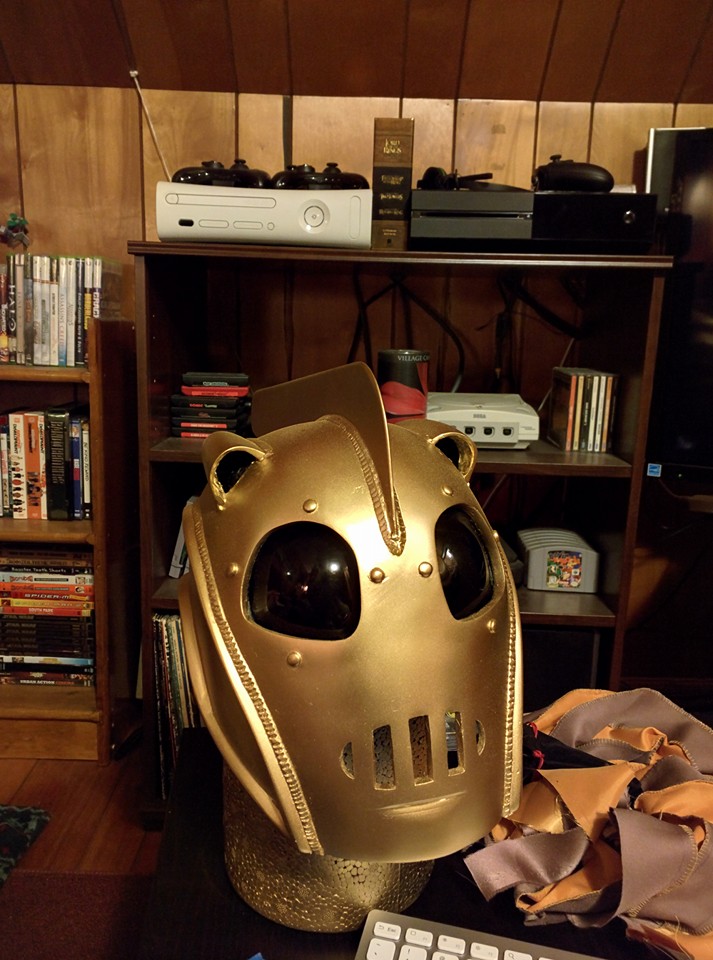

Next is the helmet. The helmet is the one thing I did not trust myself with a limited skill set to do right, and although I could learn from trial and error, I figured I'd do it on my next project (hopefully Iron Man). I bought a pre-fab helmet from this seller on Ebay.

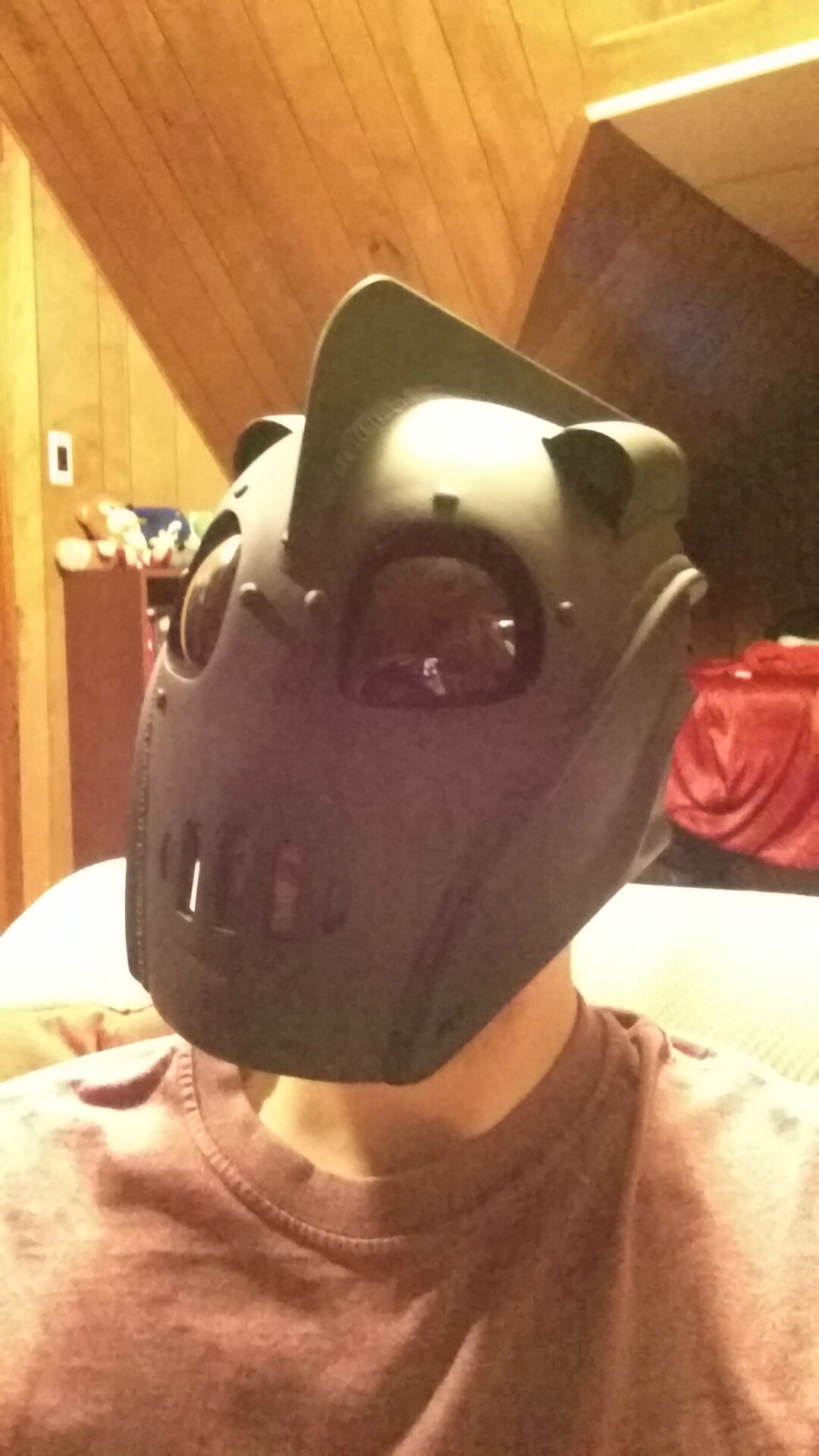

Unlike his description (where you would need to mount the lenses yourself) the seller/creator had already melted them in place. While great, it meant I would need to make sure the lenses were taped properly. Not too difficult a task, but I'd have rather just mounted them myself with my own heat gun. The other tiny issue was that the vents on top were closed and solid. Had to dremel those out.

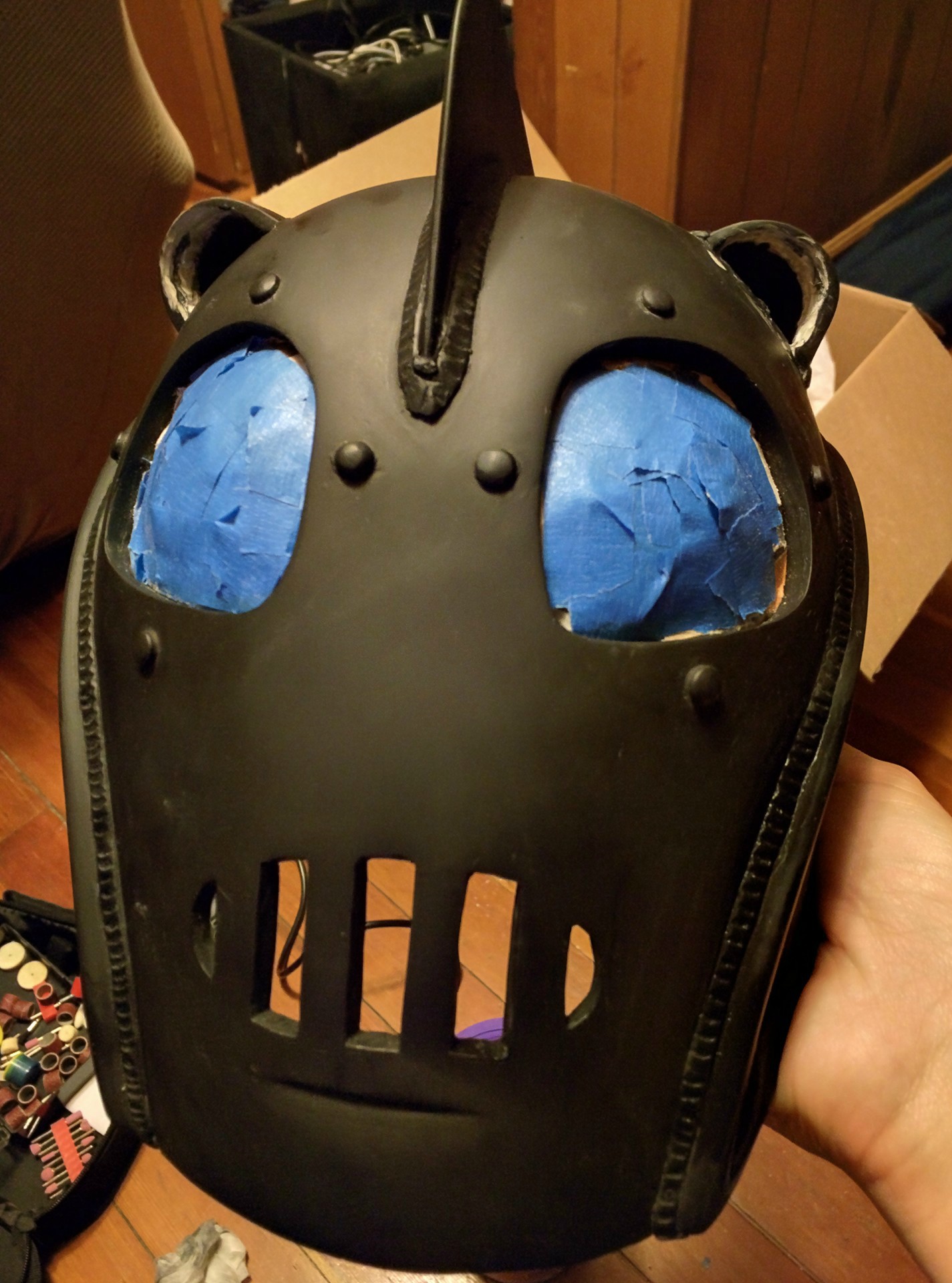

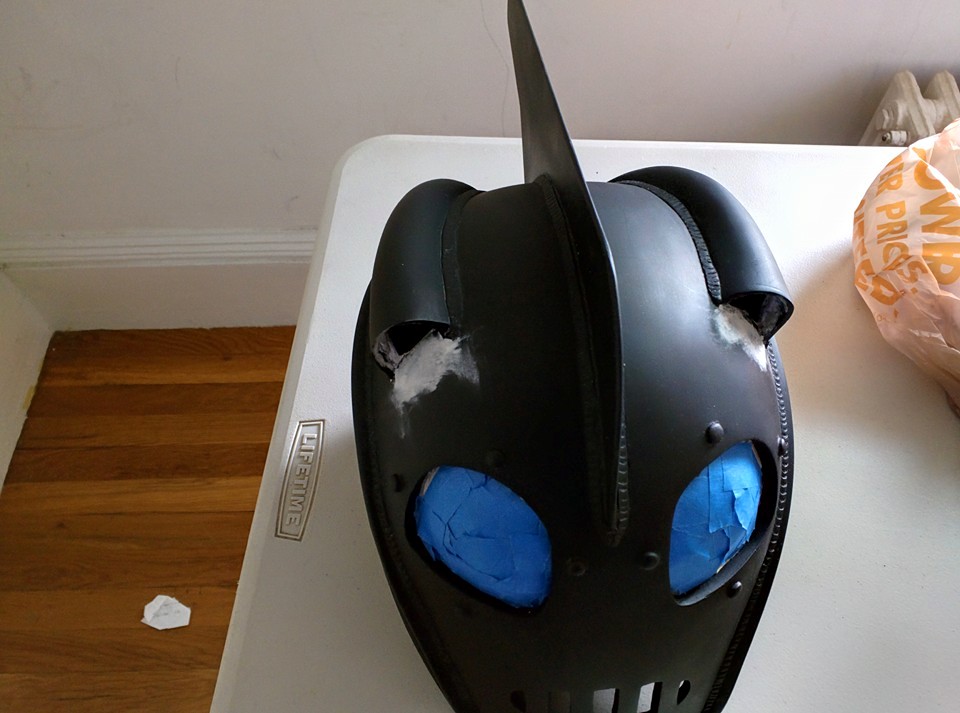

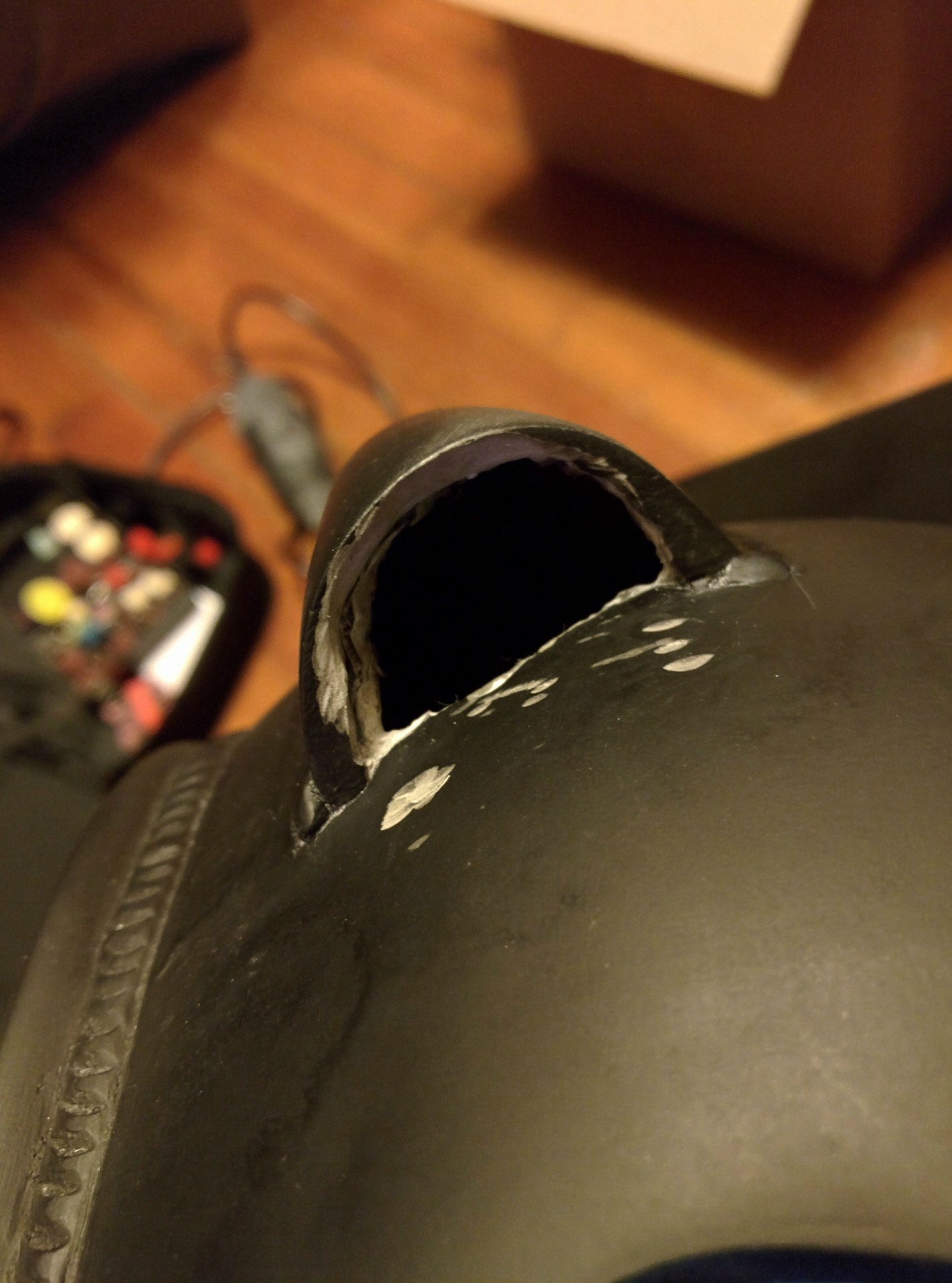

Unfortunately, I knicked the helmet a couple times with the dremel. Damage fixable though. Nothing a little bondo and primer couldn't fix.

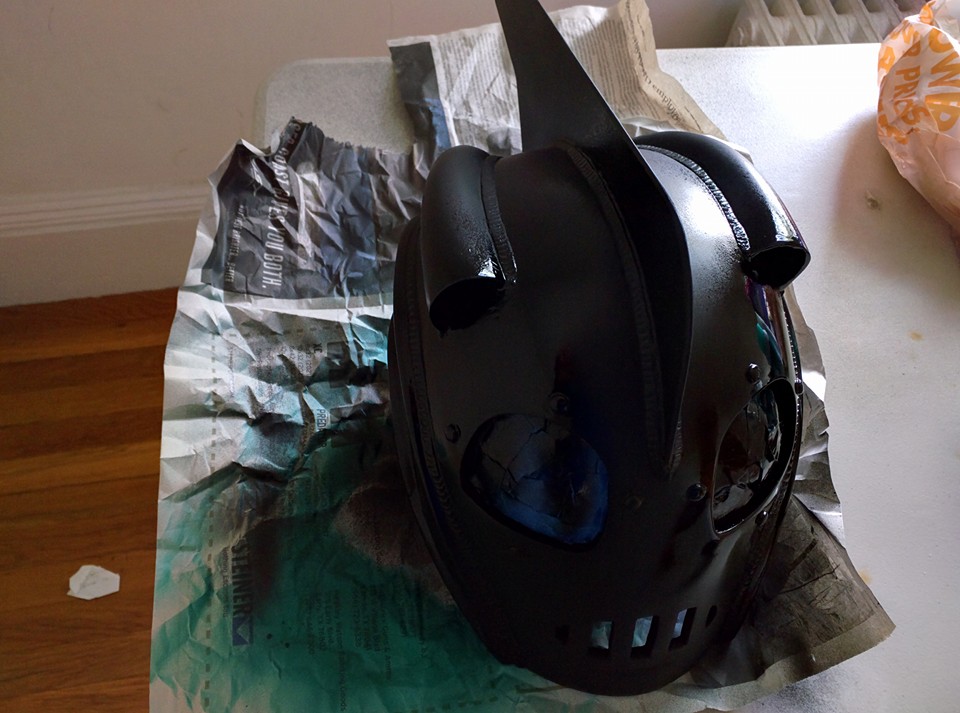

Now once I started painting it with Design Master Brilliant Gold paint, I noticed the bondo wasn't as smooth as I'd have liked. However, I figure in the long run it's fine because as soon as I start weathering it, it'll blend right in.


For the last part of this post, I move on to the rocket itself. I'm still kinda of tumbling around on what to do, but part of the original plan was to 3D print certain pieces found on Thingverse. A friend with a 3D printed found this model of the fuselage, and we began to print it.

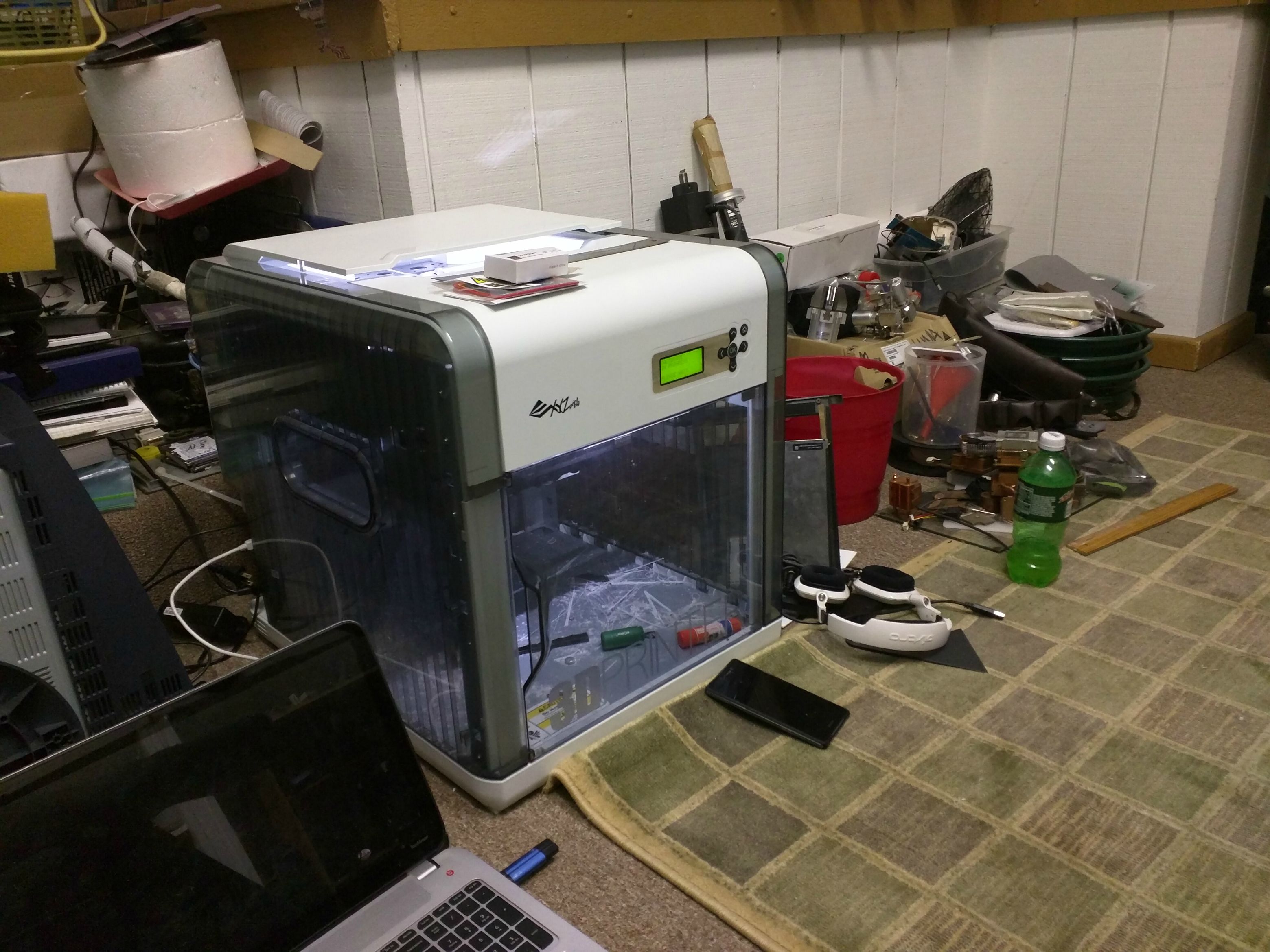

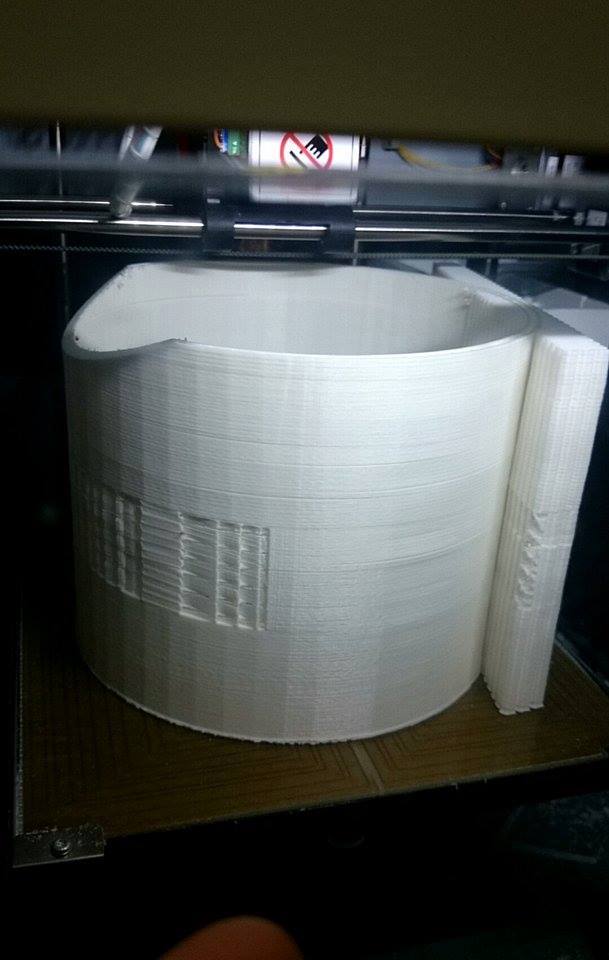

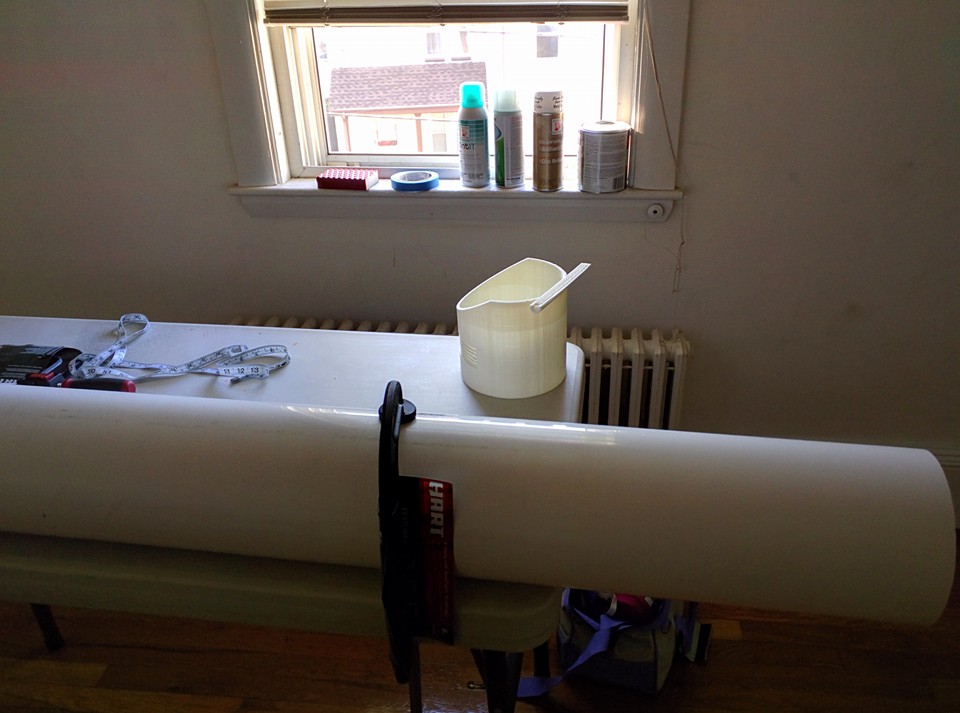

Unforuately, the printer was too small, and we didn't have the time to properly slice it into more manageable pieces. We are harvesting the vents off this, and printing out just the vents for the rocket which I'm making partially out of PVC. Here's one of the fuselages cut offf of the main pipe. Still need to shape the bottom, but I think it looks good.


So the plan for the rest of the rocket is as follows:
  • Shape fuselages, cut out vent holes.
  • Place 3D printed vents into the holes
  • Cone shaped on a "lathe" (large drill) out of foam core
  • Score the cone, drill in holes, add fins from scrap signage metal
  • Mount cone to PVC, score lines down the side
  • Center piece have printed at a makers shop locally (here is the file I found for that)

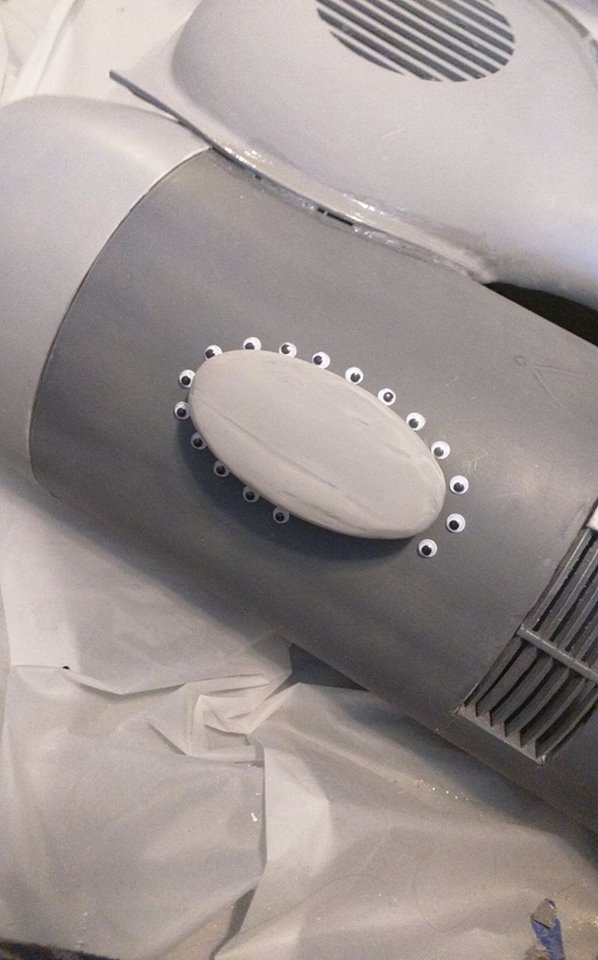

  • Mount everything together, add rivets (I read googly eyes have been used for rivets but are unsure of what size to get/how many)

At that point I think the pack will be serviceable for at least Halloween for some house parties, before I do some major updates to it.

So tell me what you think. Any suggestions? Again, this is my first build so I'm constant nervous over it. Thanks so much for reading.

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

HeadMan90

New Member
Re: The Rocketeer - My First Real Build (Sort of)

Looking great so far. I've loved The Rocketeer since i was a kid. Always wanted to build a full costume but i only got as far as pepakuraing (is that a word?) a helmet. Can't wait to see more man! Keep it up!


Kitty Butler

Active Member
Re: The Rocketeer - My First Real Build (Sort of)

Looks good so far to me! I, also, have wanted to a Rocketeer costume for years. It's that damn jetpack that holds me back. Kit's cost $1,000. Or I have no workspace to sit and try to make one...

Good luck with yours!


joberg

Master Member
Re: The Rocketeer - My First Real Build (Sort of)

Yep, looking fine from where I stand (or sit). Keep up the good work!


ThatGuyKnownAsT

New Member
Re: The Rocketeer - My First Real Build (Sort of)

Thanks so much for the kind words so far.

So last night I went to my friend's workshop to do some more special cuts.

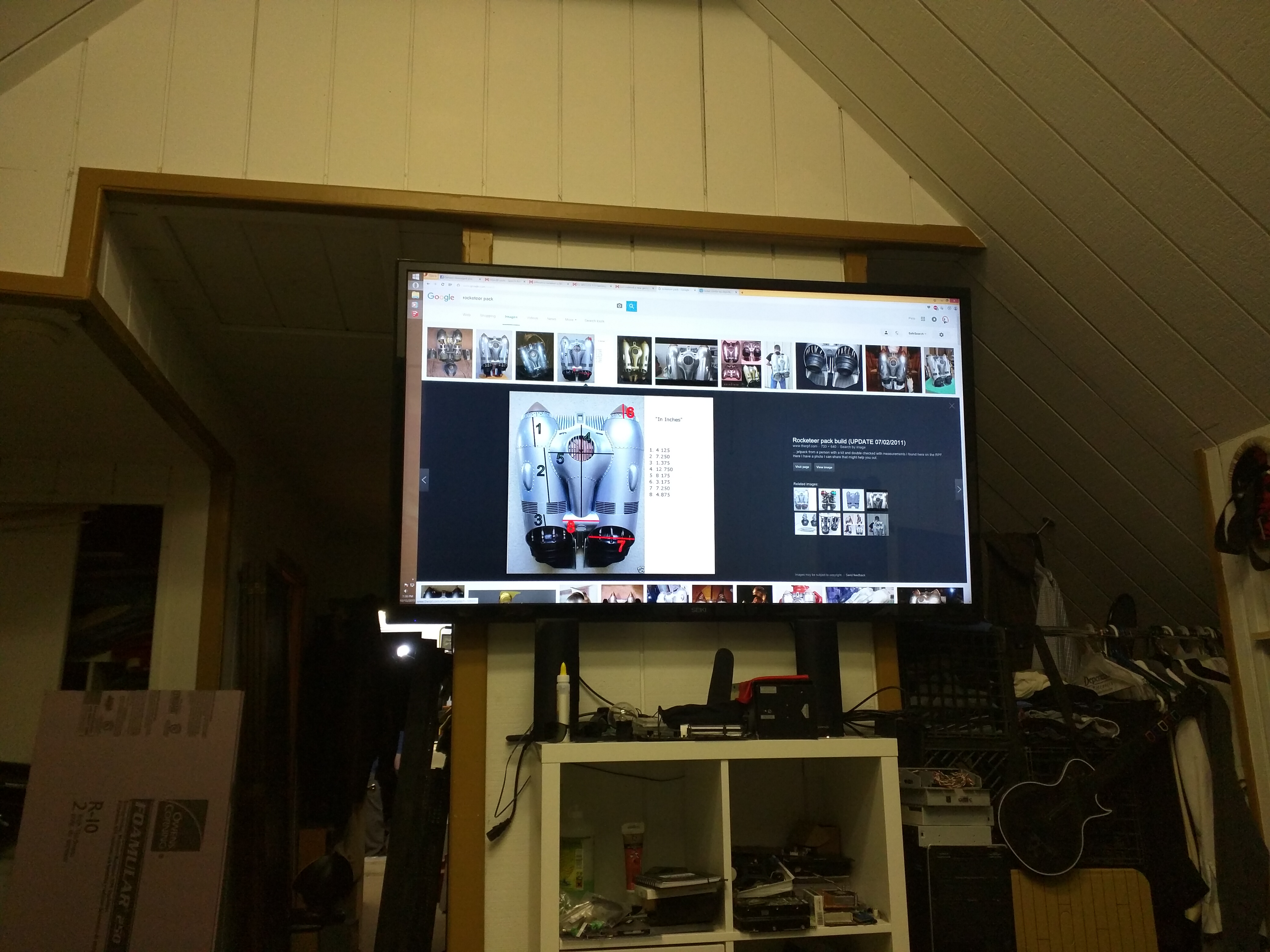

We used this image from Google Image search for some measurements (which I scaled down to fit my back).

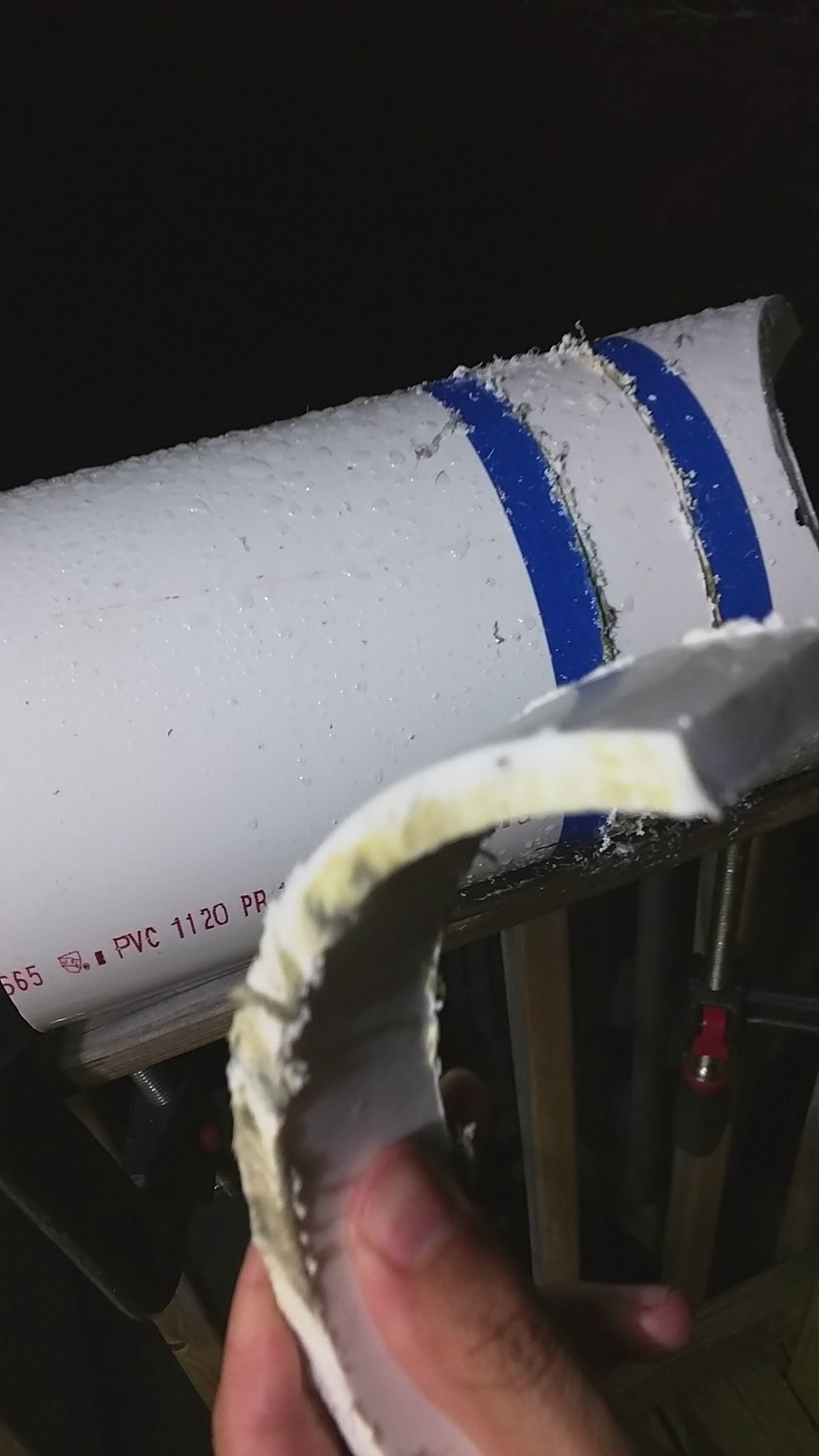

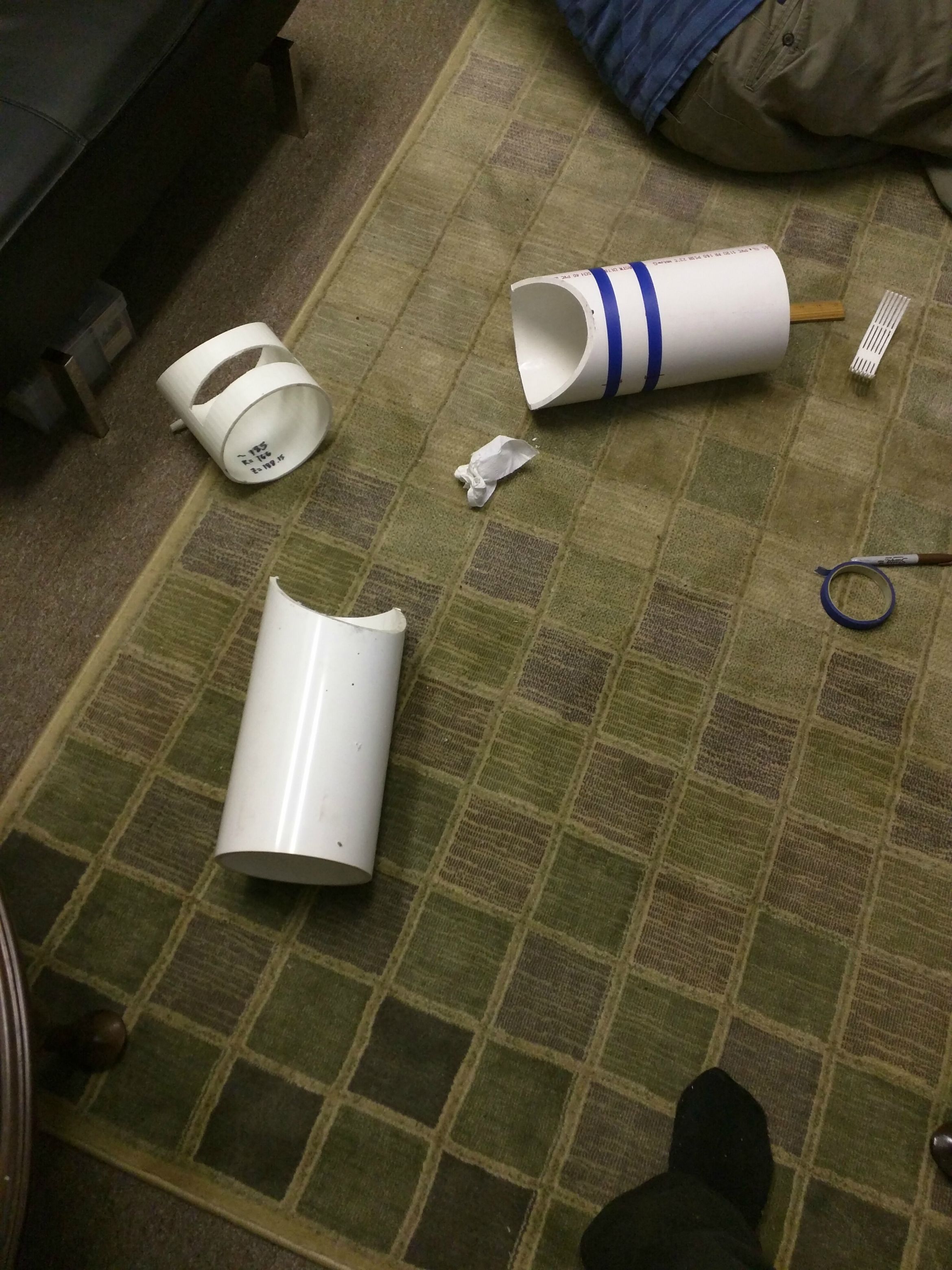

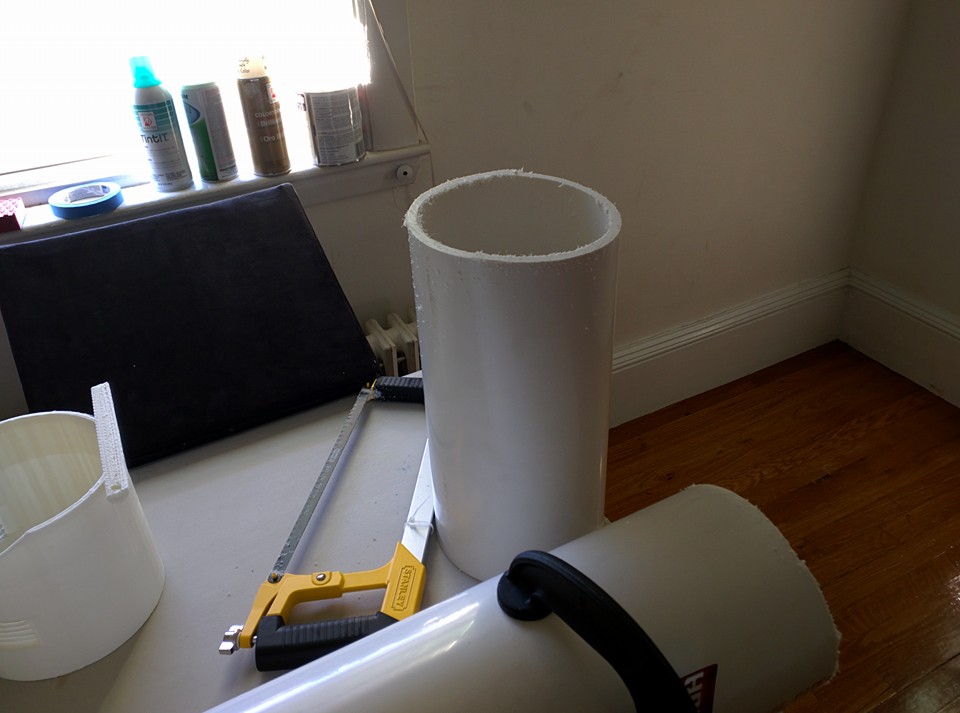

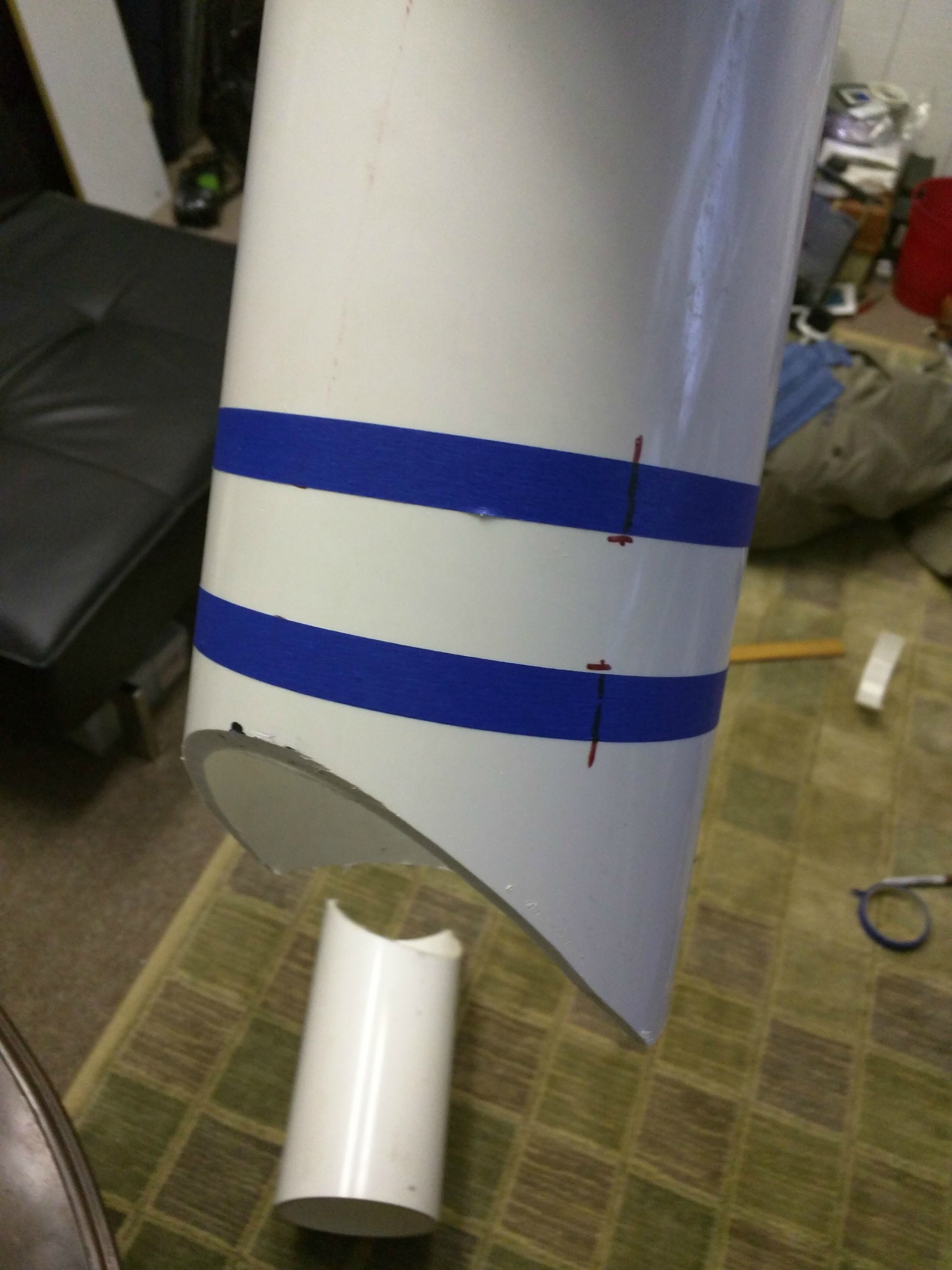

Using a hacksaw and a make shift jig made from clamps and old fencing out back, we cut the 45 degree angle cut at the bottom of each fuselage.

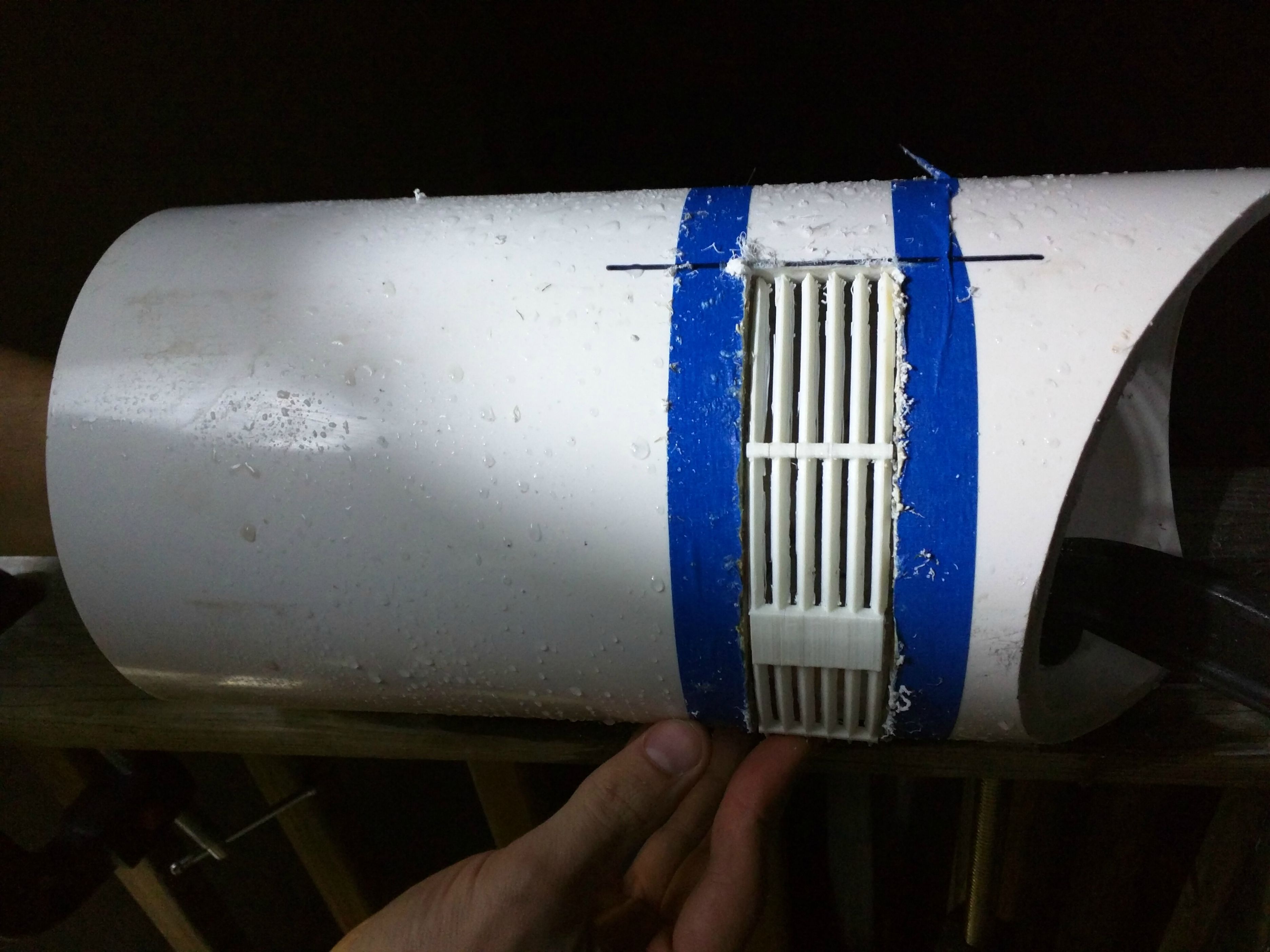

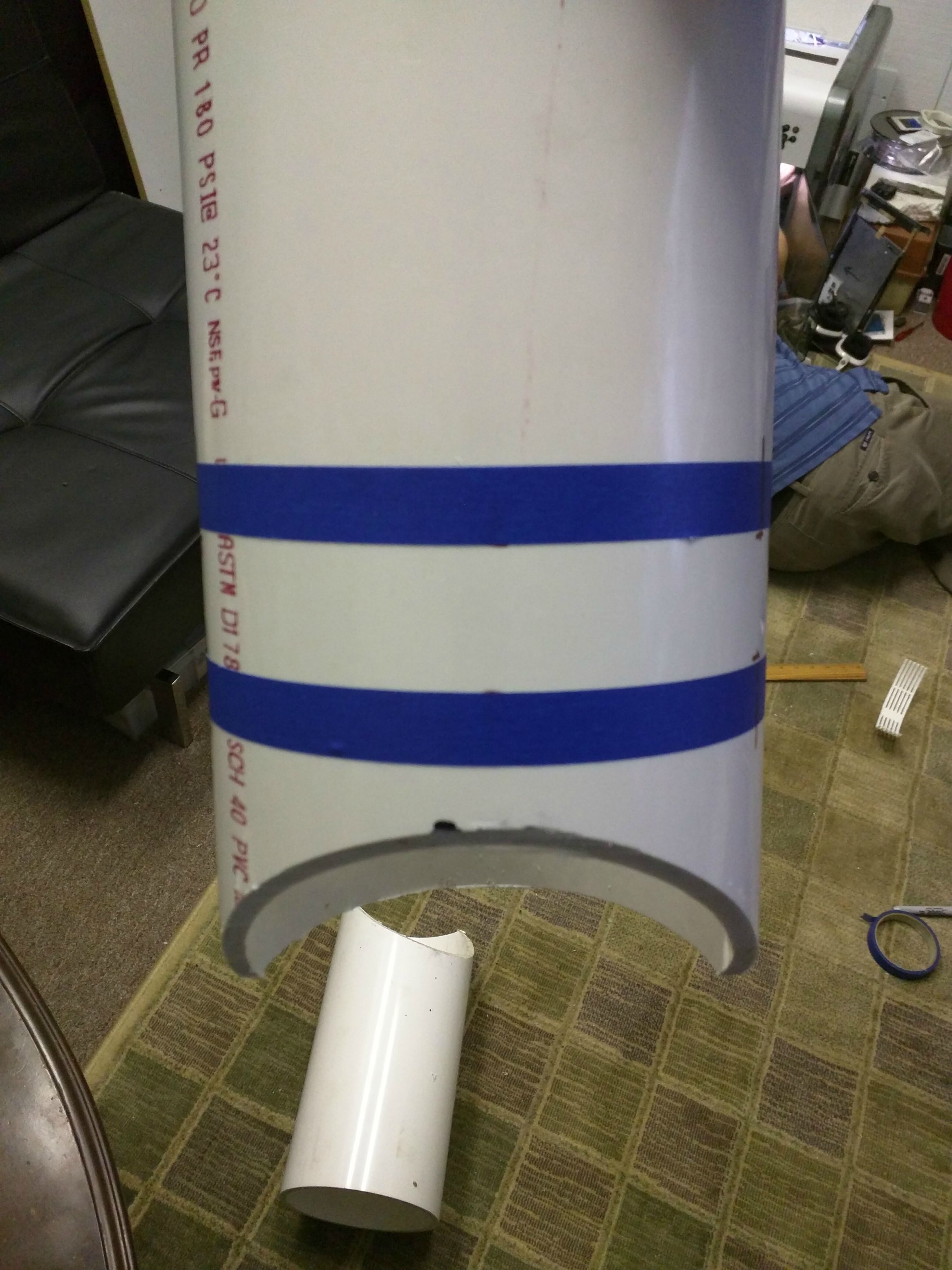

We then marked off the area for the holes for the vents to go in, using the salvaged vent piece from the failed 3D print.

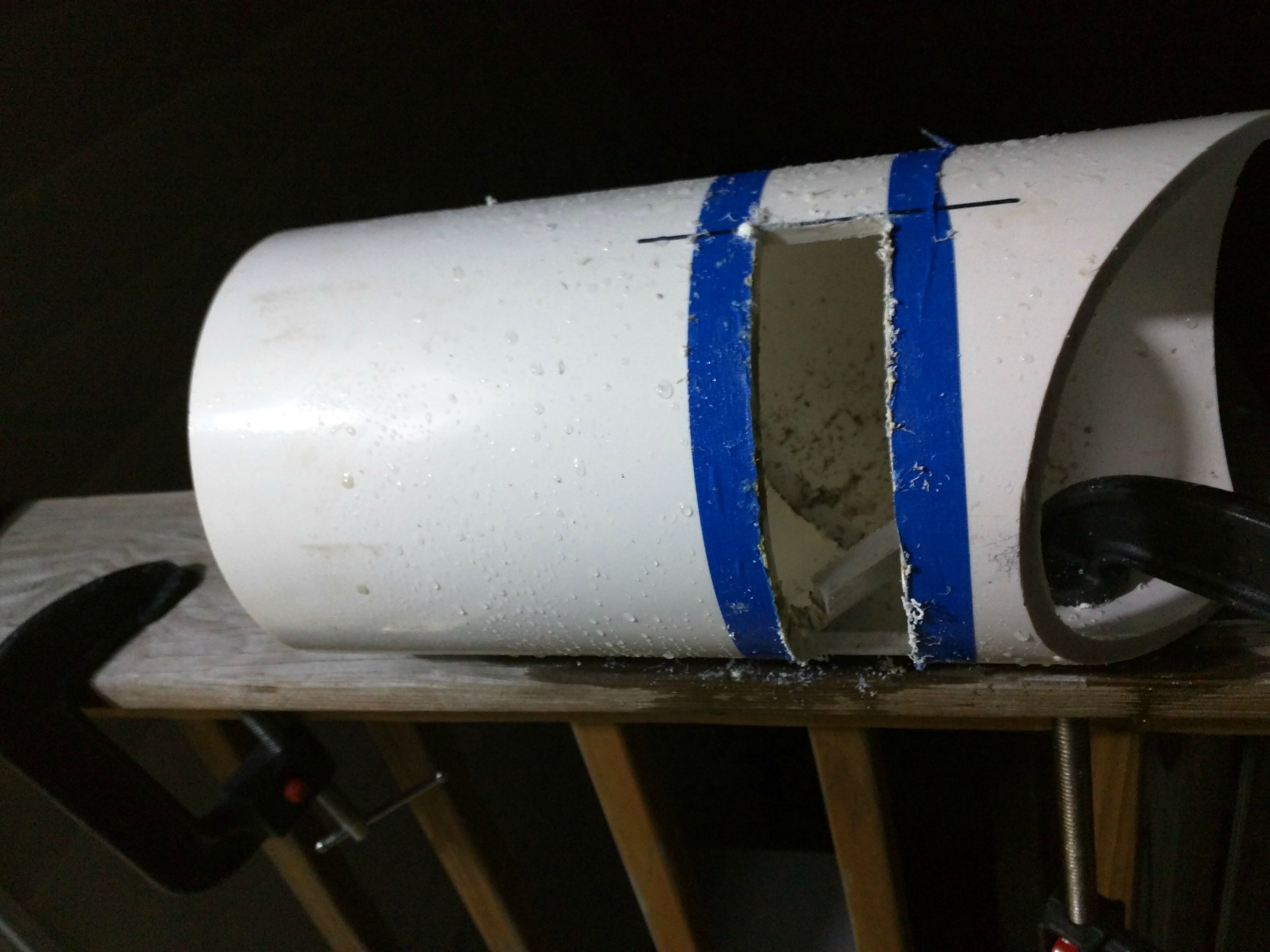

We then used a reciprocating saw to cut out the vent holes on each pipe.

I have a video explaining what happens with the saw better. Basically, it vibrates teeth really fast and can melt the PVC if you aren't careful. There's a little bit of meltage but it can be sanded and hidden. Let me know if you want to see the video explanation. :p

After that, we're now printing up a couple more vents, and the cones. Should be a couple days.

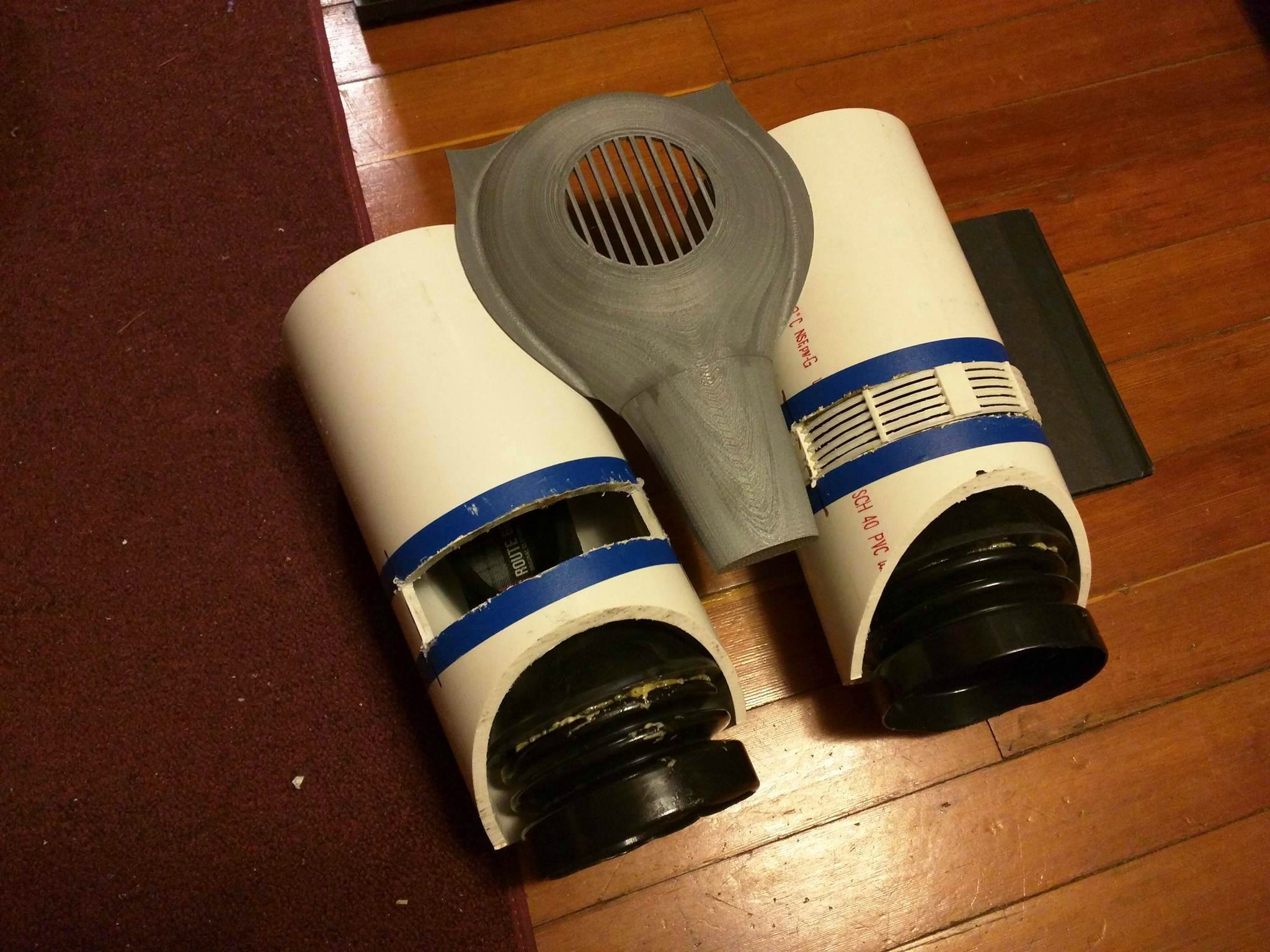

Back at my place, I've made the engines out of two types of plungers. I think they looks pretty good. Not screen accurate, but I can dress them up.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

ThatGuyKnownAsT

New Member
Re: The Rocketeer - My First Real Build (Sort of)

Hey all,

Week later update. Slight progress this week. Too many other things went on to actually get much accomplished. Won't have the rocket done in time for Halloween, but my friend Pete who is helping me work on this made a 6-layer, 1-inch thick cardboard mockup of the pack. A little paint and embellishment and it should be suitable for a small party.

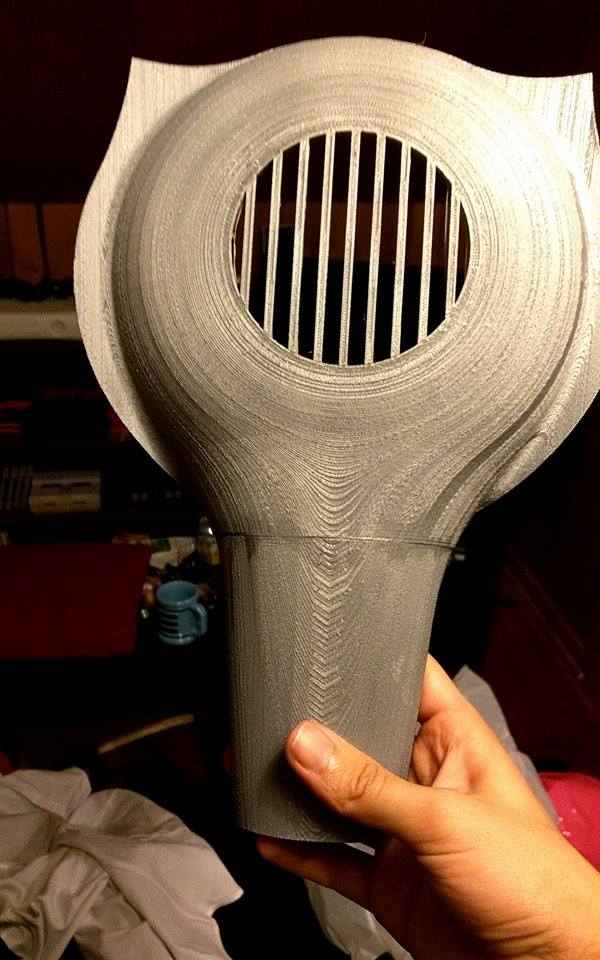

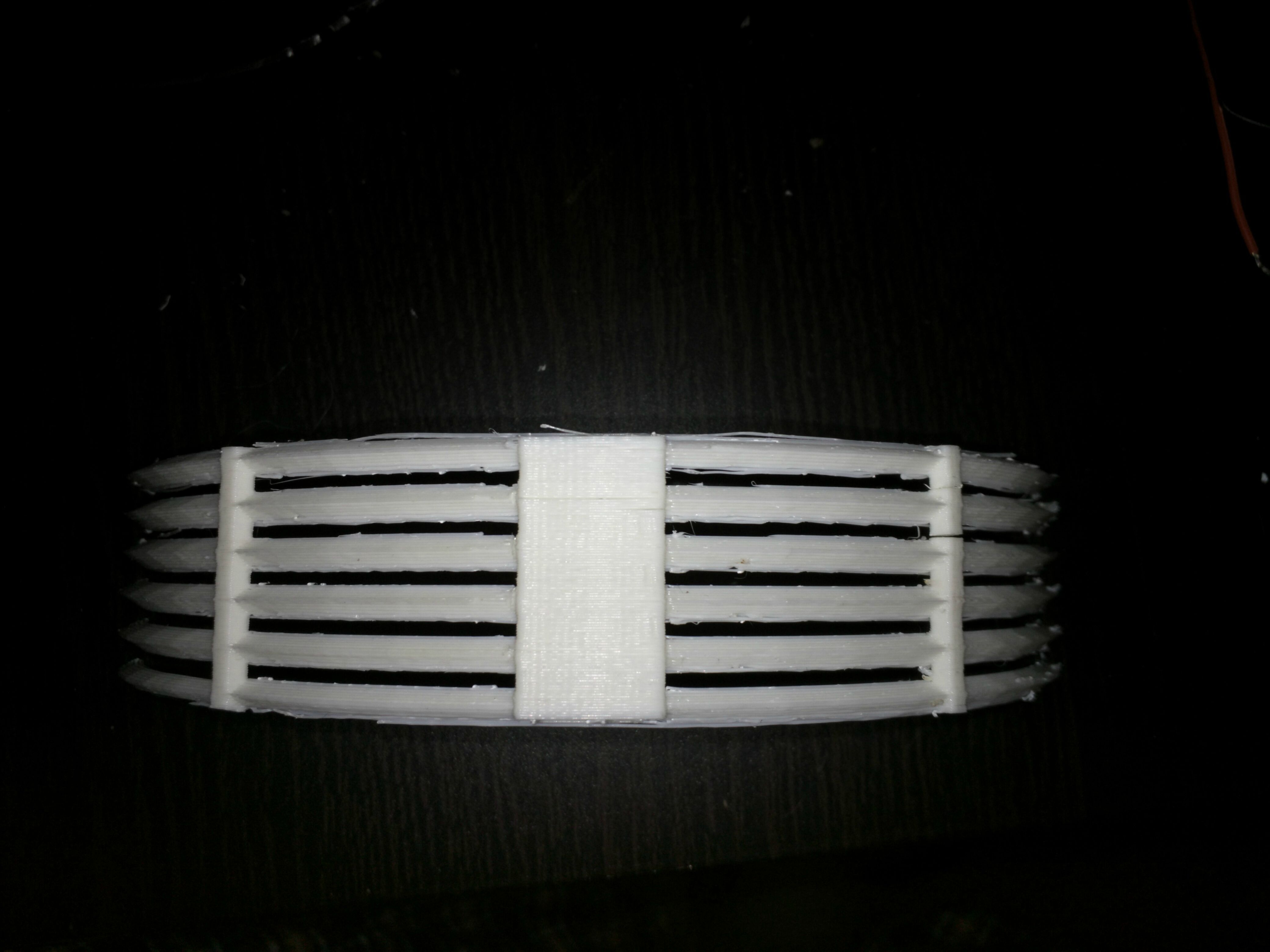

On actual rocket news, I've received the first real substantially usable 3D printed piece in: The center piece!

It needs to be sanded and primed to hell, and a two little dimples dremeled out for the exhaust vents, but this thing is a beauty and sturdy as hell. Here it is dry mocked up with the fuselages.

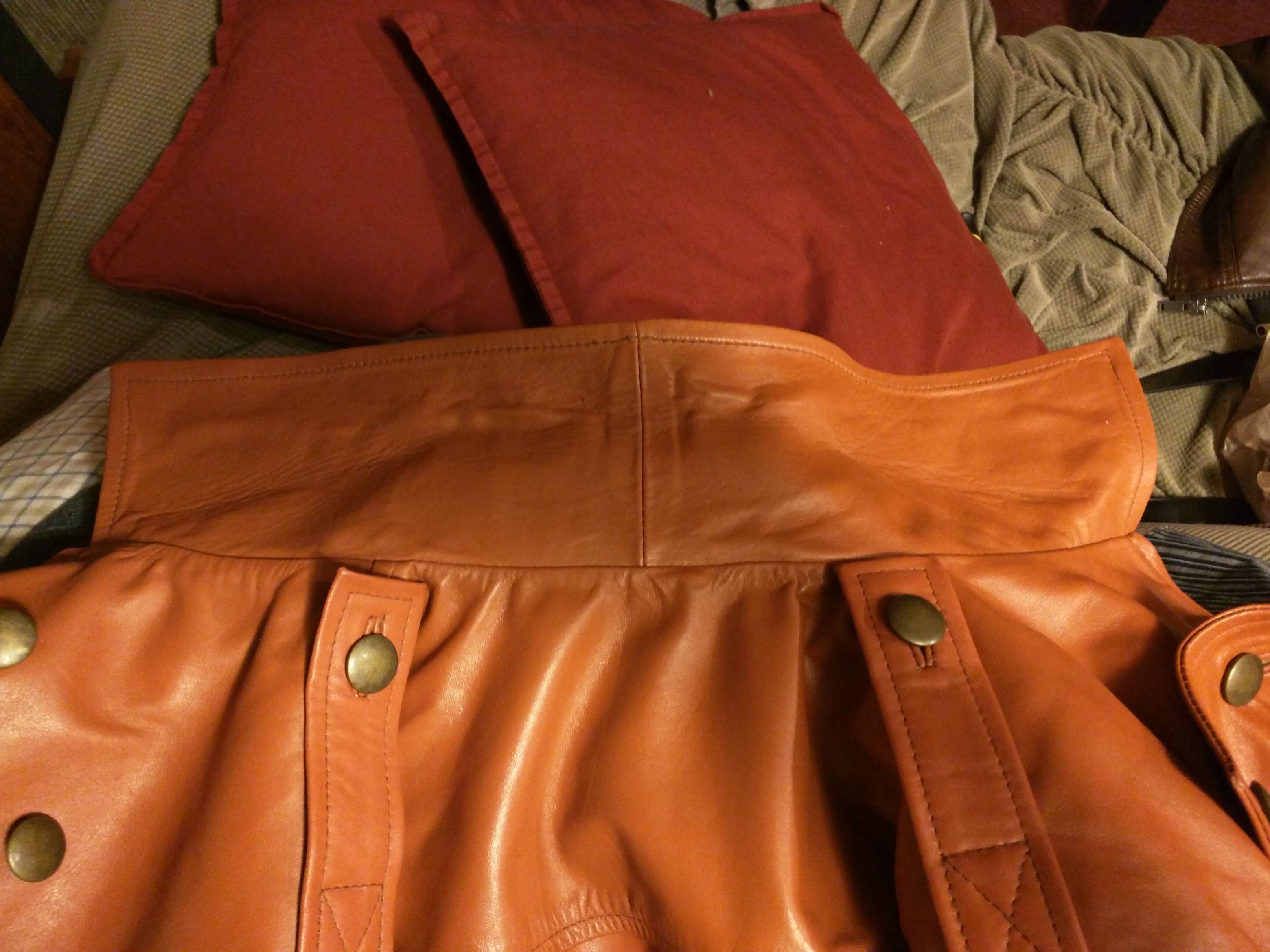

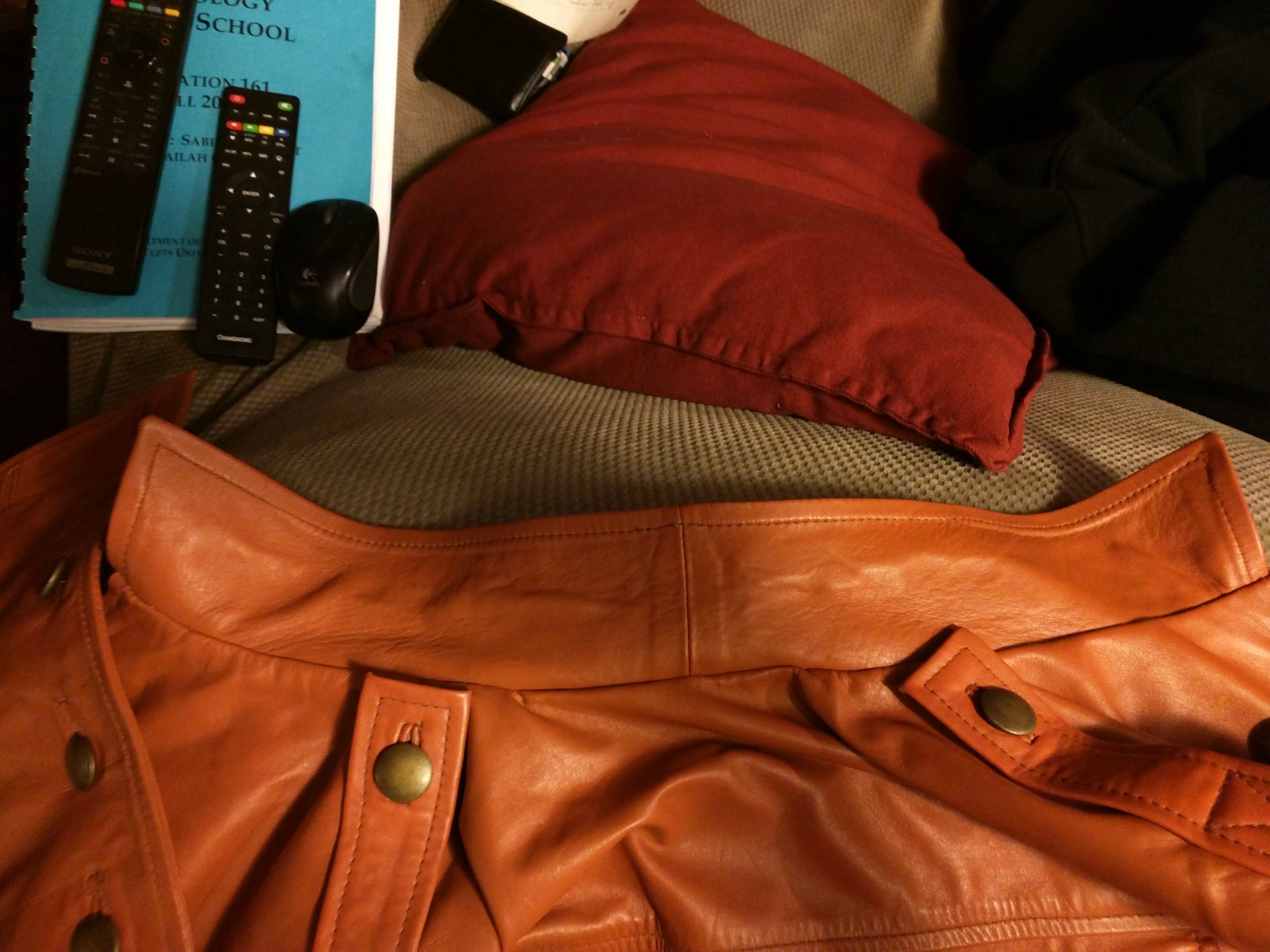

Just makes me excited looking at it. Also, something I noticed with the jacket was that the collar was ****ING gigantic. Like, it needs to be long to cover up the neck, but this length was coming up into the helmet and looked really bad (at least for me and my shorter neck).

Luckily, my friends at Savage Punk Studio (seriously, go check them out) helped out and were able to shorten the collar to a more manageable length.

That's all for now. Next post will probably be some Halloween photos and then hopefully a real update with the cones and the like.


ThatGuyKnownAsT

New Member
Re: The Rocketeer - My First Real Build (Sort of)

Lack of updates because time is never on my side!

So I guess first I'll start with the helmet! Just needs padding and a strap!

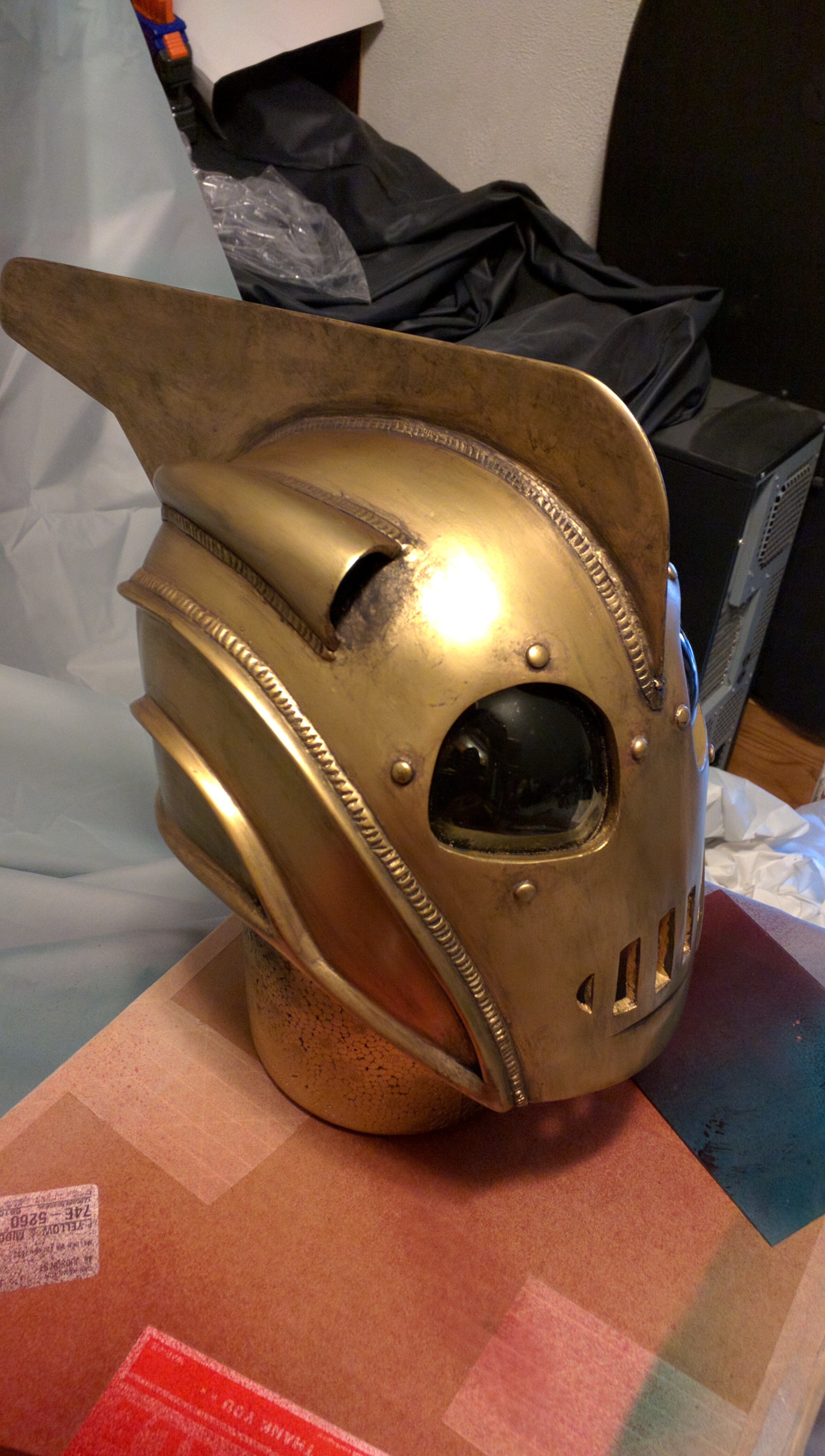

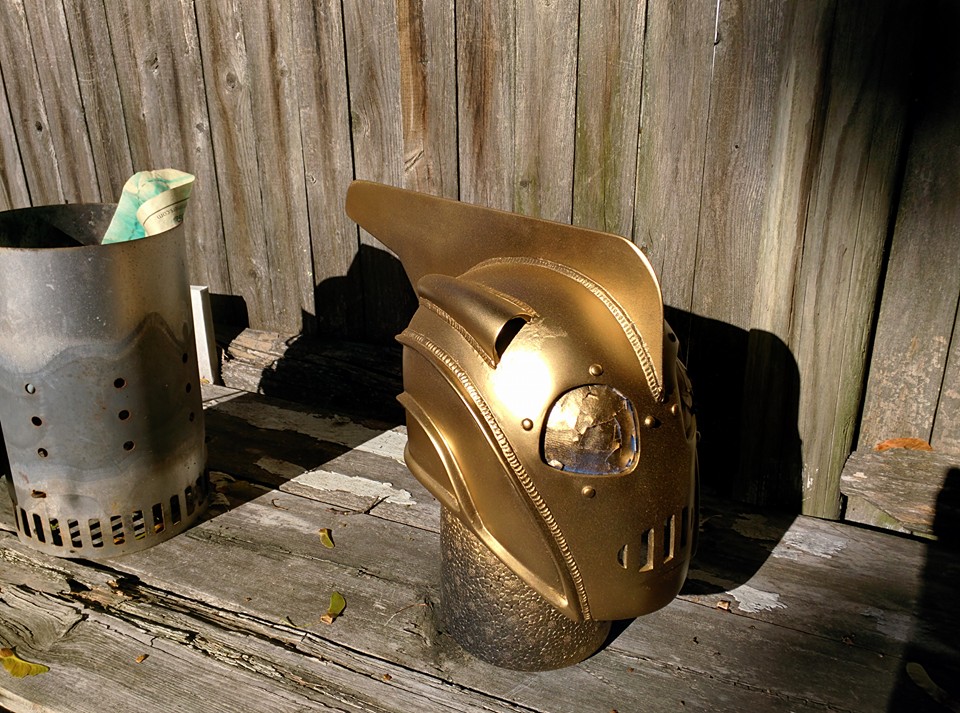

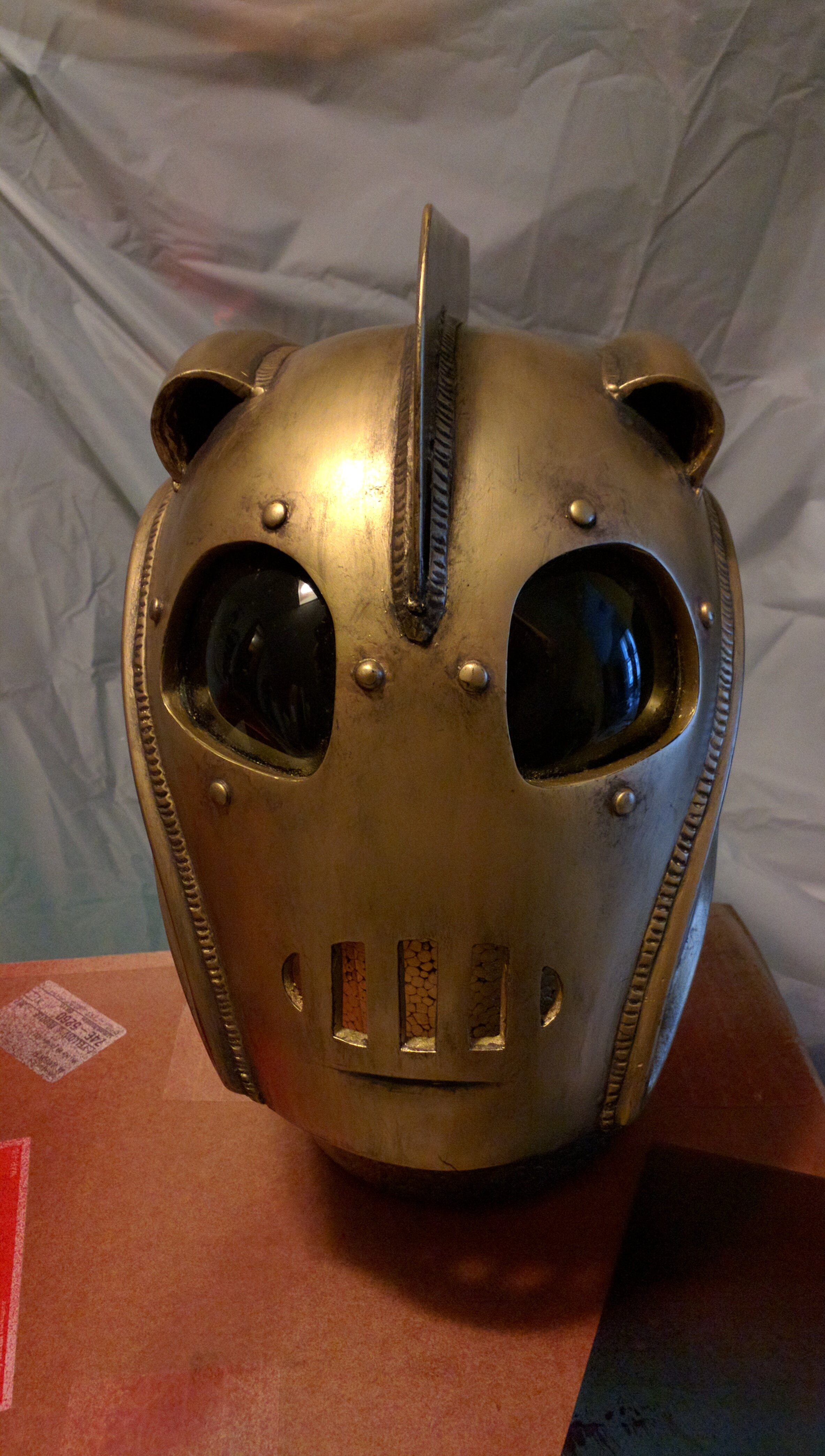

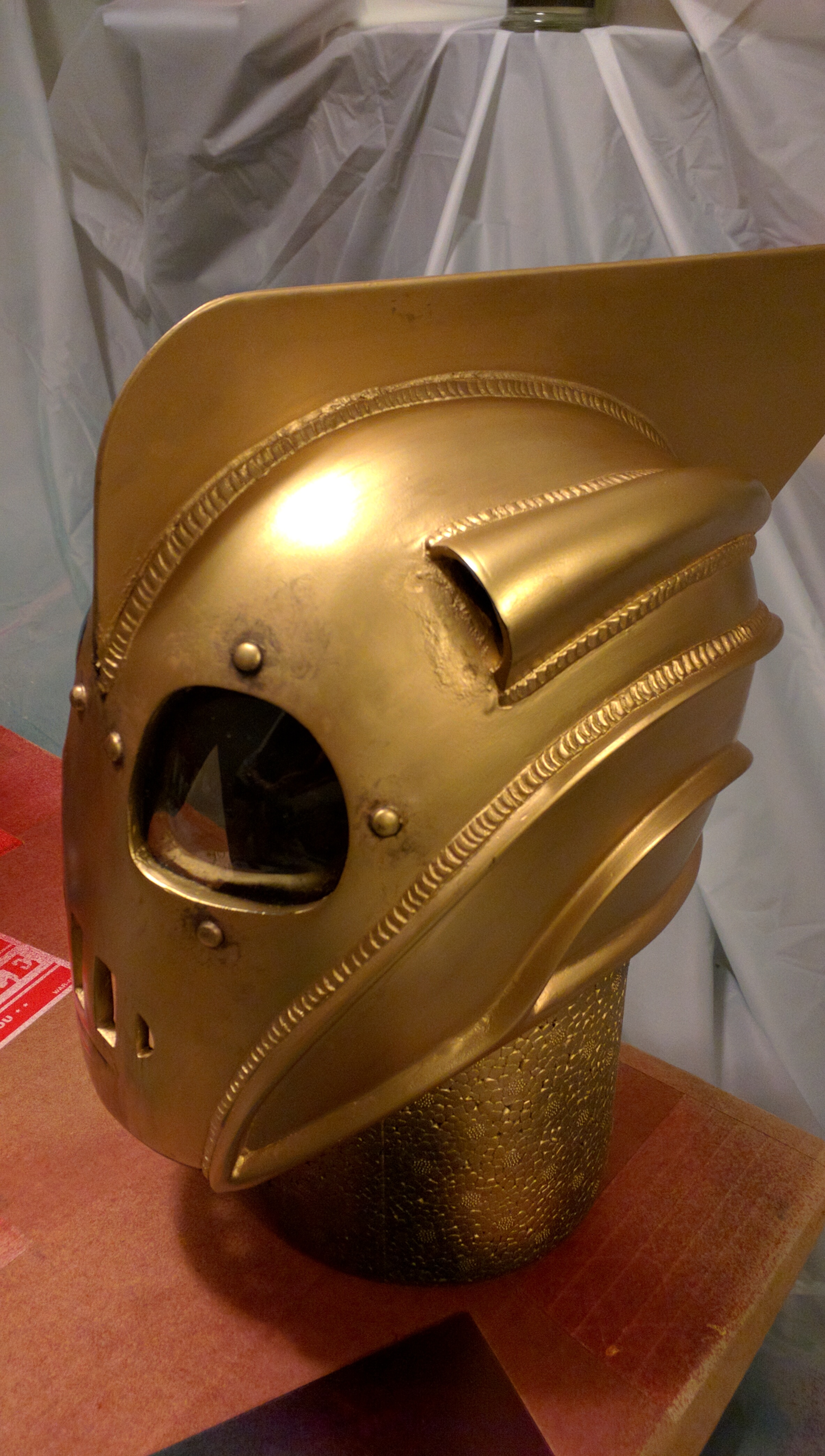

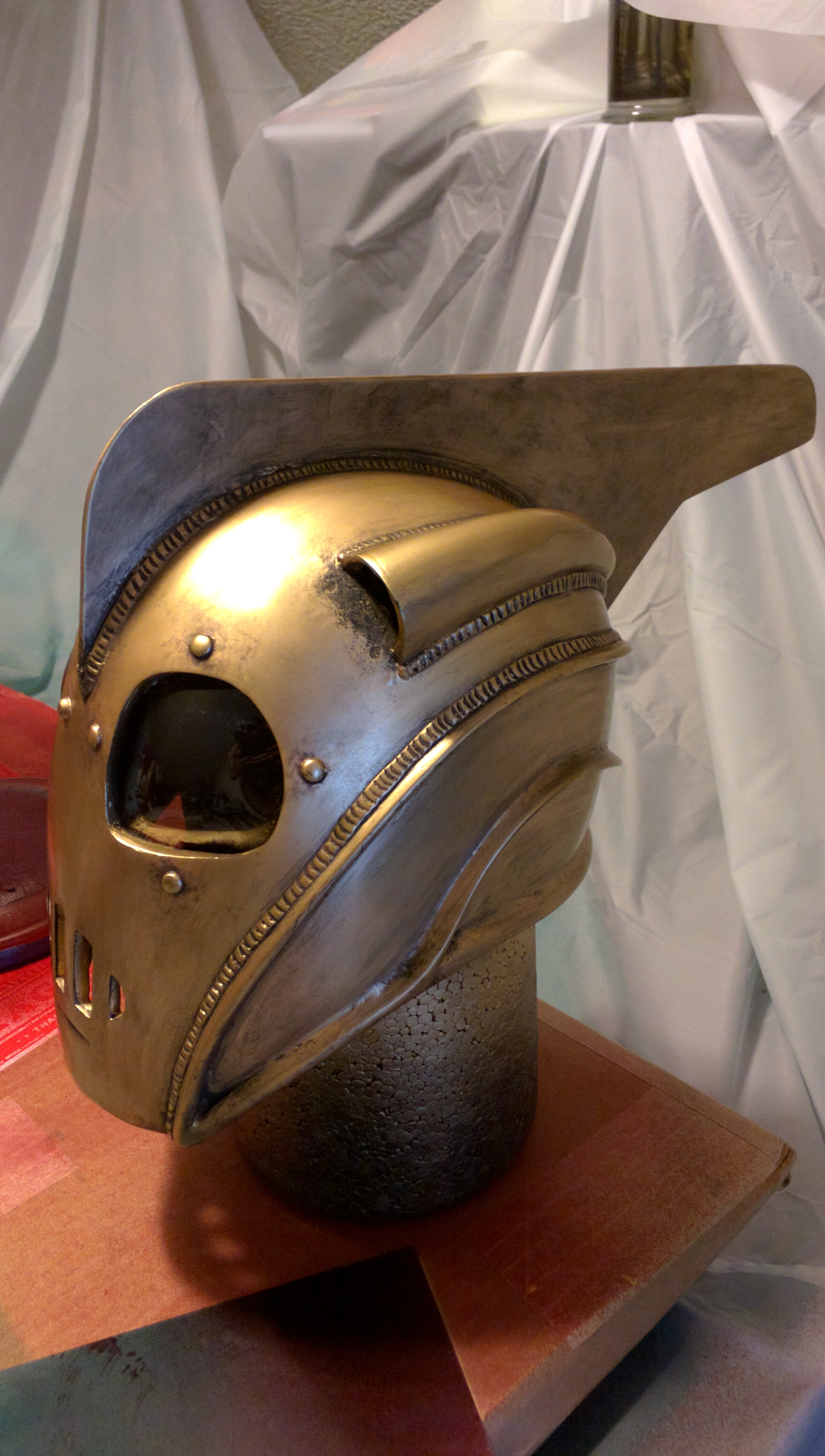

Applied two rubs of Rub N' Buff antique gold to the helmet since last time. Give is a nice metallic look.

After apply a wash of black and brown acrylic, it's finally got the look I was going for.
IMG_20160325_120353.jpg IMG_20160325_120340.jpg IMG_20160325_120318.jpg


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

ThatGuyKnownAsT

New Member
Re: The Rocketeer - My First Real Build (Sort of)

Now for the 3D printed pieces (apologies for double post browser kept messing up the previous post).

In order via the attachments below:

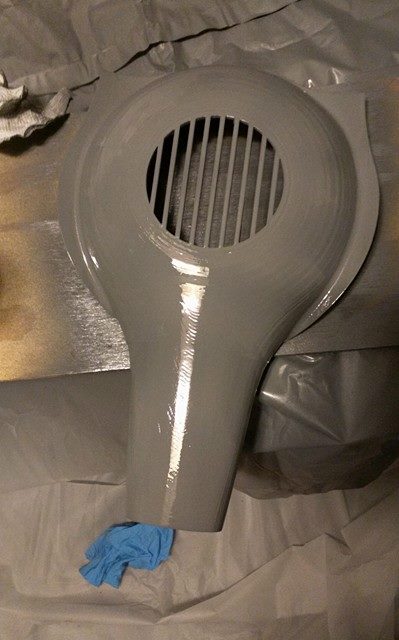

- The center piece exhaust sanded and after a few coats of prime. This piece has been a pain to get smooth.
- Center exhaust fan (purchased off ebay)

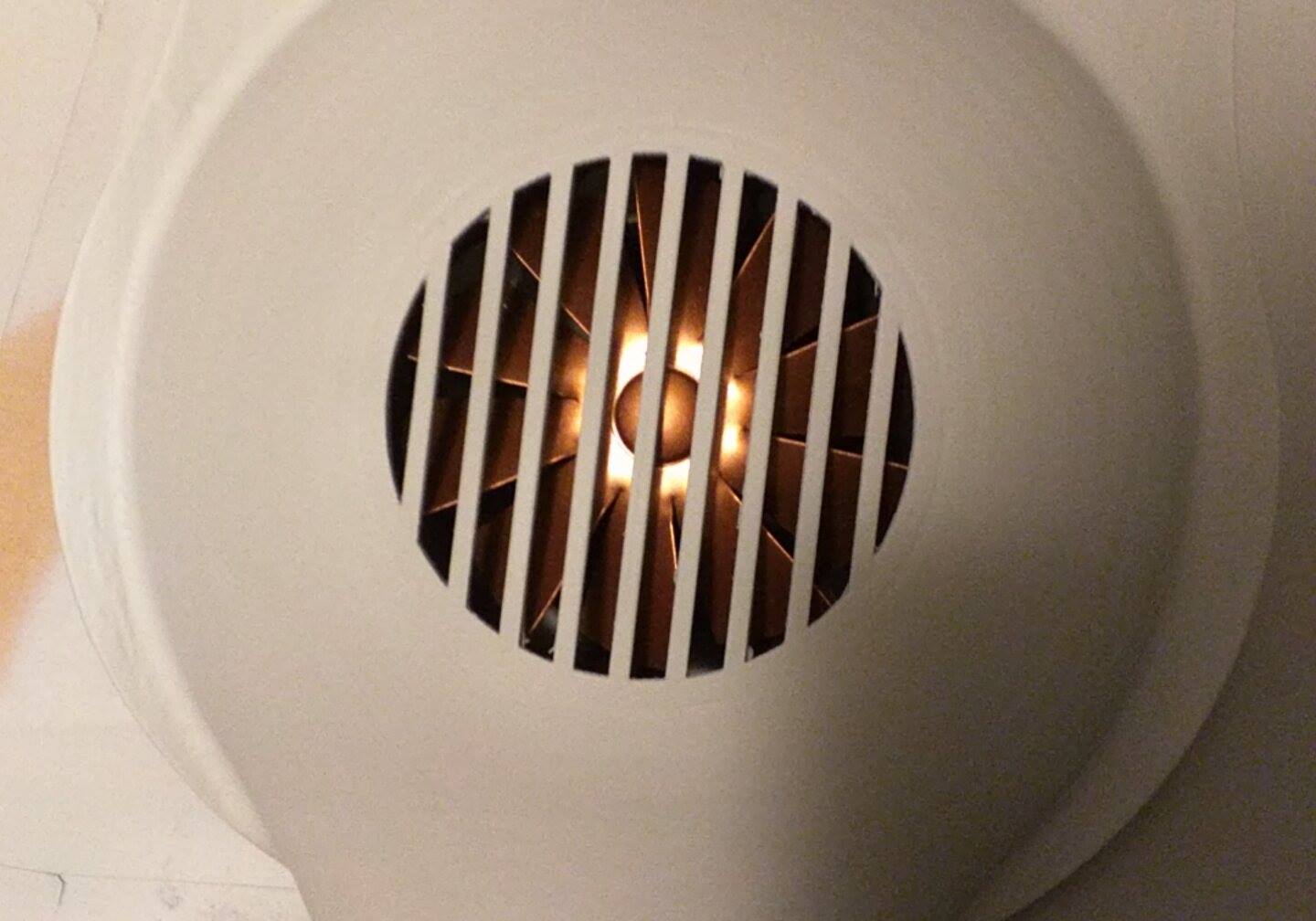

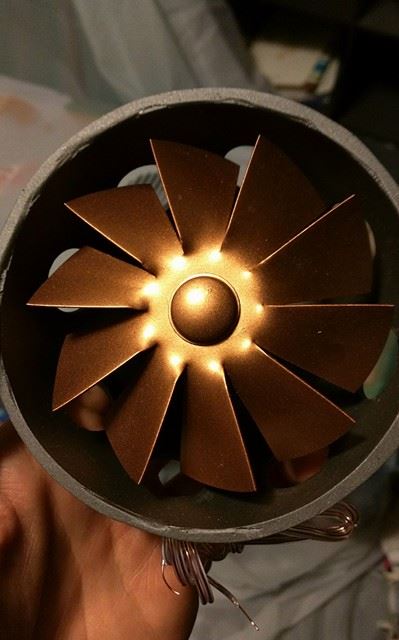

- Center exhaust fan fitted into center exhaust piece.

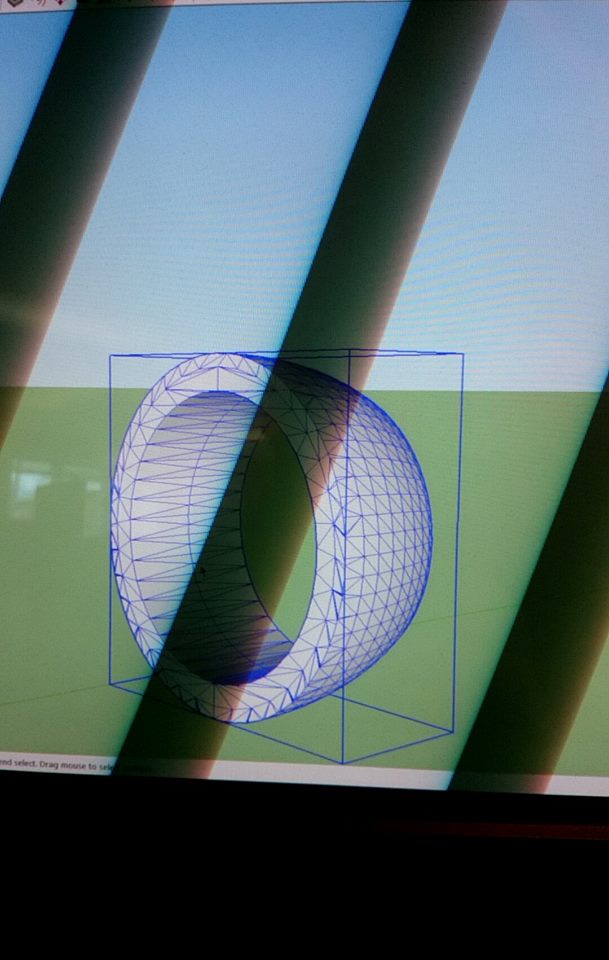

- Fixing a 3D model for the cones in SketchUp

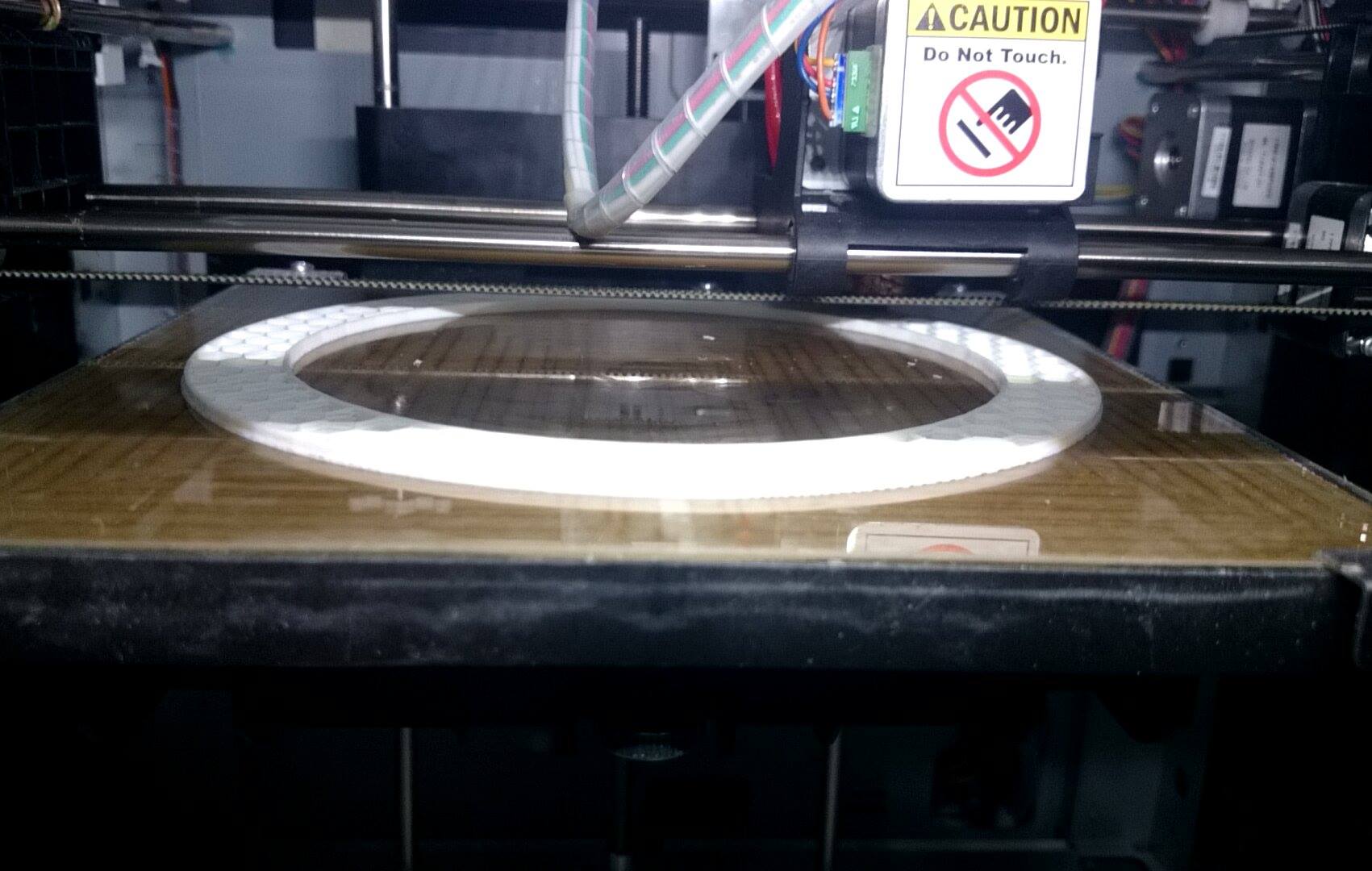

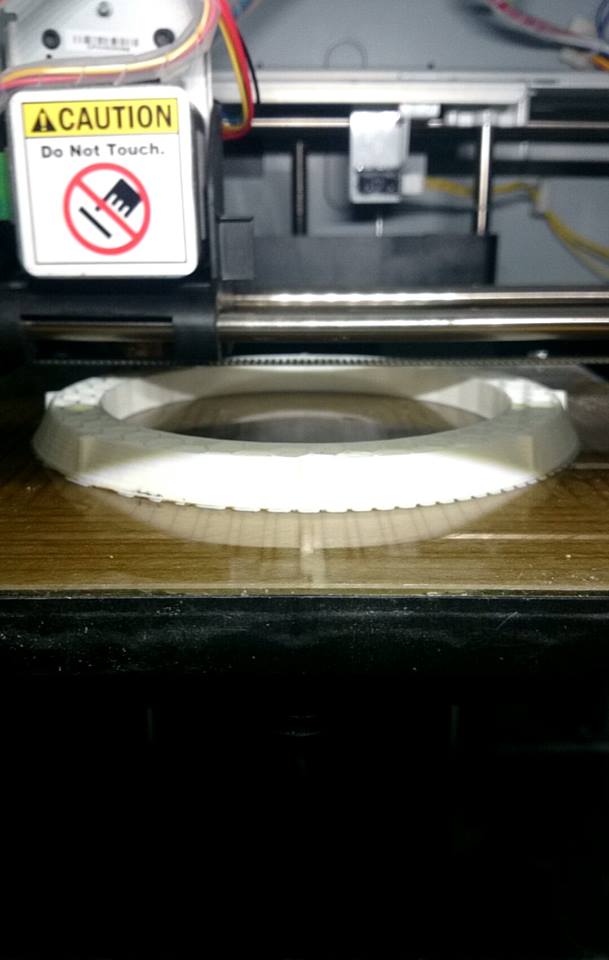

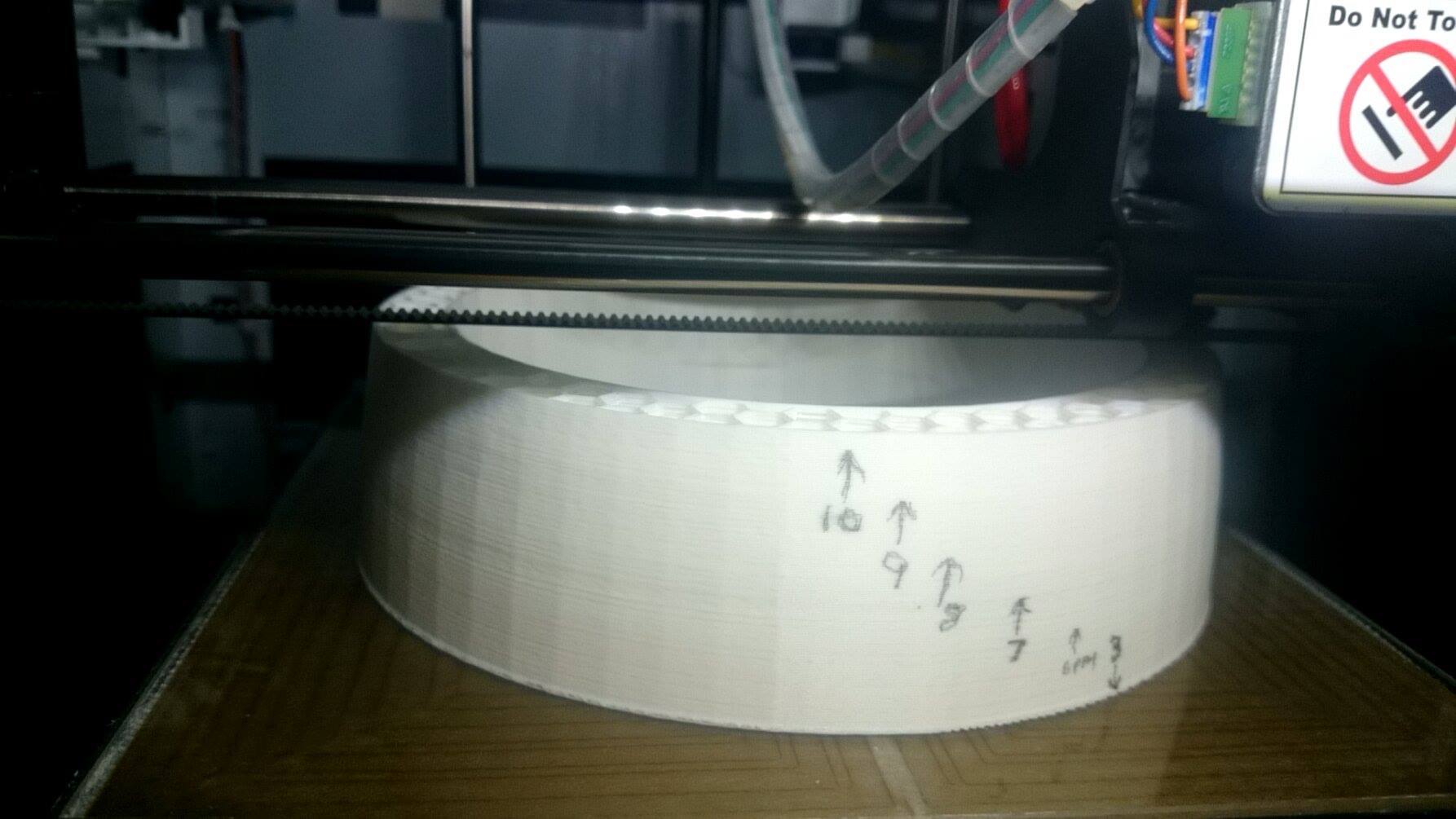

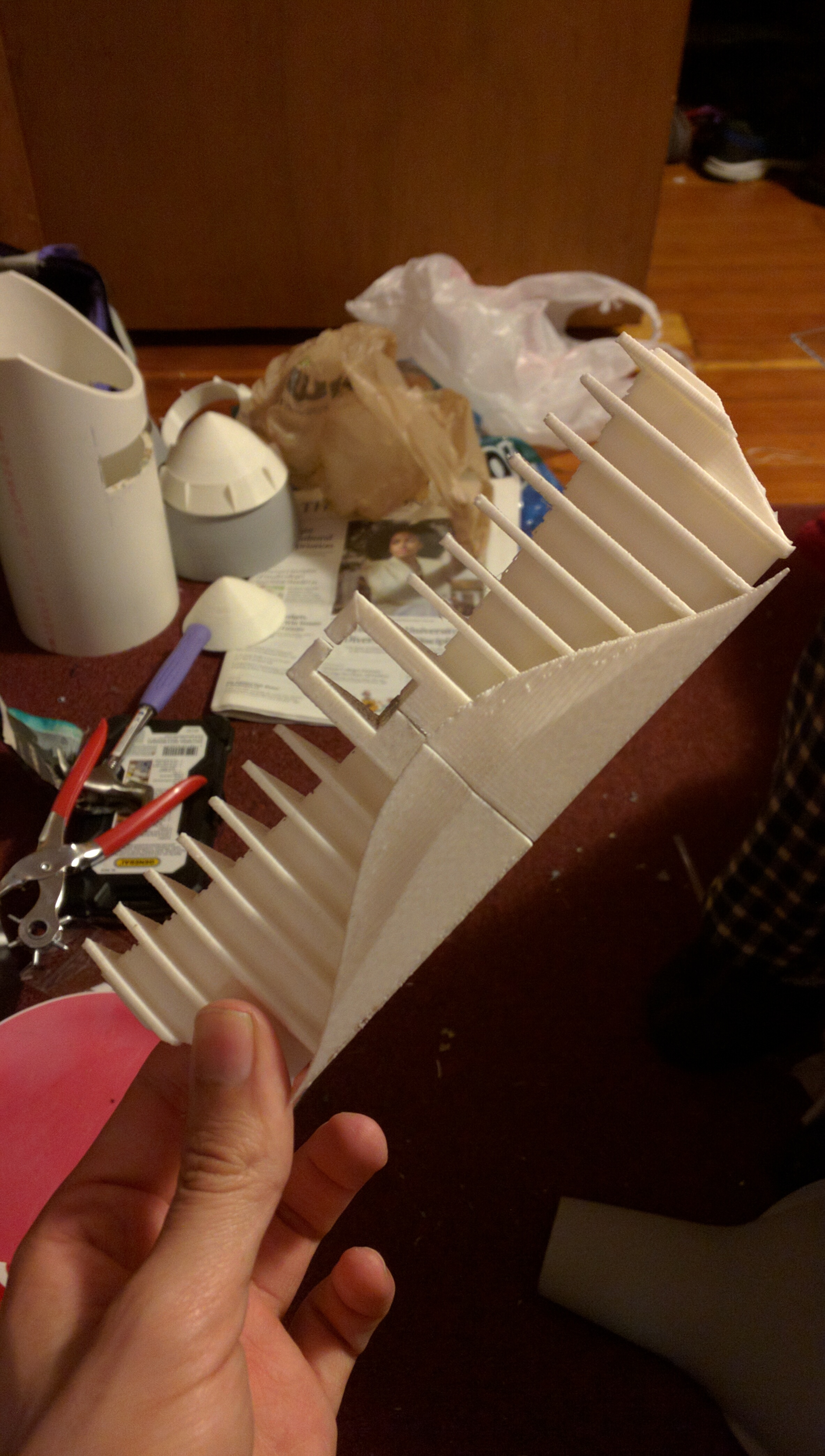

- Beginning print of cone bottom pieces
- Writing to show time lapse of how long it took/takes to print that piece (took about 8 hours)

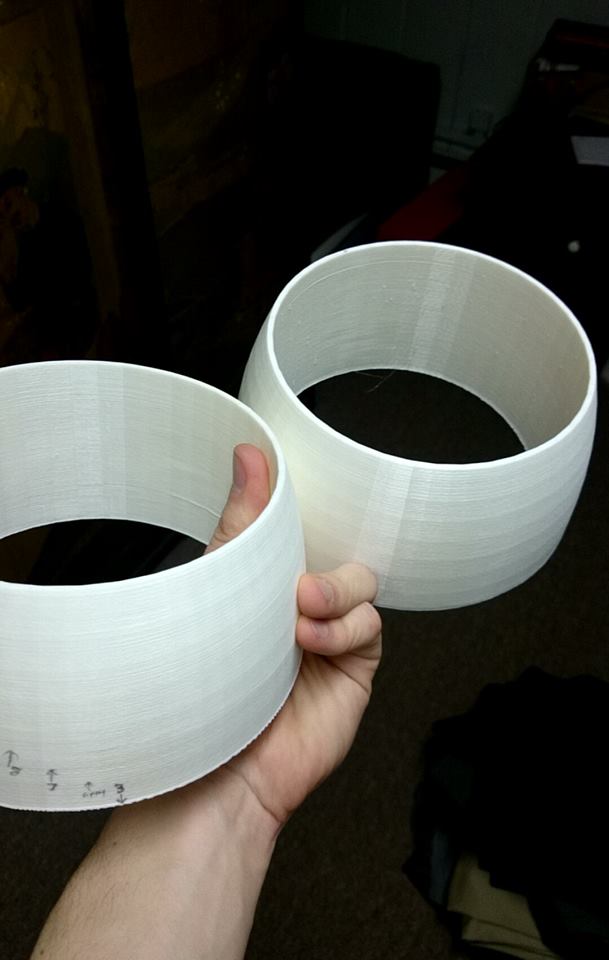

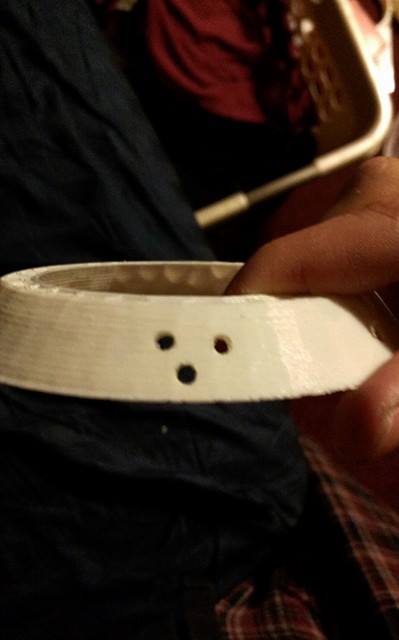

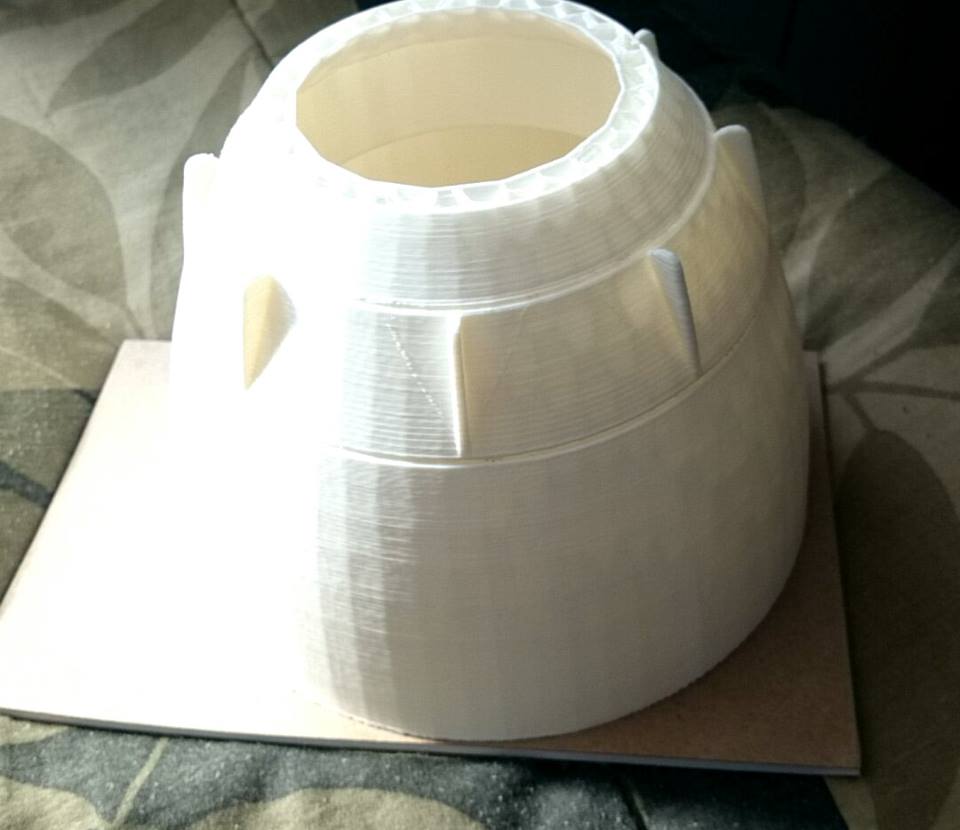

- Two bottom cone pieces complete. They had some small gaps in them, which I will bondo over later.
- Beginning print of the fins
- Bottom piece, fins, and failed tip. Ran out of filament when printing the tip. Still waiting for new filament to come in, but the failed piece will be a great testing/scrap tool.
- Case in point. Using the failed tip to test dremeling holes for the fin pieces.
- Bondo drying over the "cracks" in the 3D prints of the bottom cone pieces. I think you can see the cracks.

NOTE: This build won't be 100% screen accurate (see: Center exhaust casing and engines) as I am trying to get this done within a schedule, but I do hope to replace those parts in the future with those closer to the film.

Thanks for your time and let me know what you think!


Attachments

  • 12825198_10153872554240638_2071987452_n.jpg
    41.3 KB · Views: 65
  • 12527832_10153906613940638_723549093_n.jpg
    34.7 KB · Views: 60
  • 12674713_10153906614415638_783983590_o.jpg
    111.7 KB · Views: 61
  • 12571295_10154567251797656_614110267_n.jpg
    64.9 KB · Views: 56
  • 12422322_10154567865732656_1454589992_o.jpg
    159.8 KB · Views: 65
  • 12722213_10154568847607656_1385693642_o.jpg
    123.4 KB · Views: 63
  • 12782203_10154572727492656_532104890_n.jpg
    44.8 KB · Views: 65
  • 12188297_10154575611957656_563156318_n.jpg
    48.7 KB · Views: 61
  • 12443146_10154578022562656_1505886103_n.jpg
    51.2 KB · Views: 71
  • 12527859_10153925401615638_111503179_n.jpg
    19.3 KB · Views: 62
  • IMG_20160325_120456.jpg
    2.5 MB · Views: 60

veektohr

Sr Member
RPF PREMIUM MEMBER
Re: The Rocketeer - My First Real Build (Sort of)

Dude you got that helmet looking fantastic!


Sent from my iPhone using Tapatalk


ThatGuyKnownAsT

New Member
Re: The Rocketeer - My First Real Build (Sort of)

HUGE UPDATE:

So I have completed the rocket engines and have finished 3D printing/sanding/bondoing all the things. Now all that's left is to assemble, paint, and harness up.

First, the engines.

So as I've stated before, my pack isn't going to be screen accurate, but damn do I think these came out cool.

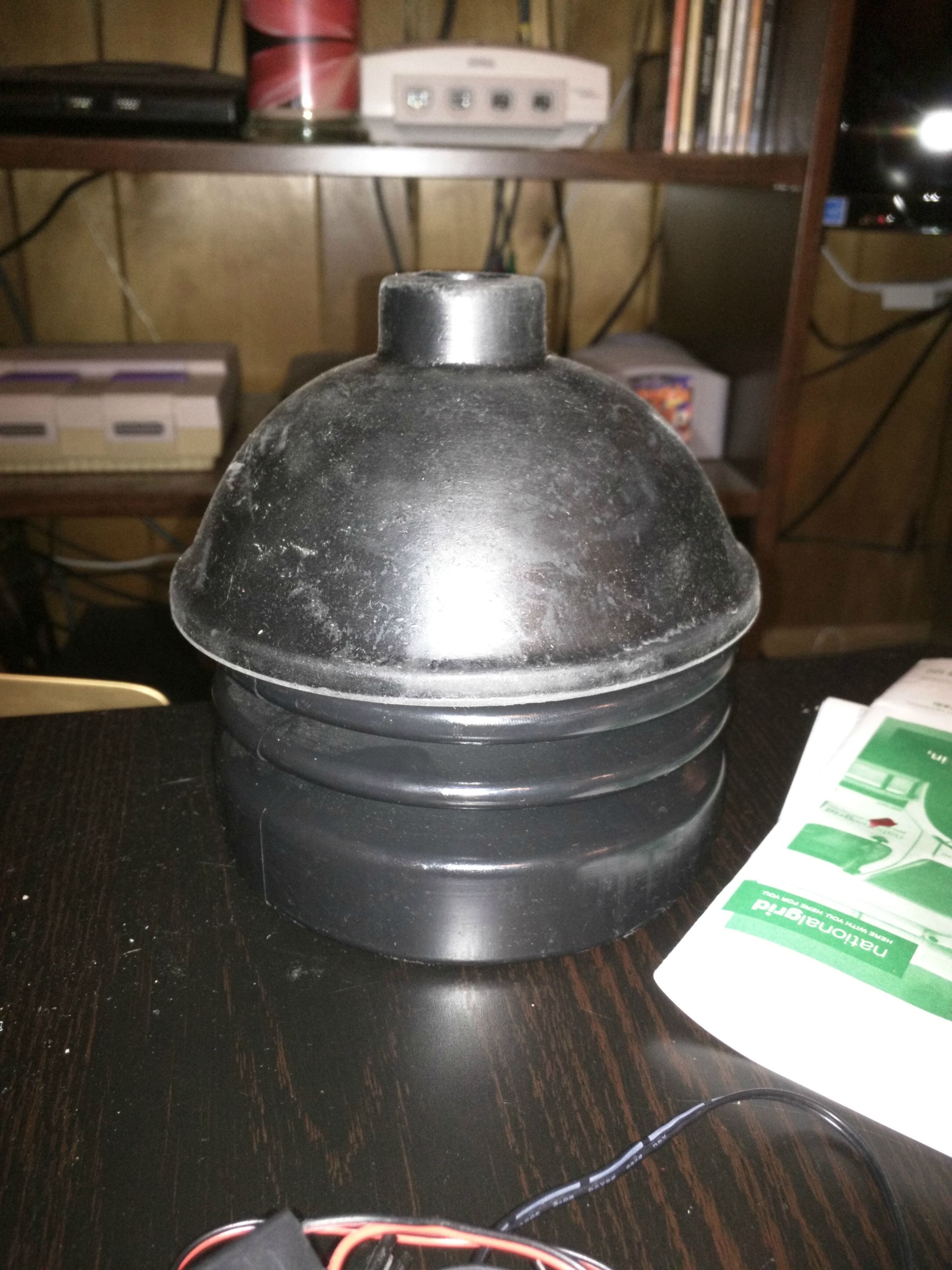

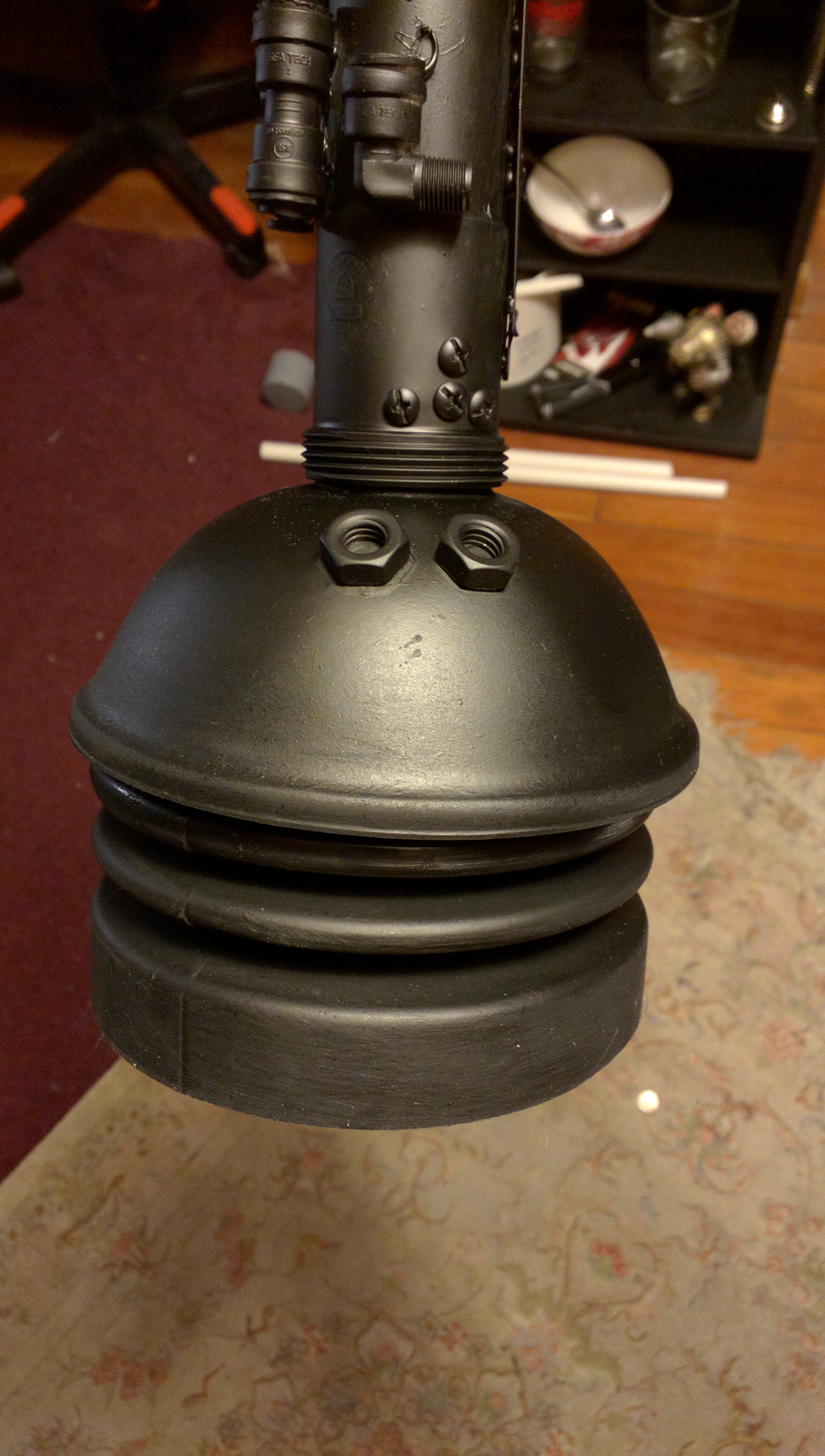

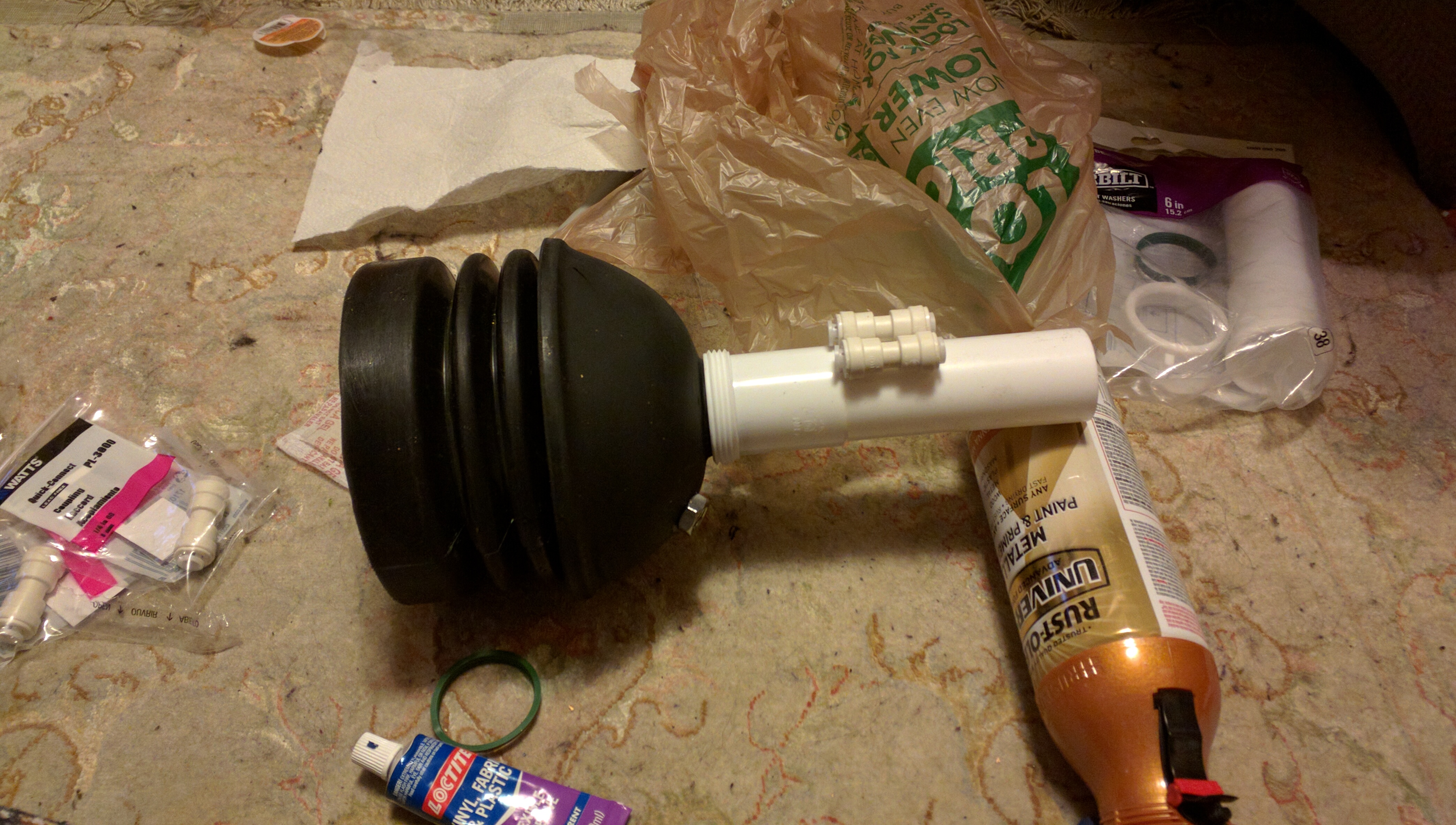

Two plungers, screwed together, PVC extension piece, and random bits glues on.

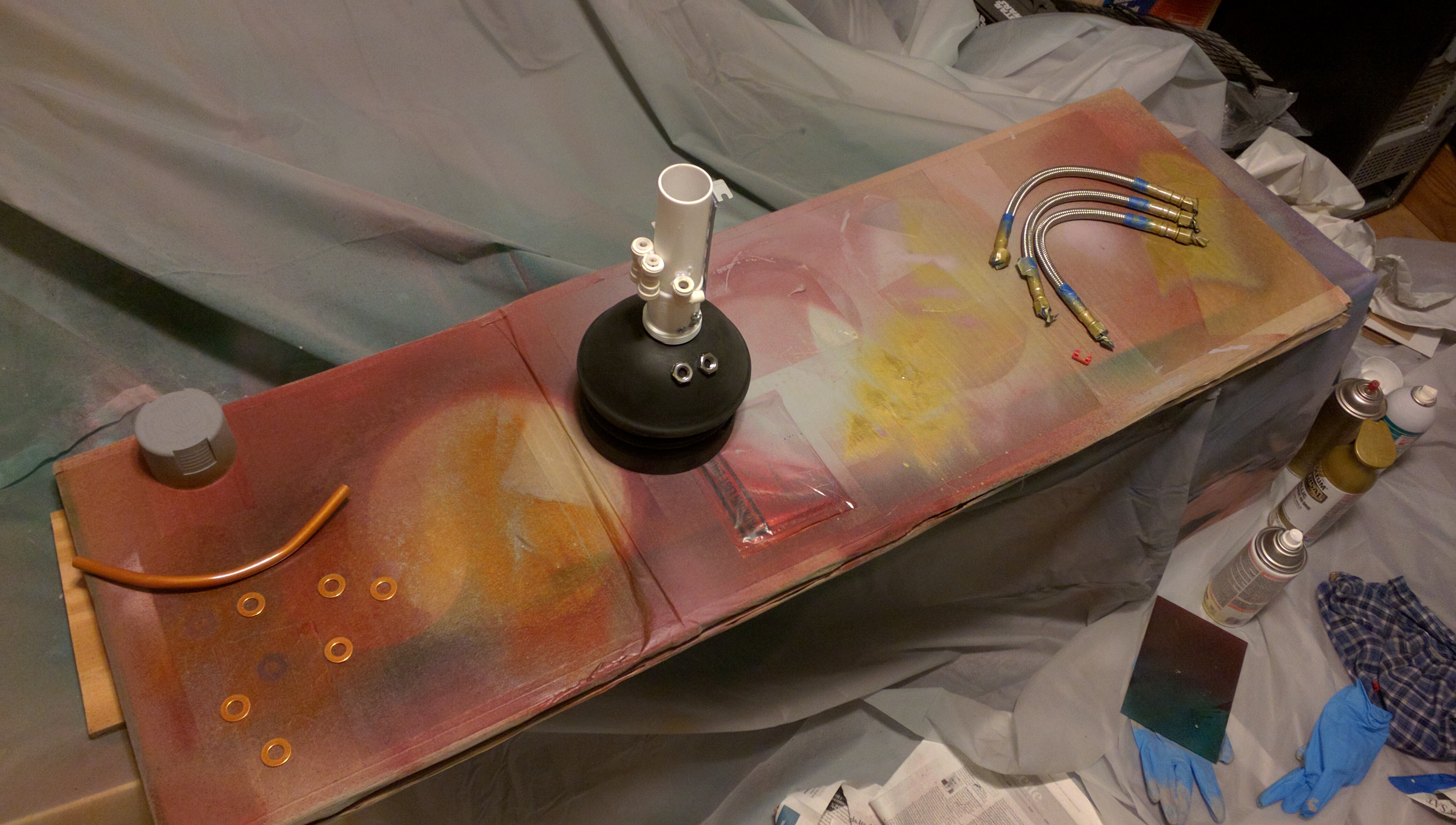

Engine parts prepped for painting.

After priming.

I found a six inch bowl to hold together all the hose lines, and also act as what will be holding up the engine inside the fuselages.

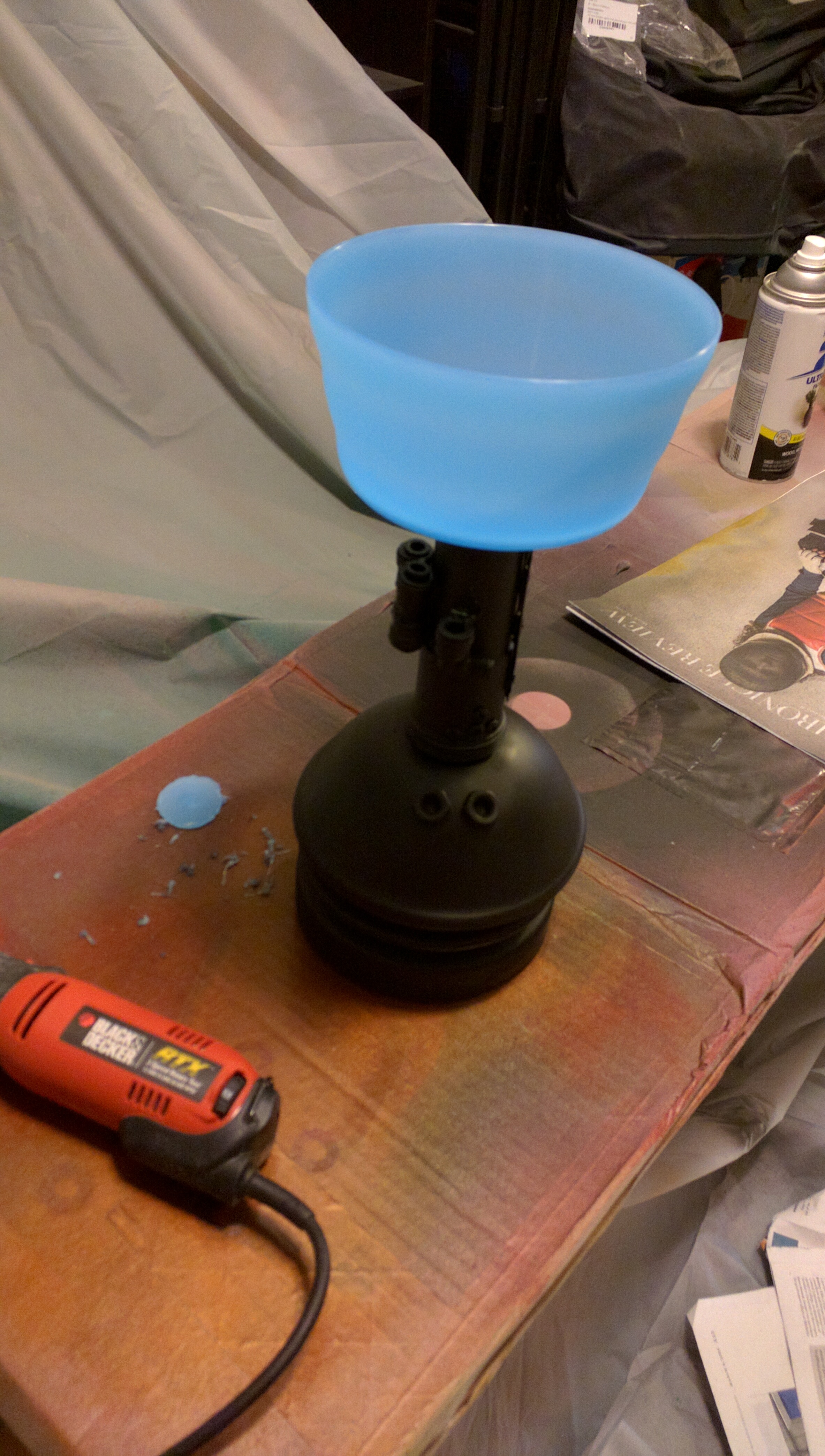

Testing to make sure the lines fit and don't fall out. They will be secured with glues and ties up in the bowl anyways though for good measure.

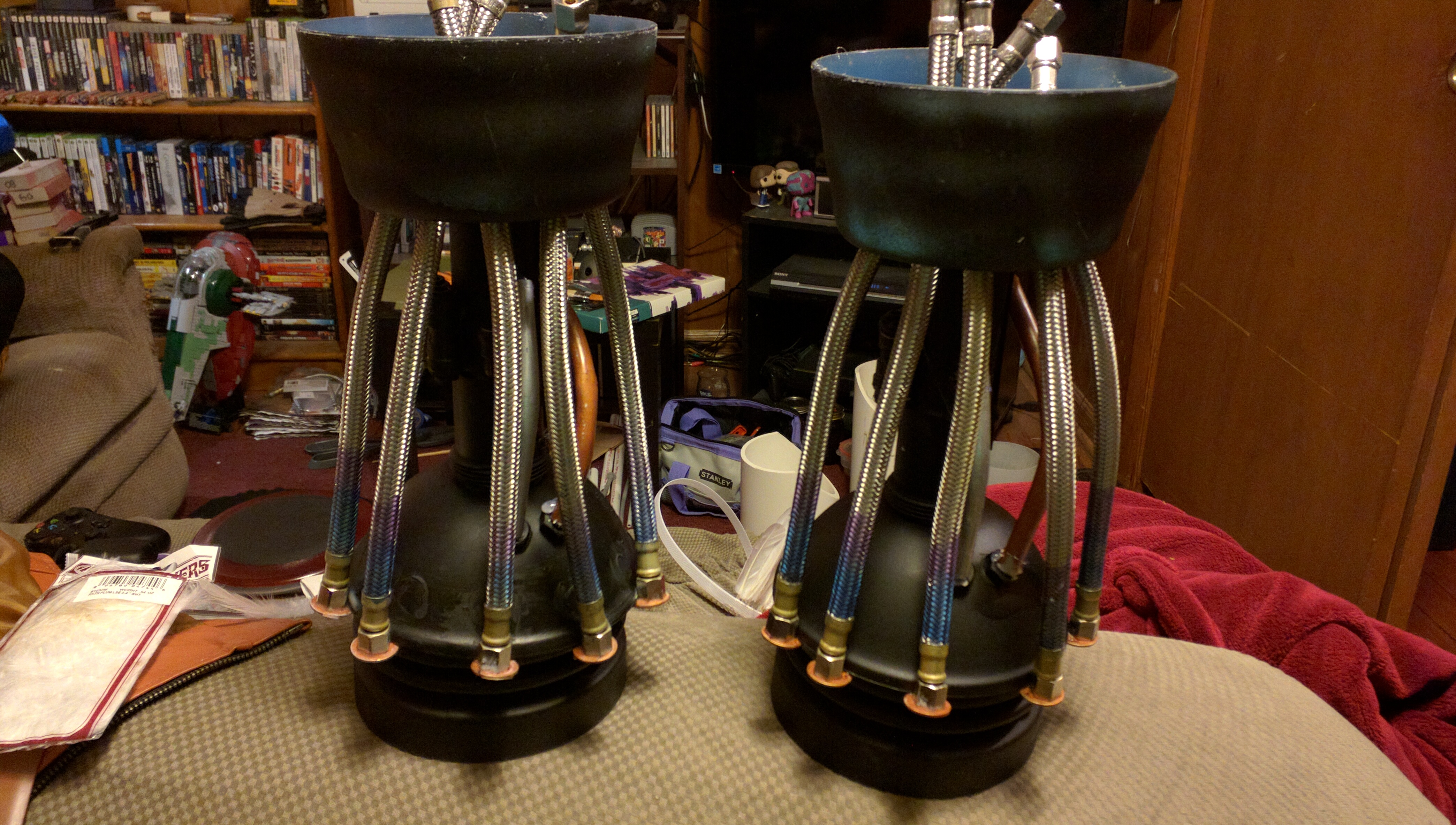

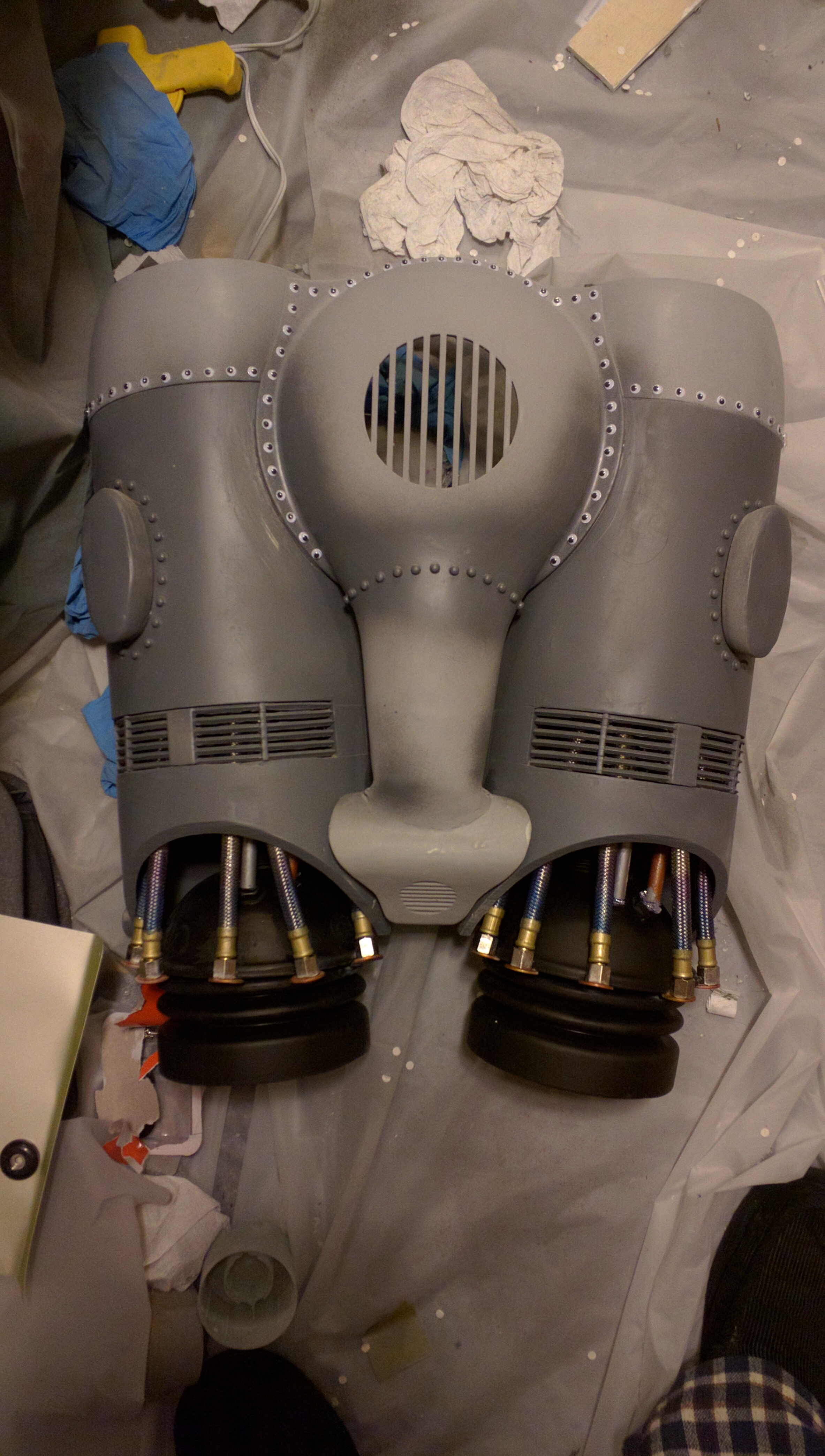

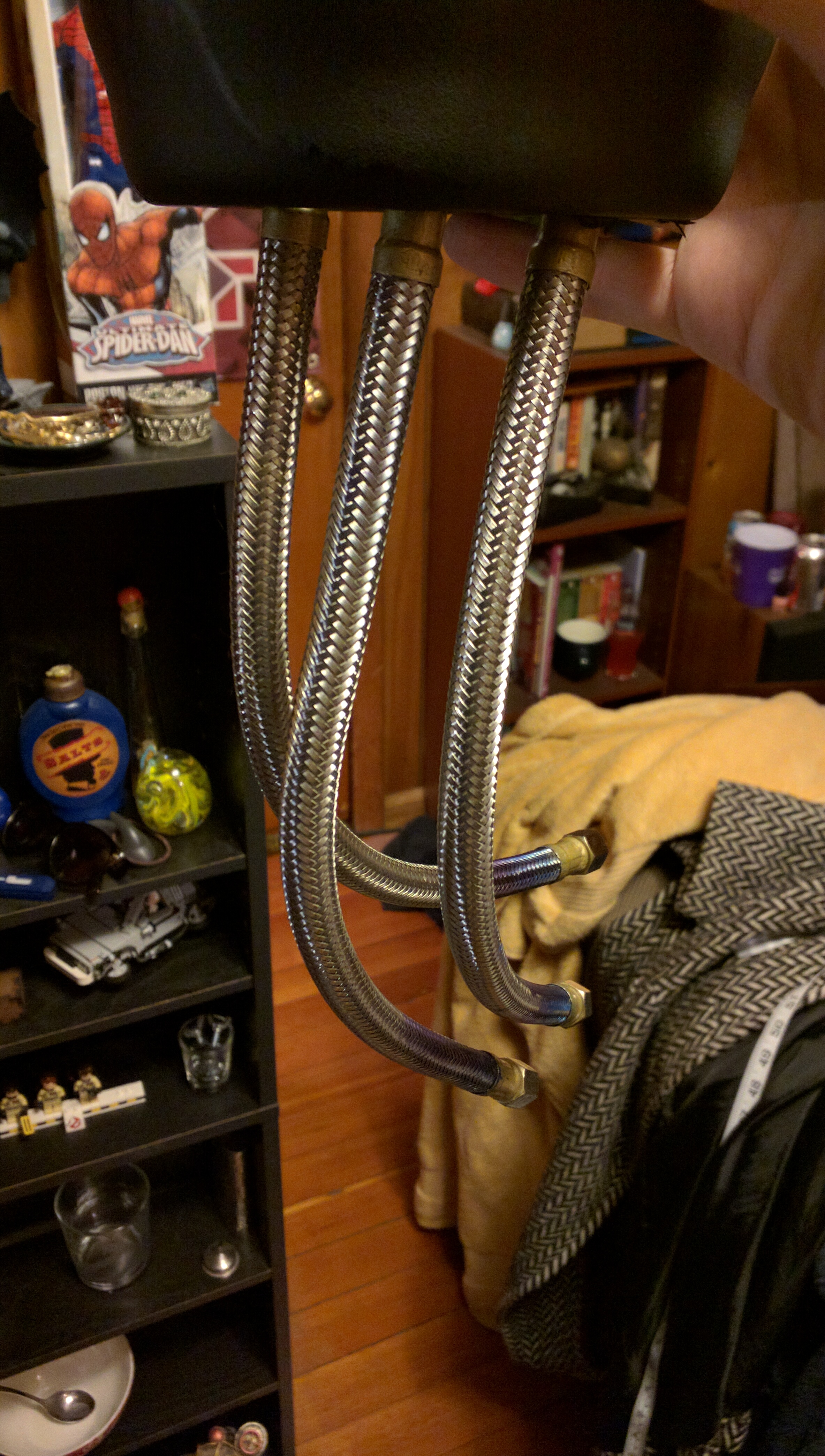

Two engines ready to go. I rubbed the water lines with blue and purple paints to give them the heated look.

Next up, all the little bits and pieces.

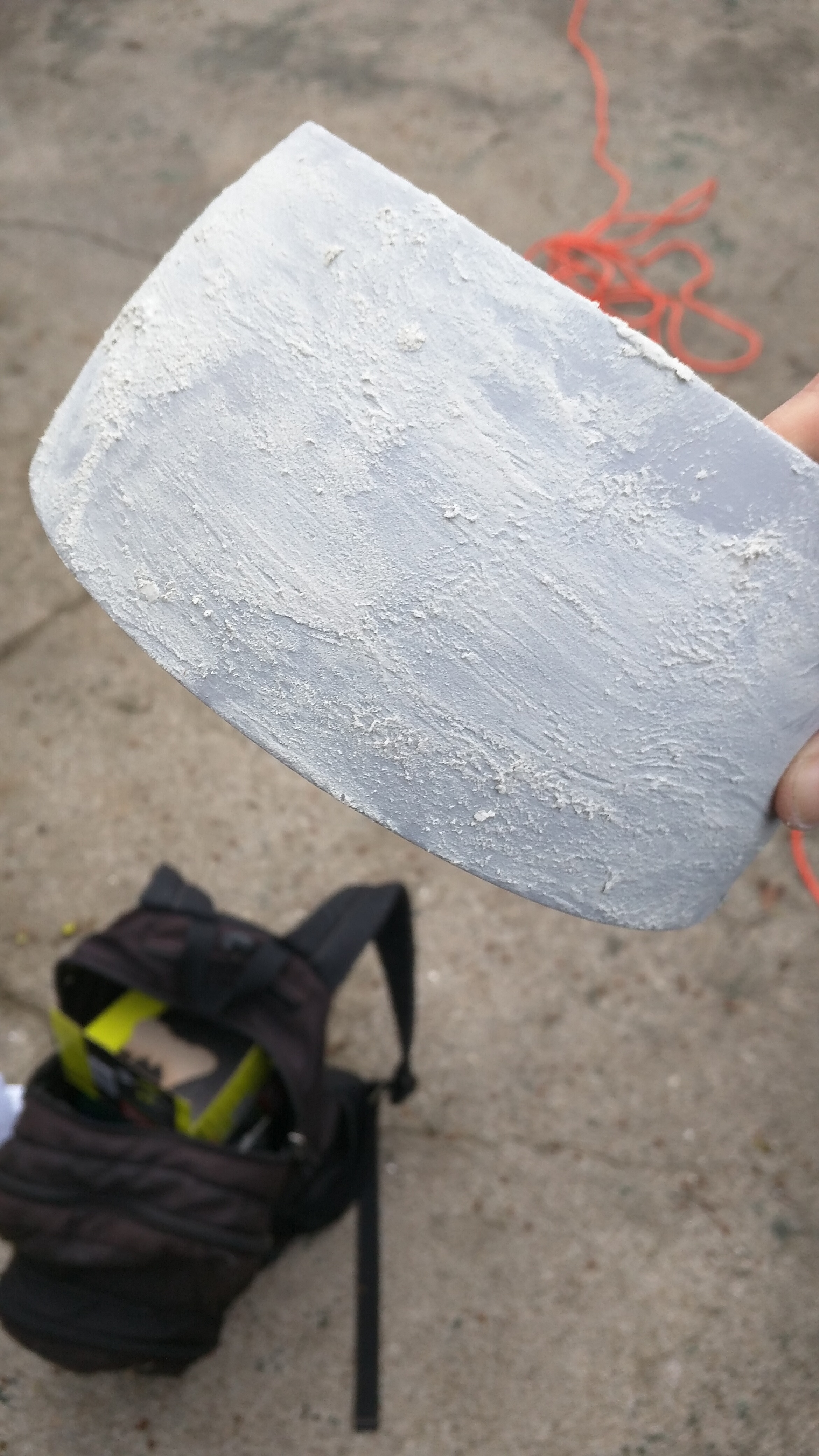

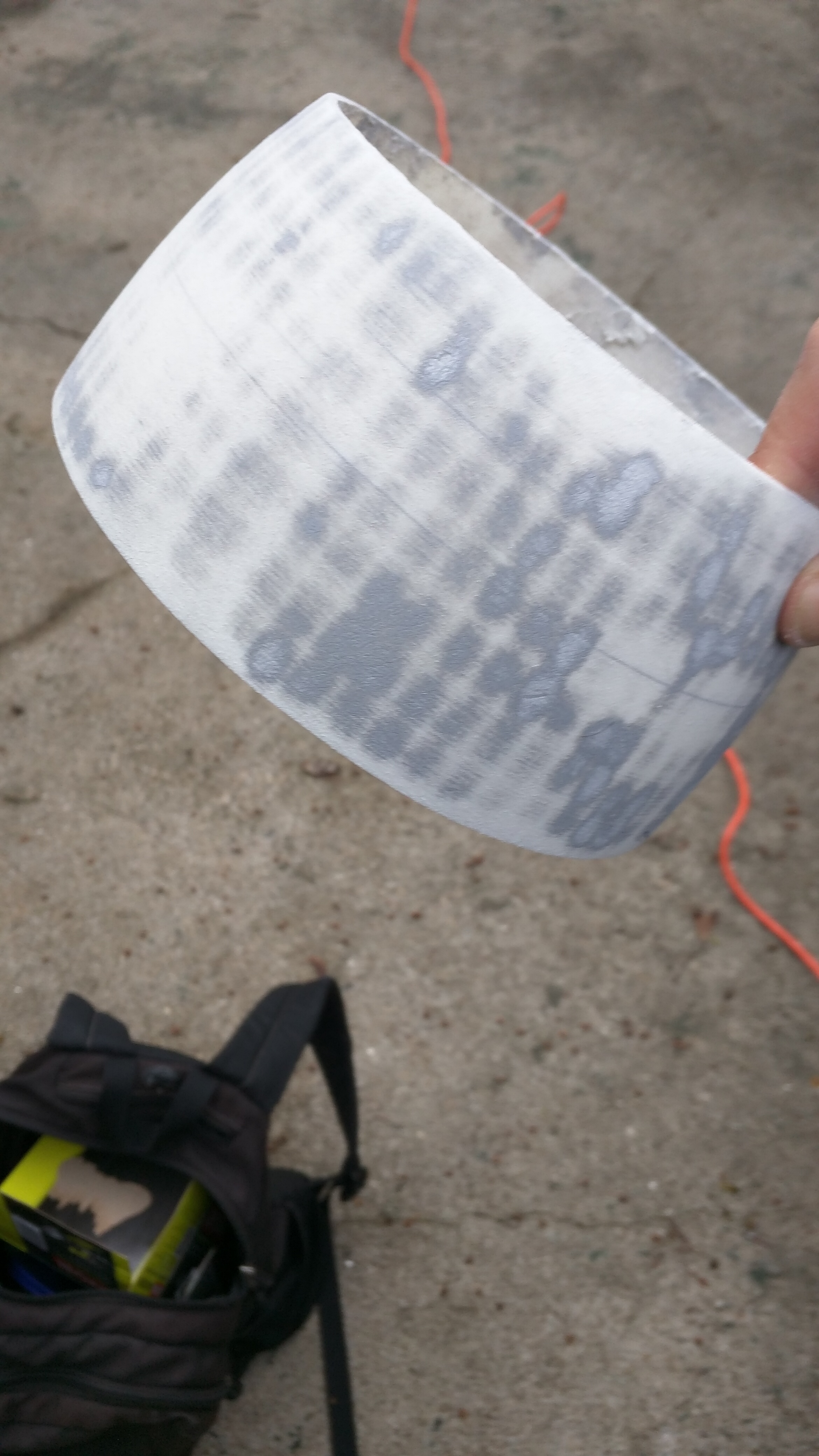

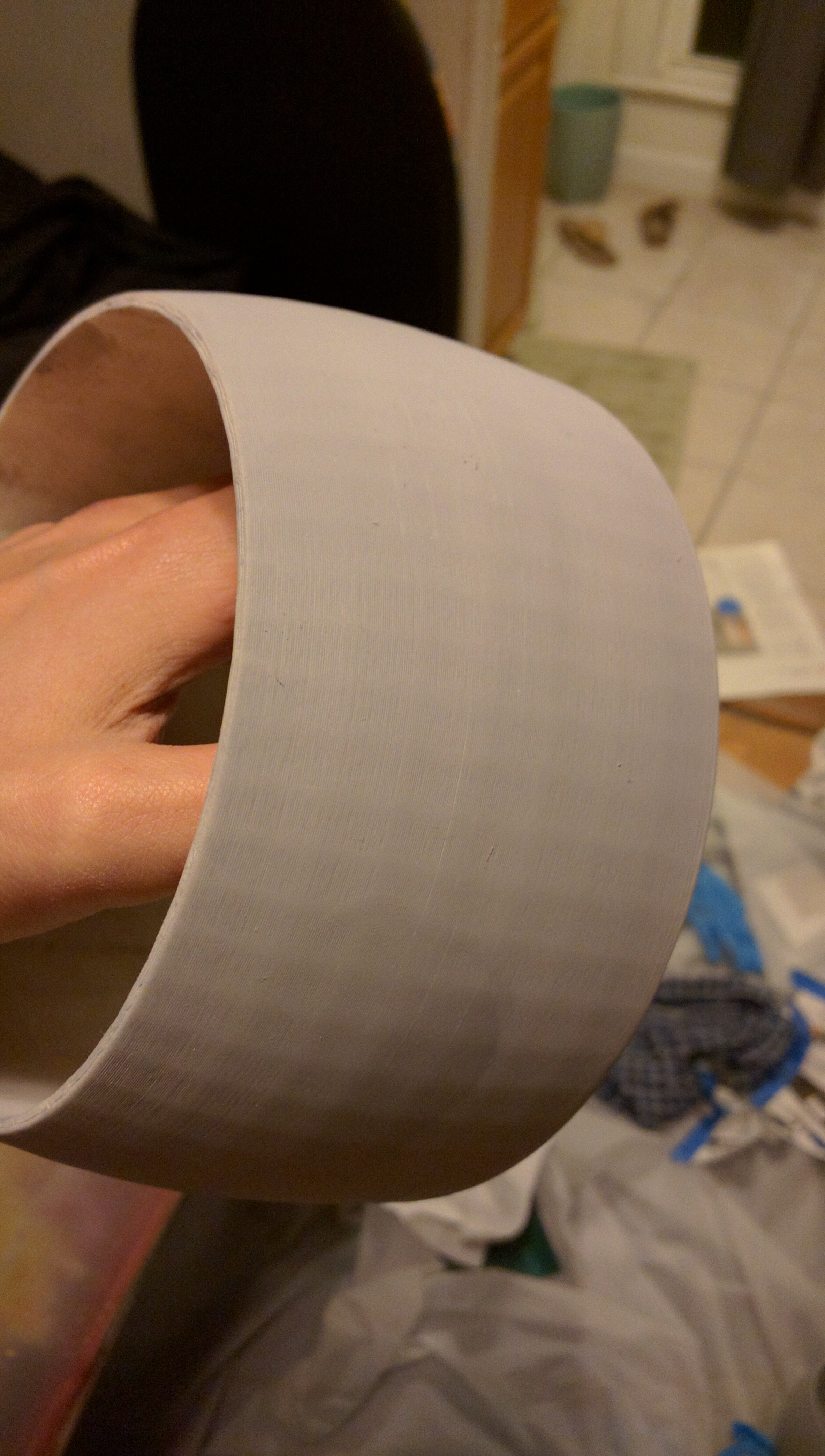

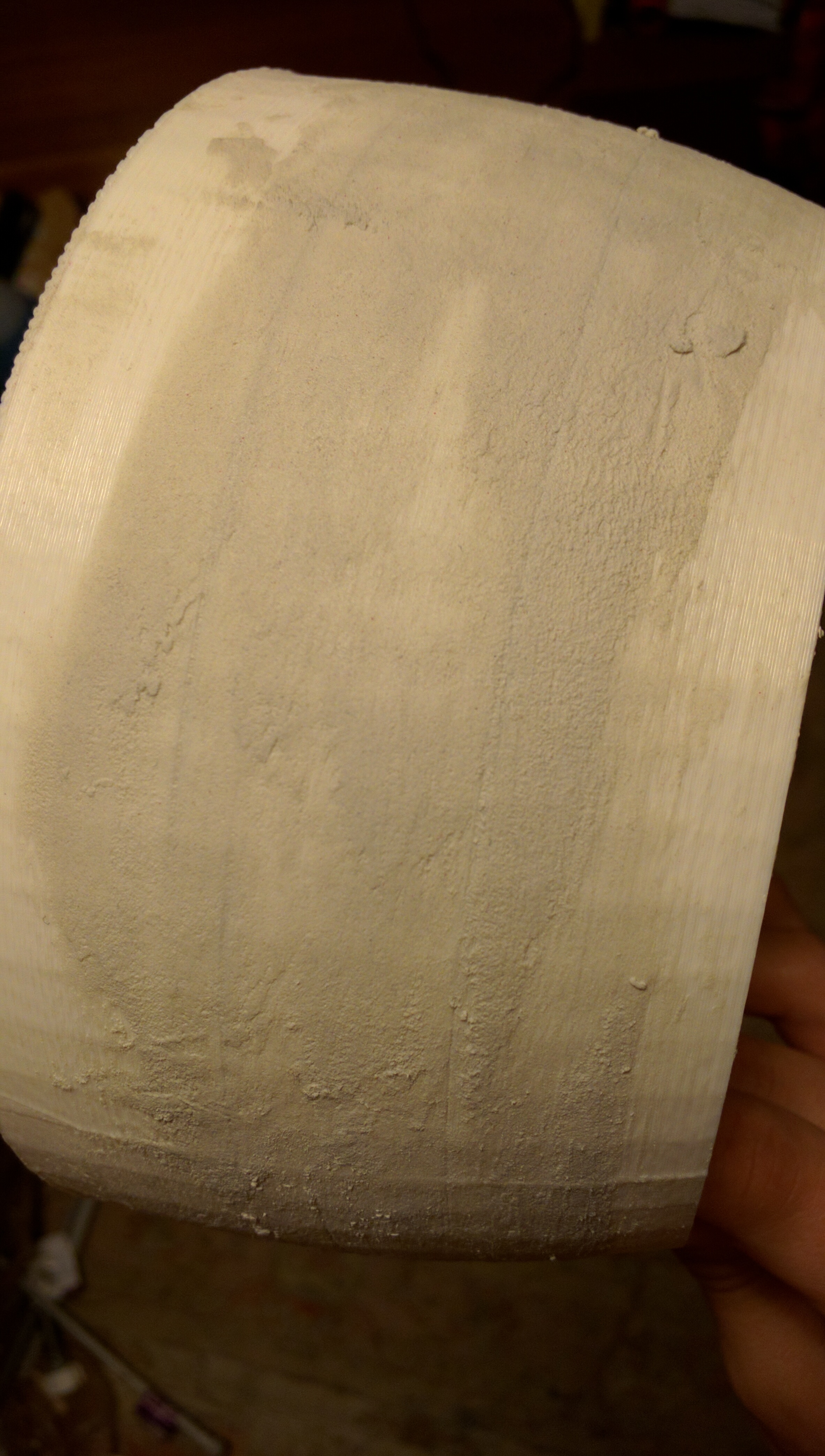

Last time I showed a 3D printed cone base bondoed up. So I sanded and sanded the crap out of that thing by hand and it STILL looked polygonal. I needed to step up my game.

So I bondoed the crap out of it some more and bought a random orbital sander and power sanded the hell out of all the 3D printed pieces.

Needless to say, if you are every 3D printing pieces, this is the route I highly recommend.

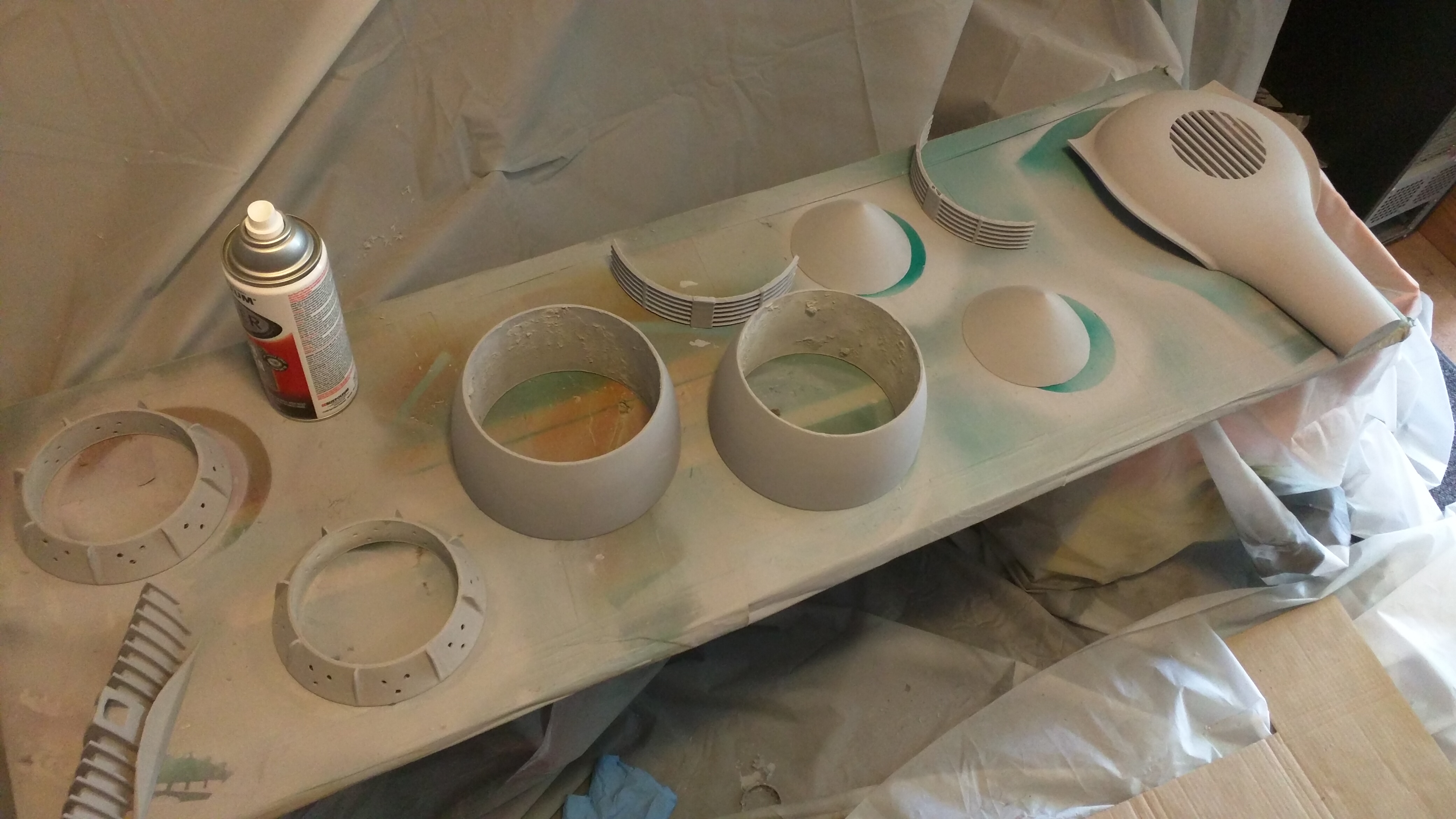

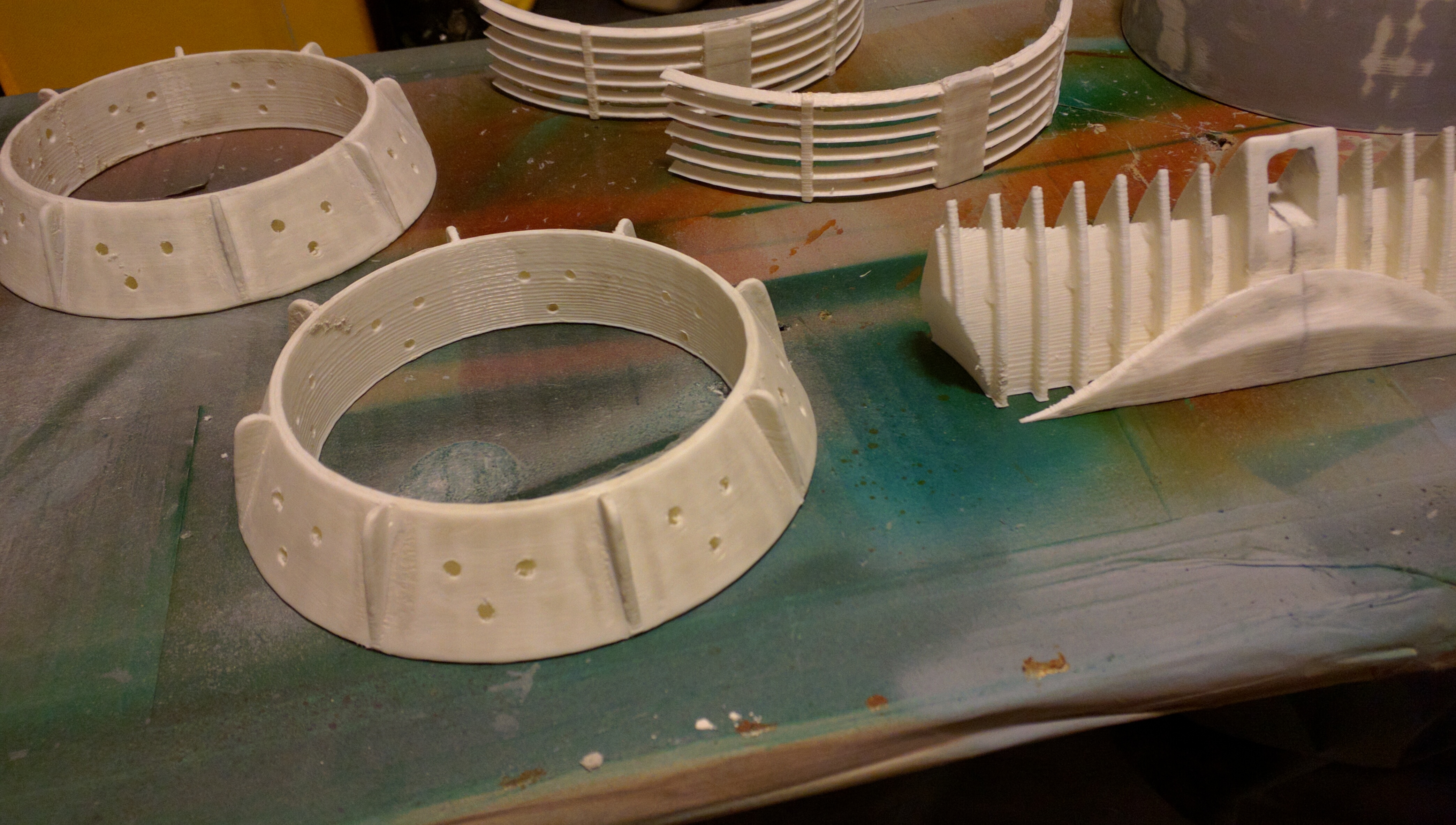

All the bits ready for priming.

Primed.

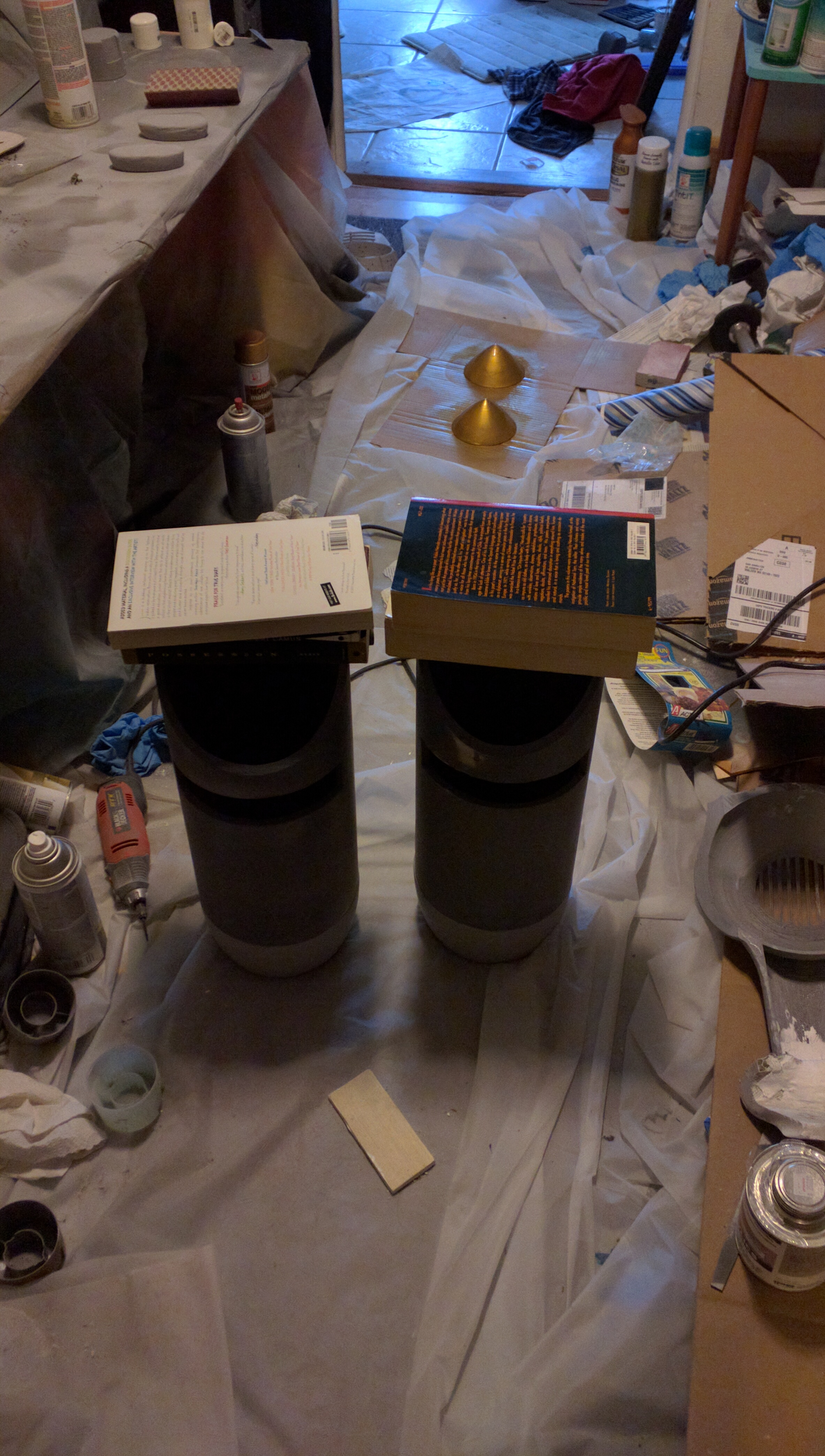

Here I am as of this morning using Weld-On to attach things. Here is the cone base being attached to the fuselages.

And here is the center piece being attached. It's not perfectly flush, but it works for me. #LearningExperiences

I've got about a week left to get this thing ready for con. So more updates soon.

BONUS: While waiting for things to dry/cure, I've been playing a game called BroForce on PS4 (think Metal Slugish, and all the playable characters are parodies of 80s/90s action stars). While going through, I unlocked this guy. I had NO clue there was a Rocketeer parody in the game, but I found it really funny that he happened to pop up while working on this prop.


Attachments

  • IMG_20160405_205931.jpg
    2.6 MB · Views: 62

ThatGuyKnownAsT

New Member
Re: The Rocketeer - My First Real Build (Sort of)

So I have finished and am now beginning taken this thing on the con circuit!

First, a completed pic:

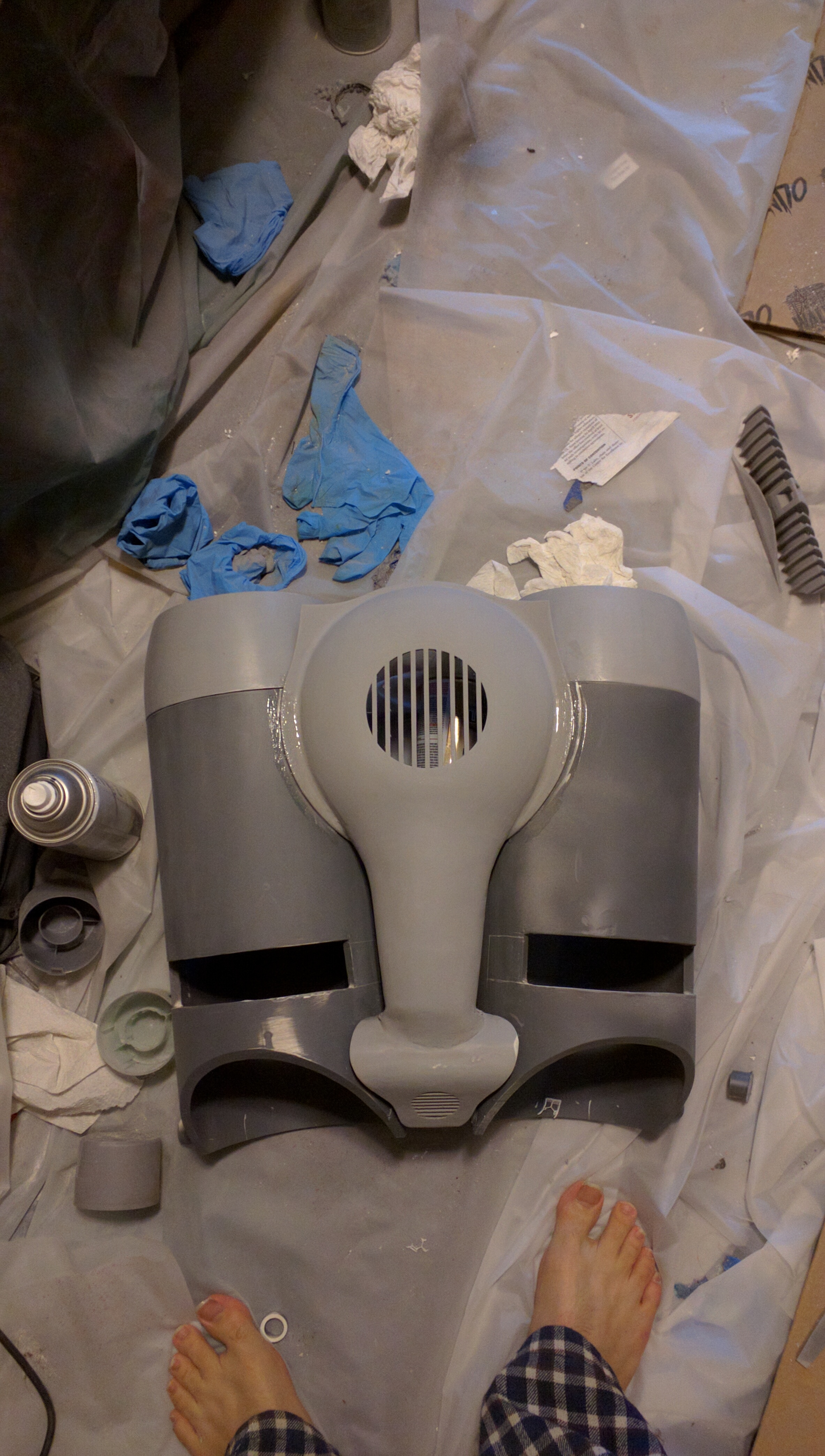

Now, how we got here. Last left off, I was putting the fuselages and center part together. After I left the weld-on to dry for a day and a half, I attached the egg bits and began to use 6mm googly eyes as the rivets. At first they looked goofy and off-setting...

Quick shot of primer though fixed that right up.

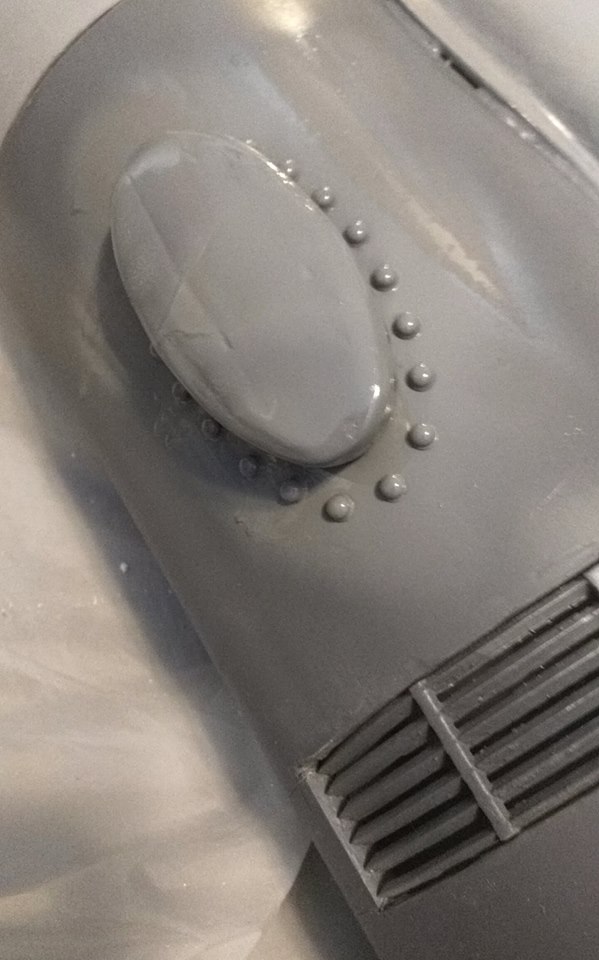

After all the "rivets" were put on, I dry fitted the engines to size up the flaps. I forgot to take pictures of me making the flaps, but they are simple "No Smoking" metal sheet signage (because I thought that was funny) bent and cut to shape. The engines sit a little low because I measure incorrectly. Oh well. Something to fix in the future.

Apply coat after coat of Design Master Metallic Champagne Silver paint. I think it looks damn fine.

After paint, dry fitting the top cones one last time. Got super pumped at this point!

Attached the flaps and painted them. Used black primer to look like soot from the exhaust. ****ed up on the right flap, but the engines cover it just enough.

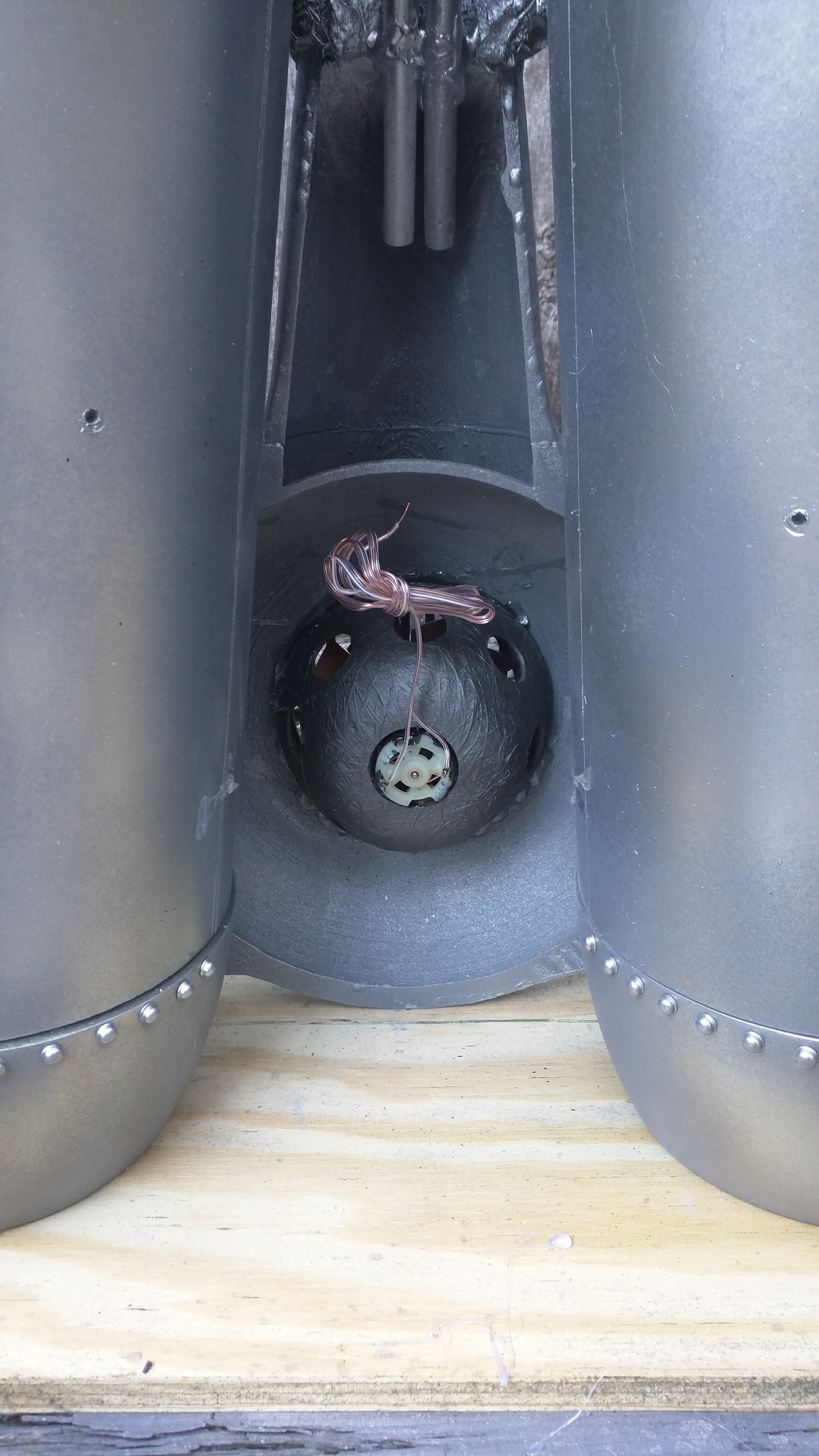

Installed the fan. Didn't have time to rig up a battery or more electronics to it, but it's serviceable. Something to fix in the future.

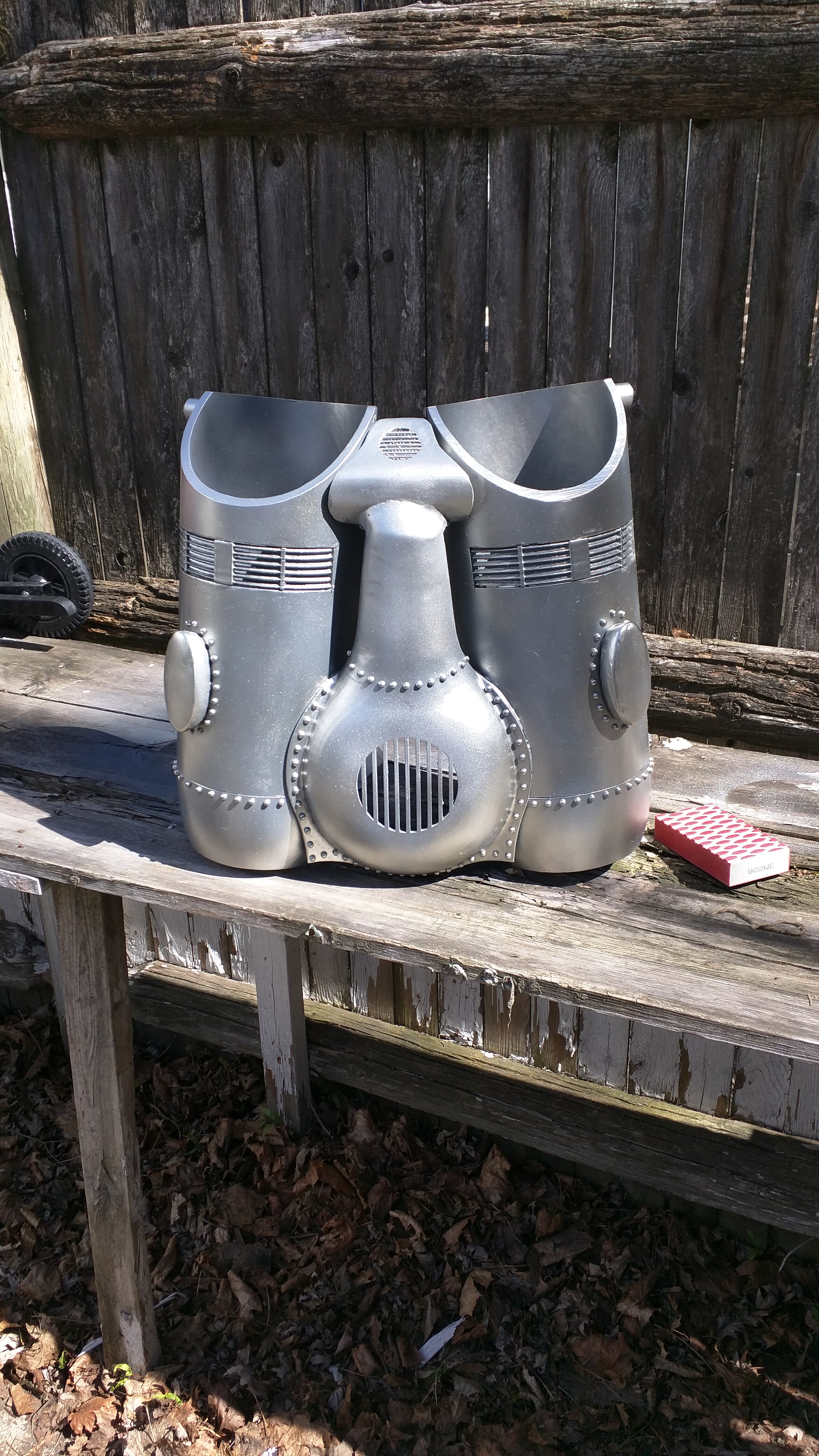

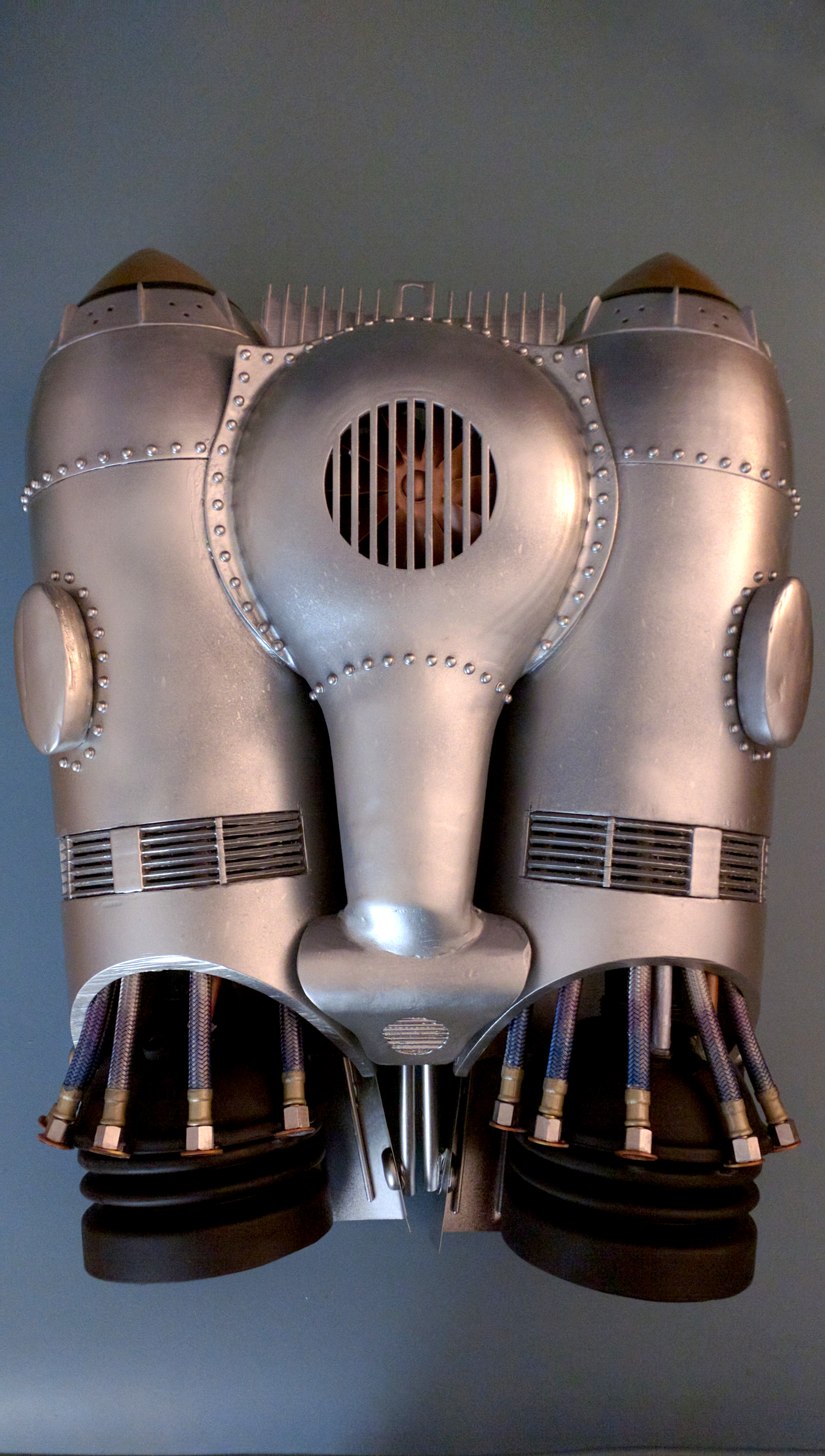

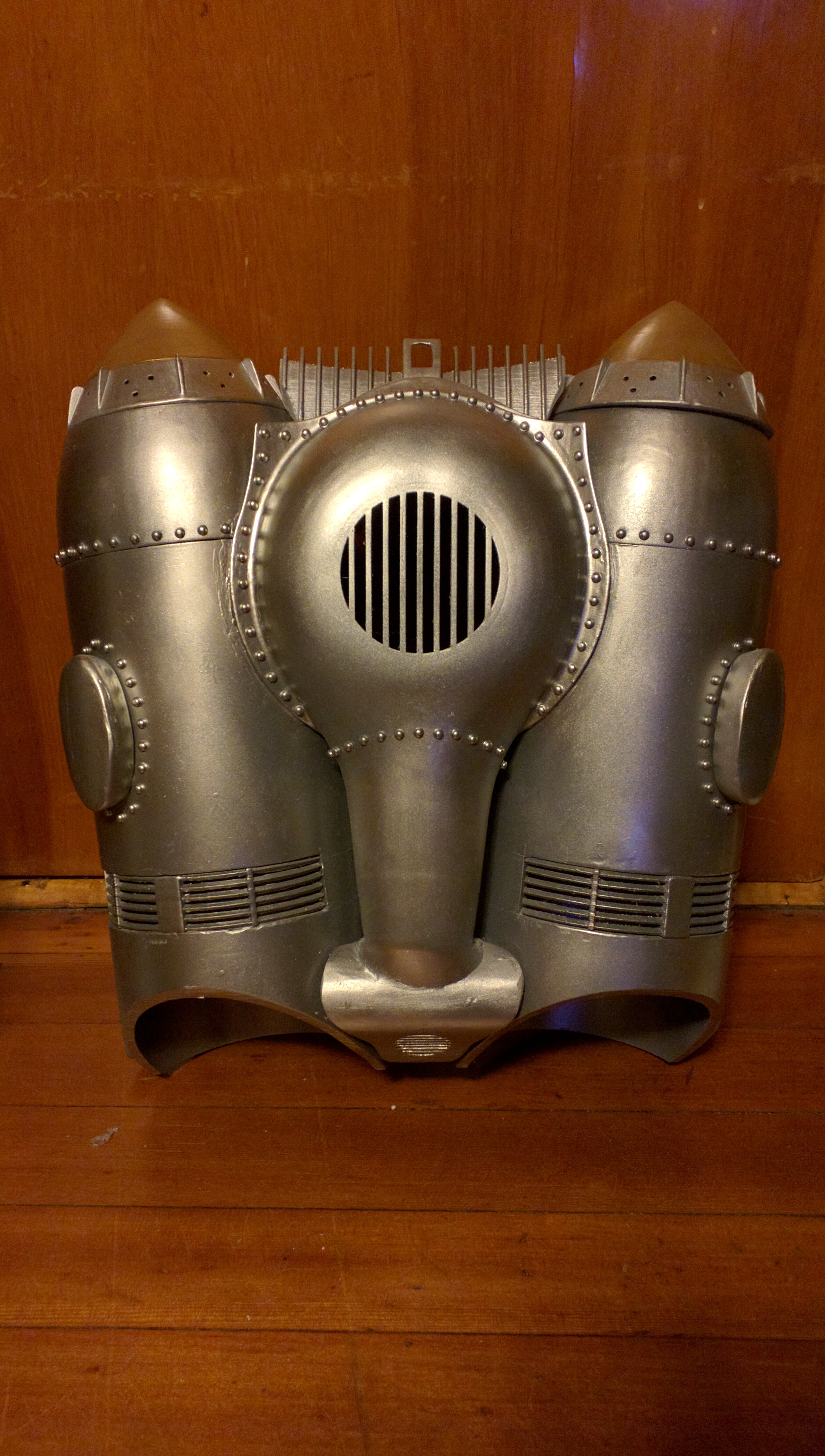

The completed pack. After hours and weeks and months of working on this off and on out of mostly my room in my apartment, it was done. I was so happy. Wanted a pic of it with my favorite take off scene from the film because I'm a dork.

Another shot of the completed pack.



It's by no means perfect or accurate, but it's mine. My first real build and man did I learn a lot from this. Thanks for following this thread and too any and all people who messaged compliments, encouragement, or advice! This is a fantastic community! I may update the thread when I go back and fix/swap out some parts (looking at you eggs and engines), so stay tuned (maybe)!

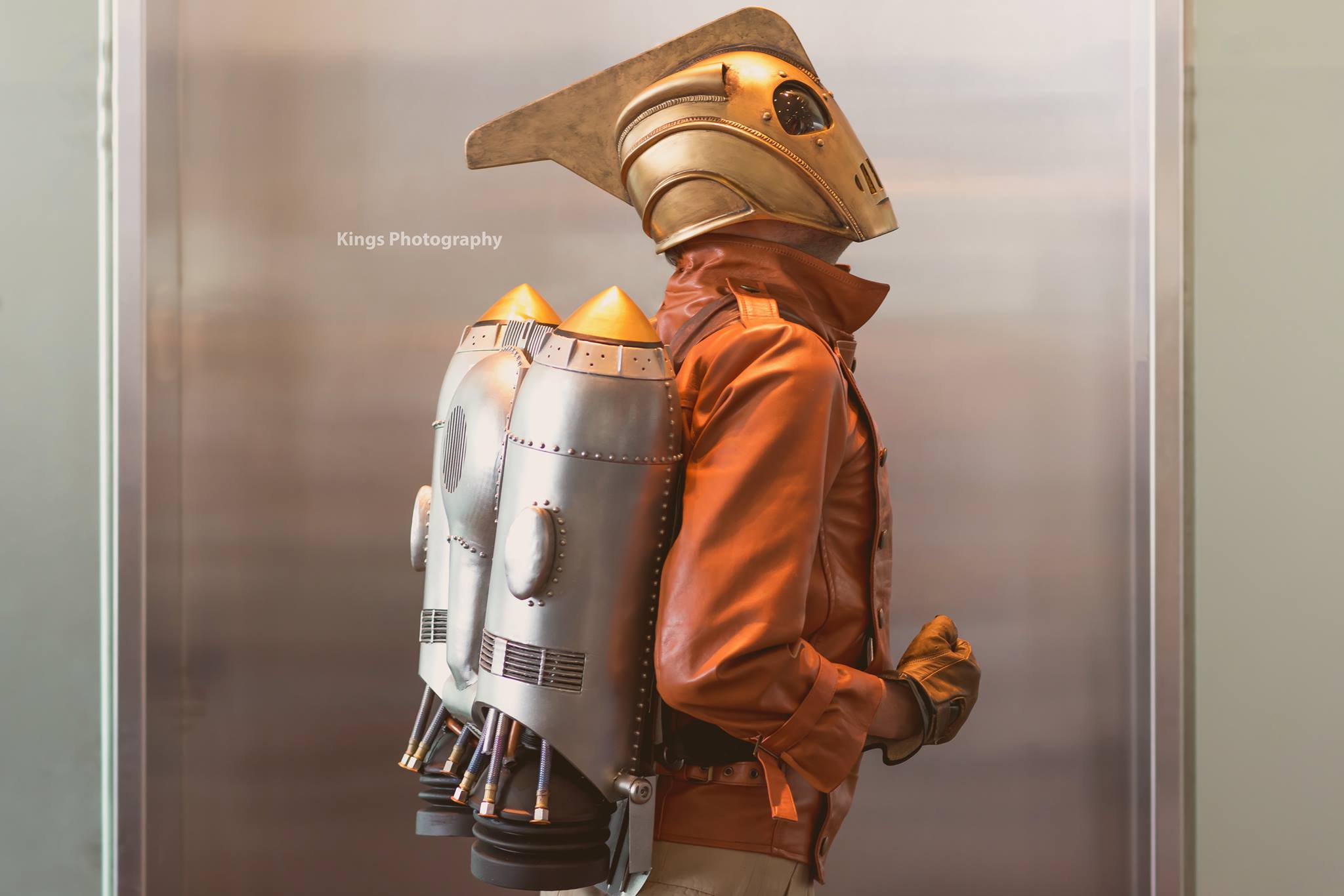

Bonus shot taken by King's Photos! I love this shot. Made the whole adventure worth it!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Vincent V

Member
Something about The Rocketeer just really captured my interest like nothing else when I was a kid. It's still one of my favorite movies today.

Awesome build!
