Markus

Well-Known Member
Our local Community Theater will be performing "The Pink Panther Strikes Again", and I volunteered to build the Doomsday Machine. As a reference, here is the one from the movie.

Of course, for the theater play we do not need an exact 1:1 replica, and I will not spend the time and effort to make one. I just want something that it impresses the audience, both in terms of size and functionality and which somehow resembles the one from the movie. The play is in four weeks, so I have about two weeks time to finish this. I will be posting all major steps here in the forum, and the full details on my blog.
Here is an initial sketch how I want it to look like:

My Doomsday Machine will be made of three pieces: A base (with octagonal structure), a mid-piece that holds a computer screen, switches and lights, and a top piece which is the "laser gun". The total height should be 5-6 feet.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Markus

Well-Known Member

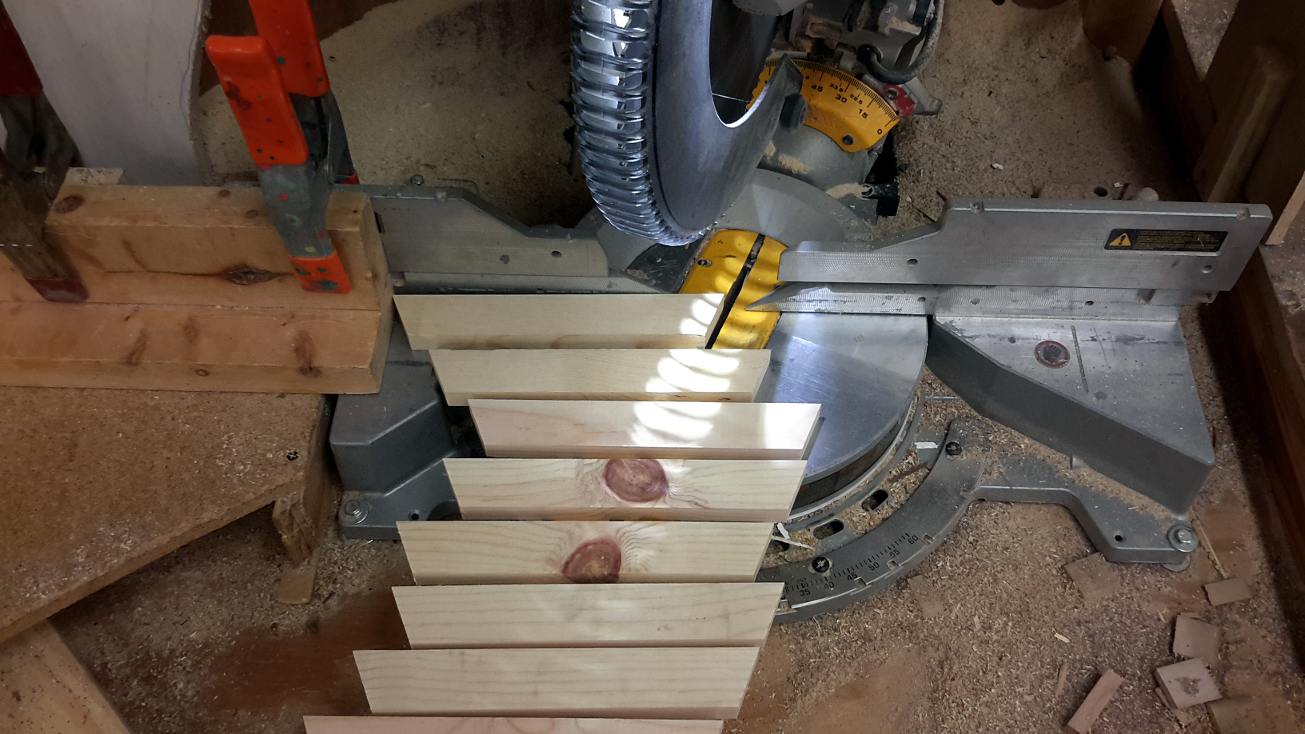

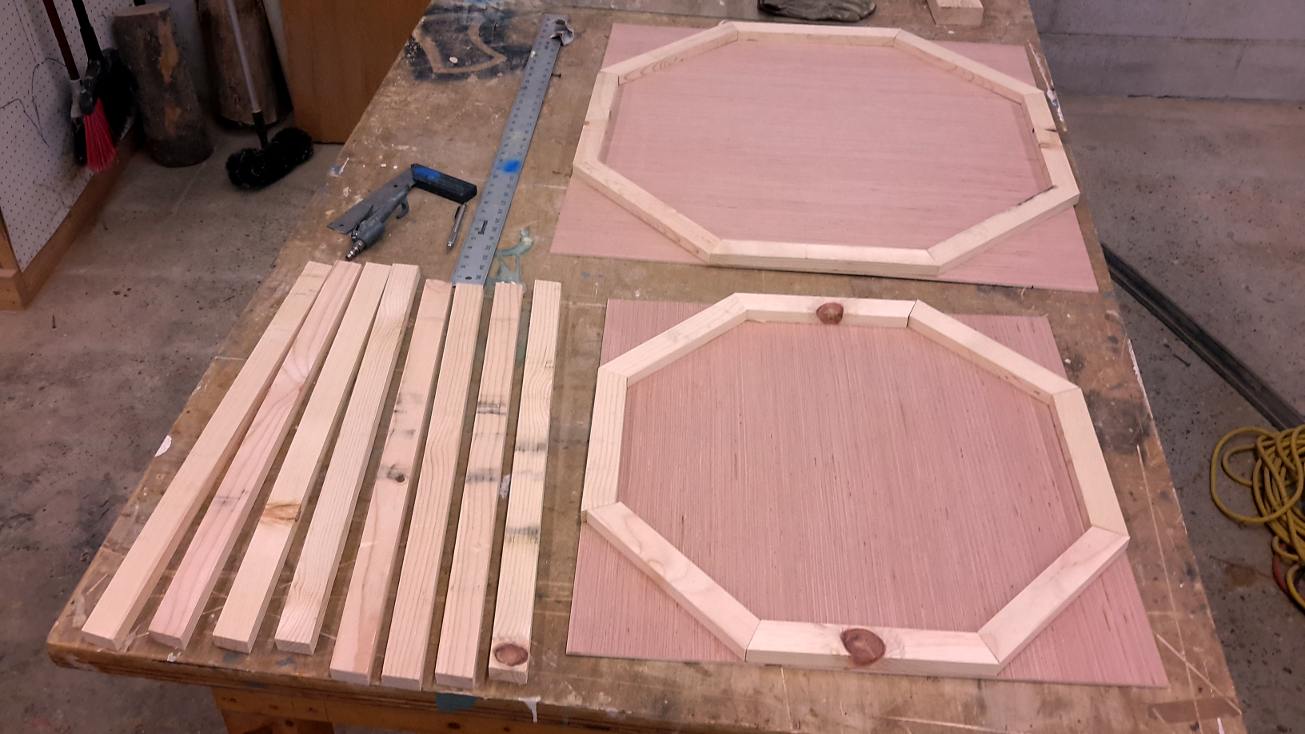

Yesterday, after working out all the math for the two different octagons, and their connections, I finished the base.
20190915_212826.jpg 20190915_214544.jpg 20190915_215830.jpg 20190915_223723.jpg 20190915_225704.jpg

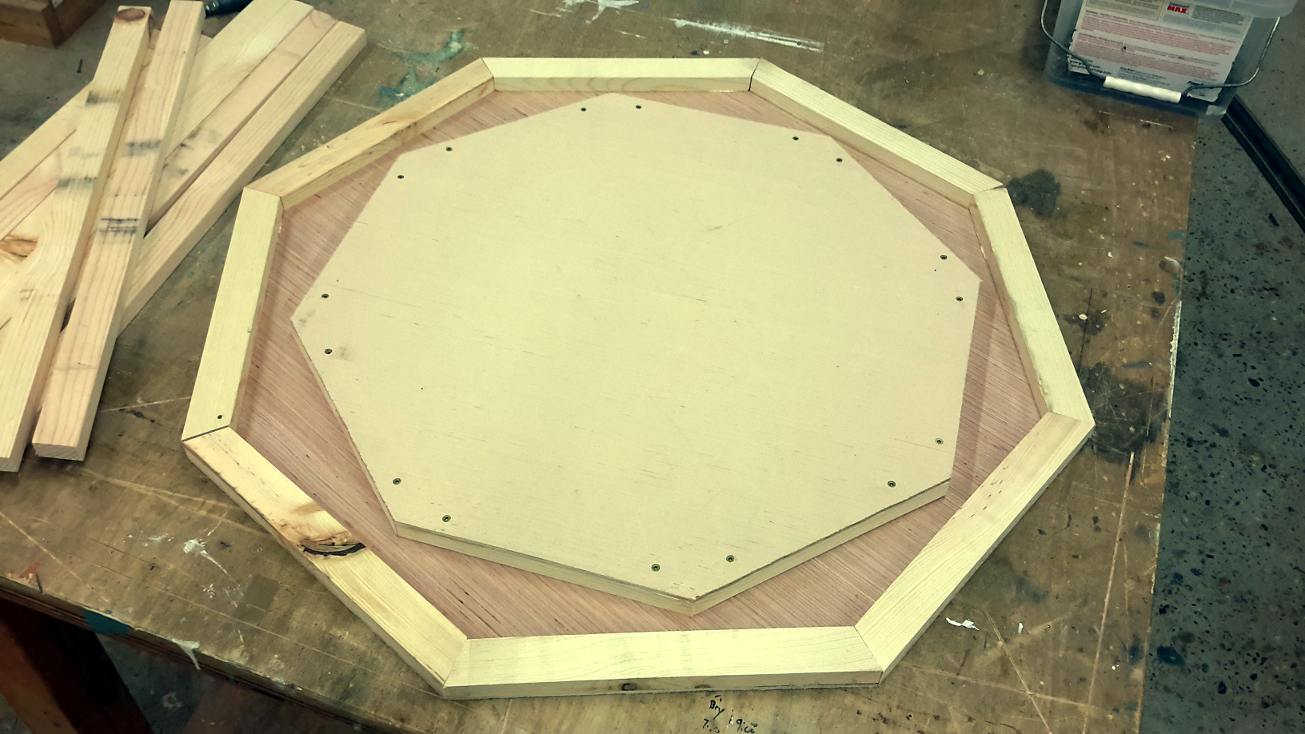

This base in 26" tall, 31" wide at the bottom and 24" wide at the top. It seems to be stable enough to hold the weight of the middle and top pieces. the sides will later be covered with cardboard. Further details are on my blog.


Markus

Well-Known Member
The next step is building the main structure for the center piece. This will be holding the computer monitor, the switches, LED lights, and a joystick.
20190915_235443.jpg 20190915_235427.jpg
It is 25" tall, 21" wide and 12" deep. The sides will be made of plywood pieces and glued/screwed to this frame. Openings in the front side are made using a laser cutter.
Further details are posted on my blog.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Markus

Well-Known Member
Working from the bottom to the top, yesterday, I approached the structure for the laser gun. The laser gun is a cylindrical piece, with a cone at the front, and a stick pointing outwards. The cylindrical structure is made of six wheels (using a laser cutter), with inner holes to hold the stick. Two wheels have additional areas for mounting the gun on the center piece.
The wheels are connected by eight bars (with notches from a table saw).
Everything is glued together...
20190918_233408.jpg 20190918_233452.jpg
.. and the result looks good! Later, the stick will be glued into the two front wheels, and the whole structure will be surrounded by cardboard, glued to the wooden bars.


Lightning

Sr Member
RPF PREMIUM MEMBER
When we did the The Pink Panther Strikes Again at my high school I build the Doomsday Machine for them. Didn't try for accuracy though, just used what I had that looked good. I wonder if that thing is still in my grandparents attic.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Markus

Well-Known Member

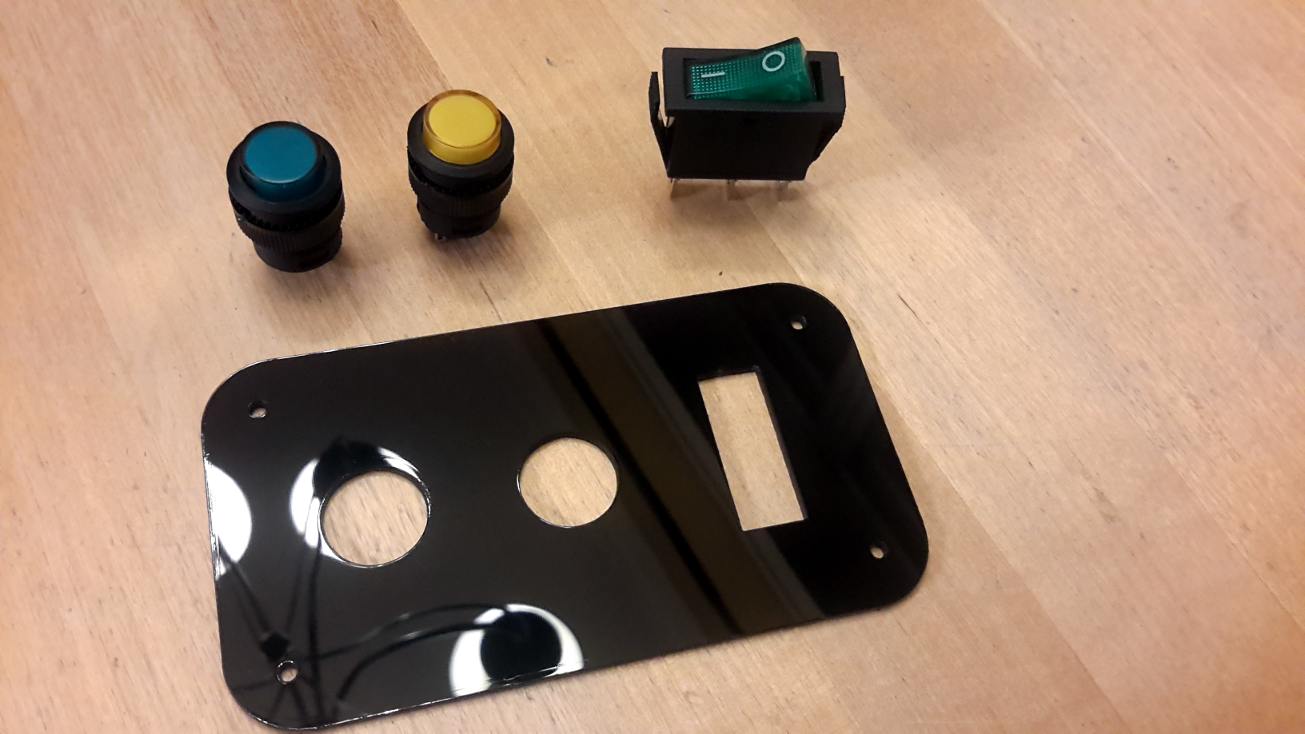

Yesterday, I made some progress on the front of the center piece. I glued and nailed four bars to the back side to hold the computer screen and painted the front side in a light grey. I cut a clear acrylic plate for the power switch and two momentary push button switches, and painted the back side black (it is a very nice effect to see the black back side through the clear acrylic). Then I mounted the switch plate and an arcade joystick to the front plate. The monitor will be mounted later - right now, I just wanted to see how it looks like.
