The Phantom Menace Lightsaber Drawings/Dimensions.

Thread starter RareAnomaly
Start date Jan 10, 2023
Tags

lightsaber dimensions lightsaber hilt obi-wan kenobi prop drawing qui-gon jinn star wars props star wars the phantom menace

RareAnomaly

New Member

Jan 10, 2023

2-D Engineering Drawings of Darth Maul's, Obi-Wan's, and Qui-Gon's Lightsaber Hilts from the Phantom Menace.

NOTE: Drawings were completed after finding incomplete drawings of these hilts online and using some educated guess work (Mechanical Engineering Degree) to fill in the gaps.

Darth Maul Lightsaber Hilt Dimensions.png

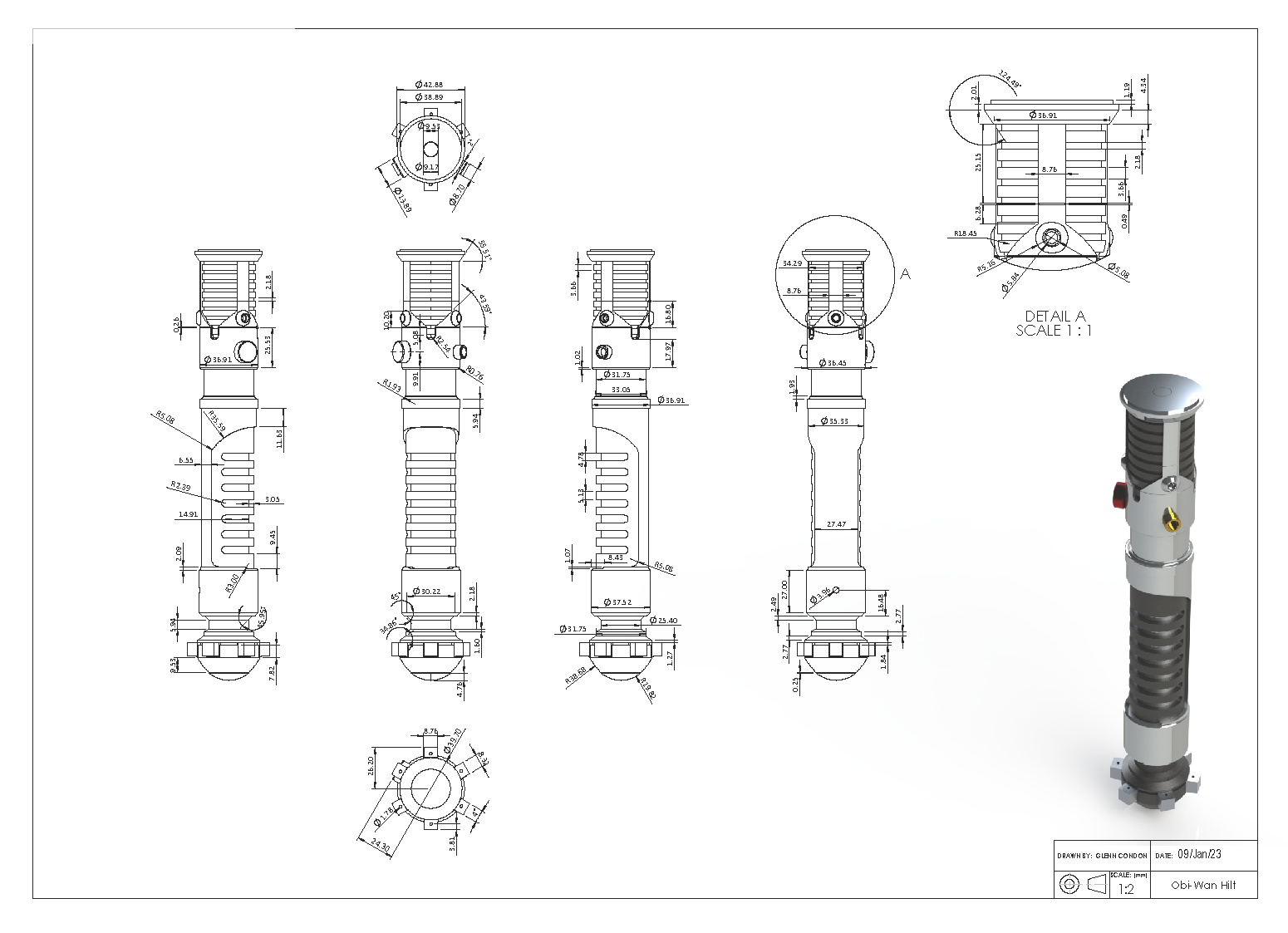

Obi-Wan Kenobi Lightsaber Hilt Dimensions.png

Qui-Gon Jinn Lightsaber Hilt Dimensions.png
