Hey everybody!

Last March I sat down and started my build of my favorite helmet from the trilogy. I knew it was going to be a long, complicated build so I used it as a background project that would be worked on when I was waiting for glue or paint to dry.

Here's the short story:

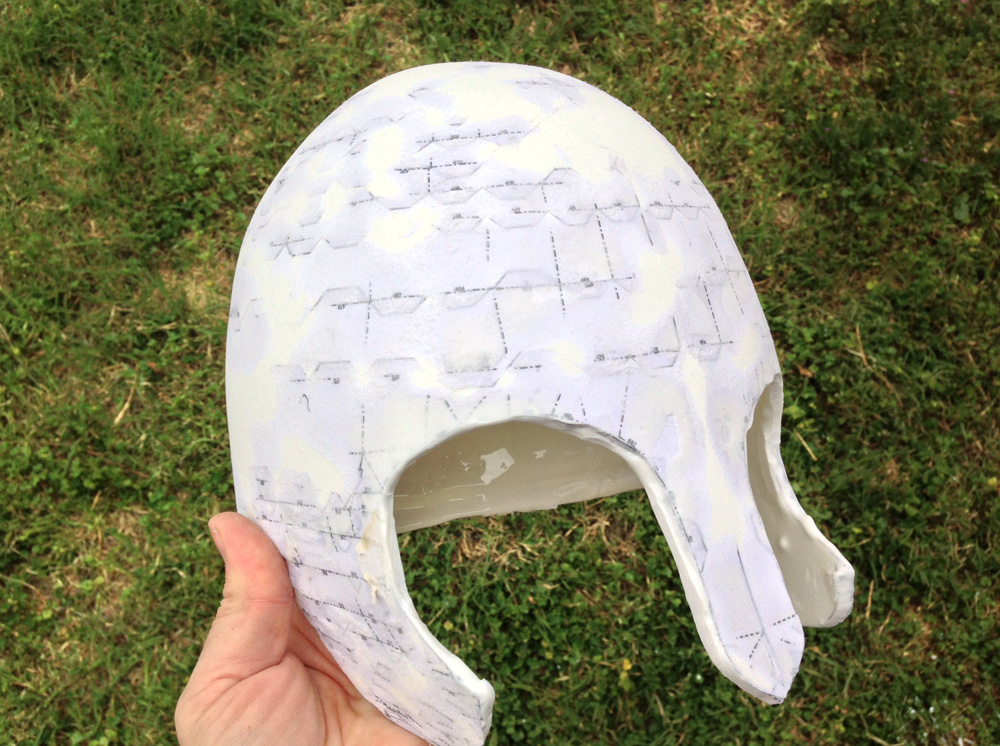

I started with a Pepakura base helmet, slushing the master with Smooth-Cast 300.

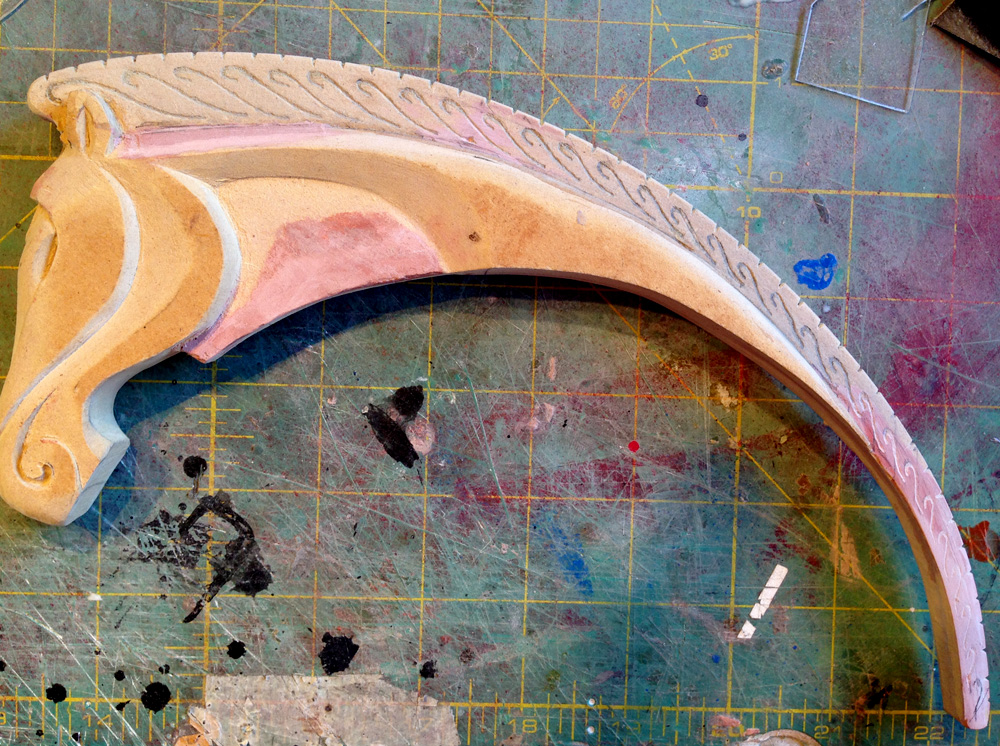

The crest was hand carved from a piece of 3/4" MDF.

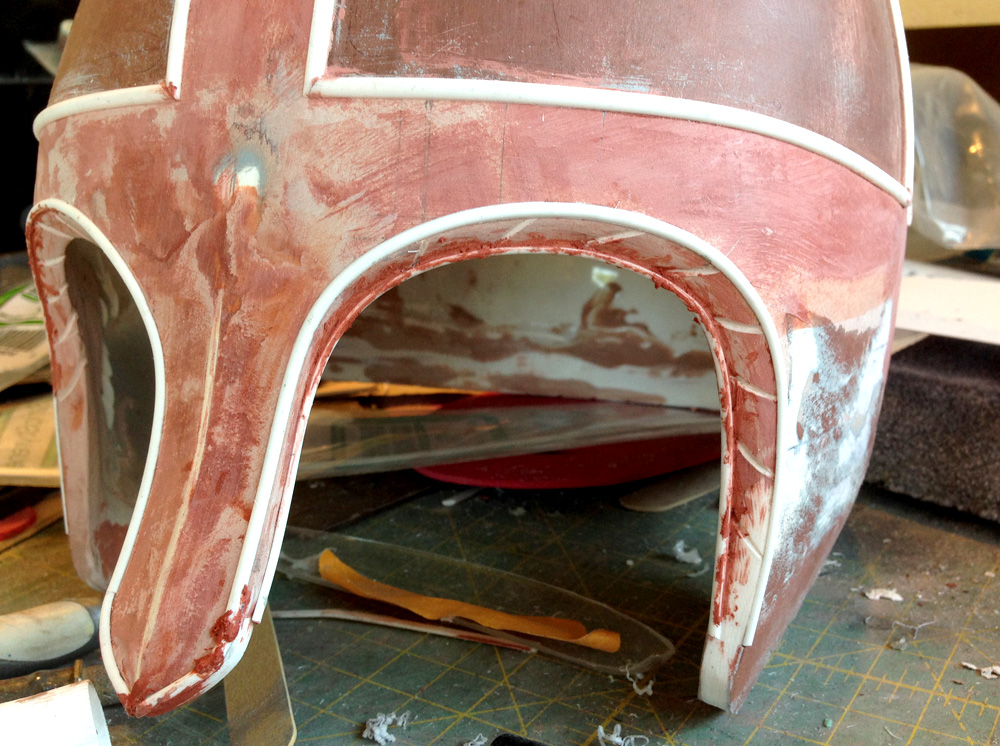

Raised bands where made with Bondo and the edging was styrene half-round.

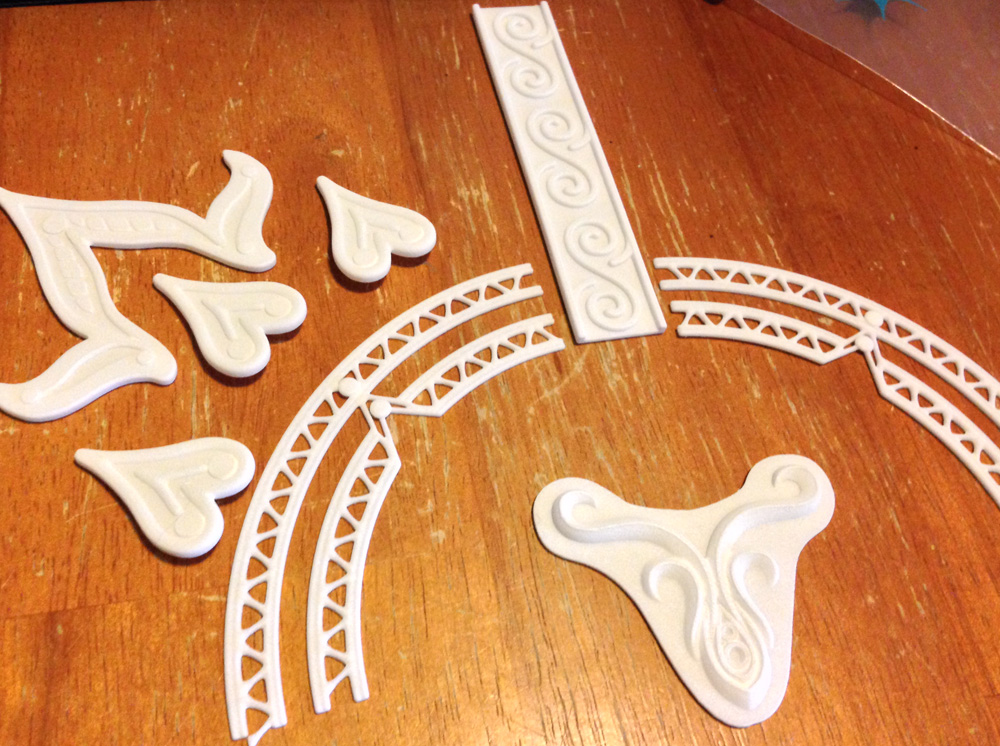

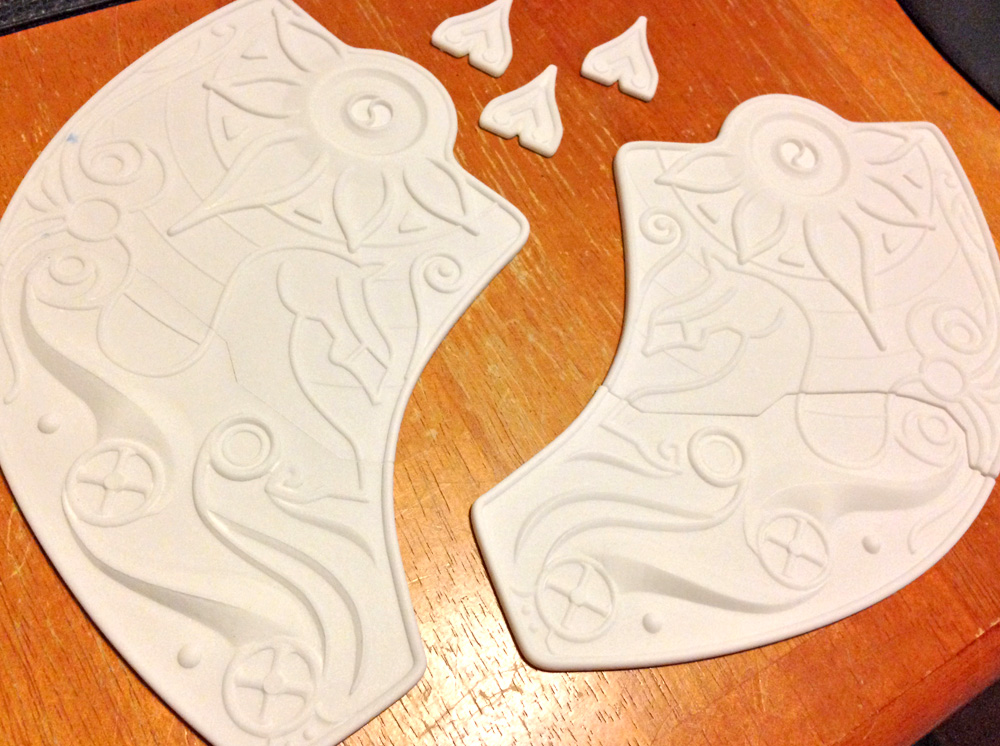

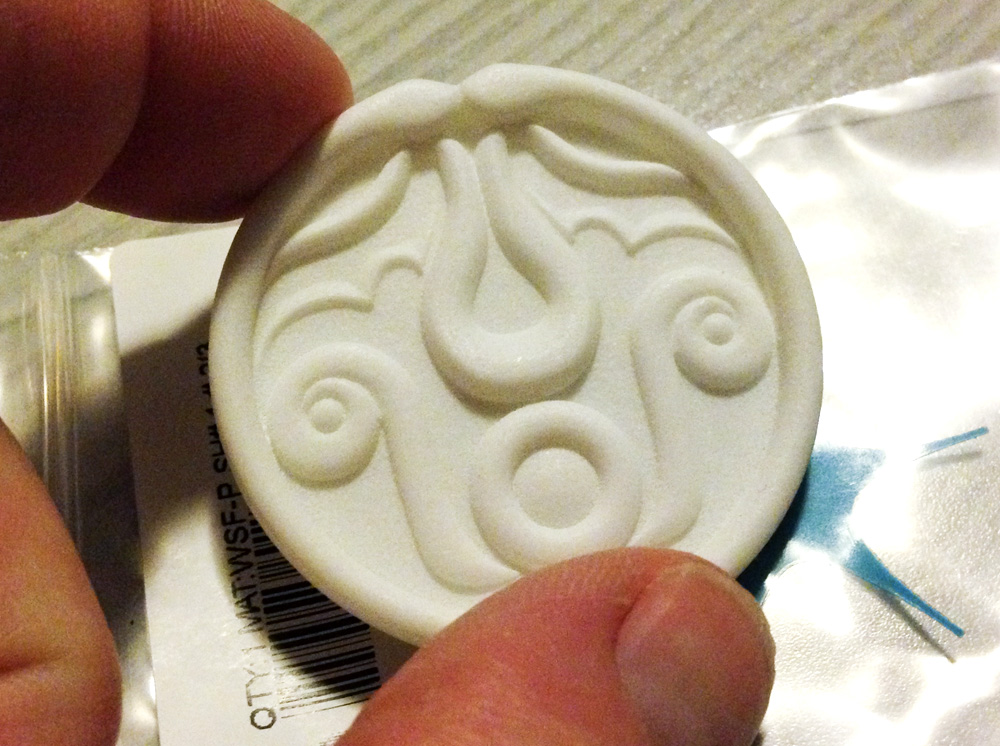

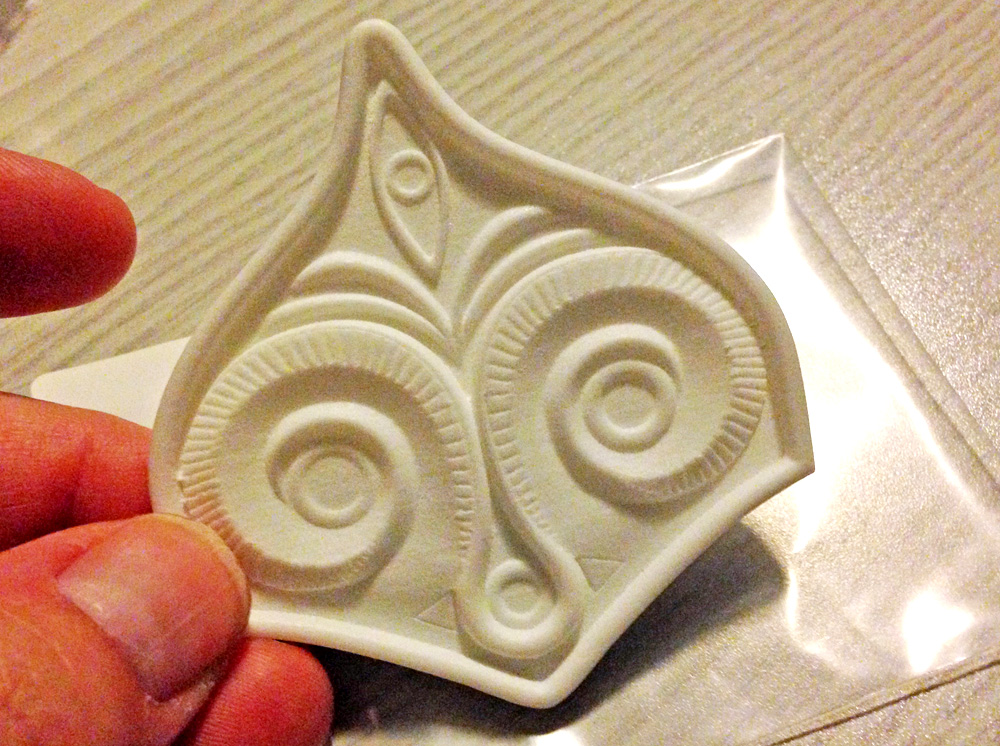

The cheek guards and all the plates attached to this thing were 3D printed via Shapeways.
Theoden_Helmet_058.jpg Theoden_Helmet_068.jpg Theoden_Helmet_077.jpg Theoden_Helmet_057.jpg

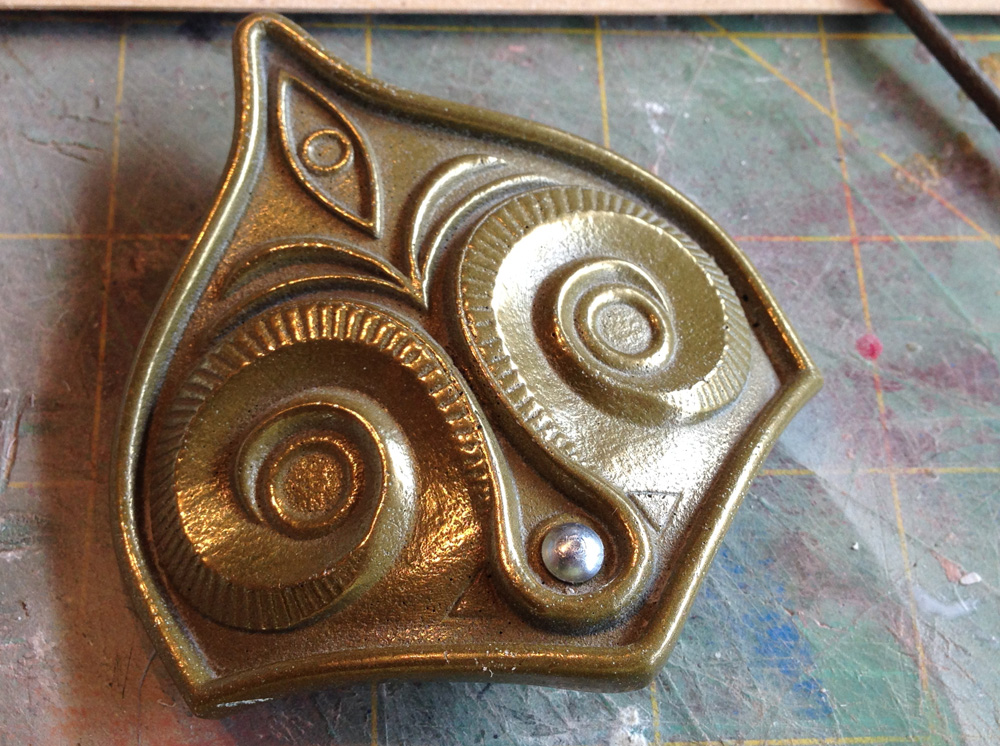

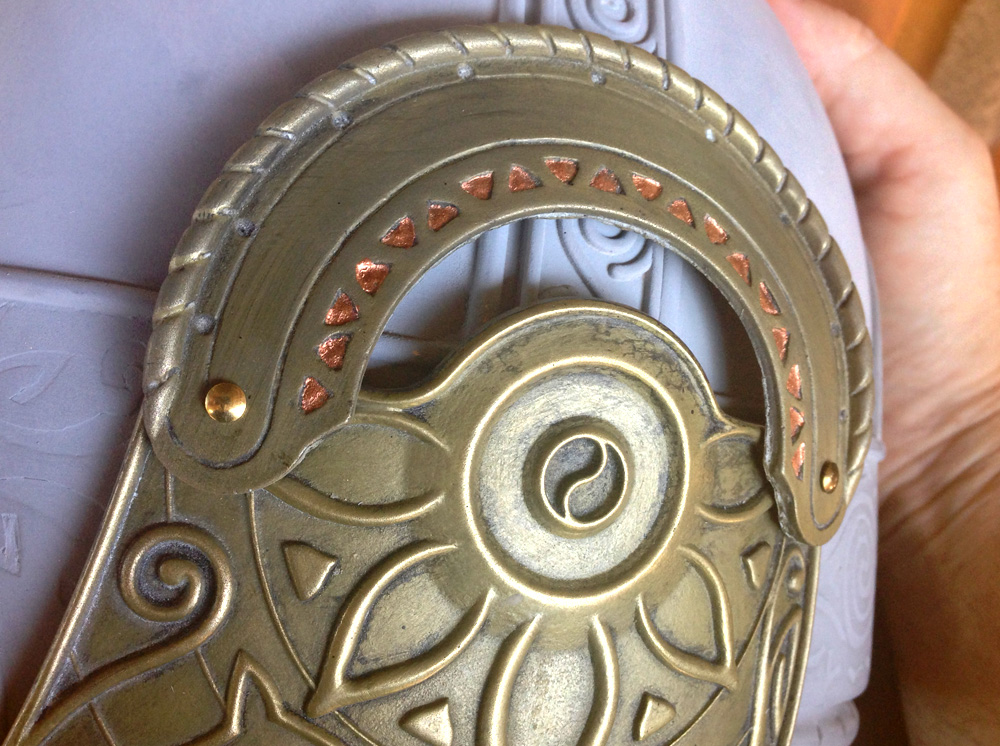

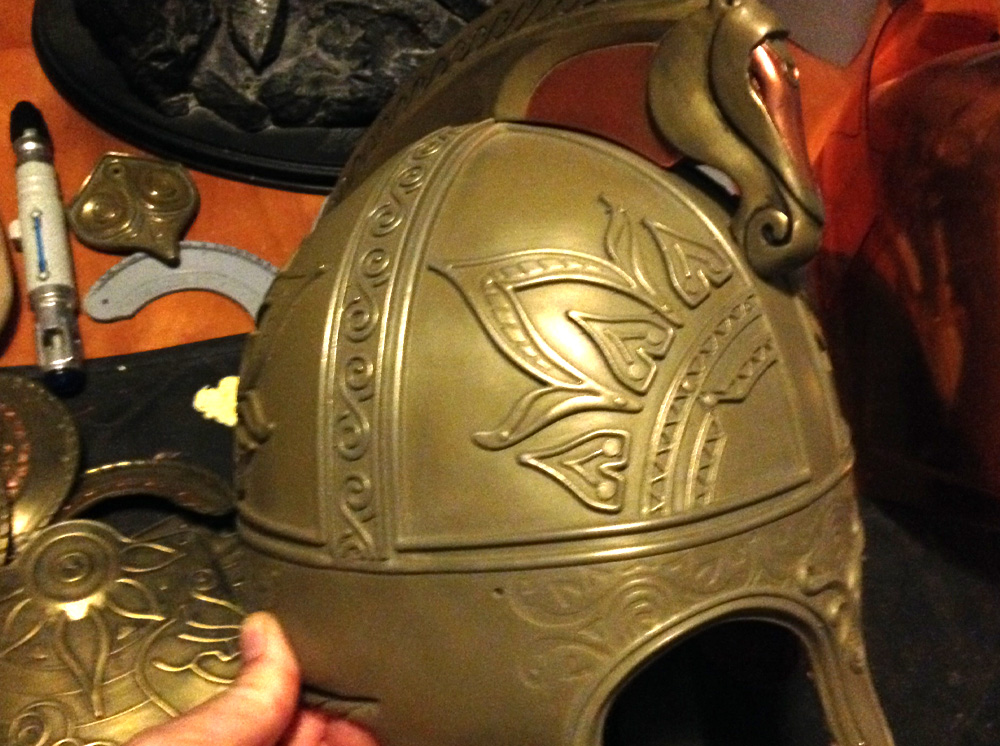

A bunch of molds later and everything was cold-cast in brass.

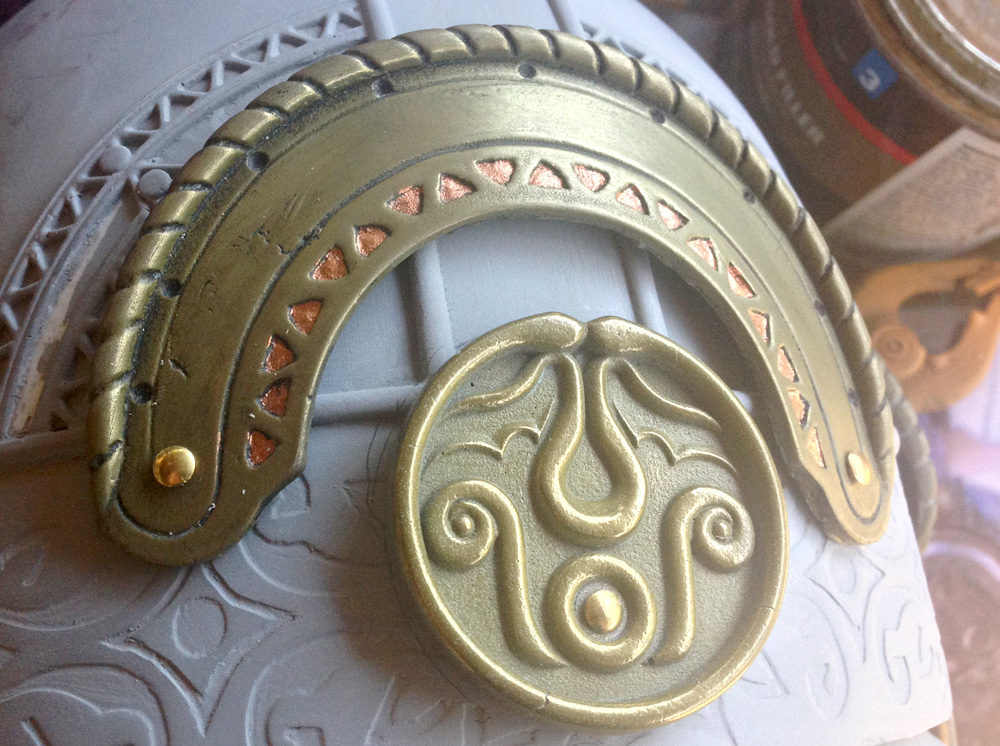

Theoden_Helmet_123.jpg Theoden_Helmet_090.jpg Theoden_Helmet_092.jpg Theoden_Helmet_096.jpg

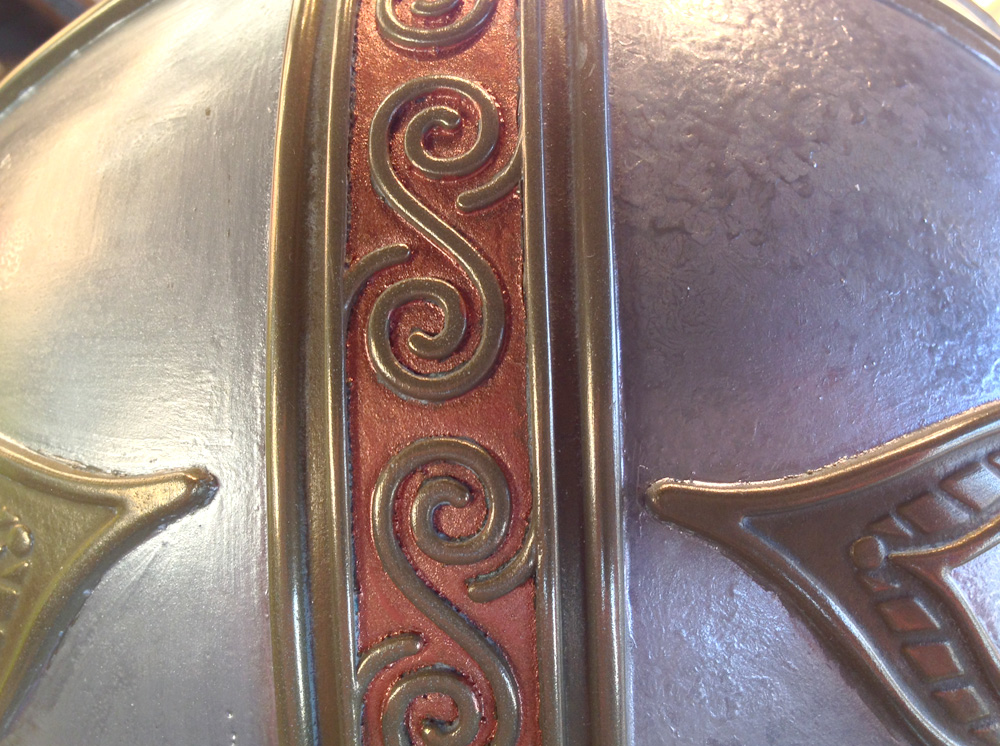

Inset areas were painted with plain ol' Testors model paint.

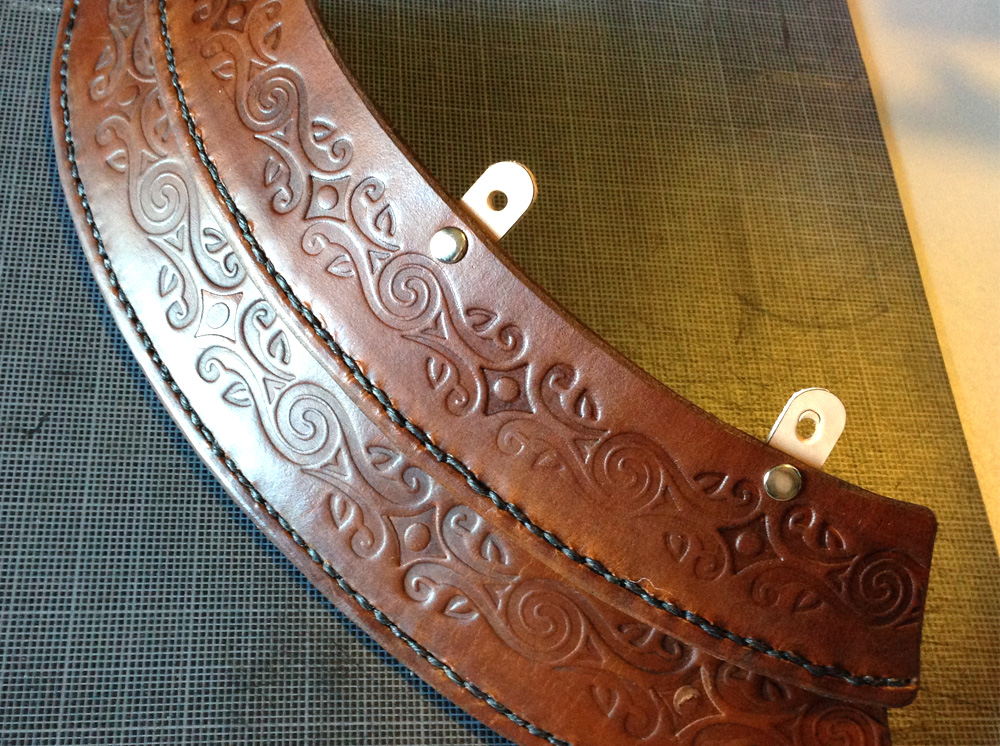

I got my friend Fevereon to produce the leather armor for the back.

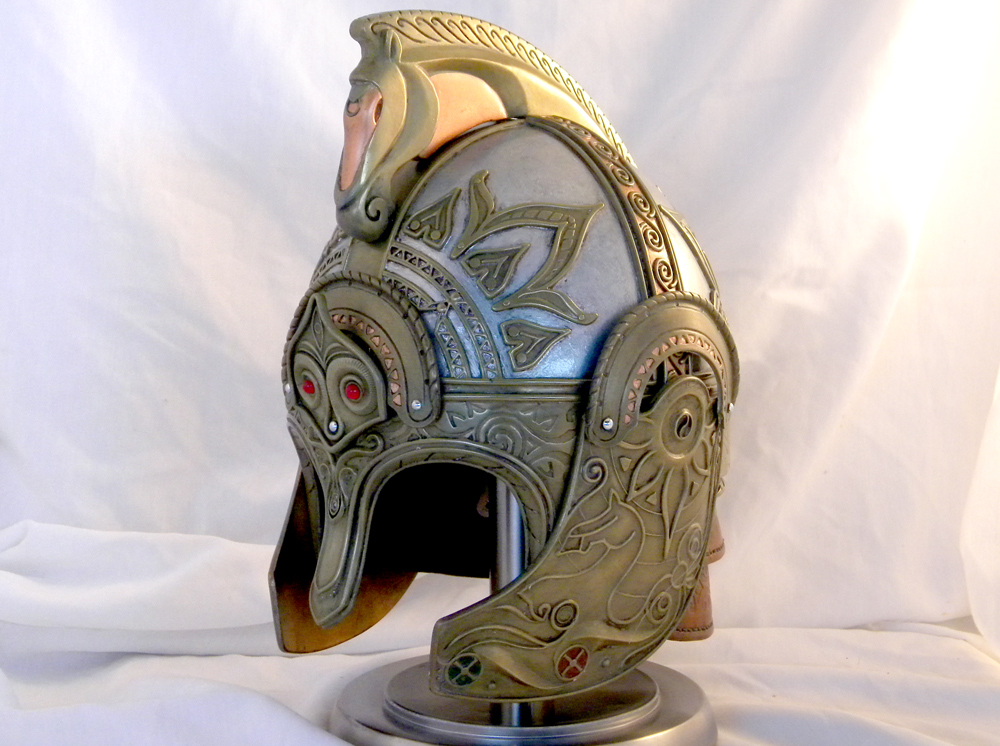

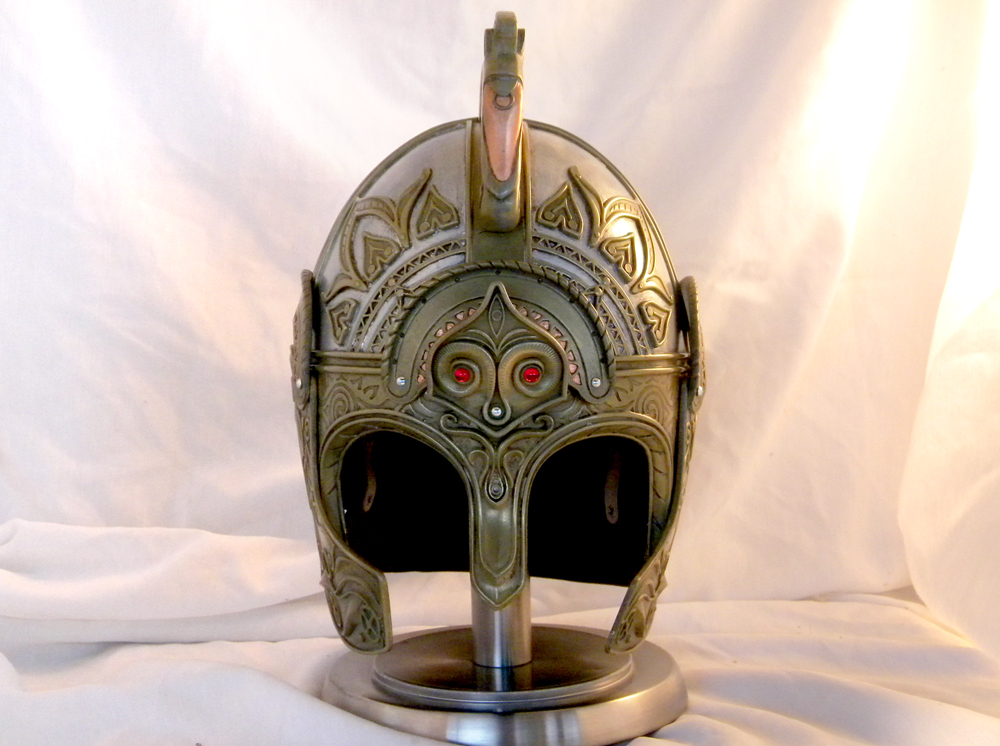

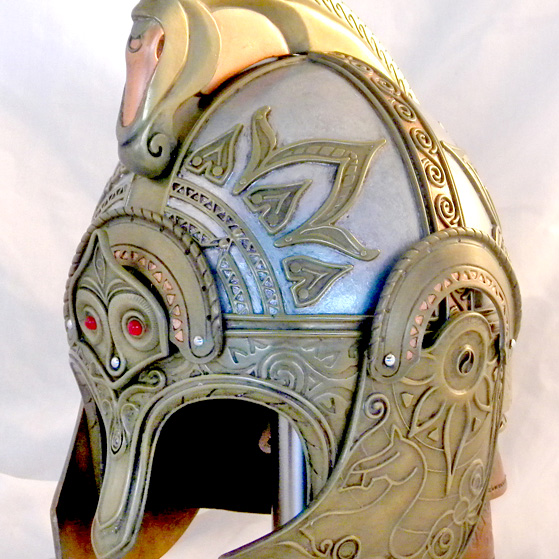

Finally finished!

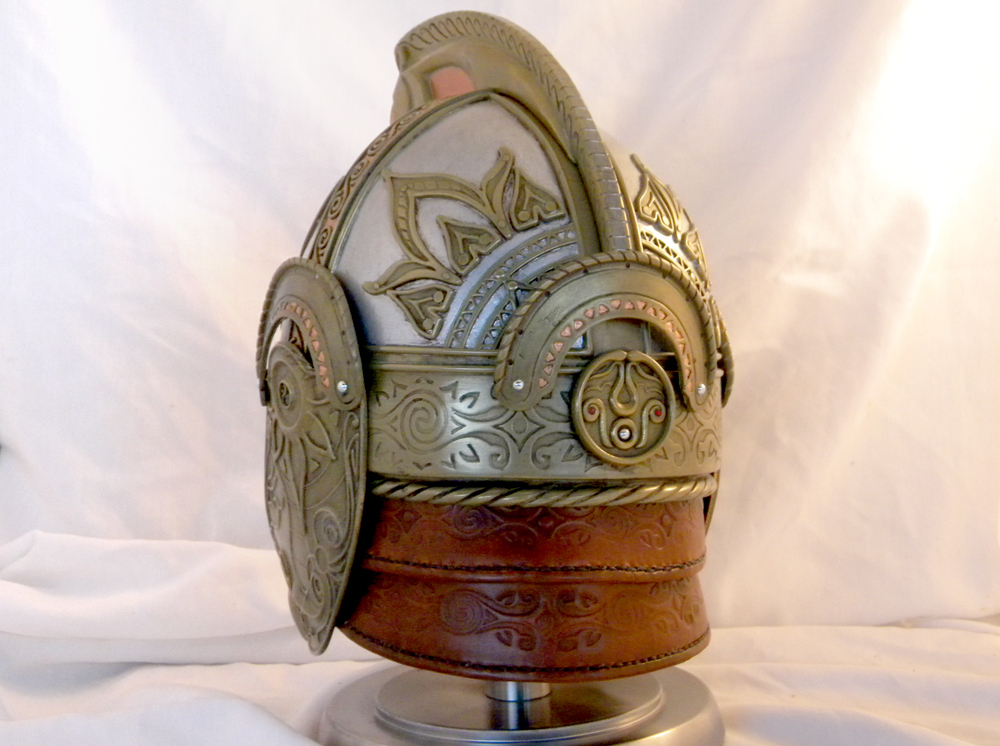

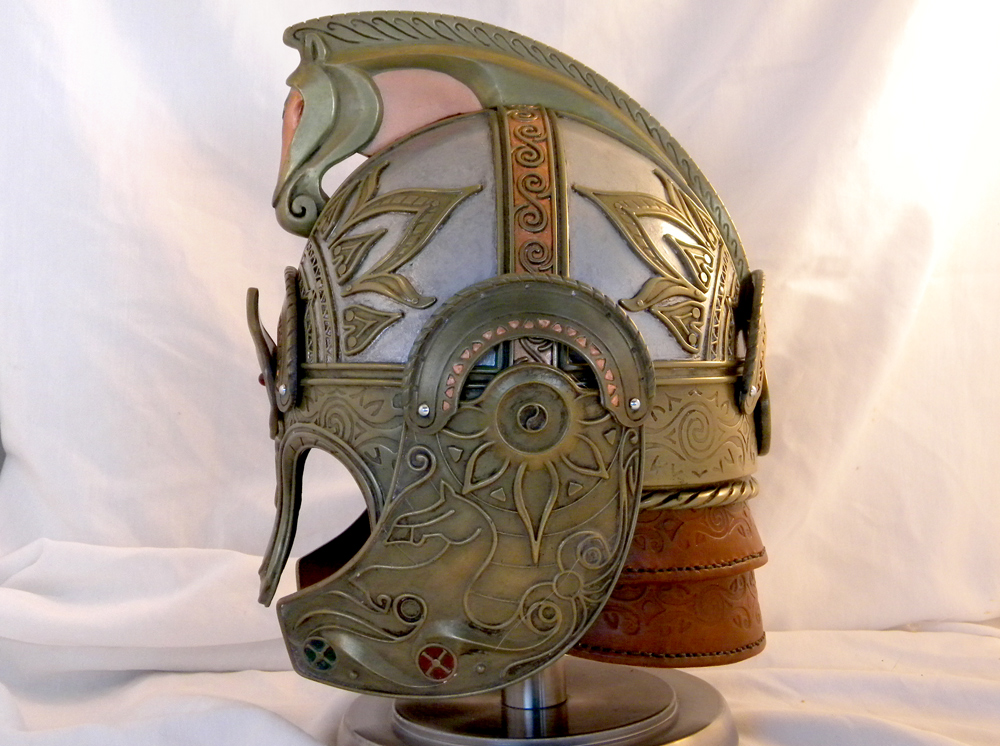

Theoden_Helmet_130.jpg Theoden_Helmet_131.jpg Theoden_Helmet_132.jpg Theoden_Helmet_138.jpg

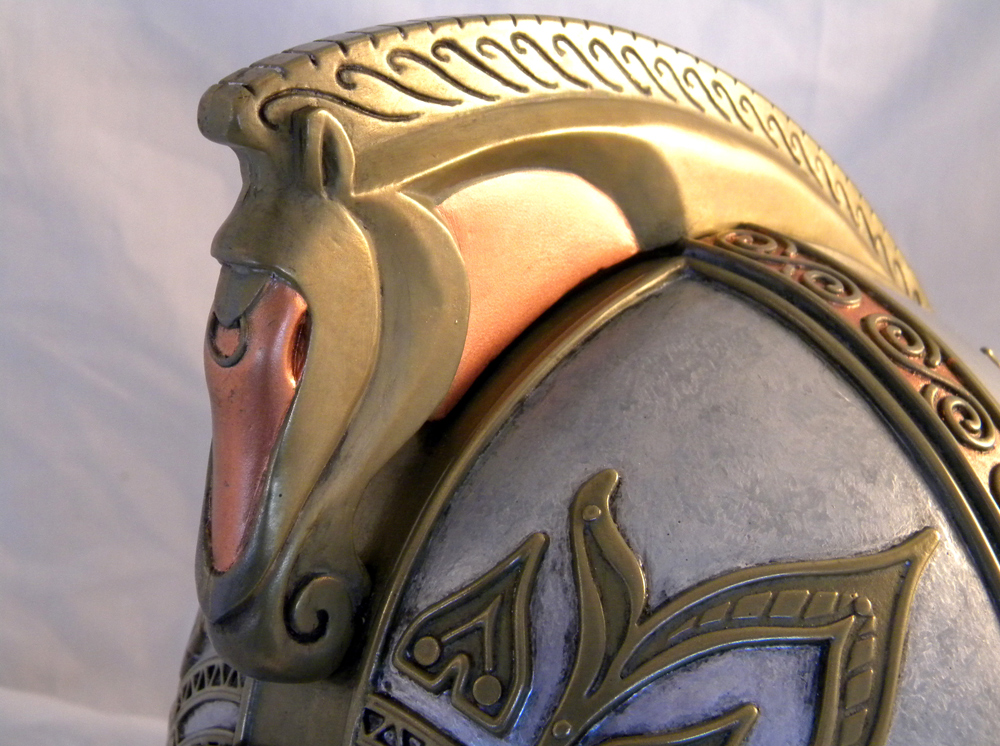

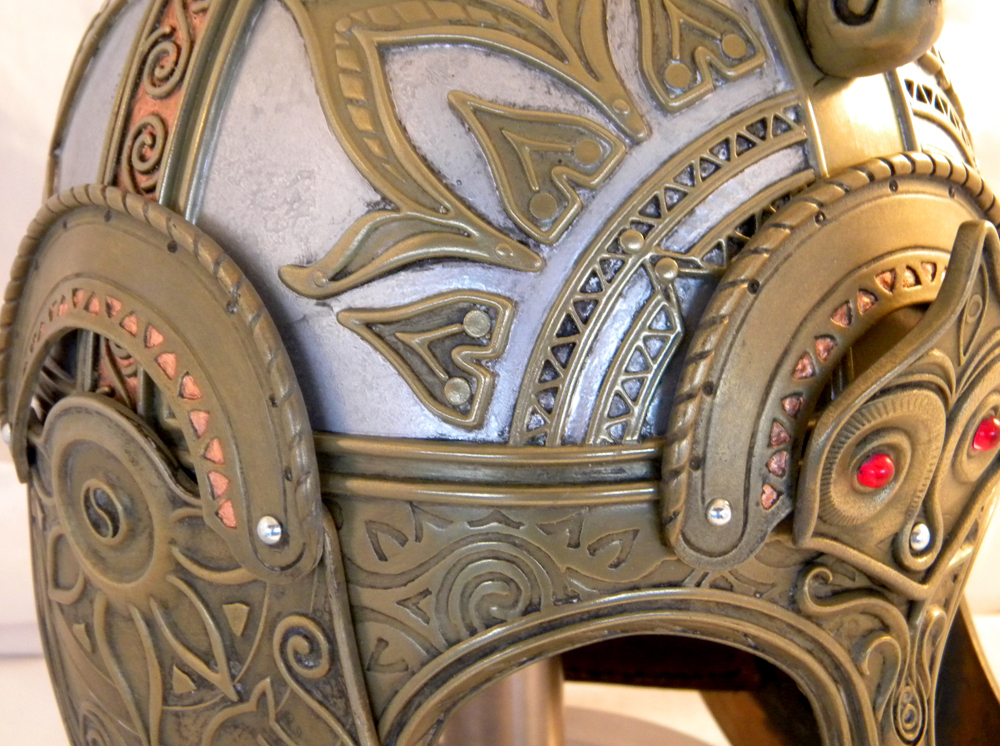

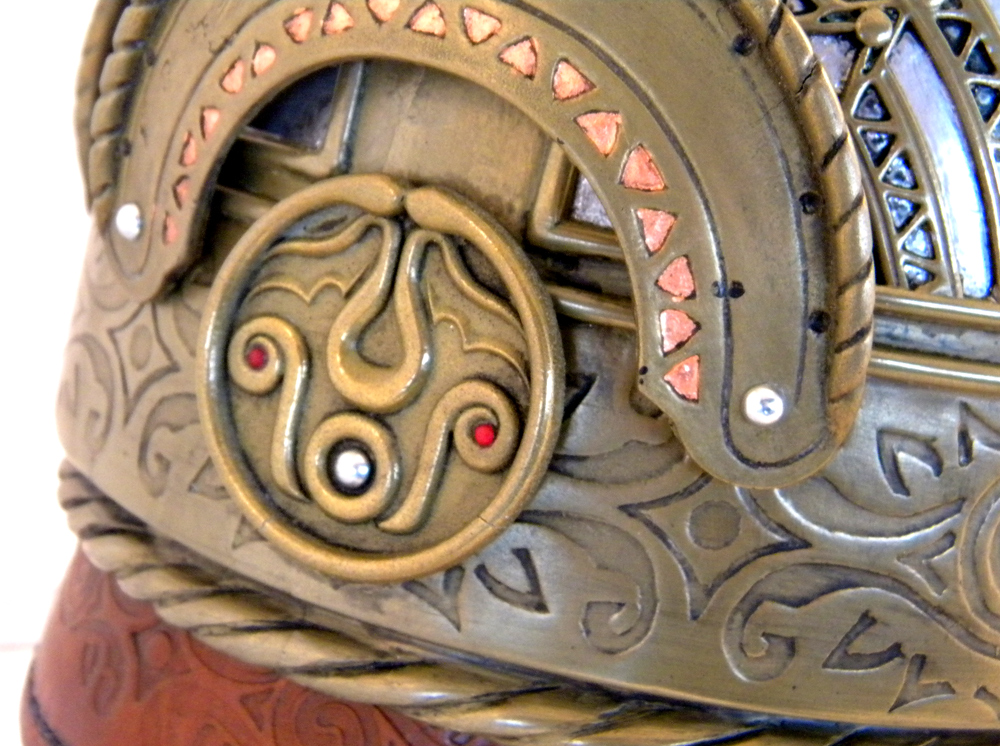

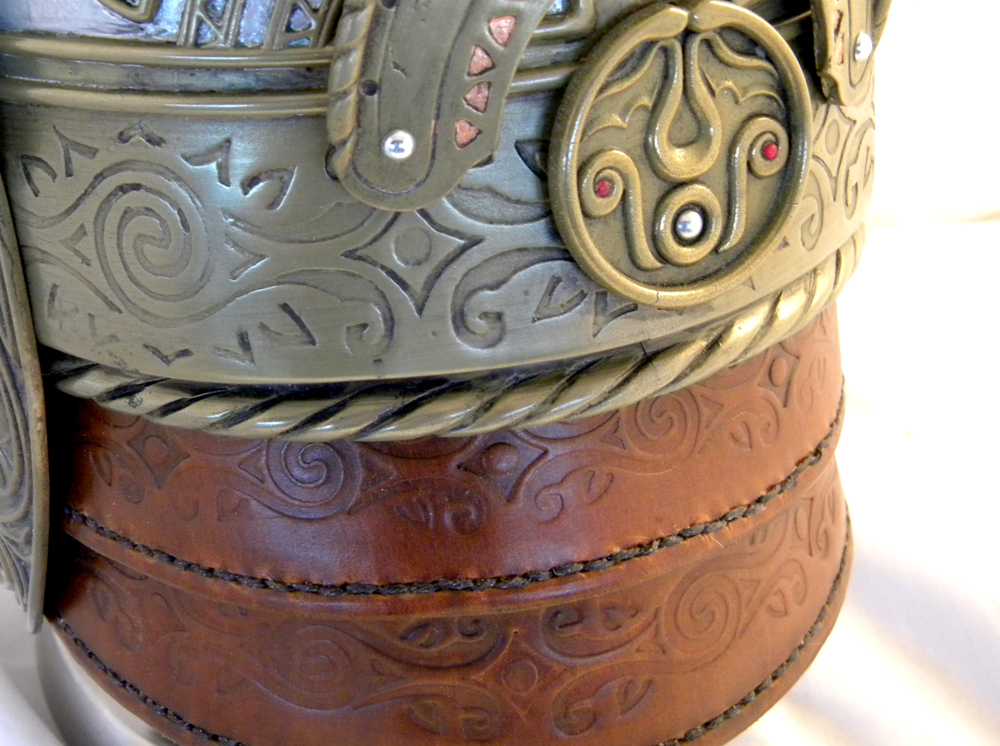

Some details

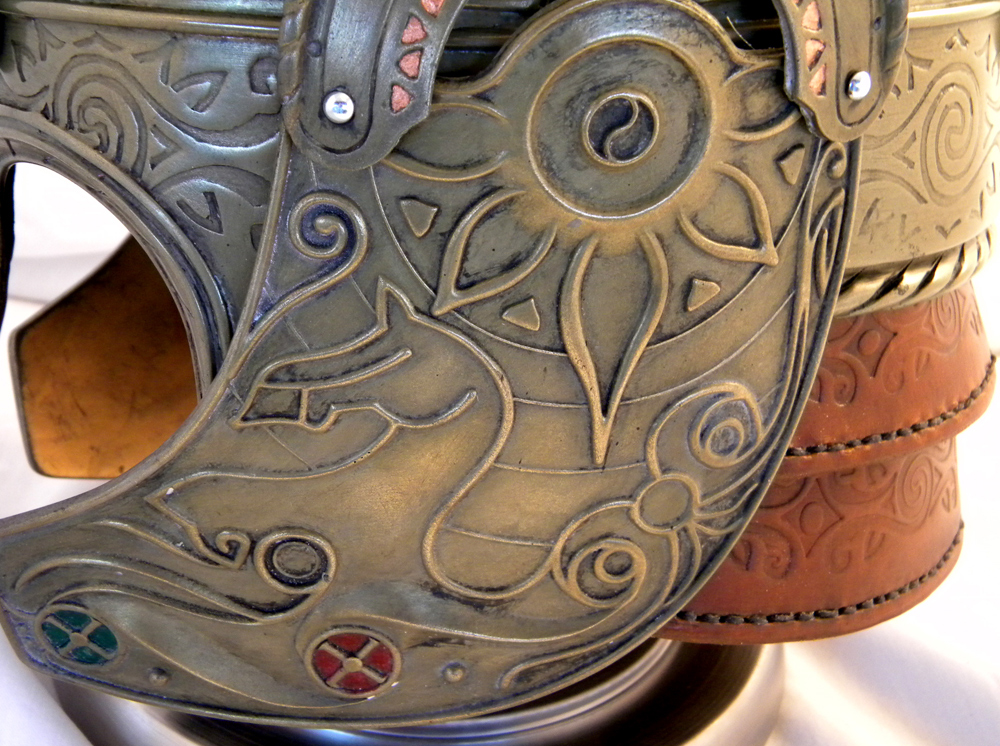

Theoden_Helmet_137.jpg Theoden_Helmet_136.jpg Theoden_Helmet_135.jpg Theoden_Helmet_134.jpg Theoden_Helmet_133.jpg

I cast my copy pretty thick so it BARELY fits on my head. Since it's going to be sitting on a helmet stand, I'm not going to worry about it.

You can see a ton more detail of the build on my blog HERE.

Thanks for looking!


Attachments

  • Theoden_Helmet_box.jpg
    179.6 KB · Views: 90
Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Stivie

Well-Known Member
Followed this on your blog and you did a truly wonderful job capturing all the details! Look forward to more LOTR builds from you in the future!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

nick daring

Master Member
RPF PREMIUM MEMBER
It's been so much fun following your blog during the helmet's development. Thanks for going to the trouble to log your process. Always informative!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

DeLorean12

Active Member
The costumes of LOTR are absolutely beautiful and you did a magnificent job on this helmet. Looks like it belongs in front of a camera.
