Hey all! Long-time listener, first-time caller. For years I've hosted build threads at GhostbustersFans.com but now that I'm branching out, I miss making build threads, so here it goes!

For those not in the know, the Tingle Tuner is an item from "The Legend of Zelda: The Wind Waker" which utilizes a real-life Game Boy Advance to connect to the Gamecube. The in-game item looks like a normal GBA which has been modified to match the aesthetic of the in-game world. It's a niche item, but a prop I've wanted for many years.

Since the in-game model is pretty low-poly, here is the official art we'll be using as a reference for almost everything:

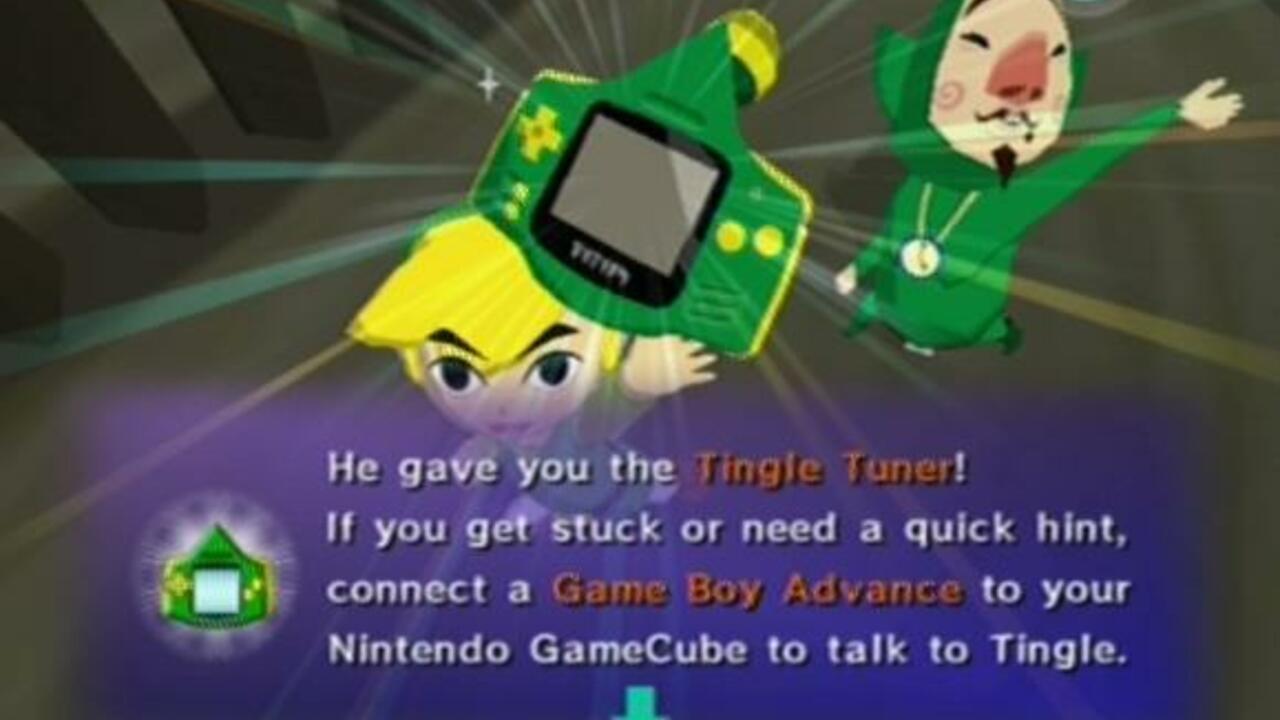

And a picture taken in-game for clarity:


I started out purchasing an aftermarket GBA shell without the "Nintendo" logo on the top, a screen lens without the "Game Boy Advance" logo, and some yellow buttons. It's probably good to note that I bought a Glowforge a couple months back, and when all you have is a hammer...

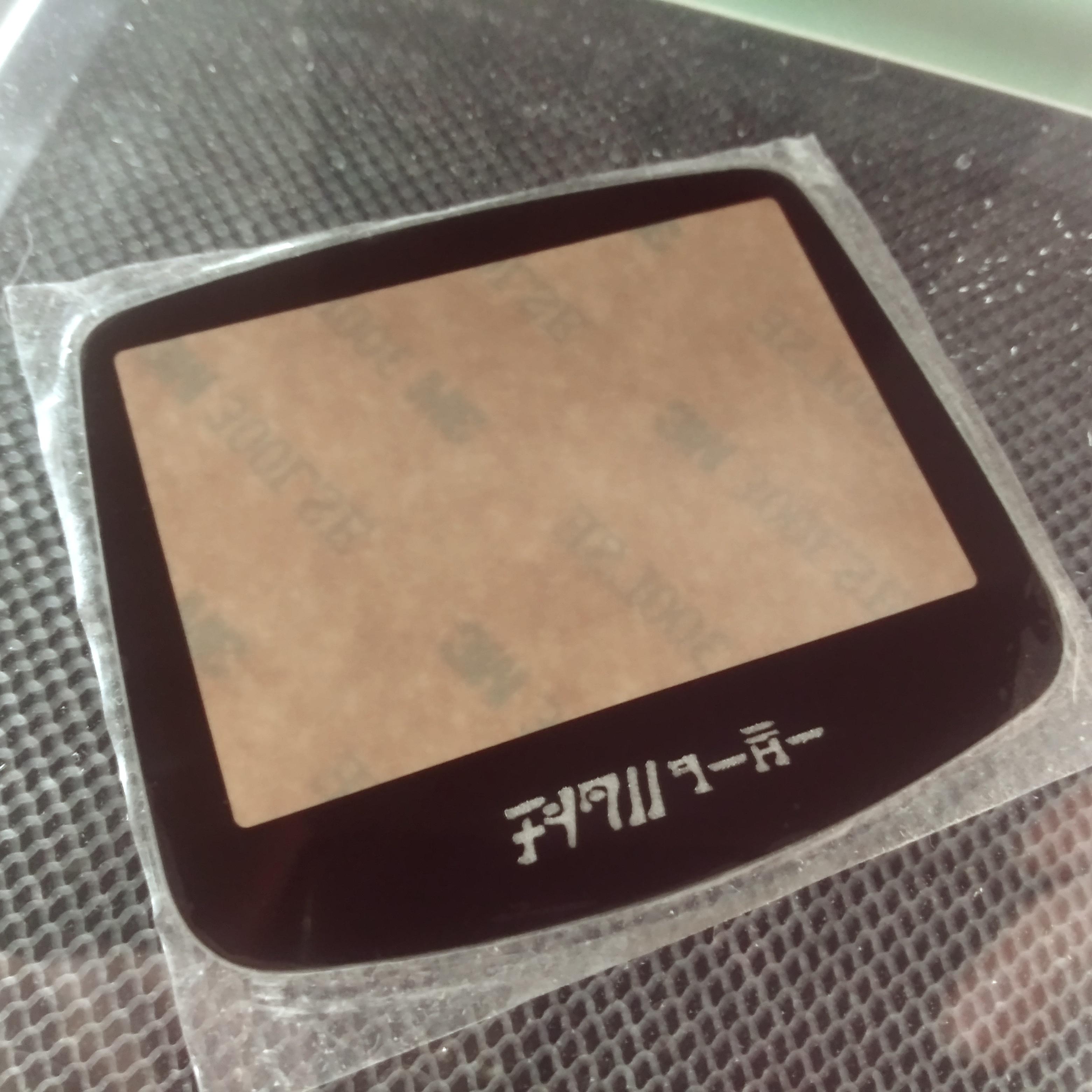

The screen lens was easy enough. I traced the translated logo in Illustrator, etched it into the back with my Glowforge, making sure it was mirrored, and when finished, it looked spot-on!

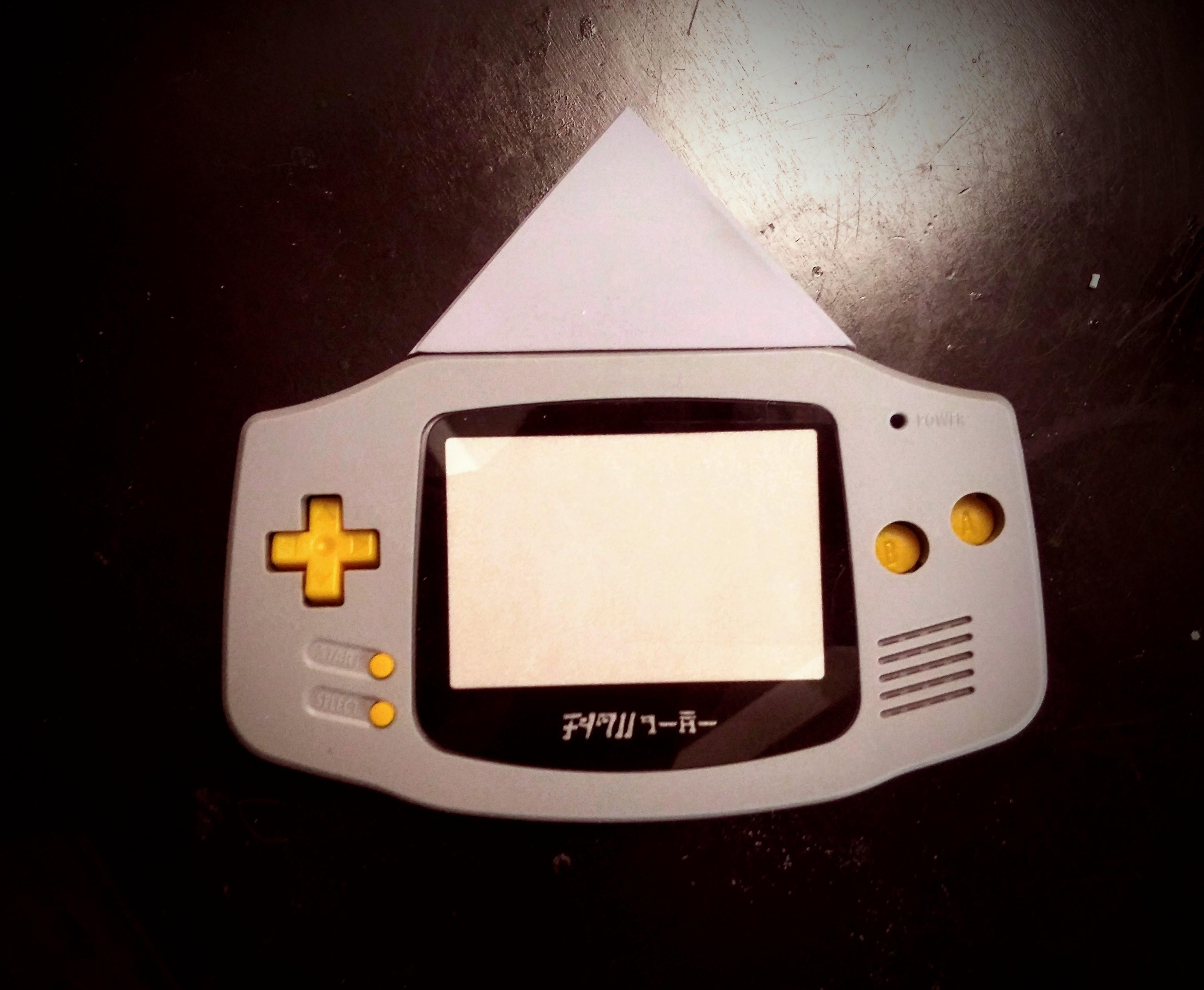

Next, I laser cut some stacked acrylic in the shape of the triangle to attach to the front shell, then filled, sanded, etc. You know the drill.




Next it was on to the Hylian "Nintendo" logo (really it's Tintendo, but I know nobody wants to hear all that).
I thought it would be a good idea to laser etch the logo in acrylic, cut out the oblong shape, and file a hole for it in the shell.



Unfortunately, that left a gnarly gap between the laser cut edge and my filed hole. I don't have a closer-up picture of that, as I was too ashamed to document it better.

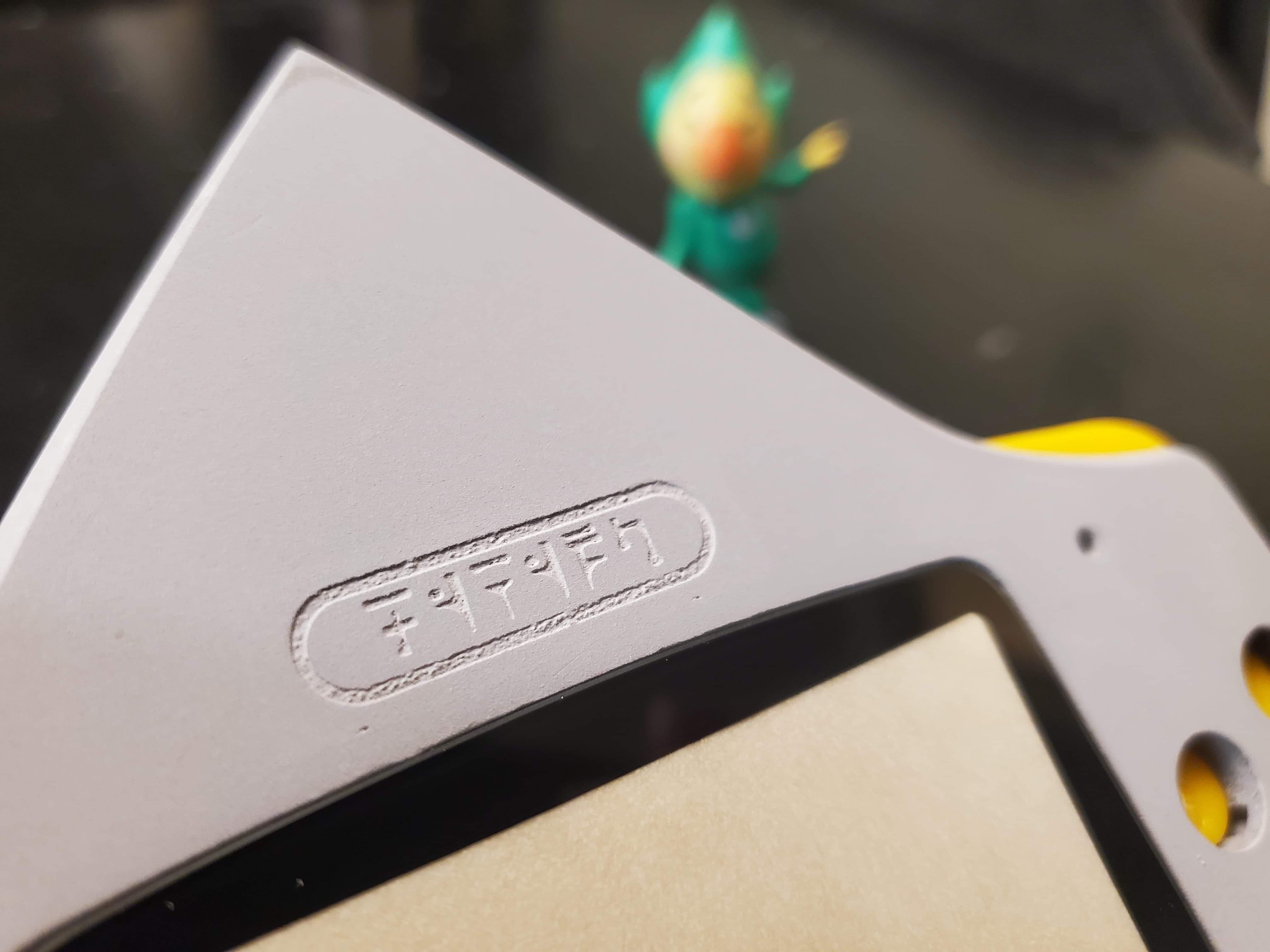

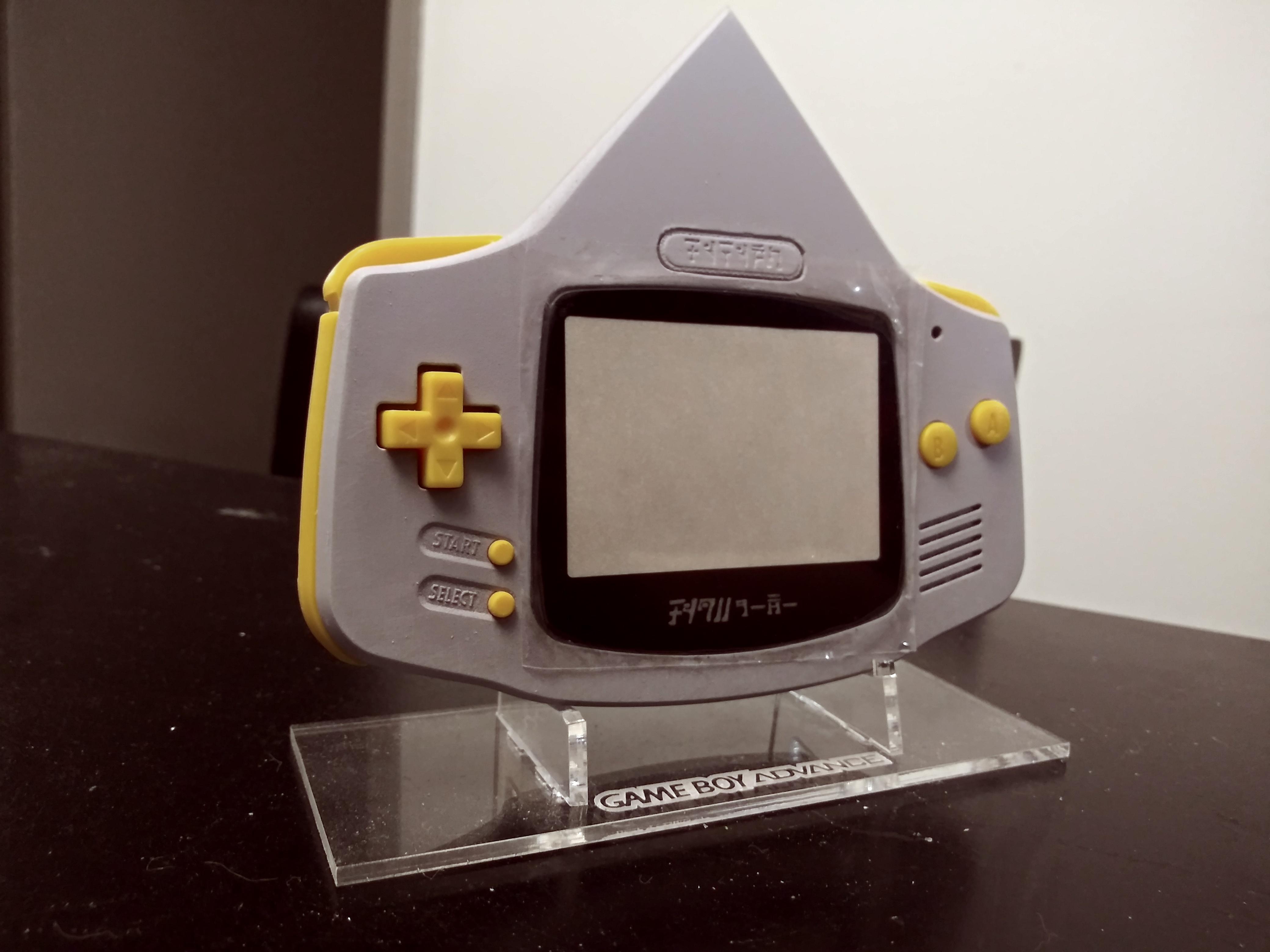

Instead, I ended up cutting a bigger square hole, and re-etching the logo in a new piece of acrylic that roughly matched that new hole. Once glued in place, I could fill and sand until it looked great. The problem with the first one was that the edge I needed to fill was integrated into the logo, which made touching it up impossible.

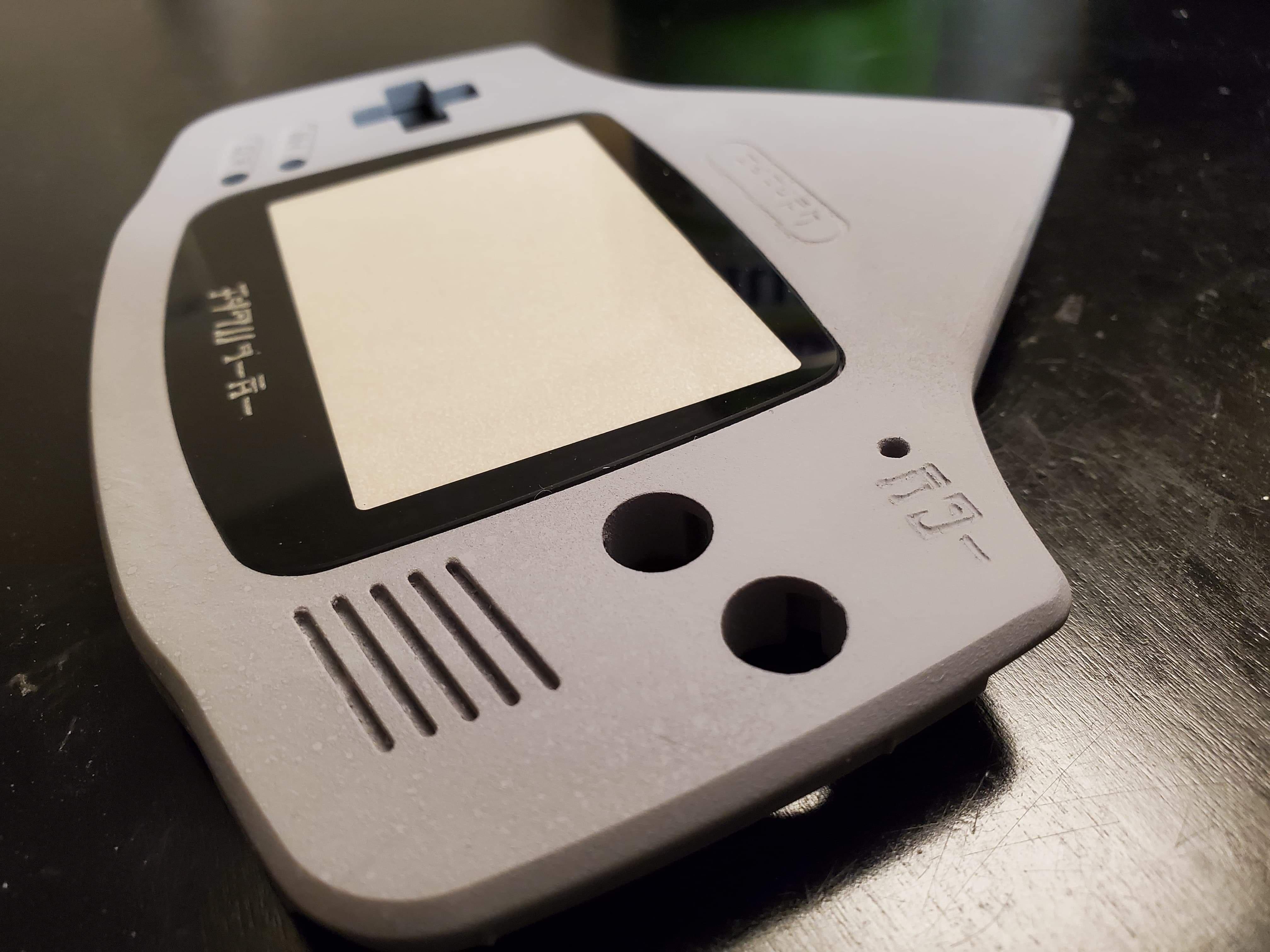

From there, I took a nice relaxing afternoon to etch the rest of the Hylian text into the shell, replacing the "power", "start", and "select".

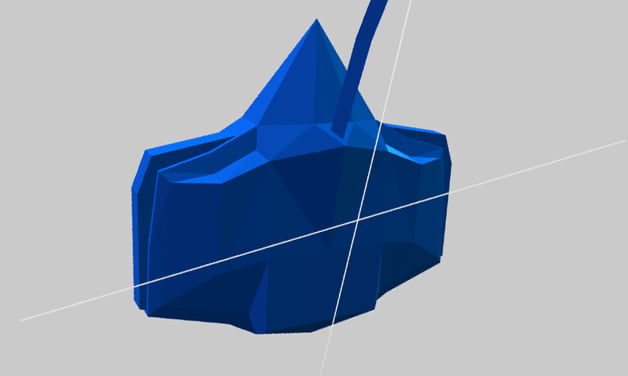

After that, it was time to work on the back of the triangle. The low-poly model in game is pretty ambiguous back there, so I've been toying with sketches of it for months. Here's a picture of the in-game model, courtesy of Thingiverse:

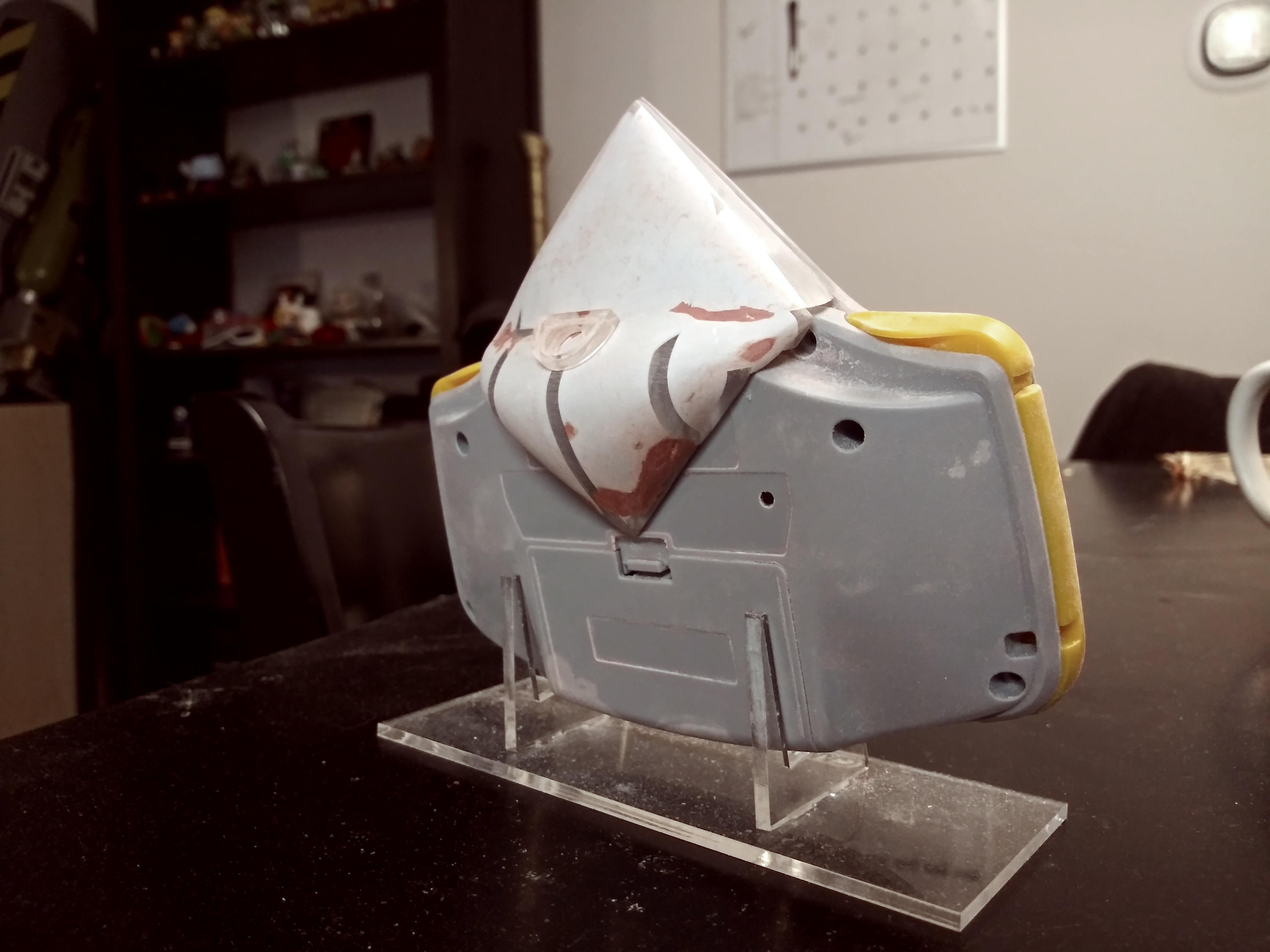

I started with a skeleton made of cut acrylic. This gave me enough form to sculpt the rest with some plumber's epoxy. I embedded a GBA cartridge inside, so it can be attached/detached via the cartridge slot. In this pic, you can see the basic structure of the skeleton:

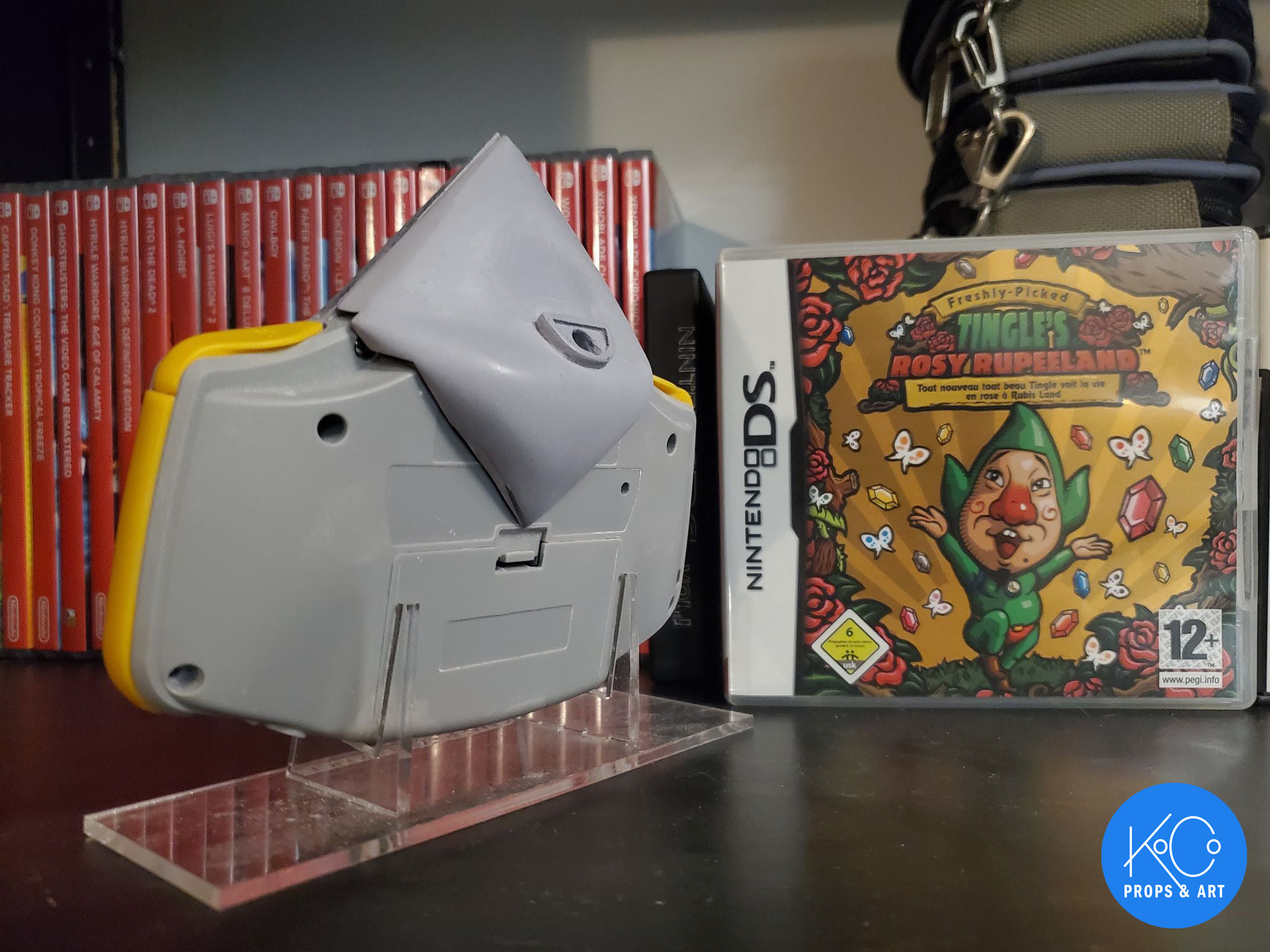

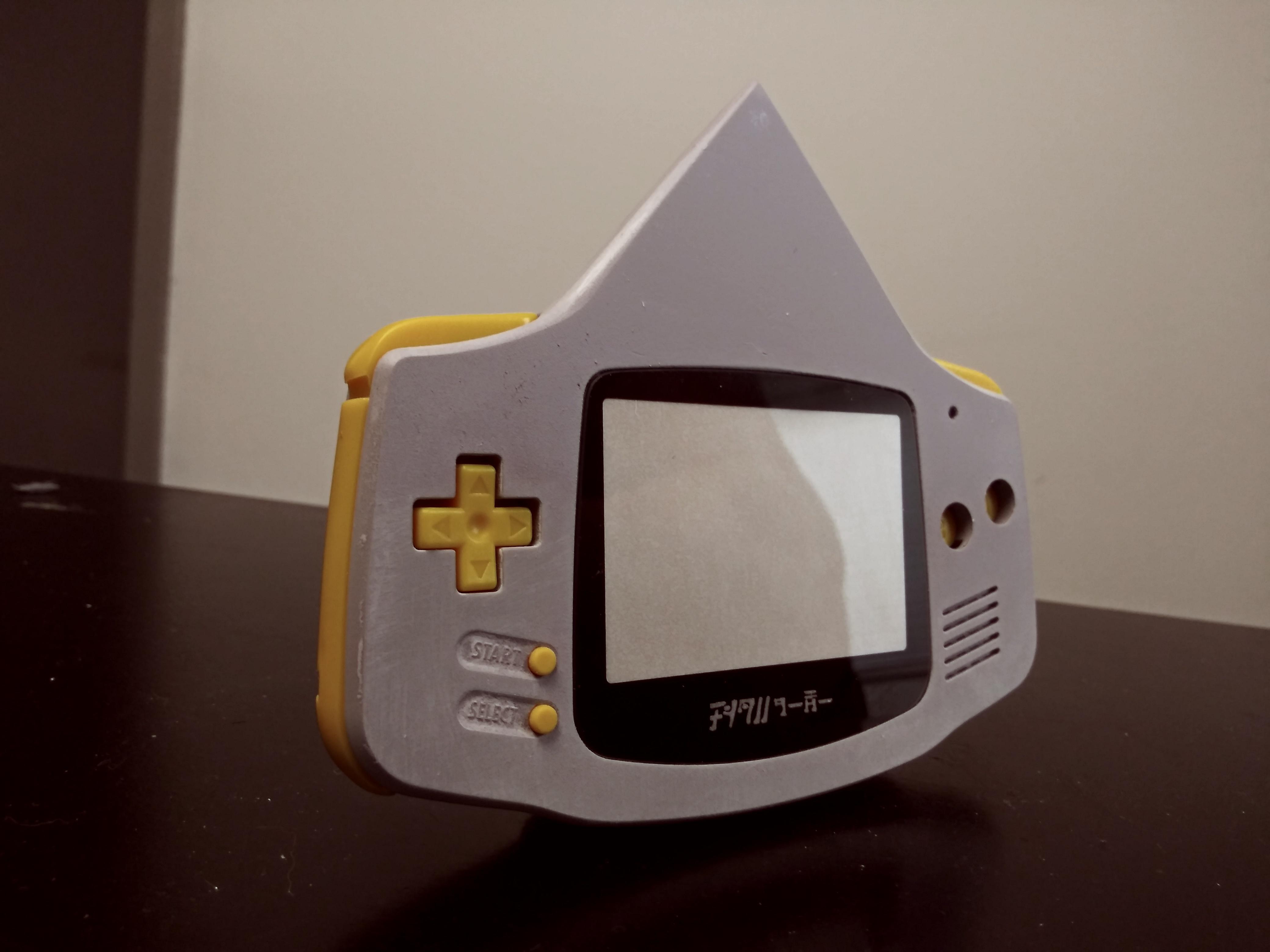

And here's a picture of it primed that you can compare with the screenshot above:

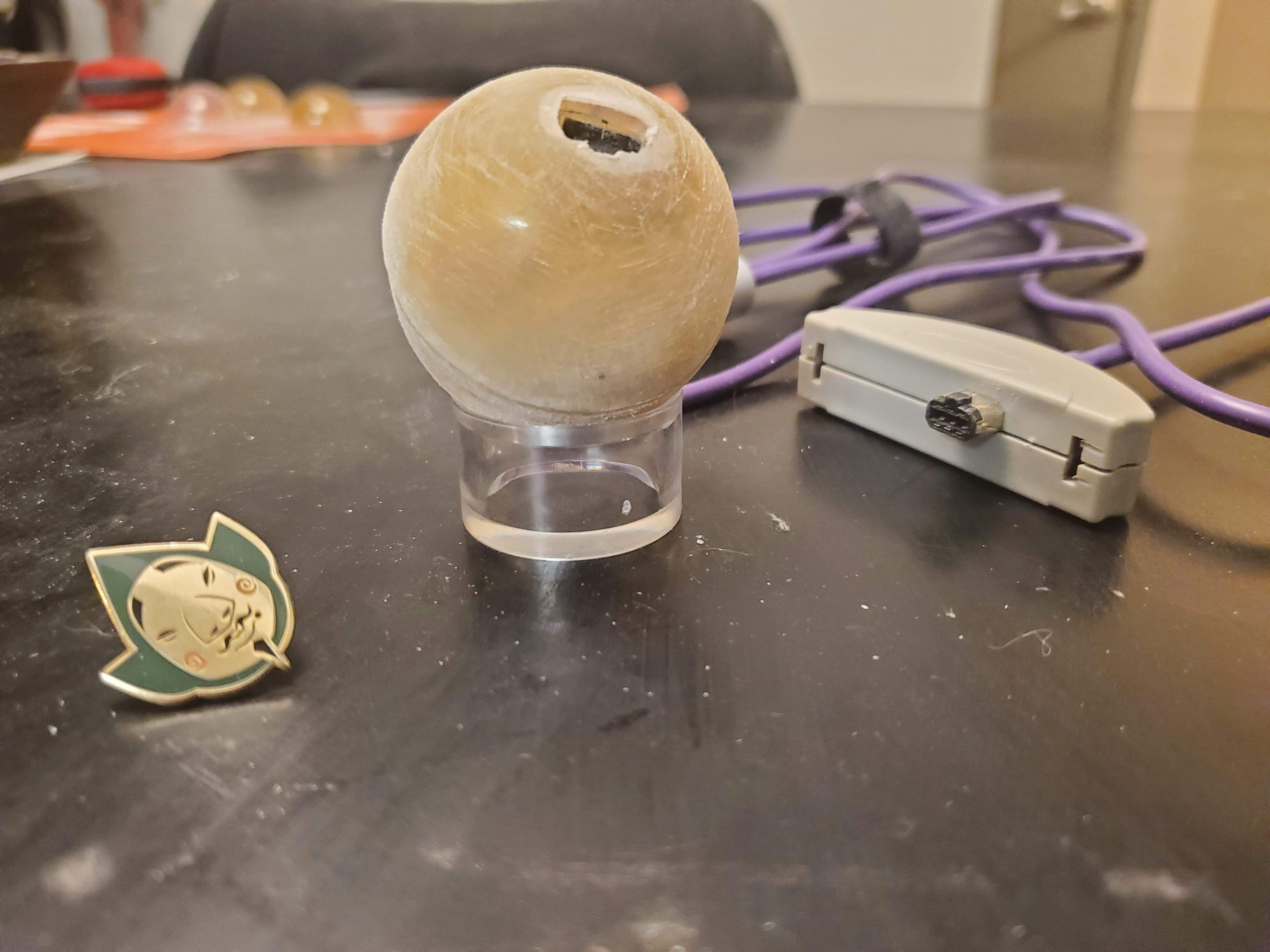

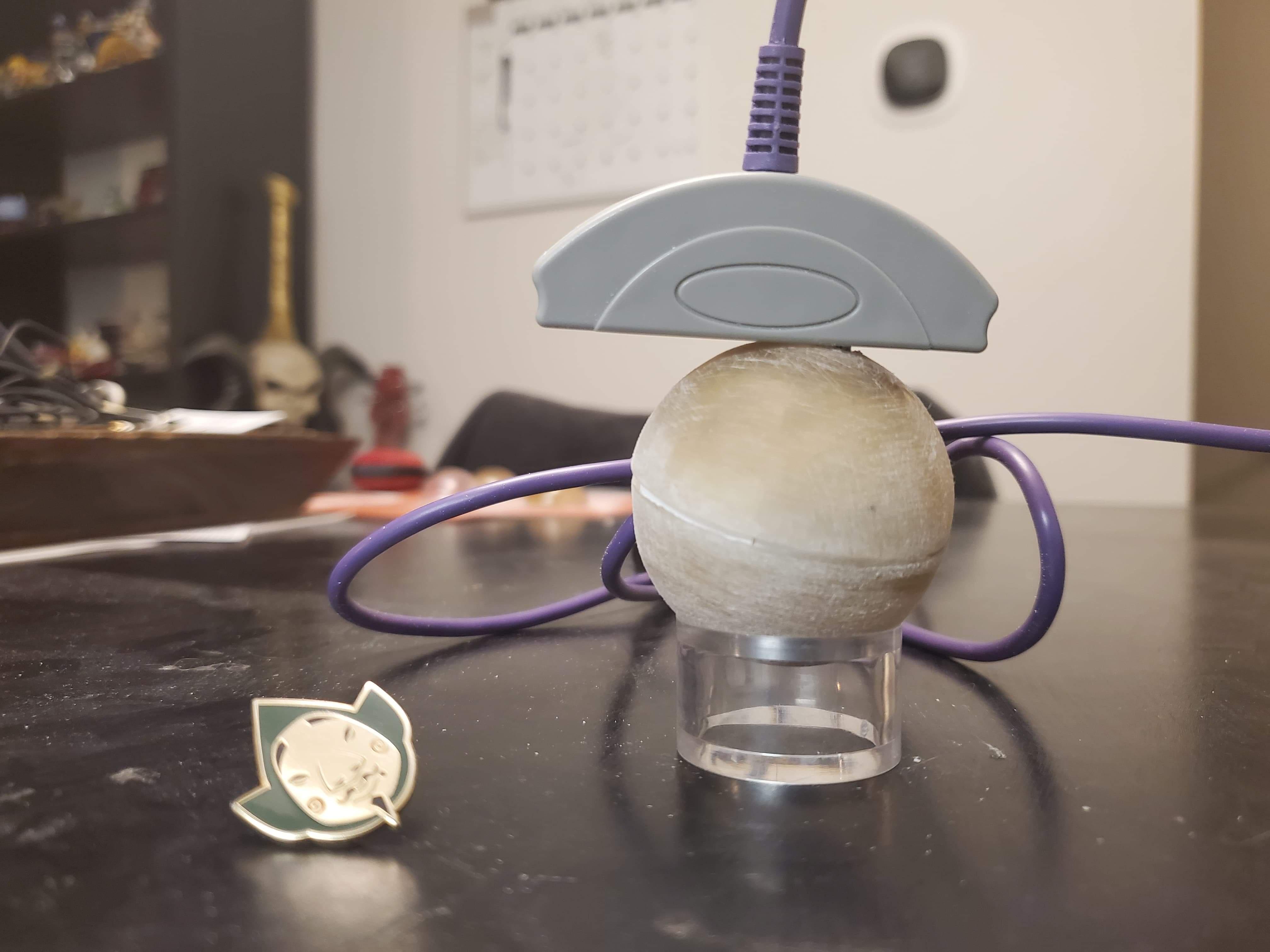

Currently I'm working on embedding a GBA link cable port in the ball that sits at the end of the antenna, so you can hook it up to a Gamecube and use it in-game. Other than that, that's about it!



Thanks for looking! I'll be sure to update this in the coming days/weeks as I wrap this project up!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Caltimar

New Member
That's fantastic! Wind Waker is by far my favourite in the series and I've toyed with the idea of making a Tingle Tuner before, but nothing on this level! Can't wait to see it finished


KoCo

New Member
That's fantastic! Wind Waker is by far my favourite in the series and I've toyed with the idea of making a Tingle Tuner before, but nothing on this level! Can't wait to see it finished

Thanks so much! It's been a challenge finding somewhere to post this where people even know what it is haha! It's a fun build though! I'd love to see what you come up with if/when you make one for yourself! The builds are scarce out there unfortunately.


KoCo

New Member
Omg! I want one haha! Amazing
Thanks! Maybe once the pandemic is over I'll get with a buddy and make some molds to sell a few copies!

Anyway, here's Wonderwall:

I painted everything up! I have to find a really solid way to seal the paint, and I've already replaced the broken screen lens. As soon as a clear coat goes on, I can start assembly!



There will be more to come in a few days, I'm sure.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

KoCo

New Member

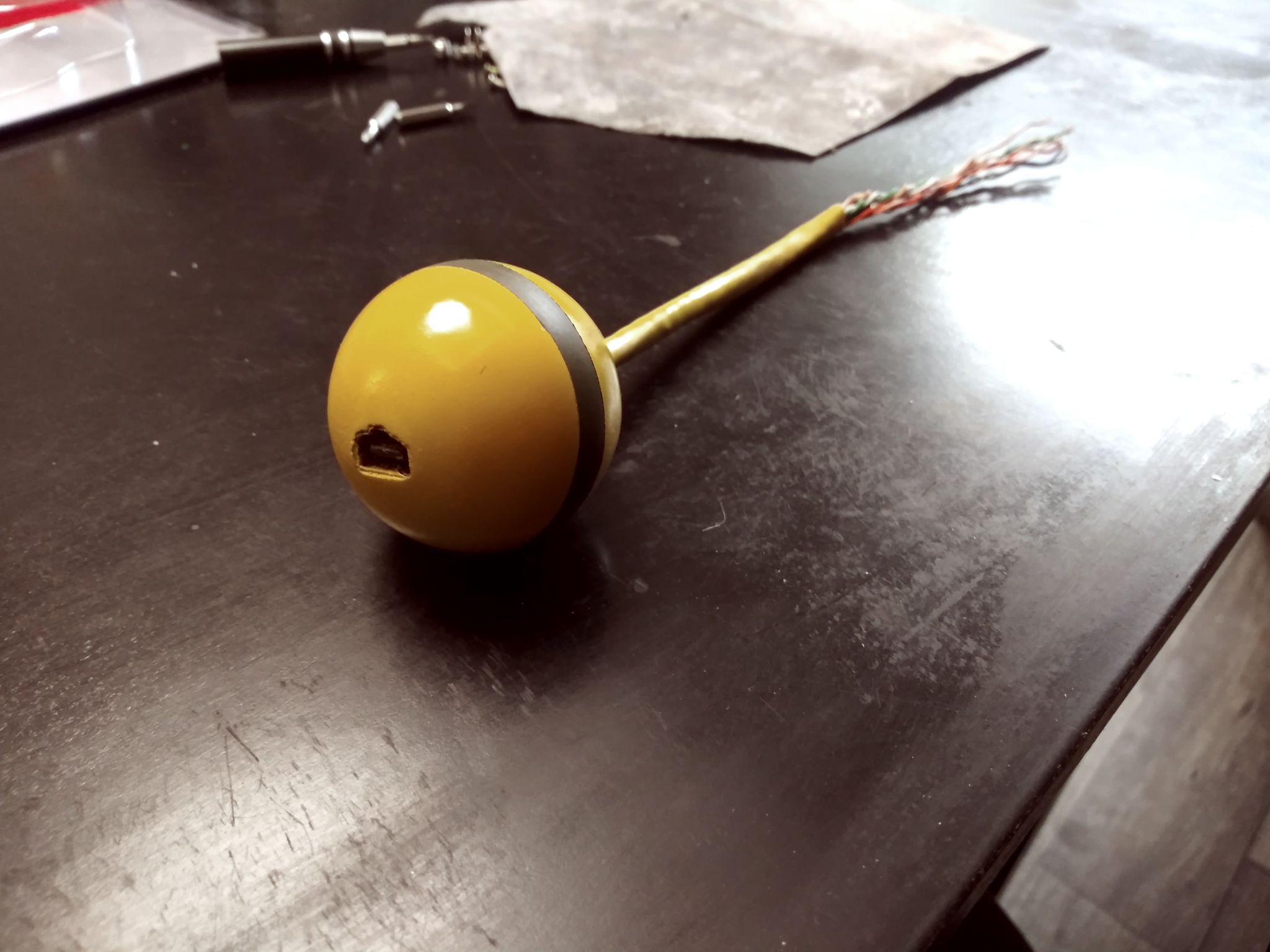

I've done a lot since the last update. The biggest change is the antenna is done! To make this, I soldered a GBA link cable port to a yellow CAT5 cable, fiberglassed that port to the inside of an acrylic hemisphere, then joined that with another hemisphere. After some sanding/painting, I had this:



After that, I tried to wrap the whole build up. I soldered the CAT5 cable onto the GBA motherboard, carefully installed the screen and battery mods, and in the end, I ended up breaking the screen by putting too much pressure on the backside. Womp womp.
I have another screen in the mail. Until then, enjoy this picture of it assembled, and only partially working.



I'm still pleased with where it's at in this stage. The GBA link port works great. Four Swords Adventures sees it as a controller. I also added a bodge wire to the motherboard to repair a broken trace. The mod that broke will be easy to fix once the parts arrive. Hopefully the next update will be a video of me playing Wind Waker with it on Gamecube.


KoCo

New Member

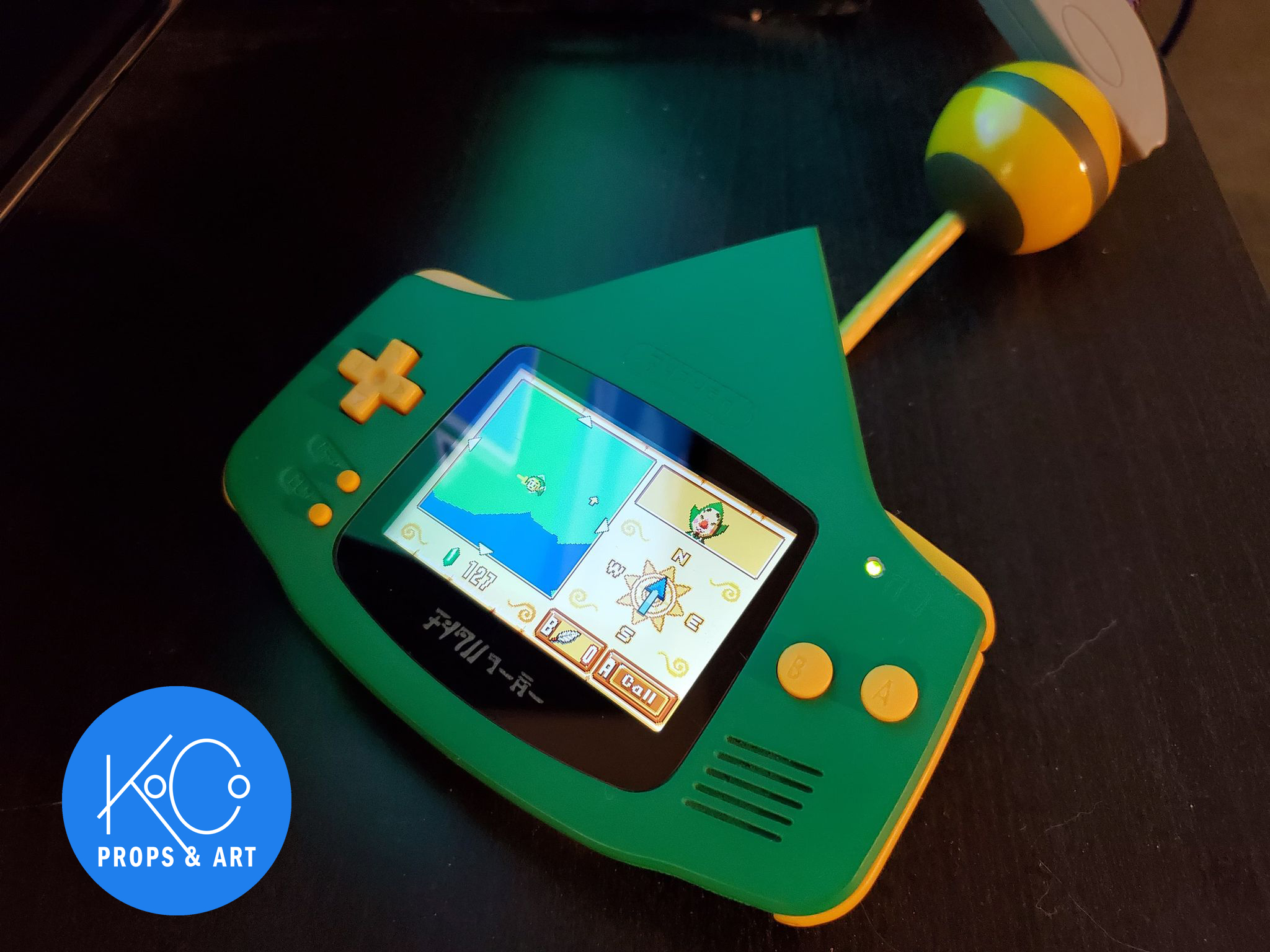

Welp, this will about wrap up this thread. I got the new screen in and installed it and a new battery, and everything works! There's not much to say, but enjoy the following, and thanks for making it this far. It means a lot!

Wind Waker came out when I was a kid, and for some reason the Tingle Tuner stuck with me. I tried coloring my indigo GBA with green and yellow markers, and it looked terrible. I never thought I'd be able to do this weird little thing justice.

But here we are.



Last edited:

Caltimar

New Member
Tingle Tingle Kooloo-Limpah! You completely knocked it out of the park! Probably the best Zelda project I've come across... and that it functions exactly as in game just brings this to a whole other level.

I think I may start up a new Wind Waker save tonight I never did get all of those figurines...
