'The City on the Edge of Forever' tricorder

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


PhuketAussie

Active Member
Hello,

I'm considering making a tricorder to house my Raspberry Pi based Plex MediaServer. It has a 7.5x5cm LCD screen, which is bigger than a typical tricorder screen, except for this one:

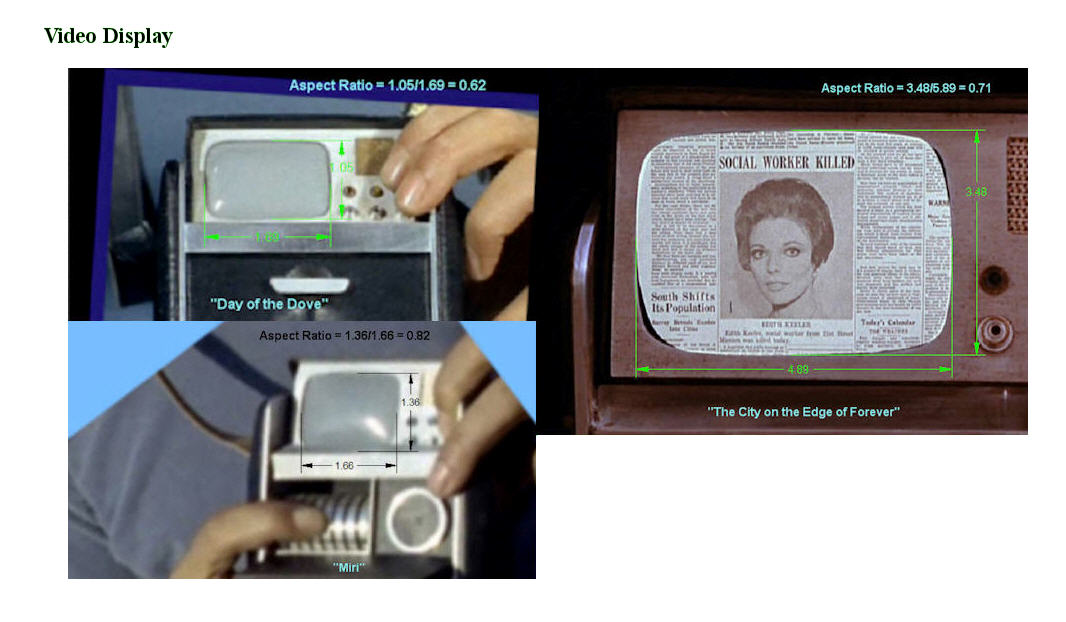

The 4.89" wide screen for The City on the Edge of Forever tricorder is just about the right size, but what I cannot find is technical drawings to reproduce this specific tricorder. Can anyone point me in the right direction with this please?

The image above is from this page: Star Trek Prop, Costume & Auction Authority: Design Features of Screen Used TOS Tricorders (startrekpropauthority.com)


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Lost in Trek

Sr Member
RPF PREMIUM MEMBER
I'm not sure where those screen measurements came from but they are not correct... Certainly not in inches. The width between the two side aluminum pieces is around 4 inches. No TOS Tricorder had a 4 inch screen.

The various tricorders used throughout the series are all about the same size. Wah Chang, working for a company named Projects Unlimited, made the first two, from kydex and then it appears Desilu disassembled those trics and made molds so they could make copies. Those copies in the first two seasons were made from fiberglass... With the first fiberglass version appearing in the episode Arena.

In the third season 2 leatherette versions are introduced... Again apparently built by the studio... At this time now Paramount.

But again, as these trics were all sourced from Wah's first 2 props they are all about the same size.

Now the screens were all hand cut so there are some size differences but not by inches.

Last edited:

JW Foust

Active Member
Yeah, ain't no Tric with a 4.89" width screen, the whole thing is barely that wide. Very roughly I eyeball the screens on mine at 1 15/16" at the widest.
I don't recall seeing any drawings taken from the screen used trics. You can get a DST, or maybe a Marco from Ebay to mod, unless you are just set on scratch building the whole thing.

Last edited:

Lost in Trek

Sr Member
RPF PREMIUM MEMBER
And one other note...

The "Miri" Tricorder and the "City" Tricorder pictured are the same prop. So kinda odd that whoever put those measurements together got different results from the same prop. Clearly an error.


PhuketAussie

Active Member
I'm not sure where those screen measurements came from but they are not correct... Certainly not in inches. The width between the two side aluminum pieces is around 4 inches. No TOS Tricorder had a 4 inch screen.

The various tricorders used throughout the series are all about the same size. Wah Chang, working for a company named Projects Unlimited, made the first two, from kydex and then it appears Desilu disassembled those trics and made molds so they could make copies. Those copies in the first two seasons were made from fiberglass... With the first fiberglass version appearing in the episode Arena.

In the third season 2 leatherette versions are introduced... Again apparently built by the studio... At this time now Paramount.

But again, as these trics were all sourced from Wah's first 2 props they are all about the same size.

Now the screens were all hand cut so there are some size differences but not by inches.
Thank you for clarifying :)


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

PhuketAussie

Active Member
Yeah, ain't no Tric with a 4.89" width screen, the whole thing is barely that wide. Very roughly I eyeball the screens on mine at 1 15/16" at the widest.
I don't recall seeing any drawings taken from the screen used trics. You can get a DST, or maybe a Marco from Ebay to mod, unless you are just set on scratch building the whole thing.
Thank you for clarifying :)
