Tesseract holder : Avengers

Discussion in 'Marvel Costumes and Props' started by AGFRX7, Mar 27, 2015.

  1. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135

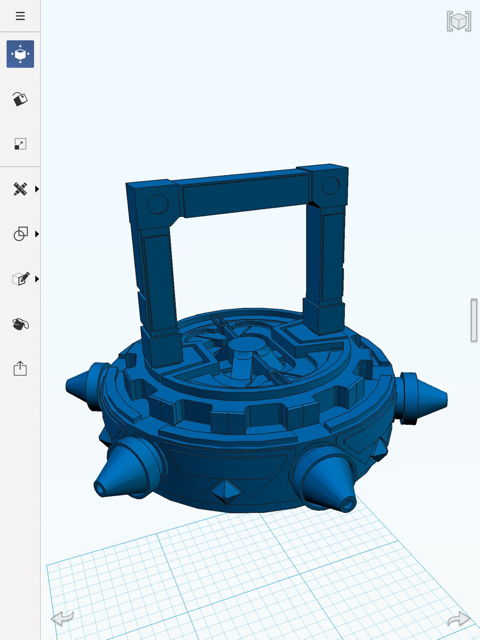

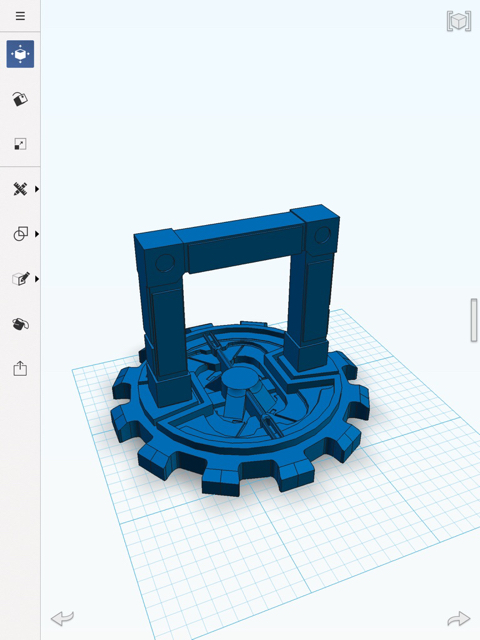

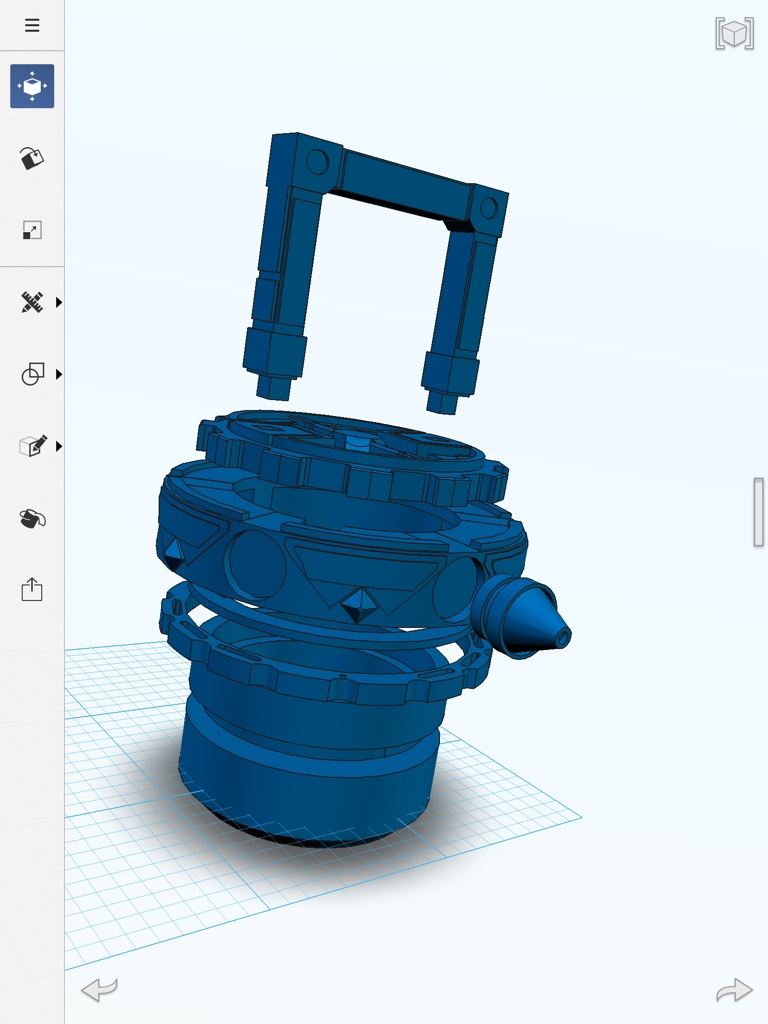

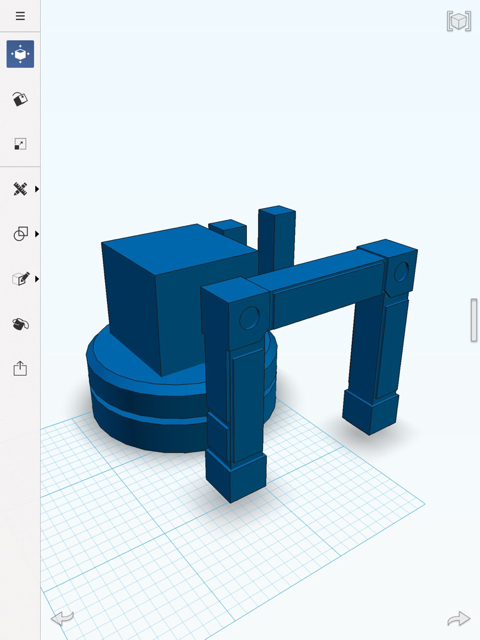

    Hello everyone. After building the orb from Guardians of the Galaxy thanks to Rpf member EIN, I decided that I would like to build each infinity stone object. I already made the aether container from the easter egg after Thor: dark world and since I already have made the tesseract, I figure that making the holder as seen at the end of the Avengers would seem like the next step. All this is being rendered on my IPad Air and printed on my Makerbot Replicator 2

  2. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135


    Sent from my iPad using Tapatalk

  3. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135


    Sent from my iPad using Tapatalk

  4. RiotJavelinDX

    RiotJavelinDX Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    937
    Looking pretty slick

  5. Kevin Gossett

    Kevin Gossett Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,980
    I still can't get over you can do that on an iPad.

  6. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    So.. I'm running into a small issue. I need 5" diameter, 1/4" thick clear tubing and I really don't want to do glass. Everywhere I'm looking, they want an arm and a leg. Any suggestions?

    Last edited: Mar 28, 2015
  7. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    Started printing the handle this morning

  8. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135

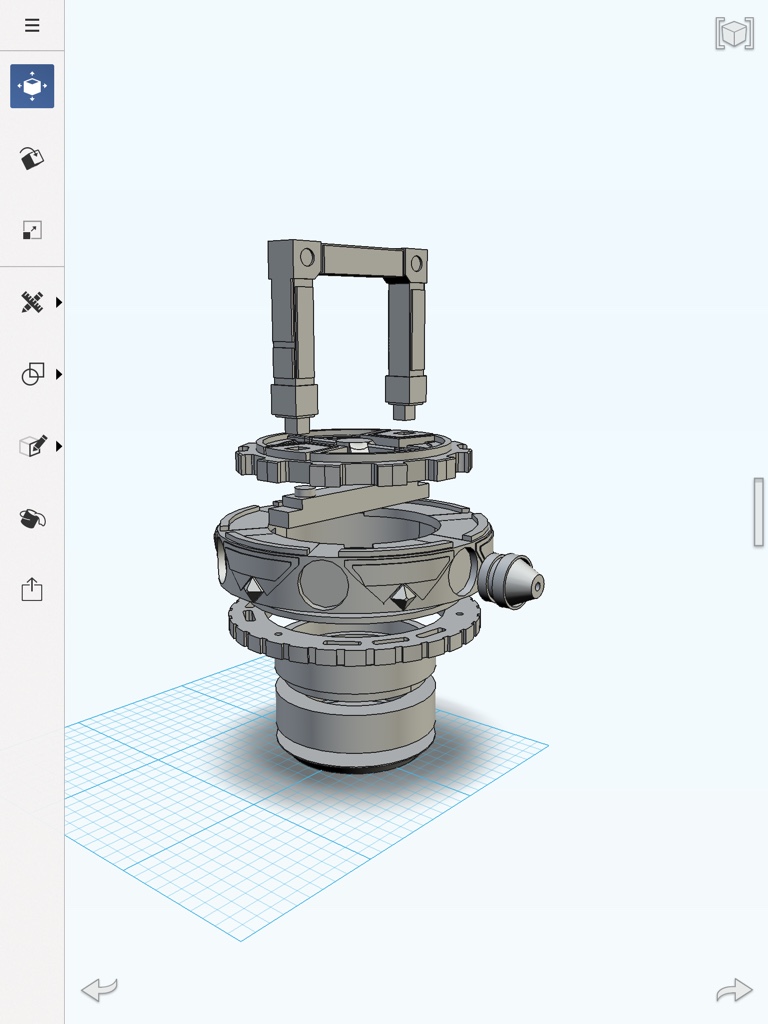

    Realized that there were some parts not quite as accurate as possible. So made a few changes


    Sent from my iPad using Tapatalk

  9. Straycatt

    Straycatt Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    621
    what app is that?

  10. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    Autodesk123d Desgin for iPad.


    Sent from my iPad using Tapatalk

  11. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135

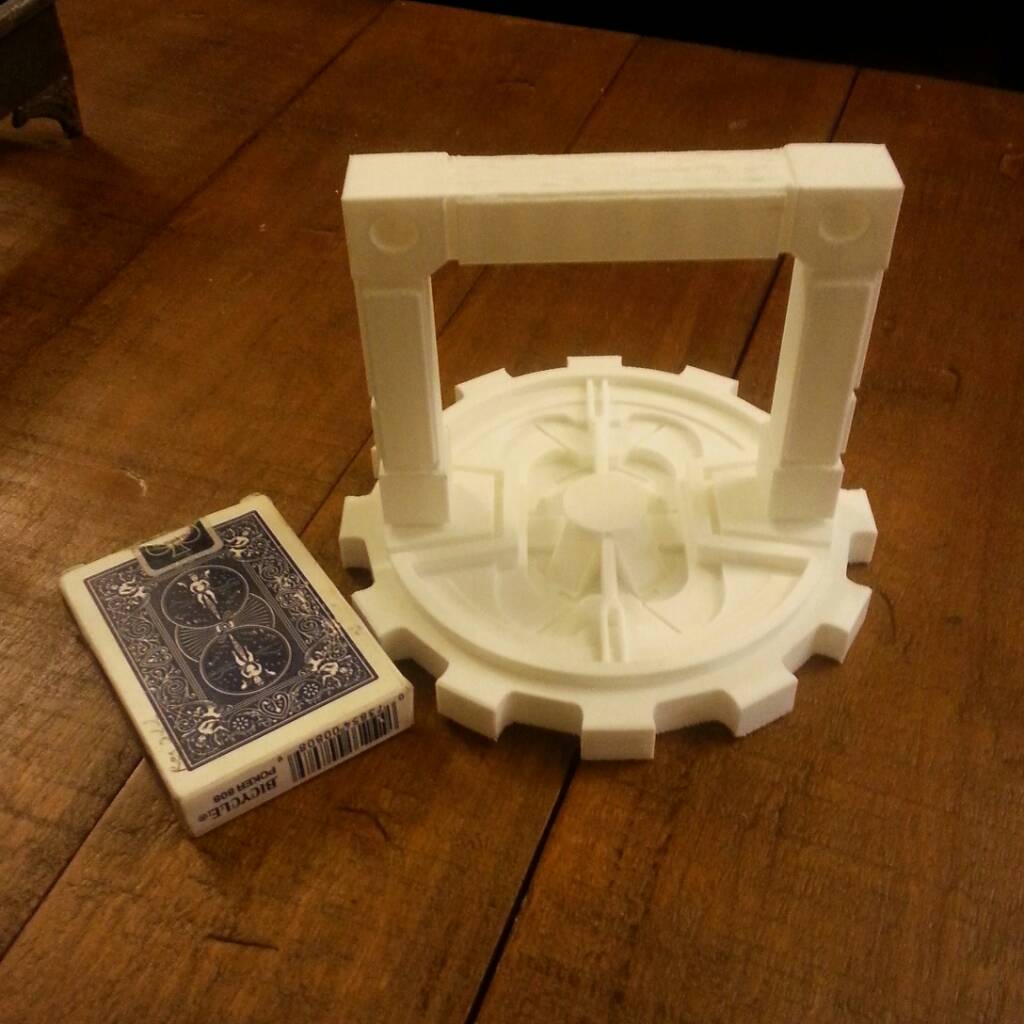

    Another part fresh off the printer

    Maryfoxfirebird likes this.
  12. RiotJavelinDX

    RiotJavelinDX Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    937
  13. Kevin Gossett

    Kevin Gossett Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,980
    Killin' it.

    AGFRX7 likes this.
  14. Lord Magneto

    Lord Magneto Well-Known Member

    Trophy Points:
    915

    - - - Updated - - -

    I really need to start trying to use that app. You have some serious skills

    AGFRX7 likes this.
  15. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135

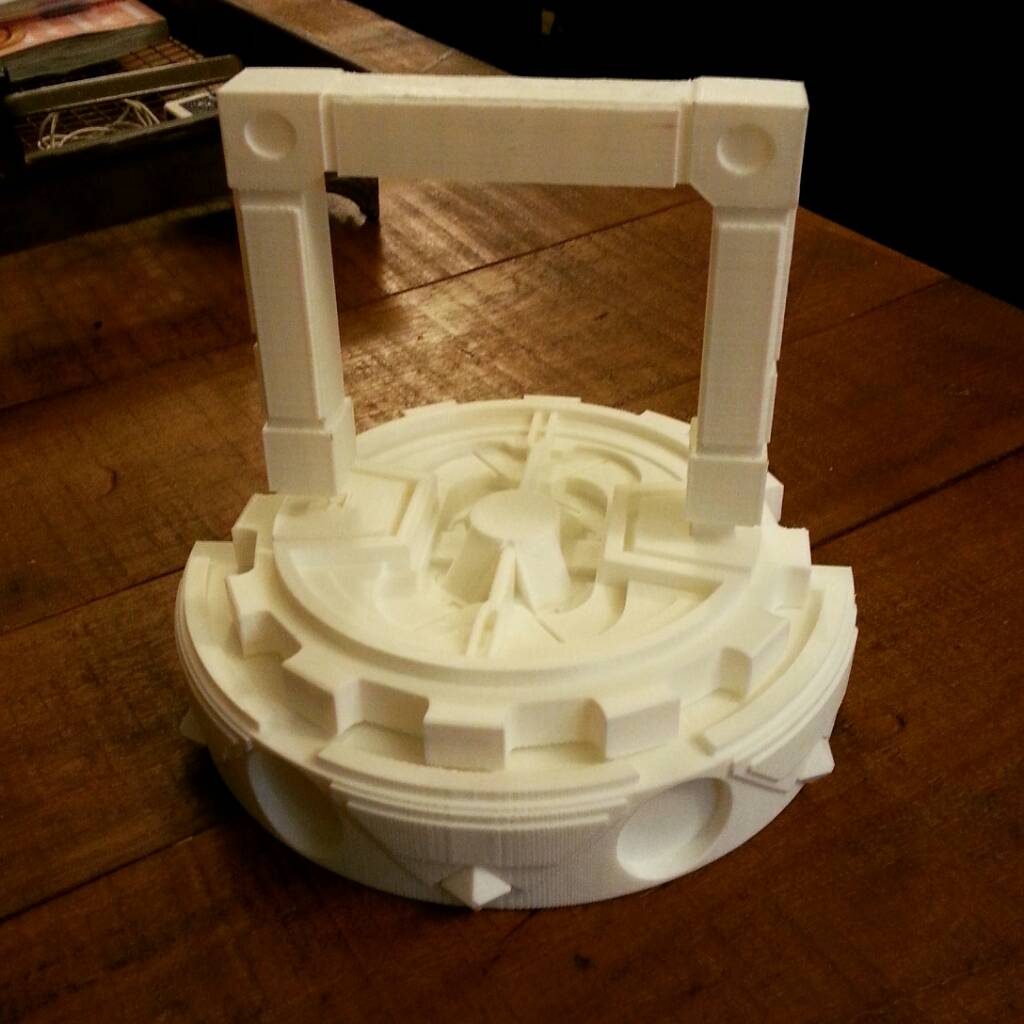

    One more piece added. Waking up to finished parts like this is fun :)


  16. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    I personally like the iPad version better than desktop version. The problem though is that the iPad version isn't good for organic shapes... mostly geometric

  17. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135

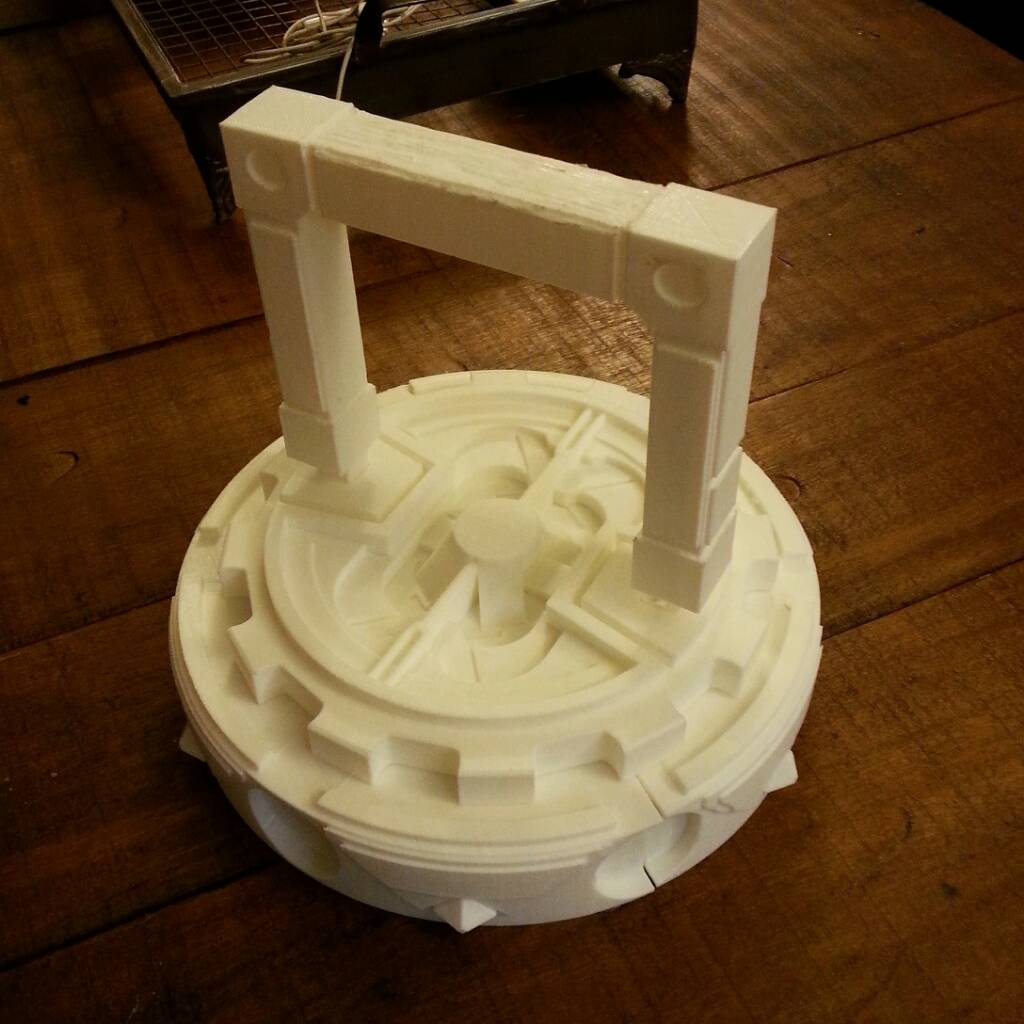

    The second half of the main tier is done. Each half takes about 8 hours of print time.


  18. horus

    horus Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    621
    How many metres does it take to make it, I am considering a 3d printer but thinking on cost, it looks great. !, so mainly a general question.

    Thanks

    Richard..

  19. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    Not sure on the length it has used but it has used about half a 2kg spool of 1.75mm filament. A single spool of Shaxon brand filament sold at Frys Electronics costs about $27 after tax. Keeping in mind that this thing is very large, that's not too shabby. I predict that it'll use about a spool and a half to print both ends of the holder. I can print an entire Iron Man helmet and not even use and entire spool.


    Sent from my iPad using Tapatalk

    horus likes this.
  20. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
  21. Lord Magneto

    Lord Magneto Well-Known Member

    Trophy Points:
    915
    That is looking really good. You've got some serious design talent.

    What at are you planning for the actual tube?

  22. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    I found a source online that sells plexiglass tubes in the diameter I need ( 5" od & 4 3/4" id) it'll cost me about $40 for a 36" length. Granted I won't need that much but I won't be short on length either.

  23. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    Only one part left for this side


    Sent from my iPad using Tapatalk

  24. royaltykustomz

    royaltykustomz Active Member

    Trophy Points:
    211
    thats awesome, can't wait to see it finished..

  25. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    The last component for the first end piece is done. Gotta sand, paint and buy the tube to align it all.

  26. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
  27. Lord Magneto

    Lord Magneto Well-Known Member

    Trophy Points:
    915
    I honestly can't believe that printed properly at that angle

  28. Stencil

    Stencil Well-Known Member

    Trophy Points:
    915
    Hey there, any chance you'd share the place? I still need to get a tube for my terminator arm. Thanks.

  29. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    Sure! Check out estreetplastics.com

  30. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    Good news and update. Just purchased my acrylic tube from estreetplastics.com for the holder... should be here by mid next week. As soon as I know that it fits properly, I'm gonna start printing the other side.

    Sent from my SM-G920T using Tapatalk

  31. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    Received the acrylic tube and it fits perfectly! I can start sanding, and painting now that I know it'll work properly.


    Sent from my iPad using Tapatalk

  32. Lord Magneto

    Lord Magneto Well-Known Member

    Trophy Points:
    915
    Oh does that look great. Can't wait to see that finished.

  33. bobafett669

    bobafett669 Active Member

    Trophy Points:
    371
    I have tessaract that I made that is about 4 1/8". Will you make a run of these in the future?

  34. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    After I make a complete and finished prop, I will be selling the 3d print files to those who are interesred. I'm not sure on price quite yet. My life has become far too busy lately to make kits to sell.

    Sent from my SM-G920T using Tapatalk

    jamesalton1 likes this.
  35. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    Started printing up more parts now that I have more time


    Sent from my iPad using Tapatalk

    ataru72ita and Soulinertia like this.
  36. CPTRogers

    CPTRogers Well-Known Member

    Trophy Points:
    836
    This pleases me

    AGFRX7 likes this.
  37. medic2410p

    medic2410p Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    Have you thought about submitting the 3d files to shapeways? I think you can setup a store front there and you get some of what they charge to print it (don't quote me on that as I am defiantly not sure).

  38. Bertnick

    Bertnick New Member

    Trophy Points:
    3
    Really nice work

    AGFRX7 likes this.
  39. CPTRogers

    CPTRogers Well-Known Member

    Trophy Points:
    836
    Is this finished?

  40. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    Not yet... needed funds for more filament. But... I should be getting some this week or next.

    Sent from my SM-G920T using Tapatalk

  41. CPTRogers

    CPTRogers Well-Known Member

    Trophy Points:
    836
    will you be doing a run of these?

  42. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    Not likely, but selling 3d files? Most likely. I'm getting married in January and trying to buy a house as well. Combine that with full time school, I'm gonna be too busy to make a run

    Sent from my SM-G920T using Tapatalk

  43. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    Still working on this, I'm just working on multiple projects at once. Gonna buy some more filament soon.


    Sent from my iPad using Tapatalk

    daedalus99 likes this.
  44. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    Hey gang, I finally made some more progress on this build. I have both sides ready to sand , fill and paint.



    Sent from my iPad using Tapatalk

    Last edited: Nov 9, 2015
    ataru72ita likes this.
  45. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    Hey gang, I haven't forgotten this build with all the holiday stuff, college, wedding planning and other builds, I've been terribly busy. The good news is that I started this up again and plan having it completed by the end of February


    Sent from my iPad using Tapatalk

    Shadeling and Psicorp7 like this.
  46. AGFRX7

    AGFRX7 Sr Member

    Trophy Points:
    1,135
    One side is assembled. I still need to add a few small details but I'm happy how it's coming out


    Sent from my iPad using Tapatalk

  47. CPTRogers

    CPTRogers Well-Known Member

    Trophy Points:
    836
    Very nice

  48. smiley424

    smiley424 New Member

    Trophy Points:
    17
    Nicely done. Waiting for the finished product and 3d file. Great job!

  49. sandbagger

    sandbagger Master Member

    Trophy Points:
    2,815
    I'd be pretty happy with that. A great test-piece for any 3D printer.

    SB.

  50. daedalus99

    daedalus99 Member RPF PREMIUM MEMBER

    Trophy Points:
    117
    What size cube do you have here? I'd like to work on one and have something like this to display it in. :)
