T800 project

[CH33ZEBURG3R]

Some people just go crazy and one day decide to build a full size Terminator.

Superb work, will look forward to seeing this all finished.



[Jamie Staff]

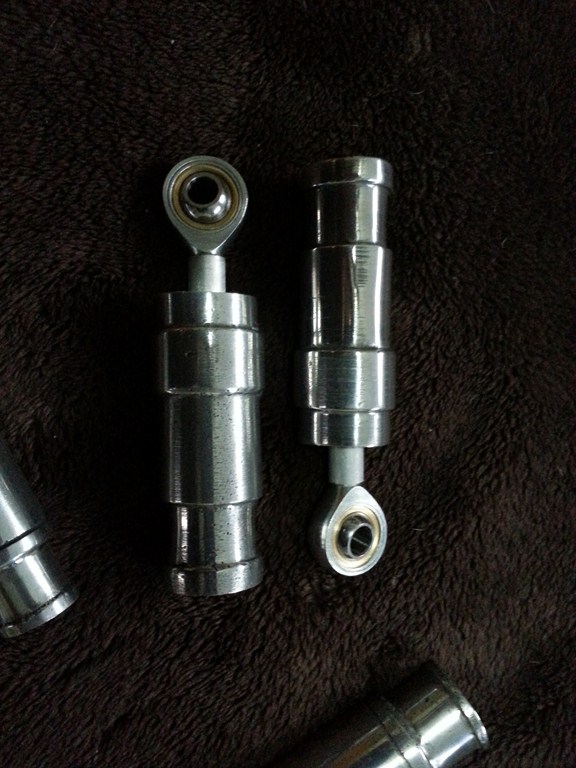

Getting the pistons polished, just order the rod end bearing they should be here next week, so I better have the piston barels ready....
http://www.youtube.com/my_videos_upload

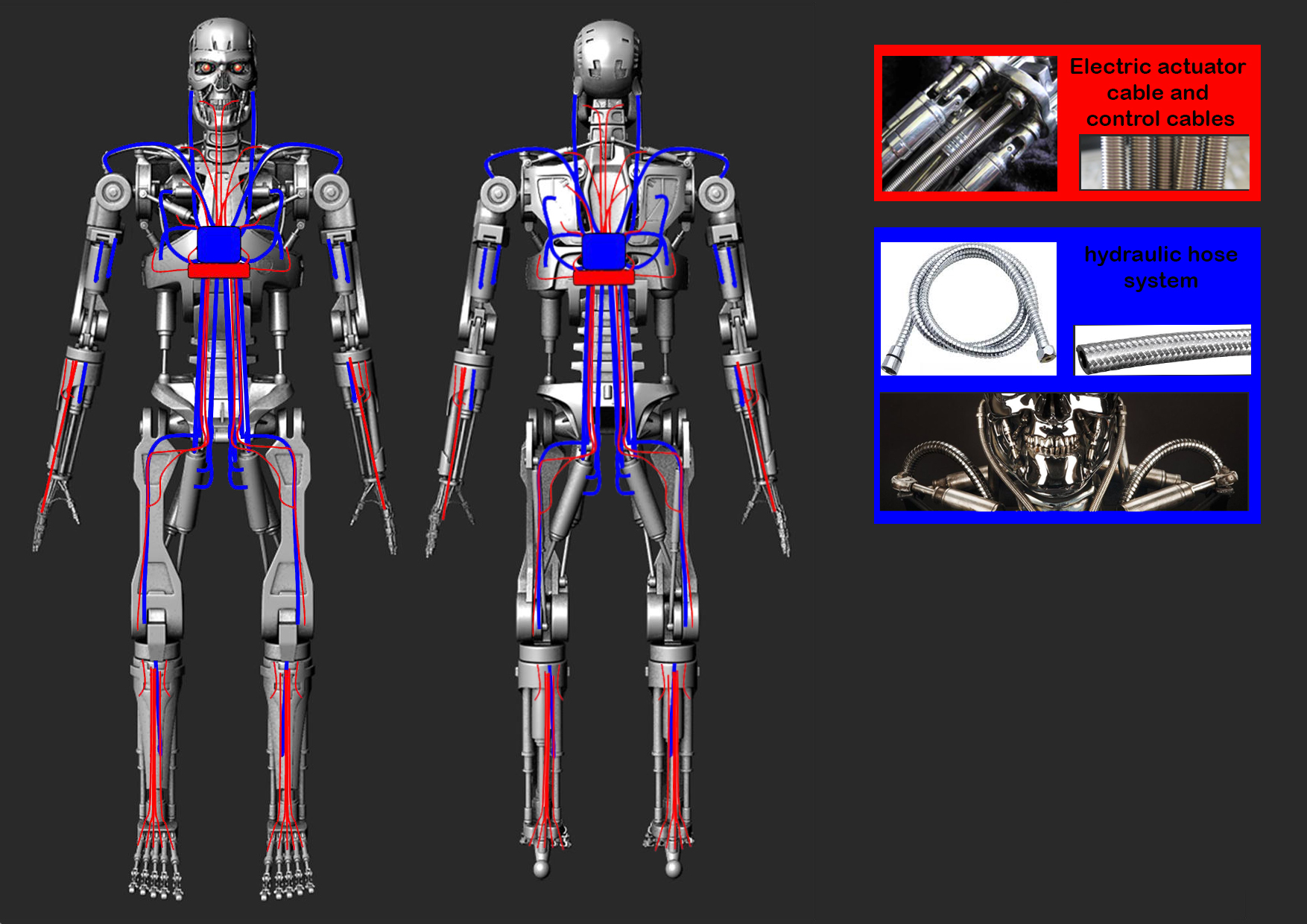

I'v also been thinking out the cables and it will pobaly change as the build goes on be this is what I'v got so far.... Please feel free to give me your thoughts and input



[Jamie Staff]

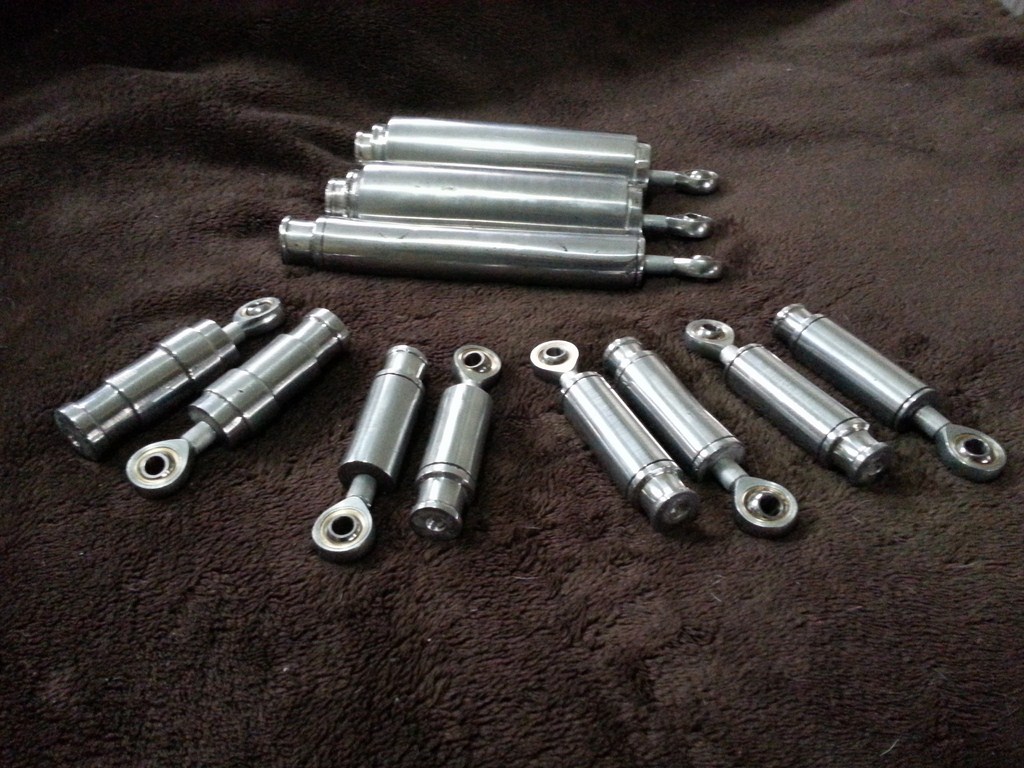

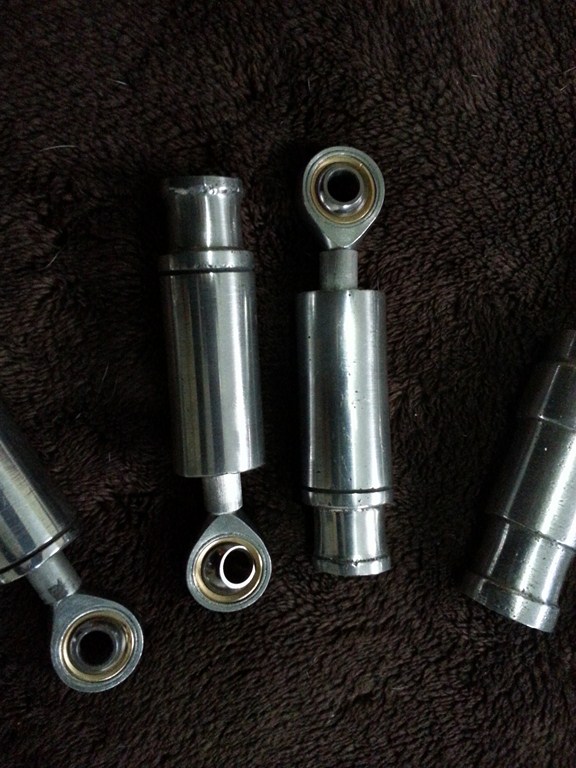

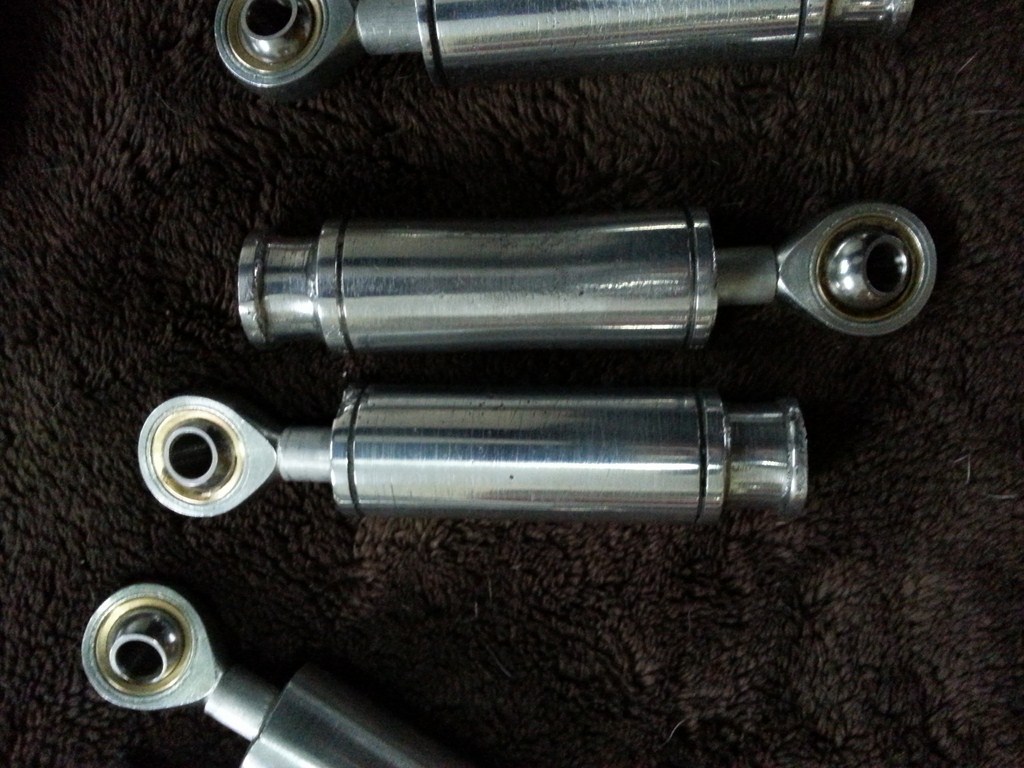

So the rod ends arrived and I couldn't wait to see how they would look, so here there are....



[SiR-ROUND]

This is where the rod ends...

Send from my Galaxy phone.



[Jamie Staff]

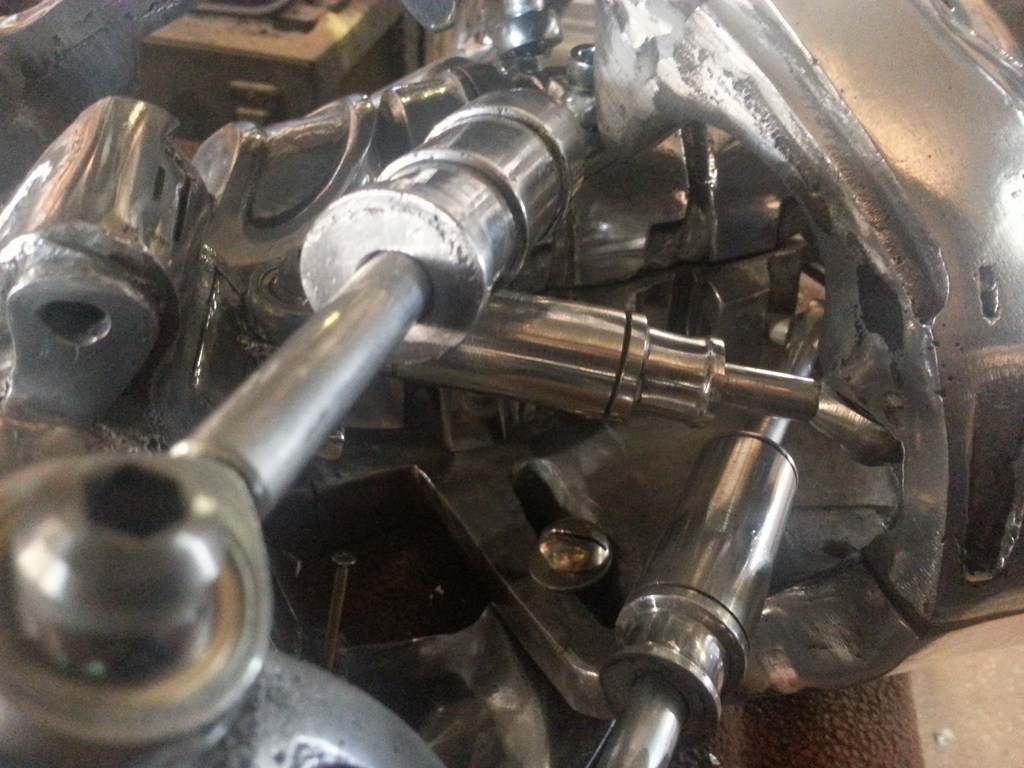

A bit more of the assembly of the build piece by piece it's coming together, the angles for the rodend conecting the the front mount of the pelvis, only realy allow for back and forward movement, so I'll have think up something to fix that ....https://www.youtube.com/watch?v=rfq2-QBvcbw



[Jamie Staff]

This is the first full test of the leg setup, it took some time to get the piston angles right, but I'm pretty happy with mobility now....
Terminator Leg full setup - YouTube



[Jamie Staff]

Bit more of a were I'm up to update on the build and to test the body's movement...
Terminator full body update - YouTube



[Jamie Staff]

It took a bit of head scratching to work out but this is the setup I'm now going with....
Terminator shoulder/neck pistons - YouTube



[CH33ZEBURG3R]

Awesome work...........:cool



[Jamie Staff]

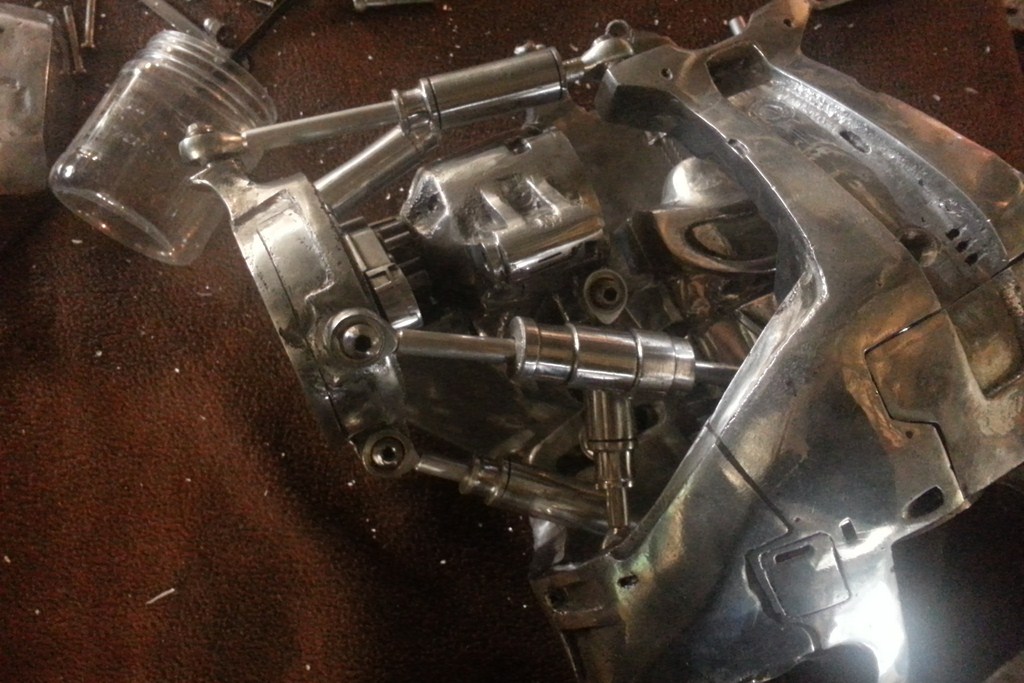

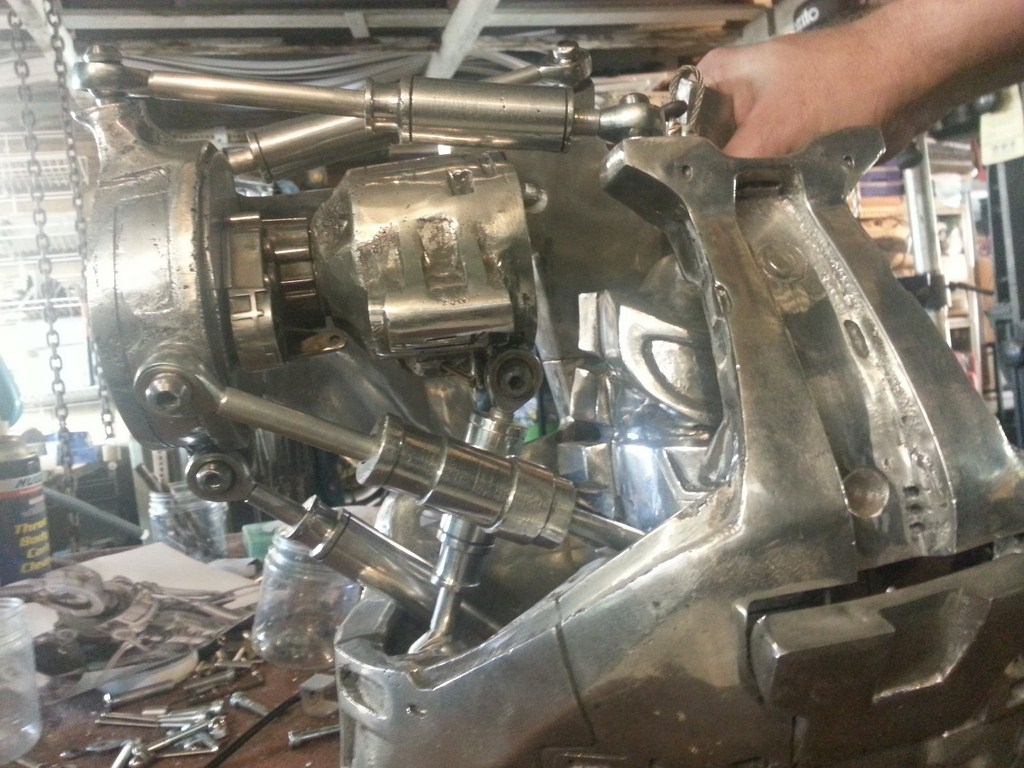

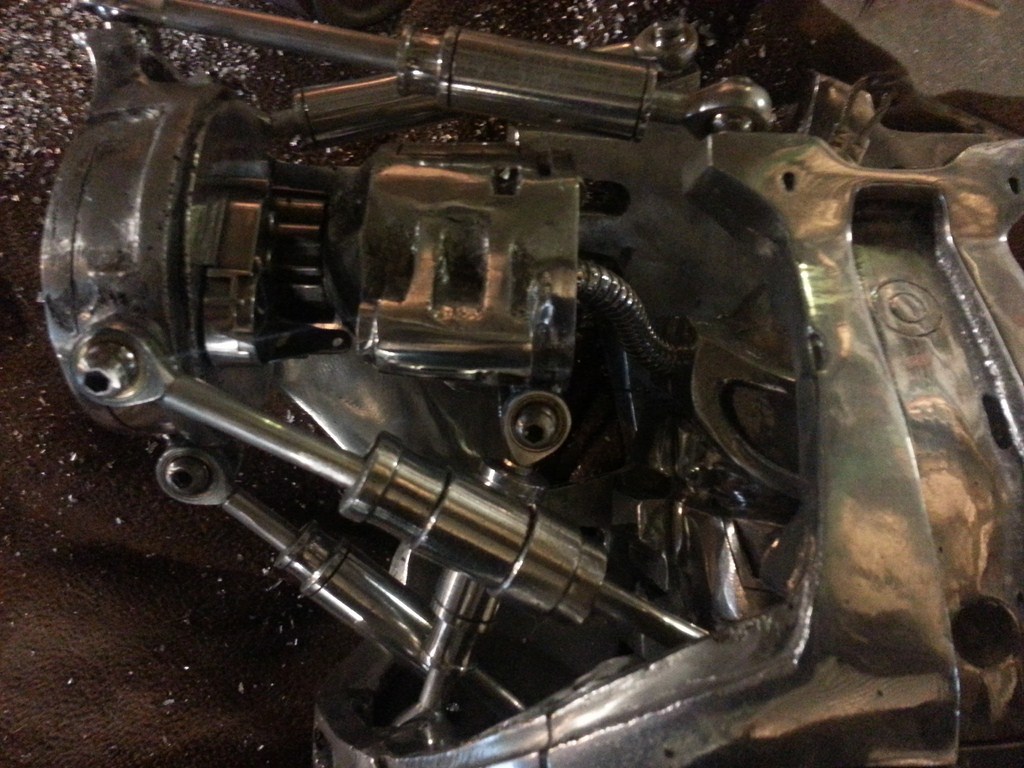

This is what I have come up with for the neck pistons the setup keeps the look of of the original but adds a great deal more movement.....

Terminator Neck piston test - YouTube



[SiR-ROUND]

Look out Dorothy!!!

Send from my Galaxy phone.



[Jamie Staff]

Not the most exciting video, but it details my process and I hope it may help others with similar builds.... Jaw Pistons - YouTube

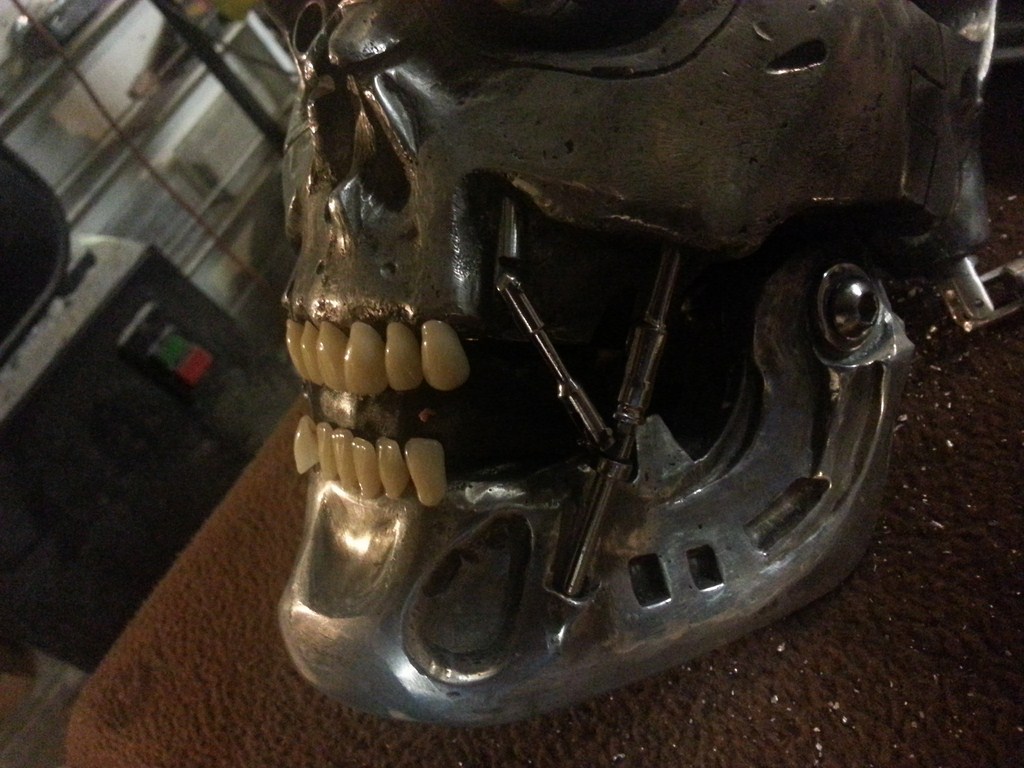

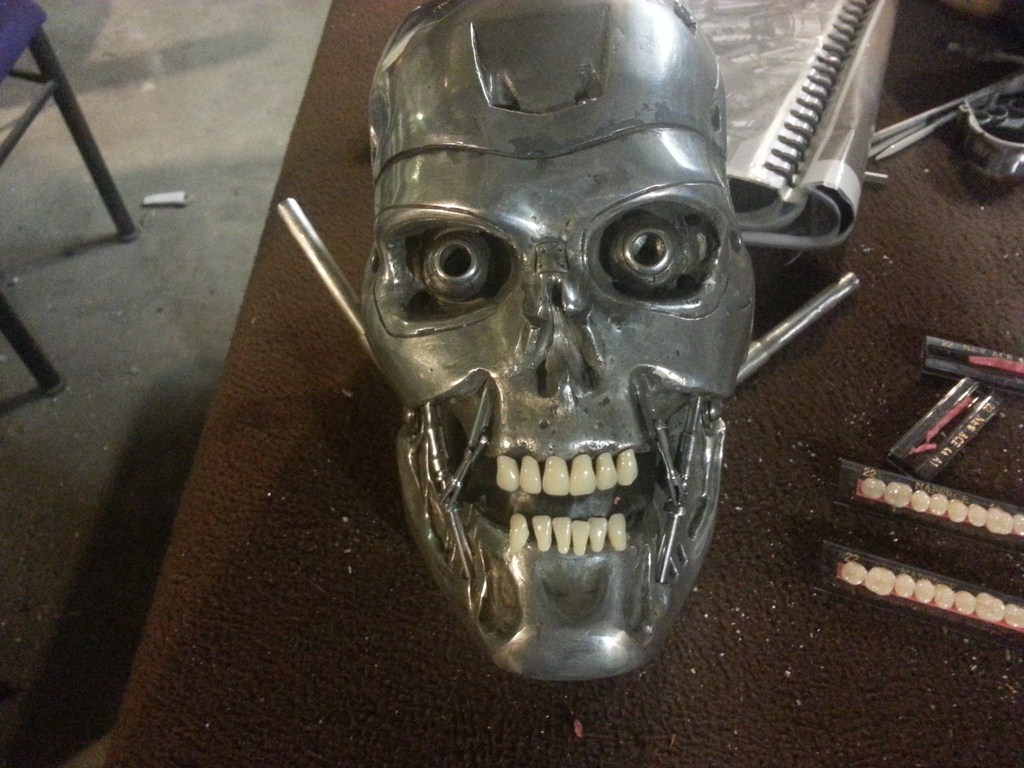

I could'nt resist tacking some teeth on to see what he'll look like, they are just held on with tape for now, but you get the idea....



[annanake]

as soon as you finish building it I think we should destroy it it looks like it might want to kill all humans lol



[Jamie Staff]

After seeing how different he looks with teeth I'm going to do a bit more in the direction of finishing the head, so stand by

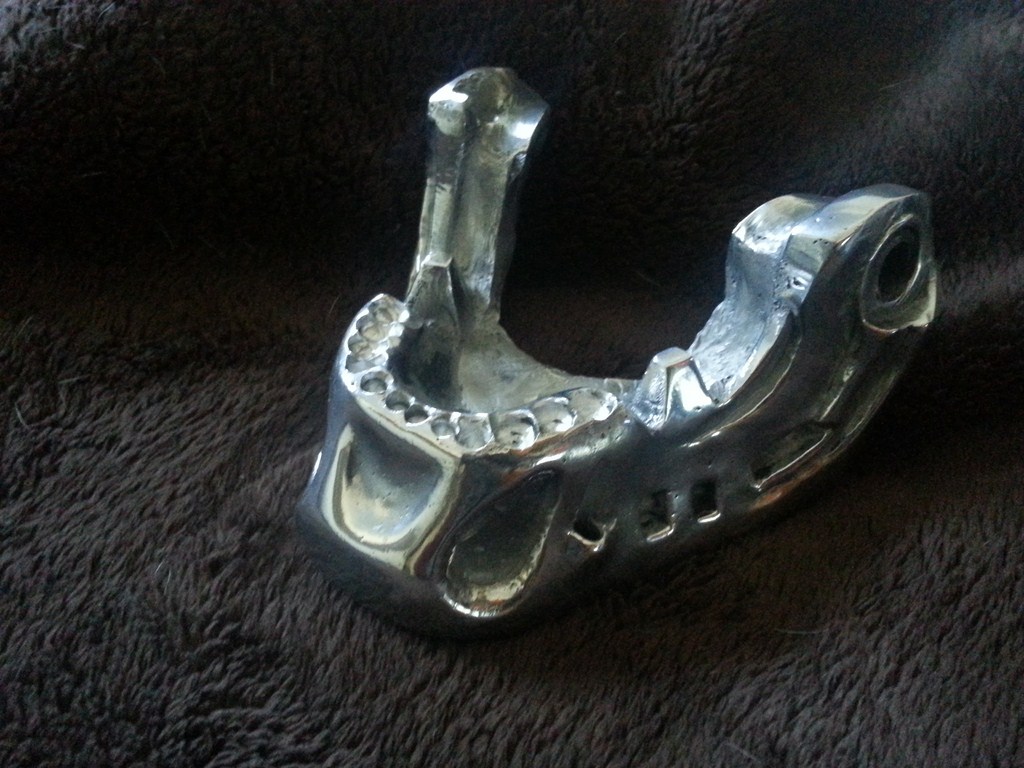

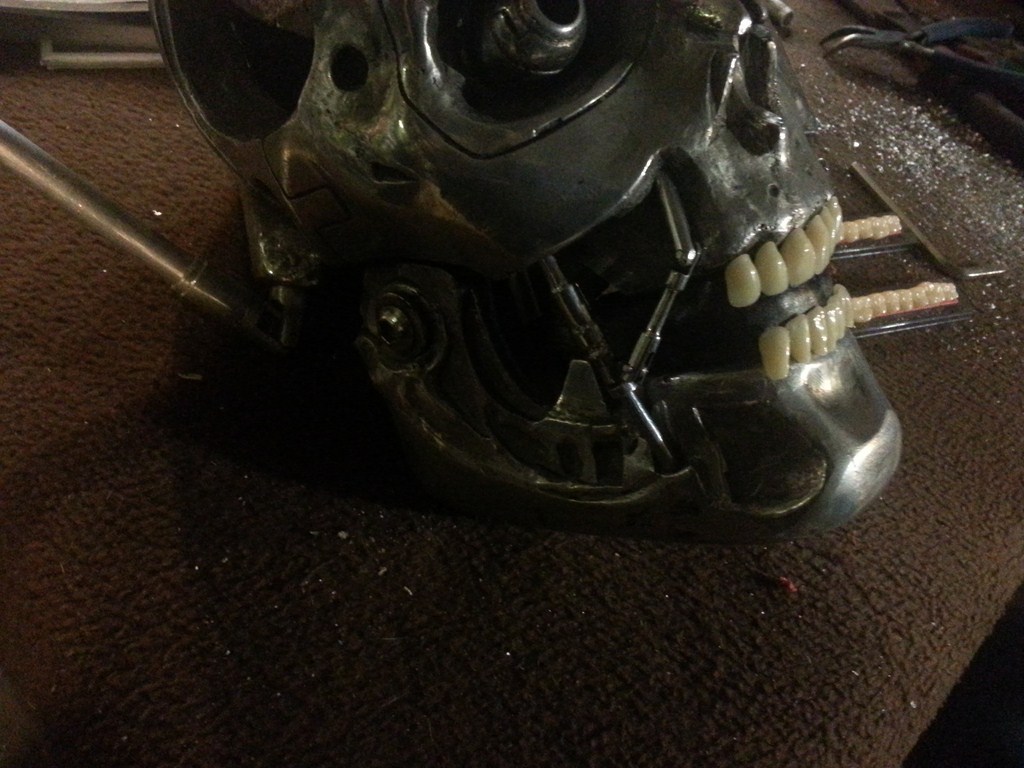

Here is a quick play I had with the jaw, you may notice how dull it is as well, thats because it's also being prepared for it's "Final" polish...



[Jamie Staff]

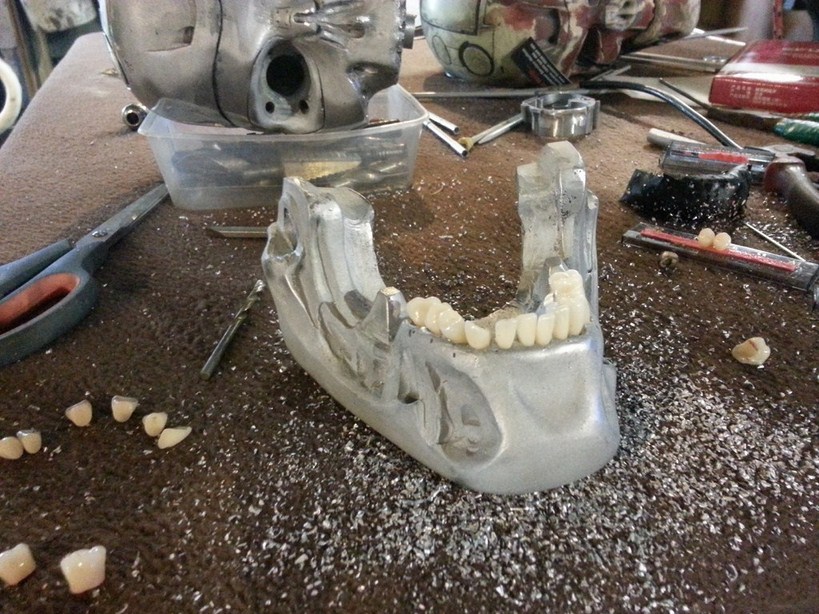

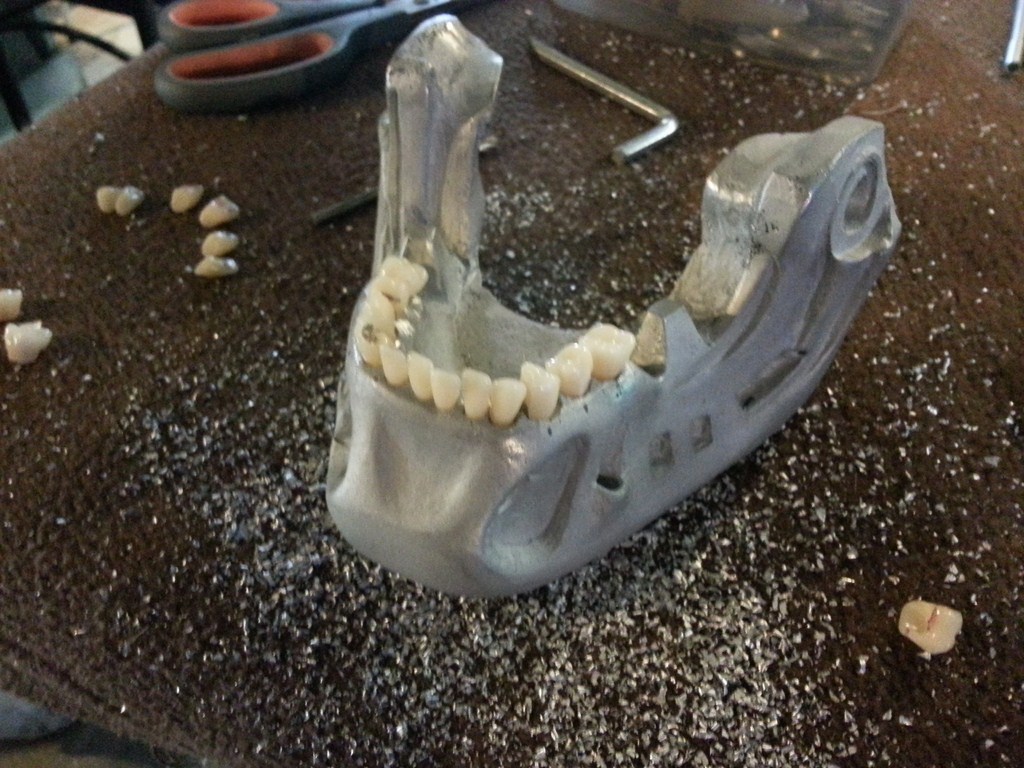

Setup of the lower jaw teeth of the build and the polishing of the skull using a modifided sand blaster...
Terminator Teeth Assembly - YouTube



[JERRY]

this has to be one of the best builds on here keep up the good work



[Jamie Staff]

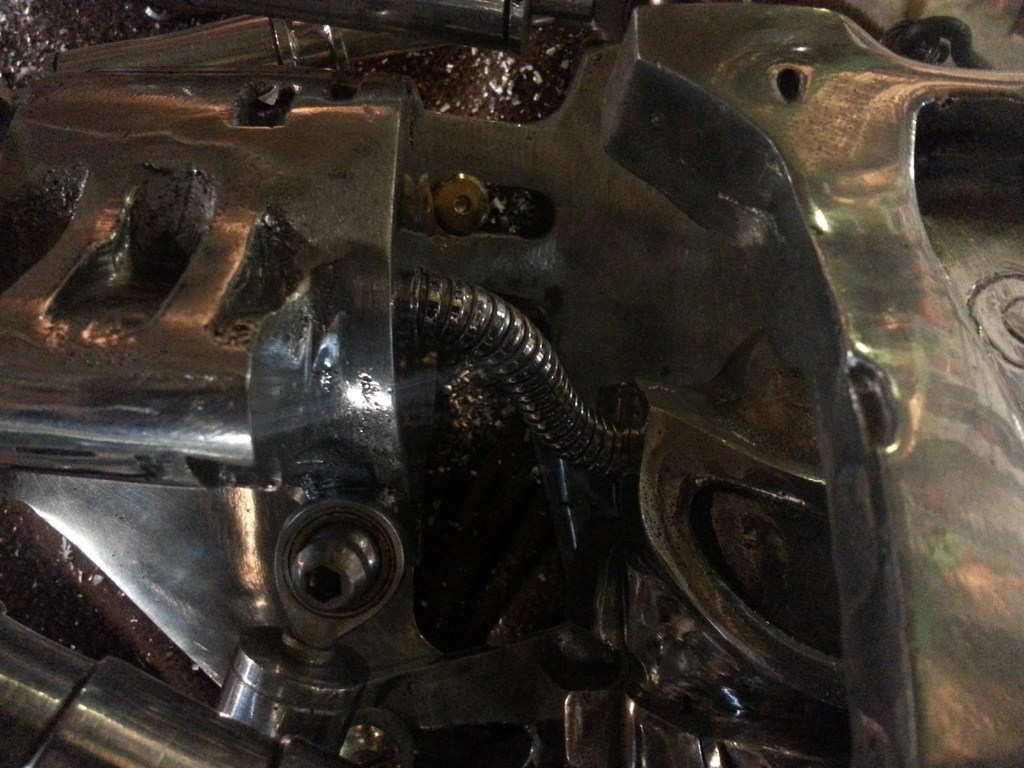

This is what I'm doing to get the look I want for the hoses/cables in the Endo

Terminator Cable Fittings - YouTube



[Conqueror_Worm]

Building a terminator with a hammer and anvil? It's like Terminator meets Army of Darkness.
The teeth look great! I was wondering how you were going to do those.



[Jamie Staff]

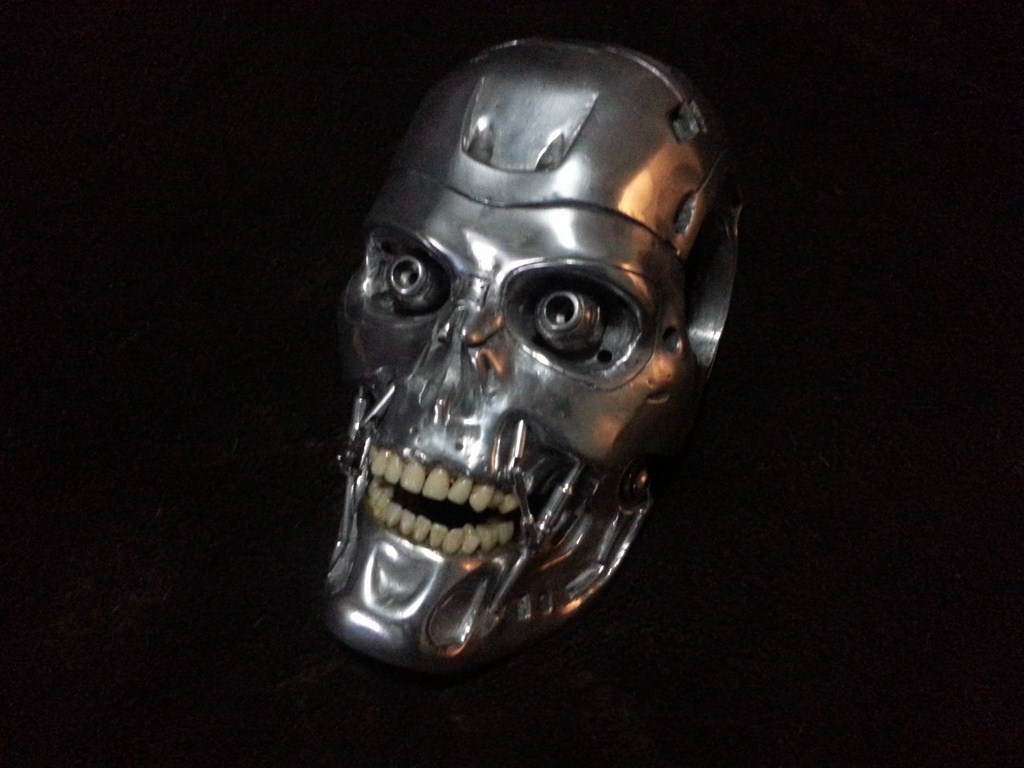

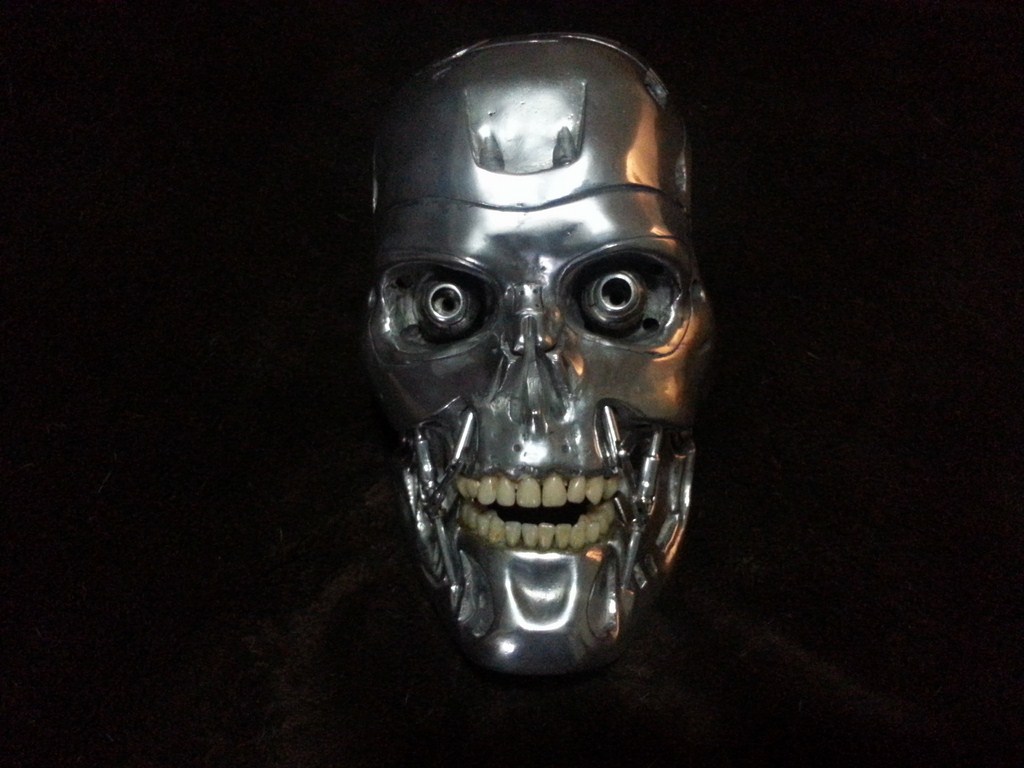

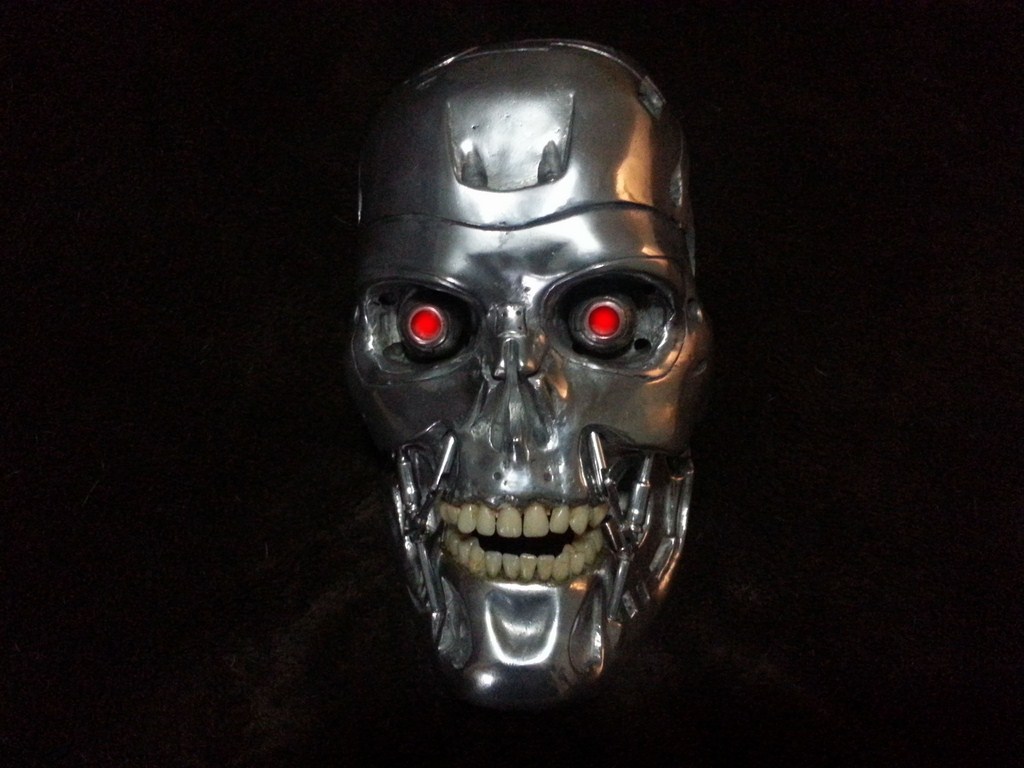

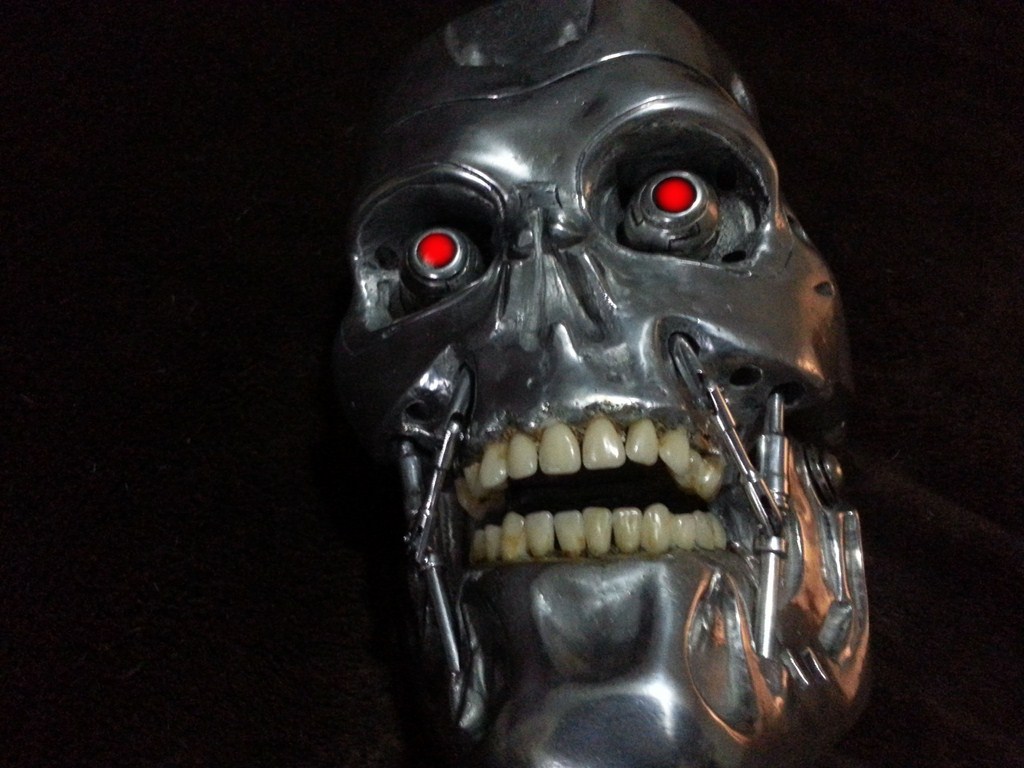

Not fully back into it just yet I'vbe been tied up with non "T" work but I was able to grab some time over the weeked to get the final polish and asembly of the Endo head, the teeth and jaw pistons are also done now, but I still need to do the gearboxes for the sides of the head made......
Terminator Head final polish - YouTube



[Jamie Staff]

Quick post on one of my other made inventions, it served me well over the years and yes it's nic name realy is Frankenstein, mostly because of all the parts made up from, a old motor, laundry tub I found, scrap metal for the frame and bike wheel, the belt and ceramic medium was the only thing I had to spend money on, that was over 15 year ago and he's still going strong
Meet Frankenstein - YouTube
