T1 and T2 Endoskeleton Research Thread

[gizmo]

Nice pics from Propstore. That’s what I love most about them. When pieces come up for auction we get really good references from them. Those pics of the knee are invaluable. Thanks Propstore and Carsten for supplying them.


Ben



[gizmo]

If there’s any warping on the finger parts I’m guessing it’s because the forearms and hands on some (all?) we’re made of rubber. I’m not sure if we talked about that earlier?


Ben



[Too Much Garlic]

What part of the hands???

At the "rounded" ends of each individual segment on each finger.

I have checked all the endoarms and hands I've found uploaded to Thingiverse and elsewhere and most don't even have the beveling and the ones that do don't have the differing beveling.



[Too Much Garlic]

Yes. I applaud Propstore for being cool with this. They are a great source of reference and deserve all the credit for their willingness to share it with people who ask. I wish I had been smart and asked for additional pictures of the blown up T1 skull when it was up for auction.



[The Terminator]

At the "rounded" ends of each individual segment on each finger.

I have checked all the endoarms and hands I've found uploaded to Thingiverse and elsewhere and most don't even have the beveling and the ones that do don't have the differing beveling.

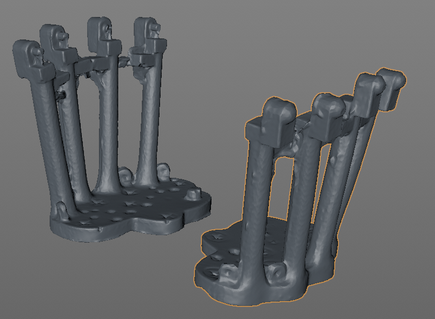

This part?



[Too Much Garlic]

No. On the fingers themselves.



[Too Much Garlic]

Working on the left knee today. Lots of small tinkering to get the shapes right. Started adding details seen in the Propstore knee that are not on the LFS casting.



[The Terminator]

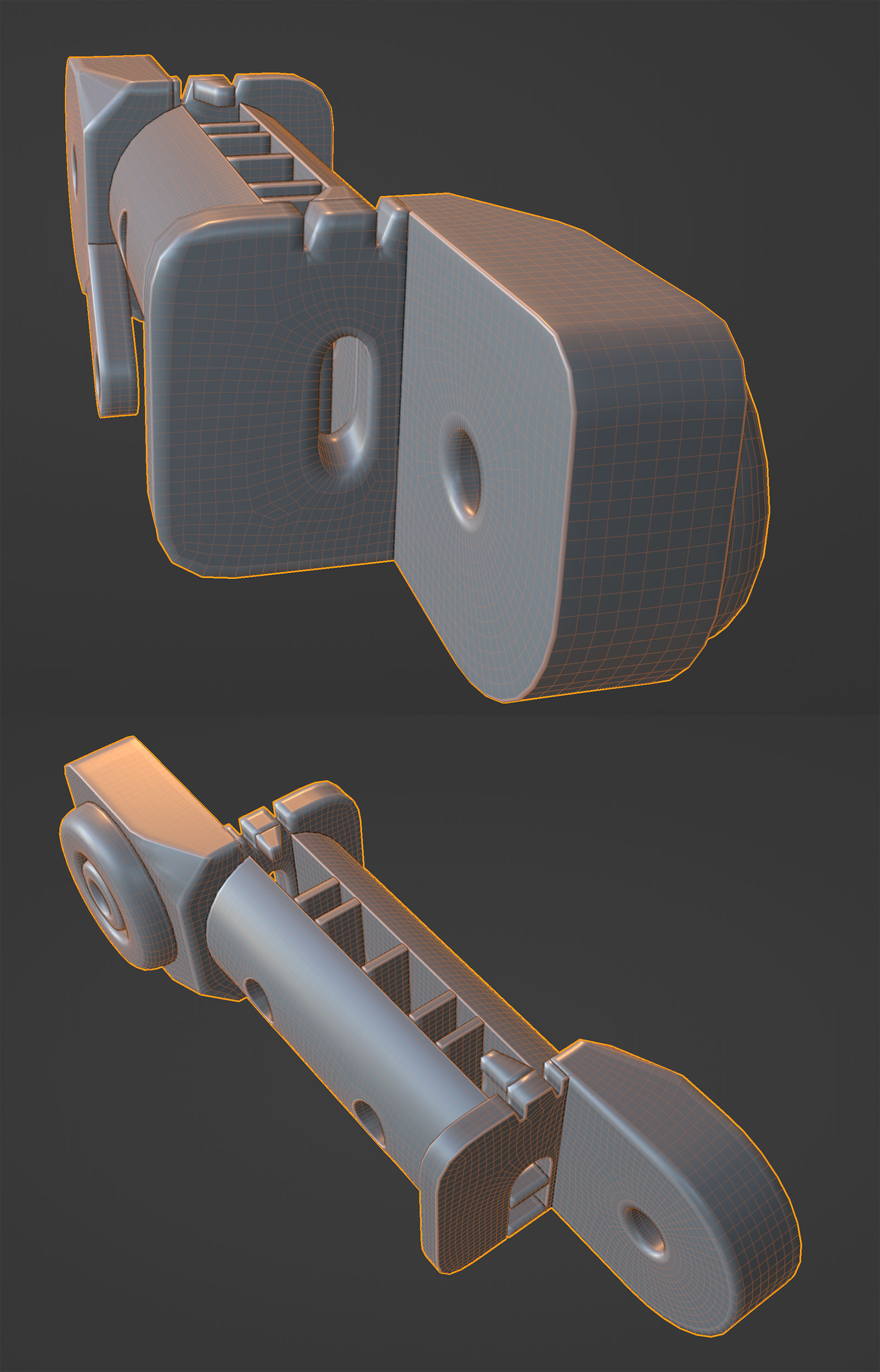

My suggestion is just to use different values for each unique edge and compare it to the screen used hands.



[Too Much Garlic]

Looks cool, but also way too advanced for me yet.

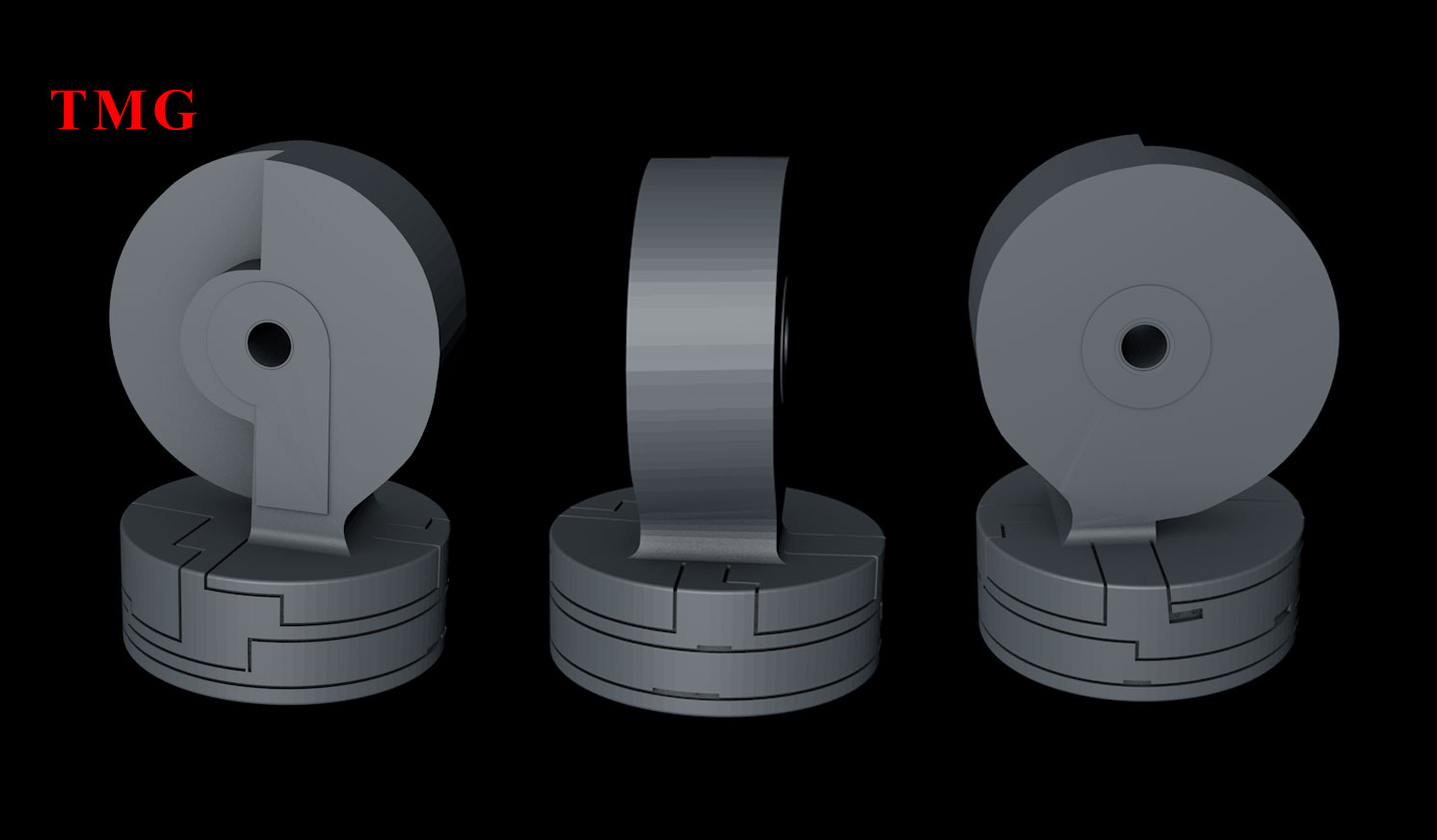

Got to a point where I could show a rework and groove test. Am soon done with all the grooves and details on the horizontal part. Then I have to do all the ones on the vertical part.



[Too Much Garlic]

Knee comparison when scaled to Propstore measurements. It's quite a bit larger than the LFS knee. When placed on top of each other the vertical part is nearly as wide as the small round extensions at the center hole.



[Too Much Garlic]

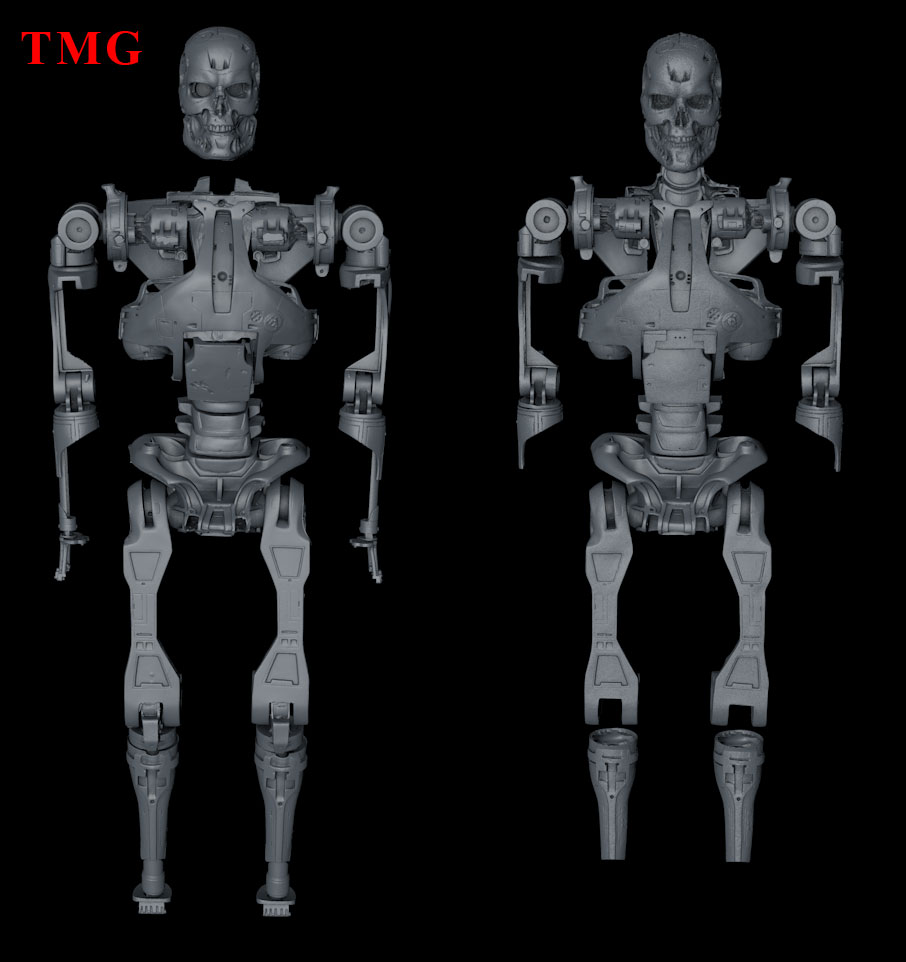

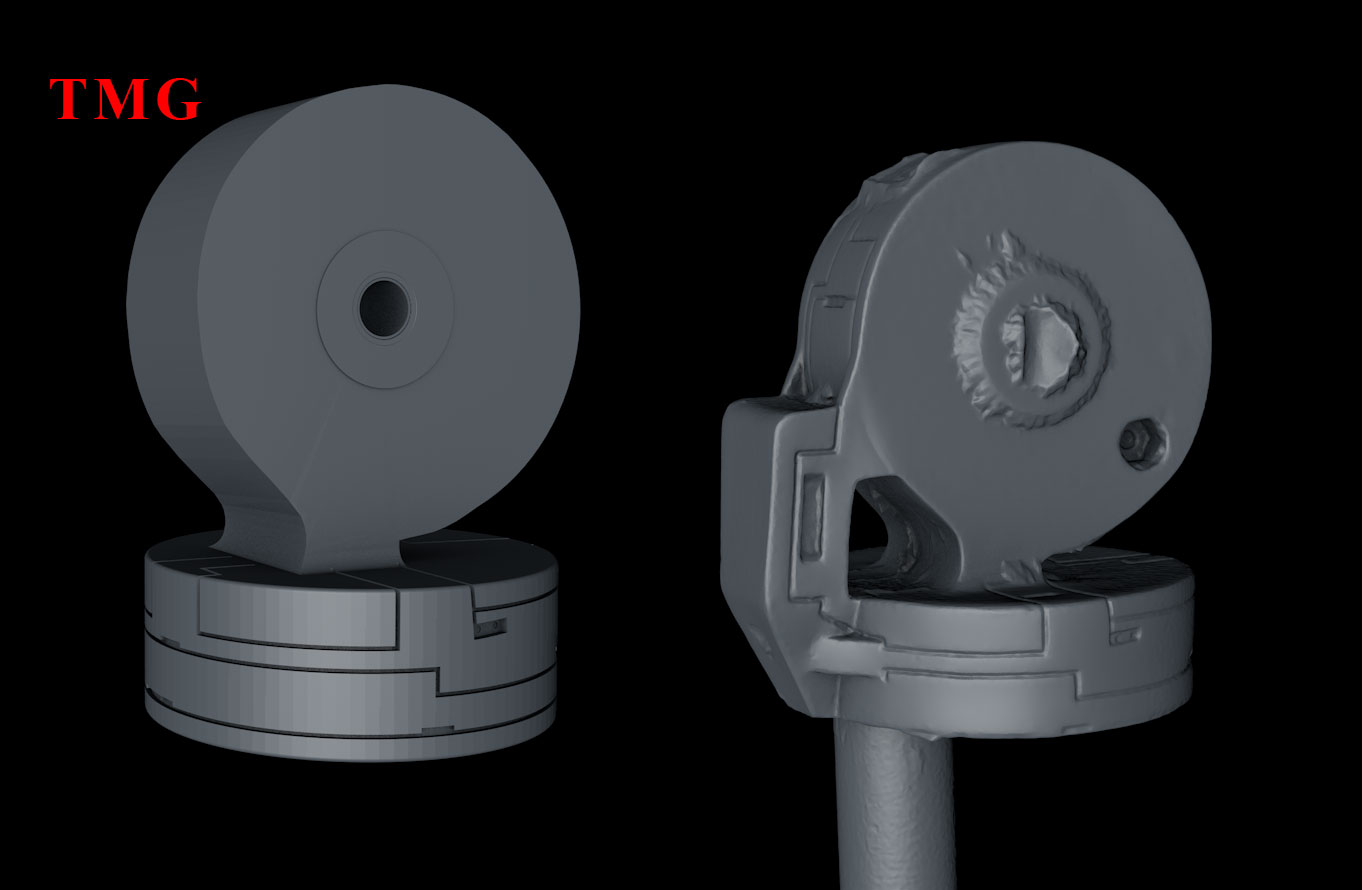

Just for fun. The TMG scan vs the ghostman photogrammetry:



[Too Much Garlic]

Found some pictures on Pinterest I don't think I've seen posted before.



[ssdesigner]

I've not seen those either! Thanks for posting



[Too Much Garlic]

More pictures found online.

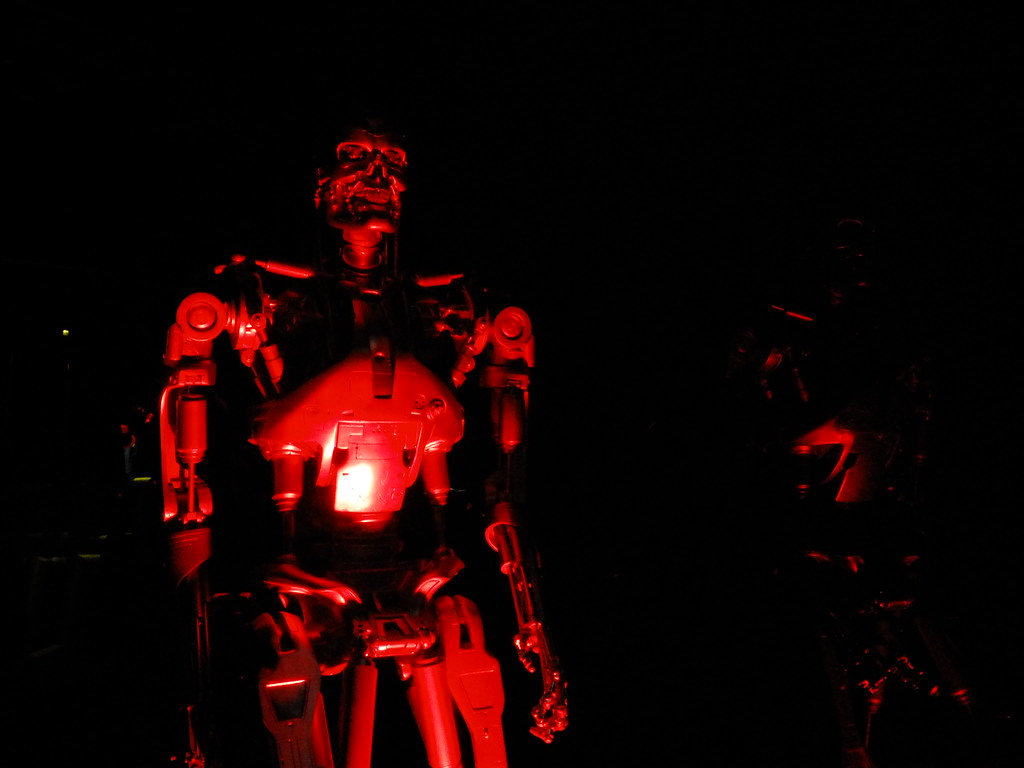

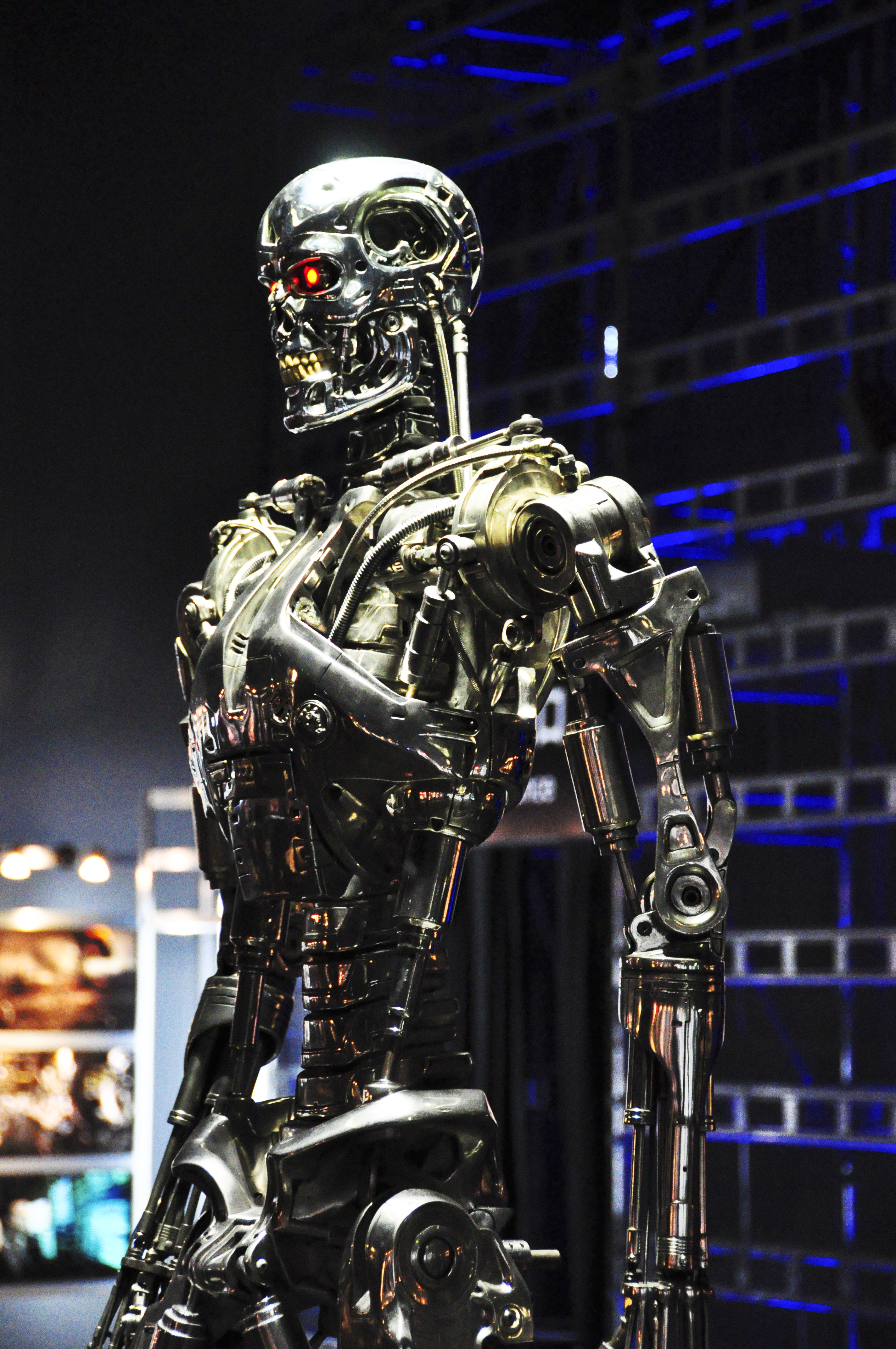

Was this the T4 endoskeleton display?

And what display is this from again? I may have posted it before:

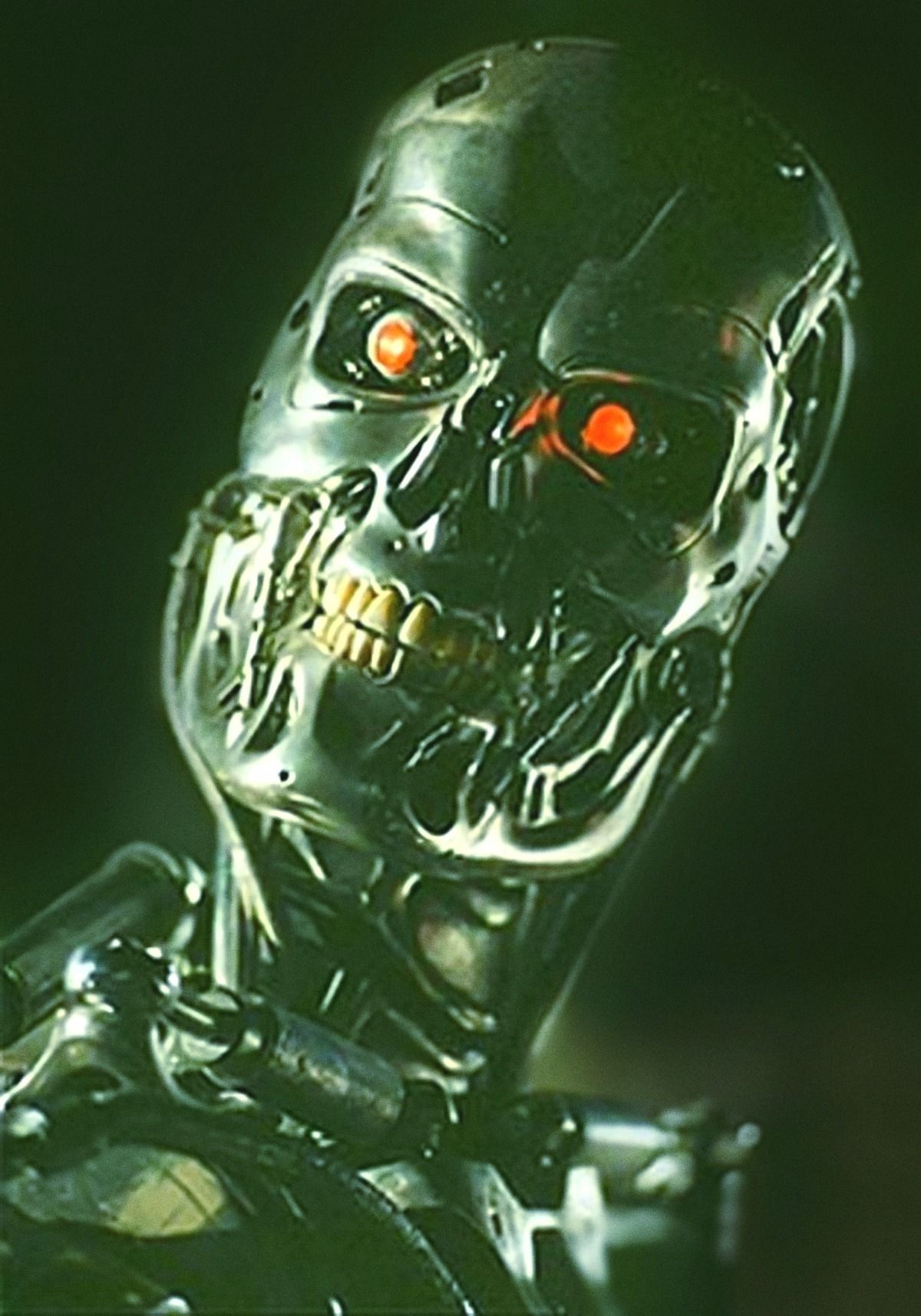

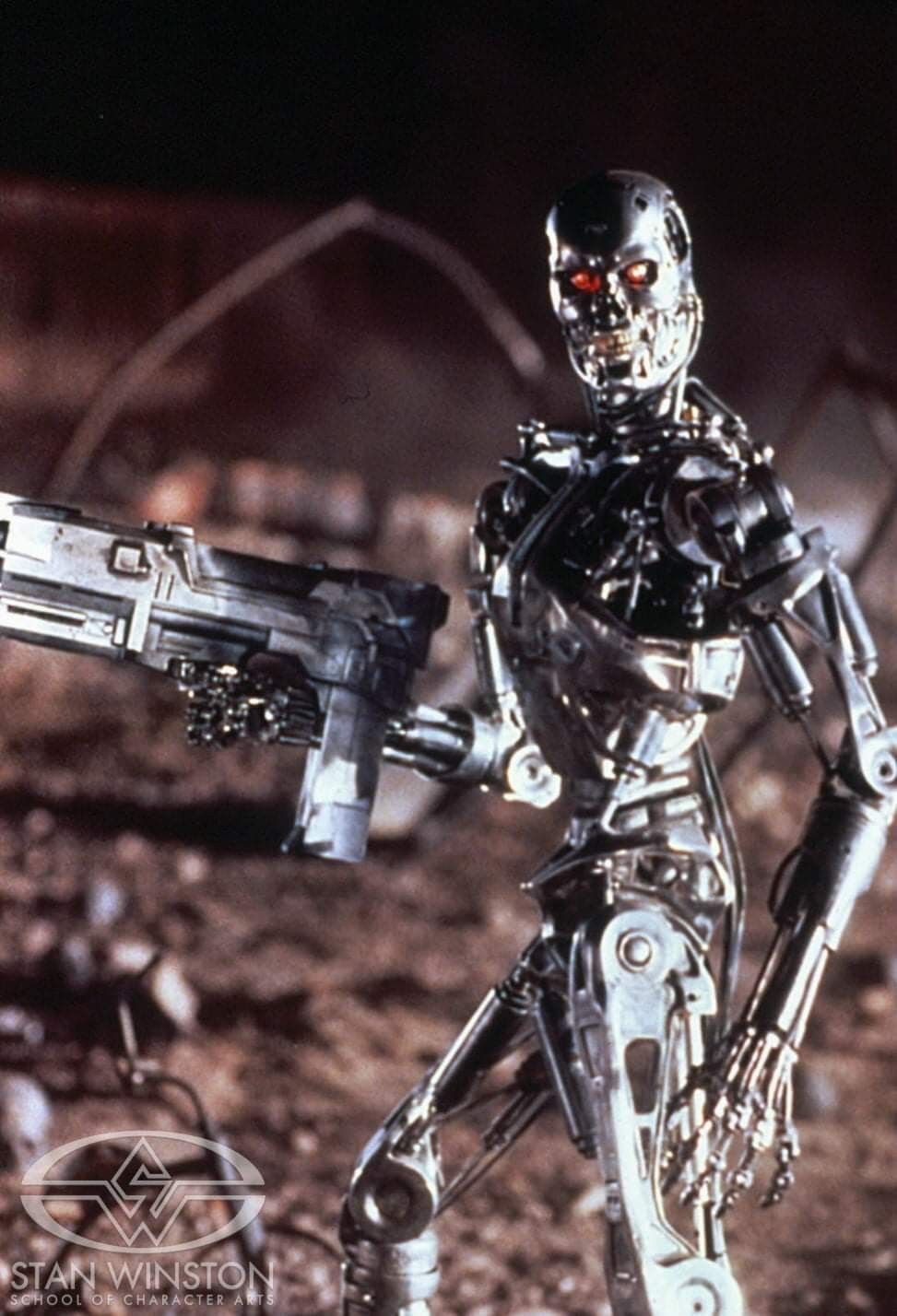

And finally some T1 images:



[Too Much Garlic]

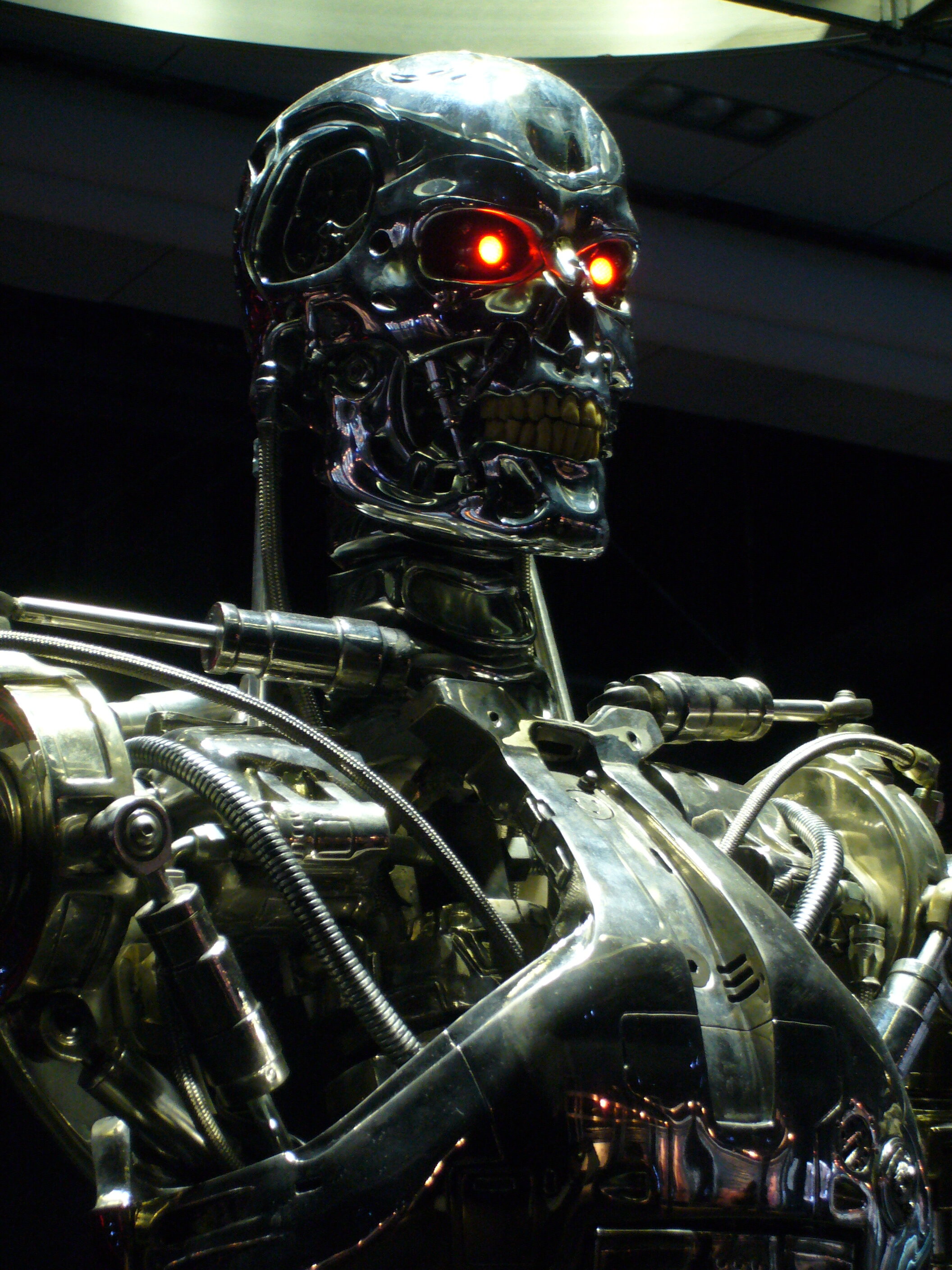

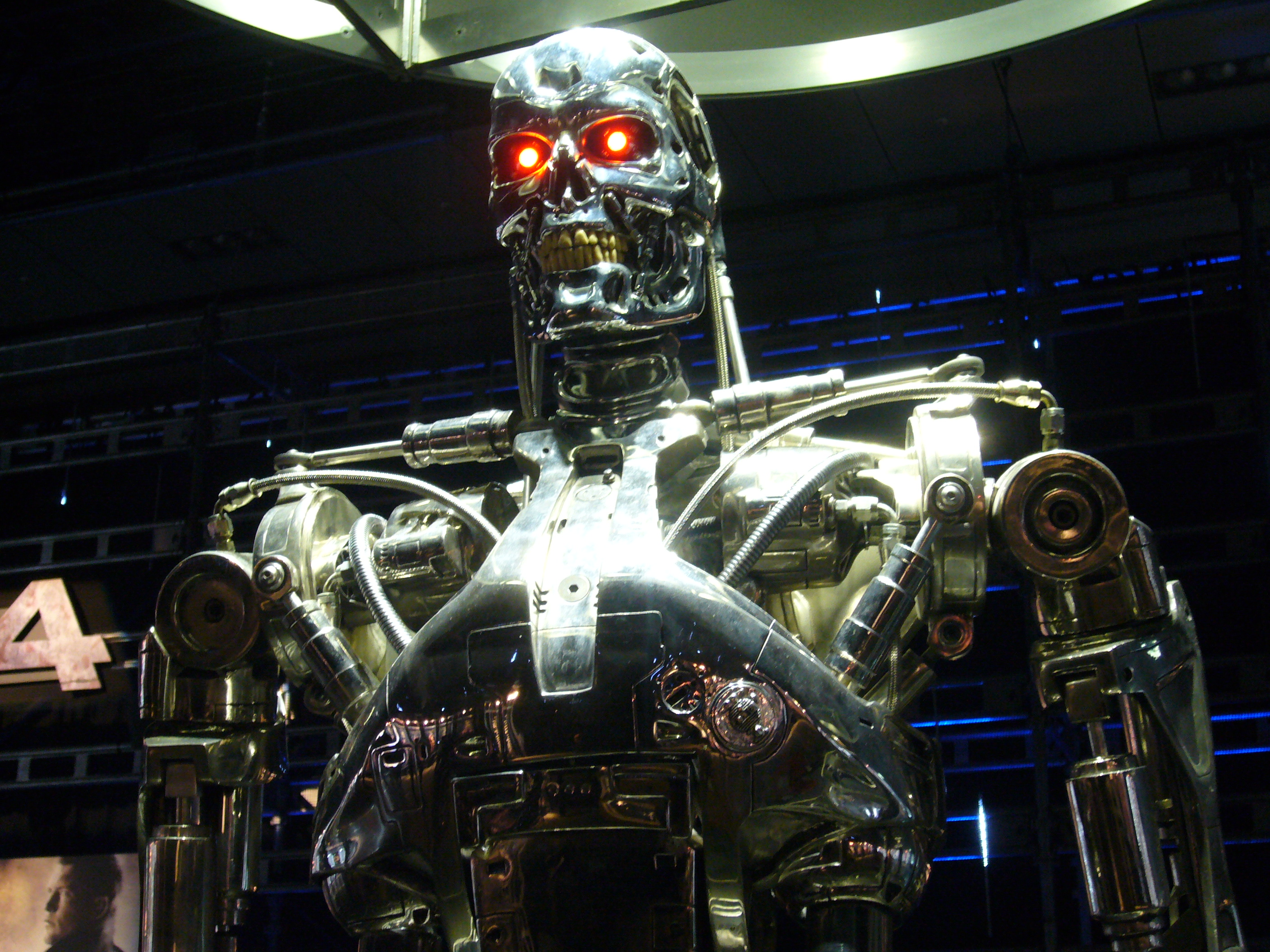

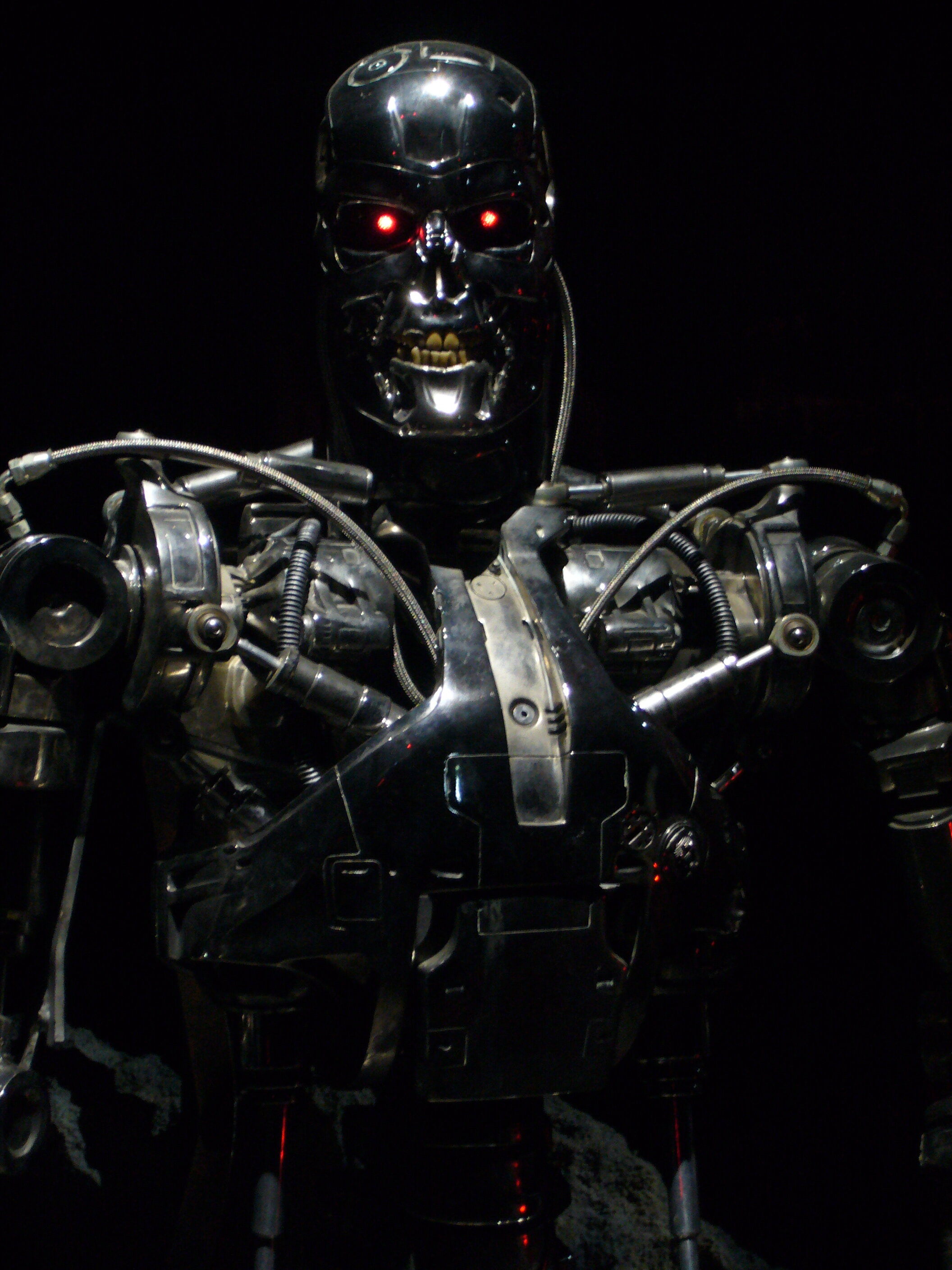

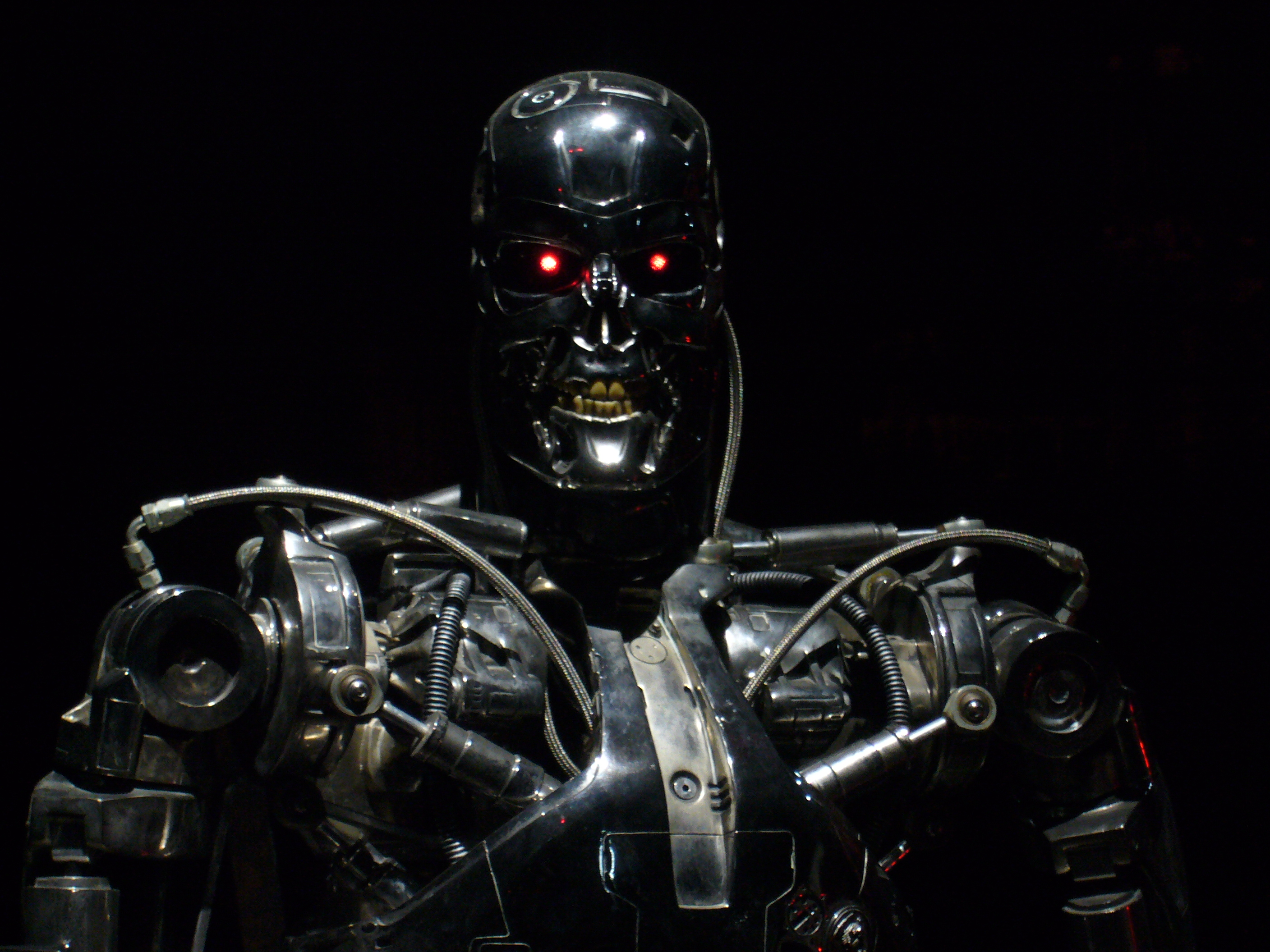

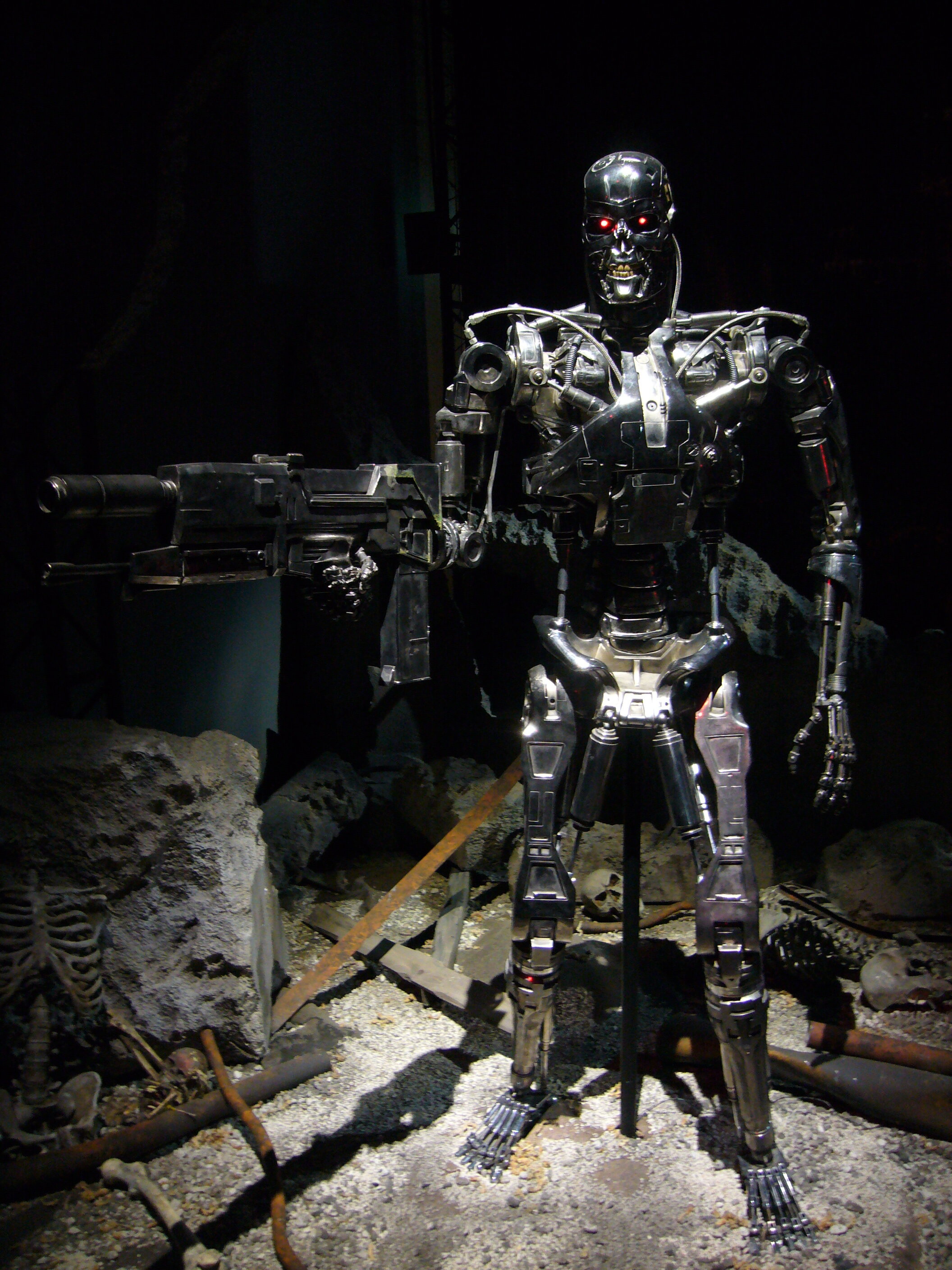

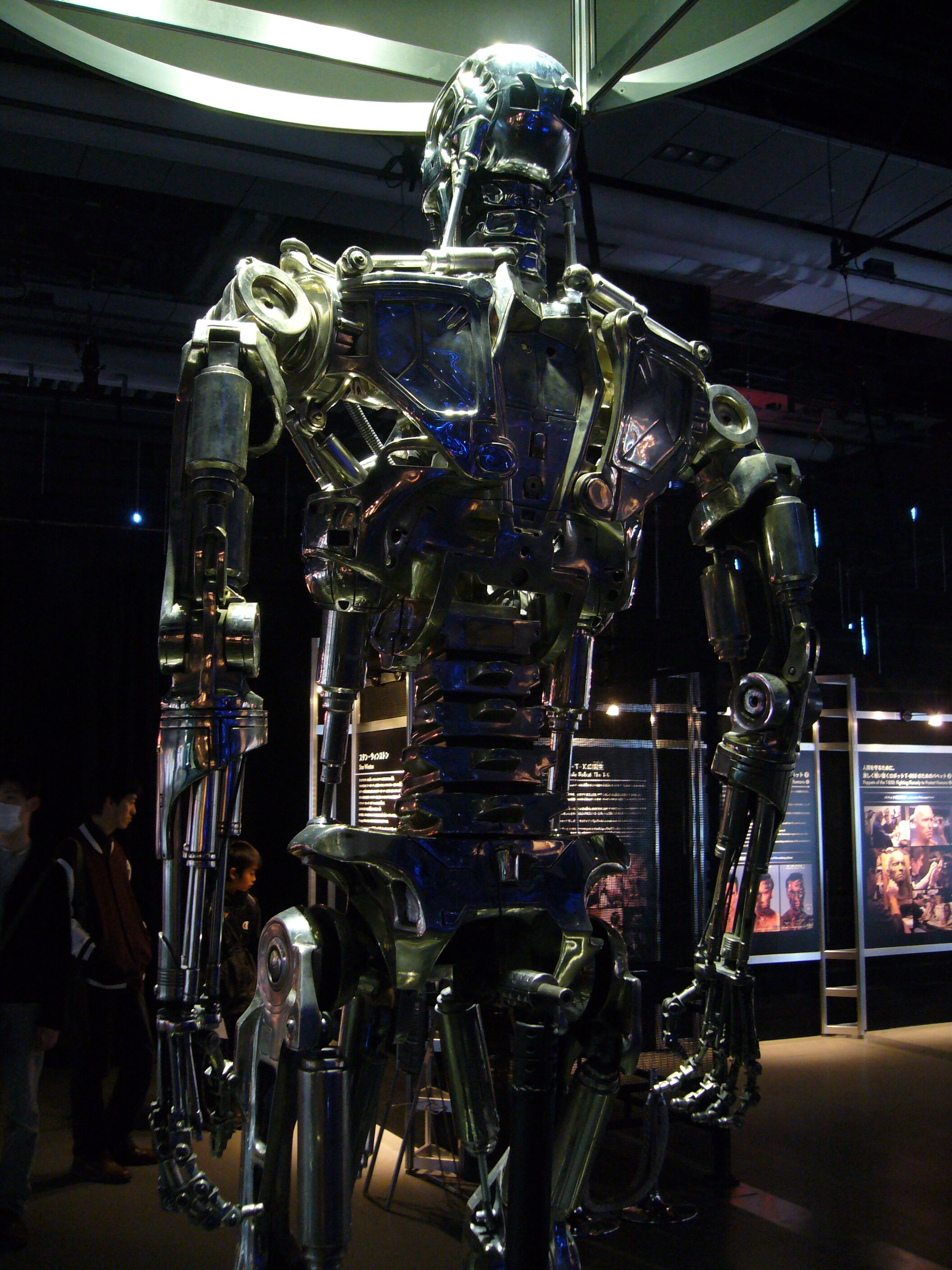

Checked my files and the second one - the one I asked which display it was from - it turns out it is from: Tokyo Japan Museum Robot Science



[Too Much Garlic]

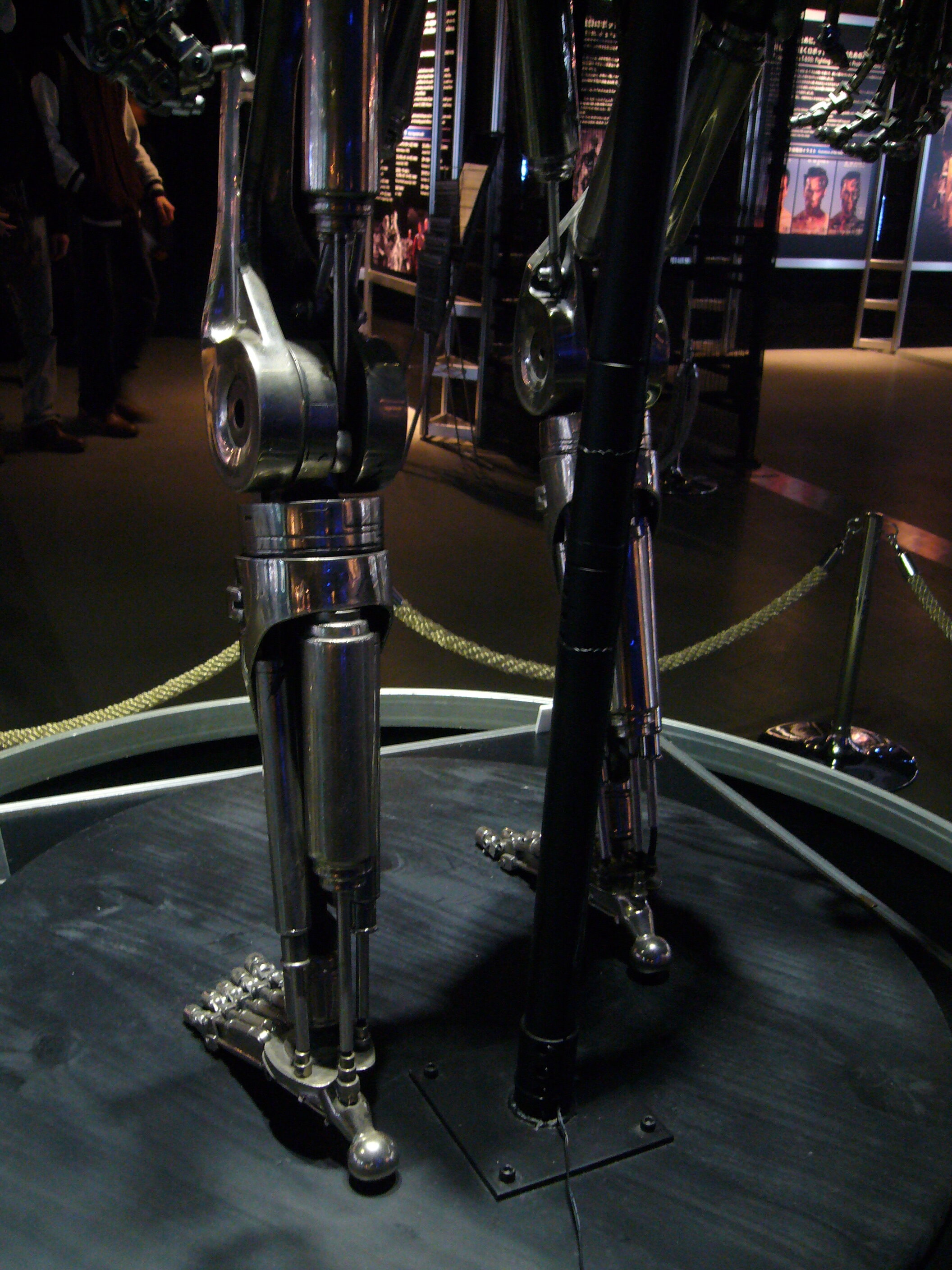

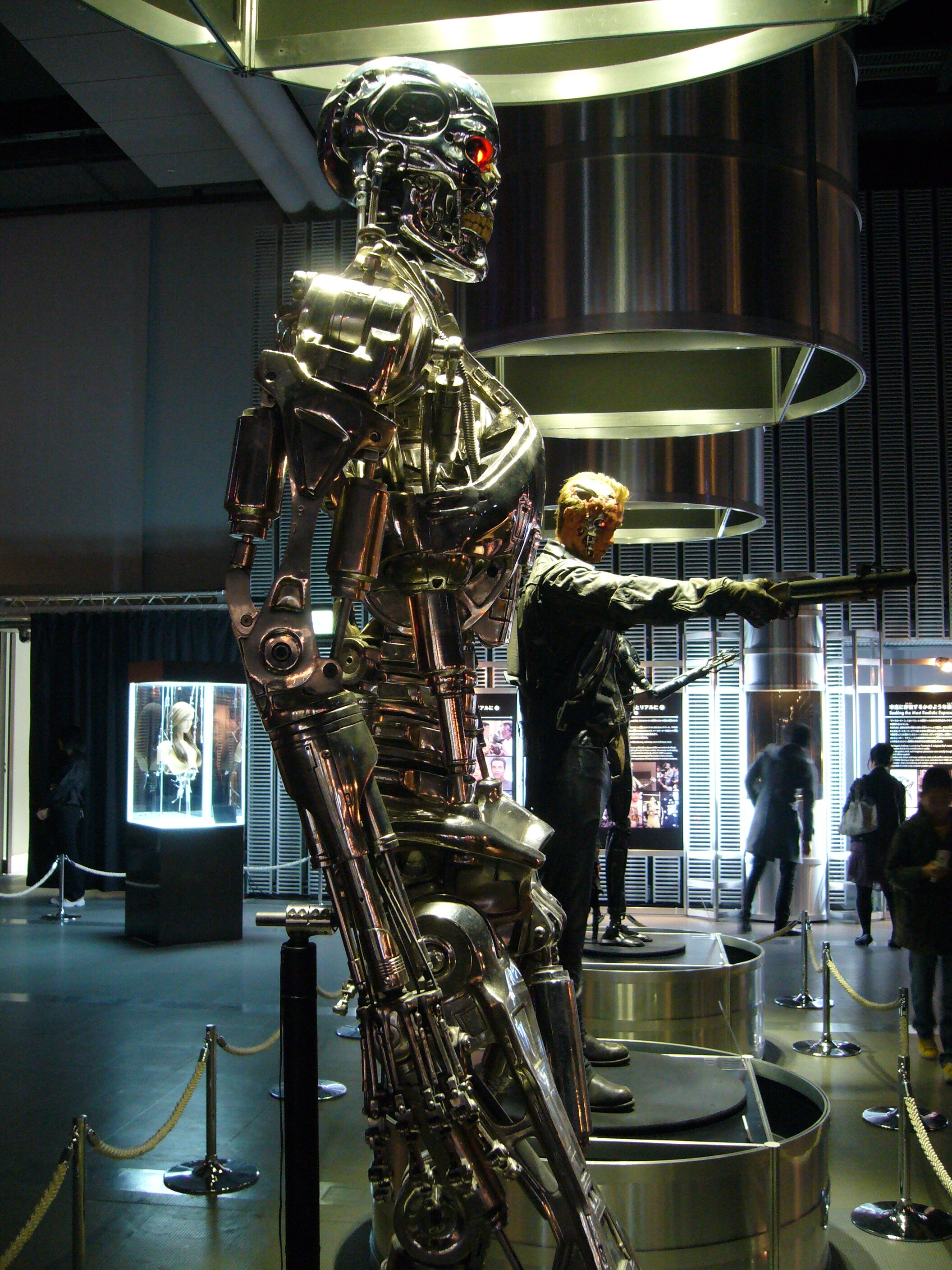

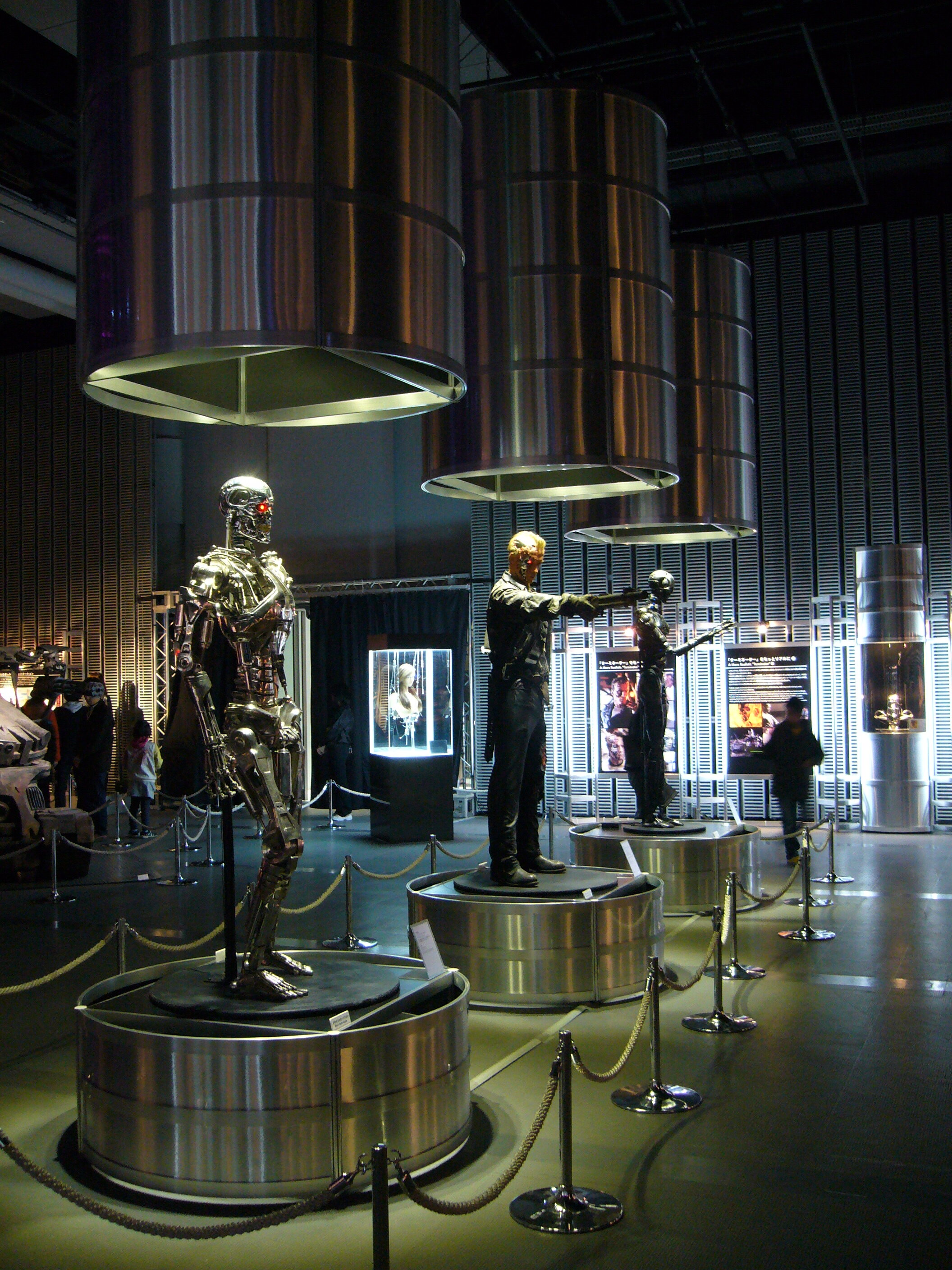

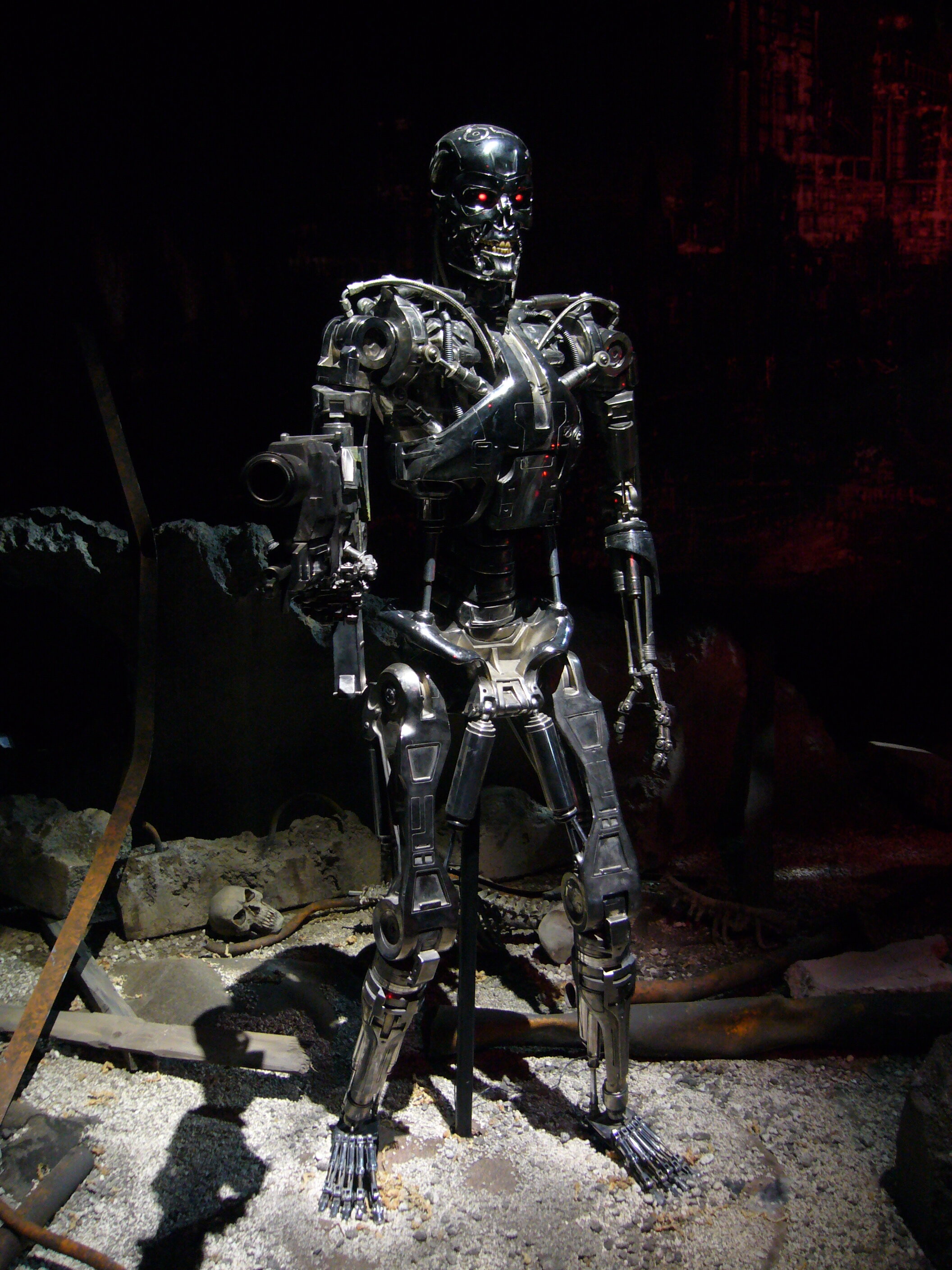

They have another display too with a more static pose one:



[Too Much Garlic]

Heh, it's the whole line-up from this auction: Profiles in History - Hollywood Auction 37



[Too Much Garlic]

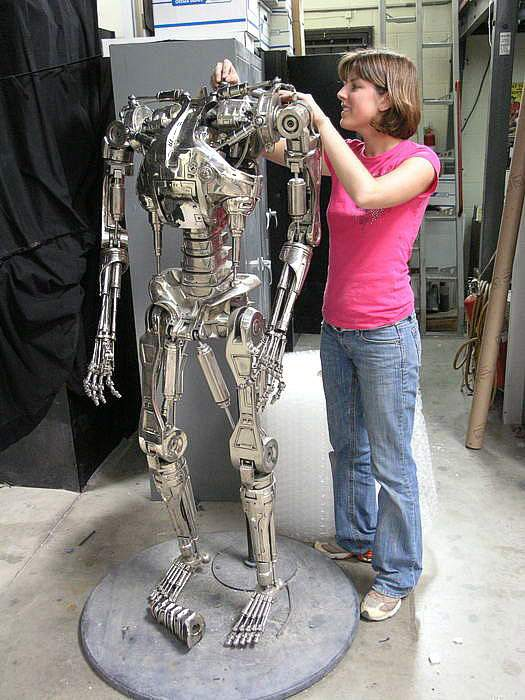

I have this picture listed as T4, but did I label it wrong? To me it kinda looks like the endoskeleton on display in Tokyo, but it was sold as a T3 endo. Title description say: T4 - Laura Elliot - moldmaker.



[Too Much Garlic]

Working on the shoulder cable connector today. Been a while, mostly because what I'm doing now is tedious polygon tweaking to make the model geometry look good. And it's taking a while to do each step.



[Too Much Garlic]

Just 20 steps left before I can start working on the rest.
