Studio-Scale Hoth Ion Cannon AND Mountain Diorama

OTnROTSfan

Well-Known Member
RPF PREMIUM MEMBER

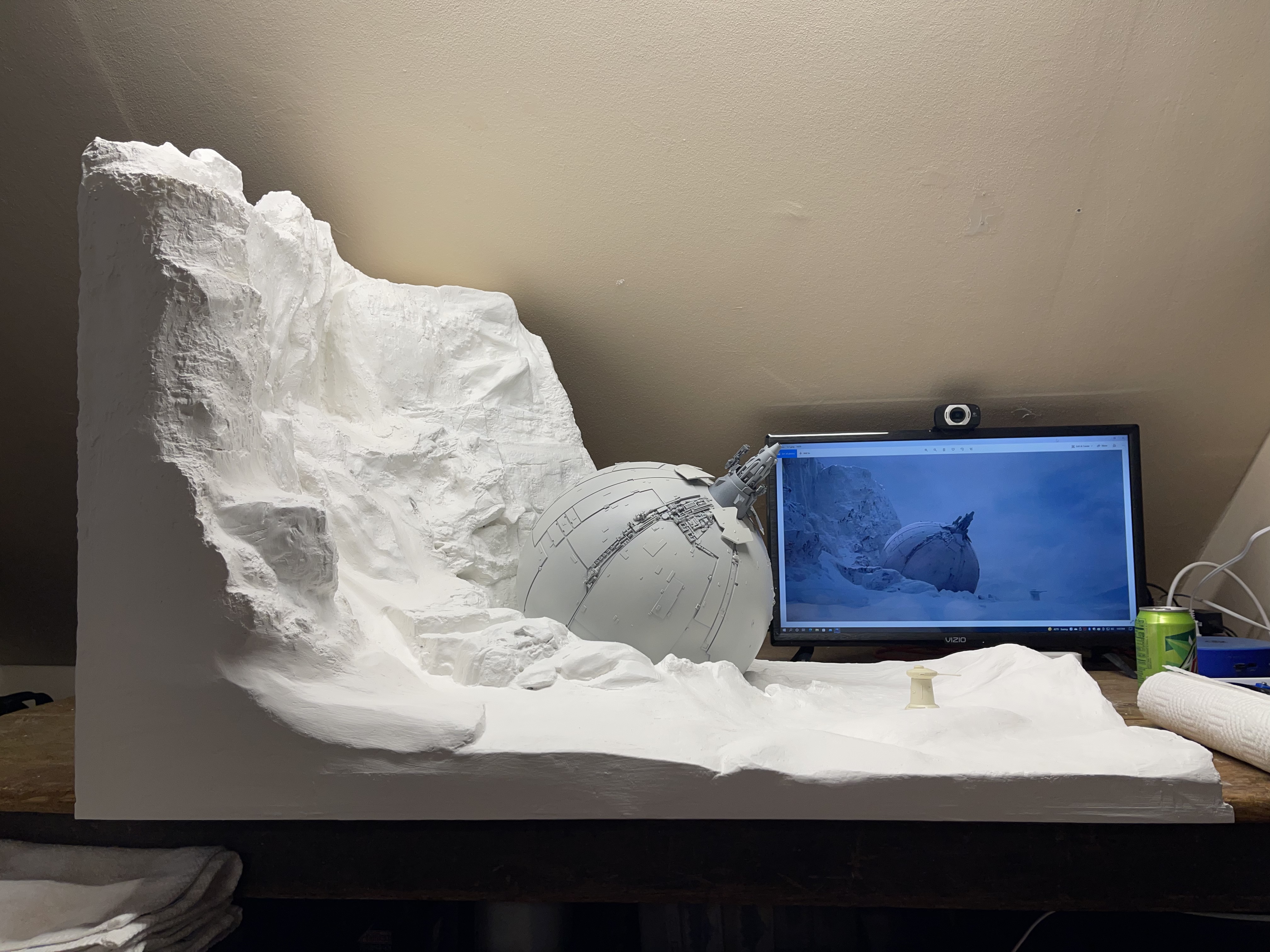

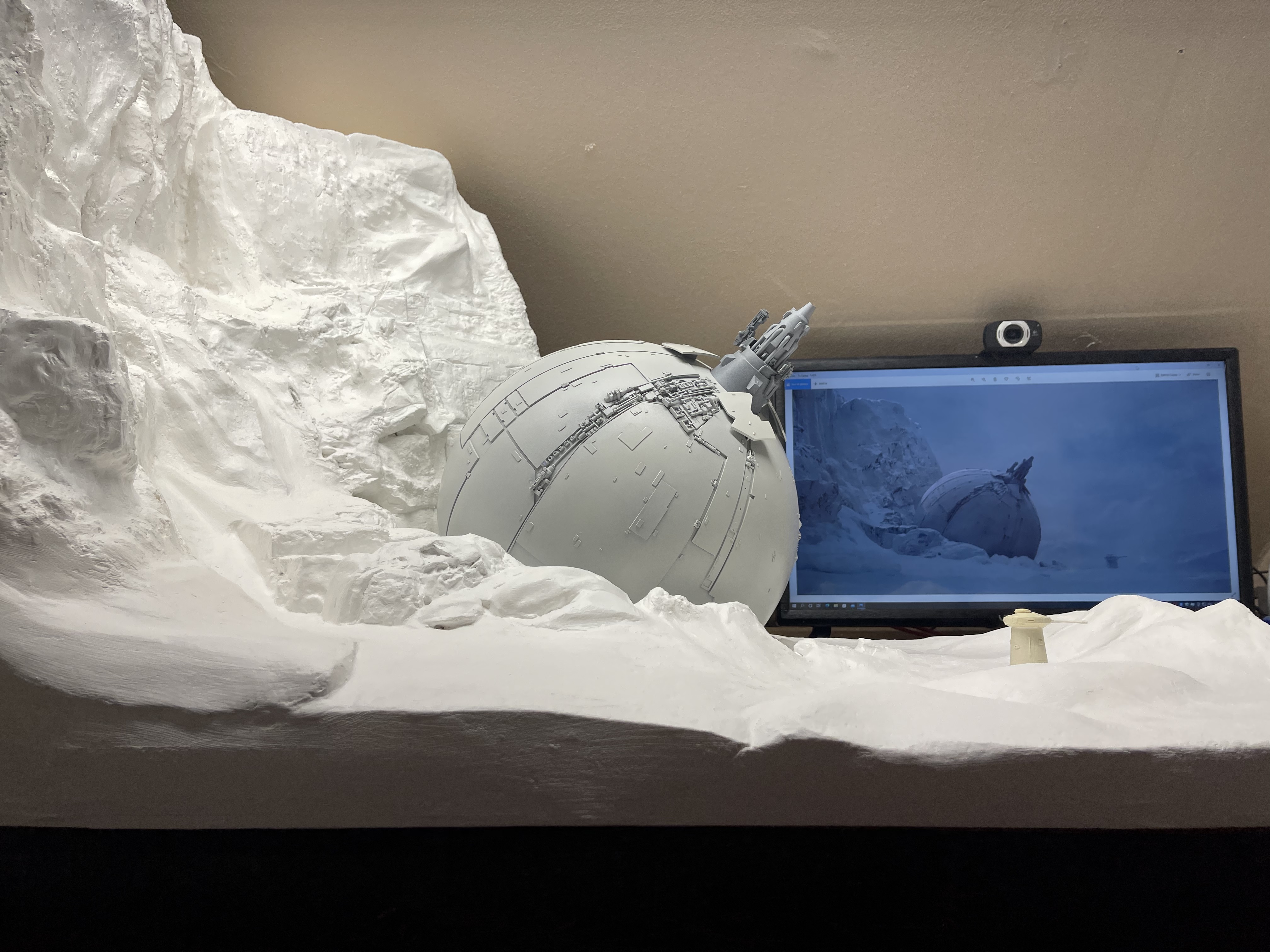

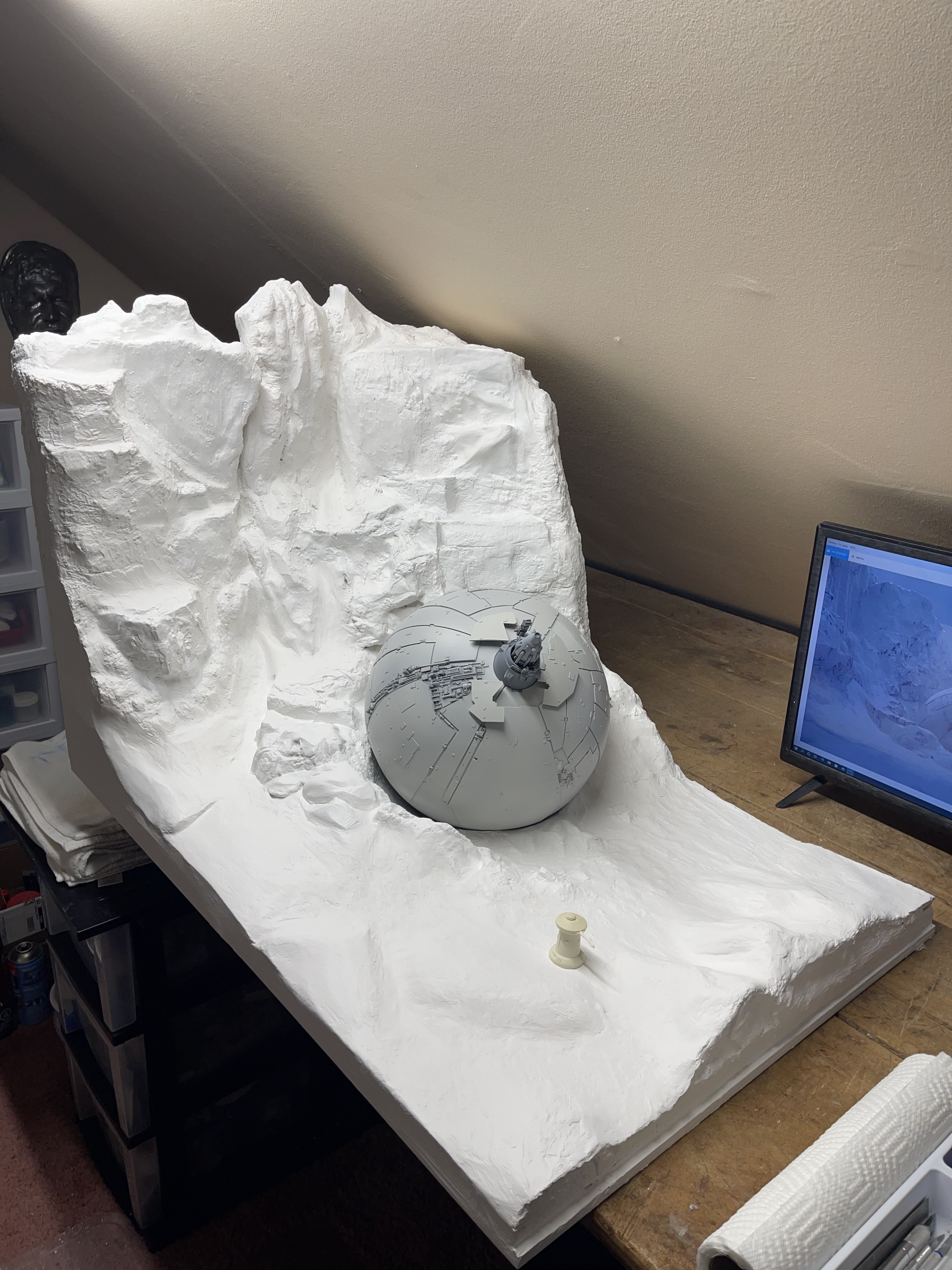

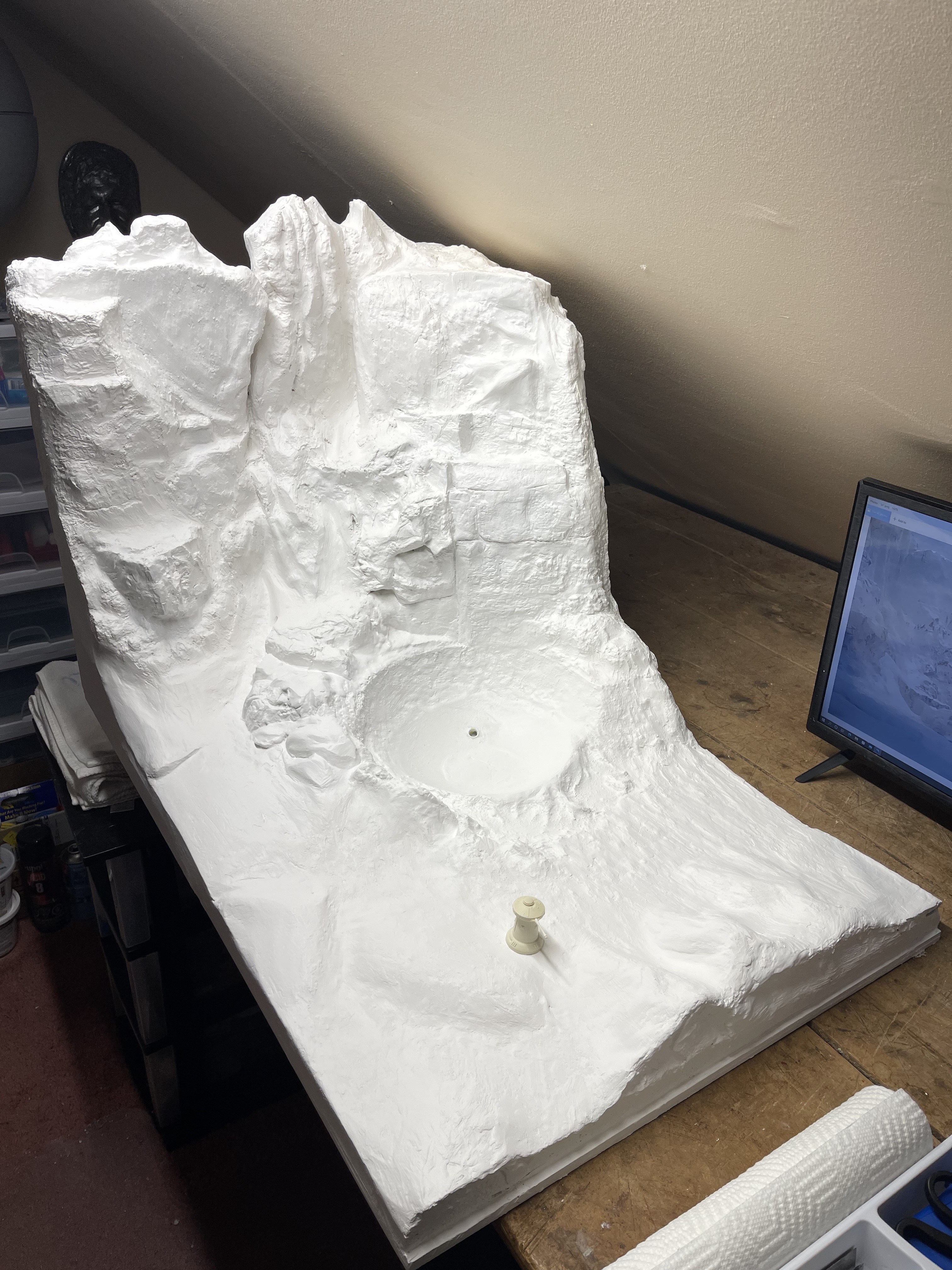

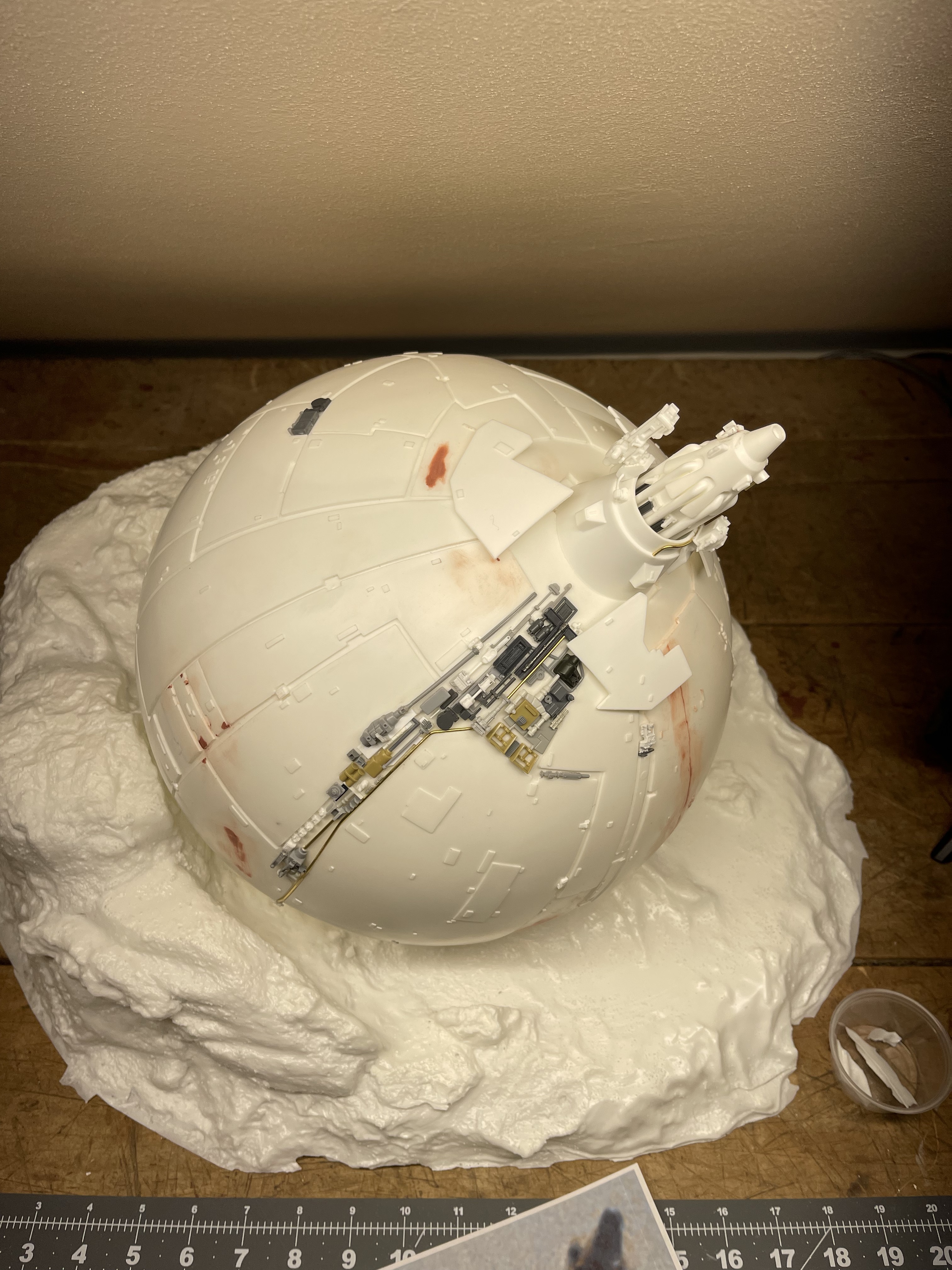

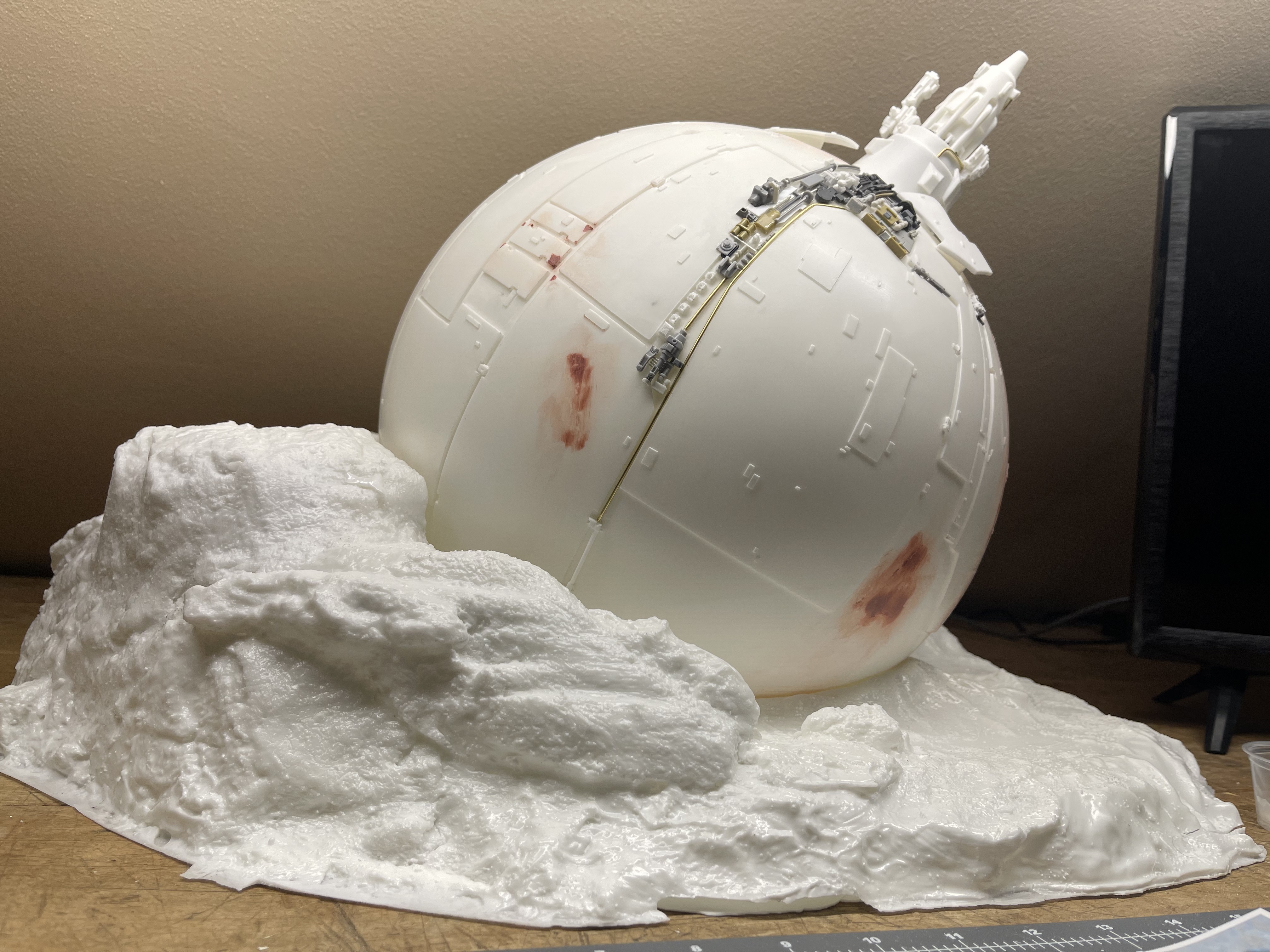

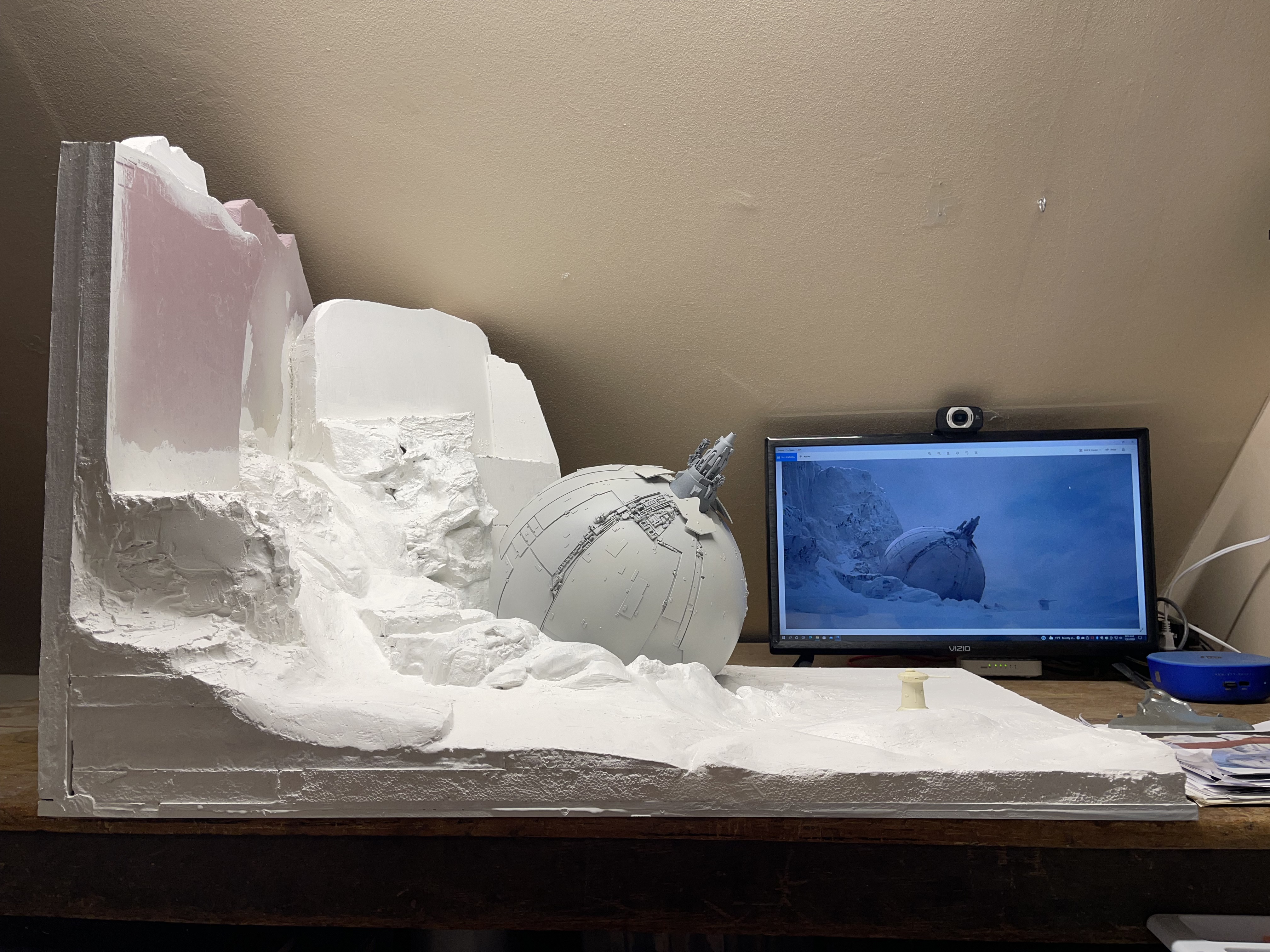

Winter side-project: Studio-Scale [Hoth] Ion Cannon... AND mountain diorama, for my personal collection (and possibly Wonderfest?). Got most of the mountain section roughed-out and to fit on a 3'x2' base. Most of the nooks and crannies are there. Next: onto paint, weathering, and snow. Also need to fabricate the custom plexi-wrap and rear sky. Built-in a wiring channel and keeping the ball loose, in case I ever get ambitious enough in my old-age to animate a ball-section. More soon, after some R&R. Fun to do a diorama, again... been a while.


Attachments

  • HIC_KKH-Build 000.jpg

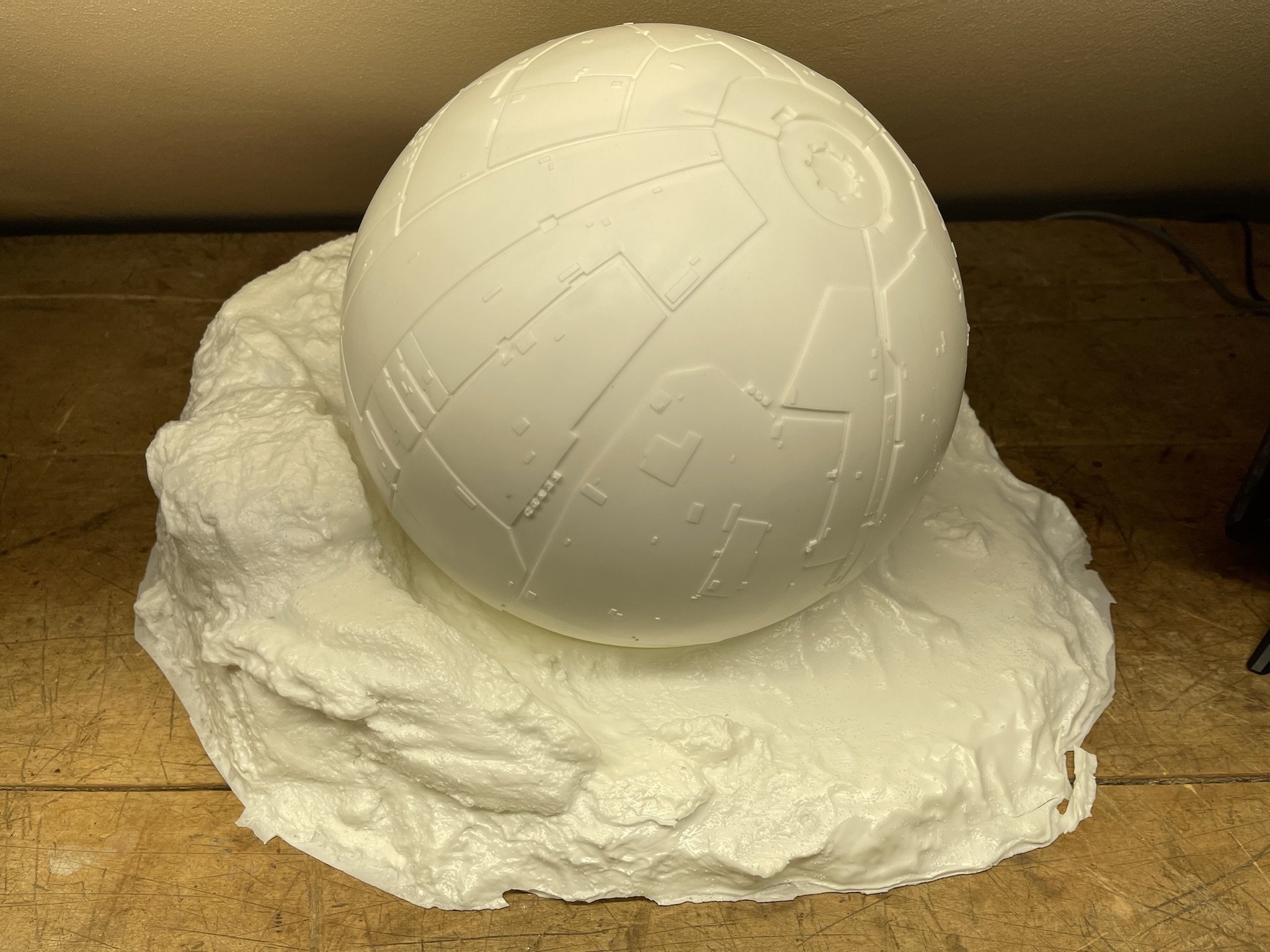

    HIC_KKH-Build 000.jpg
    595.3 KB · Views: 163
  • HIC_KKH-Build 108.jpg

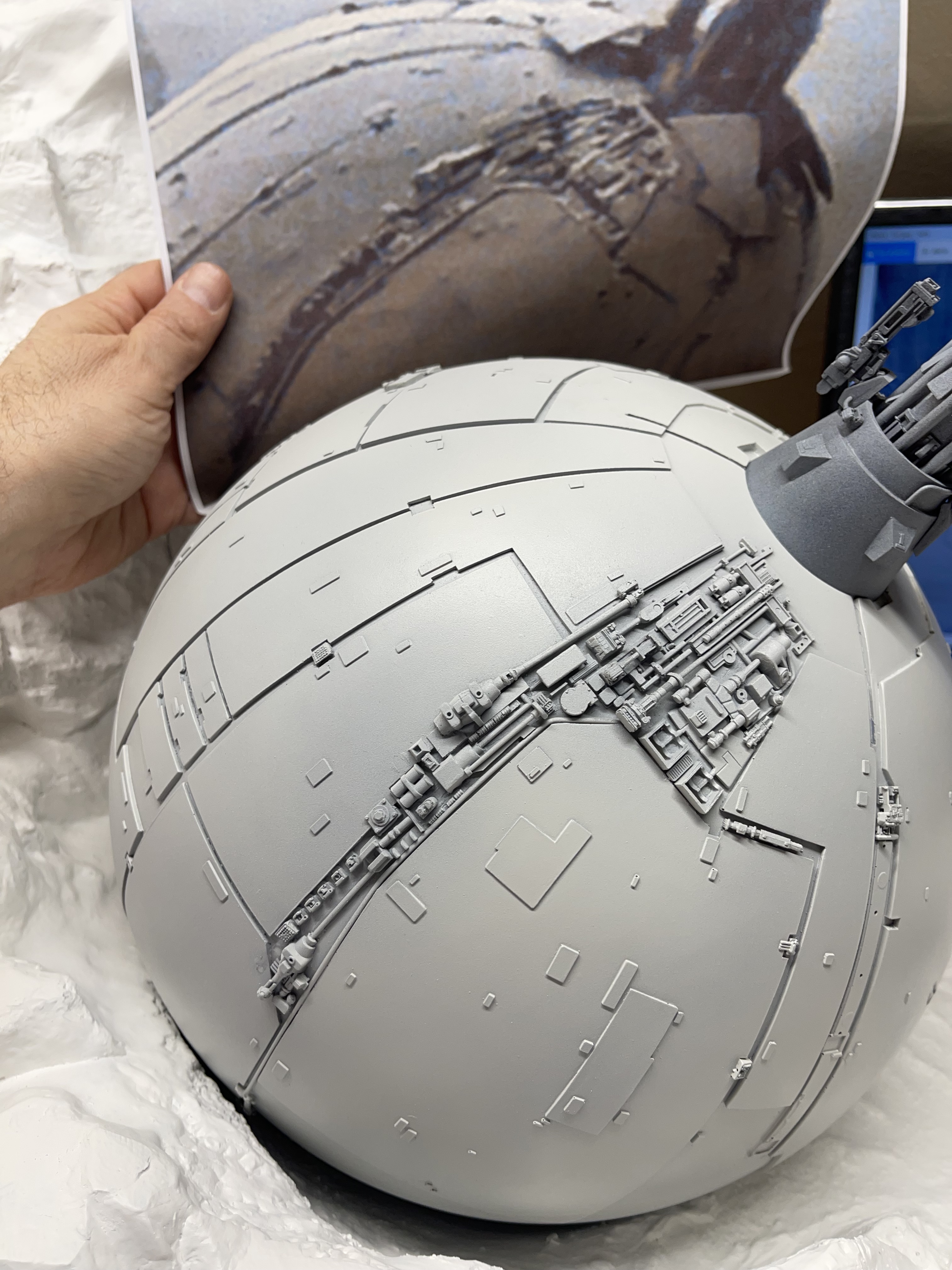

    HIC_KKH-Build 108.jpg
    2.9 MB · Views: 156
  • HIC_KKH-Build 107.jpg
    HIC_KKH-Build 107.jpg
    3.3 MB · Views: 140
  • HIC_KKH-Build 106.jpg
    HIC_KKH-Build 106.jpg
    3.2 MB · Views: 123
  • HIC_KKH-Build 105.jpg
    HIC_KKH-Build 105.jpg
    2.3 MB · Views: 120
  • HIC_KKH-Build 102.jpg
    HIC_KKH-Build 102.jpg
    3.2 MB · Views: 115
  • HIC_KKH-Build 44.jpg
    HIC_KKH-Build 44.jpg
    3.3 MB · Views: 125
  • HIC_KKH-Build 021.jpg
    HIC_KKH-Build 021.jpg
    2.8 MB · Views: 133
  • HIC_KKH-Build 004.jpg

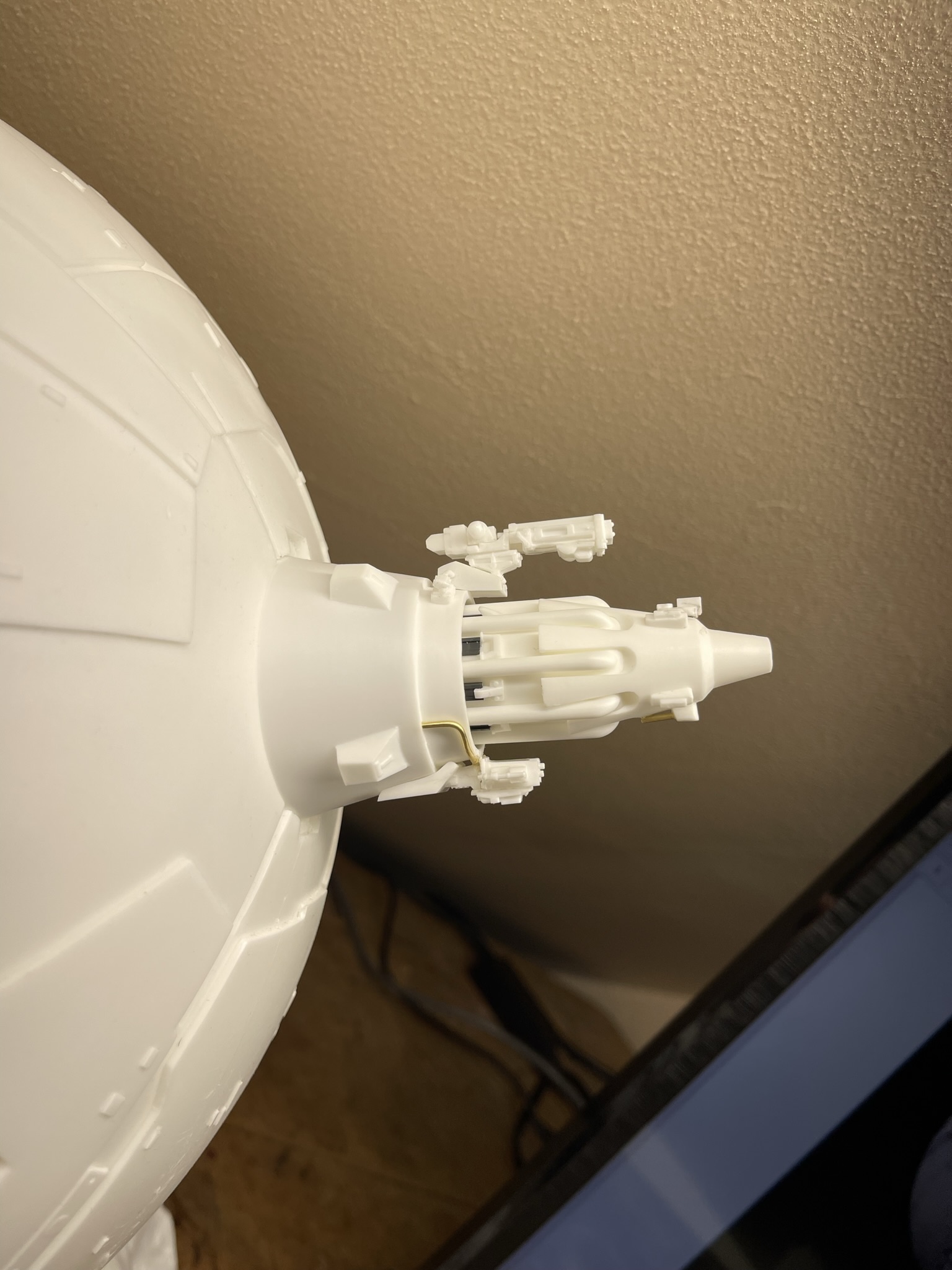

    HIC_KKH-Build 004.jpg
    400.2 KB · Views: 145

OTnROTSfan

Well-Known Member
RPF PREMIUM MEMBER
Great build! What did you use to make snow base?

I used Pink Foam + Foam Putty + Spray Foam (window/door) + Plaster over Shaper-Sheet (from model railroading) + apoxie sculpt for all of the detail and transition areas. The whole thing sits on acrylic sheet 3' x 2'. It will be painted/weathered and then a snow-mix over it.


OTnROTSfan

Well-Known Member
RPF PREMIUM MEMBER
I love it! I want to try the same with mine. What kit did the small turret come from? The old MPC Hoth scene?

Thanks! JPG/Jimi had some of those... got them a while ago. That's the 1/72 turret they put out... perhaps just slightly oversized, but in the zone. Worse case, I'll extrapolate exact size down the road and print one, at some point. They also had a 1/144 set of Hoth goodies, but those were too way too small from basic extrapolation that I did.


OTnROTSfan

Well-Known Member
RPF PREMIUM MEMBER

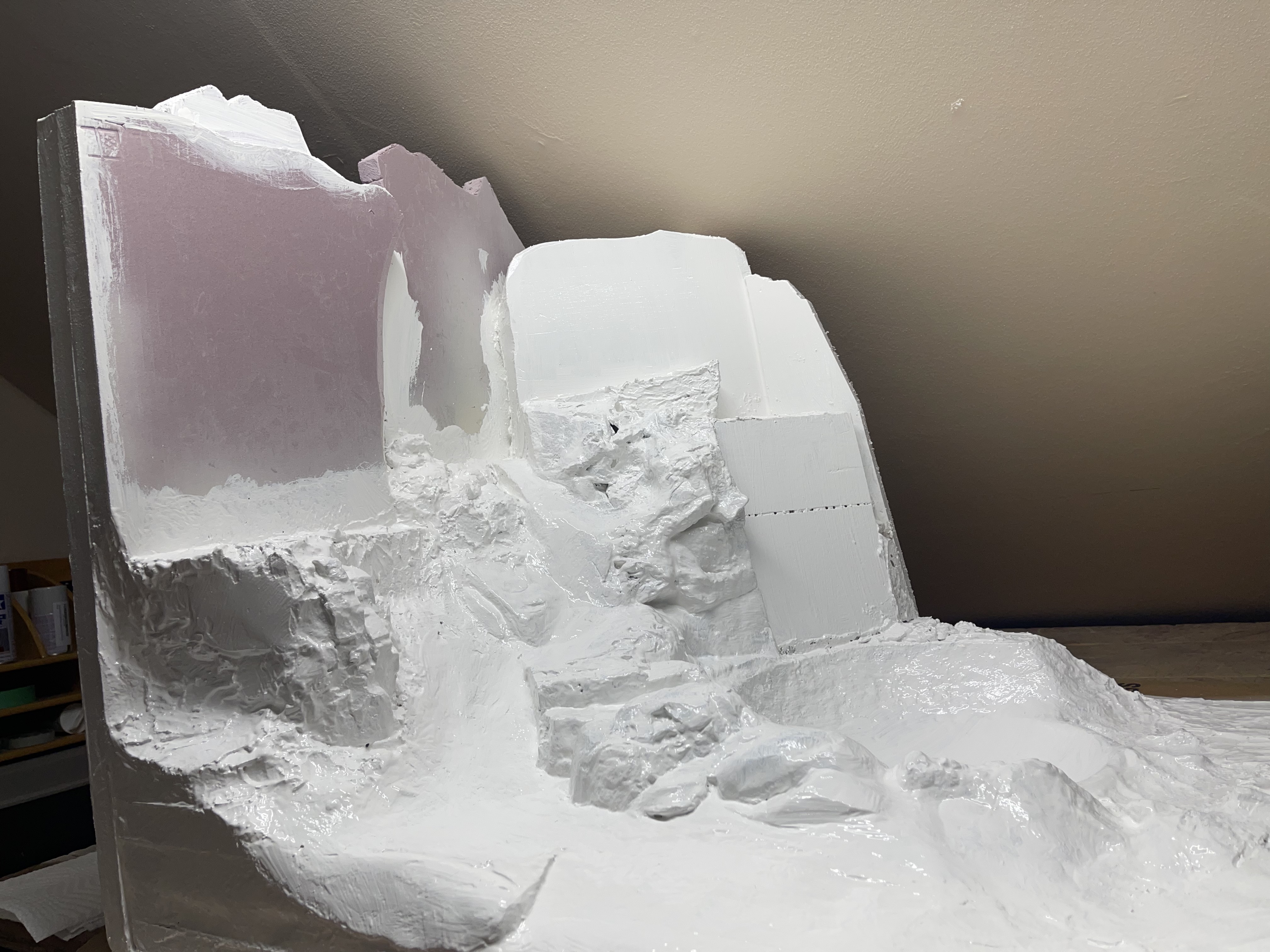

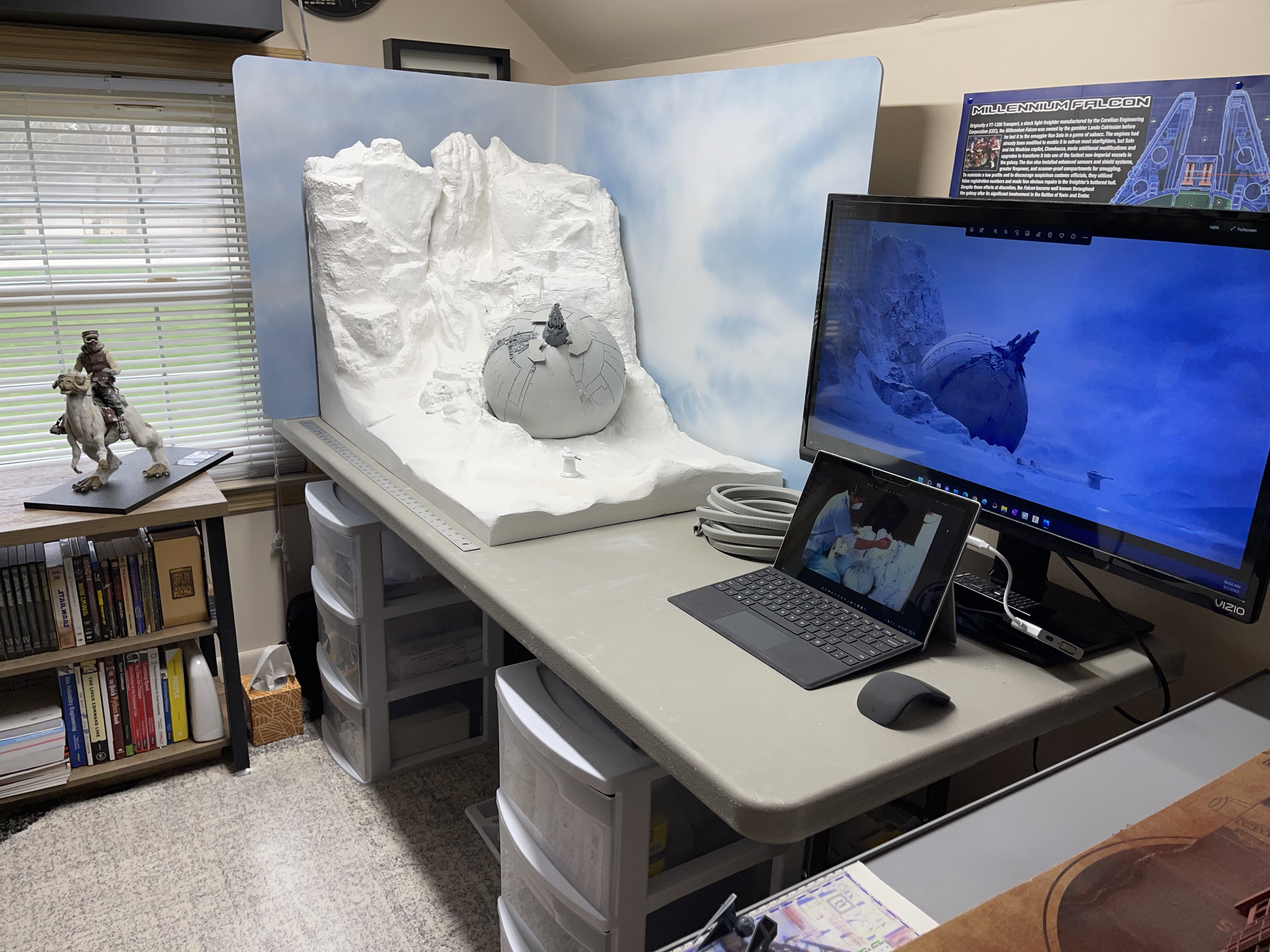

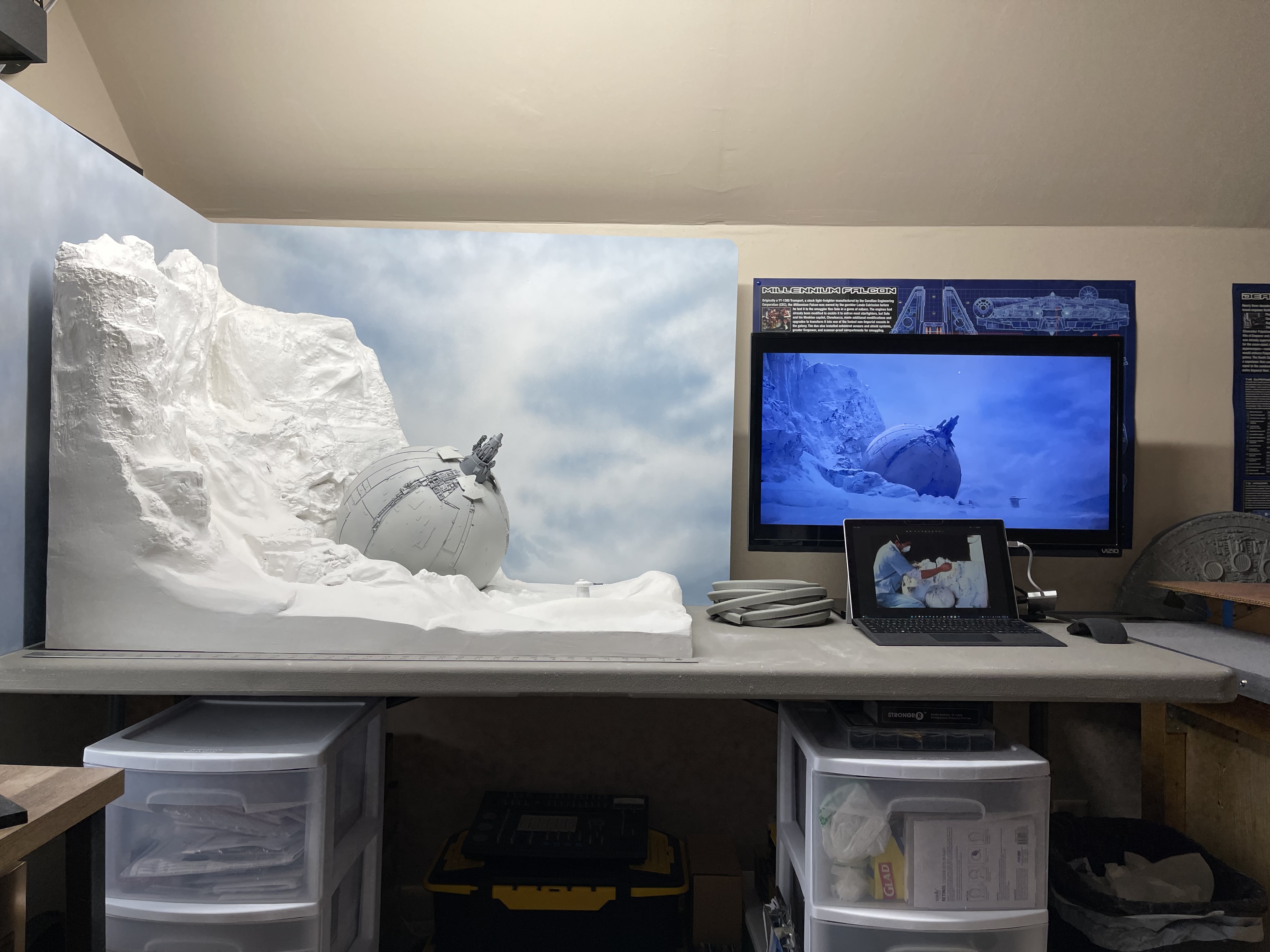

One month to WF22! There's still hope! Pardon the bright lighting... April was for coming up with a seamless background (in a cold, damp garage), and ensuring it all fits in my SUV. May still add the one-piece automotive stripping. Will start weathering and test the "snow goop" mix, then gone for a week, then do all weathering and snow, and finally build a simply rack to haul it in... in theory. Hopefully then get back at the cut-away ISD this summer, after this is done...


Attachments

  • HIC_KKH-Build 42.jpg
    HIC_KKH-Build 42.jpg
    3.1 MB · Views: 99
  • HIC_KKH-Build 020.jpg
    HIC_KKH-Build 020.jpg
    3 MB · Views: 87
  • HIC_KKH-Build 154.jpg
    HIC_KKH-Build 154.jpg
    3.2 MB · Views: 100
  • HIC_KKH-Build 156.jpg
    HIC_KKH-Build 156.jpg
    2.4 MB · Views: 99

scotthothpatrol

Well-Known Member
One month to WF22! There's still hope! Pardon the bright lighting... April was for coming up with a seamless background (in a cold, damp garage), and ensuring it all fits in my SUV. May still add the one-piece automotive stripping. Will start weathering and test the "snow goop" mix, then gone for a week, then do all weathering and snow, and finally build a simply rack to haul it in... in theory. Hopefully then get back at the cut-away ISD this summer, after this is done...
Hay, There's my TaunTaun . Nice to see it again Kevin. About the Cannon I love the cloudy back drop. Where did that come from I can see a use for that? Also if it is not too late AK interactive has a line of snow products That I have found works great. including micro balloons. Scott


OTnROTSfan

Well-Known Member
RPF PREMIUM MEMBER
Hay, There's my TaunTaun . Nice to see it again Kevin. About the Cannon I love the cloudy back drop. Where did that come from I can see a use for that? Also if it is not too late AK interactive has a line of snow products That I have found works great. including micro balloons. Scott

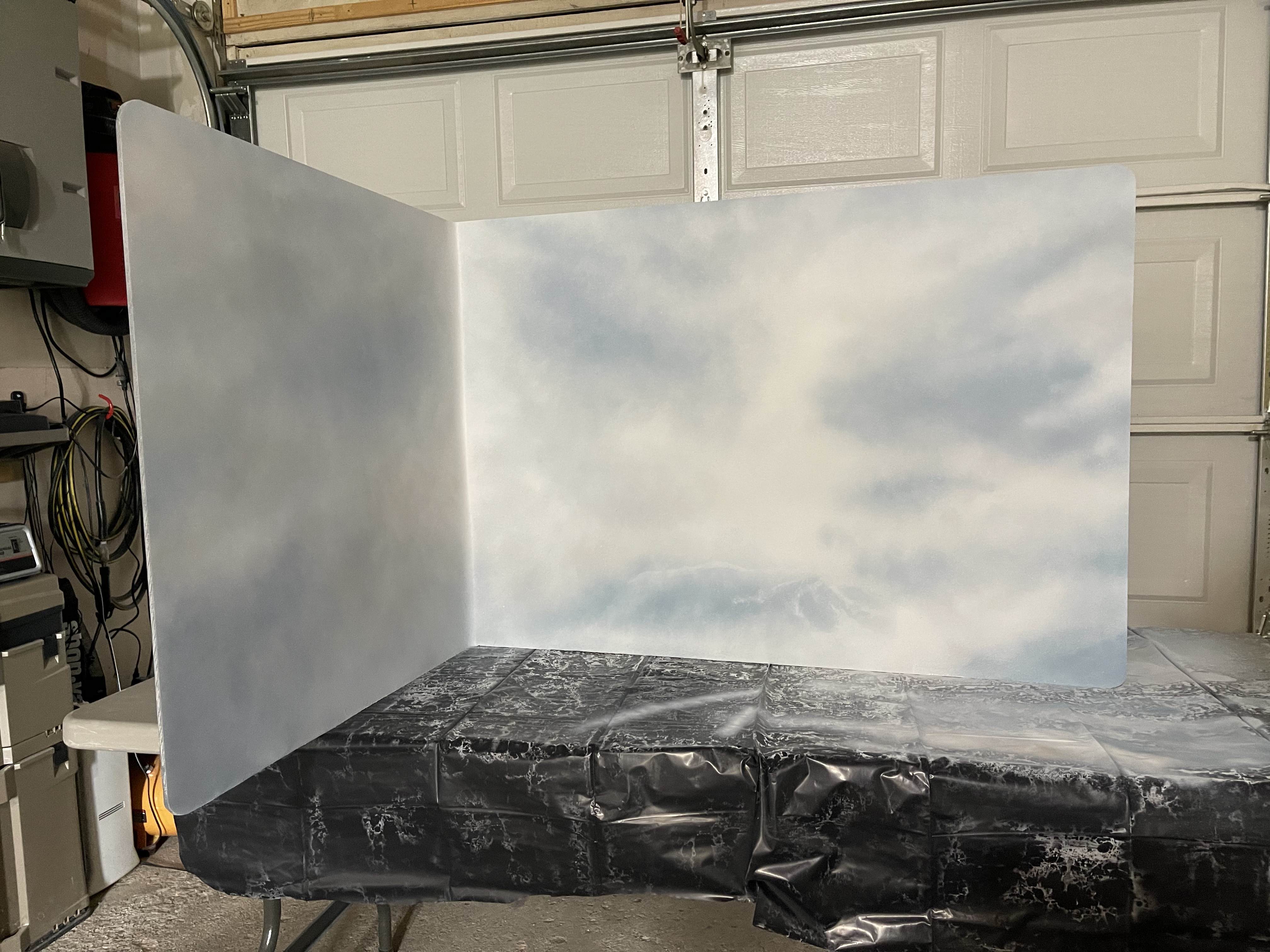

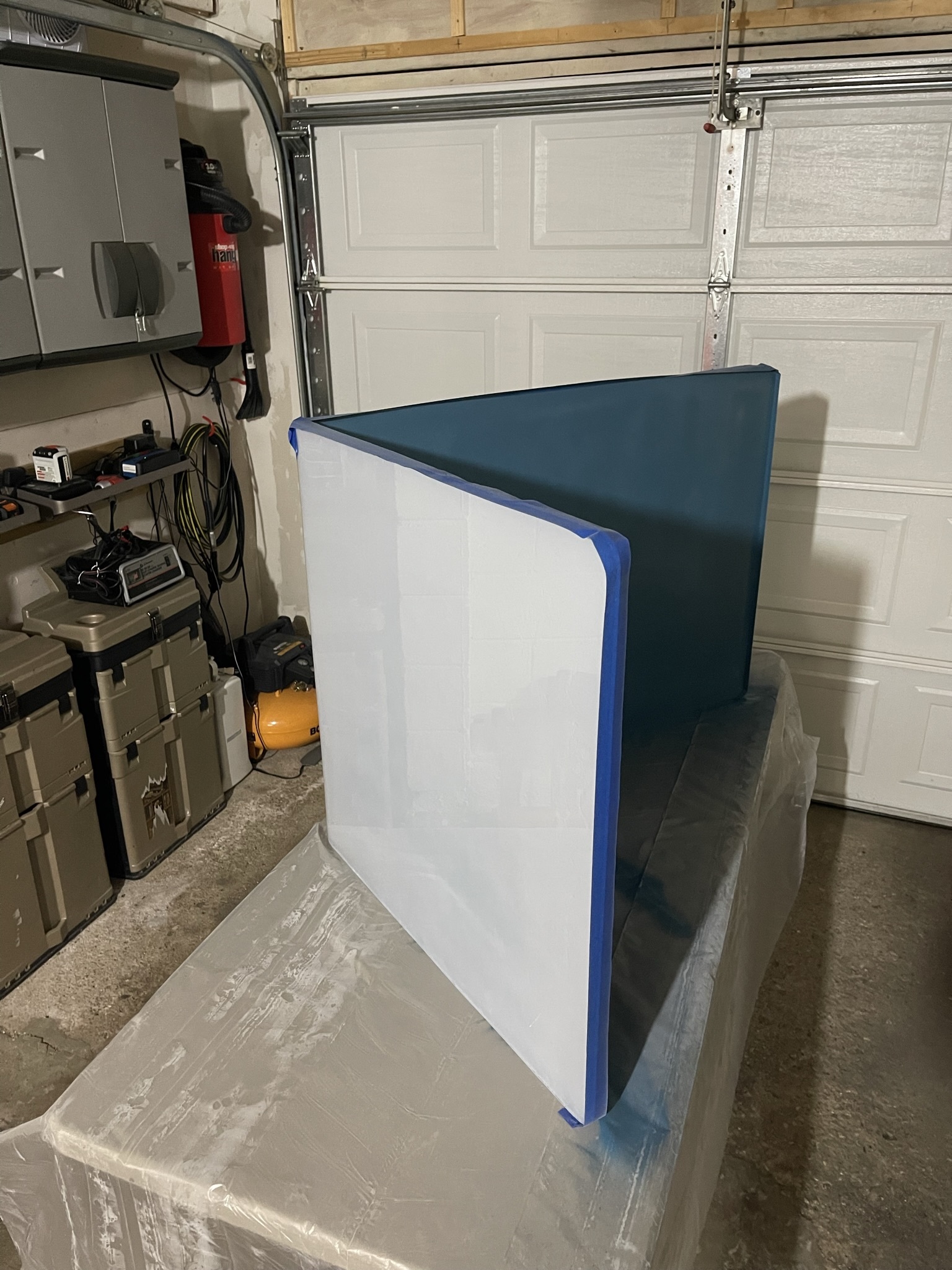

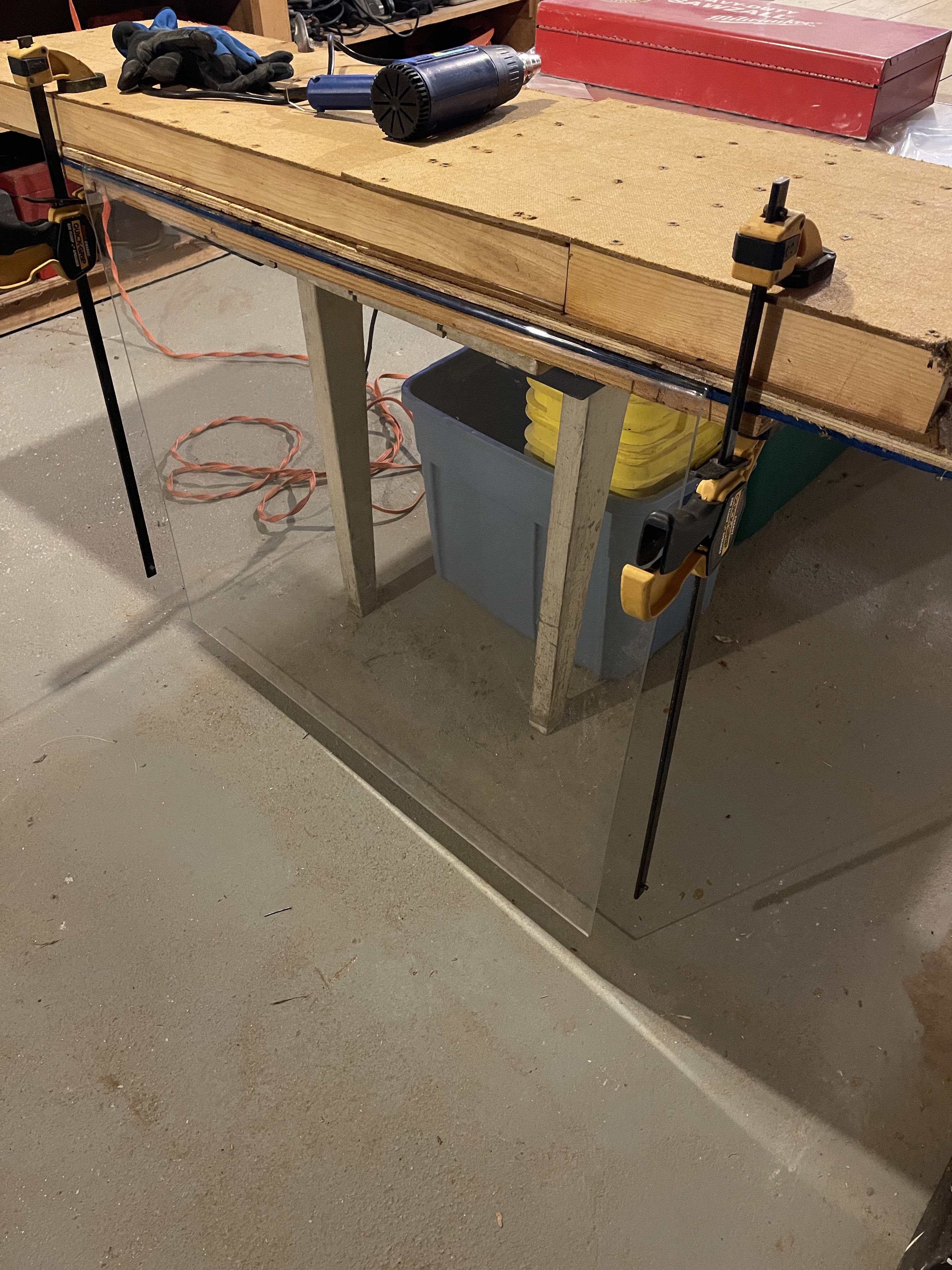

Hey Scott! Indeed that is your taun... keeps me company next to me by my desk every day... ;-) I made the backdrop by cutting and bending (with a simple heat gun) a large piece of .220 acrylic from h depot (since having this done elsewhere plus shipping was quoted insane right now). Then just simply painted it on a table in my garage with off-the-shelf spray cans... (in an unseasonably cold, damp garage, might I add, lol).

I had my own custom mix I did about 10 years ago for my Davidson taun (yes, I have both... hehe)... was experimenting with another model railroading one that I have been wanting to try... need to figure out this week what I am going to go with. Had recently looked at AK, too. Some of the smoother snow parts I may leave as is, as they came out pretty nicely as-is... we'll see soon.


Attachments

  • SOS_Taun x2 What The....jpg
    SOS_Taun x2 What The....jpg
    1.4 MB · Views: 64
  • HIC_KKH-Build 153.jpg
    HIC_KKH-Build 153.jpg
    3.1 MB · Views: 61
  • HIC_KKH-Build 129.jpg
    HIC_KKH-Build 129.jpg
    2.9 MB · Views: 45
  • HIC_KKH-Build 119.jpg
    HIC_KKH-Build 119.jpg
    750.7 KB · Views: 44
  • HIC_KKH-Build 109.jpg
    HIC_KKH-Build 109.jpg
    3 MB · Views: 63
Last edited:

OTnROTSfan

Well-Known Member
RPF PREMIUM MEMBER

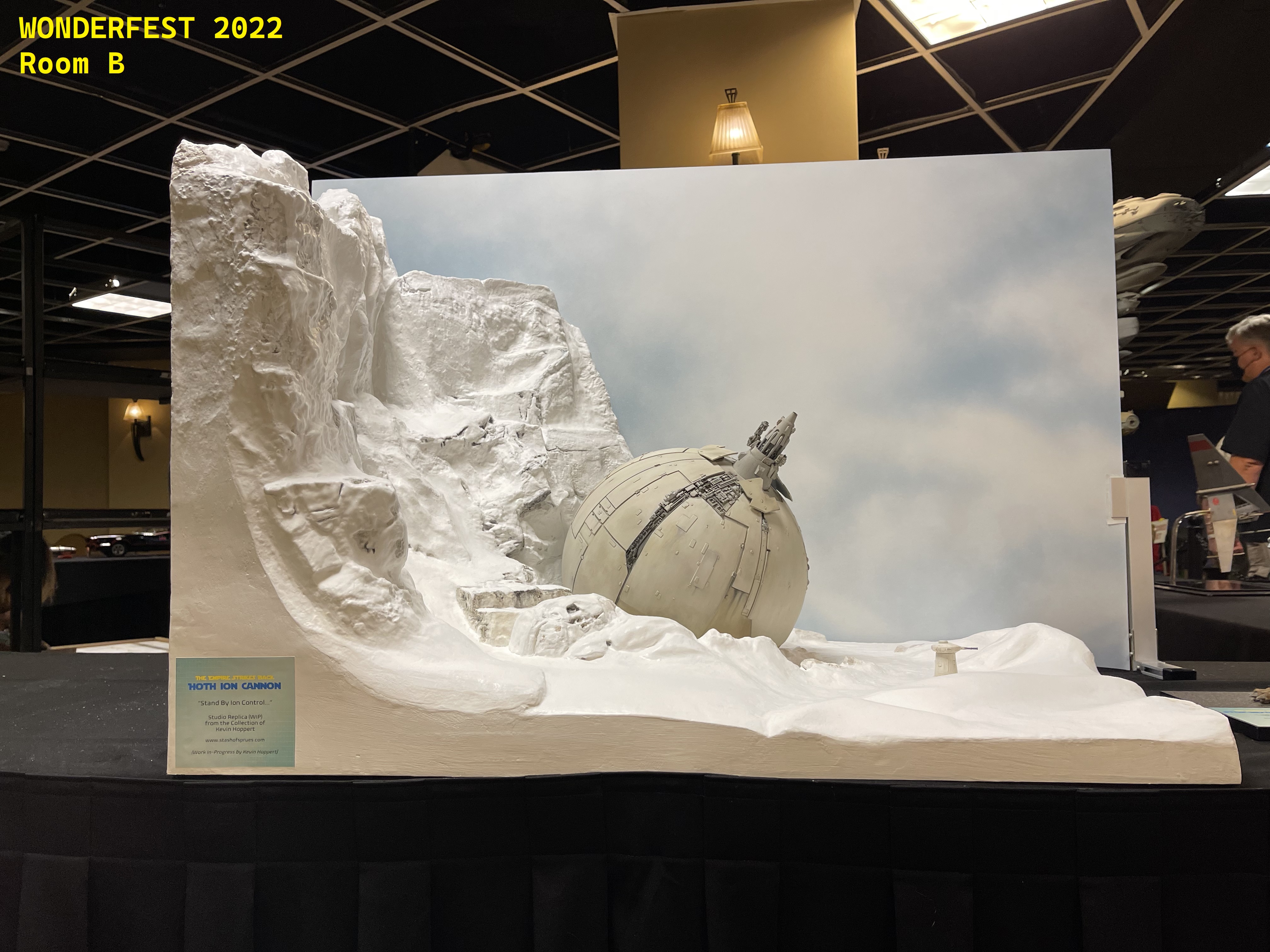

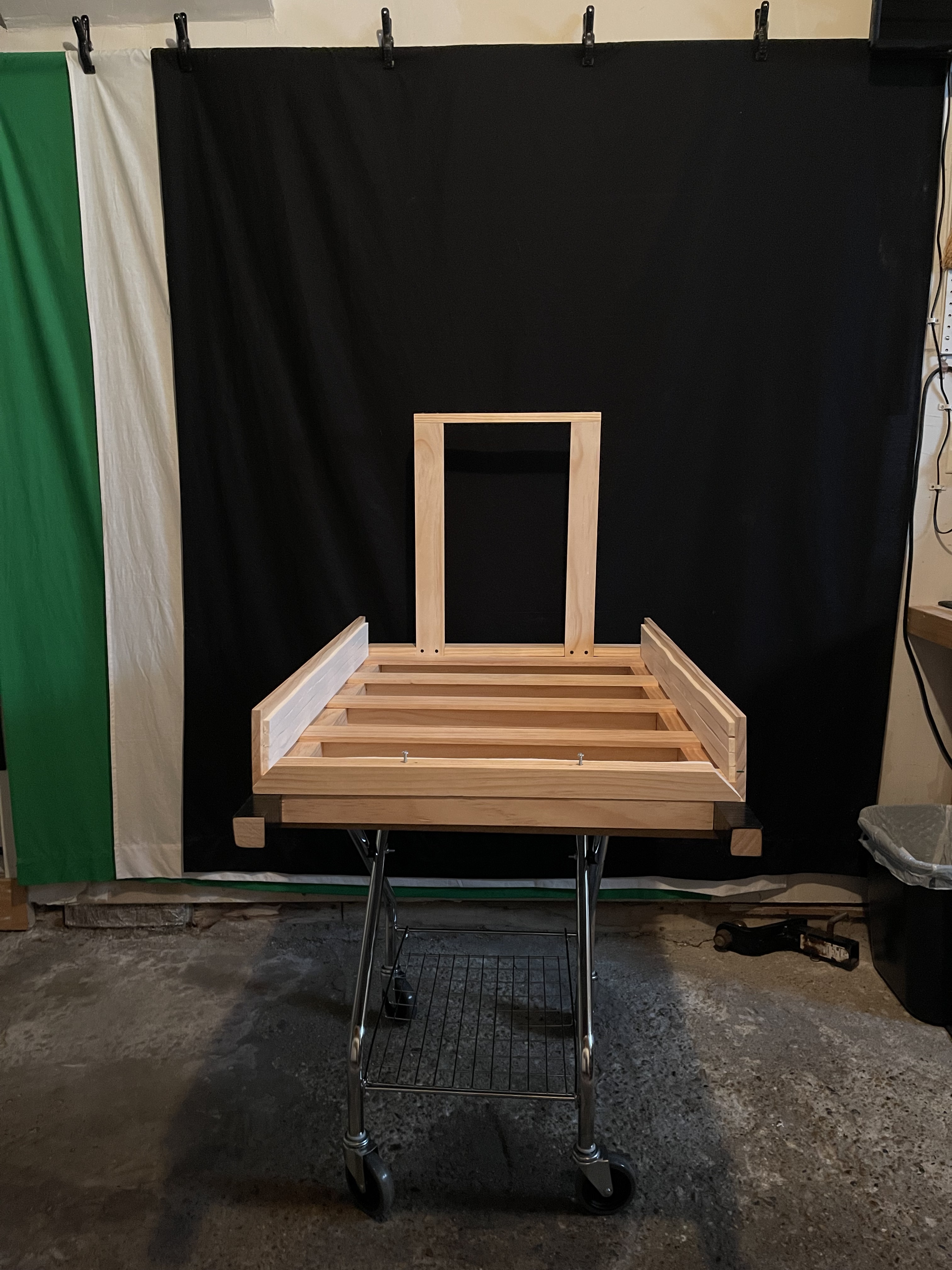

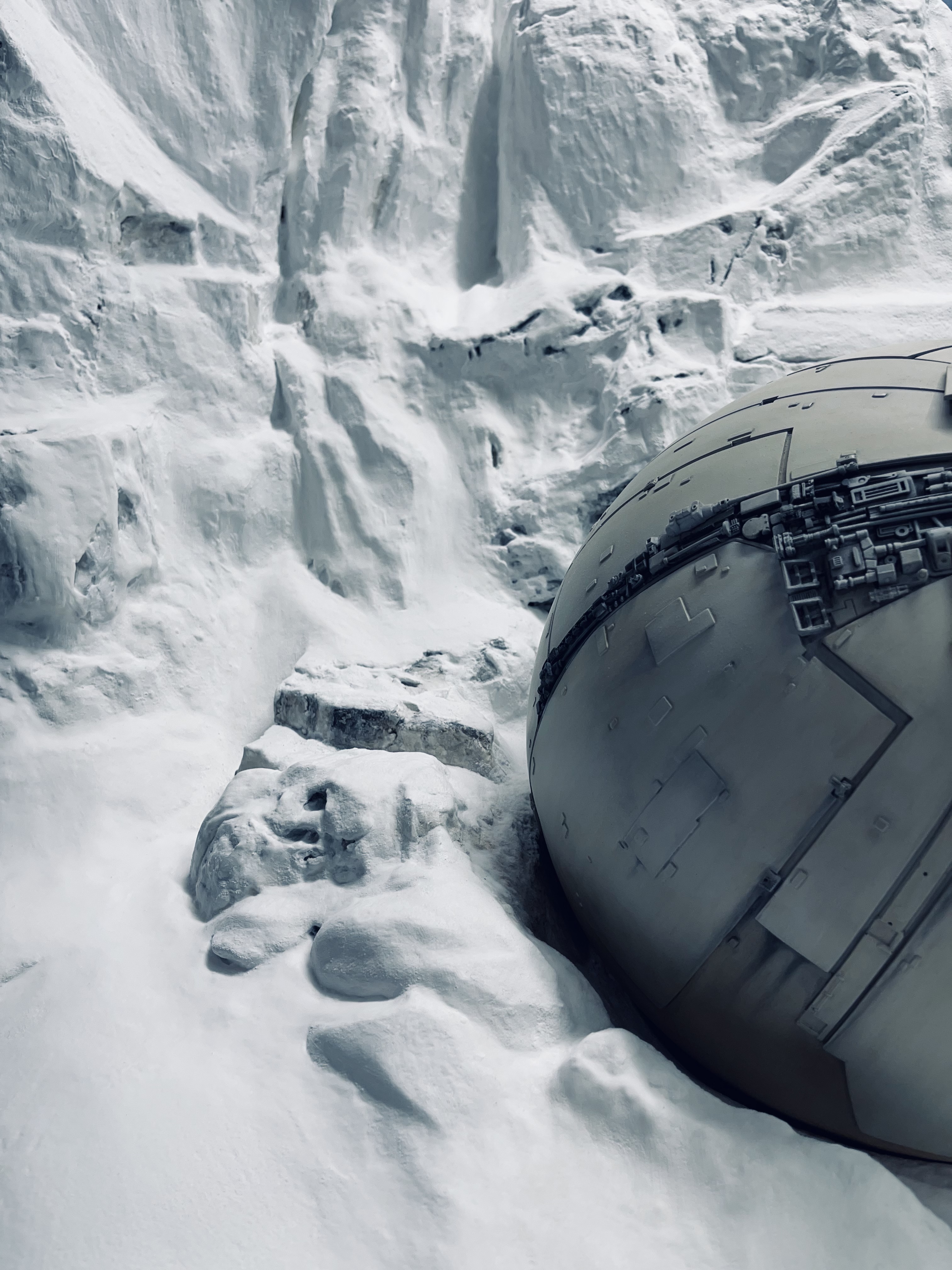

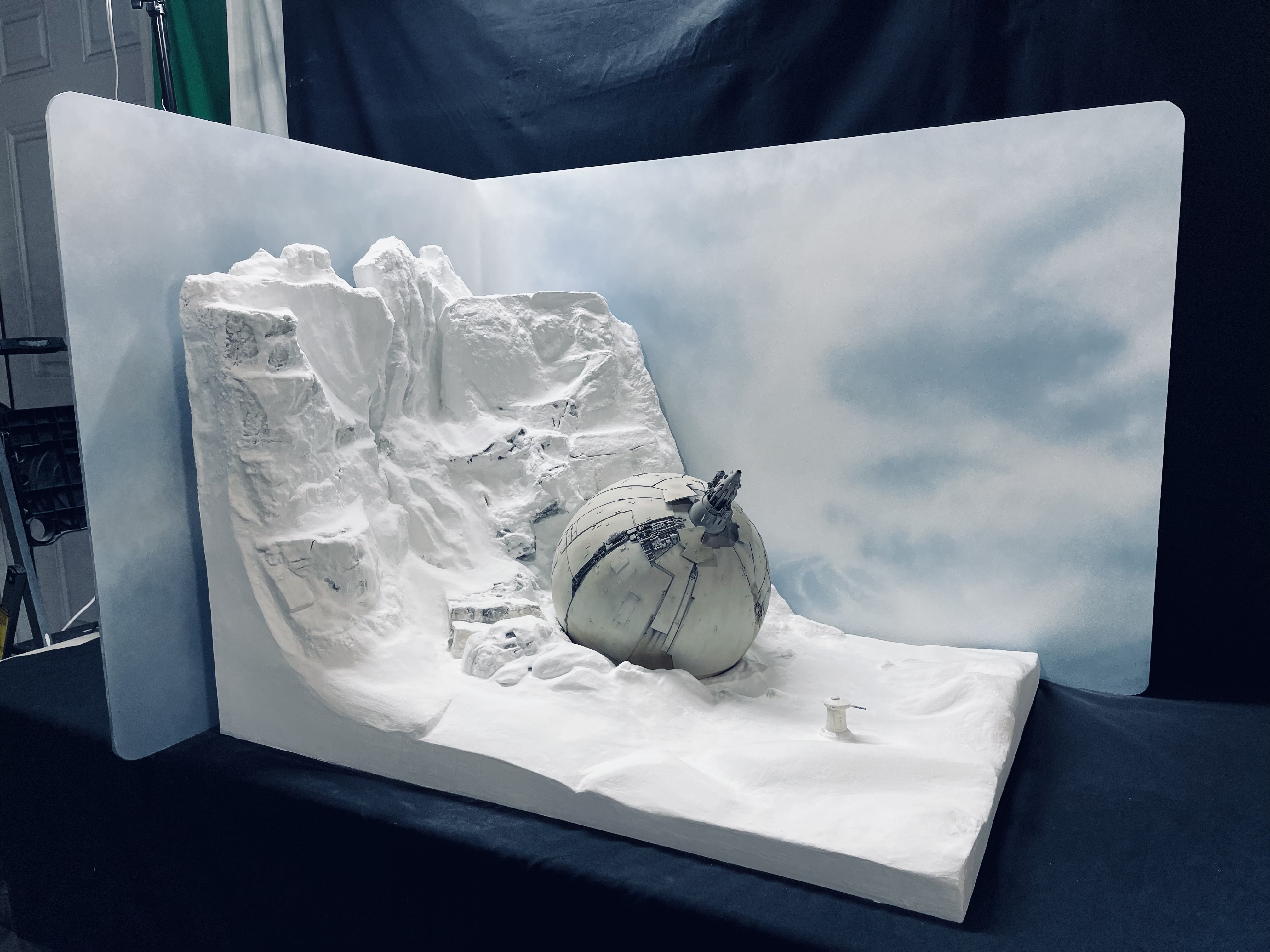

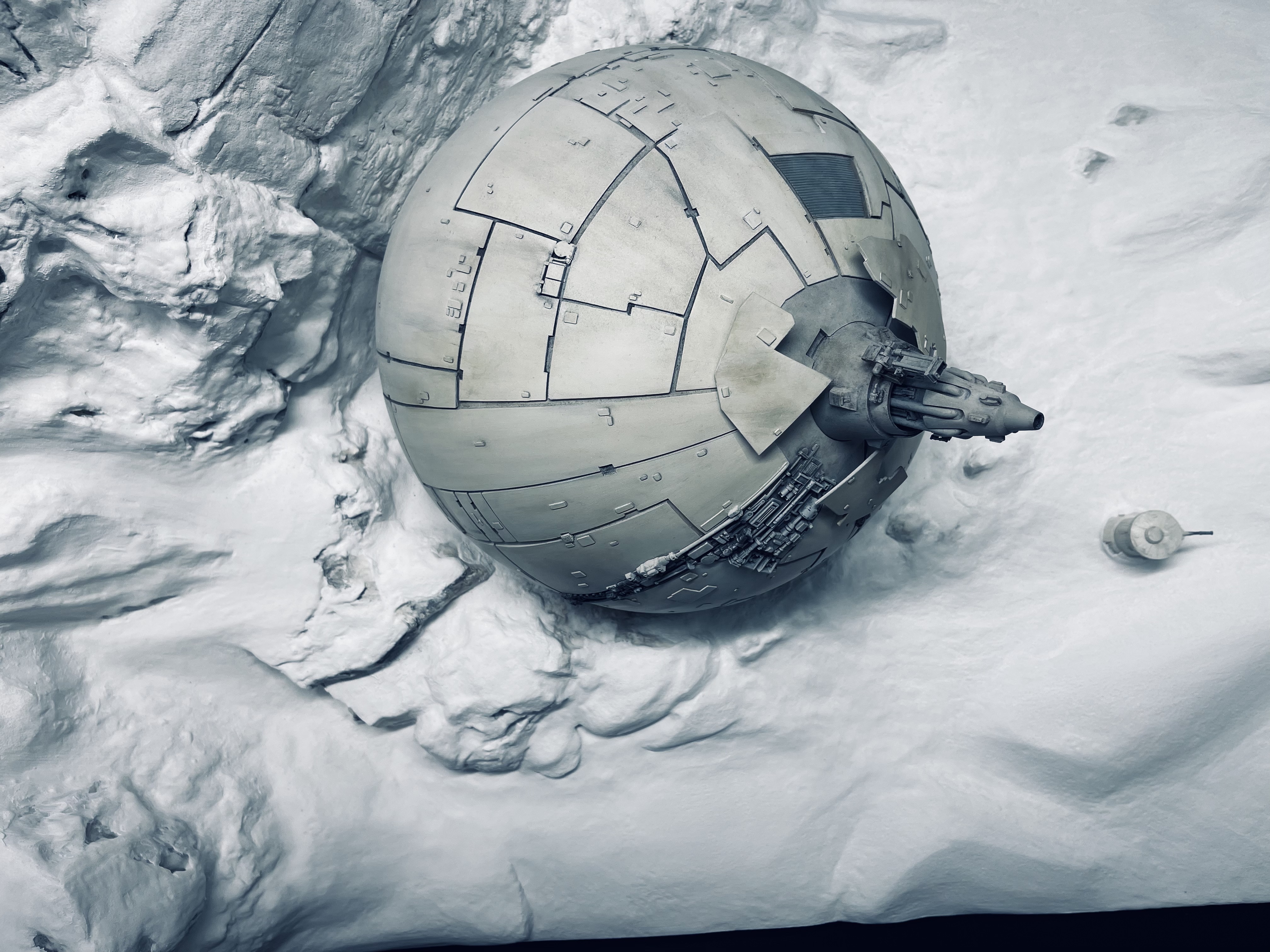

Finally mostly wrapped up my Studio Scale Hoth Ion Cannon diorama! Was about 90% done when shown at Wonderfest (things were so hectic that I forgot to post progress). I got it safely there and back using a secondary travel background and foldable gurney that I had whipped out the week before the show. Was a blast! The ball is still loose, with a wiring channel, in case I ever do a v2 that fires the cannon.

Now [finally] back to the cutaway ISD, and a few "just ship" projects after a year of building this crazy beast of a diorama...


Attachments

  • 7.jpg
    2.9 MB · Views: 39
  • 6.jpg
    2.3 MB · Views: 36
  • 5.jpg
    2.7 MB · Views: 32
  • 4.jpg
    3.1 MB · Views: 33
  • 3.jpg

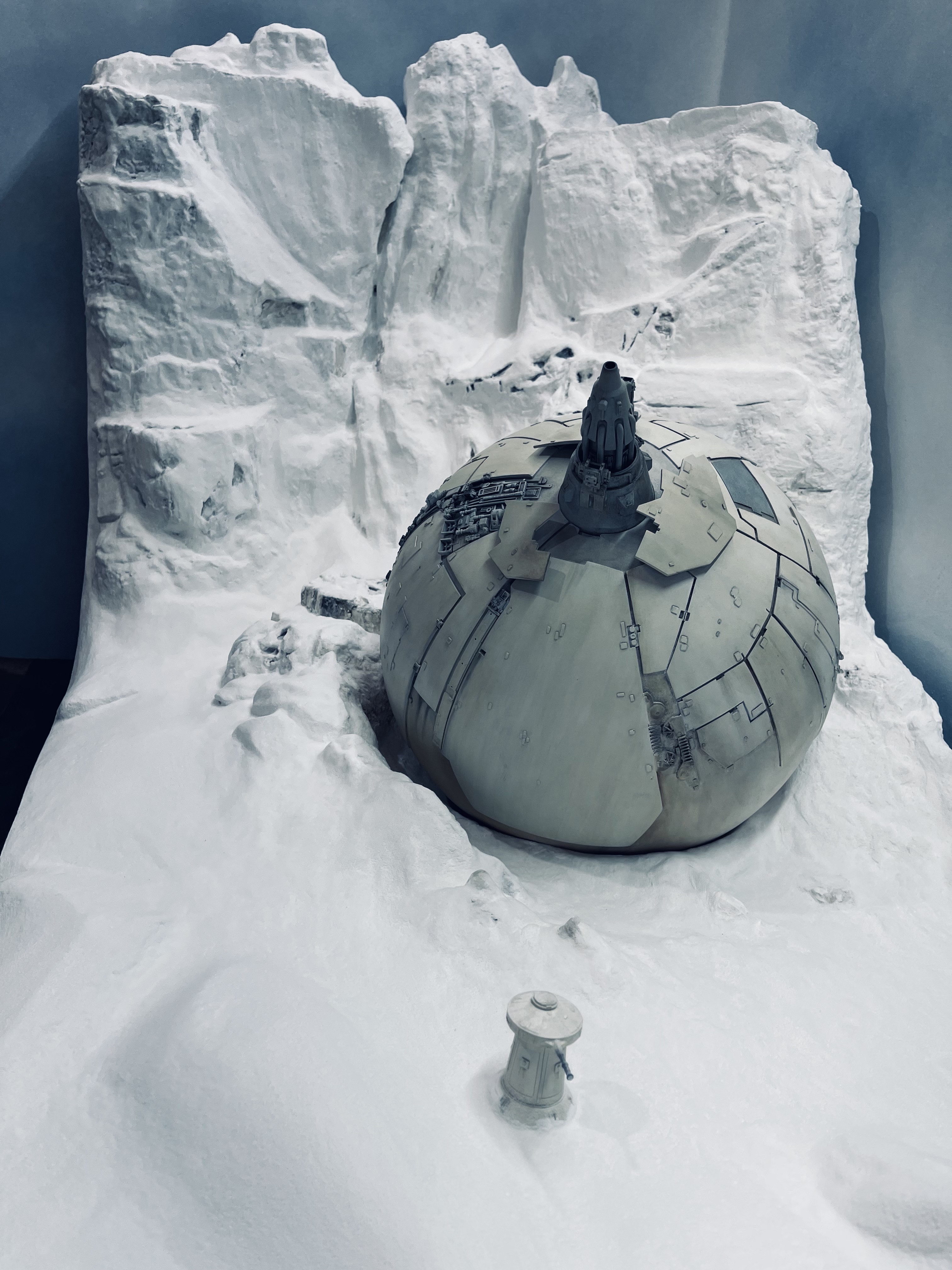

    2.5 MB · Views: 34
  • 2.jpg
    2.3 MB · Views: 42
  • 1.jpg

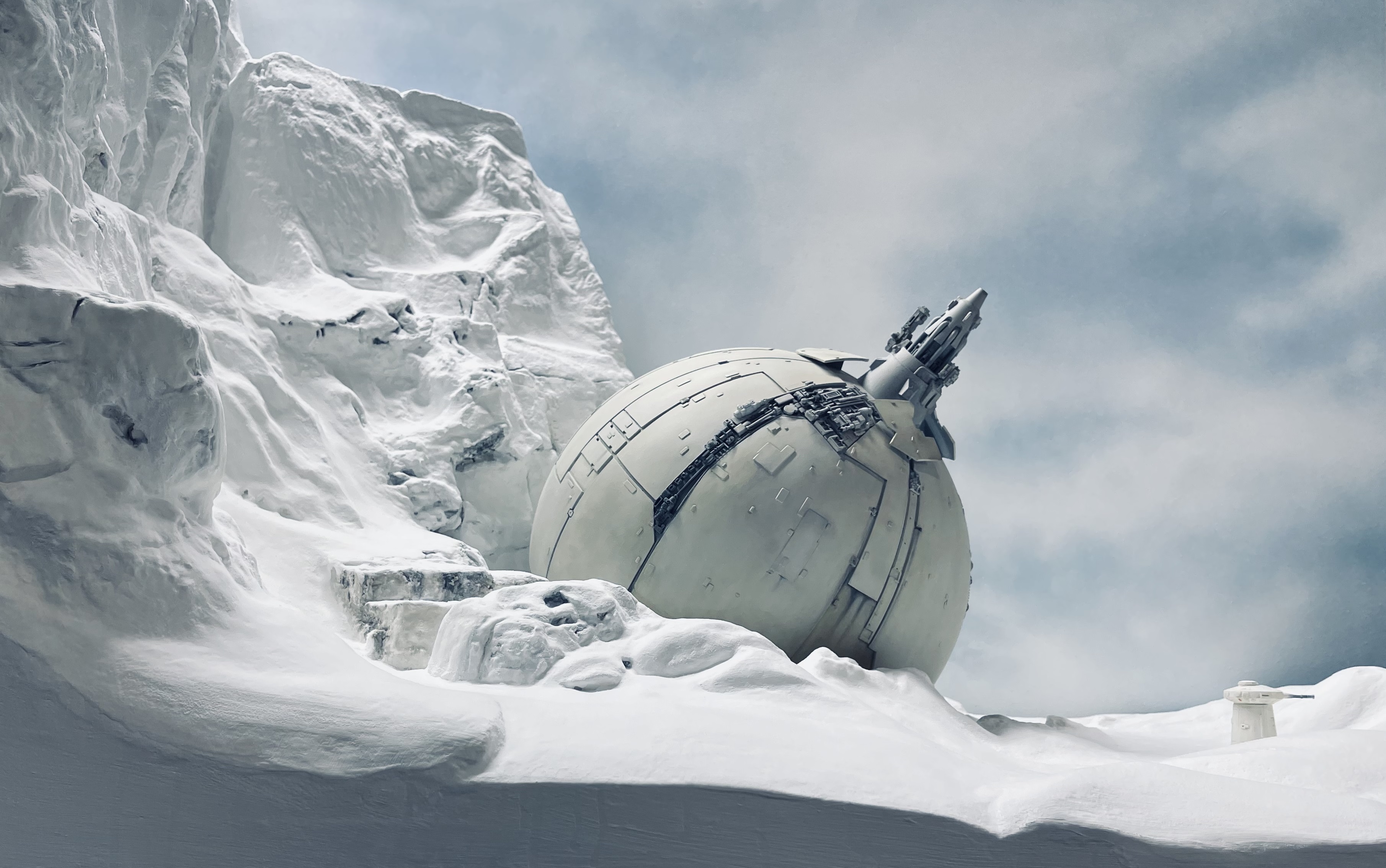

    1.4 MB · Views: 45
  • 8.jpg
    2.8 MB · Views: 58

scotthothpatrol

Well-Known Member
Finally mostly wrapped up my Studio Scale Hoth Ion Cannon diorama! Was about 90% done when shown at Wonderfest (things were so hectic that I forgot to post progress). I got it safely there and back using a secondary travel background and foldable gurney that I had whipped out the week before the show. Was a blast! The ball is still loose, with a wiring channel, in case I ever do a v2 that fires the cannon.

Now [finally] back to the cutaway ISD, and a few "just ship" projects after a year of building this crazy beast of a diorama...

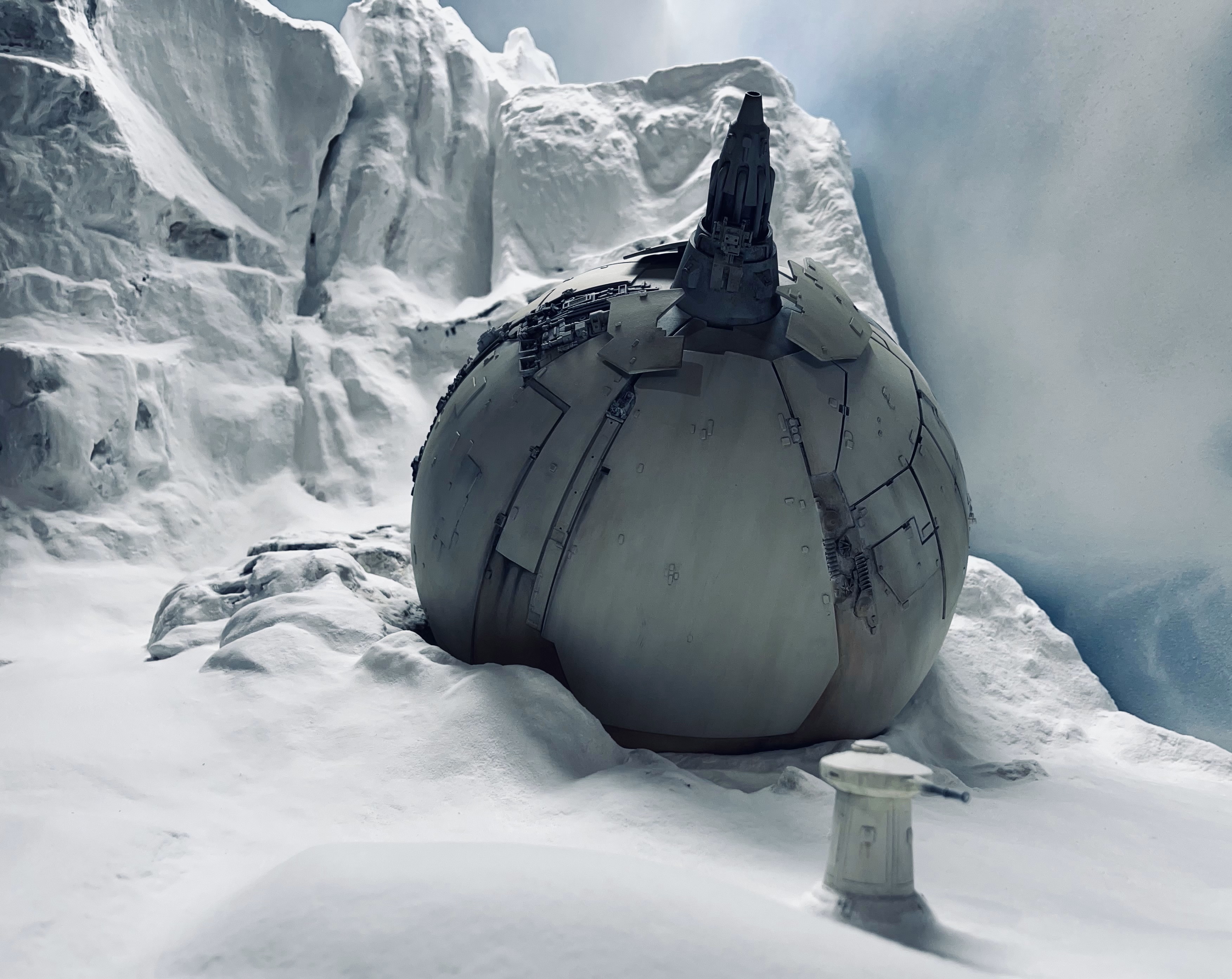

That looks really great Kevin. Especially pic #1 looks like a screen grab from the film. The snow turned out great. The only thing I would do is add some snow on the cannon would tie the cannon with the terrain better.


OTnROTSfan

Well-Known Member
RPF PREMIUM MEMBER
Thanks guys. Scott - yeah been going back and forth on putting snow on the ball, or not. I may do some subtle snow highlights once I move it to its final display spot. Can't see much, if any, in the film shot, but in theory there probably would be at least some in the exposed areas that wouldn't just fly off from firing the cannon...


Your message may be considered spam for the following reasons:

  1. Your new thread title is very short, and likely is unhelpful.
  2. Your reply is very short and likely does not add anything to the thread.
  3. Your reply is very long and likely does not add anything to the thread.
  4. It is very likely that it does not need any further discussion and thus bumping it serves no purpose.
  5. Your message is mostly quotes or spoilers.
  6. Your reply has occurred very quickly after a previous reply and likely does not add anything to the thread.
  7. This thread is locked.
Top
