Starting small

Discussion in 'Replica Costumes' started by johnojodo, Apr 4, 2015.

  1. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362
    Hi all! I'm Ed and I'm starting a part Judge build (Helmet and belt kit)

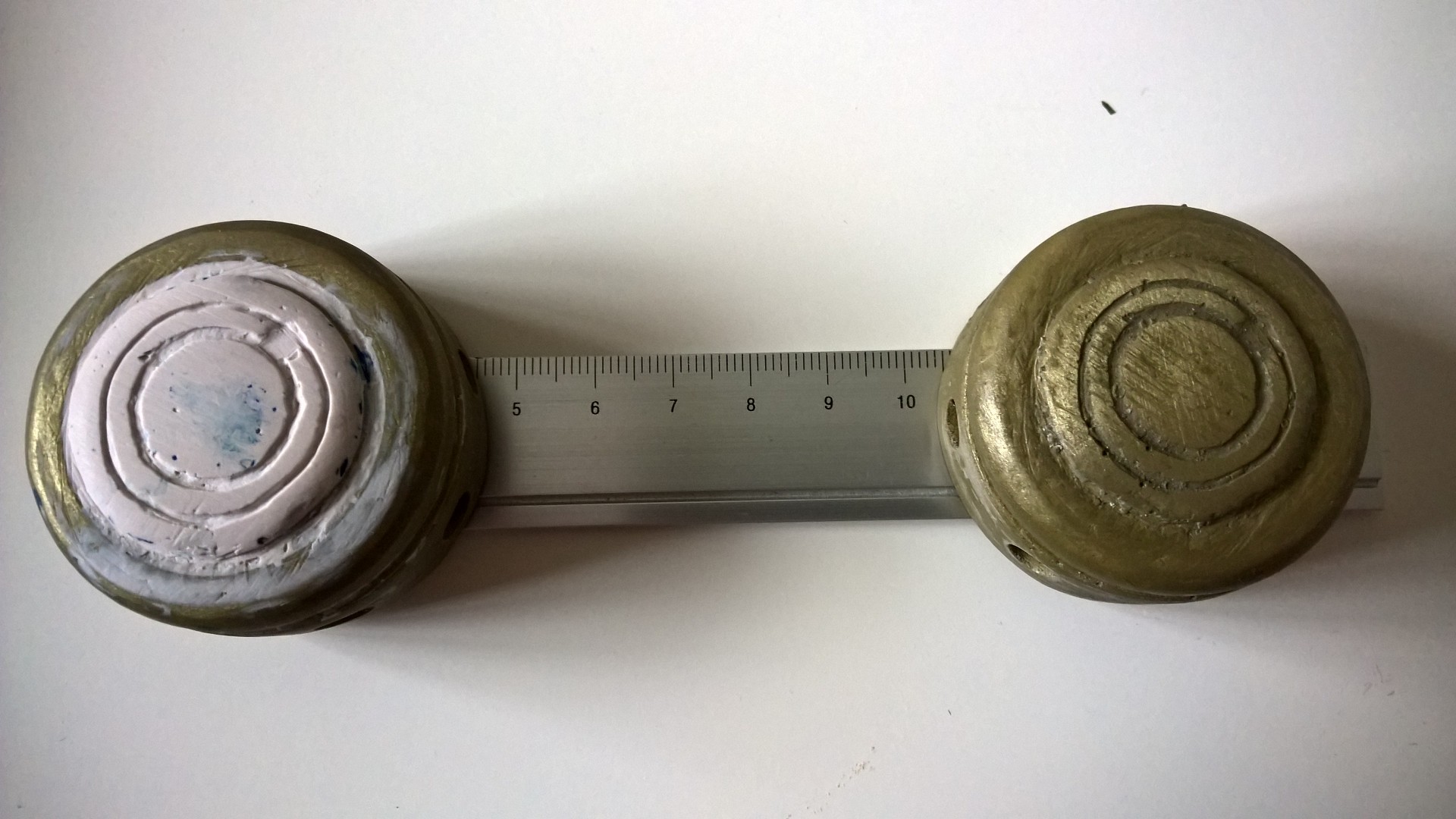

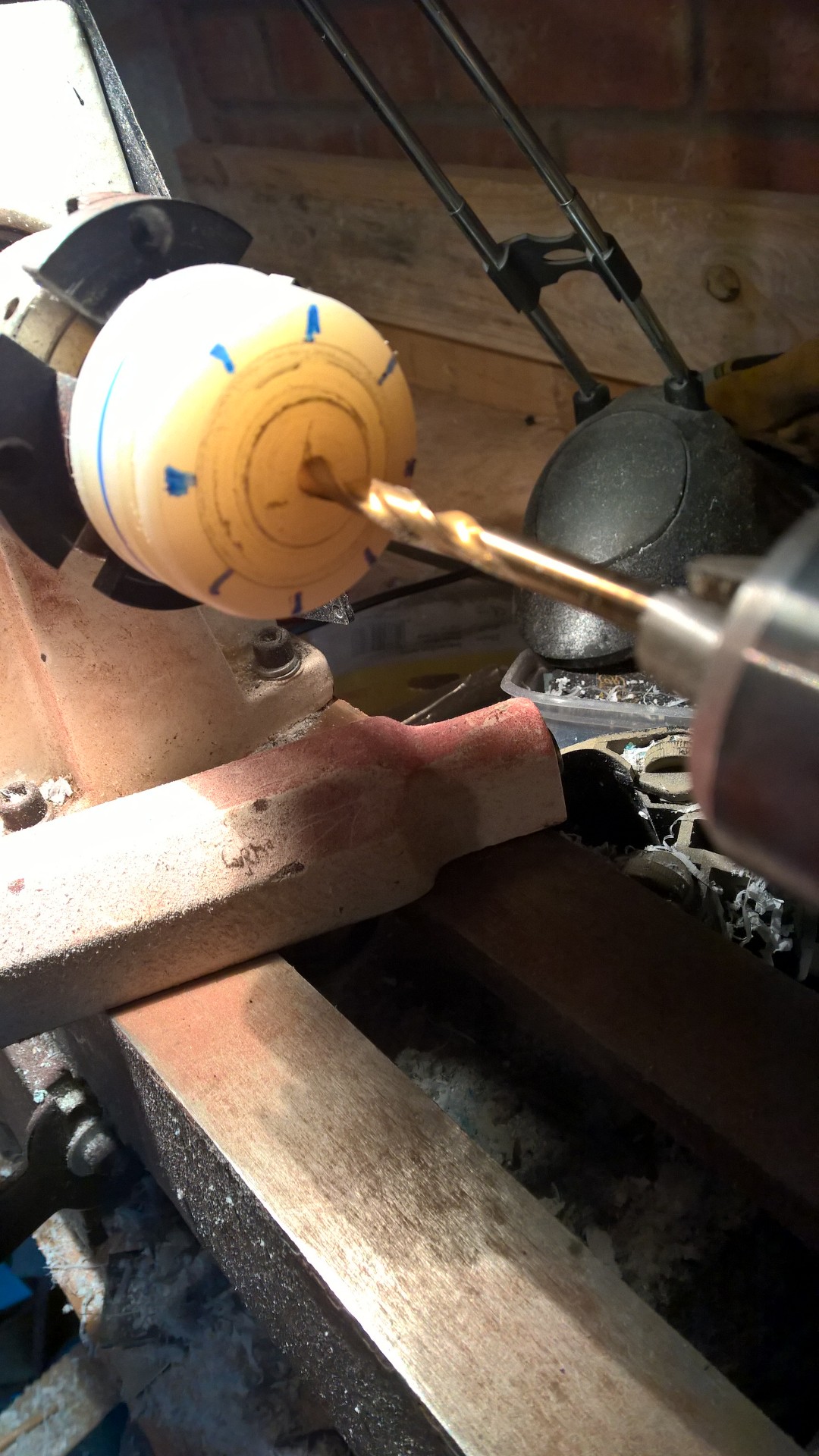

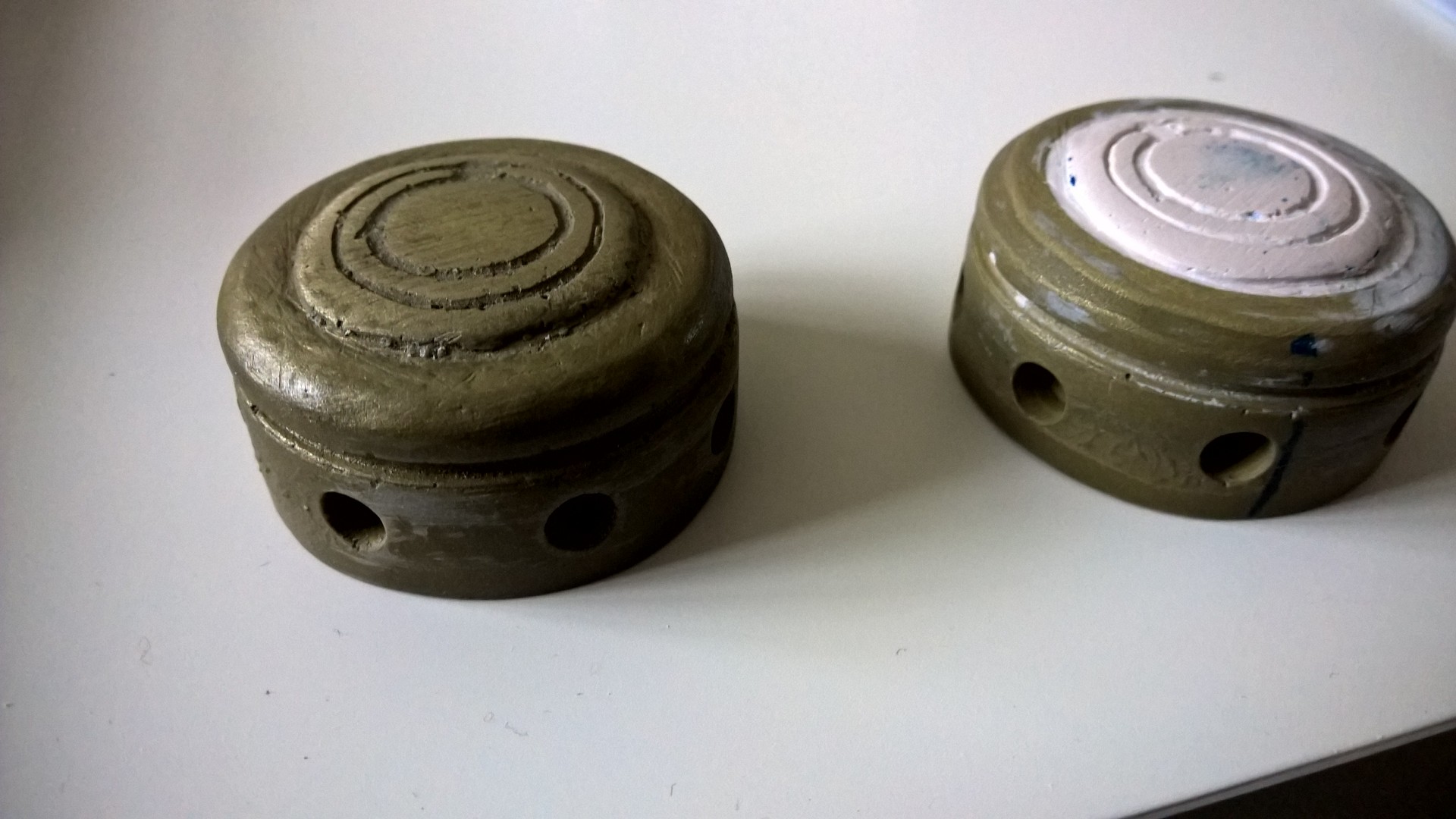

    Had a crack at the door breaching mine over the past couple of days, started with a 50mm resin blank but I wasn't happy with the results so I tried with nylon rod on my wood lathe

    Still not happy with the outcome as its about 3mm to small, but its a start

    Still needs painting, I used some brass filler in the resin to help see the lines when I'm cutting and sanding.
    This is an evolving prop and I'm only on v2 I'm gonna look around for some washers/discs of the right size to tidy up the top/trigger section


    Attached Files:

    Last edited: Apr 4, 2015
  2. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362
    I got a 45mm wood ball to turn into the flashbang but I was sent a 50mm one so it'll have to wait till next weekend.
    Also got some leather on the way to have a go at the pouches

  3. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362

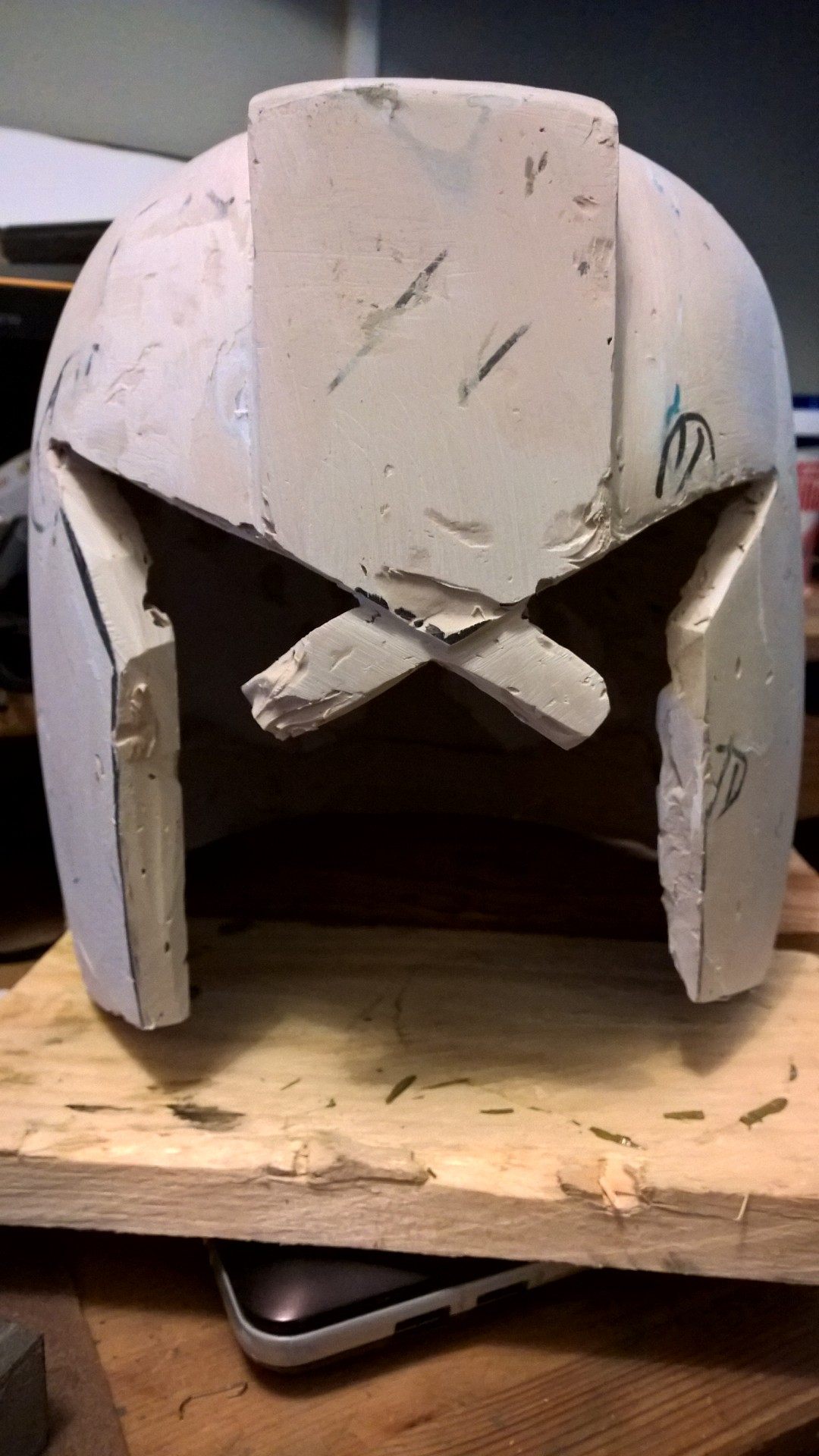

    Got a bit done on the lid today WP_20150406_16_51_26_Pro.jpg

  4. RogueTrooper

    RogueTrooper Well-Known Member

    Trophy Points:
    935
    Good start...keep going.......Is the helmet a pep build or some other plan you're using??

  5. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362

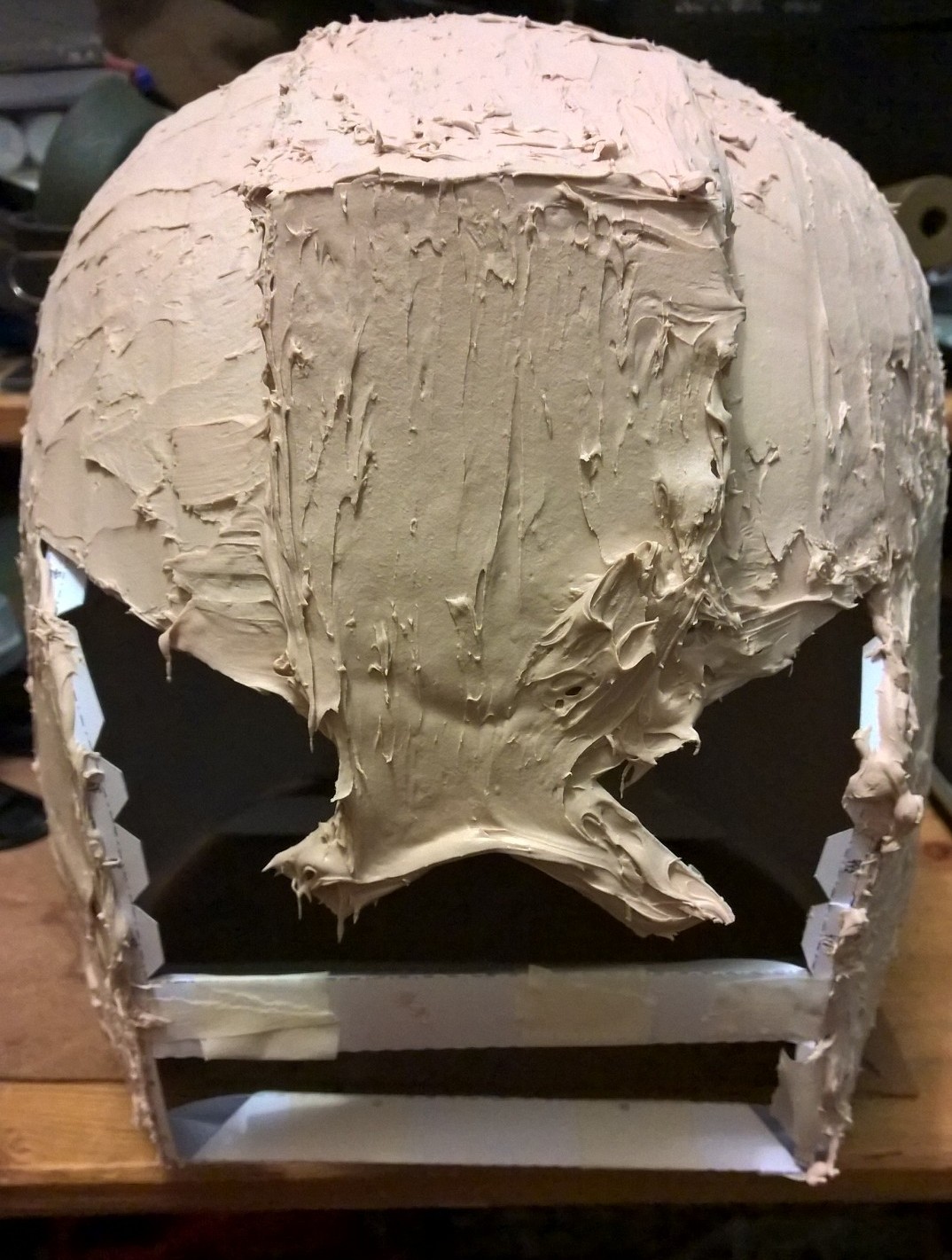

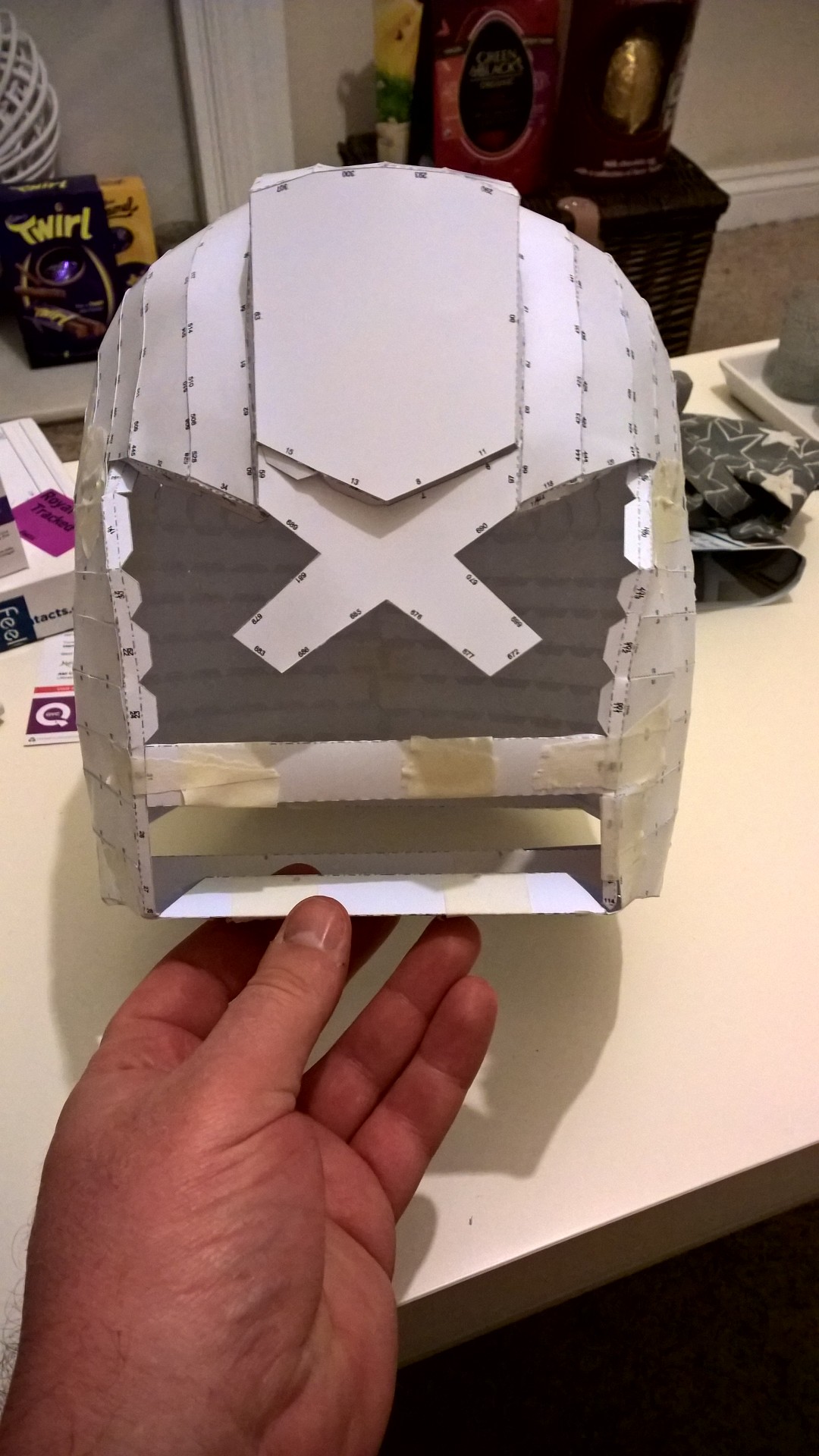

    WP_20150401_18_04_31_Pro.jpg WP_20150331_21_42_13_Pro.jpg Its a pep build but I missed the eye section brace out hence the mass of bondo around the right cheek to rectify the flaring

    Last edited: Apr 7, 2015
  6. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362

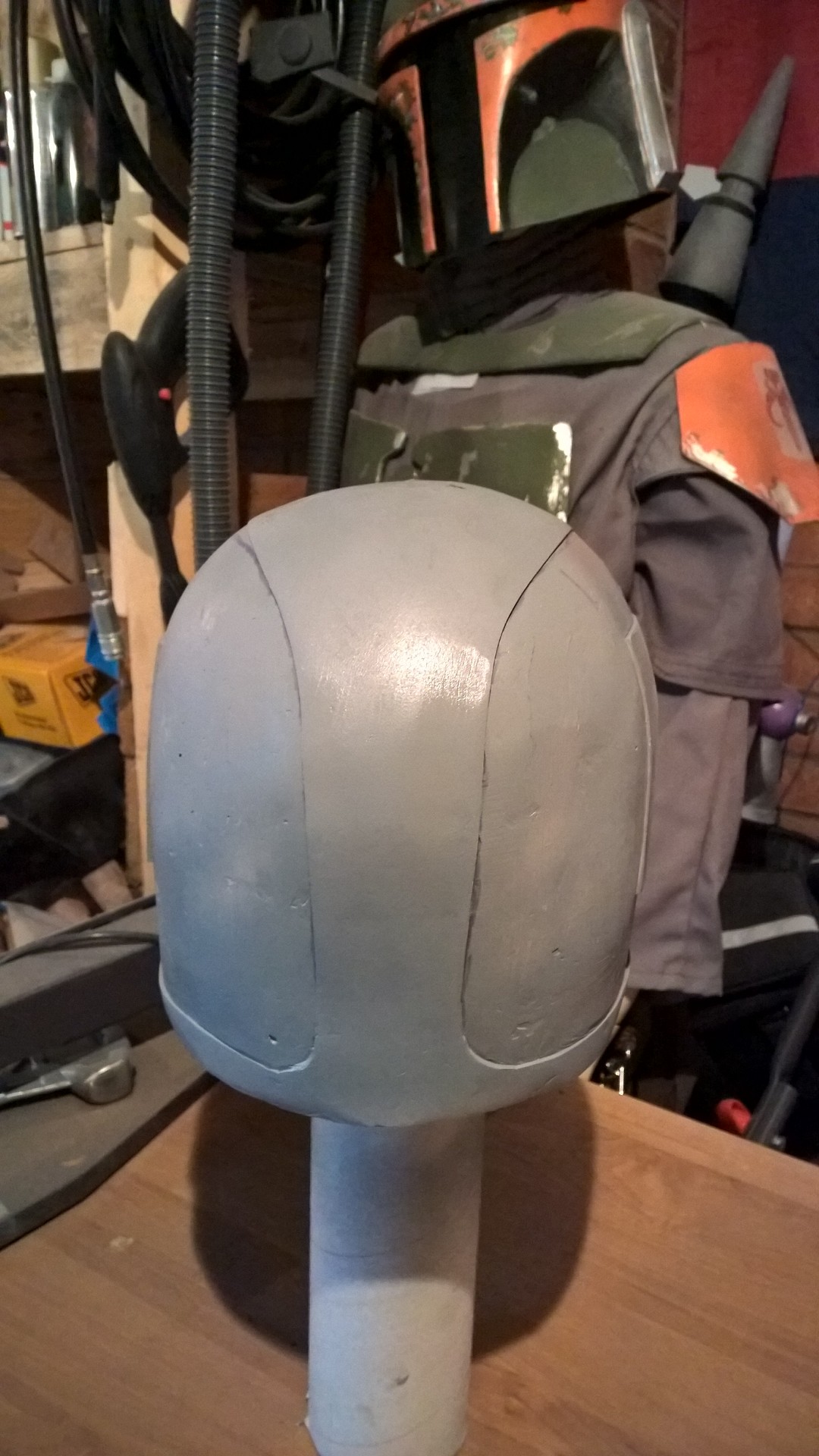

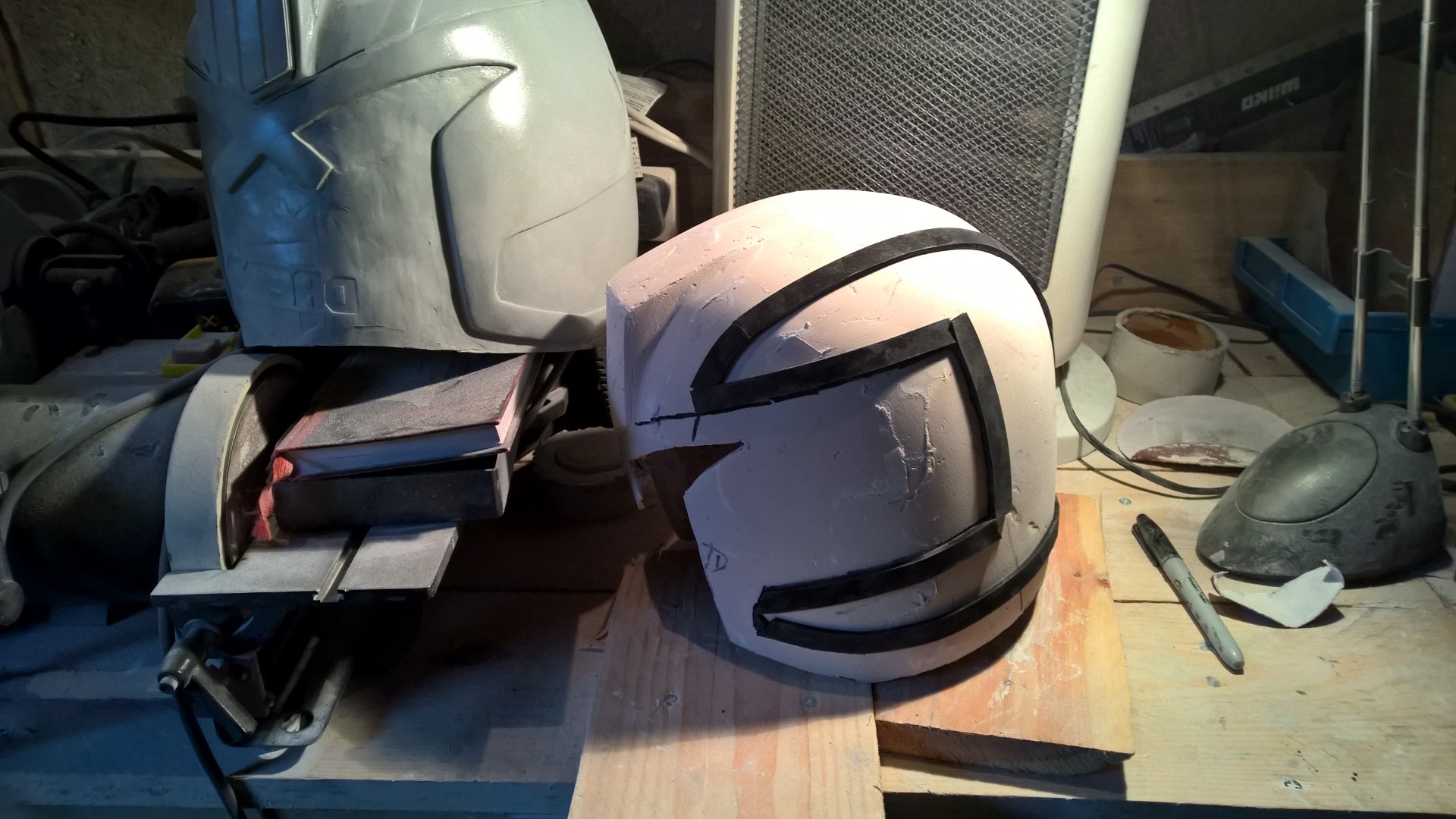

    Made a little progress on the lid today
    Need to even up a lot of it especially the side panels as you can just make out from the rear shot
    Masked up next to the snotty lid I got this week.

    I had intended on doing the flash bang today but I've been sent the wrong size wooden balls again


    Attached Files:

    Last edited: Apr 12, 2015
  7. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362

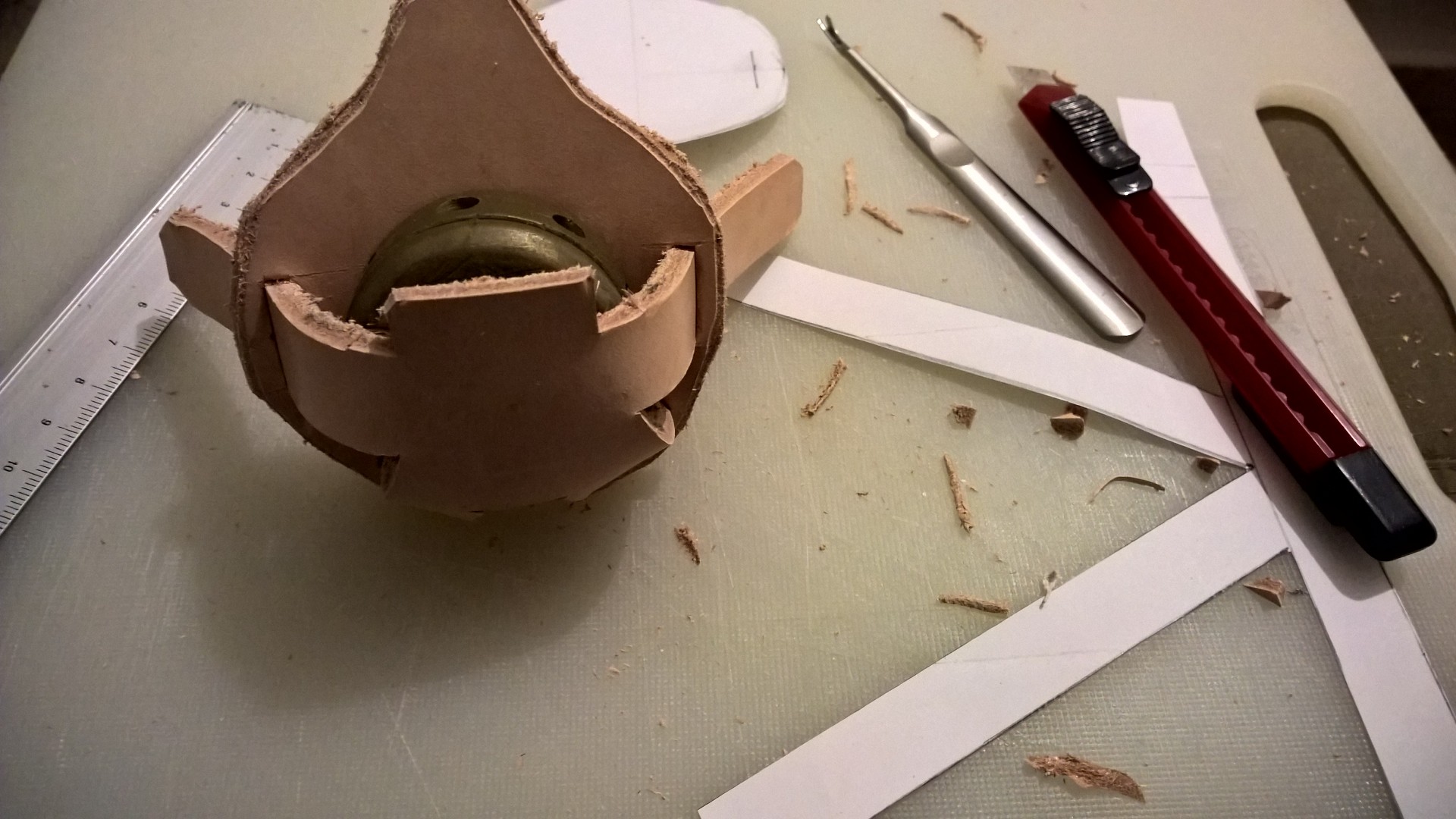

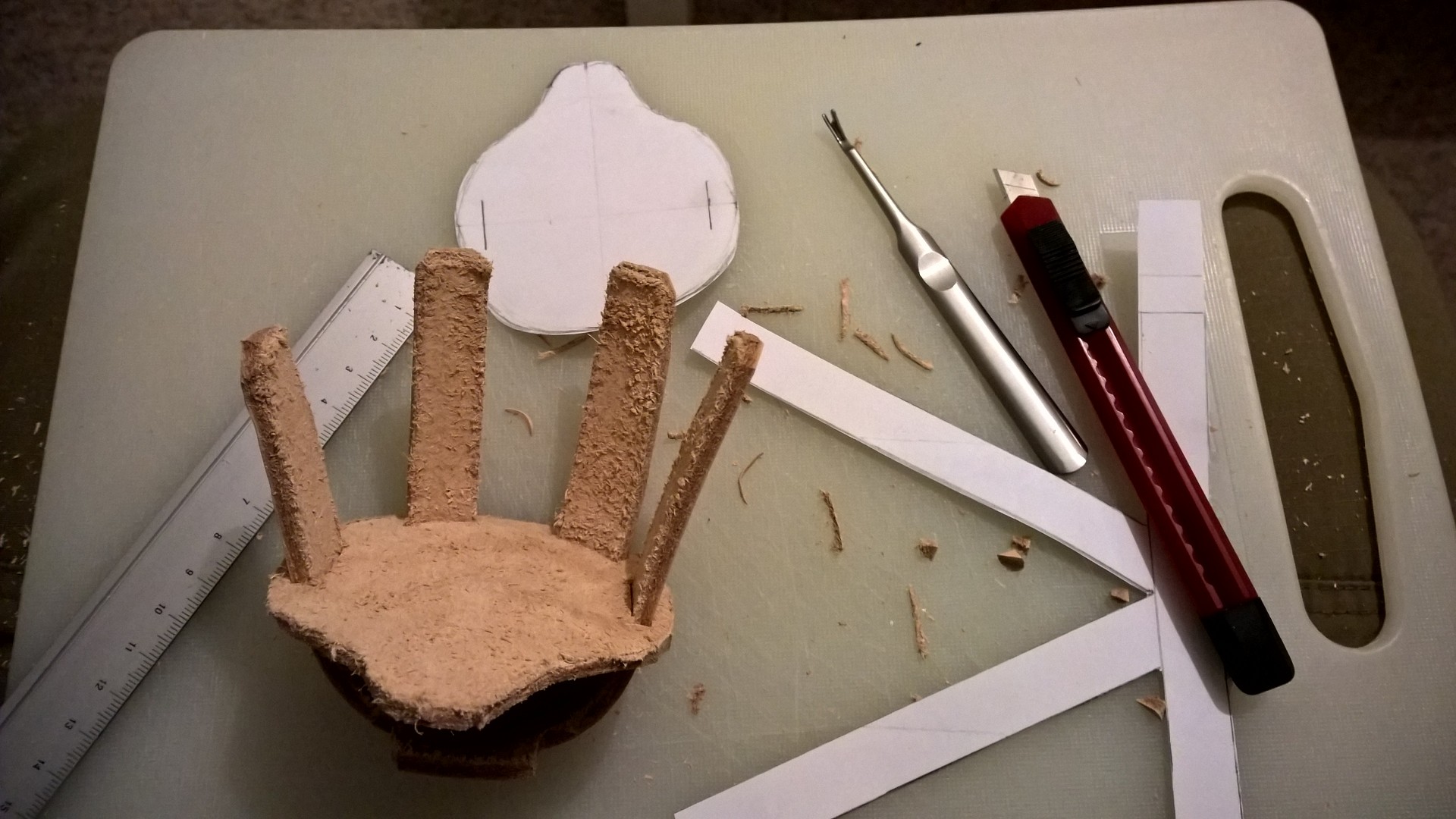

    Just roughed out the door breaching mine pouch with some 4mm leather
    WP_20150412_21_35_13_Pro.jpg WP_20150412_21_34_52_Pro.jpg

  8. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362

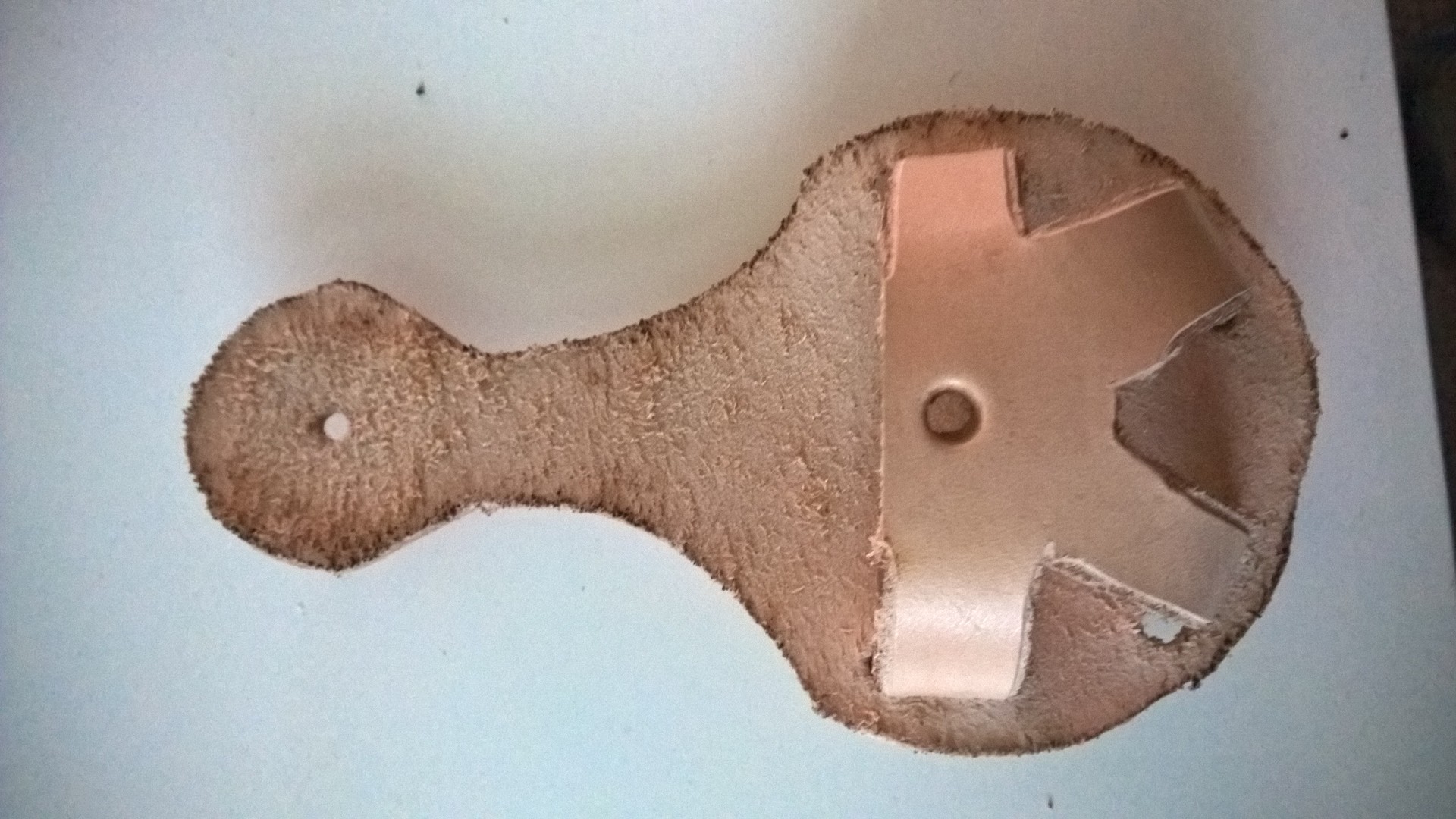

    Had a clean up of the front tab and did a 2.0 on the rear

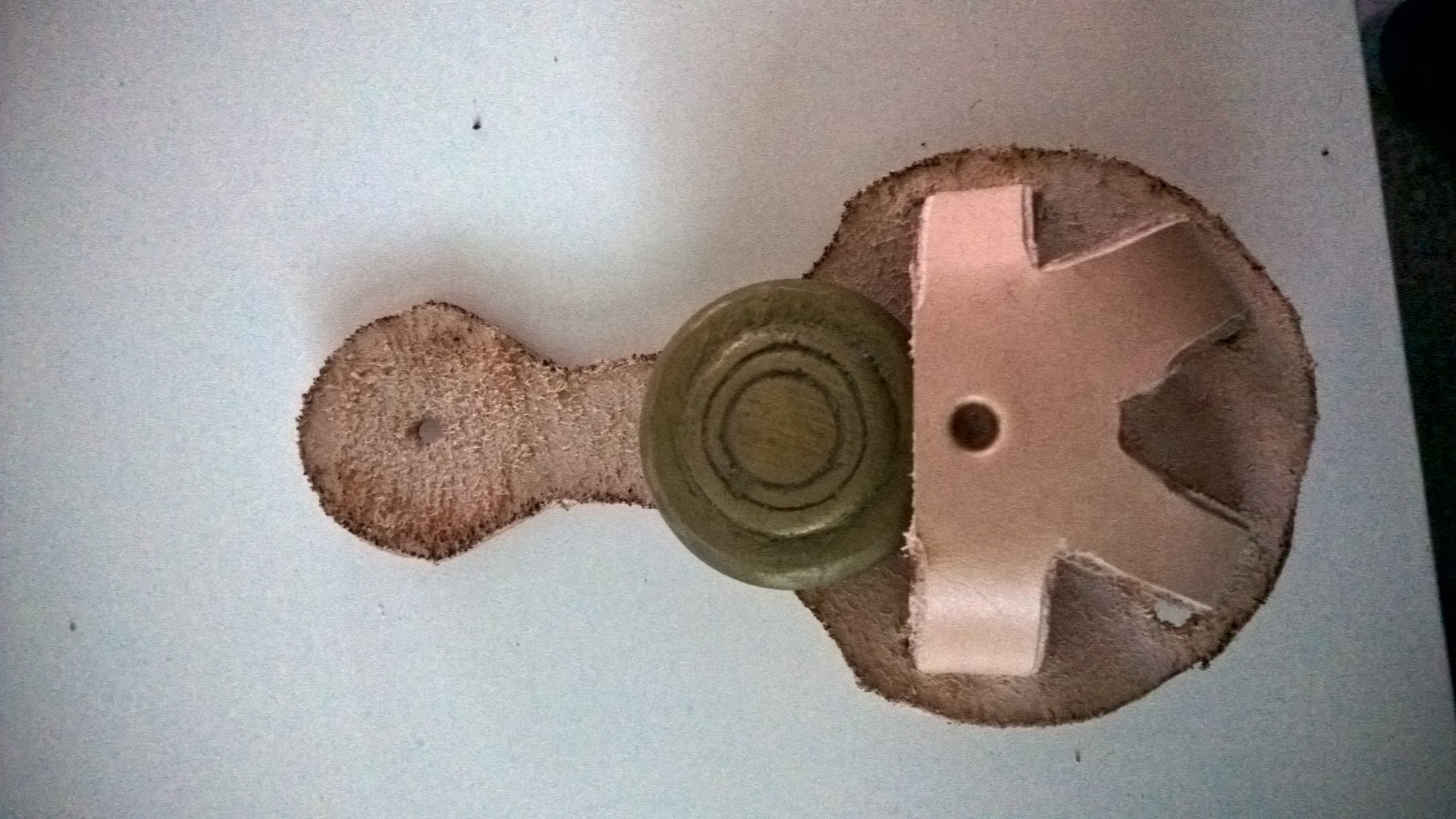

    WP_20150414_19_49_54_Pro.jpg WP_20150414_19_59_42_Pro.jpg
    Rivets aren't hammered all the way home yet, belt loop needs cutting and leather thinning for the press stud fitting .... oh yeh staining it too

    Last edited: Apr 14, 2015
  9. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362

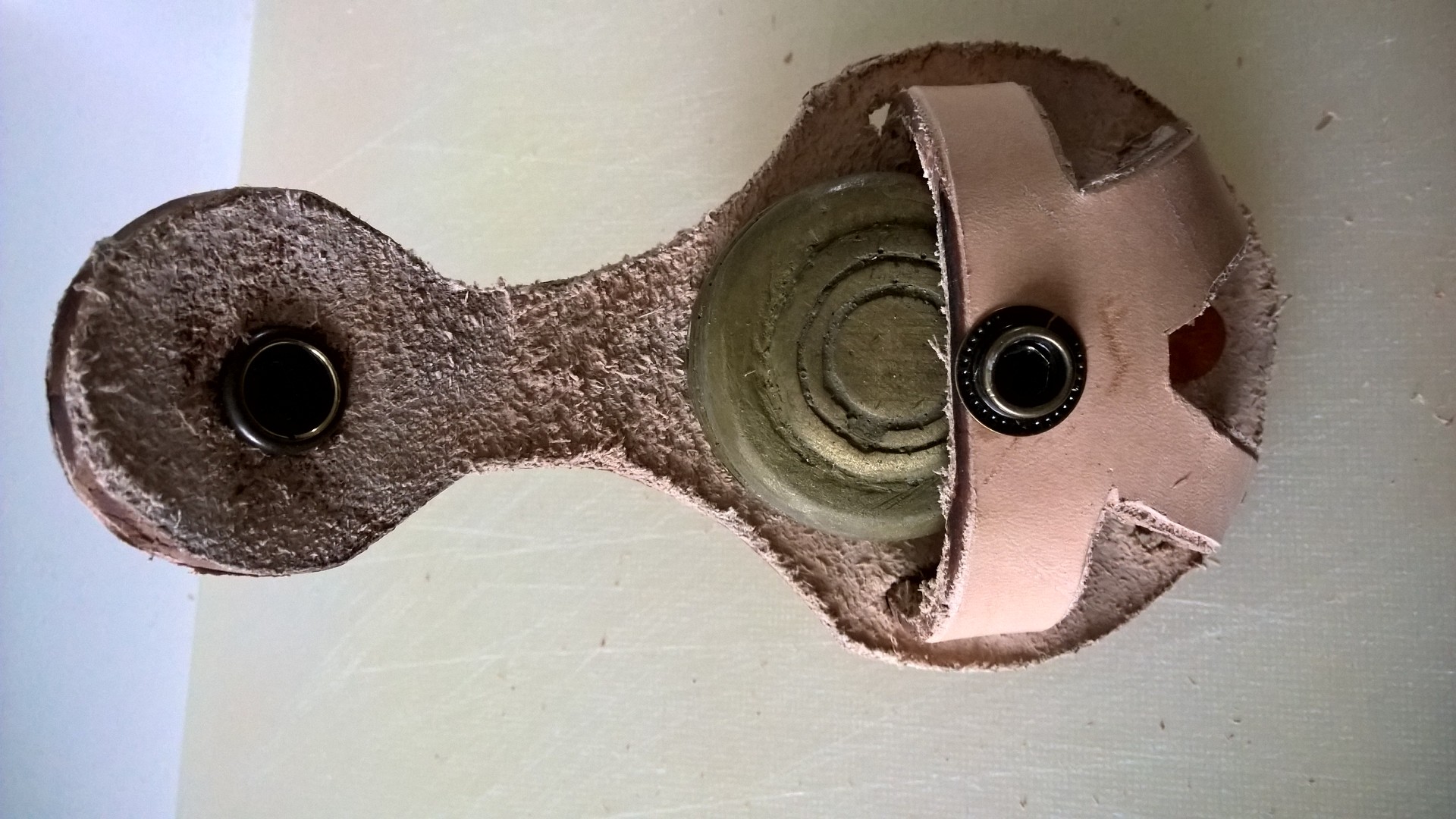

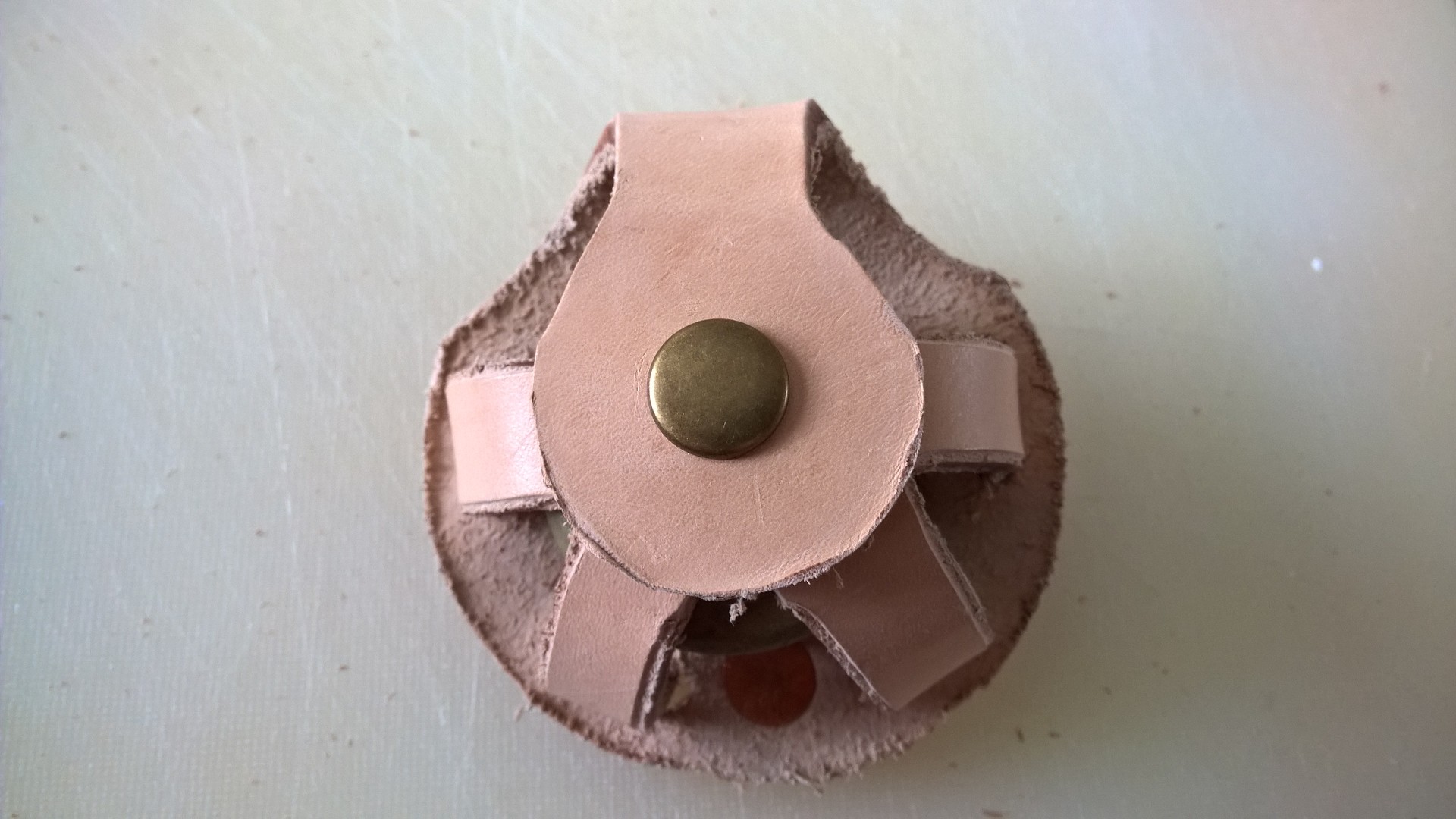

    Staining to go

    WP_20150415_16_12_50_Pro.jpg WP_20150415_16_13_04_Pro.jpg

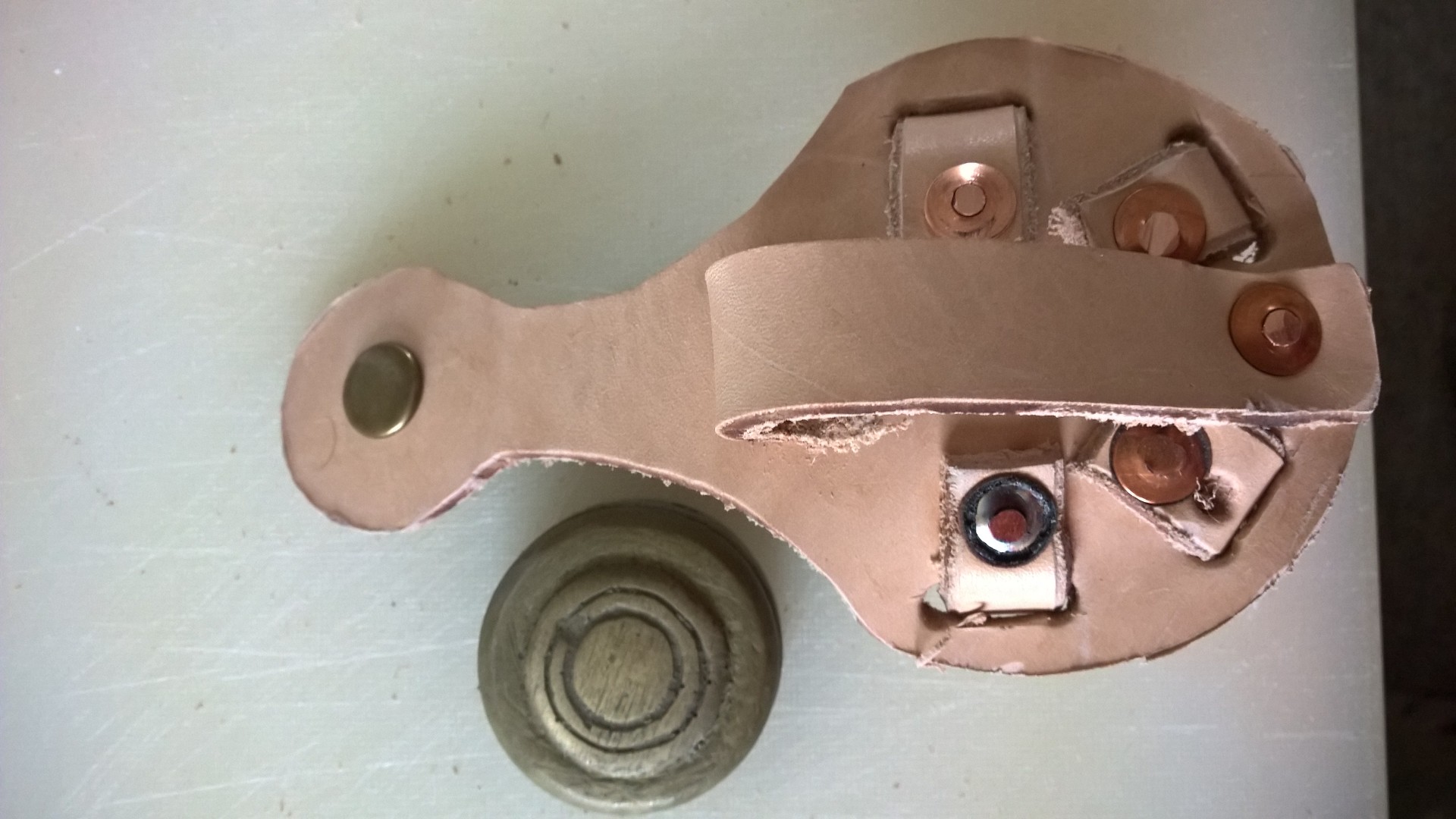

    Messy in the rear WP_20150415_16_13_25_Pro.jpg

  10. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362
  11. RogueTrooper

    RogueTrooper Well-Known Member

    Trophy Points:
    935
    Nice work with the helmet....just watch those slight red corner curves, don't think they are that tight......I'm being super critical :D......It looks great so far and awesome work all round...keep going. That helmet was almost the death of me building it off a Pep file.........but it turned out cool, sold well and your's looks mighty fine;)...KEEP BUILDING!!

  12. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362
    Cheers Rogue
    I keep looking at the lid and seeing bits I'm not happy with so I've resigned myself to the fact its gonna take longer than I'd hope

  13. JudgeGerry

    JudgeGerry Member

    Trophy Points:
    191
    Great Work. Keep Going :cool

  14. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362
    Thanks Gerry

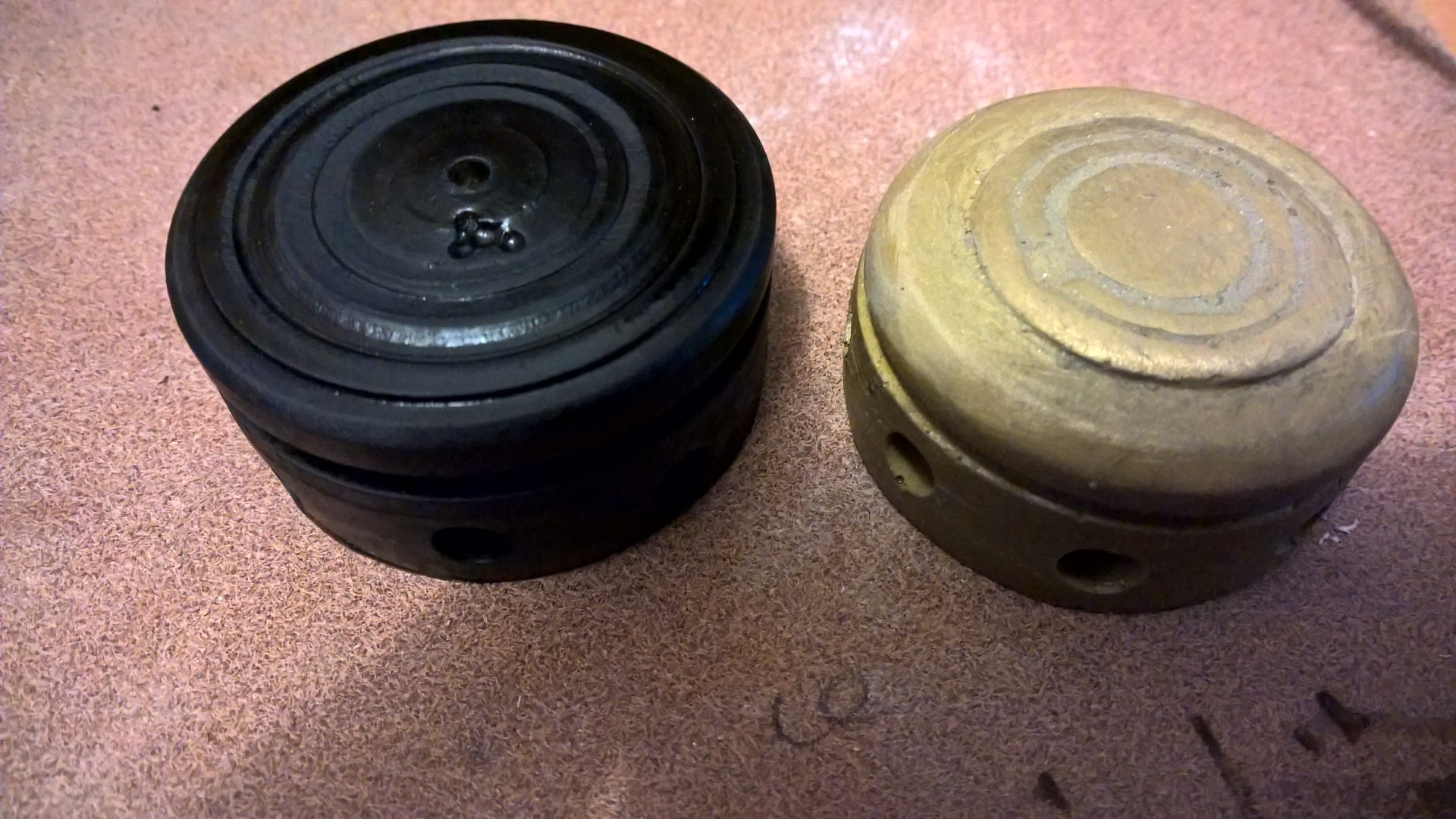

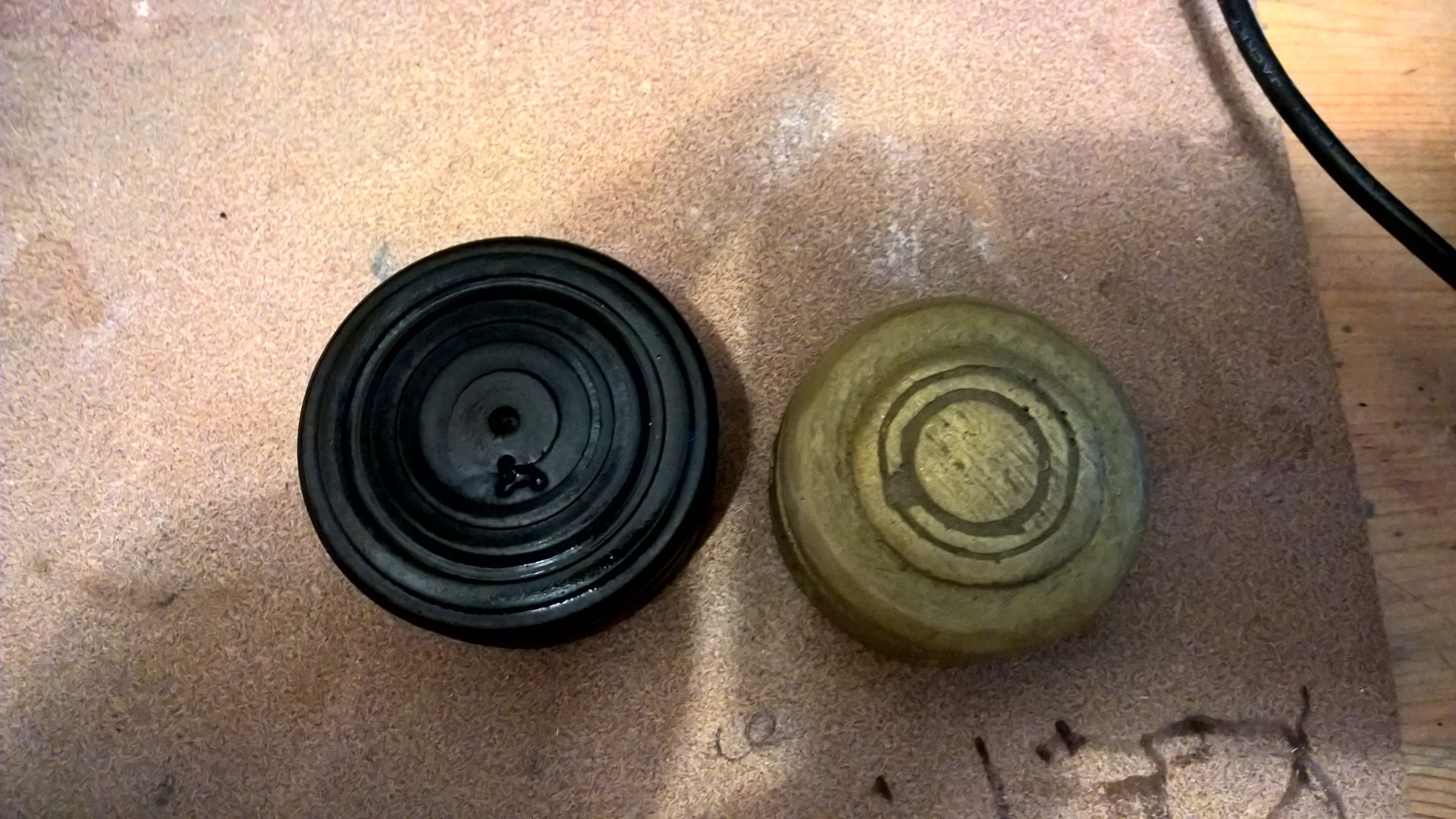

    Cast some resin blanks yesterday and had a go at another door mine (blank was too short so I've prepped another) the size is getting better but there's still a way to go

    WP_20150420_16_36_05_Pro.jpg WP_20150420_16_35_57_Pro.jpg

    Old V2 on the right V4 tomorrow

  15. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362
    Lied! Didn't do V4 today, my balls arrived so I had a play with them instead.

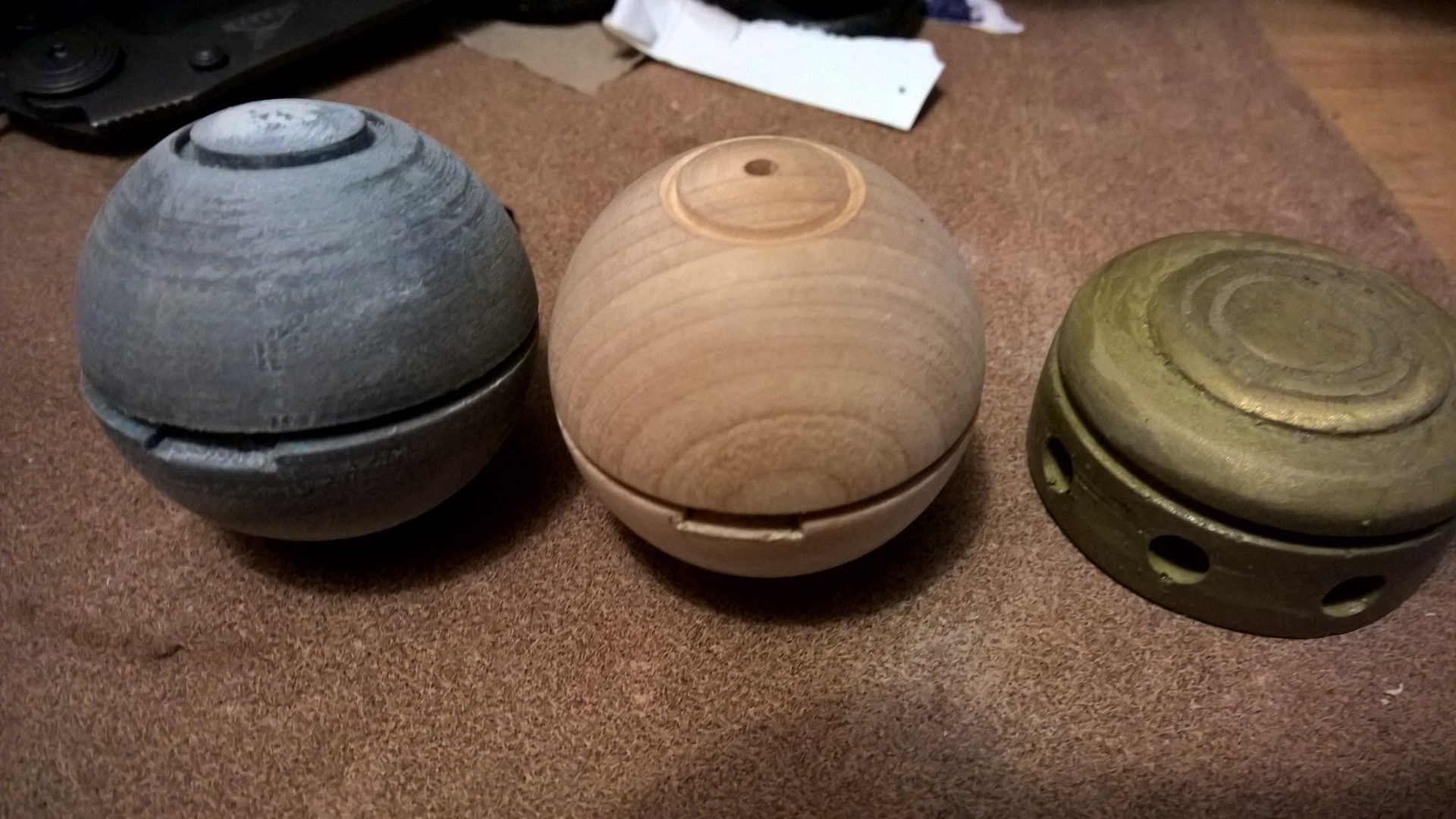

    IDM flash bang on left (very nice, gonna put a light in this one) mine in the middle, turned the groove and button then used a knife for the light hole.
    It needs a small bit of filling on the bottom where it was sat in the lathe and fill the hole in the top then I'll take a mould from it

    Last edited: Apr 21, 2015
  16. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362

    Life took over so its taken till now to get moving on this again
    I messed up my moulds this week so I need to re do them, got some rubbish pulls of my flash bang but there better than nothing and with the slight bit of shrinkage in the resin they fit in the pouch sooooo much better.

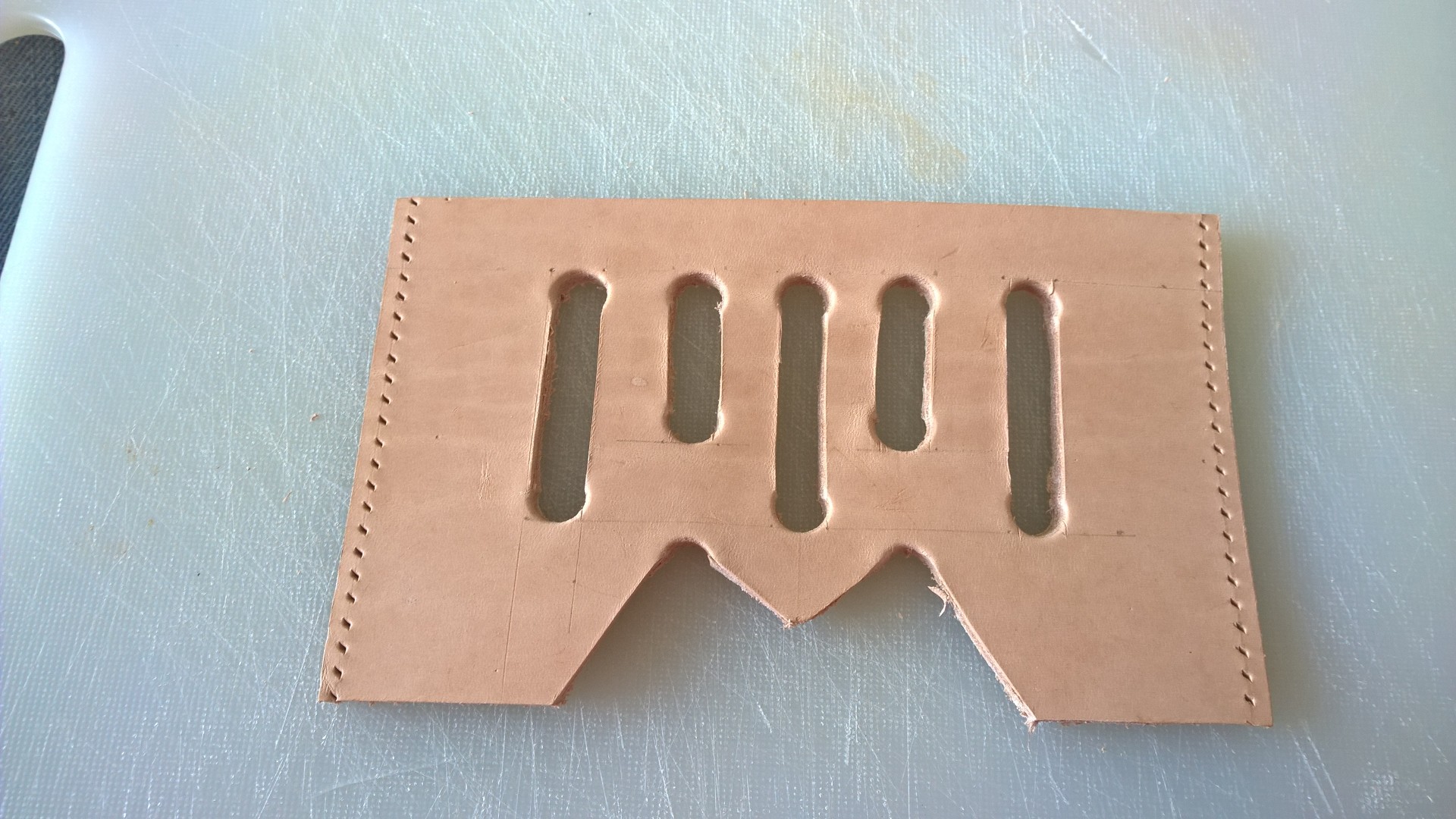

    Pouch still needs slit in base cutting, re stitching and a new bigger top section along with a belt loop adding.

  17. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362

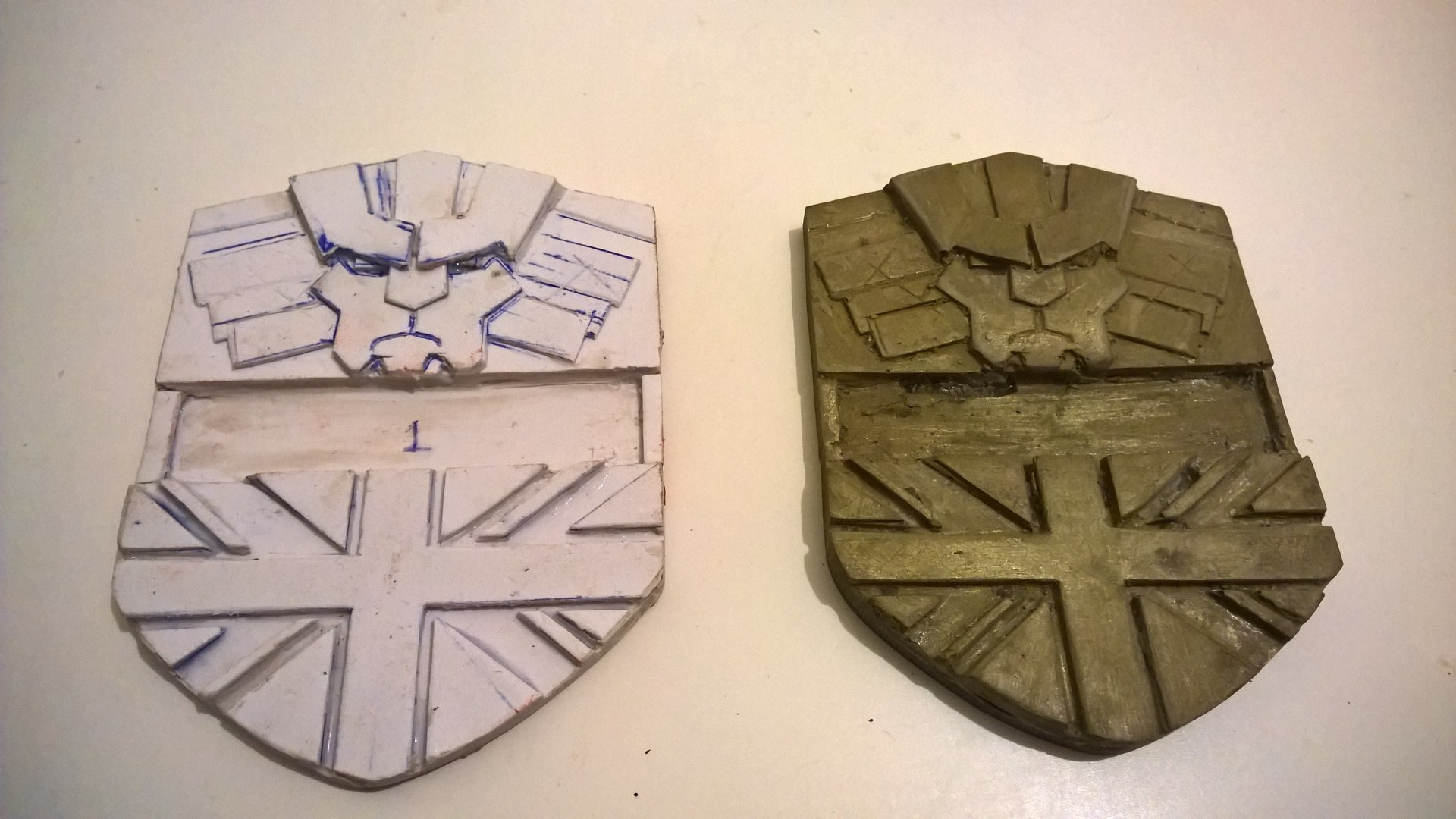

    Been sat in an office at work waiting for an alarm to go off with nothing to do for 5 hours a day,so I started playing with foam board
    Heavily based on the sec 2 Brit cit badge but in no way does there's any justice (really love that set)

    Starting on this now

    p00k1333 likes this.
  18. gothic

    gothic Sr Member

    Trophy Points:
    1,426
    coming along nicely

  19. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362
    Decided to come at some of this from a different angle, 3D printer should be here in the next few days so stand buy for some really ugly prints of dredd stuff

  20. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362

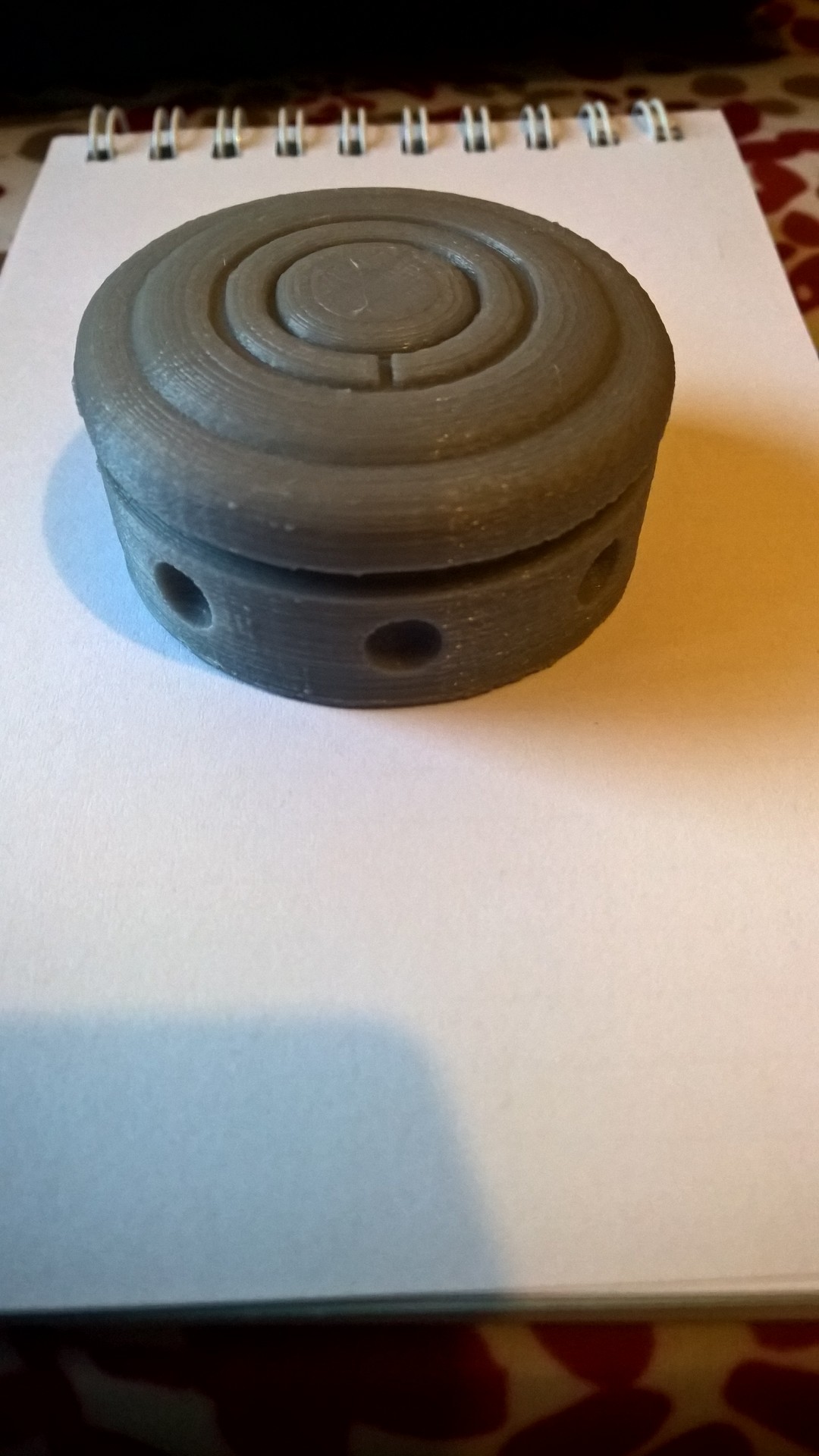

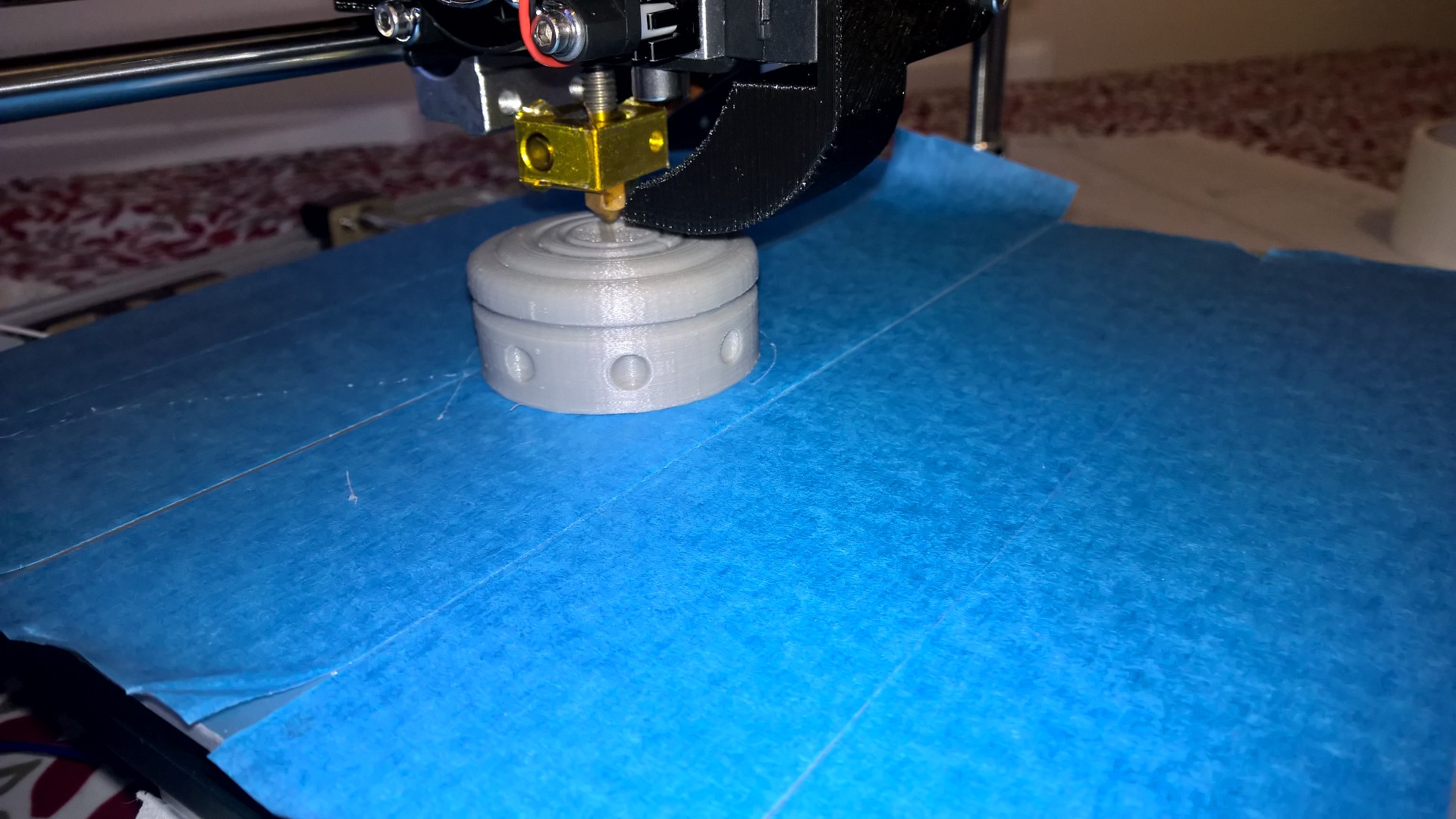

    Got the file off thingivers so thanks go to MaarekSteele WP_20151227_15_17_25_Pro.jpg WP_20151227_15_17_32_Pro.jpg WP_20151227_15_10_42_Pro.jpg printed with PLA

    MaarekSteele likes this.
  21. cavedwellar

    cavedwellar Sr Member

    Trophy Points:
    1,047
    Nice work Judge!


    Sent from my iPhone using Tapatalk

  22. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362
    Thanks cavedweller, got the gas grenade of thingiverse (credit to ghostbear for the model)
    And a really excellent friend is modelling a lawgiver for me at the moment

  23. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362

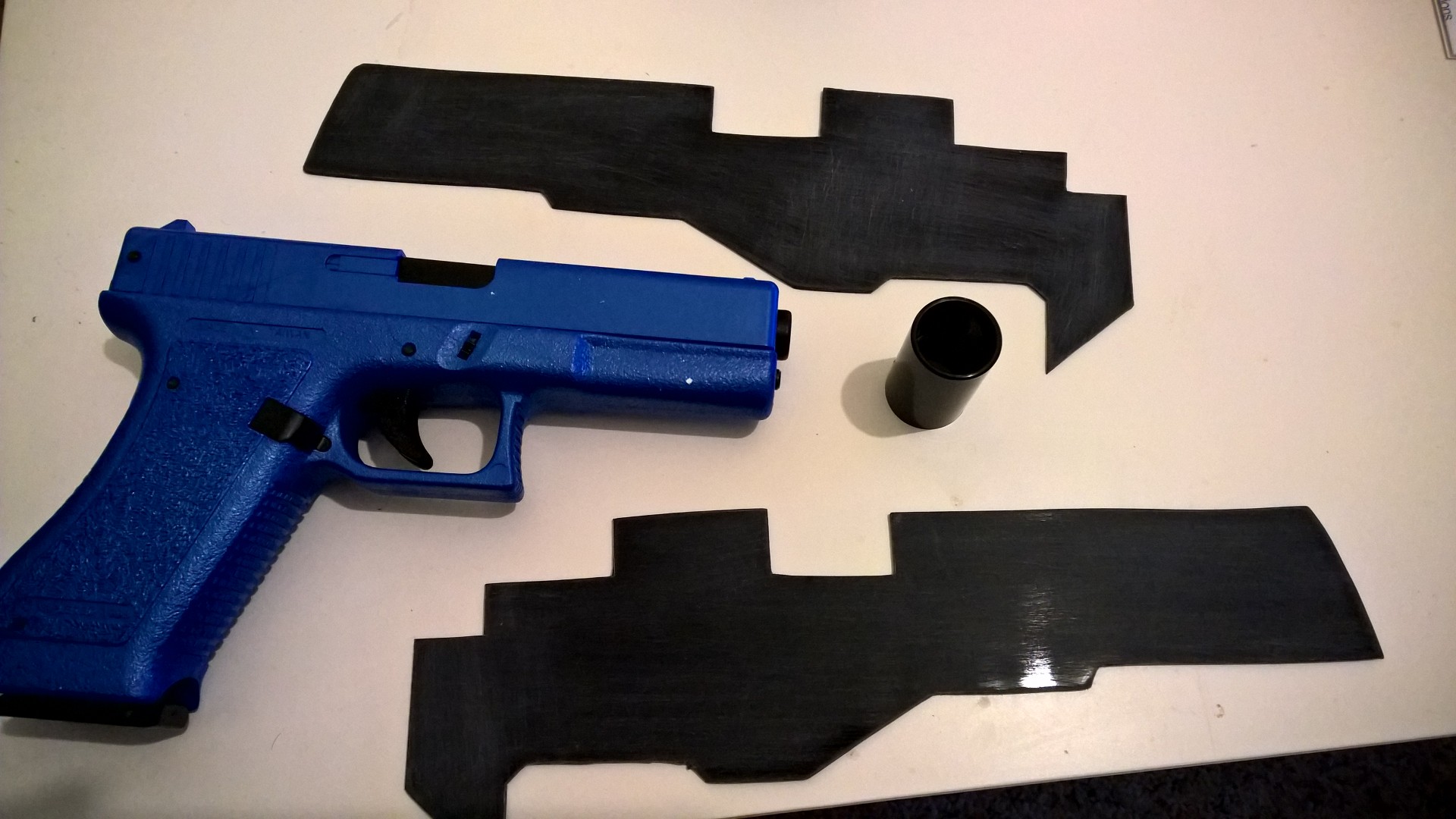

    Started on the lawgiver

  24. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362
    Front end parts ready to finish and glue, the barrel is extendable so I don't need to swap barrels for suppressor mode

  25. Judderman

    Judderman New Member

    Trophy Points:
    2
    The Lawgiver parts look amazing! Will your friend be uploading them onto thingiverse?

  26. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362
    Got the lower receiver done last night, and did a test fit and a little light sanding to get parts in place tonight.

    I don't think he will be uploading the files any where, he did these as a favour so I don't have the right to say yay or nay sorry. I am working on my own version of the flash bang (my first 3D model) once I've got looking ok I'll post it on thingiverse to give a little back but as I'm only just starting with 123d its gonna take time.
    As you can see it needs work, for some reason I printed the top out of scale. The arm button is way to deep and there are other things that are pushing me toward a total rework, might go two piece as all I did with this one was take inspiration from the IDM version

  27. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362
    Parts put in place ready for fitting
    Top slide was printed faster than the other parts at .2mm instead of .09mm

    Last edited: Jan 16, 2016
  28. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362
    V1 sprayed up ready to be replaced by V2.
    V2's ready to start printing so I don't think I'll bother weathering this one

  29. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362
    Started on V2 of the Lawgiver today

  30. RhinoActual

    RhinoActual Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    637
    Looking pretty sweet! I really need to get to work on a helmet.
