Stark Personnel Extraction Transponder Replica: Captain America: TFA

Discussion in 'Marvel Costumes and Props' started by Mike J., Aug 19, 2016.

  1. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    Has anyone ever replicated this? I'm thinking of giving it a try.


    -MJ


    Attached Files:

  2. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    "Are you sure this thing works?"


    Attached Files:

    • wip1.jpg
      File size:
      169.7 KB
      Views:
      96
  3. Psicorp7

    Psicorp7 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    "It's been tested more than you, pal."

    Looking forward to this. Nice small prop to round out a TFA display or costume!

  4. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    Thanks! I'm surprised no-one else has replicated this(?). We've got a dozen or more TFA Caps, but no transponders? No Hydra batteries? Is it the lack of good references?

    ...Mine's probably gonna be the 'broken' one. I've guessed at the dims by comparing screencaps to my gloved hand (width of thumb). Not entirely sure what's going on with the back side, all we ever see clearly is the front. The back seems to have 5 silver screws, in addition to the two big black screws like on the front.


    Attached Files:

  5. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    The CA:TFA art book contains absolutely nothing on the Stark transponder.

  6. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355

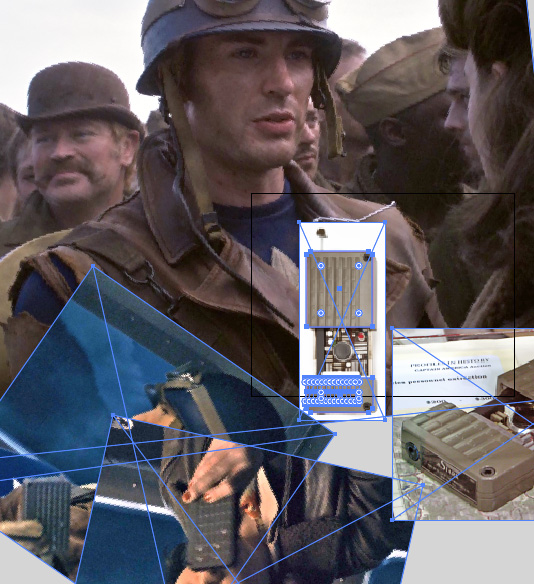

    Work in progress...


    Attached Files:

  7. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    An Armchair Analysis:

    The prop has a top and a bottom. The top is the taller half with the antenna; the bottom half is shorter, with a large screw. It also has a front and a back. Those are less easy to differentiate, but the antenna & the big bottom screw seem to be on the left side, when viewed from the front. That also makes the smooth side (& screws) the right side of the front, and puts the ridges on the left side of the front. If so, then the back side of the device is 'mirrored,' with the smooth side on the left & ridges on the right.

    Additionally, the back side appears to have 5 silver-tone screws (?), presumably to secure the innards & the sliding mechanics. We have a couple good pics of the front, from the auction, but no pics of the back, save screencaps.

    However, the Cap's broken transponder has the antenna on the left and the smooth side on the left, which suggests it was assembled incorrectly, or something.


    -MJ

    Last edited: Aug 21, 2016
  8. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    Working on this for the past few hours... Finalized my blueprints, then started to recreate it in 3D, which is horribly frustrating since I'm so out of practice. Also, the scroll wheel on my mouse is broken and I have yet to buy a new one.


    Attached Files:

  9. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    Remind me never to 3D model under a deadline after a year of not touching it.

    Shapeways is now charging for the space objects take up in the machine as well as the solid volume of material (depending on the material) so this was more expensive than I'd hoped, even with the free shipping. I chose the polished white strong & flexible; it has a balance between cost and fineness of detail. If I'm lucky, this first one will be good enough to keep. Just gotta paint it, stuff it with guts, and make the Stark labels for it. Found a small antenna on eBay, seems about the right length.

    I did tweak some details, simplify things, etc. while I was building it.


    –MJ


    Attached Files:

    Psicorp7 likes this.

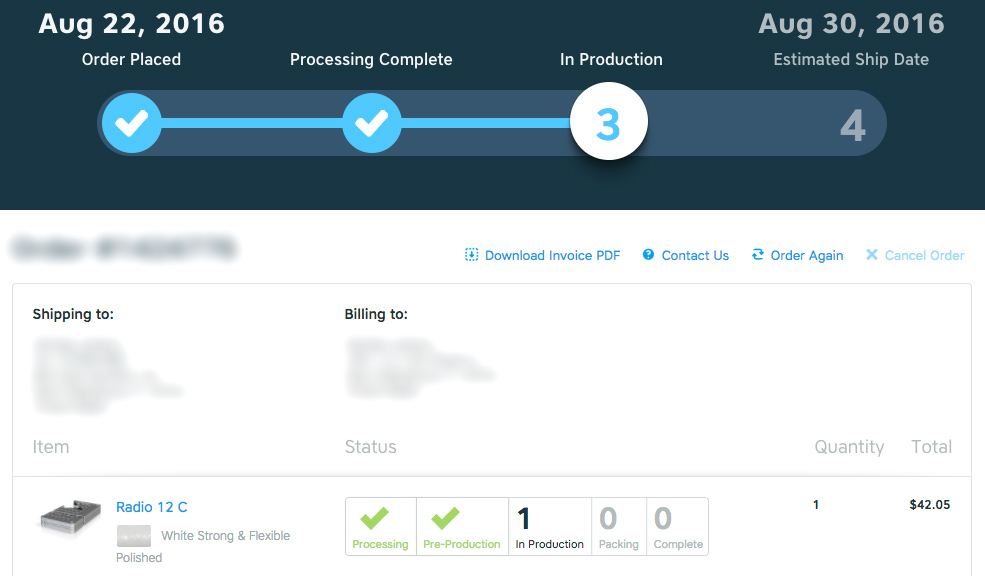

  10. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    In production! (In theory!)


    Attached Files:

  11. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    Figures...

    On the plus side, my tiny antenna arrived from eBay a day early. *Yay*


    Attached Files:

  12. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    Well, that wasn't too much of a delay...


    Attached Files:

  13. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    "You're late."

    "Couldn't call my ride."


    Hard to photograph a grainy white object in my own hand, but you get the gist of it. The stair-stepping visible on the ridges is unfortunate, but not unexpected. This was about $40, and any of the nicer materials were more expensive. I'll prime it and putty it and work it over in the coming weeks. My antenna seems about the right proportions, too. Also have to get to work on the Stark 'data plates.'


    -MJ


    Attached Files:

    Psicorp7 likes this.
  14. renaissance_man

    renaissance_man Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,786
    Looking good.
    I look forward to seeing the finished prop.

  15. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    Thank you :)

  16. Bogleo

    Bogleo Well-Known Member

    Trophy Points:
    816
    Shapeways has a new feature that lets you choose the orientation of your object. If you had it vertical, that would reduce the stair-stepping a lot I think. It might cost more though. :unsure

  17. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    Arrrgh! I forgot about that, and it's not ... marked in flashing red, so I must have just passed over it.

    Thanks for the reminder.
