Star Trek - Enaran 'Telepathic' Instrument - Build & Finished

Discussion in 'Replica Props' started by Alan Castillo, Feb 13, 2012.

  1. Alan Castillo

    Alan Castillo Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,255
    In the episode "Remember" from Star Trek Voyager, they 'give a ride' to a race called the Enarans.

    The race is capable of transmitting memories etc through telephathy.

    A member of the group plays an Enaran musical instrument, and 'assists' Janeway through telepathy when she has a go at playing the instrument.

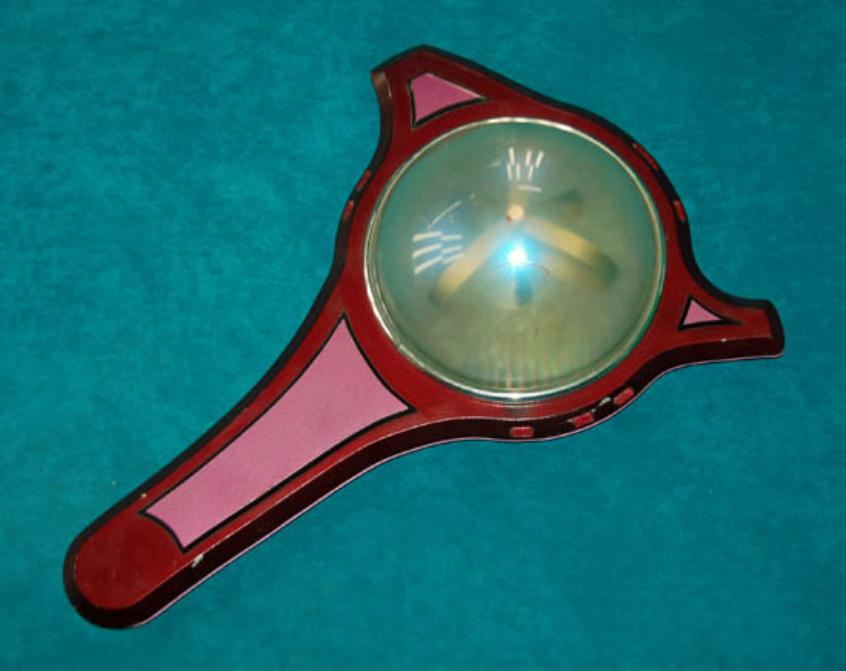

    This is a picture of the original prop


    [​IMG]


    It is, however, IMO, much more beautiful on screen :love


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    Of course I had to fall in love with this prop and have one for myself :lol

    Naturally, as usual, so long as when I finshed it looked somewhat like the prop and shouted "Enaran musical instrument ! " at me, I'd be happy :)

    I was going after the finishing as it is seen on screen.


    Step one, one of my (in)famous 'blueprints' :lol


    [​IMG]


    Have shelving wood left in the garage, but I had to glue two pieces together to give it the correct thickness


    [​IMG]


    Drew the outline


    [​IMG]


    And on a thinner sheet, drew the outine again, but made it a couple of mm's wider (look closely, and you will see the 'join the dots game :lol)


    [​IMG]


    Cut out 2 thick templates, and the slightly wider thin one


    [​IMG]


    [​IMG]

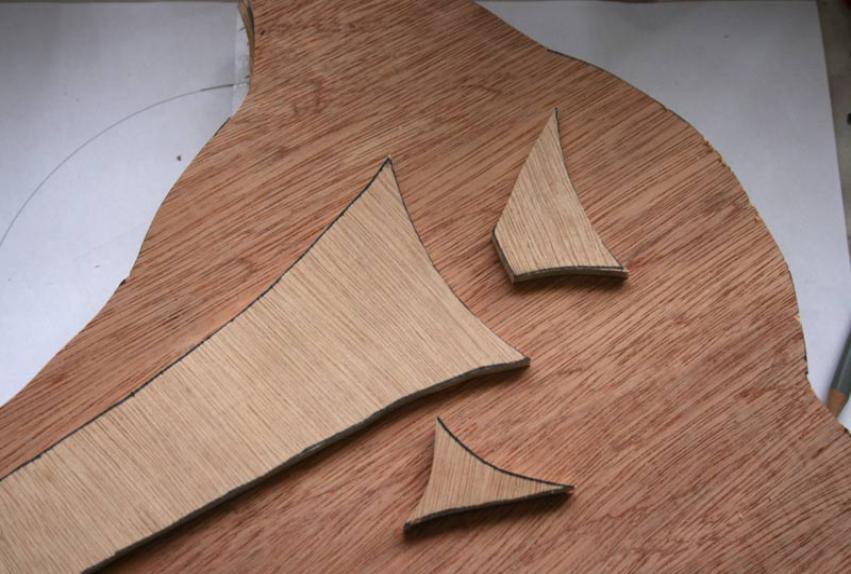

    Drew and cut out the top raised decorative shapes


    [​IMG]


    And sanded them at an angle on the sides to give it the sloping shape.


    [​IMG]


    Wood filler, and then sanded again to smoothen.


    [​IMG]


    Now the fun part :lol


    The sides of the thicker part of the prop are also slanting at an angle.

    I was not about to invest in a router to achieve that, but I have this, a heavy duty grinder with a sanding attachment.

    Muuaaaaaahahahahahahahahaha :lol


    [​IMG]

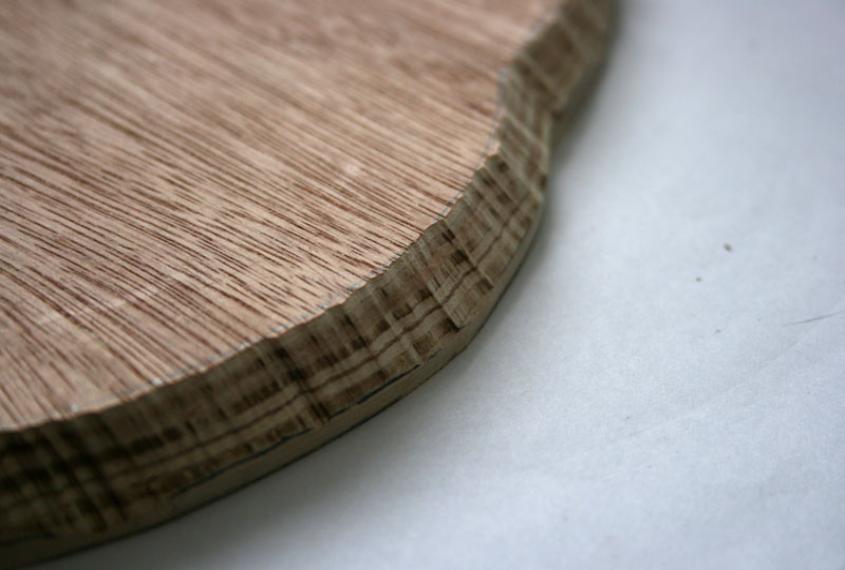

    So after holding on for dear life at a couple of thousand revs per minute :lol, and applying the beast to the sides of the wood, this was achieved


    [​IMG]


    Talk about a bull in a china shop :lol

    But, at least I could fine-sand it down and fix the ugly bits with filler, to be sanded later for the finishing touches.


    [​IMG]


    After that, I REALLY wished I had invested in a router, because what I had to do next was a major pain in the backside.

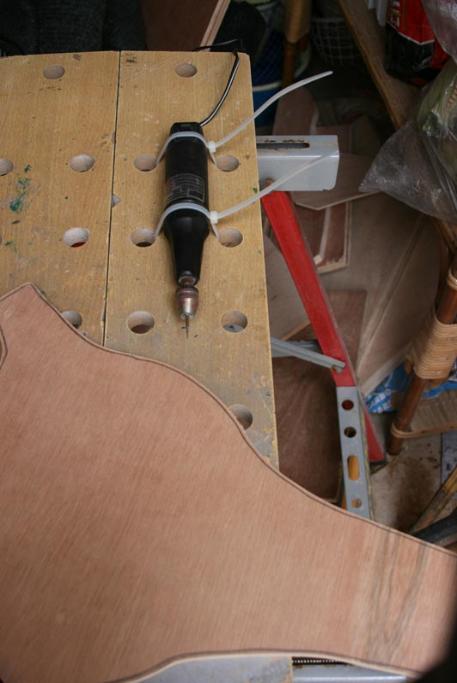

    No router, but a hobby drill secured to a small workbench with electrical fasteners will do just fine :lol


    [​IMG]


    I had to switch the drill on, and slowly pass the edge of the thinner sheet on it, so as to make a groove in the 5mm thick sheet :wacko


    [​IMG]

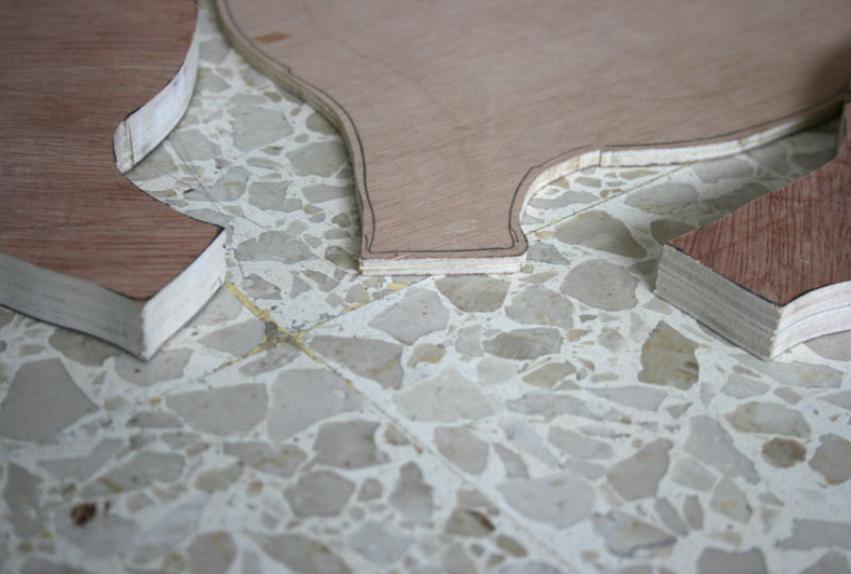

    And once all the sanding and finishing was almost done, I finally had the correct slants on all 3 pieces.


    [​IMG]

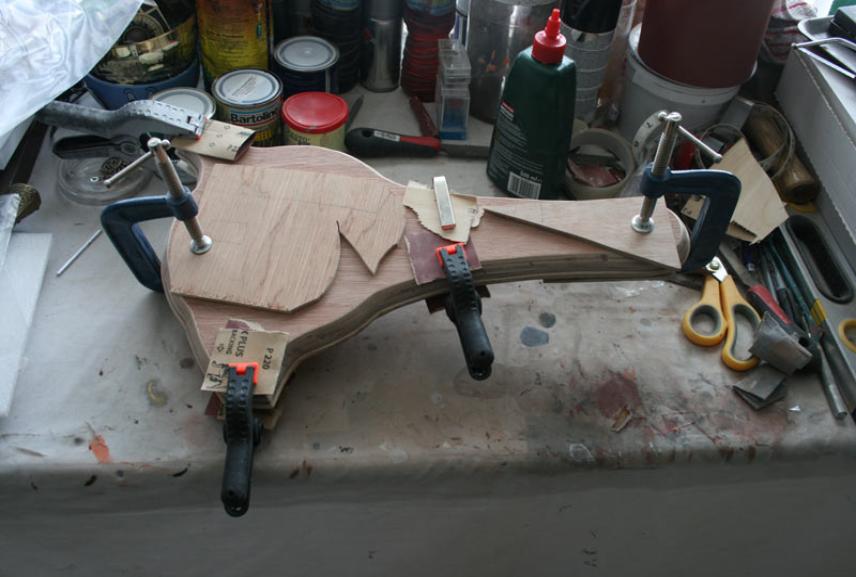

    Stuck the layers all together.

    (I collect props, not clamps. OK ? At least I didn't use cases of Sangria this time :lol


    [​IMG]


    Now for the dome part.


    [​IMG]


    I was after making the 'propeller' thingies you can see, one thick, and another thinner one that tapers off towards the top. I also wanted to make what looks like alternate 'dividers' of sorts at the base of the dome.


    So, enter one plastic lettuce preserver for the fridge :lol, some chrome tape used for cars, a plastic lid, a knob that came lord knows from where, the leftover brass sheet from my Vulcan Lamp build, a piece of rod from the mod I made to the Playmates Klingon disruptor :lol, and some thin sheets of wood that were left over for 'floor planking' from a wooden model ship.


    [​IMG]

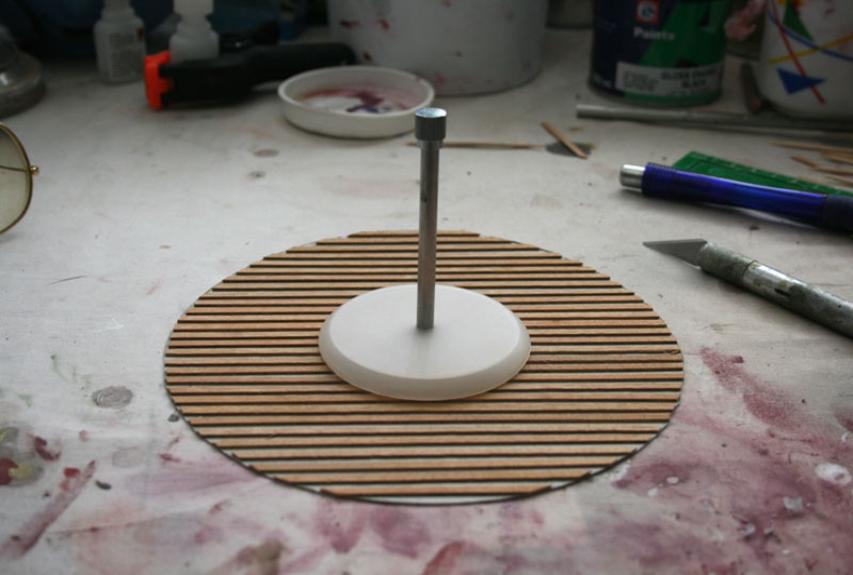

    Drew the base on a sheet of cardboard, divided the circle into equal parts, and glued the planking wood on alternate strips


    [​IMG]


    Cut out the circle, and stuck on the plastic lid, a bit of the rod, topped off by the knob.


    [​IMG]

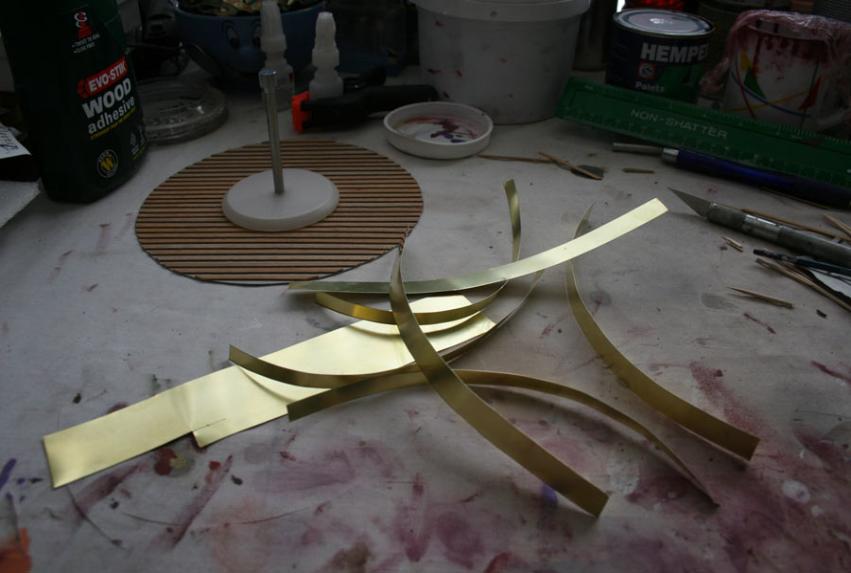

    Cut the brass sheet into strips


    [​IMG]

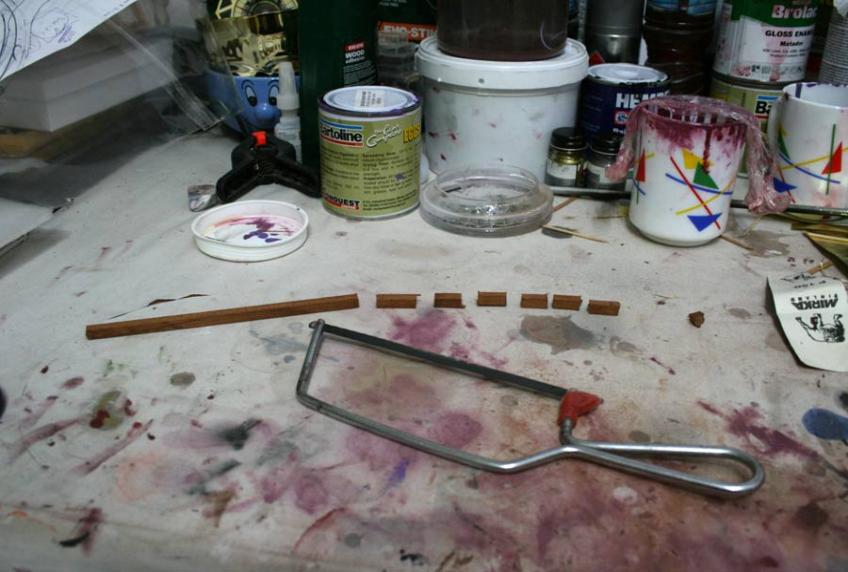

    And finally, cut out bits of wood for the 'control buttons' on the side of the instrument.


    [​IMG]


    Which were then sanded down to shape.


    [​IMG]

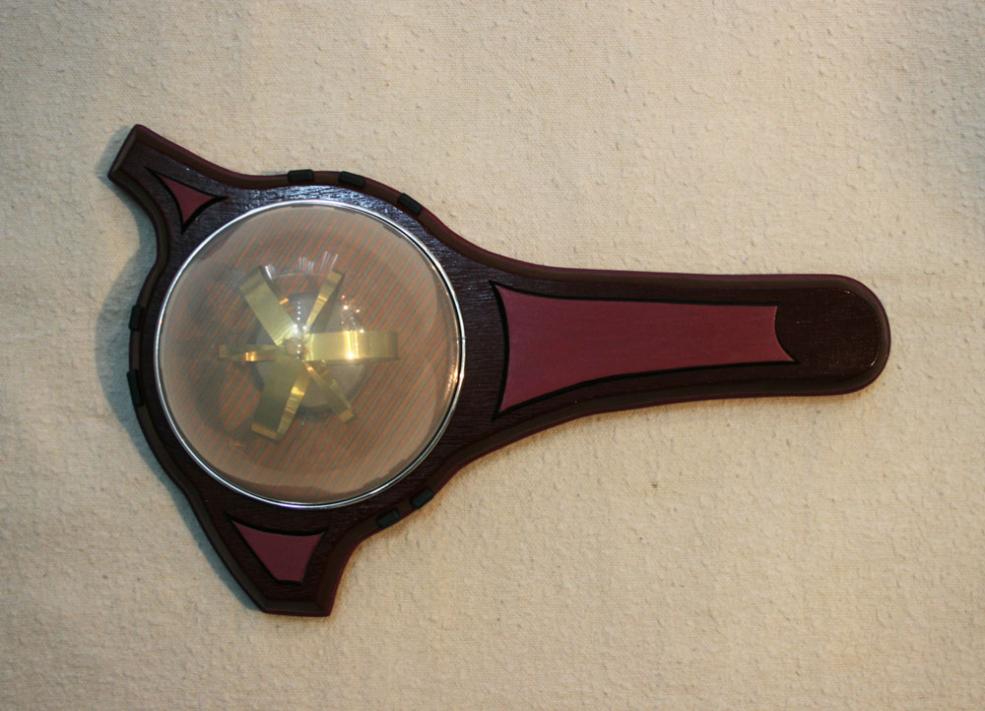

    And here she is, after sticking all the bits together and painting :)














    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
