Snake Plissken Gun Replica

Discussion in 'Replica Props' started by Nick Anzalone, Mar 9, 2015.

  1. Hey experts,
    I am making a replica Snake Plissken gun. I have recently just purchased a Mac 10 Ingram air soft gun, a real cheap one, but it's 1:1 scale. It's more of a challenge than I thought, but sure is fun.

    Scope Prog1WMp.jpg

    Nick


    Attached Files:

    Last edited by a moderator: Mar 28, 2015
  2. Krel

    Krel Sr Member

    Trophy Points:
    1,241
    Couldn't you construct it out of pvc pipe? I would think that you are going to have to strengthen the barrel and connection to support the extra weight.

    David.

  3. Yeah I was thinking that PVC would work, but your right. The plastic barrel may not support it. I need a way to strengthen that thing as well. A guy on ebay sells a Mac 10 air soft with a fake suppressor for $94. I wonder if it would be worth just getting that and only worrying about the sight.

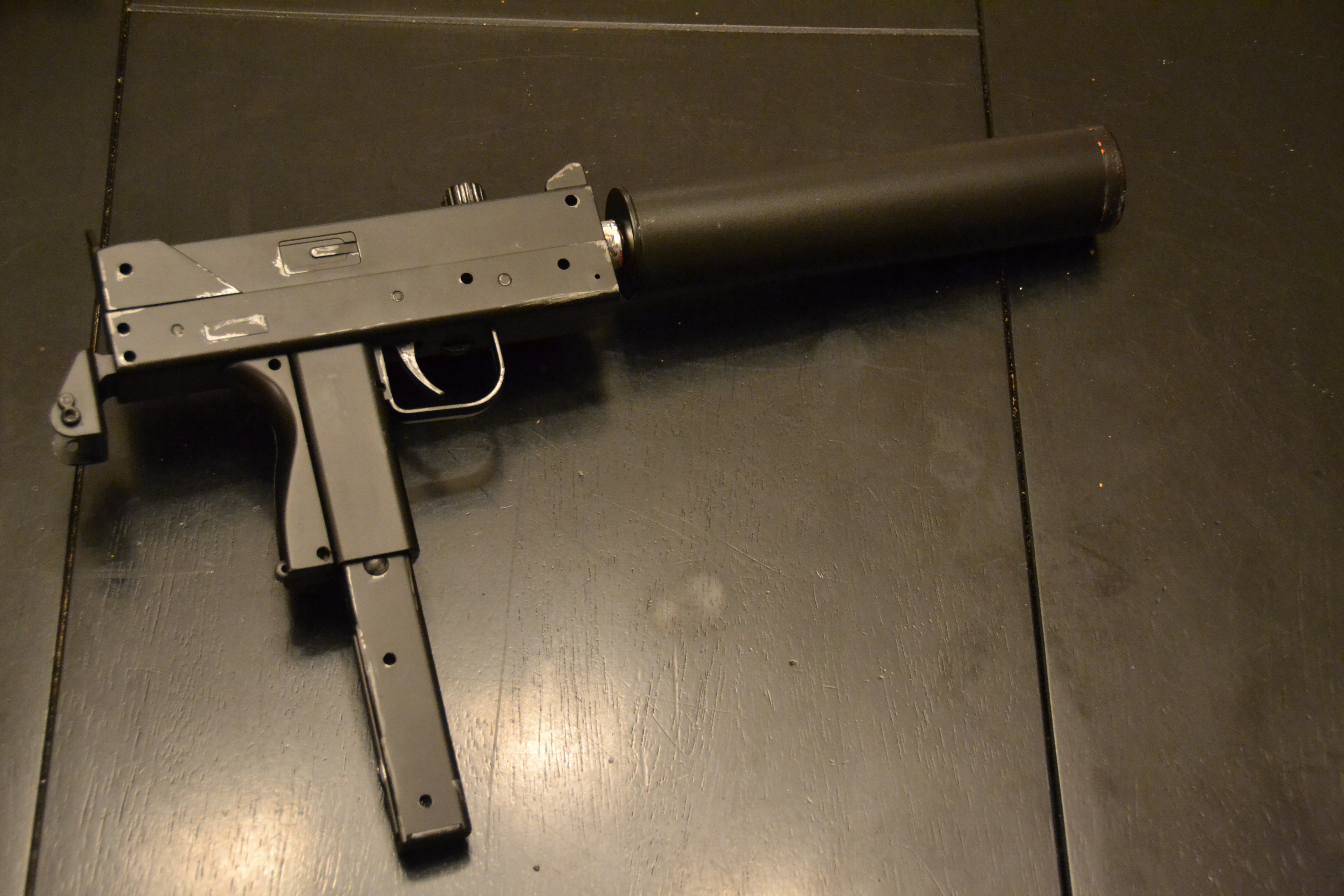

  4. This is a cheap Mac-11 Version for testing.

    DSC_0009.JPG DSC_0015.JPG

    Last edited by a moderator: Mar 28, 2015
  5. Snake Plissken Mac10 Build

    Testing the Silencer fitment and the test scope before the real Mac-10 arrives in the mail. The PVC pipe for the suppressor worked out great and I was able to take the threaded part from a smaller suppressor and add it to mine which enables me to actually screw it on to my gun. The part coming out of the front is part of the stock suppressor. I found a scope on a Nerf gun at Walmart. I have premiered it so far and it looks great. It could almost pass for a real scope. I think Snakes was gloss black. I still need to cut off the shoulder stock bracket, attach the scope, find a lanyard, finish painting a weathering.

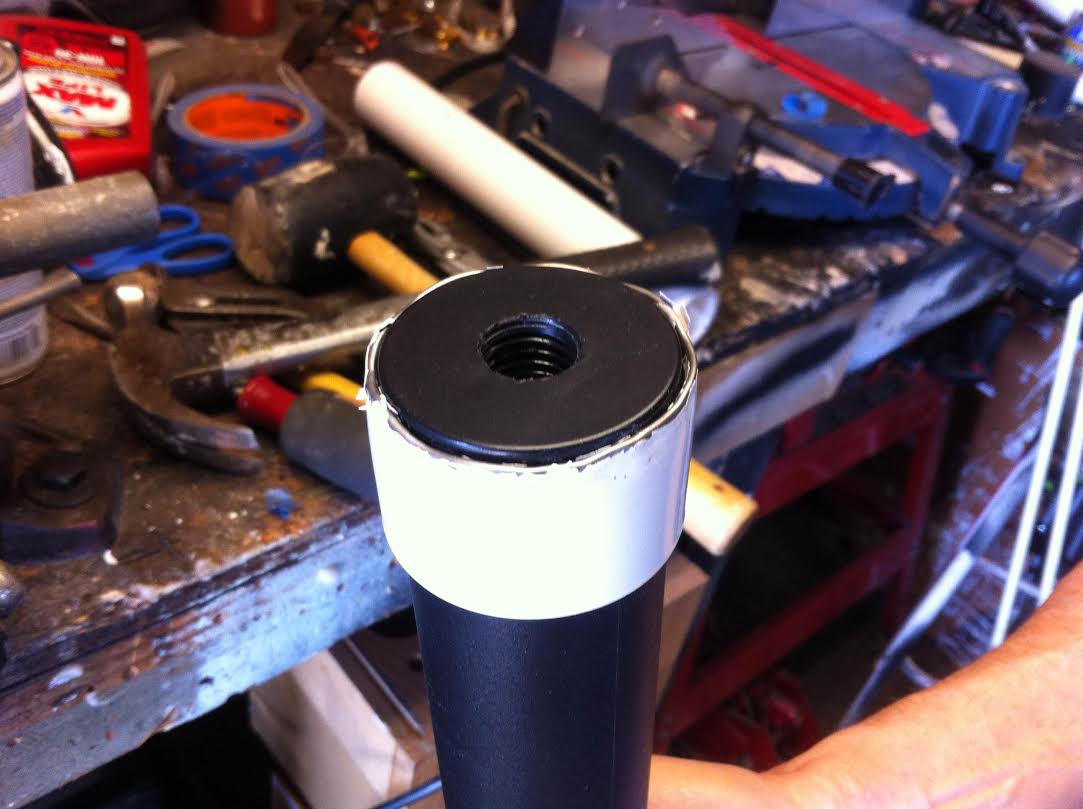

    I wanted the suppressor to be able to screw onto the gun, not just be glued or taped. For the threaded part of the suppressor, I took the light socket from an old bathroom light fixture. I cut the stock suppressor about an inch from the threads and put it into the light fixture. Then I put the whole unit into the soon to be suppressor....PVC pipe 2".

    pvc.jpg Supress2.jpg

    Then for the part coming out of the front of the suppressor I used the end of the stock suppressor that came with the gun. I did the same thing. I put it in another bathroom light fixture socket and made sure it fit snug. Then I was able to shove it into the 2" PVC no problem any length I wanted..(the orange part is the front of the suppressor).

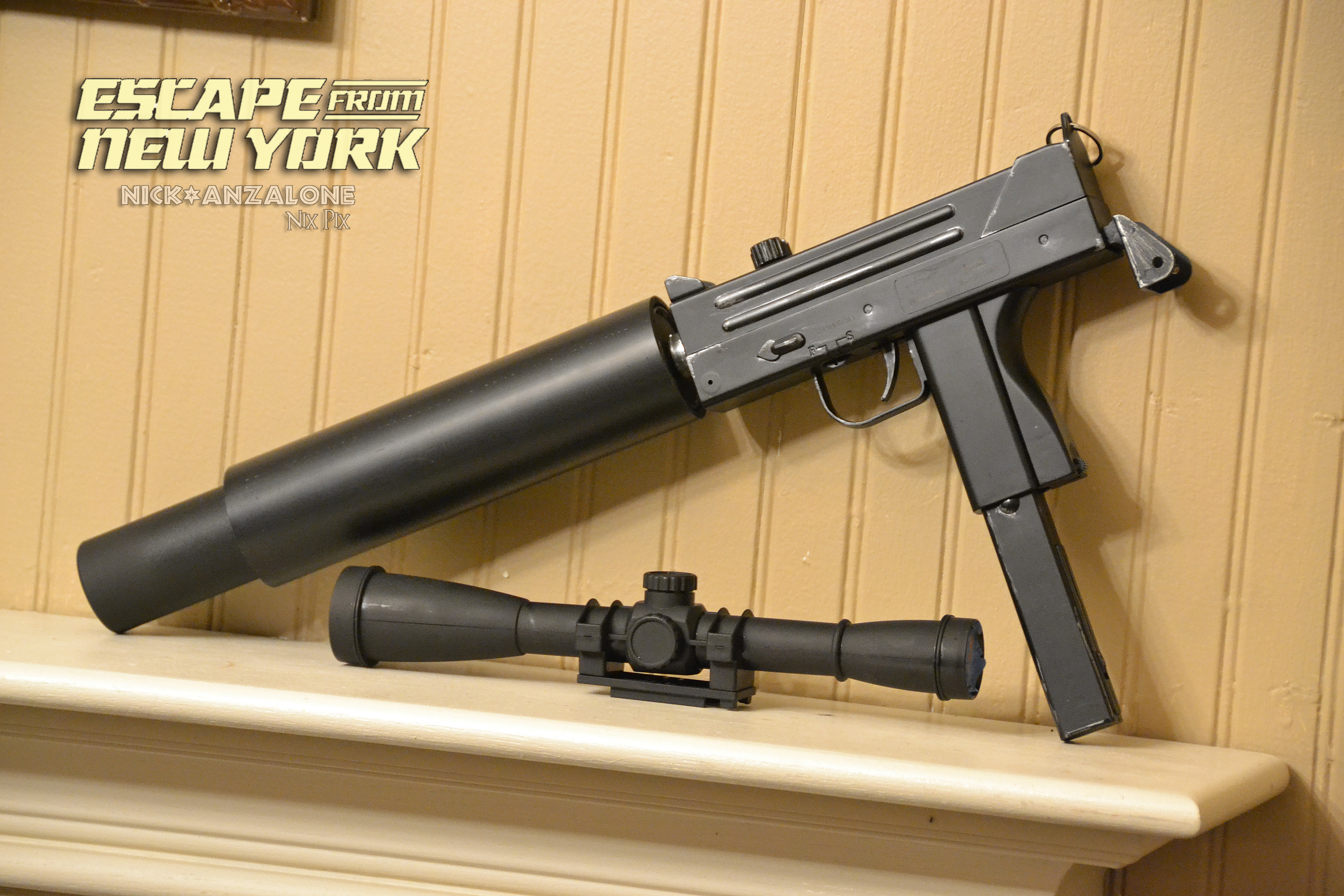

    Snake Gun 3.14.jpg









    Snake Gun 3.14.jpg

    Last edited by a moderator: Nov 9, 2018
  6. I finally got a Mac-10. Progress pic of my full automatic, Snake Plissken Escape From New York, Mac-10 Build. This is the Tokyo Marui Mac-10..NOT a Mac-11. Scope isn't mounted yet and no lanyard...but we're getting there. I now have the correct scope and silencer. I'm very happy with the progress. Getting closer. The tough part was making the PVC silencer threaded to the be able to screw on and off the gun.

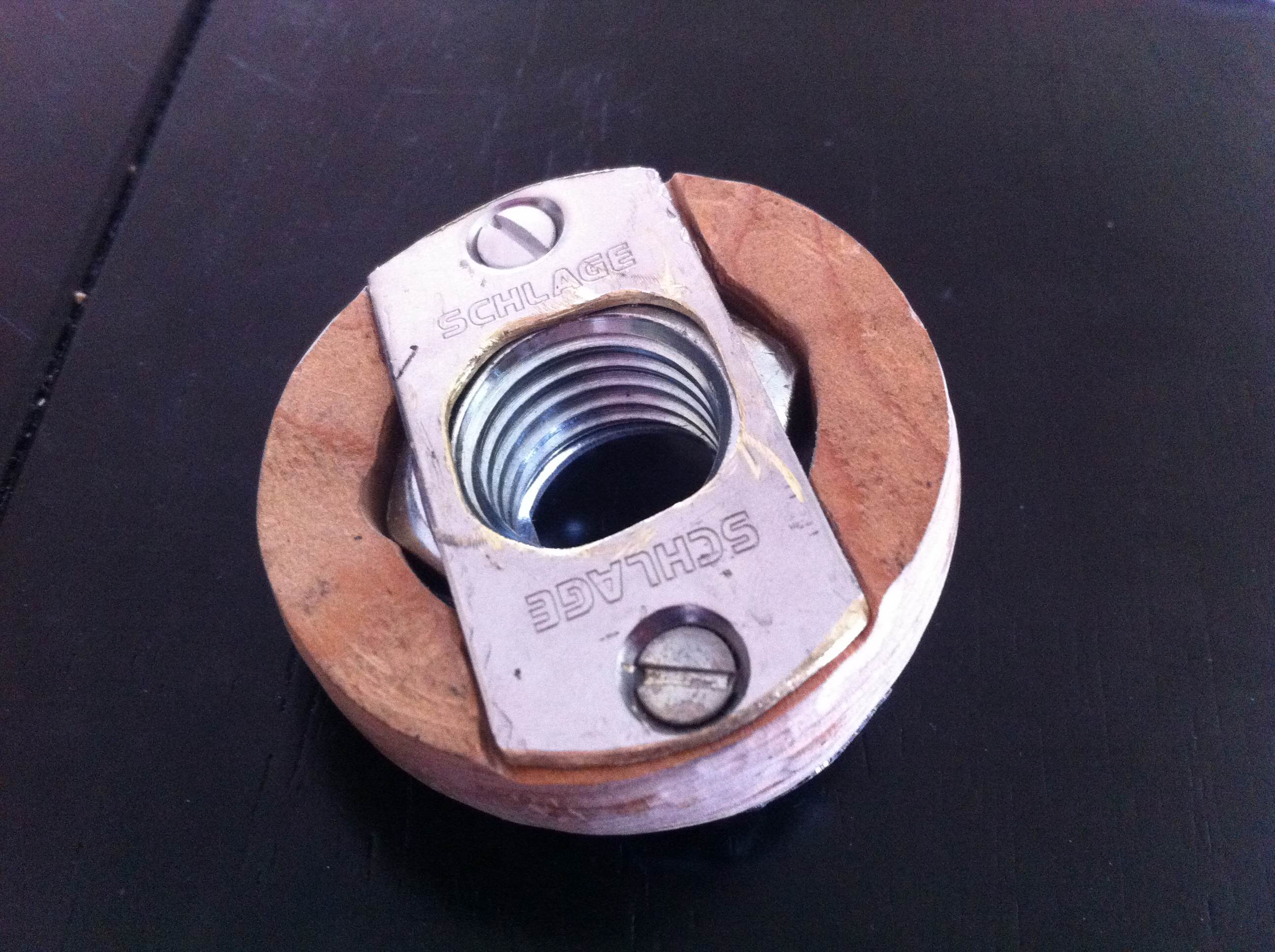

    I took a circular piece of wood, put the correct size bolt in it. Then I fabricated two pieces from a door knob to hold down the bolt. Then fit that into the silencer.

    scope piece.jpg

    So Far...so good. Thanks for looking :)

    Scope Prog1WMp.jpg

    scope piece.jpg

    Scope Prog1WMp.jpg

    Last edited by a moderator: Nov 9, 2018
    MAAZ likes this.
  7. nick daring

    nick daring Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,455
  8. Thank you! I am really having a good time with this. I've wanted a Snake gun forever. As far as the gun, That one in the link you sent is a Mac-11 and it's much smaller than a Mac-10. For someone like me with not too many air soft connections I was ready to take anyone that I could find. I found this one brand new in the box and jumped on it. If a TM or JG would have been available, I would have been just as happy with them.

    Last edited by a moderator: Mar 28, 2015
  9. Thanks David...that's just what I did :thumbsup

  10. nick daring

    nick daring Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,455
    I don't think that's a Mac 11. Check out the handle. Totally a Mac 10 handle.

    Also I keep reading reviews that it matches up perfectly to the TM Mac 10 inside and out minus the quality of internals mechanisms and the trade marks.

    But if you something I don't please let me know! You're project has got me itching to build one!

  11. Noeland

    Noeland Sr Member

    Trophy Points:
    2,366
    If you haven't yet, you might consider using wood putty, or metal putty to fill those screw holes on the right side of the airsoft gun, then give it a coat of flat black.

    Interesting work on the silencer adaptor! That's the first time I've ever seen that done.

  12. Thank you! I wish I could delete that old picture but it won't let me. The holes on the right side your talking about is the Mac-11. I've since then moved on to the Mac-10 that you see posted later in the thread, but thank you!

  13. I wish I knew my friend. Yea the mag sure looks to be Mac-10, yet the description says Mac-11. I wish I knew more about the guns to let you know for sure. The only thing I can say is that is REALLY, REALLY Cheap for a Mac-10, and if it is a 10, I can't believe they are still in stock because they don't make the 10 anymore and they usually go for about $300 second hand. You may want to contact the company and ask. If it is a 10, buy all of them!! lol Thanks for all of the nice words on my build :)

  14. nick daring

    nick daring Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,455

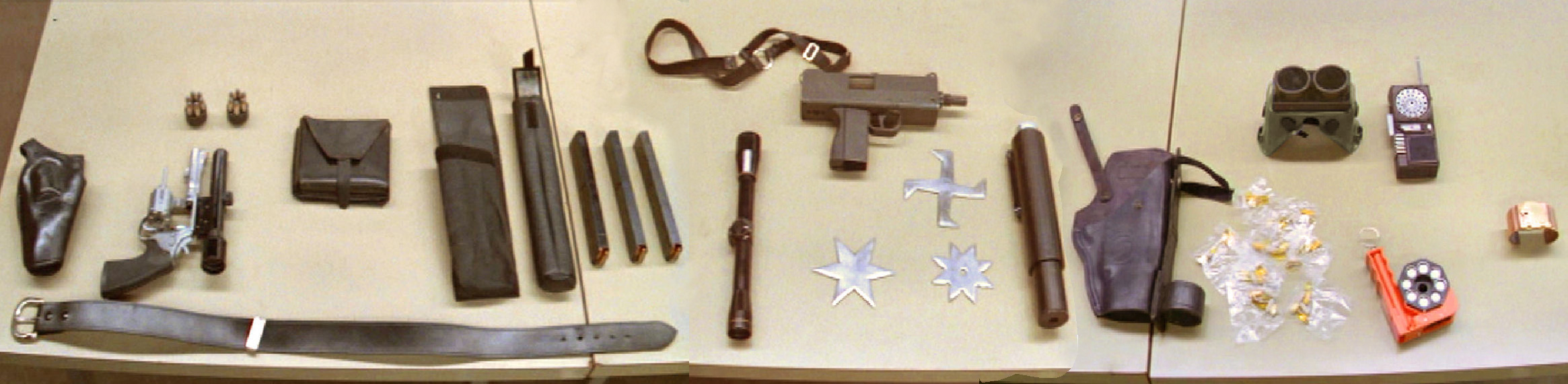

    You know what kinda weird. I was looking at the top image of the gun in the case and at the shot of the Mac 10 laid out on the table and notice the grip is missing the palm bump.


    I wonder what the story is there? Maybe a variation in Mac early Mac 10 production?

  15. That is really strange. I have to say...I never noticed that. Good eye! I wonder. I know they used two different versions. A real mac and a rubber stunt gun. This does not look to be rubber. This is odd. If you find anything out, please let me know. I'll do the same. Good call!!

  16. nick daring

    nick daring Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,455
    Just found this info on a different thread- http://www.therpf.com/f9/escape-new-york-la-43474/

    "The MAC10 pictured here is the .45cal version (you can tell from the bump in the grip) while the one in the movie is the 9mm version (not to be confused with the M11/9mm!)."

  17. Ahhhhh.....OK. Nice research.

  18. SnkePlisskn

    SnkePlisskn New Member

    Trophy Points:
    2
    Hello
    I am from Germany and made a Gun from the Movie ESCAPE FROM NEW YORK.
    Hope you enjoy the evo till yet.
    The gun is ready end of the week.
    Stay Tuned

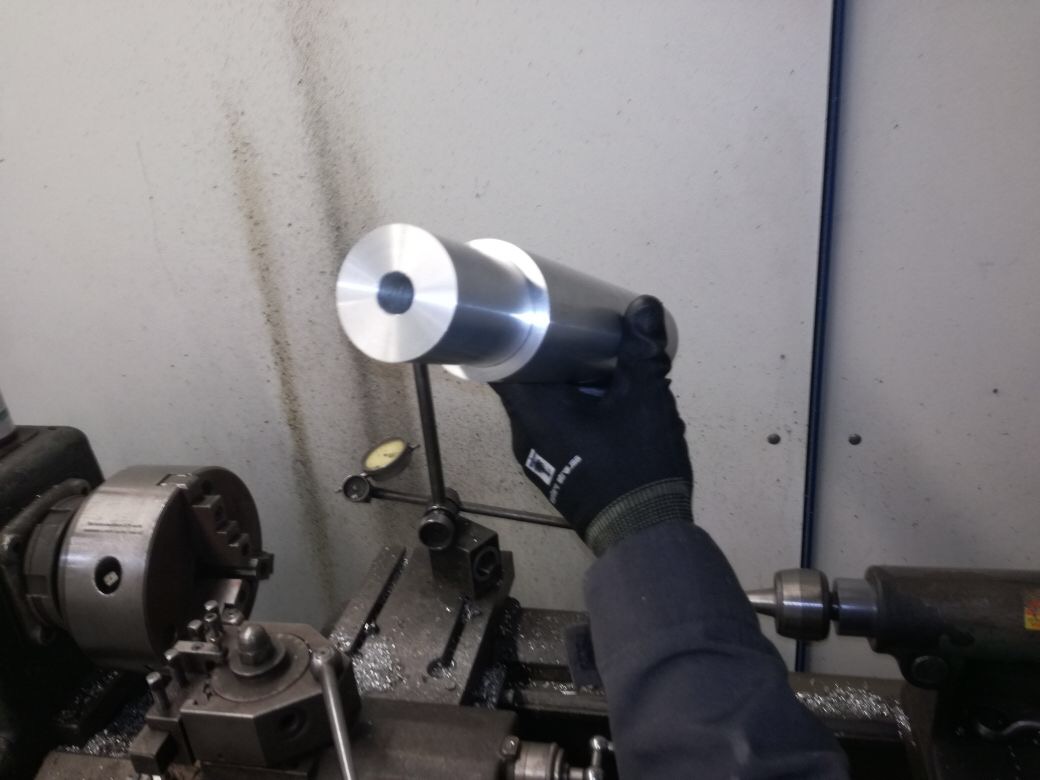

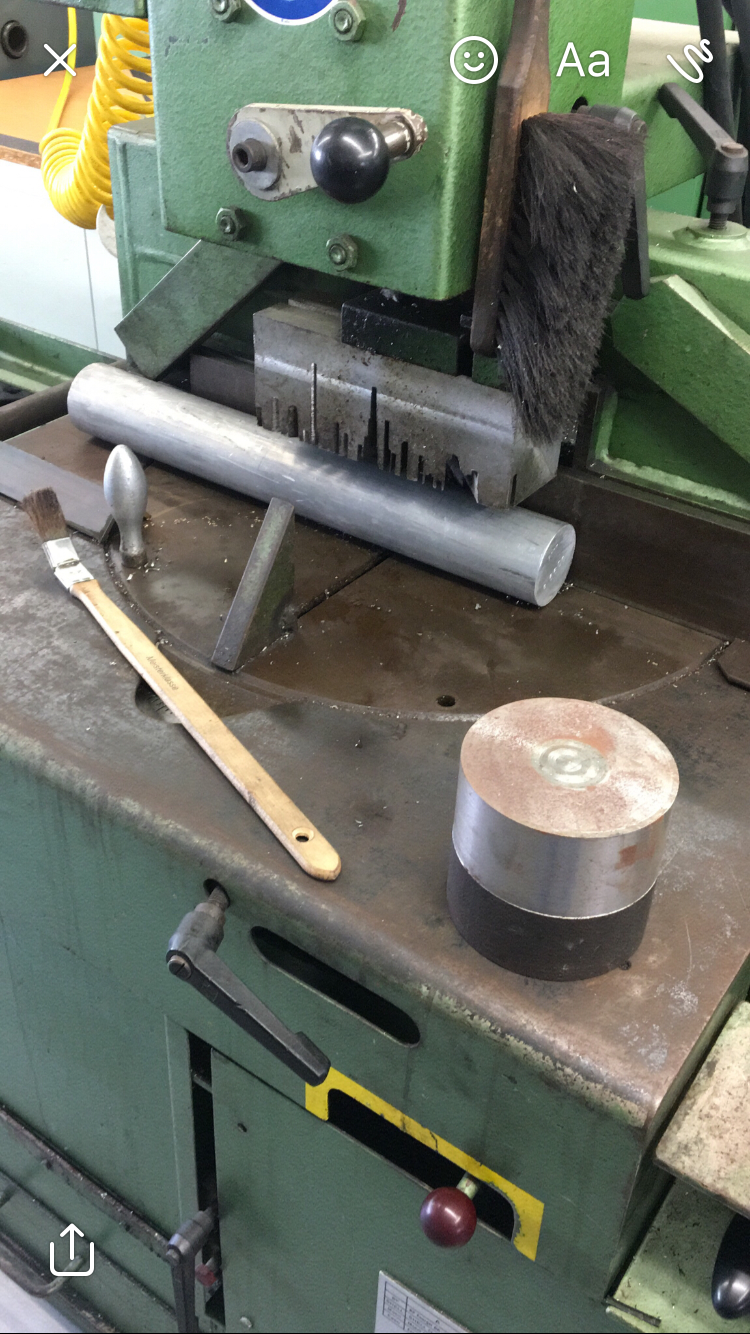

    planing the supressor






    the supressor is heavy...2kg!

    Last edited: Oct 9, 2017
  19. SnkePlisskn

    SnkePlisskn New Member

    Trophy Points:
    2
    more pics...

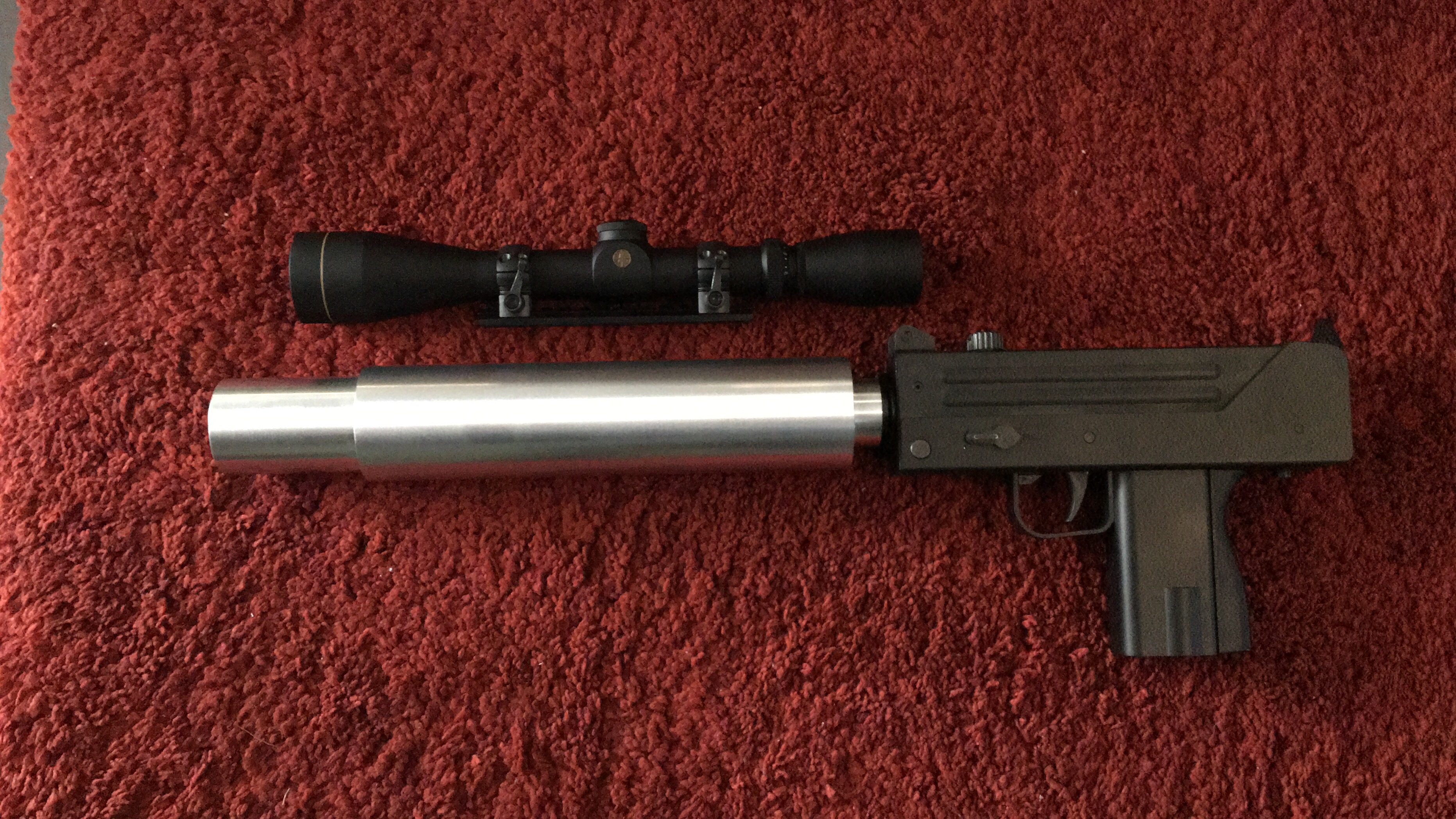

    searching a scope like the oldschool look was very diffcult...but i find the best one for my opinion.
    i choose a scope from LEUPOLD (Made in USA)

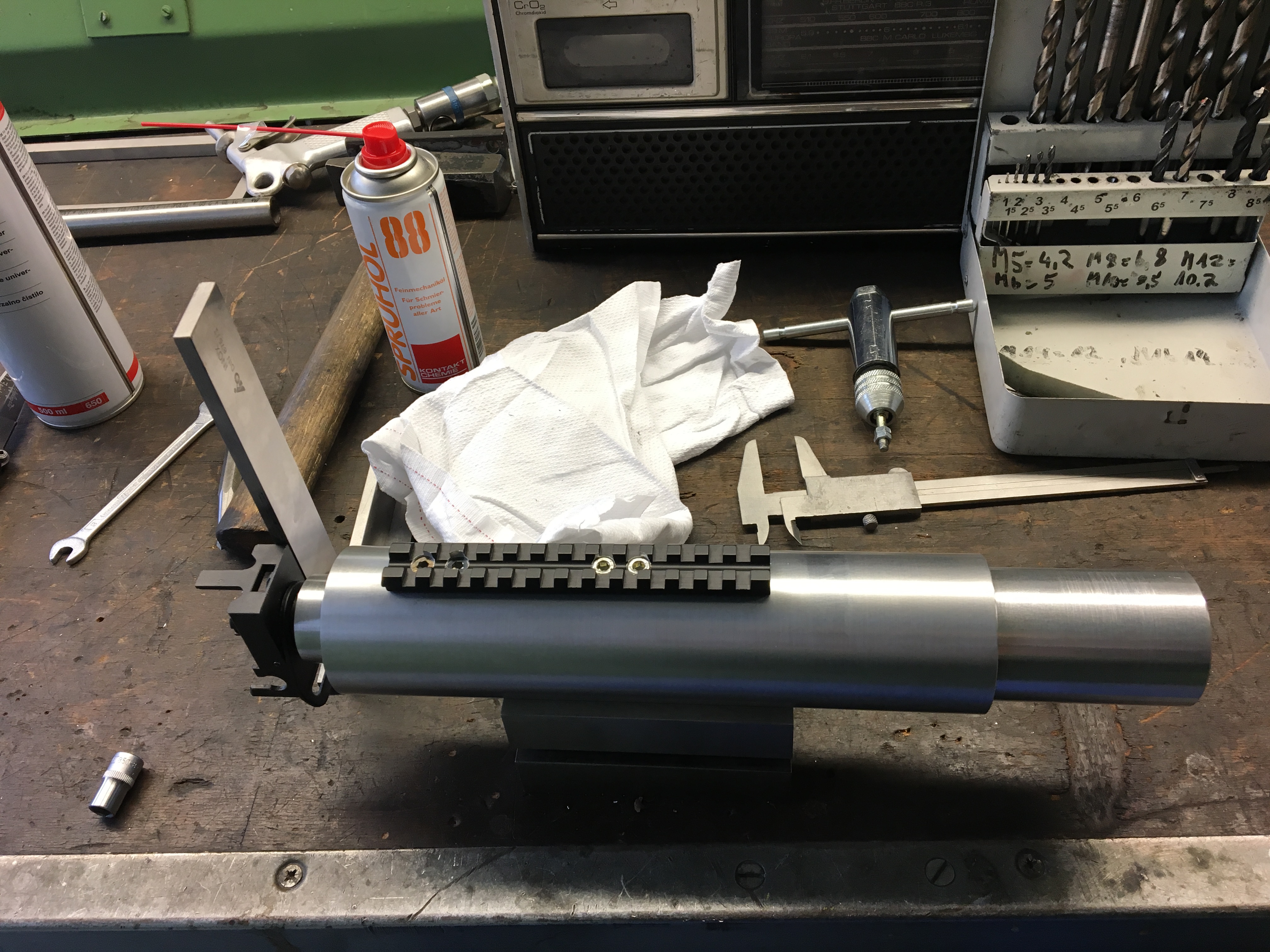

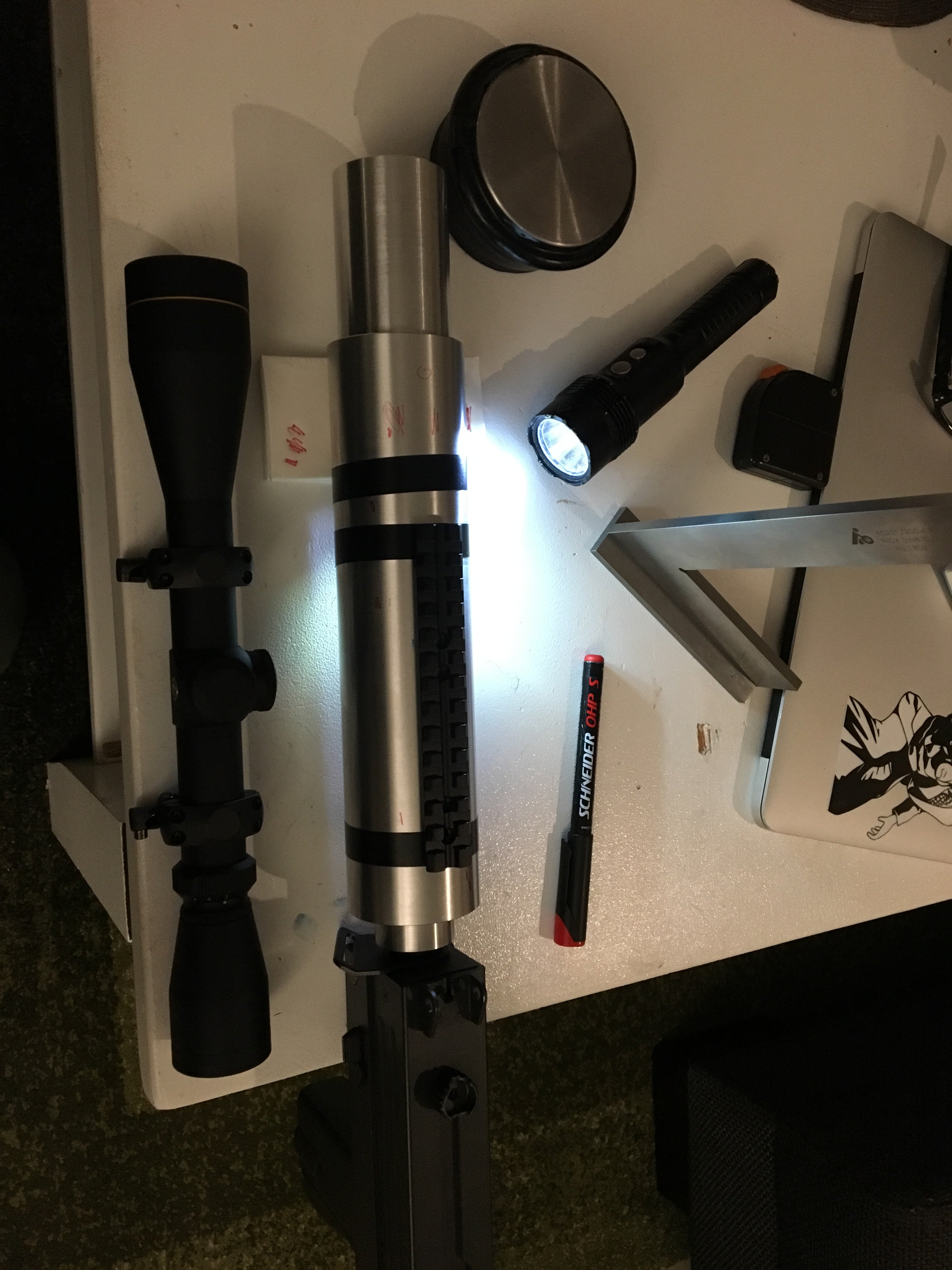

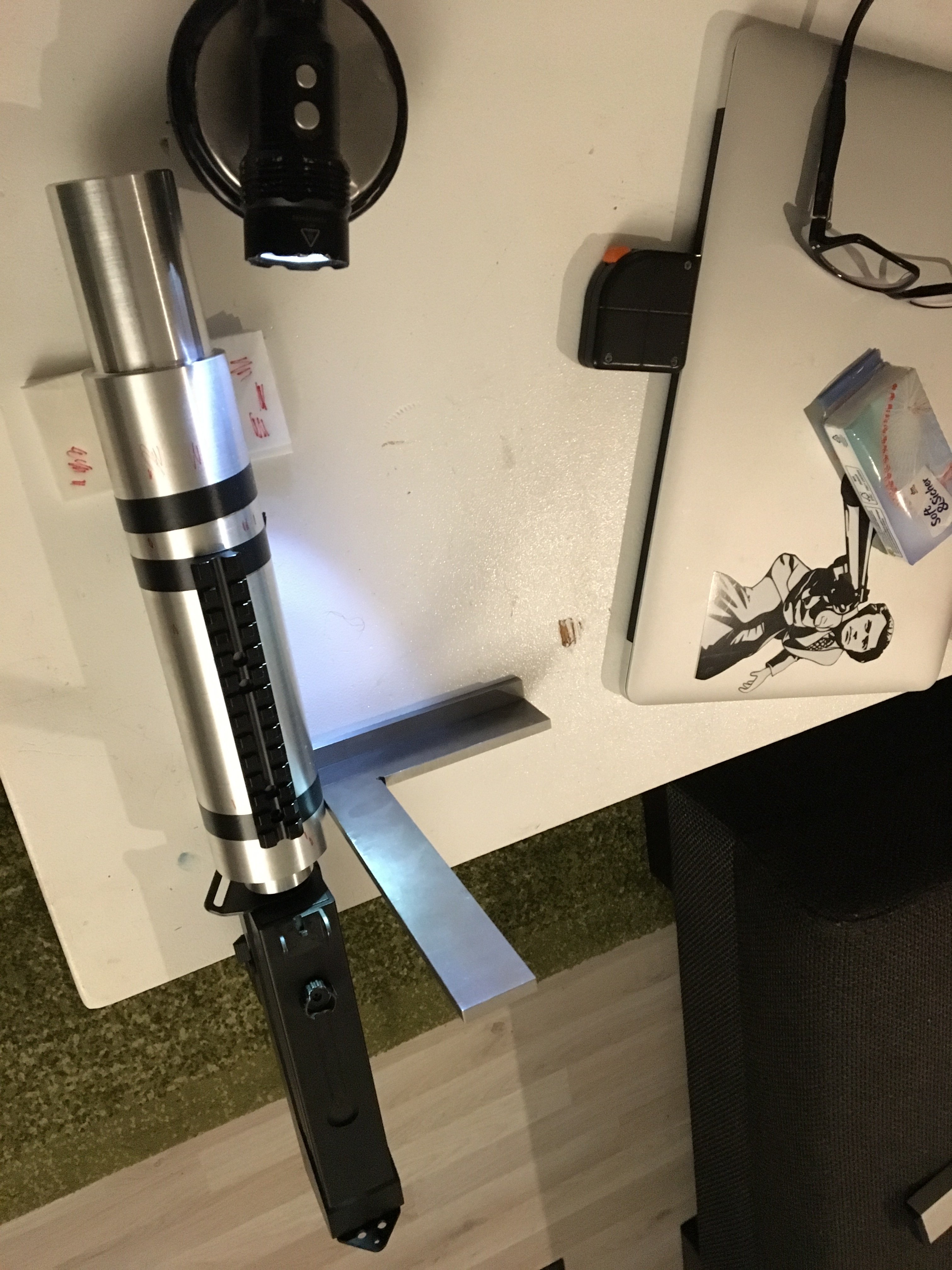

    Aligning the mount for the scope




    Attached Files:

    Last edited: Oct 9, 2017
  20. SnkePlisskn

    SnkePlisskn New Member

    Trophy Points:
    2
    next....evo

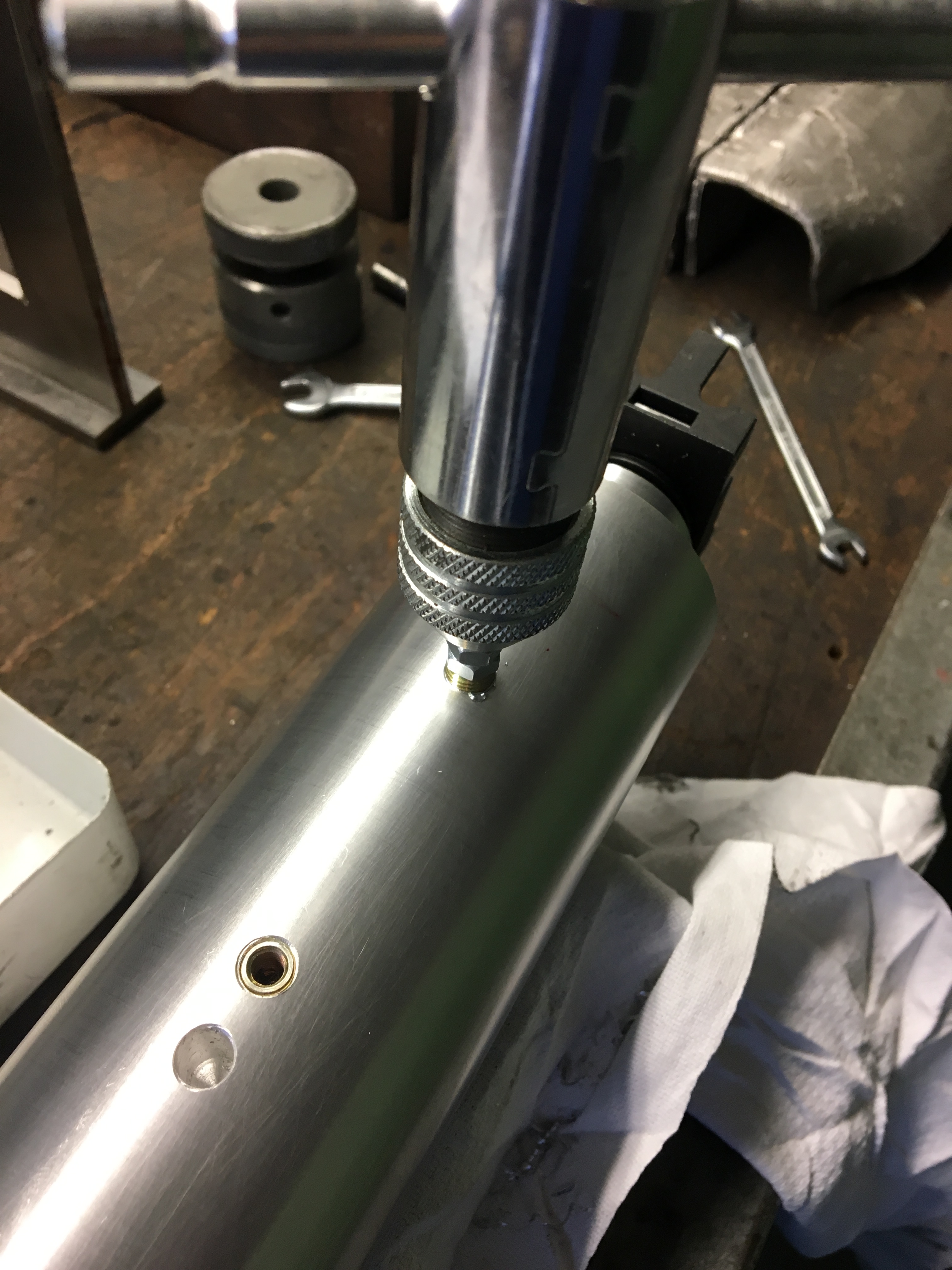

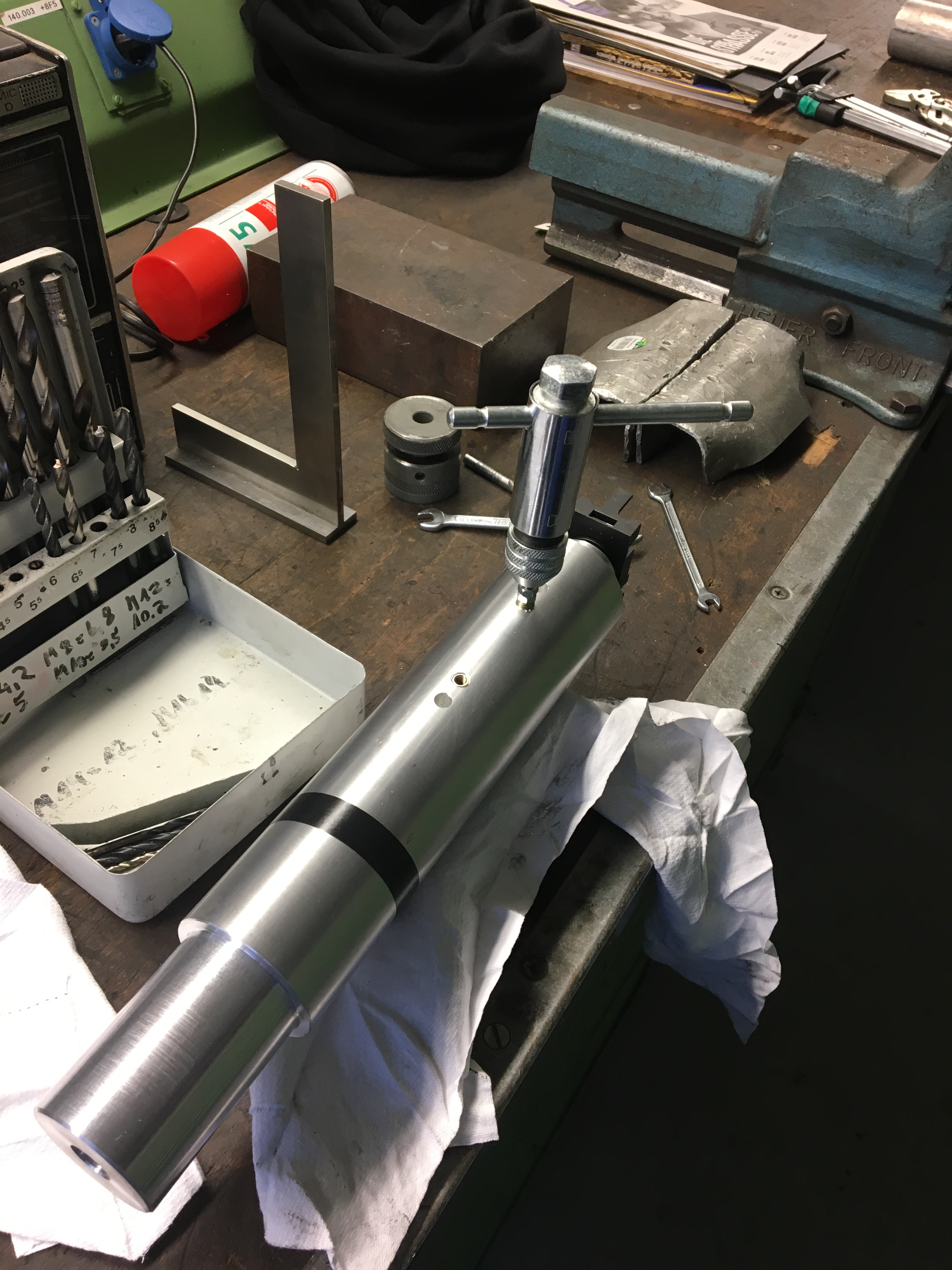

    Steel thread Inserts(Alu is to soft)

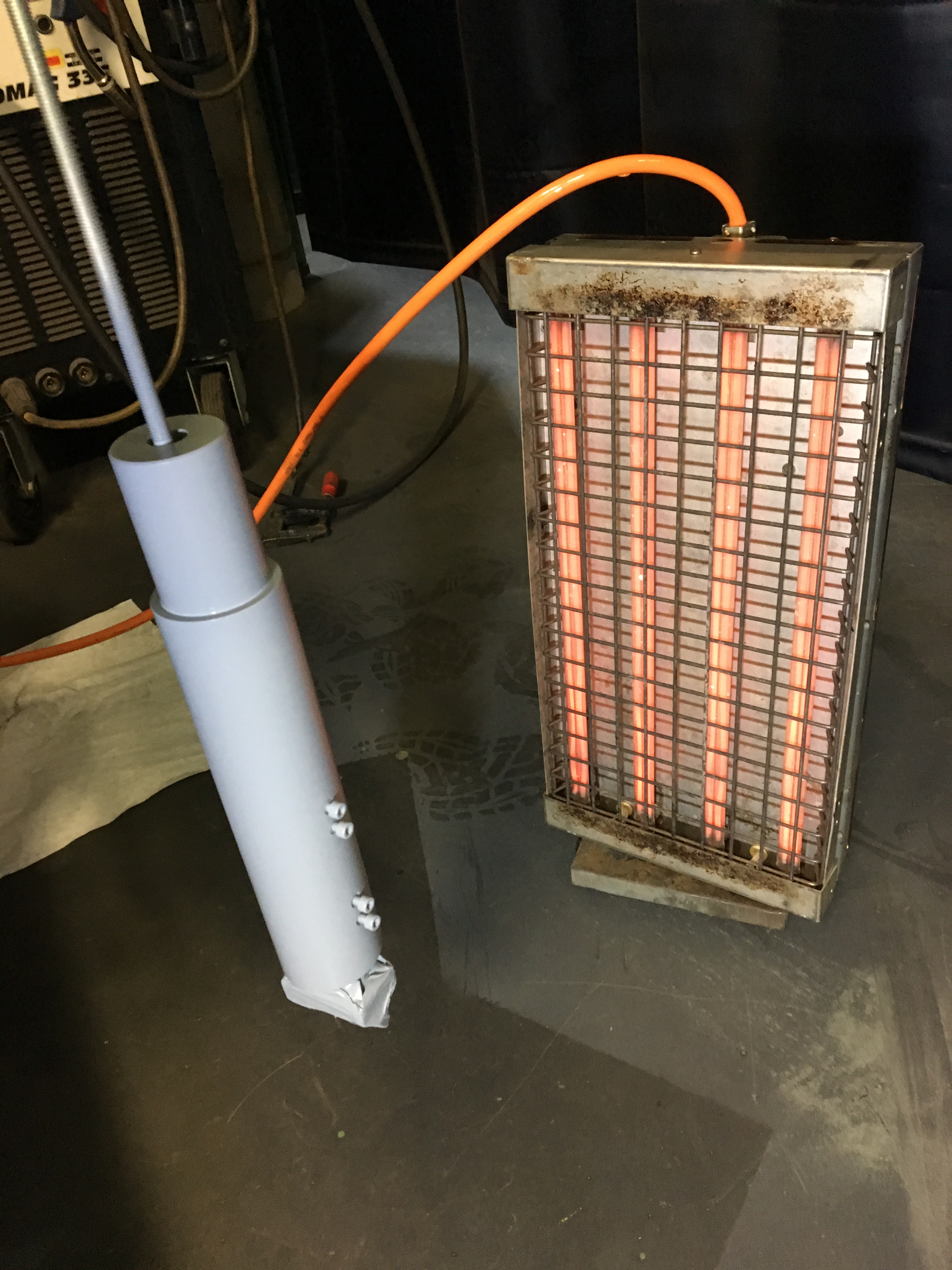

    Priming



    To be continued...

    Last edited: Oct 9, 2017
  21. Hirohawa

    Hirohawa Sr Member

    Trophy Points:
    1,046
    Looks great!

  22. SnkePlisskn

    SnkePlisskn New Member

    Trophy Points:
    2
    THX Dude

  23. SnkePlisskn

    SnkePlisskn New Member

    Trophy Points:
    2
    The Mission is complete!
    Here is the GUN!
    Hope you enjoy.


    IMG_0249.JPG IMG_0250.JPG IMG_0254.JPG IMG_0255.JPG IMG_0256.JPG IMG_0257.JPG IMG_0251.JPG IMG_0240.JPG IMG_0253.JPG

  24. SnkePlisskn

    SnkePlisskn New Member

    Trophy Points:
    2
  25. SnkePlisskn

    SnkePlisskn New Member

    Trophy Points:
    2
    IMG_0286.JPG IMG_0285.JPG

    Videos from Shooting this Little Baby soon on Youtube!

  26. Funky

    Funky Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,840
    OMG! I can't tell you how much I love this!!!
