Smooth-On's XTC-3D High Performance Print Coating

[Kevin Gossett]

I picked up a kit of Smooth-On's XTC-3D print coating today after reading about it last week. It's a two-part epoxy that brushes on in thin layers. It's clear, but can be tinted with a variety of pigments, including cold casting powders. It self-levels, filling in striations left from 3D printing. After 2 hours (or as little as 15 minutes with heat applied) the coating cures into a glossy finish that can be sanded and painted.

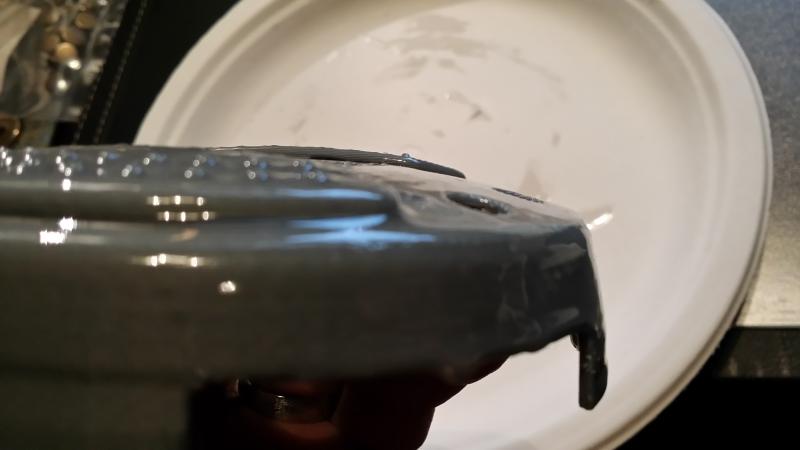

I gave it a try today and I'm fairly impressed with the results! A little bit goes a long way, and it really does remove a ton of the finishing work for 3D printed pieces out of the equation. Here are a couple examples. These were printed at .3mm resolution in ABS with one layer of XTC-3D applied:

And a comparison of before and after:

All that is left for these pieces is a quick sand and I'm ready for primer. The great thing about this product is that it isn't limited to just 3D printed parts. It's applications are pretty limitless... This would be a great coating for CNCed/carved insulation foam, pepakura, Worbla, and probably even EVA foam. Definitely worth giving it a look!



[thejakemoore]

Cool! I wasn't aware of this product, but I definitely think I'll be getting some. I hope you continue to post throughout the finishing process



[Daniel Nelms]

I need this... I NEED THIS RIGHT NOW!!!



[thenextbigthing]

Two Thumbs Way Up!! Went to Reynolds and picked some up Wednesday for $12. For once, a product that delivers as promised.. I coated 3 prints and several foam pieces. Hardly used any of it. Added color with no problem. My wife coated fabric for an upcoming project. Will continue to test, but so far have not found its limits.



[ahoudini]

Probably one of the more useful threads on the rpf and it is just beginning. If this pans out, it will help all of us! Thank you!



[ATL Kenobi]

KG,

Just what I needed for my Snitch. Thanks for sharing!!


ATL



[Kevin Gossett]

I gave the parts a quick sanding and coat of primer last night. At first inspection there were only a few small areas that will need some attention, but I think we have a winner!



[infymys]

Very nice find! Going to let others do some experimenting on other materials and see how it works for them before I head to my local Reynolds and pick up a kit. But it looks very promising as to what I could use it for.



[Psicorp7]

I was just looking at this earlier today. Glad someone on here tried it out. Ordering some with my next molding order!!!



[zookone]

Cool I'll be giving this a try as well. I'd been using a similar technique with thinned down polyester resin and it worked well also.



[Daniel Nelms]

I've got the sample kit on order, they need to put this stuff in to a pump bottle or something.

This could potentially save me many, many hours of tedious sanding and finishing work on my 3d printed parts.



[Kevin Gossett]

Not potentially. Will.



[Daniel Nelms]

I'm hopeful, to think of the countless hours spent standing in front of the office sink sanding and polishing stuff...



[pinder91]

This couldn't have come at a better time. :thumbsup



[Lord Magneto]

Hey guys I actually ordered some of this last week and gave it a try. Man oh man am I impressed with it.

I'm going to be testing it out with some brass powder tonight.

Here is a review/walkthrough video i made on it



[PoopaPapaPalps]

Welp, I think that's the end of sculpting the old-fashioned way. Think I should just switch to CAD and other 3D programs, now.



[pinder91]

Well that officially sold me. Great review! Thanks for doing it.



[Lord Magneto]

Welp, I think that's the end of sculpting the old-fashioned way. Think I should just switch to CAD and other 3D programs, now.

You still have a few years. Its still expensive to jump into and can be a huge pain in the ass...especially if you have a overpriced printer like I do...or I should say I have for work... which I also use for non work related projects.

I'm also new to learning CAD. I just finished my first fully designed project over the weekend and will be finishing them tonight with this using some brass powder.

- - - Updated - - -

Well that officially sold me. Great review! Thanks for doing it.

It was scary how fast it showed up at my door. A little goes a long way. This really is a must if you use PLA



[Kevin Gossett]

It works great with ABS, as well as a bunch of other materials!



[Crank729]

It works great with ABS, as well as a bunch of other materials!

Kevin, where the hell was this stuff 5 months ago when I was sanding the bejeezus out of my Star-Lord helmet? :lol
