Skywalker Compass from TLJ

Discussion in 'Star Wars Costumes and Props' started by OBI WAN KEN0B1, Dec 10, 2018.

Tags:
  1. OBI WAN KEN0B1

    OBI WAN KEN0B1 Well-Known Member

    Trophy Points:
    916
    So after a ton of thought and a lot of planning. Me and a few friends have started working on the Skywalker compass from TLJ. We still have a ways to go but due to the hard work of my friends we have some progress to show off. Now nothing has been printed yet but it's getting real close. A few sections are done and a few more are close.

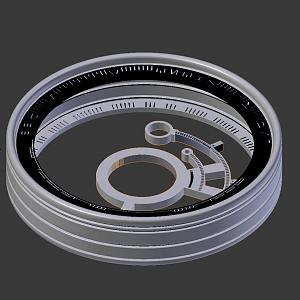

    I got the outside started and the center ring (the one that will attach to a bearing)almost complete. The bottom is proving to be a pain in the * but these other two rings are just about done. I just need to add a little more detail. We are still looking for the right marble to go on the inside and i have to model what holds it in place. all in all we have a good start. Let us know what you think.

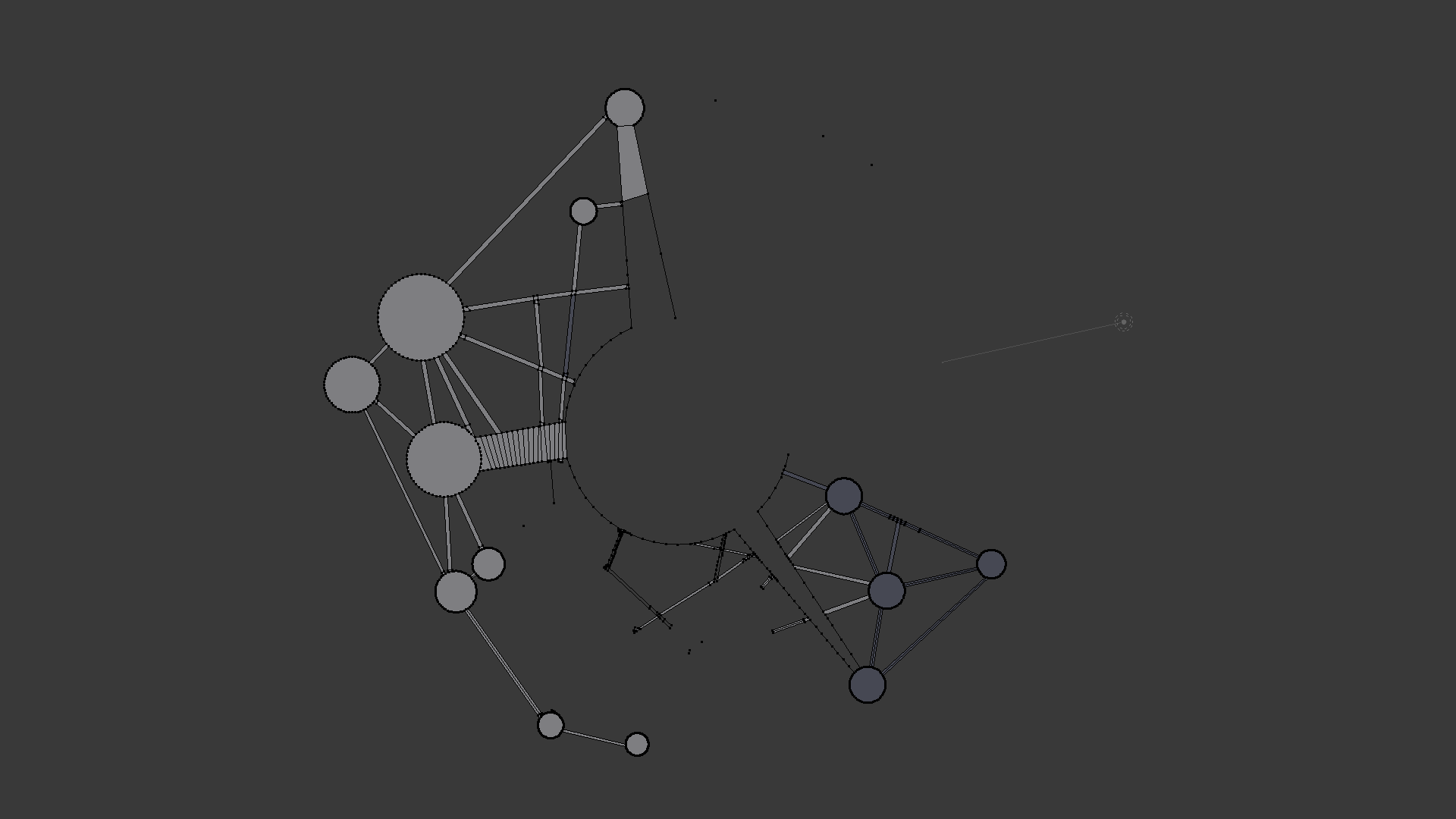

    The lid is a WIP as well Top Ring RPF 2.png

  2. halliwax

    halliwax Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,485
    YES YES YES!!!!! this is something I have always wanted!!!! Can’t wait to see where you take this!!!

    Jhowe1997 and OBI WAN KEN0B1 like this.
  3. OBI WAN KEN0B1

    OBI WAN KEN0B1 Well-Known Member

    Trophy Points:
    916
    Thanks dude.

  4. OBI WAN KEN0B1

    OBI WAN KEN0B1 Well-Known Member

    Trophy Points:
    916

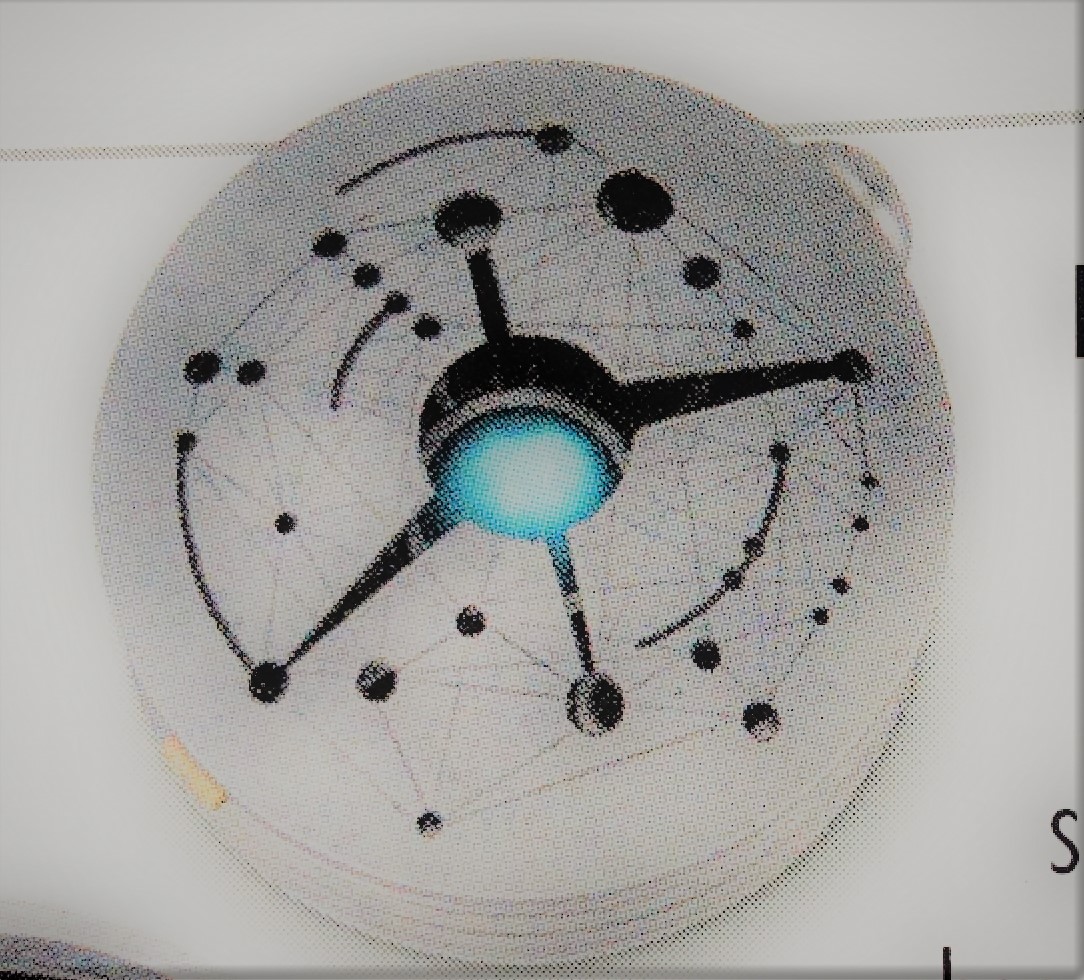

    the plan is to look just like this. :)


    Attached Files:

    Jhowe1997 likes this.
  5. Peter Buckholtz

    Peter Buckholtz New Member

    Trophy Points:
    3
    Following, as I will need one of these if at all possible. Seriously.

    Jhowe1997 and OBI WAN KEN0B1 like this.
  6. KevinHotchkiss

    KevinHotchkiss Active Member

    Trophy Points:
    262
    You should do a run of these if the prototype turns out successful!

    Jhowe1997 and OBI WAN KEN0B1 like this.
  7. mermaidhunter

    mermaidhunter New Member

    Trophy Points:
    2
    Very interested as well if this becomes a reality!!!

    Jhowe1997 and OBI WAN KEN0B1 like this.
  8. oblagon

    oblagon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,366
    Very interested if it's going to be machined metal

    Jhowe1997 likes this.
  9. Rich D.

    Rich D. Member RPF PREMIUM MEMBER

    Trophy Points:
    117
    -

    Last edited: Dec 19, 2018
    OBI WAN KEN0B1 and Jhowe1997 like this.
  10. halliwax

    halliwax Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,485
    I’m in love....

  11. OBI WAN KEN0B1

    OBI WAN KEN0B1 Well-Known Member

    Trophy Points:
    916
  12. ApostleofColor

    ApostleofColor Active Member RPF PREMIUM MEMBER

    Trophy Points:
    338
    Update: 11DEC18

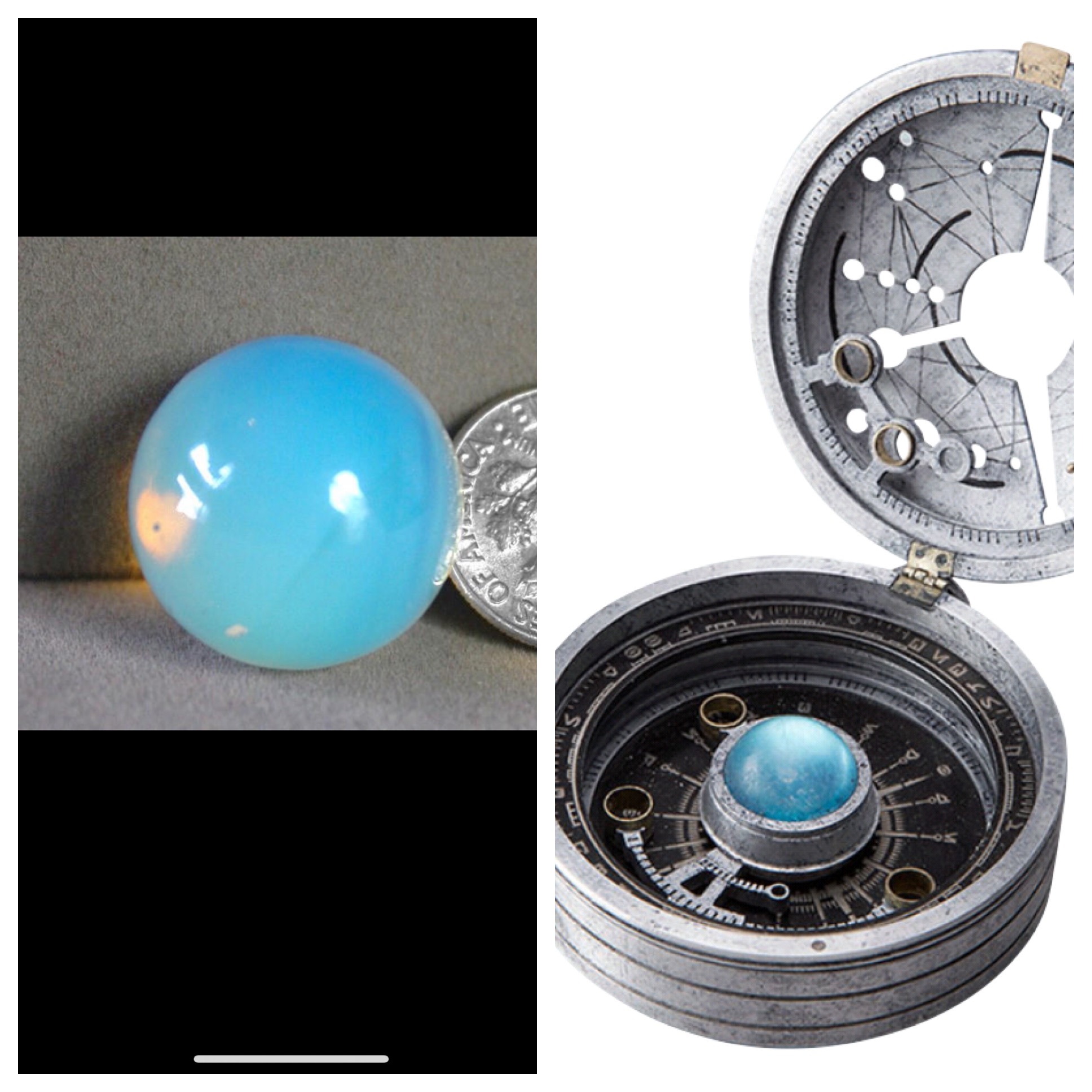

    Hey guys! We’ve got a marble coming our way that’s pretty darned correct


    Attached Files:

    OBI WAN KEN0B1 likes this.
  13. OBI WAN KEN0B1

    OBI WAN KEN0B1 Well-Known Member

    Trophy Points:
    916
    ApostleofColor and Jhowe1997 Are my partners on this adventure. We would not be where we are without there help.
    Thanks guys :)

    Jhowe1997 likes this.
  14. Jhowe1997

    Jhowe1997 New Member

    Trophy Points:
    3
    Thanks man! Super excited to be working on this project!

    OBI WAN KEN0B1 likes this.
  15. zjunlimited

    zjunlimited Active Member

    Trophy Points:
    362
    Not that I would condone supporting TFF but they have a metal / pewter version that looks to be sold out.

    Not sure how accurate the one on TFF really is (would be great to get your thoughts) but a full machined version would be awesome.

    Compass Raffle

  16. ApostleofColor

    ApostleofColor Active Member RPF PREMIUM MEMBER

    Trophy Points:
    338
    As far as I understand that project was an utter failure, designs were lacking in a HUGE AMOUNT of detail and accuracy.
    Lots of money was lost.

    Jhowe1997 likes this.
  17. CrankyScorpion

    CrankyScorpion Member

    Trophy Points:
    112
    Looks great so far. I’ve wanted one of these since I first saw it.

    Jhowe1997 likes this.
  18. zjunlimited

    zjunlimited Active Member

    Trophy Points:
    362
    Oh wow.

  19. Rich D.

    Rich D. Member RPF PREMIUM MEMBER

    Trophy Points:
    117
    (y)

    Last edited: Dec 19, 2018
    Jhowe1997 likes this.
  20. Jhowe1997

    Jhowe1997 New Member

    Trophy Points:
    3
    Two of us actually own one of the cast pewter compasses from TFF, originally we wanted to offer an upgrade kit for that compass, but it happens to be incredibly inaccurate and lacks in a lot of the detail from the original prop, so we thought making a whole new compass from scratch was just a much better idea.

  21. zjunlimited

    zjunlimited Active Member

    Trophy Points:
    362
    Good decision. Do it right from the start. Looking forward to seeing what you guys come up with.

    Jhowe1997 likes this.
  22. Jhowe1997

    Jhowe1997 New Member

    Trophy Points:
    3
    Thank you! We’re just fans the same as everyone else, and we love the compass, we’re so passionate about attention to detail and getting things as accurate as possible, one to please ourselves with an accurate looking replica, and two to potentially and hopefully bring it to more people.

    Peter Buckholtz likes this.
  23. OBI WAN KEN0B1

    OBI WAN KEN0B1 Well-Known Member

    Trophy Points:
    916
    Awesome dude.

  24. Ridire Firean

    Ridire Firean Sr Member

    Trophy Points:
    1,681
    Hey Gang! I'm not sure if anyone mentioned it in one of the other Luke's Jedi Compass threads, but the hinge looks like a 1/12the scale dollhouse hinge. You can see the hinge at 8:04 in that video, the 4 teeth and 4 nail holes are visible, and you can even see the little pin is slipping out too!

    So, that's one part you won't have to build yourselves! Hope this helps.

    OBI WAN KEN0B1 likes this.
  25. halliwax

    halliwax Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,485
    yup! michaels crafts has a ton of them in their doll house section, and on their pre-made little boxes for like jewelry and stuff, those are in the wood craft section

    Ridire Firean likes this.
  26. OBI WAN KEN0B1

    OBI WAN KEN0B1 Well-Known Member

    Trophy Points:
    916
    Thanks guys i will check it out.

    ApostleofColor likes this.
  27. Obiflex

    Obiflex Member

    Trophy Points:
    112
    Very exciting, anything connected with Luke I’m all over so I’m super keen for this. Can’t wait to hear/see more.

    Jhowe1997 likes this.
  28. The Ninja

    The Ninja Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,086
    Following awesome project, congrats (y)

    Jhowe1997 likes this.
  29. OBI WAN KEN0B1

    OBI WAN KEN0B1 Well-Known Member

    Trophy Points:
    916
    I got a little work done tonight. Off to bed for me it's 1:33 AM :)
    bOTTOM RING 5.png

  30. halliwax

    halliwax Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,485
    I don’t know what to say....

    OBI WAN KEN0B1 and Jhowe1997 like this.
  31. BeggarsCanyon

    BeggarsCanyon New Member

    Trophy Points:
    17
    Can’t wait to see this finished and hopefully a run comes out of it. Such a great piece

    OBI WAN KEN0B1 and Jhowe1997 like this.
  32. OBI WAN KEN0B1

    OBI WAN KEN0B1 Well-Known Member

    Trophy Points:
    916
    Compass WIP Whole RPF2.png I got some work done over the weekend. Now this is early concept of how things are going together and i made the part to hold the center marble. I know a lot need to be adjusted but i wanted to show y'all something :)

  33. halliwax

    halliwax Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,485
    Sweet geeshus...

    Jhowe1997 and OBI WAN KEN0B1 like this.
  34. The Ninja

    The Ninja Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,086
    NICE progress thanks for the WIP pics :)

  35. Ridire Firean

    Ridire Firean Sr Member

    Trophy Points:
    1,681
    Hey @OBI WAN KEN0B1 ! In your post #29, it looks like you have a dot but no dash between Z and B at 9:00 above the 7 other dots and dashes. Not sure if you meant to do it this way or not, but I thought I'd mention it just in case it was a problem with your array.

  36. ApostleofColor

    ApostleofColor Active Member RPF PREMIUM MEMBER

    Trophy Points:
    338

    Details are intentionally being taken off from posts on here, to keep from theft.

    All details are on it, rest assured

    Brigandia36 likes this.
  37. halliwax

    halliwax Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,485
    Good thinking!! Hide a little Easter egg in there to track the recasters!

    OBI WAN KEN0B1 likes this.
  38. OBI WAN KEN0B1

    OBI WAN KEN0B1 Well-Known Member

    Trophy Points:
    916
    Skywalker compass V1.0RPF .png Still Working Hard but i got a little more work done today :)

  39. Saranac

    Saranac Jr Member

    Trophy Points:
    92
    Looks fantastic!

    OBI WAN KEN0B1 likes this.
  40. halliwax

    halliwax Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,485
    Have a mentioned how much I love this compass..

    Jhowe1997, nailuj and OBI WAN KEN0B1 like this.
  41. OBI WAN KEN0B1

    OBI WAN KEN0B1 Well-Known Member

    Trophy Points:
    916
    Just a small Update. I have started working on the lid. :) Photo Dec 23, 9 30 42 PM.jpg

  42. halliwax

    halliwax Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,485
    Wicked!!

    Jhowe1997 and OBI WAN KEN0B1 like this.
  43. BeggarsCanyon

    BeggarsCanyon New Member

    Trophy Points:
    17
    This is fun to watch come together, fantastic work!

    Jhowe1997 likes this.
  44. OBI WAN KEN0B1

    OBI WAN KEN0B1 Well-Known Member

    Trophy Points:
    916
    So i decided to go ahead and print my first prototype (even though the lid is not done) Just to see if everything fits the way it is supposed to and IT DID :)

    Photo Dec 25, 8 23 35 PM.jpg
    Photo Dec 25, 8 23 31 PM.jpg
    Photo Dec 26, 9 07 45 AM.jpg

  45. halliwax

    halliwax Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,485
  46. mechx

    mechx Member RPF PREMIUM MEMBER

    Trophy Points:
    117
    Looking good man

    OBI WAN KEN0B1 and Jhowe1997 like this.
  47. Obiflex

    Obiflex Member

    Trophy Points:
    112
    Bravo! Looks fantastic so far.

    OBI WAN KEN0B1 likes this.
  48. OBI WAN KEN0B1

    OBI WAN KEN0B1 Well-Known Member

    Trophy Points:
    916
    This is what the lid should look like when it's all said and done. ( It's not done.) :)
    Compass Lid V2.0.png

    Jhowe1997, halliwax, nailuj and 2 others like this.
  49. halliwax

    halliwax Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,485
    This is coming together flawlessly...

    Jhowe1997 and OBI WAN KEN0B1 like this.
  50. ApostleofColor

    ApostleofColor Active Member RPF PREMIUM MEMBER

    Trophy Points:
    338
    Update: Just a few photos of the marbles we've tested.


    Attached Files:

    halliwax and Jhowe1997 like this.
