SirCharles77's Han In Carbonite Replica

SirCharles77

Active Member
Hey gang, some of you may remember me for the Hasbro Falcon conversion I did a few years back. I have been lurking but haven't put up any more work for a while. I just finished a huge LEGO project and now I am moving on to my Han in Carbonite build that I have been wanting to do for years!! Finally have the means to do it and the place to put it!

That's here btw! I have this wall of my Sideshow and Vintage Figure and Vehicles collection. I am going to spread the sea and put Han right in the middle. He will be the centerpiece on the wall and flanked by these cases. Lord Vader is going to have to find a new home unfortunately. He'll get over it.
-qpzryq2mV9vRrO0jwwckGc1UKmQD7n0A3yf535FbgcfZh9VpuQYLLaaiqROwFORPB05-gqOD9hoj2xWpg=w1560-h759-no.jpg


I haven't made much progress yet. I am mostly doing research atm so I have been reading up on all of the other builds people have done over the years.

In case the rest of you are curious I have found these 2 especially helpful.

kurtyboy My Han in Carbonite panel upgrades 23 Nov 2013
Thrashers Thrasher's HIC build thread
Both have tons of great info and pictures and seem to be a few of the ones that still have pictures...(Thanks Photobucket!)

So I haven't figured out everything yet, but here's where I am at with the build.

On July 23rd 2018 I met a guy on facebook, goes by Wcoke on here. He hooked me up with this amazing cast of HiC! It looks soo awesome I couldn't believe I got it! I am still in awe of its beauty and I can't wait to bring it to life with this build.
-SVg8YcAcBv11FMIRzA7q63WPSQuYqPDrcNSKgFhyZxt-zPRCuII611zmV8l8ARv8rBN5h_kOx-xsFXeSA=w490-h1008-no.jpg

_Q2ZWREhDll-ZeEdTE99wLBB2HgxDIq6CQRHFARpskSsb60T0oMowi-Fhc30XHZMpNQ4cIn3P56ETp1FEQ=w1560-h759-no.jpg

It's been sitting in my Man Cave ever since just waiting to be put in a fitting carbonite block.

Preparing this thing is going to be the scariest part of this build for me. I have never worked with this type of material and its a piece of art that I don't want to screw up. I am planning to mount it on a sheet of plywood. (what quality and thickness yet tbd, but I am looking to keep this build as light as possible.) I want to fill the backside with something so that its more durable and less likely to collapse if something happens. But again, not sure what yet. (Always looking for suggestions so PLEASE PLEASE fill me with your knowledge!!)

Then I need to clean up the seams and fill in the plywood surround with something to replicate the look of Carbonite. This is another thing I have yet to figure out.

Then I will prepare the surface for painting. Thinking I will do a light sanding on the model, then basically just paint it with a semi-gloss or eggshell silver color and then do a light black wash over it to fill in the gaps and cracks and make the shapes pop. Then once done do an overcoat to seal it in. May even touch up some areas with some more refined painting to make some highlights pop.

In this image of it from I believe the Identities Exhibit you can see that it almost looks like they specifically painted Han's outline with some black to make the shape of his body stand out a bit more. Not sure if this is how it was originally or the result of years of wear and fading or something. But I kinda like it.
kyTy4r1CDJgjyh91m3a2dy0S69FEJds44Riu_IIw3IElkn7-Slu5c4M96VhBLC55ZpC_rNXfIIwMCEIRg=w1344-h1008-no.jpg


I am referring to this thread for ideas on how to do all of this but still not set on anything.
King Jawa "Han in Carbonite" Helpful hints Tutorial thread

Then there are the panels and box. I will talk about those in my next post. Trying to keep this in smaller chunks this time. My Falcon thread had some doozies in it for bit posts!!

Wish me luck and I hope to have lots of great discussions with all of you experts out there on how to make this thing awesome!

Last edited:

SirCharles77

Active Member

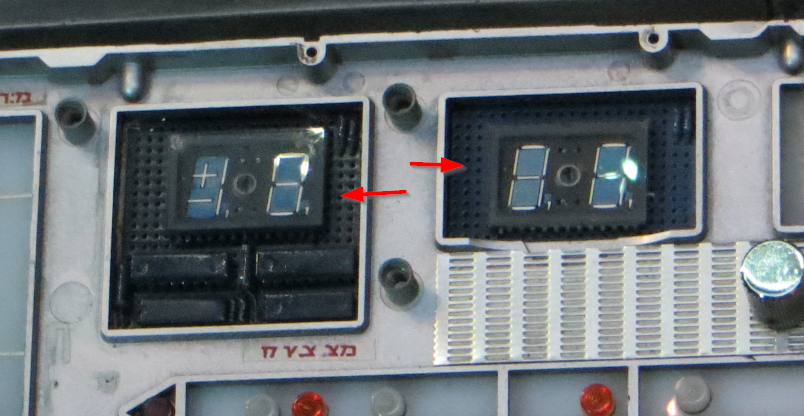

Hey everyone, wondering if any of you have any info on these lenses that go over the LEDs on the Main Hero Panel?

3VSedpe6COY9zXfbta-31ppz6KeWnHZEOnx7loTfJBHvU65DtKHhTRzIvAWAQaY9ko9sDQP49goQBE8mgg=w1276-h300-no.png


I am probably going to be buying the Fettronics kit, but from the images I have seen the ones that come with it don't look correct. I was hoping to find the correct ones that they used on the original prop but can't seem to find any info about it.


Ridire Firean

Sr Member
Hey SirCharles77 ! The board on the left above looks lumpy like it was made out of plastic, whereas the board above on the right looks exceptionally flat.

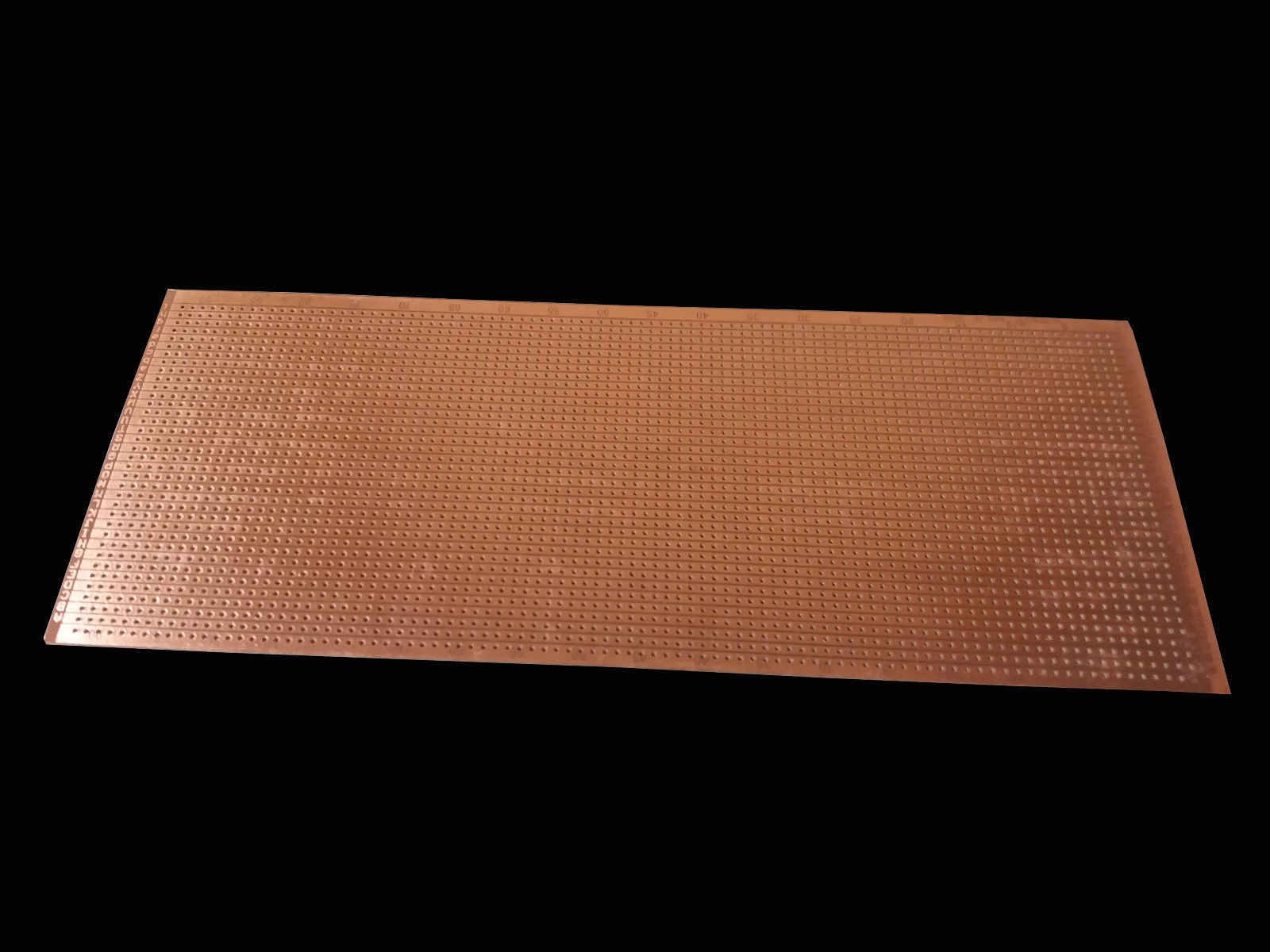

I would guess that the one on the right is plain, general purpose breadboard with no copper plating of any sort. Kinda like this one...

8000-1010-LF Twin Industries | Prototyping, Fabrication Products | DigiKey



As for the one on the left...maybe it was some sort of vacuum formed circuit board packaging/protection insert?

Good Luck on your search for a suitable material!


SirCharles77

Active Member
Update time! So I have made some progress. Even though its almost 100% digital work atm I feel like i have made it a ways along.

I downloaded some files from Thingiverse and I have been using them as a base and essentially rebuilding all 8 of the panels in Maya so that I can use them as a diagram to work from, as well as 3d printing several of the parts.

But first I needed a real world example to get dimensions off of. So I purchased an exact cast of a volvo panel and use that as a starting point. Here is the cast. The back side is not perfect because to get the mold it had to be filled, but that didn't cause issues with any of the measurements I needed to its all good.
C4kpgbN_v4rQx45IQfYo6K-mZxntfMDyi6W0cY0vM-omCNCXnFRB_Uj415DAG6cw8_YJutCpNWOtiRv-cg=w514-h1057-no.jpg


Then from that I spend a few days taking measurements of the entire panel with my caliper and got it about as perfect as you could hope. I am sure there are a few slight discrepancies with a few of the curves but they are not anything anyones naked eye could notice.
vyhuLYwklZizmXfAzb43vdkeJlt4JcQlxGj8bToeTa6GvMK0WVVXqzrKIjF0ZU8eIvEObd8hkLtONC8Q-g=w1239-h628-no.png

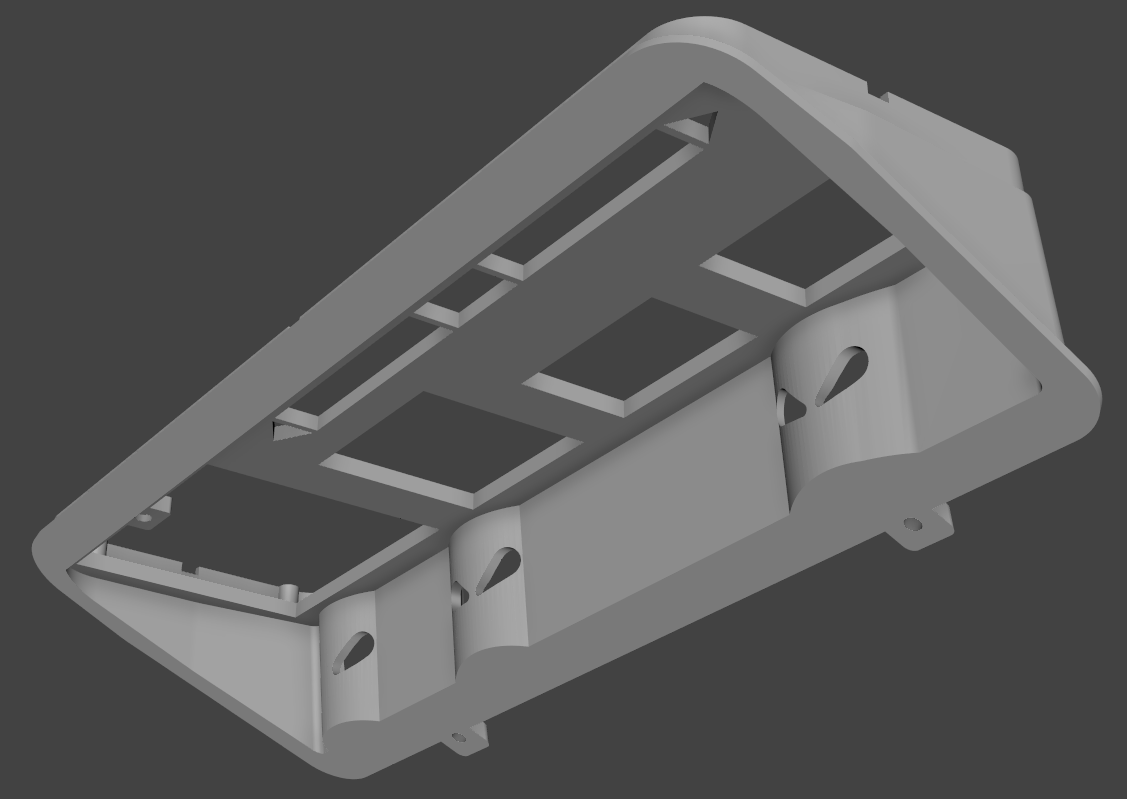

Here are some shots of the final panel all ready to go!
_zKfb3esaWg4pxIywhRvLyxj8CMMmTVs62AiBh8EigBZyUSdBmcyUnKnLsqp4s3MKtH3koo7gAuctfKI0Q=w1373-h727-no.png

5Jxj2jI_lEQ0xIUTDcjRyZxn2T5NoK1UEtegcbZkfcjmkW_TIuy0GfUJQt7SIuicmfF3PJdIE5cnNURS2g=w1024-h660-no.png

wN7lDWOcew2GNh7xKIL7qls0OjogXv36uJIFII0RaxSLPb1znz1p8amNCENMCSZ_xZRiI2oHC559dqs_Bw=w1127-h799-no.png

EjplHuG6Eg4X3TfqEsloOv6oS7UMqdF9ZLyWLf5JJNksuSBT6gXhURDfUOdWR6jgT01d1Q7se-YnF_qCsQ=w1446-h560-no.png


SirCharles77

Active Member
Next step was to start modeling the rest of the Panel specific details. But first I wanted to do some test prints to see if this is even gonna work.

So I split my panel into 2 parts because the whole thing is too big for my print bed. Then I printed half of it as a test.
b5rrO8WYyYGyIEC51-DoTgyce1FjUHrrgoz7dtiFwdqAqC6Z-p6HX9IUI6245XU_81zNuFgOdMWbSVa18A=w1446-h703-no.jpg

TGe2yn_jLaJe4J80jqNvxUzVhsImI6c5FjtsfgsGRWqKWiqv_MRwMjTqM7CaGUJnBG_6yGTY7lg1gSUNBw=w1446-h703-no.jpg

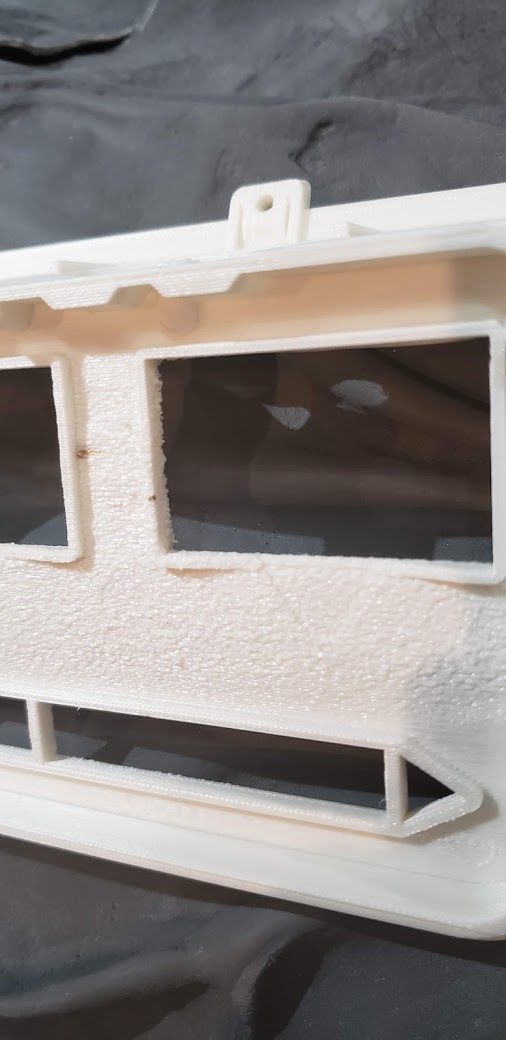

As you can see in the following image, the middle section of the print had some issues. The part where it was completely supported by the print support structure.
52mz9JaS65n-bgB9QtrUZuY3z8SsFYiRcF1uF00tazUDiIStzYUj-6qXKvVGtLClPUX3lWTwroL991-pEg=w506-h1040-no.jpg


And this print took about 8 hrs to run so I wanted to be able to test faster. So I sliced it up more and did some more prints of a middle section to see about getting it to print cleaner. Here is what I ended up with. You can see in the bottom print in the image I got it to print that section much more cleanly. This is printed at about 1/3rd the final resolution so the lines will be much cleaner in the end. I will then sand it down and use some XTC-3D to make them perfectly smooth.
-t1unkgrCN21cxAt4bMmBvoNuZwPvxffSV8tqBStl6oJHiDbfmDVgkQO-146tkFWXeMB5TLIefXX_A41cg=w506-h1040-no.jpg


I also did a few test prints of some of the smaller parts with moderate success. Here are a few of the parts I have printed so far.

This is a couple knobs from the Hero Panels. This is the raw prints after doing a little bit of sanding.
bA3Evlg08H0WVzxlXlZyrPDsViXD5al3q6SSKqJTkDkNnjTN_aPHDflbDZyNHFDuXXI46DvpCwvZsxF1GA=w1446-h703-no.jpg

I did a pass with some Filler Primer and used a couple different paints trying to find something that will look mostly metallic. Not super happy yet but I am still testing. We will see. I might end up buying machined versions of these parts if I can't find something I am happy with here.
reNJ_ybialMAO5SZHbJ9y2eWc9oxAZjD6hN2woP7kLhrNsE69llLgJoii8rKW8rb2eoxd6WTbIyw-F8UeQ=w1446-h703-no.jpg

Here they are after being painted next to an actual metal part. The color and shininess is pretty close but the roughness of the surface is not good enough yet. Gonna have to do more sanding!! I did not use anything like XTC-3D on this yet. Just sanding and filler primer.
Myf89IYZy2JZe6mu2IYBGXD03gw2tWxGZK_pQfIYmuerDidOwon-MixgPEXamsdg3PrIXCE1MUh8_02pIg=w1446-h703-no.jpg


Lastly here are a few more parts I have printed. Not too happy with these yet...Other than the nipples. Those are going to work pretty good.
NFiLa6yRRIgLIRxMyEZnJTmwy9c0mVhIvatamR8yIZDoFBgOFPJGMSMRTtpfNTrdPaCN4sZ-gdMRYVkNgw=w1446-h703-no.jpg

9RS19P6YeCQSR2ansCT_NOq4VKo2Vkbzh6nk7DNU9Io0G_QUyJ-2VKg-2SRl1TlD_paH4vzNFXM1cfwdhQ=w1446-h703-no.jpg

aaZiCD2xRdjQ71OOUKUQX6Fx_kjXKOh8Kbrv1yEzpjtSg1vh43gfAMADkimRijV_EUC-ndNT-qEvjJZN0g=w1446-h703-no.jpg


SirCharles77

Active Member

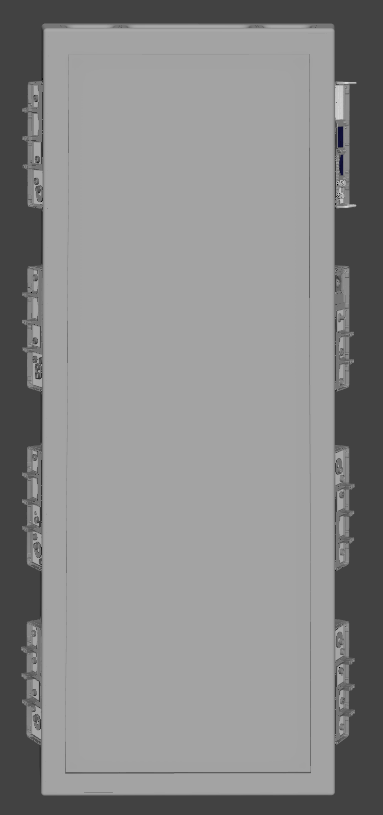

Now that I have some test prints working, I decided to finish up my 3d panels so that I have a digital representation of almost exactly what I am planning to build. Here are some renders for your viewing pleasure!!
XmfGYfeECA3T6jIVtNnQD65ZvQZMXxg9741hXlpkCwhifP0FCMKNyPpkhGLKIVlcAHr3cOkdLRYoAXZ-YA=w1131-h805-no.png

qVu9QxS8nebFi9fbNOBBqJb6sb39nBi_803NCRgEWPPpg3ygvxMnDKu4g0URG0_5nMMULEsIKmR-wxzzDg=w1162-h784-no.png

KXBSqVhVXam-GTMxVjT50J1F3OXHVxOOG6C67sJebCtlkOxKsPa71DxD6V18_iTjbR64t2tldBQMjAhhnA=w1179-h795-no.png

VUA49Yf_O3RKs_iF4kMUe3BRwdfFKeUrK2jxG1PPIXX449xUUUM-Zfy18ePxf6Ej4hUUVczqKw7aBtPx7g=w1202-h822-no.png

VN2j5NBry1la3syb7ONfmR_5zPUpV_Gta-B-6eDQMOFVe6__lG8jpisNgETFvKAI7zM_yY55nD8ZZ01mzRg=w333-h838-no.png
OxfN2ggaBkh2KwtfaKLZs-QjDjG5MXv6xcl1rox9IHRi_u-x_k86Oi2hFwCez1GI0tgWwDw47e1PvZ-R5DQ=w383-h815-no.png


I also used a model of the box I found on Thingiverse. I started from that and it was pretty accurate so I just cleaned it up and split out the boards on it so that I could isolate each one and know exactly what I am building. The wood work is going to be the hardest part of this build for me. That and working with the resin to clean up the cast as I have never worked with resin and I am notoriously not good at working with wood.


SirCharles77

Active Member
OK last little update for today then I am finally caught up!

On top of all of that, I have also been starting to collect some of the found parts or purchased parts I am going to need.

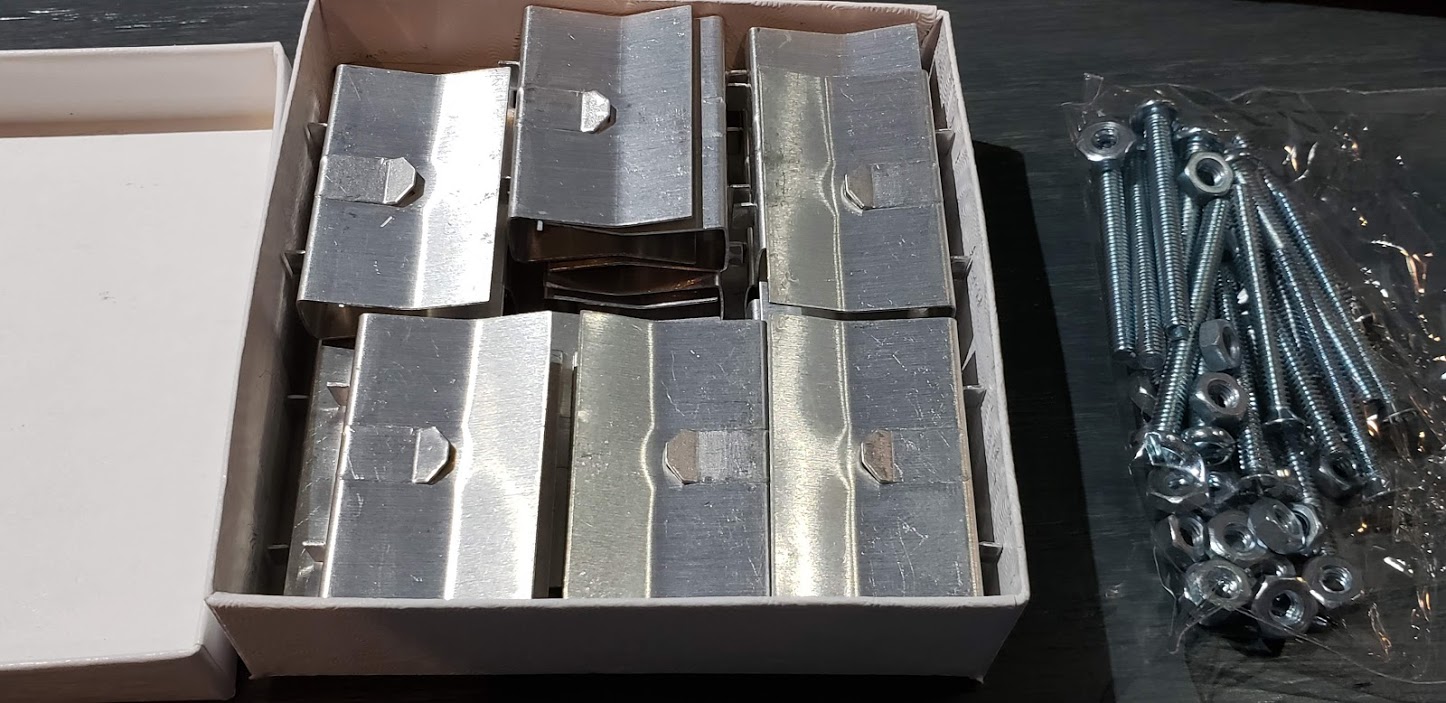

I know that those clips are not going to work well 3d printed. So I purchased a set from Todd Blatt, and they are really nice. Totally worth the cost.
QOa5HKLXJnv_n5A5idGShYwtDDSjomw8j3b_lkm-NC6m8_FCVA0px8XBbm54nvlH8qdEUD0LAPQGqsqfhw=w1446-h703-no.jpg

flxKhAniXSMLUBufryJtVXXUuaPdyzLk6MaOlvVP-ZdfkyNOEvNtJIgUDDVvrC8NbZGcdSa4fT4Hwy7B7w=w1446-h703-no.jpg


Then I started digging through my supply of screws and managed to find a decent amount of the screws that I need. Including some super tiny ones that I can use for my printed viewfinder because the screws are one detail that's too small on that thing to print. So that's great! I somehow had exactly 8 of these which is how many I needed!
X03dqyJGtgbSIKo1Dp3es3PPfL01zEhBdiH2vXwf0uHfgCYPky2X25tfiPJG-2LYTRBJS8xQMgsQSMjeLg=w1446-h703-no.jpg

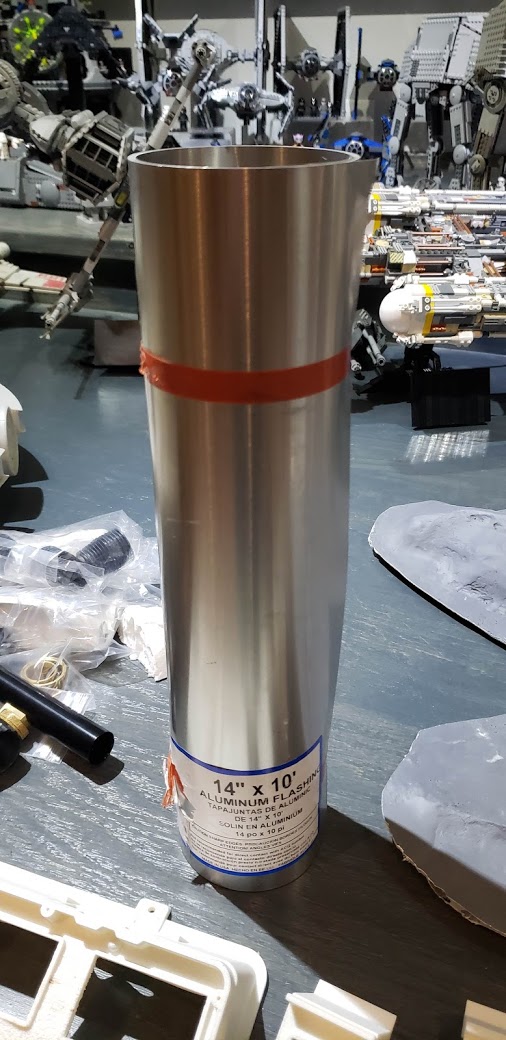

Then today I was at Home Depot and found this which should work perfectly for the backing of the panels. Once I figure out how to cut and flatten it!
jA1zhM4te5qzlzqo7-iwk5jMitcHsO4hGZgNFNaNkkMdPGxVtygSDaBhPB3LPgNnyzOfkQ_es88atsHsnw=w506-h1040-no.jpg



Still a lot more to find and build but I am slowly making headway!


SirCharles77

Active Member
Crap one more thing I forgot to mention. I have taken the time to make myself a sticker set for all of the stickers on HiC. This includes the grid pattern on the Hero Panel, and the dotted pattern for the glass on Hero Panel 2. And all of the different colored dots.

If all goes well I will be ordering a bunch of these and I will sell them to people who are interested. These are SUPER accurate to the movie prop. They are far more accurate than the others I had found (which is why I wanted to make them for myself). All based on images from the Identities exhibit so take that for what you will.


SirCharles77

Active Member
OK well it's been awhile since I posted (I gotta get more regular about this) so there has been a boatload of progress again. Here is what I have been up to.

I have successfully printed one whole Volvo panel!!! WOO HOO!!! It took many tries, and I still don't have a 100% success rate on them but it gets a little better each one. Luckily they don't take up too much filament each time I have a fail. Just mostly time. Right now the small half takes about 17 hrs to print and the large half takes around 29 hrs! So thats 46 hrs to print just ONE volvo panel! Yes I know, not the most efficient thing in the world but its what I got. And because of the nature of the panels I don't feel like doing a mold and casting them is a great option.

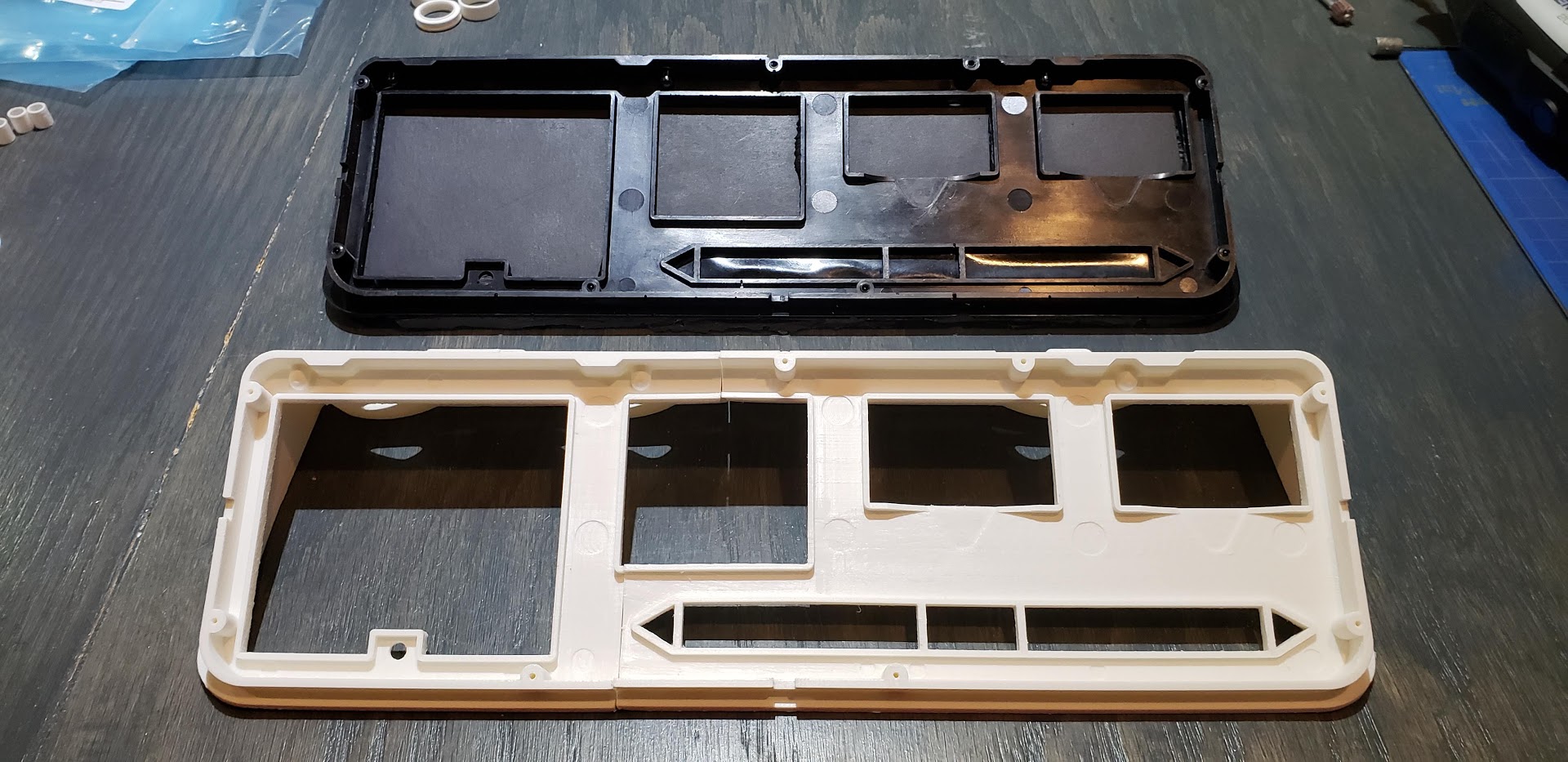

Here is my panel in front next to the original cast in the back.


I also ordered the Fettronics light kit! I am SO glad this is an option because having to do the electronics for this myself would have been a NIGHTMARE!!! That being said, there are a few elements of this kit I am not super happy with and am finding replacements for.

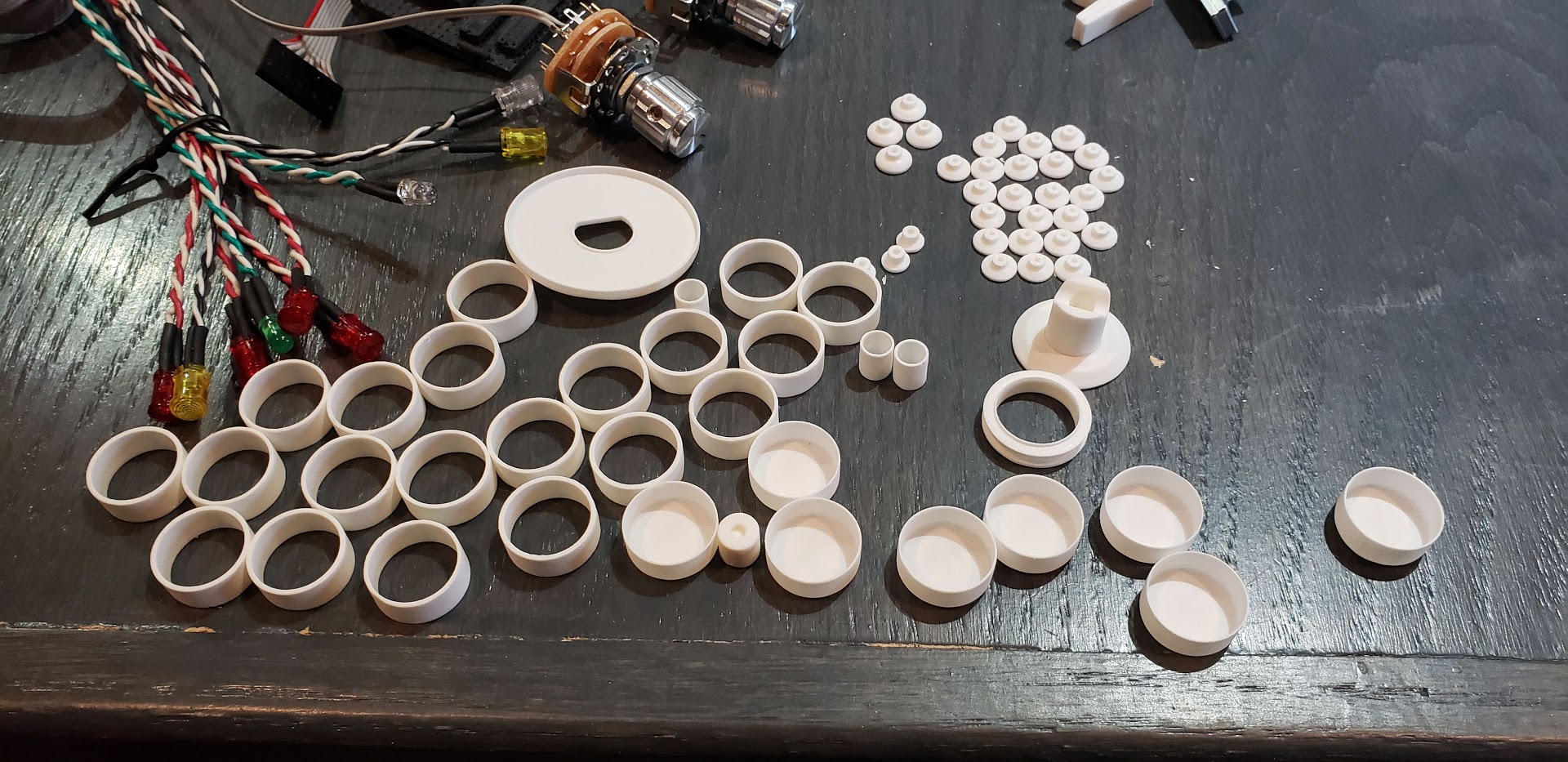

Here is the kit as ordered. The electronics are super easy to wire up to the board. Although pay close attention as the colors of the wires on some of the parts do not match the video on the website. As a result its easy to get a little confused what goes what direction when plugging it all in.


The main things I am going to replace are the LED Caps. As you see here looking at the original vs the ones in the kit are not the same shape.
This is a shot of the HiC from Identities.

Here are the caps that come with the kit. As you can see these have that mushroom hangover on them and the originals appear to not have that shape.

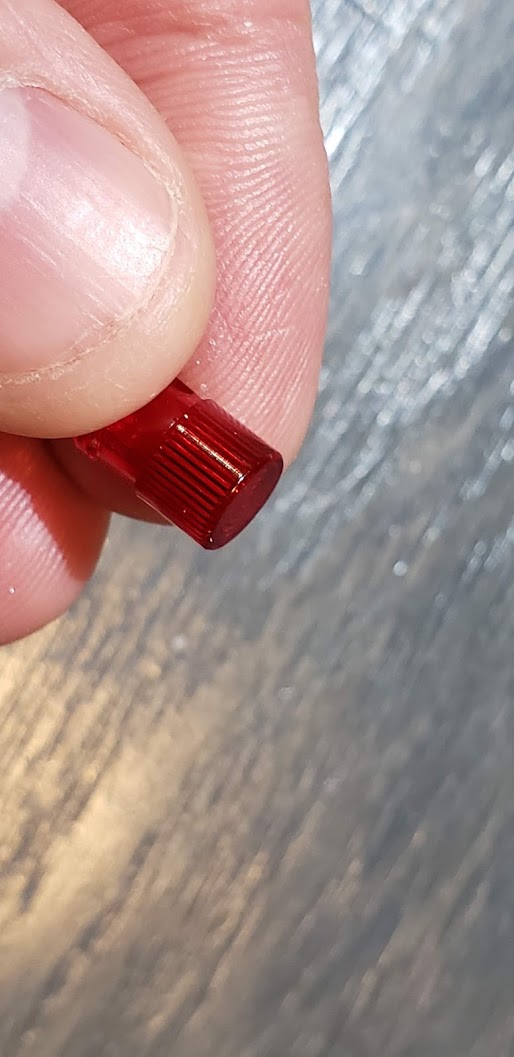

I was looking online and I managed to find some that looked more correct. So I ordered a few different colors to try them out.

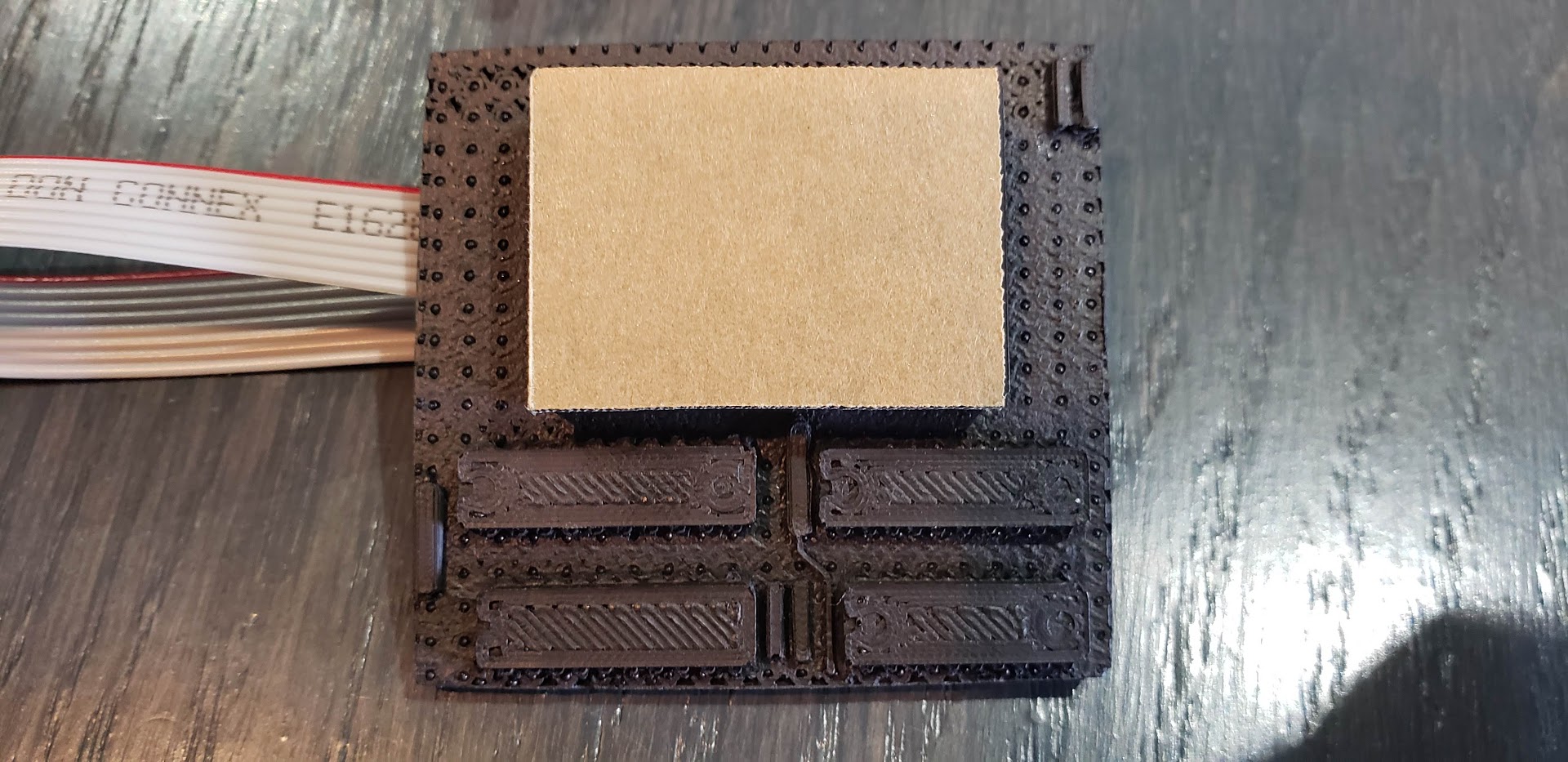

The other part I need to replace is the "Circuit board backing and microchips" that go behind the displays. The ones that come with the kit are apparently a casting of a 3d print and are really not very good looking at all. So while I haven't found all of the parts for this, it appears that the back of the original was some form of Stripboard. I found one a while ago that appeared to be really close in measurements to what I am seeing on the Identities prop. So I am ordering that. Still haven't found the smaller components for it though.


SirCharles77

Active Member
The next big development was that a few weeks ago I found a Uher Stereo Mix 500 which is the original mix board where they got the T-Levers from for the Hero Panel! It was at a guitar center in Appleton, WI!! I ordered it and had it shipped. Here it is!




The T-Levers are plastic but they are very well painted to look metal and they have a quality about them that is different from more modern plastic. Not sure what it is. But they are nice. It comes with 5. I kept 3 for my build and already found homes for the extra two. But gonna keep my eye out for more now that I know the Mixer they come from.

Oh I also just tonight modified my 3d model to be more accurate based on this new info. I can now 3d print as many of these T-Levers as I need and they are pretty much perfect!


SirCharles77

Active Member
Now the last thing I am going to post for tonight is my progress on my box. I finally went and purchased my wood! And I organized my Garage so I would have room to work on this thing!

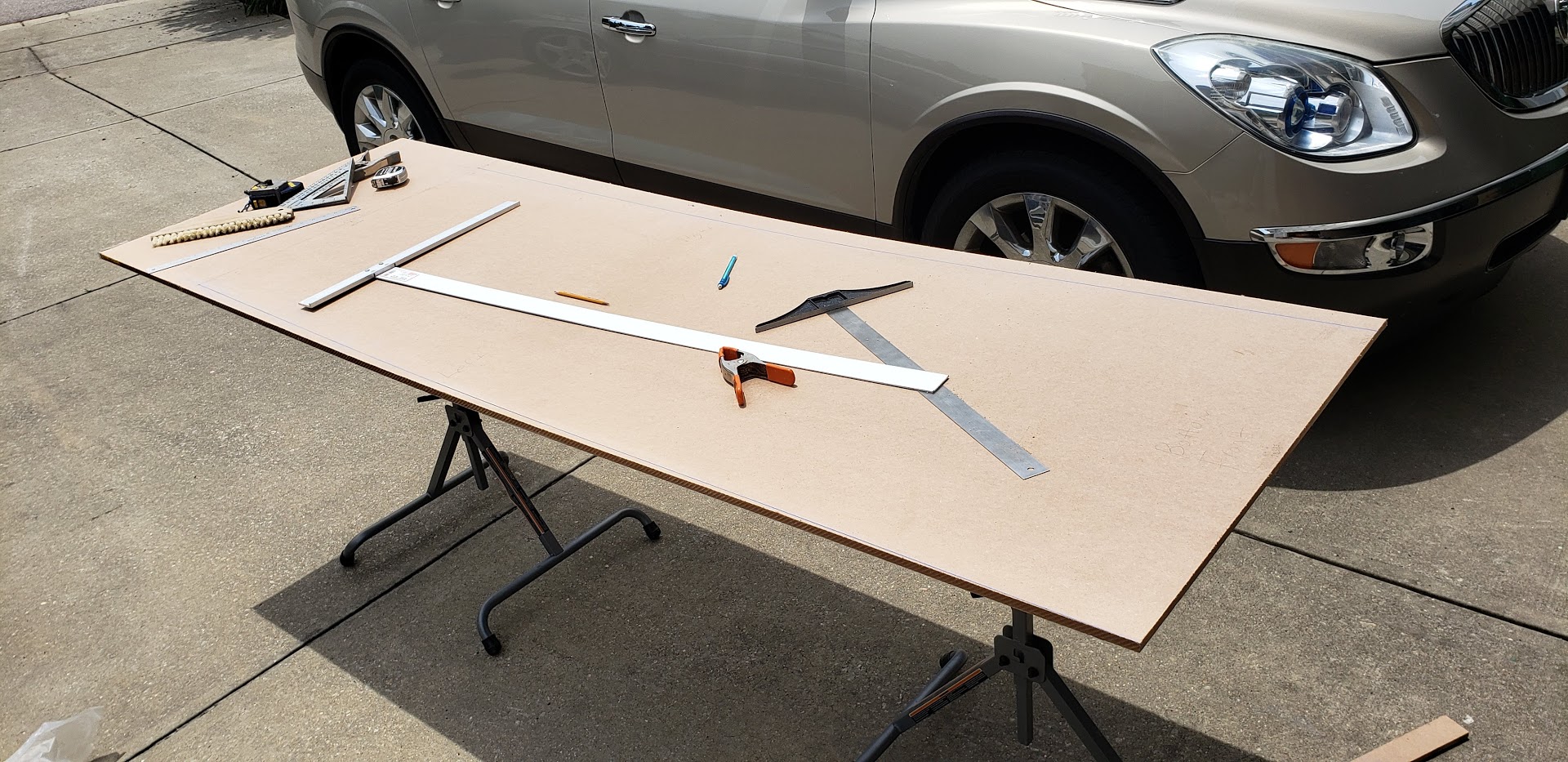

You can see my wood and saw horses in the back ready to start!


So I got to work measuring out my boards and cutting my surface and sideboards. Gotta get those done first, then I will figure out how to mount it all together once I get that far.
First cut is about to happen!

Got the face and sides cut in the first night.


Once I had them all cut to size I started working on cutting out the holes for the panels.
I had a accurate 3d model, so I took some images from that, sized them properly in Photoshop, and printed out myself some templates.

Cut out the templates so that I could draw them onto my panels.

And then went to work with my jigsaw cutting!! Just got the jigsaw delivered from Amazon today in fact!

Then I started the same process on one of the side panels with my side panel template.

Here is my 3d printed panel sitting in the template. Looks like I measured it all correctly!

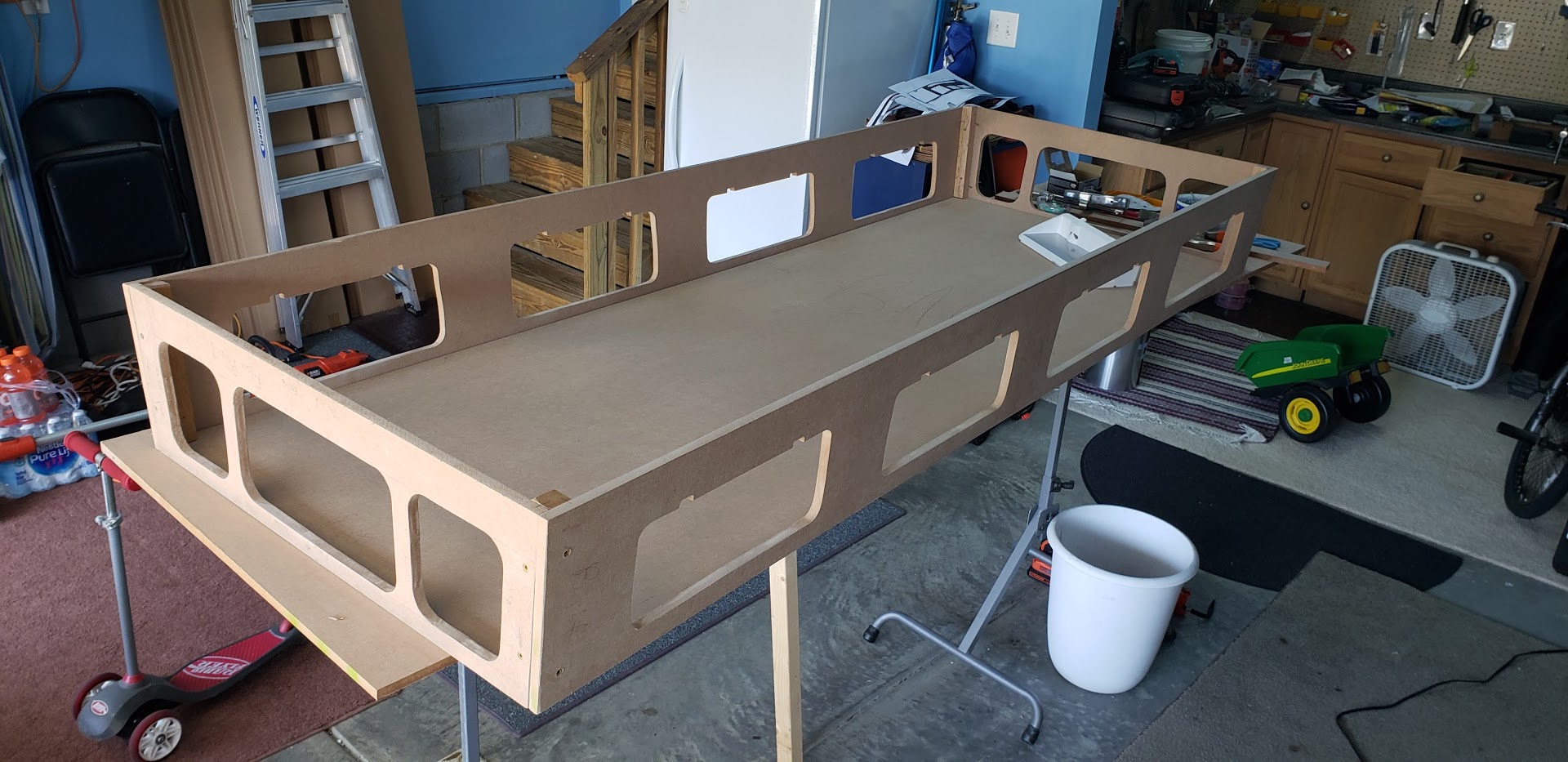

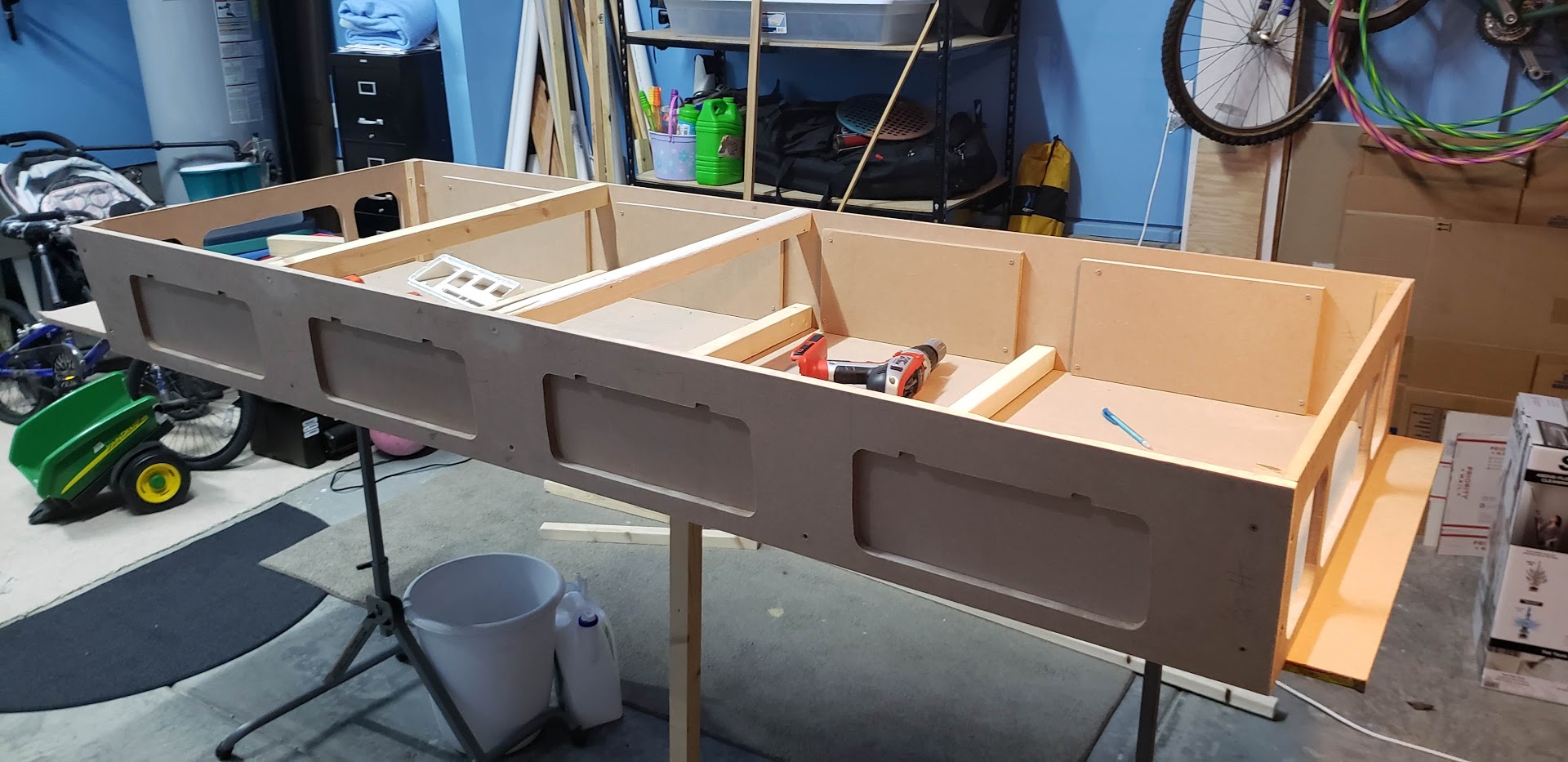

This is how far I managed to get before I had to stop today.

So I have the bottom panel done, and one side panel about half done. Rain made me put the rest on hold. Will likely pick it up again next weekend. So stay tuned!


SirCharles77

Active Member
Oh and of course I forgot to post about a couple other small things.

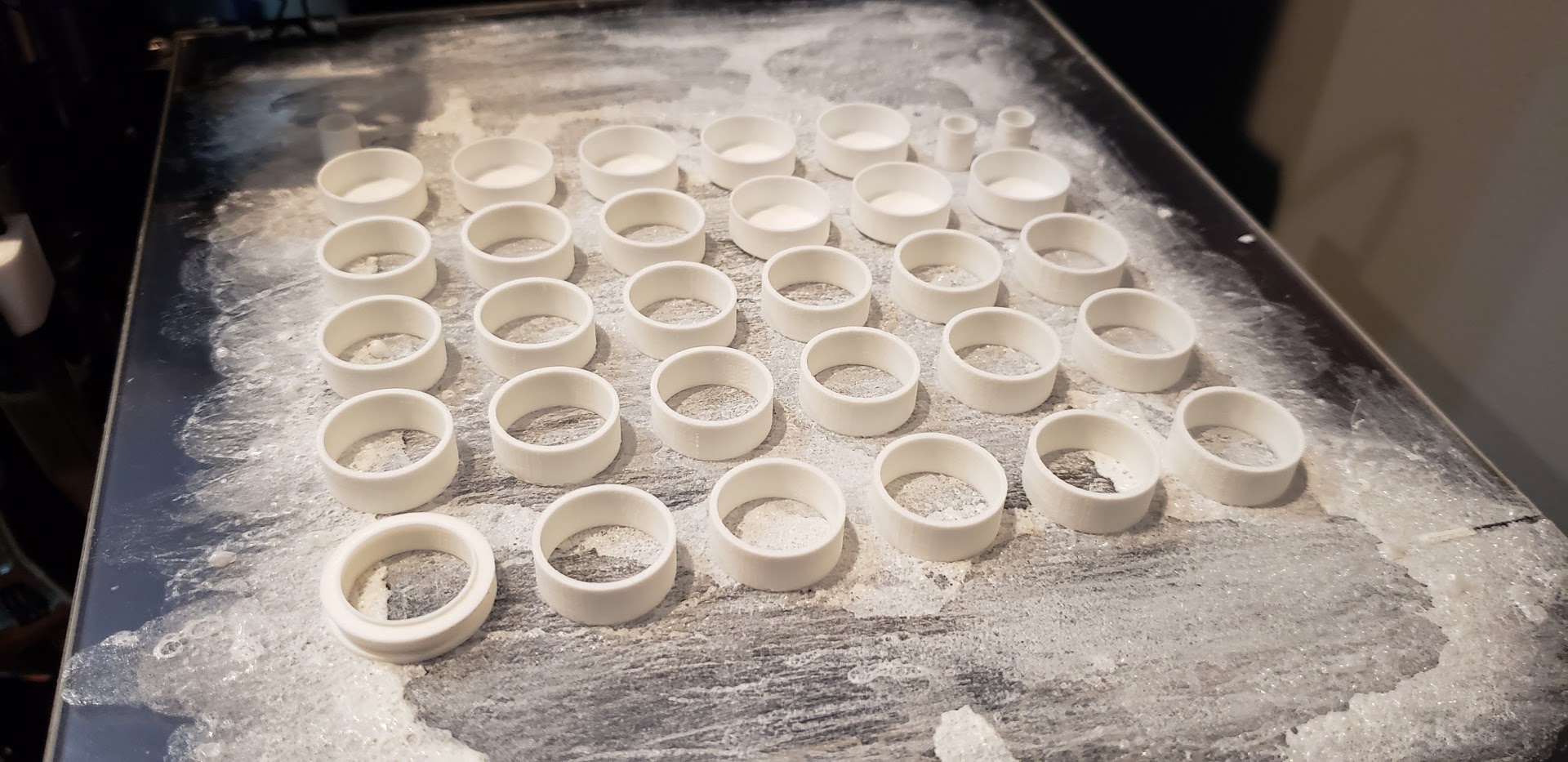

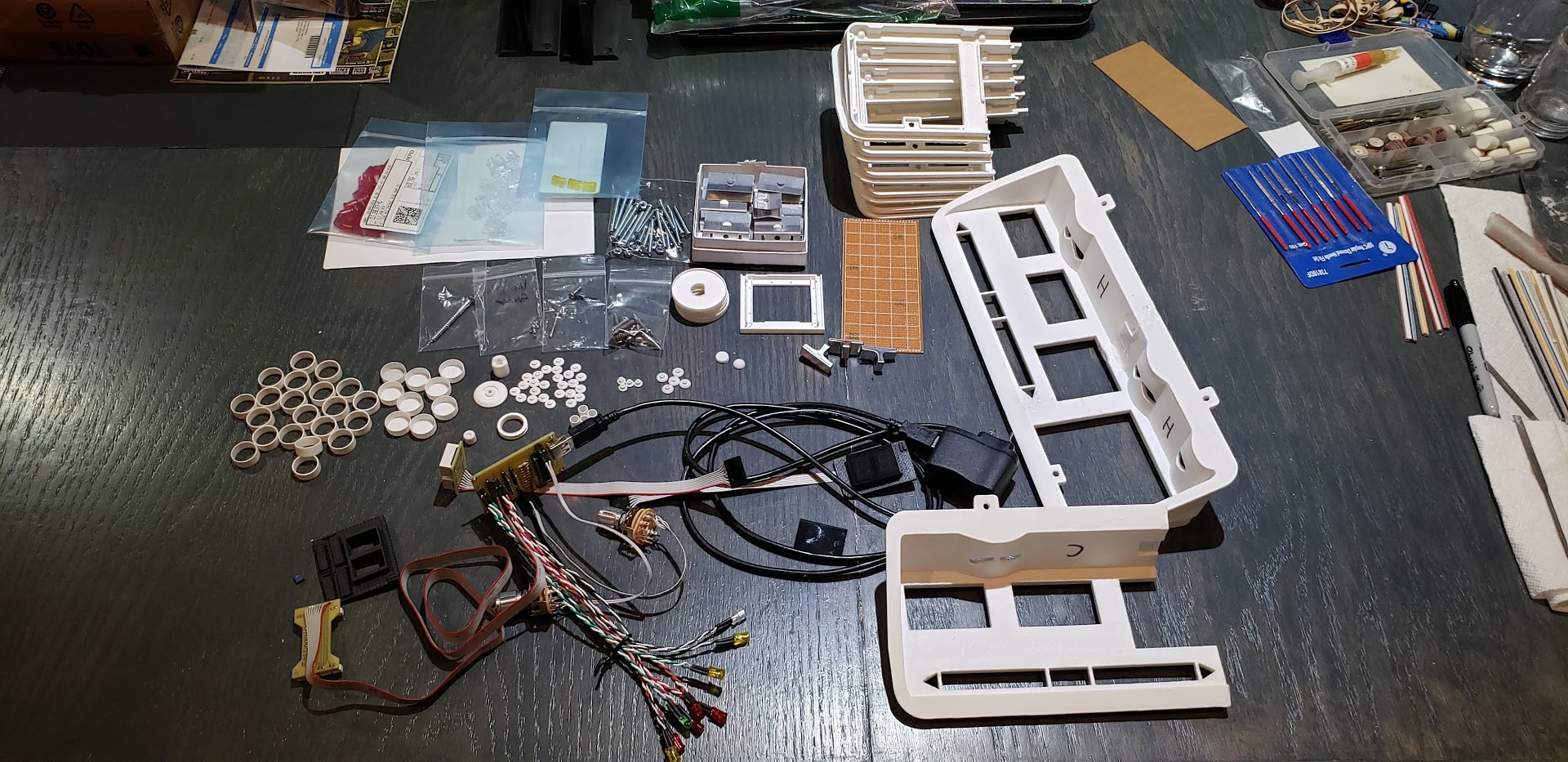

I have almost all of my 3d printed parts (besides the Volvo panels) printed, sanded, and ready to be assembled!




And I spent a little bit of time building a 3d model of what the final thing is hopefully going to look like mounted. I had to figure out how far it has to be away from the wall because of the sloped ceiling. And I wanted to know how many of my Detolf cabinets I could fit next to it on the wall.
Here is what I came up with.

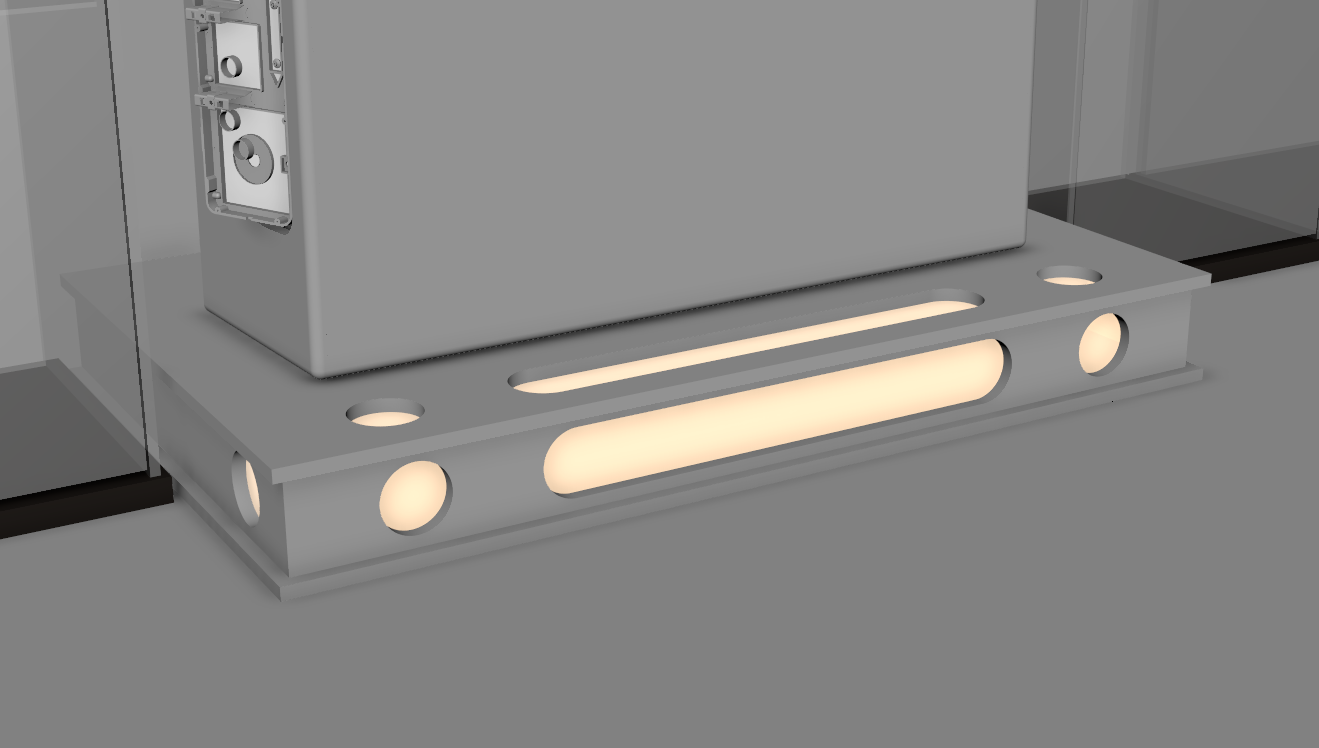

In the process I designed a base. I am not super happy with it yet. I want it to look like the Freezing Chamber on Bespin but I am not sure yet how to get it there. Because I also want lights to shine up on the HiC from it. I think I like the face, but the holes in the sides and top are not working yet. Gonna keep playing with it.


mugatu

Sr Member
RPF PREMIUM MEMBER
This is very nice. You have very good 3D skills. And I love the HIC. One day I will tackle it as well. Great job so far!
