Scratch building ANH Vader! Progress as of 11/16

Discussion in 'Star Wars Costumes and Props' started by VegasSkywalker, Nov 16, 2011.

  1. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    Hey all!

    Ive been working on scratch building most of a Vader. Heres where Ive gotten to so far!

    I had the chest box block cut at Home Depot. Then while I was at work I hand sanded the block to the shape I wanted.

    [​IMG]

    I blew up some reference pics to full size and used them to draw out placements for the switches, coin slots etc.

    [​IMG]

    I then took an exacto knife and traced my placement lines so they would show up after painting. I did two coats of primer then three coats of jet black using steel wool to smooth out in between painting.

    I cut out a piece of 1/4 in alluminum bar to the length of the side rods.

    [​IMG]

    Heres a pic of how the side rod turned out.

    [​IMG]

    Ill post more pics as I go. Thanks for looking!!

    -Michael

    Amazing DJ likes this.
  2. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716

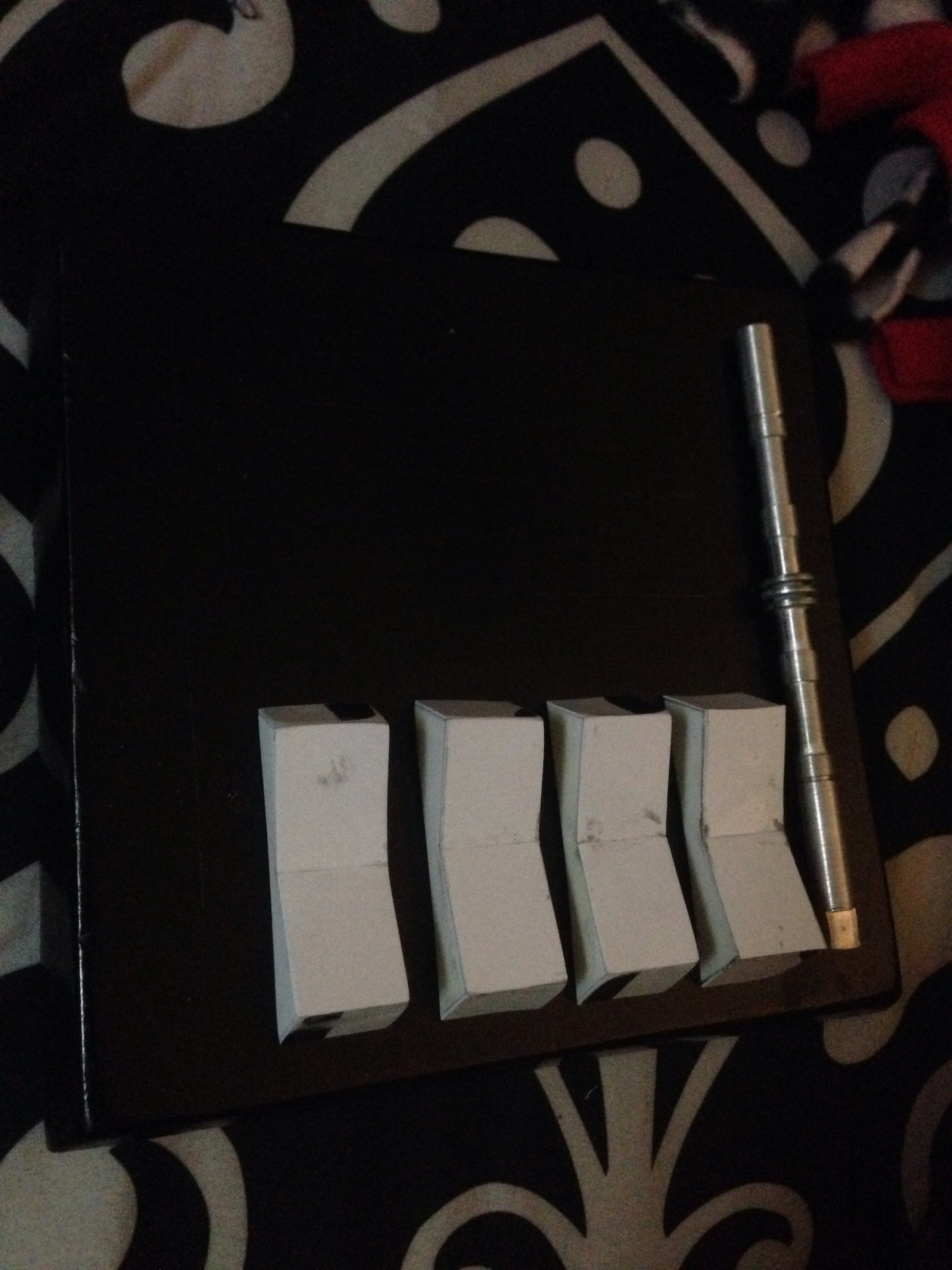

    Started working on this again today! I made some rocker switches from styrene. Can't wait to paint and sand them!

  3. SithApprentice2

    SithApprentice2 Member RPF PREMIUM MEMBER

    Trophy Points:
    192
    Hi Michael:

    Keep at it and post your progress- I'm building an ANH Vader myself (have you chosen a version?)

  4. chefhawk

    chefhawk Well-Known Member

    Trophy Points:
    795
    Looking good so far

    I'm looking forward to seeing more progress


    cheers

  5. clancampbell

    clancampbell Sr Member

    Trophy Points:
    2,160
    Looking very good so far!

    Rich

  6. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    thanks guys!!

    I painted the rocker switches.

    As far as the version, do you mean like movie vs. the tour suit?

    Also, does anyone know if the coin slots were resin castes or real metal ones?

  7. SithApprentice2

    SithApprentice2 Member RPF PREMIUM MEMBER

    Trophy Points:
    192
    Sorry- didn't see the ANH in the title:facepalm

    Last edited: Mar 17, 2014
  8. R2Dan

    R2Dan Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,215
    Did you read the thread description?

  9. OdiWan72

    OdiWan72 Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,376
    He OBVIOUSLY did not :rolleyes

    Keep up the good work!
    What are the parts you actually plan to BUY vs. scratchbuilding these?

    Markus

  10. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    Thanks!! I'm planning on building pretty much everything. I've got a set of shoulder armor and a helmet that I'm repainting. But I've toyed with the idea of making a pepakura version of both. We will see lol


    Sent from my iPhone using Tapatalk

  11. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716

    Progress as of today. I started repainting my old helmet. I got the belt boxes in and I'm going to make a lid for them. The belt buckle is a wee bit to small but I was planning on covering it anyways. The belt it self I need to tool the lines into.


    Sent from my iPhone using Tapatalk

  12. ataru72ita

    ataru72ita Well-Known Member

    Trophy Points:
    916
    Looking good so far!! What a brave project of yours!!:thumbsup
    Just a little advice the belt buckle should be taller than the belt boxes, if i might! :)

    Regards,

    Alberto

  13. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716

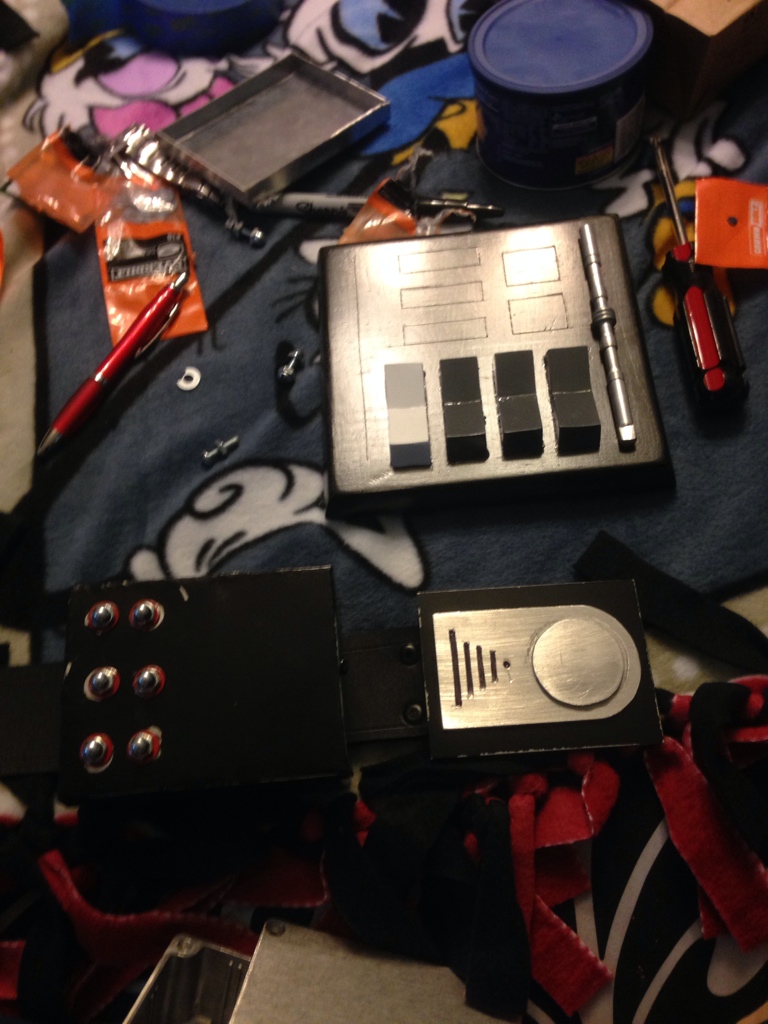

    Here's a little progress!



    Sent from my iPhone using Tapatalk

  14. James Kenobi 1138

    James Kenobi 1138 Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    Looking great so far.

  15. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    Thank you!!


    Sent from my iPhone using Tapatalk

  16. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716


    Sent from my iPhone using Tapatalk

  17. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716

    With my old body suit. Just wanted to see what it looked like.


    Sent from my iPhone using Tapatalk

  18. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    Something looks off and I can't figure it out. Any suggestions?


    Sent from my iPhone using Tapatalk
