Rulebreakers Revell 1/48 Tie Advanced "88" series

Rulebreaker

New Member
Tie Fighter retrofit to Tie Advanced X1

1 Scale Discussion
see here

why this scale, because its cheap, amazon lowered the price of the kit even more, down to 12, was 46
and its a good practice befor moveing to a bigger scale like 1/32 or even 1/24

2 Unboxing
see here

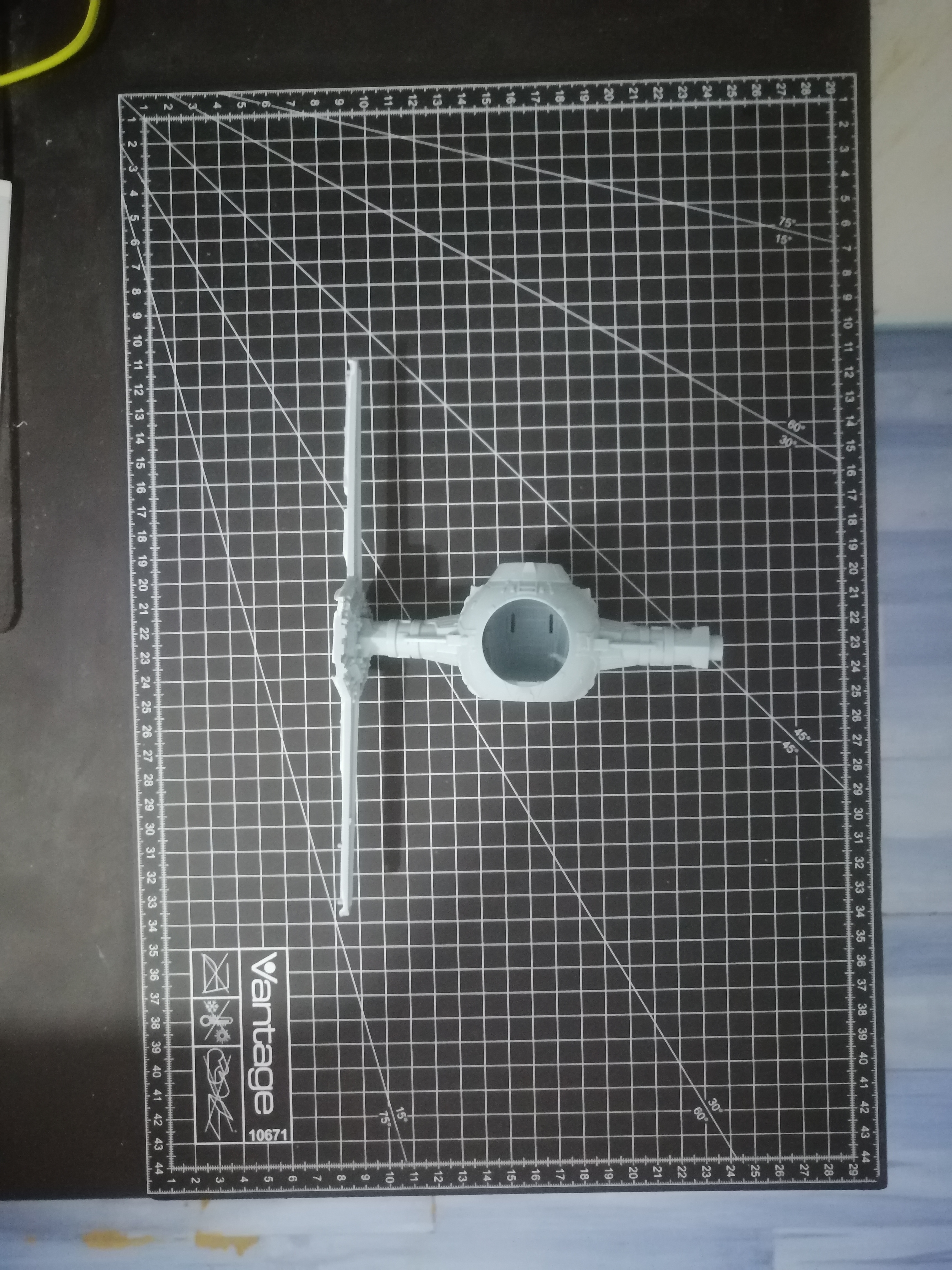

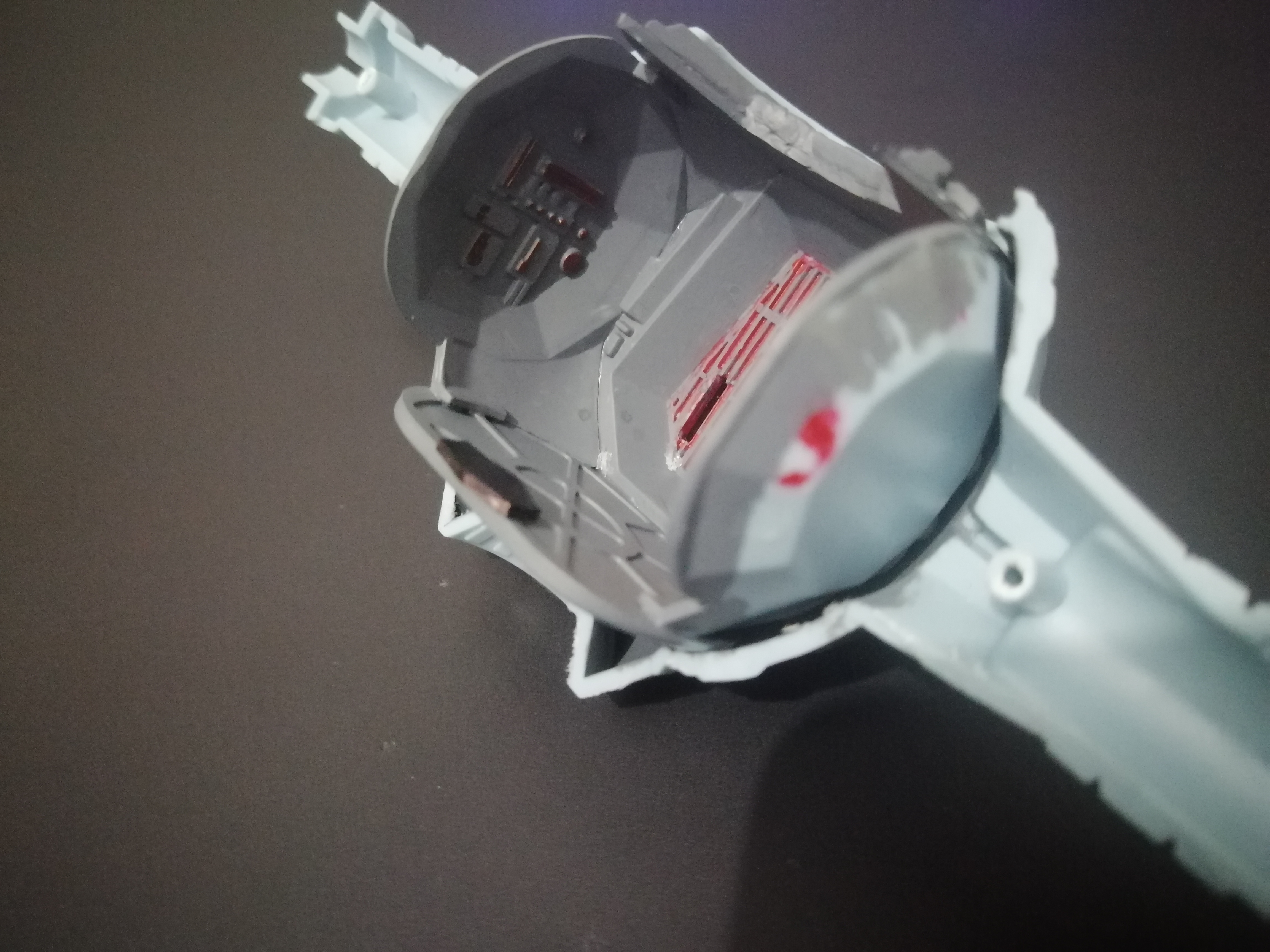

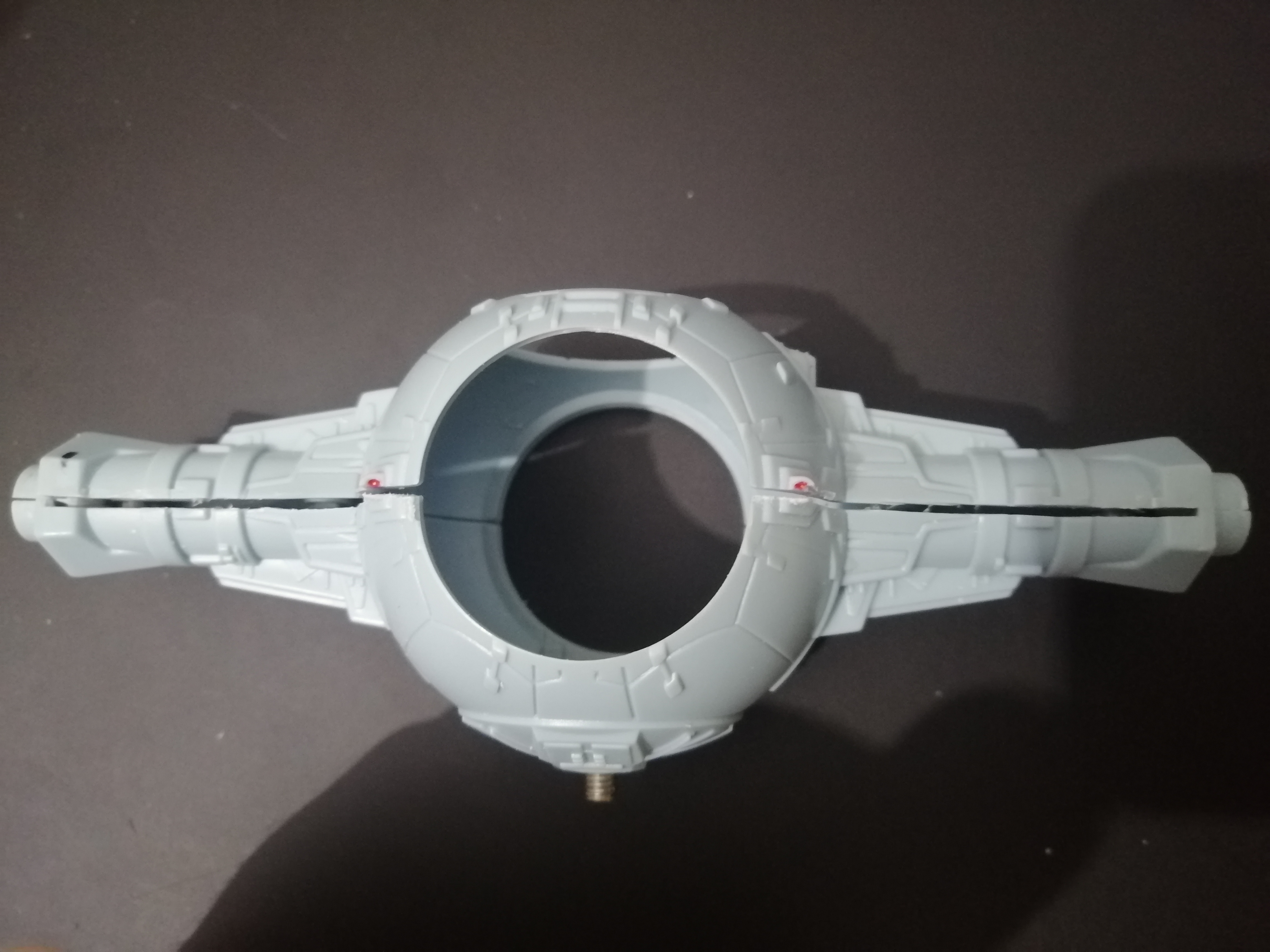

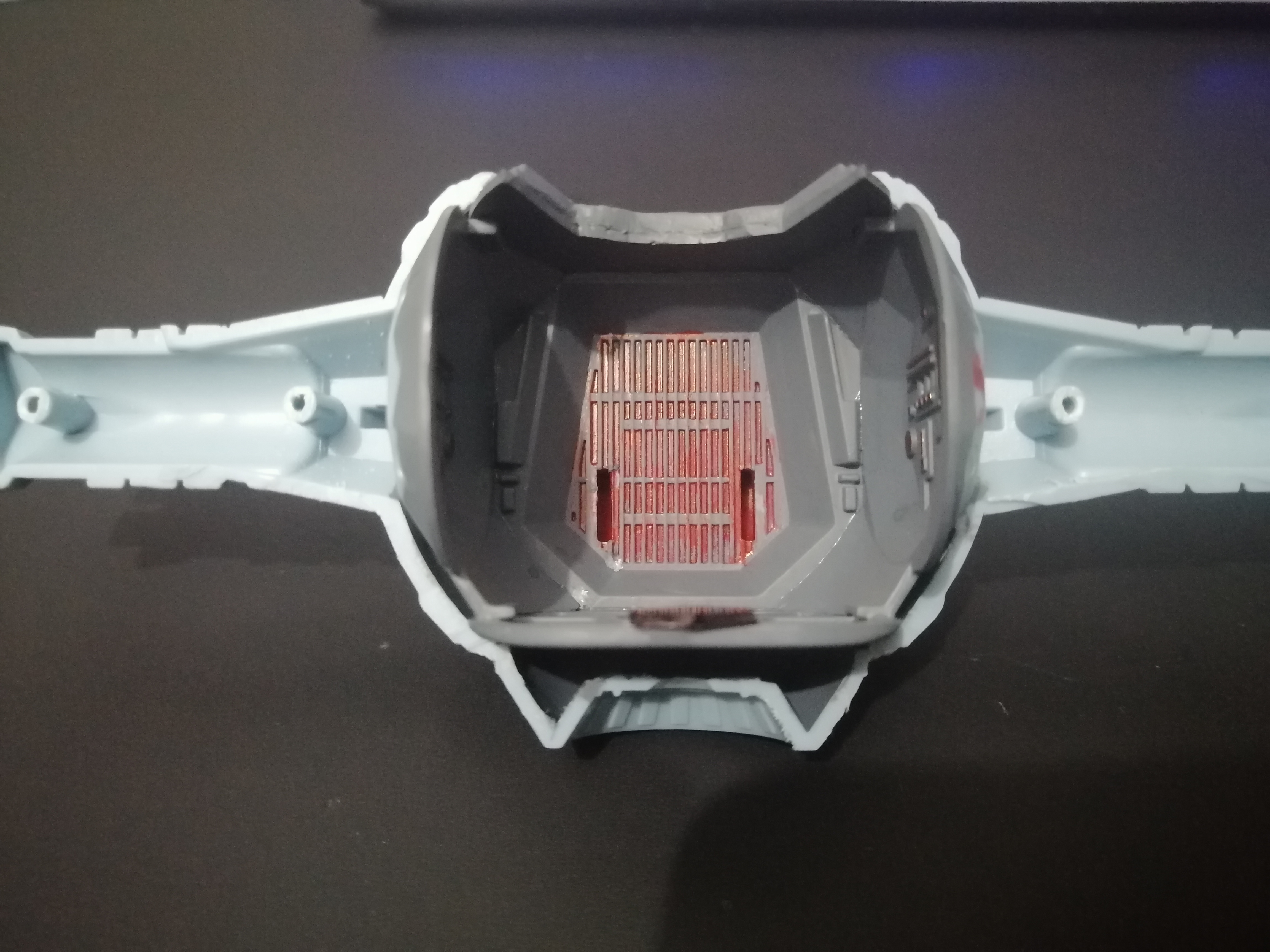

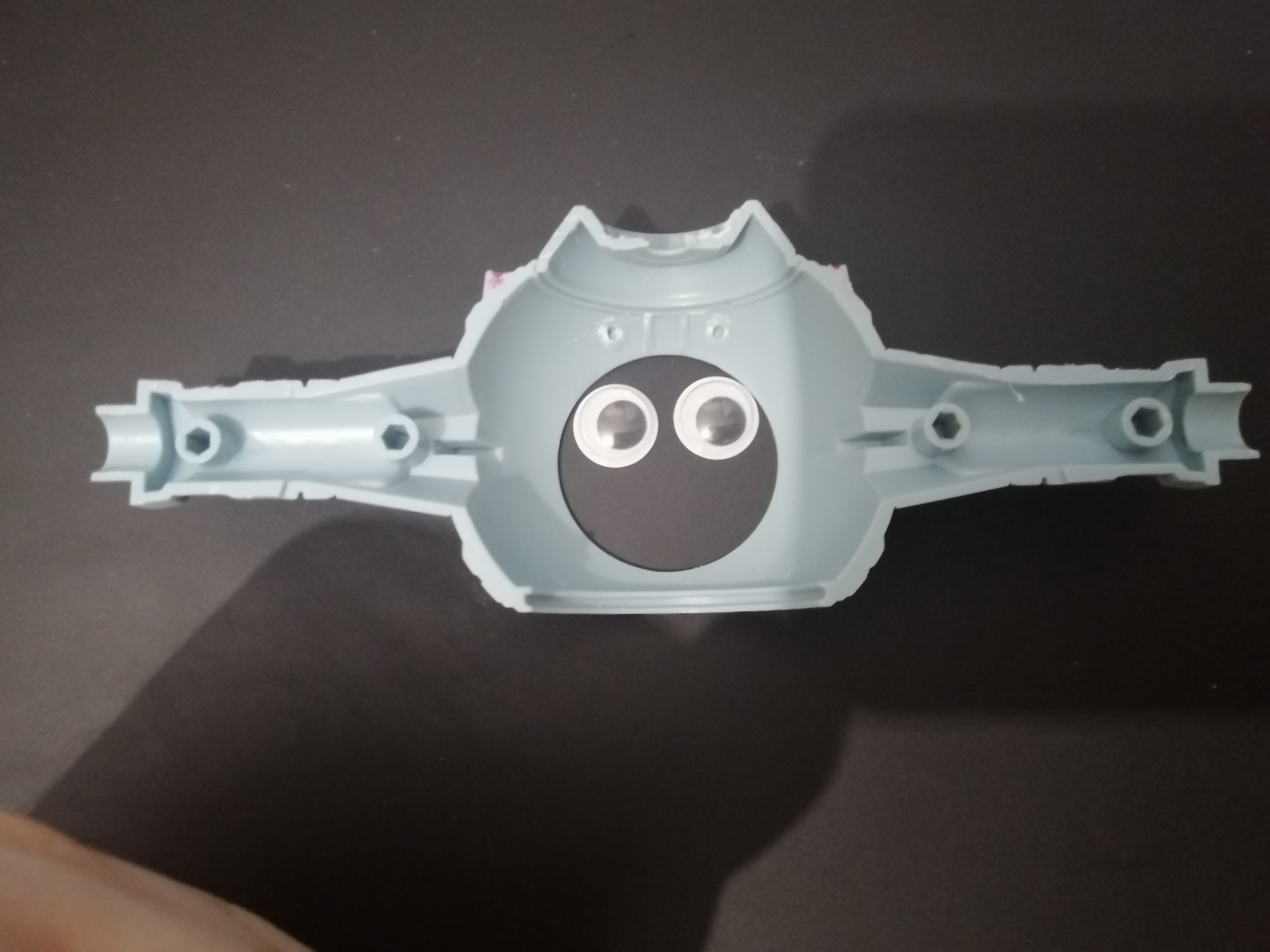

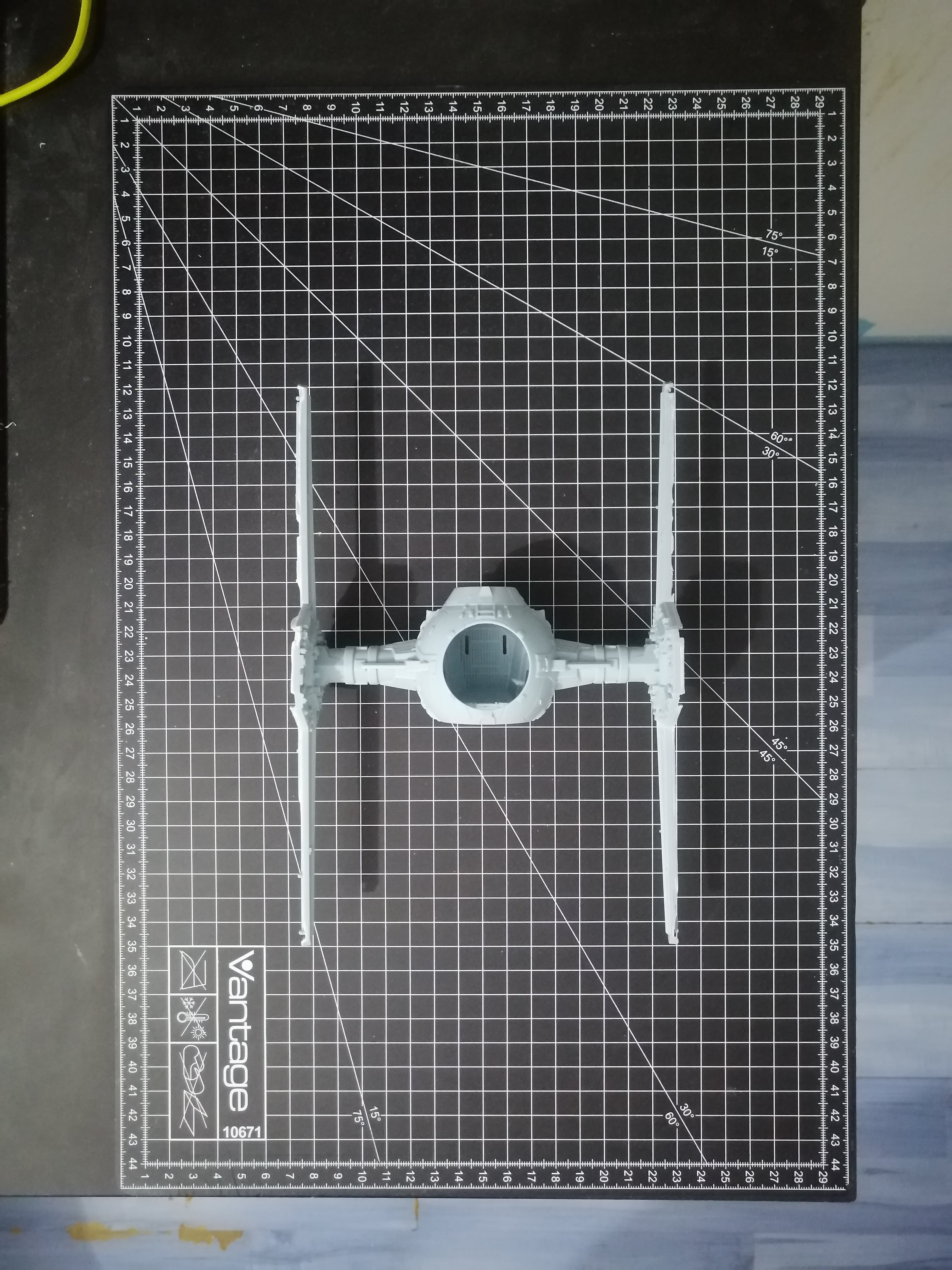

the Outland Tie and the Tie Fighter Parts are used and modified with some old scratch building

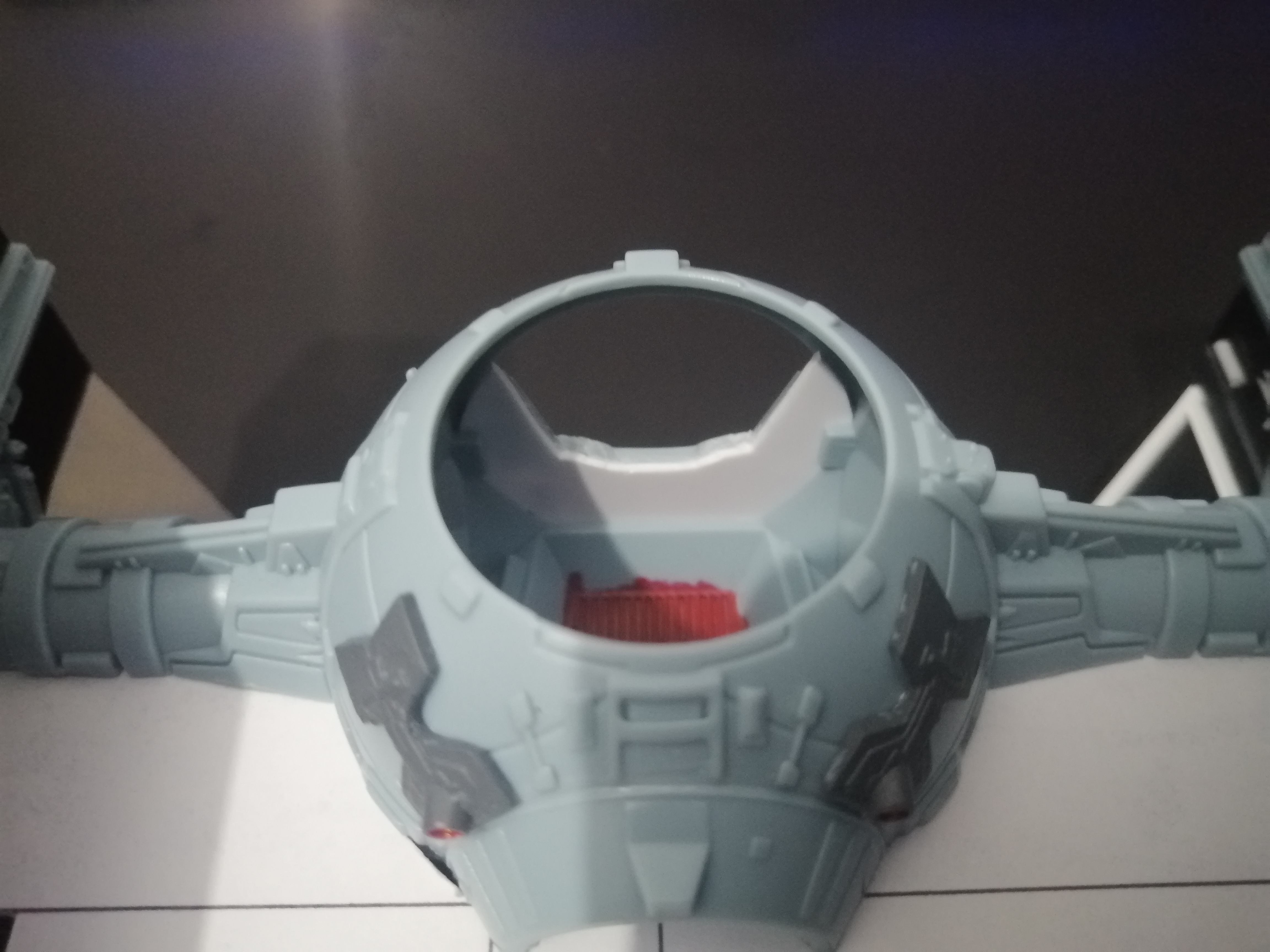

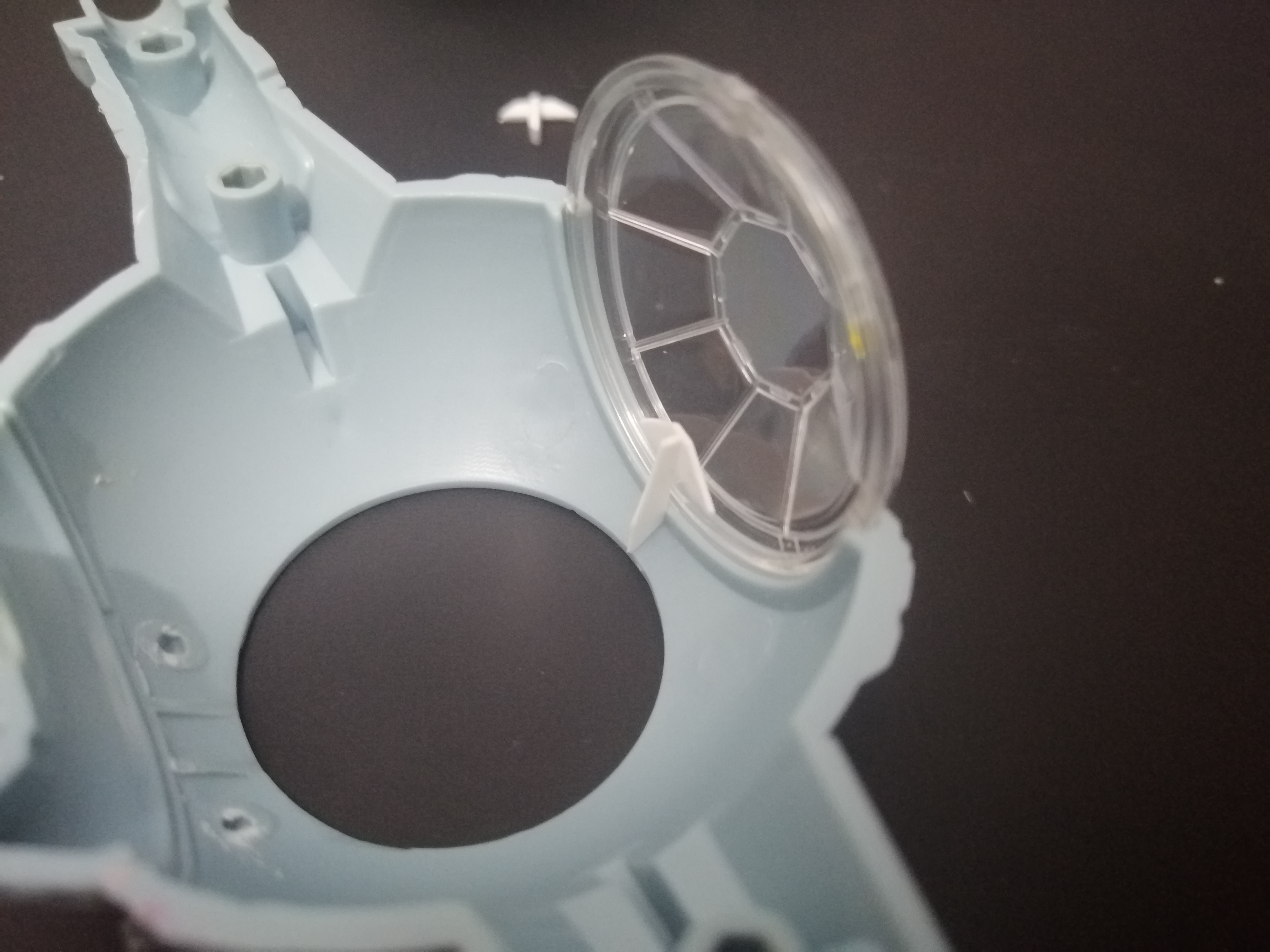

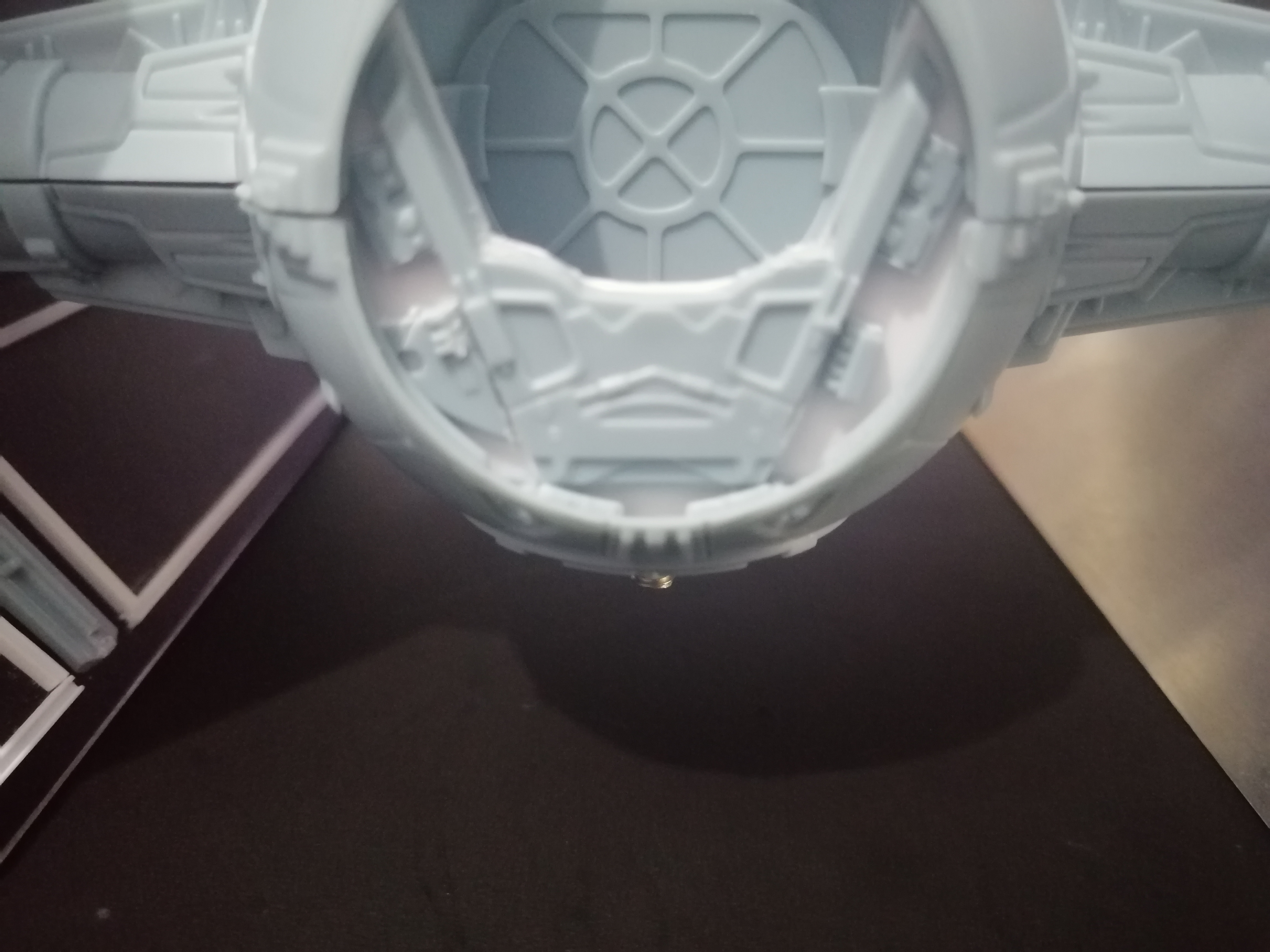

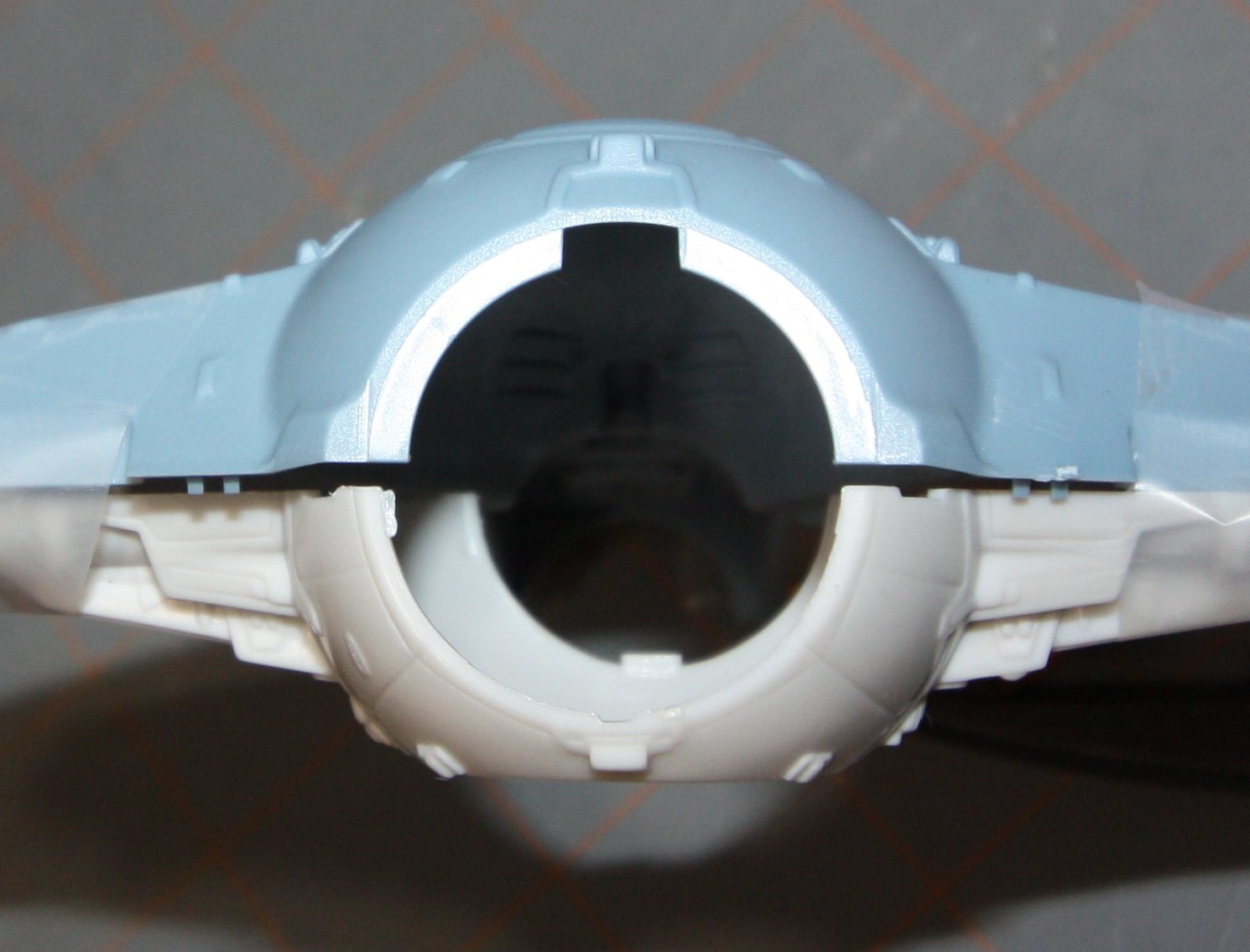

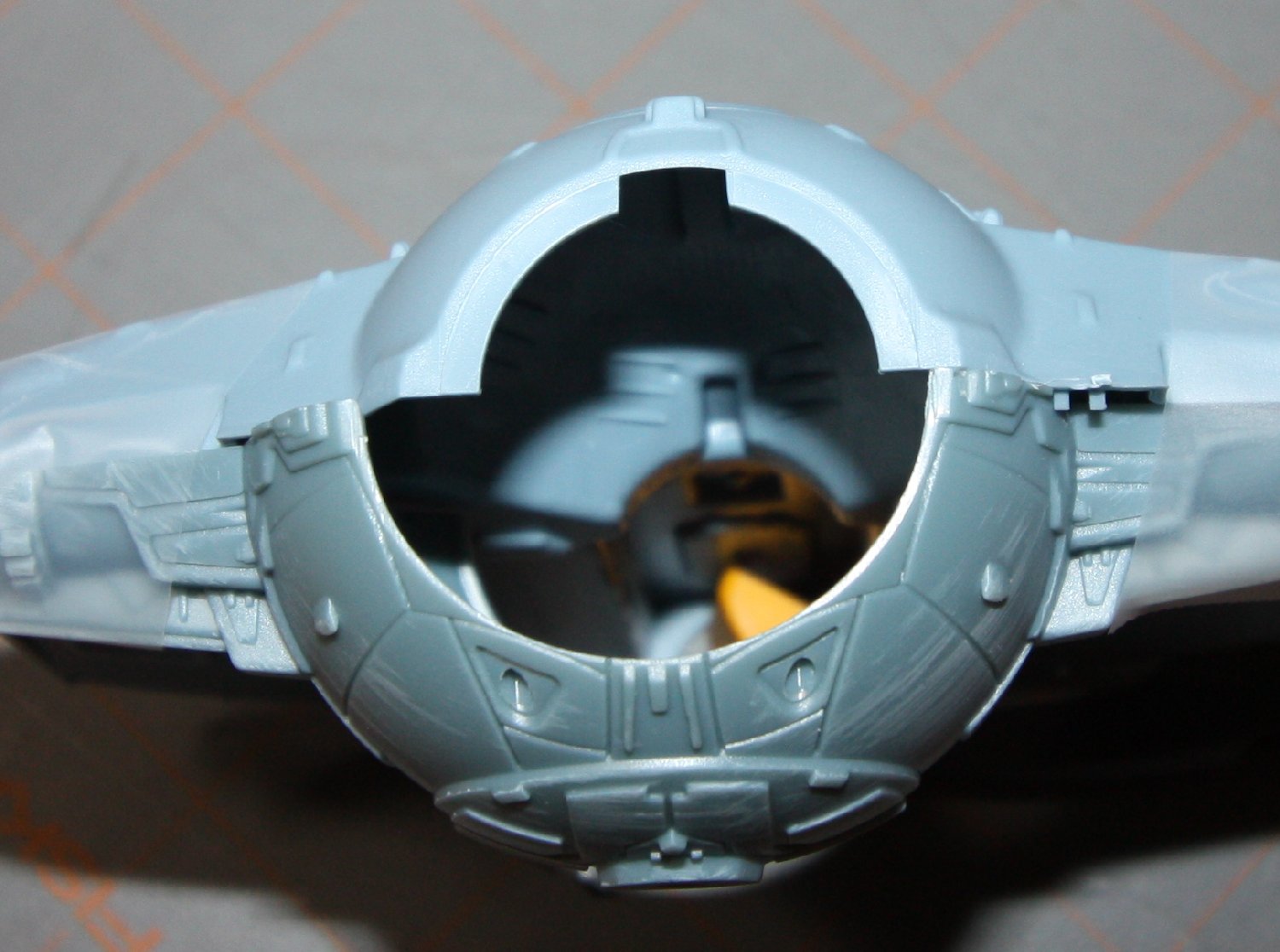

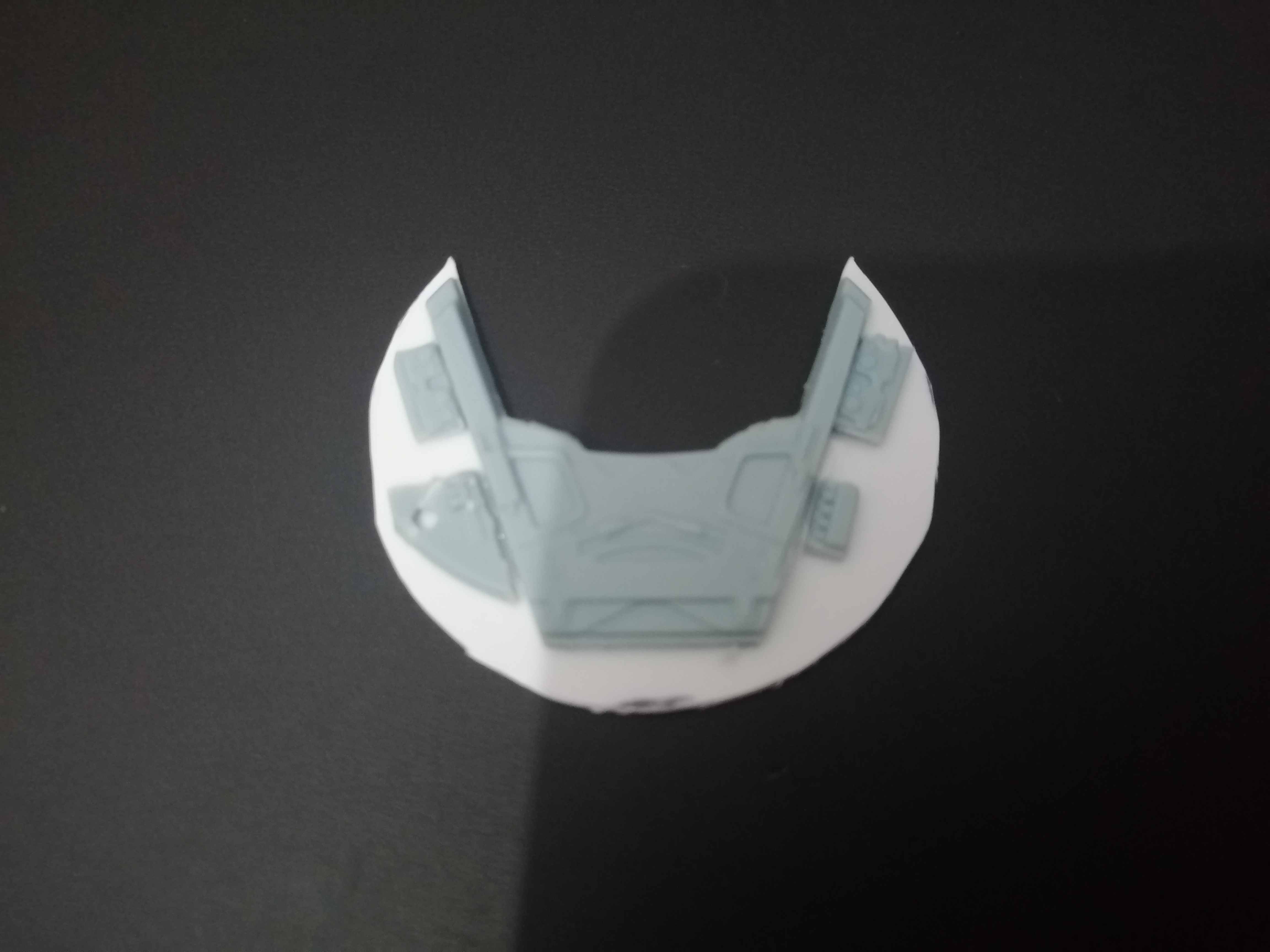

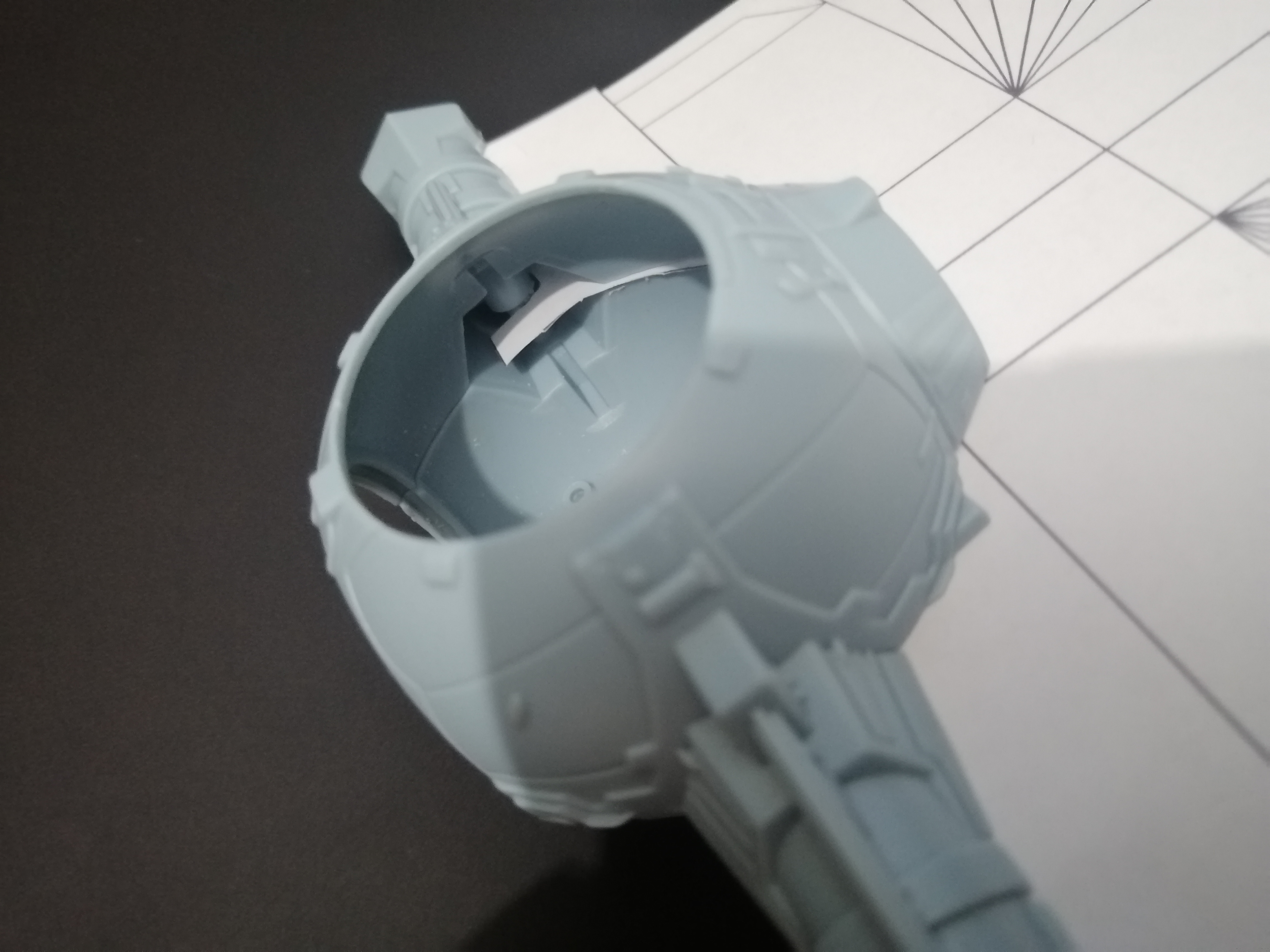

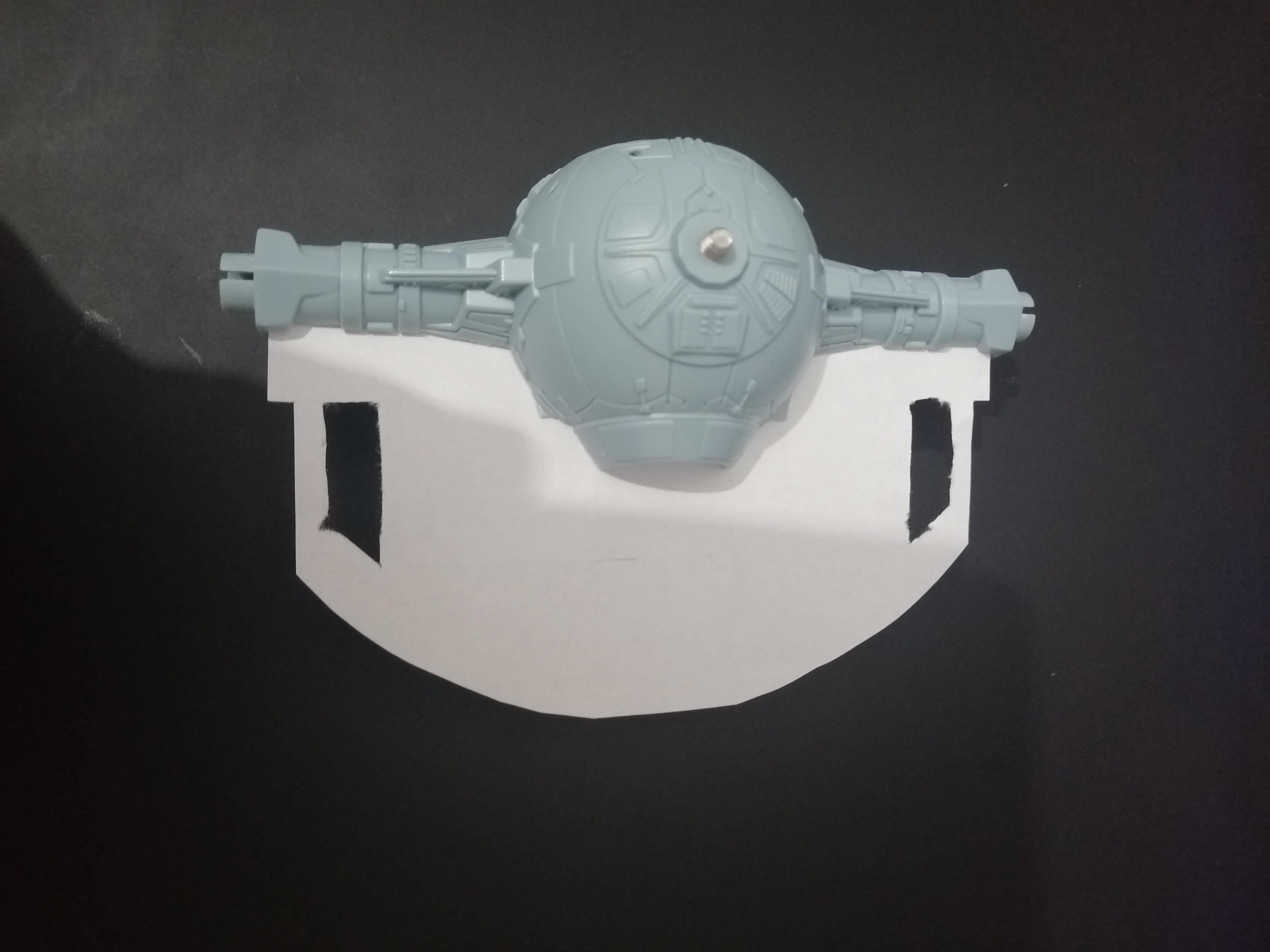

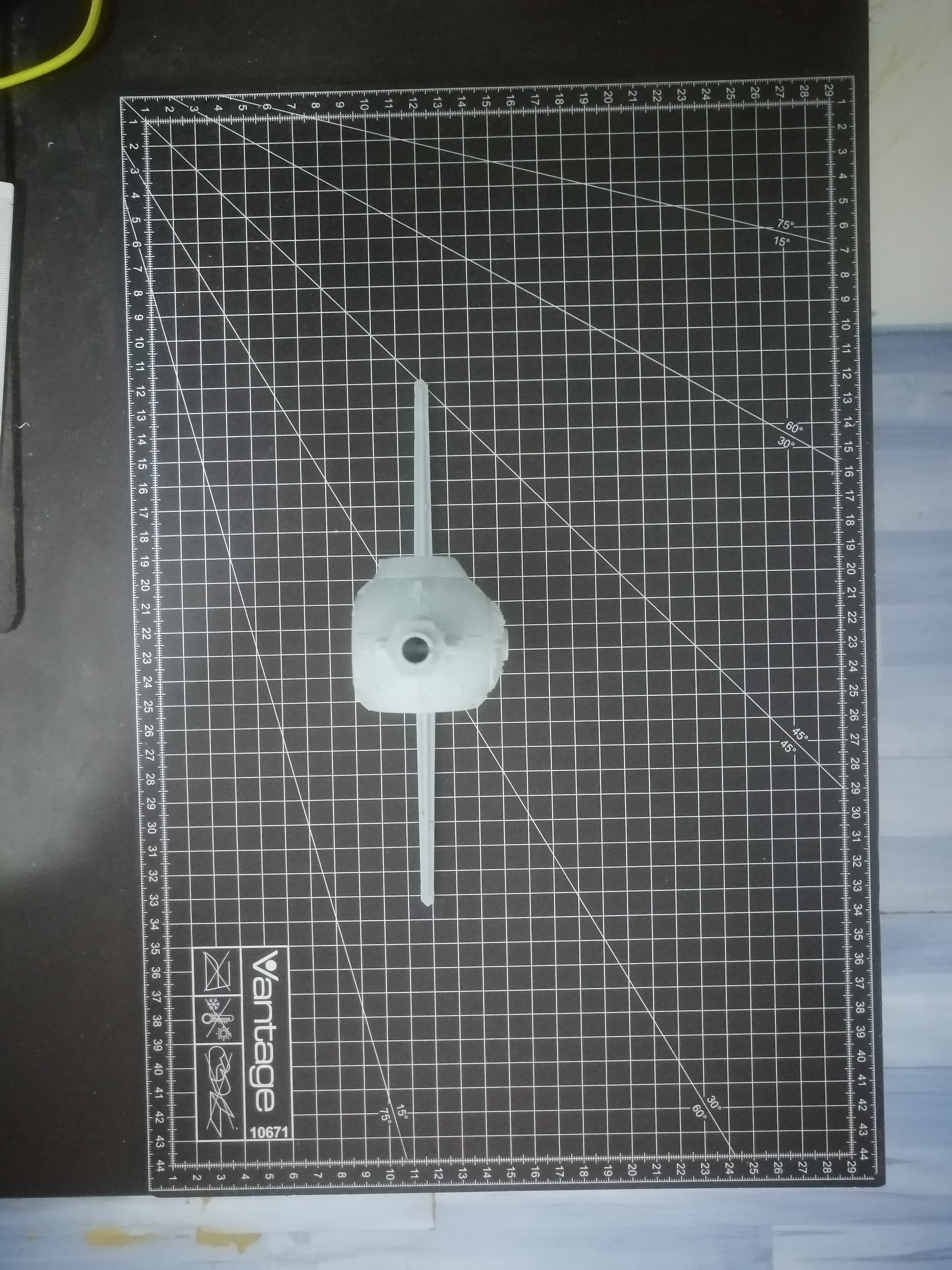

3 Build - Retrofit

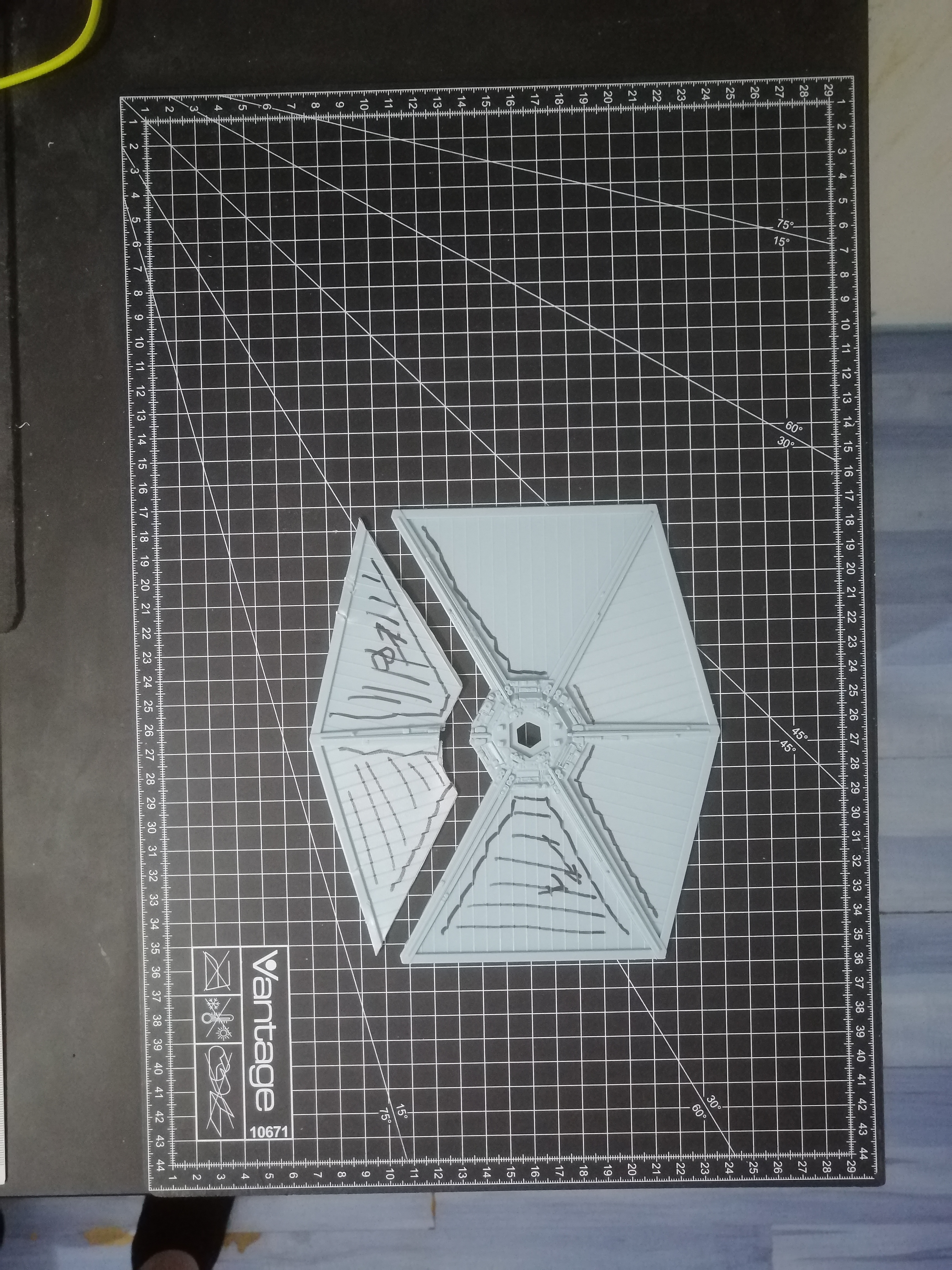

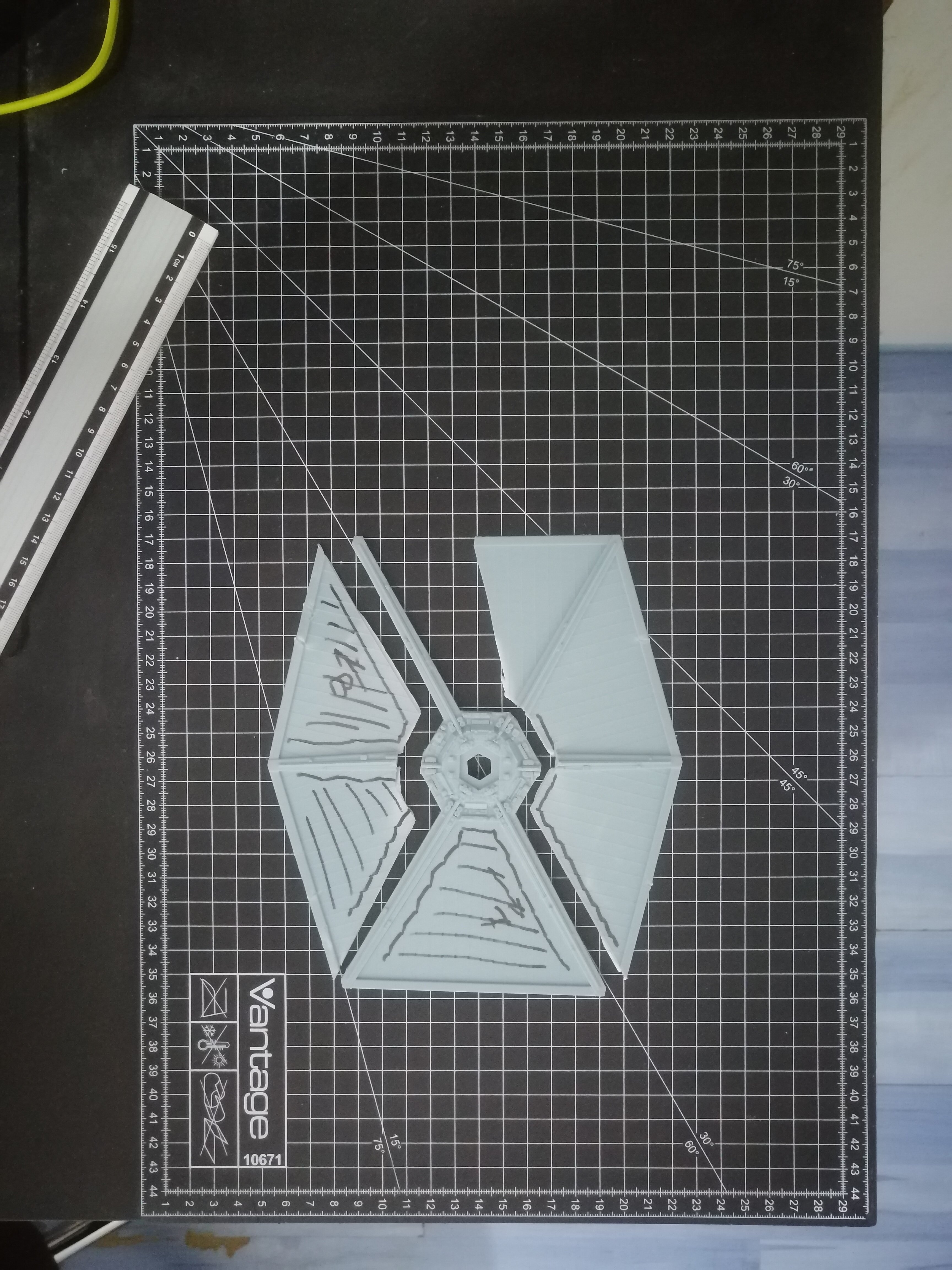

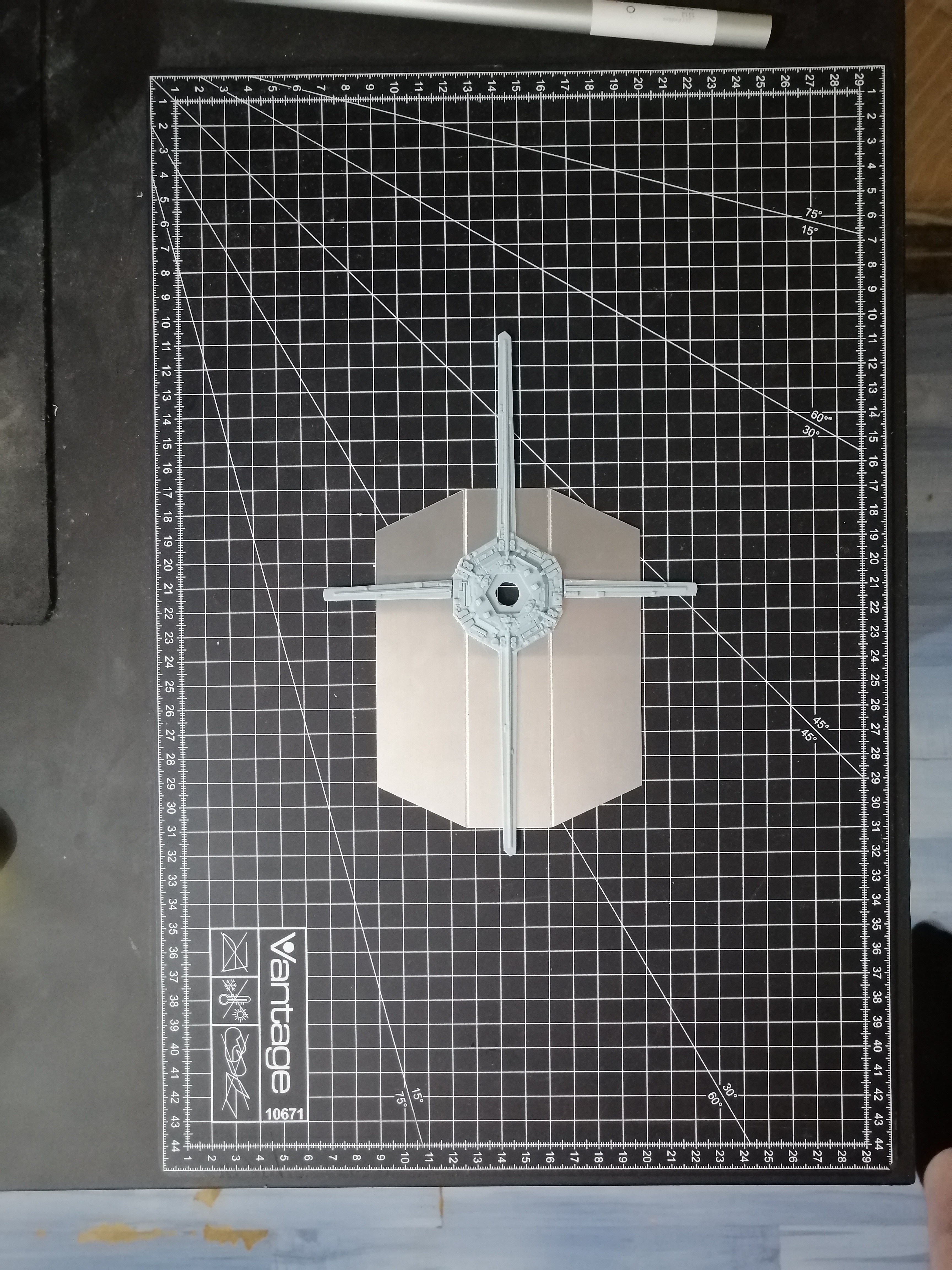

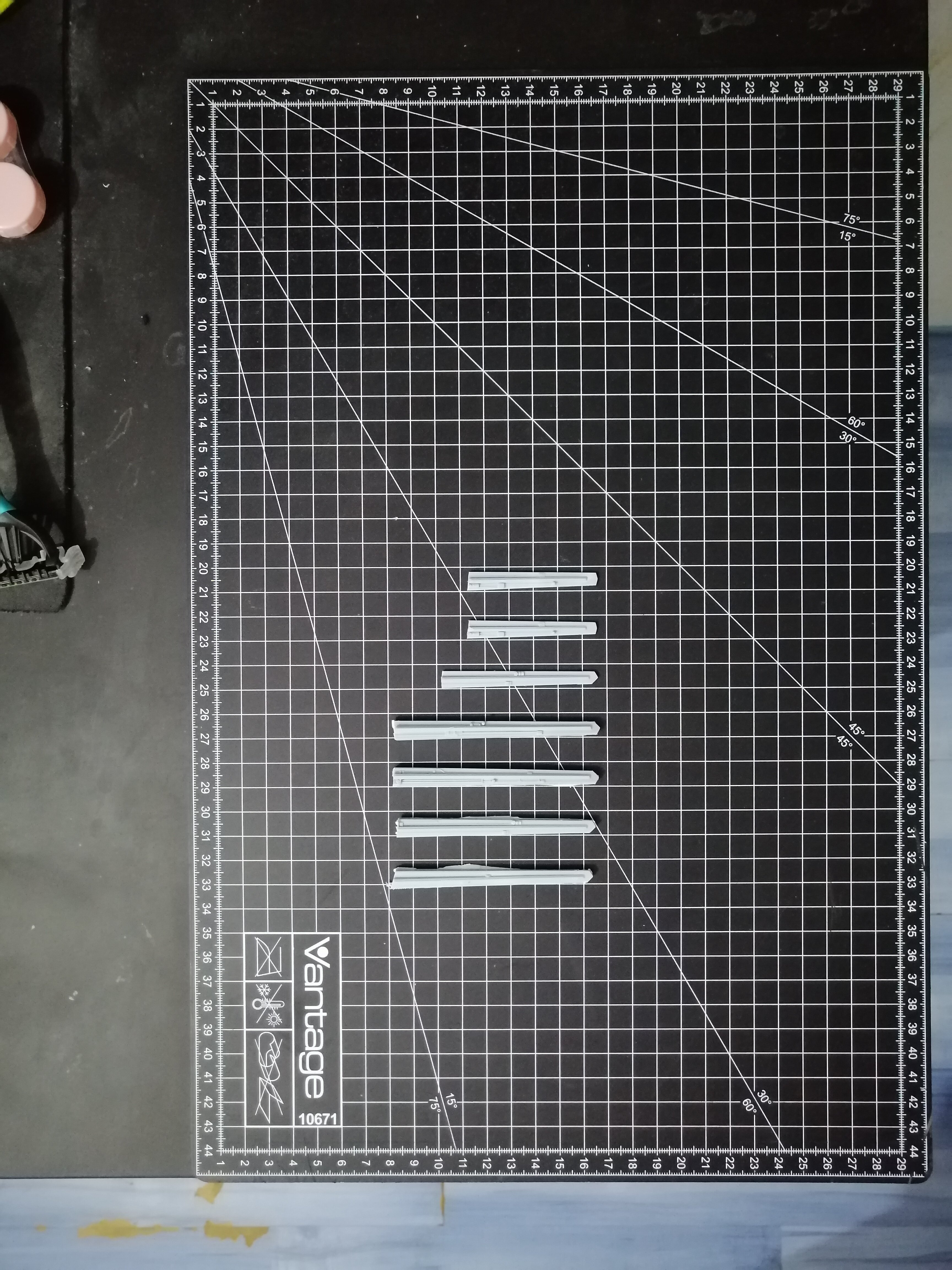

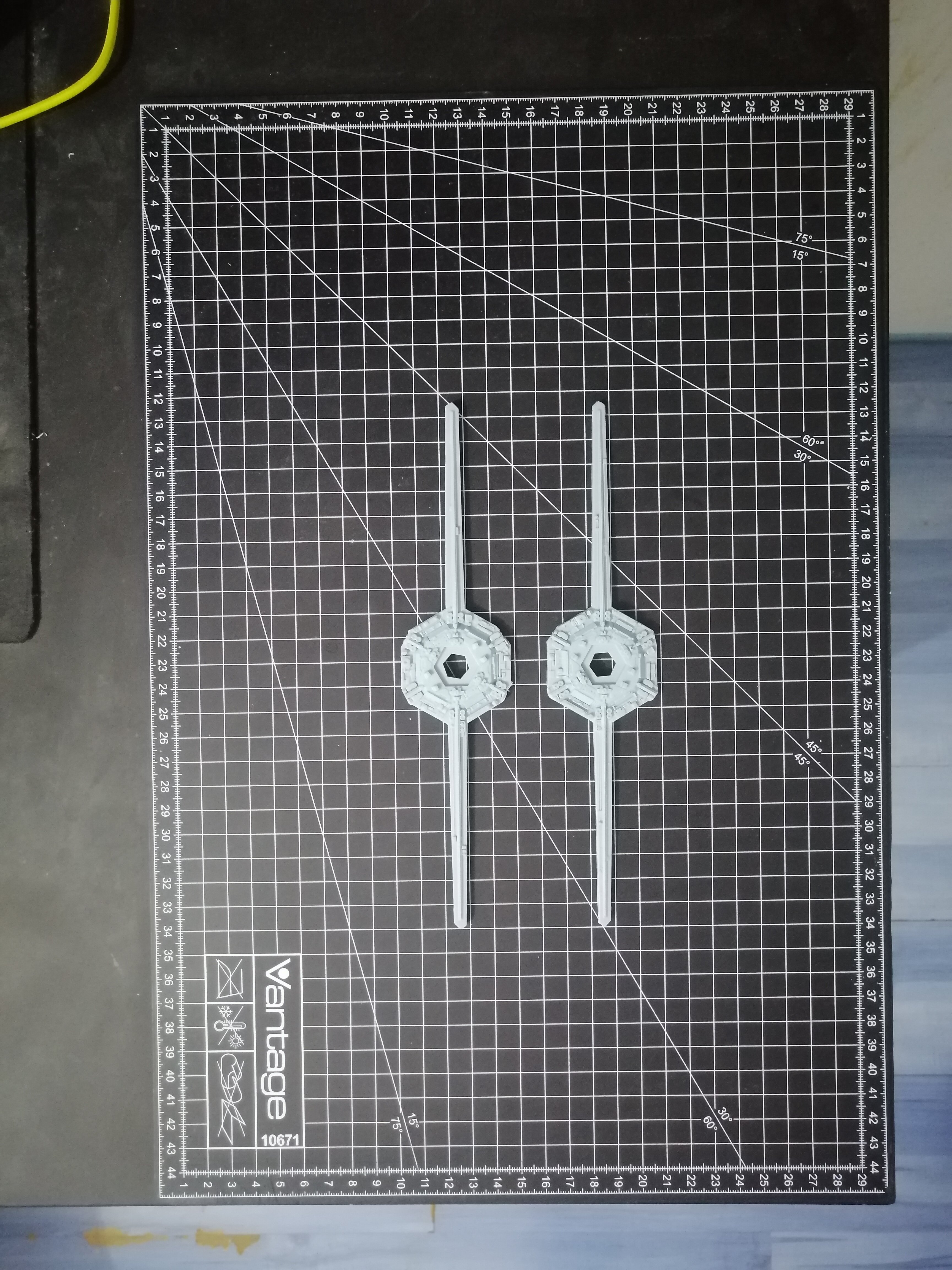

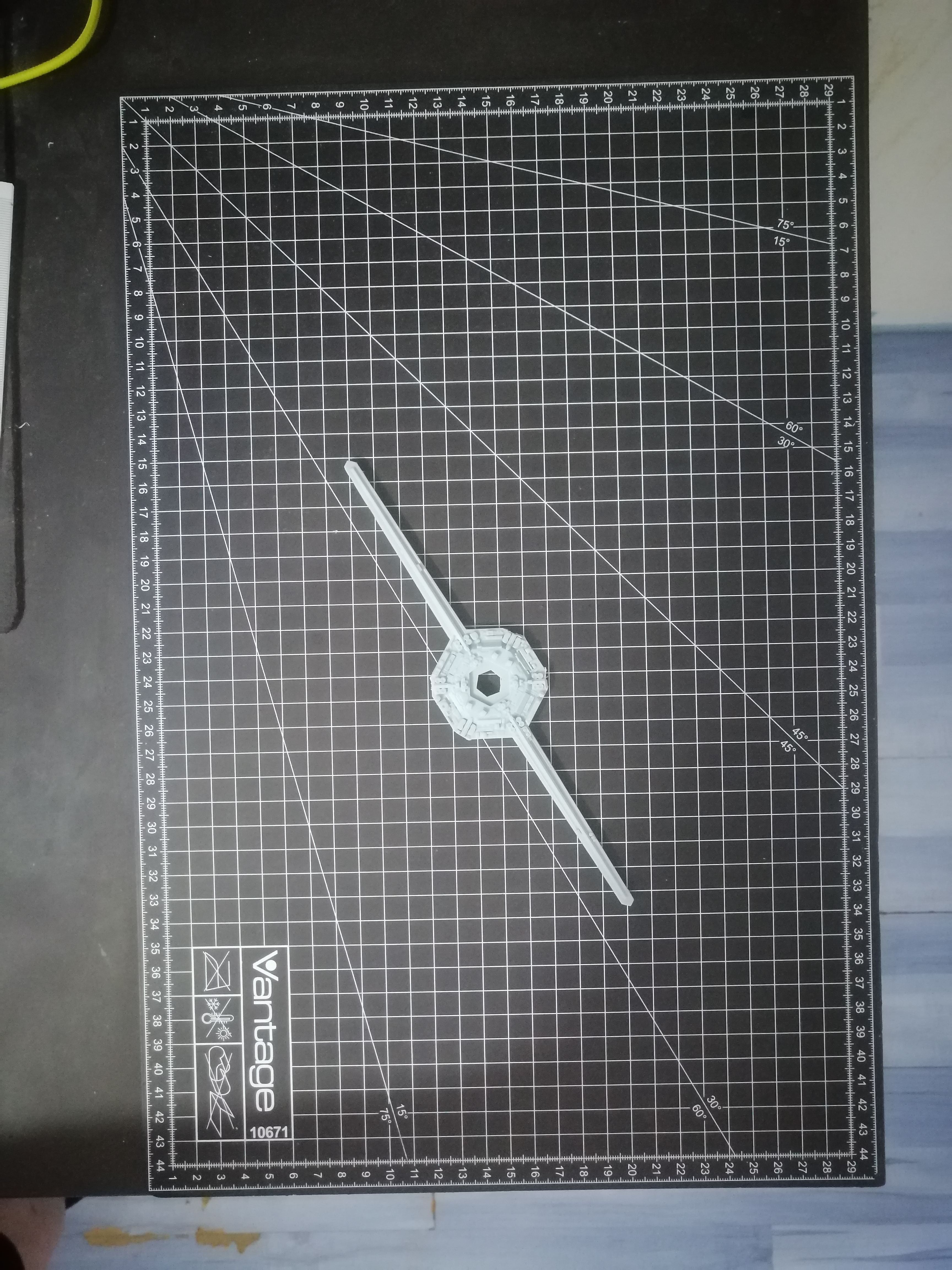

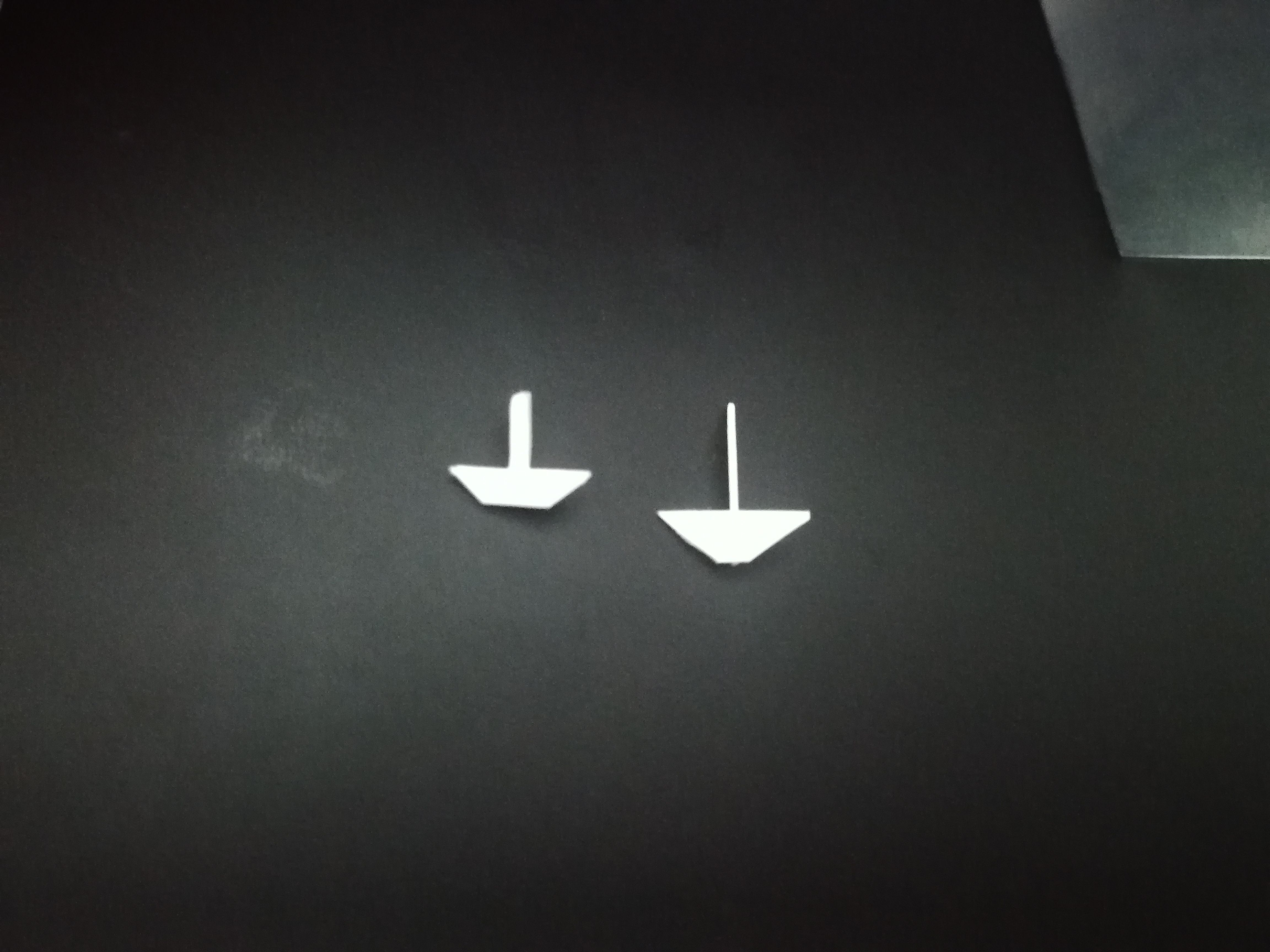

From the Tie Fighter Build i have some inner wings left, they get cut in to the main shape of the wing, the solar things get cut out.
i'm not a flight/plane engineer, so i dont know if those are spars or ribs, so lets call em spareribs :D
spar ribs.jpg

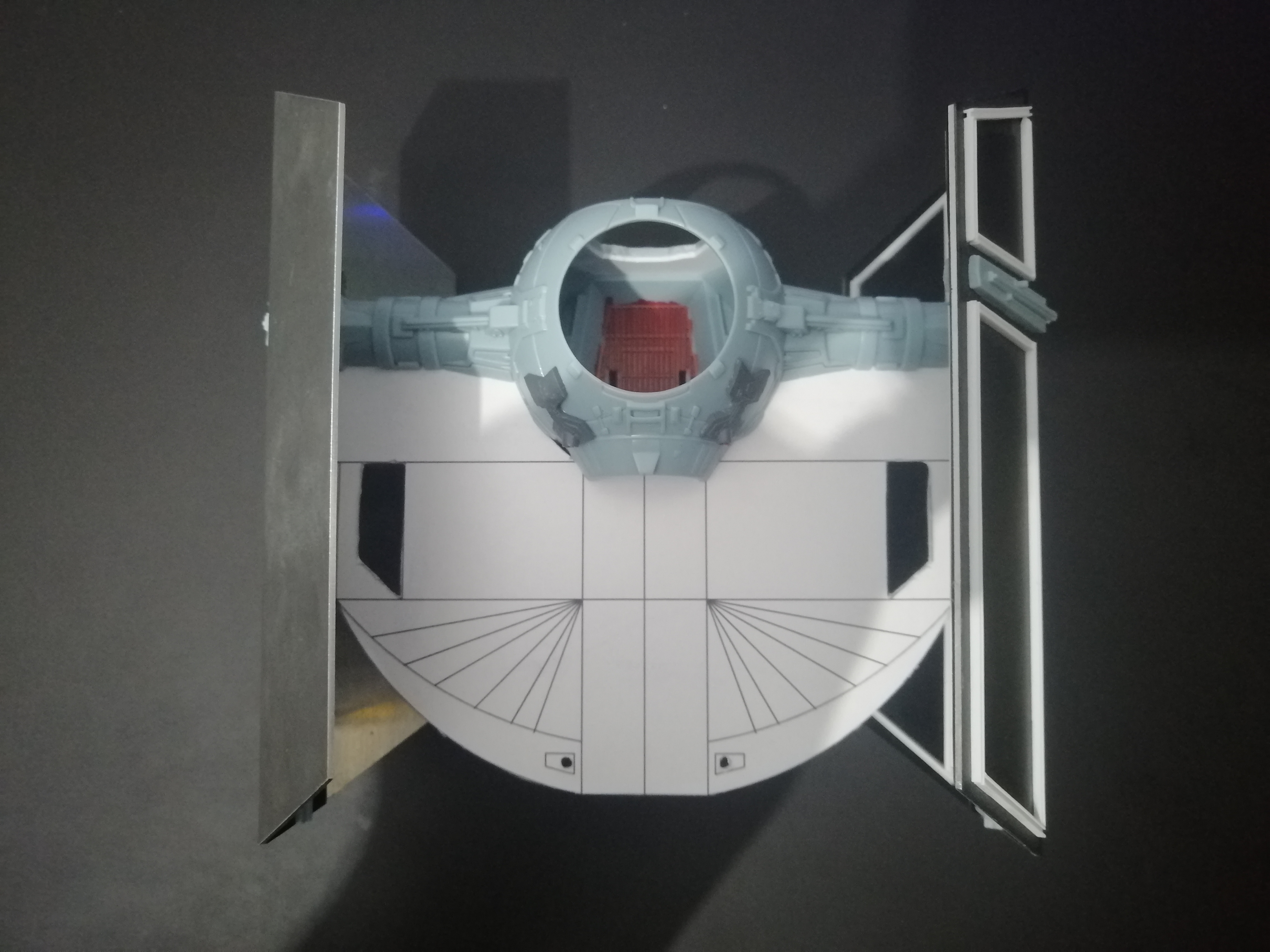

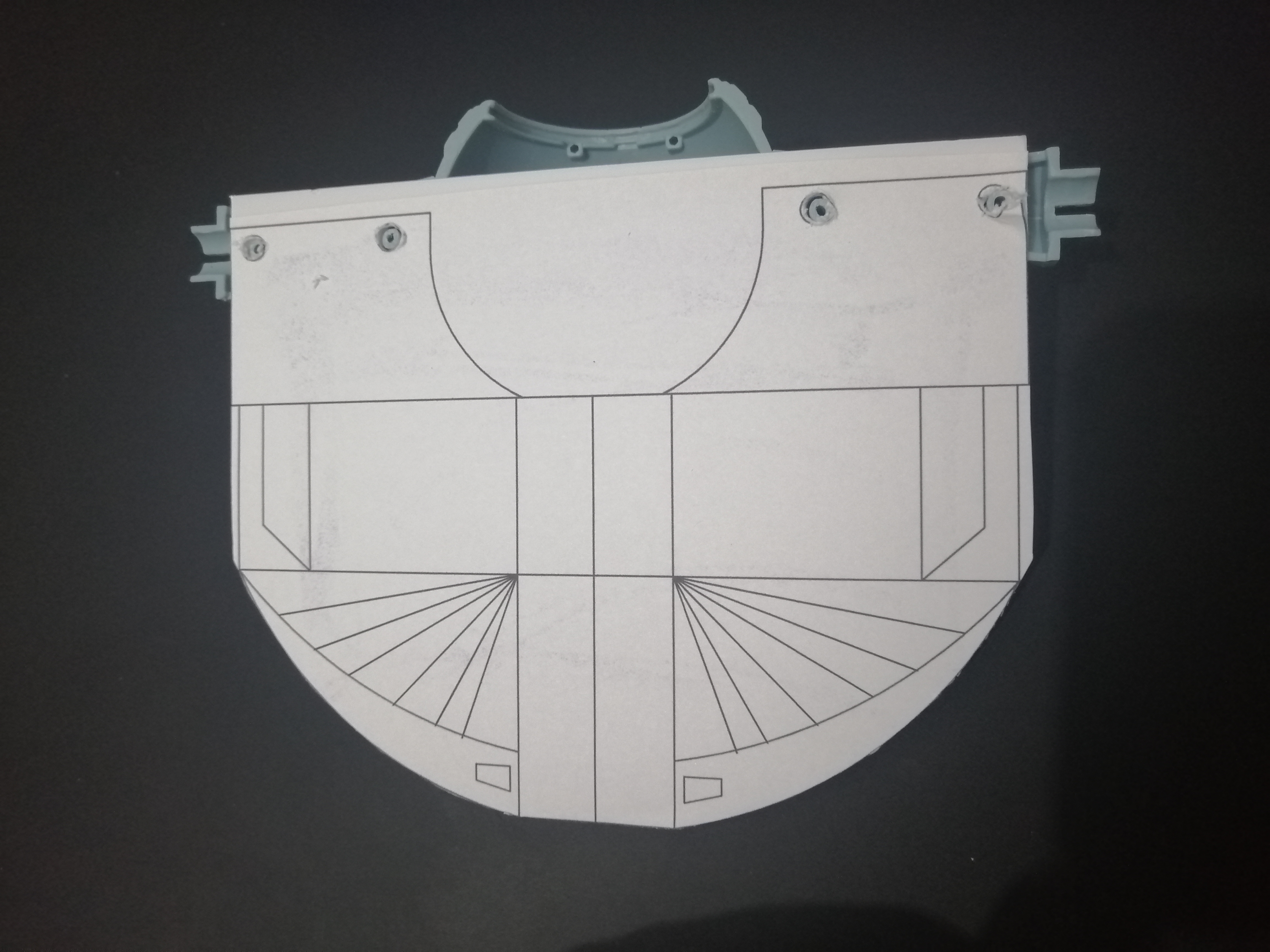

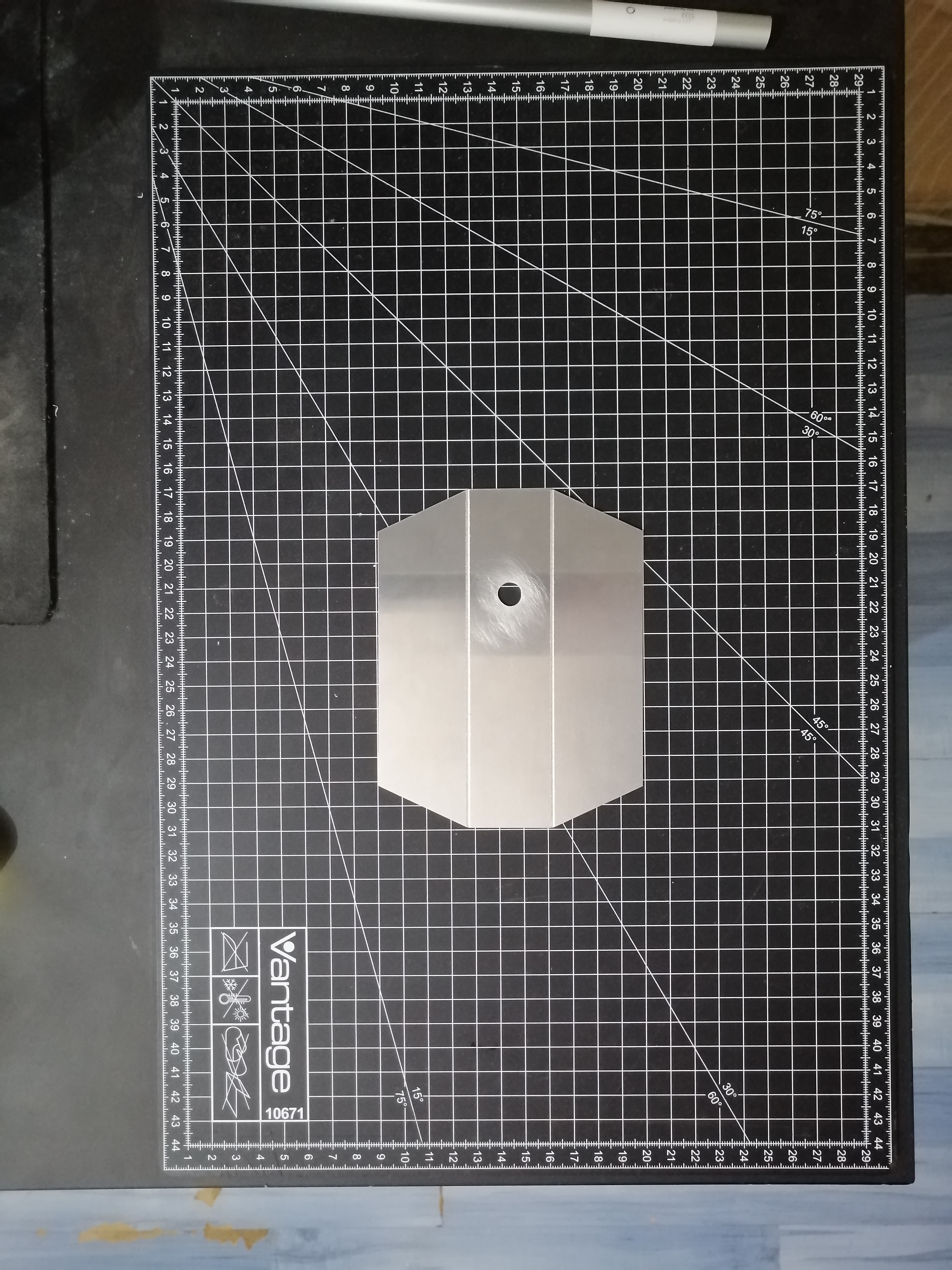

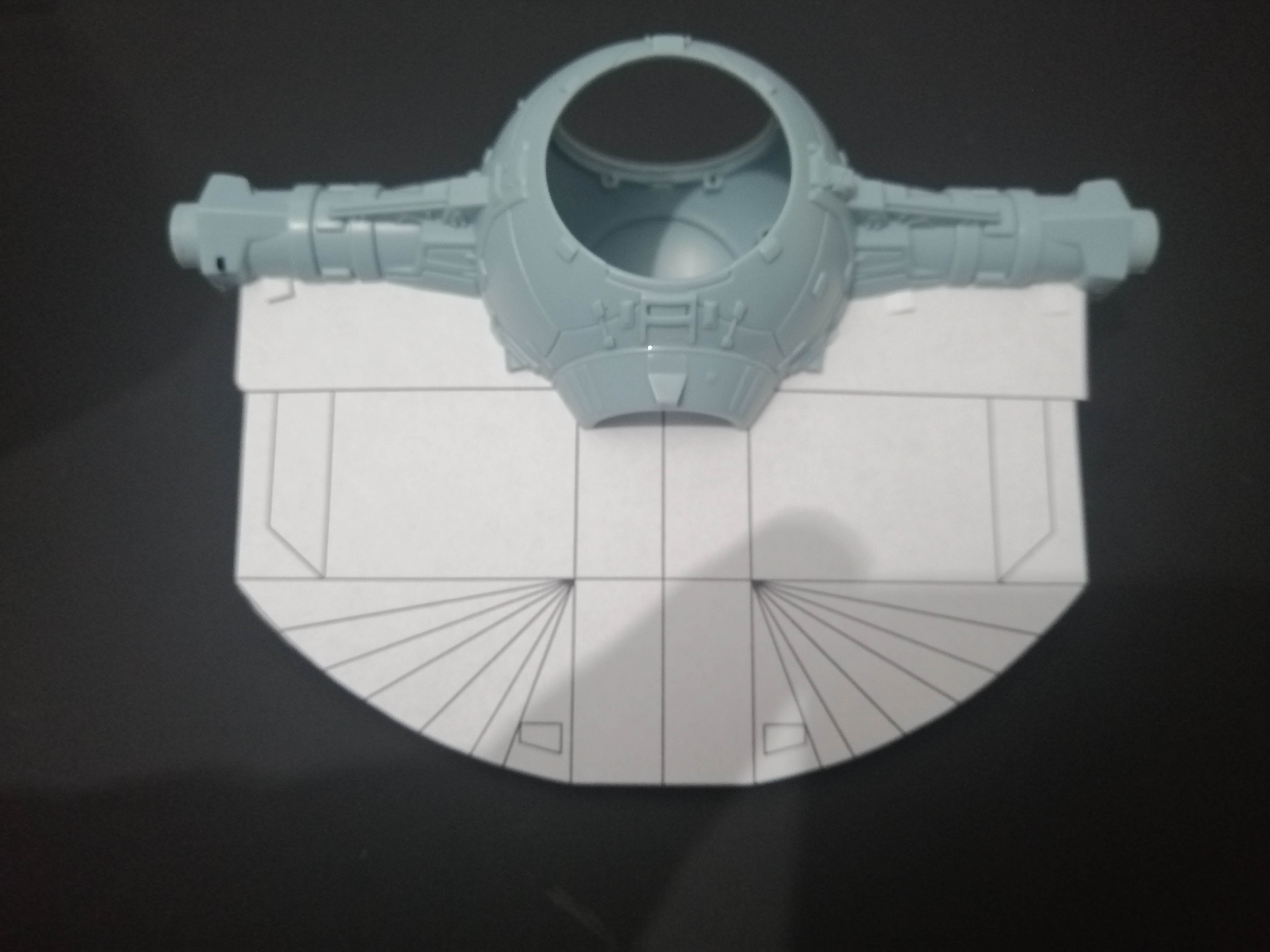

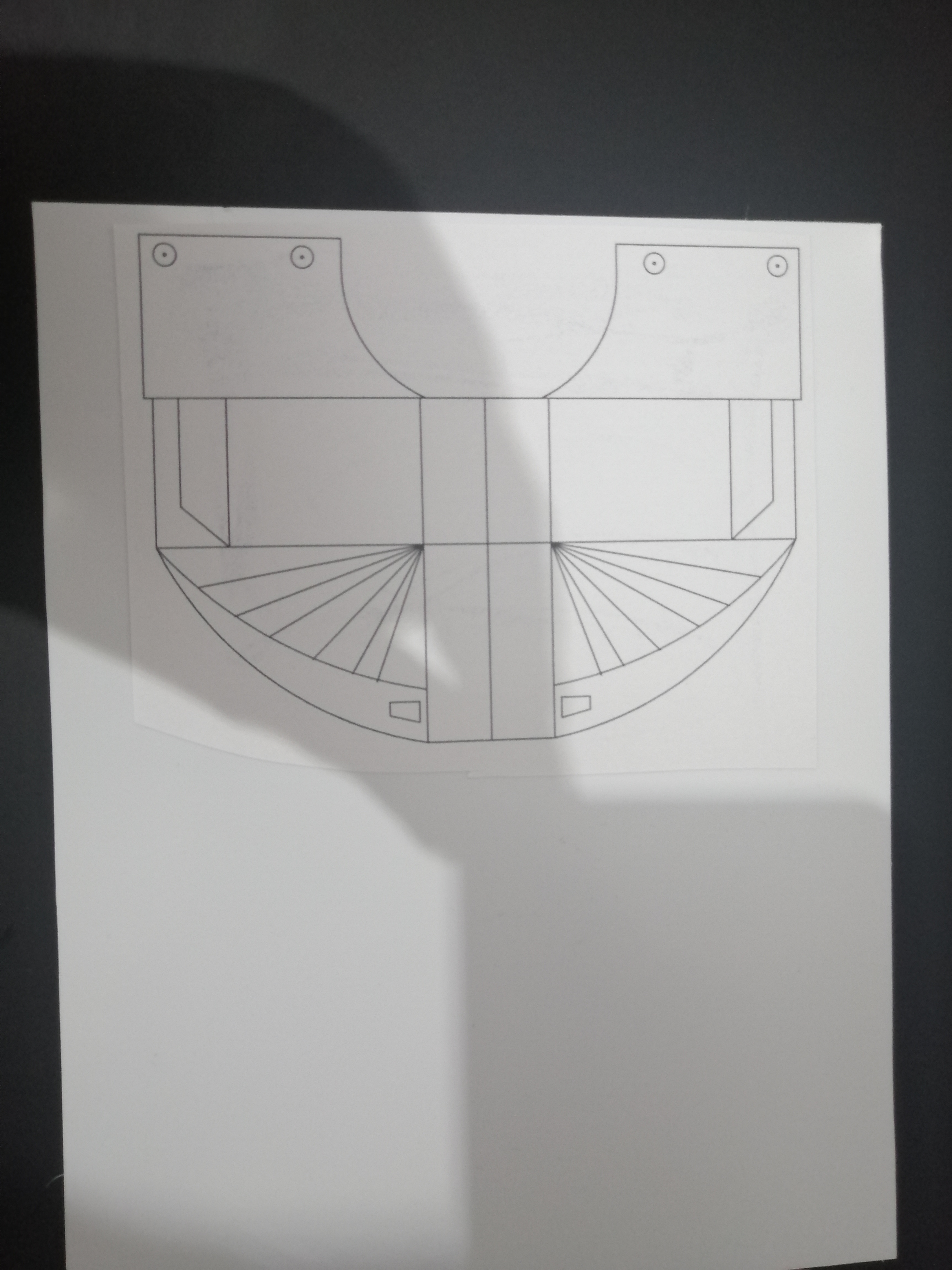

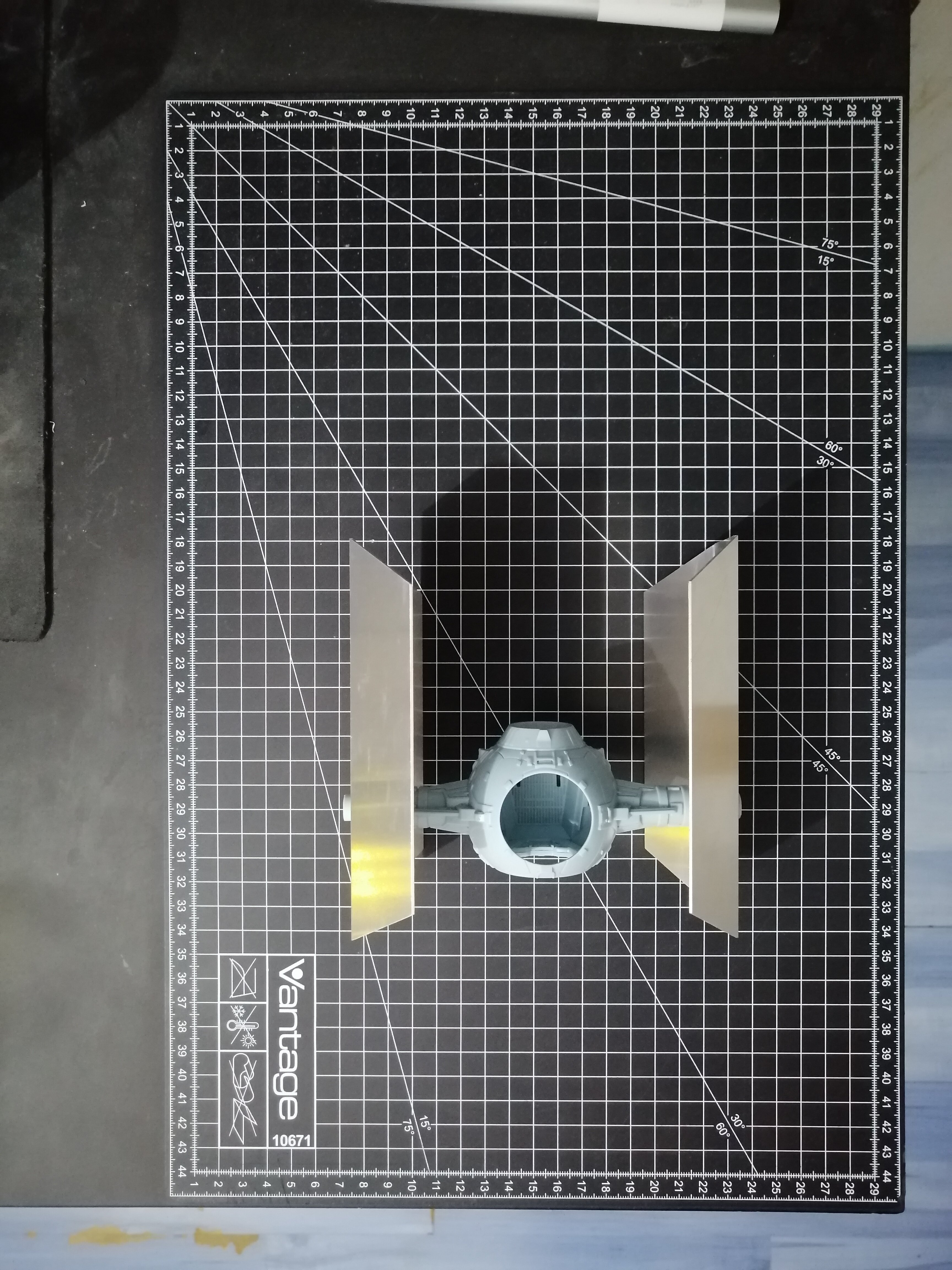

After measureing, research, and drawing, i cnc'ed the wings out of 1mm sheet, bend it and then it gets "skined" with .25mm black styrene

Wing bending

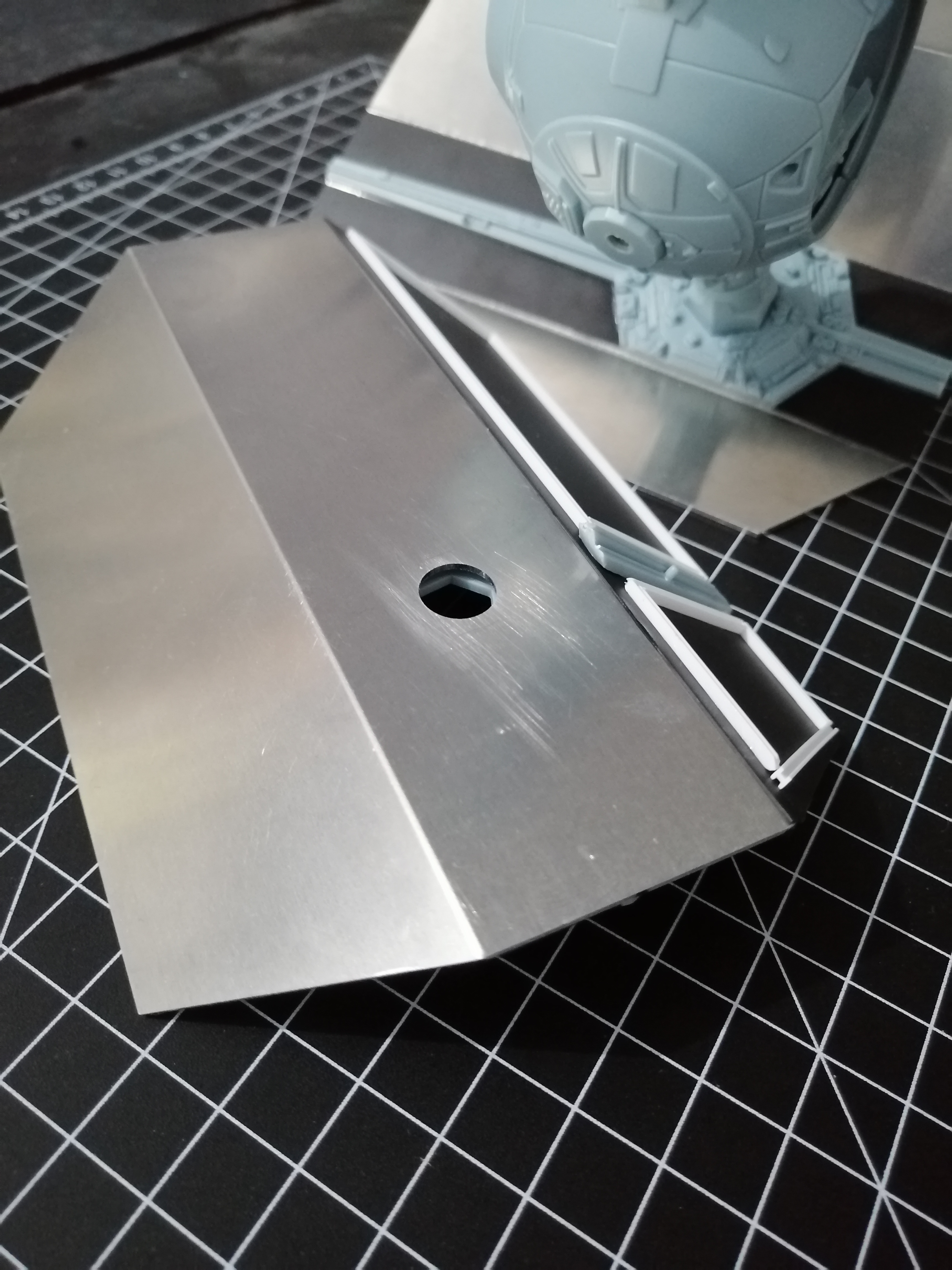

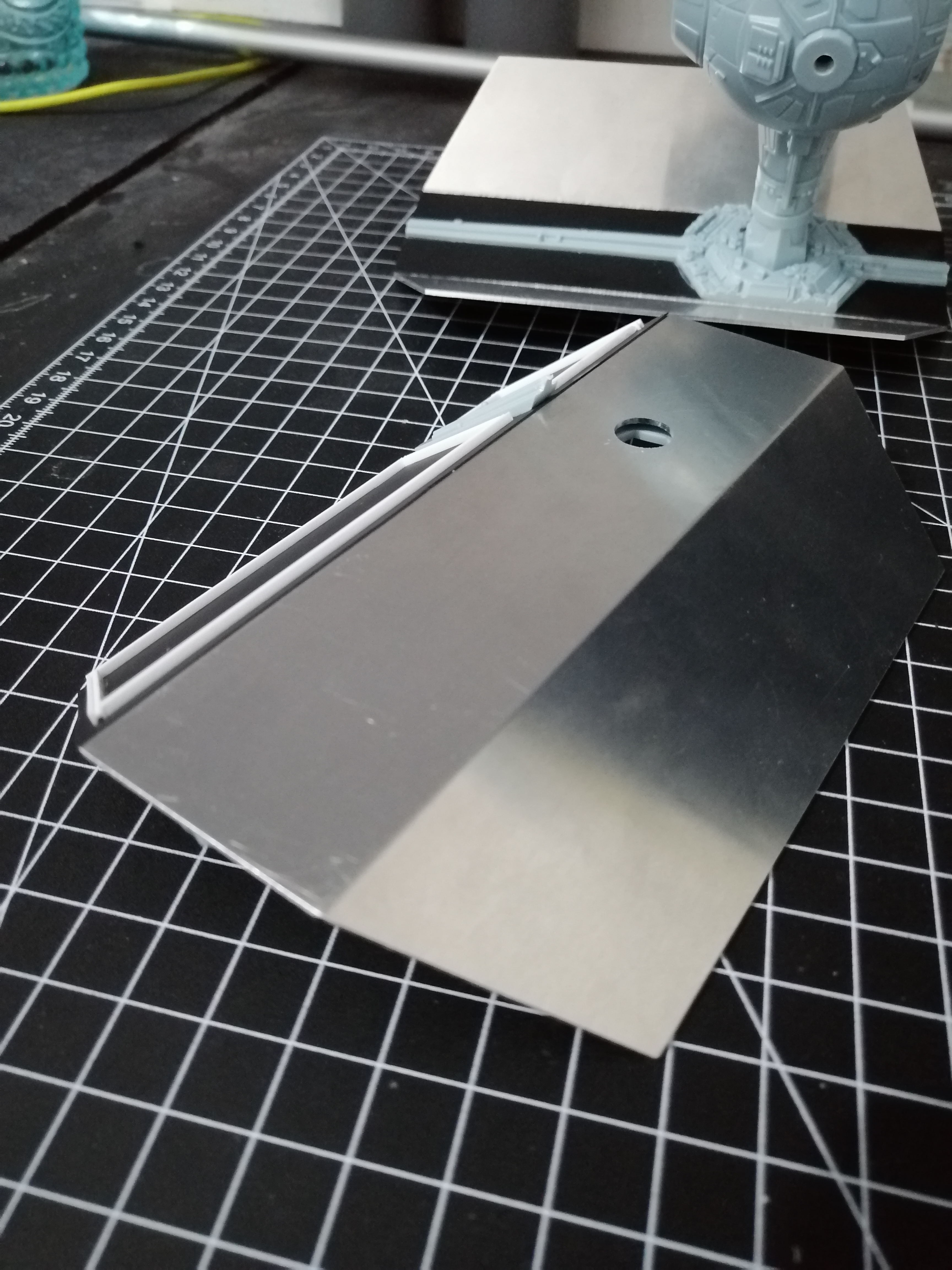

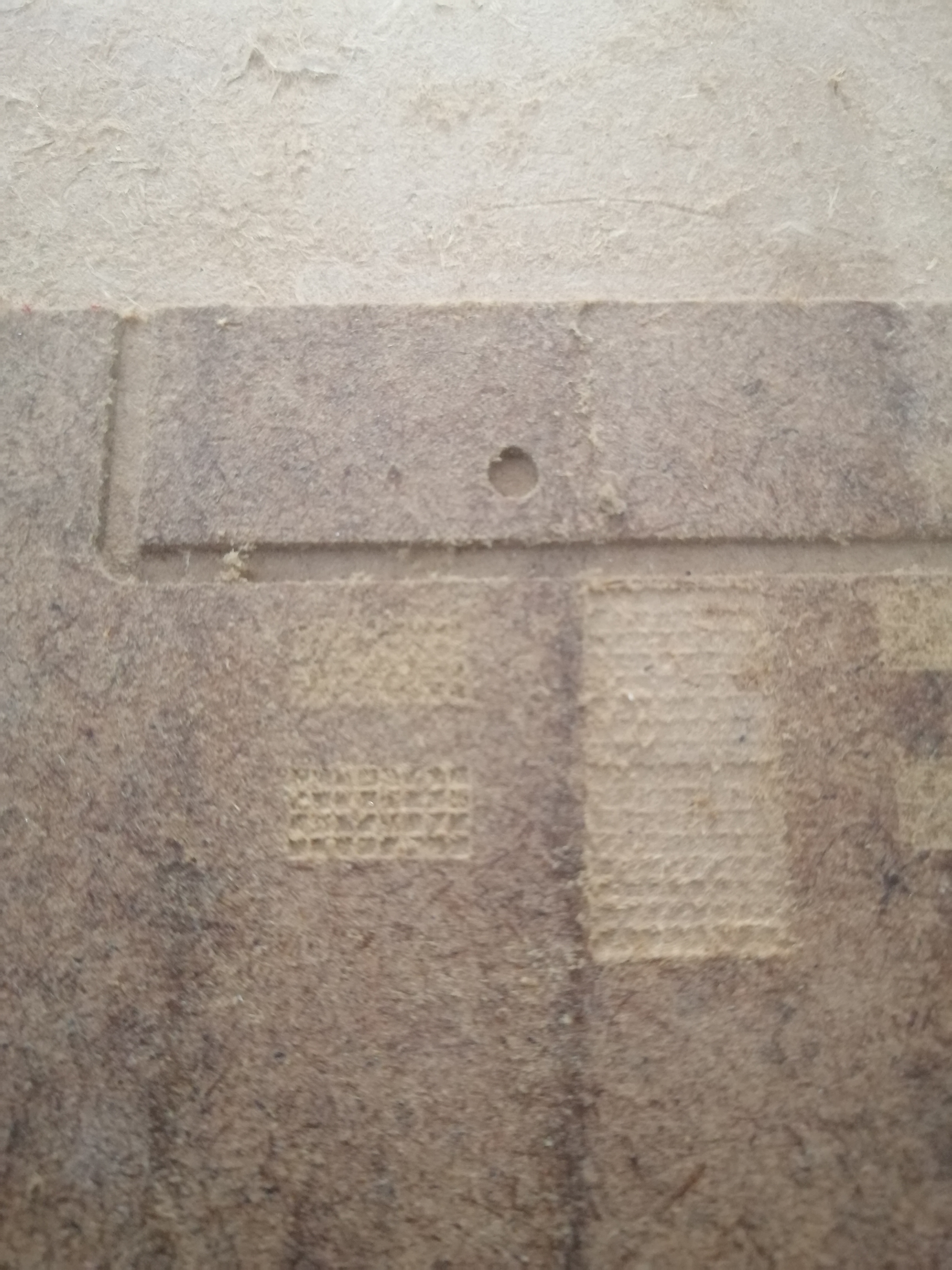

normaly bending sheet creates a round "corner" so i milled a gap along the bending line, so it creates a sharp edge on the outside

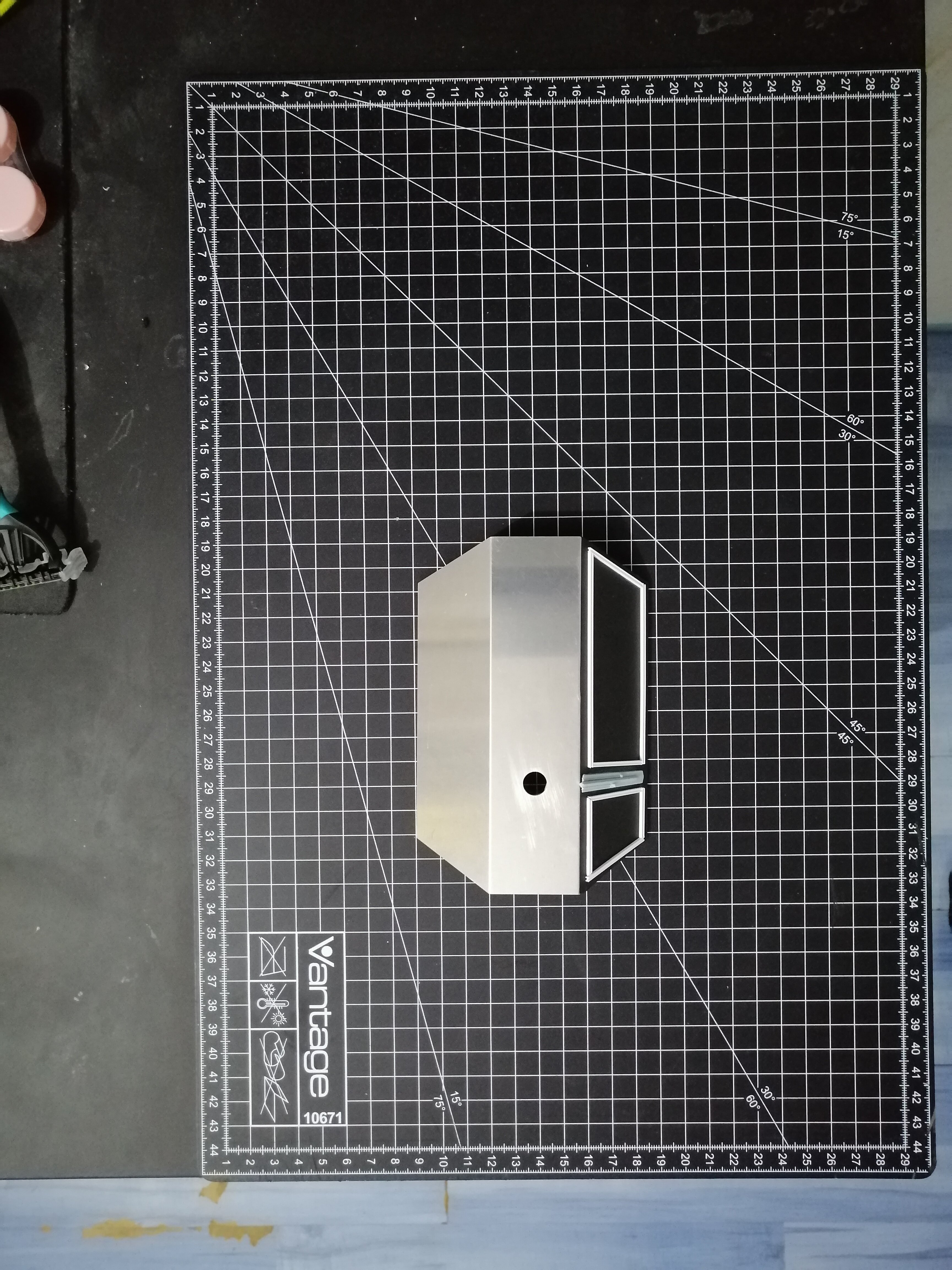

sharp edge 2.jpgsharp edge.jpgout.jpg
worth mentioning, when bend in perpendicular direction of the rolling surface, the curve gets bigger but is more "strong"
so when beding in direction of rolling, the bending curve is smaller but less "strong"
i tried it, the material used is very good and doesn't bend, i bought a more expensive/stronger one
if needed, i thoughed of welding the inside corners or at least fill it up with some jb weld, but its not needed

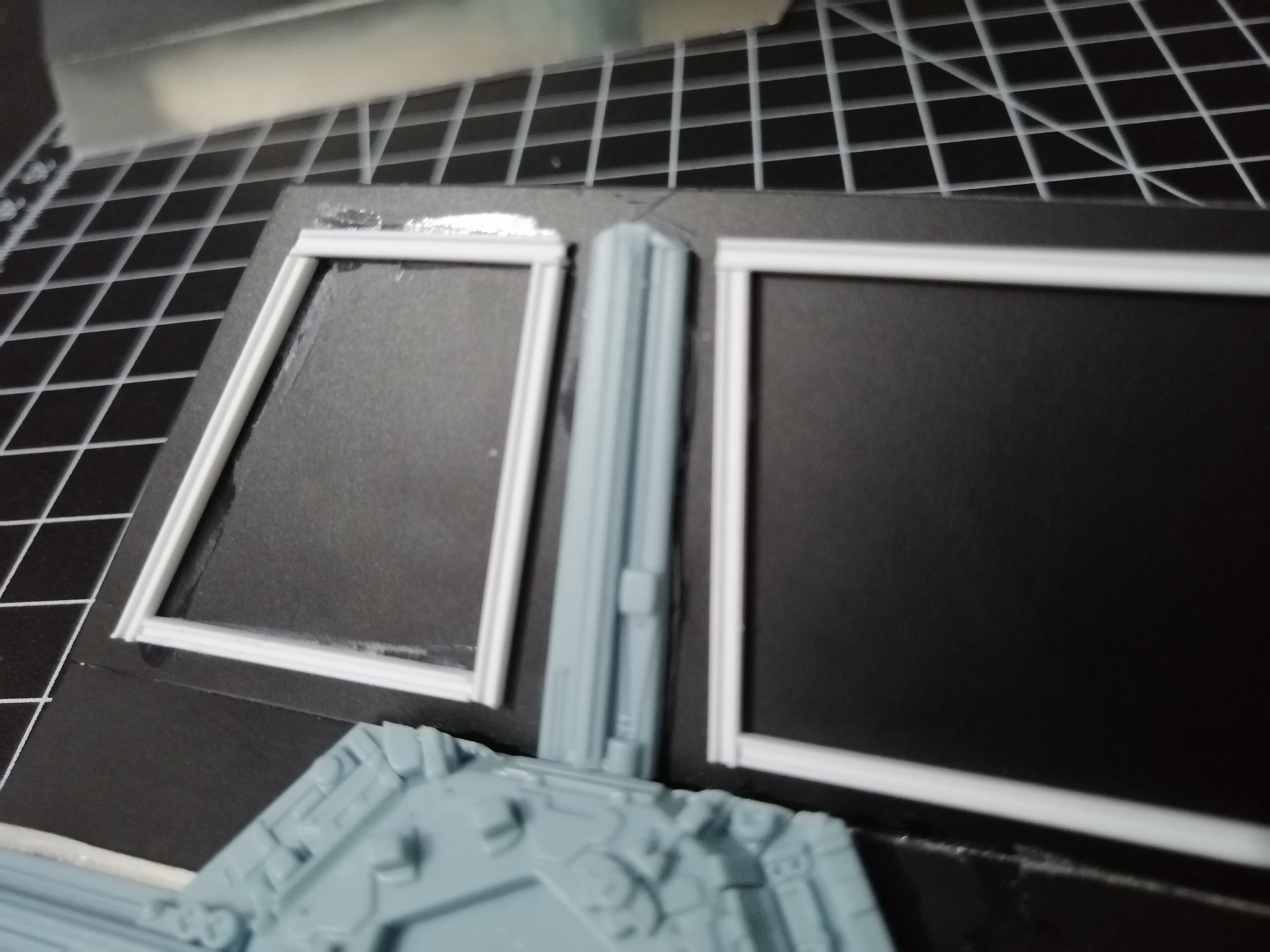

The styrene is glued on with super glue, then all other parts can be simply glued on with regular model glue

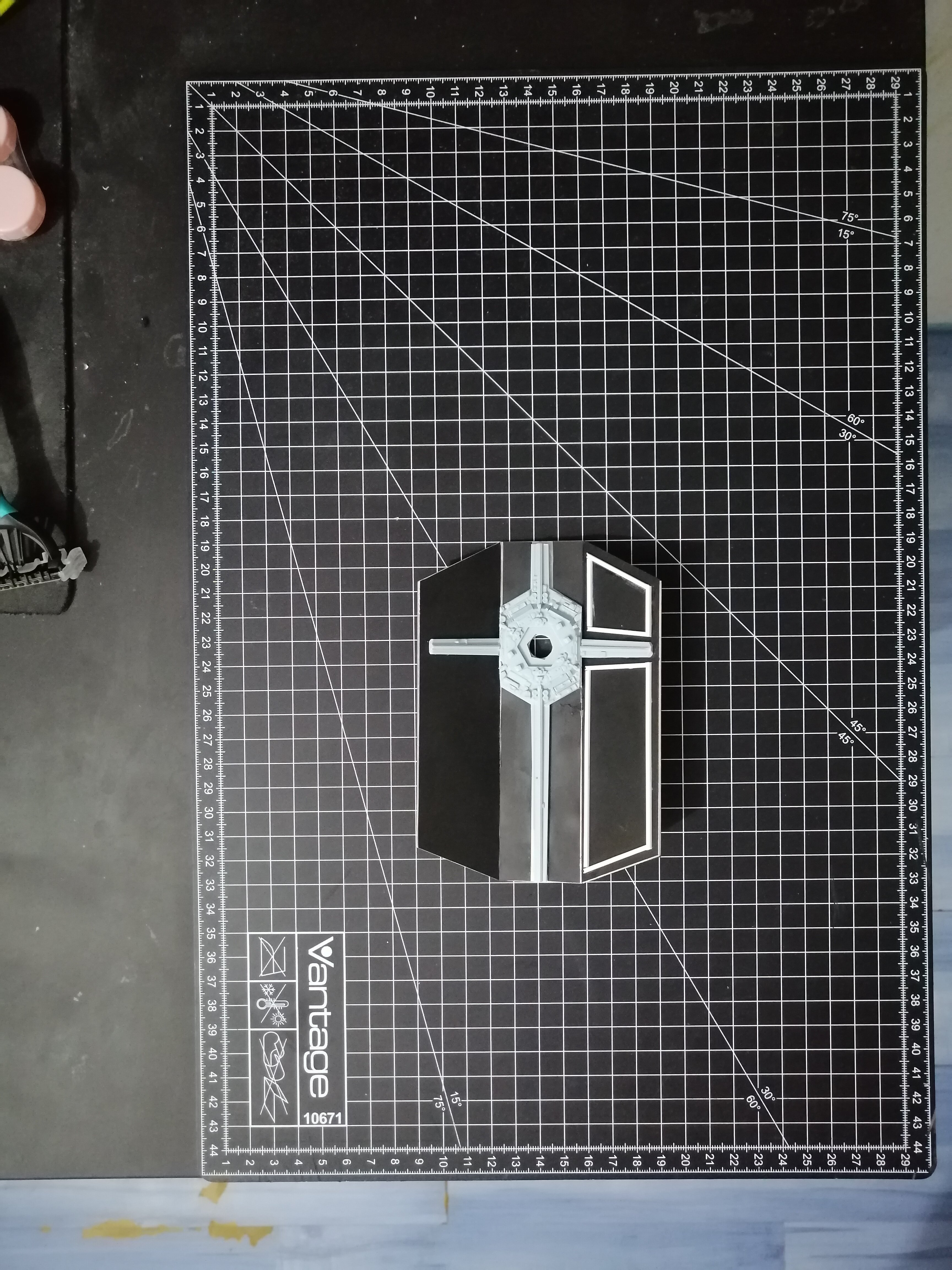

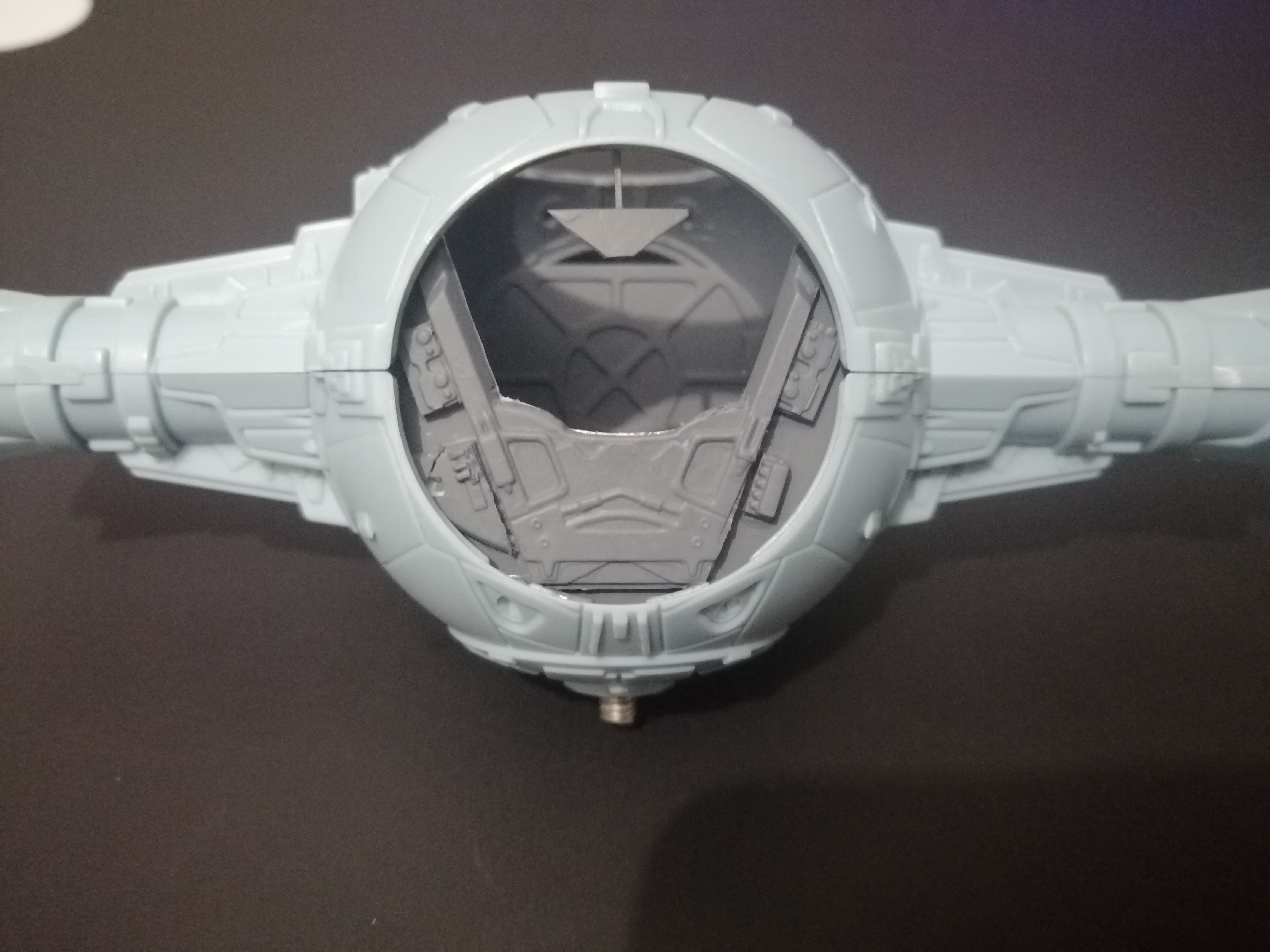

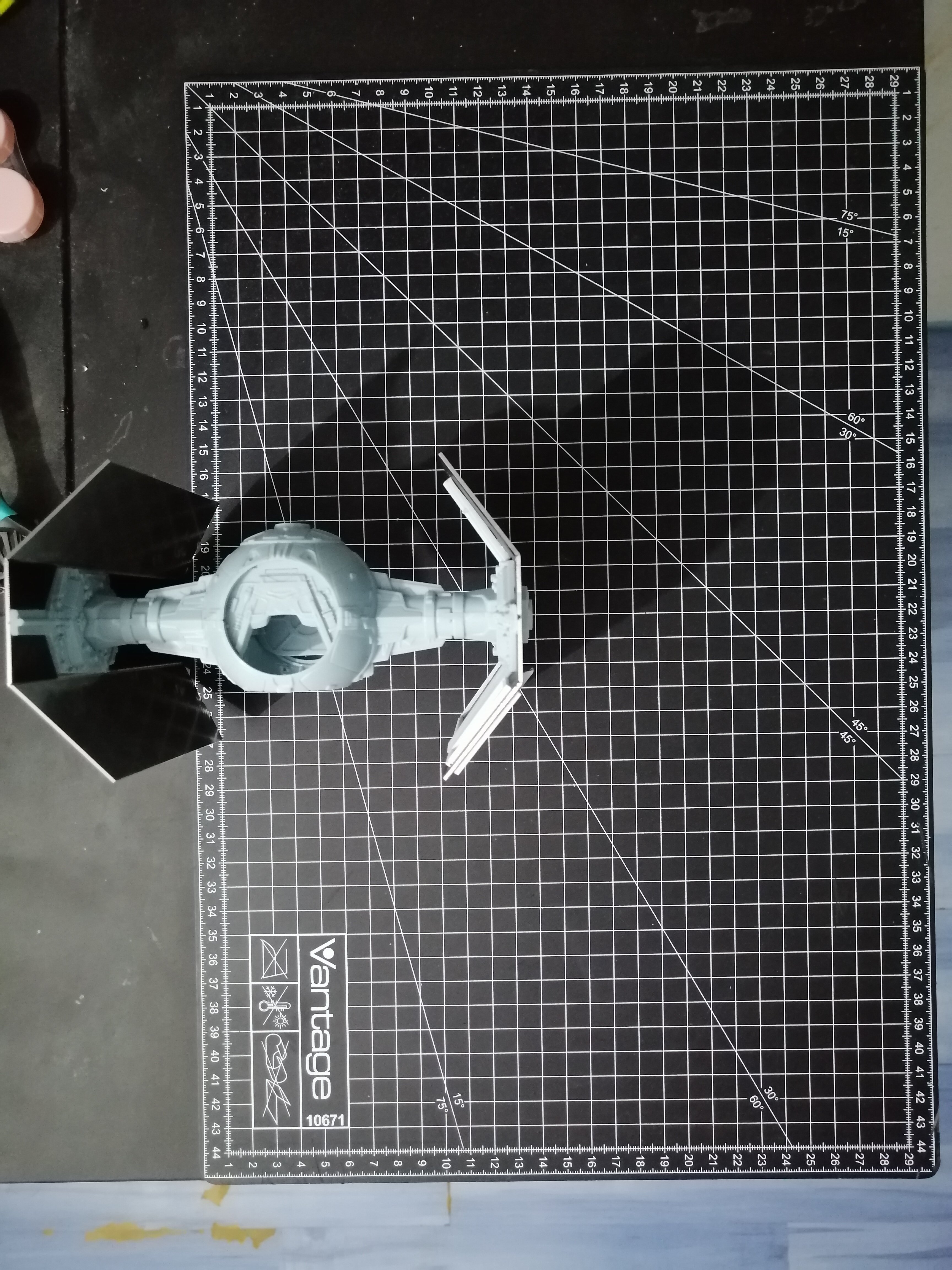

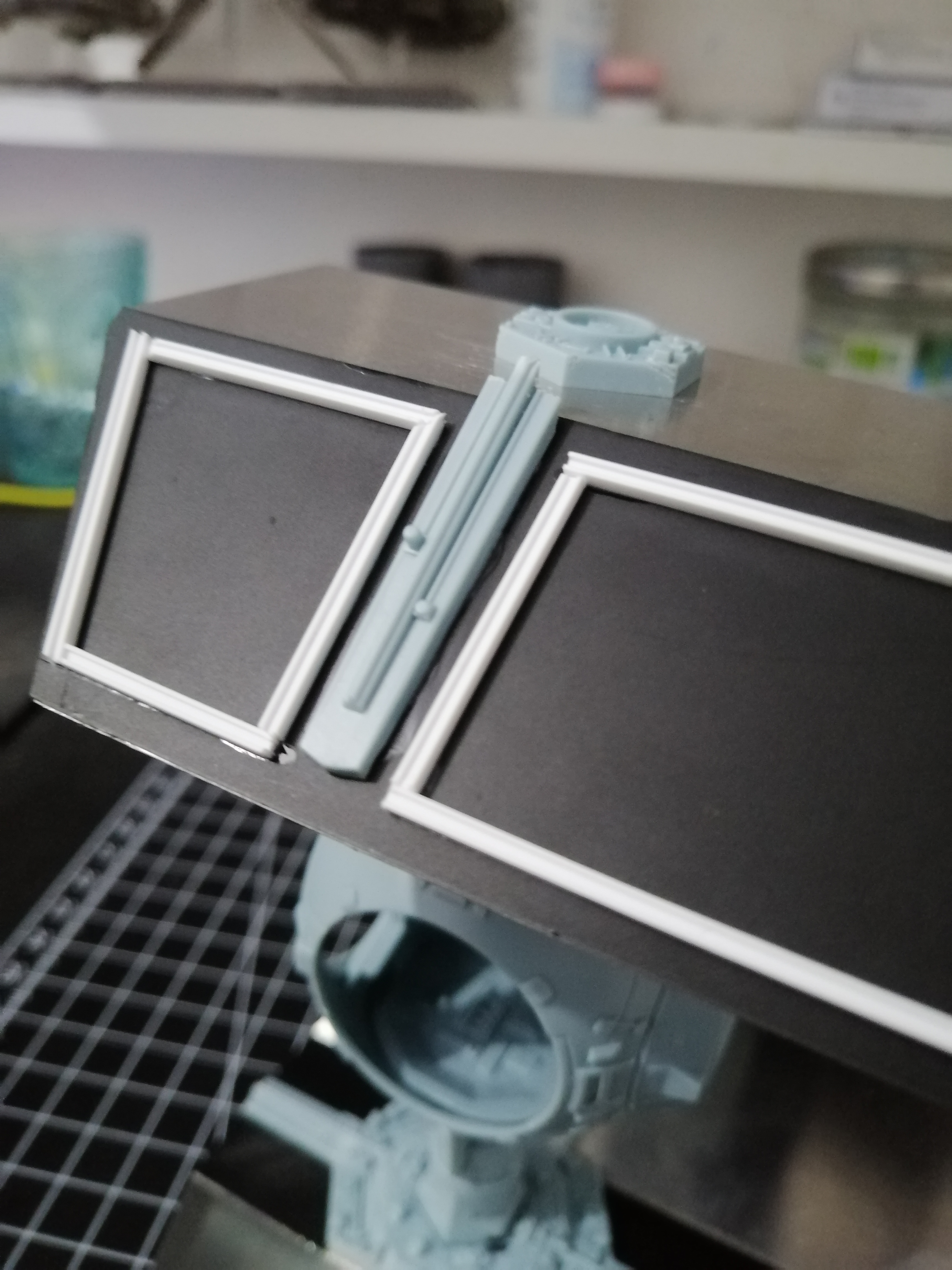

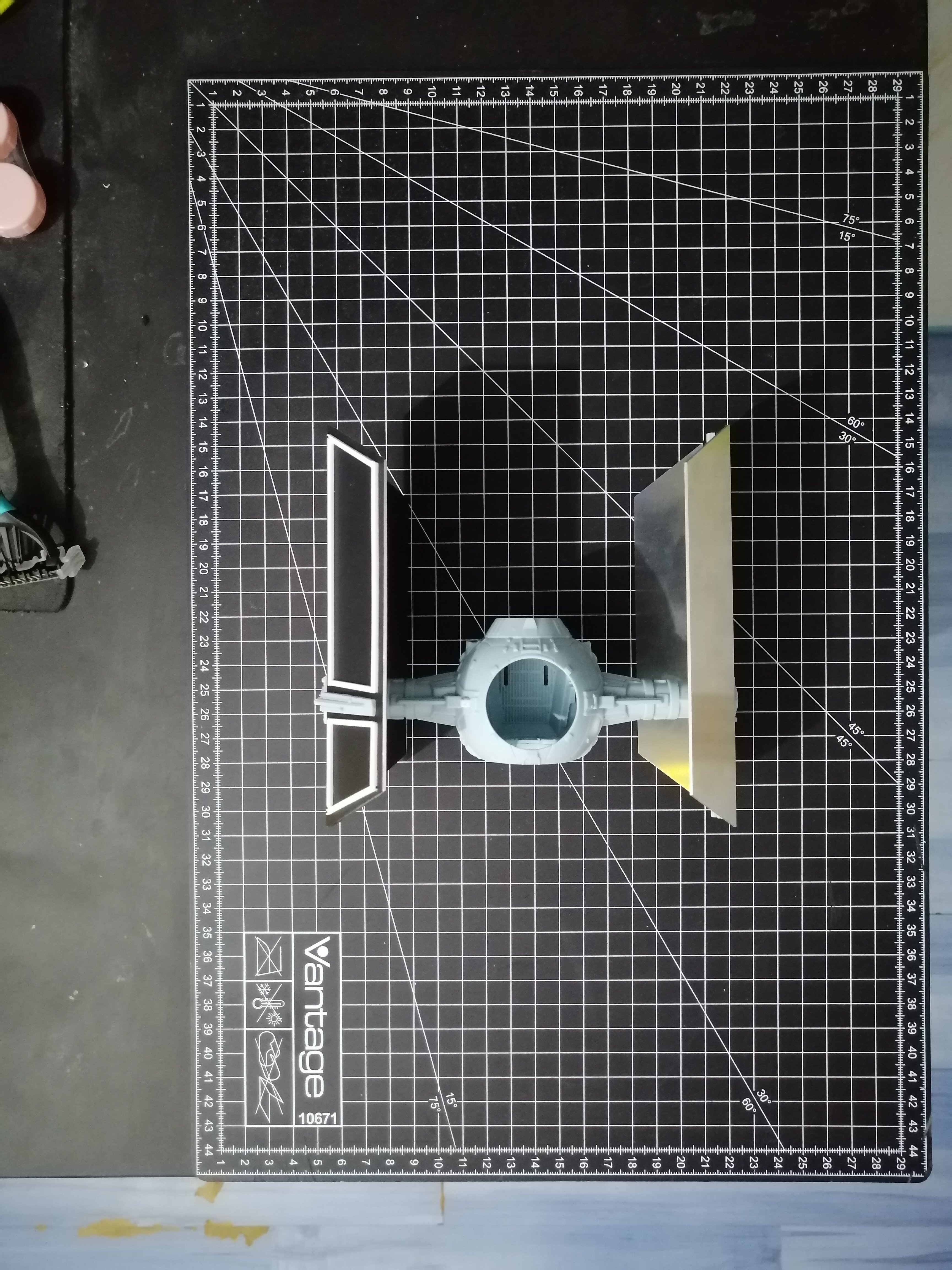

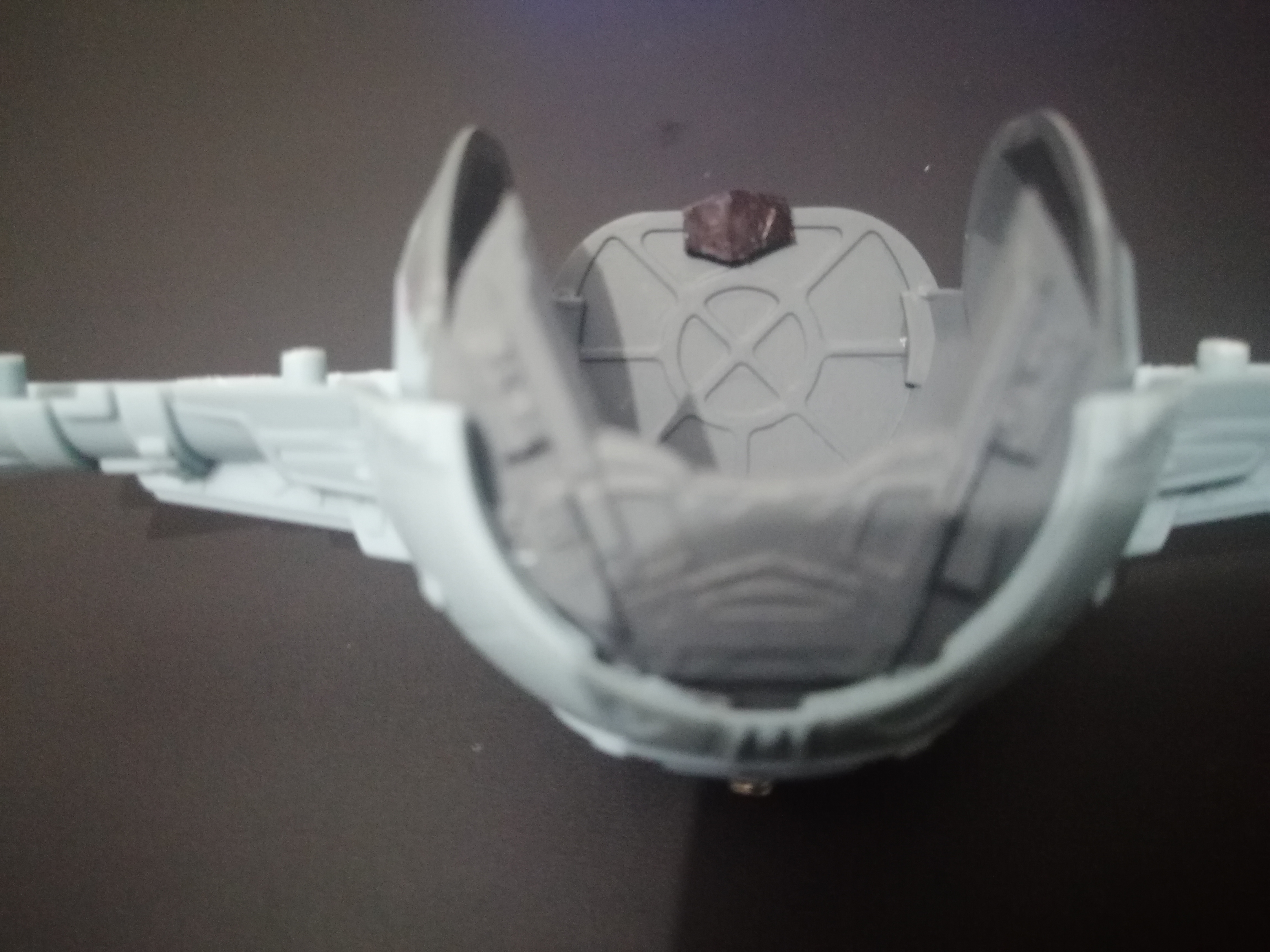

in.jpgin detail.jpgon.jpgout detail.jpg14.jpg13.jpg

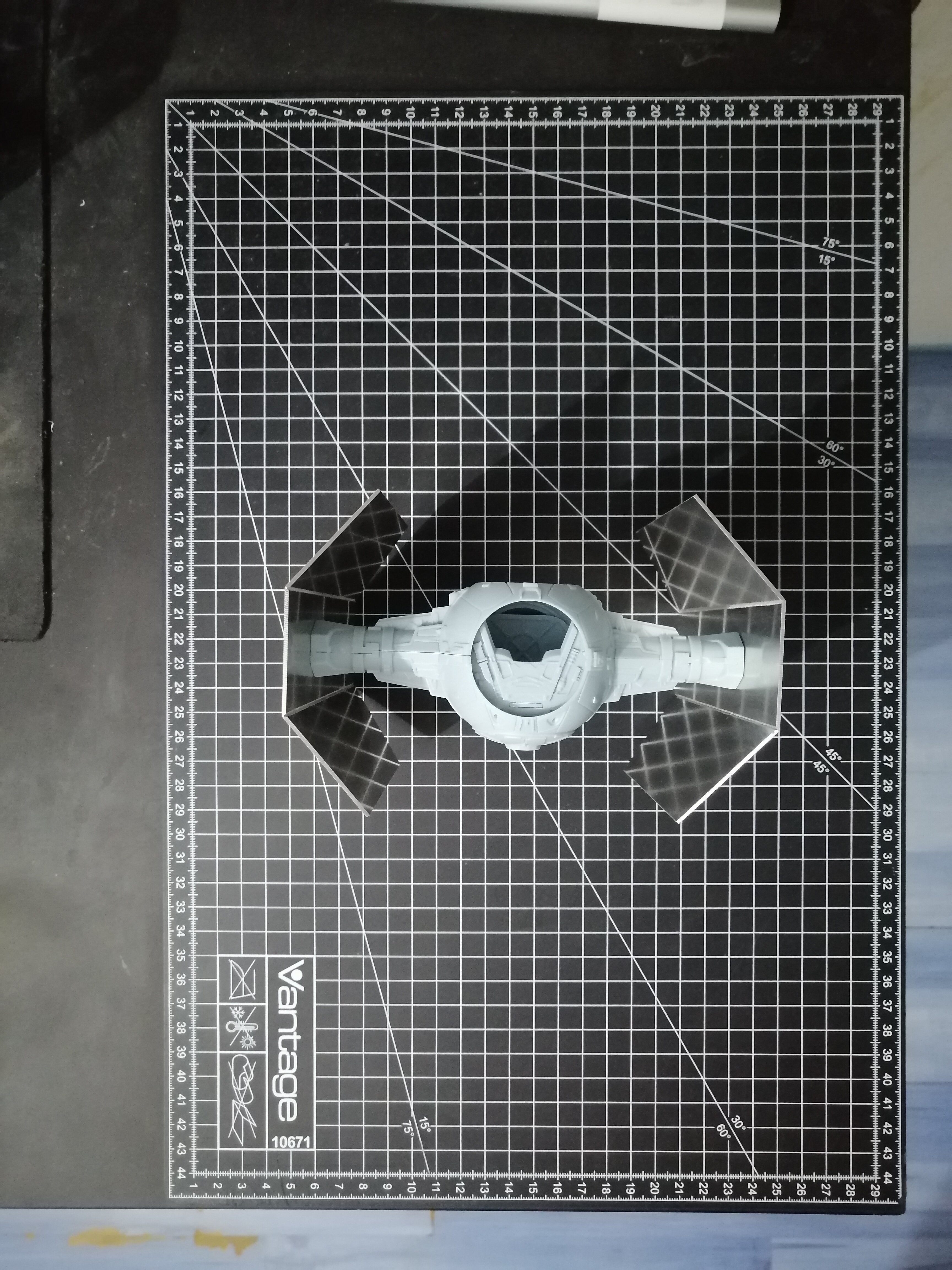

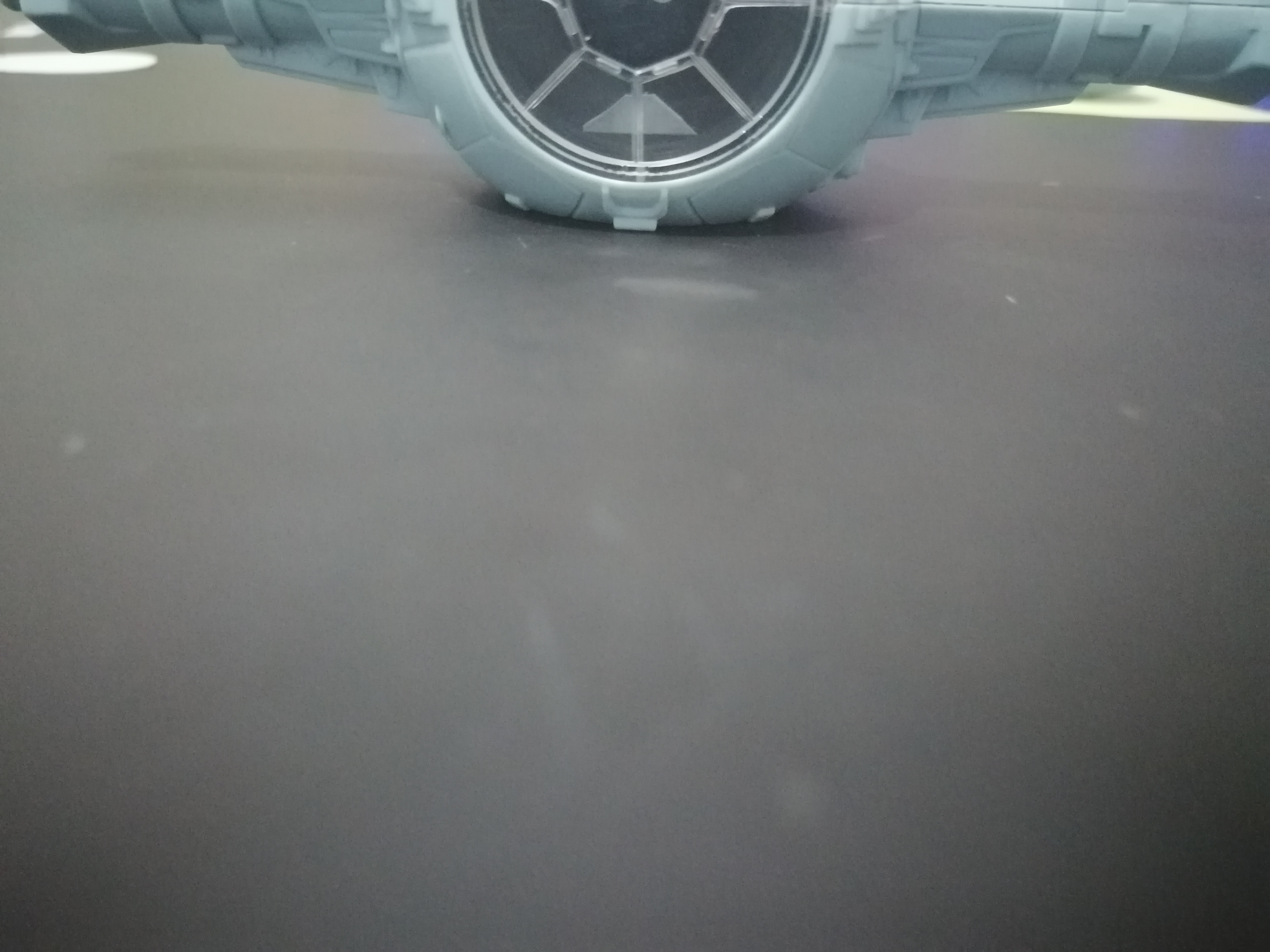

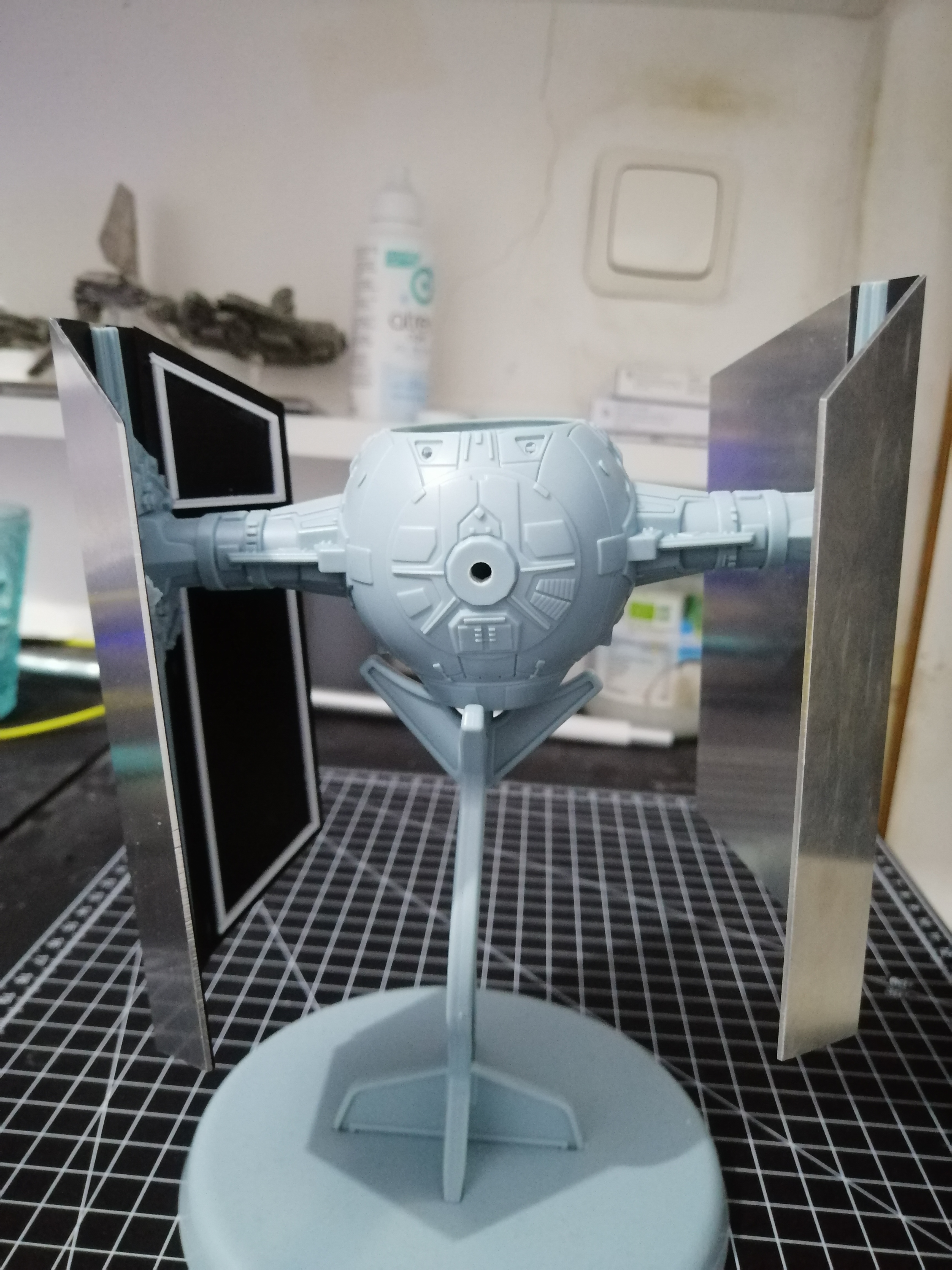

when trying to put it on the included stand, because of the weight of the wings it always drops/turns into this position

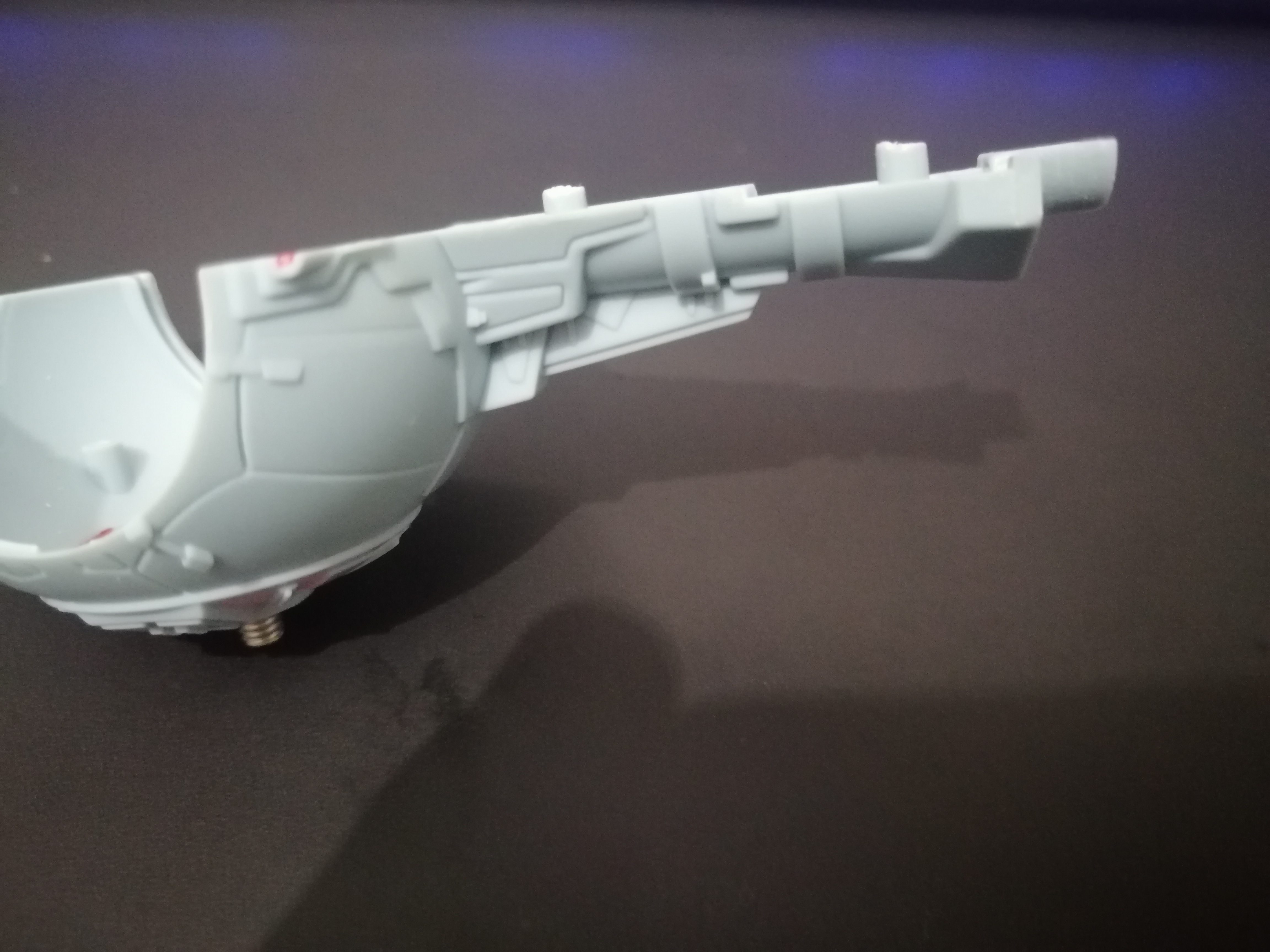

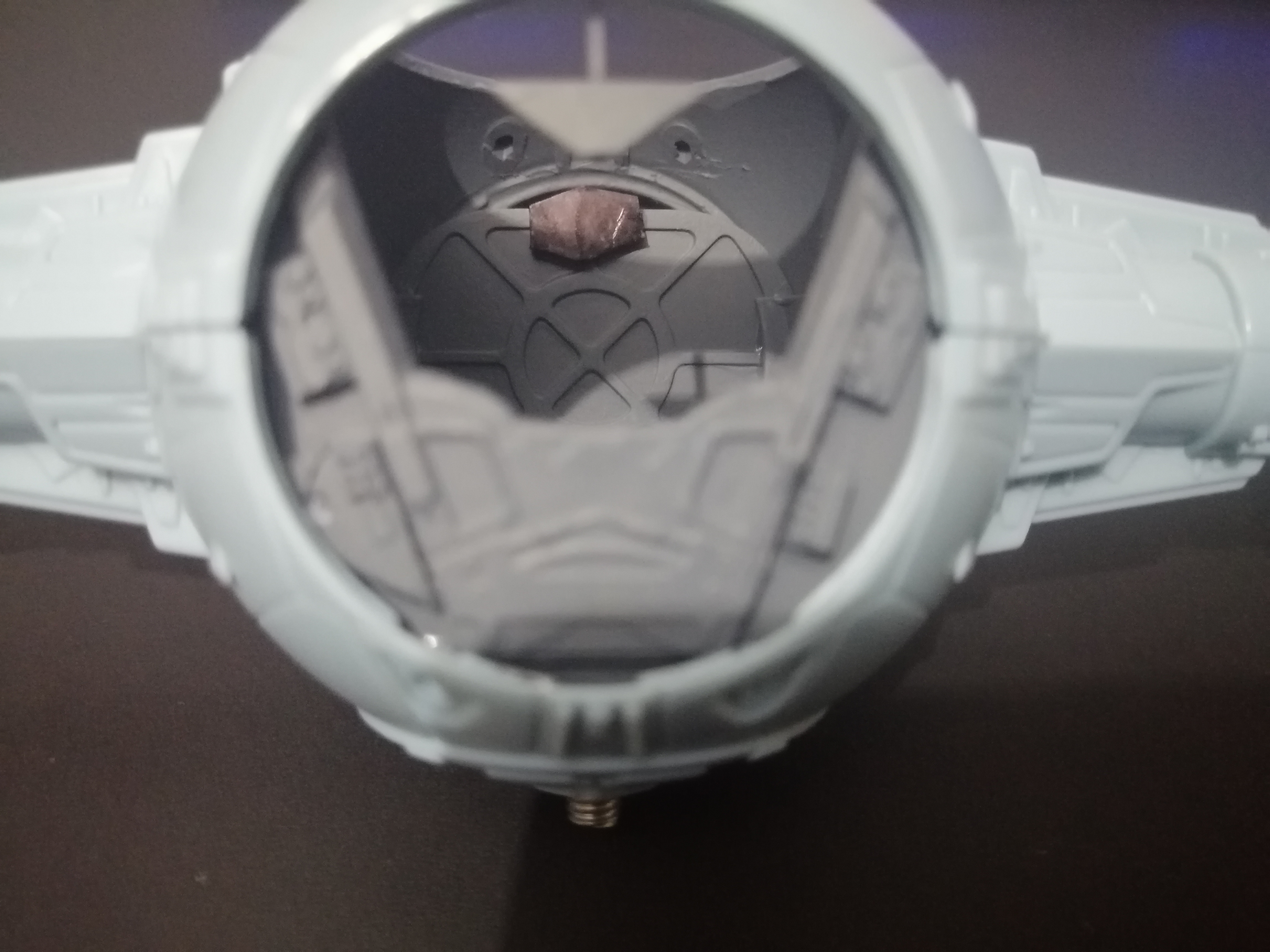

so i cut M4 thread into the hole, wich fits nicely, i ordered some M4 tubes, where they will later stand on
stand by me.jpg

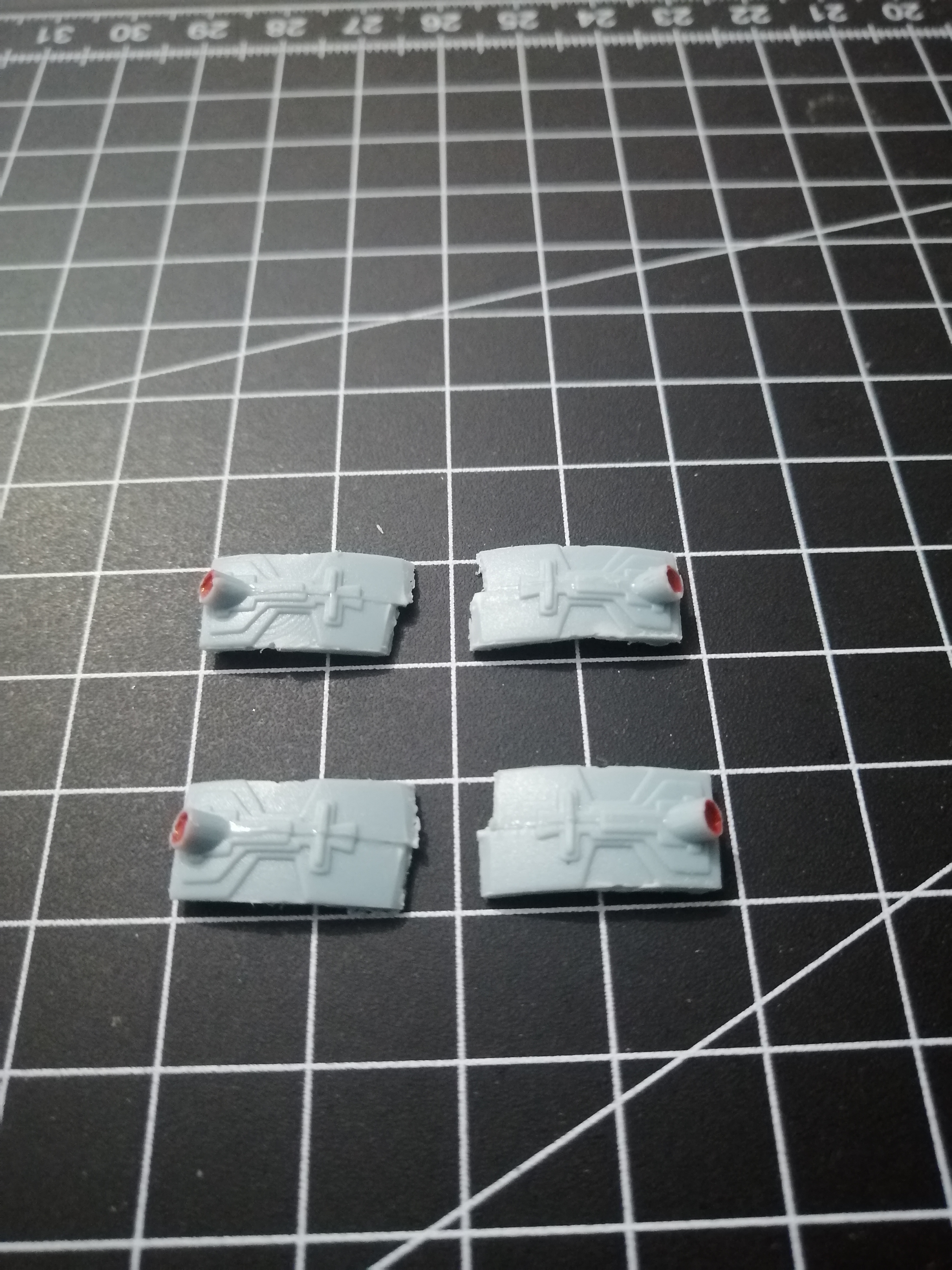

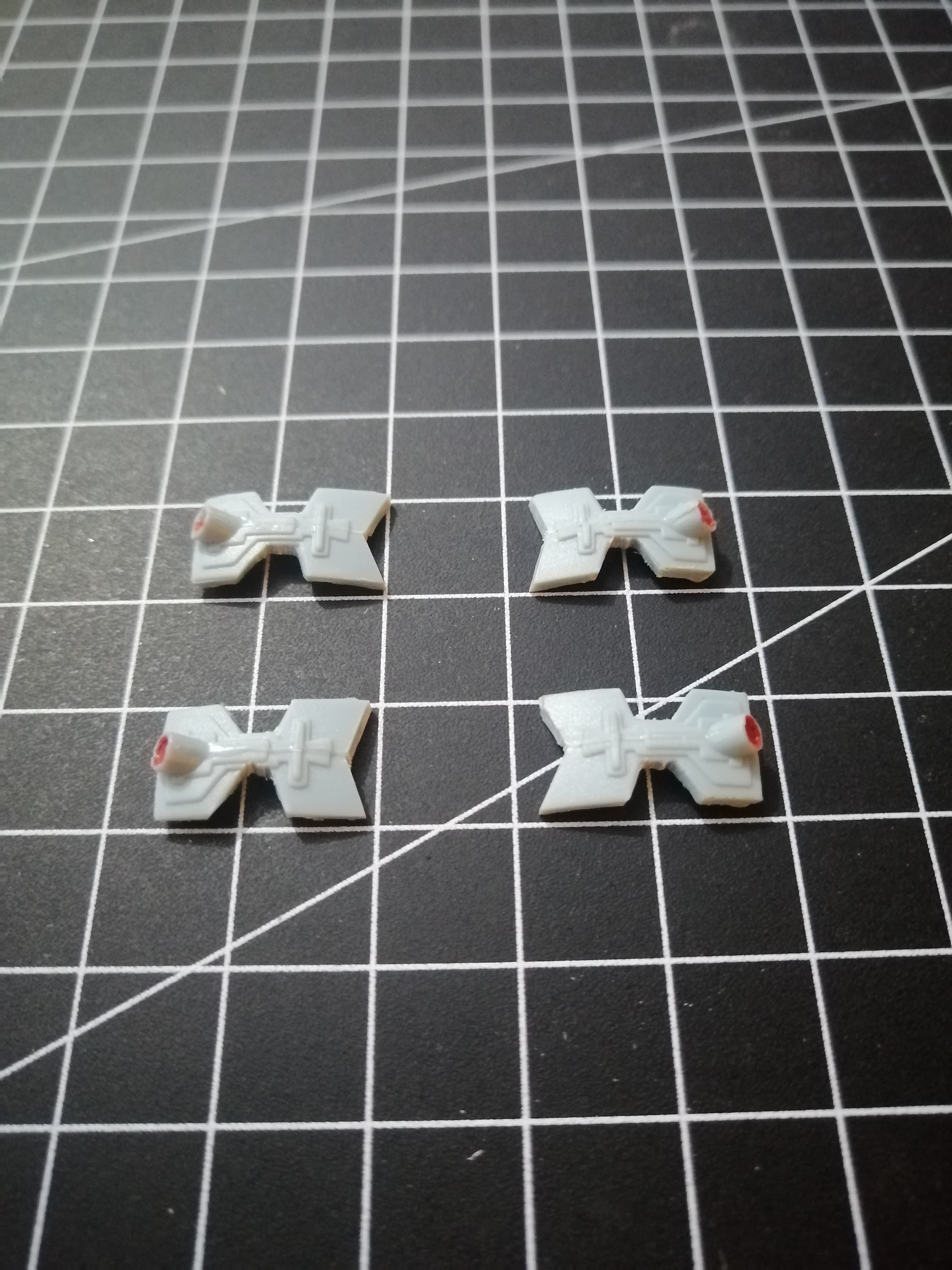

out of the Outland fuselage the Ion engines are cut out roughly and then cut into shape
eng 2.jpgeng 1.jpg

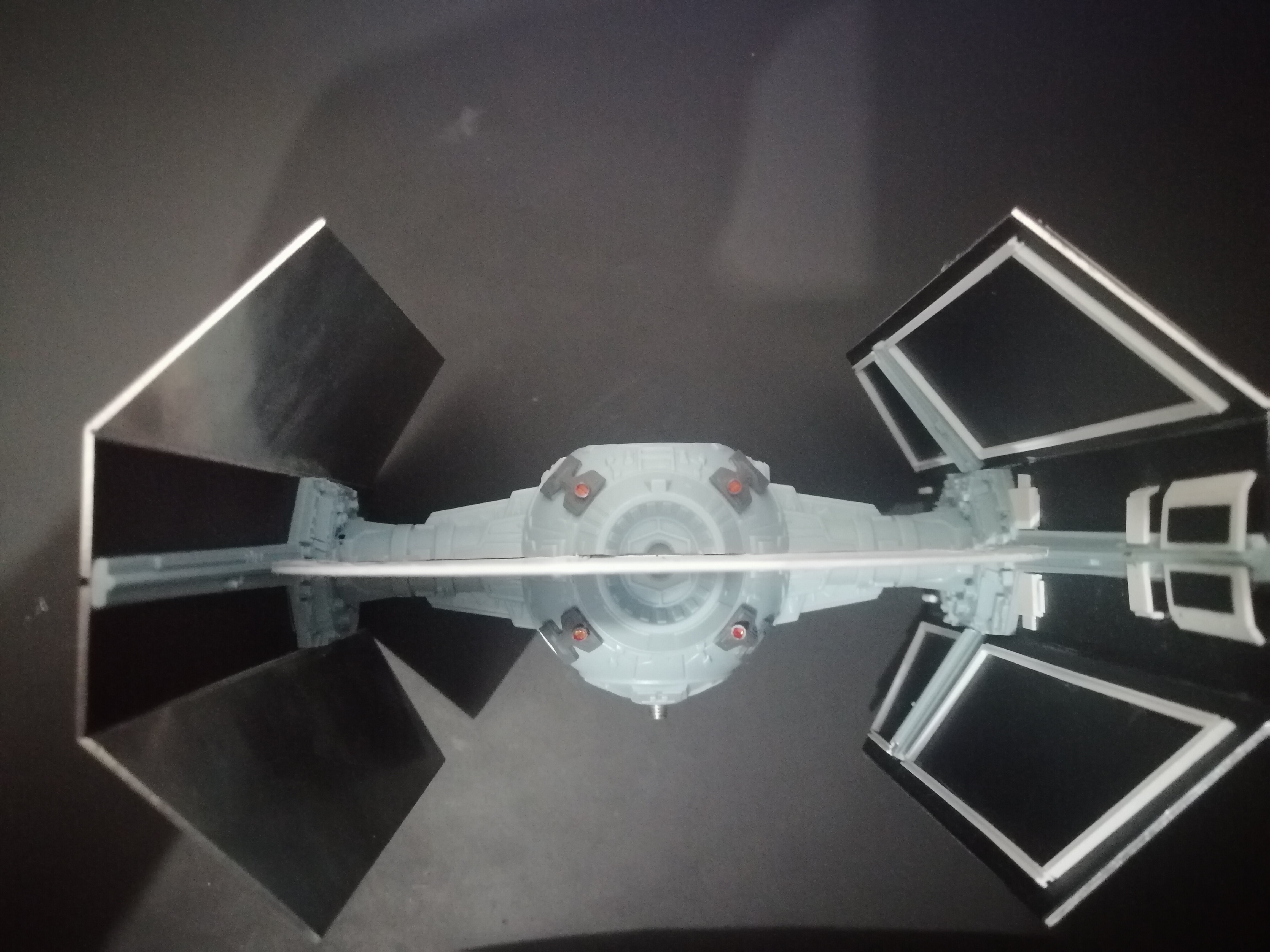

i'm realy happy, how it turned out, for that small scale it looks very good

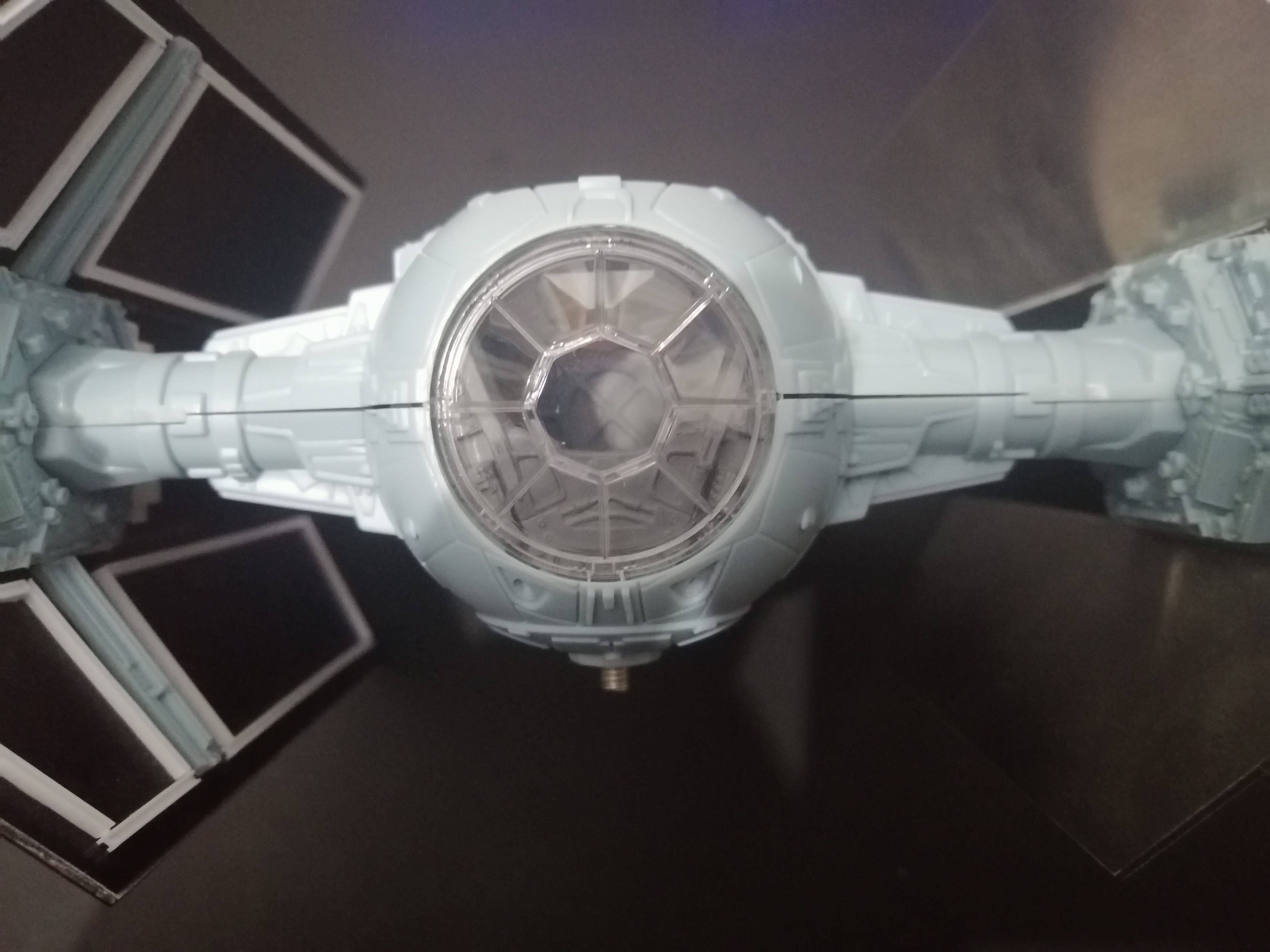

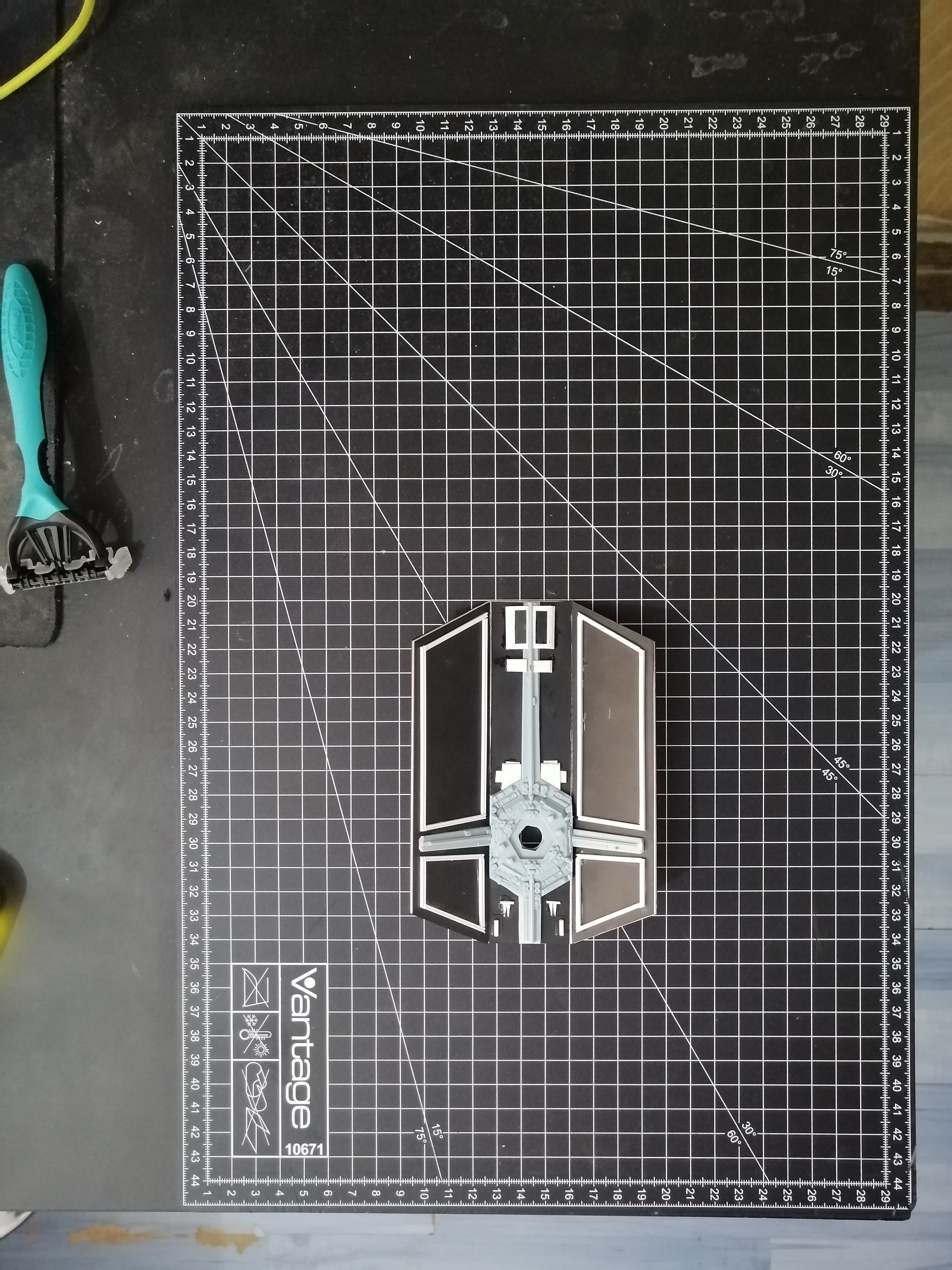

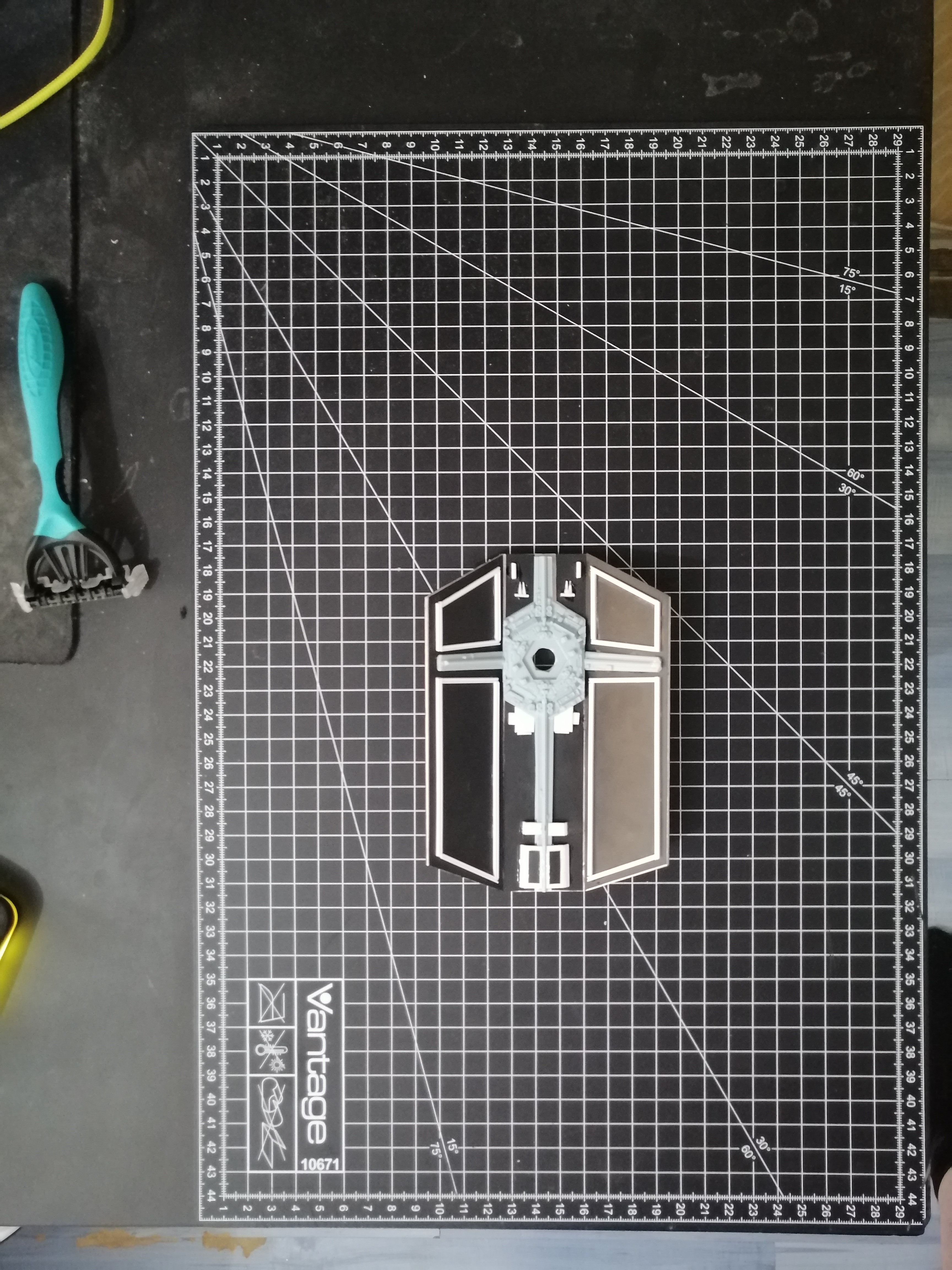

finish in.jpgIMG_20240528_085102.jpg

Noteable things
* less glue, makes less scrawled/clogged/blurred traces here and there, don't know if this will be seen after painting
* the super glue, there is only one second, the precisely cut styrene sheets, when not perfect aligned, ther will be gaps,
so for the future, rather cut them a little bigger and then after glueing remove overhang material
* plastruct and evergreen are not compatible, plastruct "H" profiles are 1.6mm, evergreen "H" profiles are 1.5mm
* did not expect that i need around 15 "H" profiles for two wings
* i'm glad that i took black styrene as base, so i have a very good contrast of what i'm doing, white on white is hard to see
* i used 1.6mm "H" profiles, the "U" ones would have been a little flatter with only 1.1mm height

to do list
* order more material - done

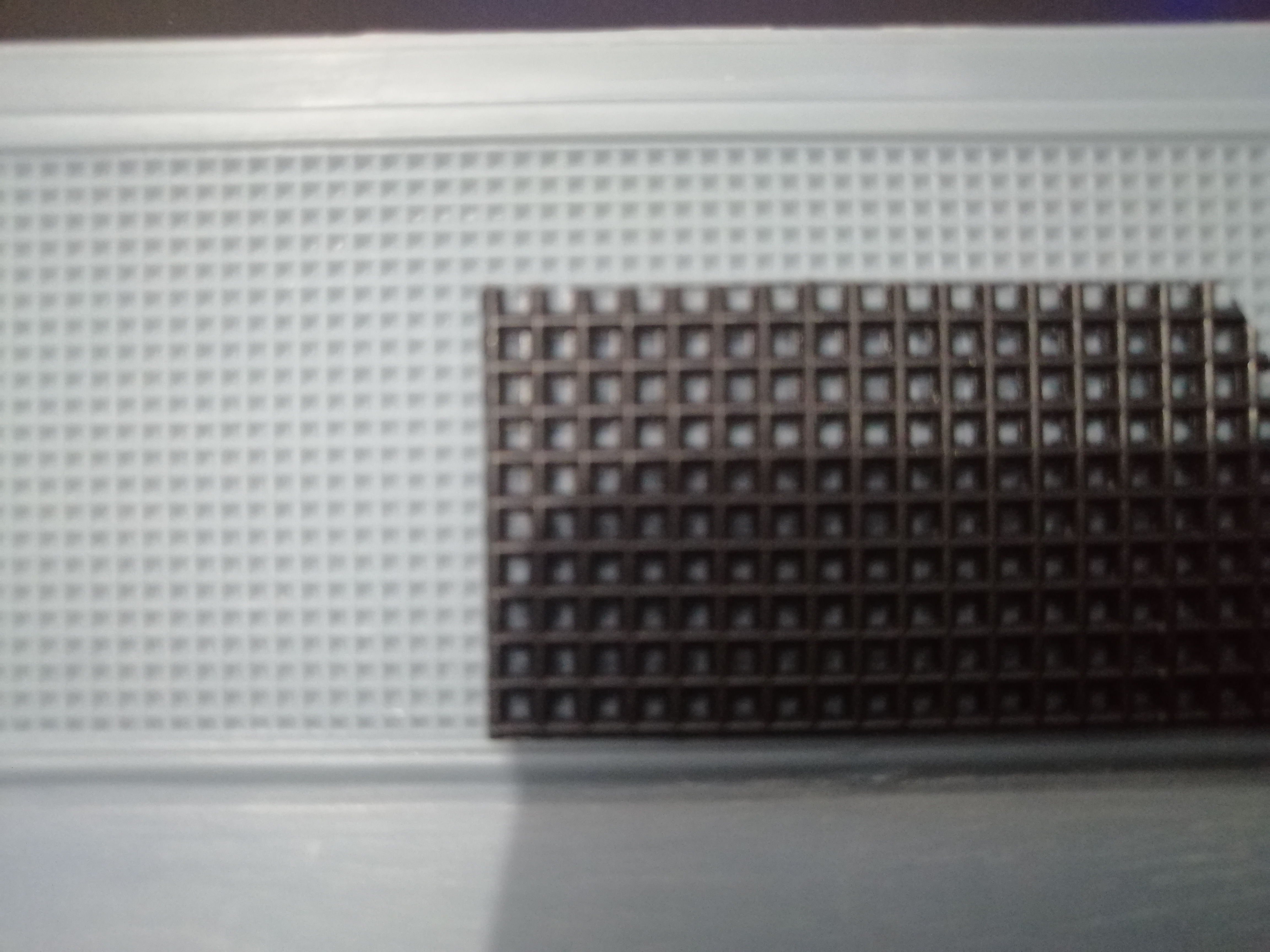

* i'm 90% sure i will machine the solar plates, its simplier than casting 1mm "thick" negatives
* finish wings

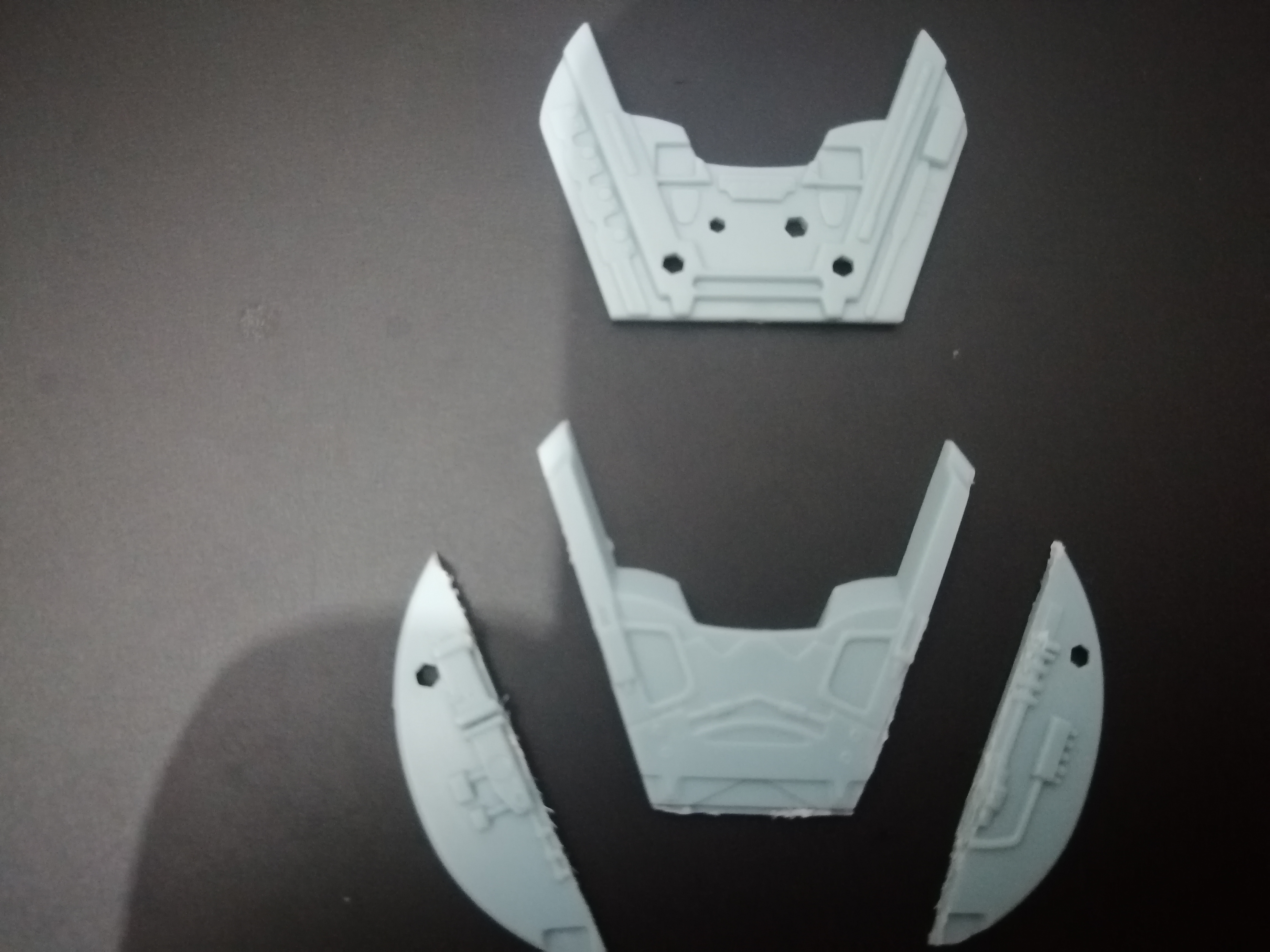

* make "addon armor" plates for the fuselage - the hexagon whingbox profile, needs to be "turned" 60 degree
* make hyperdrive
* find a good solution to connect hyperdrive with the fuselage


Attachments

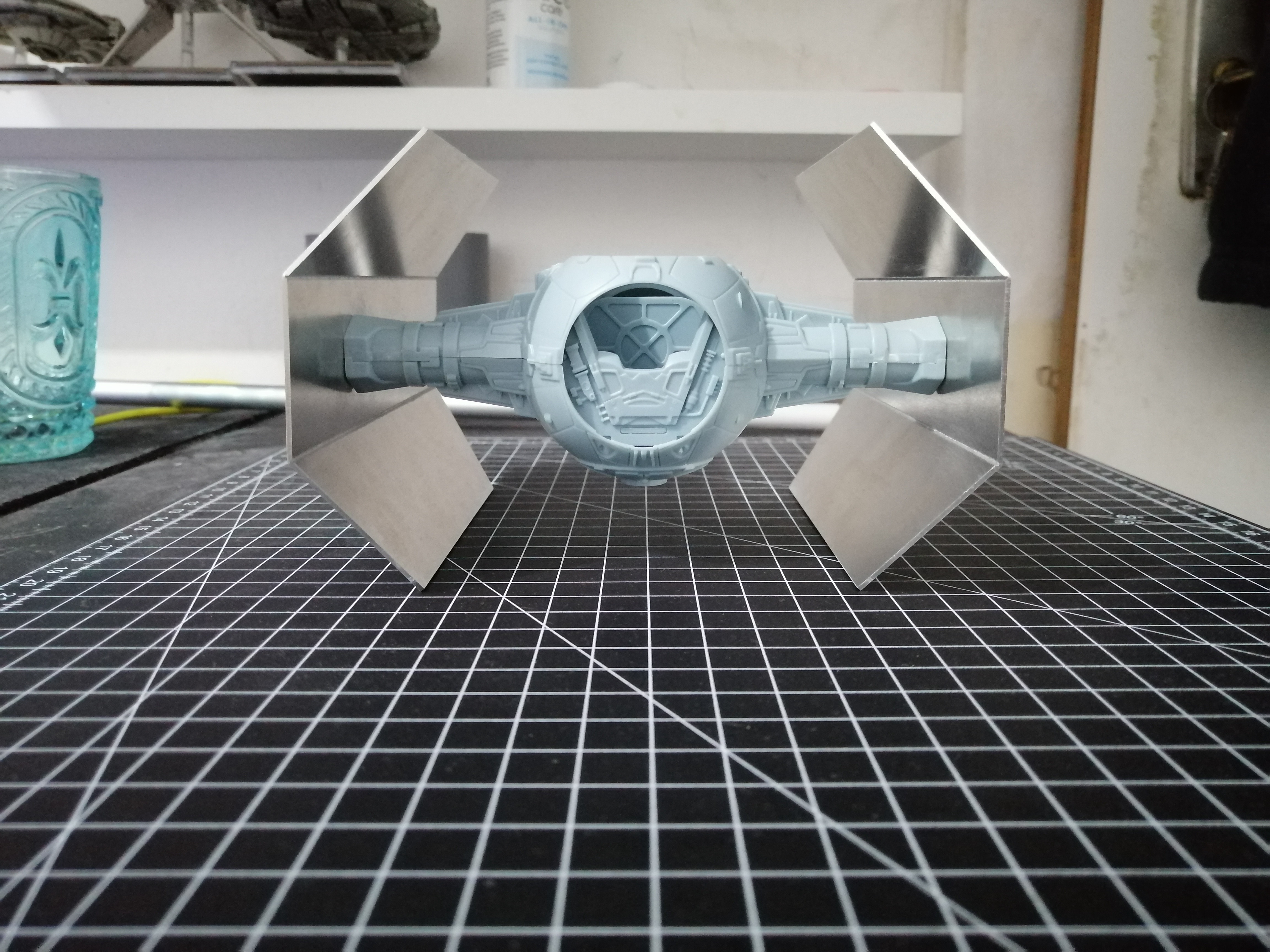

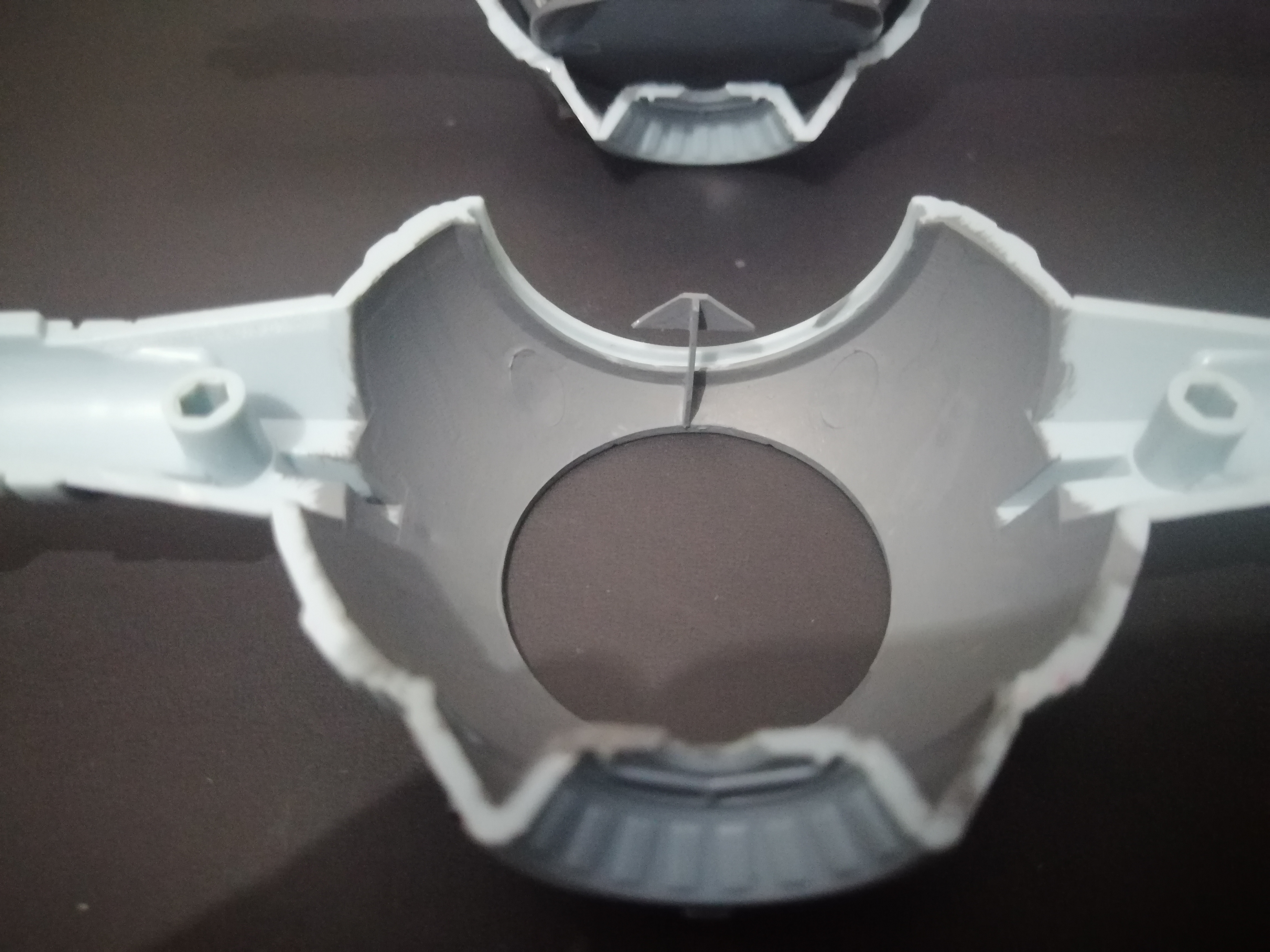

  • 10.jpg
