    So The Rocketeer is on my list of top ten movies, (which is actually about 30 movies long). I've always loved the look of the costume, especially the helmet. It has a great 30's art deco feel to it. Ever since I saw the movie I wanted my own helmet. Well I found out that a friend of mine worked at design Setters back in the 90's, and had a production made helmet. They were willing to let me mold it and cast up a few helmets, as long as I didn't make more than a few and that I destroyed the mold when I was done. So I made an ugly, quick mold and cast a few for me and some friends. it's taken me about 5 years of on again, off again work, but my Rocketeer helmet is finally done. I didn't take any pictures of the inside, but thanks to Valor for making such a great liner, I highly recomend picking one up if you are doing a Rocketeer helmet. So on with the pictures.

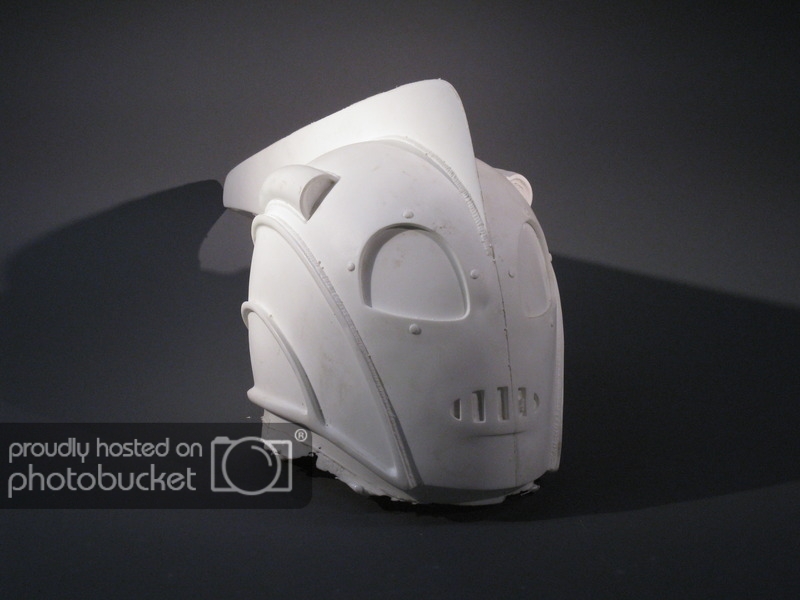

    Here it is fresh out of the mold, before I did any trimming or sanding.

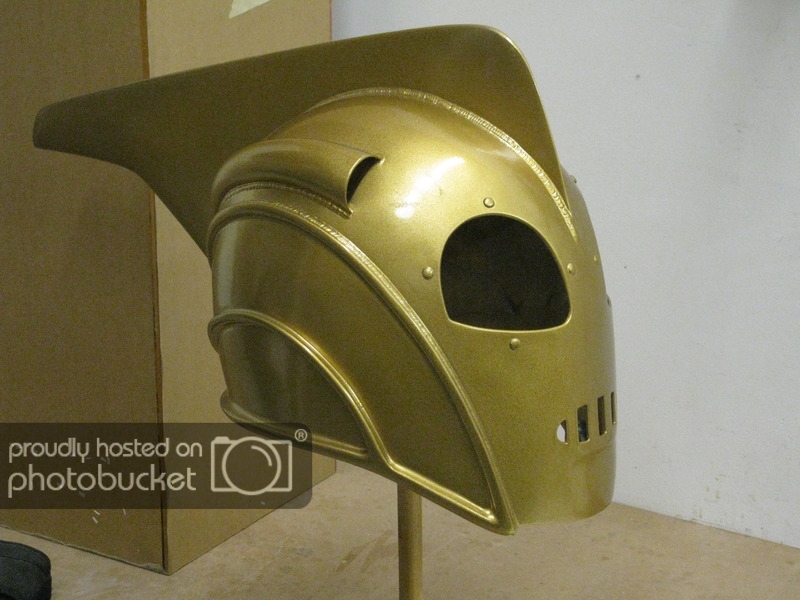

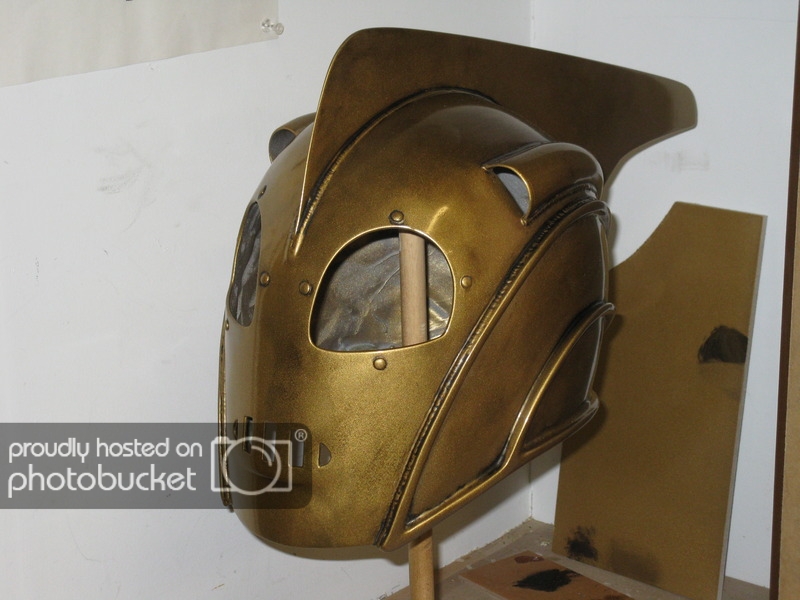

    I trimmed out all the openings and then painted it with an automotive clear coat, with gold powder mixed in. Nice and durable.

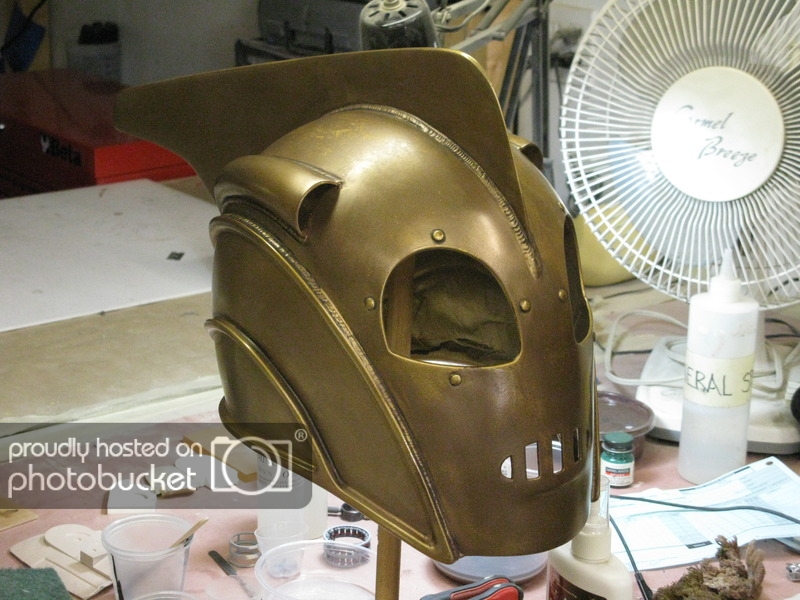

    Next I started the weathering process. I first hit the helmet with some 0000 steel wool to give it a slight brushed look, and to give it a little tooth, so that the other paints would adhere better. I then used different acrylic washes, and removed areas with acetone and a sea sponge. I mixed a few different colors of rub 'n buff together to get a dark patina color for all the deep recesses. Rubbed it on and then used a clean rag to remove it from the high spots.

    I also wanted a custom stand for the helmet. It took me a while to come up with a design, but I finally settled on a stand inspired by the design of the jet pack.

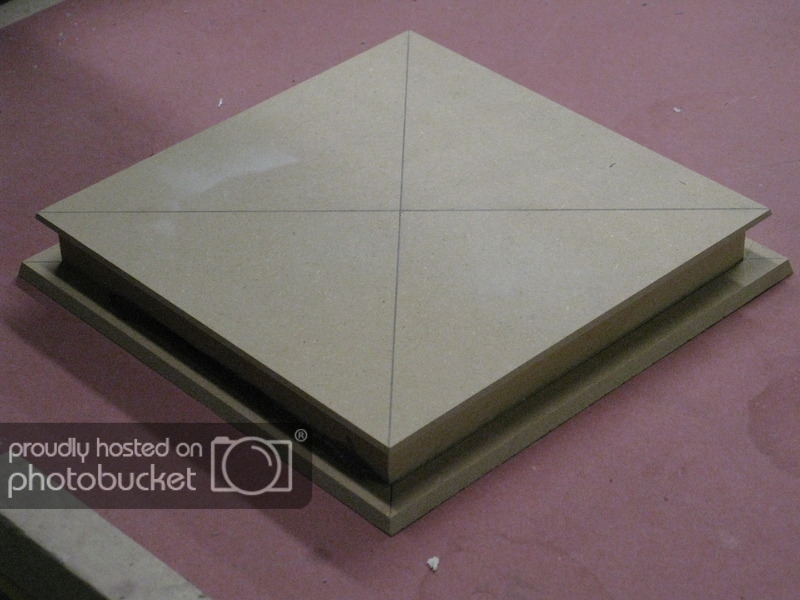

    I started with three layers of MDF. I wanted a few hollow areas, so that's why I did the three different layers, with the middle layer being smaller than the other two.

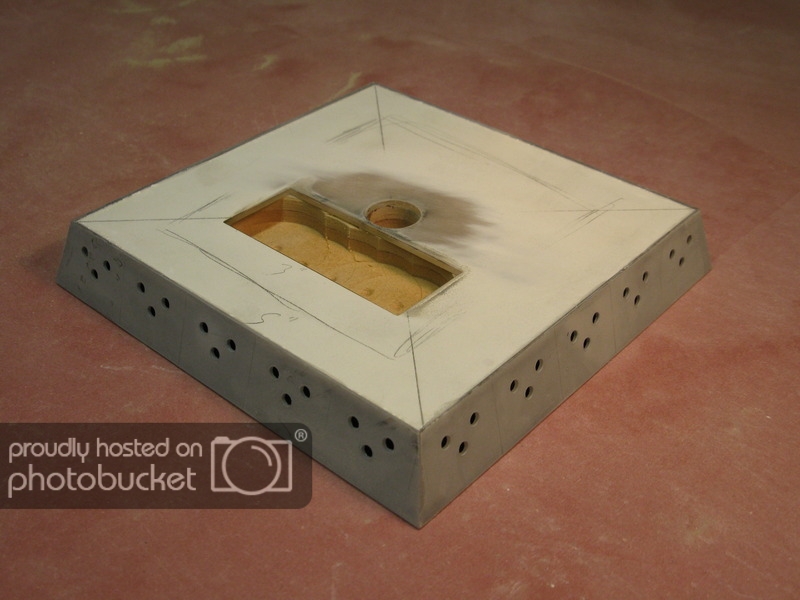

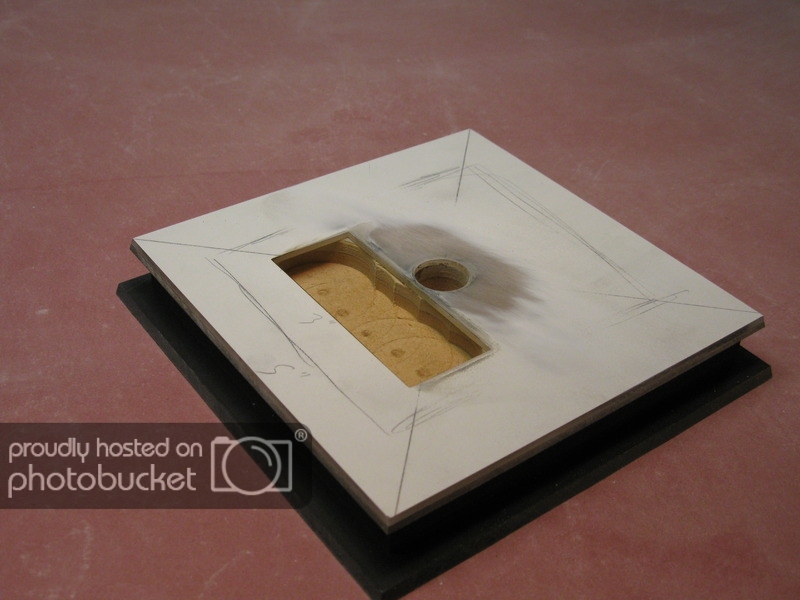

    I then started cladding the outside with 1/16" thick acrylic that I cut on the laser cutter.

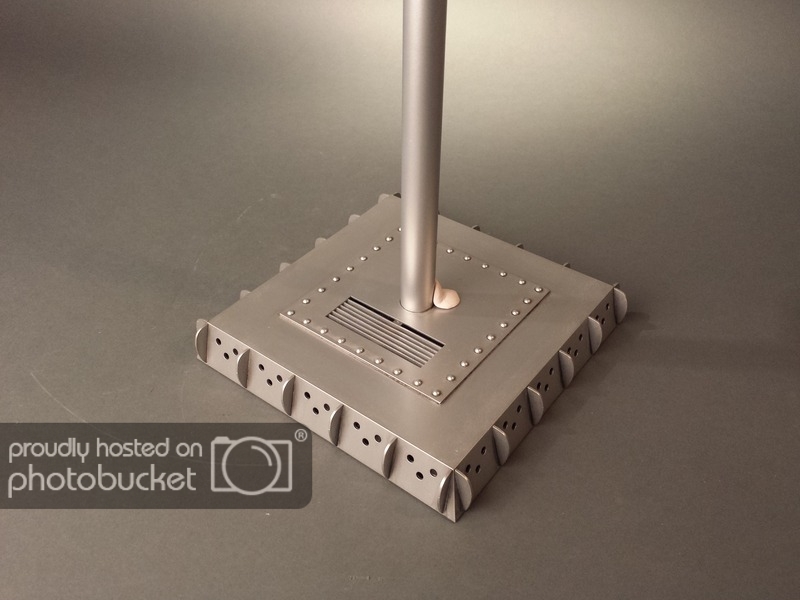

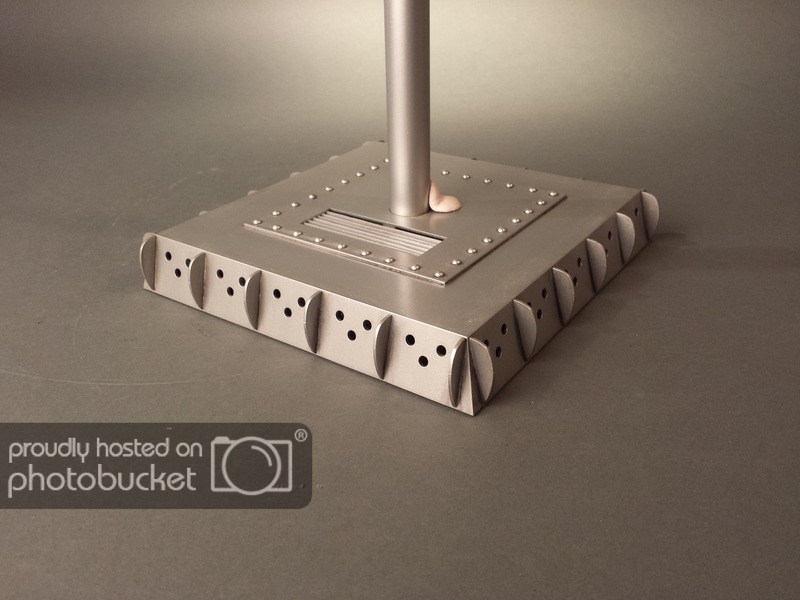

    After I got all the parts glued on, I bondo'd all the seams, added fins, and painted it with an automotive silver, followed by a clear coat and some subtle aging. I also added some gum for luck. I made the gum out of epoxy putty and added a little color to it.

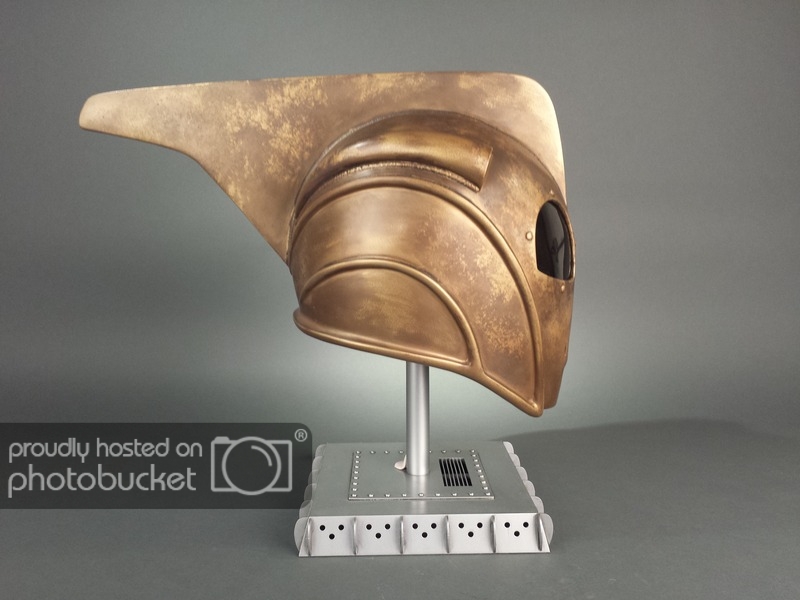

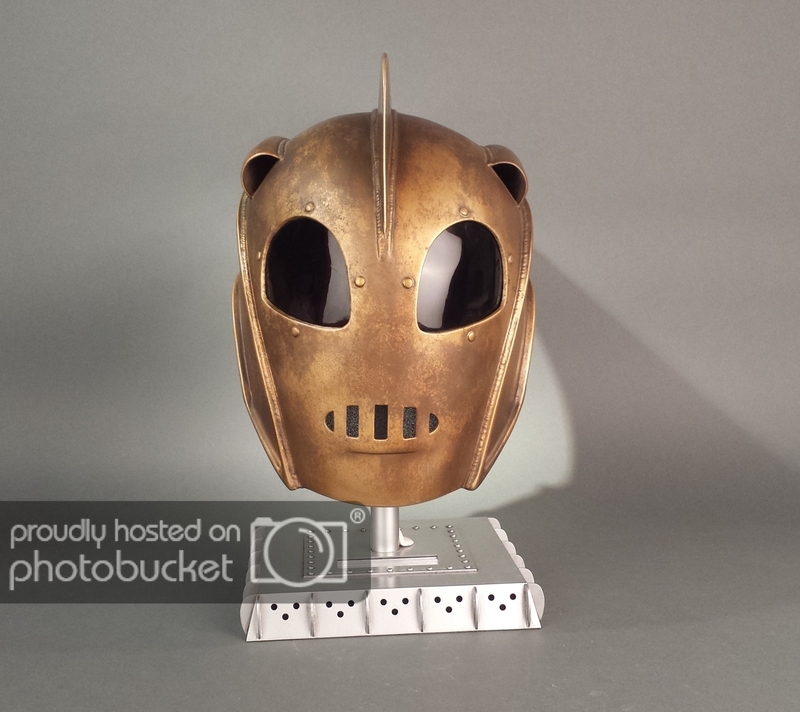

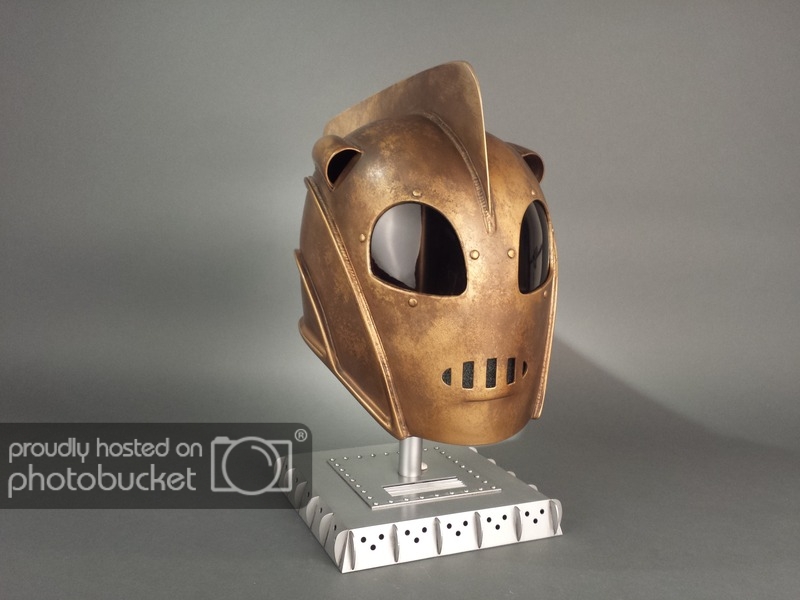

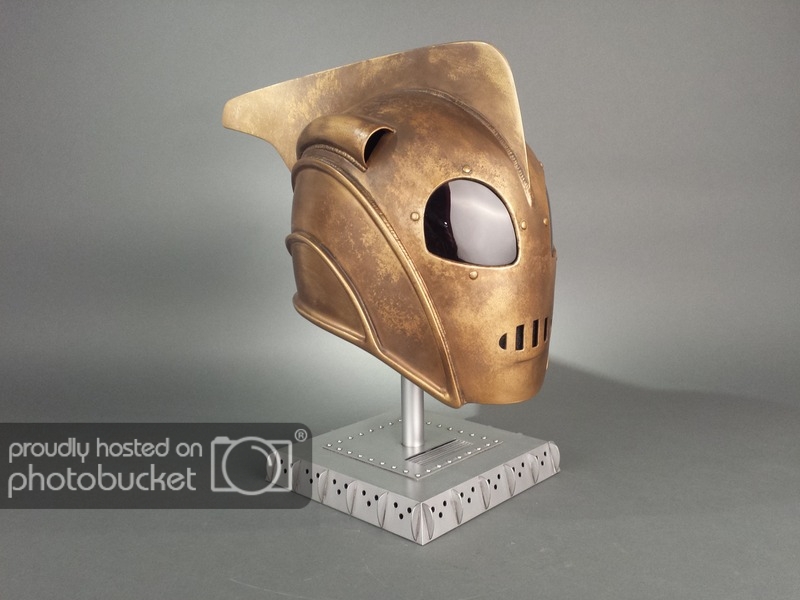

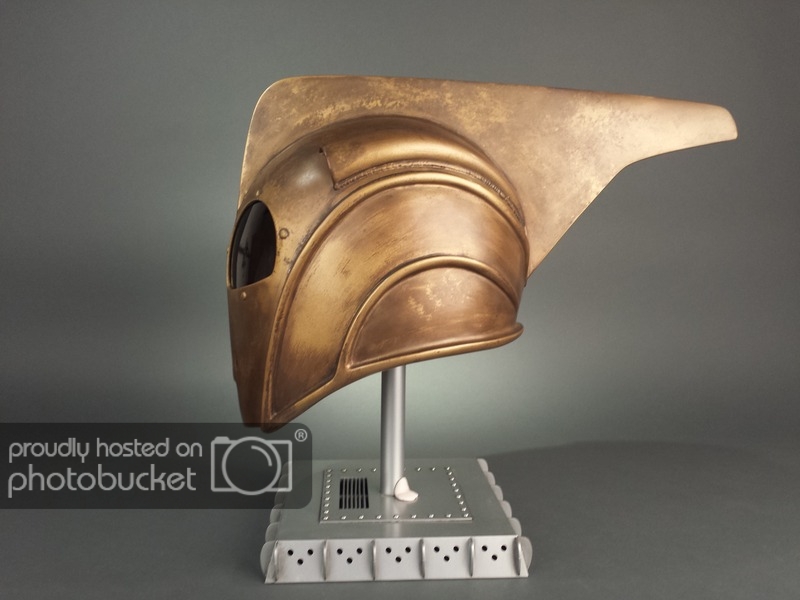

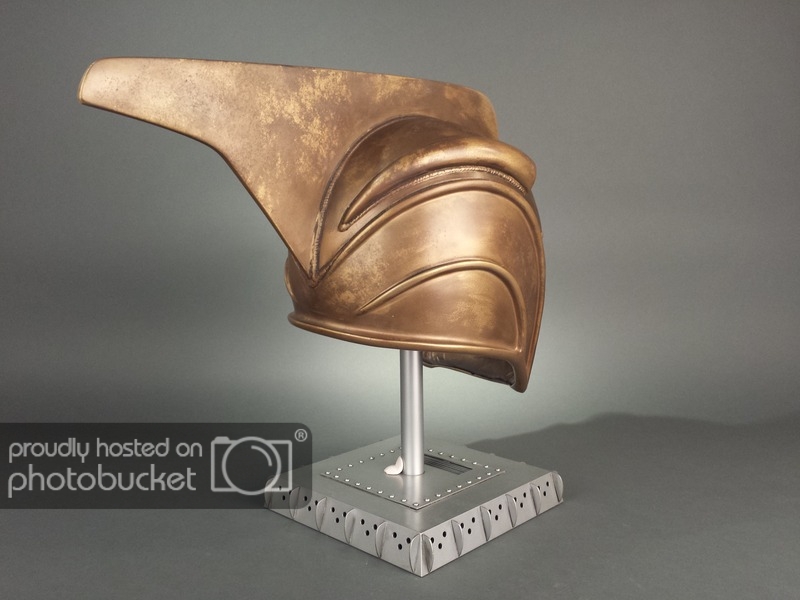

    Here's the final thing with lenses, aging and stand. Thanks for looking


    Attached Files:

    Last edited by a moderator: Nov 8, 2018
    Nopal, RacerMachX, Zinger and 11 others like this.
  2. George

    George Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,207
    Swgeek,that is one piece of AMAZING art you have constructed there ! Very,VERY cool :cool

  3. Pro Mod

    Pro Mod Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    847
    Great prop and base, love you're patination effect.

    George likes this.
  4. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Excellent results and the job is top notch:cool Always loved the movie and the costume also; I think Joe Johnston is an Art Deco amateur and it shows throughout the movie.

    George likes this.
  5. 89batman

    89batman Active Member

    Trophy Points:
    371
    Wow that is stunning. I own a couple of helmets including the MR but yours looks way better.
    I love the Rocketeer it is a very under rated movie. The costume and style of the movie was so stylish. The movie is a ten in my opinion.

    Sent from my SM-N9005 using Tapatalk

    George likes this.
  6. Broilermaker

    Broilermaker Sr Member

    Trophy Points:
    1,085
    Wow, that is one of the best pieces of art I have seen on this site, period

    George likes this.
  7. Gixxerfool

    Gixxerfool Well-Known Member

    Trophy Points:
    566
    Love this movie and I love this prop. Great work.

    George likes this.
  8. RagleGumm

    RagleGumm Member

    Trophy Points:
    112
    I've wanted a Rocketeer helmet (perhaps even a full costume) for YEARS! This looks absolutely incredible. A true work of art!

    RG

  9. RacerMachX

    RacerMachX Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    847
    Fantastic build. Love the gum!

  10. The Cog

    The Cog Active Member RPF PREMIUM MEMBER

    Trophy Points:
    461
    Love how you tied everything together! This looks great!

  11. ShortWookie

    ShortWookie Active Member

    Trophy Points:
    361
    The gum on the display is genius, I love it. You did an amazing job! :)

  12. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Excellent, excellent job. I love the creative approach of the stand!

  13. Apollo

    Apollo Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,035
    Nicely done, love the stand!

  14. swgeek

    swgeek Sr Member

    Trophy Points:
    1,315
    Thanks everybody! Really nice comments. It feels good to complete a project, makes me want to finish more, haha.

  15. Gewn

    Gewn Active Member RPF PREMIUM MEMBER

    Trophy Points:
    412
    Beautiful!

  16. swgeek

    swgeek Sr Member

    Trophy Points:
    1,315
    Thanks man, yours is looking great!

  17. airplnmdls

    airplnmdls New Member

    Trophy Points:
    3
    Dang that looks awesome! Just received one of Oz's helmets and I might need to steal your stand idea, it's amazing!!
