Rocketeer Cirrus X-3 Rocket Pack Build

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

QCWolf

Sr Member
RPF PREMIUM MEMBER
Ever since the summer of 1991, I always wanted a Rocketeer Rocket Pack. It had beautiful lines and sleek styling with a heavy art deco motif. Over the past year I have been cobbling together various bits and pieces in order to create my own prop. I felt like it was beyond my reach until I read the build thread by @Valor and his scratch built pack. His build inspired me to begin construction and when he offered castings of some of his parts, it made things seem less daunting.

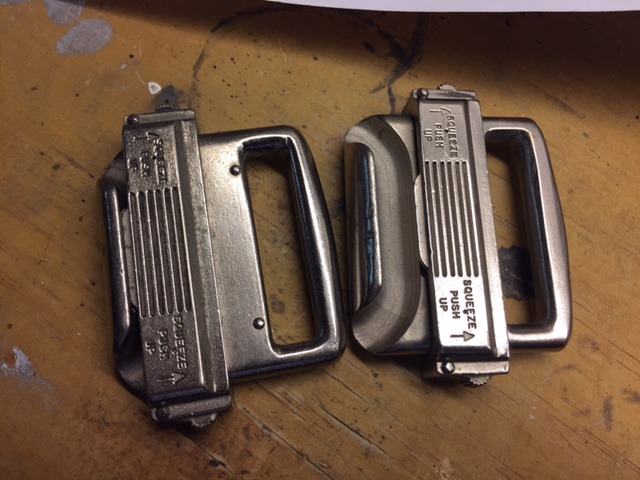

I recently got lucky and won an auction for two original Rocketjet buckles from an ejection seat safety harness.


The buckles were great but without the D-rings to go with them, useless. I found a guy selling his MA-2 Vietnam era torso harness with D-rings still attached. I felt stupid buying a whole harness just for the D-rings, but the cost was the same as if I had purchased the 3D printed rings from Shapeways.

IMG_9553.JPG IMG_9530.JPG IMG_9555.JPG

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

QCWolf

Sr Member
RPF PREMIUM MEMBER
Re: Let's Get Cirrus: X-3 Rocket Pack Build

I know the MIM kit has a fairly accurate build-up of the engine guts but since very little is seen on screen, I figured I'd have a little fun with my engines. One trip to the hardware store plumbing isle combined with some random greeblies from my bench and I'm on my way to having a couple of decent looking engines. However, I'm not entirely pleased with the brass tubing so I think I'll redo that part.

IMG_9568.JPG IMG_9606.JPG IMG_9607.JPG

Last edited:

Valor

Sr Member
RPF PREMIUM MEMBER
Let's Get Cirrus: X-3 Rocket Pack Build

Nicely greeblied rockets! Hit it all with black primer. You'll be surprised how it all blends together.

Last edited:

QCWolf

Sr Member
RPF PREMIUM MEMBER
Re: Let's Get Cirrus: X-3 Rocket Pack Build

Nicely greeblied rockets! Hit it all with black primer. You'll be surprised how it all blends together.
Thank you! I plan on doing just that. Paint is gonna happen this weekend I hope.


Udermeister

Active Member
RPF PREMIUM MEMBER
Re: Let's Get Cirrus: X-3 Rocket Pack Build

This is rad! I've always wanted a Rocketeer setup, jetpack and helmet. Good job so far, mate!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

QCWolf

Sr Member
RPF PREMIUM MEMBER
Re: Let's Get Cirrus: X-3 Rocket Pack Build

I made some progress last night. I got one of those 1/8" brass tube bender things for a couple bucks and made new tubing for both engines. I like how this looks much better than my first attempt.


I added a few more greeblies also.

IMG_9628.JPG IMG_9626.JPG IMG_9627.JPG

I also started working on the braided cable lines. I'm using 1/4" brake lines here. I got some 5/16" brass compression sleeves and some aluminum spacers for the "cable plugs" along with some pop rivets and CA glue to hold it all together. I used a pop rivet gun to slightly tighten the rivet inside the cable without fulling popping it to squeeze the cable against the ring. This first one is an unpainted test. I plan on doing the blue and purple heat stress paint effect.

IMG_9634.JPG IMG_9630.JPG

Last edited:

joberg

Master Member
Re: Let's Get Cirrus: X-3 Rocket Pack Build

Great build so far; love the way you're tackling those engines:cool Would be nice if someone, someday, would build an exploded view of the pack: showing the engines in all of their glory as well as other "details"(artistic interpretation of course).


QCWolf

Sr Member
RPF PREMIUM MEMBER
Re: Let's Get Cirrus: X-3 Rocket Pack Build

Great build so far; love the way you're tackling those engines:cool Would be nice if someone, someday, would build an exploded view of the pack: showing the engines in all of their glory as well as other "details"(artistic interpretation of course).
Thanks! I agree, it would be nice to have a "real world" look inside this thing.


QCWolf

Sr Member
RPF PREMIUM MEMBER
Re: Let's Get Cirrus: X-3 Rocket Pack Build

A small update from last night:
I secured the upper tank using some PVC plumbing parts, CA glue and J.B. Weld. Nice and solid.

IMG_9629.JPG IMG_9608.JPG

Last edited:
  • Like
Reactions: JPH

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

QCWolf

Sr Member
RPF PREMIUM MEMBER
Re: Let's Get Cirrus: X-3 Rocket Pack Build

There was also a SNAFU. I won an auction for a pair of reproduction WWI aviation pants. They were supposed to be a size 36. What arrived was a little too big. Needless to say, I'm sending them back.


Last edited:

QCWolf

Sr Member
RPF PREMIUM MEMBER
Re: Let's Get Cirrus: X-3 Rocket Pack Build

I made some progress this past weekend. I sprayed the engines flat black and started scuffing them up with some steel wool.


Then I began weathering them with some watered down acrylic burnt umber. I spritzed them first with some alcohol then dabbed on the paint and wiped it off. I like the way they turned out. I still need to add some dry brushing here and there but overall, I'm pleased.

IMG_9692.JPG IMG_9695.JPG IMG_9700.JPG


Attachments

Last edited:

QCWolf

Sr Member
RPF PREMIUM MEMBER
Re: Let's Get Cirrus: X-3 Rocket Pack Build

Question: What's a good way to weather the plastic tubes? Or make them look like fuel has passed through?


QCWolf

Sr Member
RPF PREMIUM MEMBER

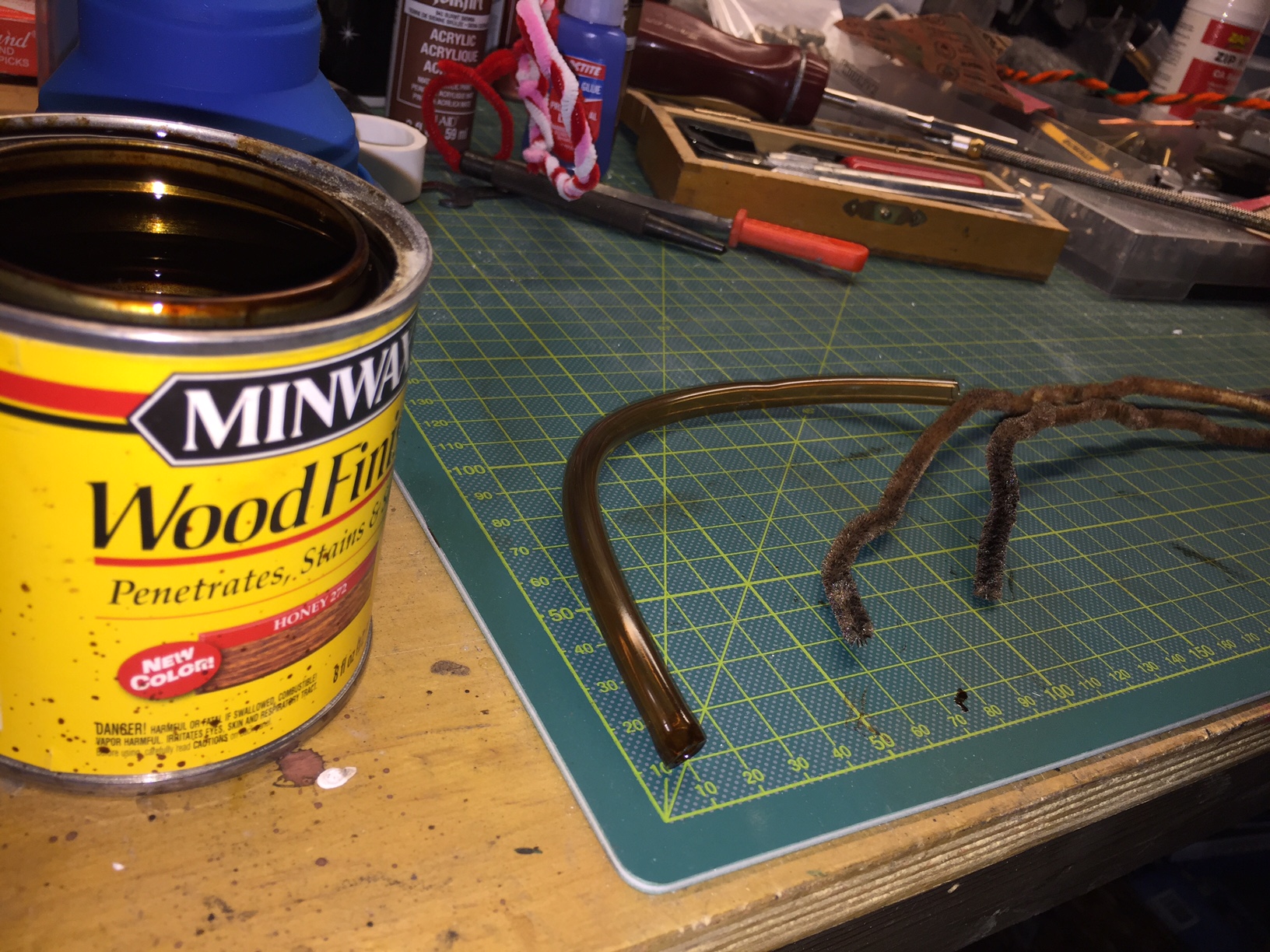

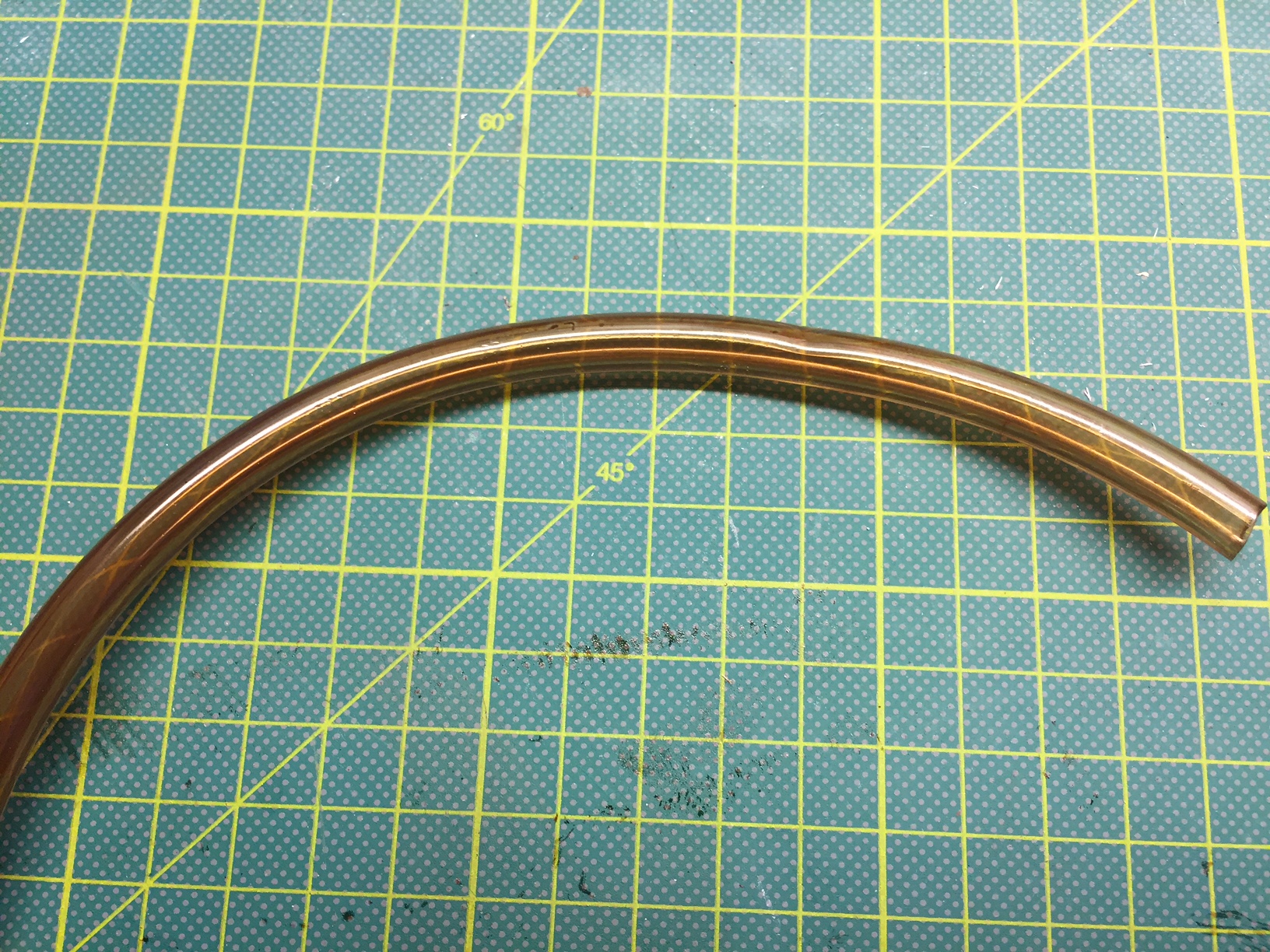

I made a little progress this weekend. I wanted to make the vinyl tubes look like some kind of fuel-type fluid had passed through them. I read a bunch of stuff on-line about how to dye this kind of tubing. I read everything from boiling them in salty water with RIT dye to using yellow food coloring. I actually tried the food coloring idea and it didn't work. I ended up dunking the tubes in some wood stain and them running a pipe cleaner through to wipe out the excess. I like the way they turned out.

IMG_9718.JPG IMG_9719.JPG IMG_9732.JPG IMG_9731.JPG


Attachments

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

QCWolf

Sr Member
RPF PREMIUM MEMBER
As I did research for this project, I found many other builds that have painted the braided fuel lines with the heat stress discoloration palette. I attempted to do the same using "hot metal blue" and "hot metal violet". I failed miserably. I couldn't get the paint to stick to the metal and it just seeped straight through the braids. I tried hitting it with primer first but that made the colors look weird. Finally, I stripped off everything and went with what I know by just making them look very used. I dipped the brass and aluminum tips in some Aluminum Black to age them and sprayed a light misting of flat black around the ends. I am disappointed that I couldn't get the heat stressed look, but I'm actually pretty happy with this result. Since I took these pics, I've hit the brass with a little sand paper so the tips are not as dark. I like the way the brass looks so I might revisit the brass tubing on the sides of the engine with the same treatment.

IMG_9729.JPG IMG_9736.JPG IMG_9734.JPG

Last edited:

QCWolf

Sr Member
RPF PREMIUM MEMBER
I finished the engines today. I think. Every time I look at them I think they need something else. I'll work on a different part of the pack for awhile and come back to them later.

IMG_9756.JPG IMG_9758.JPG IMG_9759.JPG

Last edited:

joberg

Master Member
Looks very good from where I'm standing:cool Sometimes I experiment with markers and, depending on the material you want to transform/abuse, some of the ink have a bluish tint to it (like it was heated by the high-heat flame)...you should look into it;)
