Revell / Zvezda Star Destroyer (1/2700) Cross-Section Attempt

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


OTnROTSfan

Well-Known Member
RPF PREMIUM MEMBER

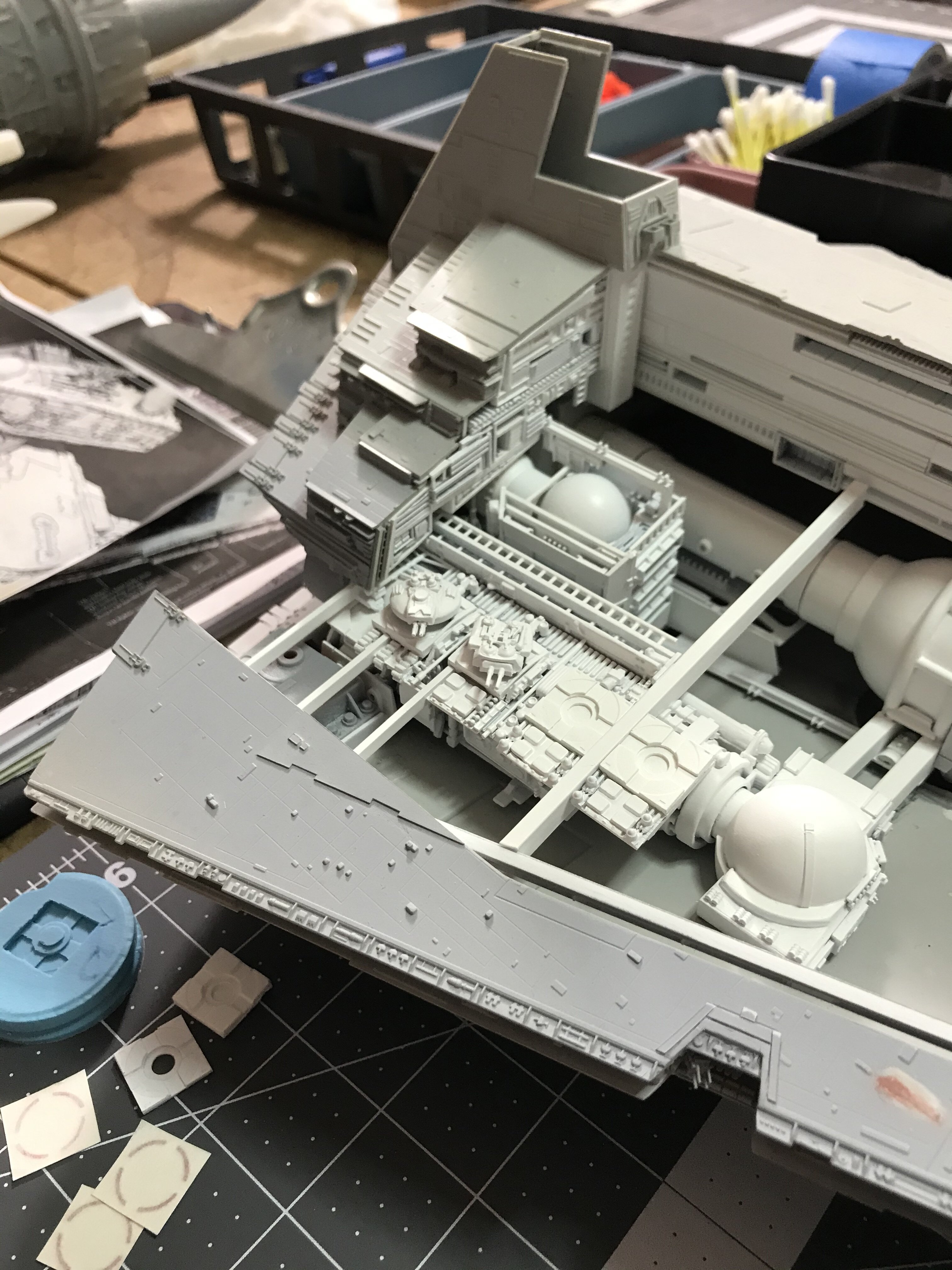

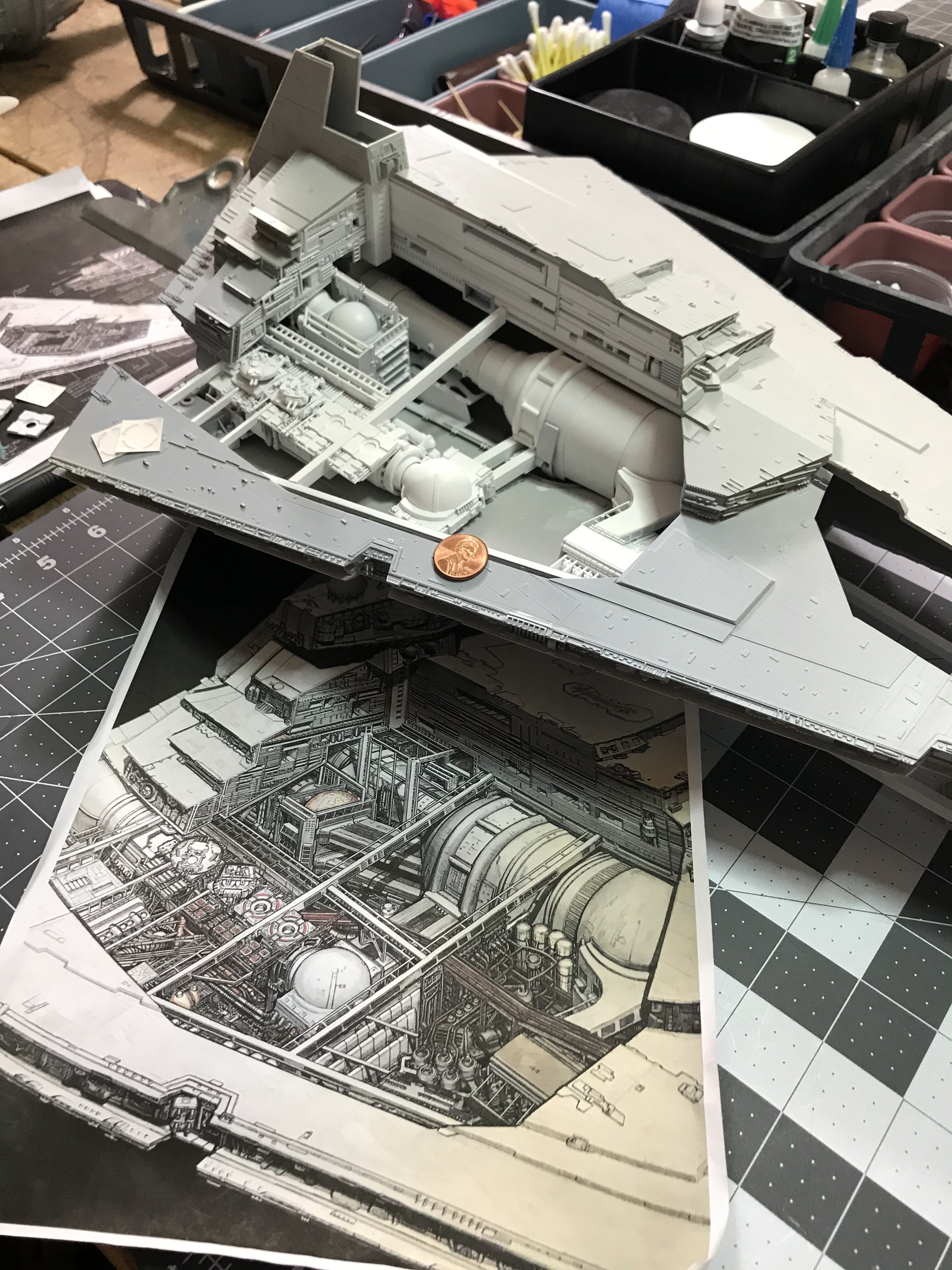

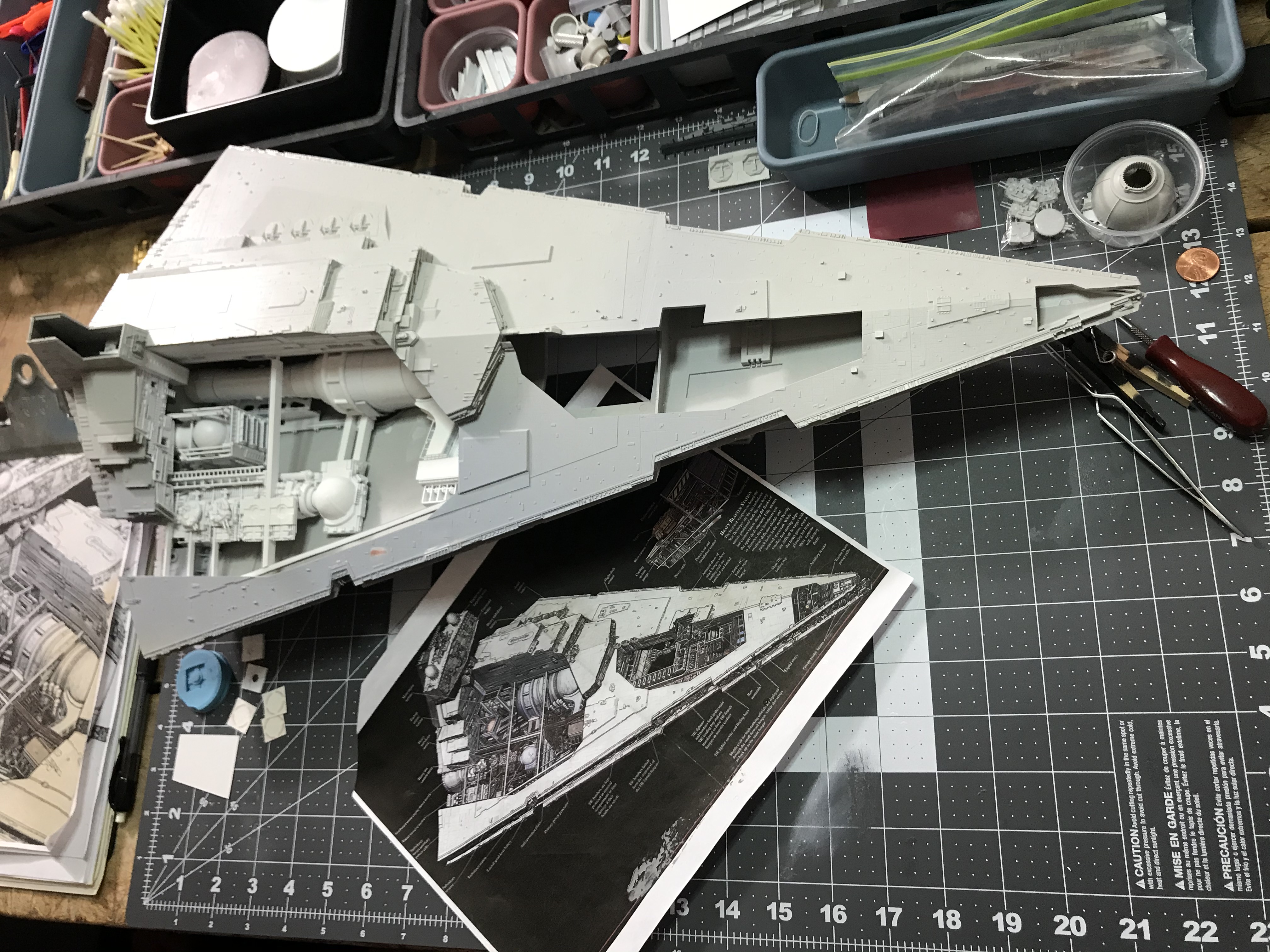

Been a while since I had something to post, but here's a "little" proof-of-concept project I started scratching and bashing on a few months back... no specific version other than what is in the cross-section pic, crammed into a Revell/Zvezda (1-2700) ISD. The backend of the host is narrower than the pic, but getting most of the main stuff represented. Got the strip of cut-away turrets bashed out this weekend. Next step either to orthogonally move the notch and turrets back on the other side and/or start on engine lighting and planning hidden fiber runs. I'm slow, but I'll get there, eventually...


Attachments

  • ZVZ_KKH-Build 144.jpg
    ZVZ_KKH-Build 144.jpg
    1.9 MB · Views: 262
  • ZVZ_KKH-Build 145.jpg
    ZVZ_KKH-Build 145.jpg
    1.4 MB · Views: 241
  • ZVZ_KKH-Build 146.jpg
    ZVZ_KKH-Build 146.jpg
    2.6 MB · Views: 257

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

OTnROTSfan

Well-Known Member
RPF PREMIUM MEMBER

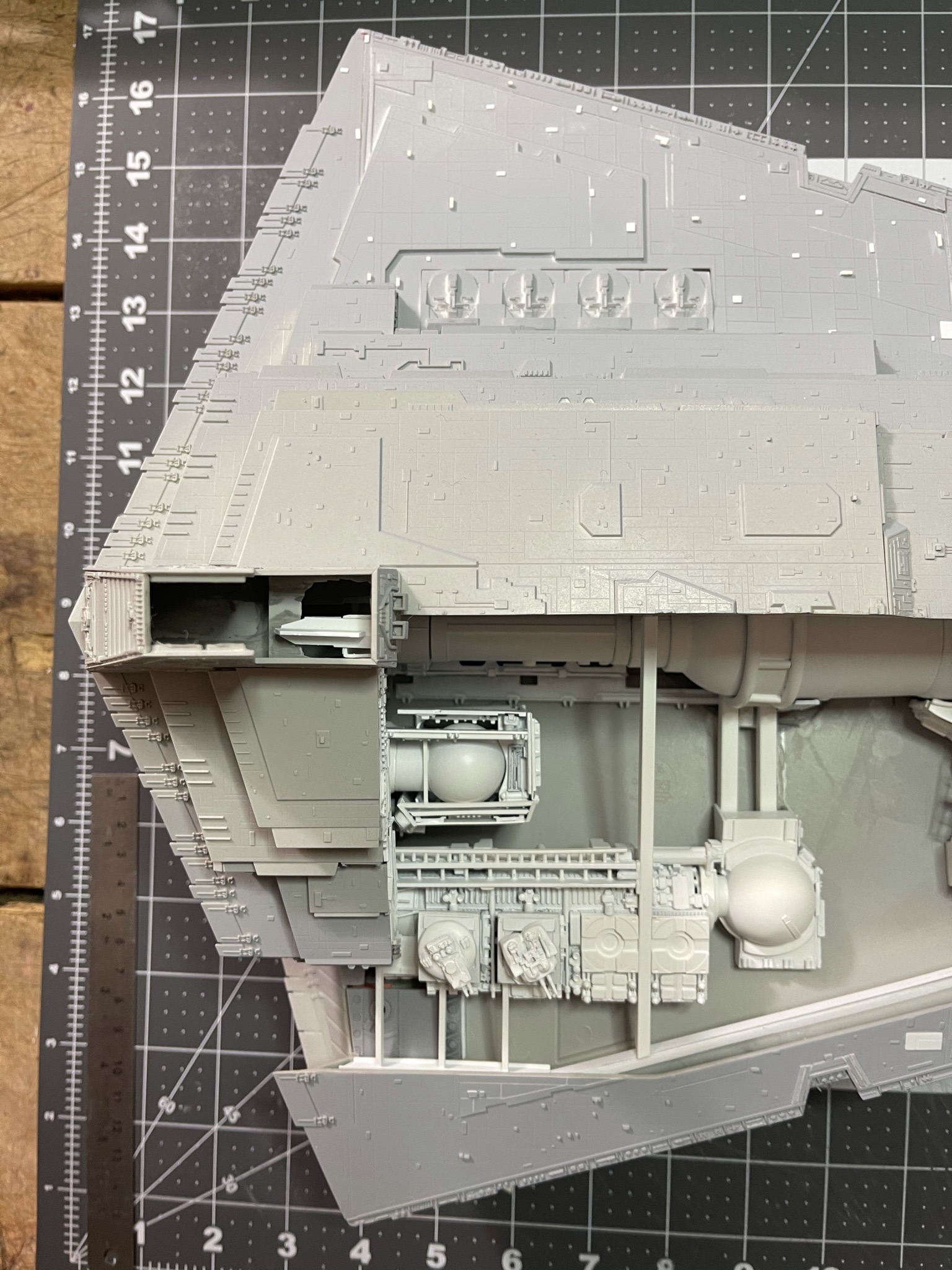

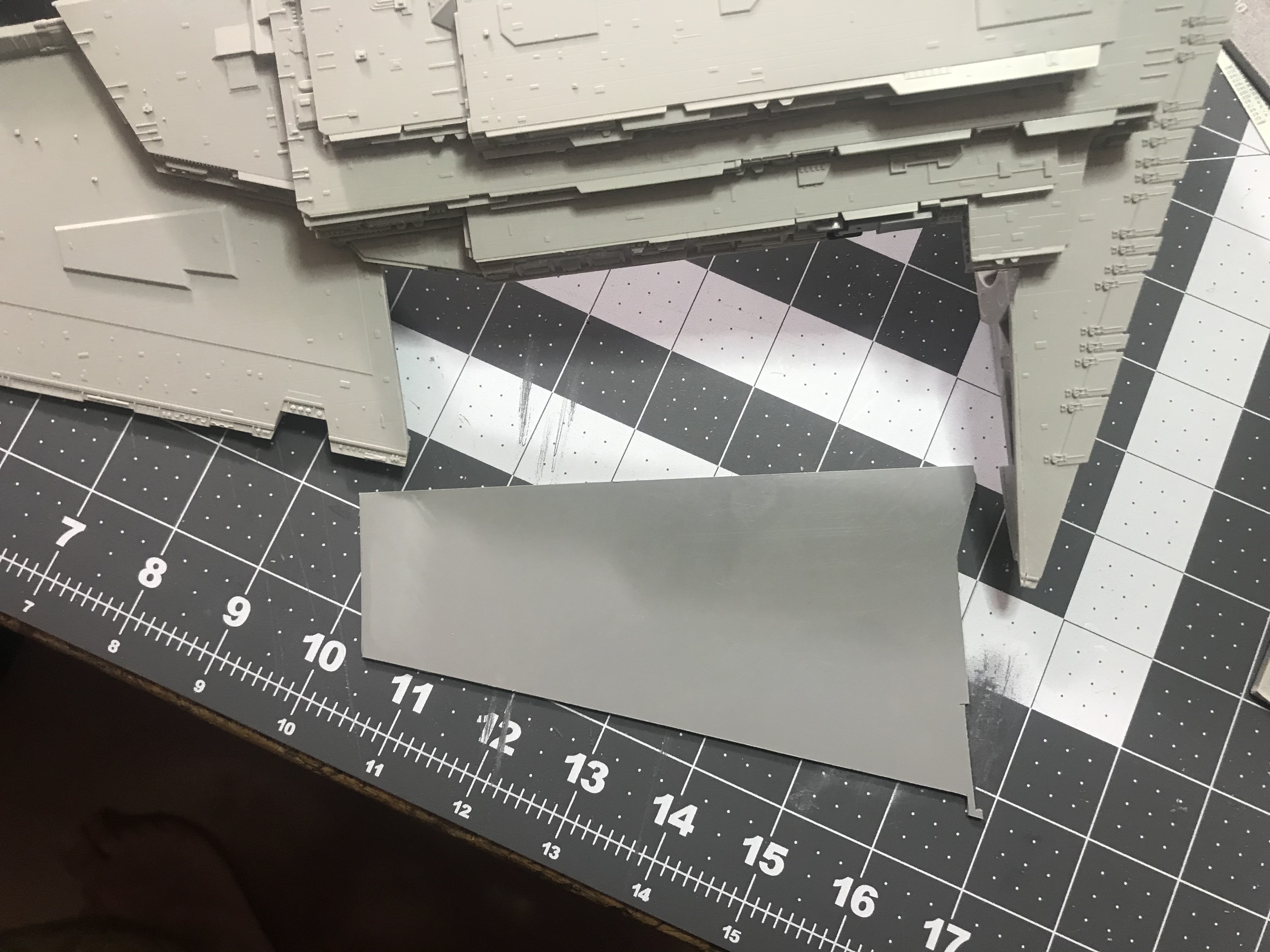

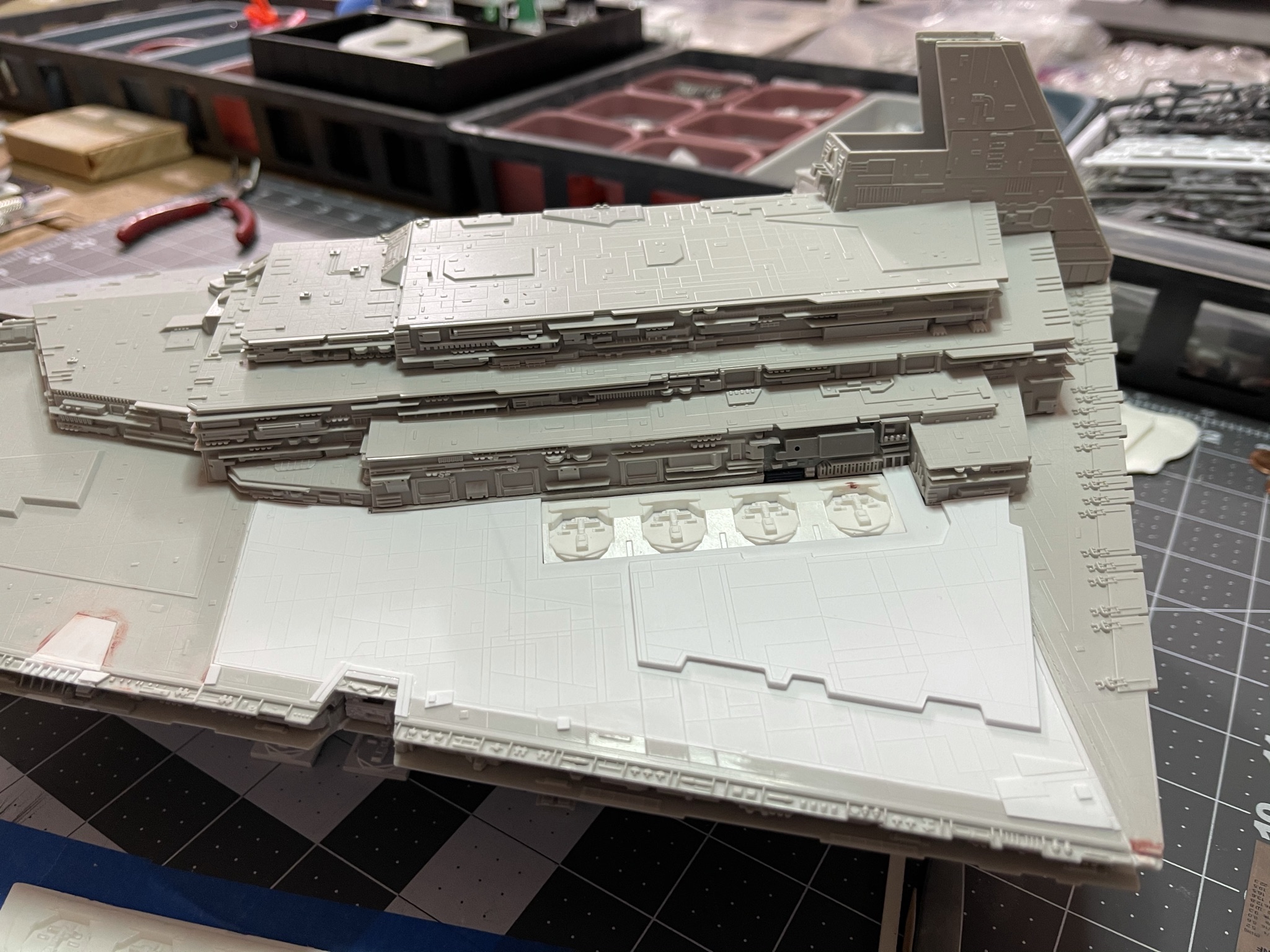

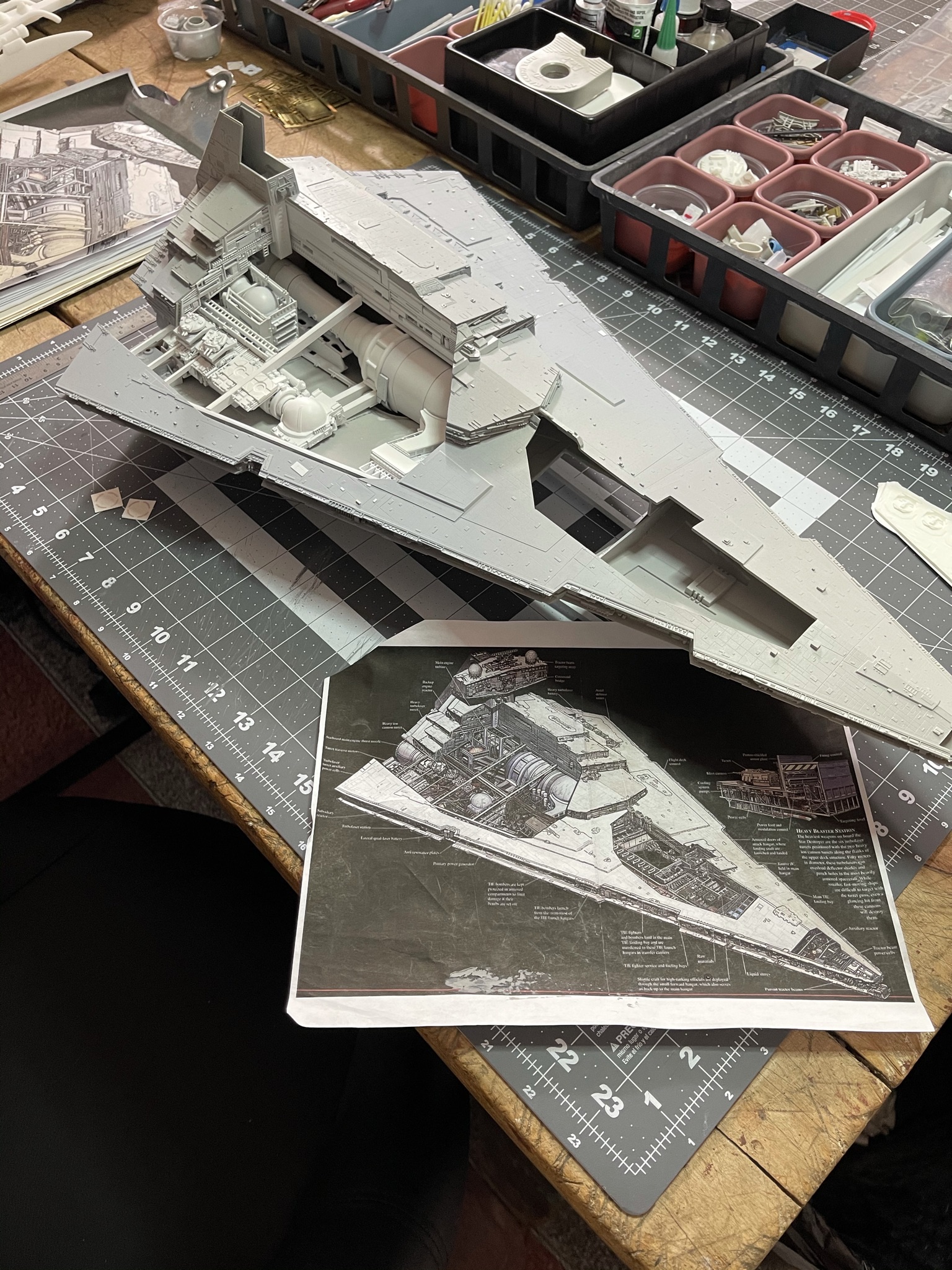

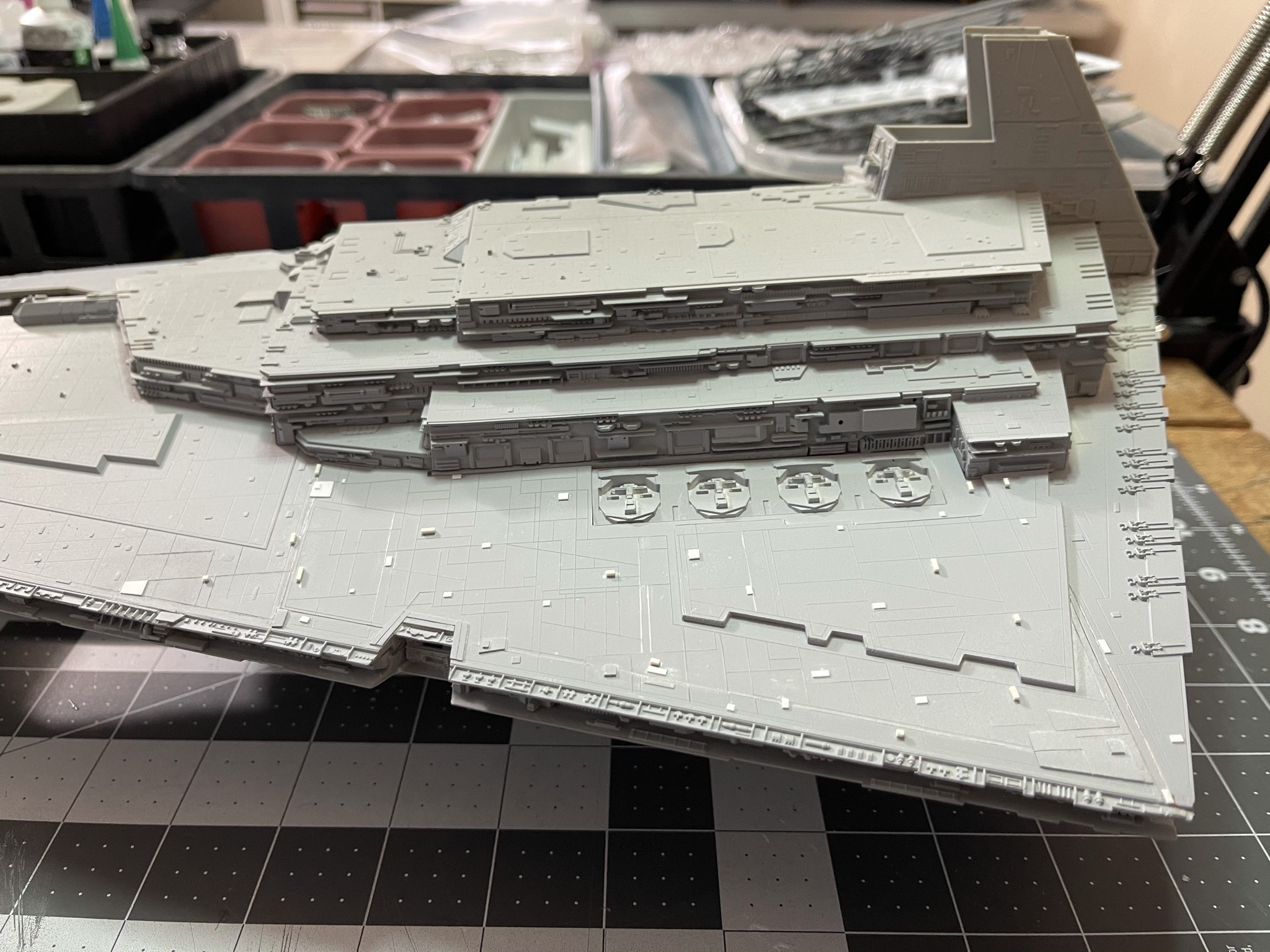

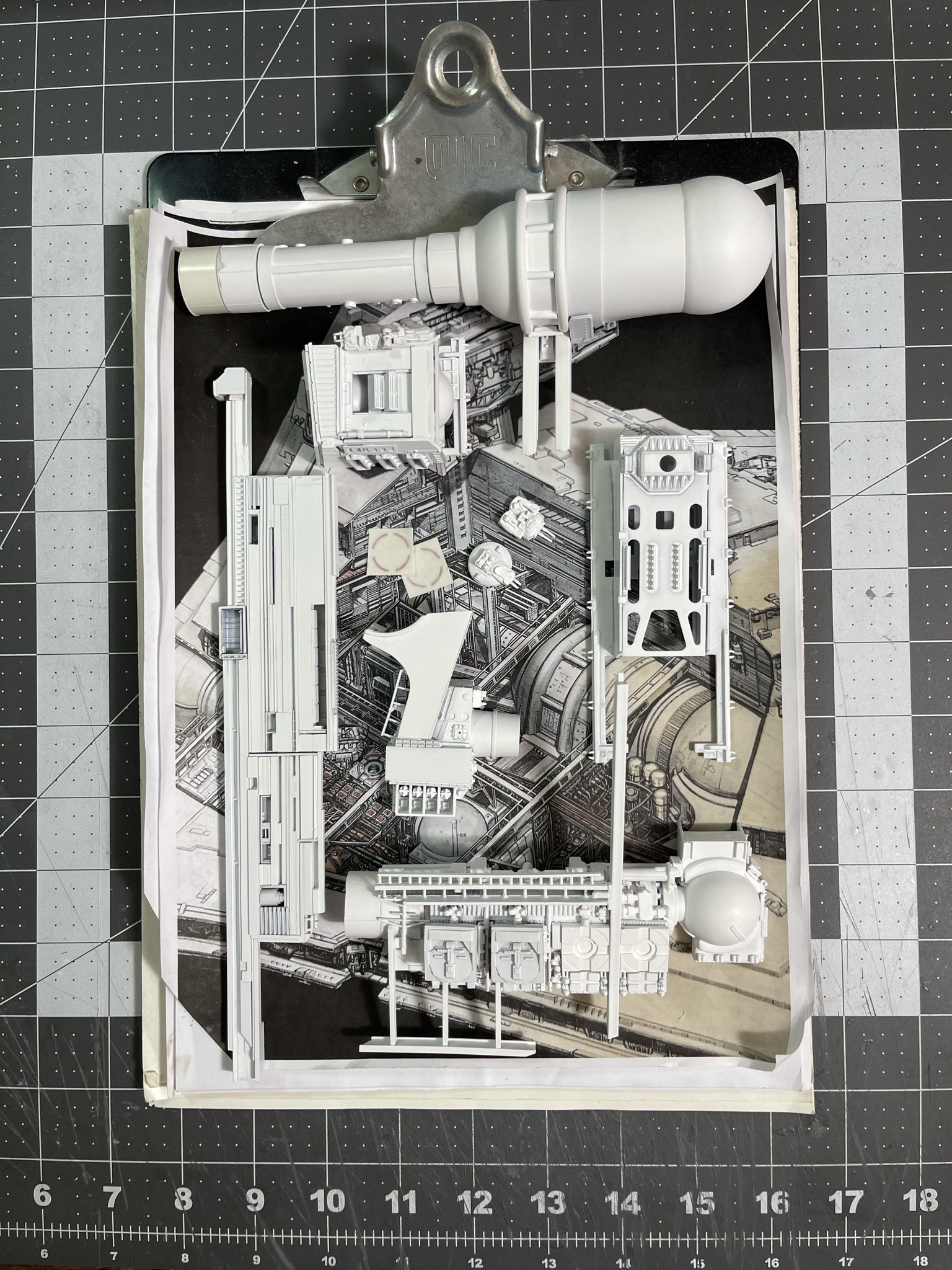

That was fun... surgically moved the port-side notch and main turrets back so it all lines up now per (and adjusting for) the pic. Used my Cameo3 to scribe and cut out the new lower and upper rear deck plates. Better phone/camera, too. Still no innards actually glued in, as of yet, since starting on lighting next...


Attachments

  • ZVZ_KKH-Build 194.jpg
    ZVZ_KKH-Build 194.jpg
    1.1 MB · Views: 195
  • ZVZ_KKH-Build 195.jpg
    ZVZ_KKH-Build 195.jpg
    726 KB · Views: 167
  • ZVZ_KKH-Build 153.jpg
    ZVZ_KKH-Build 153.jpg
    1.8 MB · Views: 139
  • ZVZ_KKH-Build 175.jpg
    ZVZ_KKH-Build 175.jpg
    693.5 KB · Views: 127
  • ZVZ_KKH-Build 180.jpg
    ZVZ_KKH-Build 180.jpg
    764.1 KB · Views: 132
  • ZVZ_KKH-Build 182.jpg
    ZVZ_KKH-Build 182.jpg
    813.8 KB · Views: 151
  • ZVZ_KKH-Build 189.jpg
    ZVZ_KKH-Build 189.jpg
    972.5 KB · Views: 197

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

OTnROTSfan

Well-Known Member
RPF PREMIUM MEMBER

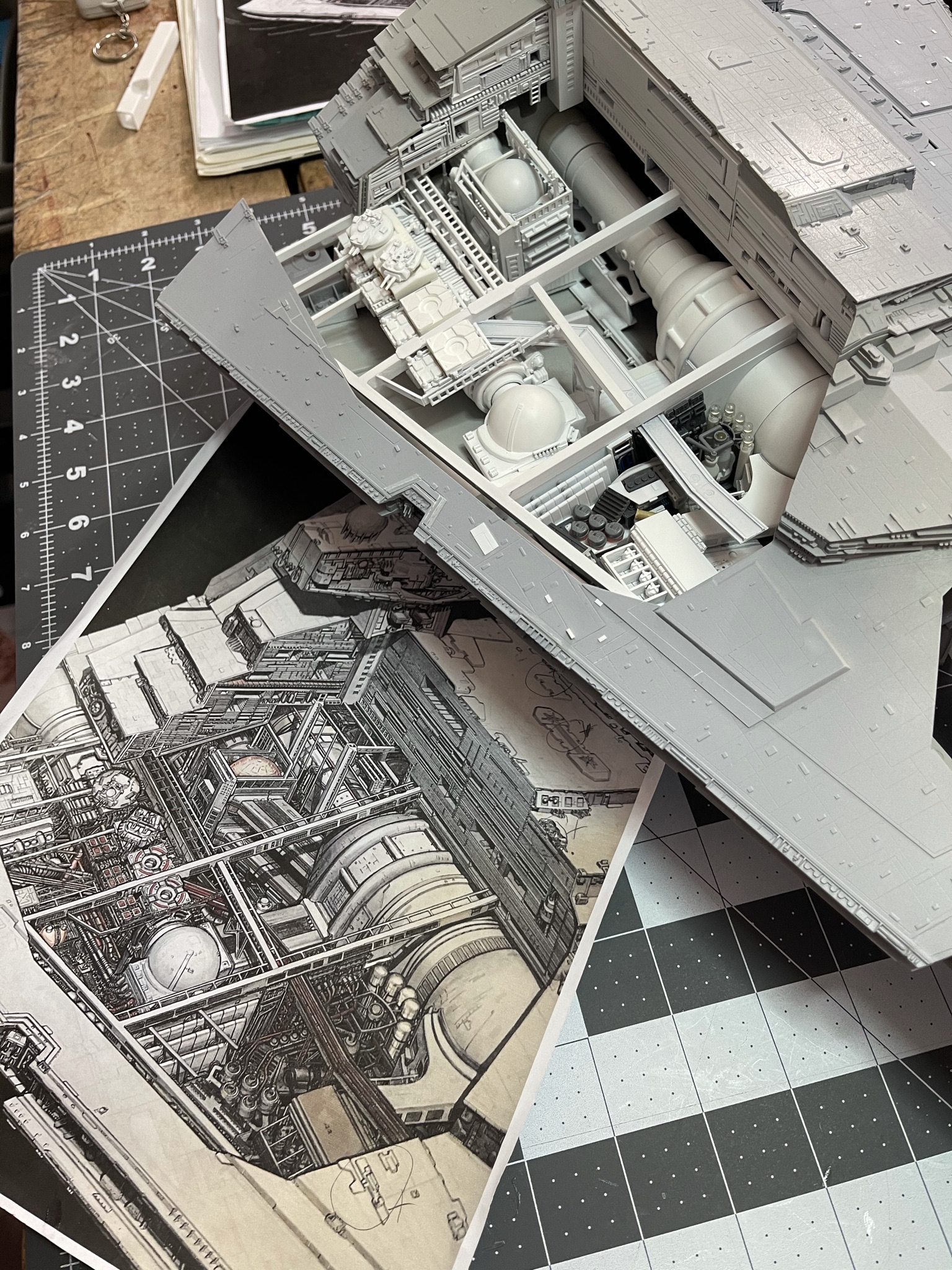

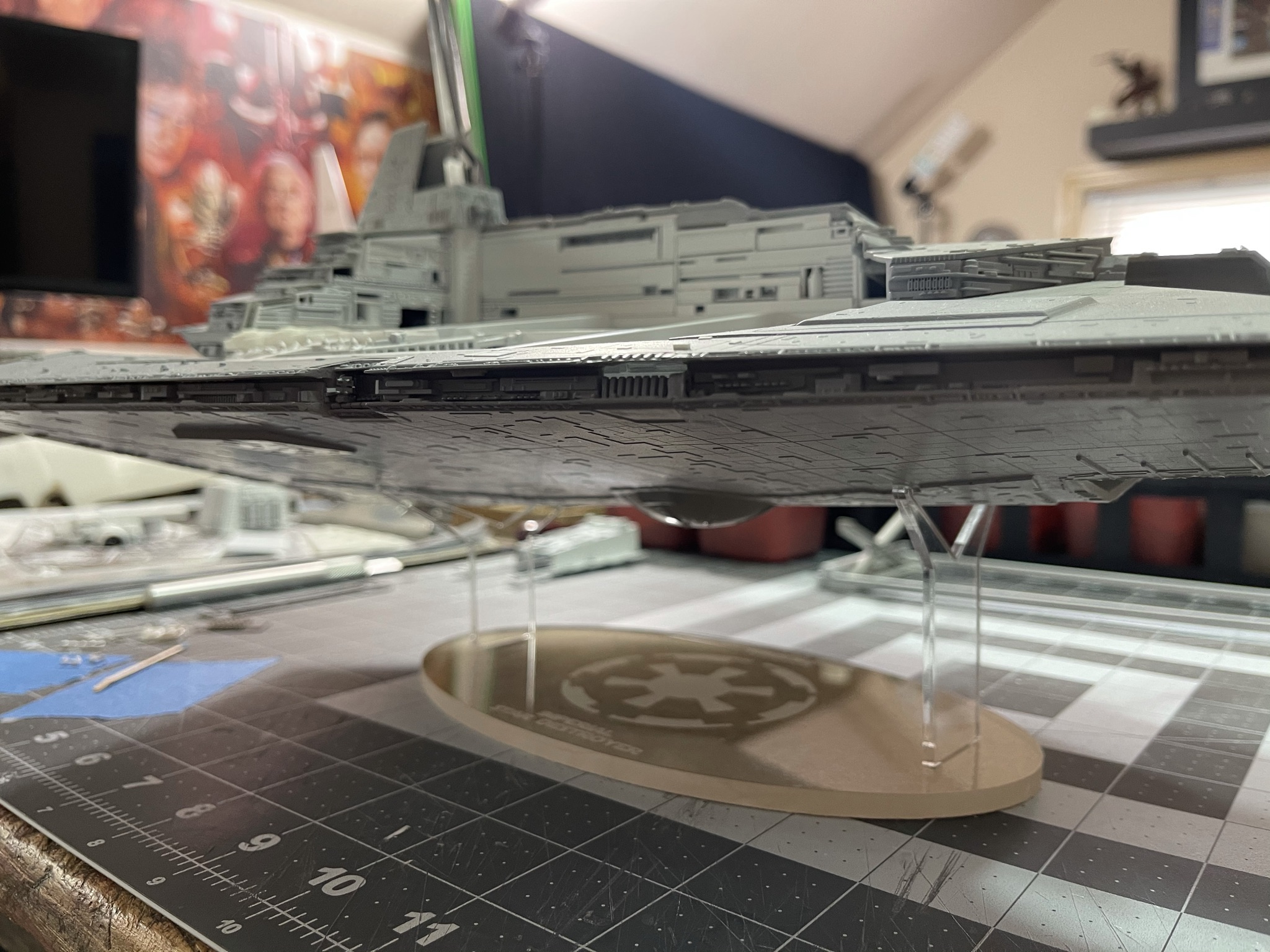

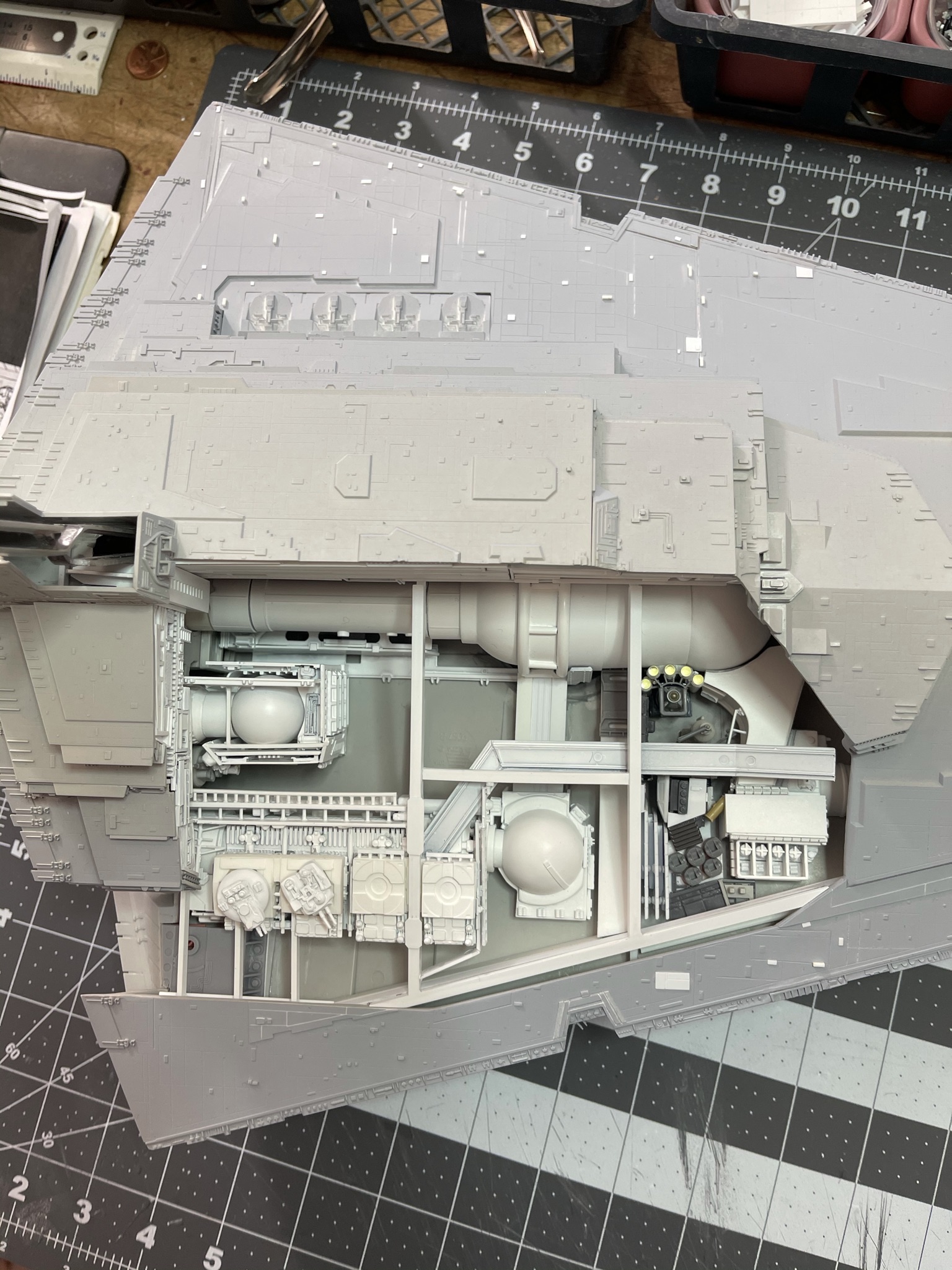

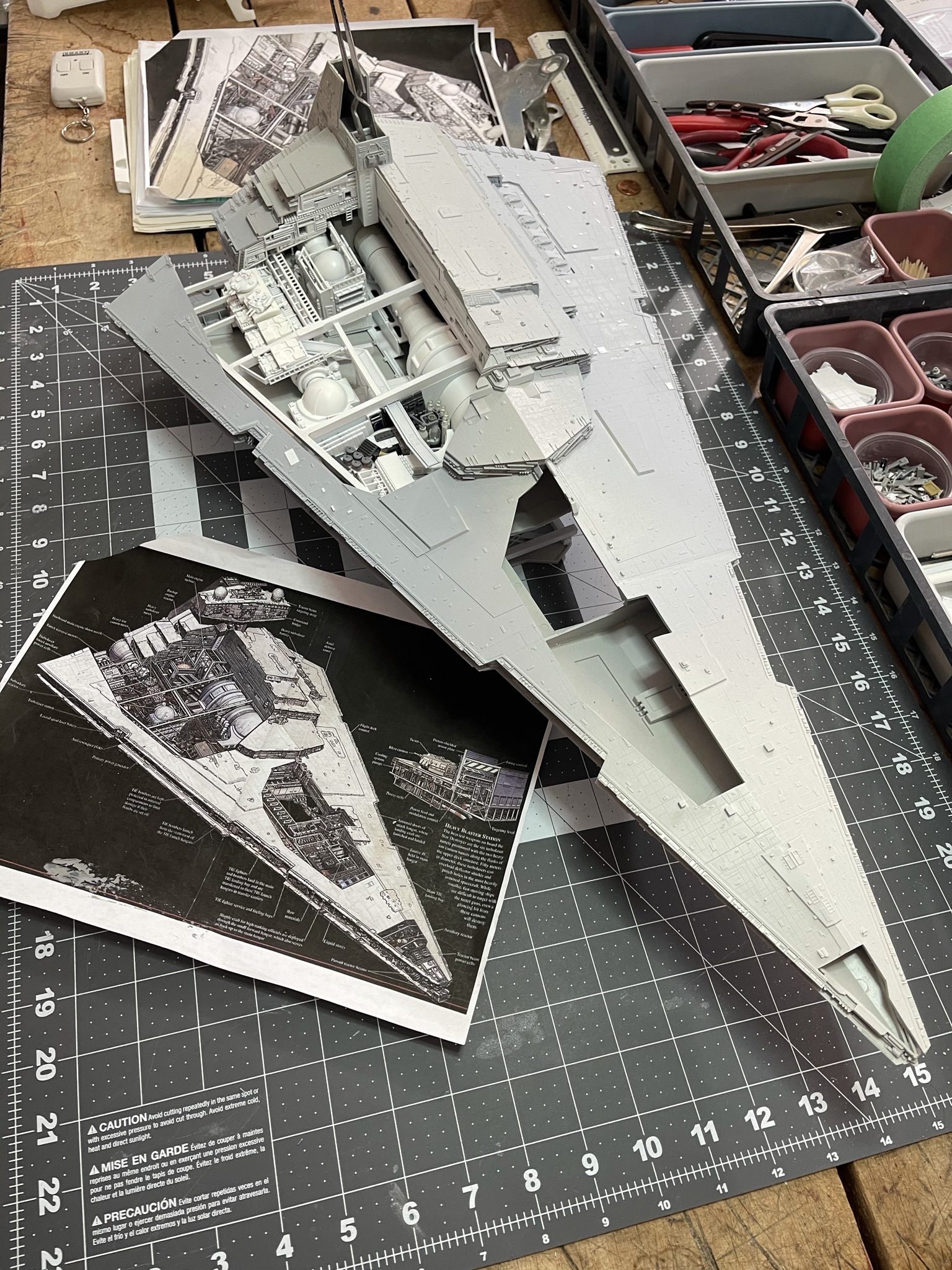

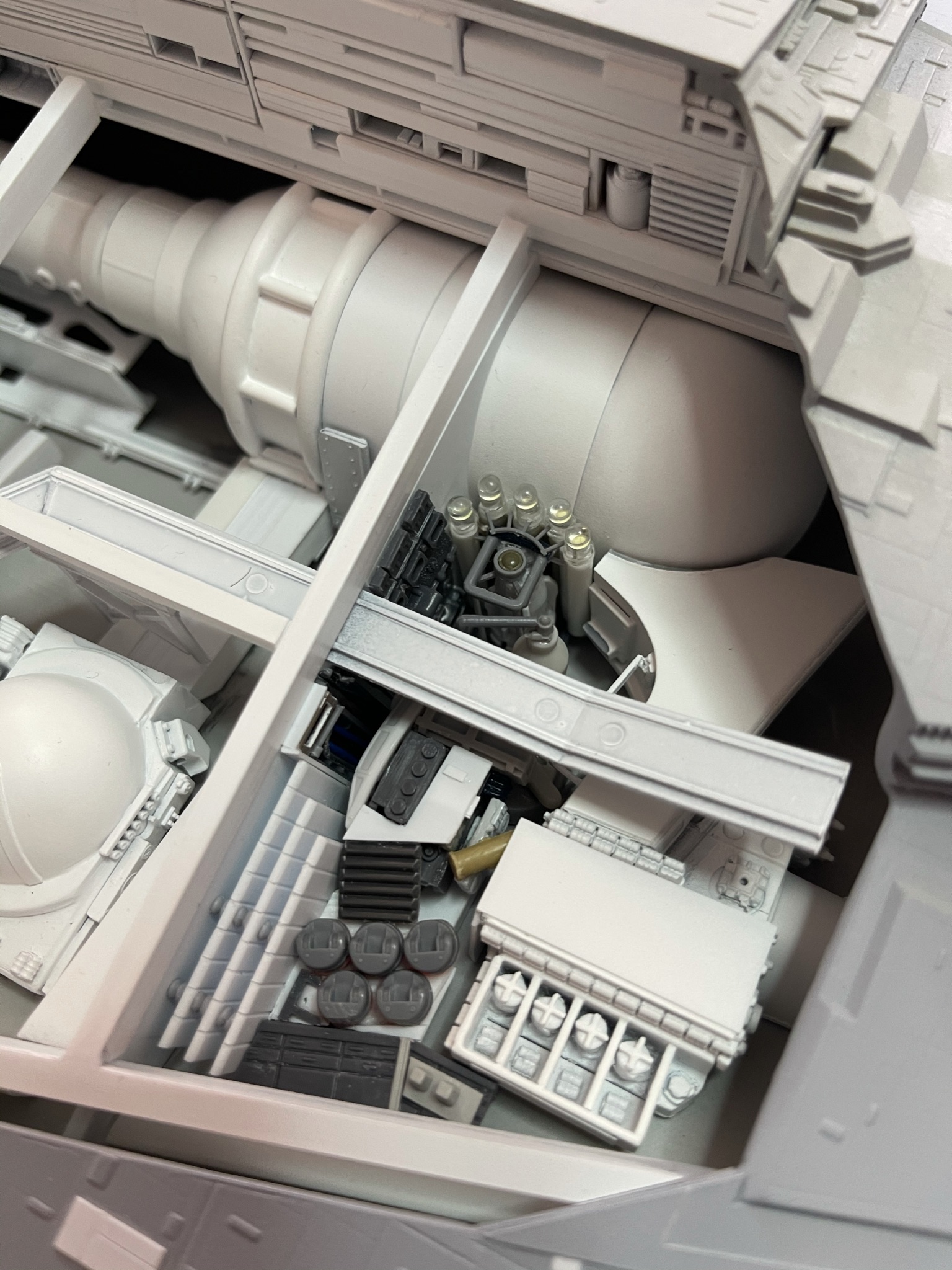

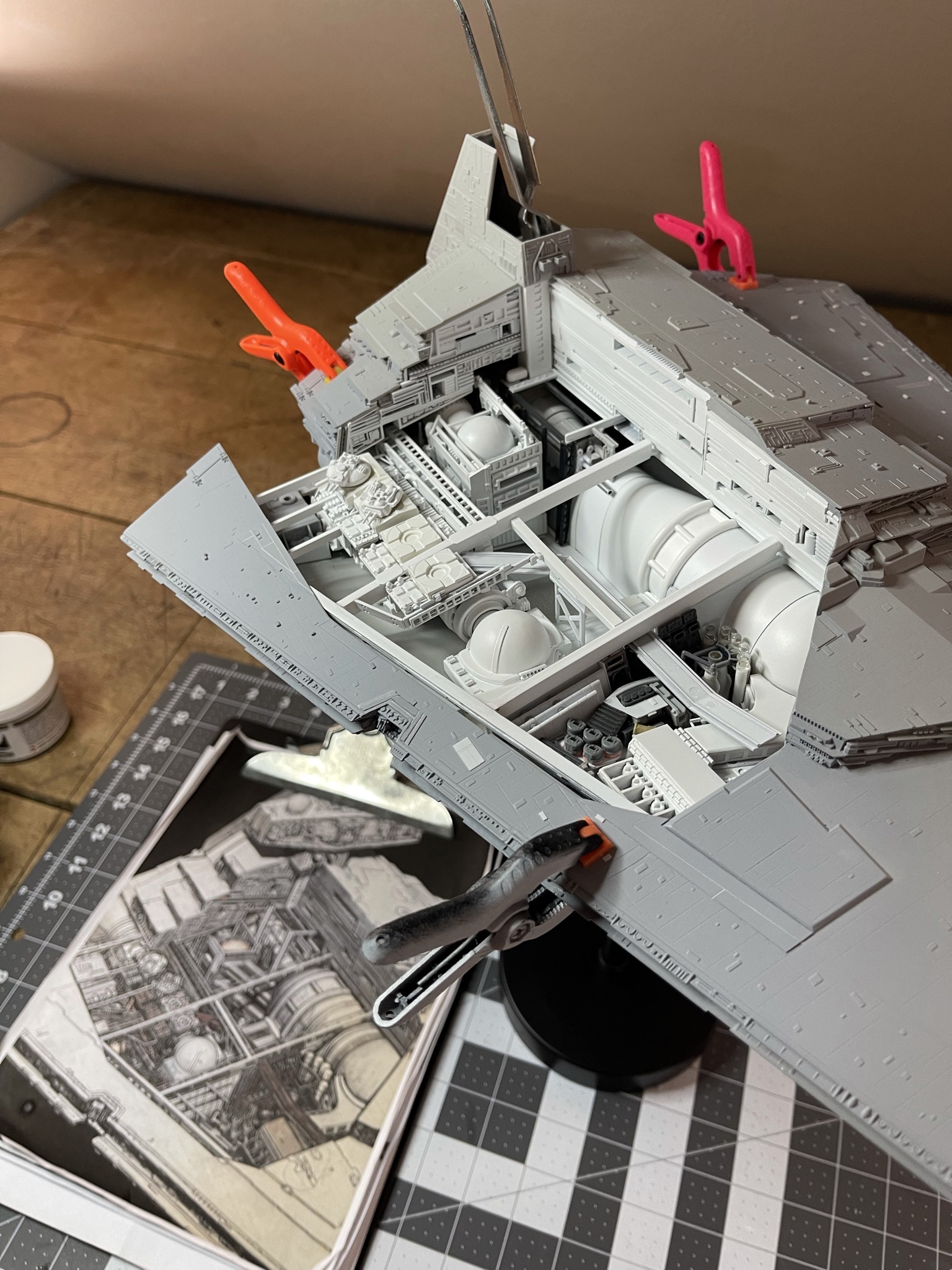

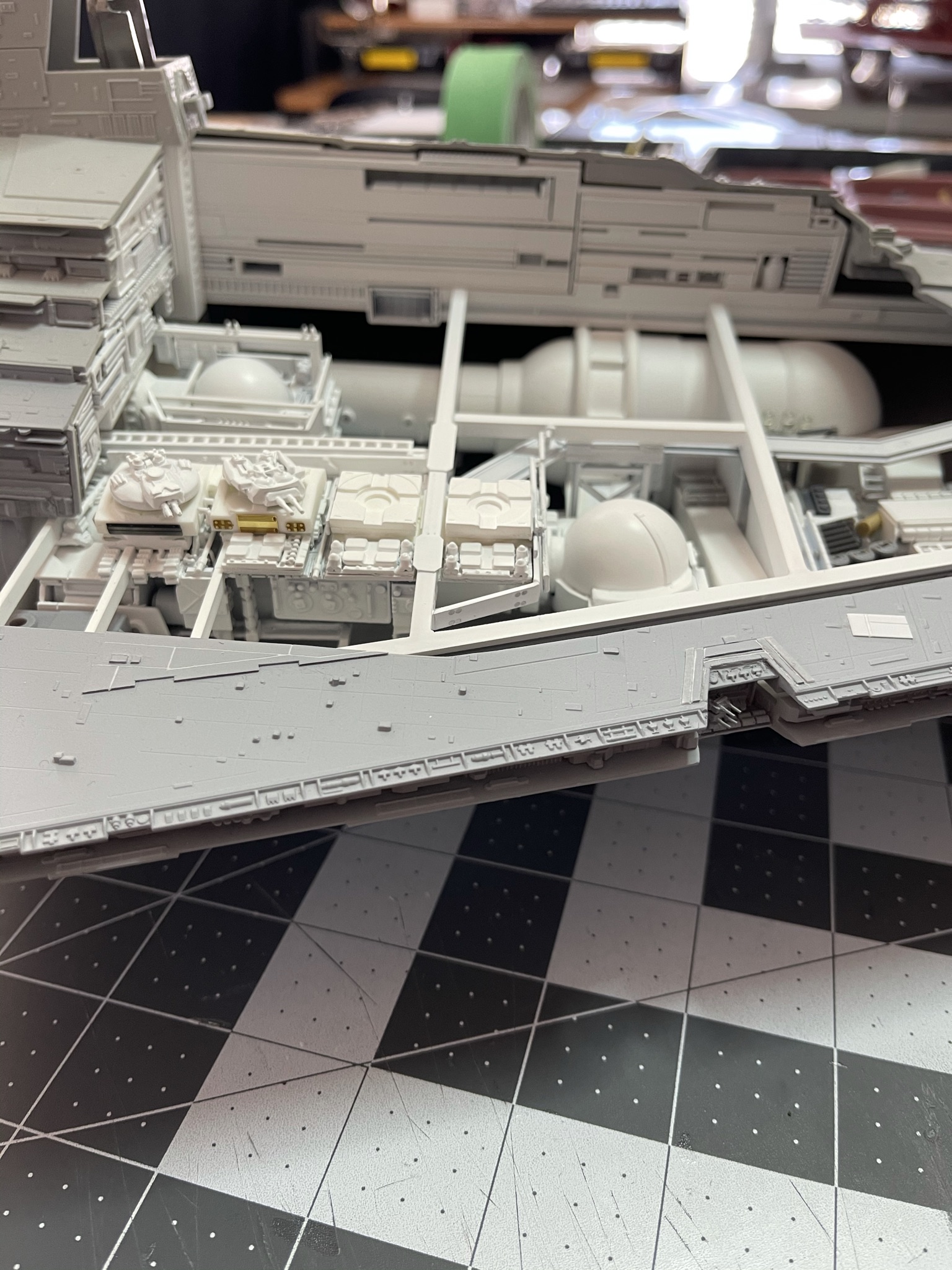

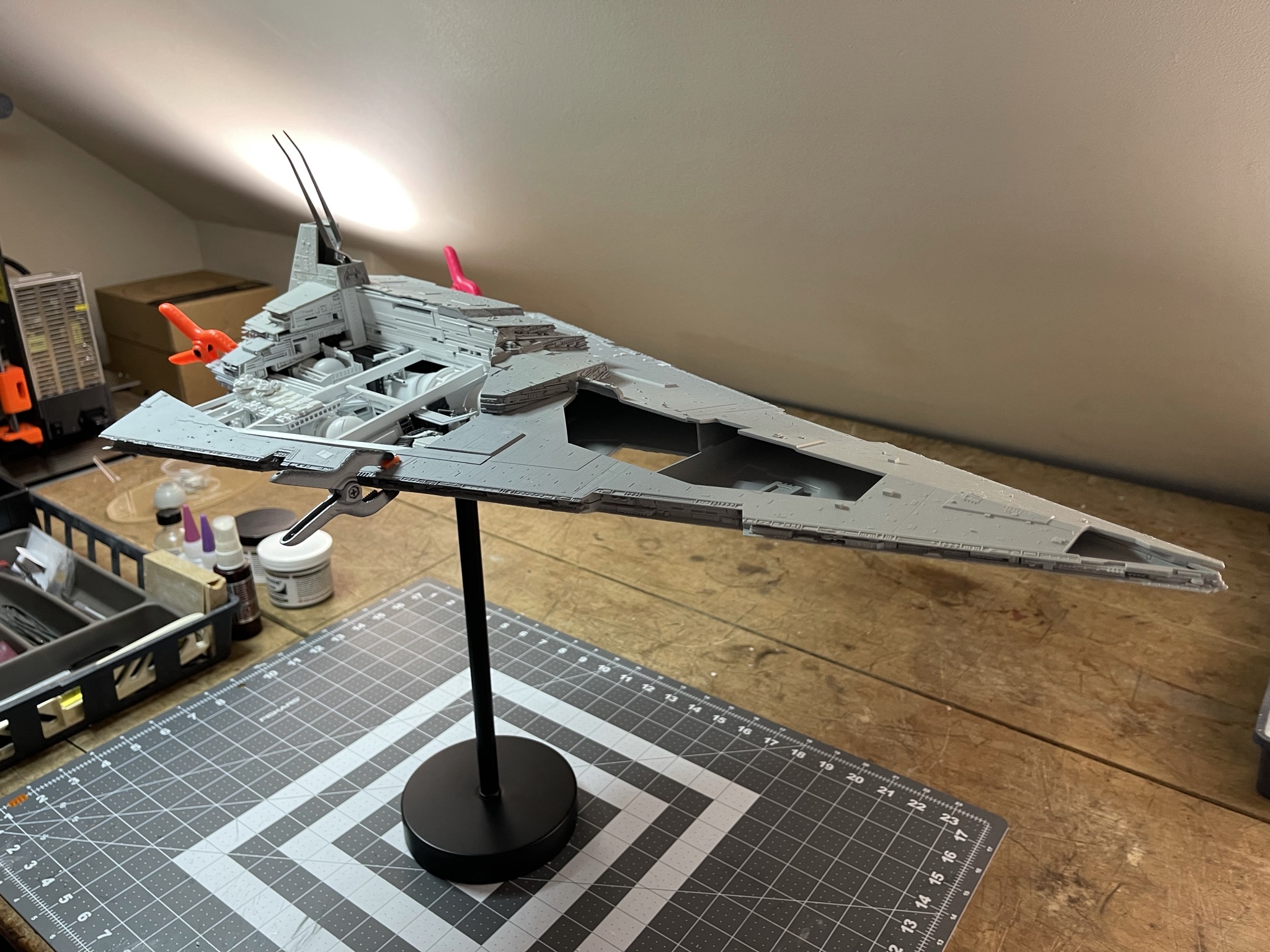

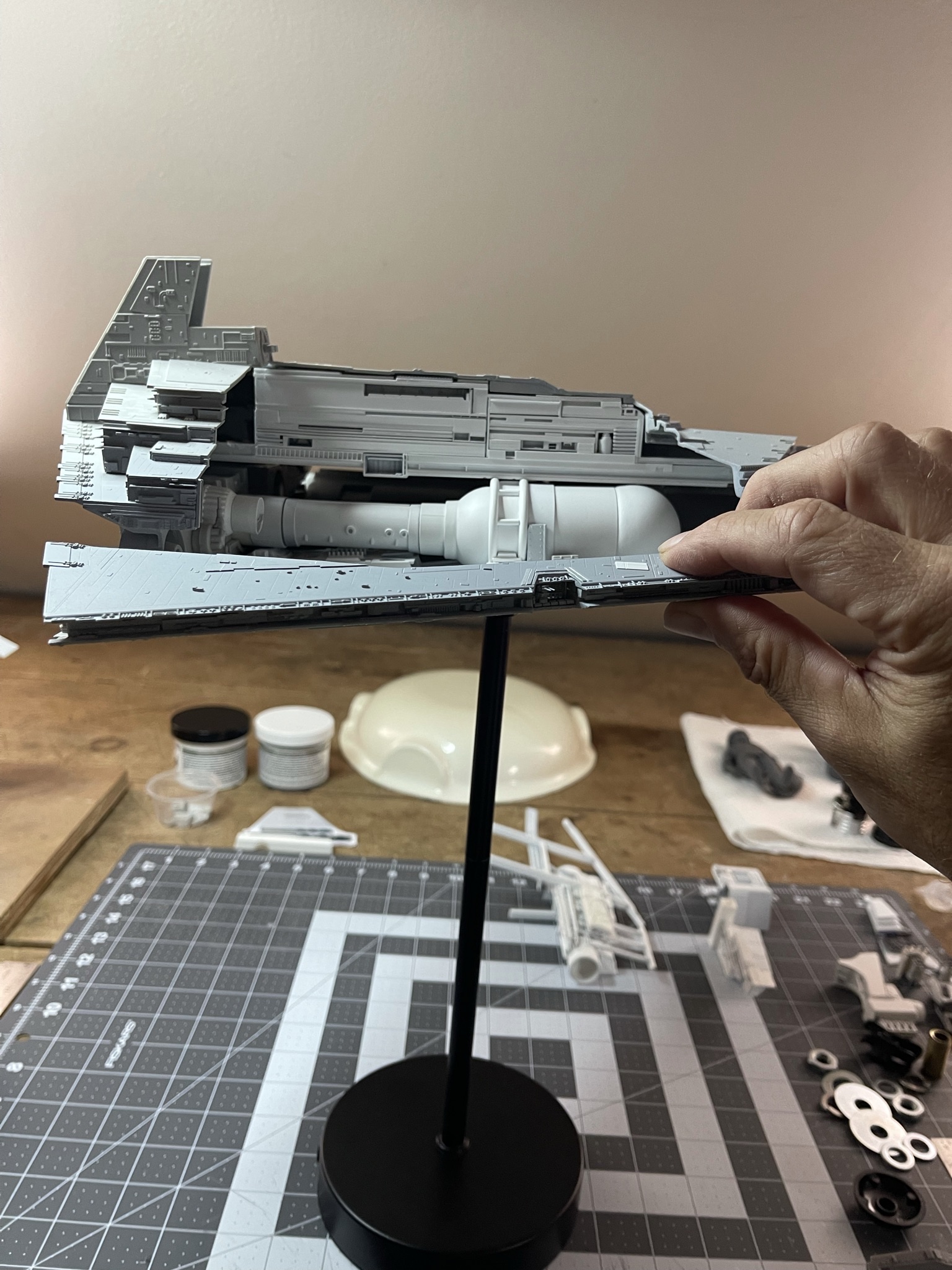

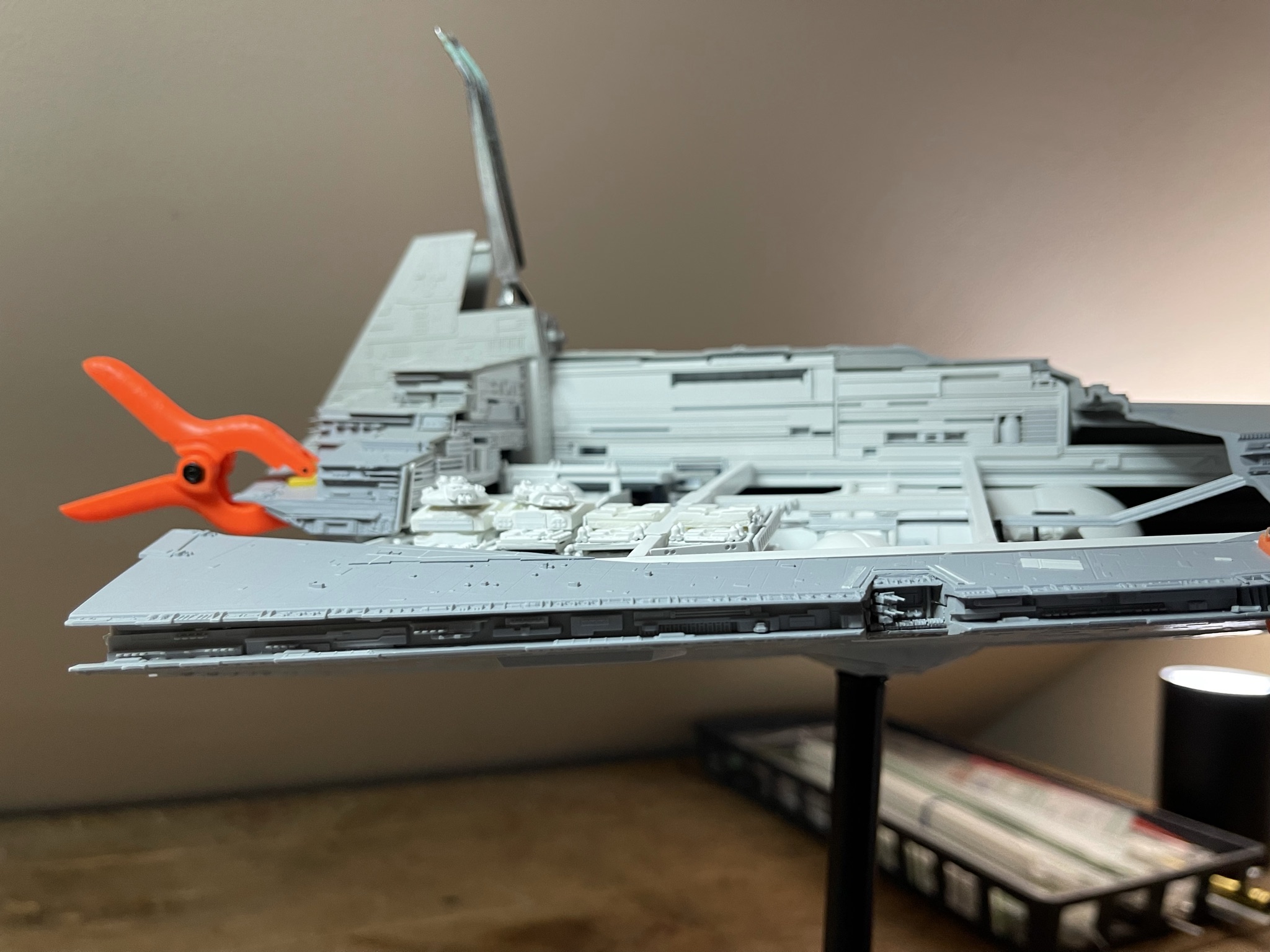

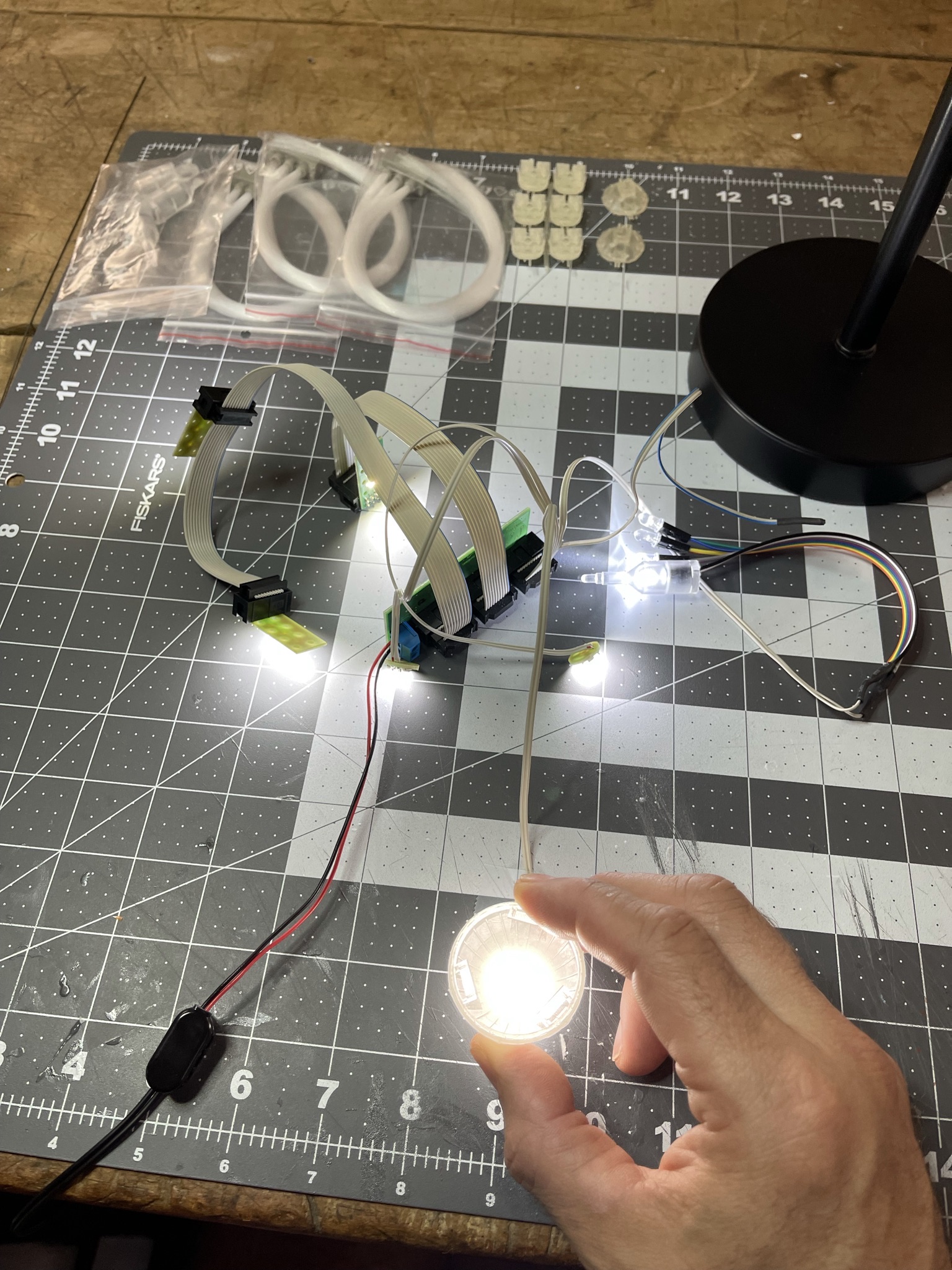

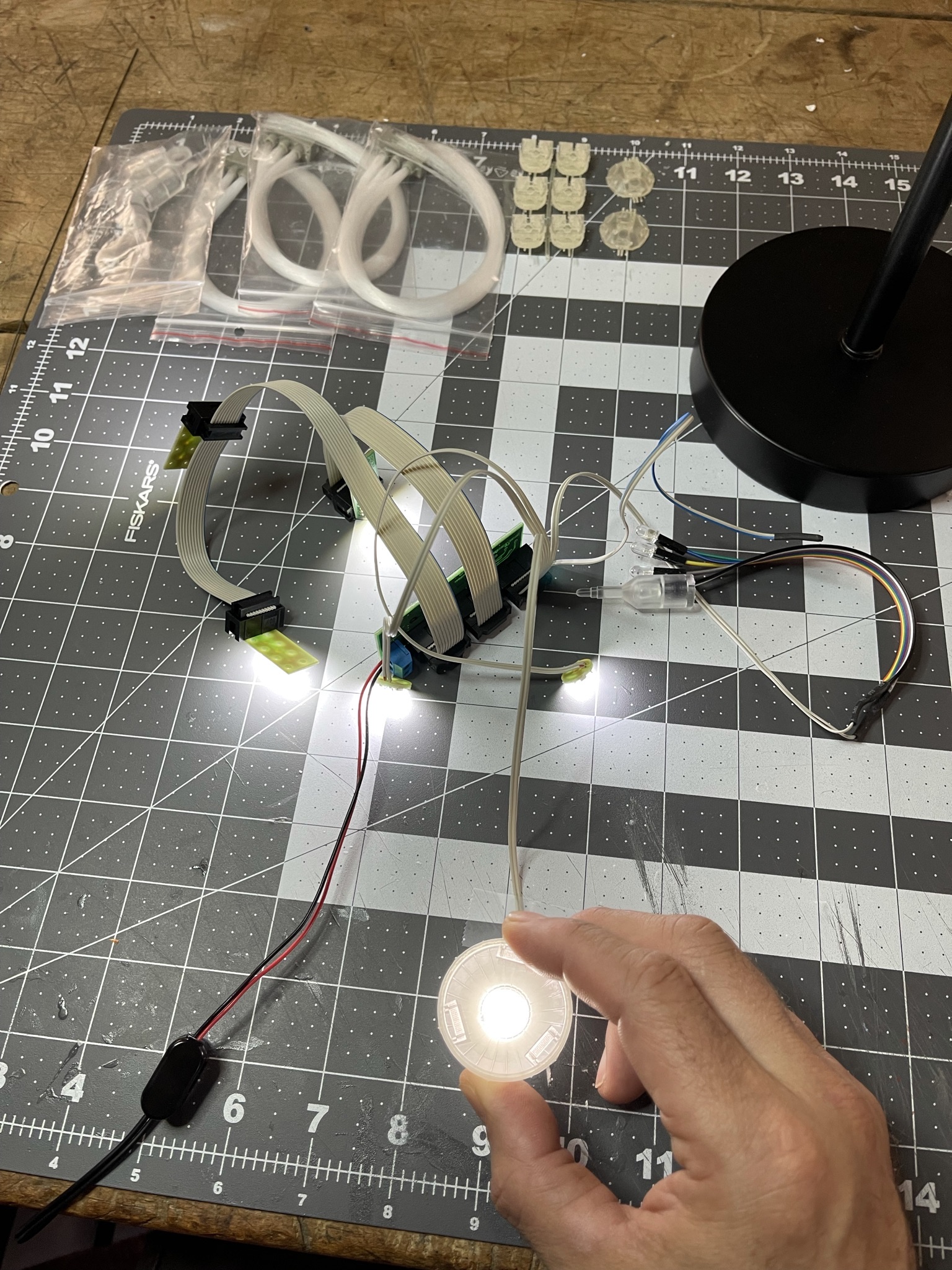

Was derailed for a month by four feet of snow and weeks of below zero, but back to scratching and bashing. Added a few more modules in the front of the main opening. Months of greeblies still ahead. Dug through my lighting and mod sets and ran channels for fiber optics under the open section. Also picked a stand... I think... still going back and forth on a pipe or a stand. Nothing is glued in, yet, as I have kept every chunk modular. The simple squeeze pliers down through the bridge shaft is holding a whole lot of modules in alignment right now.


Attachments

  • ZVZ_KKH-Build 210a.jpg
    ZVZ_KKH-Build 210a.jpg
    695.7 KB · Views: 77
  • ZVZ_KKH-Build 210b.jpg
    ZVZ_KKH-Build 210b.jpg
    774.6 KB · Views: 66
  • ZVZ_KKH-Build 210c.jpg
    ZVZ_KKH-Build 210c.jpg
    1.1 MB · Views: 72
  • ZVZ_KKH-Build 211.jpg
    ZVZ_KKH-Build 211.jpg
    1.2 MB · Views: 66
  • ZVZ_KKH-Build 212.jpg
    ZVZ_KKH-Build 212.jpg
    1.2 MB · Views: 67
  • ZVZ_KKH-Build 213.jpg
    ZVZ_KKH-Build 213.jpg
    723 KB · Views: 55
  • ZVZ_KKH-Build 214.jpg
    ZVZ_KKH-Build 214.jpg
    662.8 KB · Views: 68
  • ZVZ_KKH-Build 215.jpg
    ZVZ_KKH-Build 215.jpg
    704.2 KB · Views: 75

HMR

New Member
This is so awesome. The bashing looks incredible, great work.
I have one of these kits in my stash. Are the 1/2700 ties the ones from shapeways?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

OTnROTSfan

Well-Known Member
RPF PREMIUM MEMBER

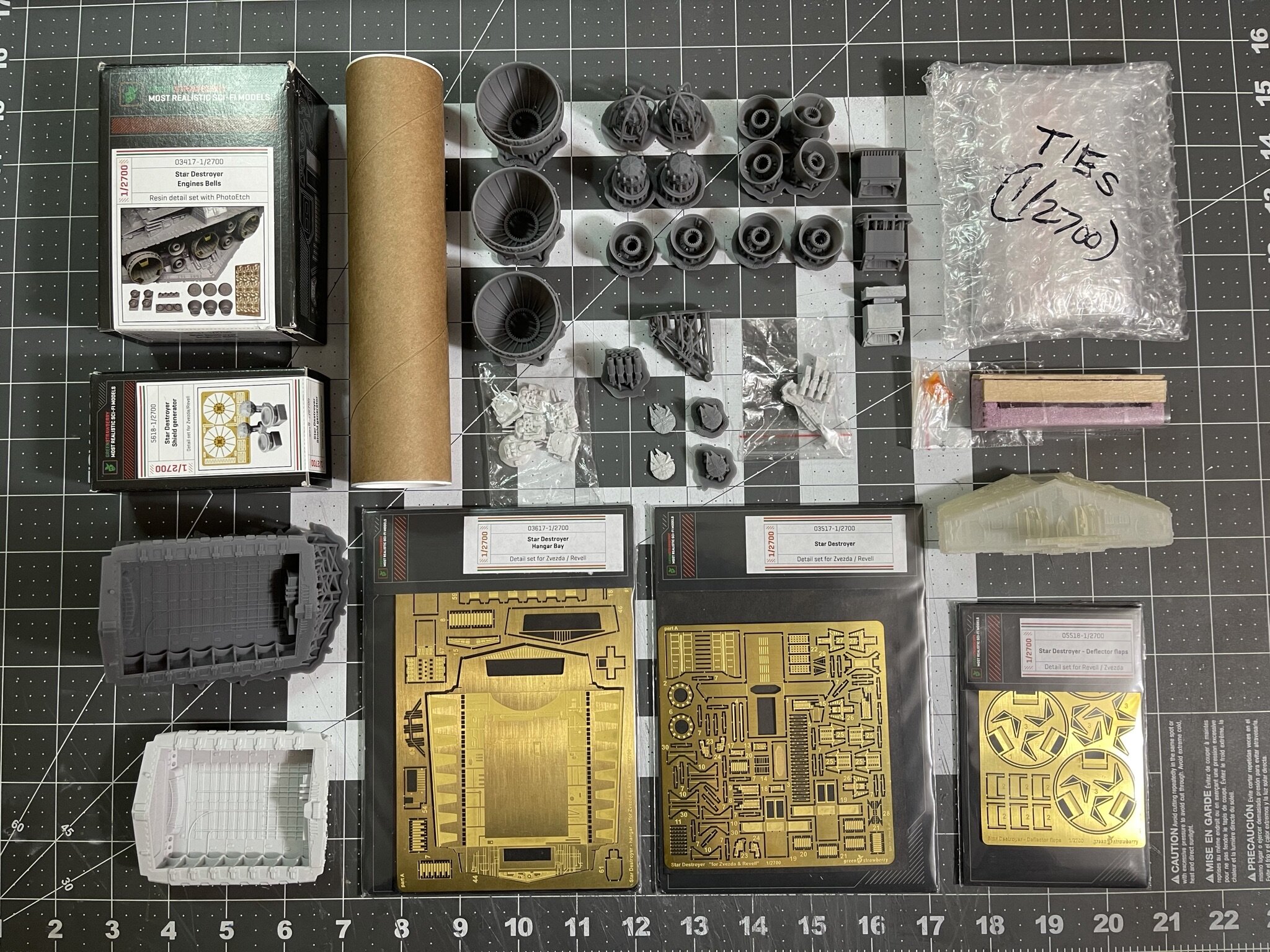

Thanks all! HMR - yeah those are the shapeways ones... future update I'll unwrap and show next to others I have grabbed along the way. Forgot to unwrap for this update. Trying to show others mods for comparatives, too. Like to compare them all in-hand myself...
