Revell 1/2256 Venator WIP

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


computergeek

Active Member
Hey all,

I've been slowly working on this since May and figured it was about time to create a WIP. I'm building Revell's 1/2256 Venator kit with fiber optics, lighted engines, and a scratch built hanger bay. I'm also using many 3d printed pieces from shapeways for the hangar, bridge, and engine exhaust patterns. This is my first real kit build (I did the Revell 1/4000 SD as a practice to learn airbrushing before this, but that doesn't really count), so comments and suggestions are greatly appreciated!

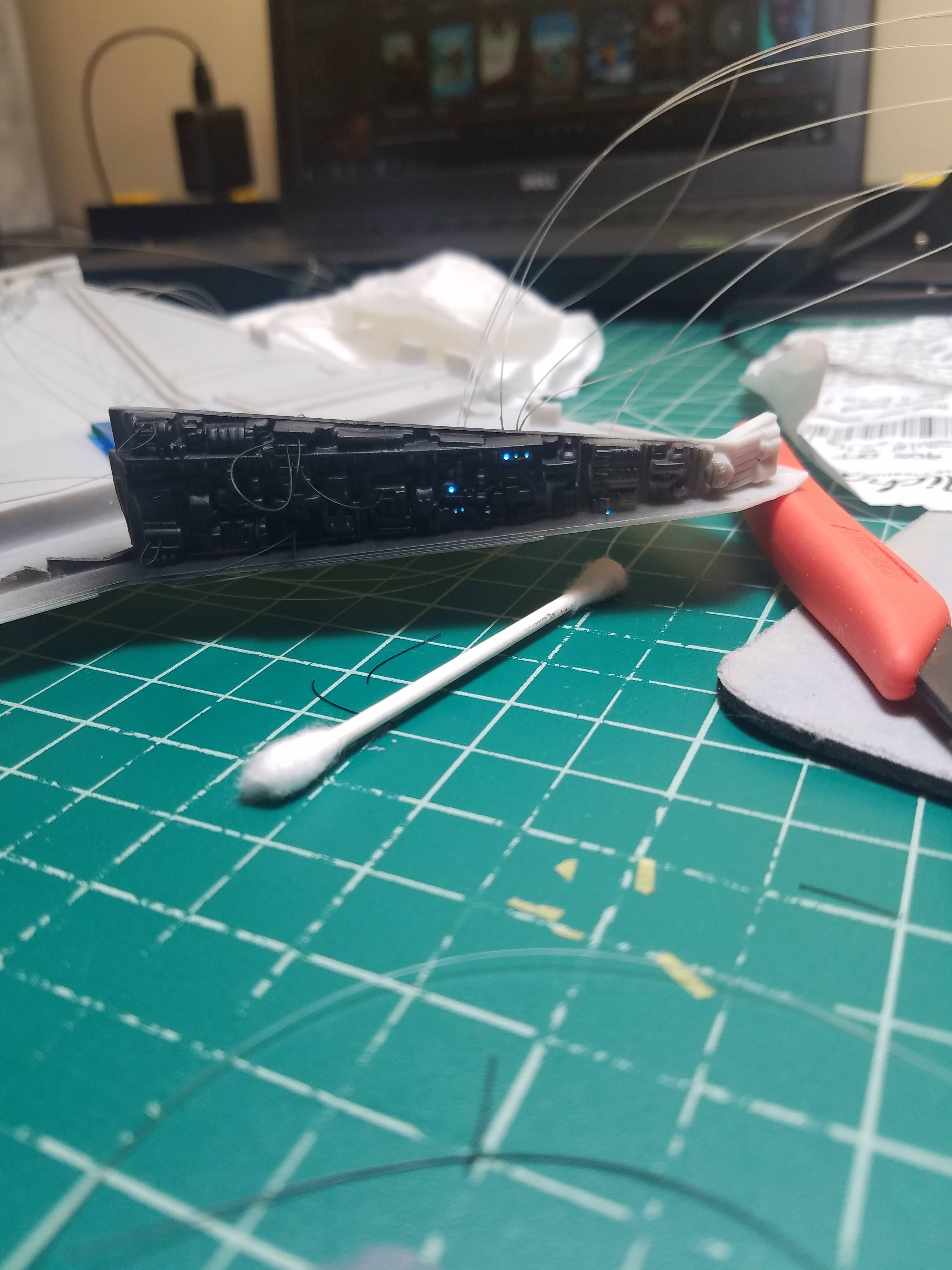

So far I've drilled most of my holes for the FO and began to run the .25mm tonight. I have some .5mm to run, but I need to order the filament



I've been playing with RGB LEDs to get the "right" blue for the FO (regular blue LEDs just don't do it for me :D). I think I have gotten pretty close with this combination



For the hanger I picked up some of the Oddysey Slipways Republic Gunships. I'm going to pick up some ARC 170's and troop transports soon to fill out the bay





And for the bridge section, I've cut out the window portions which will be replaced with something to give the appearance of windows. I am going to try to cut some pieces on my brother's laser cutter to glue in place, but the little slits may be too small. I've seen other builds use printed transparencies and diffusion material, which could also work.

The slits need some more cleanup




Anyway, thanks for checking it out, comments/tips/tricks/suggestions are greatly appreciated!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

gedmac66

Sr Member
G’day @computergeek ,

Took delivery of one of these myself awhile ago . Maybe my favourite vehicle / ship from the PT . Haven’t started on it yet , but having seen some terrific images of detailed ‘ lighted ‘ builds out there , I’m really looking forward to following a thread from the get go - before I get the opportunity to start on mine . Subbed !

For the ‘ windows ‘ , maybe consider scribing one side of clear thin acrylic sheet - add a thin wash for frames / details , and lightly sand other side to obtain a diffused effect ( side facing in ) , all prior to carefully cutting out and positioning ?


(y)cheersGed

Last edited:

Darph Bobo

Well-Known Member
Excellent, it's great to see people still enjoying this kit! I look forward to seeing how yours progresses, You're doing a lot of similar things to what I did on mine.


computergeek

Active Member
Off to a good start

Thanks! I'll keep this thread updated with progress. I don't get as much time as I'd like for modeling, so it may take awhile.


G’day @computergeek ,

Took delivery of one of these myself awhile ago . Maybe my favourite vehicle / ship from the PT . Haven’t started on it yet , but having seen some terrific images of detailed ‘ lighted ‘ builds out there , I’m really looking forward to following a thread from the get go - before I get the opportunity to start on mine . Subbed !

For the ‘ windows ‘ , maybe consider scribing one side of clear thin acrylic sheet - add a thin wash for frames / details , and lightly sand other side to obtain a diffused effect ( side facing in ) , all prior to carefully cutting out and positioning ?


(y)cheersGed

Good idea on the windows! I'm hoping my lasercut styrene will work out to give the windows some depth, but if not, I'll give that a try!

I definitely reccommend going on Shapeways and picking up some drop in replacement parts. The bridge especially looks much better than the original pieces.

Here's engine inserts to get a good light effect when you install the LEDs

https://www.shapeways.com/product/87FNQLFCR/engine-inserts?optionId=2208995&li=ostatus

And here's the vendor that makes just about everything else-

https://www.shapeways.com/shops/cosmosmodels?section=1/2256+Fleet&s=0

You can go crazy on these upgrades if you want, I'm just sticking with the hangar bay, bridge, and engines.



Excellent, it's great to see people still enjoying this kit! I look forward to seeing how yours progresses, You're doing a lot of similar things to what I did on mine.

Thanks! Do you have a thread or pictures? I'd love to take a look!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

computergeek

Active Member
I can do one up when I get home tonight
Thanks so much for your thread. Lots of useful info!!


Small progress update, I've been adding some styrene panel greeblies to the top hull. Still have more to add but this is as much as I can do before the holidays and moving to a new apartment. I'll have a much better model space :)

Happy holidays everyone!


Sent from my SAMSUNG-SM-G891A using Tapatalk


Socrates11

Well-Known Member
Thanks so much for your thread. Lots of useful info!!


Small progress update, I've been adding some styrene panel greeblies to the top hull. Still have more to add but this is as much as I can do before the holidays and moving to a new apartment. I'll have a much better model space :)

Happy holidays everyone!https://uploads.tapatalk-cdn.com/20171224/3e08f73f67e6248e2cbac7a3676a077c.jpg

Sent from my SAMSUNG-SM-G891A using Tapatalk
On this picture... What did you use to weather the model? It looks awesome!


I'm happy to be crazy :)


computergeek

Active Member
On this picture... What did you use to weather the model? It looks awesome!


I'm happy to be crazy :)
Oh, thats not weathering! I jumped the gun on painting and then was stripping it down because the model glue just globs up on acrylics.

But its just acrylic paint stripped with rubbing alcohol and 800 grit sandpaper. You could probably replicate it by sanding down a light black coat over your base color.

Sent from my SAMSUNG-SM-G891A using Tapatalk


Socrates11

Well-Known Member
Oh, thats not weathering! I jumped the gun on painting and then was stripping it down because the model glue just globs up on acrylics.

But its just acrylic paint stripped with rubbing alcohol and 800 grit sandpaper. You could probably replicate it by sanding down a light black coat over your base color.

Sent from my SAMSUNG-SM-G891A using Tapatalk
The effect it created is freaking awesome I think... So cool that's a lot of times I noticed... When taking a lot of time it anytime just misses it.. but when rushing it some times it just gets perfect... Like this..
It's not something for this ship but for other models/parts. :)

I'm happy to be crazy :)


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

computergeek

Active Member
Ok, sorry for the long time before an update... Was mostly doing the mundane work of running fiber optics. Thanks for asking gedmac66, it's nice to know people are looking at this build :)

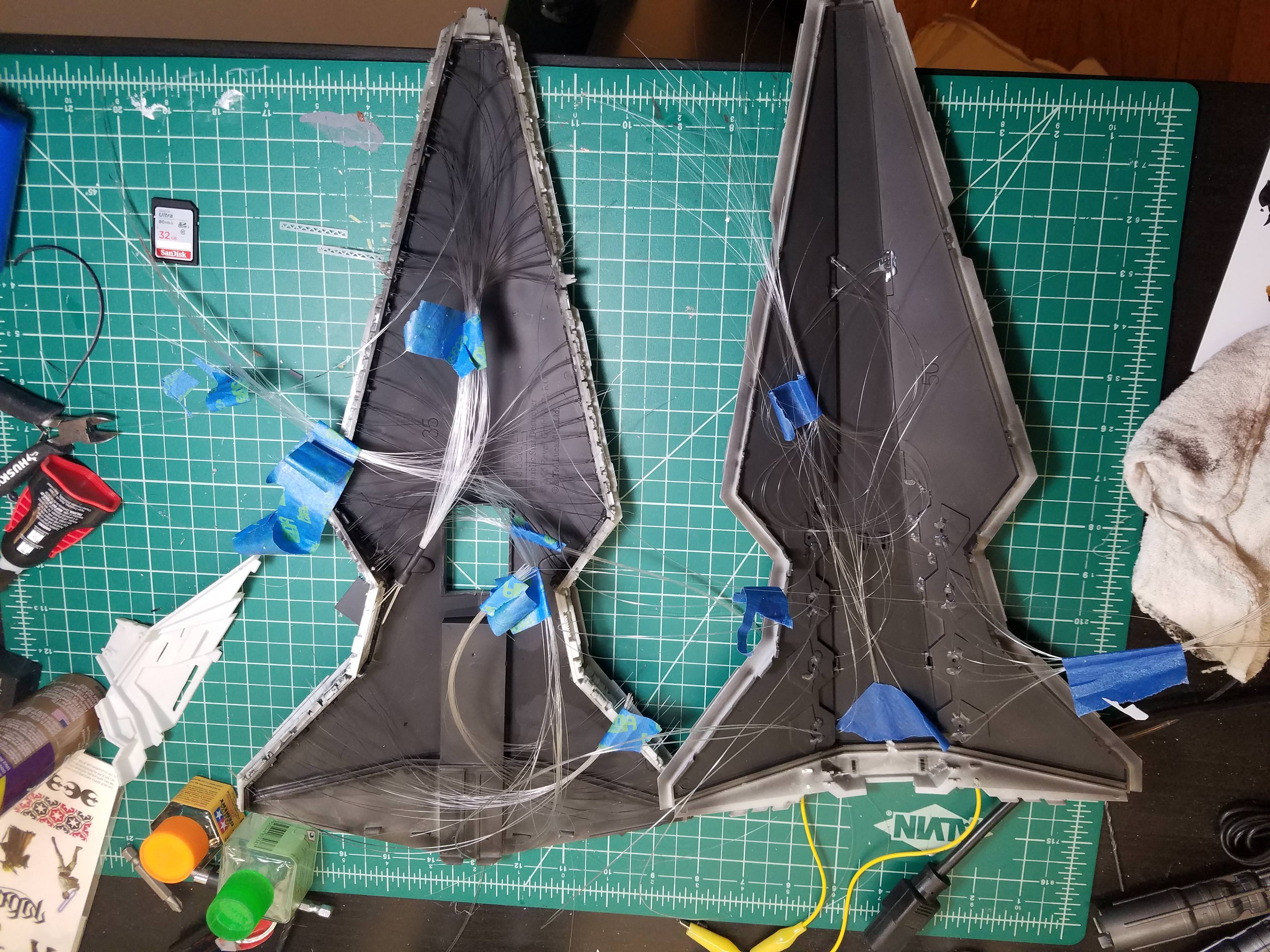

Anyway, here's how the main hull stands-



I don't even want to know how many fiber optic strands it ended up being.. And I have a few more to add to the hangars.

Speaking of the hangars, I decided to cut the other one out and build an extended hangar/flight deck ala EA's Battlefront 2. Haven't made much progress scratch building, I need to draw everything out first!

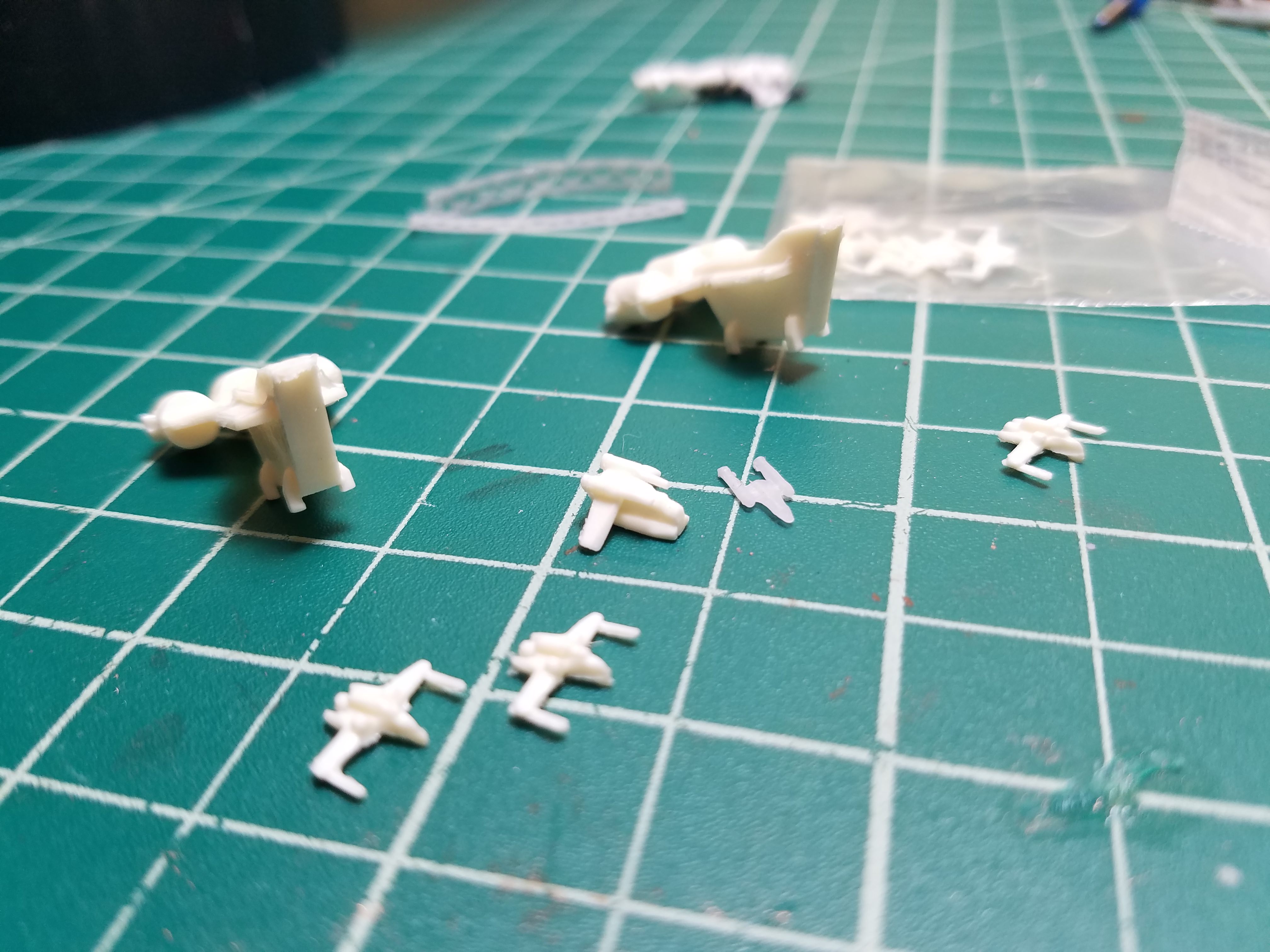

I bought some more of Odyssey Slipway's 1/2256 ships to go in the hangar/outside the ship. They're working on a Y-wing, but aren't sure if it's going to work out (given the tiny nature of the model). Just in case, I found a 3d model of a Y-wing on Thingiverse and printed it on my nice, new DLP printer (Wanhao Duplicator 7). It came out well for the tiny scale!


I primed a small part of the side to see how the fiber optics would look (to be sure it would work!), and I liked the effect!

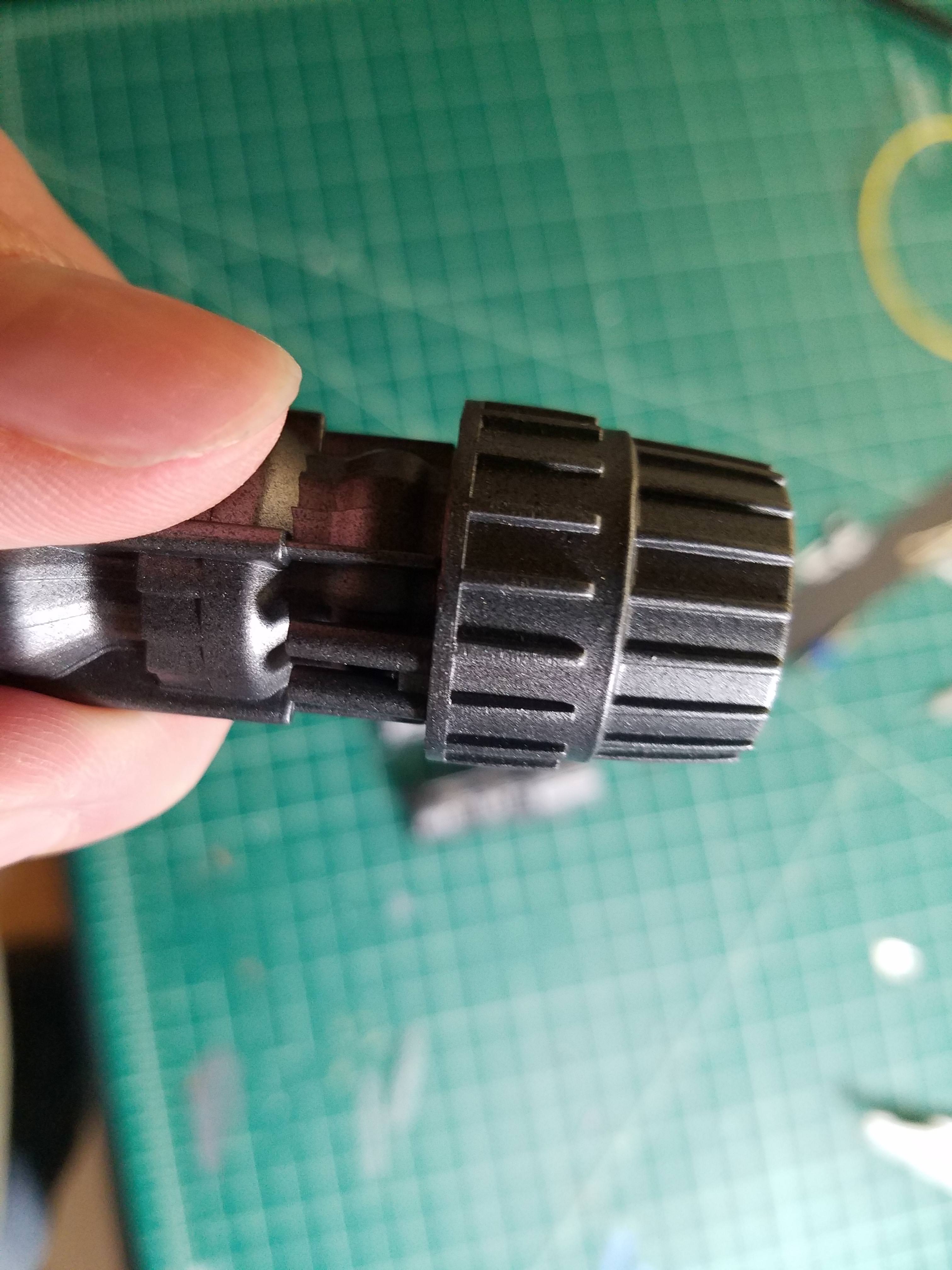

Onto the engines- The 4 big engines have been painted. I used Vallejo Air Gunmetal with a light spritz of Vallejo Black Metal on top. Going to do some more weathering a bit later, but here's how they look now

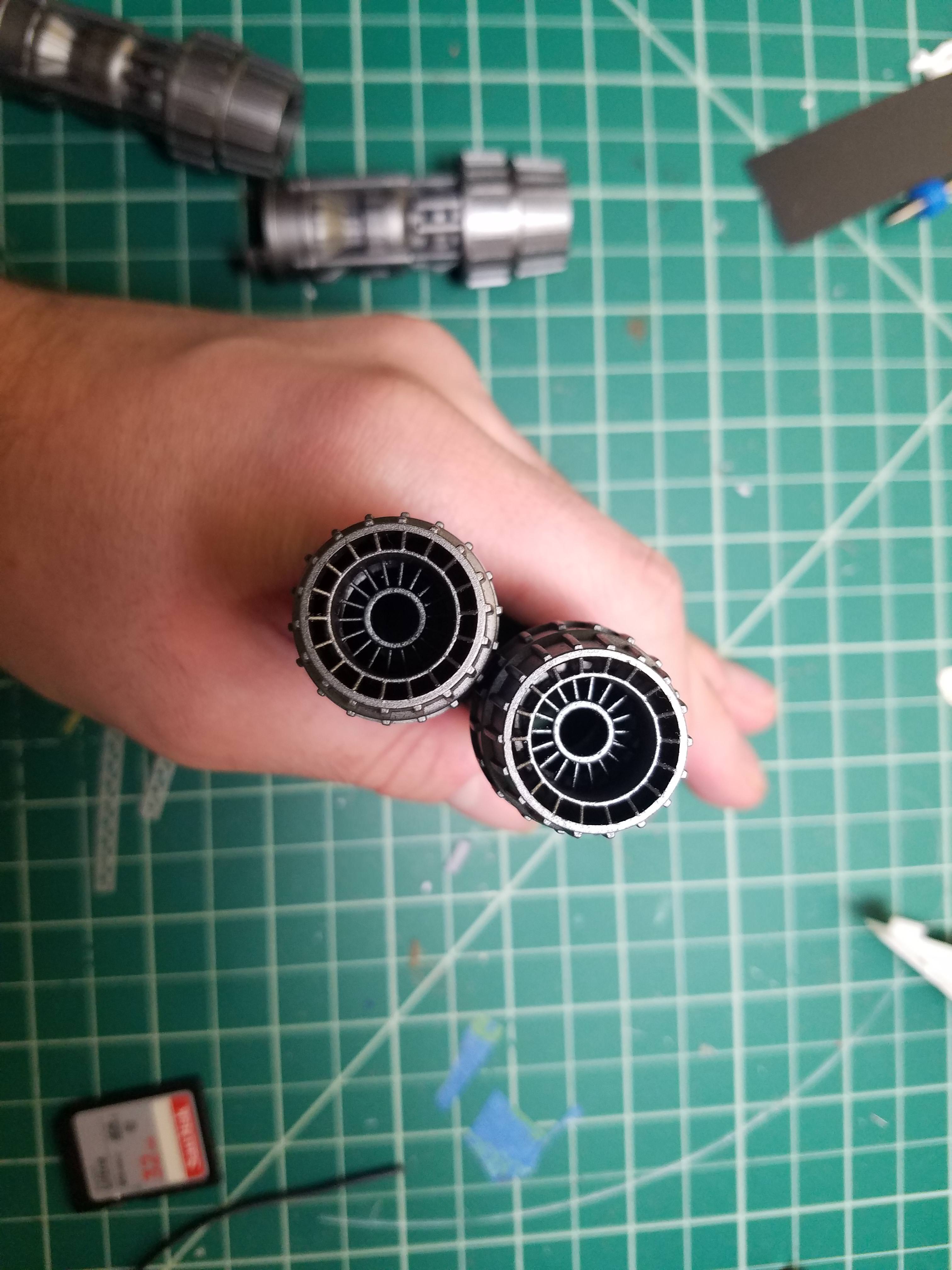

I also got the shapeways engine inserts installed, they look great! Only took a pic of 2 of them, but they all have the insert


I did some work on the 2 tiny engines and found that a 1.5mm strand of FO filament "mushroomed" with a soldering iron did a great job for lighting effects-

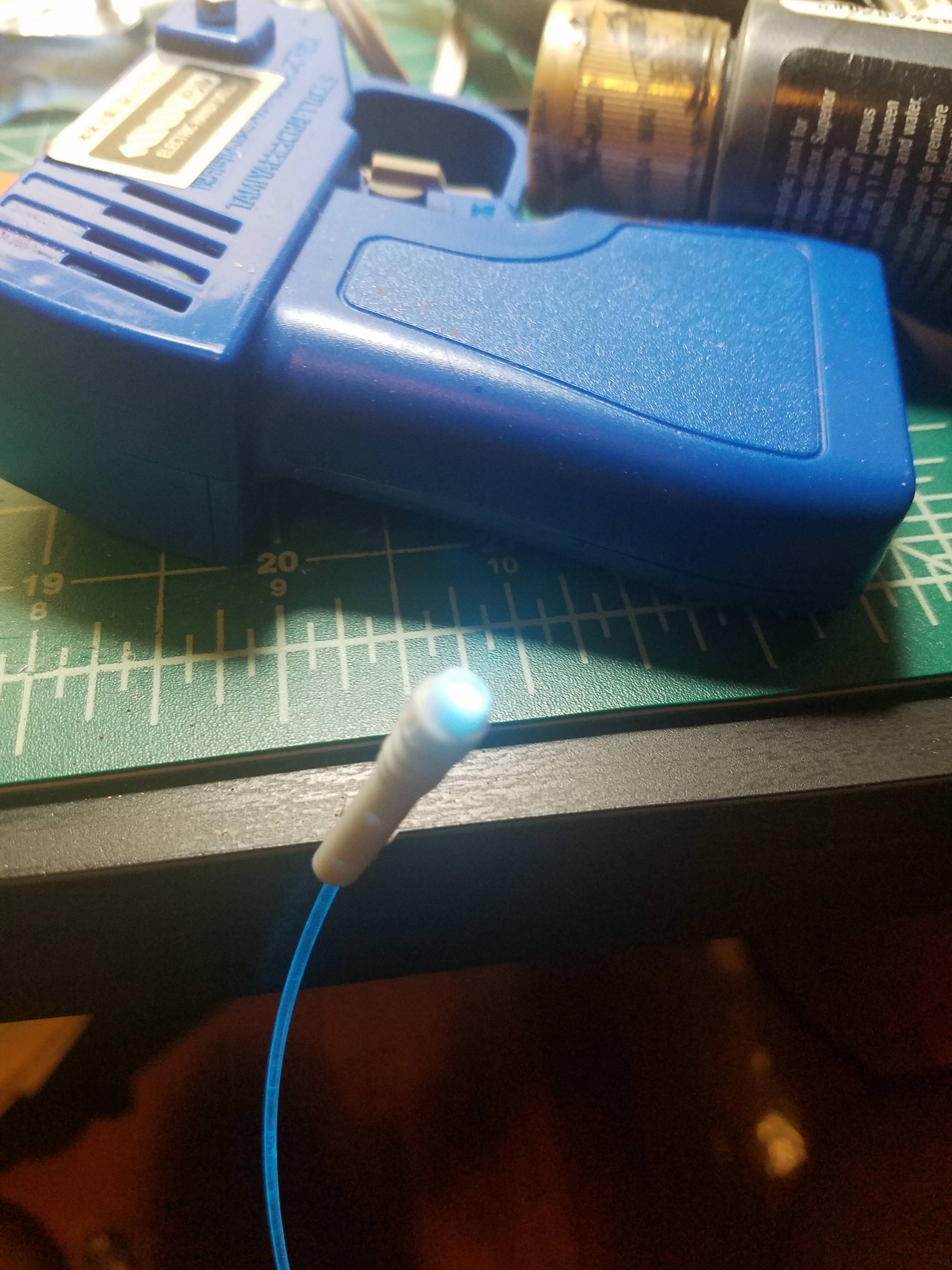

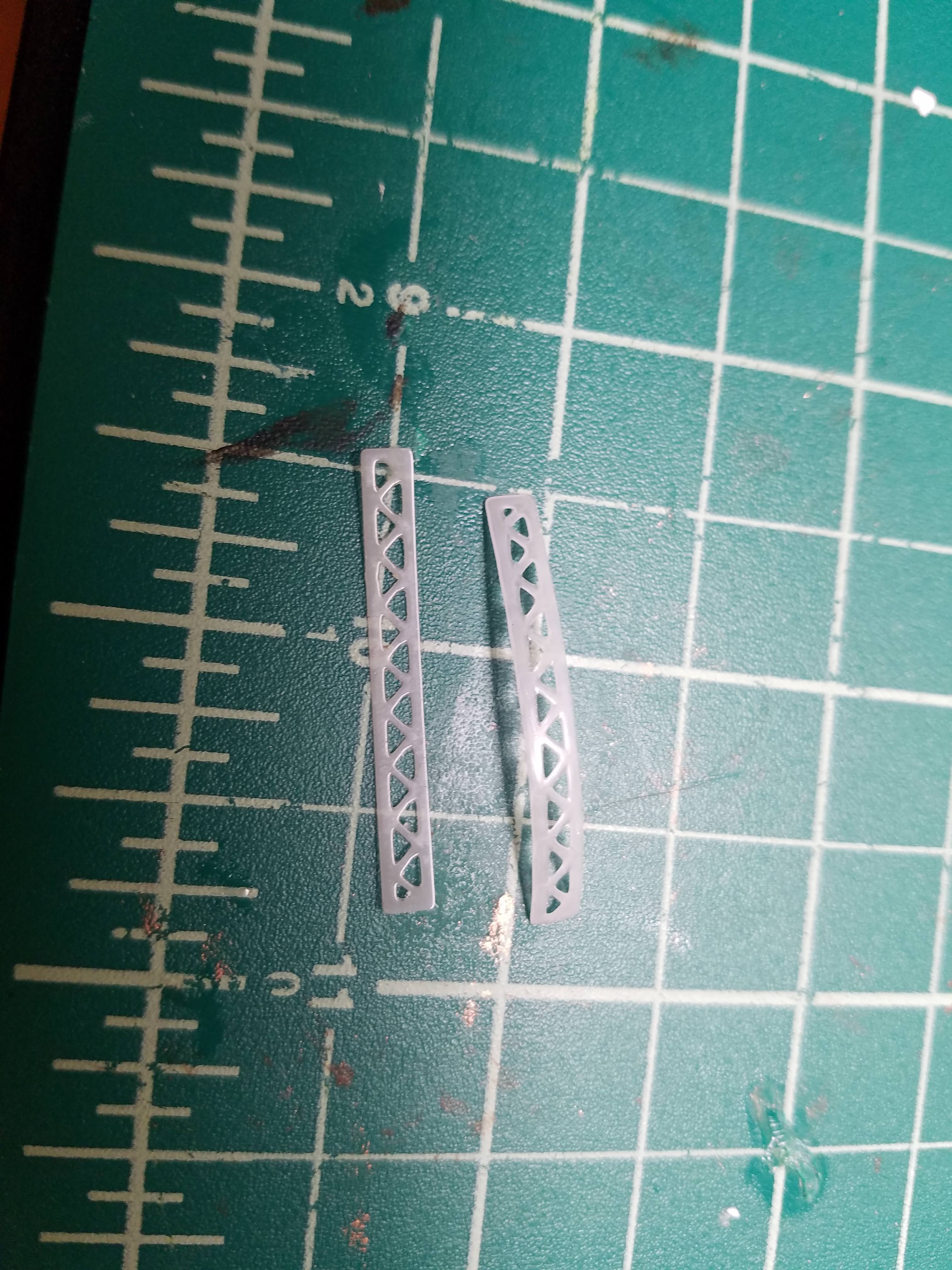

Ok, now for the coolest part (and the reason I was waiting until tonight to post!). After trying a few different methods, I've finally been able to make decent window covers for the bridge window sections! I tried laser cutting .01" styrene, that either melted the whole area or didn't cut through, then I spent a few hours today playing with calibration settings on my printer to 3d print them. It's not quite as sharp as I'd like it to be, but I think its the best I'm going to get.

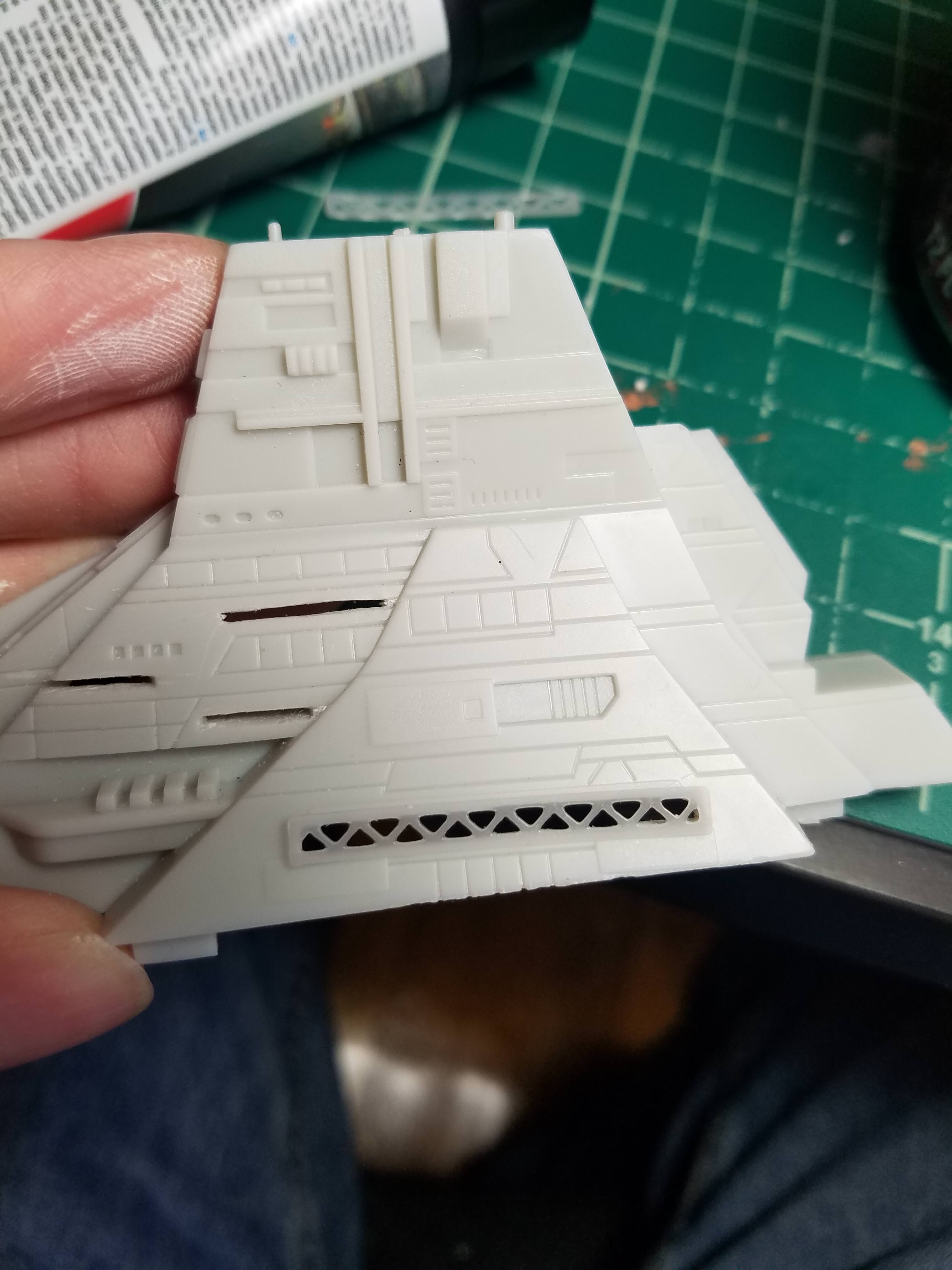

I don't think the printer is going to be able to produce a smaller one (for the other slits I cut), so I'm going to have to expand those to be the same size hole. I didn't want to do that, but I think its going to be the only way.

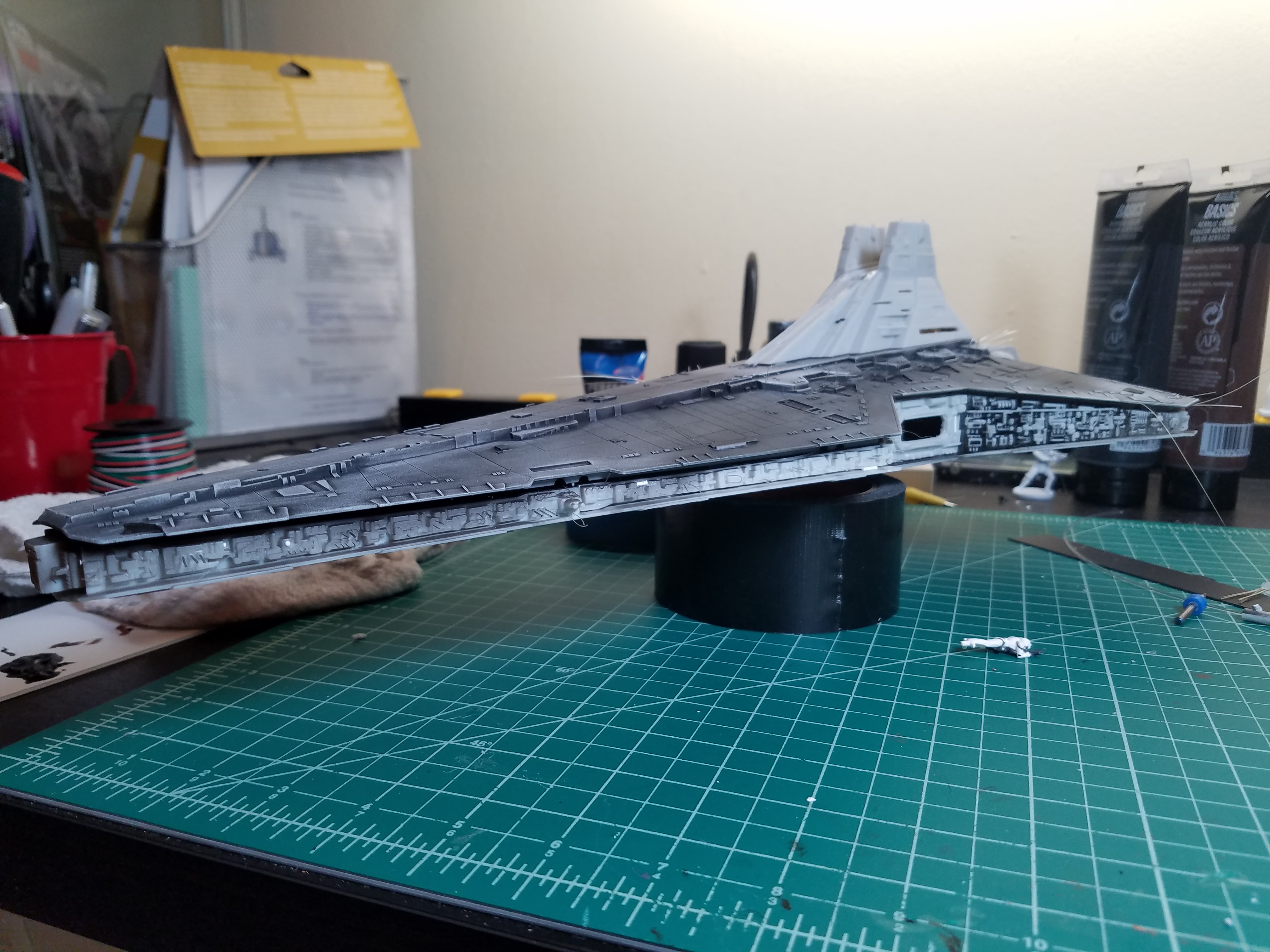

Here's 2 more pictures of the model in its current state-
