Hello everyone !

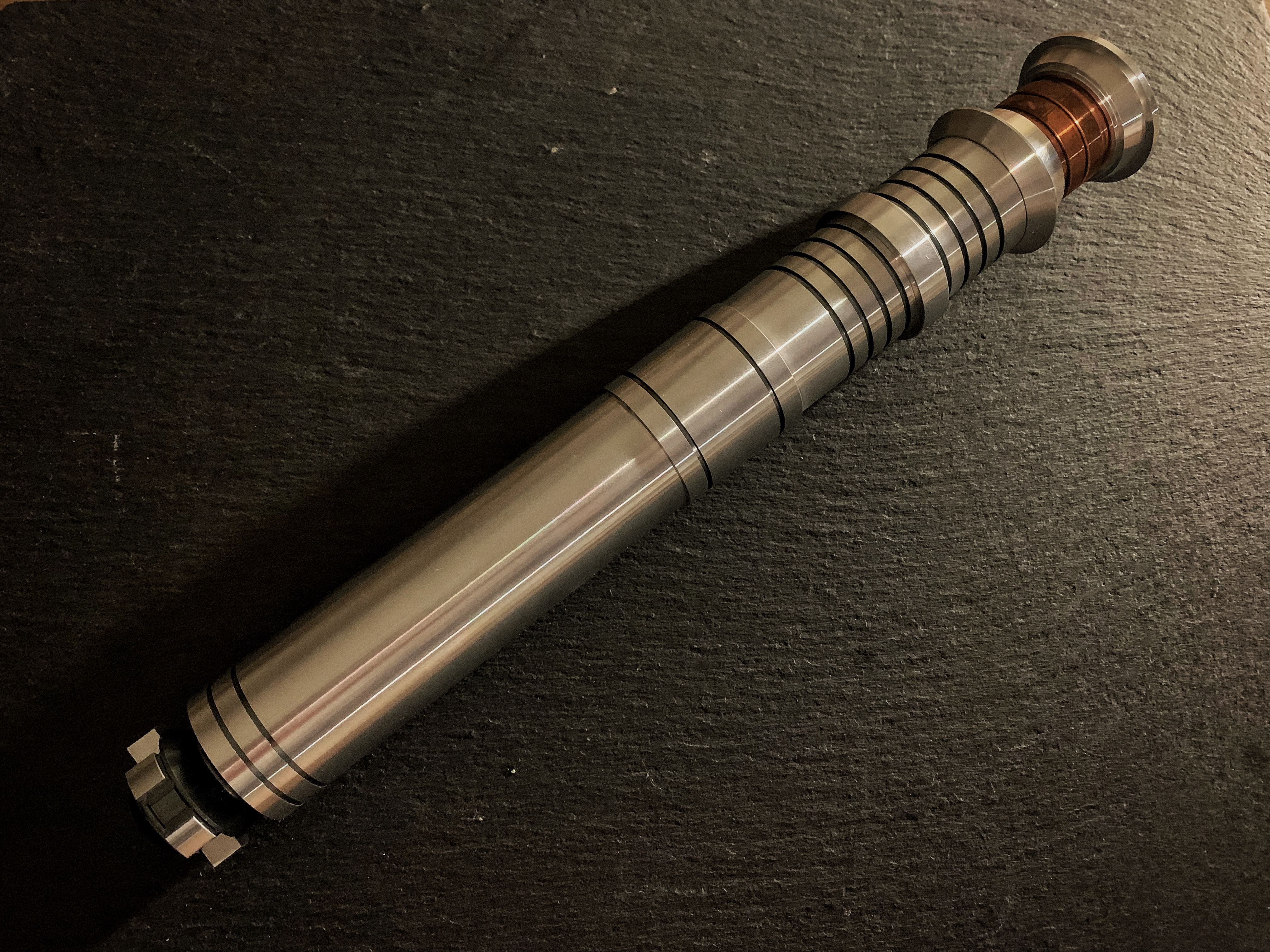

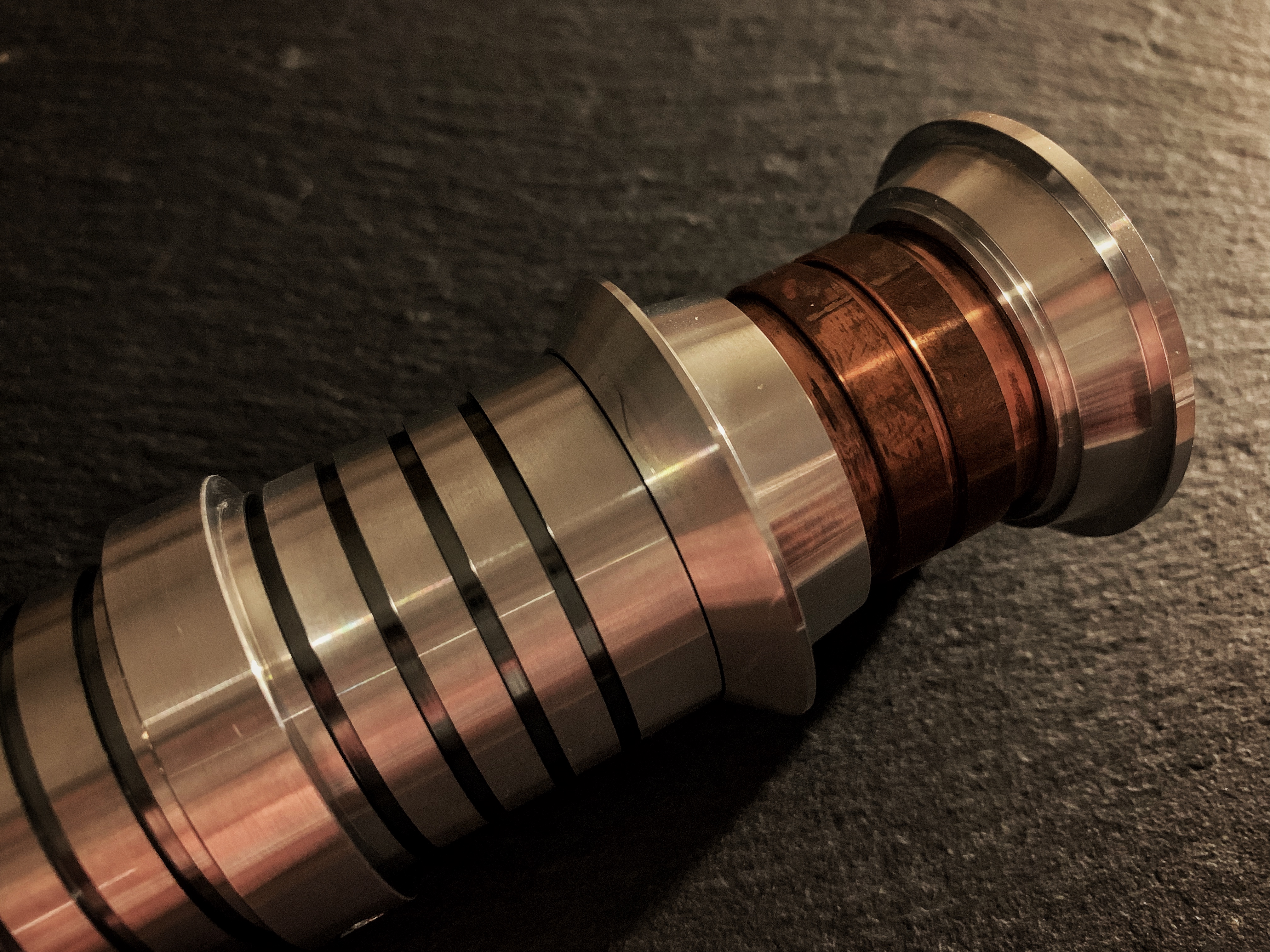

new project for the winter : a Neopixel install on a KR RVN hilt.

as before, I will list the materials and the wiring diagram.

Hilt : KR RVN Hilt

Chassis :
  • Chassis - GOTH-3D KR RVN VARIANT 2 FDM ECO CHASSIS Uniboard variant – The Saber Armory
  • GOTH-3D KR RVN ECO CHASSIS NEOPIXEL ADAPTOR KR Saber variant – The Saber Armory
  • SHTOKCUSTOMWORX NPXL V3 LED STRIP PCB HOLDER - HILT SIDE - 1" – The Saber Armory
  • SHTOKCUSTOMWORX NPXL V3 10 PIN PCB LENS COVER – The Saber Armory
  • KEYSTONE 18650 BATTERY HOLDER - FOR BUTTON TOP 18650 BATTERY – The Saber Armory
  • BATTERY CONTACTS SET– The Saber Armory

Electronics :
  • SHTOKCUSTOMWORX NPXL V3 HILT SIDE PCB CONNECTOR – LONG PINS (assembled) – The Saber Armory
  • HIGH AMP KILL SWITCH – The Saber Armory
  • Main and Aux switches : provided with the hilt – The Saber Armory
  • 28MM 4OHM 3W BASS SPEAKER – The Saber Armory
  • Keeppower 18650 Neopixel Battery 15A 3000mah Button Top – SaberBay ETSY

Board :
  • Golden Harvest V3 - Sabertec

Others :
  • Wires : 28awg Electronic Wire Kit,Flexible Silicone Wire 28 Gauge Stranded Wire Tinned Copper Wire – Amazon

Wiring Diagram :
Revan NeoPixel.jpg


Attachments

  • IMG_0810.jpg
    5.1 MB · Views: 47
  • IMG_0811.jpg
    4.6 MB · Views: 44
Last edited:

JCDenton0

New Member
Who doesn't love Revan!? Looking forward to this.
Thanks !

this is still my third saber and the first neopixel, so I am trying hard to do it right the first time.

I have uploaded the wiring diagram, which seems right to me, but any check will be appreciated :)

I also would like to work a bit on the hilt itself, to give it a vit of weathering. What would be a good way to start this ?


JCDenton0

New Member
Hi everyone, best wishes for 2022 !

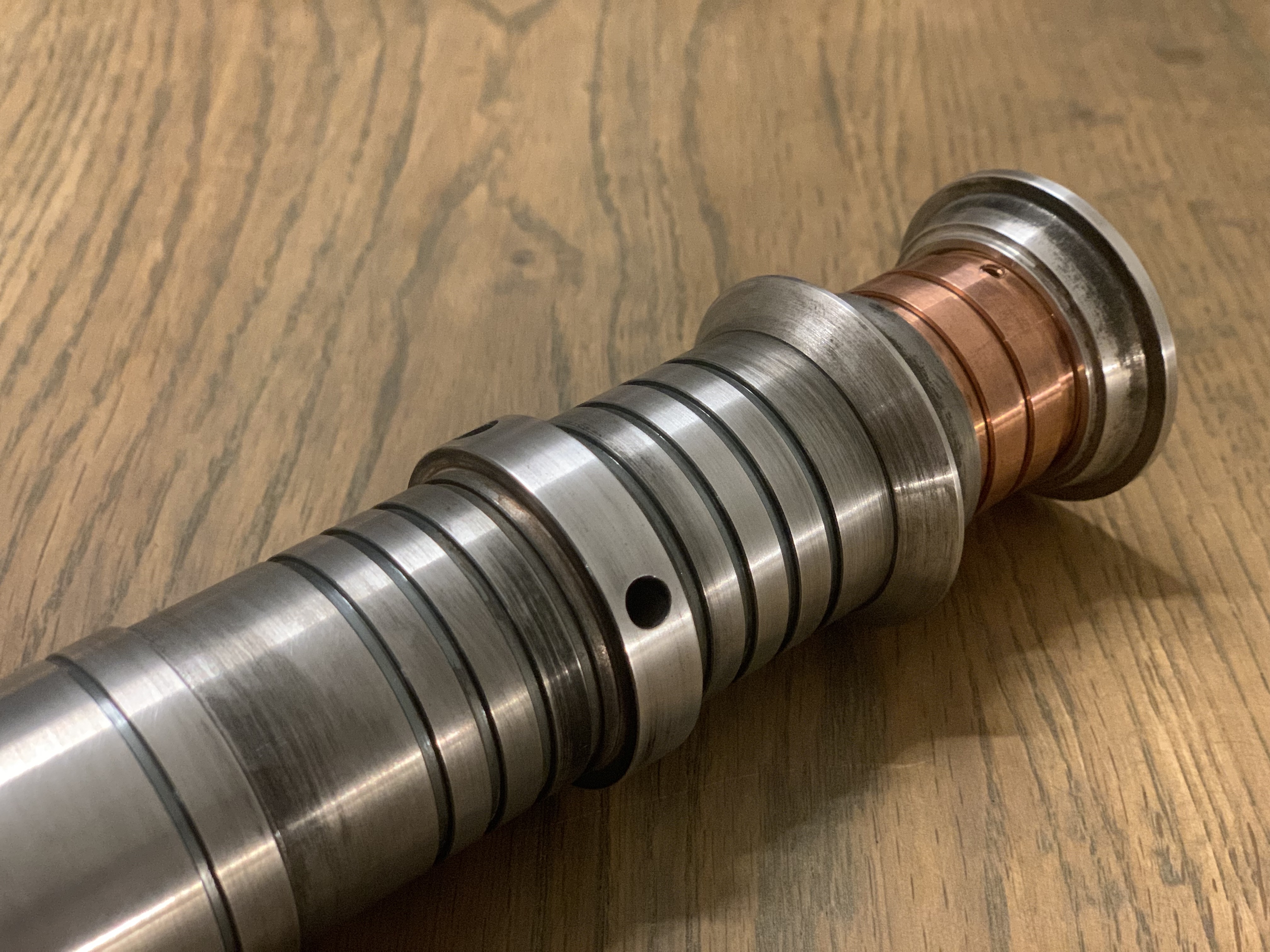

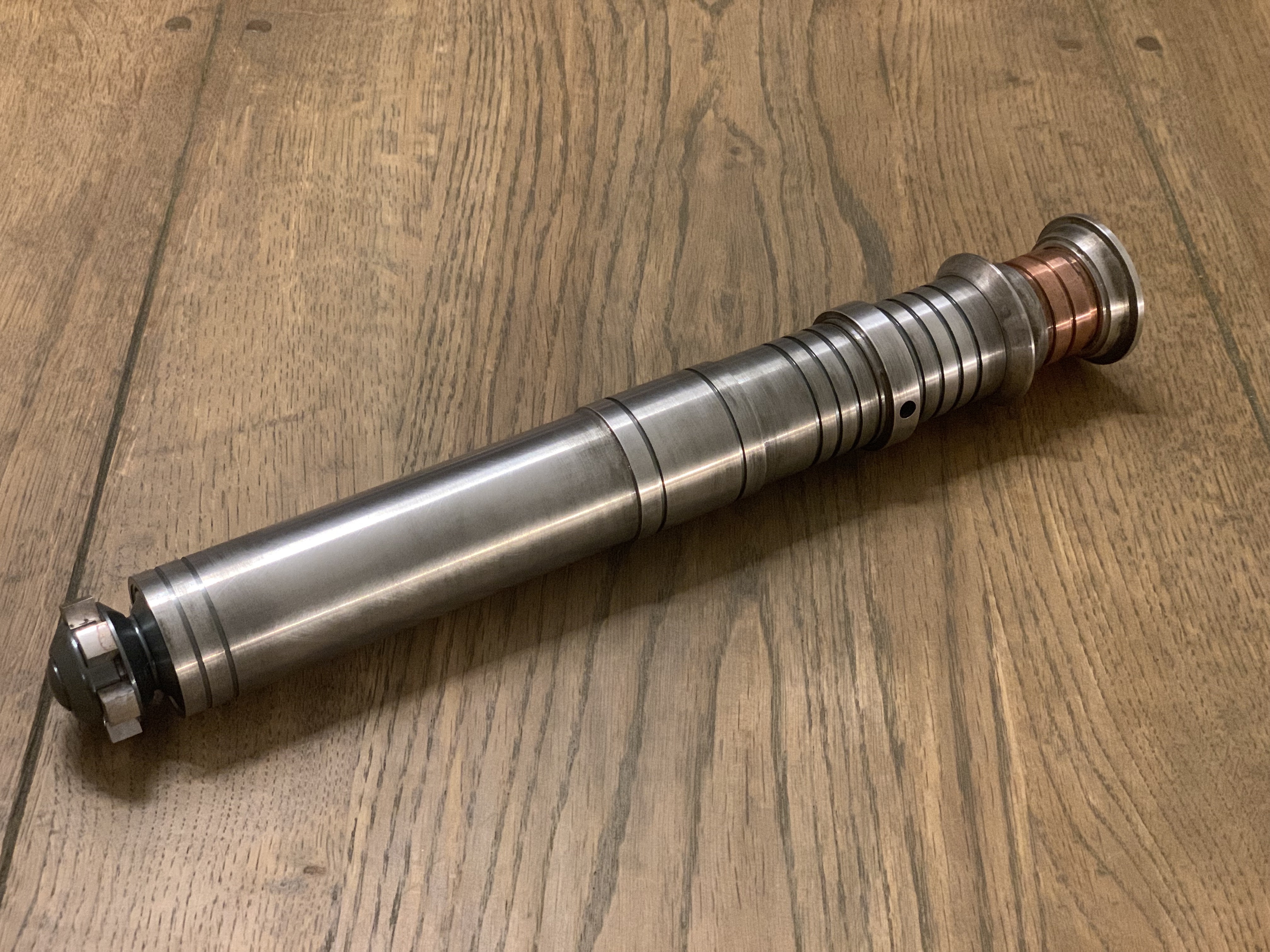

Got to work on the weathering on the hilt with Aluminum Black and Chestnut wash from Citadel.
Really liked the result for now.

Do you know how to weather the copper ?


Attachments

  • IMG_0951.jpeg
    3.5 MB · Views: 11
  • IMG_0952.jpeg
    3.3 MB · Views: 11

Halliwax

Legendary Member
RPF PREMIUM MEMBER
Hi everyone, best wishes for 2022 !

Got to work on the weathering on the hilt with Aluminum Black and Chestnut wash from Citadel.
Really liked the result for now.

Do you know how to weather the copper ?
Could always give it a vinegar vapor bath


Halliwax

Legendary Member
RPF PREMIUM MEMBER
Thank you ! I will have a look

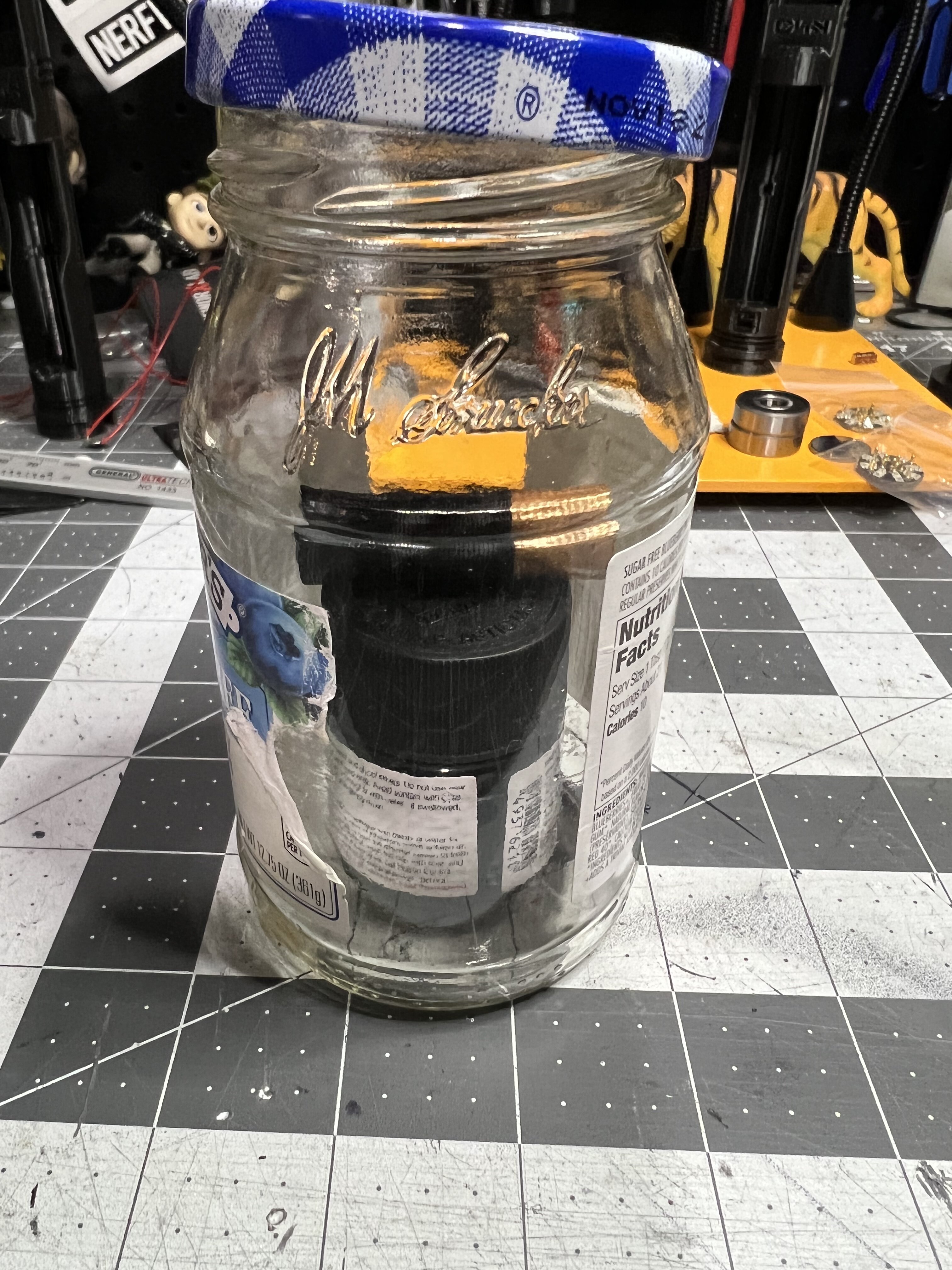

I have a tutorial somewhere on here. I got a jar, put a plastic put inside the jar and poured vinegar inside it about 1/4 of the way up, then put the copper on top of the cup inside, the jar so it’s not submerged in the vinegar. Close the lid and check every 24 hours

If it gets green give a buff with 0000 steel wool, and after that if it’s too light, let is vapor soak for another 24 hours


JCDenton0

New Member
View attachment 1530102

Think of the battery as the part I wanted to age
Yep that is what I have done as well.

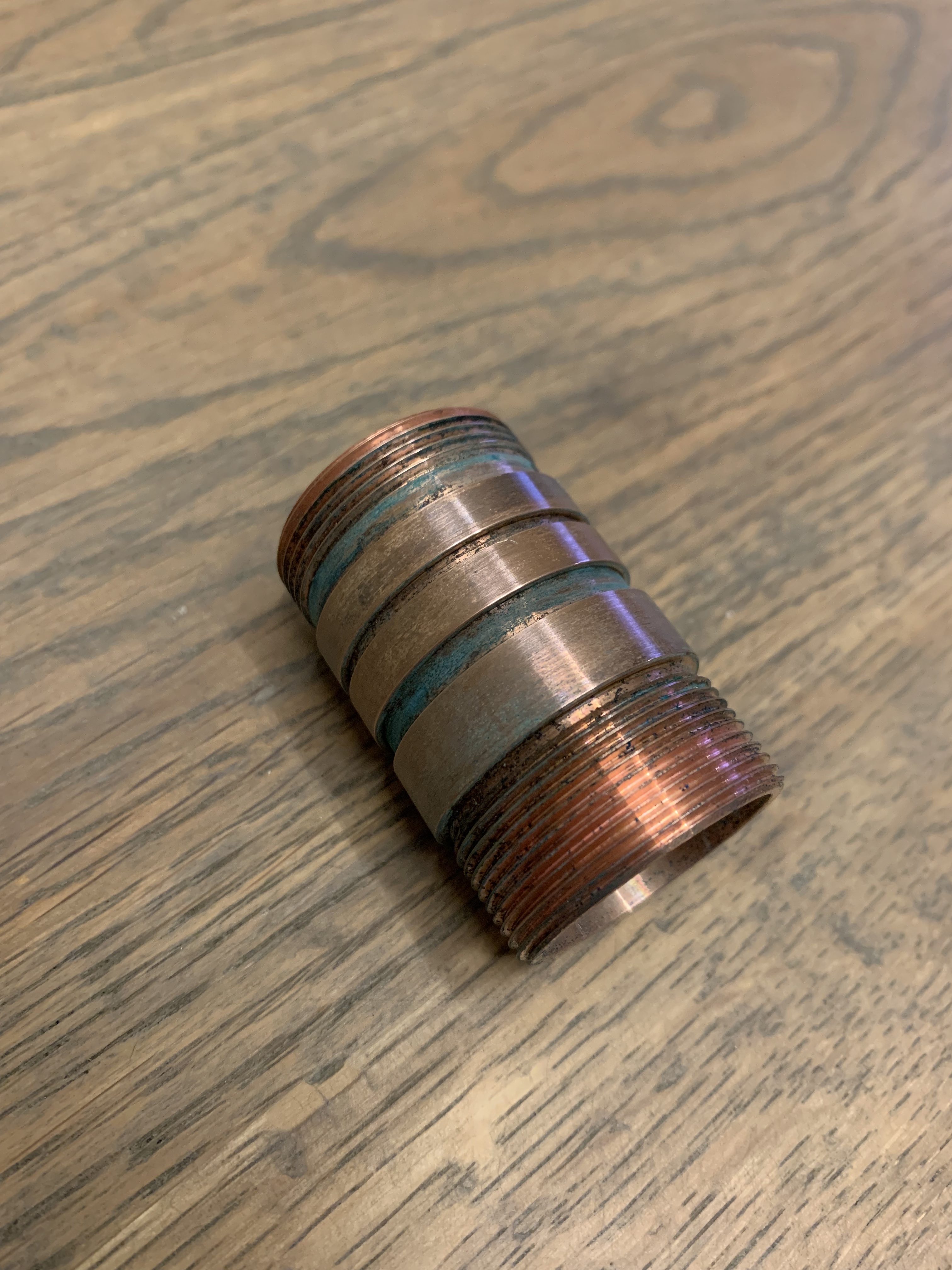

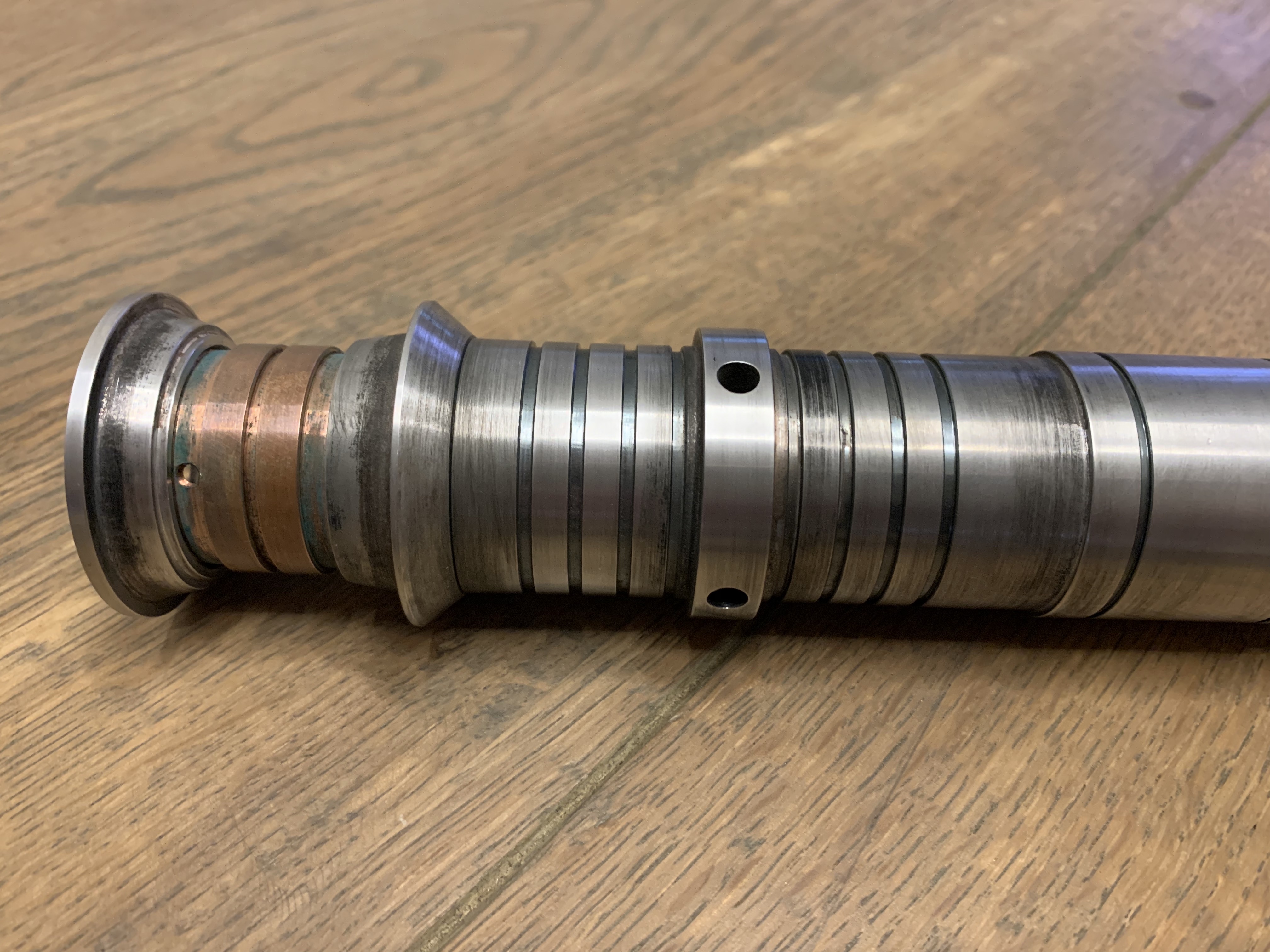

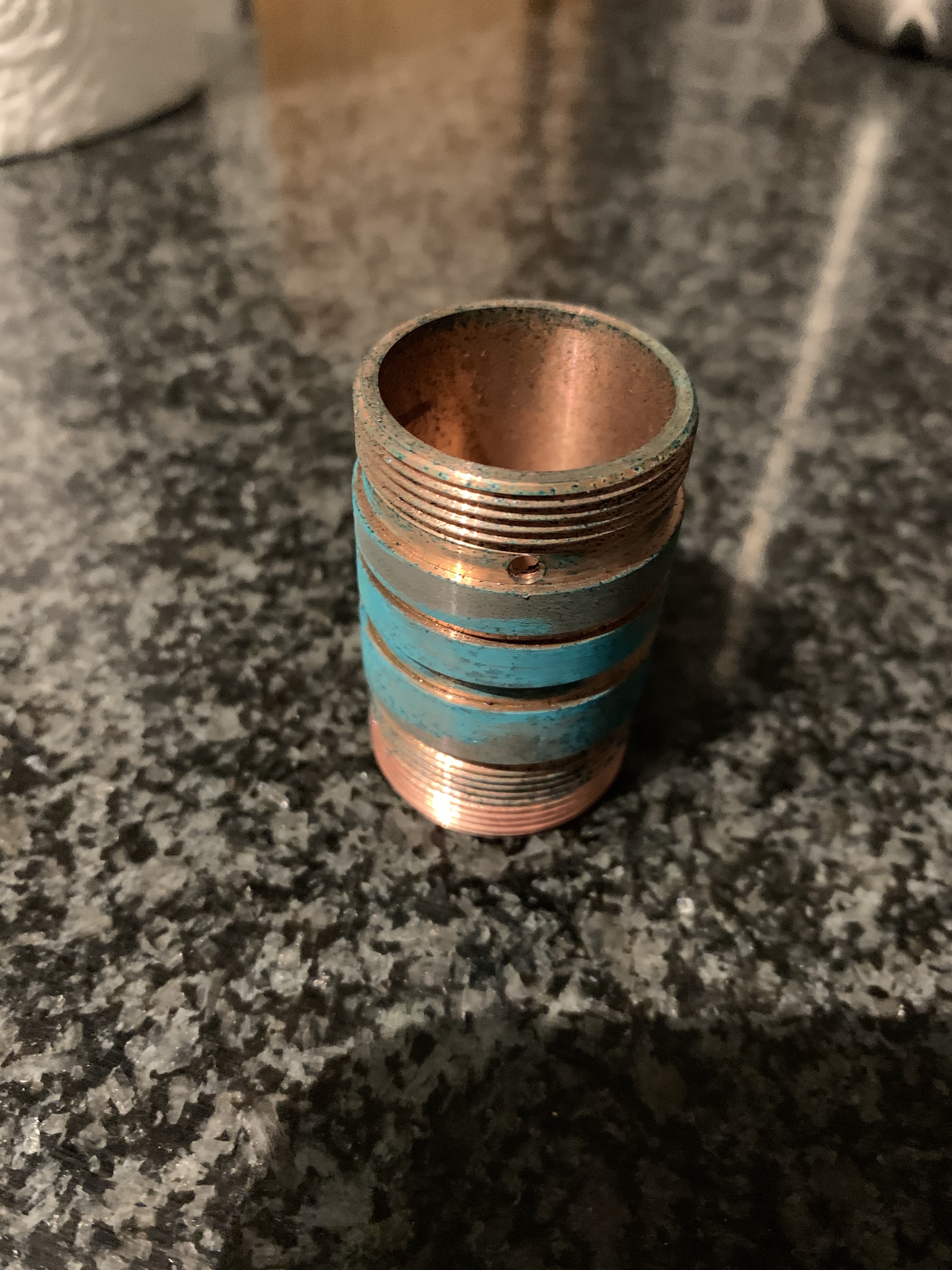

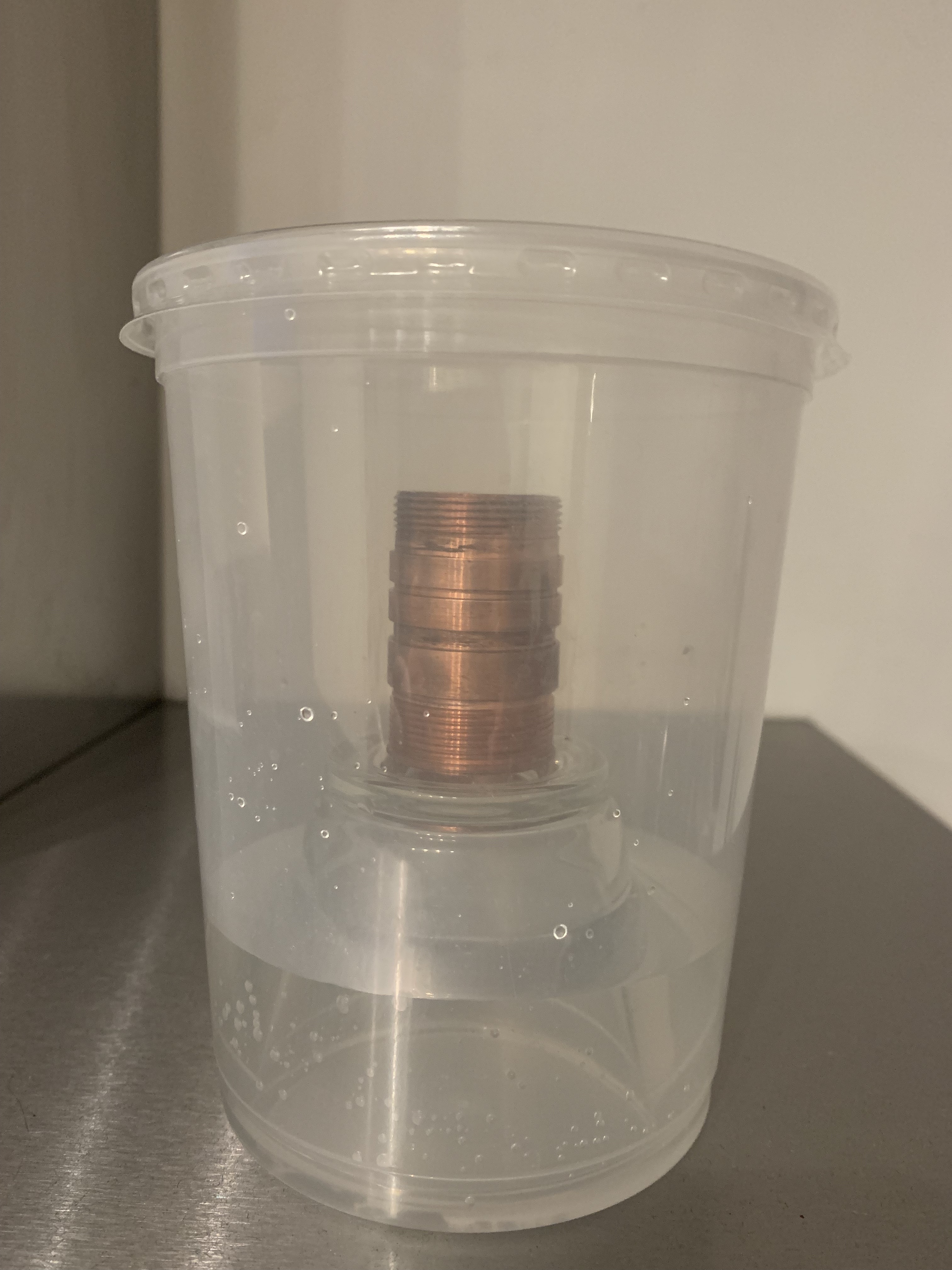

Left it for 4-5 hours in a closed container. I got a nice green patina. One thing I did not know is that it is surface patina and it goes off when ringing with water. So tried again, sanded it with steel wool and got a pretty nice result.

For now, I am going with a old/used look, but with this technique, you could go all the way to the "Relic" weathering.

Thank you for your help Halliwax !


Attachments

  • IMG_0958.jpeg
    2.9 MB · Views: 13
  • IMG_0960.jpeg
    3.6 MB · Views: 12
  • IMG_0962.jpeg
    2.2 MB · Views: 11
  • IMG_0963.jpeg
    2.2 MB · Views: 14
Last edited:
