Wow, that's disgusting. I like the marker line from machining there..

I also noticed the red LED is this round bulbous thing next to the sharp green one. Maybe the bottom of the hole is just that gross! Was this a bladed thing? I don't see a reason for such a deep hole


thd9791

Master Member
RPF PREMIUM MEMBER
So, when it comes to this light bar


I think I found a good candidate. These are the ones referenced at the start of this thread, and the beveled corner (or, I'm pretty sure, the thing denoting the Anode) does not match


Bummer, keeping them for custom builds or replicas

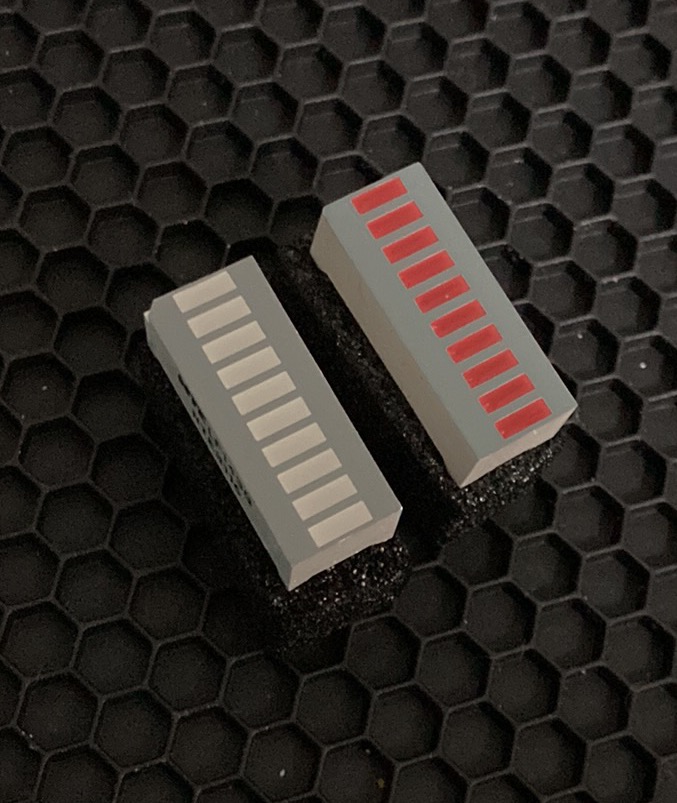

Anyways, I did find these, (and they also come in red presenting Ki Adi Mundi saber). They have the same recessed windows, same rounded window corners and the same weird cloudy opaqueness to the windows

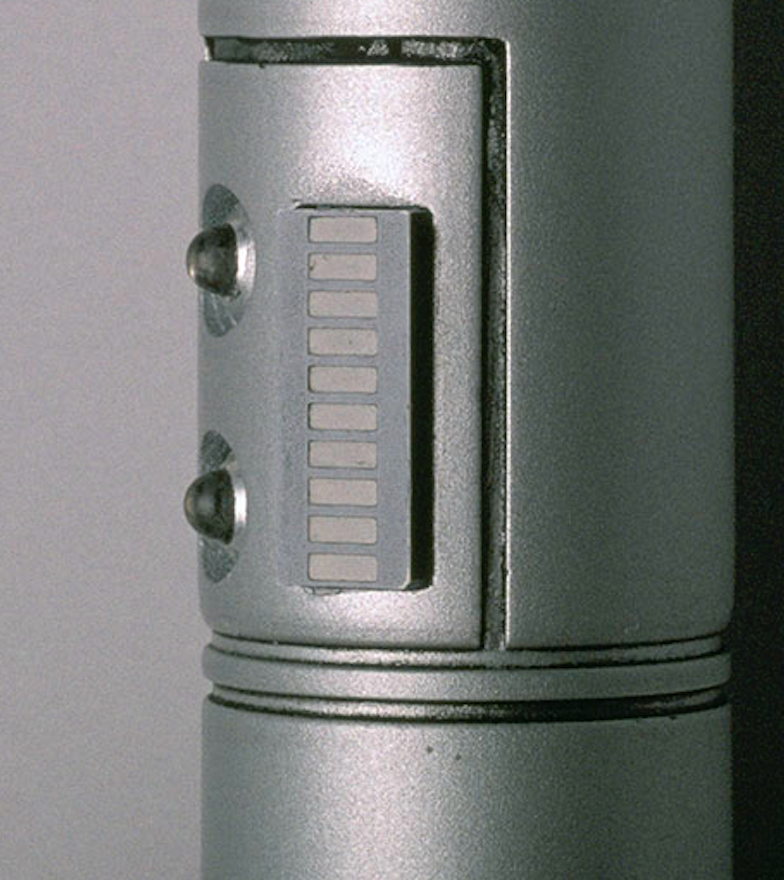

Screen Shot 2022-06-28 at 5.57.45 PM.png

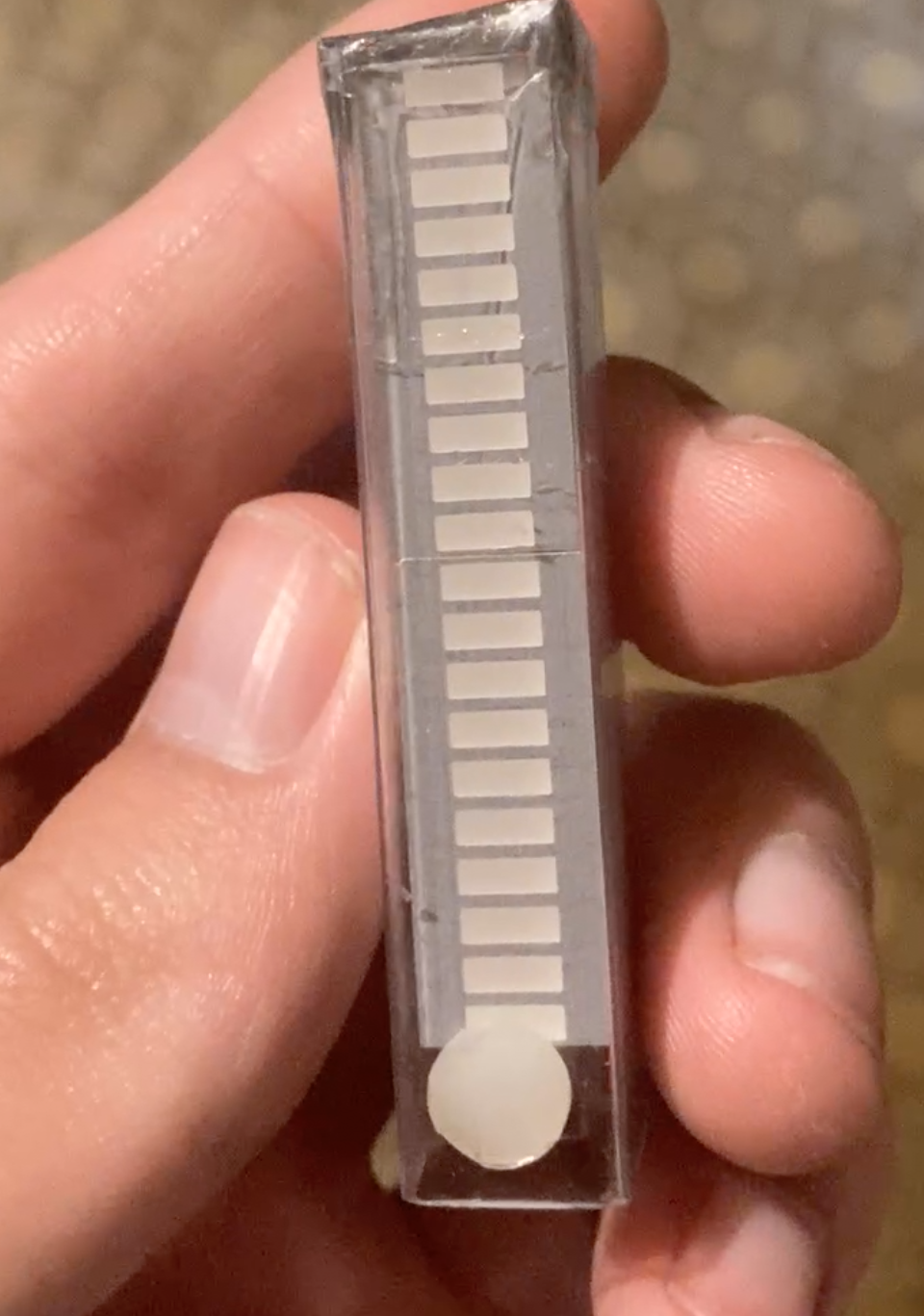

Screen Shot 2022-06-28 at 5.54.55 PM.png


redbutton

Well-Known Member
RPF PREMIUM MEMBER

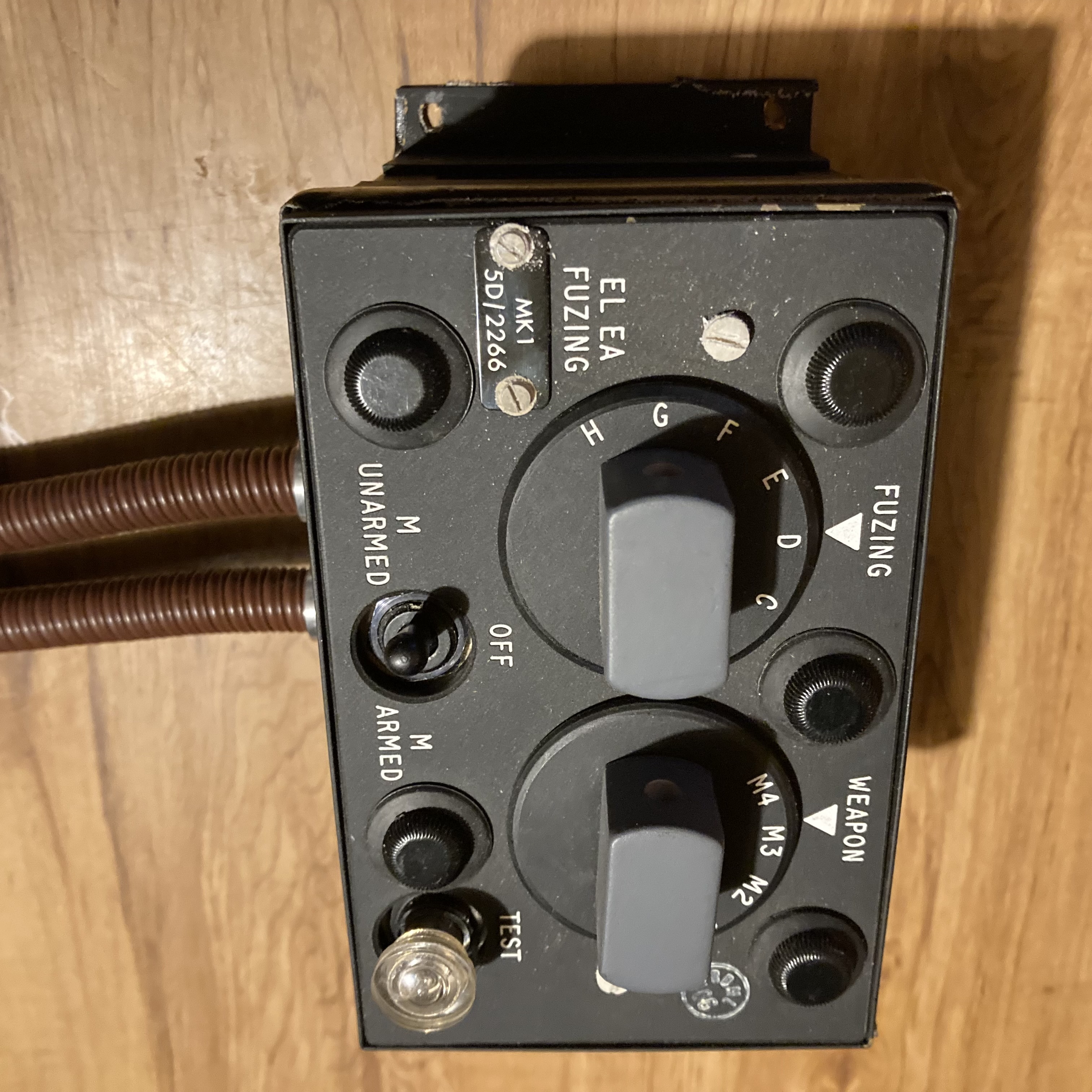

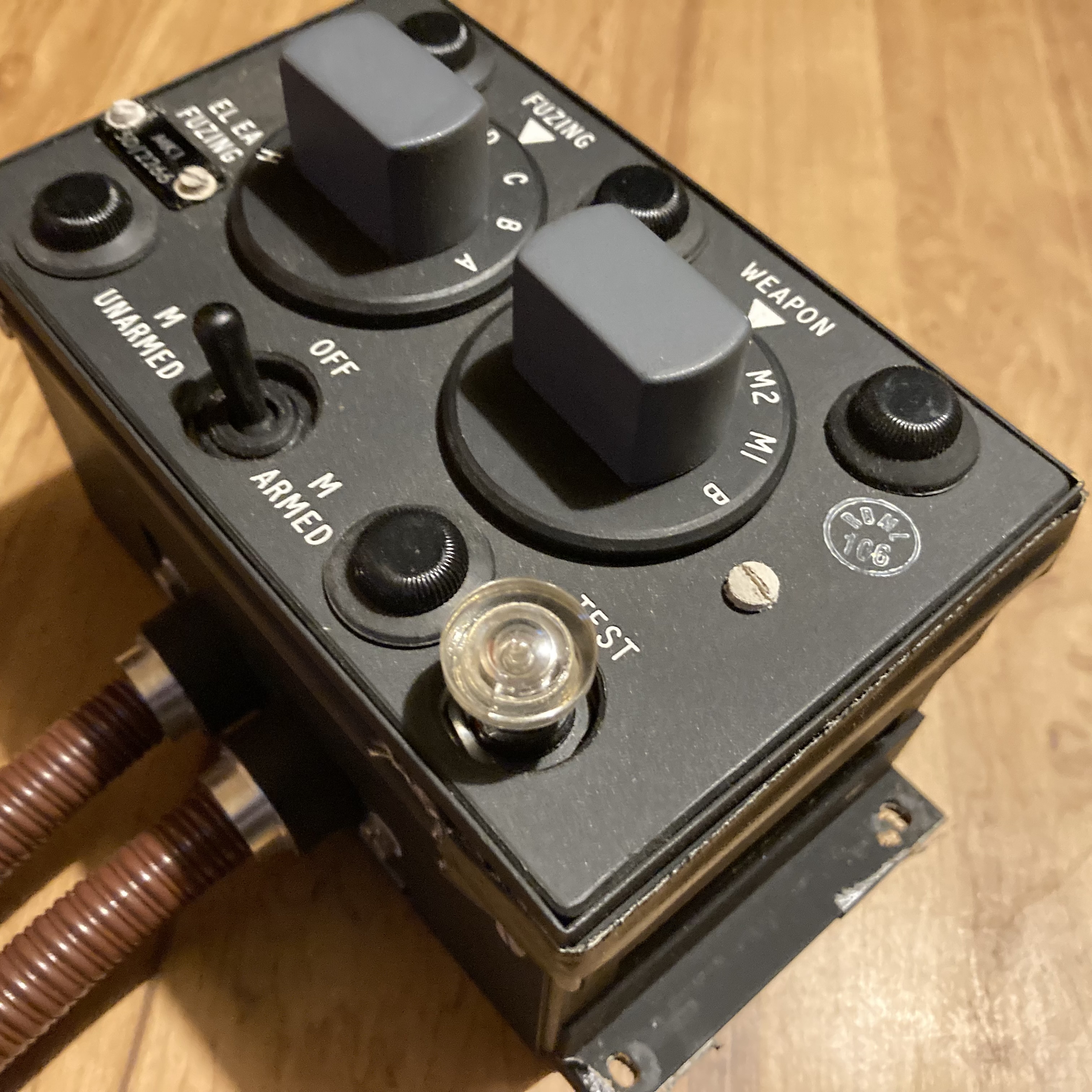

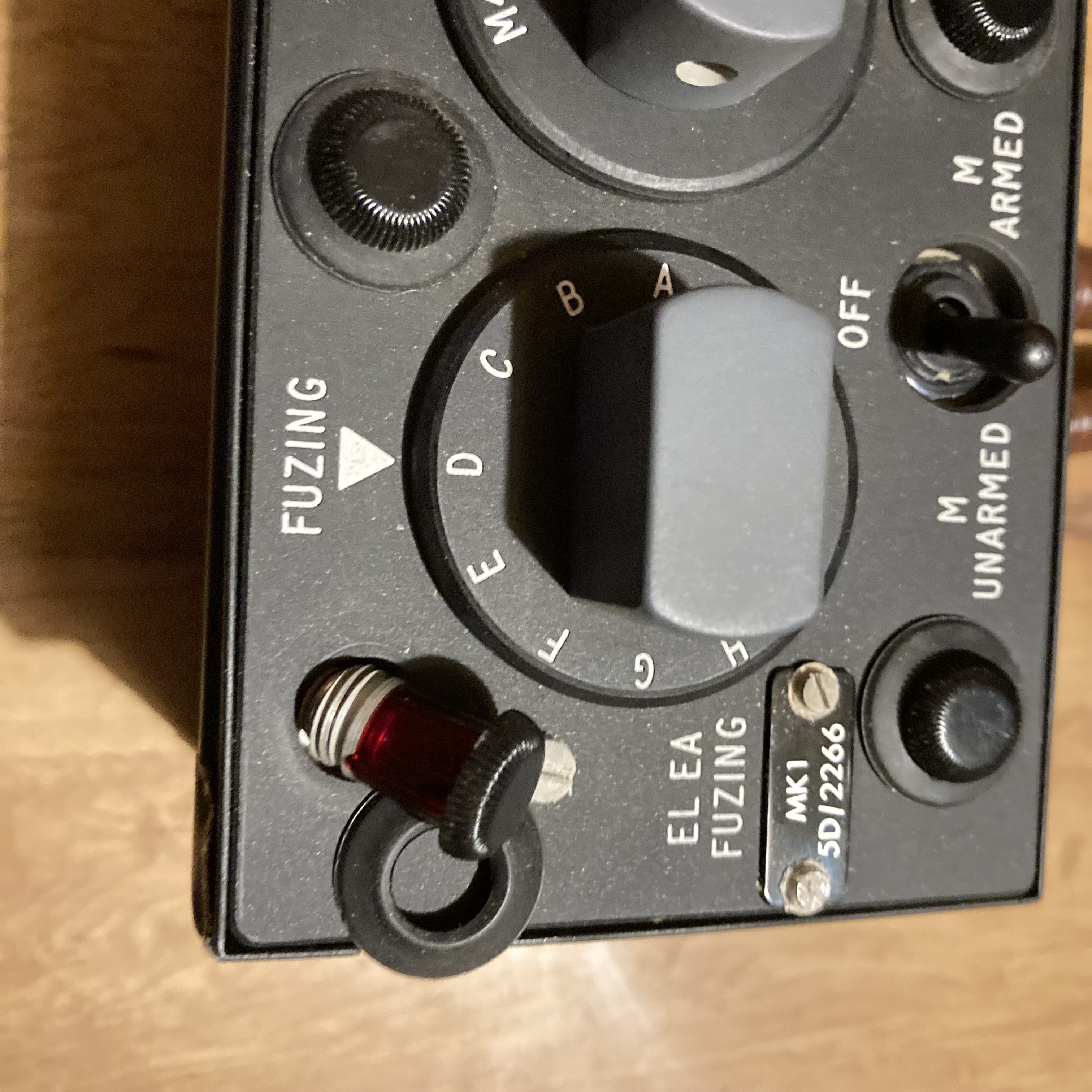

Look here - I just found an aircraft controller with the correct
buttons for the prequel sabers and the collars for Qui gon jinn's saber.


Last edited:

thd9791

Master Member
RPF PREMIUM MEMBER
Look here - I just found an aircraft controller with the correct
buttons for the prequel sabers and the collars for Qui gon jinn's saber.

View attachment 1592994 View attachment 1592995 View attachment 1592996 View attachment 1592997 View attachment 1593000

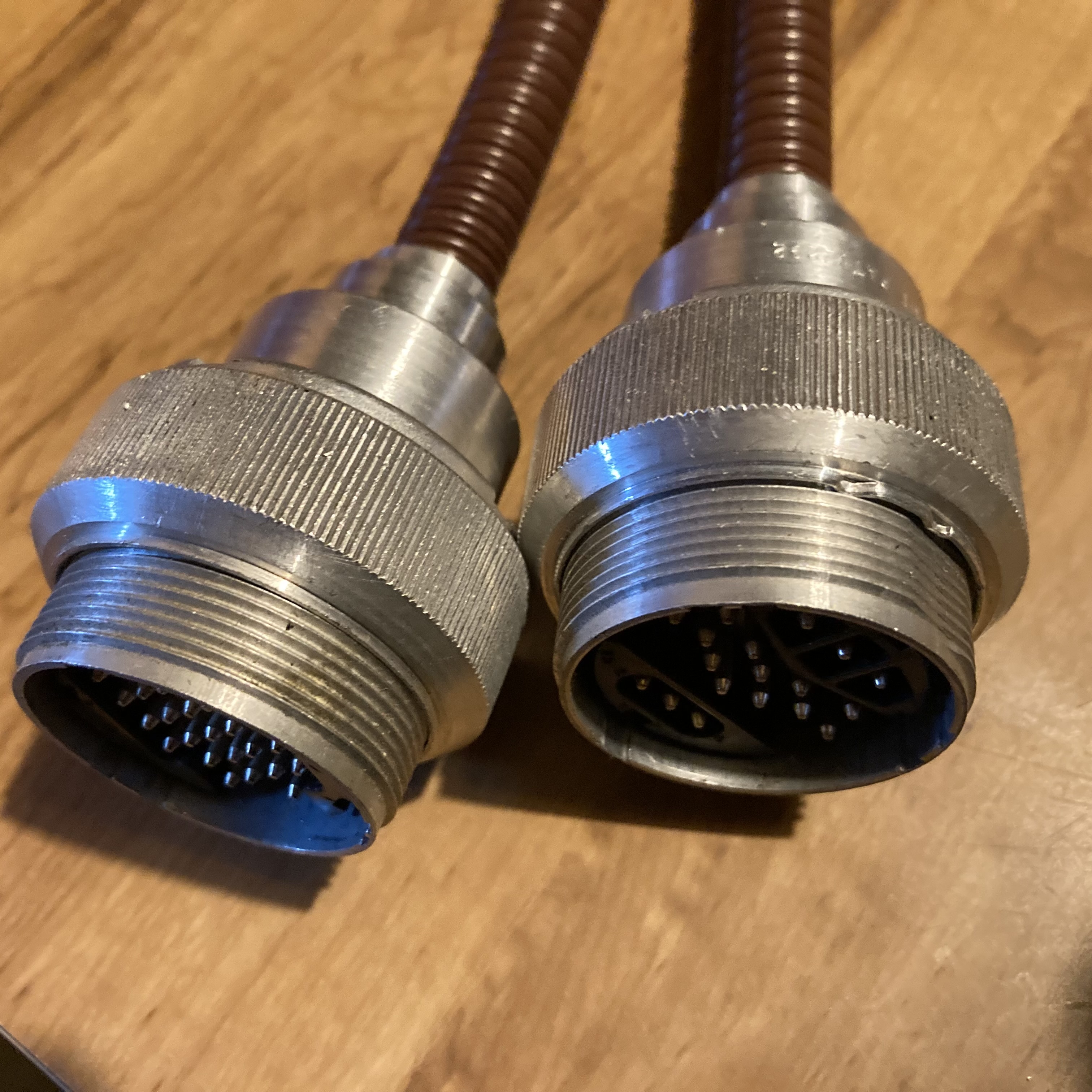

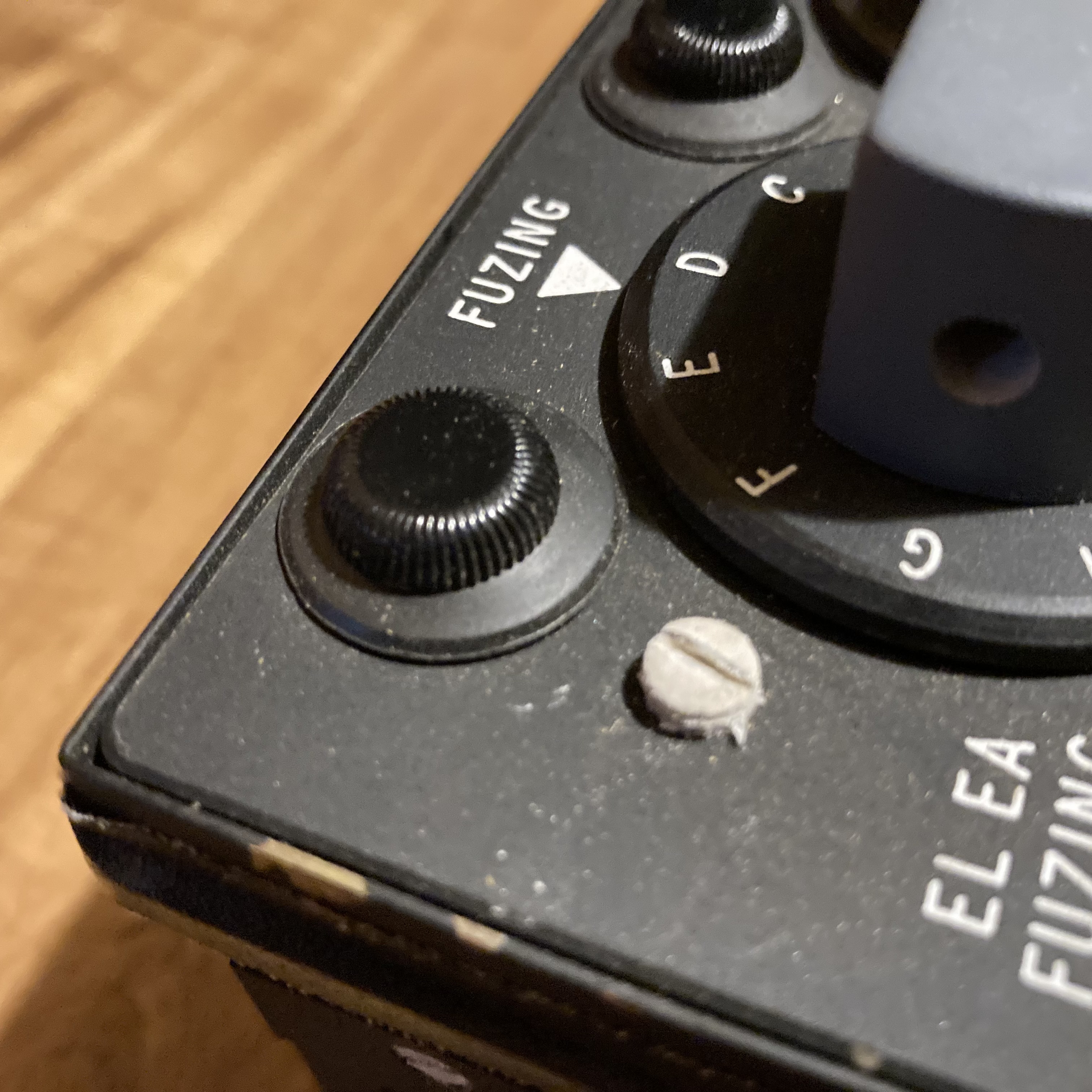

Saw this in person, it's fresh and never used! Cool thick cables out the back look like set decoration, and these are all the exact version of these lamps we're looking for! It's ex-Ministry of Defense equipment, looking at the inspection tags

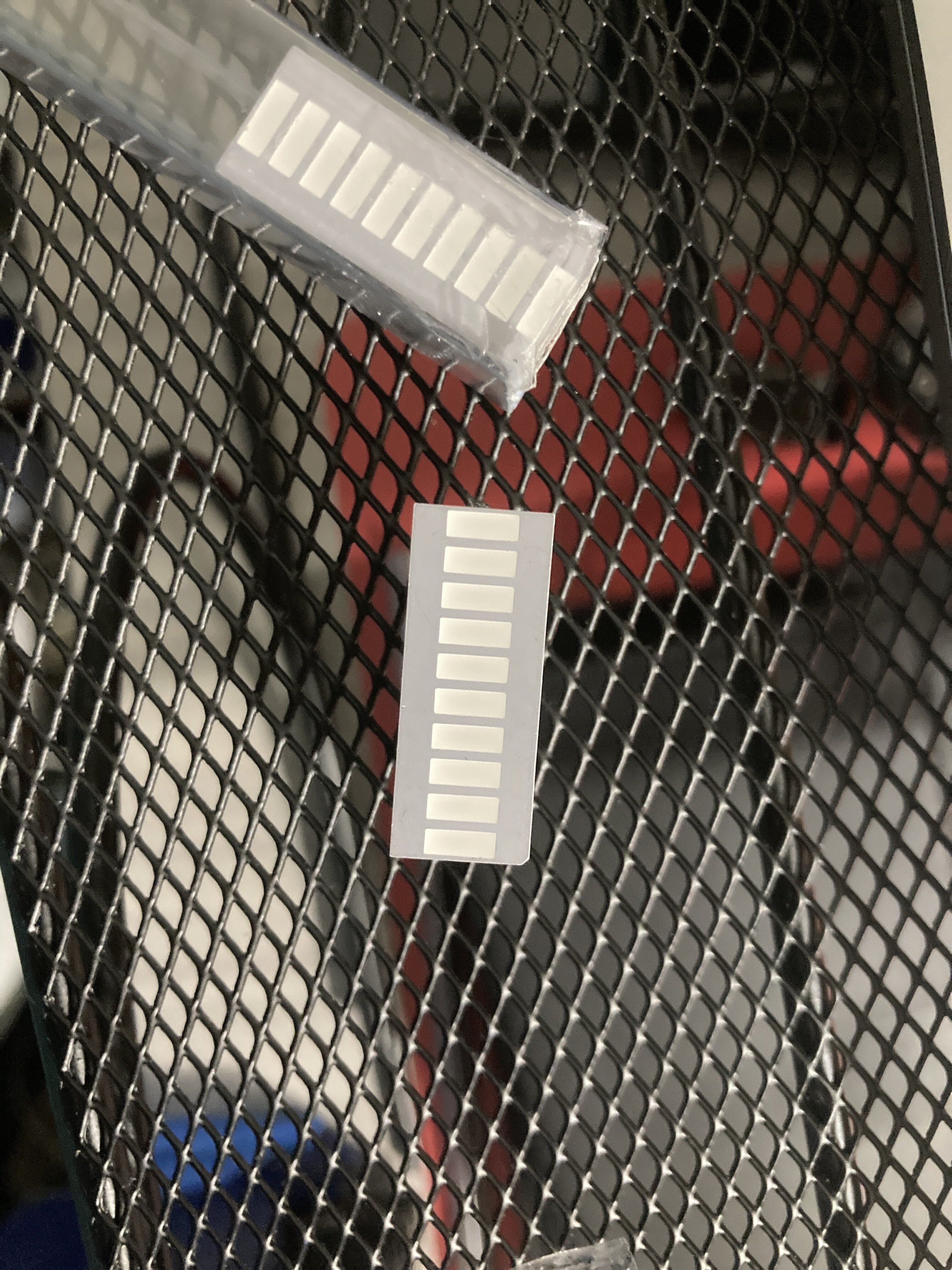

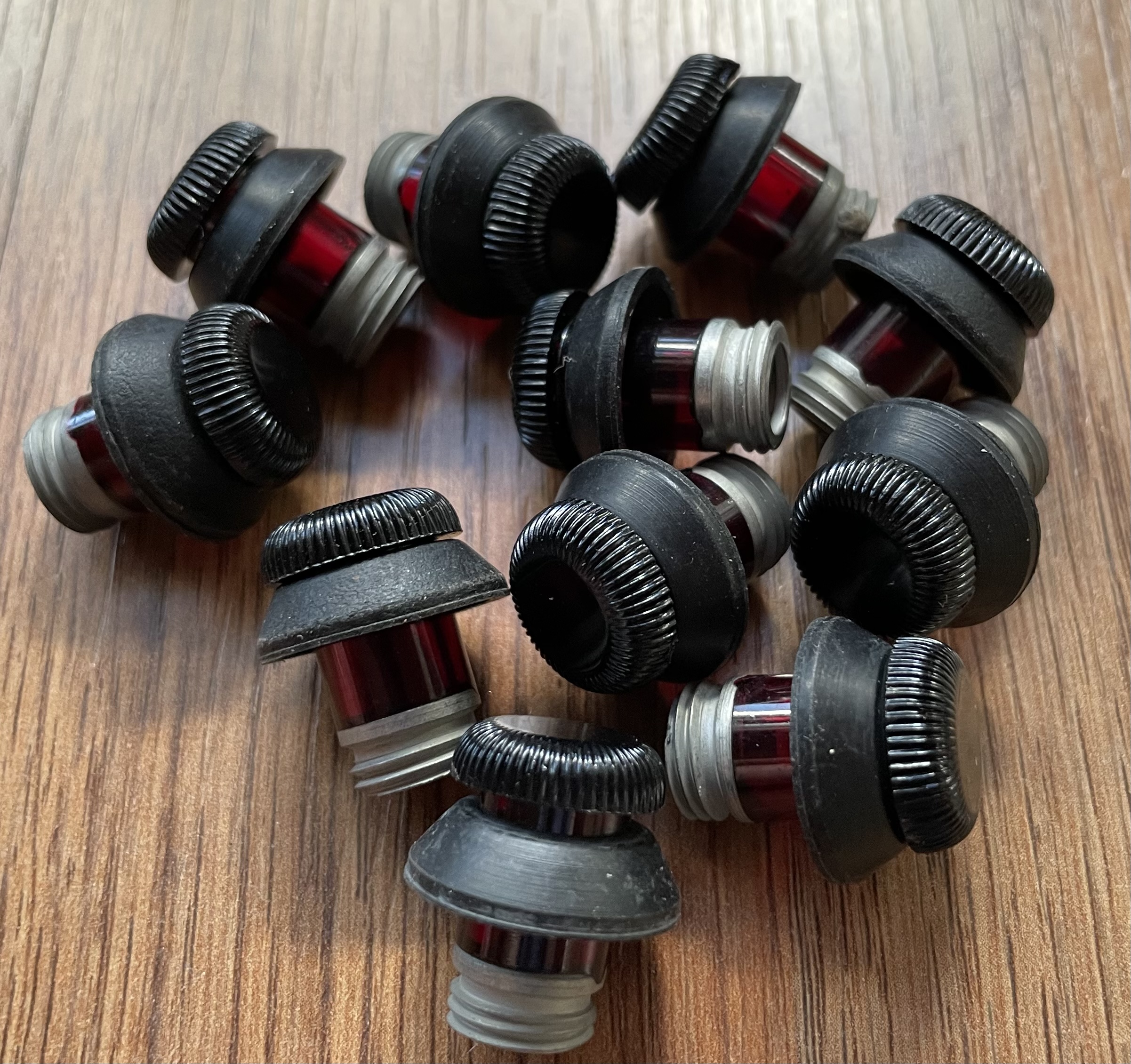

I have found a vendor with NOS inventory that I’m hoping I can buy a large bulk lot from. Here are the samples I received:

View attachment 1592998
I got my medium-sized lot from the same source (I'm pretty sure) and 80% of them were of that flatter variety. a handful were the version we're looking for, with knurling that stretches far over the corner. *shrug* they are all the exact part and that's kind of splitting hairs, its amazing to see them NOS in bags.


thd9791

Master Member
RPF PREMIUM MEMBER

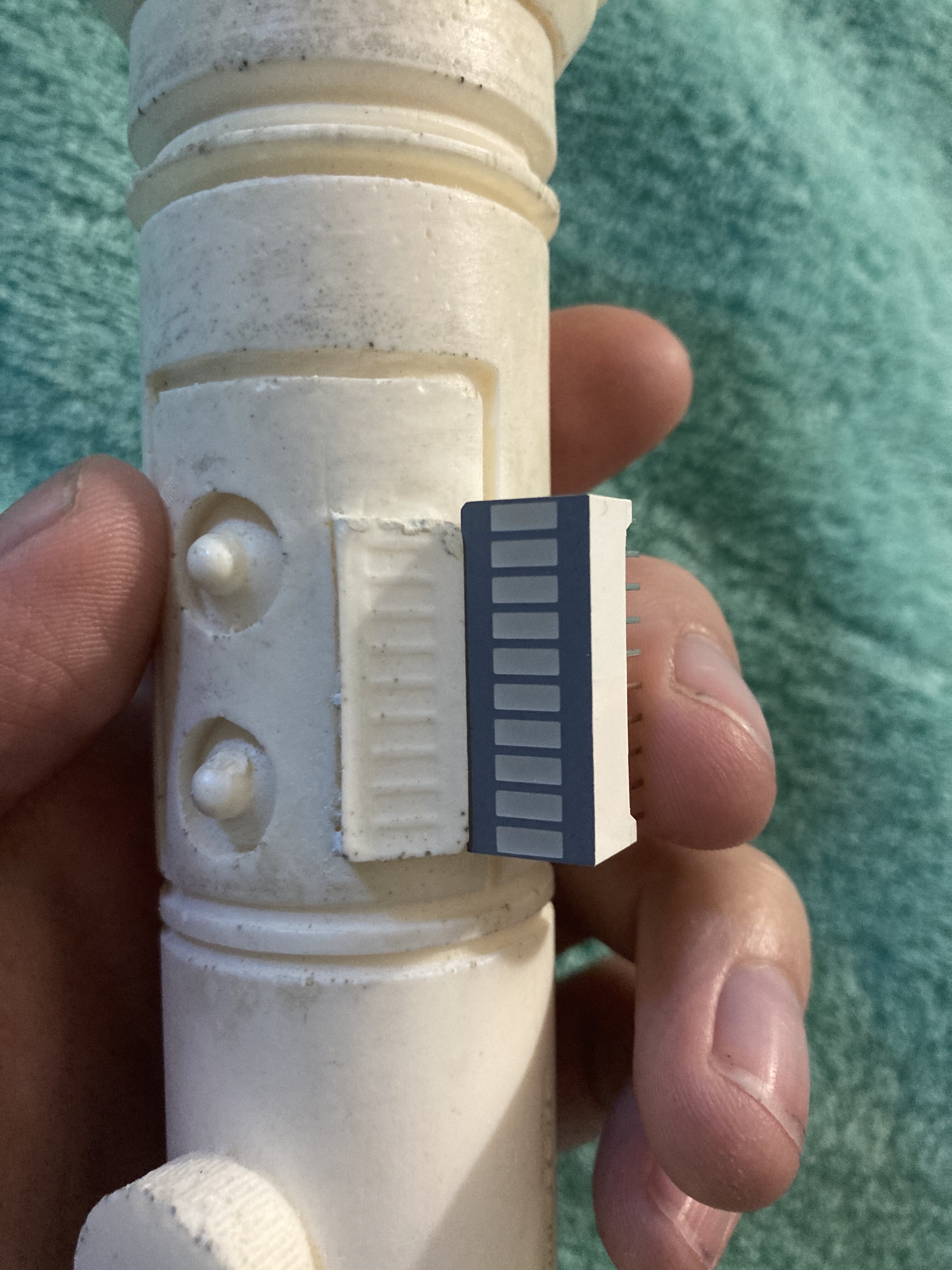

I learned some things about these sabers today. My cast is rather shrunk, every LED bar is the same size, it’s a standard 25 by 10 ish mm.

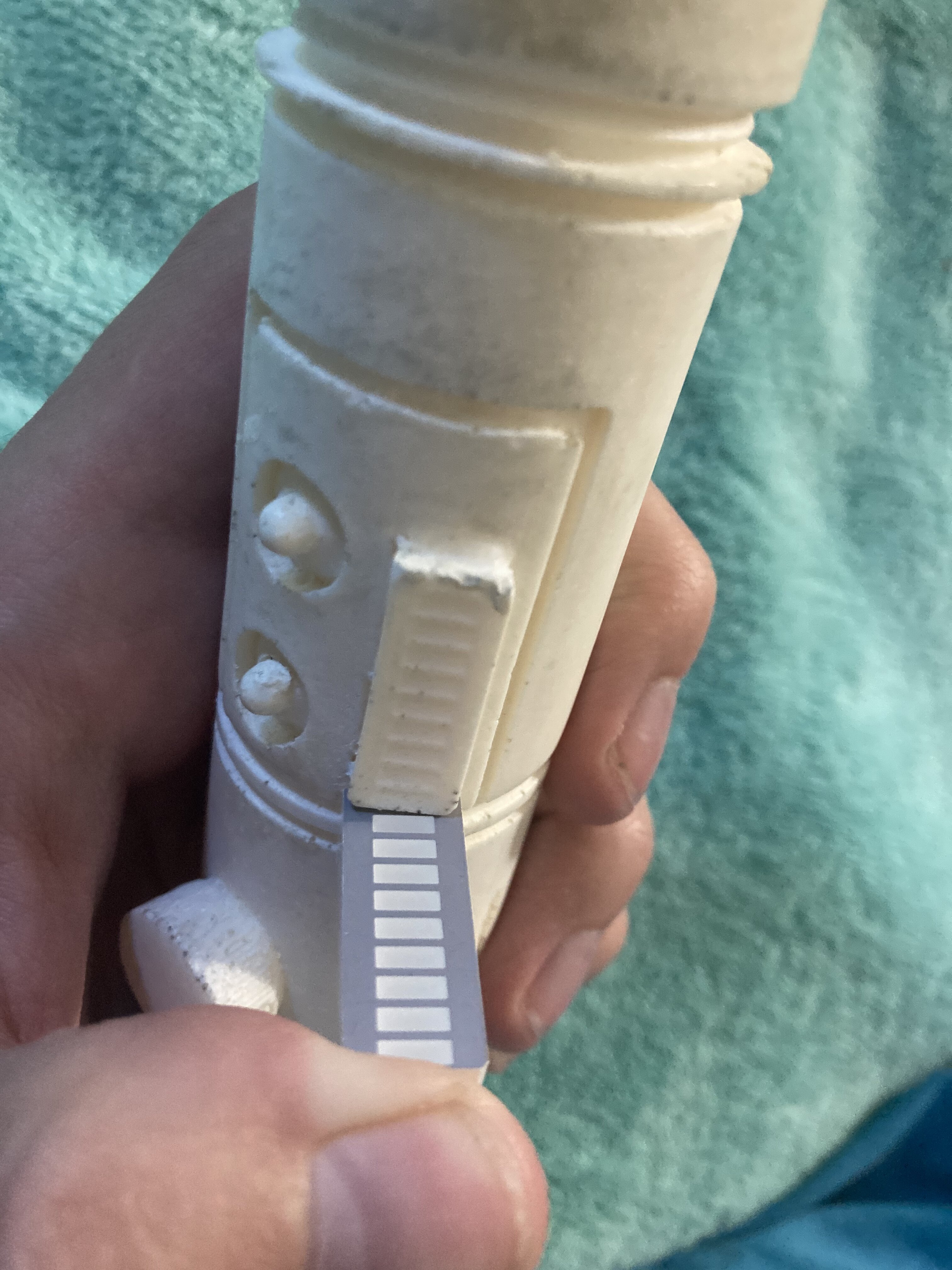

0EFB2D96-1593-4828-BD63-651C27F52334.jpeg AFDC188B-94C8-40CB-BACB-F993B87C9853.jpeg 99EDAC81-4FC9-41CD-B8D1-485C572A90D6.jpeg

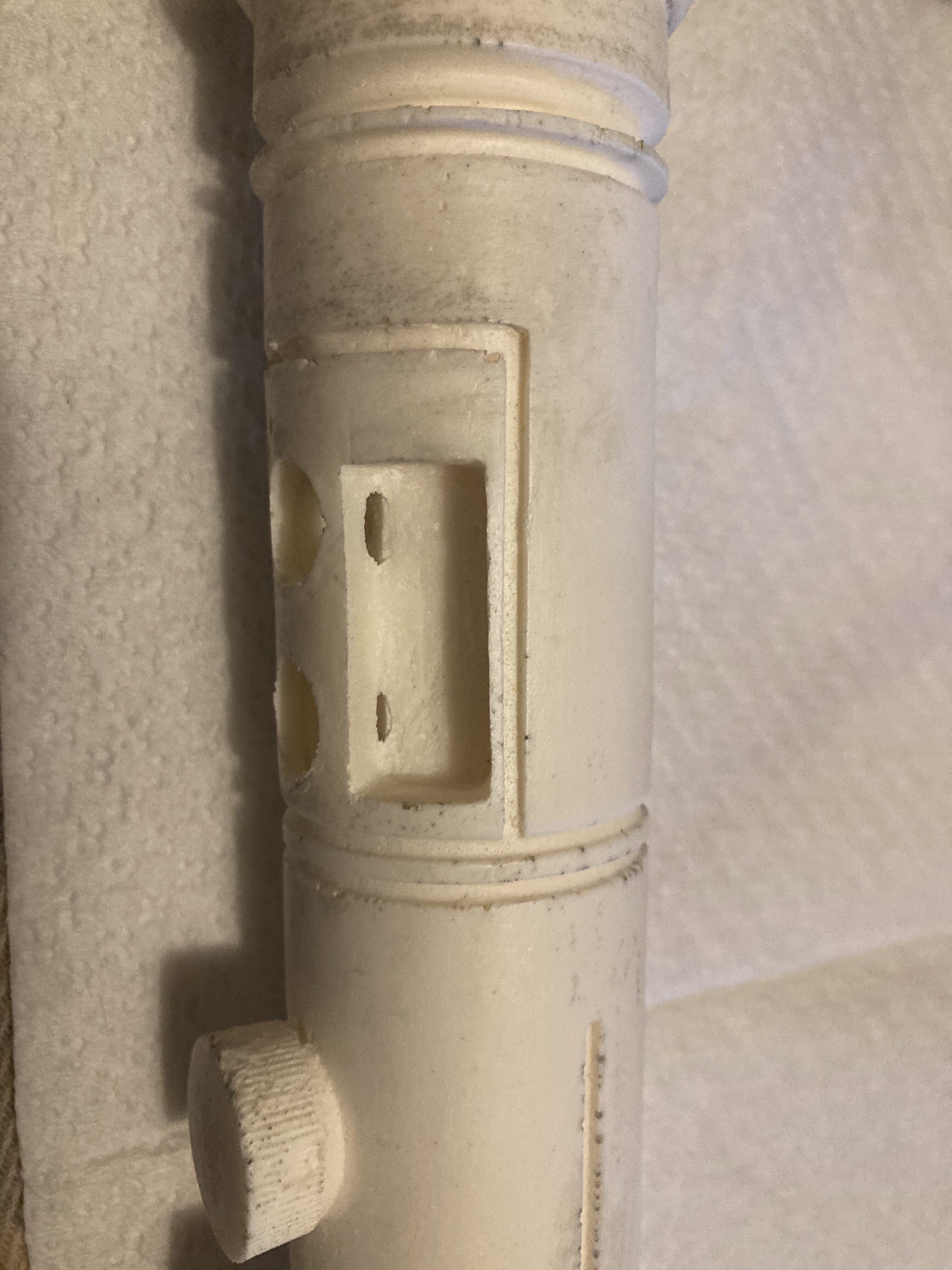

So, since it was not well captured, I replaced this greeblie too. I drilled 4 tiny corner holes, used a dremel cutting bit (cylinder) to basically mill this box out by hand! I used triangular and rectangular files for the corners.

I tried cutting a bargraph shorter, it looked stupid and then I realized that the depth I had estimated equaled the whole box, just with the legs folded under! It sits proud just the right amount. Personally I would have made it flush.. my trimmed box fell in too far and it looked nice.. anyway

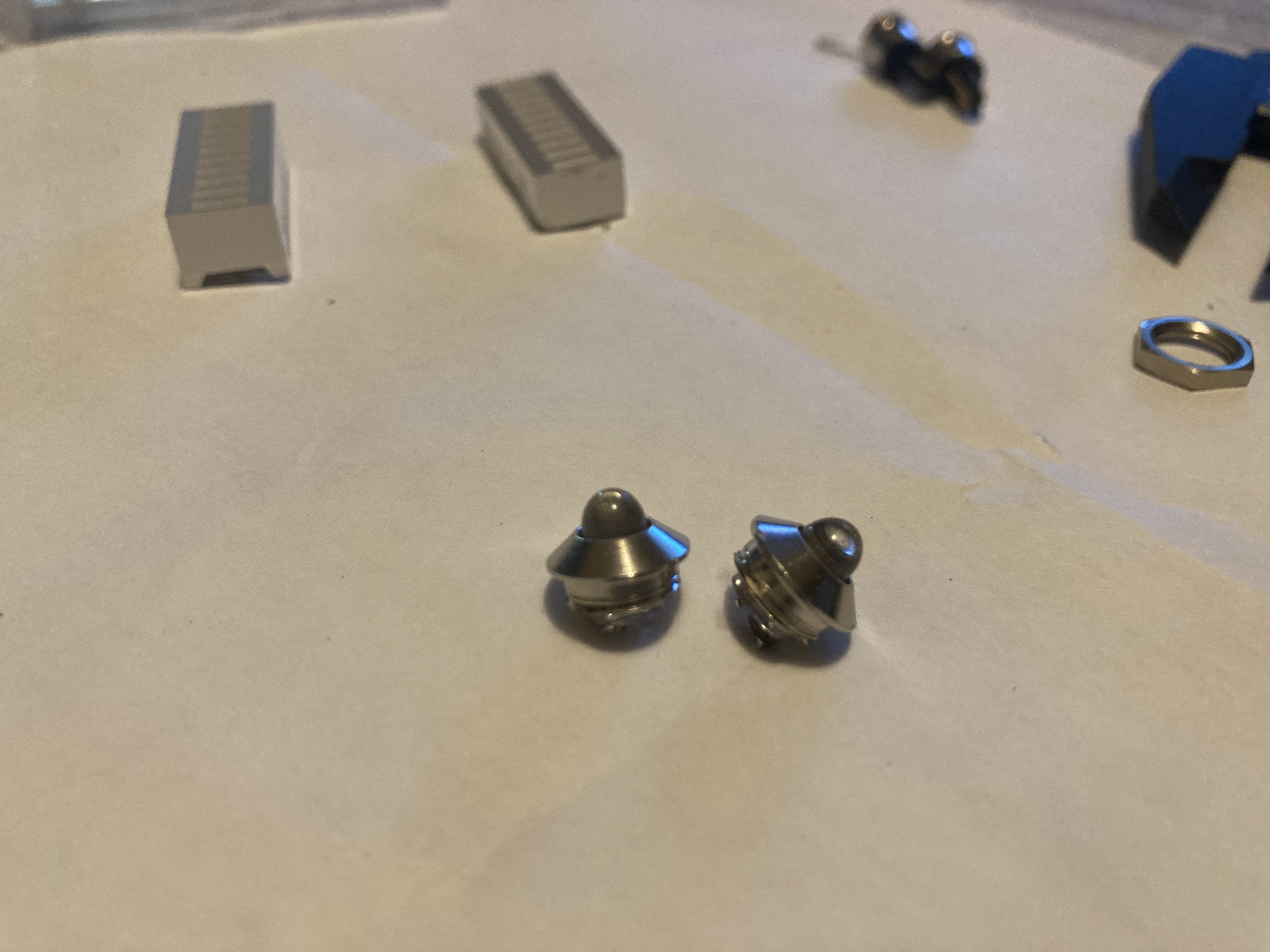

Now,, spurred by that success I tackled the LEDs. I have a version that is so close, even the LED glass has the same egg shape

So, I’m assuming they didn’t cut the glass, because the prop had LEDs that are poking out further than stock. If you trim the bezel, you can literally calculate the height. The bezel reduces inside and a lip on the glass catches it. Shorten it, you’re just shortening the place where the glass stops. Neat right?

So in figuring that out, they drilled pretty deep. Deep enough that they probably blew out the side of the box a little bit. (Mine is worse because of my shrunken cast)

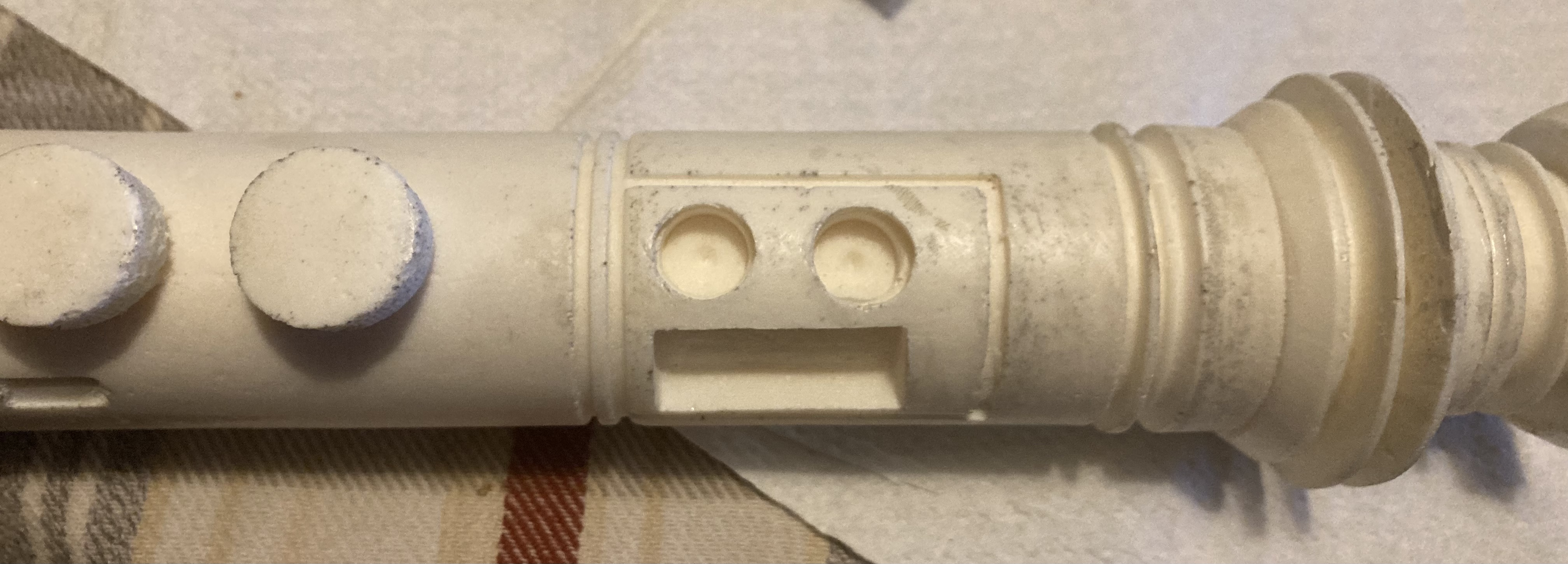

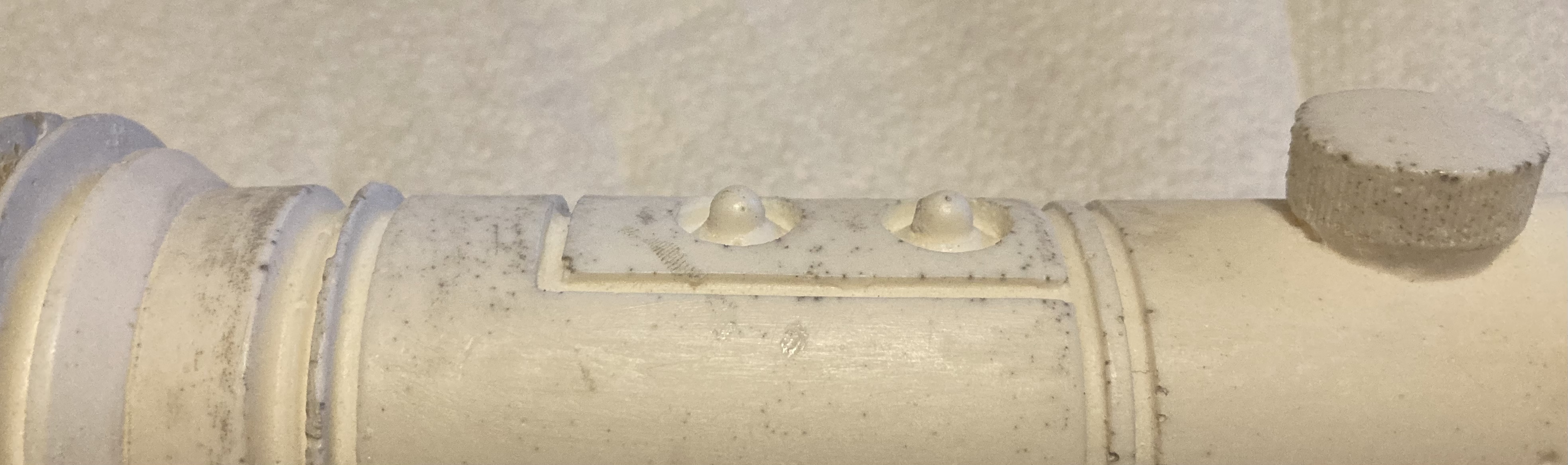

CCE3BDAA-B668-4402-B0F2-D3FCEAF33C99.jpeg F502F90A-63B0-47E9-A21E-264D35F6F9D8.jpeg 602E945D-00B0-4577-858F-601AA13877B4.jpeg

But I was able to mock up the LEDs poking out the same amount!

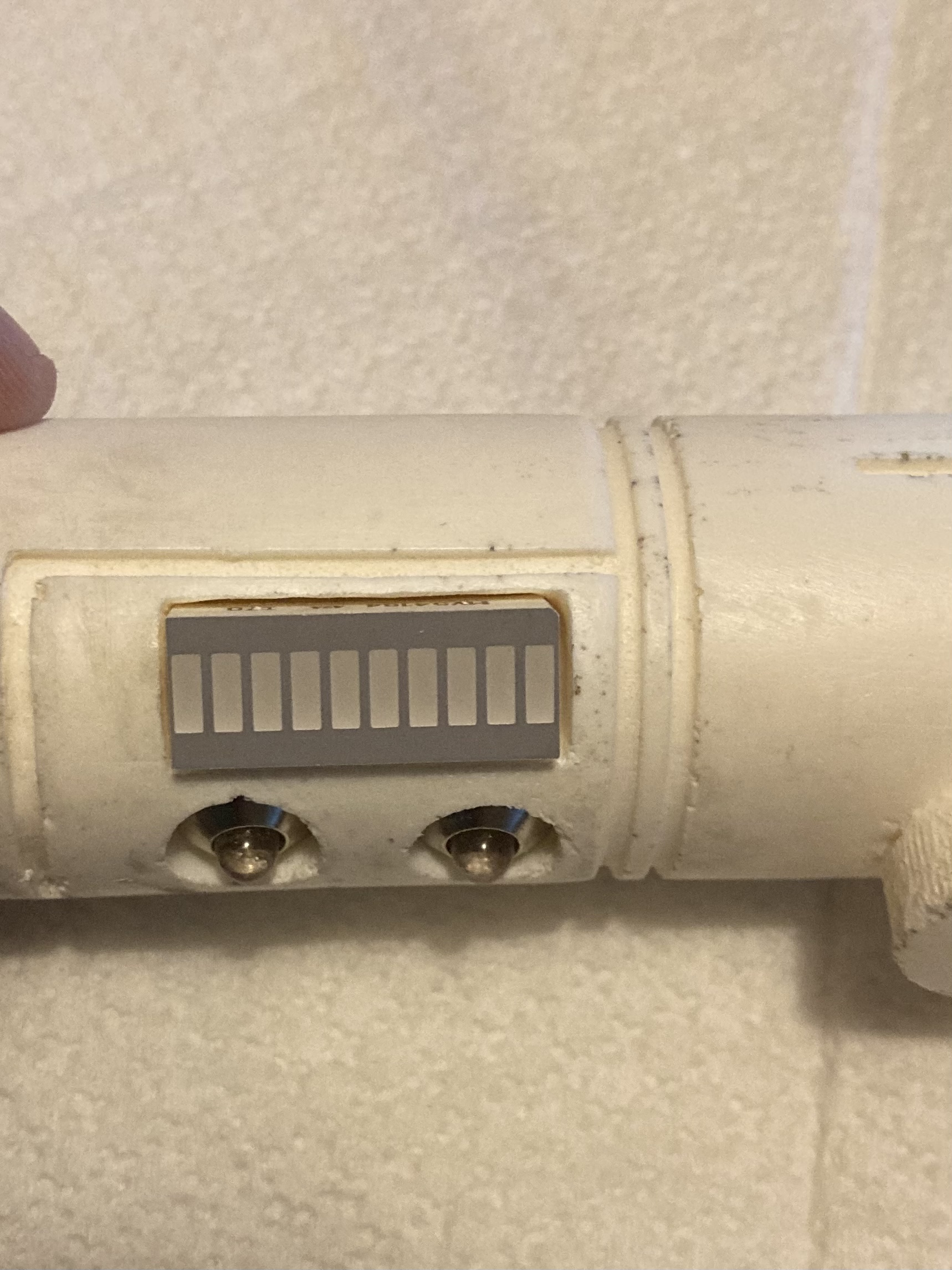

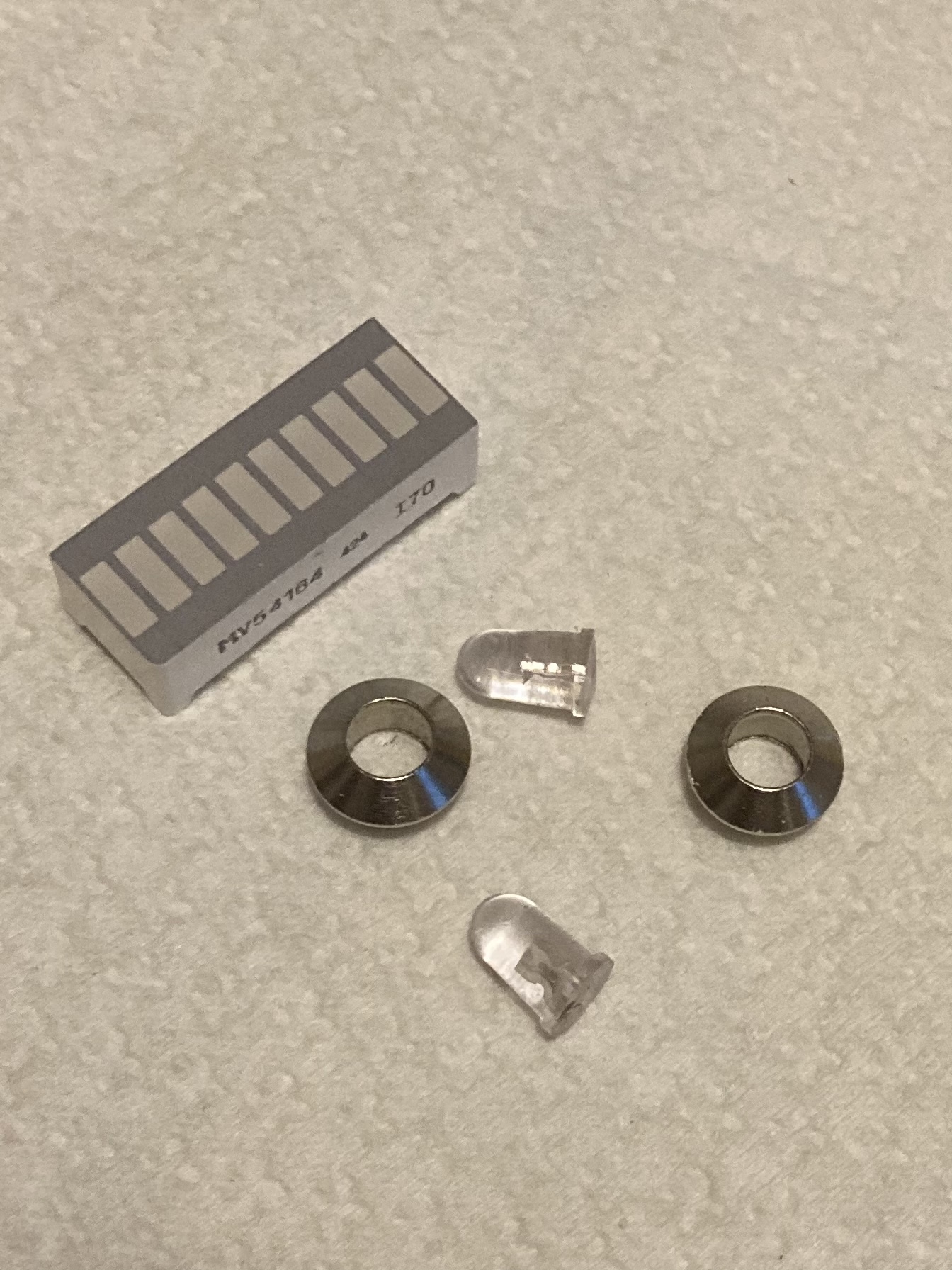

8F53C643-6F8F-4687-A98D-771A22B79CD3.jpeg 385F9400-0D9F-4D85-883B-5E4D8FB92FF7.jpeg 8E9B76E4-2E53-4AD9-A14B-F511D86BF1FE.jpeg 63299B13-EA1C-4DD6-B890-64233B744712.jpeg CCE3BDAA-B668-4402-B0F2-D3FCEAF33C99.jpeg

I have to shim the rectangular hole.. I cut it .8mm too long, but a scrap of resin or some putty will fix that right up


Attachments

  • 33969955-99D7-43DF-8355-524DD67376A9.jpeg
    1,013 KB · Views: 22

thd9791

Master Member
RPF PREMIUM MEMBER

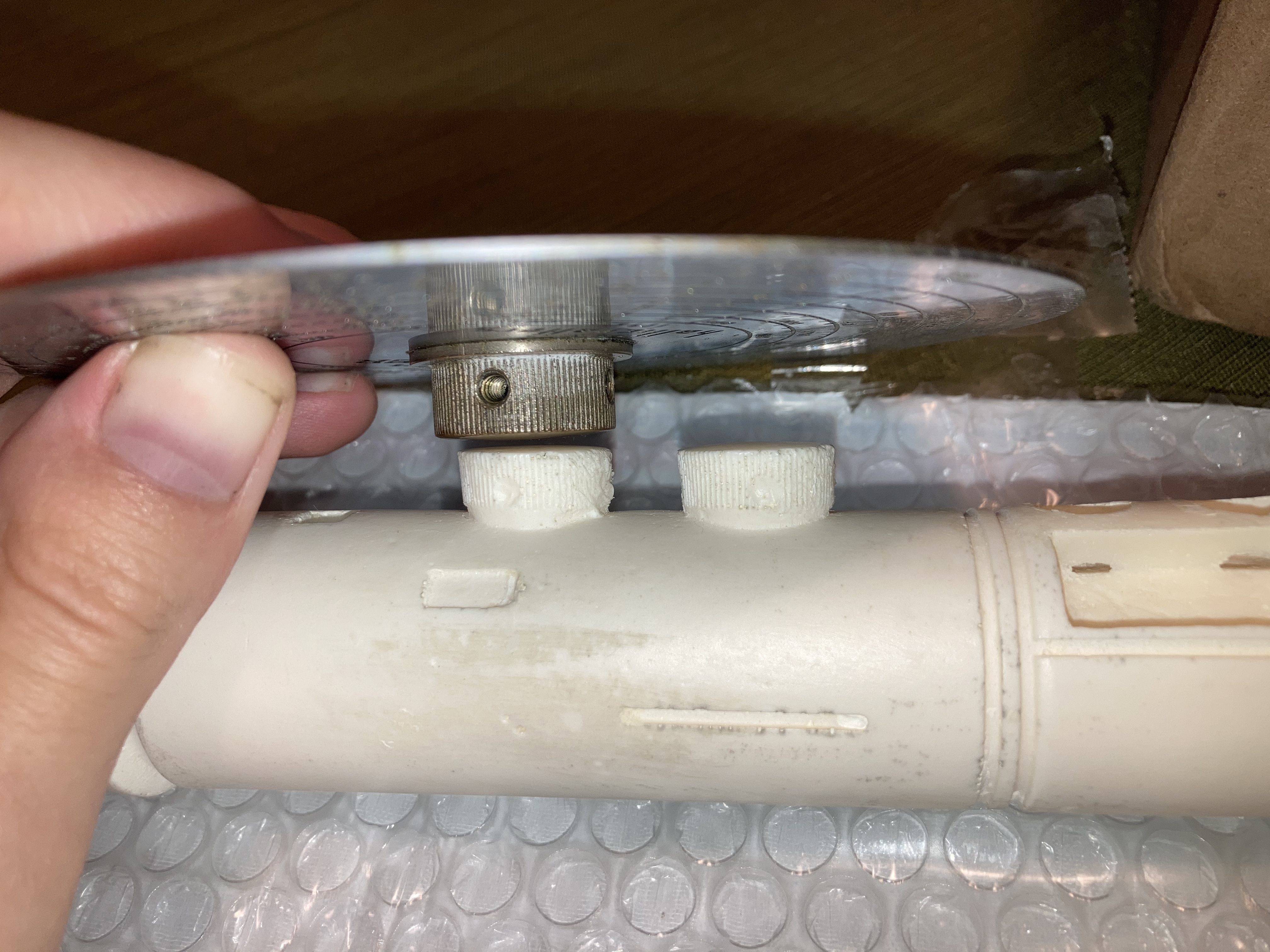

Okay, if anyone goes hunting from now on, this is not a match! It looks so close, same knurling, same set screw placement and same slightly domed top. It’s too big, has 3 set screws and I can’t even disassemble it. Moving on


thd9791

Master Member
RPF PREMIUM MEMBER
Have you ever looked at guitar/guitar amp volume/pickup knobs?
Good call, I'll head there next. So far I've looked through ones that have logical ties to other parts on set.. and then further and further
Aircraft
Industrial Potentiometer knobs
Medical equipment
Radios
TVs
Ham Radios, military equipment
etc.

Funnily enough, this was the only knob to look anything like the prop's knobs so far... no indicator, low set screws, specific straight knurling, a very slight dome almost non-existent


janglesworthy

Sr Member
RPF PREMIUM MEMBER
Good call, I'll head there next. So far I've looked through ones that have logical ties to other parts on set.. and then further and further
Aircraft
Industrial Potentiometer knobs
Medical equipment
Radios
TVs
Ham Radios, military equipment
etc.

Funnily enough, this was the only knob to look anything like the prop's knobs so far... no indicator, low set screws, specific straight knurling, a very slight dome almost non-existent
a lot of guitar tone and volume knobs have that look also, all with single set screws. Common ones would be gretsch, gibson, fender. Telecaster knobs kind of have the gold tpm obi-wan look.
