    So I finally got my Randy Cooper Tantive IV (Blockade Runner) Resin Kit today...YAY!


    There has been 4-5 builds of this kit on the net and its just such a beautiful kit. The ship only shows up like 10 seconds in ANH but its still one of the Clasic Star Wars ships of all times if you ask me.

    There is of course some work too be done in terms of putty, fitting and sanding, normal with a Resin kit, but over all it looks ace.

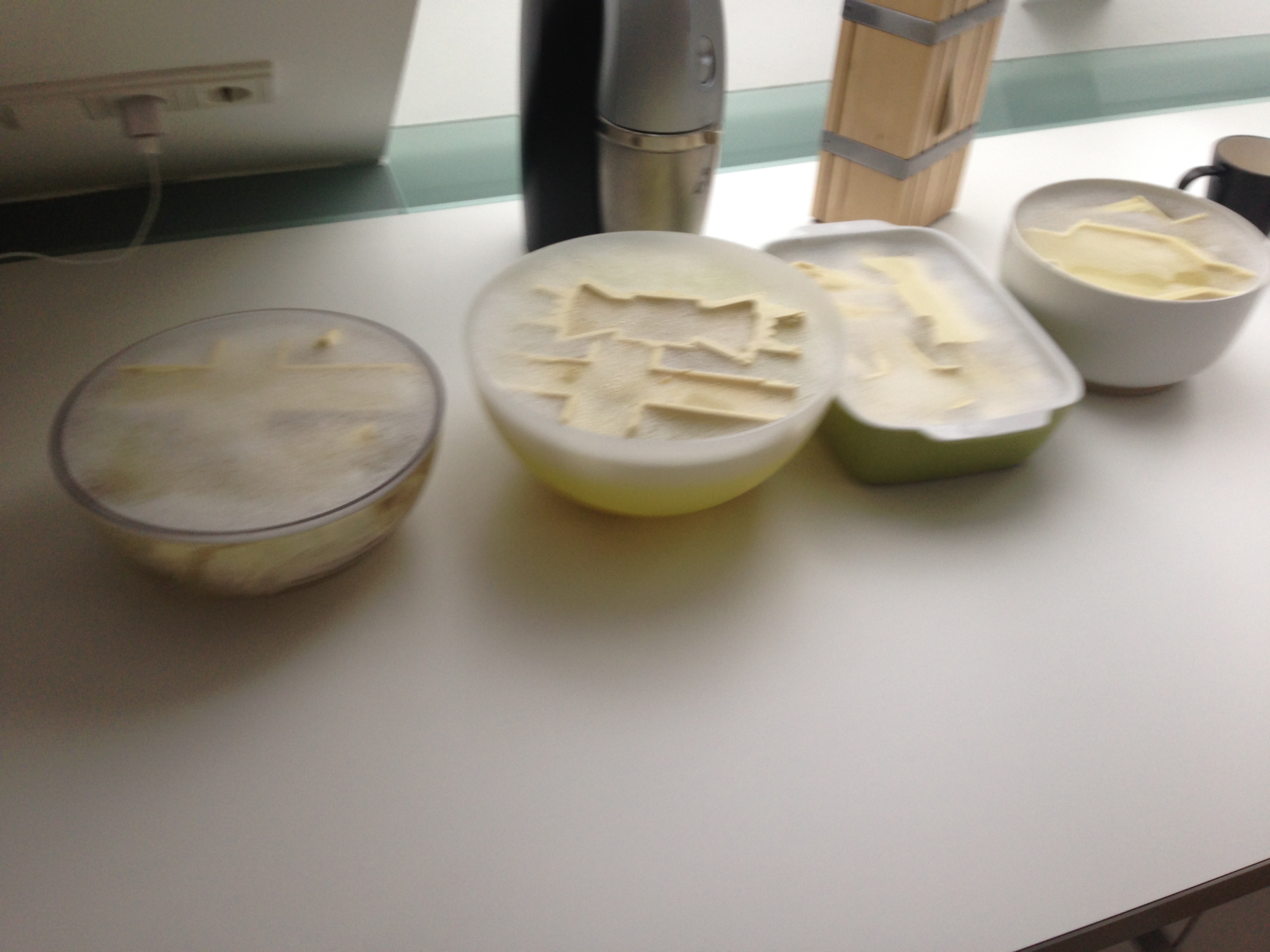

    I put all the parts in a luke warm water bath with some soap/Dishwasher agent and will leave it there till the morn

    If necessary I will go over all the parts with a light wash of acetone before starting fitting/bondo/sanding.

    I will post as I go along.

    Regards
    CPTCOX

    Randy13 and Avanaut like this.
  2. Jedi Dade

    Jedi Dade Sr Member

    Trophy Points:
    1,730
    This is a great kit really. The only fiddly bit is aligning all the engines nice and straight and evenly spaced. Take your time and you'll be fine.

    Jedi Dade

    Last edited: May 22, 2015
  3. Timmythekid

    Timmythekid Sr Member

    Trophy Points:
    1,355
    Hey,it has a supporting role in Jedi too! And then there's some abomination that kinda, sorta, vaguely resembles its fatter, shorter, lazier cousin in RotS. Such a great, great design, and from the builds I've drooled over, such a great kit to boot!

  4. CAPTAINCOX

    CAPTAINCOX Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    837
    True that...my bad ;).

  5. JHY

    JHY Active Member

    Trophy Points:
    361
    It's a great kit, enjoy the build.
    The proper alignment of the engines is where most builders struggle. Clamps, 15 minute epoxy and various jigs worked for me, with engineering squares, dowels, sanding on a plate glass sheet and viewing the engines resting on a mirror all help.

  6. MKWJTC

    MKWJTC Active Member

    Trophy Points:
    341
    That's gonna be a lot of hard core fun!

  7. danikin72

    danikin72 Active Member

    Trophy Points:
    341
    I will be watching closely, I've had my eye on this kit for a while now, and may just pull the trigger soon. Are there any mods that you plan other then lights?

  8. CAPTAINCOX

    CAPTAINCOX Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    837
    At the moment I am only planning to do the engines and maybe fixing the smaller cannons with some brass piping or something more accurate to the studio model proportion.
    Just got home here and pulled out the ol Nailfiles and Sandpaper for some serious cleaning up, will for sure do some "unwarping" using Hot water later tonight. Plan is to have the kit cleaned up for the weekend and then start with fitting and I guess using up a lot of BONDO! love it!

    Randy13 likes this.
  9. Randy13

    Randy13 Well-Known Member

    Trophy Points:
    915
    Seeing what you've done with the Millennium Falcon, I know you are going to do a beautiful job on this one.

  10. CAPTAINCOX

    CAPTAINCOX Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    837
    Cheers Randy gonna do my best :)

    Randy13 and TheNylonGag like this.
  11. CAPTAINCOX

    CAPTAINCOX Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    837
    Small update on the build. Had less time then I thought due to Work and Private stuff so its not moving along as fast I wanted it to, but no matter, patience is a virtue when building models or so say say.

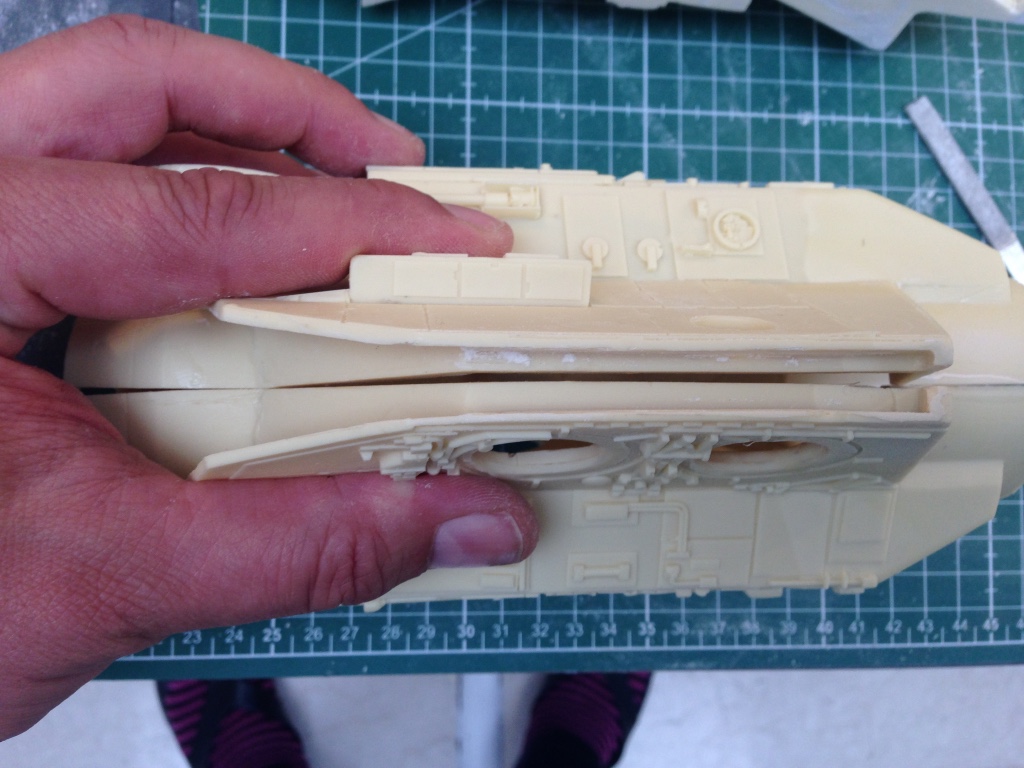

    The gaps are mostly covered with panels but I wanted to try to make the fit a bit better

    So I put the parts in boiling water for a sec or two, checked the parts to each other and back in the water etc until I was sort a happy with the fit
    Nothing that a bit of Bondo and Sanding will get rid of.

    Fit and sanded the backplate of the Main Engine Block, bondo and sanded.

    Sanded all the Engine Blocks to fit to the main body,

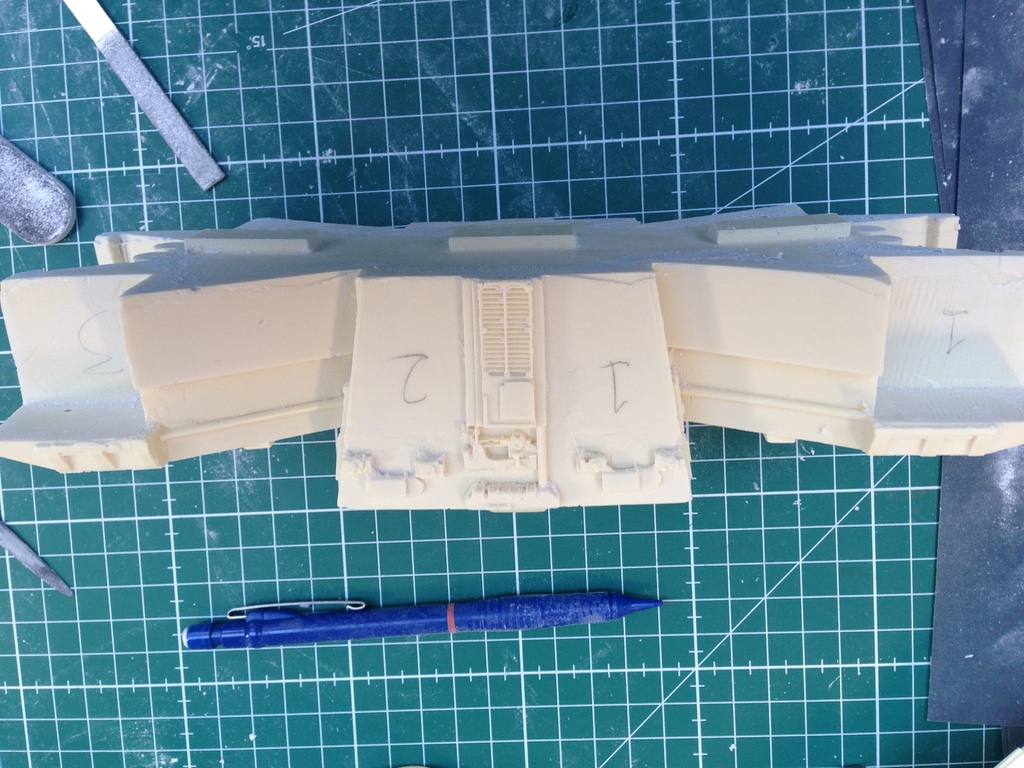

    As they are not 100% mirror symmetrical and sort of individually sanded I had to number all the pieces for gluing later.

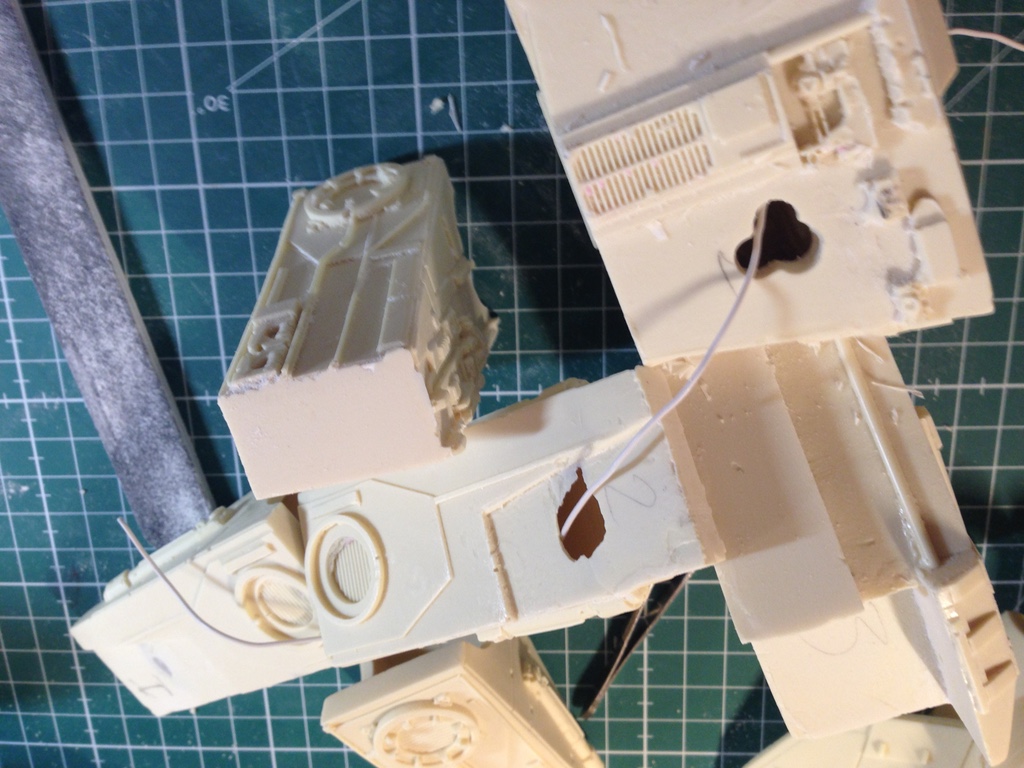

    Made holes for all the engine cables, not so pretty but will not be visible later anyway

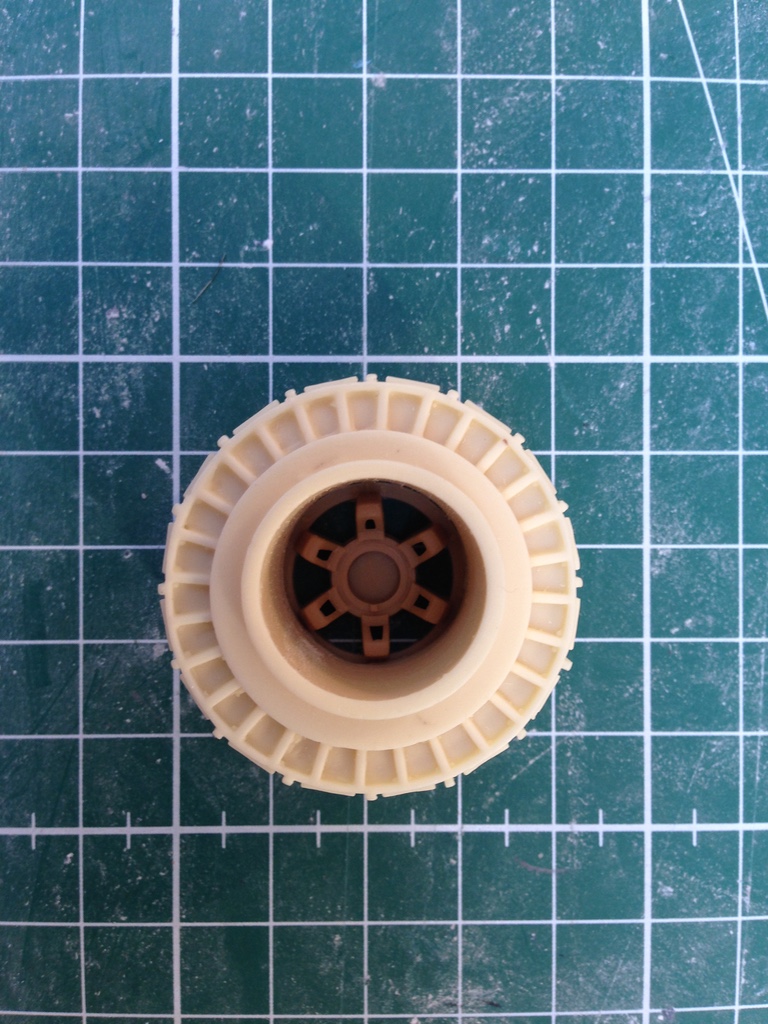

    Was looking for a solution for the Engine Nozzles and found an old Tamiya Sturmgesch├╝tz kit at home and thought the Drive Spoke will do the job, will cast it in clear resin later and fit some Warm Led's behind, think it will do the trick.
    thumb_IMG_1877_1024.jpg thumb_IMG_1878_1024.jpg

    Planning to get on with it on the weekend and will post as I go along.

    Cheers!

    Last edited: May 19, 2015
    Randy13 and 32buds like this.
  12. ozzyguanche

    ozzyguanche Sr Member

    Trophy Points:
    1,046
    Looks great, nice to see that not all kits were as badly cast as mine.

    Look forward to updates.

    Ozzy

  13. Subzero121

    Subzero121 New Member

    Trophy Points:
    17
    I really like the drive spoke trick. I suggest you reinforce the main fuselage joints with some aluminum or pvc pipe. That is how I lost mine. This model is very heavy on the engine assembly and the resin alone might not be strong enough. Let's just say gravity and resin dont mix well. Anyway best of luck with the build.

  14. CAPTAINCOX

    CAPTAINCOX Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    837
    Hi Guys

    Totally forgot to post the final result here...my bad.

    Anyhow some pics of the build and the final Model.

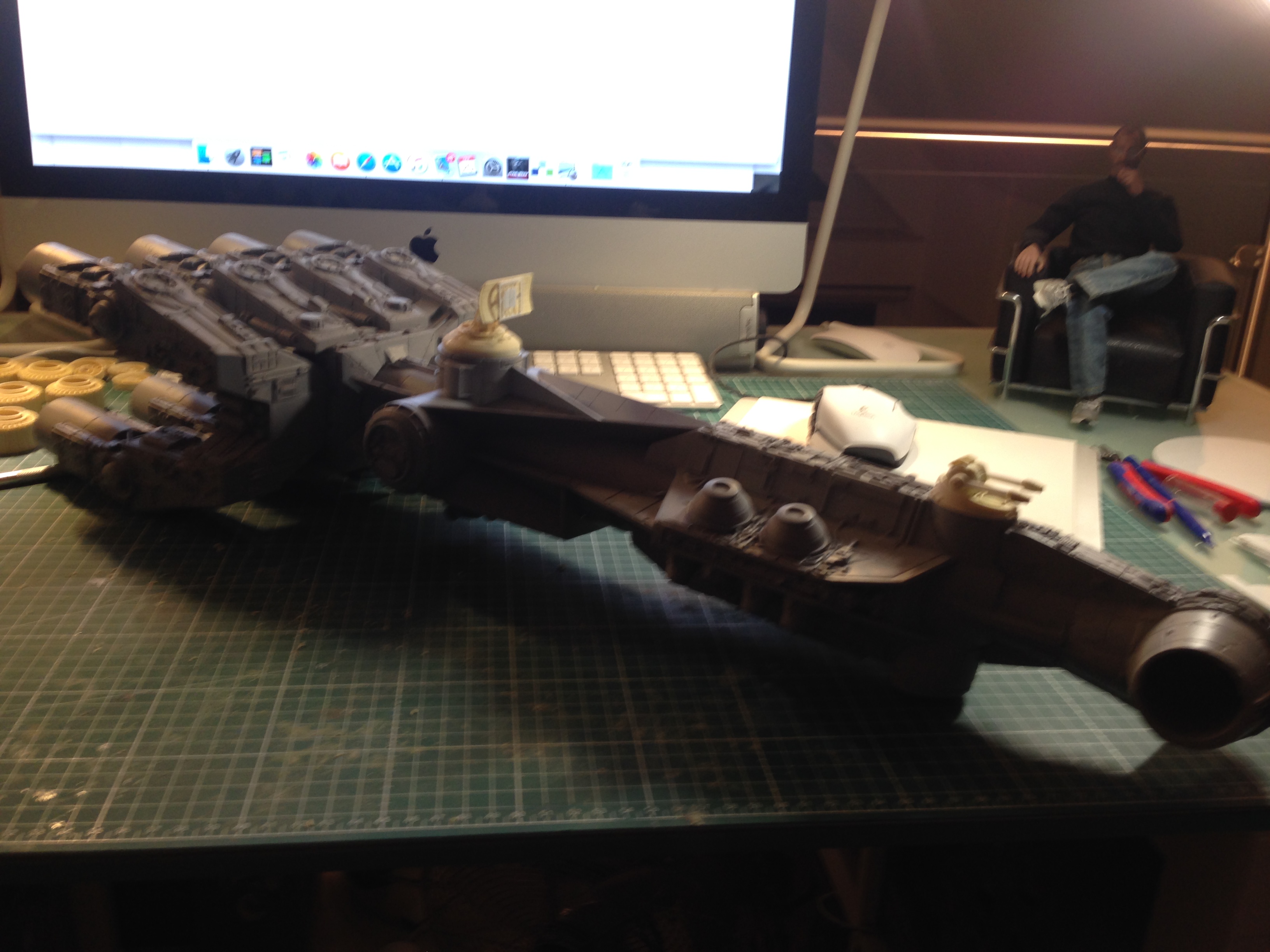

    Engines glued together, the hardest part like so many guys have said and I am not 100% happy with the result as they are not perfectly aligned...

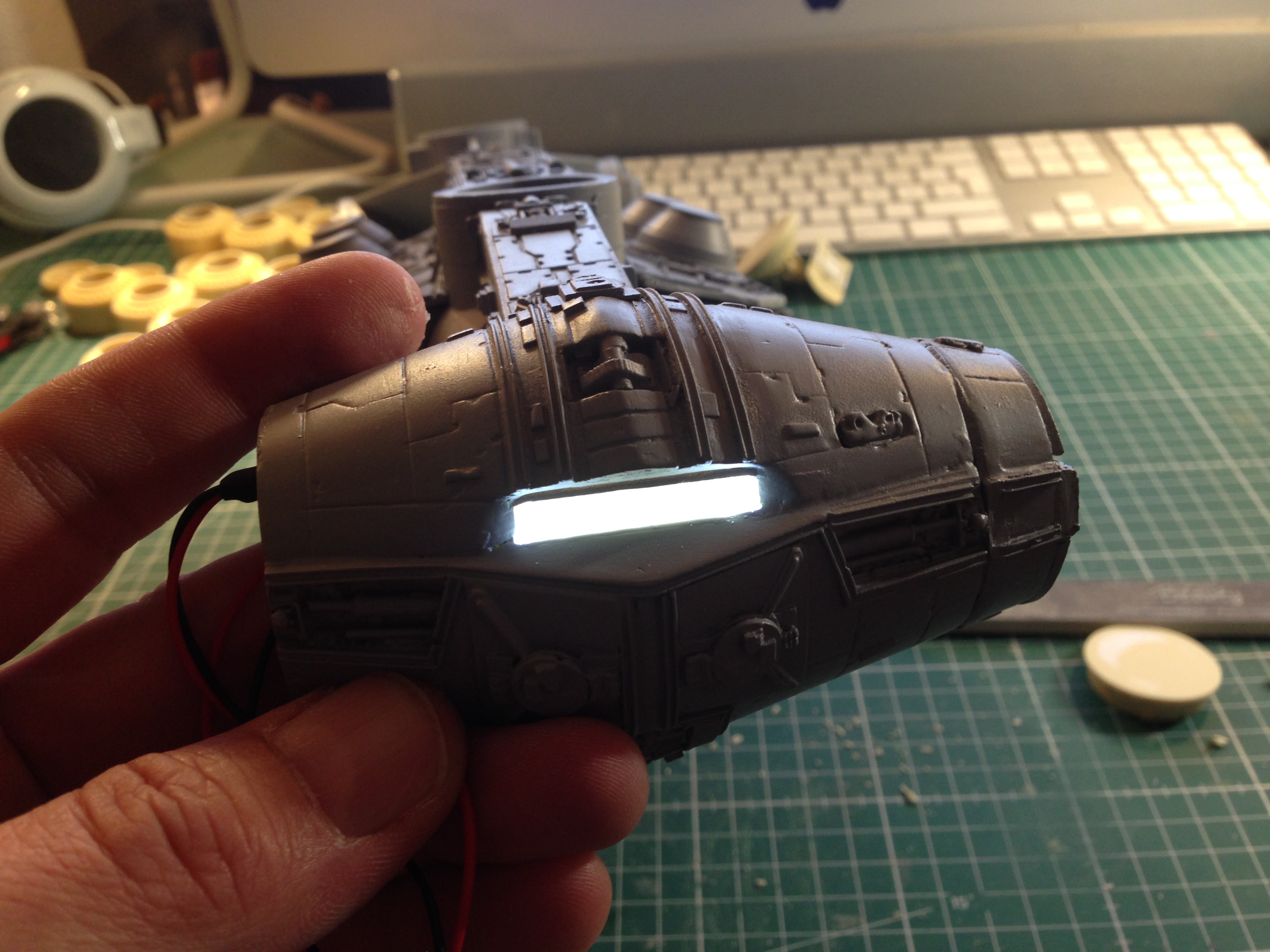

    Licht check for the bridge

    LED's glued in to the head

    Radar dish slightly modified with scratch built parts as I broke the original :p

    Gun current mounted

    Light check for the engines

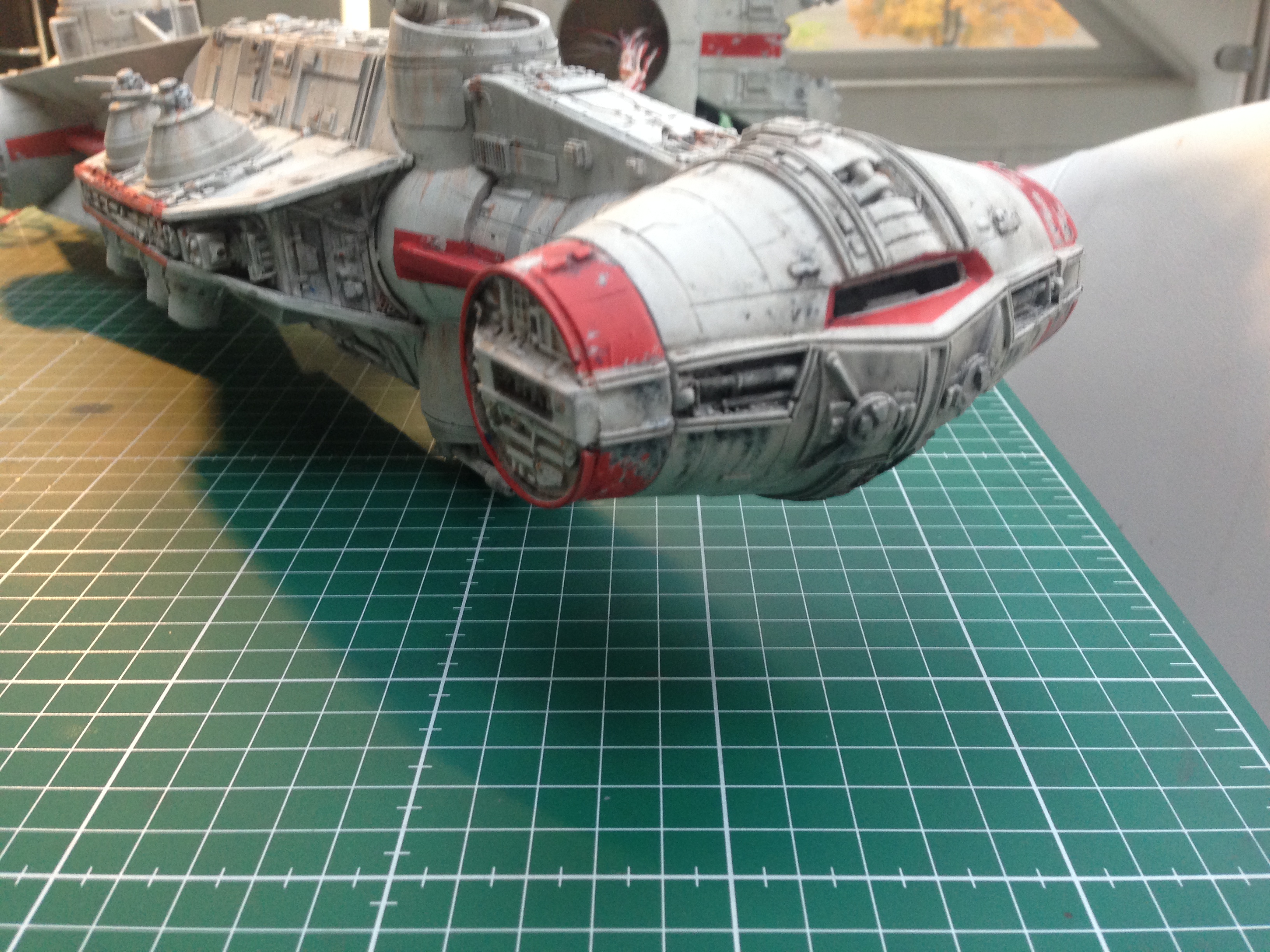

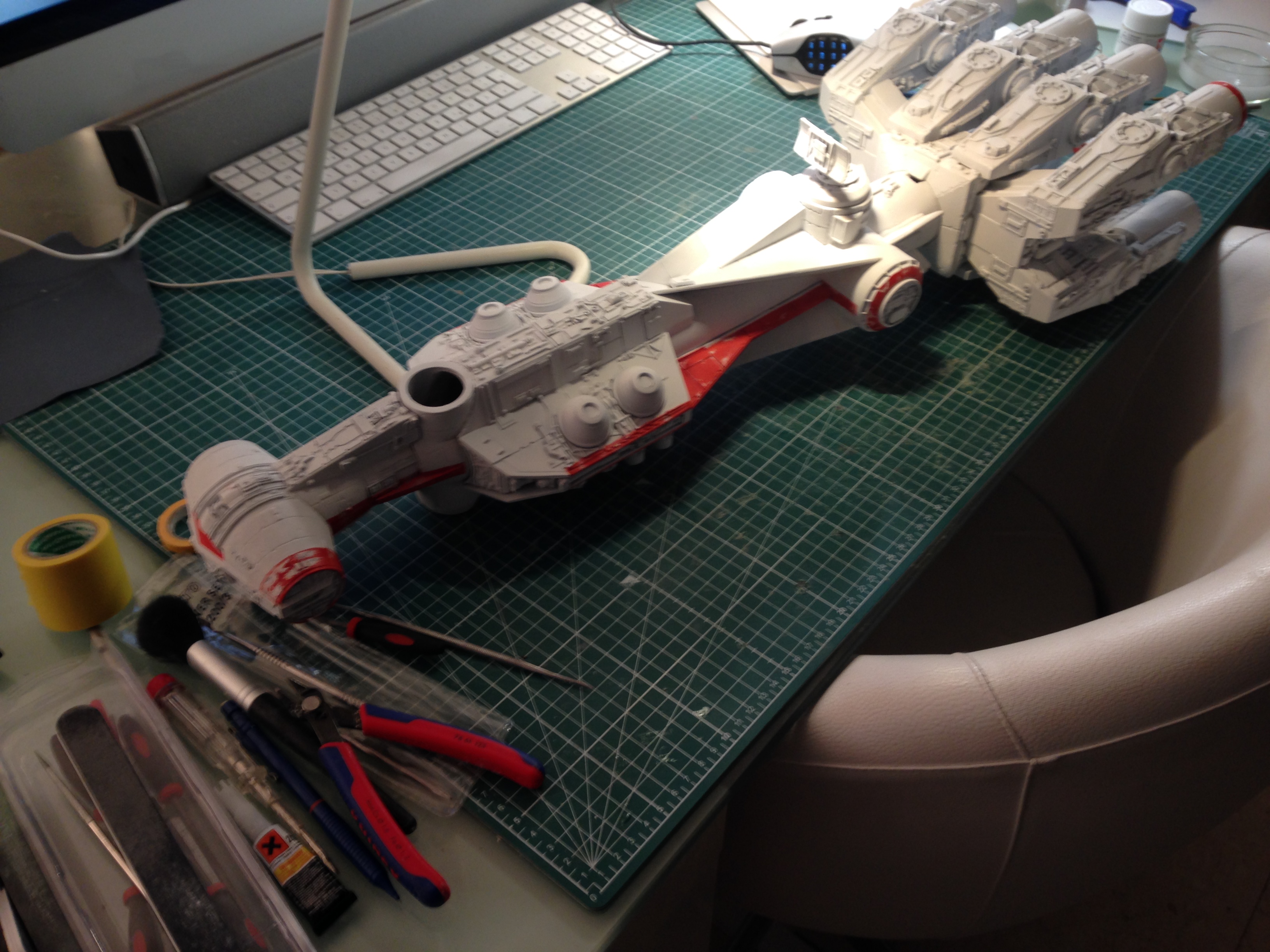

    Red markings painted using some chipping fluid. The white base is a pure Tamiya matt White. After seeing the original models at Star Wars Identities in Cologne
    (no Tantive but most of the other Models where there) I decided to use a pure white as a base as the original models looks like they where painted like that with a layer of weathered paint effects on top.

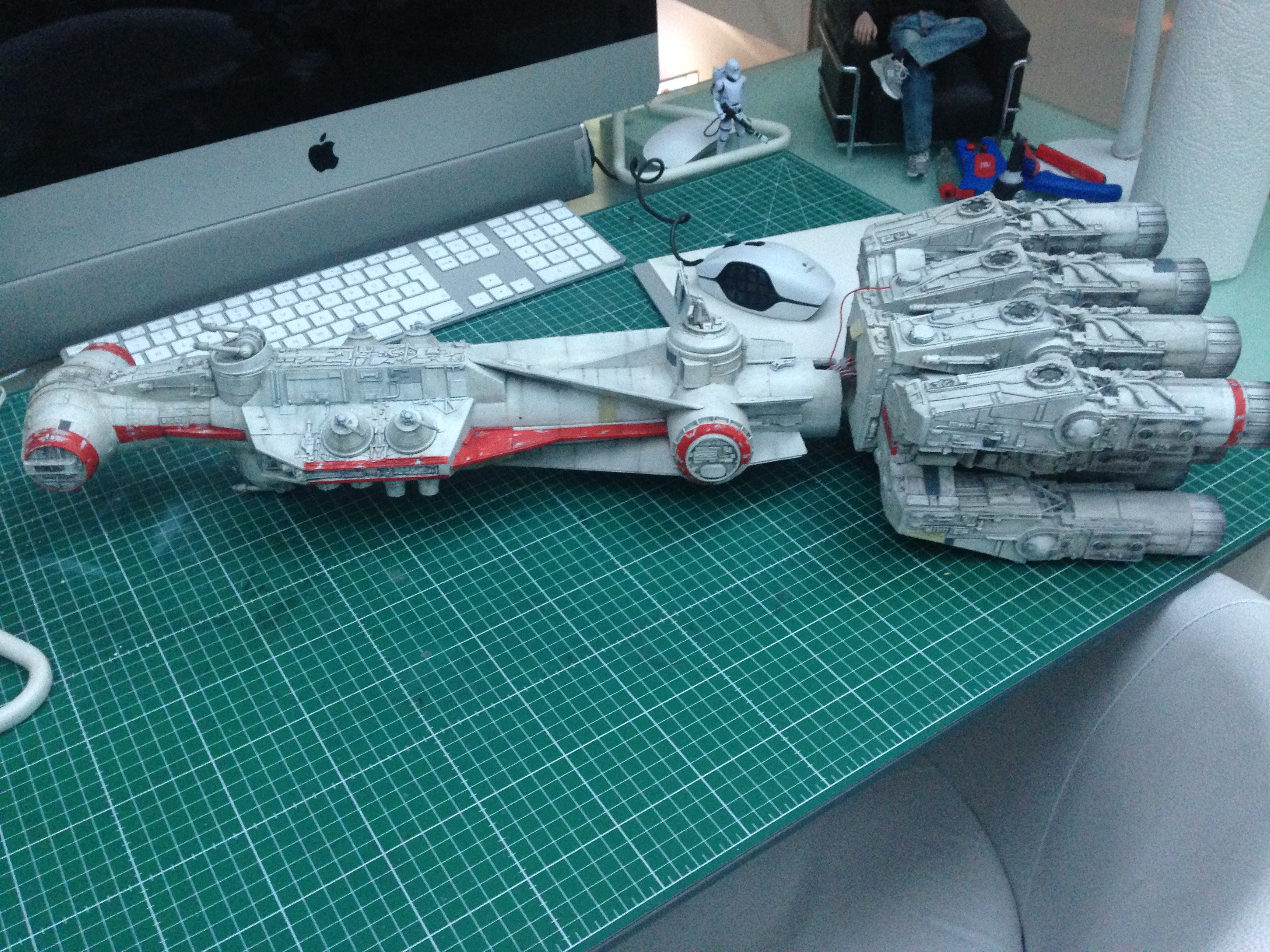

    Started weathering using a mix of Oils for filtering and streaking and rust effects, Pastells for smudging and streaking.



    Final model mounted on a stand using a Polycarbonate plate painted from the back with black paint and screwed down with Allen Bolts

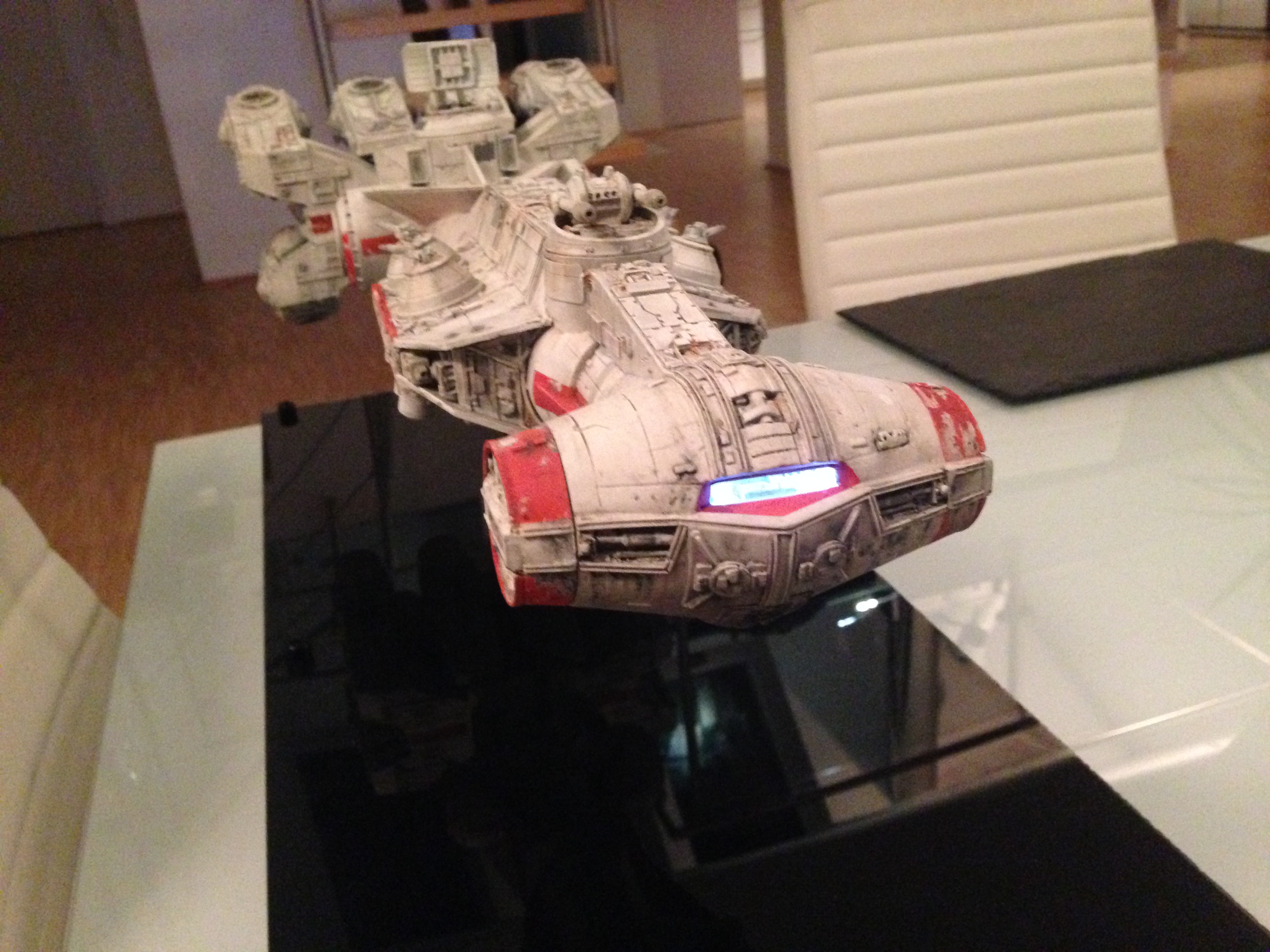

    I think the final result is pretty cool...even though the engines are not 100% aligned.

    All in all a pretty cool project but Resin kits are for sure not as easy as it looks to build.
    A lot of filling and fitting, sanding and Bondo work is required, but after all that is done its for sure one the highlights in my Star Wars collection.


    Attached Files:

    Randy13 and Sergiotron like this.
  15. blakeh1

    blakeh1 Sr Member

    Trophy Points:
    2,415
    Excellent job. Painted looks spot on

  16. Sergiotron

    Sergiotron Well-Known Member

    Trophy Points:
    635
    Truly amazing!

  17. Randy13

    Randy13 Well-Known Member

    Trophy Points:
    915
    Beautiful work! Excellent paint and weathering.

  18. CAPTAINCOX

    CAPTAINCOX Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    837
    Cheers guys! and again, this model is for sure a high light in my collection!.

  19. tbody

    tbody Member

    Trophy Points:
    112
    Do you know what kind of resin is it?
    Epoxy resin?
