Ralph McQuarrie 1/24 Studio Scale 3D Printable Concept X-Wing

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


Enohado

New Member
Hello, I would like to share my McQuarrie concept X-Wing. I saw someone who designed one years ago but as it usually works, they were limited kits and long sold out/impossible to obtain, so figured why not make one. (Also I think the designer sold the files to EFX? Who in turn did nothing with them in the end, oof.)

This is still a WiP, S-Foils are static in attack position but might change them so that they can open and close. Will feature full cockpit detail as well as landing gear if I modify the S-Foils to close. Since only 2 paintings of this design were made, lots if improvisation is required, so I am open to suggestions and ideas as to what looks good, what I should add/tweak etc.


Attachments

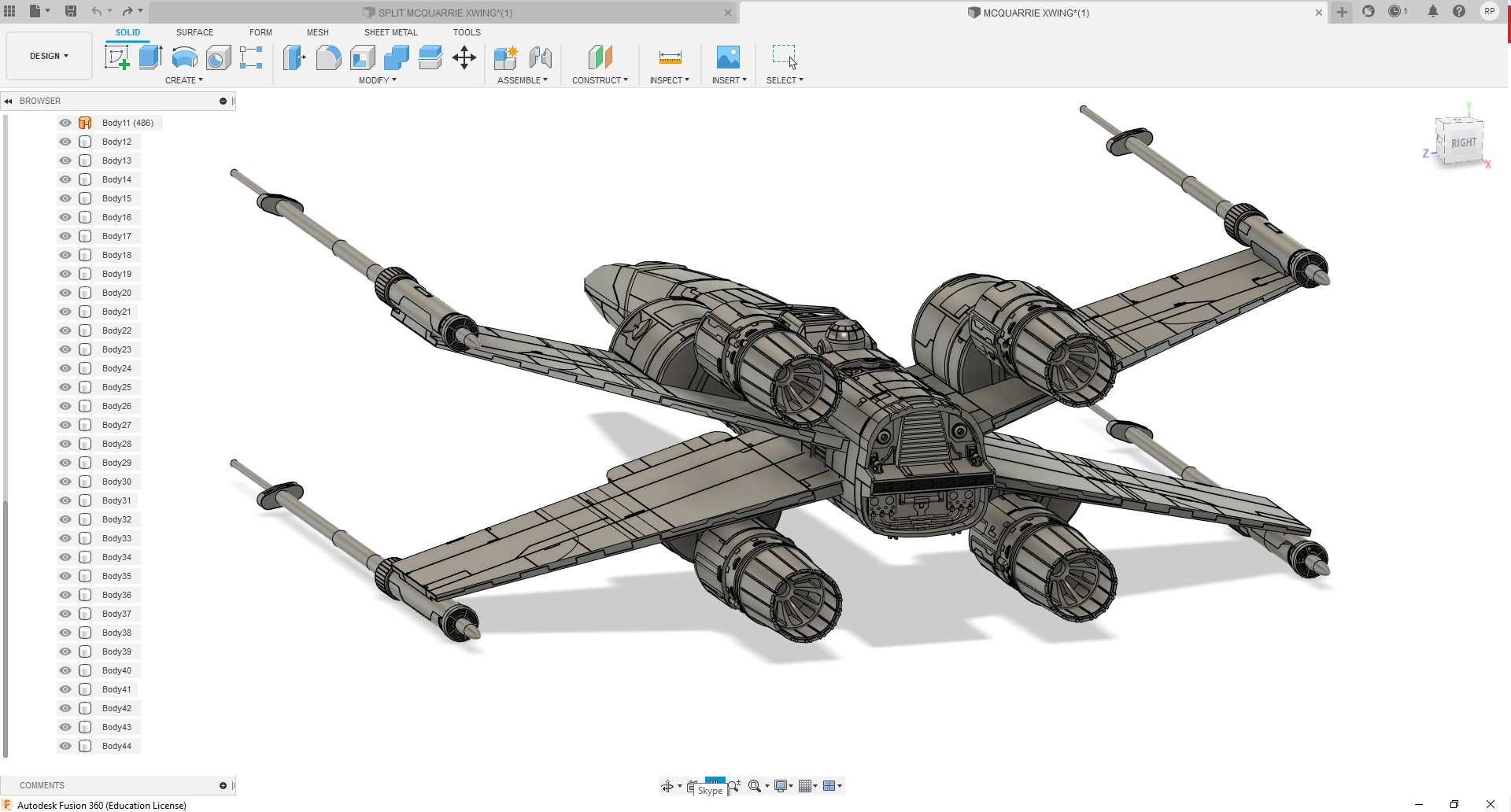

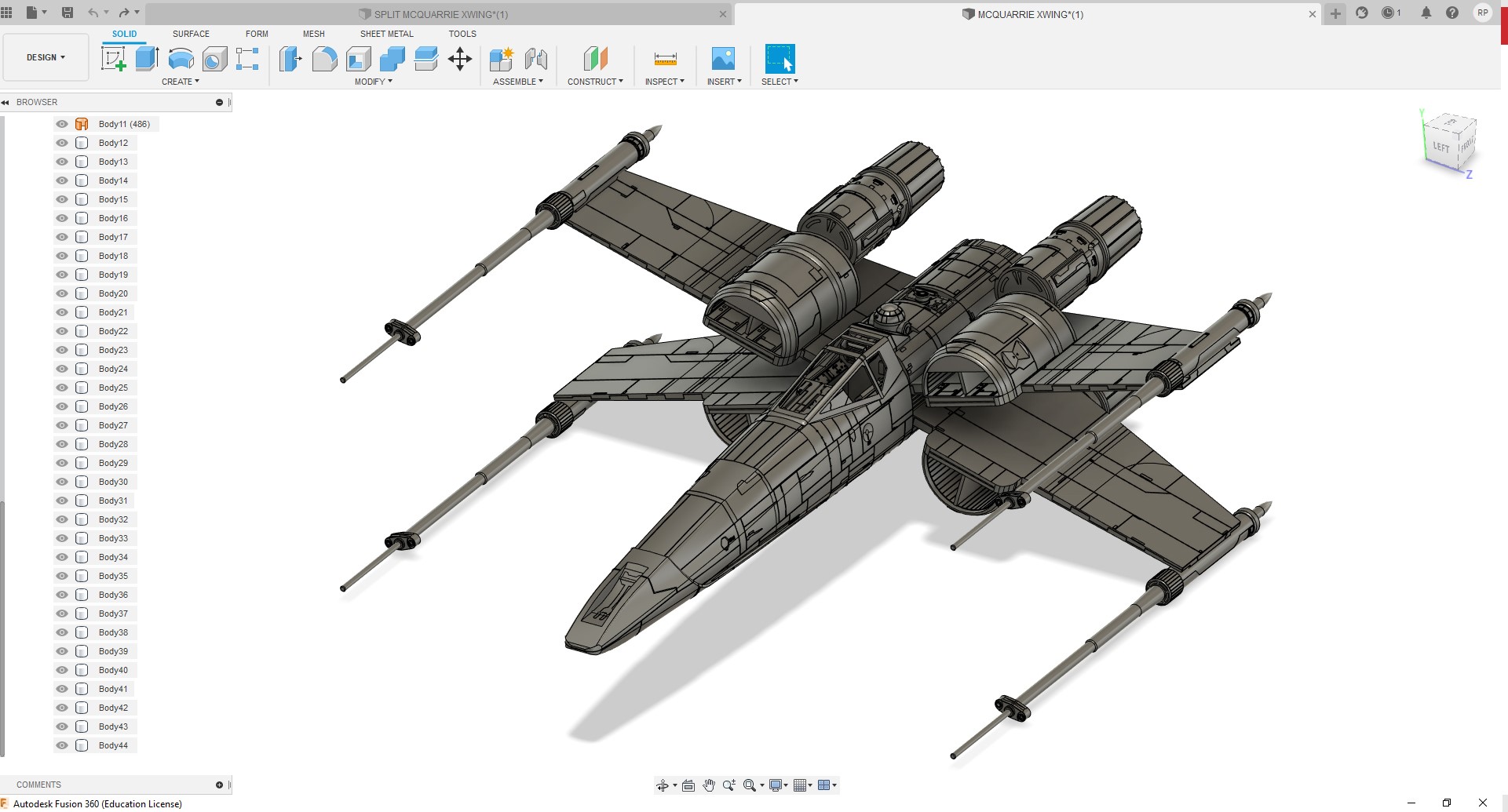

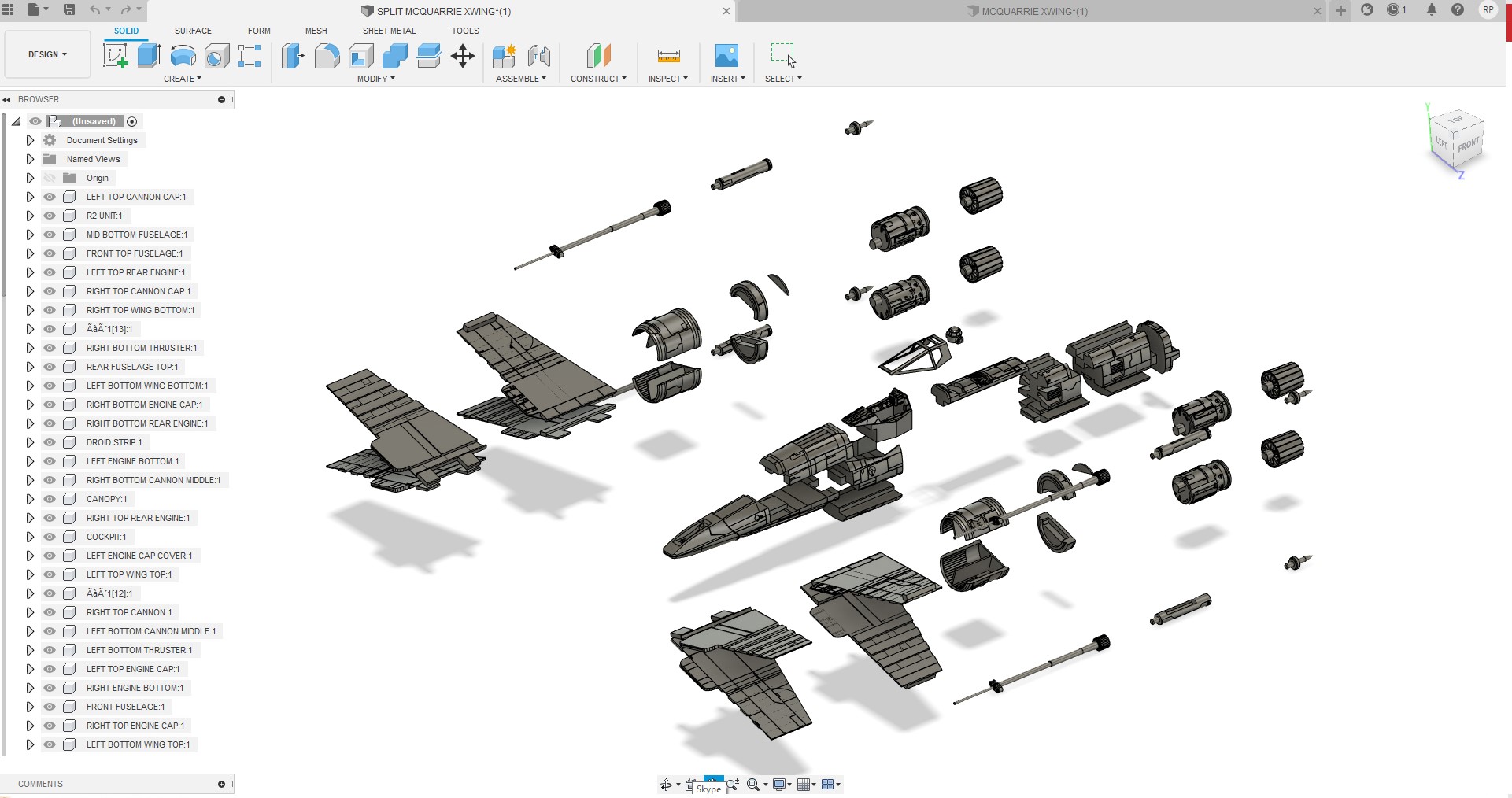

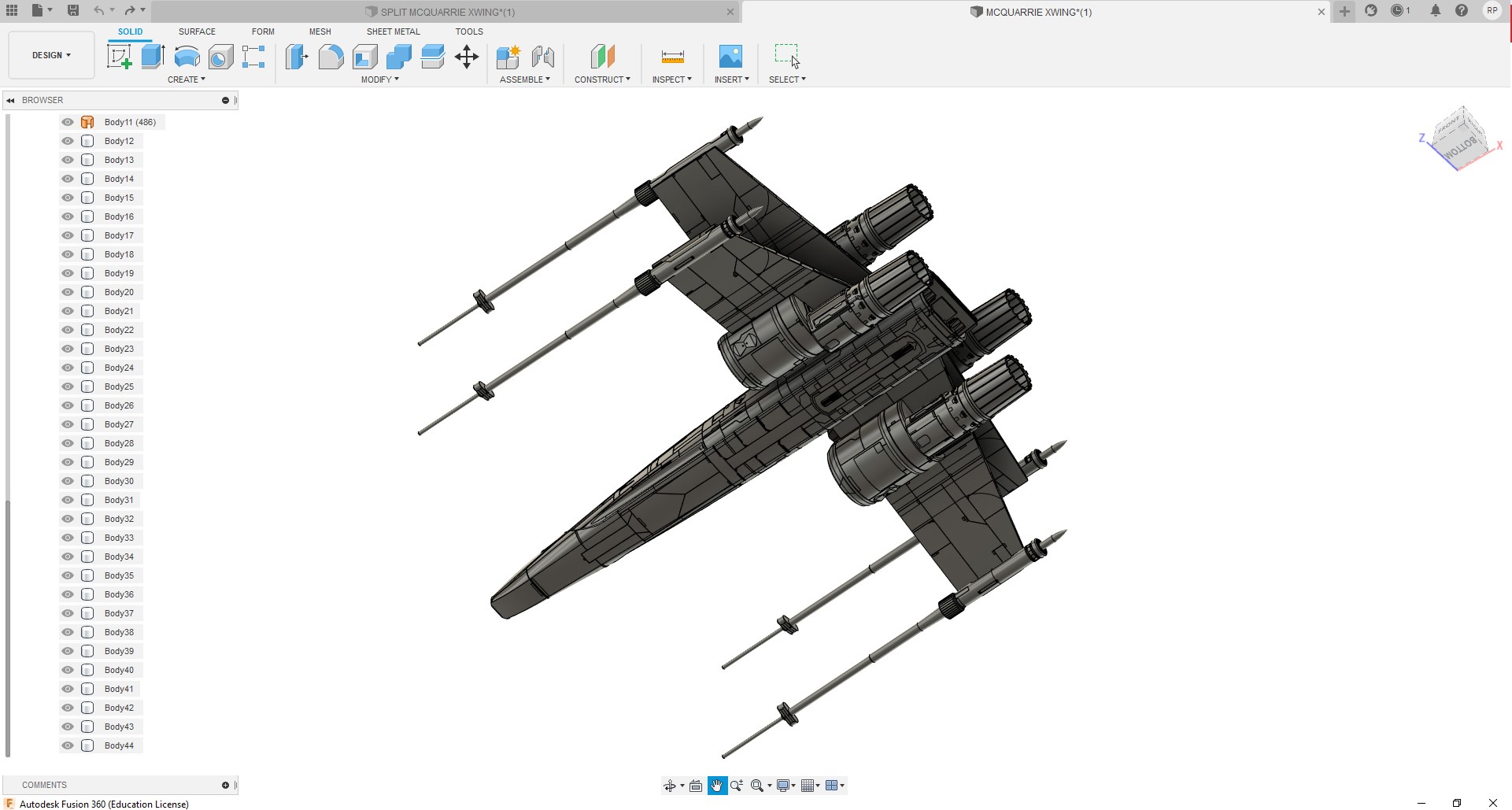

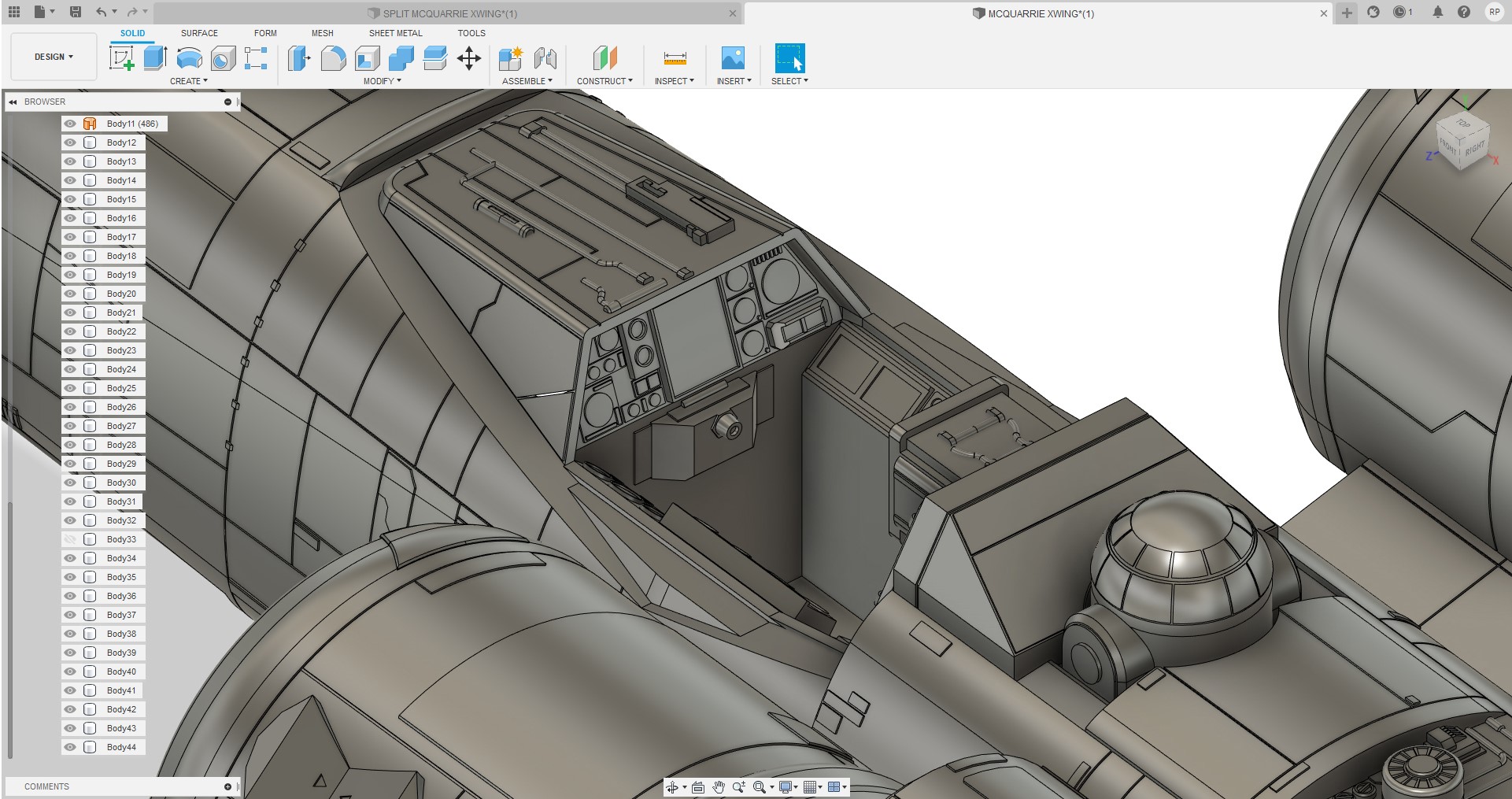

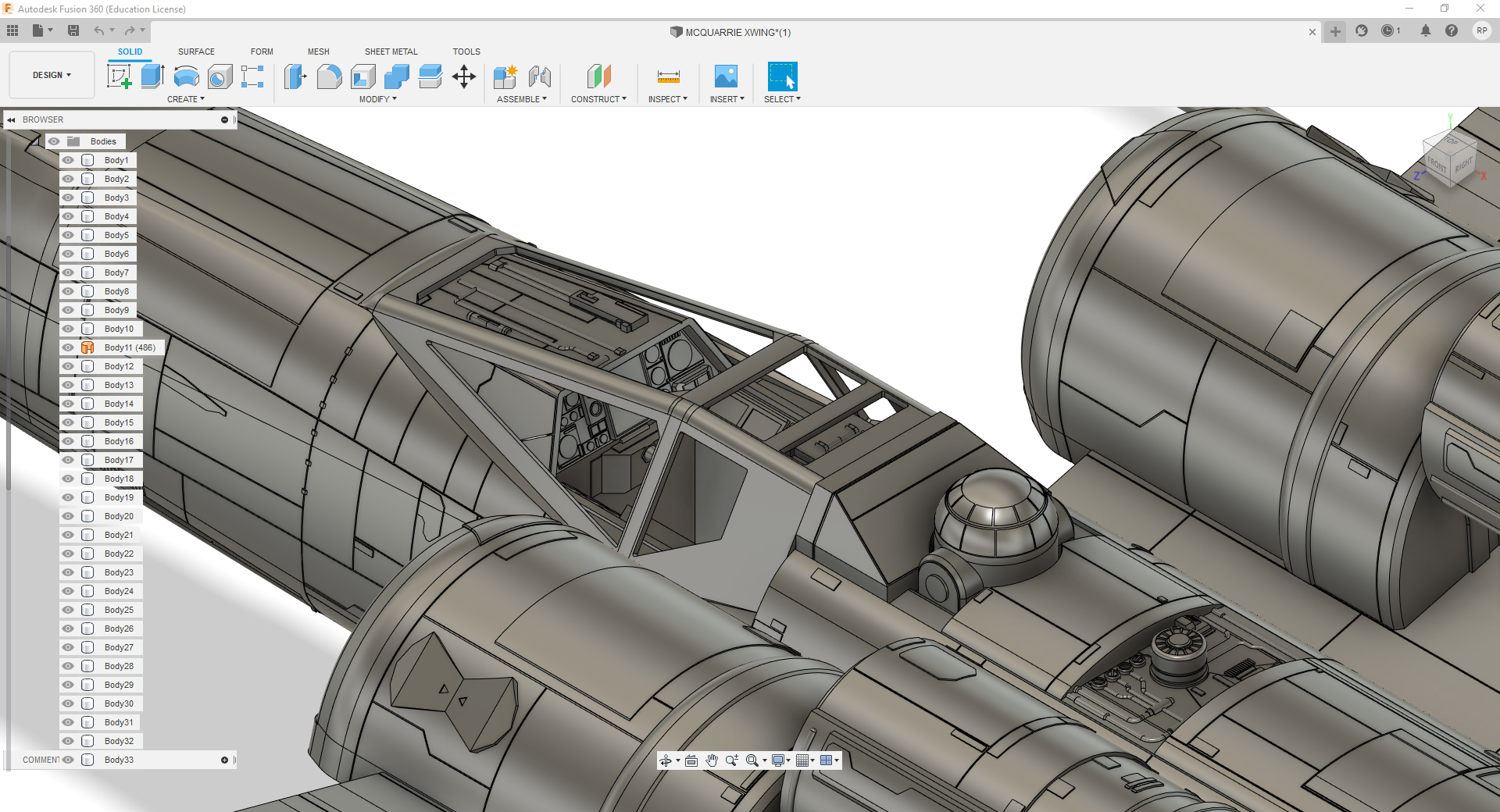

  • MCQUARRIE XWING COLLAGE (2).jpg
