Predator (P1) Bio Mask Pep

Discussion in 'Replica Props' started by Dugzor, Jun 6, 2015.

Tags:
  1. Dugzor

    Dugzor New Member

    Trophy Points:
    3
    Who wouldn't want a Predator Bio Mask hanging on their wall? Or on their face?

    My first foray into prop building, and so far, I'm really enjoying it. I've been a fan of Predator since I was way too young to have watched it, and have longed for a bio mask prop. I'm working on a budget, so I luckily stumbled upon Pepakura as a method for prop building. Many people appear to have started in Pepakura with the bio mask, so I thought I'd throw my hat into the ring.

    This file is supposedly based on the mask from the first Predator film, which is my favorite.

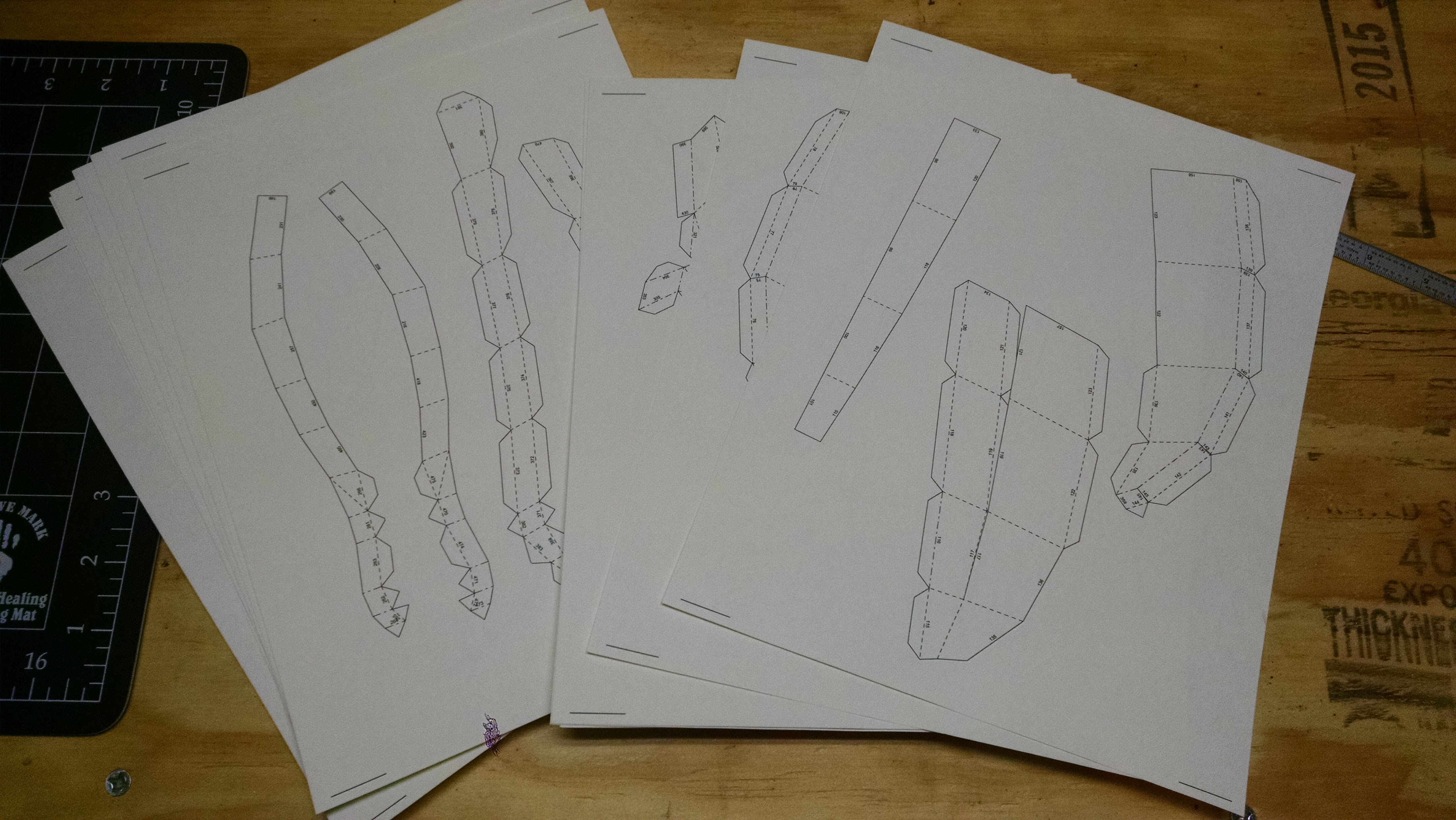

    I'm not sure how other people go about organizing this part of the project, but I came up with a simple way to sorting the pieces by page, so I could easily reference them in the software.
    IMG_20150603_222801307_HDR.jpg IMG_20150604_220419128_HDR.jpg

    My plan, once I get this bad boy assembled, is to strengthen it with resin and fiberglass sheeting, build it up with Bondo, sand it down, then paint it.

    Advice always welcome!

    Last edited: Jun 30, 2015
  2. Dugzor

    Dugzor New Member

    Trophy Points:
    3
    Eff this noise. I'll fabricate this part some other way...

    Last edited: Jun 6, 2015
  3. Dugzor

    Dugzor New Member

    Trophy Points:
    3

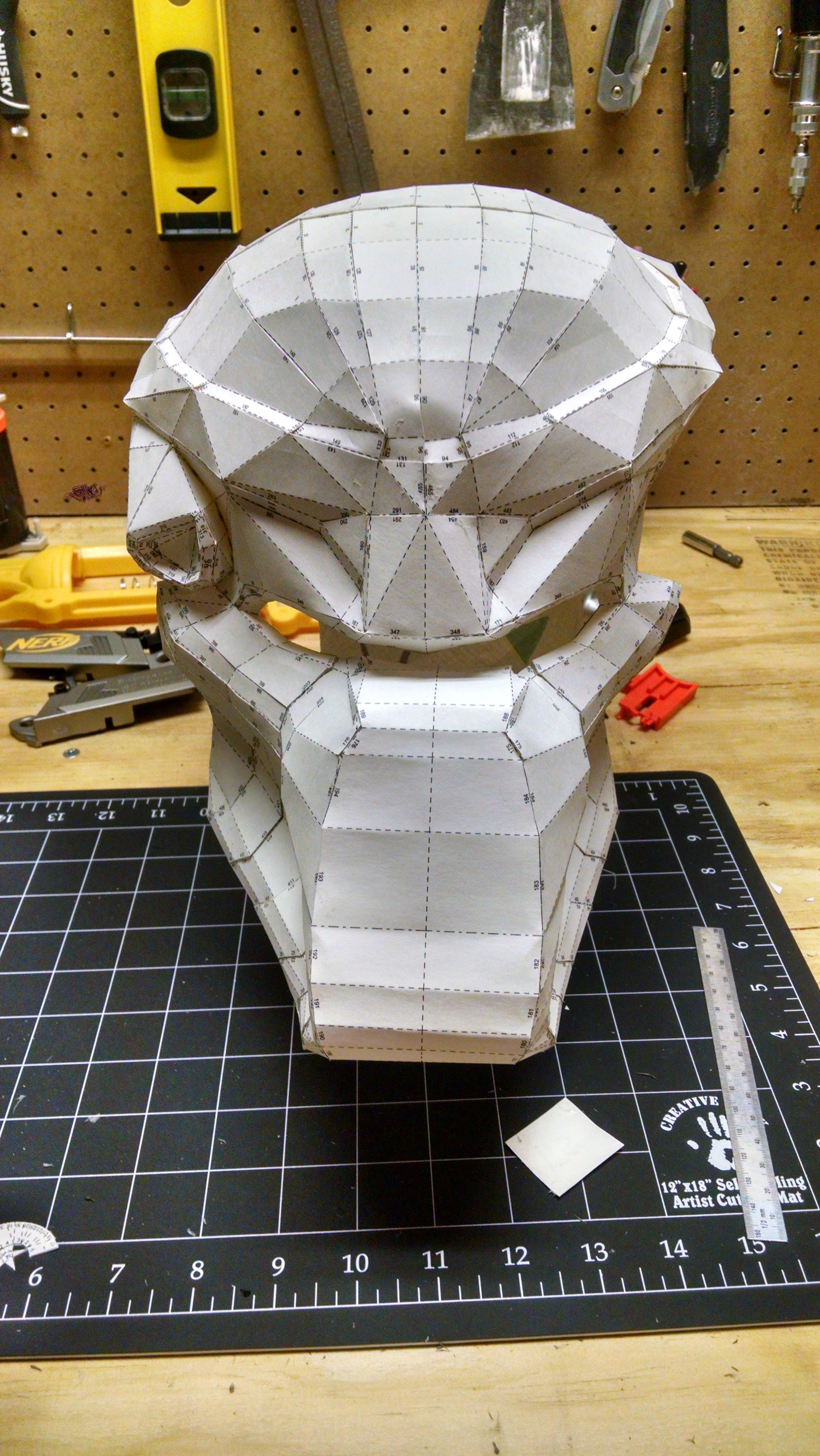

    Took me about six hours, spaced out over three days, but I got it fully assembled (aside from the little hose attachment bit that's way too complicate for my fingers).
    IMG_20150606_132013214_HDR.jpg IMG_20150606_132037142.jpg



    I've noticed, as you can probably see, that it's not exactly symmetrical. One downside of this process is that if you can't line up every single bit right, it's not going to sit straight. I figure it's close enough to be able to push and pull it into shape with masking tape and some small wooden dowels before I start to resin it up. Anyone have any other suggestions for this? I can't be the only one that's had problems with warping.


    Last edited: Jun 6, 2015
  4. stopeverything

    stopeverything New Member

    Trophy Points:
    17
    The bio mask from the movie wasn't symmetrical

    cavx likes this.
  5. Dugzor

    Dugzor New Member

    Trophy Points:
    3
    The Resining!


  6. Dugzor

    Dugzor New Member

    Trophy Points:
    3
    Yeah, you're right. I meant to draw attention to the fact that my assembly wasn't perfect, so the thing warps a bit. No worries, though. Once I got the supports in, it evened out nicely.

  7. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Dugzor what PEP file is that? It looks different to the one I have.

    Last edited by a moderator: Nov 8, 2018
  8. Dugzor

    Dugzor New Member

    Trophy Points:
    3
  9. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Yeah cool, thanks. I will have another go with the one I have and if I call no joy, I will use the one you have posted.

  10. Dugzor

    Dugzor New Member

    Trophy Points:
    3
    Working on the fiberglass now. I'm finding myself fighting the cure time of the resin. I'm going to try adding less hardener to the mix, to see if I can eek out a few more minutes of work out of each batch.

  11. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    If it is a polyester resin, you should fine adding less catalyst.

  12. Dugzor

    Dugzor New Member

    Trophy Points:
    3
    Fiberglass complete.

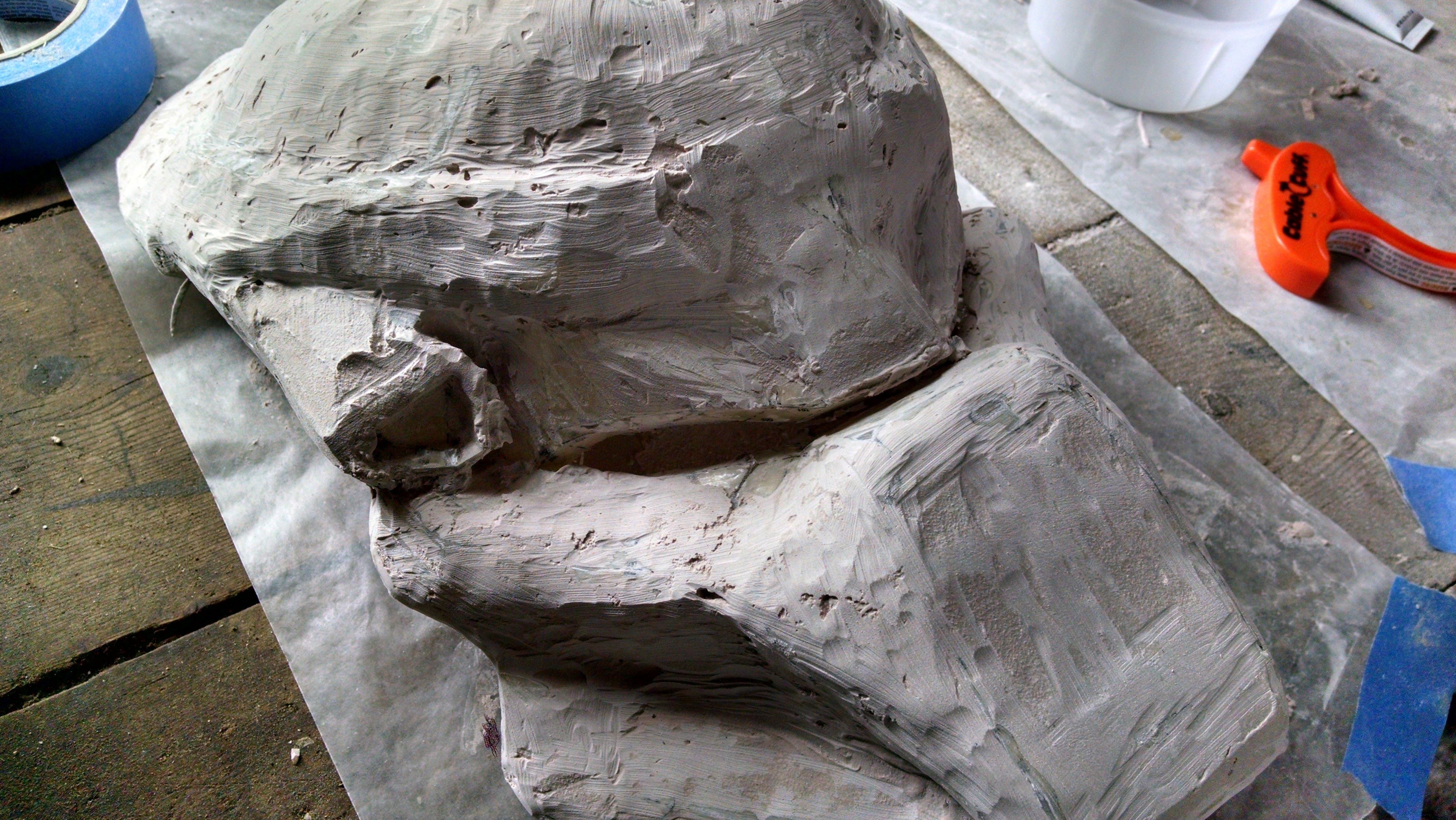

    First layer of Bondo. It's my first time working with it, so I'm likely making many mistakes.

  13. wuwu

    wuwu New Member

    Trophy Points:
    17
    Shrug, we learn from mistakes so don't worry about making them. Anyway my main concern right now is you're putting on too much bondo which will make sanding a bit more labour intensive later on.

    Key is doing thin coats

    Dugzor likes this.
  14. Dugzor

    Dugzor New Member

    Trophy Points:
    3
    Thanks, wuwu. I'll keep that in mind. I knew going into this that the sanding and Bondo layers would take a lot of time. A friend of mine has recommended using a Dremel to bring down the rough spots.

    Last edited by a moderator: Nov 8, 2018
  15. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Looking great. Keep up the good work. Did adding less cat to the resin work?

  16. Dugzor

    Dugzor New Member

    Trophy Points:
    3
    cavx Slightly, yes, but I didn't want to reduce it too much, for fear that it wouldn't set right. However, I was able to reuse my chip brush several times by soaking it in acetone as soon as it started to harden. Got through the rest of the fiberglassing on one brush!

    Last edited by a moderator: Nov 8, 2018
  17. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Dugzor Apparently you can also use a silicone basting brush (the type you might use on your thanks giving turkey) and you can let is set hard, then bend the bristles and the resin just breaks off and you can start again. Nothing sticks to silicone and I have found that the silicone spatulas (you buy these at a cheap shop for about $2.00) make great mixing utensils because, nothing sticks to them and you can really get a good scrap along the sides of the mix pot.

    Adding less cat means that the product will take longer to cure. Once mixed, it is a sure thing and it is going off, just might take longer.

    Last edited by a moderator: Nov 8, 2018
    Dugzor likes this.
  18. Dugzor

    Dugzor New Member

    Trophy Points:
    3
    Ugh, why didn't I think of that? Silicone! Brilliant, cavx!

    Last edited by a moderator: Nov 8, 2018
    cavx likes this.
  19. Dugzor

    Dugzor New Member

    Trophy Points:
    3
    Been a while since I had some time work on the mask, as house work tends to take priority.

    I realize I did indeed screw myself with the inordinate amount of Bondo I put on this thing on the first pass. I was able to use the Dremel to remove quite a bit the extra material, but it still looks really rough.

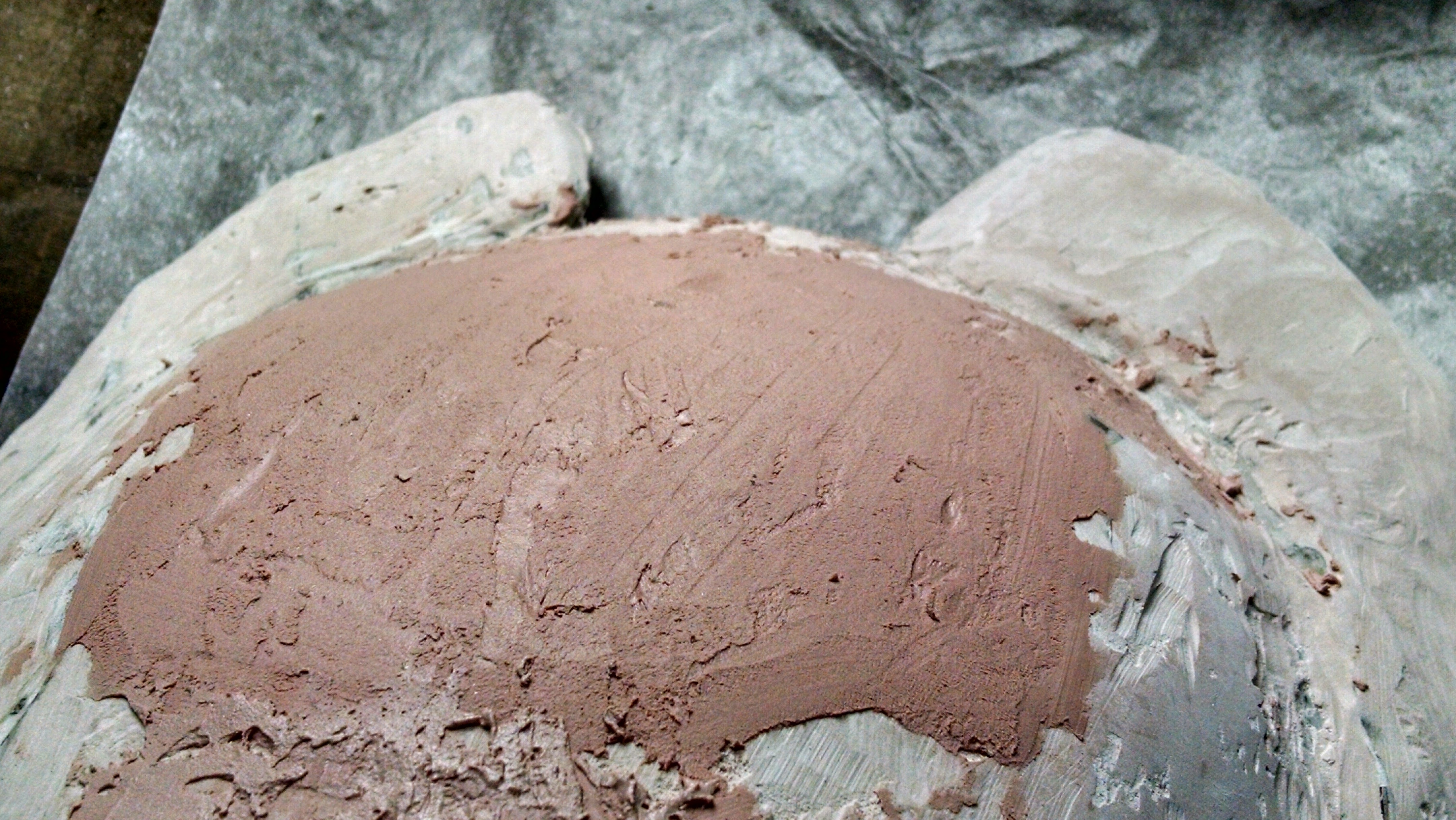

    Now that I have some experience working with the stuff, I can start to apply the Bondo a bit more conservatively. I'm starting with smoothing out the dome.



    I'll keep doing this bit by bit until I can get the shape more uniform.

  20. Mr Mold Maker

    Mr Mold Maker Sr Member

    Trophy Points:
    1,990
    Very nice work!

    I just started my own about a week ago. Same pep and everything. Can't wait to see how yours turns out!


    I plan to sculpt the little hose attatchment with Apoxie Sculpt. Perhaps you can do something similar? My first thought coming across that piece was **** that noise as well. :lol

    Last edited: Jul 21, 2015
  21. darth2518

    darth2518 New Member

    Trophy Points:
    3
    hi very nice work .keep up the good work . I would go to a washing michaine repare place where on a used old washer you will find the pipes and the attatchments that would help so are made of metal and plasic etc. all the best nev here a photos of my predator 1 mask it took me 13 hours to do and it cam to me as a blank hope you like

    - - - Updated - - -

    all the best on you work
