Possible part found; Correct scope rings used on the ROTJ E-11 and DL-44

GCLAMBERT89

Well-Known Member
RPF PREMIUM MEMBER
After several months of looking at hundreds of vintage scope rings, I have found what I believe is the correct brand and model that was used for both Han Solo’s DL-44 blaster and the E-11 in Return of the Jedi.

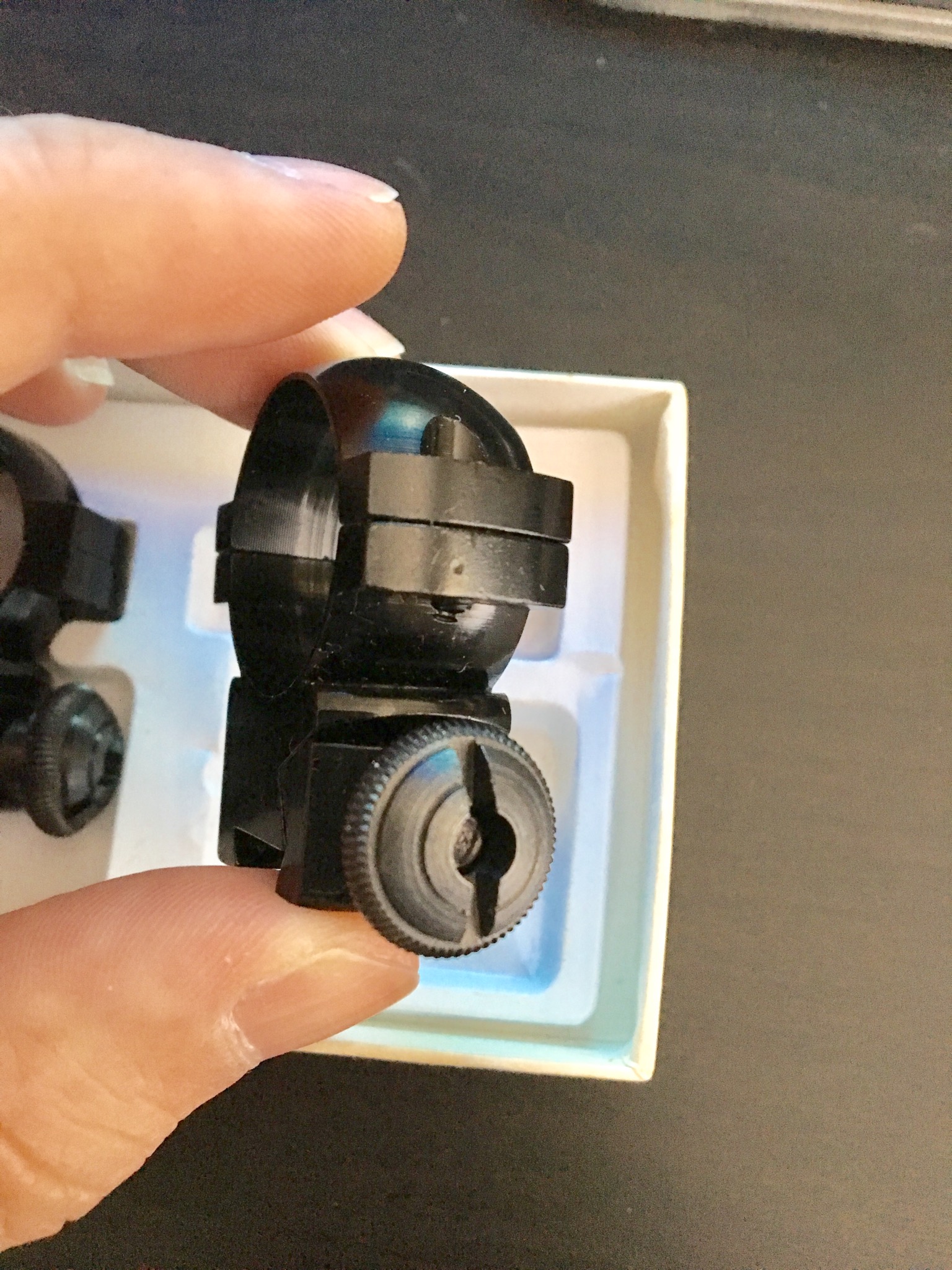

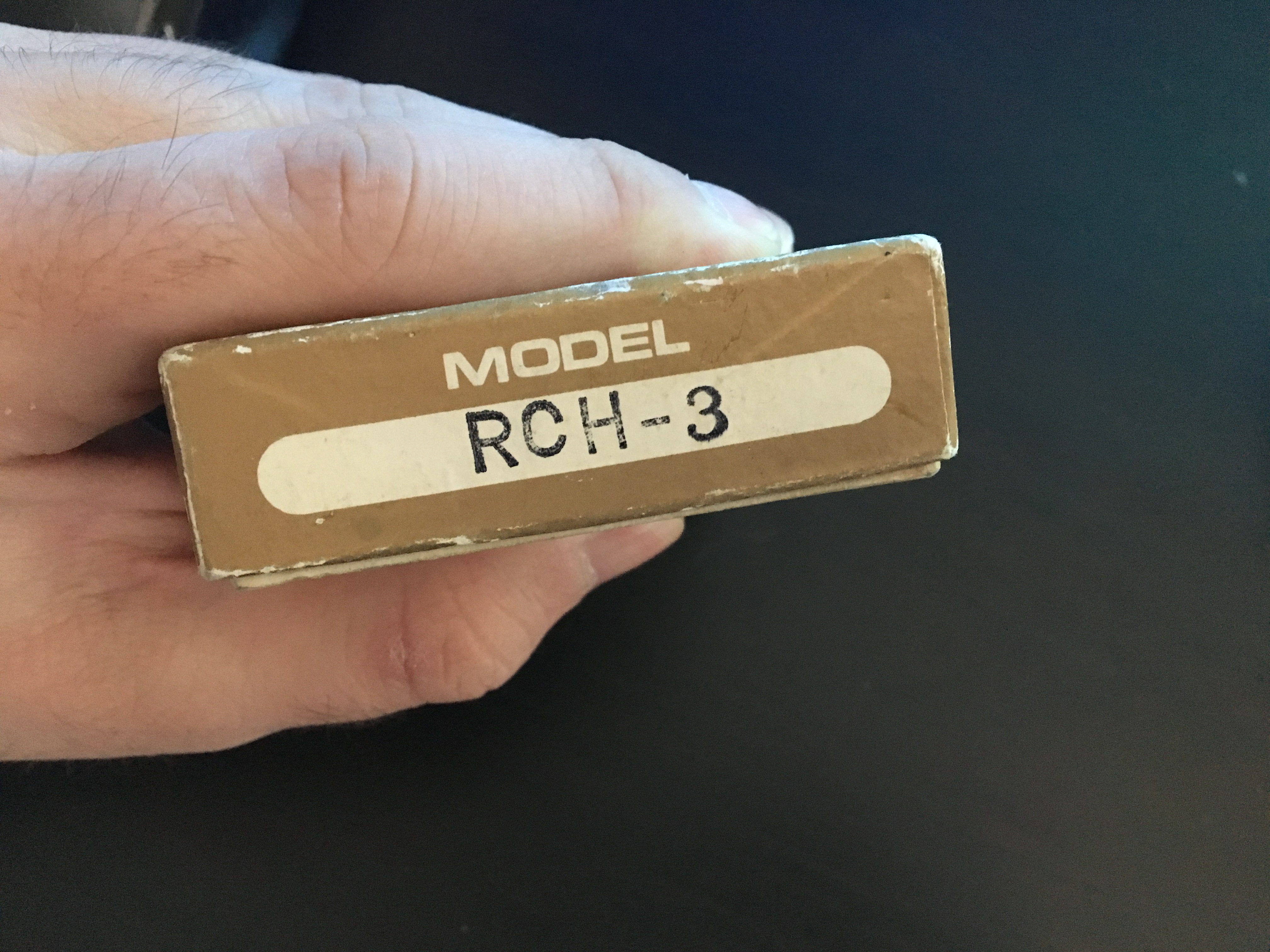

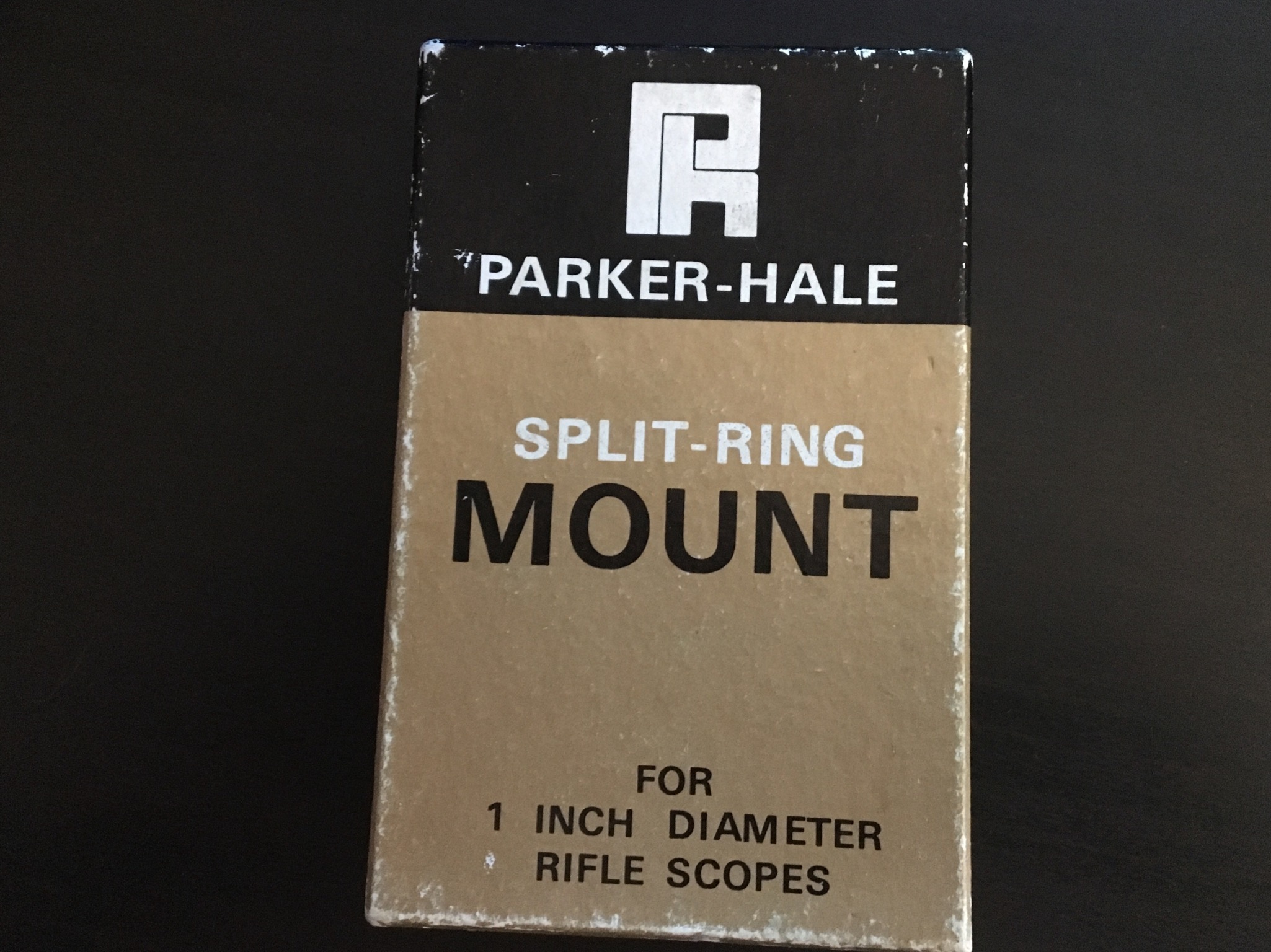

The brand is Parker-Hale, and the model is RCH 3. A 11mm dove tail scope mount for 1 inch scopes. Pics below.

699F9458-9834-4CEF-8C16-DF028603D1DA.jpeg 100FC3E7-0CC2-4951-BAFA-AFF22B784853.jpeg D4B790C1-910D-4BC2-9B3A-ADD7C539B398.jpeg 7EEA63CF-0F08-4EC6-AAFE-AC83757554D0.jpeg 2F9A9ACF-E4BA-4E20-AFC2-A6C68DD373F5.jpeg 14A369AB-80D5-4596-9C0F-4365DA2FCEB6.jpeg

And a close up photo of the E-11.


Made in the early 1980s and sold in England, I am highly confident that this is the correct part, but I could be wrong. Either way, I thought it would be worth sharing with everyone.

Last edited:

SubLevel5

Well-Known Member
RPF PREMIUM MEMBER
After several months of looking at hundreds of vintage scope rings, I have found what I believe is the correct brand and model that was used for both Han Solo’s DL-44 blaster and the E-11 in Return of the Jedi.

The brand is Parker-Hale, and the model is RCH 3. A 10mm dove tail scope mount for 1 inch scopes. Pics below.

View attachment 797984 View attachment 797985 View attachment 797986 View attachment 797987 View attachment 797988 View attachment 797989

And a close up photo of the E-11.

View attachment 797990

Made in the early 1980s and sold in England, I am highly confident that this is the correct part, but I could be wrong. Either way, I thought it would be worth sharing with everyone.
Wow, that looks pretty spot on. My I ask where you found it?

Sent from my SM-G930T using Tapatalk


GCLAMBERT89

Well-Known Member
RPF PREMIUM MEMBER
Wow, that looks pretty spot on. My I ask where you found it?

Sent from my SM-G930T using Tapatalk

I have been searching through ebay looking at vintage scope rings for quite some time, and I came across a scope ring made by Parker-Hale that had very similar design characteristics to the part used on the prop. Although the scope ring was designed for scopes much smaller than an inch along with a few other discrepancies, it led me to scouring the internet looking exclusively for Parker-Hale scope rings.

I ended up first coming across models RBH-3 and RBH-4 on a "for sale" thread on a gun forum, which at first glance I thought to be the correct ones. After they both arrived I was disappointed to discover that they had been designed for 17mm rails, much larger than the rail used for the E-11.I continued searching and reading a lot about the various scope rings made by PH until I came across the model RCH-3 referenced in a thread on another gun forum. Exactly the same design as the RBH model, but designed for 11mm rails.

I continued searching until I came across an online store that sold various gun parts, many of which are quite vintage. I was in luck when they happened to have this perfectly unused box of scope rings available to purchase.


cjchiu

Sr Member
RPF PREMIUM MEMBER
Maybe with posting over in the DL-44 greeblie thread for some more expert eyes to look at....


lonepigeon

Sr Member
I think the Parker Hales were brought up many years ago but may have been lost in time. They’re not coming up in RPF searches.
I’m not home this week but I’m pretty sure I have some in my ROTJ prop boxes. I don’t remember an exact part number before though. Good to have precise info.


OdiWan72

Master Member
RPF PREMIUM MEMBER
cool! I keep looking. I have some that are VERY close, but not exact


The main difference is the thumbwheel on either the Kassnar or the Parker-Hale!
The ones used by BD for his ROTJ DL44s are accurate with regards to their body, but the thumbwheel(s) are wrong.

Sad news...I´ve been informed, that the scope rings I purchased online were sold through their store the day before. They had to cancel my order :unsure


GCLAMBERT89

Well-Known Member
RPF PREMIUM MEMBER
Same style was produced by different companies.

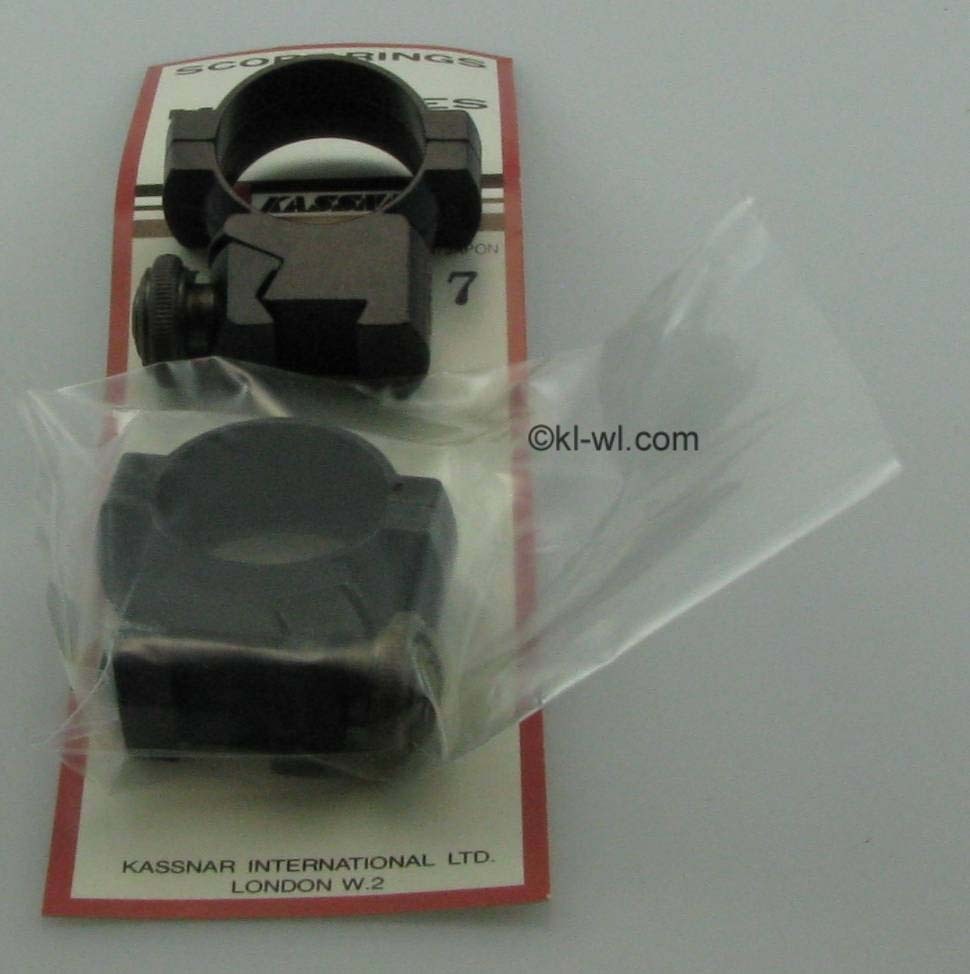

I just purchased a set of vintage Kassnar scope rings (also manufactured in the UK), featuring the same details.

Thx for sharing!

View attachment 798464

Nice! Good to know that there are other brands as well!

The main difference is the thumbwheel on either the Kassnar or the Parker-Hale!
The ones used by BD for his ROTJ DL44s are accurate with regards to their body, but the thumbwheel(s) are wrong.

Sad news...I´ve been informed, that the scope rings I purchased online were sold through their store the day before. They had to cancel my order :unsure

That sucks!
