Poncho's Mulit-shot Grenade Launcher from Predator

Discussion in 'Production Made Costumes and Props' started by Art Andrews, Jul 6, 2015.

  1. Art Andrews

    Art Andrews Community Owner Community Staff

    Trophy Points:
    5,550
    As some of you may know, at SDCC 2014, a group of us recreated the Rescue Team from the original Predator (sadly, our Mac backed out at the last minute).

    [​IMG]

    In doing the research for that group, we learned a tremendous about the weaponry used in the film. Everyone remembers Blain’s mini-gun, but I found Poncho’s 40mm Multi-Shot Grenade Launcher to be just as interesting and unique. The core of his MGL is a AN-M5 Pyrotechnic Discharger a WWII era flare launcher used on large aircraft like the B17 Bomber. The rest of Poncho's gun consists of parts from an HK94 and other odds and ends.

    Shortly after SDCC an AN-M5 Discharger came up on eBay and while it seemed like it would be a fun project to work on, the price was just more than I wanted to spend.

    A year passed… and I have watched the seller list and relist the piece with no bites. Finally I wrote him and made him an offer, low to be sure, but since this was only one piece for the project, I didn’t want to invest too much. It was only after he accepted my offer that I really started taking a hard look at the piece and what it was going to take to modify it to Poncho’s MGL… and that is when I realized that this wasn’t just a stock AN-M5.

    An AN-M5, out of the plane looks like this:
    [​IMG]

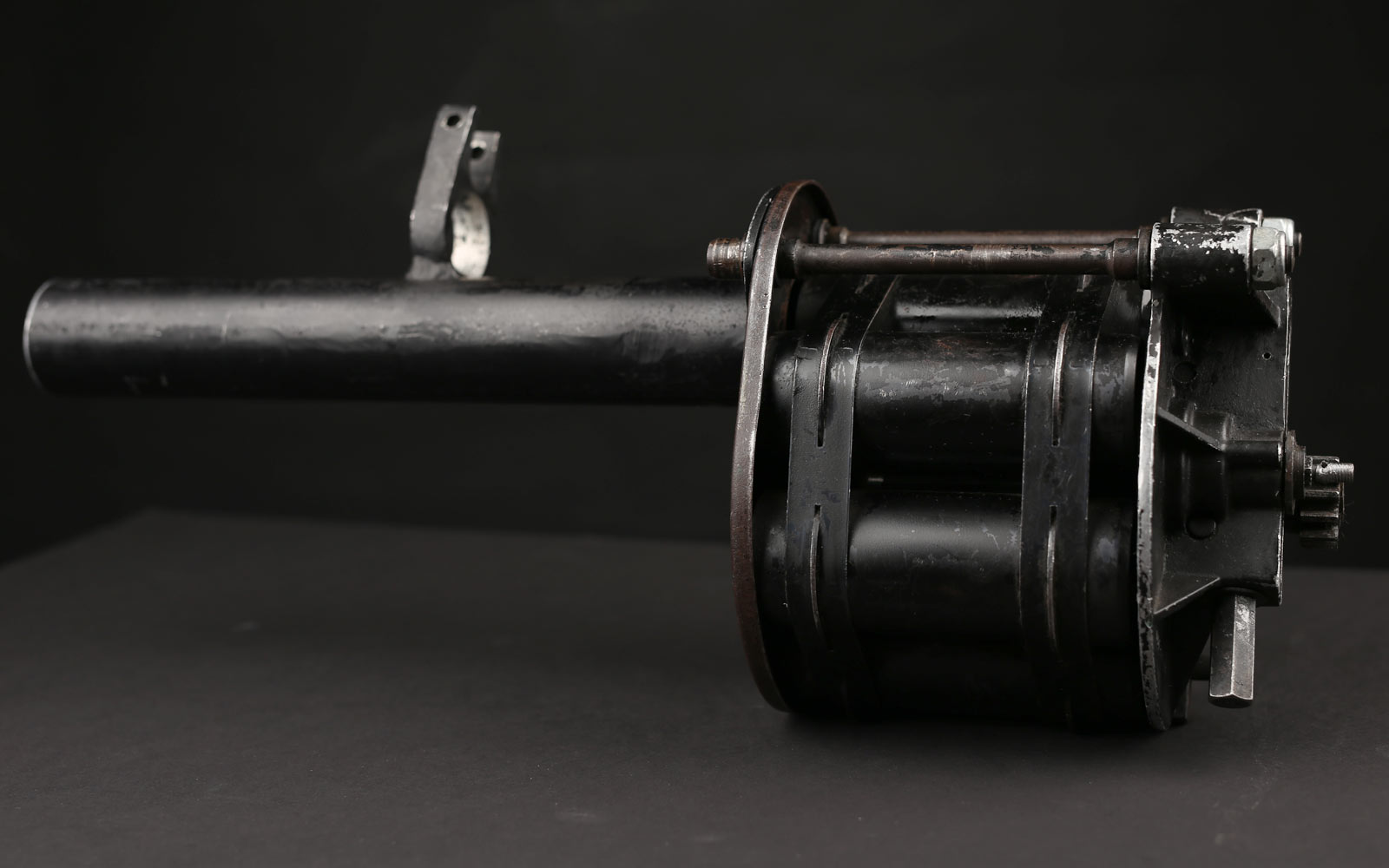

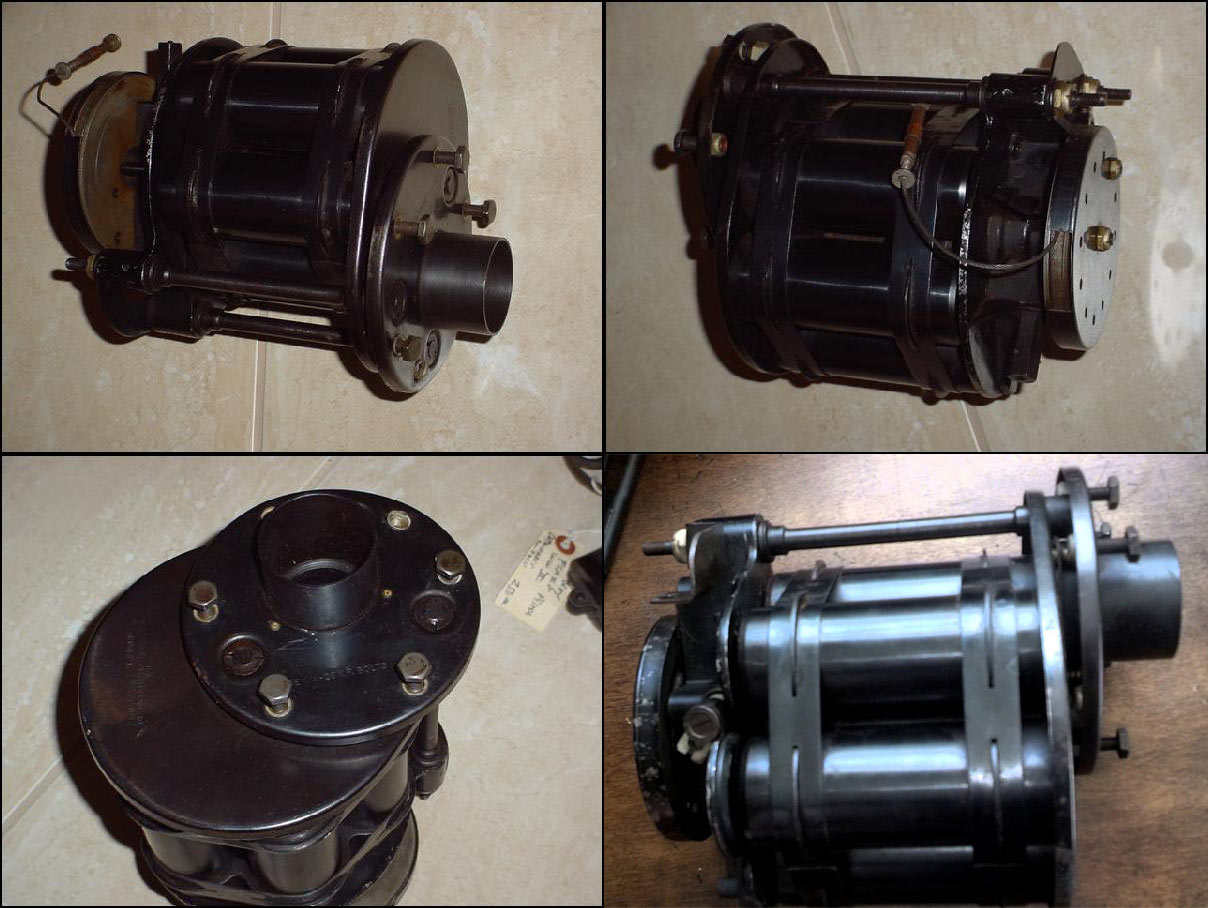

    The AN-M5 I bought looked like this:
    [​IMG]

    [​IMG]


    The barrel was completely custom (I had assumed that was how they came out of the plane) and matched relatively closely to Poncho’s gun. Closer inspection showed that the bracket on the top of the barrel to match the one seen on James Braddock’s (Chuck Norris) custom HKG3 in 1998’s Braddock: Missing in Action III.

    [​IMG]

    This in and of itself was pretty exciting as it made the piece a screen used item… but from a movie no one knows or cares about. However, further inspection of the custom barrel shows the unquestionable weld marks from Poncho’s MGL foregrip.

    [​IMG]

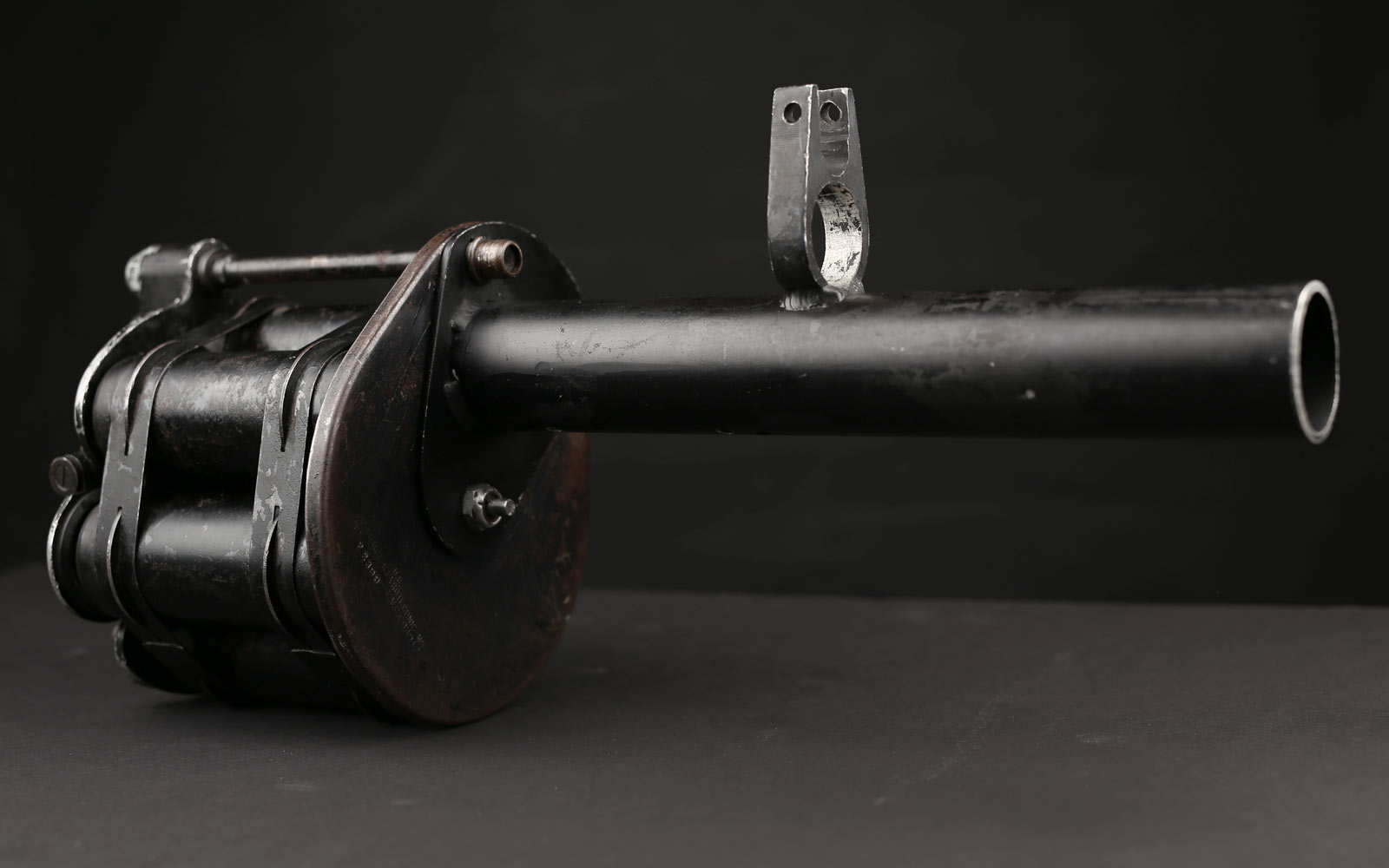

    This isn’t the found part that could be used to make a Poncho MGL replica. This IS Poncho’s MGL from one of my favorite films!!! Sadly, I can't screen match it positively as it has been repainted more than once and has a considerable amount of wear and tear, but the uniqueness of the AN-M5, coupled with the custom barrel and the foregrip weld marks makes me feel confident in what it is.

    [​IMG]

    [​IMG]

    So... now I am looking into what it would take to restore it to its former glory, as seen in the film!


    Attached Files:

    jackdoud, JMSupp, Vivek and 2 others like this.
  2. Prop Archives

    Prop Archives Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    621
    I know I have already said it but, pretty * cool man. For it to sit on EBay all that time also... was just meant to be.

    Art Andrews likes this.
  3. nick daring

    nick daring Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,455
    Last edited: Jul 6, 2015
  4. Art Andrews

    Art Andrews Community Owner Community Staff

    Trophy Points:
    5,550
    Dissassembling...

    [​IMG]


    Attached Files:

  5. Apollo

    Apollo Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,035
    Hard one to tackle!

    Gonna really enjoy seeing this one come about! :thumbsup

  6. JoMamma_Smurf

    JoMamma_Smurf Master Member

    Trophy Points:
    2,560
    Holy **** this is so amazing. This is the stuff I miss from the old RPF.

    nick daring and Art Andrews like this.
  7. SciFiMuseum

    SciFiMuseum Well-Known Member

    Trophy Points:
    915
    Congrats on one heck of a find Art! Amazing that no one else put it together that this was in fact a screen-used piece...

  8. Art Andrews

    Art Andrews Community Owner Community Staff

    Trophy Points:
    5,550
    I'd love to claim it was some brilliant move on my part.. but it was just dumb luck.

  9. SciFiMuseum

    SciFiMuseum Well-Known Member

    Trophy Points:
    915
    Still good for you, you deserve it Art. Plus you did the homework, put in the time and it paid off. Congrats!

    Art Andrews and Westies14 like this.
  10. Art Andrews

    Art Andrews Community Owner Community Staff

    Trophy Points:
    5,550
    The mechanics work and that loud click you are hearing is the hammer falling on each cylinder!


    Last edited: Nov 8, 2018
  11. Solos blaster

    Solos blaster Sr Member

    Trophy Points:
    1,426
    Now that is an amazing find! Stunning!

  12. Sidewinder

    Sidewinder Sr Member

    Trophy Points:
    1,682
    Wowzers. Been looking for an ANM5 myself for ages too. Will there be any form of replication of this made available - CAD, castings, drawings or dimensions etc?

    SAS

  13. Art Andrews

    Art Andrews Community Owner Community Staff

    Trophy Points:
    5,550
    While I have no plans of casting it (would be a nightmare), if you have general questions or measurement requests, I will be more than happy to give you what I can and once I have the custom pieces modeled, I certainly don't mind sharing that info. I can't imagine many people would want to build one of these, but I am all for sharing info for those who do.

    Westies14 likes this.
  14. Sidewinder

    Sidewinder Sr Member

    Trophy Points:
    1,682
    Well, multi angle shots of the Cartridge holder & backplate casting (bit with the gear on it) would be good also the plate on the end of the barrel. Dimensions of the major components too, the type I could scale the other dims off of the picture from, something like that. Ooh the diameter/length of the barrel too. :D

    Thanks.

    SAS

  15. OdiWan72

    OdiWan72 Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,376
    GREAT FIND Art

    Markus

    Art Andrews likes this.
  16. Art Andrews

    Art Andrews Community Owner Community Staff

    Trophy Points:
    5,550
    Whew! That is a tall order. I am out of town for the next three weeks, but once I am back, let me see what I can do.


  17. Sidewinder

    Sidewinder Sr Member

    Trophy Points:
    1,682
    Well you did offer! I know, send it to me and i'll get all the stuff I want and you can have it back after eh?

    SAS

  18. Art Andrews

    Art Andrews Community Owner Community Staff

    Trophy Points:
    5,550
    So... it has only taken TWO years to make any progress at all on this. Today I started a study of the receiver of Poncho's MGL. The biggest hurdle is that there seem to be at least three of these in the movie and all three are different. From what I can see there is

    1) a hero that has a M16 A1 style grip (hollow in the bottom)
    2) a stunt that has a M16 A1 style grip (solid on the bottom... probably a cast piece)
    3) a stunt that has an HK HK94A3 lower receiver (this also appears to be a solid casting, and non-functional)

    Worse yet... the rear receiver on all of these guns appear to be slightly unique/different and because they switch so much from scene to scene it is very difficult to tell what goes with what. With that being said, I am going to do my best to follow one of those all the way through and see where it leads.

    Without using any dimensions at all... just playing around, I designed the receiver in Fusion 360. It is just a start to see what I think and overall I THINK I like the direction, but I have a LONG way to go.


    Apollo likes this.
  19. Art Andrews

    Art Andrews Community Owner Community Staff

    Trophy Points:
    5,550

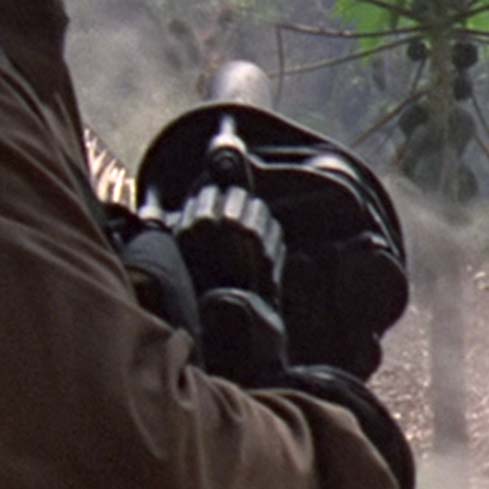

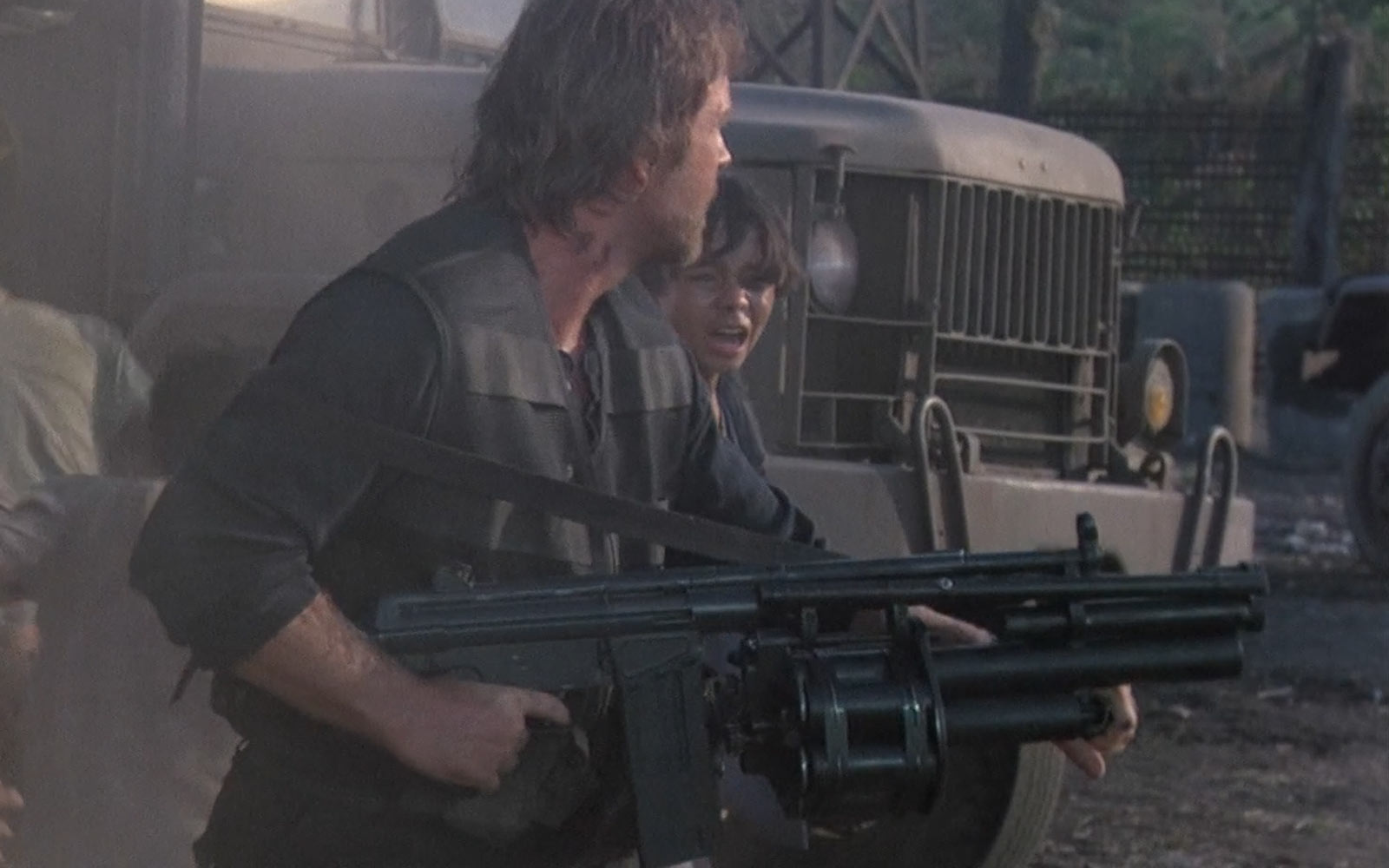

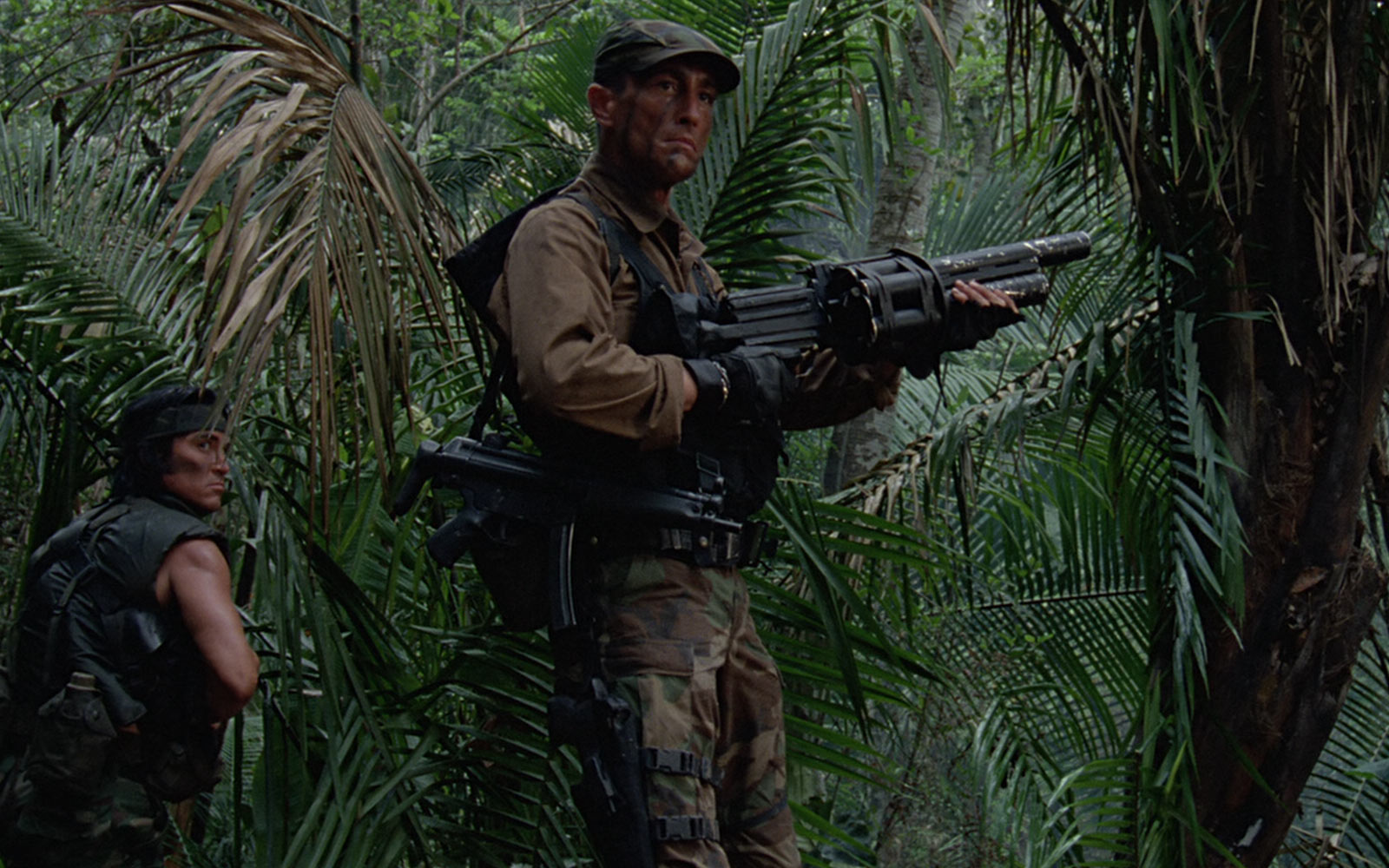

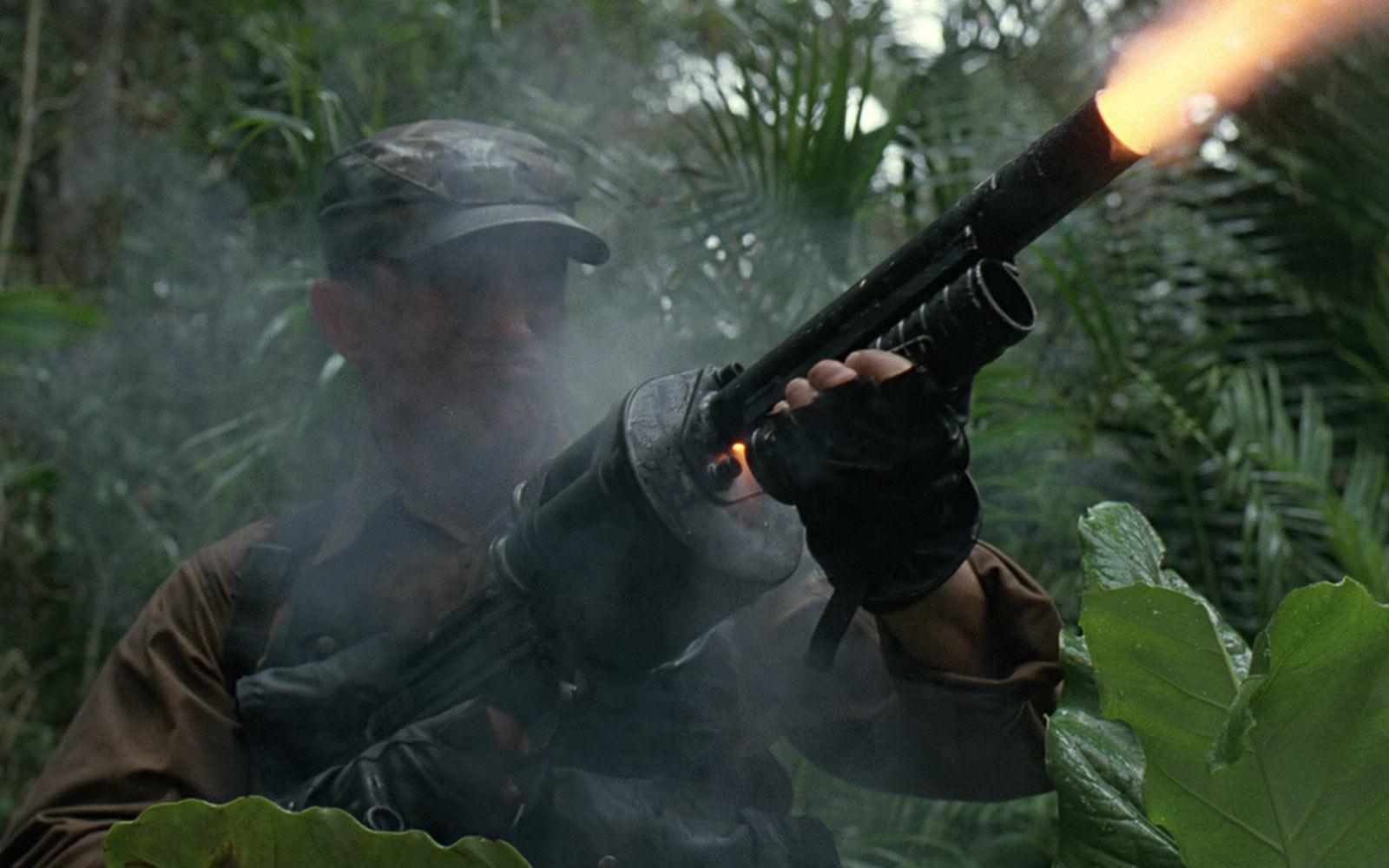

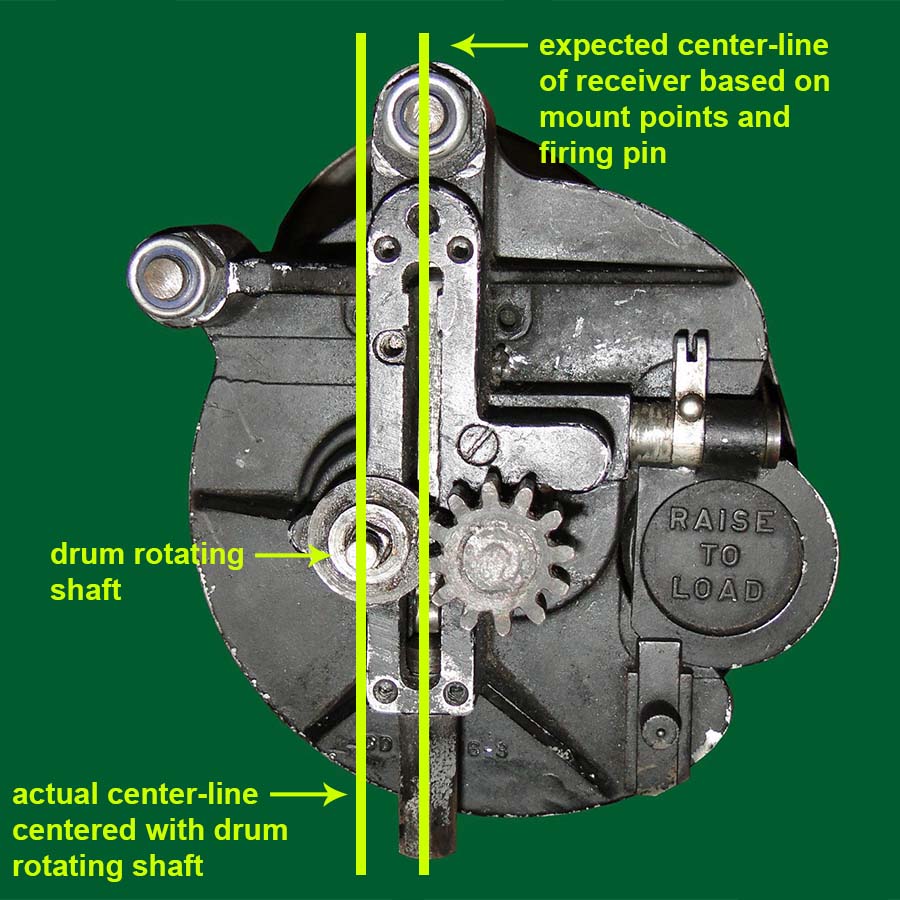

    another thing I discovered... or at the very least, am struggling with, is the receiver alignment to the AN-M5. I thought it was very obvious, but after looking at scenes from the movie, it appears to be severely offset, centered over the crank shaft instead of on the more obvious mount points.



    It is VERY obvious in this first image that the center of the receiver it not aligned at all with the nut and threaded rod at the top, which represents the center of the firing pin.

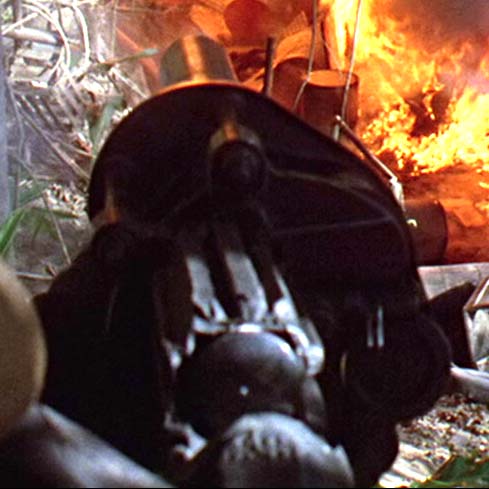

    This... not so apparent. Note that this receiver is VERY different in shape and even the number of ribs than the one above. It is far more rounded and appears to be more aligned with the nut at the top, but note how bent the receiver is in relation to the AN-M5... making me think this is a stunt gun.
