pipboy 1.0 parts id thread

Discussion in 'Replica Props' started by typeomega, Jun 16, 2015.

  1. typeomega

    typeomega Member

    Trophy Points:
    112
    so i think i want to build one of these things next


    im guessing its all Photoshop magic but part of me wants this to be a actual prop somewhere.
    anyone recognize any of the parts i can get as found objects?

    Contec likes this.
  2. typeomega

    typeomega Member

    Trophy Points:
    112

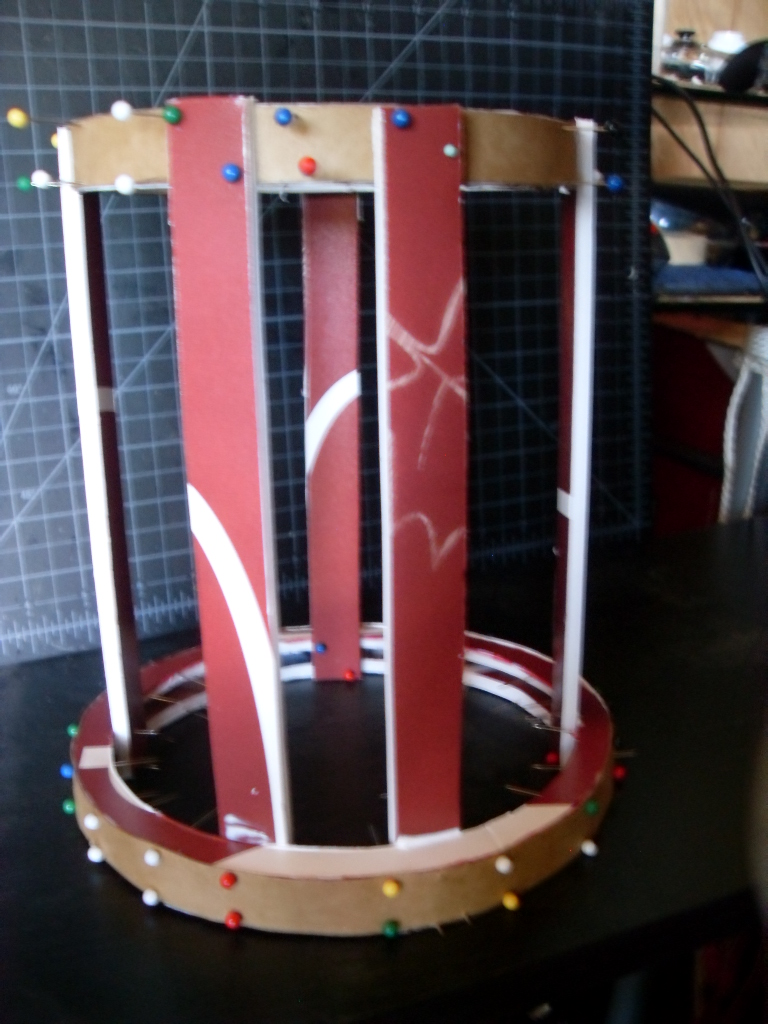

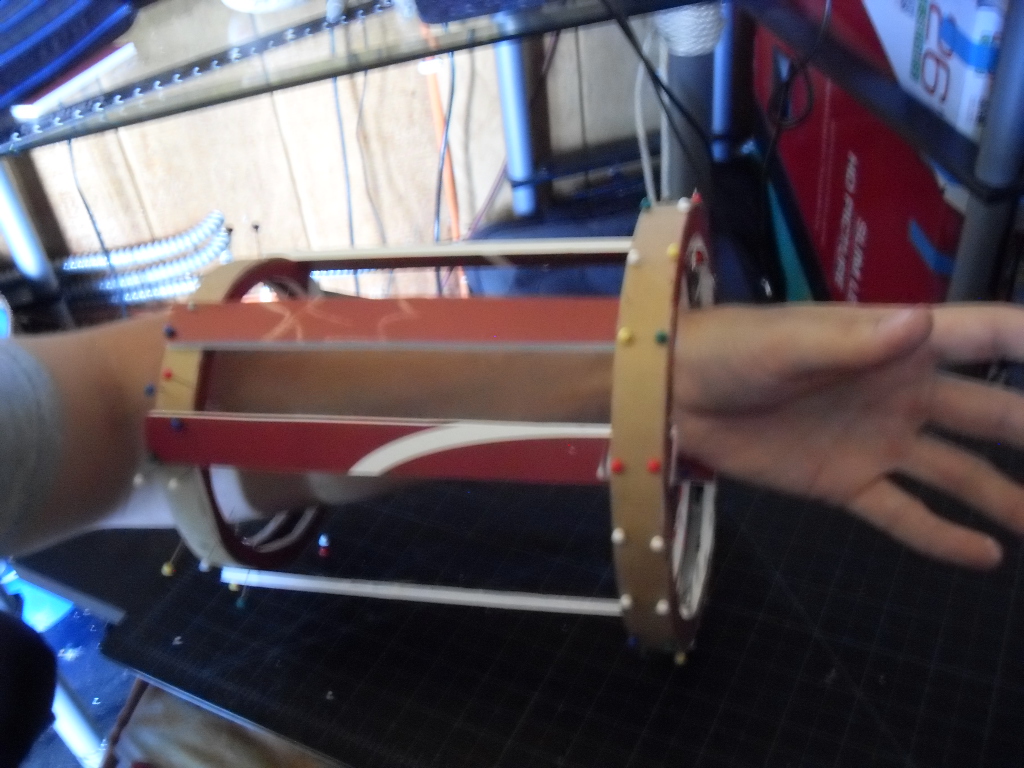

    mocking up the sub frame

  3. Gixxerfool

    Gixxerfool Active Member

    Trophy Points:
    467
    Ok that is pretty cool. What is it referenced from?

  4. typeomega

    typeomega Member

    Trophy Points:
    112
    its one of the teaser photos from fallout 4 at e3

  5. gunnerk19

    gunnerk19 Sr Member

    Trophy Points:
    2,365
    The only thing that stands out to me is the half chrome thing on the front facing him.

    license light.jpg

    Peterson universal automotive license plate light.

  6. Postapocalympic

    Postapocalympic Active Member

    Trophy Points:
    262
    The framework holding up the screen looks like a mount for a fish finder.

  7. msleeper

    msleeper Sr Member

    Trophy Points:
    1,355
    haha This is amazing, I love it. Good luck on the build.

  8. Keros

    Keros New Member

    Trophy Points:
    2
    Actually I'm pretty sure that's the Geiger counter meter, the brightness is just really high on the display, but you can make out the details.

  9. Nixon

    Nixon Active Member

    Trophy Points:
    341
  10. BlkMesaHero

    BlkMesaHero New Member

    Trophy Points:
    17
    I see at least four different military style connectors. Three in the bottom center of the PipBoy that look like these,

    http://www.ebay.com/itm/4pcs-Milita...284?pt=LH_DefaultDomain_0&hash=item3cfd664334

    One more just above the automotive light that looks something like this,

    http://www.ebay.com/itm/NEW-MS3106A...259?pt=LH_DefaultDomain_0&hash=item1ea0d71d9b

    This is the ebay search I used to find these. You can use it to refine you search for the correct sizes.

    http://www.ebay.com/sch/i.html?_from=R40&_sacat=0&_nkw=military+connectors&rt=nc

  11. Mtuckey

    Mtuckey New Member

    Trophy Points:
    2
    Hi all, this is my first time posting here, so it might as well be with a contribution!
    I saw this prop myself for the first time today, looks amazing. Great to see there's already a thread about it.
    Would be a great build!

    I've used my paint skills to remove the background to make it a tad simpler to analyze.



    After a few hours of staring at this, here's my findings so far.
    Some are already listed above.
    1. Small crt screen from old test equipment/oscilloscope. Seems quite small if you look at the scale compared to his hand.
    2. Touch-tone phone style keypad, the 4x4 matrix seems rare, especially in the two colors like that. yet to find an exact item that matches it.
    3. Vacuum tube, possibly an octal based tube, as it looks a tad larger than number 4. Also seems to have a large plate, indicating it might be a rectifier tube.
    4. Small common 9 pin vacuum tube, eg. 12AX7.
    5. Three different sizes of military style connector.
    6. As stated above, looks like an analogue meter mounted sideways.
    7. I initially thought these were holes cut in the bracket, but its actually a sticker. Probably yellow and black.
    8. Looks like a hammond 1550A enclosure. Topped with one of those toggle switches that has an on/off labelled washer thing. also looks to have an indicator light, probably a nice dialco item.

    Regards!
    -Mike

  12. blue2k

    blue2k Well-Known Member

    Trophy Points:
    566
    I wonder if they took inspiration from the 1967 General Electric "Hardiman" exoskeleton?


    Attached Files:

    Contec likes this.
