PE7 Iron Man MK7 EVA Foam Build - FULL SUIT's DONE!!!

Discussion in 'Marvel Costumes and Props' started by pRoJectEarth7, Jul 6, 2015.

  1. pRoJectEarth7

    pRoJectEarth7 Well-Known Member

    Trophy Points:
    866
    Hello everyone

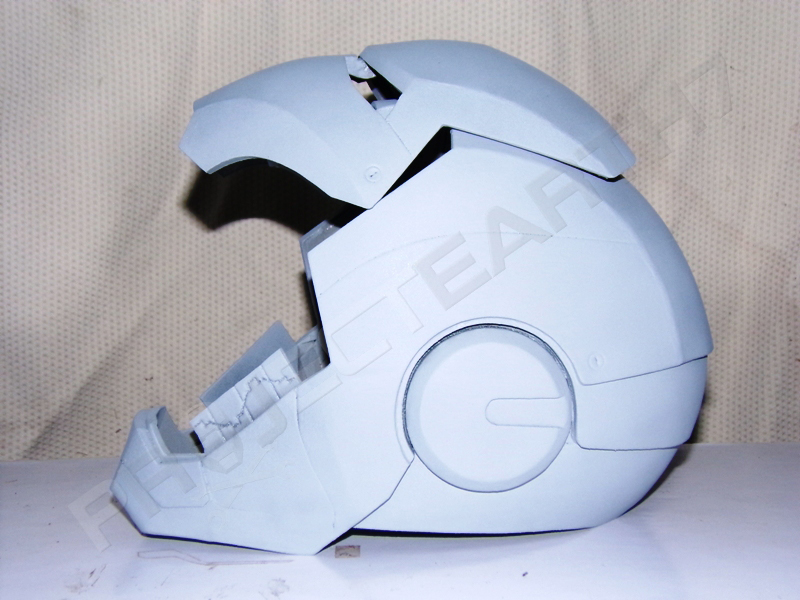

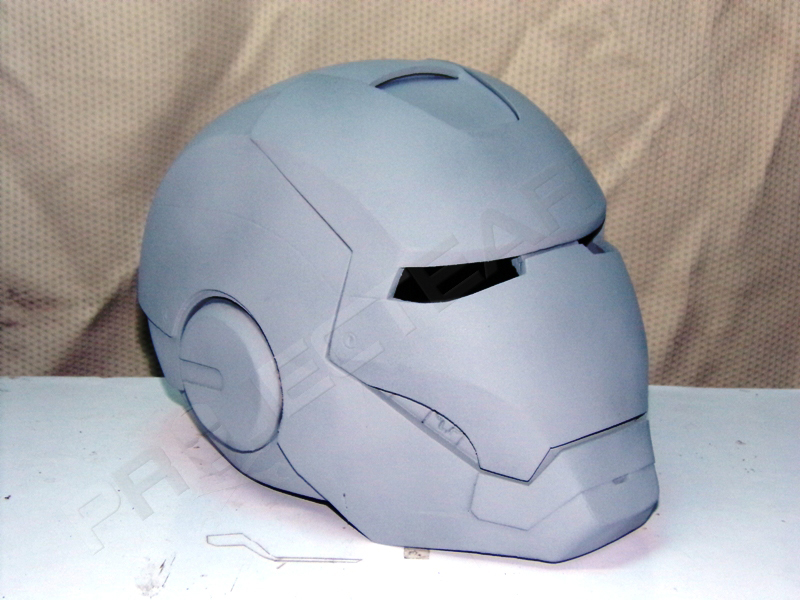

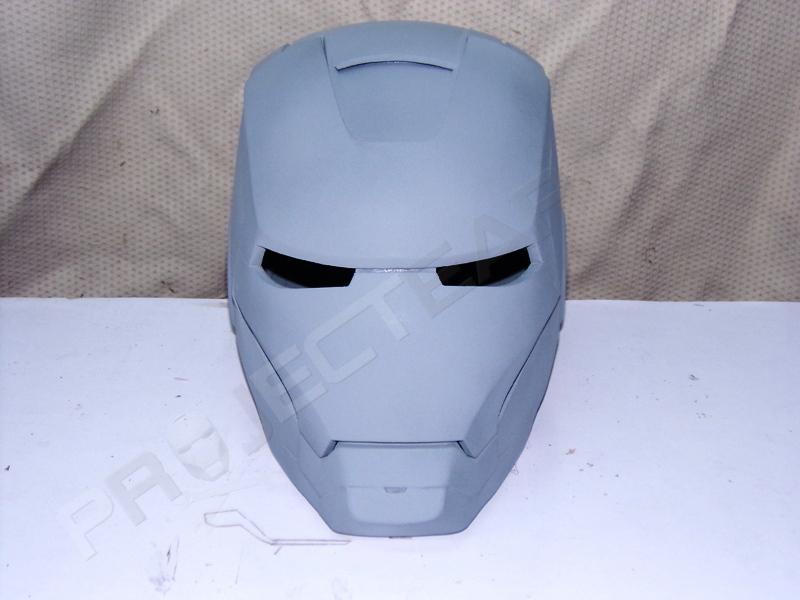

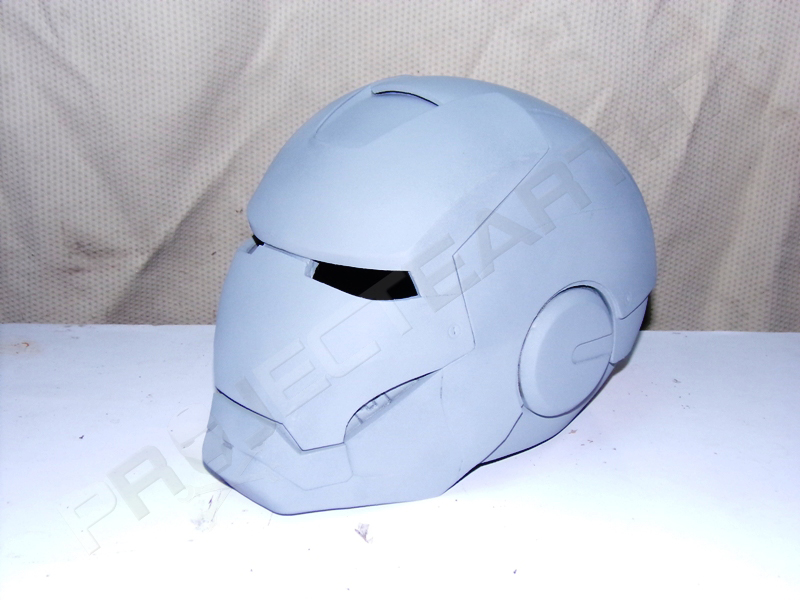

    Just wanted to post the progress of a recent project we are doing for a client... MK7 Helmet made from EVA foam.

    Helmet was made from 2mm, 4mm and 5 mm EVA Foam.
    Sealed and with primer paint already.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Next we'll be installing the motorized system prior to final painting.

    Keep building everyone... cheers!








    HPIM0727.JPG HPIM0696.JPG HPIM0716.JPG HPIM0703.JPG HPIM0692.JPG HPIM0686.JPG HPIM0678.JPG HPIM0677.JPG

    Last edited: Feb 23, 2016
    SofaKing01, Jmen and Bogleo like this.
  2. mushroomskull

    mushroomskull New Member

    Trophy Points:
    17
    Re: PE7 Iron Man MK7 Foam Build - Helmet Done

    speechless...

  3. Ikras

    Ikras Active Member

    Trophy Points:
    487
    Re: PE7 Iron Man MK7 Foam Build - Helmet Done

    That looks so good and I can definitely say I would not have guessed it was foam at all had you not said so. How did you seal it to get such a good finish?

    Looking forward to seeing it with the motors in.

  4. TurboTrey03

    TurboTrey03 Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    666
    Re: PE7 Iron Man MK7 Foam Build - Helmet Done

    HOW?! Haha! Great job! What files did you use?

    What was your sealing process? Thanks!

  5. CPTRogers

    CPTRogers Well-Known Member

    Trophy Points:
    836
    Re: PE7 Iron Man MK7 Foam Build - Helmet Done

    I call bs. That's not foam lol

  6. pRoJectEarth7

    pRoJectEarth7 Well-Known Member

    Trophy Points:
    866
    Re: PE7 Iron Man MK7 Foam Build - Helmet Done

    :):thumbsup


    Thanks man... sealed as usual, multiple coats of diluted PVA :thumbsup


    The file I think was made by JFcustoms but we made some modifications


    LOL... I assure you that is foam... ;):thumbsup

  7. pRoJectEarth7

    pRoJectEarth7 Well-Known Member

    Trophy Points:
    866
    Re: PE7 Iron Man MK7 Foam Build - Helmet Done

    Thanks for all your comments... specially the comments of disbelief... LOL :D

    But then I was like compelled to show proof that it was really an EVA Foam helmet so here is the motorized helmet video to erase all those doubts ;)


    Last edited by a moderator: Nov 8, 2018
  8. Tumbler

    Tumbler Active Member

    Trophy Points:
    262
    Re: PE7 Iron Man MK7 Foam Build - Helmet MOTORIZED!!!

    :eek Oh My! That is freaking amazing, foam or otherwise. Great work. Any plans for a listing in the junkyard?

  9. Ikras

    Ikras Active Member

    Trophy Points:
    487
    Re: PE7 Iron Man MK7 Foam Build - Helmet MOTORIZED!!!

    That looks so good. Really nice smooth motion.

    Is it possible to get a look at the hinges and servo mounting? Trying to get my head around it, and it would be a great help.
    Hadn't thought of a switch mounting near the hip but that's a great idea. I might look into borrowing that for my build.

    Great work really.

  10. pRoJectEarth7

    pRoJectEarth7 Well-Known Member

    Trophy Points:
    866
    Re: PE7 Iron Man MK7 Foam Build - Helmet MOTORIZED!!!

    Thanks man... It's already in the JY ;)... just send me a PM :thumbsup
    Thanks bro... but I am sorry I am not allowed to show details of the mechanism since the whole motorized system was posted in the JY..

  11. pRoJectEarth7

    pRoJectEarth7 Well-Known Member

    Trophy Points:
    866
    Re: PE7 Iron Man MK7 Foam Build - Helmet MOTORIZED!!!

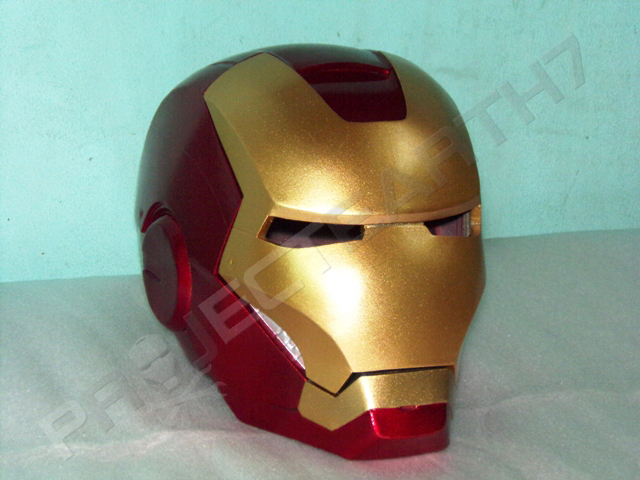

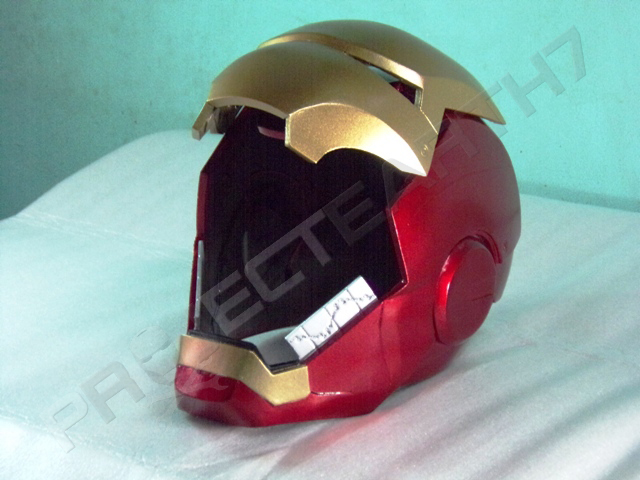

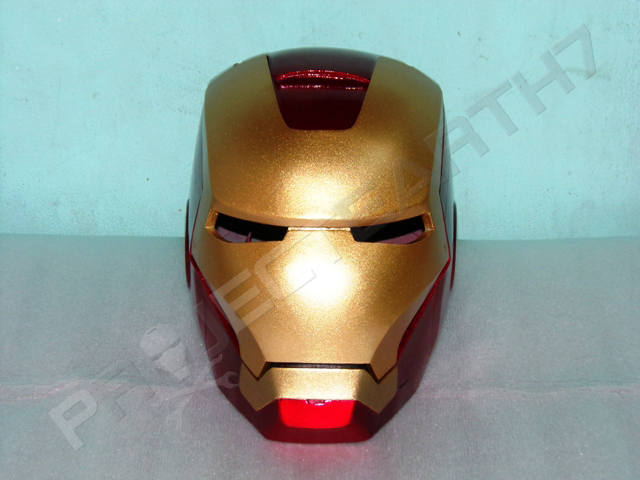

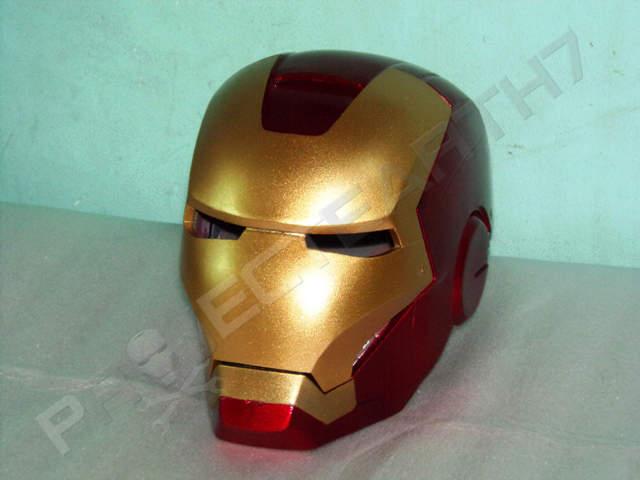

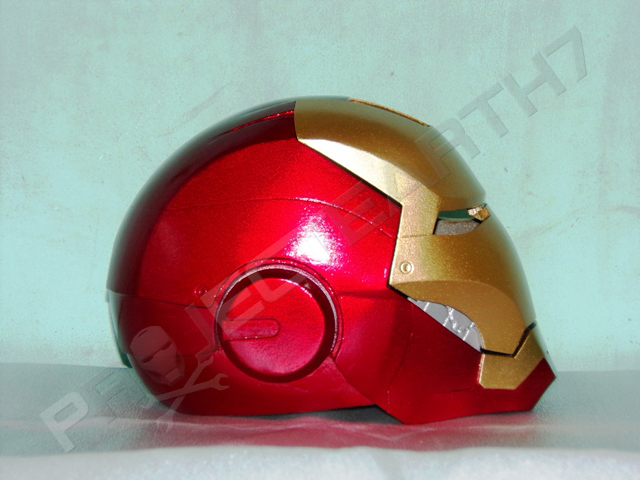

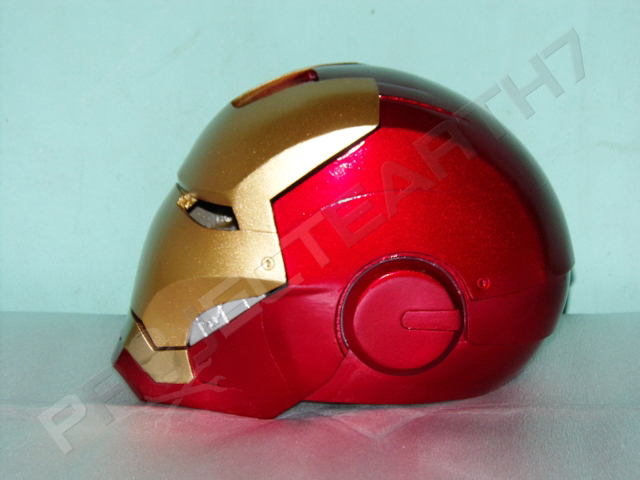

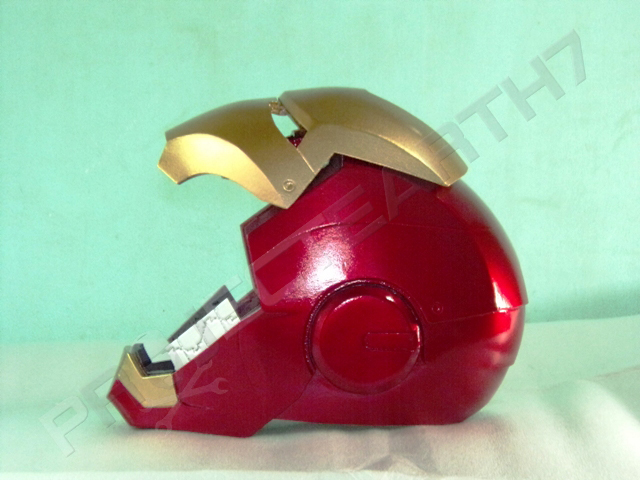

    We are done painting our MK7 EVA Foam helmet and it looks quite like a resin helmet :)

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

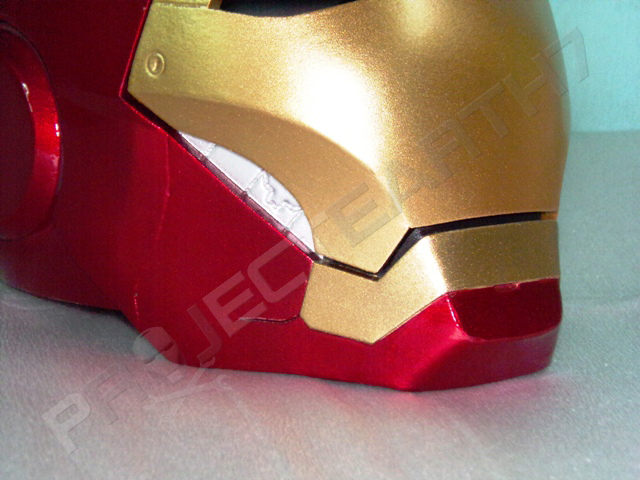

    Close up shot to show the details...
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

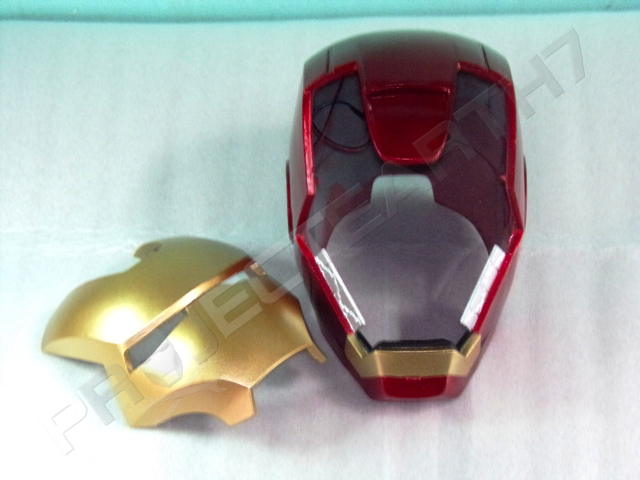

    2-piece Helmet
    [​IMG]


    Next we'll install back the motorized system... cheers everyone!






    HPIM0007.JPG HPIM0163.JPG HPIM0152.JPG HPIM0113.JPG HPIM0107.JPG HPIM0080.JPG HPIM0077.JPG HPIM0021.jpg HPIM0013.JPG HPIM0186.JPG

    SofaKing01 likes this.
  12. pRoJectEarth7

    pRoJectEarth7 Well-Known Member

    Trophy Points:
    866
    Re: PE7 Iron Man MK7 Foam Build - Helmet Fully Painted!

    Finally I've reinstalled our motorized system to our fully painted MK7 EVA Foam helmet... ;):thumbsup

    Watch the video:

    Last edited by a moderator: Nov 8, 2018
  13. pRoJectEarth7

    pRoJectEarth7 Well-Known Member

    Trophy Points:
    866
    Re: PE7 Iron Man MK7 Foam Build - HELMET & GLOVES DONE!

    Some updates on this build :)

    EVA Foam gloves were done.

    [​IMG]

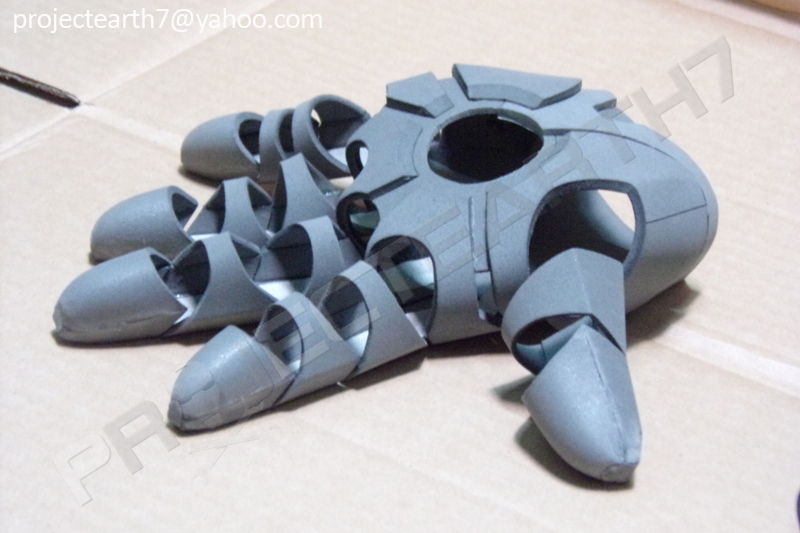

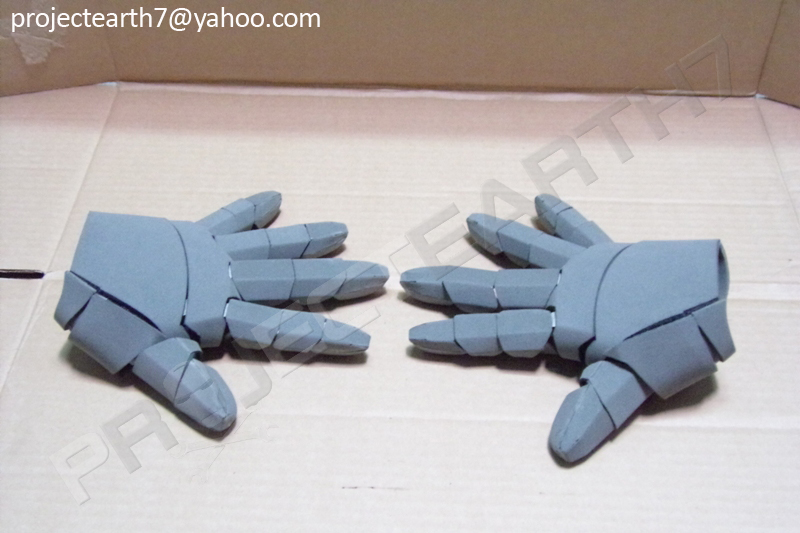

    Raw foam gloves... fingers were temporarily attached using masking tape...
    [​IMG]

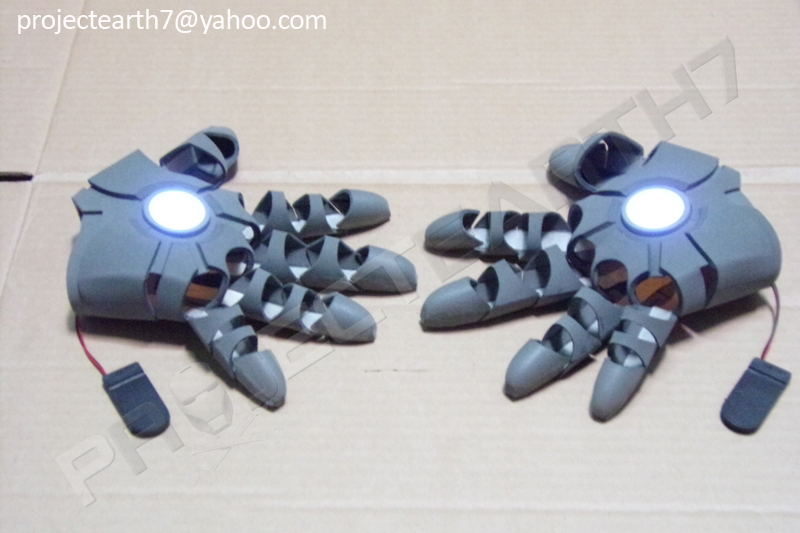

    Install basic Repulsor light...
    [​IMG]

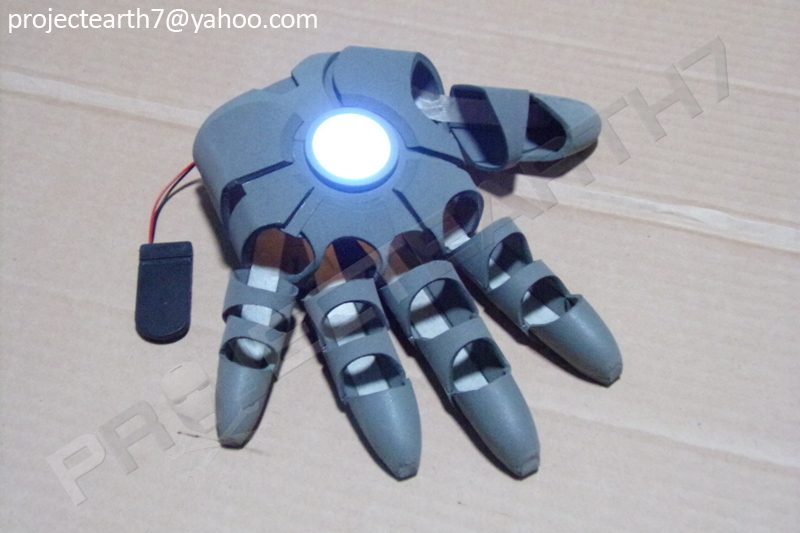

    Powered by 2 coin cell batteries
    [​IMG]

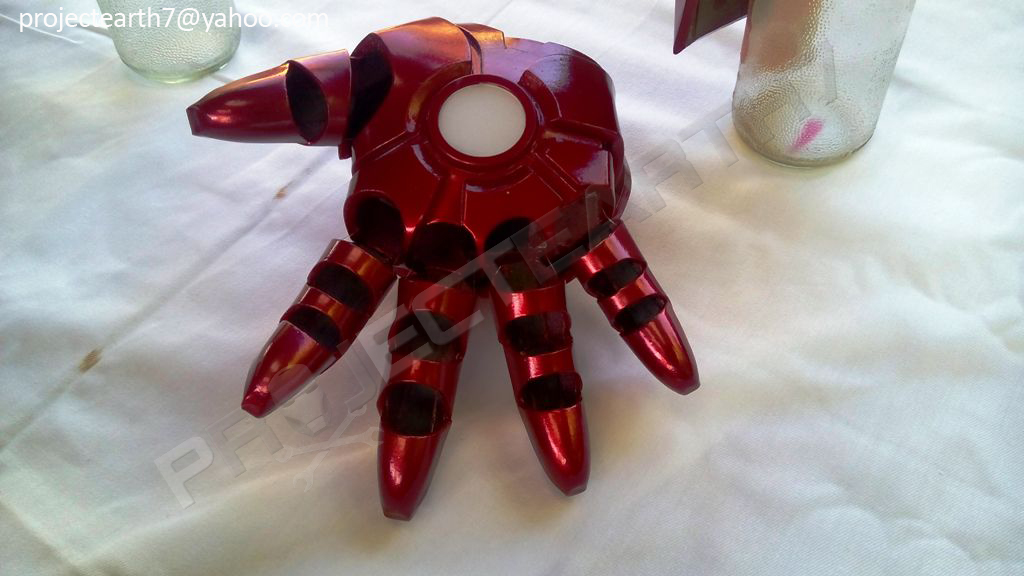

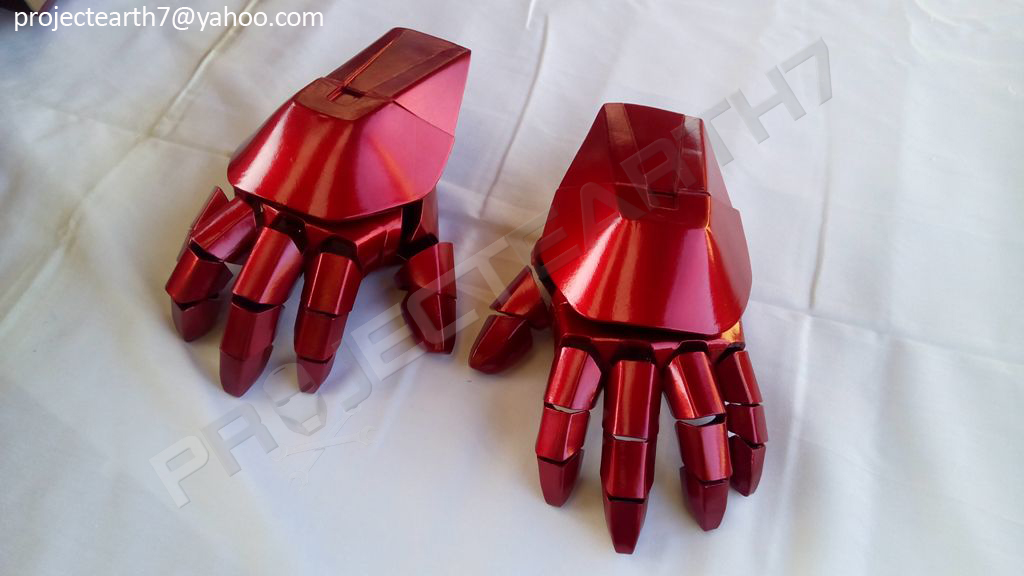

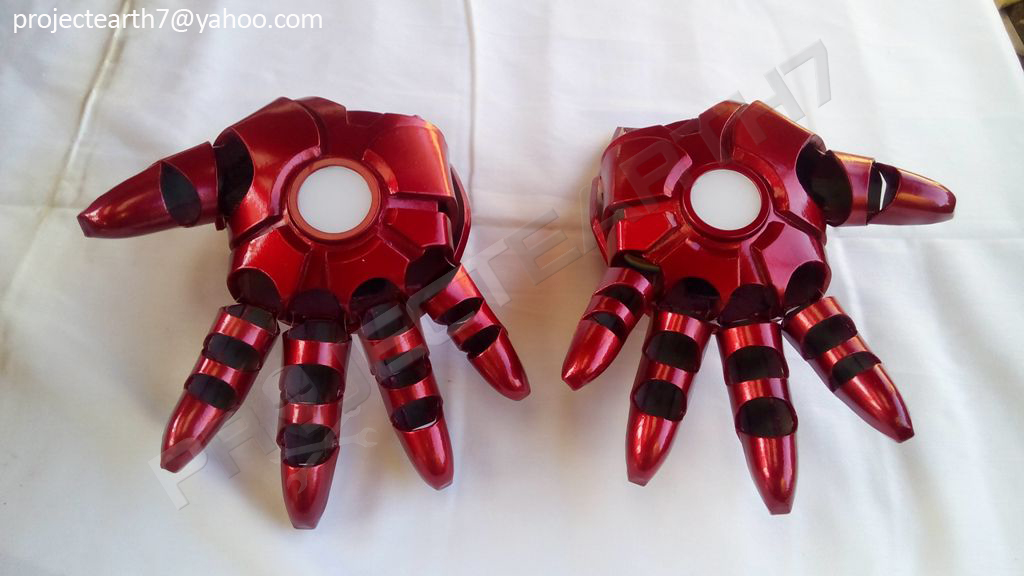

    Gloves fully painted... NO RESIN or EPOXY coating here ;):thumbsup
    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]

    Handplate installed...
    [​IMG]


    [​IMG]


    That's all for now everyone... cheers!








    IMG_20160110_163805.jpg HPIM1356.JPG HPIM1364.JPG HPIM1373.jpg IMG_20160110_163426.jpg IMG_20160110_163446.jpg IMG_20160110_163535.jpg IMG_20160110_163616.jpg IMG_20160110_163631.jpg HPIM1344.JPG

  14. brand

    brand Active Member

    Trophy Points:
    341
    Re: PE7 Iron Man MK7 Foam Build - HELMET & GLOVES DONE!

    * clean work!!!!!!!! HOW?! :D

  15. tijojo98

    tijojo98 Active Member

    Trophy Points:
    467
    Re: PE7 Iron Man MK7 Foam Build - HELMET & GLOVES DONE!

    What was you foam thickness for you gloves and finger ?

    Envoyé de mon SM-G530W en utilisant Tapatalk

  16. hansugrove

    hansugrove New Member

    Trophy Points:
    17
    Re: PE7 Iron Man MK7 Foam Build - HELMET & GLOVES DONE!

    A fantastic job. That paint did you use?

  17. pRoJectEarth7

    pRoJectEarth7 Well-Known Member

    Trophy Points:
    866
    Re: PE7 Iron Man MK7 Foam Build - HELMET & GLOVES DONE!

    Thanks man :thumbsup ... Needs steady hand ;)


    We used 2mm, 3mm and 5mm foam thickness.


    Thanks bro... we used automotive acrylic epoxy base spray paint (rattle can)... brand: Bosny :thumbsup

  18. pRoJectEarth7

    pRoJectEarth7 Well-Known Member

    Trophy Points:
    866
    I've shown the gloves earlier... now the rest of the suit.

    FULL SUIT'S DONE!!!

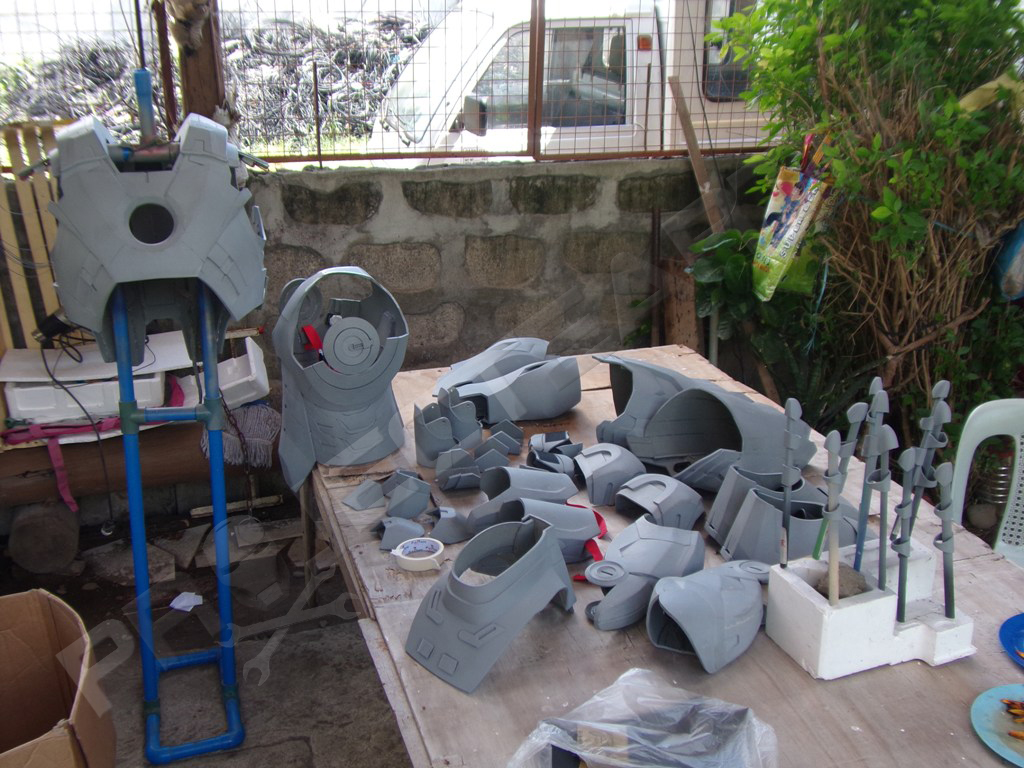

    All parts sealed and primer painted
    [​IMG]

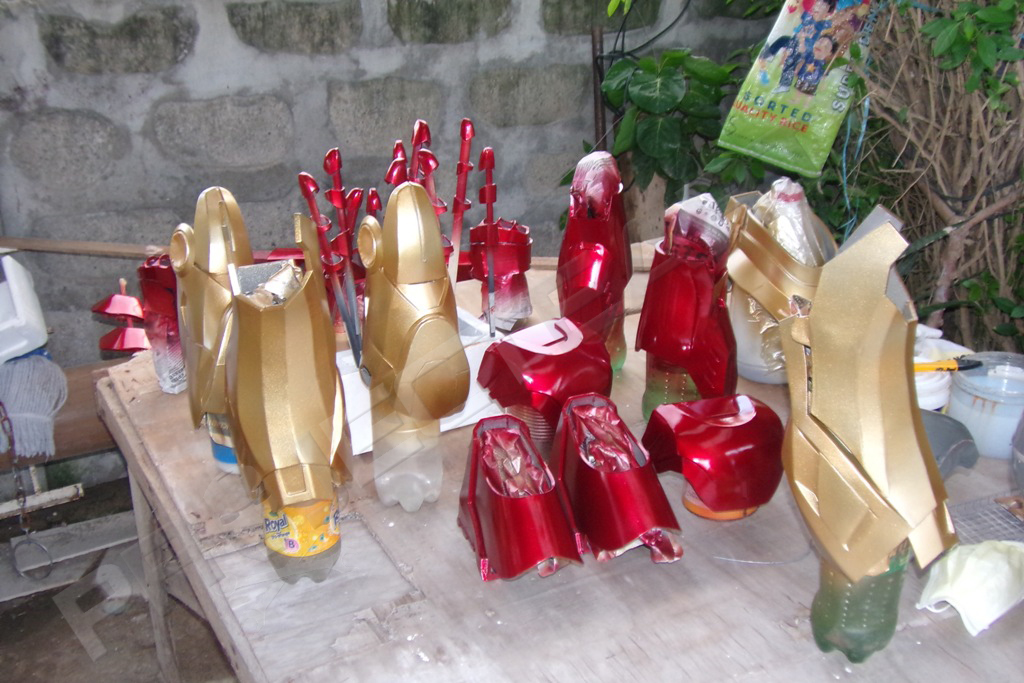

    Gold base paint applied
    [​IMG]

    Candy red paint applied
    [​IMG]

    [​IMG]

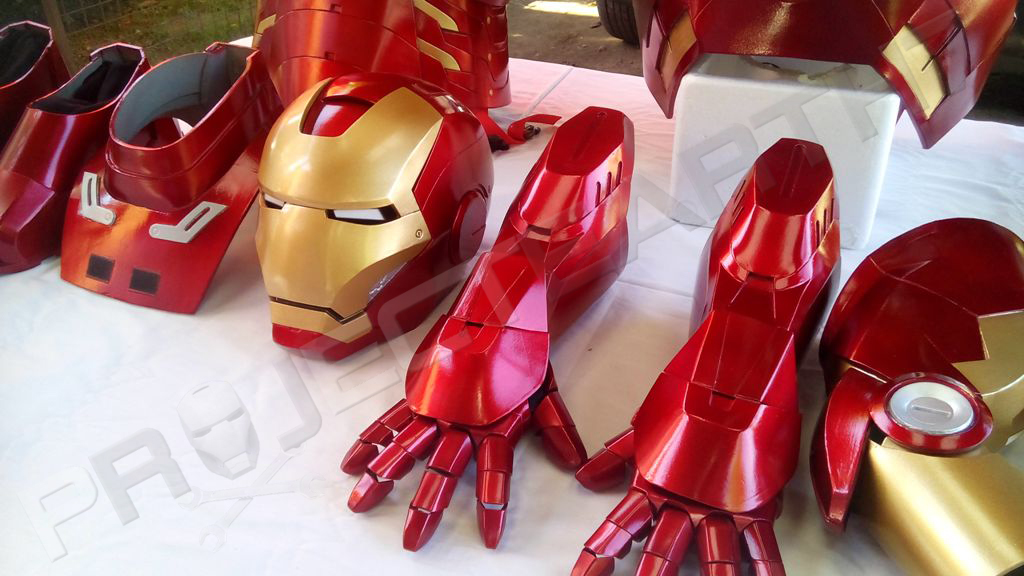

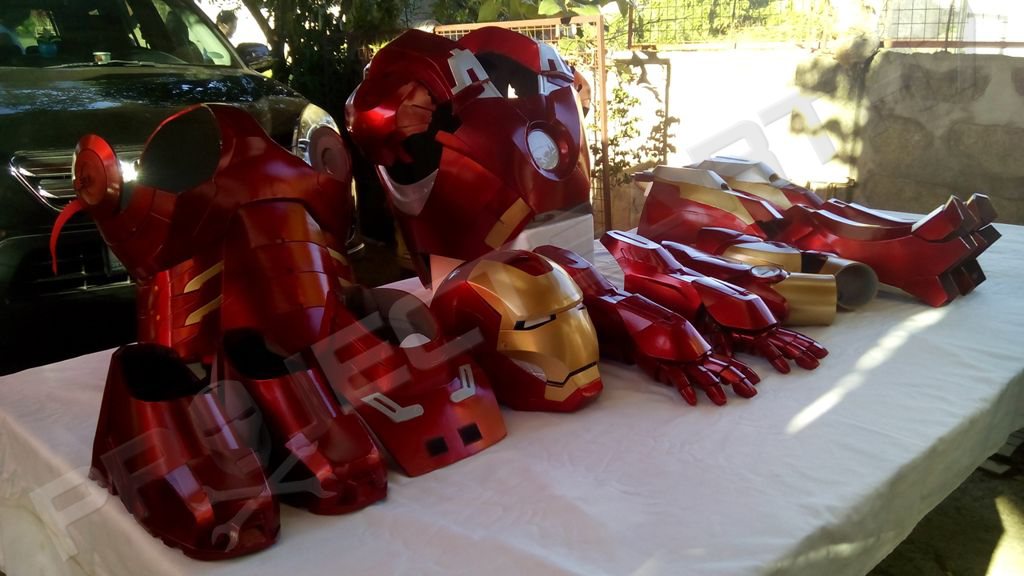

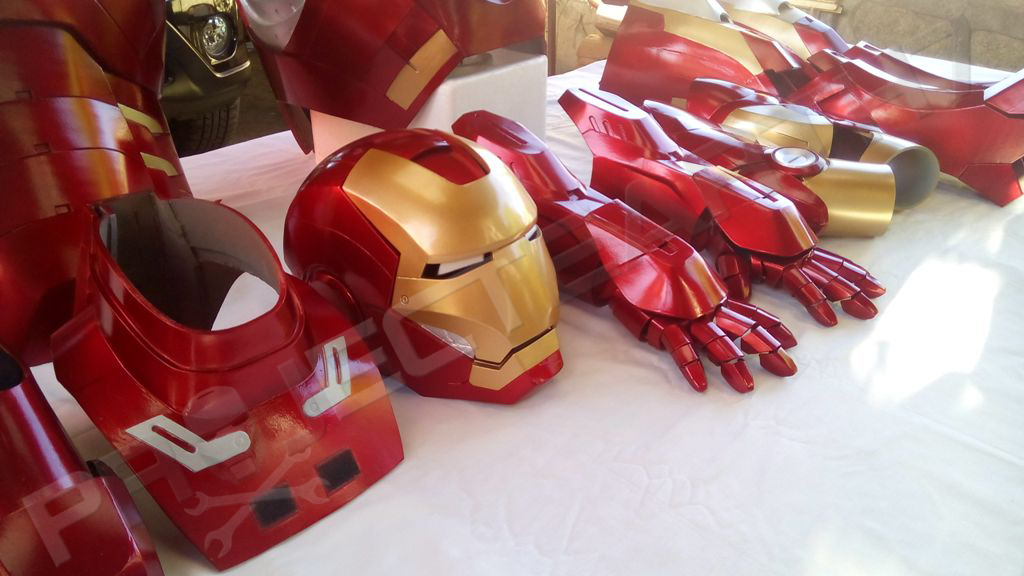

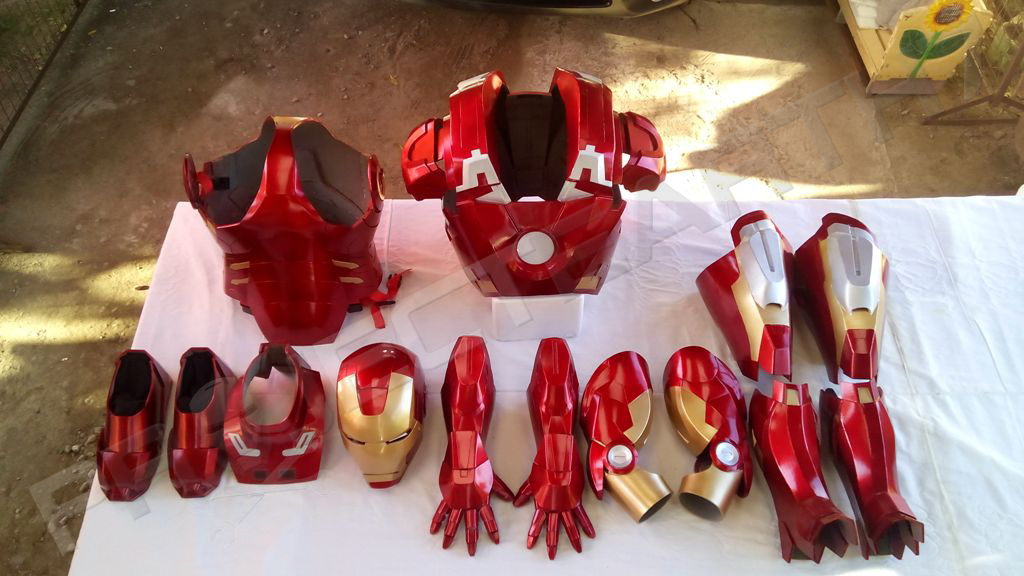

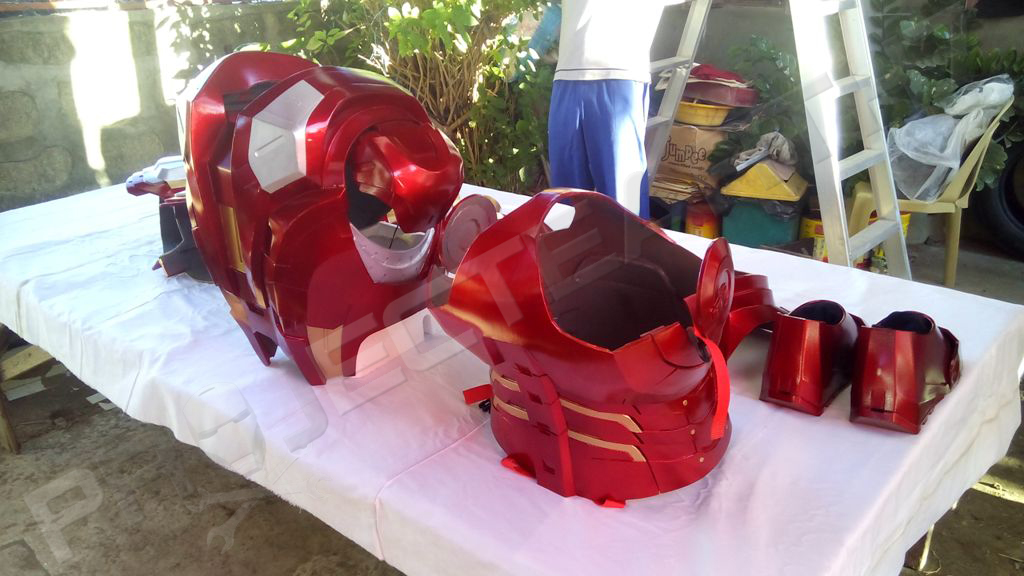

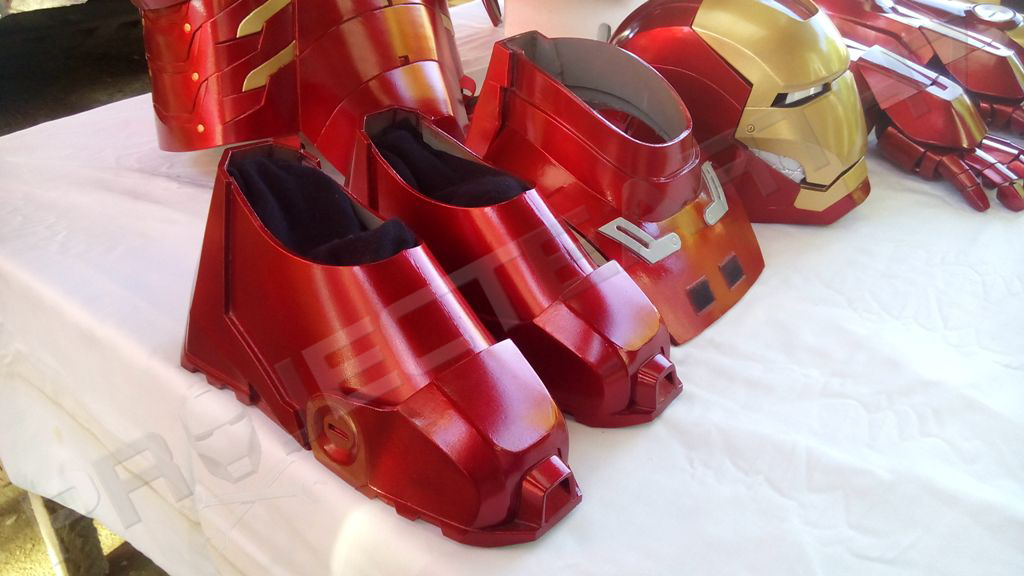

    All parts fully painted
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    More photos to come... :)









    MK7_10.jpg MK7_2.jpg MK7_3.jpg MK7_4.jpg MK7_5.jpg MK7_6.jpg MK7_7.jpg MK7_8.jpg MK7_9.jpg MK7_1.jpg

    creative stress likes this.
  19. pRoJectEarth7

    pRoJectEarth7 Well-Known Member

    Trophy Points:
    866
    Some more photos...

    [​IMG]

    [​IMG]

    Again here is the complete suit...
    [​IMG]

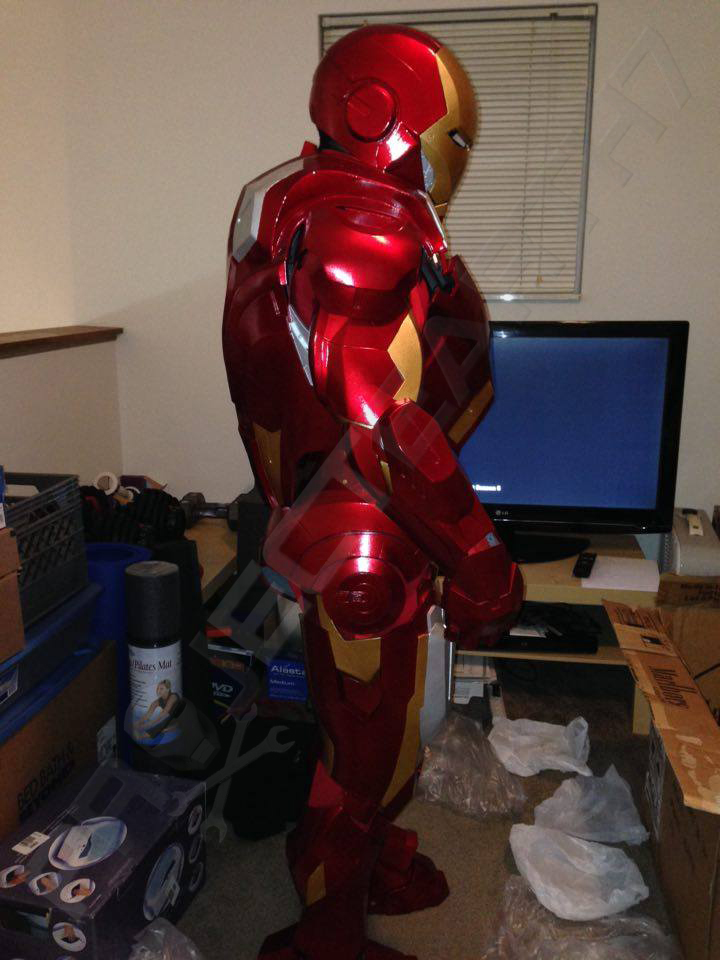

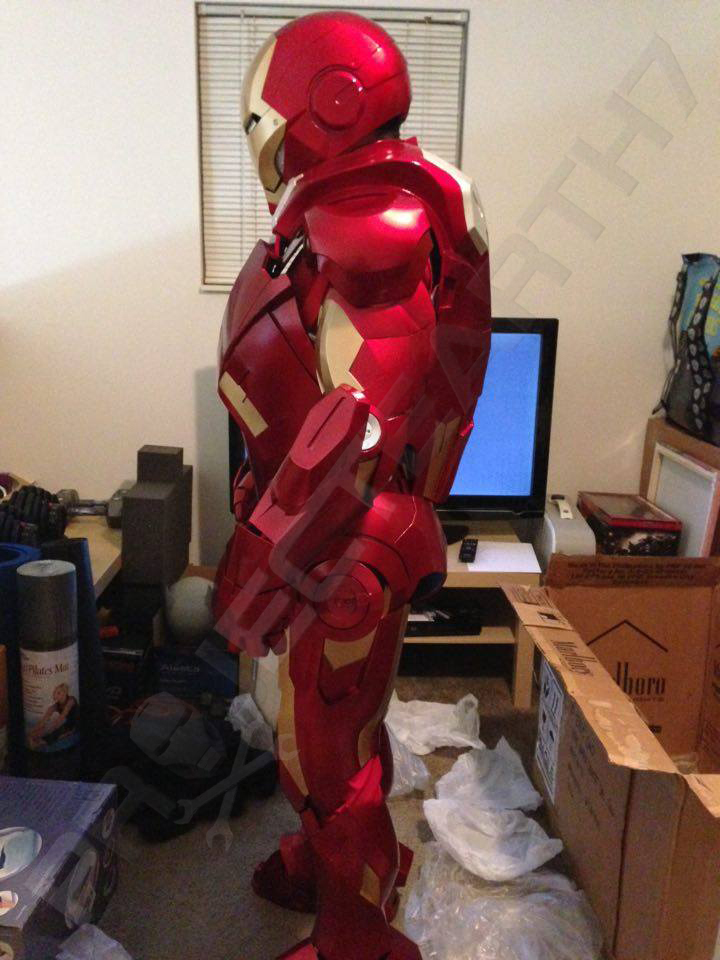

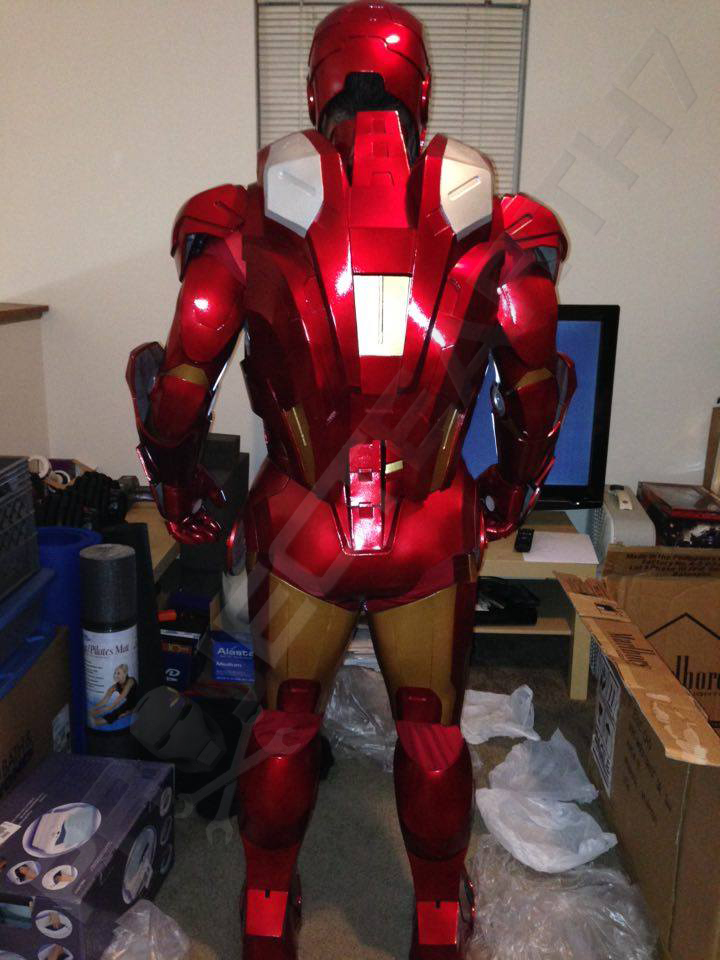

    And now here is our US client fully suited up :):thumbsup
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]


    And here is a video to give you a better look at the complete suit...



    Currently finishing 2 Fully Motorized suit for another client... an MK43 and another MK7 suit.

    Thanks for watching... cheers!!!





    MK7_16.jpg MK7_15.jpg MK7 Full Suit.jpg MK7_14.jpg MK7_13.jpg MK7_12.jpg MK7_11.jpg

    Last edited by a moderator: Nov 8, 2018
    Murdoch likes this.
  20. tijojo98

    tijojo98 Active Member

    Trophy Points:
    467
    What silver paint are you using because I only find silver paint that shine too much like this[​IMG]
