franz bolo

Sr Member
How are people putting theirs together? Here's how I did mine. I machined the brass piece at the front and the aluminum spacer. It all pressure fits together. The sink knob pressure fits on the booster threads as well. My sink knob was gutted when they removed it so I don't have the small square hole part to fit a carriage bolt. The rod is 1/4" 20. The rubber washers that go into the booster help it fit snug.

Here's the replica I'm working on as well. It has a carriage bolt (I grinded the end flat) going through the sink knob replica and then attaches to a 1/4" 20 rod with a 1/4" rod connector. The rod runs up to the front brass piece and tightens up. I need to make an aluminum spacer, this one is teflon.

They are both super solid, no rattling or anything.

All I need to do now is find some vintage washers and tap some screw holes for the transistors. I need to ass screws to the transistors as well. Any clue what type of washer was used on the original?

-


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

JoeG

Master Member
RPF PREMIUM MEMBER
My handwheel is just pressure fit onto the booster. Then, I used Romans hollow clamp spacer to thread the booster on one end and the grenade on the other. A short threaded rod runs from the grenade into an adapter in the balance pipe to tighten everything up.



franz bolo

Sr Member
Cool, what diameter rod is that? Mine was a fine thread and thin so I found a small metal sleeve that I put where the grenade stem is. I prevents the rod from moving and keeps the BP centered.

Can you screw transistors into that clamp spacer? If not, how do people add them? Mine will eventually screw into the spacer after I tap it.


JoeG

Master Member
RPF PREMIUM MEMBER
Not sure what diameter the rod is, but it fits perfectly into the neck of the grenade. When I finally get around to attaching my transistors, I'll be doing it by hollowing out the transistors, gluing a socket head cap screw inside them and then tightening them up with a nut.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

russellsch

Sr Member

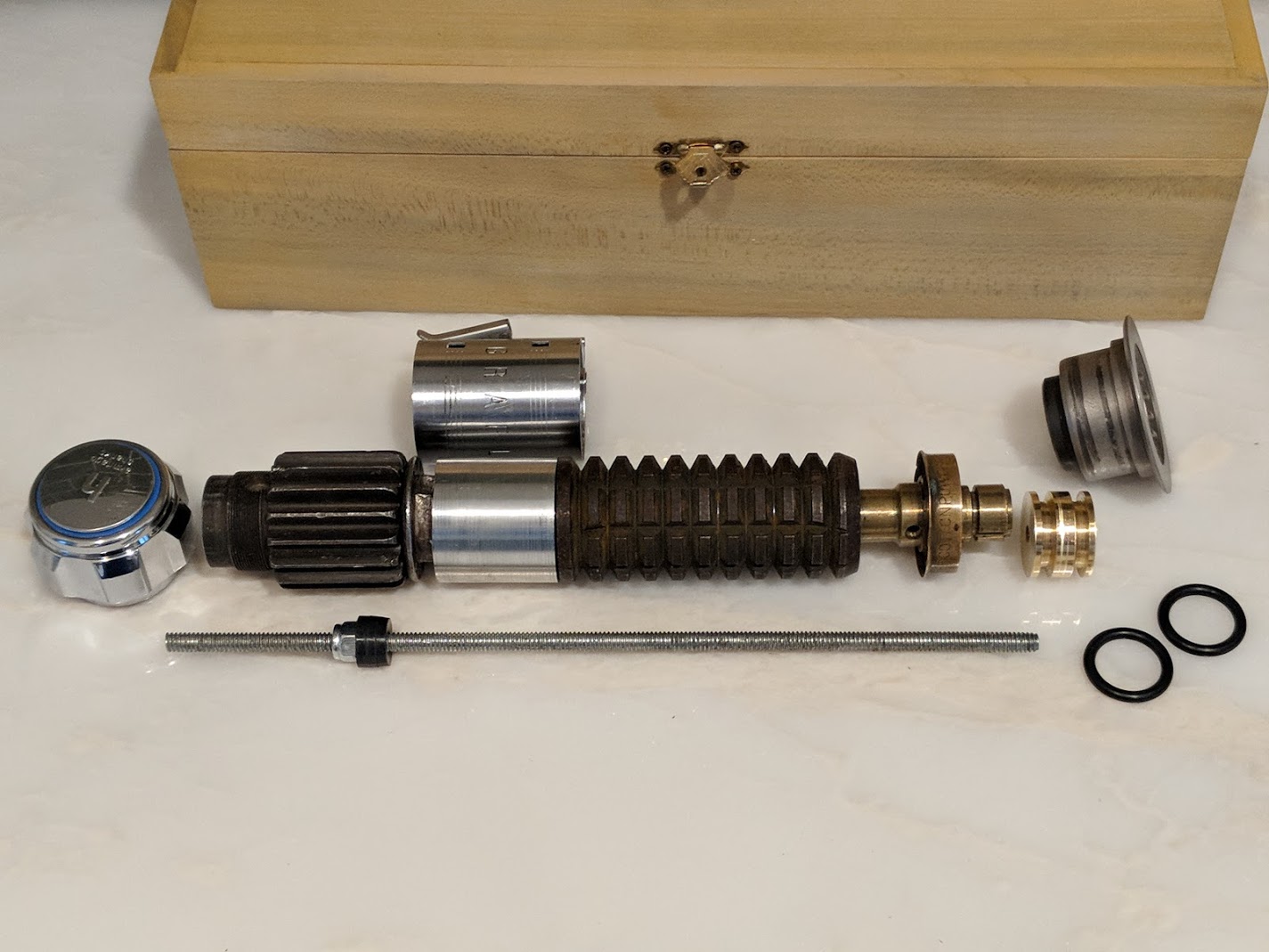

How are people putting theirs together? Here's how I did mine. I machined the brass piece at the front and the aluminum spacer. It all pressure fits together. The sink knob pressure fits on the booster threads as well. My sink knob was gutted when they removed it so I don't have the small square hole part to fit a carriage bolt. The rod is 1/4" 20. The rubber washers that go into the booster help it fit snug.
View attachment 782151

Here's the replica I'm working on as well. It has a carriage bolt (I grinded the end flat) going through the sink knob replica and then attaches to a 1/4" 20 rod with a 1/4" rod connector. The rod runs up to the front brass piece and tightens up. I need to make an aluminum spacer, this one is teflon.
View attachment 782152

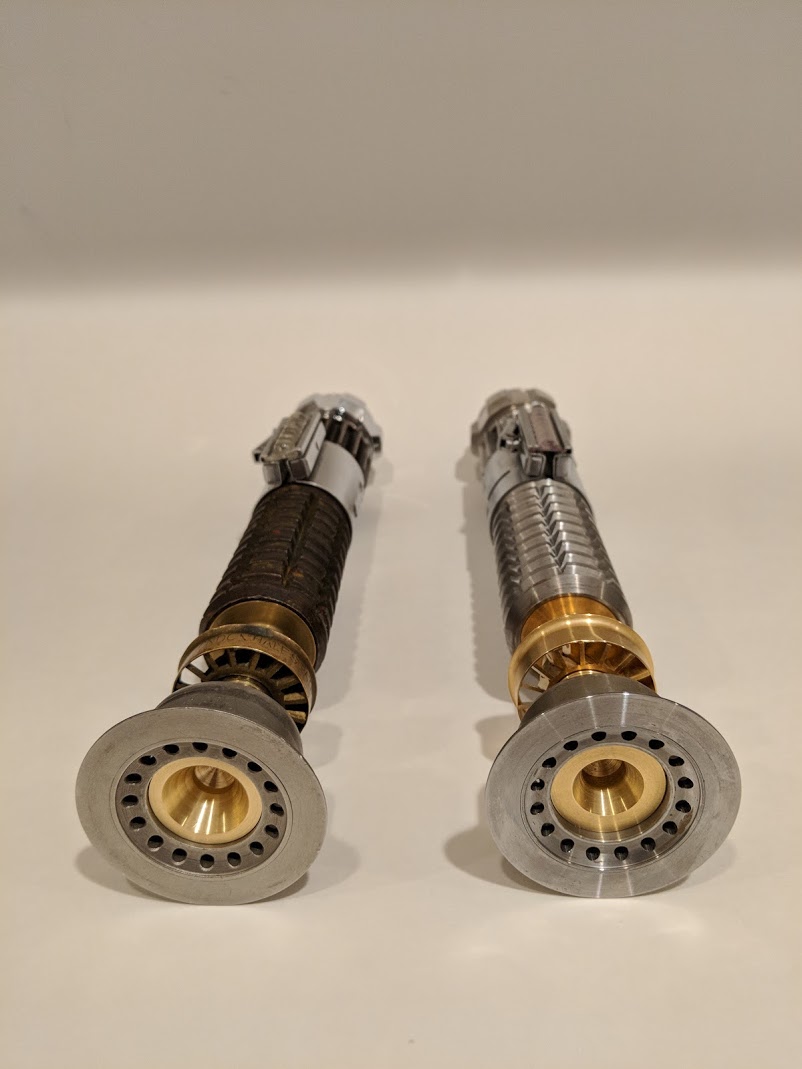

They are both super solid, no rattling or anything.
View attachment 782153

All I need to do now is find some vintage washers and tap some screw holes for the transistors. I need to ass screws to the transistors as well. Any clue what type of washer was used on the original?

-

A gorgeous build Franz. I love the 2 side by side. This is such an iconic piece!
I had Roman pressure fit his threaded adapter into the balance pipe he surgically altered for me.
Roman is the man!
I only need the booster, & I'll have mine finished!


ms80444

Active Member
RPF PREMIUM MEMBER
Afternoon all. Fantastic builds here; very inspiring how you’ve all managed to get this stuff together.

I’m working on my own and it’s coming along, slowly but surely. figured I’d join in on the fun and document my progress. Need to get the AS wheel chromed and obviously still need a balance pipe and booster, as I know many do. But if anyone has any leads, please let me know! Cheers!




Sent from my iPhone using Tapatalk
