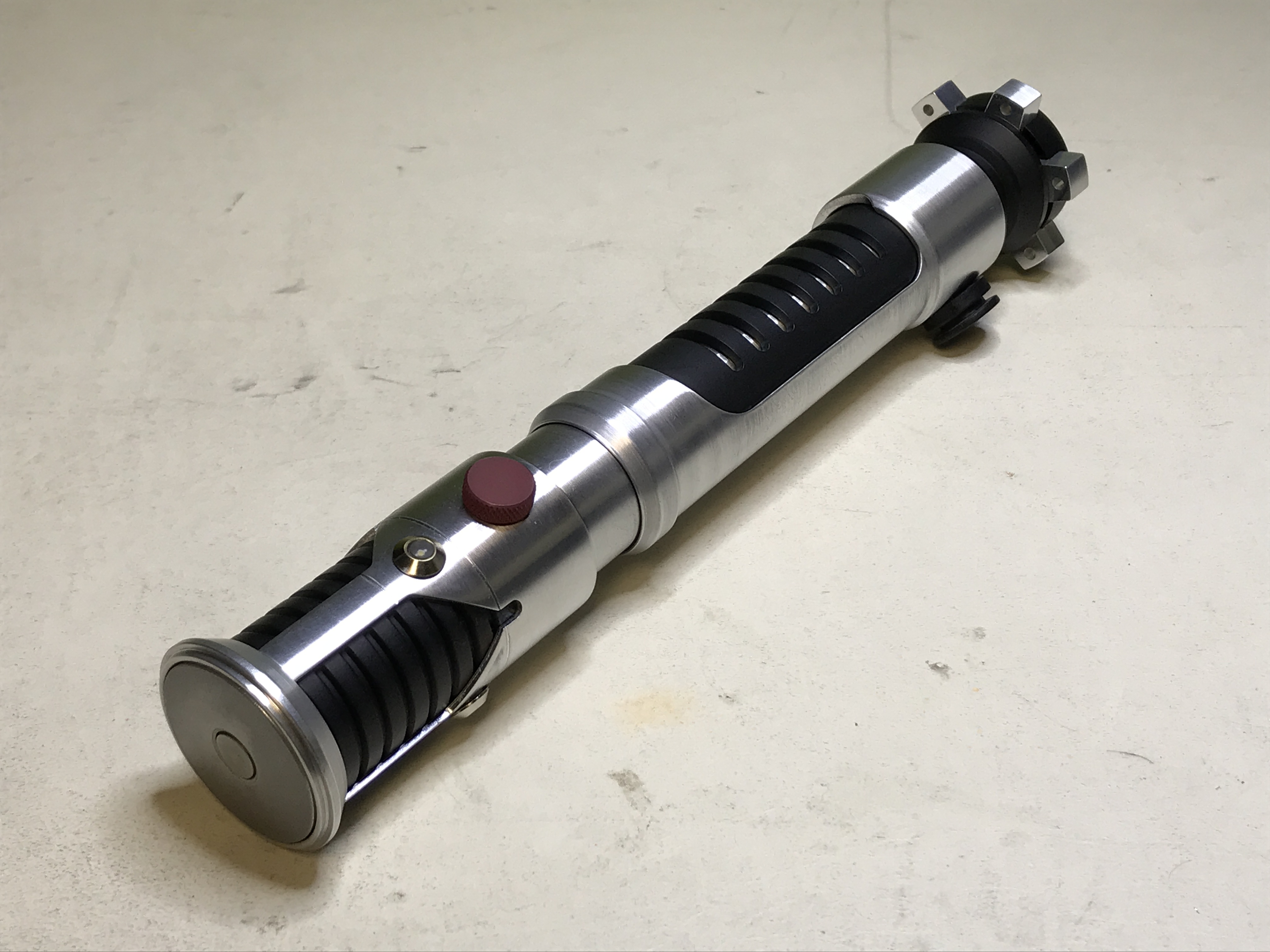

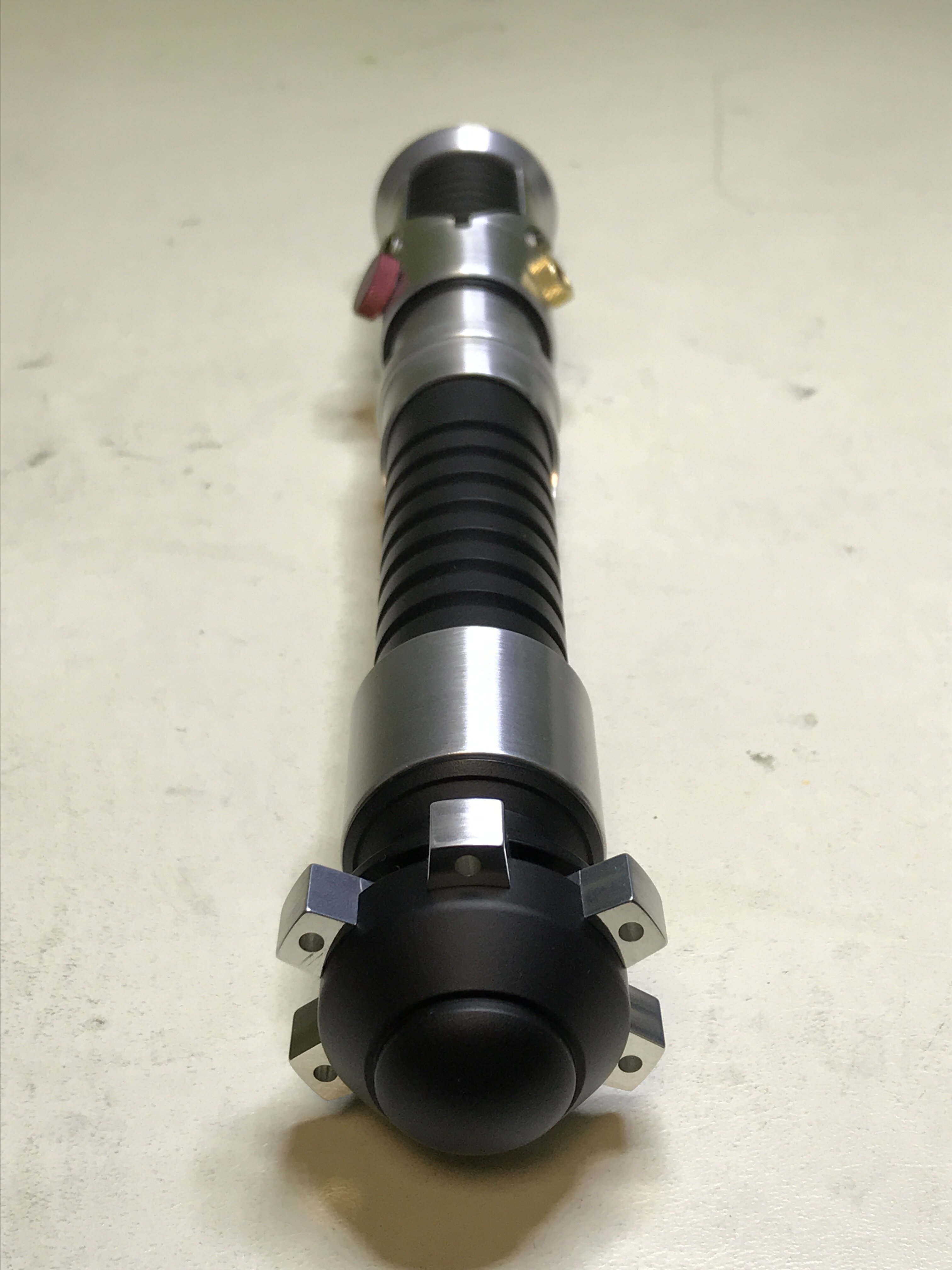

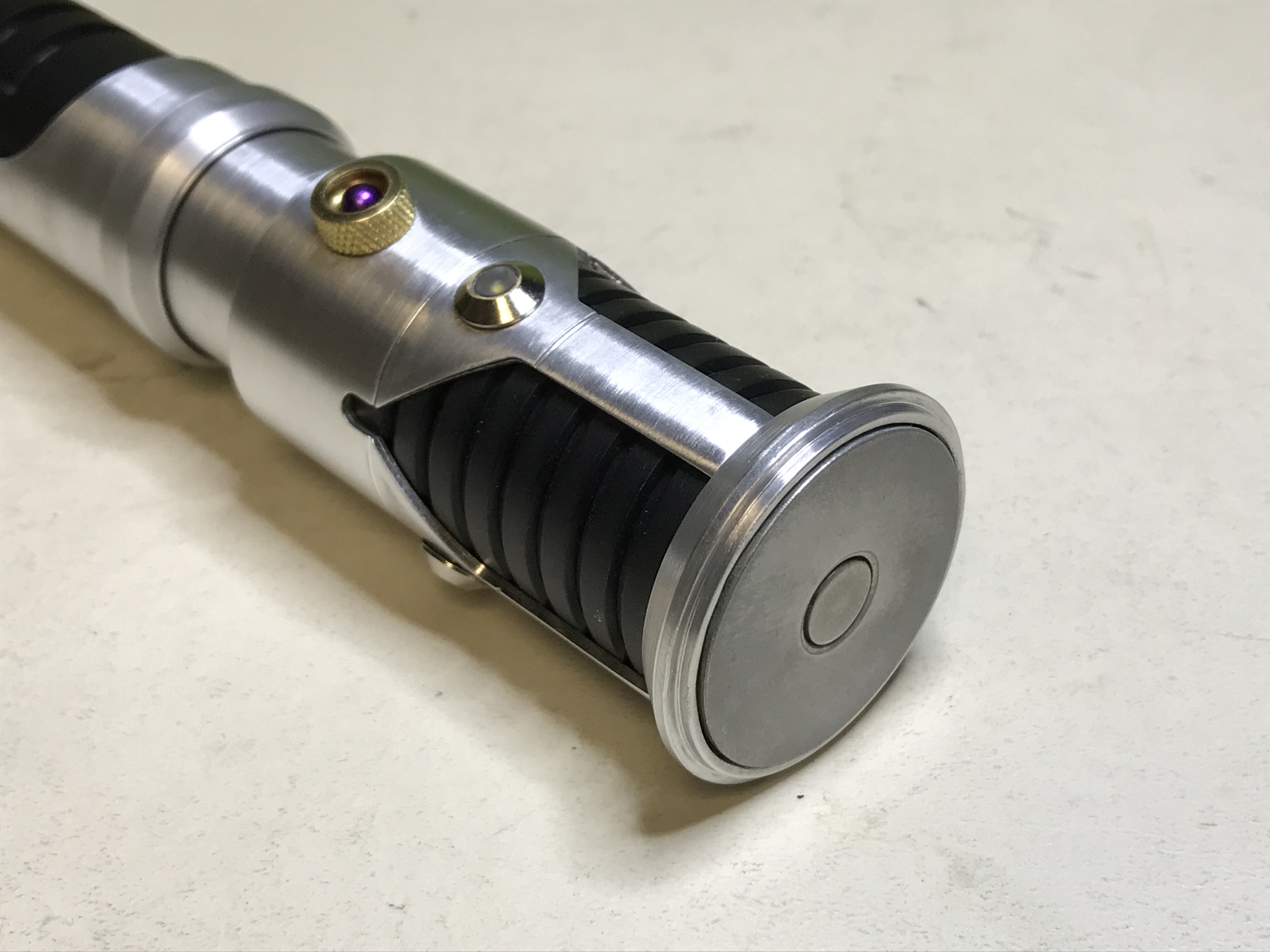

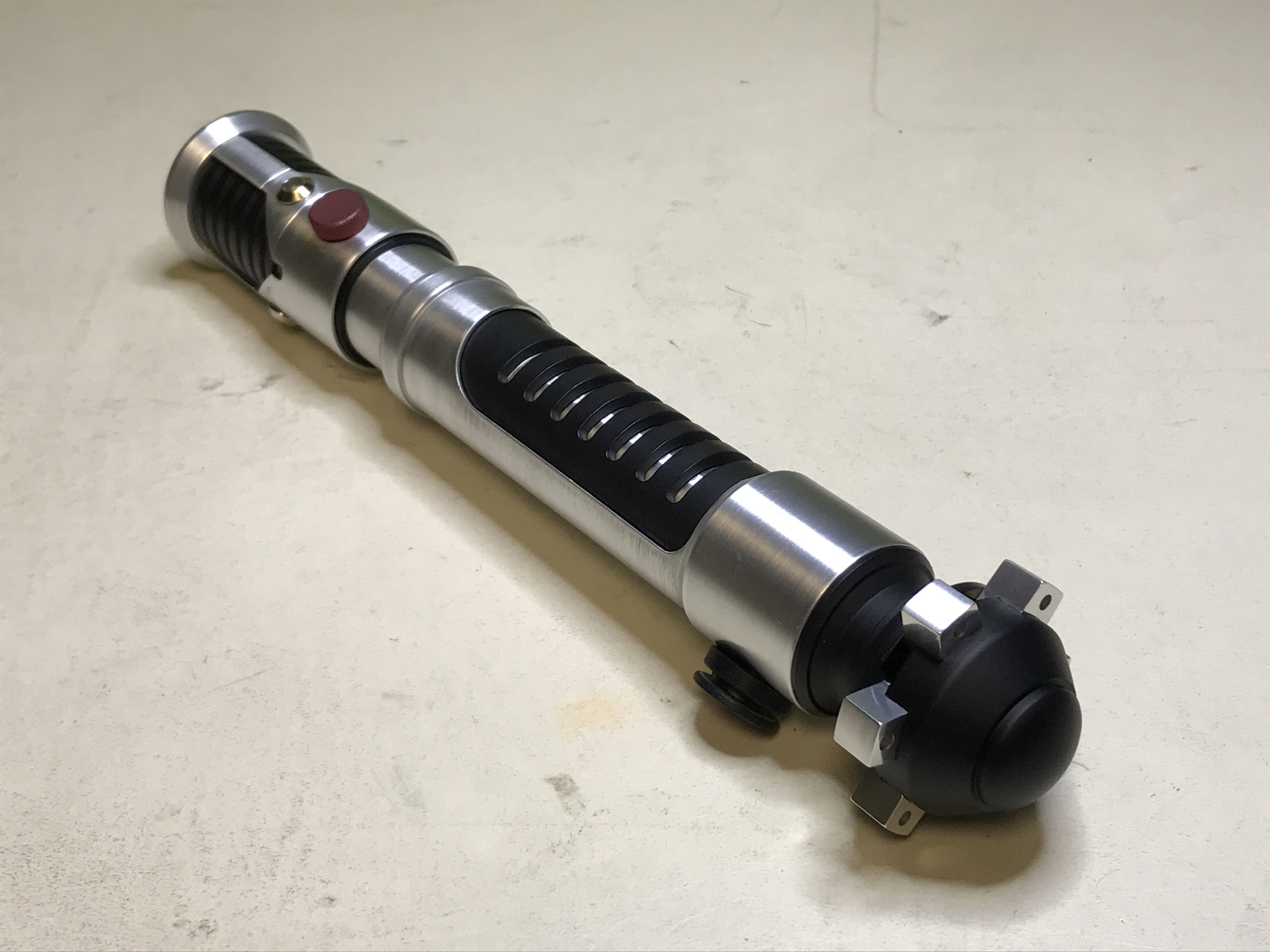

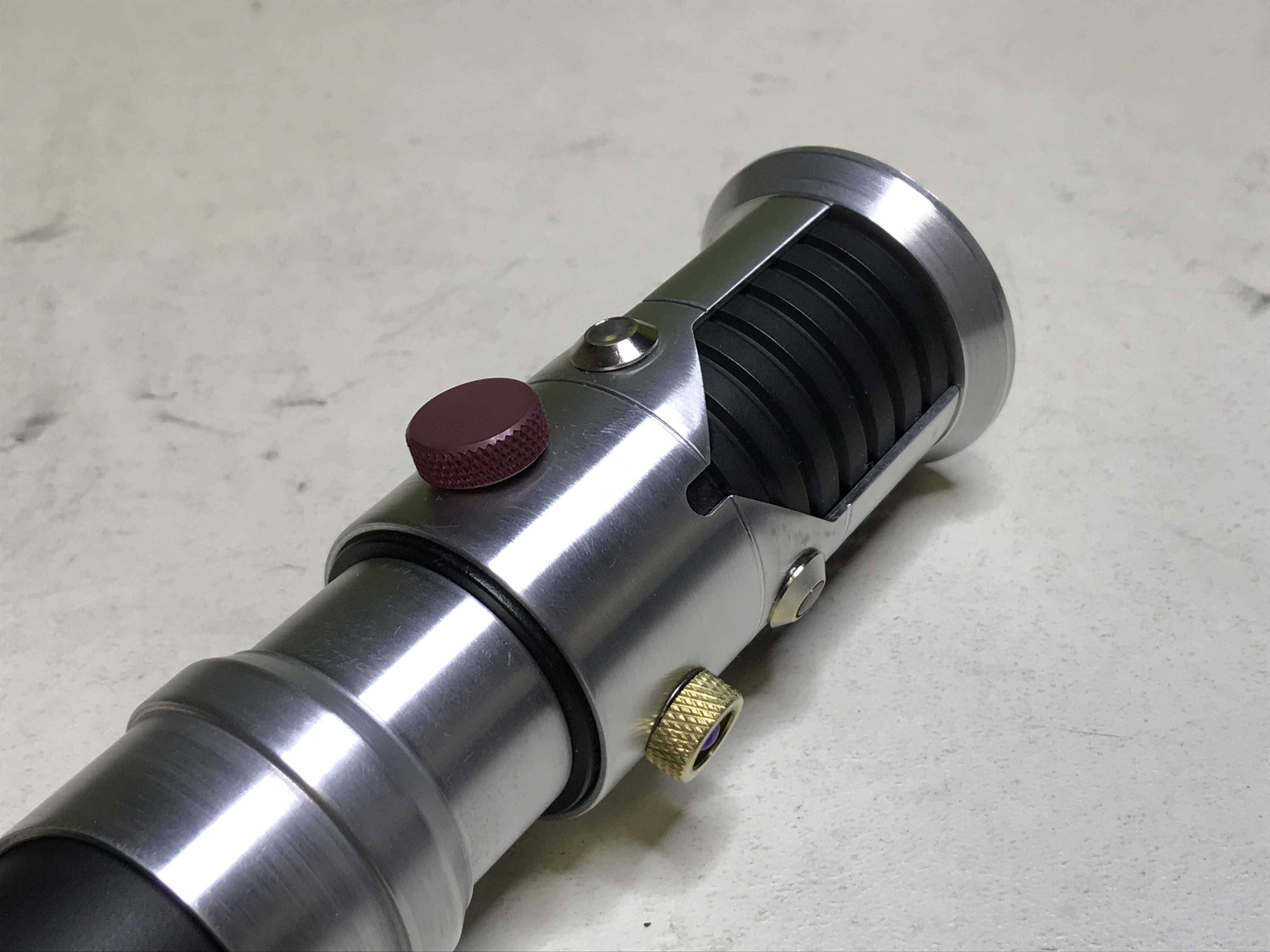

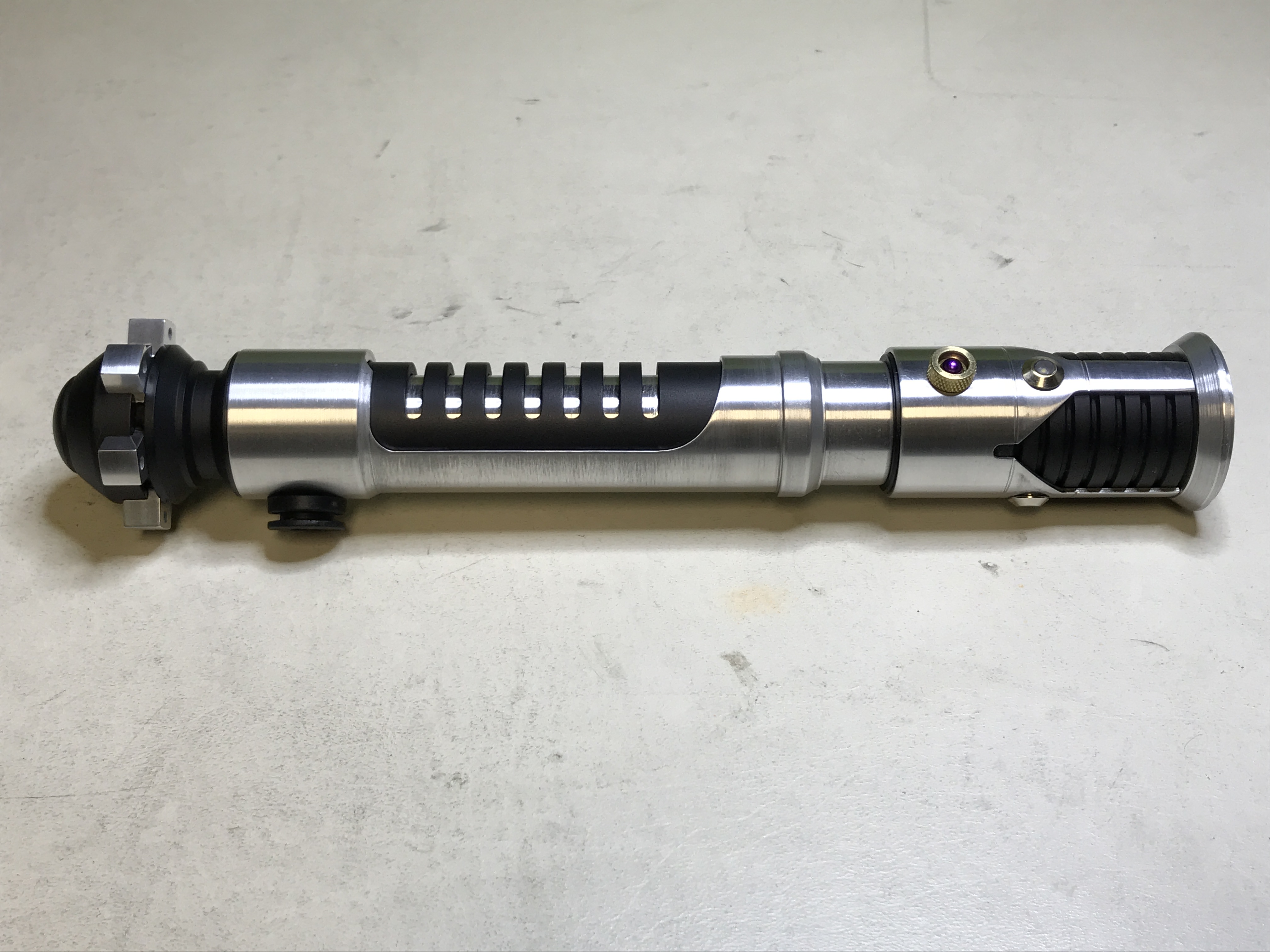

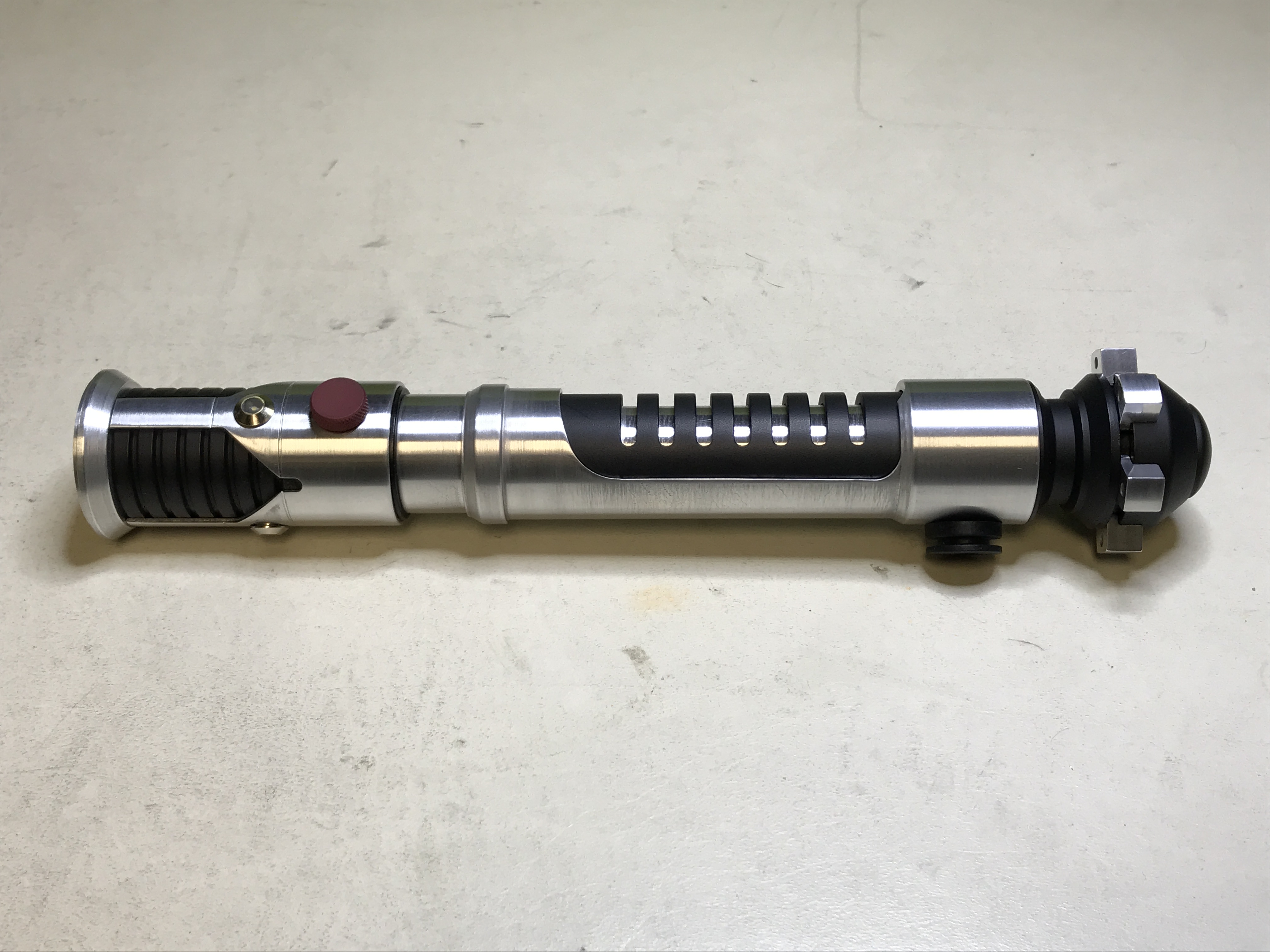

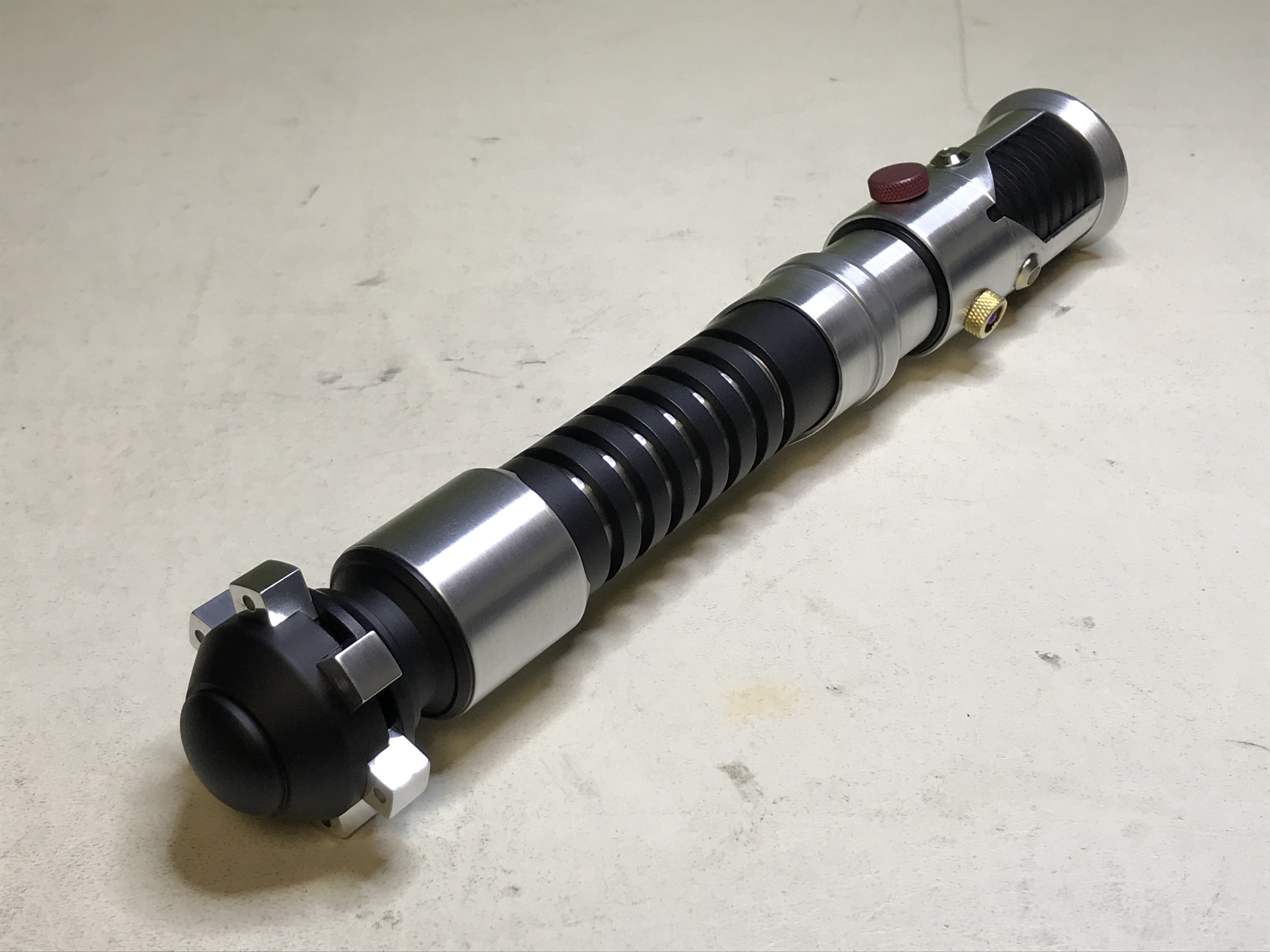

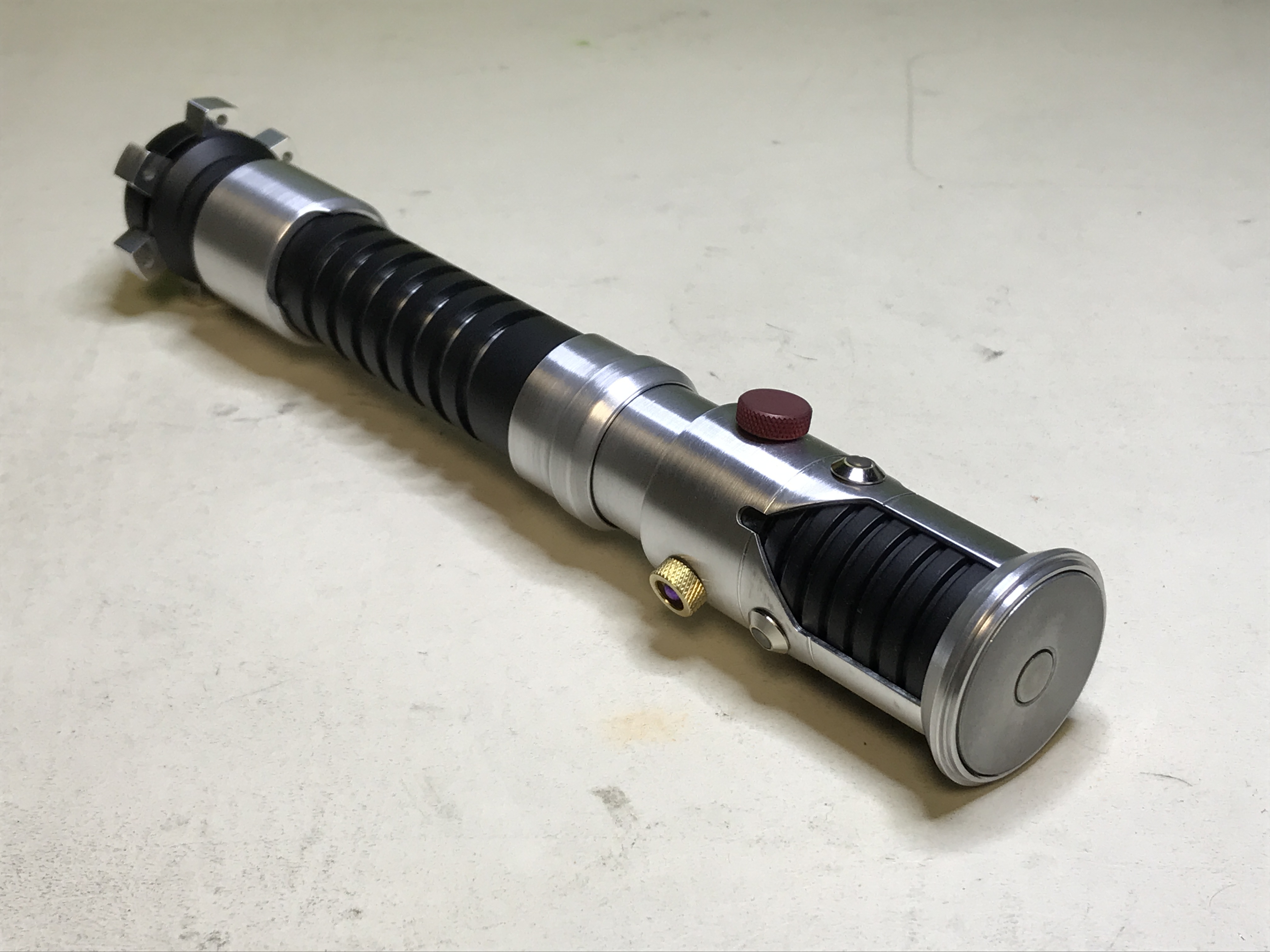

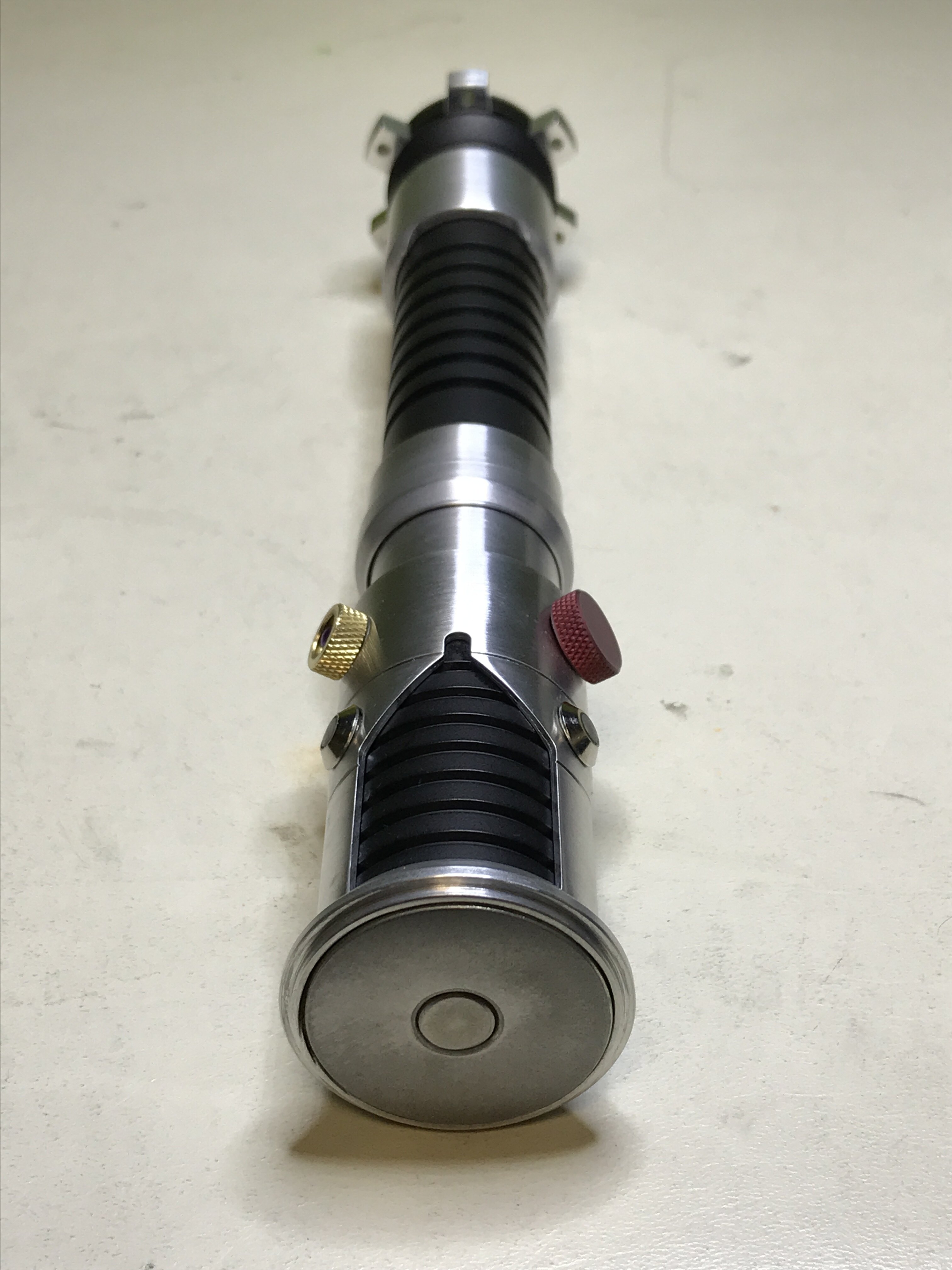

Hey everyone! Here's my latest lockdown project: a TPM OWK that I've modified to be as accurate to the screen-used hero prop as possible.

The greeblies that came with the kit were pretty much all discarded and replaced with found items (including the fender washer & steel rod in the emitter)

The kit itself was also modified a lot; for example, I've painted the anodized parts in flat black and replaced the cubes and the pommel tip.

Anyway, I'm pretty glad with the end result. Let me know what you think!
