Need help with rewiring a 14th doctor sonic toy to add petal lights

ro10

New Member
I'm in the process of making my own 14th sonic replica and I'm trying to add more leds on the ends of the petals but I have very little knowledge of electronics. I tried replacing the batteries to increase the voltage but it still doesn't seem to work. any help would be appreciated!

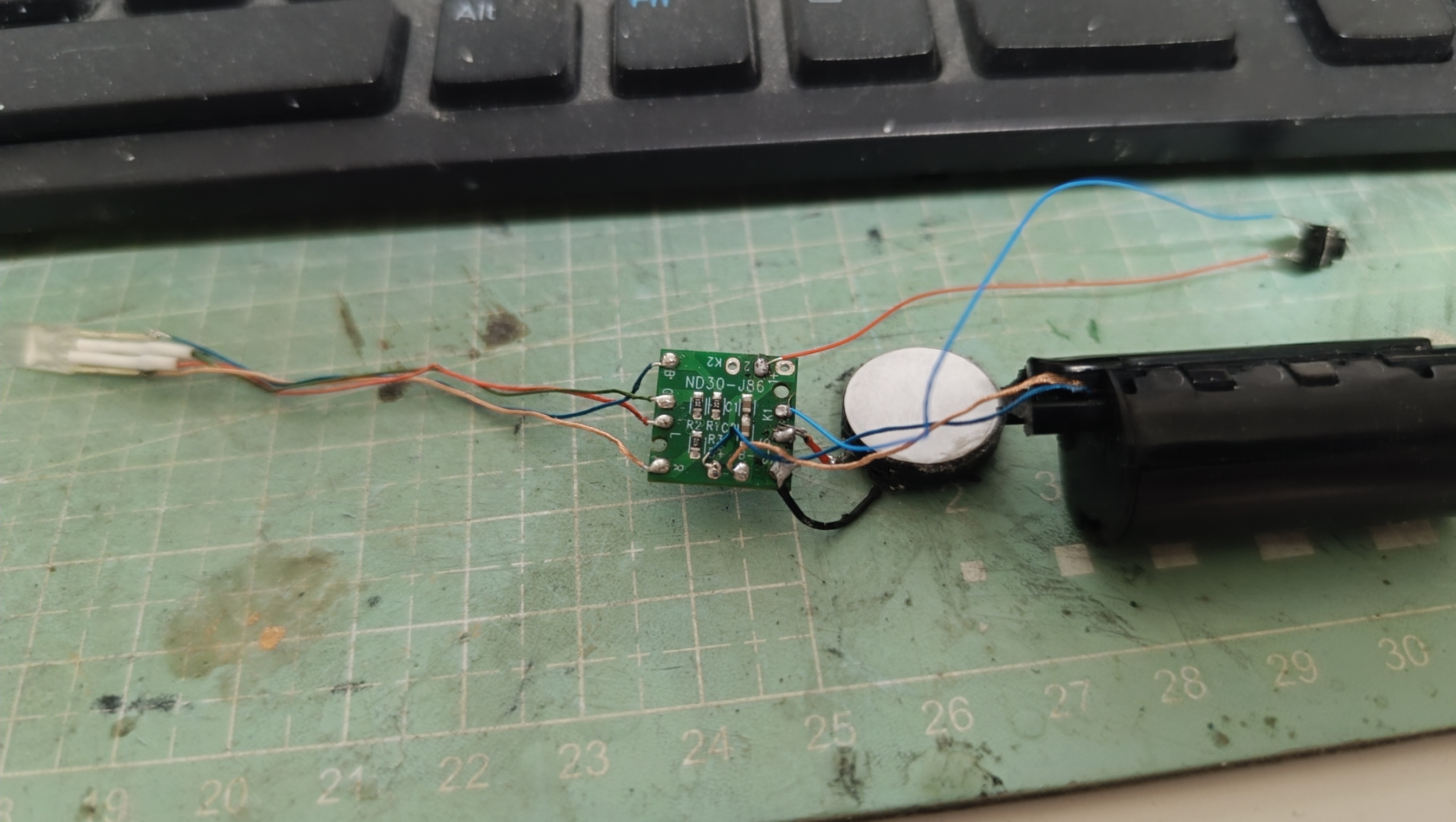

attatched is a picture of the internals of the toy


Attachments

  • IMG_20240609_221930.jpg
    987 KB · Views: 16
I'm in the process of making my own 14th sonic replica and I'm trying to add more leds on the ends of the petals but I have very little knowledge of electronics. I tried replacing the batteries to increase the voltage but it still doesn't seem to work. any help would be appreciated!
attatched is a picture of the internals of the toy
View attachment 1831124
First, you really need at least 3.2 volts for white and blue leds and usually 3.5 to 5 volts for Neopixals, that button cell only delivers 3.0 volts. I also I'm not sure how you have the battery hooked up now. Can you take a good picture of the otherside
